Teac CD-H750, Compact Disc Player User Manual

CQX1A1710Z

CD-H750

ENGLISH

Compact Disc Player

OWNER’S MANUAL

MODE D’EMPLOI

MANUAL DEL USUARIO

FRANÇAIS

ESPAÑOL

IMPORTANT SAFETY PRECAUTIONS

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

DO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO EXPOSE THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE INSIDE.

For U.S.A.

This equipment complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause interference and 2) This device must accept any interference, including interference that may cause undesired operation of the device.

Information to the user:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the equipment and/or the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

CAUTION

Changes or modifications to this equipment not expressly approved by TEAC CORPORATION for compliance will void the user’s warranty.

IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT, CONTACT TEAC FOR A SERVICE REFERRAL. DO NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

IN NORTH AMERICA USE ONLY ON 120 V SUPPLY.

Supply of this product does not convey a license nor imply any right to distribute MPEG Layer-3 compliant content created with this product in revenue-generating broadcast systems (terrestrial, satellite, cable and/or other distribution channels), streaming applications (via Internet, intranets and/or other networks), other content distribution systems (pay-audio or audio-on-demand applications and the like) or on physical media (compact discs, digital versatile discs, semiconductor chips, hard drives, memory cards and the like). An independent license for such use is required. For details, please visit http://mp3licensing.com.

MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

"Made for iPod" and "Made for iPhone" mean that an electronic accessory has been designed to connect specically to iPod or iPhone, respectively, and has been certied by the developer to meet Apple performance standards.

Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with iPod or iPhone may aect wireless performance.

Apple and iPod are trademarks of Apple Inc., registered in the U.S. and other countries.

For Canada

Industry Canada’s Compliance Statement: This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Other company names, product names and logos in this document are the trademarks or registered trademarks of their respective owners.

IMPORTANT SAFETY INSTRUCTIONS

Optical pickup

Type : EP-C101 Manufacturer : Ever Bright Technology and Science

Electronical Co.,Ltd Laser output : Less than 1mW on the objective lens Wavelength : 790±25 nm

Q Precautions concerning batteries

Misuse of batteries could cause them to rupture or leak leading to fire, injury or the staining of nearby things. Please read and observe the following precautions carefully.

o Be sure to insert the batteries with correct positive (+) and

negative (_) orientations.

o Use batteries of the same type. Never use different types of bat-

teries together.

o If the remote control is not used for a long time (more than a

month), remove the batteries to prevent them from leaking.

o If the batteries leak, wipe away the leakage inside the battery

compartment and replace the batteries with new ones.

o Do not use batteries of types other than those specified. Do not

mix new batteries with old ones or use different types of batteries together.

o Do not heat or disassemble batteries. Never throw batteries into

fire or water.

o Do not carry or store batteries with other metallic objects. The

batteries could short circuit, leak or explode.

o Never recharge a battery unless it is confirmed to be a recharge-

able type.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or groundingtype plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

The apparatus draws nominal non-operating power from the AC outlet with its POWER or STANDBY/ON switch not in the ON position.

The mains plug is used as the disconnect device, the disconnect device shall remain readily operable.

Caution should be taken when using earphones or headphones with the product because excessive sound pressure (volume) from earphones or headphones can cause hearing loss.

CAUTION

Do not expose this apparatus to drips or splashes.

Do not place any objects filled with liquids, such as vases, on the apparatus.

Do not install this apparatus in a confined space such as a book case or similar unit.

The apparatus should be located close enough to the AC outlet so that you can easily reach the power cord plug at any time.

If the product uses batteries (including a battery pack or installed batteries), they should not be exposed to sunshine, fire or excessive heat.

CAUTION for products that use replaceable lithium batteries: there is danger of explosion if a battery is replaced with an incorrect type of battery. Replace only with the same or equivalent type.

WARNING

Products with Class construction are equipped with a power supply cord that has a grounding plug. The cord of such a product must be plugged into an AC outlet that has a protective grounding connection.

For European Customers

Pb, Hg, Cd

Disposal of electrical and electronic equipment

(a) All electrical and electronic equipment should be disposed

of separately from the municipal waste stream via collection facilities designated by the government or local authorities.

(b) By disposing of electrical and electronic equipment

correctly, you will help save valuable resources and prevent any potential negative effects on human health and the environment.

(c)

Improper disposal of waste electrical and electronic equipment can have serious effects on the environment and human health because of the presence of hazardous substances in the equipment.

(d)

The Waste Electrical and Electronic Equipment (WEEE) symbol, which shows a wheeled bin that has been crossed out, indicates that electrical and electronic equipment must be collected and disposed of separately from household waste.

(e)

Return and collection systems are available to end users. For more detailed information about the disposal of old electrical and electronic equipment, please contact your city office, waste disposal service or the shop where you purchased the equipment.

Disposal of batteries and/or accumulators

(a) Waste batteries and/or accumulators should be disposed of

separately from the municipal waste stream via collection facilities designated by the government or local authorities.

(b) By disposing of waste batteries and/or accumulators

correctly, you will help save valuable resources and prevent any potential negative effects on human health and the environment.

(c)

Improper disposal of waste batteries and/or accumulators can have serious effects on the environment and human health because of the presence of hazardous substances in them.

(d) The WEEE symbol, which shows a wheeled bin that

has been crossed out, indicates that batteries and/ or accumulators must be collected and disposed of separately from household waste.

If a battery or accumulator contains more than the specified

values of lead (Pb), mercury (Hg), and/or cadmium (Cd) as defined in the Battery Directive (2006/66/EC), then the chemical symbols for those elements will be indicated beneath the WEEE symbol.

(e) Return and collection systems are available to end users.

For more detailed information about the disposal of waste batteries and/or accumulators, please contact your city office, waste disposal service or the shop where you purchased them.

Contents

Before use

Thank you for choosing TEAC. Read this manual carefully to get the best performance from this unit.

Before use ........................................................5

Discs .............................................................6

MP3 and WMA ...................................................7

Using an iPod/iPhone ............................................7

USB flash drives ..................................................7

Connections .....................................................8

Part names (main unit) ...........................................9

Part names (remote control) .................................... 10

Remote control unit ............................................ 11

About the ErP .................................................. 12

Basic operation ................................................. 13

Listening to a CD ............................................... 14

Listening to files on a USB flash drive ........................... 15

Listening to an iPod/iPhone .................................... 16

Playback (1) ....................................................16

Programmed playback (1) ...................................... 19

Shuffle playback ................................................ 21

Repeat playback ................................................ 22

Time ........................................................... 23

Display (1) ...................................................... 23

Before recording ............................................... 24

Setting the Recoding Mode ....................................25

Recording to a USB flash drive ..................................26

Deleting a file from a USB flash drive ............................ 27

Restoring factory settings .......................................27

Troubleshooting ............................................... 28

Specifications ..................................................29

Read this before operation

< Avoid placing the unit in direct sunlight or close to any source of

heat, such as radiators, heaters, open fireplaces, amplifiers, etc. Also avoid locations that are subject to vibrations or exposed to excessive dust, cold or moisture.

< Place the unit in a stable location near the audio system that you

will use.

< Do not move the unit during playback. < During playback, the disc rotates at high speed. Do not lift or move

the unit during playback. Doing so may damage the disc or the unit.

< Be careful to avoid injury when moving the unit due to its weight.

Get someone to help you if necessary.

< The voltage supplied to the unit should match the voltage as

printed on the rear panel. If you are in any doubt regarding this matter, consult an electrician.

< As the unit could become warm during operation, always leave

sufficient space around it for ventilation. When placing this unit, position it so that it is at least 30 cm (12" ) from walls and other devices in order to allow good heat dissipation. When installing it in a rack, leave at least 30 cm (12" ) open above and behind the unit.

< Do not open the cabinet as this might result in damage to the

circuitry or cause electric shock. If a foreign object should get into the unit, contact your dealer or service company.

< When removing the power plug from the wall outlet, always pull

directly on the plug, never yank on the cord.

< Always remove the disc before relocating or moving this unit.

Moving the unit with a disc inside could cause a malfunction.

< Depending on the electromagnetic waves of television broadcasts,

interference might appear on television screens when this unit’s power is on. This does not indicate that this unit or the TV is malfunctioning. If this occurs, put the unit in standby.

DO NOT MOVE THE UNIT DURING PLAYBACK

During playback, the disc rotates at a high speed. Do NOT lift or move the unit during playback. Doing so may damage the disc.

ENGLISH

WHEN MOVING THIS UNIT

When changing the place of installation or packing the unit for moving, be sure to remove the disc and return the disc table to its original position in the player. Then, press the STANDBY/ON button to put the unit in standby, and disconnect the power cord. Moving this unit with a disc loaded may result in damage to this unit.

Maintenance

If the surface of the unit gets dirty, wipe it with a soft cloth or use diluted mild liquid soap. Allow the surface of the unit to dry completely before using.

Q For safety, disconnect the power cord from the socket before

cleaning.

p Never spray liquid directly on this unit.

p Do not use thinner or alcohol as they could damage the surface of

the unit.

p Avoid allowing rubber or plastic materials to touch this product for

long periods of time, because they could damage the cabinet.

Discs

Discs that can be played by this unit

CDs that bear the “COMPACT disc DIGITAL AUDIO” logo.

< 12cm (4.7" ) or 8cm (3.15") discs < Linear PCM digital audio

Audio CDs are divided into tracks.

CD-R and CD-RW discs that have been correctly recorded in the audio CD format (CD-DA) and finalized.

This unit can play these types of discs without an adapter. It cannot play any other type of disc.

Q Playback of any other disc type could result in an unpleasant loud

noise, damage to the speakers as well as potential harm to your hearing. Never play back any other type of disc.

< The logo should be on the disc label or the CD jacket.

< DVDs, Video CDs, DVD-ROMs, CD-ROMs and similar types of discs

cannot be played on this unit.

< Copy-protected discs and other discs that do not conform to

the CD standard might not play correctly in this player. If you use such discs in this unit, TEAC and its subsidiaries will not be responsible for any consequences or guarantee the quality of reproduction. If you experience problems with such nonstandard discs, you should contact their issuers.

< Discs created by a CD recorder must be finalized before use with

this unit. If you are uncertain about the handling of a CD-R or CD-RW disc, please contact the seller of the disc directly.

Depending on disc quality and recording conditions, playback of some discs might not be possible. Please see the manual for the device that you used to create the disc.

Handling precautions

< Always insert the disc into the disc tray with the label side up. Only

one side of a Compact Disc can be played or used for recording.

CAUTION

< Do not play any disc that is warped, deformed or damaged.

Playing such discs could cause irreparable harm to the playing mechanisms.

< While printable CD-R and CD-RW discs utilizing modern printing

technologies are generally acceptable, older systems that use adhesives to attach paper type labels to the disc surface are not recommended.

< Do not stick papers or protective sheets on the discs and do not

use any protective coating sprays.

< Never use a stabilizer. Using commercially available CD stabilizers

with this unit will damage the mechanisms and cause them to malfunction.

< Do not use irregularly-shaped discs (octagonal, heart-shaped,

business-card-size, etc.) CDs with these shapes could damage the unit.

Storage precautions

< Discs should be returned to their cases after use to avoid dust and

scratches that could cause the laser pickup to “skip”.

< Do not expose discs to direct sunlight or high temperature

and humidity for extended periods. Long exposure to high temperatures will warp discs.

< CD-R and CD-RW discs are more sensitive to the effects of heat

and ultraviolet rays than ordinary CDs. It is important that they are not stored in locations where they will be exposed to direct sunlight. They should also be kept away from sources of heat, such as radiators and heat-generating electrical devices.

Maintenance

< If a disc becomes dirty, wipe its surface radially from the center

hole outward towards the outer edge with a soft, dry cloth.

< To remove a disc from its storage case, press down on the center

of the case and lift the disc out, holding it carefully by the edges.

How to remove the disc How to hold the disc

< Never clean discs using chemicals such as record sprays, antistatic

sprays and fluids, and thinner. Such chemicals will do irreparable damage to the disc’s plastic surface.

If you are in any doubt as to the care and handling of a disc, read the precautions supplied with the disc or contact the disc manufacturer.

MP3 and WMA

USB flash drives

< This unit can play audio files that are on external USB flash drives.* USB flash drives must be formatted as FAT 16 or FAT 32, but not

NTFS.

* The USB port on this unit only supports USB flash drives (also known

as “thumb drives” and “jump drives”). It does not support standard USB hard drives.

< When more than 2000 files are recorded on the USB flash drive, the

unit might not be able to play them correctly.

< File names of MP3 or WMA files should be in alphanumeric

characters. This unit cannot display symbols or full-size or doublebyte characters (such as Japanese, Chinese, etc.) correctly. Also, be sure to use the file extension. (“.mp3” for MP3 files, “.wma” for WMA files.)

< MP3 files are mono or stereo MPEG-1 Audio Layer 3 format. This

unit can play MP3 files with a sampling frequency of 16 kHz to 48 kHz, and a bit-rate of 8 kbps to 320 kbps.

< This unit can play WMA files with a sampling frequency of 32 kHz,

44.1 kHz or 48 kHz and a bit-rate of 48 kbps to 192 kbps.

WMA stands for Windows Media Audio. < Audio encoded at 128 kbps should sound close to regular audio

CD quality. Although this player will play lower bit-rate MP3 files, the sound quality becomes noticeably worse at lower bit-rates.

Using an iPod/iPhone

This unit has two modes. In Direct Mode, the iPod/iPhone menu is shown on the iPod/iPhone screen. In Extended Mode, the iPod/ iPhone menu is shown on this unit’s screen. By default, this unit is set to Direct Mode. For instructions about how to change this mode, see “Changing the display mode” on page 24.

Compatible iPod/iPhone models

iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G iPod touch (1st, 2nd, 3rd and 4th generation) iPod nano (3rd, 4th, 5th and 6th generation)

CAUTION

Never put the unit in standby or disconnect a USB flash drive when it is being accessed, for example, during writing, playback, recording or the erasure of files. Doing so could damage the CD-H750 and the connected USB flash drive.

USB devices that can be used with this unit

This unit can play audio files that are on external USB flash drives*.

* The USB port on this unit only supports USB flash drives (also known

as “thumb drives” and “jump drives”). It does not support standard USB hard drives.

Compatibility

< Use a USB flash drive with power consumption of less than 500mA.

(When an iPhone is connected, it will be charged at 1A.)

< Some flash memory players that charge from a USB terminal

cannot be used for playback.

< Playable formats: FAT16, FAT32 < NTFS, HFS and HFS+ formats cannot be used. < Max number of playable folders: 99 < Max number of playable/recordable files: 2000 < Depending on the conditions of a USB flash drive, this unit might

not be able to play the files on it or skipping might occur.

< Do not use devices that have a maximum current consumption of

more than 500 mA.

< Do not use devices that have security functions or other special

functions.

< Do not use devices that have been divided into two or more

partitions.

< Do not use a USB hub between this unit and the USB flash drive. < Proper operation might not be possible depending on the

characteristics of the device.

< This unit cannot copy or move files that are stored on the USB flash

drive.

Recording

This unit can record sound from CDs to USB flash drives in MP3 format. See page26 for details.

ENGLISH

< See page 24 for information about the Display mode.

< This unit cannot output video from a connected iPod/iPhone.

< To connect an iPod/iPhone, use the USB cable supplied with the

iPod/iPhone.

< An iPod shuffle connected to this port cannot be played.

Compatible iPod/iPhone Software

In case your iPod/iPhone will not work with CD-H750 or with the remote control unit, a software update may solve the problem. Visit the Apple website and download the latest iPod/iPhone software.

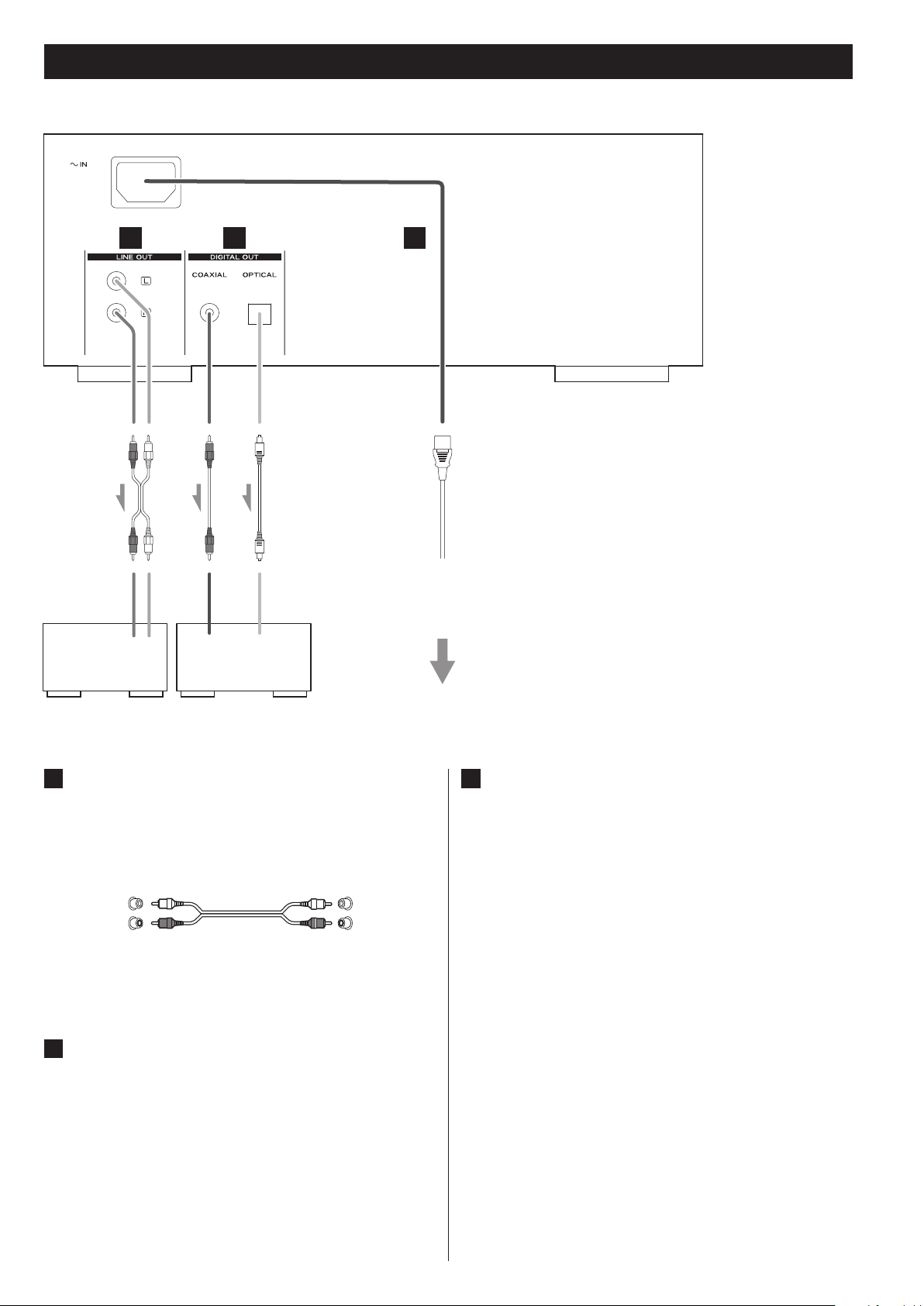

Connections

powered speakers, etc.

input device

CD-H750

White (L)

Red (R)

White (L)

Red (R)

A B C

RCA audio cable

Audio input

(LINE IN, etc.)

Stereo amplifier or

Analog audio output connectors

These RCA jacks output two channels of analog audio signals. Connect these to an amplifier or other device with audio inputs. Connect an audio cable's white pin plug to the white (L) jack and connect its red pin plug to the red (R) jack.

RCA coaxial digital cable

DIGITAL IN (COAXIAL)

DIGITAL IN

(OPTICAL)

Digital audio

Optical digital cable

Included power cord

CAUTION

< Turn off the power of all the

equipment before making connections.

< Read the instructions of each

component you intend to use with this unit.

Wall socket

Power inlet (~IN)

Insert the included power cord here. After completing all other connections, insert the power plug into a power outlet.

Unplug the cord from the outlet when not using the unit for a long time.

< Be sure to insert each plug securely.

To prevent humming and interference, avoid bundling the signal interconnection cables together with the AC power cord or speaker cables.

DIGITAL OUT audio output connectors

Digital 2-channel audio signal is output from this terminal. When playing back files on a CD, iPod, iPhone or USB flash drive, these output 44.1kHz/16-bit PCM signals. Use a commercially-available optical digital cable or RCA coaxial digital cable to connect this unit with other equipment.

Q Use only the included power cord. Use of a different cord

could cause fire or electric shock.

Part names (main unit)

BA C D E

G H

I J N OL

K MF

ENGLISH

Remote sensor

When operating the remote control unit, point it towards the remote sensor.

LEVEL knob

Turn this knob to adjust the volume of the headphones.

Disc tray

Open/close (L)

Use this button to open and close the disc tray.

Skip/Search (.m/,/)

In CD/USB mode, use these buttons to skip tracks/files during playback or in the stop mode of the CD or USB flash drive. In iPod mode, use these buttons to skip songs during playback or in pause mode. During playback, hold down these buttons to search for a track/file.

STANDBY/ON indicator

This lights blue when the power is on. This lights orange when the unit is in standby.

Display

Stop (H)

Use this button to stop playback and recording.

iPod/USB port

Connect an iPod/iPhone or USB flash drive here.

Play (G)

Use this button to start playback.

CD/USB

Use this button to select CD or USB mode. Use to select playback of the CD or playback of the USB flash drive or iPod/iPhone connected to the iPod/USB port.

RECORD

Press this button to start recording to a USB flash drive. Hold down this button to enter the recording setting mode.

Pause (J)

Use this button to pause playback.

STANDBY/ON

Use this button to turn the unit on or put it in standby mode.

PHONES

Connect headphones with a standard 3.5 mm (1/8") stereo plug here.

Part names (remote control)

STANDBY/ON button

Press this button to turn the unit on or put it in standby mode.

a b

d e

n o

CD/USB button

Use this button to select CD or USB mode. Use to select playback of the CD or playback of the USB flash drive or iPod/iPhone connected to the iPod/USB port.

Number buttons

Use these buttons to select a track/file number. For example, to select track/file number 25, press “2” first then “5”. To select numbers less than 10, press “0” and then the number. As an example, to select number 5, press “0” then “5”. (Optionally, you may press just the number “5” and wait for a few seconds.)

1/ALL button

Use this button to select the repeat mode. (page 22)

A-B button

Use this button to set the points for A-B repeat. (page 22)

FOLDER buttons (b/5)

Use these buttons to select a folder of MP3/WMA files. (page 17)

SEARCH buttons (m/,)

During playback, use these buttons to search for the part you want to listen to. (page 18)

p When both the main unit and the remote control have

buttons with the same functions, this manual explains how to use either of them. The corresponding buttons can be used in the same manner.

SHUFFLE button

Use this button for shuffle playback. (page 21)

Stop (H) button

Use this button to stop playback and recording.

Remote control unit

CLEAR button

Use this button to clear a program. (page 21)

PROGRAM button

Use this button to enter the program mode. (page 19)

MENU button

Use this button to go back to the previous menu of the iPod/ iPhone. This button is the equivalent to the MENU button on your iPod/iPhone. (page 17)

ENTER button

Use this button to select the folder and file. (page 17)

DISPLAY button

During MP3/WMA file playback, use this button to change what information is displayed. (page 23)

TIME button

During playback, use this button to change the time display. (page

23)

FILE buttons (b/5)

Use these buttons to select an MP3/WMA file. (page 17) In iPod mode, use this buttons to select a MENU item.

SKIP buttons (.//)

Use these buttons to skip tracks/files. (page 18)

Precautions for use

Misuse of batteries could cause them to rupture or leak leading to fire, injury or the staining of items nearby. Please carefully read and observe the precautions on page 3.

p Point the remote control unit at the main unit’s remote sensor

from within 5 meters (16 feet) of it. Make sure that there are no obstructions between the remote control and the main unit.

p If direct sunlight or strong artificial illumination shines on the

remote sensor, the remote control might not function. If that is the case, move this unit to another location.

p If the remote control unit is operated near other devices that

generate infrared rays, or if other remote control devices using infrared rays are used near the unit, it might operate incorrectly. The other devices might also operate incorrectly.

Battery installation

1. Remove the battery compartment cover.

2. Insert two “AA” dry batteries. Make sure that the batteries are

inserted with their positive “+” and negative “_” poles positioned correctly.

3. Close the cover.

ENGLISH

Play button (G)

Use this button to start playback.

Pause button (J)

Use this button to pause playback.

Battery Replacement

If the distance required between the remote control unit and main unit decreases, the batteries are exhausted. In this case replace the batteries with new ones.

< For more information about collection of batteries, please contact

your local municipality, your waste disposal service or the point of sale where you purchased the items.

Current setting

About the ErP

This product is compliant with the European ErP Standby Power Regulation. Under any of the following conditions, the unit will switch to standby mode if no operation has occurred for 30 minutes or more.

Status CD USB flash drive iPod/iPhone No disc or connection Stopped/paused Recording paused -

 Automatic power saving function active

- Automatic power saving function not active / Not applicable

    

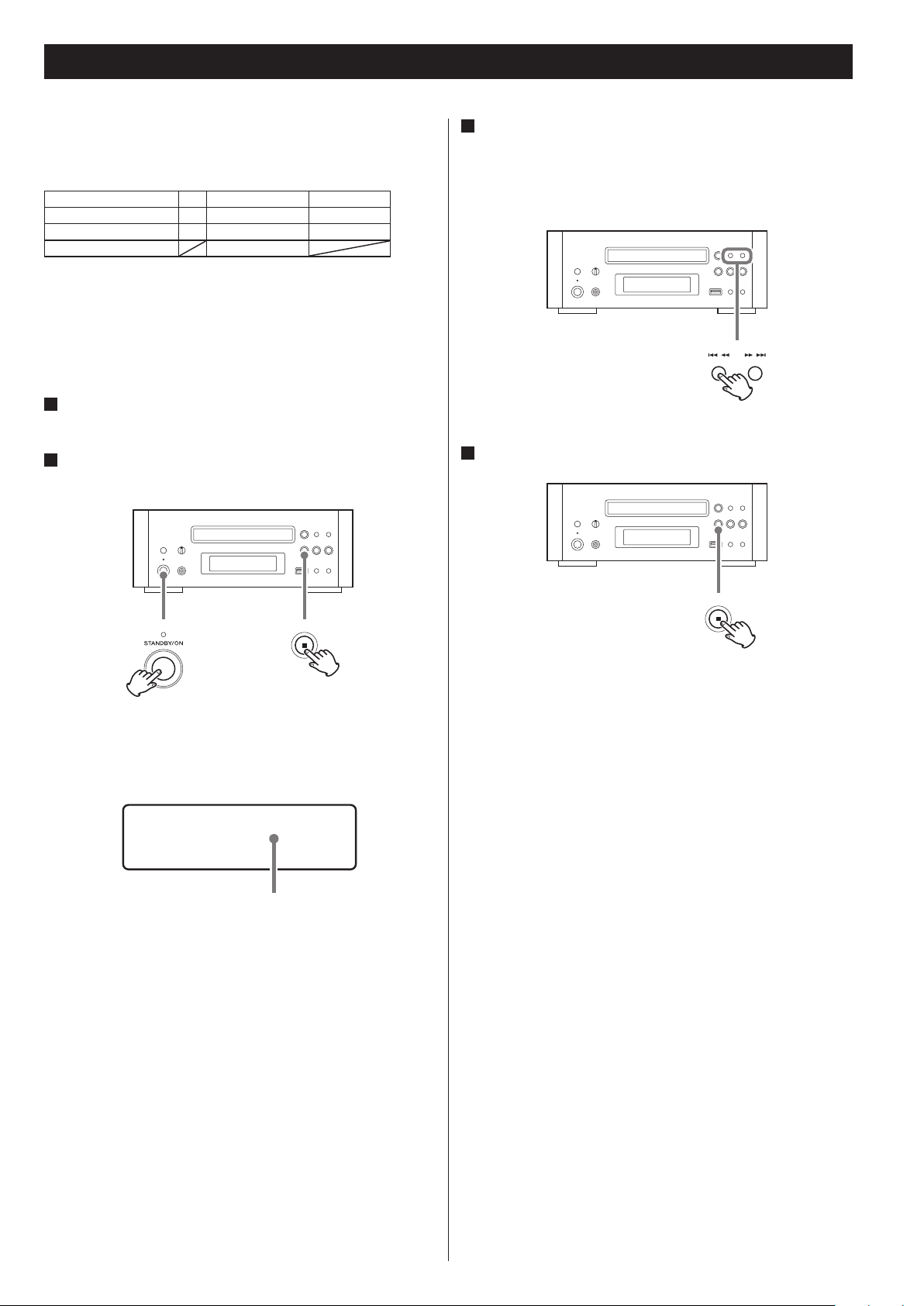

Changing the automatic power saving (ECO Mode) setting

Put the unit into standby.

Press the STANDBY/ON and Stop (8) buttons at the same

time for at least three seconds.

Use the Skip/Search (.m/,/) buttons to turn it

ON/OFF.

Each time you press a Skip/Search (.m/,/) button the setting switches between ON and OFF.

Press the Stop (8) button to confirm the setting.

The current ECO Mode setting is shown.

Example:

ECO Mode ON

ANDBY/ON indicator

Basic operation

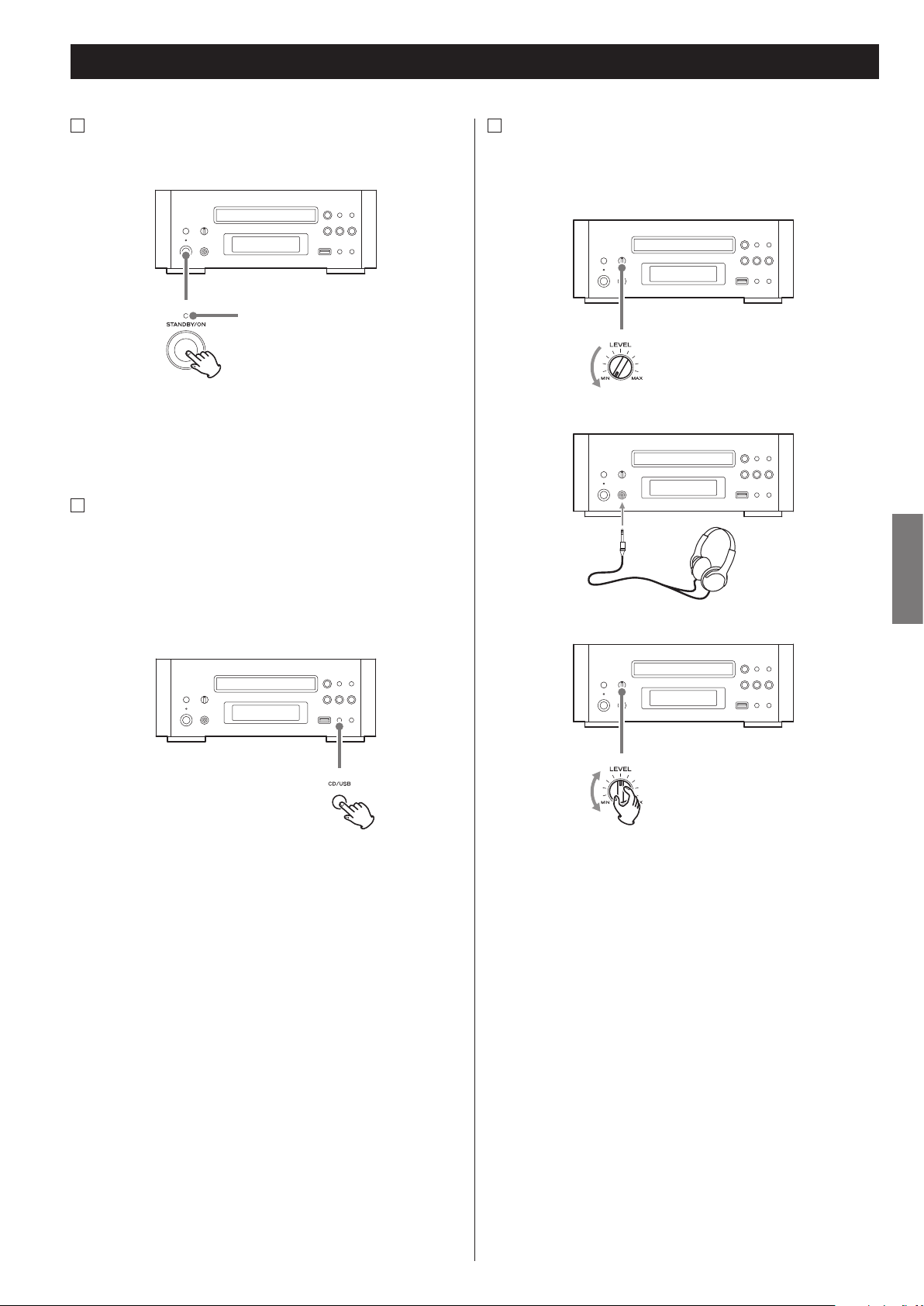

How to turn the unit on or put it in standby

Press the STANDBY/ON button to turn the unit on or put it in standby mode.

The power indicator lights blue when the power is on. The power indicator lights orange when the unit is in standby.

How to select CD or USB

Every time the CD/USB button is pressed, the mode is alternated between CD and USB.

Listening through headphones

When using headphones, first lower the volume before inserting the headphones plug into the PHONES jack. Then, use the headphones LEVEL knob to adjust the volume.

ENGLISH

Select USB to play files on the USB flash drive or iPod/iPhone connected to the iPod/USB port. (Use the USB cable included with the iPod/iPhone to connect it to the USB port.)

< Even when the headphones plug is inserted in the PHONES

jack, sound is output from the analog and digital audio output connectors.

Press the CD/USB button to select “CD”.

Listening to a CD

Press the Open/close button (L) to close the tray.

Press the Open/close button (L).

Place a disc on the tray with the printed label facing up.

< Be careful not to pinch your finger.

< It takes a few seconds for the unit to load a disc. No buttons will

work during loading. Wait until the total number of tracks/files and the total play time of the disc are displayed.

Audio CD

The total number of tracks and total play time of the disc are displayed.

CD/Stop T016 72:00

MP3/WMA disc

The total number of files on the disc is displayed.

CD/Stop Total file 010

< The disc must be placed centrally into the disc tray. If the disc

is not placed correctly, it may not be possible to open the tray again once it has closed.

< Never place more than one disc on the tray.

< Do not stick labels or tape on the disc.

< Do not use irregularly shaped discs.

Press the Play button (y) to start playback.

Disc playback starts from the first track/file.

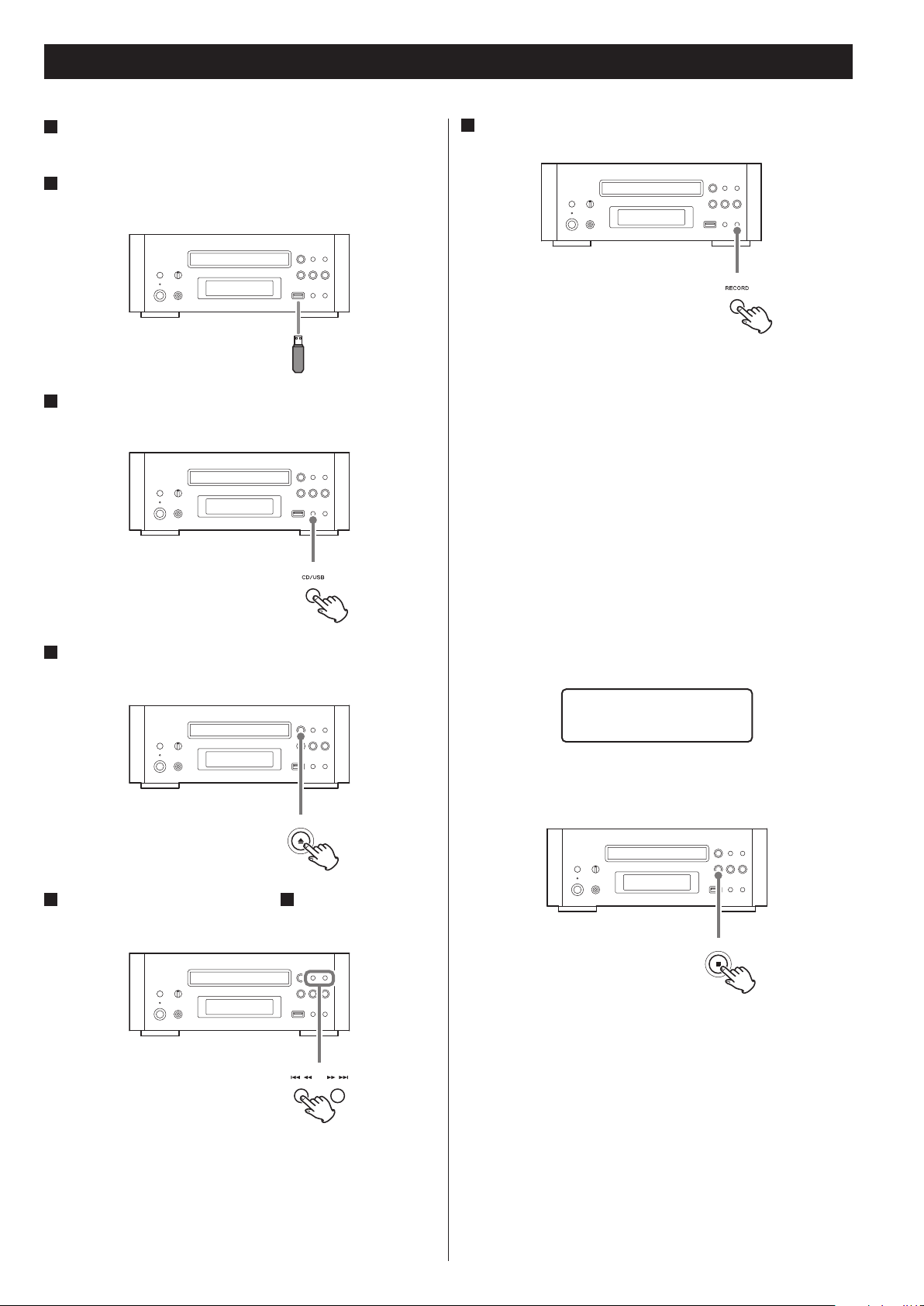

Listening to files on a USB flash drive

You can play MP3/WMA files by connecting USB flash drive.

Press the CD/USB button to select “USB”.

“Not connected” will be displayed if no USB flash drive is connected.

Audio CD

CD/Play T003 00:42

current track number

MP3/WMA disc

elapsed time of the current track

CD/Play T003 00:42 MP3

current le number

< MP3/WMA files not contained in folders are automatically put in

the “ROOT” folder, and playback starts from the first file of the ROOT folder.

< If there are folders that have no MP3/WMA file, the unit skips

them.

Connect an external USB flash drive to the unit.

Press the Play button (y).

ENGLISH

< During playback of an MP3/WMA file, “title_artist_album” is

scrolled across the display.

< The unit stops automatically when playback of all the tracks/files

has finished.

< If you load a disc, and then press the Play button (y) (or the

SHUFFLE button on the remote control unit) without having first closed the disc tray, the disc tray closes and playback starts.

Playback starts from the first file.

Listening to an iPod/iPhone Playback (1)

Press the CD/USB button to select “USB”.

Connect your iPod/iPhone using the USB cable supplied

with the iPod/iPhone.

CD USB

Playing back from selected track/file

Press the Skip/search buttons (.m /,/) to select a

track/file, or use the numeric buttons to input the track/file number.

For example, to select track/file number 25, press “2” first then “5”. To select numbers less than 10, press “0” and then the number. As an example, to select number 5, press “0” then “5”. (Optionally, you may press just the number “5” and wait for a few seconds.)

The iPod/iPhone automatically turns on and starts playback from the iPod/iPhone music list.

< If the display mode is set to “Extended mode” (see page 24),

playback don’t start automatically. When the iPod/iPhone is connected while CD-H750 is set to another source, the iPod/iPhone will turn on and enter the pause mode.

< If the source is set to CD when you connect an iPod/iPhone, the

iPod/iPhone turns ON and its playback is paused.

< If an

iPod/iPhone

recharged when this unit is ON.

< Recharging will stop when the

< Recharging is not possible when this unit is in standby.

is connected to this unit, it will only be

iPod/iPhone

is fully recharged.

Press the Play button (y) .

Playback starts from the selected track/file.

CD USB

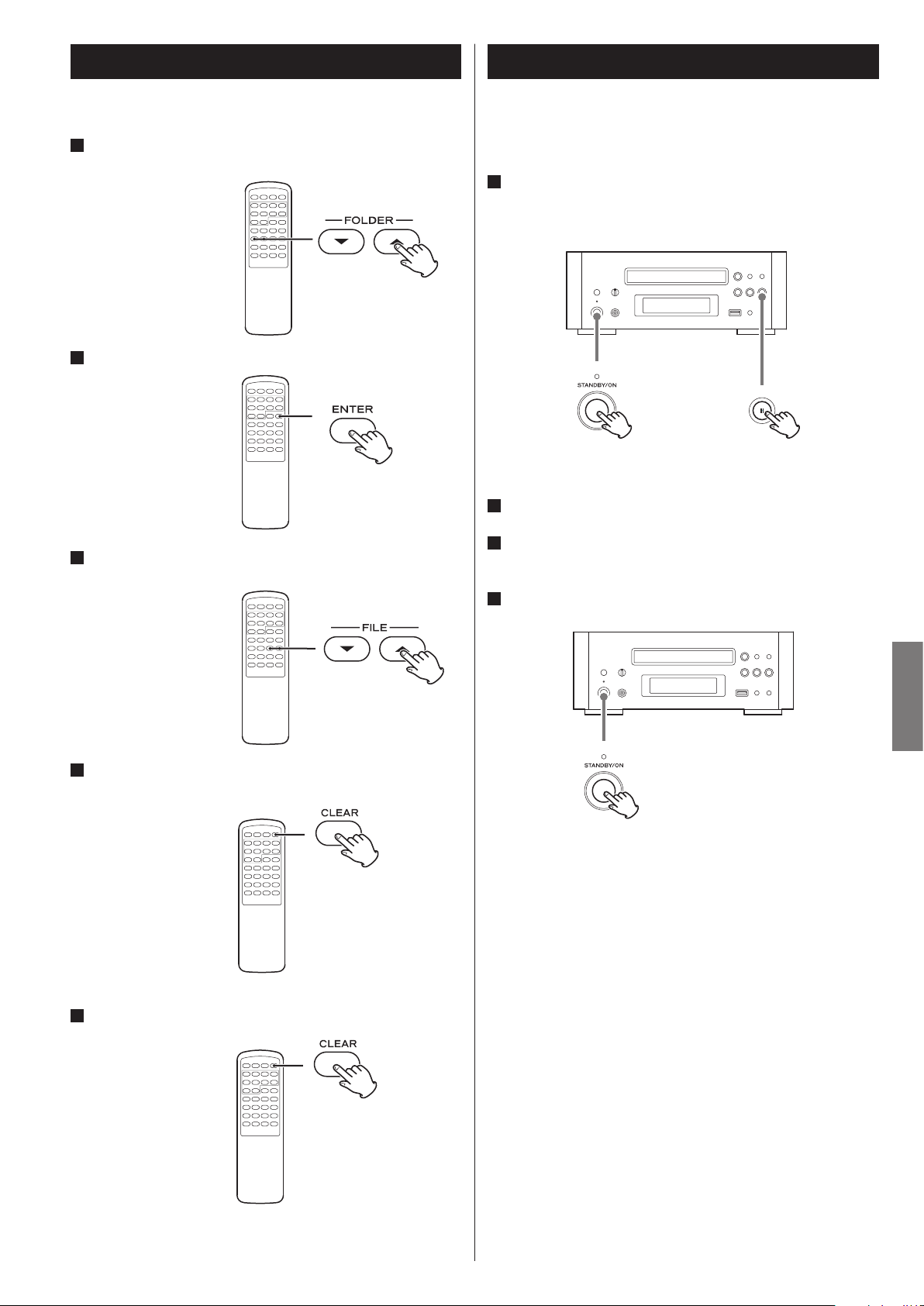

Playing back files in a folder

You can select a folder that contains WMA/MP3 files.

Use the FOLDER buttons (¥/˙) to select a folder.

Press the ENTER button.

iPod

Going back to the previous menu

Press the MENU button to go back to the previous menu.

This button is equivalent to the MENU button on your iPod/iPhone.

iPod

Selecting a menu item

Use the FILE buttons (¥/˙) to select a menu item.

ENGLISH

If you want to select a file, use the FILE buttons (¥/˙).

< Files in the selected folder can be selected.

Press the ENTER button.

iPod

Putting the iPod/iPhone in sleep mode (only in Direct mode)

Hold down the Play button (y) for more than 5 seconds.

Playback starts from the selected file.

The iPod/iPhone enters sleep mode. To cancel sleep mode, press the Play button (y) again.

Playback (2)

CD USB

iPod

Skipping to the next or a previous track/file

During playback, press the Skip/search buttons (.m/ ,/) repeatedly until the desired track/file is found.

The selected track/file will be played from the beginning. On the remote control unit use the Skip buttons (.//).

In stop or pause mode, press the Skip/search buttons (.m/,/) repeatedly until the track/file you want to listen to is found. Press the Play button (y) to start playback of the selected track/file.

< When the .m button is pressed during playback, the track/

file being played will be played from the beginning. To return to the beginning of the previous track/file, press the .m button twice.

CD USB

Stopping playback

Press the Stop button (H).

To start playback again, press the Play button (y). Playback starts from the first track/file.

CD USB

iPod

Pausing playback

Press the Pause button (J) during playback.

Playback stops at the current position.

< Press .m when the playback time is three seconds or less to

start playback of the previous track.

< During programmed playback, the next or previous track/file in

the program is played.

CD USB

iPod

Searching for a part of a track/file

During playback, hold down one of the Skip/search buttons (.m/,/) and release it when the part you want to listen to is found.

On the remote control unit, use the SEARCH buttons (m/,).

To resume playback, press the Play button (y).

< In USB mode, no sound is emitted while searching. < The unit stops when the end of the last track/file is reached.

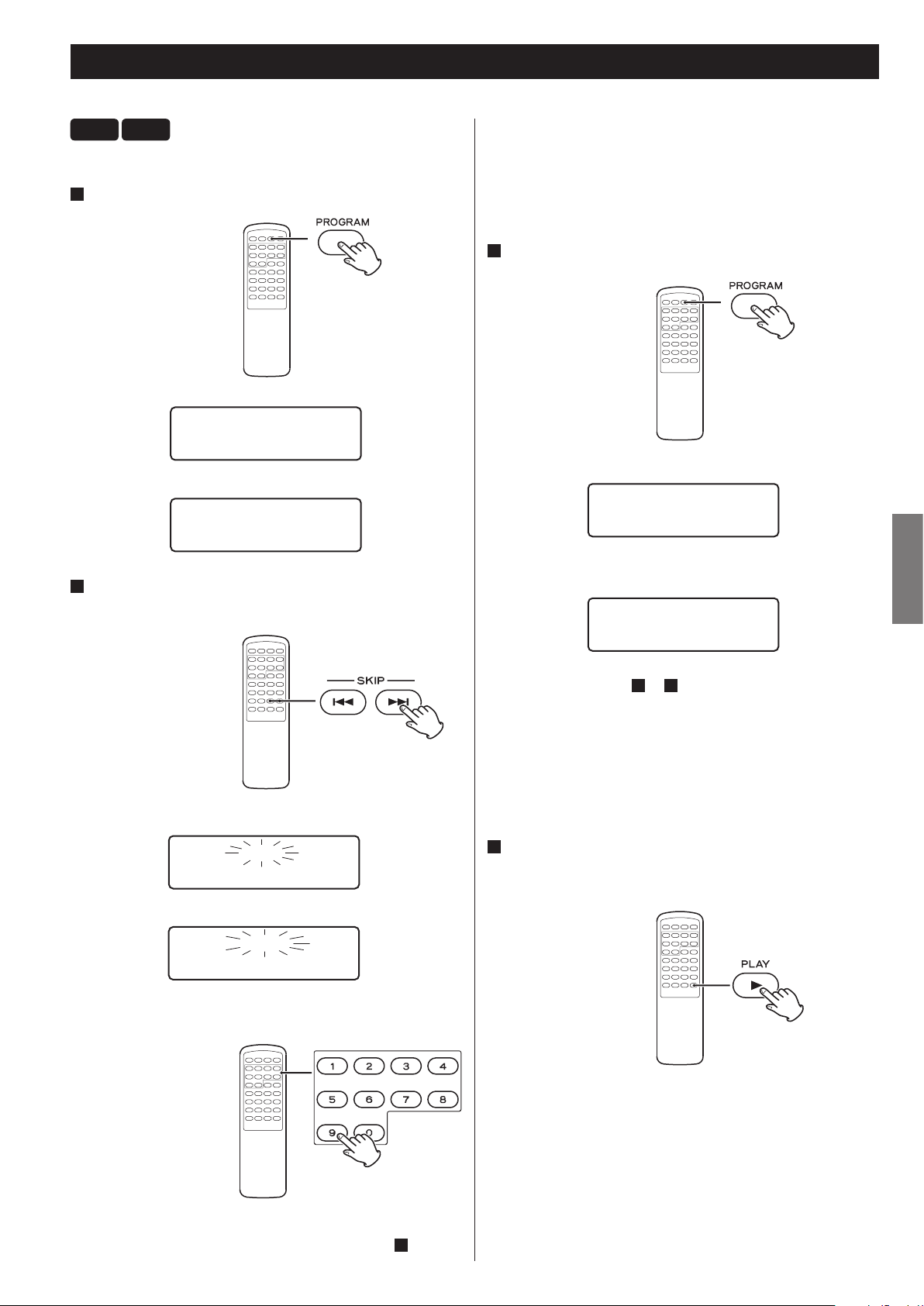

Programmed playback (1)

CD USB

Up to 32 tracks/files can be programmed in the desired order.

Press the PROGRAM button while in the stop mode.

When CD is selected

P-00 T000 T016 72:00

When USB is selected

P-00 T0000 Total File 0130

Within 10 seconds, press the PROGRAM button.

When CD is selected

P-01 T012 T016 72:00

When USB is selected

ENGLISH

Use the SKIP buttons (.//) to select a track/file.

When CD is selected

P-01 T001 T016 72:00

When USB is selected

P-01 T0001 Total File 0130

You can also use the numeric buttons to select a track/file.

P-01 T0012 Total File 0130

< Repeat steps 2 and 3 to program more tracks/files. <

If you make a mistake, press the CLEAR button.

The last programmed number will be deleted.

Up to 32 tracks/files can be programmed. If you attempt to

program more than 32 tracks/files, “P-FULL (Program is full)” is displayed and no more tracks/files can be programmed.

When you have finished programming, press the PLAY

button (y) to start programmed playback.

When you use the numeric buttons, just input the track/fiie number. After input, skip to step

When playback of all the programmed tracks/files has finished, or if the Stop button (H) or the STANDBY/ON button is pressed, the program mode will be cancelled.

If the unit is disconnected from the power supply, the programmed contents will be erased.

Programmed playback (2)

CD USB

Checking the programmed order

In stop mode, press the PROGRAM button repeatedly. The track/file number and program number will be shown on the display.

CD USB

Changing or adding a track/file to the program

In stop mode, press the PROGRAM button repeatedly until

the program number for which you want to change the track/file appears on the display.

You can also use the numeric buttons.

Press the PROGRAM button.

The program is overwritten.

Select a track/file using the SKIP buttons (.//).

The previous track/file is replaced with the newly selected one. If you want to add a track/file to the end of the program, press the PROGRAM button repeatedly until “P-END" briefly appears on the display. Then select a track/file using the SKIP buttons (.//). The track/file is added to the program.

CD USB

Deleting a track/file from the program

In the stop mode, press the PROGRAM button repeatedly

until the program number of the track to be deleted appears on the display.

Press the CLEAR button.

The selected track/file is deleted from the program.

RDM o

CD USB

Clearing the program

In the stop mode, press the PROGRAM button.

Hold down the CLEAR button for more than 4 seconds.

Shuffle playback

CD USB

When the SHUFFLE button is pressed, the tracks/files on the disc or USB flash drive will be played randomly.

When CD is selected

CD/Shuffle T003 00:07

When USB is selected

ENGLISH

< In the following cases, the programmed contents will also be

cleared: Pressing the STANDBY/ON button Opening the disc tray Disconnecting the AC power cord Removing the USB flash drive

86%6KXIIOH 7  :0$

< If you press the / button during shuffle playback, the next

track/file will be randomly selected and played. If you press the .button, the currently played track/file will be played from the beginning. A track/file cannot be replayed during shuffle playback.

To cancel shuffle playback, press the SHUFFLE button.

To stop shuffle playback, press the Stop button (H).

Shuffle playback will stop after all tracks on a CD or all files on an

MP3/WMA disc or USB flash drive have been played.

iPod

During playback, press the SHUFFLE button to change the shuffle mode.

RDM Songs

RDM Albums

(RDM:random)

When shuffle mode is on, ½ appears on the iPod/iPhone display.

When you select “RDM Songs”, the iPod/iPhone shuffles songs within the list you choose to play. When you select “RDM Album”, the iPod/iPhone plays all the songs on an album in order, then randomly selects another album in the list and plays through that album in order, and so on.

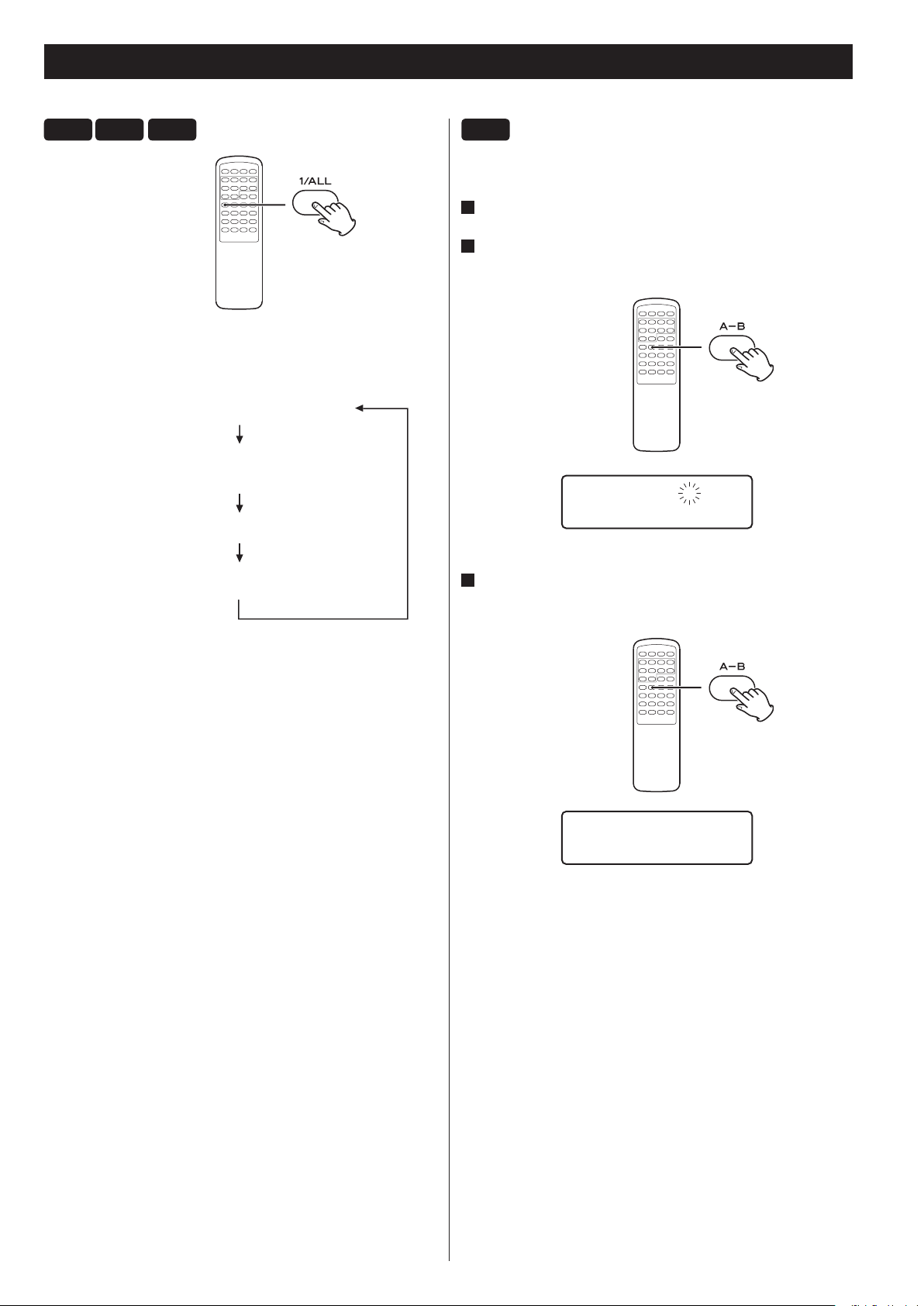

Repeat playback

CD USB

Every time the 1/ALL button is pressed, the mode is changed as follows:

iPod

(Only MP3/WMA les on CD disc)

RPT 1

RPT Folder

RPT ALL

(Repeat O)

Repeating a designated section (A-B repeat mode)

Press the PLAY (G) button to start

Set the point at which playback

pressing the A-B button.

&'3OD\ $% 7 

Press the A-B button again at the ending (point B).

playback.

should start (point A) by

Repeat One Track/File (RPT 1)

The track/file being played will be played repeatedly. If you select another track/file in “RPT 1” mode, the track/file you selected will be played repeatedly. If you select “RPT 1” mode while in the stop mode and select a track/ file, the selected track/file will be played repeatedly.

Repeat Folder (RPT Folder) (MP3/WMA files only)

All the files in the folder will be played repeatedly. If you select another folder in “RPT Folder” mode, the files in that folder will be played repeatedly.

You can not select “RPT Folder” mode while in the stop mode.

Repeat All (RPT ALL)

All the tracks/files will be played repeatedly.

< In the program mode, all the programmed contents are played

repeatedly.

When the Stop button (H) is pressed the repeat mode is cancelled.

&'3OD\ $% 7 

< To cancel Repeat playback and resume normal playback, press

the A-B button.

There must be more than 3 seconds between A and B.

< If one of the following buttons is pressed, A-B repeat mode will

be cancelled: STOP (8), SKIP (.//), 1/ALL, A-B, SHUFFLE, Open/close (-), STANDBY/ON

A-B repeat is not possible with USB flash drives, iPods or iPhones.

< A-B repeat is possible with MP3/WMA discs.

Time

Display (1)

CD USB

During playback, press the TIME button repeatedly to change the information on the display.

Audio CD, MP3/WMA file:

The display changes as follows: current track number and elapsed time of the current track

CD/Play T003 00:42

current track number and remaining time of the current track

CD/Play T003 -03:02

current track number and remaining time of the disc (only CD disc)

CD/Play T003 -69:02 TTL

CD USB

During playback of WMA/MP3 files, press the DISPLAY button to scroll the information on the display.

Default display (scrolling):

Title - Artist Name - Album Name

Each time the DISPLAY button is pressed, the display is changed as follows:

Default display (scrolling)

File Name

Title

Artist Name

Album Name

Playback time, file format (returns to Default display after appearing for several seconds)

ENGLISH

(TTL : TOTAL)

Note

During shuffle playback of a CD, the remaining playback time of the disc being played is not shown.

< A maximum of 64 characters of the file name can be shown. < A maximum of 30 characters of the title, artist and album name

can be shown.

Display (2) Before recording

iPod

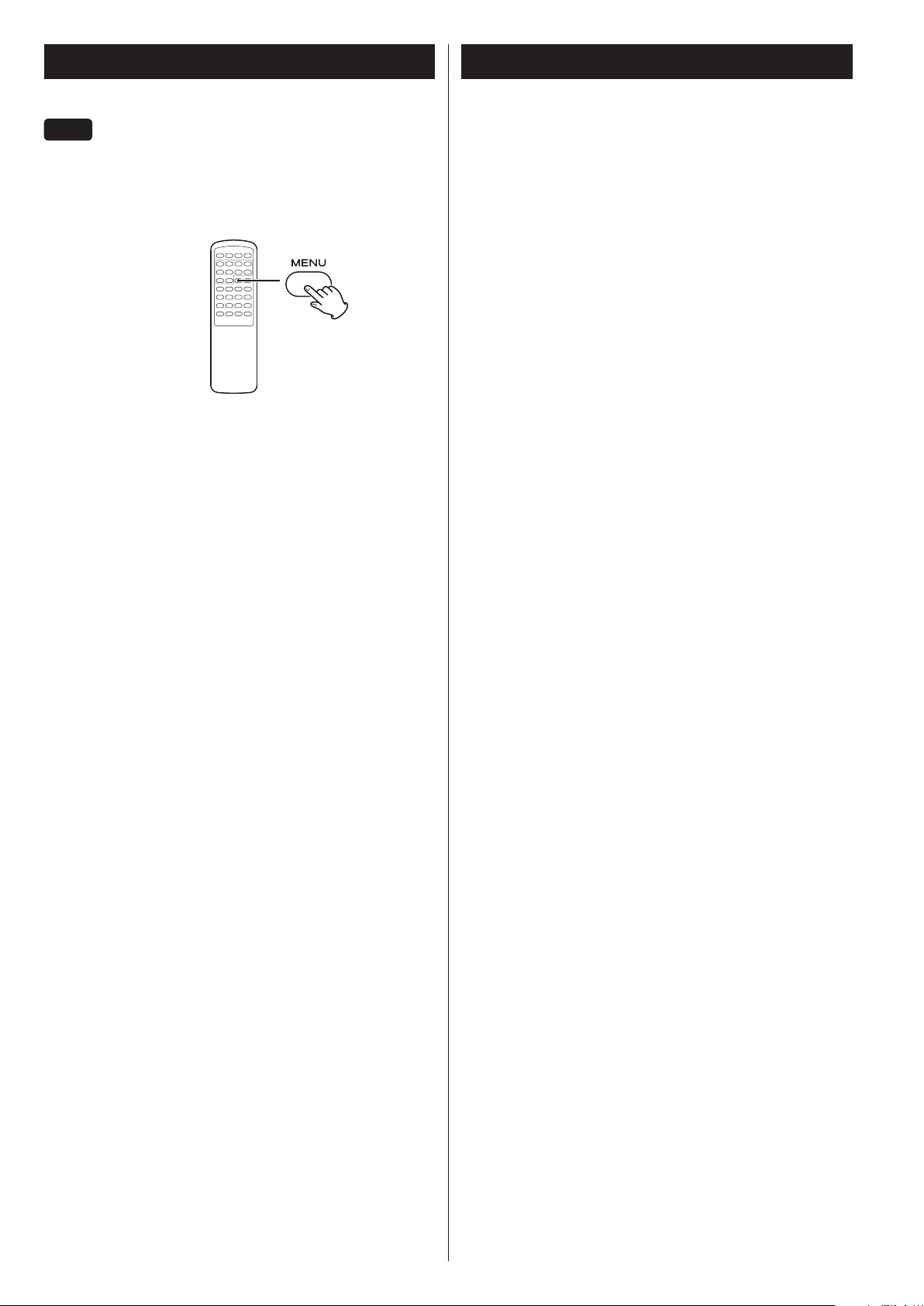

Changing the display mode

You can select the iPod/iPhone screen or CD-H750 display to show the menu.

When an iPod/iPhone is connected, hold down the MENU button for more than 4 seconds to select which display is used.

Direct Mode (default)

You can control the iPod/iPhone using the menu on the screen of the iPod/iPhone. The display of CD-H750 constantly shows “Direct Mode”.

Extended mode

You can control the iPod/iPhone using only CD-H750. Information of the songs is displayed on the display of CD-H750.

< CD-H750 cannot display symbols or full-size or double-byte

characters (such as Japanese, Chinese, etc.) correctly. title/Album/ Artist names of songs should be in alphanumeric characters.

< This setting is retained even if the unit is put in standby or

the USB cable connecting the unit to the iPod/iPhone is disconnected.

You can convert audio on a CD into MP3 format files and record them on a USB flash drive. When using an MP3/WMA disc, the ID3 tags will also be copied to the USB flash drive.

CAUTION

< Do not disconnect the USB flash drive during recording.

Do not disconnect the power cord during recording. It may cause damage to the products.

< Adjust the volume of the external audio source to a suitable level

before recording. If not, the recording quality will be poor.

Note

< The recorded files are saved in the AUDIO folder.

< The FILE NAME is assigned automatically in a regular sequence

such as “Audio001.MP3”, “Audio002.MP3”, ……. For Example: If there are “Audio004.MP3” and “Audio009.MP3” files in the AUDIO folder, and you make a recording, the new file will be “Audio010. MP3”.

< Before recording check the remaining capacity of the USB flash

drive using your PC. You cannot check the remaining capacity with this unit.

< The maximum number of files that CD-H750 can operate is 2000.

If more than 2000 files are stored on the USB flash drive, CD-H750 can not play correctly, and cannot record any files.

< A track recorded onto a USB flash drive is converted to an MP3 file

at a bit rate of 64 kbps, 96 kbps, 128 kbps or 192 kbps.

Setting the Recoding Mode

64k 96k 128k 192k

You can set the bit rate, speed and number of tracks (one or all) when recording.

Press the CD/USB button repeatedly to select “CD”.

Hold down the RECORD button more than 3 seconds.

Bit rate

You can set the bit rate of MP3 files for recording.

CD/Stop REC SET: MP3 64K

Each time the Skip/search button (,/) pressed, the bit rate is changed as follows:

Recording speed

You can set the recording speed to ×1 or ×2.

CD/Stop REC SET: CD X1

3 c

ENGLISH

“REC SET: MP3 XXK” appears on the display.

< If no disc has been loaded, (“No disc” on the display), the display

will not change and you will not be able to proceed with the next step.

Each time the RECORD button is pressed, the mode is changed as follows:

Bit rate (64k, 96k, 128k, 192k)

Recording Speed (x1, x2)

Number of recorded songs (1song, CD ALL)

< If you need to change a setting that you have already passed,

return to the ordinary display and repeat these procedures from step 2 .

CD/Stop REC SET: CD X2

Each time the Skip/search button (,/) pressed the recording speed is alternated between ×1 and ×2.

Number of songs to be recorded

You can set the number of songs to be recorded.

CD/Stop REC SET: 1 song

3 c

CD/Stop REC SET: CD ALL

Each time the Skip/search button (,/) is pressed the number of songs to be recorded is alternated between “1 song” and “CD ALL”.

Recording to a USB flash drive

Set the number of songs to be recorded to “1 song” or “CD

ALL”. (See page 25)

Connect an external USB flash drive to the USB port of

CD-H750.

Press the CD/USB button repeatedly to select “CD”.

Press the RECORD button.

Depending on the selected setting, the selected song will be recorded or recording starts from the beginning of the first song on the CD. Recording will stop automatically when playback of the single song or of the final song on the CD has finished.

< When the recording speed is “×2”, no sound is output from the

audio outputs.

< When recording an MP3/WMA disc, if you set the recording

speed to 2×, the recording time will appear as %.

Open the disc tray and place the audio CD to be recorded.

Then close the disc tray.

If “1 song” is selected in step 1 select a track using the

Skip/search buttons (.m /,/).

< An error message will appear if no USB flash drive is connected.

Recording Error

INSERT USB -

Stopping recording

Press the Stop button (H).

< This does not stop disc playback. Press the stop (H) button again

to stop playback.

+ 58 hidden pages
