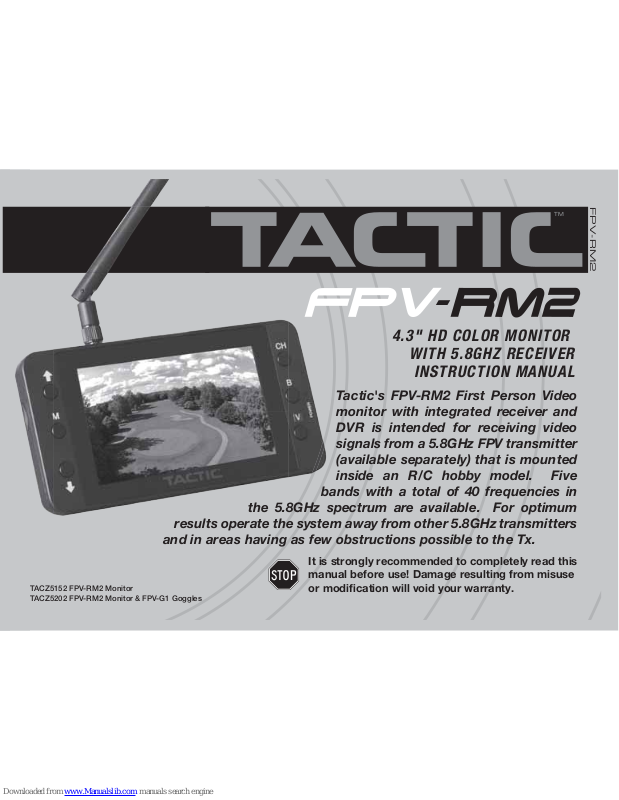

FPV-RM2
TM
4.3" HD COLOR MONITOR
WITH 5.8GHZ RECEIVER
INSTRUCTION MANUAL
Tactic's FPV-RM2 First Person Video
monitor with integrated receiver and
DVR is intended for receiving video
signals from a 5.8GHz FPV transmitter
(available separately) that is mounted
inside an R/C hobby model. Five
bands with a total of 40 frequencies in
the 5.8GHz spectrum are available. For optimum
results operate the system away from other 5.8GHz transmitters
and in areas having as few obstructions possible to the Tx.
It is strongly recommended to completely read this
manual before use! Damage resulting from misuse
or modication will void your warranty.
TACZ5152 FPV-RM2 Monitor
TACZ5202 FPV-RM2 Monitor & FPV-G1 Goggles
2
(1) FPV-RM2 monitor
(1) Sun shield
(1) RP-SMA mast antenna
Carefully thread the included antenna onto the RP-SMA receptacle on the monitor. Do not cross-thread or
overtighten! Mount the antenna before applying power to the monitor.
This monitor has a micro USB charge port on the right side of the monitor to charge the internal battery. A
micro-USB cable and an AC to USB adapter (not included) will be needed. Connecting the cable will start
the charge process, as indicated by the glowing red LED which will turn off when charge is complete. For
best results, use a 1 amp or larger adapter. The typical charge time will be around 3 hours.
WARNING! Charging lithium-polymer batteries poses a risk of FIRE! Follow all care and handling
instructions in this manual to avoid severe and permanent damage to the batteries and all
surroundings which could result quickly from improper use and function.
CONTENTS
ANTENNA INSTALLATION
BATTERY CHARGING
3
•
Do not leave the monitor unattended while being charged!
•
Immediately disconnect the USB charge cable if the monitor becomes hot (over 140°F, 60°C),
begins to swell or emits smoke. Wear re protective materials on your hands to move the monitor
to a reproof location as it may be hot! Leave the monitor until it cools.
•
Always provide adequate ventilation around the monitor during charge.
•
Always keep LiPo batteries away from children.
•
Do not place the monitor on ammable surfaces or near combustible materials (carpet, paper, wood,
plastic, vinyl, foam, etc.) while charging.
The FPV-RM2 monitor has a DVR that will record and playback avi format video clips. A micro SD memory
card (not included) must be installed in the monitor before the DVR will operate. The DVR will save the video
to the memory card every 4 minutes. A timer in the lower left corner of the screen will indicate the length
of the video le being recorded. To avoid losing any part of the video le, always stop the recording and
wait at least 15 seconds before turning off the monitor. The quality of the le recorded by the DVR will not
be as sharp as a le recorded by an on-board camera because the data is compressed when transmitted
to the FPV receiver.
Holding the M button puts the DVR in playback mode. Press the or buttons to select the video le to
be played. Press the V button to start and stop playback of the selected video clip. Hold the M button for
2 seconds to exit the playback mode. The DVR will only recognize AVI les in the “Video” folder that are
named “RECxxxxx” where xxxxx is a 5 digit number.
DVR
4
00:06
00:00:51
5845A2
TF
Total Time
Main Menu
Video Clip Timer
Power
Channel Select
Band Select
DVR Start/Stop
FPV Band
FPV Channel
FPV Frequency
Memory Card
Battery Charge
The FPV-RM2 monitor has a 40
channel receiver that uses FPV
bands A, B, E, F and R. A speci c
Band and Channel can be selected
or the receiver can search for a
nearby FPV signal.
RECEIVER
5865
CH1
5733
5705
5740
5658
5845
CH2
5752
5685
5760
5825
CH3
5771
5665
5780
5805
CH4
5790
5645
5800
5785
CH5
5809
5885
5820
5765
CH6
5828
5905
5840
5745
CH7
5847
5925
5860
5725
CH8
5866
5945
5880
5695 5732 5769 5806 5843 5880 5917
A: FPV A Band
BAND
B: FPV B Band
C: FPV C Band
D: Fatshark Band
E: Raceband
Frequency in MHz
MONITOR CONTROLS
5
The screen has status indicators for
•
Total Time the monitor has been on
•
FPV Band
•
FPV Channel
•
FPV Frequency
•
Memory Card is installed
•
Battery Charge Level
•
Video Clip Timer indicates the length of a video that has not been saved to the memory card.
•
POWER: The On/Off switch is on the right side of the monitor
•
CH: Press repeatedly to manually scroll through the 8 channels that are available for the current band.
The current channel will be indicated at the top of the screen
•
B: Press repeatedly to manually scroll through the bands A – E shown at the top of the screen. Hold the
button to scan all bands and channels for the strongest FPV signal.
•
V: Press to start or stop the DVR.
•
M: Press to access the Main Menu and see the functions listed below. Repeatedly press “M” to scroll
through the list of options. Press the or to adjust the selected setting.
Brightness
Contrast
Color
Language (English or Chinese)
Backlight
Reset – all settings including frequency are reset
6
•
Do not apply cleaning uid to the monitor such as alcohol, ammonia-based cleaners such as window
cleaning uid, etc.
•
Do not clean the monitor with paper towels, facial tissue, or materials which include abrasives such as
nylon, polyester, etc. as it could scratch the screen.
•
With the monitor off and the screen cool, lightly dust the screen with compressed air from a distance of
at least 12 inches away. Then lightly wipe the screen with a micro- ber cloth (included). Wipe the screen
slowly and in horizontal or vertical straight lines (not circular patterns).
A detachable sunscreen is included to help
shield the display from sunlight for optimum
viewing. Align the tabs on the top and bottom of
the sunscreen with the notches on the monitor.
Carefully press the tabs into place to af x the
shield to the monitor.
SCREEN CARE AND HANDLING
7
This device complies with Part 15 of the FCC rules. Changes or modi cations not expressly approved by
Tactic will void the user’s authority to operate this Rx. Operation is subject to the following two conditions.
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Instructions for Disposal of Waste Equipment by Private Users in the European Union:
This symbol on the product or its packaging indicates this product must not be disposed of with other
household waste. Instead, it is the user’s responsibility to dispose of their waste equipment by handing it
over to a designated collection point for the recycling of waste electrical and electronic equipment. The
separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural
resources and ensure that it is recycled in a manner that protects human health and the environment. For more
information about where you can drop off your waste equipment for recycling, please contact your local city
of ce, your household waste disposal service or location where you purchased the product.
Declaration of Conformity:
Product: Tactic FPV-RM2 4.3 Inch Monitor with 5.8GHz Receiver
Item number: TACZ5152
The object of the declaration described here is in conformity with the requirements of the speci cations
listed below, following the provisions of the European R&TTE Directive 1995/5/EC:
EN 300 440-1 V1.5.1
EN 300 440-2 V1.3.1
EN 301 489-1 V1.8.1
EN 301 489-3 V1.4.1
FCC STATEMENT
CE COMPLIANCE INFORMATION FOR THE EUROPEAN UNION
8
Input power: 5 volts
Channels: 40
Frequencies: 5.725 – 5.945GHz
Charge jack: micro USB
Dimensions with case: 150 x 79 x 13mm (5.91 x 3.11 x 0.51”)
Weight w/o antenna: 145g (5.11 oz.)
TACZ5000 FPV-T1 5.8GHz 25mW Transmitter
TACZ5005 FPV-T2 5.8GHz 200mW Transmitter
TACZ5010 FPV-T6 5.8GHz 600mW Transmitter
TACZ5300 FPV SMA Antenna Short Tx
TACZ1010 4G Class 10 Micro Memory Card
TACZ5305 FPV 5.8GHZ Cloverleaf Antenna 3dBi
TACZ5600 FPV-RM2 Sun Shield
TACZ5602 FPV-RM2 Tripod Mount
TACZ5604 USB Micro SD Card Reader
SPECIFICATIONS
OPTIONAL ACCESSORY ITEMS
9
Tactic warrants this product to be free from defects in materials and workmanship for a period of one (1)
year from the date of purchase.
For service on your Tactic product if purchased in the
U.S.A. or Canada, send it postpaid and insured to:
HOBBY SERVICES
3002 N. Apollo Dr., Suite 1
Champaign, IL 61822
Tel: (217) 398-0007 (9:00am - 5:00pm CST, M-F)
E-mail: hobbyservices@hobbico.com
If purchased in the European Union, send it postpaid
and insured to:
Service Abteilung Revell GmbH
Henschelstrasse 20-30
32257 Bünde Germany
Tel: 01805 110111 (nur für Deutschland)
Email: Hobbico-Service@Revell.de
•
This product is suitable only for people of 14 years and older. This is not a toy!
•
WARNING: CHOKING HAZARD - May contain small parts. Keep away from children under 3 years. Please
retain packaging for future reference.
•
No part of this manual may be reproduced in any form without prior permission.
•
The contents of this manual are subject to change without prior notice.
•
Tactic is not responsible for the use of this product.
Distributed in the EU by Revell GmbH, Bünde Germany
© 2016 Hobbico, Inc.
All rights reserved
TACZ5152MNL
Made in China
1-YEAR WARRANTY
3
TACTIC FPV-C1 22X22MM VIDEO CAMERA
Install the 22 x 22 mm FPV-C1 into your favorite R/C model, and you’ll be
shooting incredible First Person View videos in no time. It’s small and
lightweight, so it’s easy to mount in virtually any space, including
250-size drones. Pair the FPV-C1 with Tactic 5.8GHz FPV gear for a
remarkable FPV racing experience!
Features
•
Compact dimensions and light weight make the FPV-C1 an ideal camera for First Person Video (FPV) racing
•
Compatible with Tactic 5.8GHz FPV equipment, allowing for easy set-up
•
M
ounts easily with double-sided tape, hook-and-loop material or pre-fabricated brackets
•
600TVL video resolution
•
5-15V input voltage range
Specifications
Dimensions: 0.87 x 0.87 x 0.98” (22 x 22 x 25 mm)
Weight: 0.38 oz (10.9 g)
Mode: Video only
Video Resolution: 600TVL
Field of View: 120°
Color Encoding: NTSC (740H x 490V) / PAL (740 x 570)
Video Out: 1.0Vp-p, 75 ohms
Input Power: 5-15V DC, -40mA
Sensor: 1/3” (8.5 mm)
Camera Lens: 0.33” (2.8 mm)
OTHER ACCESORIES
Includes
•
FPV-C1 camera with input connector
•
Adapter cable
•
Lens cap
Requires
•
Video transmitter (FPV-T1, FPV-T2 and FPV-T6)
•
Viewing device (FPV-RM1)
•
Receiver (FPV-RM1)
•
Mounting tape
2
11
The Rise FPV Goggles are designed to hold the HD Color Monitor for
a more immersive view from the Vusion FPV camera. The goggles
can also be used with mobile devices that are less than 5.9" x 3.15"
to watch videos.
To access the compartment for the monitor, pull on the cover tab. Place
the monitor or mobile device in the compartment and close the cover.
NOTE: To avoid damage to the monitor or mobile device, do not install the
device until the FVP camera is turned on and remove it when the session
is completed.
Pulling the FOV Lever on top of the goggles closer to your eyes will slightly
expand the eld of view for use with devices that have a large screen.
The length of the straps can be adjusted by moving the hook and loop pad at the end of each strap.
The goggles are large enough that reading glasses can be used if needed to sharpen the image from the
monitor.
DIMENSIONS
Width: 200mm
Height: 114mm
Depth: 170mm
Weight: 480g
REPLACEMENT PARTS
TACZ5610 FPV-G1 Head Strap
TACZ5612 FPV-G1 Face Plate Foam
FPV GOGGLES (AVAILABLE SEPARATELY)
FOV Lever
Cover Tab
Strap
Adjustment
FPV-G1
TM
FPV GOGGLES
INSTRUCTION MANUAL
The Tactic FPV Goggles are
designed to hold the HD
Color Monitor for a more
immersive view from the
FPV camera. The goggles
can also be used with mobile
devices that are less than
5.9" x 3.15" to watch videos.
It is strongly recommended to completely
read this manual before use! Damage
resulting from misuse or modication
will void your warranty.
TACZ5200 FPV-G1 Goggles
TACZ5202 FPV-RM2 Monitor & FPV-G1 Goggles
