Supra SM34B3F User Manual

USER MANUAL

MODEL : SM34B3F

MICROWAVE OVEN

SUPRA CORPORATION

T hank you

for bringing home a SUPRA.

TABLE OF CONTENTS

INSTALLATION AND EARTHING INSTRUCTIONS.............................................................................. 2

IMPORTANT SAFETY INSTRUCTIONS................................................................................................ 3

WHICH UTENSILS CAN BE USED IN THE OVEN?.............................................................................. 4

CONTROL PANEL ................................................................................................................................. 5

ACCESSORIES...................................................................................................................................... 6

BEFORE OPERATION........................................................................................................................... 7

SETTING THE LANGUAGE................................................................................................................ 7

SETTING THE CLOCK ....................................................................................................................... 8

CHILD LOCK AND POWER SAVE MODE ......................................................................................... 8

OPERATION ....................................................................................................................................... 9

MICROWAVE COOKING.................................................................................................................... 9

GRILL COOKING.............................................................................................................................. 10

CONVECTION COOKING (with pre-heat) ........................................................................................ 11

CONVECTION COOKING (traditional cooking)................................................................................12

COMBINATION COOKING............................................................................................................... 13

AUTO DEFROST .............................................................................................................................. 16

CAKE................................................................................................................................................. 17

CRUSTY............................................................................................................................................ 20

AUTO COOK..................................................................................................................................... 22

BARBECUE....................................................................................................................................... 24

SPEEDY COOK ................................................................................................................................ 24

LESS, MORE..................................................................................................................................... 24

MANUAL COOLING.......................................................................................................................... 25

SCROLL SPEED CONTROL ............................................................................................................25

TO STOP THE OVEN WHILE THE OVEN IS OPERATING............................................................. 26

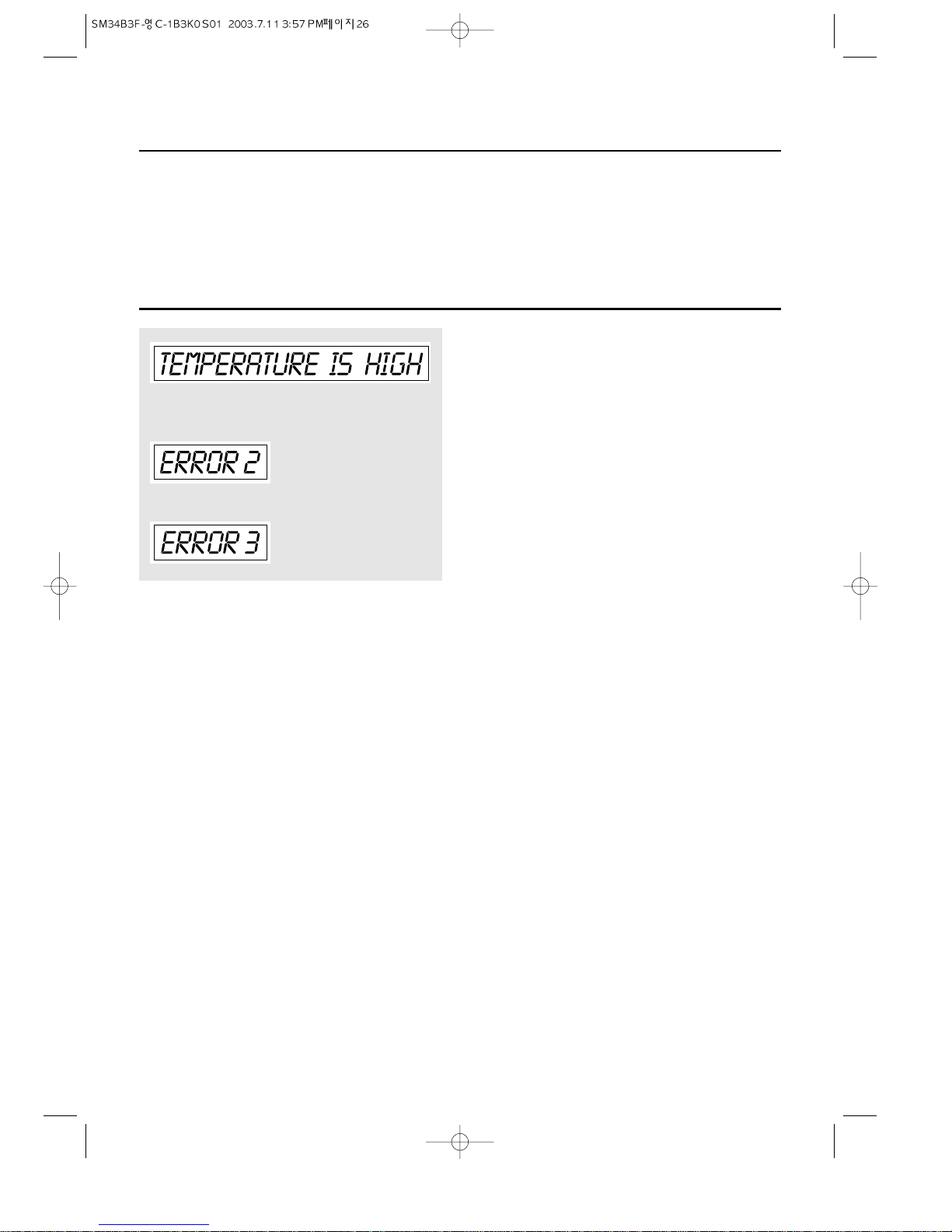

ABNORMAL MESSAGES................................................................................................................. 26

GENERAL GUIDELINES...................................................................................................................... 27

KEEP THE OVEN CLEAN.................................................................................................................... 28

BEFORE CALLING FOR SERVICE..................................................................................................... 29

QUESTIONS AND ANSWERS............................................................................................................. 30

CARE AND CLEANING ....................................................................................................................... 30

SPECIFICATIONS................................................................................................................................ 30

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE

TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since open-door operation can

result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.

(b) Do not place any object between the oven front face and the door or allow soil or cleaner

residue to accumulate on sealing surfaces.

been repaired by a competent person: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces.

(d) WARNING : It is hazardous for anyone other than a competent person to carry out any service

or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy.

(e) WARNING : Liquids or other foods must not be heated in sealed containers since they are

liable to explode.

(f) WARNING : Only allow children to use the oven without supervision when adequate instructions

have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

INSTALLATION AND EARTHING INSTRUCTIONS

How to examine your microwave oven after unpacking.

Unpack oven, remove all packing material, and examine the oven for any damage such as dents, broken door, latches or cracks in the door. Do not remove the film from inside the door. Notify dealer immediately if the oven is damaged. Do not install if the oven is damaged.

Where to place your microwave oven.

1. Place the oven on a flat and stable surface.

2. Surface of the oven is protected by a plastic film which should be removed before using.

3. Leave space behind and sides and upper of the oven. All air vents should be kept a clearance. If all vents are covered during operation, the oven may overheat and, eventually, lead to oven failure.

4. Keep away from radio and TV sets. If the oven is located close to a TV, radio interference may result.

5. Keep away from heating appliances and water taps. Keep the oven away from hot air, steam or splash when choosing a place to position it, or the insulation might be adversely affected and breakdowns occur.

6. The minimum height of free space necessay above the top surface of the oven is minimum 170mm.

Prior to use (If your oven has a grill element)

In order to protect your oven during transportation and storage, the grill element is covered with a protective coating. To remove this coating the grill element must be heated for 5 minutes. This procedure will produce some bad odours as the protective coating on the element disappears.

To remove the coating, use the following procedures:

1. Place an overproof and microwave safe bowl, containing 200cc of water or more, in the oven.

2. Press the convection button.

3. Set the time to 5 minutes.

4. Press the start button.

5. When the 5 minutes has elapsed, an acoustic signal sounds.

Note:

The protective coating has now been removed and the oven is ready to use. Please be aware that your oven now is very hot.

6. Open the oven door and remove the bowl with water (use

oven gloves when removing the bowl).

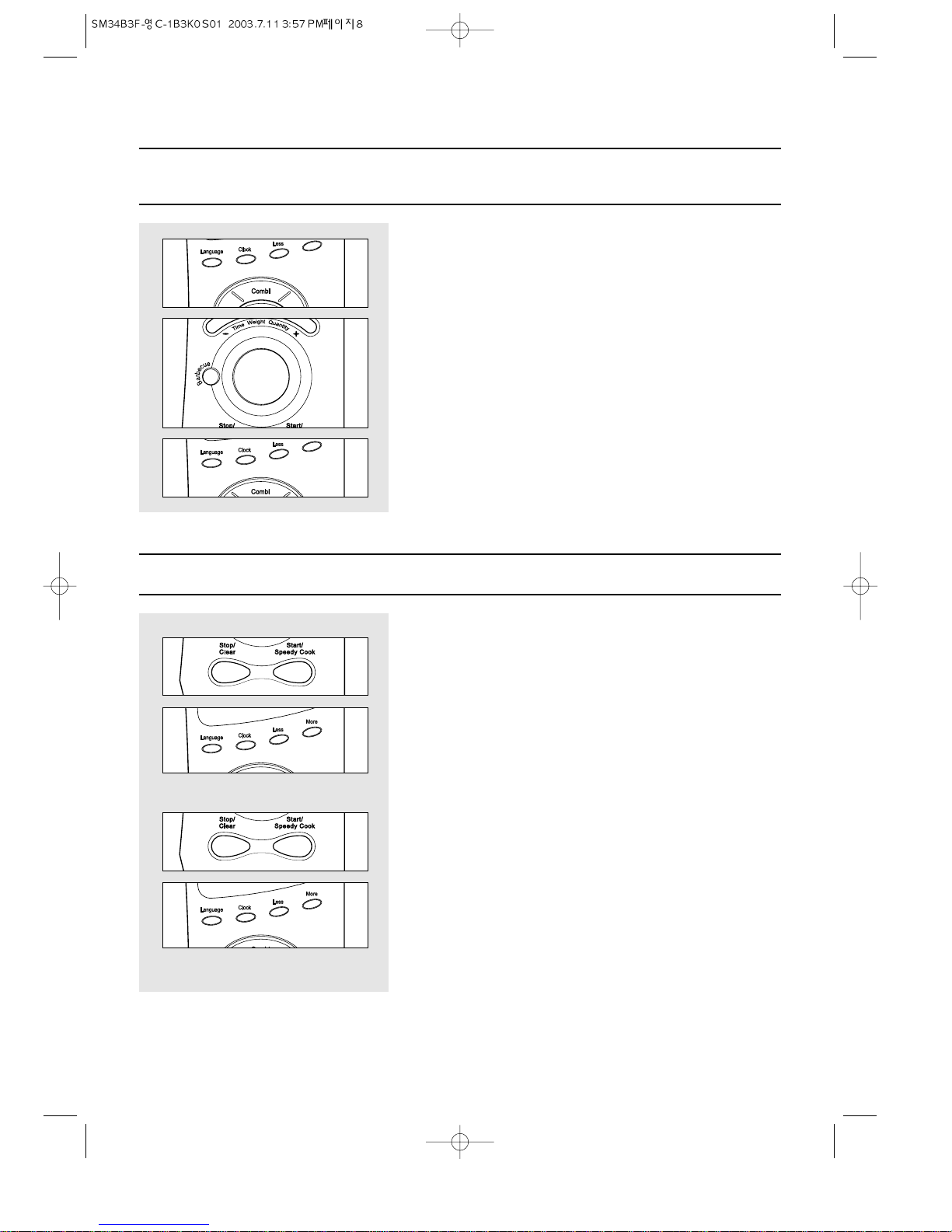

CHILD LOCK

To prevent child from operating the oven, install the childlock key.

1. Touch more button for 3 seconds.

Indicator lock is indicated and all buttons do not operate.

2. Touch more button for 3 seconds once again, then childlock is

canceled.

- WARNING:Only allow children to use the oven without

supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

Electrical Connection

WARNING-THIS APPLIANCE MUST BE EARTHED. REFER TO RATING PLATE FOR VOLTAGE AND CHECK

THAT THE APPLIANCE VOLTAGE CORRESPONDS WITH THE SUPPLY VOLTAGE IN YOUR HOME.

The flexible mains lead must be correctly connected, as below, to a three pin plug of not less than 13 AMP capacity. You must use a 3 pin plug which should be marked with the number BS 1363 and it should be fitted with 13 AMP fuse marked with the number BS 1362.

We recommend the use of good quality plugs and wall sockets that can be switched off when the machine is not in use.

IMPORTANT-The wires in the mains lead fitted to this appliance are coloured in accordance with the following code

GREEN AND YELLOW-EARTH BLUE-NEUTRAL BROWN-LIVE

As the colour of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

Power supply

• Check your local power source. This oven requires a current of approximately 12(8)amperes, 220-240V/50Hz.

• Power supply cord is about 1.2 meters long.

• The voltage used must be the same as specified on this oven.

Using a higher voltage may result in a fire or other accident

causing oven damage. Using low voltage will cause slow cooking. We are not responsible for damage resulting from use of this oven with a voltage of ampere fuse other than those specified.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

The wire which is coloured GREEN AND YELLOW must be connected to the terminal in the plug which is marked with the letter "E" or the earth symbol or coloured GREEN AND YELLOW, or GREEN. The wire which is coloured BLUE must be connected to the terminal which is marked with the letter "N" or coloured BLACK, or BLUE. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter "L" or coloured RED , or BROWN. If the terminals in the plug are unmarked or you are in any doubt as to the correct connections, consult a qualified electrician.

If you do not make the proper electrical connections you will damage your microwave oven and possibly injure yourself. Neither the manufacturer nor the supplier are liable if this happens.

MOULDED PLUGS Should it be necessary to remove a moulded on plug from the mains cable, it should be cut off and replaced with a suitable replacement.

The moulded plug cannot be used for any other appliance, therefore remove the fuse and dispose immediately and safely to prevent anyone, especially children from plugging it in to a wall socket, which will create a safety hazard.

Should the mains lead ever require replacement, it is essential that this operation be carried out by a qualified electrician and should only be replaced with a flexible cord obtained from the manufacturer.

Applicable only if moulded plug is fitted.

After replacement of a fuse in the plug, the fuse cover must be refitted. If the fuse cover is lost, a replacement cover is obtained. The colour of the correct replacement fuse cover is that of the coloured insert in the base of the plug or the colour that is embossed in words in the base of the plug recess or elsewhere on the plug. Always state this colour when ordering a replacement fuse cover. Only 13 amp replacement fuses which are ASTA approved to BS 1362 should be fitted

IMPORTANT SAFETY INSTRUCTIONS

11. Read all instructions before using the appliance.

12. Read and follow the specific “PRECAUTIONS TO AVOID

POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY” found on page 1.

13. This appliance must be grounded. Connect only to properly

grounded outlet. See “GROUNDING INSTRUCTIONS” found on page 3.

14. Install or locate this appliance only in accor-dance with the

provided installation instructions.

15. Some products such as whole eggs and sealed containers -

for example, closed glass jars-are able to explode and should not be heated in this oven.

16. Use this appliance only for its intended use as described in

this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.

17. As with any appliance, close supervision is necessary when

used by children.

18. Do not operate this appliance if it has a damaged cord or

plug, if it is not working properly, or if it has been damaged or dropped.

19. This appliance should be serviced only by qualified service

personnel. Contact nearest authorized service facility for examination, repair or adjustment.

10. Do not cover or block any openings on the appliance.

11. Do not store this appliance outdoors. Do not use this product near water — for example, near a kitchen sink, in a wet basement, or near a swimming pool, or similar locations.

12. Do not immerse cord or plug in water.

13. Keep cord away from heated surfaces.

14. Do not let cord hang over edge of table or counter.

15. Either: a) When cleaning surfaces of door and oven that comes

together on closing the door, use only mild, non-abrasive soaps or detergents applied with a sponge or soft cloth , or

b) When separate cleaning instructions are provided, See

door surface cleaning instructions on.

16. To reduce the risk of fire in the oven cavity: a) Do not overcook food. Carefully attend appliance when

paper, plastic, or other com-bustible materials are placed inside the oven to facilitate cooking.

b) Remove wire twist-ties from paper or plastic bags before

placing bag in oven.

c) If materials inside the oven ignite, keep oven door closed,

turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel.

d) Do not use the cavity for storage purposes. Do not leave

paper products, cooking utensils, or food in the cavity when not in use.

17. Do not use this microwave oven to heat corrosive chemicals (for example, sulfides and chlorides). Vapours from such corrosive chemicals may interact with the contact and springs of the safety interlock switches thereby rendering them inoperable.

18. Keep the waveguide cover clean at all times. Wipe the oven interior with a soft damp cloth after each use. If you leave grease or fat anywhere in the cavity it may overheat, smoke or even catch fire when next using the oven.

19. Never heat oil or fat for deep frying as you cannot control the temperature and doing so may lead to overheating and fire.

20. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons:

1 Do not overheat the liquid. 2 Stir the liquid both before and halfway through heating it 3 Do not use straight-sided containers with narrow necks. 4 After heating, allow the container to stand in the microwave oven

for a short time before removing the container.

5 Use extreme care when inserting a spoon or other utensil into the

container.

SAVE THESE INSTRUCTIONS

When using electrical apliances, basic safety precautions should be followed, including the following: WARNING-To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

3-1

1. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other nonfood items or for sterilizing purposes.

2. Do not use the oven when empty, this could damage the oven.

3. Do not use the oven cavity for any type of storage, such as papers, cookbook, cookware, etc.

4. Do not operate the oven without the glass tray in place. Be sure it is properly sitting on the rotating base.

5. Make sure you remove caps or lids prior to cooking when you cook food sealed in bottles.

6. Do not put foreign material between the oven surface and door. It could result in excessive leakage of microwave energy.

7. Do not use recycled paper products for cooking. They may contain impurities which could cause sparks and/or fires when used during cooking.

8. Do not pop popcorn unless popped in a microwave approved popcorn popper or unless it's commercially packaged and recommended especially for microwave ovens. Microwave popped corn produces a lower yield than conventional popping; there will be a number of unpopped kernels. Do not use oil unless specified by the manufacturer.

9. Do not cook any food surrounded by a membrane, such as egg yolks, potatoes, chicken livers, etc., without first piercing them several times with a fork.

10. Do not pop popcorn longer than the manufacturer's directions. (popping time is generally below 3 minutes). Longer cooking does not yield more popped corn, it can cause scorchings and fire. Also, the cooking tray can become too hot to handle or may break.

11. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

12. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

13. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

14. Always test the temperature of food or drink which has been heated in a microwave oven before you give it to somebody, especially to children or elderly people. This is important because things which have been heated in a microwave oven carry on getting hotter even though the microwave oven cooking has stopped.

15. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;

16. Keep the waveguide cover clean at all times. Wipe the oven interior with a soft damp cloth after each use. If you leave grease or fat anywhere in the cavity it may overheat, smoke or even catch fire when next using the oven.

17. Never heat oil or fat for deep frying as you cannot control the temperature and doing so may lead to overheating and fire.

18. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

General Use

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

WARNING : To prevent fire, burns, electric shock and other warnings: Listed below are, as with all appliances, certain rules to follow and safeguards to assure high performance from this oven:

Microwave function only

Utensils and cooking containers used in a microwave oven should be of a material that does not act as a barrier to microwave energy. Generally this means that you should cook in either (paper), plastic, glass or ceramic. Metal pans reflect microwave energy and inhibit cooking, and should not be used. In addition to material, the shape of the container should also be considered. Round oval shapes give the most even cooking. Square or rectangular containers may over-cook foods in the corners because more energy is absorbed there. Shallow containers give more even cooking results.

Utensils made of china and ceramic excellent to use in your microwave oven. Most types of glass are also very good. Lead crystal glass can crack and should therefore, not be used. Plastics and paper can also be used, provided they can withstand the temperature of the heated food. For cooking only use plastics, which will withstand a temperature of over 120˚C, e.g. polypropene and polyamide. Some plastic materials, e.g. melamine, will be heated by the microwave, and be damaged. To find out if a certain container is suitable, the following simple test can be made: Place the empty container and a glass of water inside the microwave oven. The water is needed because the oven must not be operated empty or with empty containers only. Let the oven work on full power for one minute. A suitable container will only be lukewarm.

Metal containers, e.g. saucepans or frying pans should not be used in microwave ovens. Nor should plates or vessels with decorations be used since metal e.g. gold, might be part of the decoration and such decorations will be damaged. Small pieces of aluminiuum foil can be used, but only to shield the areas that would over-cook (e.g. for covering chicken wings, leg tips and fish tails) but the foil must not touch the side of the oven as damage may occur.

WHICH UTENSIL CAN BE USED IN THE OVEN?

Glass (general) No Yes (1) No Glass (heat resistant) Yes Yes Yes Glass-ceramic and ceramic (heat resistant) Yes Yes (1) Yes (1) Earthenware Yes Yes Yes China (heat resistant) Yes Yes Yes Plastic (general) No Yes (2) No Plastic (heat resistant) Yes (2) Yes (2) Yes (2) Aluminium foil containers

/aluminium foil Yes Yes (3) Yes Metal baking tins Yes (4) No Yes (4) Metal (pots.pans, etc) Yes No No Paper No Yes No

1. Without metal parts or metal trims.

2. Some plastics are heat-proof only to certain temperatures. Check carefully!

3. It is possible to use aluminium foil to shield deliate areas of

food (this prevents over-cooking).

4. Metal tins can be used in the combination methods, however

if these are very deep, they will greatly reduce the efficiency, as metal shields the microwave energy from the food.

Caution:

• There are a number of accessories available on the market. Before you buy, make sure they are suitable for microwave use.

• When you put food in the microwave oven, make sure that food, food supports or covering do not come in direct contact with any of the internal walls or the ceiling of the cavity since discolouration may take place.

Before use, the user should check that utensils are suitable for use in microwave ovens.

Material

Grill &

Convection

cooking

Microwave

cooking

Combined

cooking

TO AVOID EXPLOSION AND SUDDEN BOILIING

1. Eggs

Never cook eggs in their shells. Steam will build up inside the shell during cooking and the egg will explode. If you want to cook or reheat eggs which have not been broken up by scrambling or mixing, you must always pierce the yolks or these will also explode. You should slice shelled hard boiled eggs before you reheat them in your microwave oven.

2. Piercing

Always pierce food which has a skin or membrane, for example, potatoes, tomatoes, apples, sausages etc. If you don't pierce them, steam will build up inside and they may explode.

3. Lids

Always remove the lids of jars and containers and take away food containers, before you cook using your microwave oven. If you don't, then steam and pressure might build up inside and cause an explosion even after the microwave cooking has stopped.

WARNING

When heating liquids, e.g. soups, sauces and beverages in your microwave oven, overheating the liquid beyond boiling point can occur without evidence of bubbling: This could result in a sudden boil over of the not liquid. To prevent this possibility the following steps should be taken: a. Avoid using straight sided containers with narrow necks. b. Do not overheat. c. Stir the liquid before placing the container in the oven

and again halfway through the heating time.

d. After heating, allow to stand in the oven for a short time,

stir or shake them again carefully and check the temperature of them before consumption to avoid burns (especially, contents of feeding bottles and baby food jars).

CONTROL PANEL

DISPLAY WINDOW

11. MICROWAVE indicator, showing

microwaving in progress.

12. DEFROST indicator, showing

defrosting in progress.

13. GRILL(upper grill heater) indicator,

showing grilling in progress.

14. GRILL(lower grill heater) indicator,

showing grilling in progress.

15. CONVECTION indicator, showing

convectioning in progress.

16. CHILD LOCK indicator.

17. % percentage microwave power

level indicator.

18. BARBECUE indicator.

BUTTONS

19. language : Press to select the

language.

10. clock : Use to set clock.

11. less : Use to remove time from

cooking.

12. more : Use to add time to cooking.

13. m/w : Press to select microwave

power level.

14. combi : Press to select combi cooking mode.

15. auto defrost : Press to select defrost menu.

16. convection : Press to select convection temperature.

17. grill : Press to select grill.

18. cake : Press to select cake menu.

19. crusty : Press to select crusty

menu.

20. auto cook : Press to select auto cook menu.

21. barbecue: Press to select barbecue mode.

22. start/speedy cook : Press to start a programme, also for speedy start (each press adds 30 seconds microwave cooking time).

23. stop/clear : Press once to stop a programme, and twice to cancel a programme.

24. dial knob : Use to set time, weight and quantity.

7 6 5 q w

t e

1 2 3 4 8 9 0

ACCESSORIES

This oven comes equipped with several accessories. They can be used in various ways to facilitate cooking.

■ Rotating base

This fits over the shaft in the center of the oven’s cavity floor. This to remain in the oven for all cooking. It should only be

removed for cleaning.

■ Barbecue bar

This barbecue-bar is used barbecue cooking.

■ Turntable tray or turntable

This metal tray fits over the rotating base and locks into place.

This is to be used in the oven for all cooking. It rotates clockwise or counterclockwise during cooking. It is easily removable for cooking and cleaning needs.

■ Metal rack

This metal rack is used with the turntable tray.

■ HOW TO USE THE ACCESSORIES OF COOKING

Important:

The rotating base must be placed in the center of the oven’s cavity and fitted in the rotating shaft exactly. In case the rotating base does not fit in the rotating shaft, the rotating base might become as tray and sparks can occur.

■ Turntable

• Microwave cooking

• Convection cooking

• Combination cooking

• Auto cooking

• Barbecue cooking

■ Metal rack (high)

• Grill cooking

■ Metal rack (low)

• Defrost

• Cake

■ Barbecue bar

• Barbecue cooking
