PATENT NO.: 200830154750.X
OPERATION MANUAL
FM STEREO MW SW LW DIGITAL RECEIVER
RP-DS30
KEY FEATURES
NOTE:
Press shortly: about 0.2 second;
Long press: about 2~3 seconds.
Frequency Range:
FM: 87.0-108.0 MHz
MW: 522-1710 KHz
SW: 2.30-23.00 MHz
LW: 153 - 279 KHz
235 Station Memories
Auto / Manual Frequency Tuning
Auto Tuning Storage (ATS)
Sleep Timer Function (05-90 minutes
Alarm Clock Function (by Radio)
Key Lock Function
Mute Function
LED Backlight
Battery Level & Signal Strength Indicator
Reset Function
Digital Volume Control
Intellectualized Rechargeable Function
Mini-USB Jack
Stereo Earphone Jack
Use 3 x AAA batteries
Radio Size: 110 x 69 x 13 mm
Accessories: Stereo Earphones, USB Cable, Carrying
Case & Operation Manual

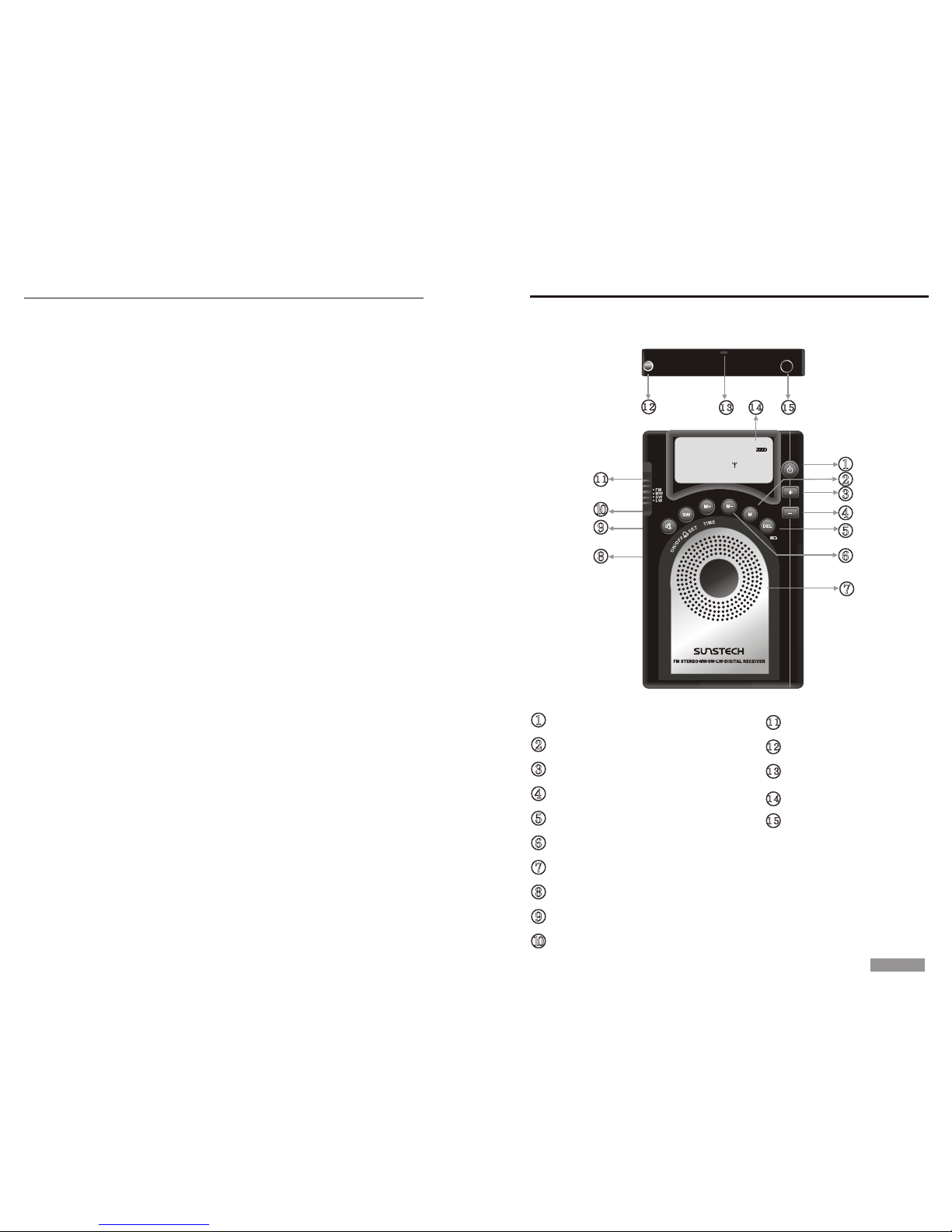

FRONT
LOCATION OF CONTROLS
Power On/Off
Memory
Freq. +
Freq. -
Delete; Charge (Radio Off)
Memory -; MW Step 9K / 10K Setting
Speaker
Memory +; Adjust Time; 12H / 24H Clock Mode Setting
Mute; Activate / Deactivate Alarm Function
Set Alarm; Meter Band Selection
Band Switch
Telescopic Antenna
Strap Hole
LCD Display
Earphone Jack
INDEX
LOCATION OF CONTROLS...............................................1
LCD DISPLAY......................................................................3
POWER SUPPLY................................................................4
POWERED BY BATTERIES...........................................4
BATTERY CONSUMPTION INDICATION......................4
CHARGING....................................................................4
Charged by the Adaptor (not included).......................5
Charged by the PC.....................................................5
RADIO OPERATION..........................................................6
POWER ON/OFF & LOCK SWITCH..............................6
BAND SELECTION........................................................7
ADJUST THE VOLUME..................................................7
MUTE FUNCTION..........................................................8
TUNING IN STATIONS...................................................8
Manual Tuning............................................................8
Auto Tuning.................................................................8
Using the Antenna......................................................9
MEMORY......................................................................10
Manual Saving..........................................................10
Auto Tuning Storage (ATS)........................................11
Recall the Stored Frequency ....................................11
DELETE THE PRESET STATIONS..............................12
SET THE MW STEP..........................................................13

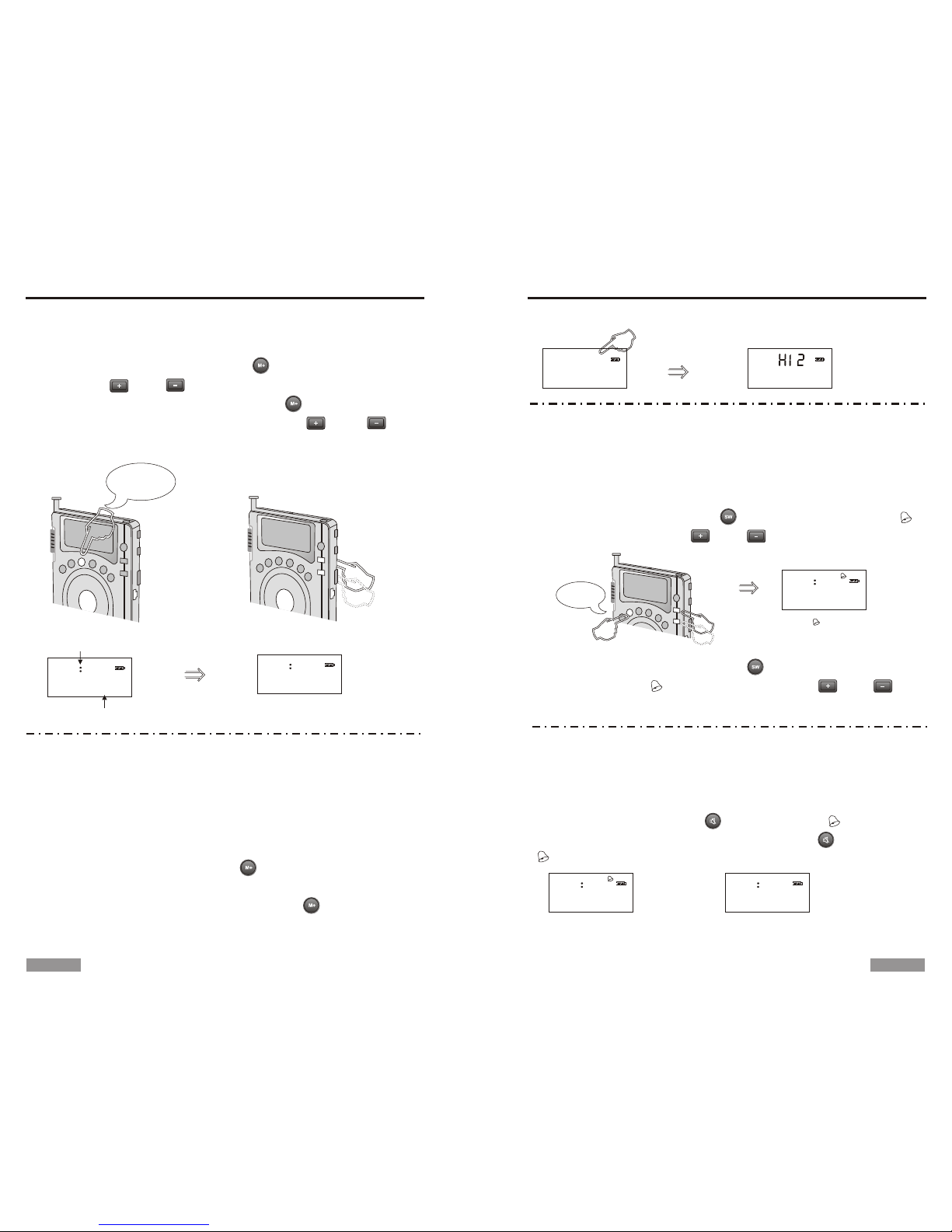

CLOCK AND ALARM SETTING.......................................14
SPECIFICATIONS............................................................16
89.8
FM
25
56
GB-01
GB-02 GB-03
Frequency
Signal Strength Indicator
Band
Indicator
Alarm Indicator
Lock Indicator
Battery Level Indicator
Adaptor Indicator
Sleep Timer Indicator
LCD DISPLAY

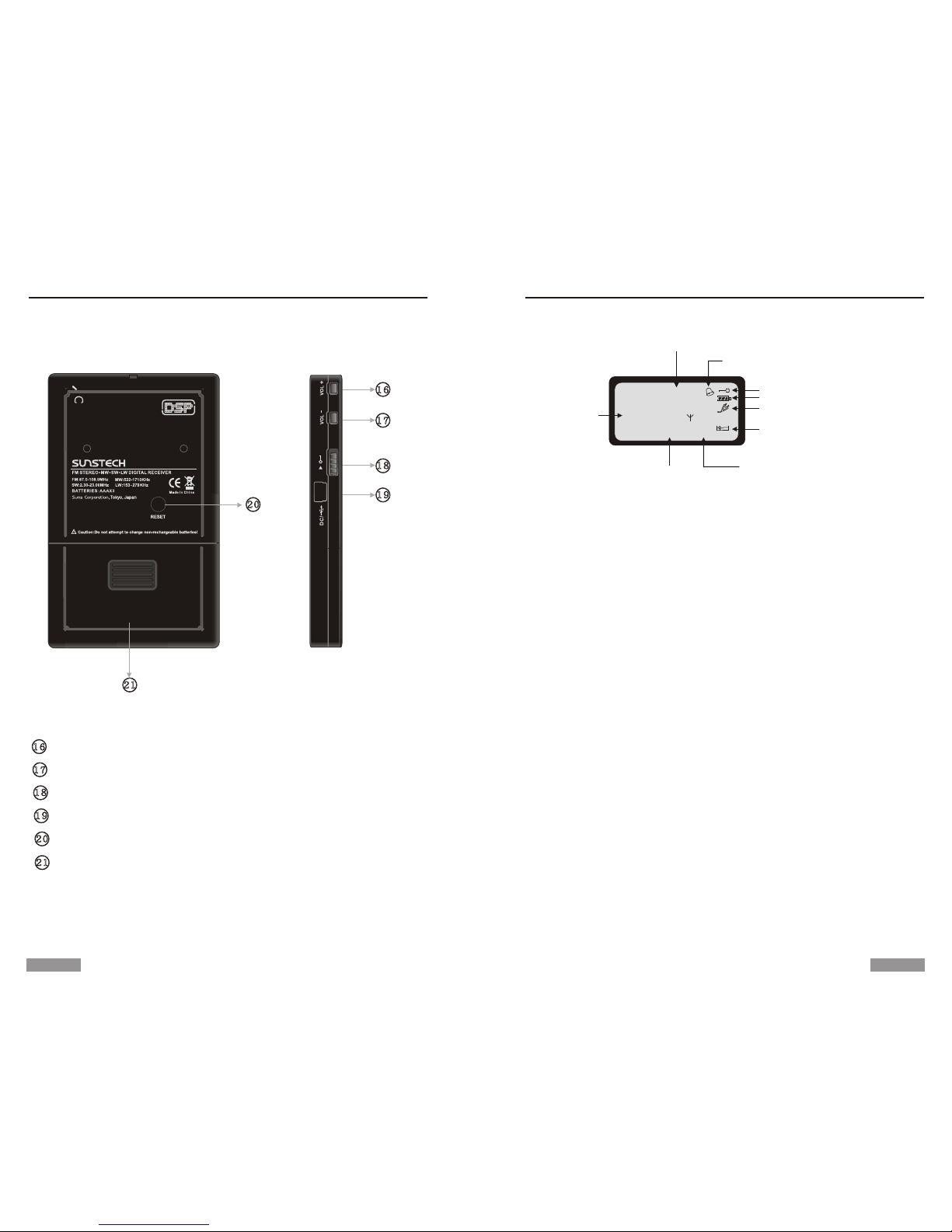

REAR
VOL +
VOL -
Lock Switch
USB Jack / Charging Jack
Reset
Battery Compartment
RIGHT SIDE
LOCATION OF CONTROLS
Stored Address
FM
89.8
56
25
RP-DS30

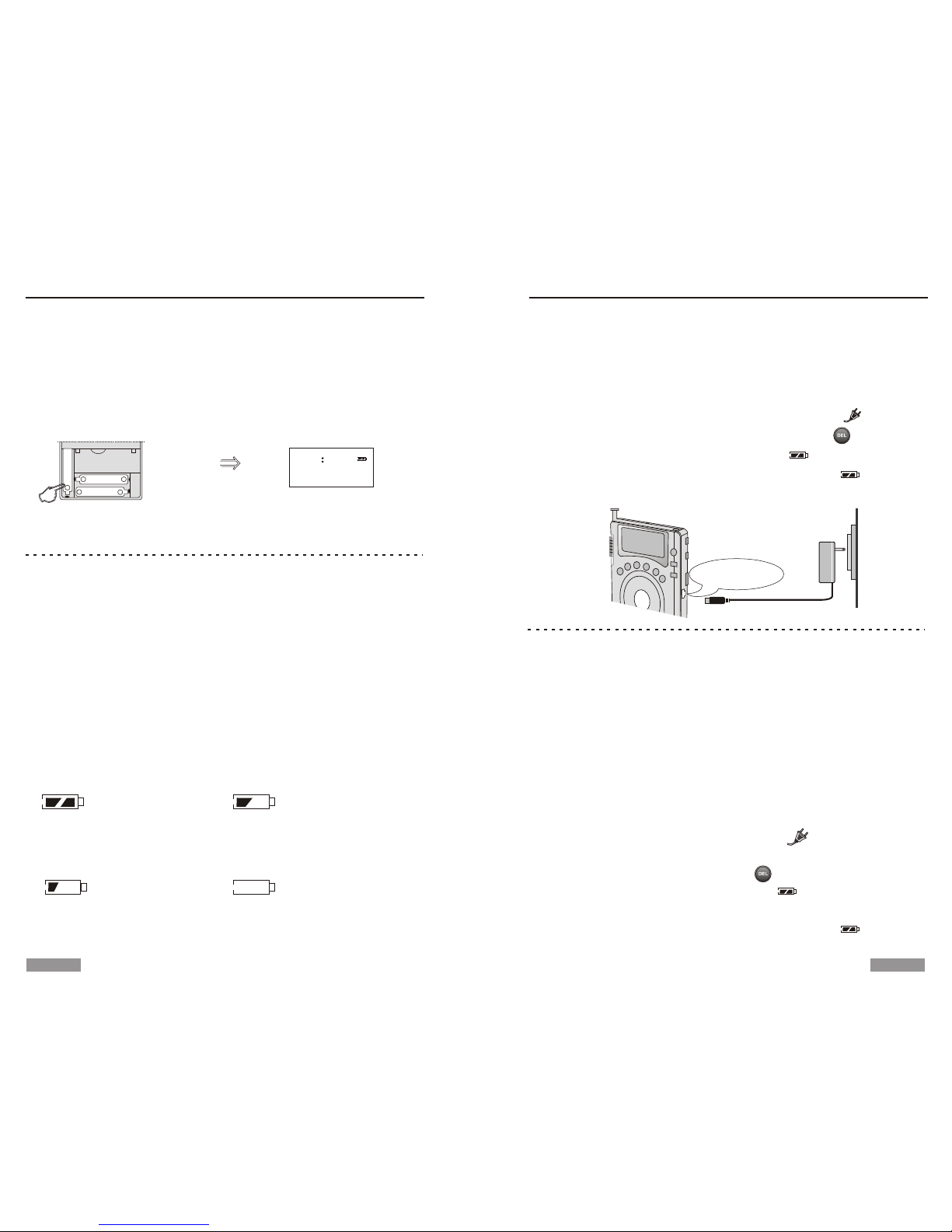

POWERED BY BATTERIES
1. Open the battery cover.
2. Install 3 new rechargeable or alkaline batteries (AAA size),
then close the battery cover.
3. Turn on the unit.
Install the batteries correctly
according to the battery polarity.
NOTE:
1. Please don't mix the used batteries with new ones.
2. Please don't mix the rechargeable batteries with the alkaline ones.
3. Please don't charge the alkaline batteries.
4. When the radio is not being used for a long period, remove the batteries
to avoid leakage and corrosion. If battery leakage occurs, wipe the battery
compartment with a soft cloth before inserting new batteries.
BATTERY CONSUMPTION INDICATION
1. Full
4. Exhausted, the unit will
turn off automatically.
2. Medium
3. Low
After installing the batteries,
the LCD displays as above.
POWER SUPPLY
POWER SUPPLY
1. Install 3 AAA size rechargeable batteries correctly.
2. Plug one port of the adaptor into the AC socket and plug the
other port into the USB jack, " " will display.
3. With the radio off, press < > shortly to charge. The battery
power icon " " flows.
4. When the battery power is full, " " stops flowing. Please
disconnect the adaptor and the radio.
Charged by the PC
1. Plug one port of the supplied USB cable into the USB jack of
the PC and the other port into the USB jack of the radio.
2. After connecting correctly, " " will appear in the display.
3. With the radio off, press < > shortly to charge, and the
battery power icon " " flows.
4. When the battery power is full, " " stops flowing. Please
disconnect the PC and the radio.
Plug into the
USB Jack
NOTE:
1. While charging, please make sure the connection is ok.
2. Charging time is approx. 2 ~ 7 hours, which depending on the capacity of the
rechargeable batteries.
3. Please turn off the radio when charge the radio via adaptor to avoid interrupt.
4. Please plug or unplug the adaptor with the radio off.
Charged by the AdaptorCharged by the Adaptor (not included)
Adaptor
25
0 05
+
-
+
-
+
GB-04 GB-05
POWER ON
BAND SELECTION
1. In radio OFF mode, press < > or < > shortly to select the
sleep timer 05 ~ 90 or " " (permantly ON).
2. Press < > shortly to turn on the unit, the sleep timer indicator
will appear in the display.
3. The radio will turn off automatically when reaching your preset
sleep timer.
press
shortly
press
shortly
"press shortly"
or "long press"
Volume Level
MW Band
FM Band
SW Band
flashes
ADJUST THE VOLUME
Press <VOL+> or <VOL-> to adjust the volume.
LOCK SWITCH
Push the <Lock Switch> upwards to lock all buttons, push
it downwards to unlock all buttons.
Locked
NOTE: When there is " " in the display, the sleep timer function is activated.
05 10 20 90
(only the sleep
icon displays)
POWER OFF
In radio ON mode, press < > shortly to turn it off.
RADIO OPERATION RADIO OPERATION
Push the <Band Switch> to "FM", "MW", "SW" or "LW" to
select your desired band.
While listening to the SW program, press < > shortly to
select the meter band.
05
89.8
FM
0 05
30
89.8
FM
20
VOL
20.755
SW
05
LW Band
89.8
FM
MW
LW
990
05
05
05
205
GB-06 GB-07

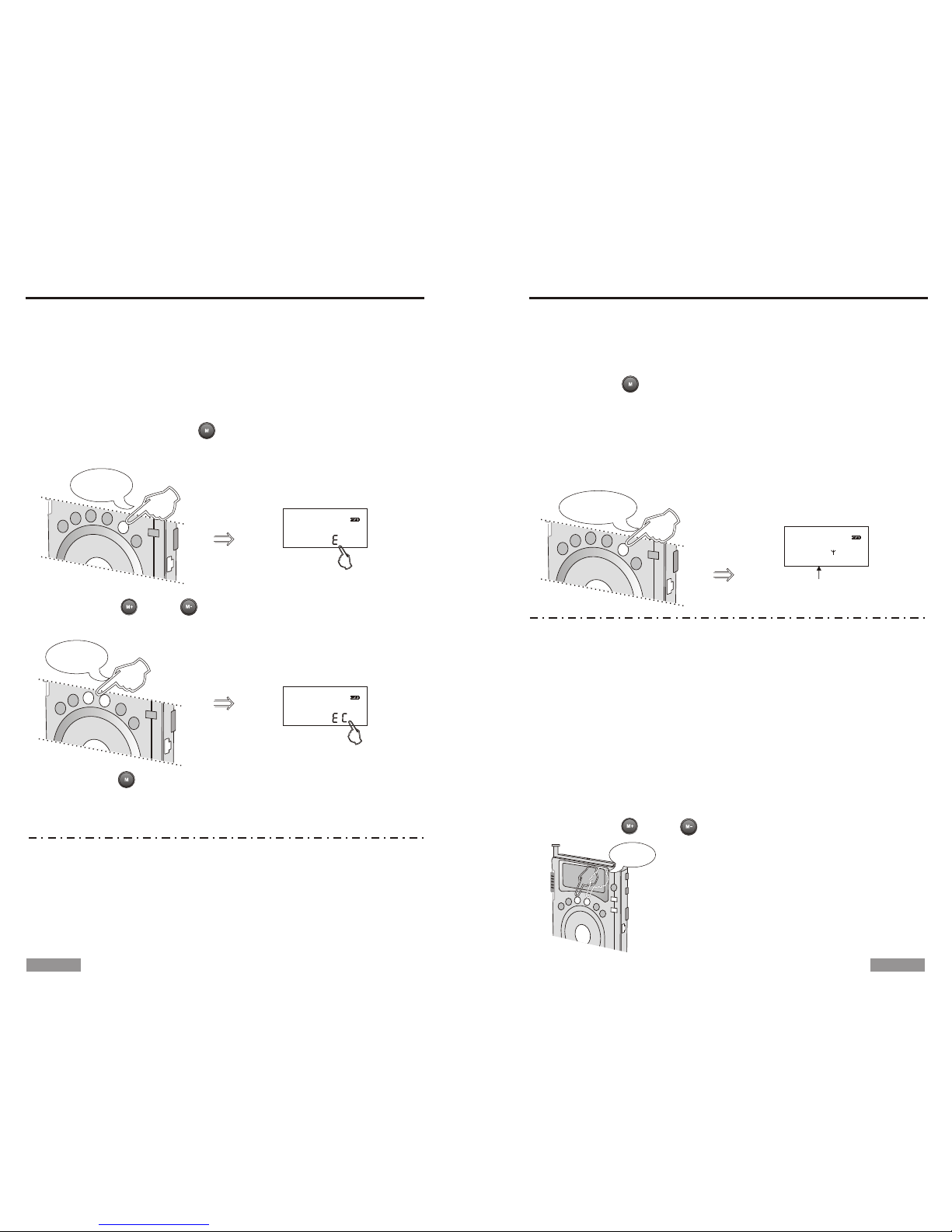

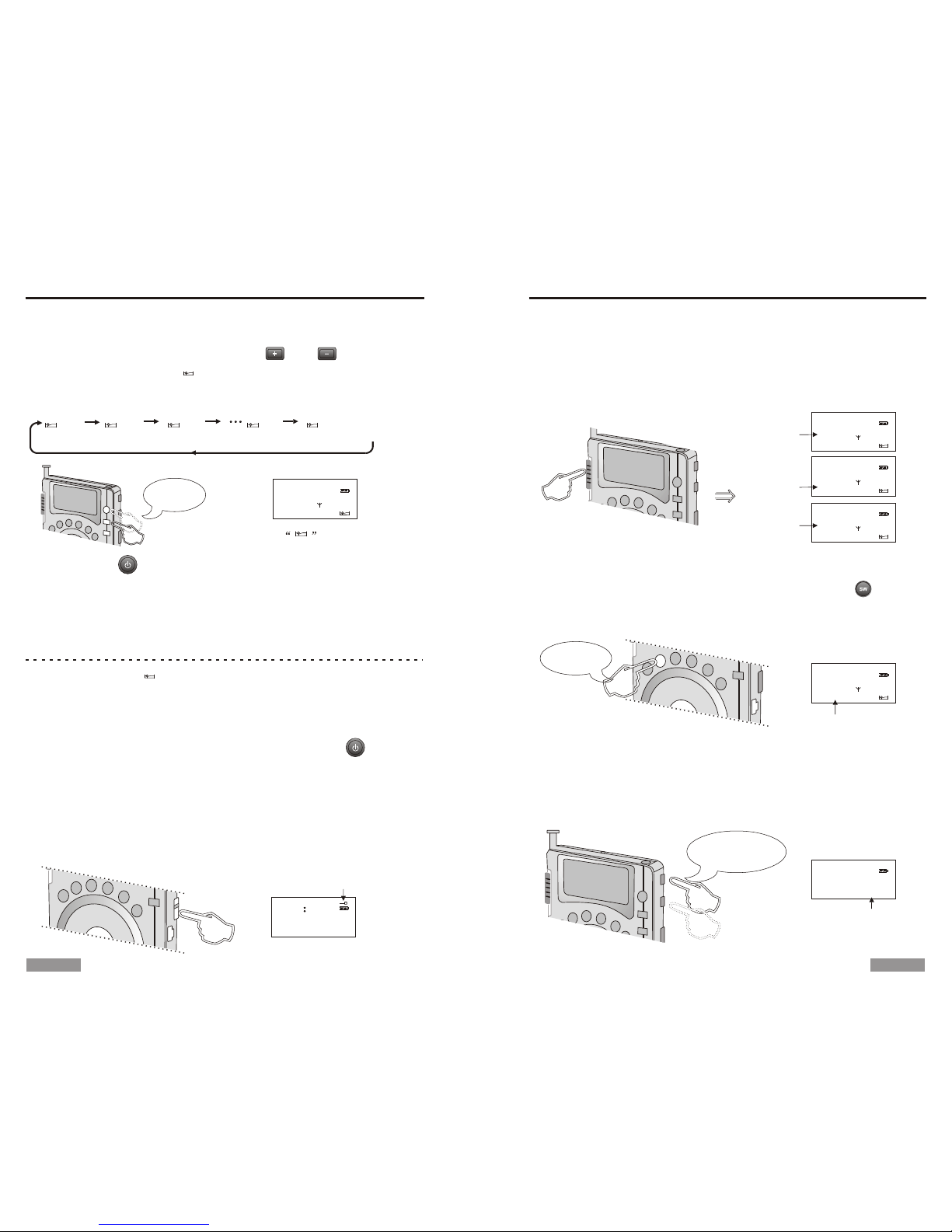

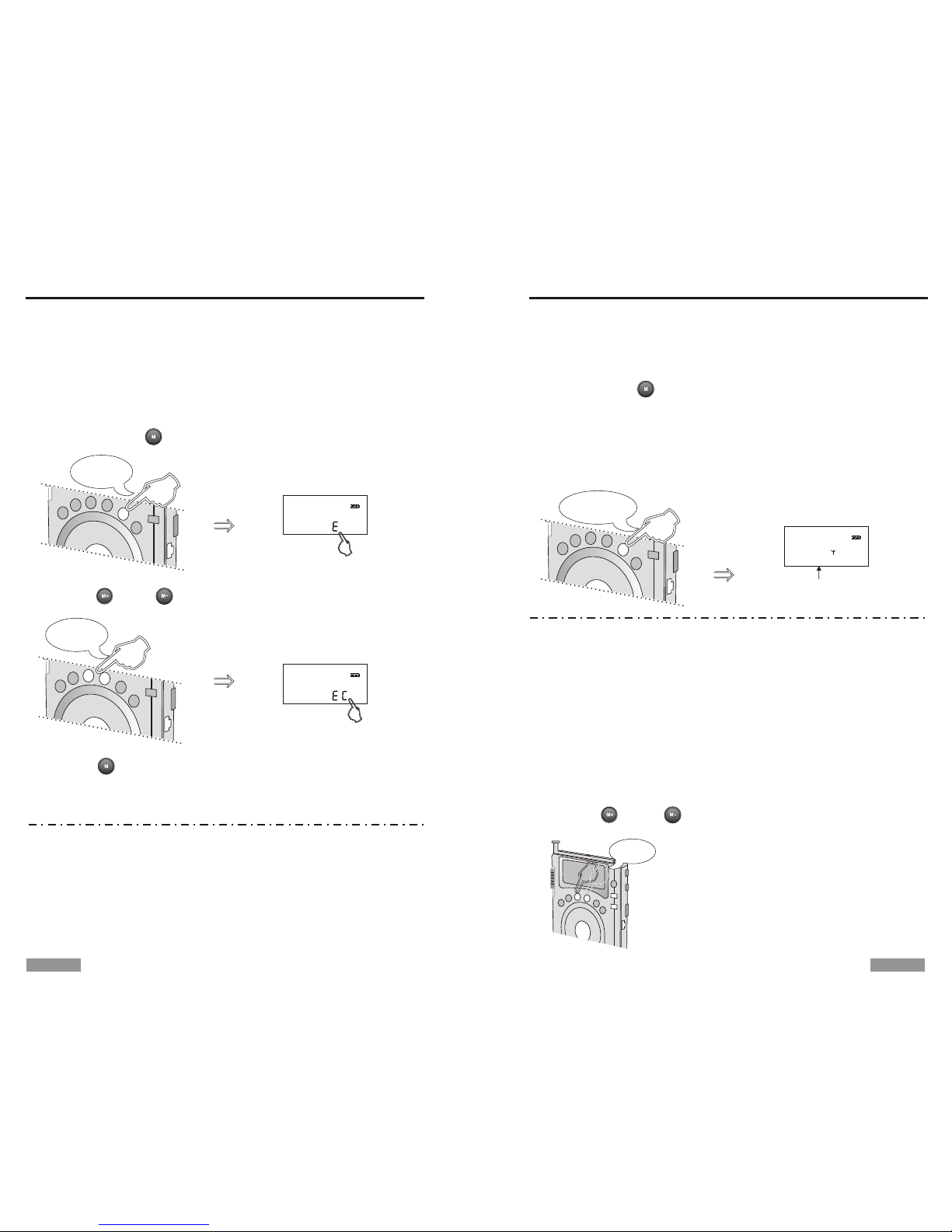

TUNING IN STATIONS
MUTE FUNCTION
Manual Tuning
Auto Tuning
press shortly: manual tuning in stations
long press: auto tuning in stations

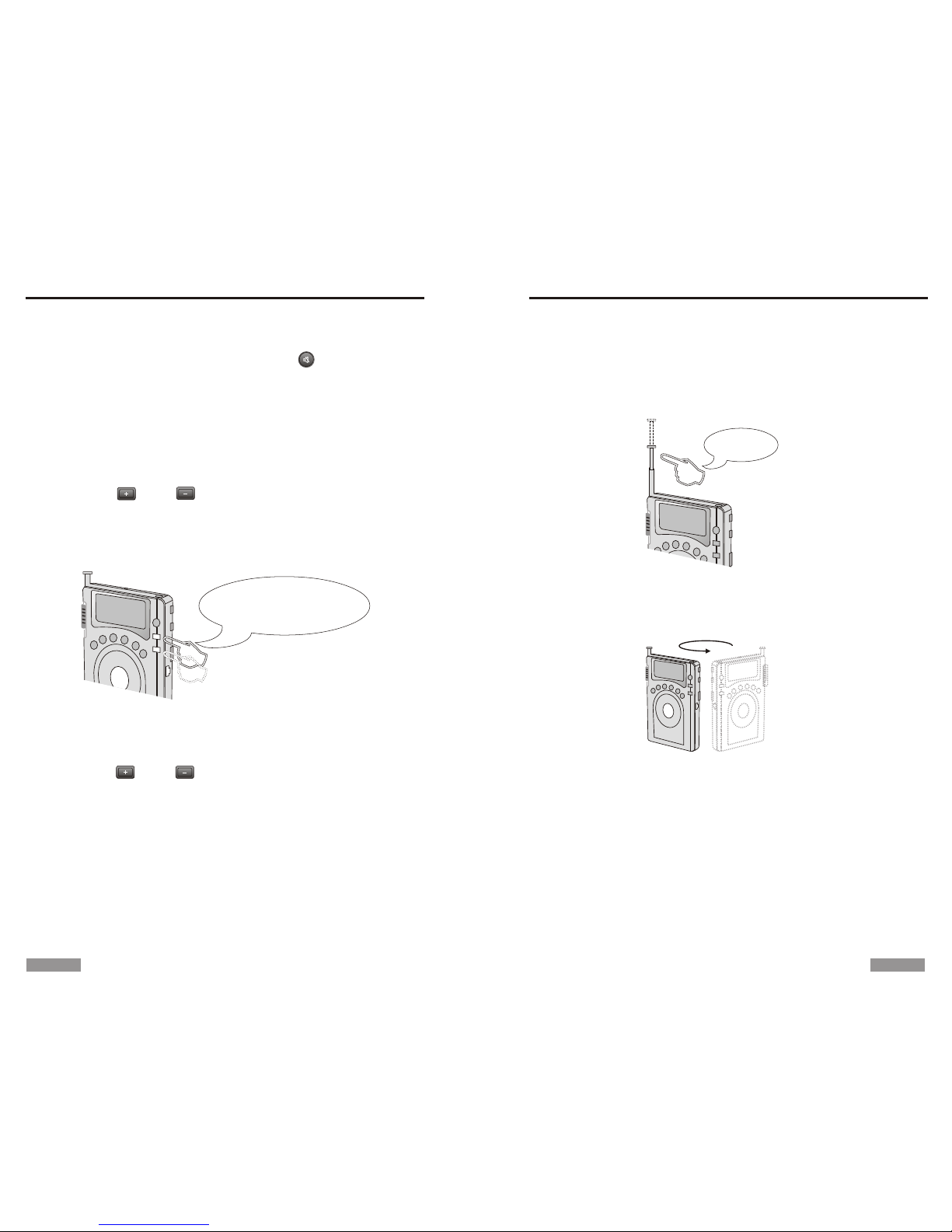

Using the Antenna
1. While listening to the FM and SW station, please change
the length of the telescopic antenna to get the best
reception.
2. While listening to the MW or LW station, rotate the radio
to find the position which gives the best reception.
change the length
1. Select the band.
2. Press < > or < > shortly to increase or decrease
the frequency. Please pay attention to the signal strength
indicator and stop pressing when receives the clear signal.
While listening to the program, press < > shortly to
activate the mute function, press it again to deactivate.
NOTE: In order to reduce interference and gain better reception, please do not
use the adaptor when tuning in the station automatically.
1. Select the band.
2. Long press < > or < > with frequency increasing
or decreasing on display. The unit will stop
tuning when receives the clear signal. If the frequency
is not very clear, please tune in the station manually.
RADIO OPERATION RADIO OPERATION
GB-08 GB-09
