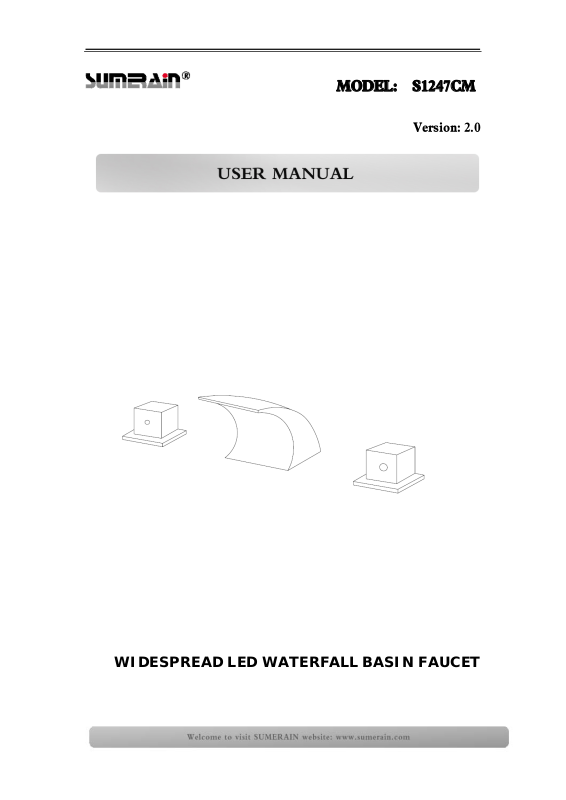

SUMERAIN S1247CM User Manual

MODEL: S1247CM

Version: 2.0

WIDESPREAD LED WATERFALL BASIN FAUCET

Dear Valued Customer,
SUMERAIN would like to take this opportunity to thank you for
purchasing SUMERAIN products. It is our sincere hope that you are
completely satisfied with your new purchase. We welcome any
questions or comments you may have and look forward to assisting you
in the future.

Sincerely,
SUMERAIN customer service department

1. Unpack your new product and ensure that all the parts are contained
in the packaging. Keep the product in its original box until you ready
to install it.

2. Shut off the water supply if replacing a previously-installed faucet.

3. Observe all plumbing and building codes in your area.

4. It is recommended that installation of the product be done by a
professional plumber.

5. SUMERAIN reserves the right to make revisions in the design of
faucets without notice, as specified with the price book.

Tools you may need when installing the faucet

Specification

Function
Feature
Style
Finish
Installation Holes
Number of Handles
Faucet Total Height
Spout Spread
Spout Width
Spout Height
Valve Type
Faucet Body Material
Faucet Spout Material
SPOUT Net Weight
Gross Weight
Working water press
LED power supply
LED Color changing
Water temperature
Water temperature
Water temperature

Bathroom Sink Faucets
LED, Waterfall, Widespread
Contemporary
Chrome
Three Holes
Two knobs
90mm [3.54 Inch]
85mm [3.35 Inch]
81mm [3.19 Inch]
86mm [3.39 Inch]
Ceramic Valve
Brass
Stainless steel

0.6 KG

2.2 KG

0.2 ~0.8 Mpa
Water flow generator

< 28 ℃
28 ℃~ 38 ℃
> 38 ℃

Blue color
Green color
Red color

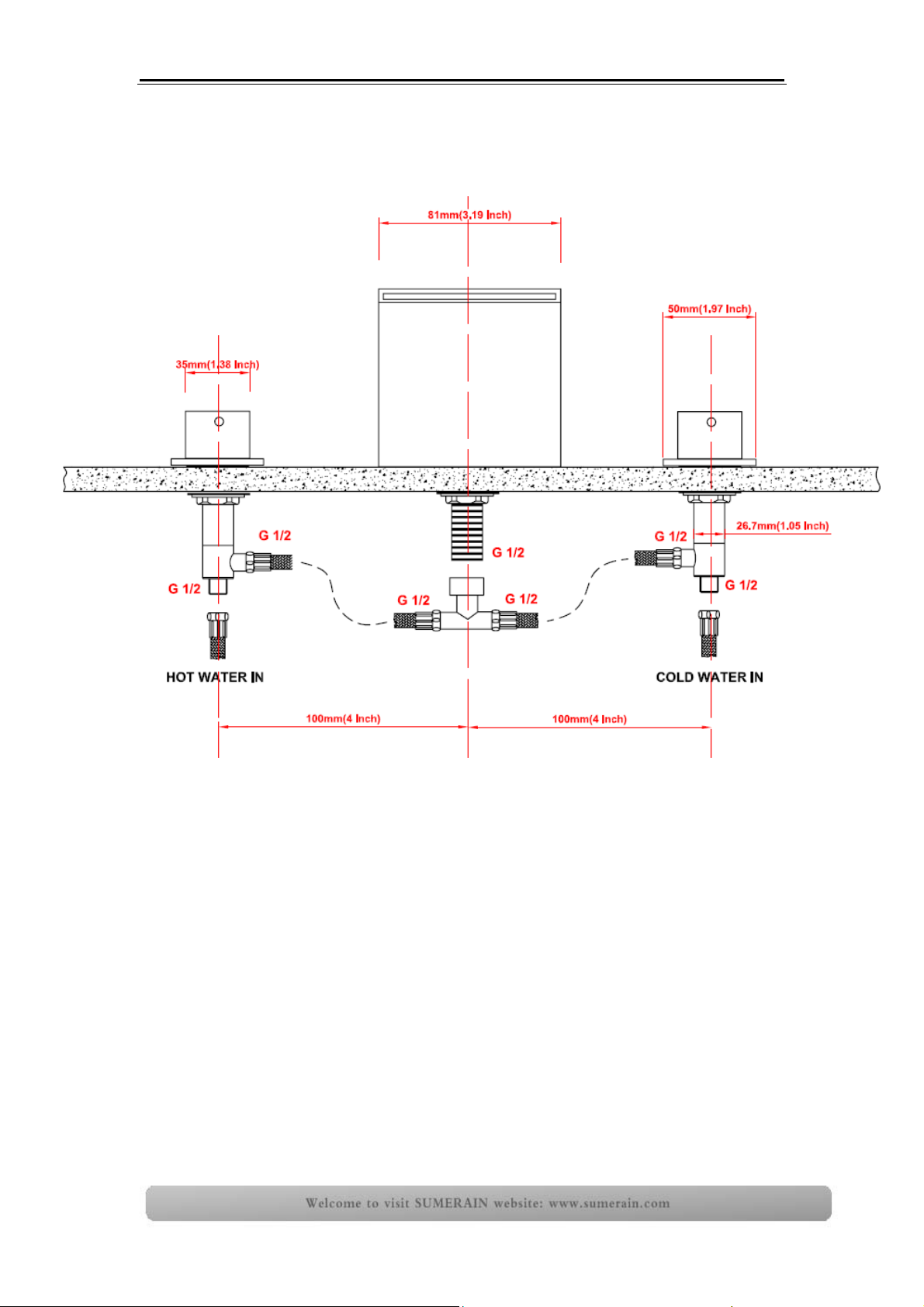

Dimension

CODE ITEM NAME QTY CODE ITEM NAME QTY

A

Faucet Body

1PCS Q

Valve body (Cold) 1PCS

C
E
G

I

K
M
O

Foam gasket

Escutcheon

Nut

Rubber gasket

Nut

T-pipe

Hex wrenches

2PCS
2PCS
1PCS
1PCS
2PCS
1PCS
1PCS

D Knob 2PCS

F Rubber gasket 1PCS

H Shank 1PCS

J Rubber gasket 2PCS

L Valve body(Hot) 1PCS

N G1/2” Hoses 2PCS

P Hot/cold sign 2PCS

Step 1:
Screw the Shank ”H” with the faucet body “A” on the table ,screw
nut ”K” and Rubber gasket “F”.
Step 2:
Screw nut ”K” and put Rubber gasket “J” on Valve body “L”, fixing the
Escutcheon “E” with Foam gasket “C” and knob “D” on the table

use the hex wrench “O” screw the knob “D” and then put the hot sign
“P” on.

Install another cold valve body with the same way.
Step 3:
Connecting the flexible hoses “N” to the cold and hot water inlet (“L”
and “Q”), the other end of the hoses connect to the cold and hot water
supply system
Step 4:
Connecting the other connection pipes according to above diagram

Clean the faucets and showers as and when required. Regular ■

cleaning can prevent calcification.

Never use cleaning materials contain hydrochloric■ , formic,

phosphoric or acetic acid, which may cause considerable damage.

Never use cleaning materials or appliances with an abrasive effect, ■

such as unsuitable cleaning powders, sponge pads, or micro fiber
cloths.

After cleaning, rinse thoroughly■ the faucet with clean water to

remove any cleaner residue.

■Unscrew and clean the aerator regularly.

TROUBLESHOOTING

Symptom Solution

Faucet leaks from
the handle

The water
pressure is too
low

The spout sprays
water all over
Water is leaking
from the faucet
under the sink

Handle is loose

LED does not
illuminate

A. Tighten the packing nut

B. Replace the "O" ring or packing
A. Make sure the water supply valves under the sink are

turned on all the way
B. Clean or replace the aerator
C. Check plumbing system for water pressure problems
A. Clean or replace the aerator
B. Replace the aerator washer
A. Check the water supply connections to the faucet
B. Inspect the water supply lines or hoses for leaks

A. Remove the cap and tighten the screw
B. Locate and tighten the hex set screw
C. Remove the handle and check for stripped teeth on the

stem.
A. Increase the water press
B. Clean the strainer of hot and cold water inlet
