sumerain SMER1052 Installation & Assembly

MODEL

FINISH

S1403CM

CHROME

S1403NM

BRUSHED NICEKL

MODEL: S1403XM

Version: 1.0

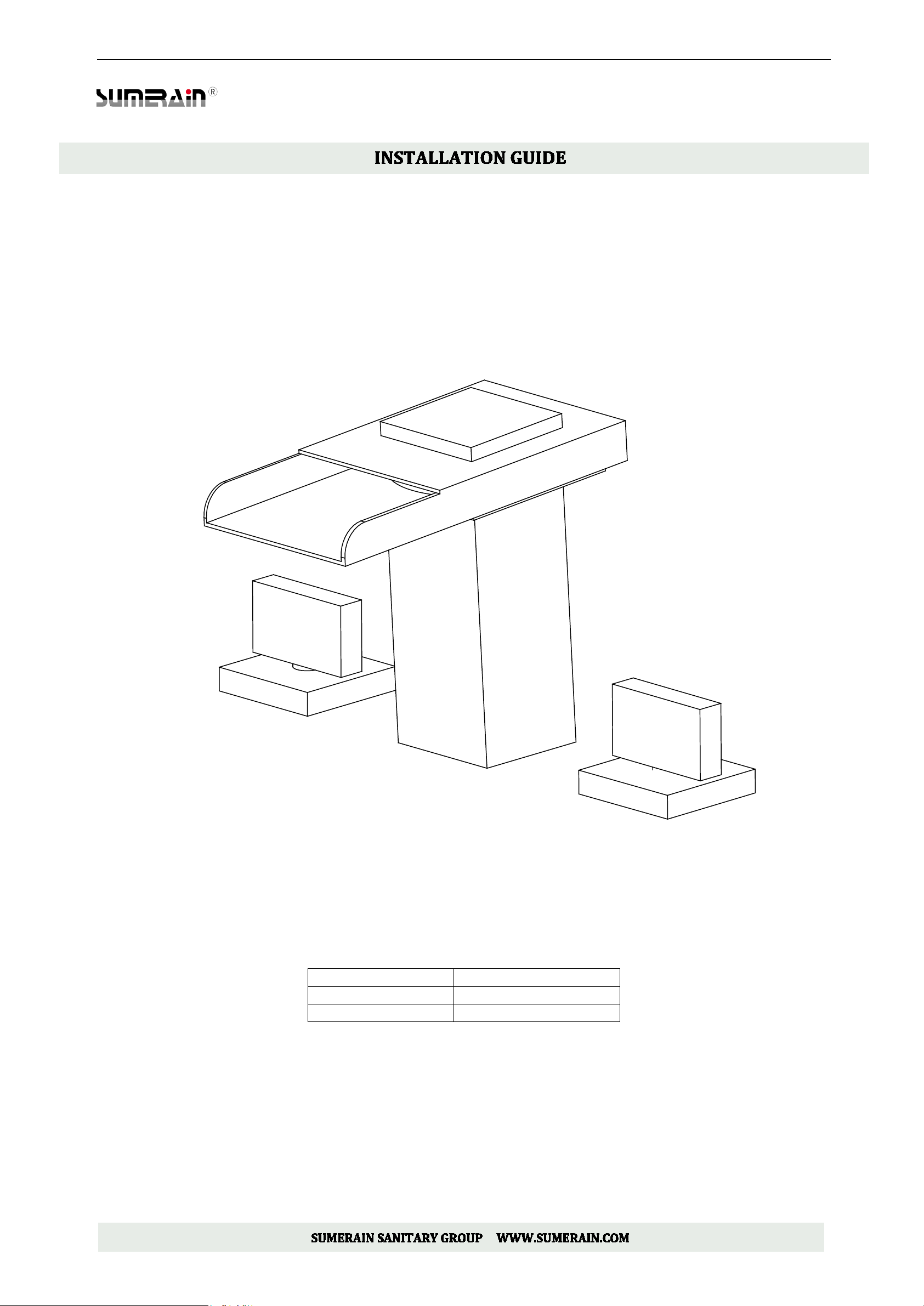

8” LED WIDESPREAD BATHROOM SINK FAUCET

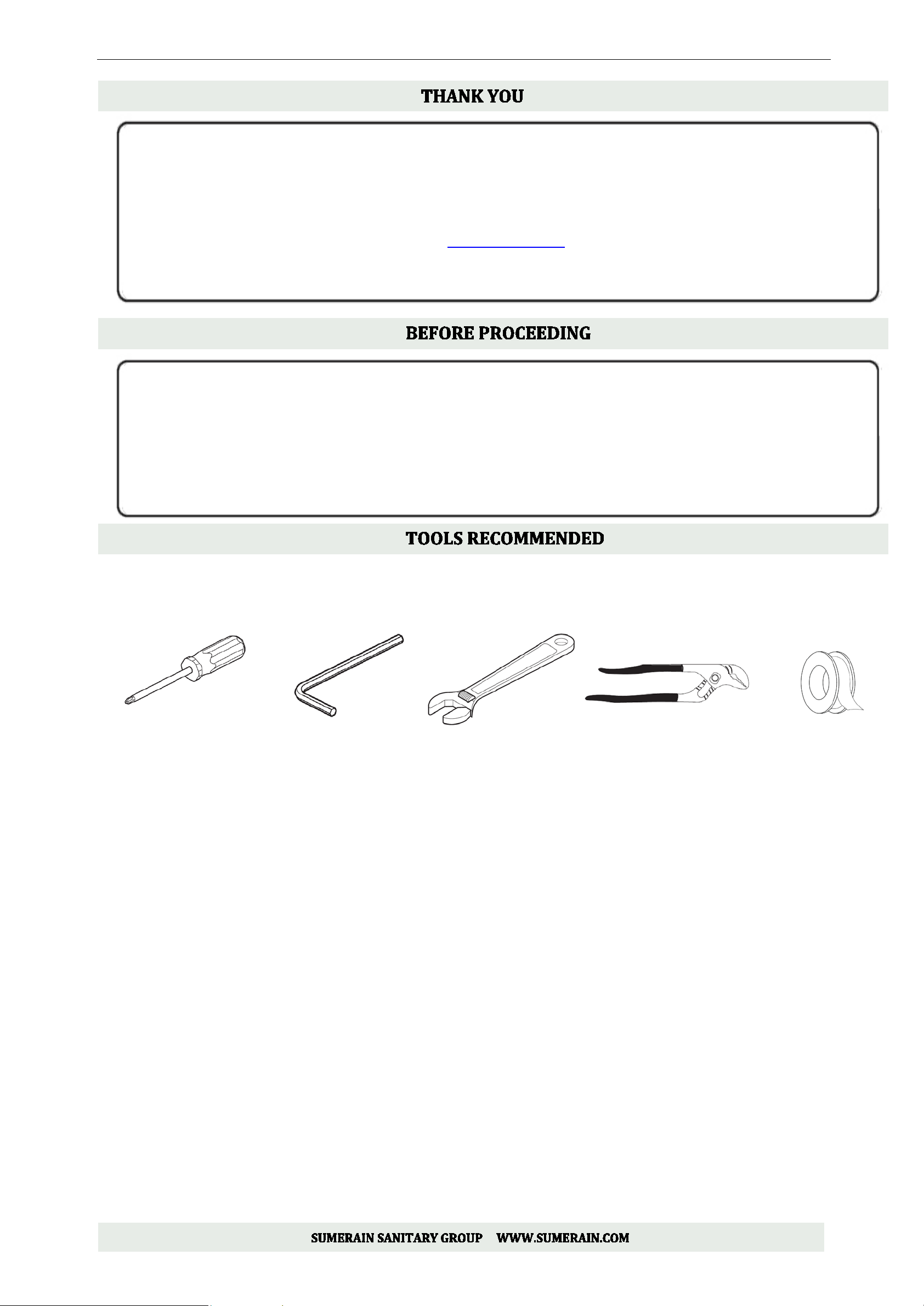

Dear Valued Customer,
SUMERAIN would like to take this opportunity to thank you for purchasing SUMERAIN products. It is our
sincere hope that you are completely satisfied with your new purchase. All SUMERAIN products are carefully
engineered, and factory tes ted to provide long trouble-free use under normal conditions. This product is
easy to install using basic tools and our easy to follow illustrated instructions. We welcome any questions or
comments you may have and look forward to assisting you in the fu ture. If you have any questions re garding
this product, call [phone] or email to [email protected]

.
Sincerely,
SUMERAIN customer service department

1. Unpack your new product and ensure that a ll t h e par ts ar e co ntaine d in t he packaging. Keep the pro duct

in its original box until you ready to install it.

2. Locate water supply inlets and shut off the water sup ply valves. These are usually found near the water

meter.
if you are replacing an existing unit, remove the old unit and clean the mounting surface thoroughly.

3. Observe all plumbing and building codes in your area.

4. It is recommends calling professional if you are uncertain about installing this product.

Philips screwdriver Allen wrench Adjustable wrench Channel locks Thread
Sealant

VERSION: 140320.15.3

This product has been manufactured and tested to the highest quality standards by SUMERAIN s anitary Inc("SUMER AIN") .This
warranty is limited to SUMERAIN products which are purchased by a consumer in t he China after Jan 1,2010 and installed in
China or the state which has SUMERAIN technical support department locally.(visit
http://www.sumerain.com/en/supportcenter.asp for review the state list of SUMERAIN technical support department).If the faucet
should leak or drip during normal use,SUMERAIN will, free of char ge, mail to the purchaser the cartridge necessary to put t he
faucet in good working condition. If a defect is found in normal residential use, SUMERAIN will, at its election, repair, provide a
replacement part or product, or make appropriate adjustment.

WHO IS COVERED BY THE WARRANTY

This warranty extends to the original consumer purchaser only (exclusive online retail original customer, online retail original
customer cover by the "Online CONSUMER Limited Lifetime WARRANTY & Return policy"), This warranty is not-transferable.

WHAT IS COVERED BY THE WARRANTY

This warranty covers only your SUMERAIN manufactured product. SUMERAIN warrants this product against defects in
material or workmanship as follows: SUM ERAIN will repair at no charge for parts only or, at its option, replace any product or
part of the product that proves defective because of improper workmanship and/or material, under normal installation, use,
service and maintenance. If SUMERAIN u nable to provide replacement, SUMERAIN may e lect to pr ovide simila r model upon
close value.

FINISH WARRANTY

It is the responsibility of the customer to check for any material finish defects before installation. SUMERAIN doesn't war ranty
these finishes after the fixture has been installed.

ELECTRONIC FAUCETS WARRANTY

SUMERAIN warrants that its electronic faucets, valves and controls to be free from manufacturing defects in material and
workmanship under normal use for three(3) years from the date of pur chase and waterflo w impelle r-dynamo (generat e power
for LED faucet) for six(6) months from the date of purchase.

LENGTH OF WARRANTY

Replacement or repaired parts of products will be covered for the term of this warranty as stated in the following two sentences,
if you are a consumer who purchased the product for use primarily for personal,family,or household purposes, this warranty
extends for 5 years since the product originally installed (Extend max 1 month From the date of purchase).if you purchased the
product for use primarily for any other purpose,including,without limitation, a commercial purpose or is installed outside of
China, or if the finish is gold, non-Vibrant or a painted or powder coated color finish this warranty extends only f or one year,
with respect to SUMERAIN and commercial products.

THIS WARRANTY DOES NOT COVER, AND SUMERAIN WILL NOT PAY FOR:
A. Conditions, malfunctions or damage not resulting from defects in material or workmanship.
B. Conditions, malfunctions or damage r esulting from normal wear and tear, improper installation, improper maintenance,

misuse,abuse,negligence,accident or alteration or the use of abrasive or caustic cleaning agents or "no-rinse" cleaning
products, or the use of the product in any manner contrary to the product instructions. Conditions in the home such as
excessive water pressure or corrosion.
C. Labor or other expenses for the disconnection, deinstallation, or return of the product for warranty service, or for
installation or reinstallation of the product.
D. Accessories, connected mat erials and products (inclu ding but not limited in handshower flexible h ose, spray flexible hose,
handshower), or related products not manufactured by SUMERAIN

TO OBTAIN WARRANTY PARTS OR INFORMATION

Contact your SUMERAIN retailer or contact technical service at: [email protected]
In requesting warranty service, you will need to provide

1. The sales receipt or other evidence of the date and the place of purchase.

2. A description of the problem (Download URL: http://www.sumerain.com/download/servicerequest/sheet.pdf and fill out the
Service Request Sheet).

3. Delivery of the product or the defective part, postage prepaid and carefully packed and insured to :
SUMERAIN FACTORY SUPPORT CENTER ,25 Building,Tangkou industrial park,Shuikou Town,Jiangmen Kaiping city,
Guangdong provice,China 529301
When warranty service is completed, any repaired or replacement product or part will be returned to you postage prepaid.

EXCLUSIONS AND LIMIT ATIONS

Repair or replacement (or, in limited circumstances, refund of the purchase price) as provided under this warranty is the
exclusive remedy of the purchaser. SUMERAIN neither assumes nor authorizes any person to create for it any obligation or
liability in connection with this pro duct .SUM ERAIN s ha ll not be li a ble to purchas er or any person f or any incid ental, special, or
consequential damages, arising out of breach of this warranty or any implied warranty (including merchantability) Some states
do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not
apply to you. This warranty gives you specific legal right, and you may have other r ights which vary from state to state. You
may be required by law to give us a reasonable opportunity to correct or cure any failure to comply before you can bring any
action in court against us under the Magnusson-moss warranty Act.

PRODUCT INSTRUCTIONS AND QUESTIONS

Upon purchase or prior to installation, please carefully inspect your SUMERAIN product for any damage or visible defect. Prior
to installing, always carefully study the enclosed instructions on the proper installation and the care and maintenance of the
product. if you have questions at any time about the use,installation,or performance of your SUMERAIN product, or this
warranty, please call or email us at [phone], [email protected]

Function

Feature

Style

Finish

Installation Holes

Number of Handles

Faucet Total Height

Spout Reach

Spout Width

Spout Height

Max deck thickness

Valve Type

Faucet Body Material

Faucet Spout Material

SPOUT Net Weight

Gross Weight

Working water press

< 30 ℃ [ 86 °F ]

30 ℃~ 40 ℃ [ 86 °F ~ 104 °F ]

℃

℃

YES

Bathroom Sink Faucets
LED, Waterfall, Widespread

Contemporary
Chrome/Nickel Brushed

Three Holes
Two knobs
140mm [5-1/2 Inch]

119mm [4-11/16 Inch]
80mm [3-1/8 Inch]

108mm [4-1/4 Inch]
42mm [1-21/32 Inch]
Disc cartridge

Brass

LED power supply
LED Color changing
Water temperature
Water temperature

Water temperature
Water temperature
Sensor self-inspection
Low battery warn
Packing box size

Stainless steel
2,2lbs. [1 KG]

5,73 lbs. [2.6 KG]

0.2 ~1.0 Mpa

AA Battery x 3PCS

~ 48 ℃ [ 104 °F ~ 118.4 °F ]

40
> 48
YES

235mm [9-1/4”] x 185mm [7-5/16”]x 14mm[9/16”]

[118.4 °F]

Blue color
Green color

Red color
Red Flash

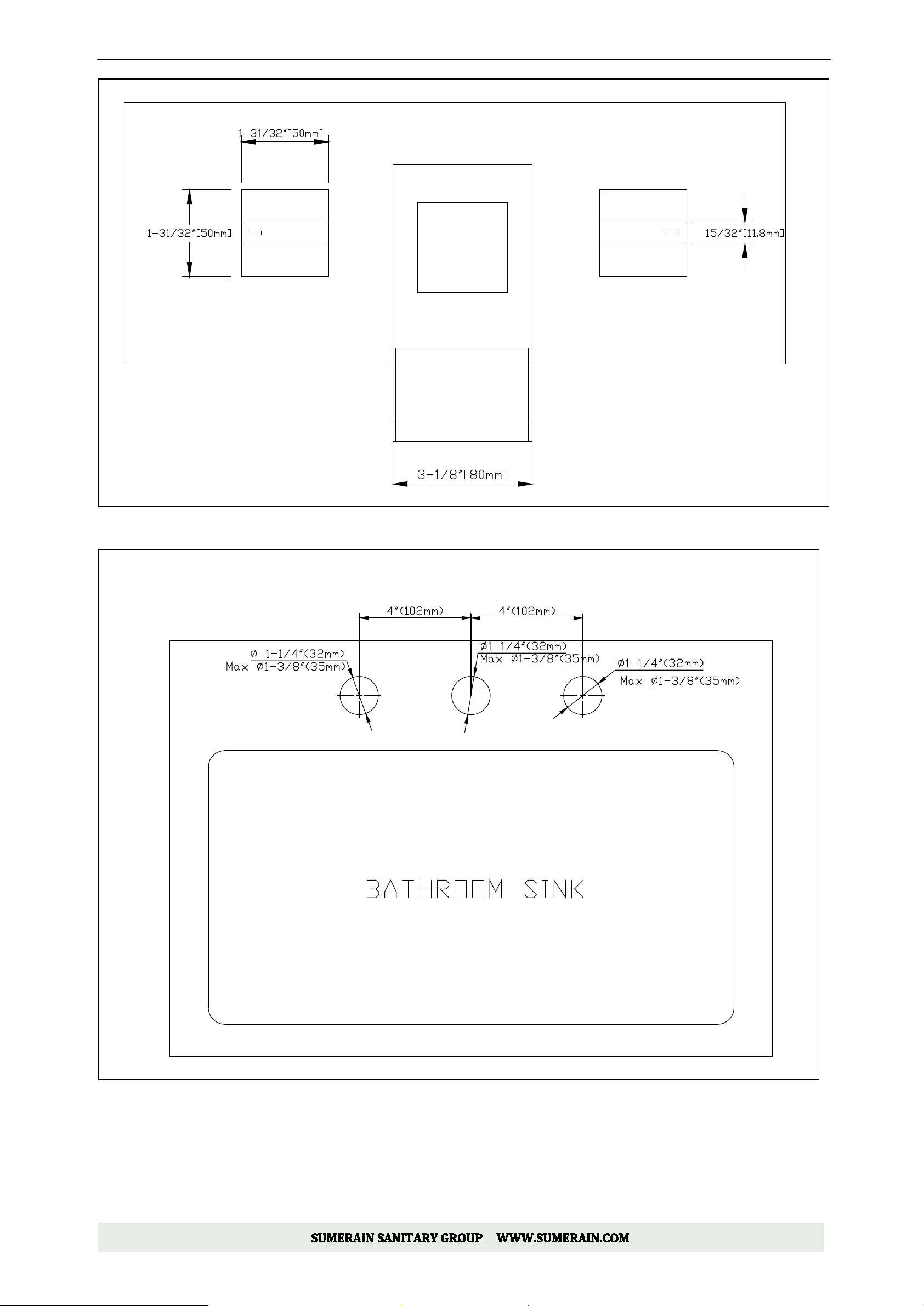

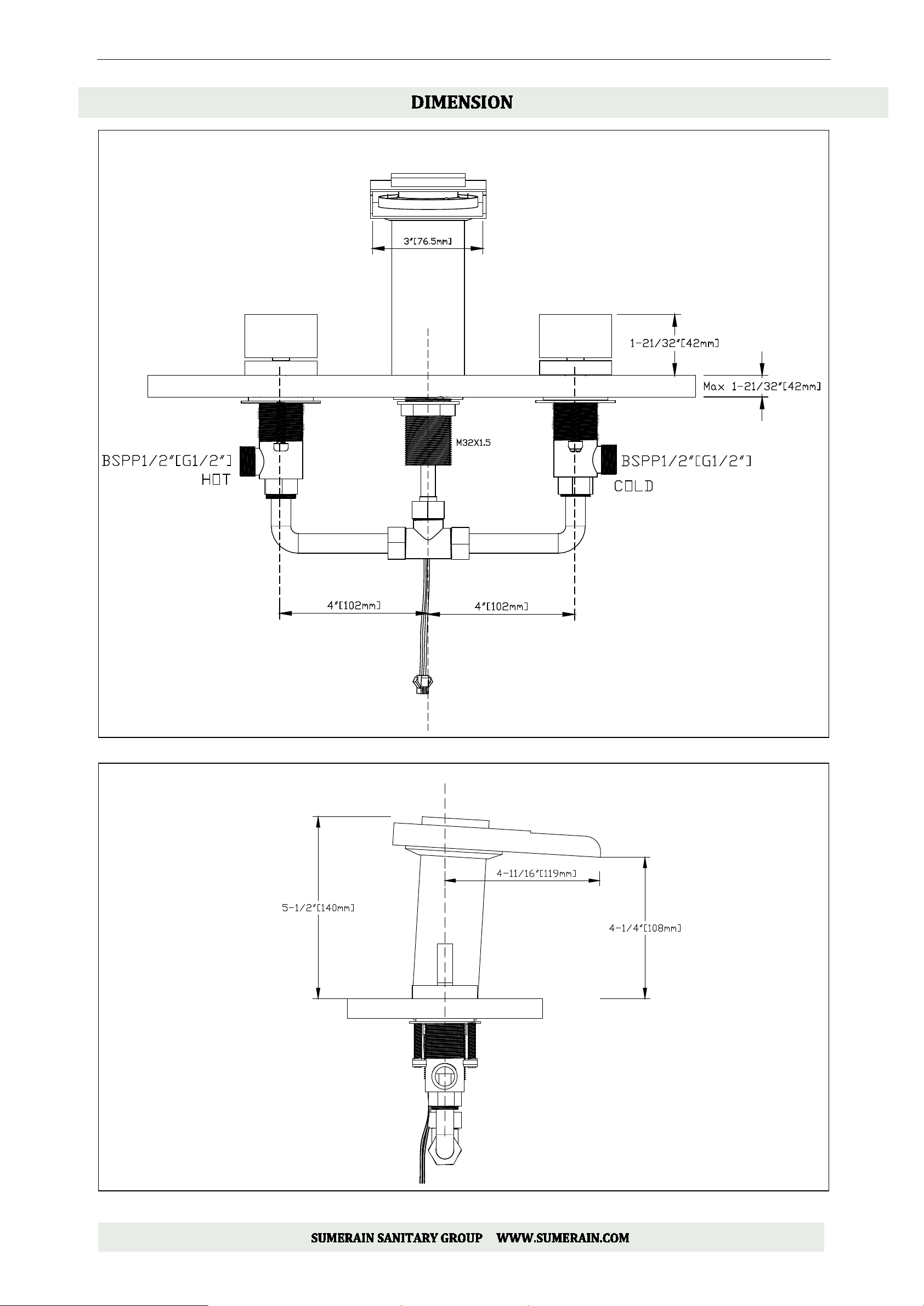

FRONT VIEW OF FAUCET

SIDE VIEW OF FAUCET

TOP VIEW OF FAUCET

COMPATIBLE BASIN DIMENSION

Spout assembly

1PCS

O-Ring

1PCS

Rubber washer

1PCS

Shank

1PCS

Lock nut

1PCS

Knob

2PCS

Escutcheon

2PCS

Rubber washer

2PCS

Lock nut

2PCS

Hot valve body assembly

1PCS

Hot disc cartridge

1PCS

Cold valve body a ssembly

1PCS

Cold disc cartridge

1PCS

Screen washer

4PCS

Tee

1PCS

G1/2’’ hose(20mm)

1PCS

Batter pad

2PCS

Set screw

1PCS

Allen wrench

2PCS

1. BEFORE PROCEEDING

WARNING: Read all the instructions complet ely before proceeding.SUMERAIN recommends calling a

Professional,if you are uncertain about installing this product!, this product should be installed in
accordance with all local and state plumbing and building codes.

2. SHUT OFF WATER SU PPLY

Locate water supply inlets and shut off the water supply valves. These are usually found near the water meter. if you are

replacing an existing unit, remove the old unit and clean the mounting surface thoroughly.

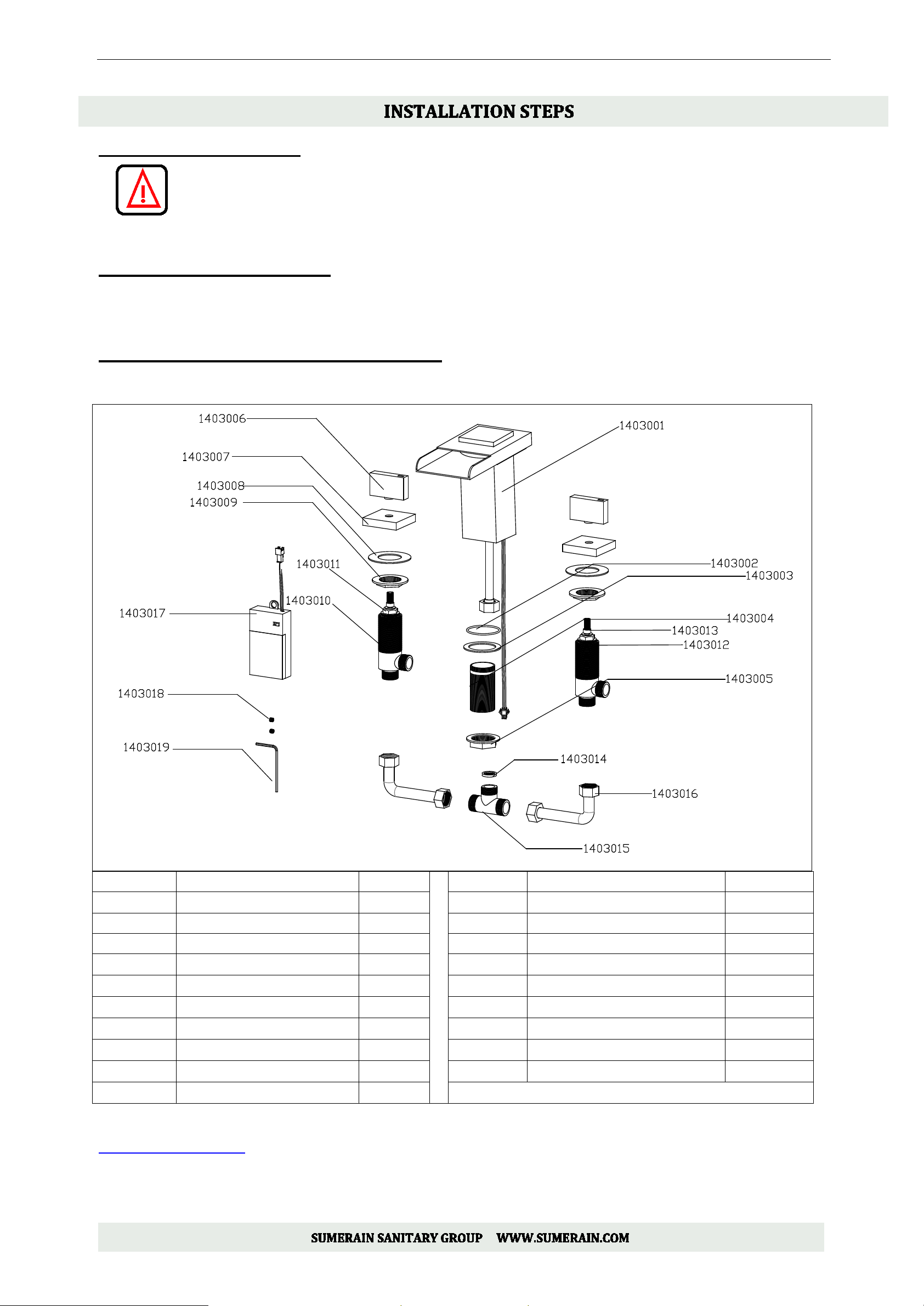

3. CHECKING THE CONTENTS OF THE BOX

Upon opening the box, check to ensure that all the following items are included.

CODE ITEM NAME QTY CODE ITEM NAME QTY

1403001
1403003

1403005
1403007
1403009
1403011
1403013
1403015
1403017
1403019

1403002
1403004

1403006
1403008
1403010
1403012
1403014
1403016
1403018

If any of these items are missing, please contact SUMERAIN consumer service at [phone] or email to:

[email protected]

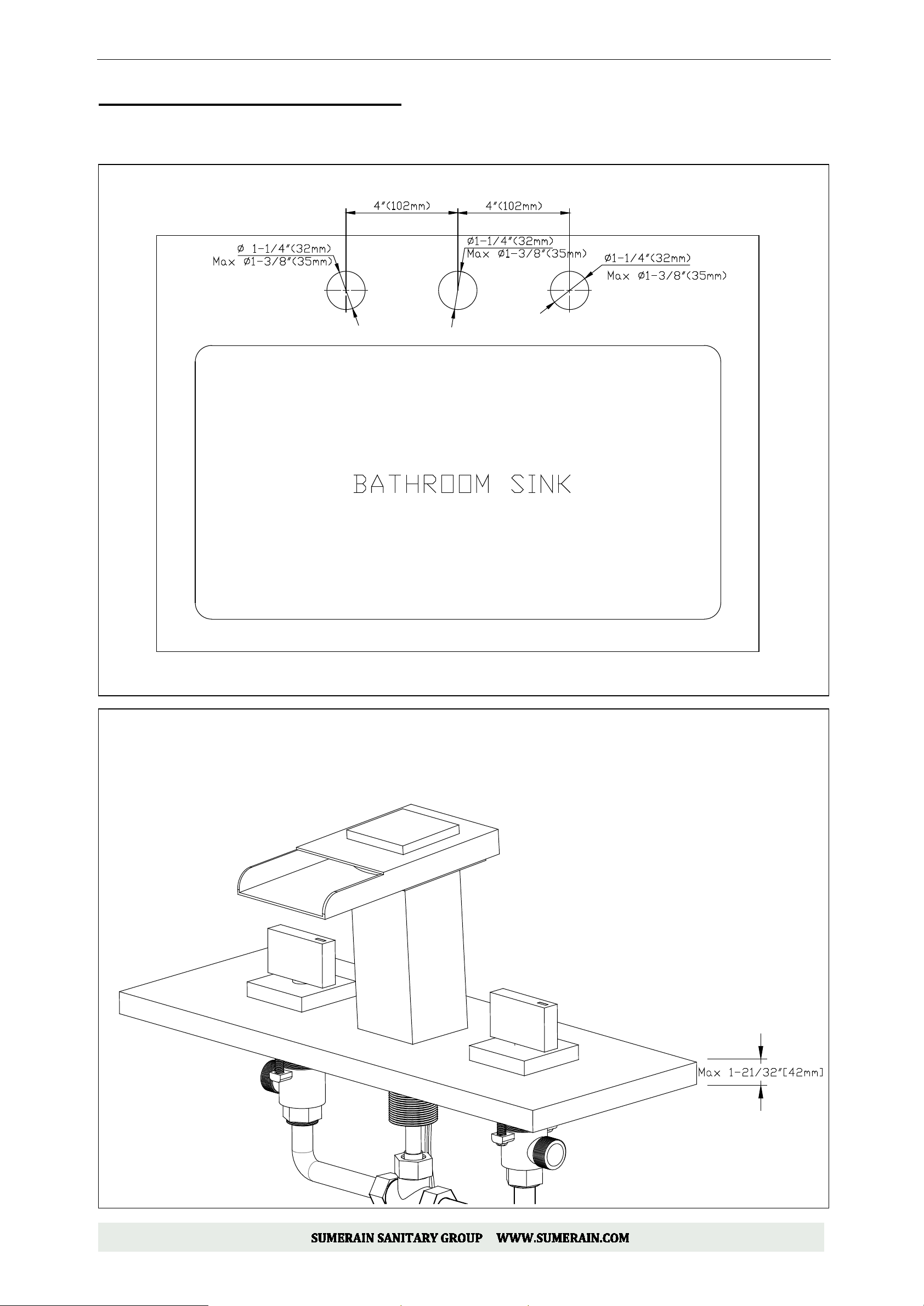

4. INSTALLATION HOLES INSPECTION

Verify that the hole sizes and positions in the wall are correct, the diameter of mounting hole recommend 32mm(1-1/4”),the
max thickness of deck should be 42mm(1-21/32”)

5. INSTALLATION

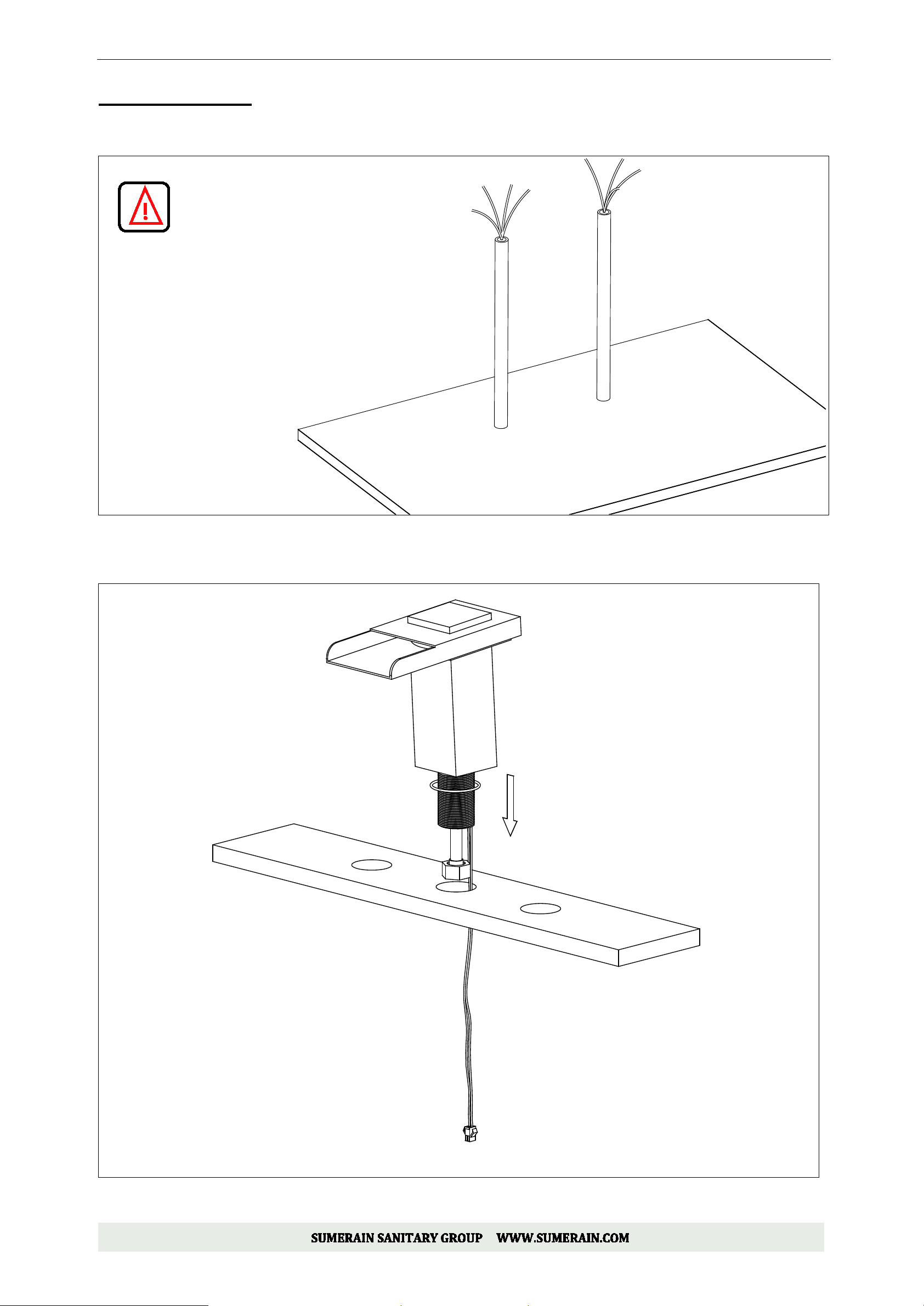

5.1 Turn on your shut-off valve for cleaning the hot and cold water supply pipe before connect to the faucet, allow the water

flush 3~5 minutes to flush out dirt and debris. Shut off the water supply again after done.

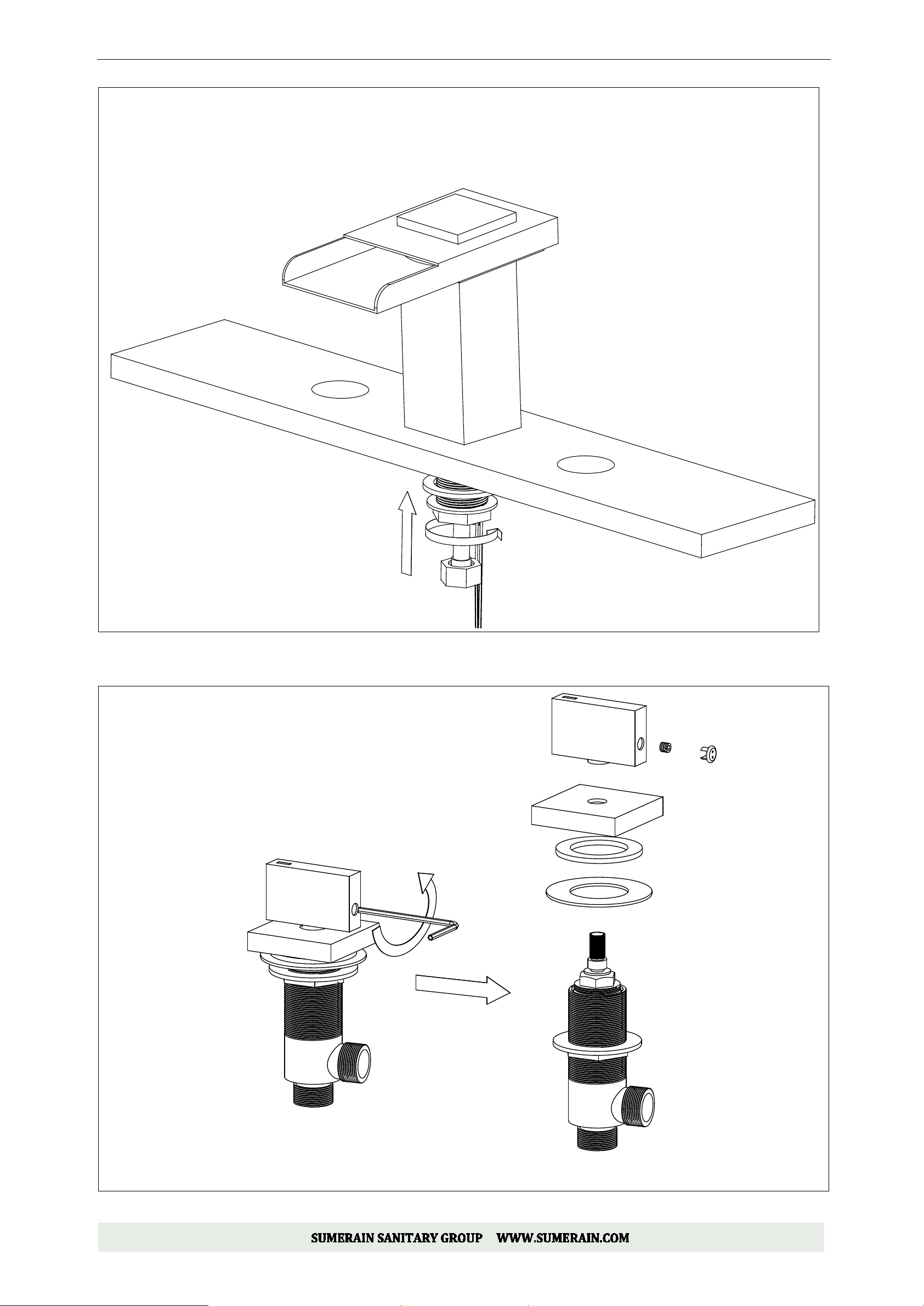

5.2 Position spout onto the hole of mounting surface, attach rubber washer on spout shank and fasten with spout shank

locknut by wrench from underneath.

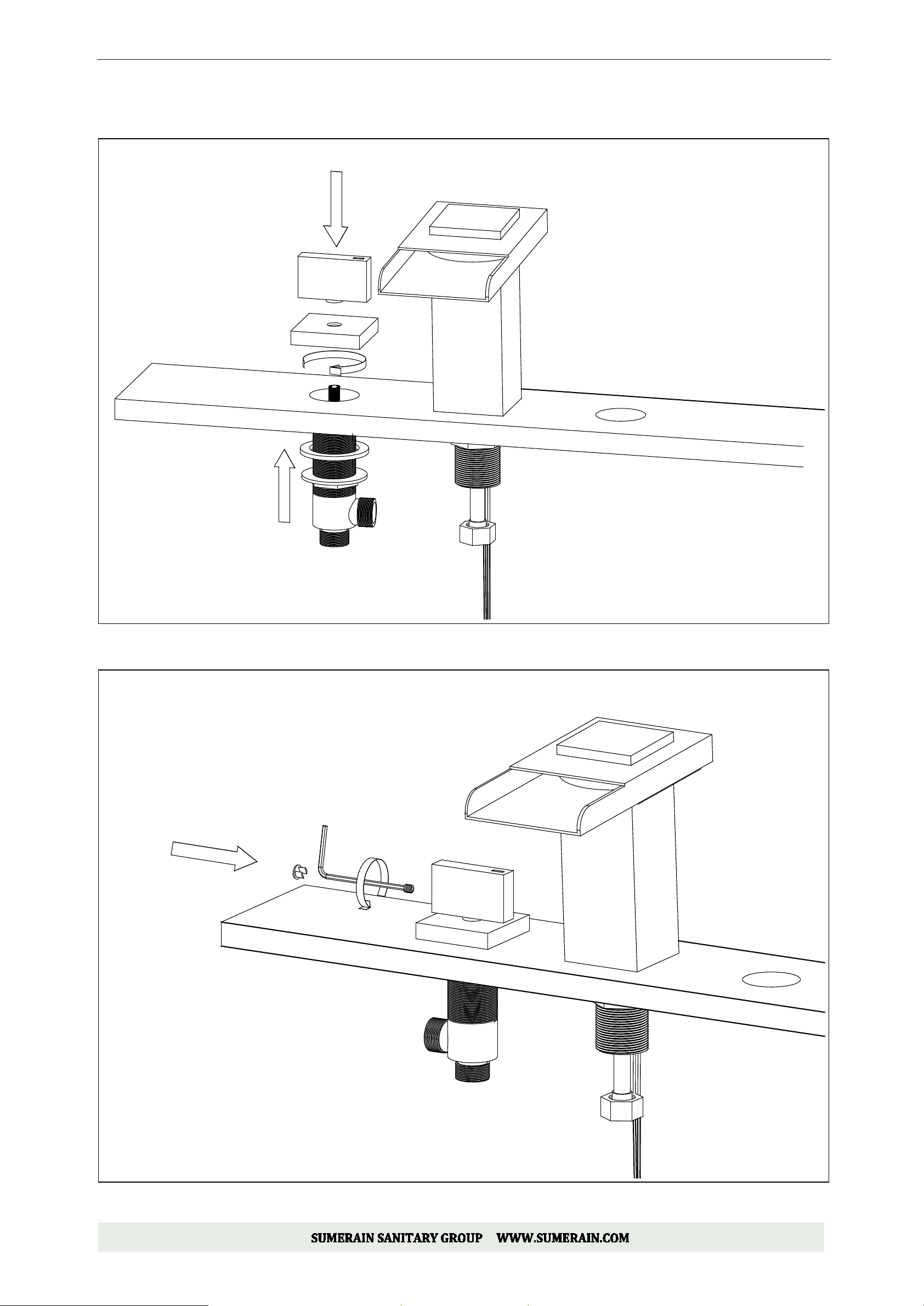

5.3 Disassemble hot and cold water valve assembly to prepare for next step’s installation. Take out the screws cover from

knob and loose the inside set screw by Allen wrench anticlockwise, disassemble the knob from the valve assembly.

Valve assembly

5.4 Place the Hot water cont rol valve body onto mounting surface, attach the rubber washer and locknut from underneath of

mounting surface, Then repositi on escutcheons as necessary to a desired height. Repeat the same procedure for the right
cold valve assembly.

Fasten the set screw with Allen key

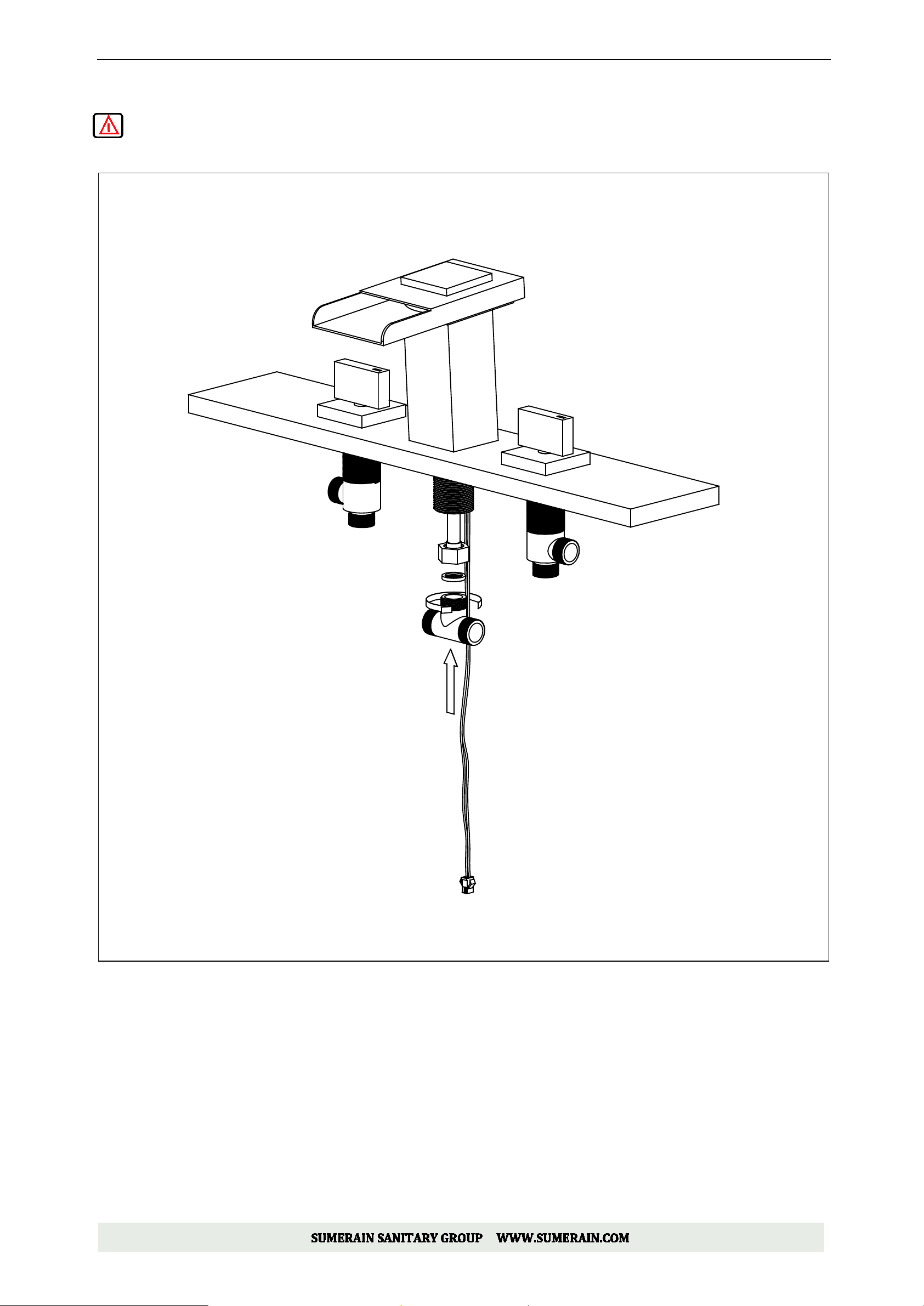

5.5 Attach the screen washer into the tee connector for water leak proof and filtering the dirt and debris. Please notice that

damaged screen washer may make LED lighting function invalid.

Please periodic cleaning this screen washer per 6 months

Screw on tee onto the spout shank.

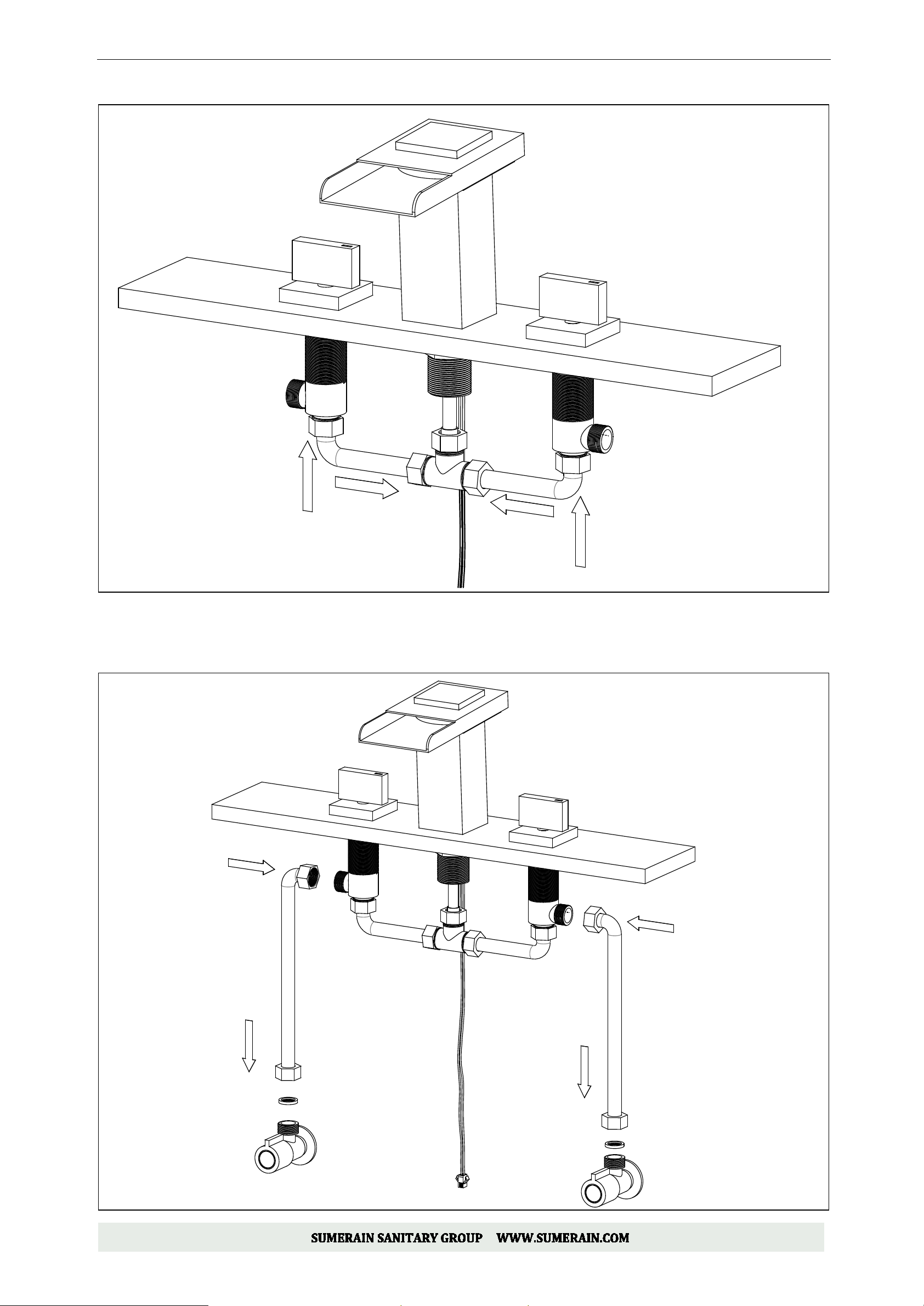

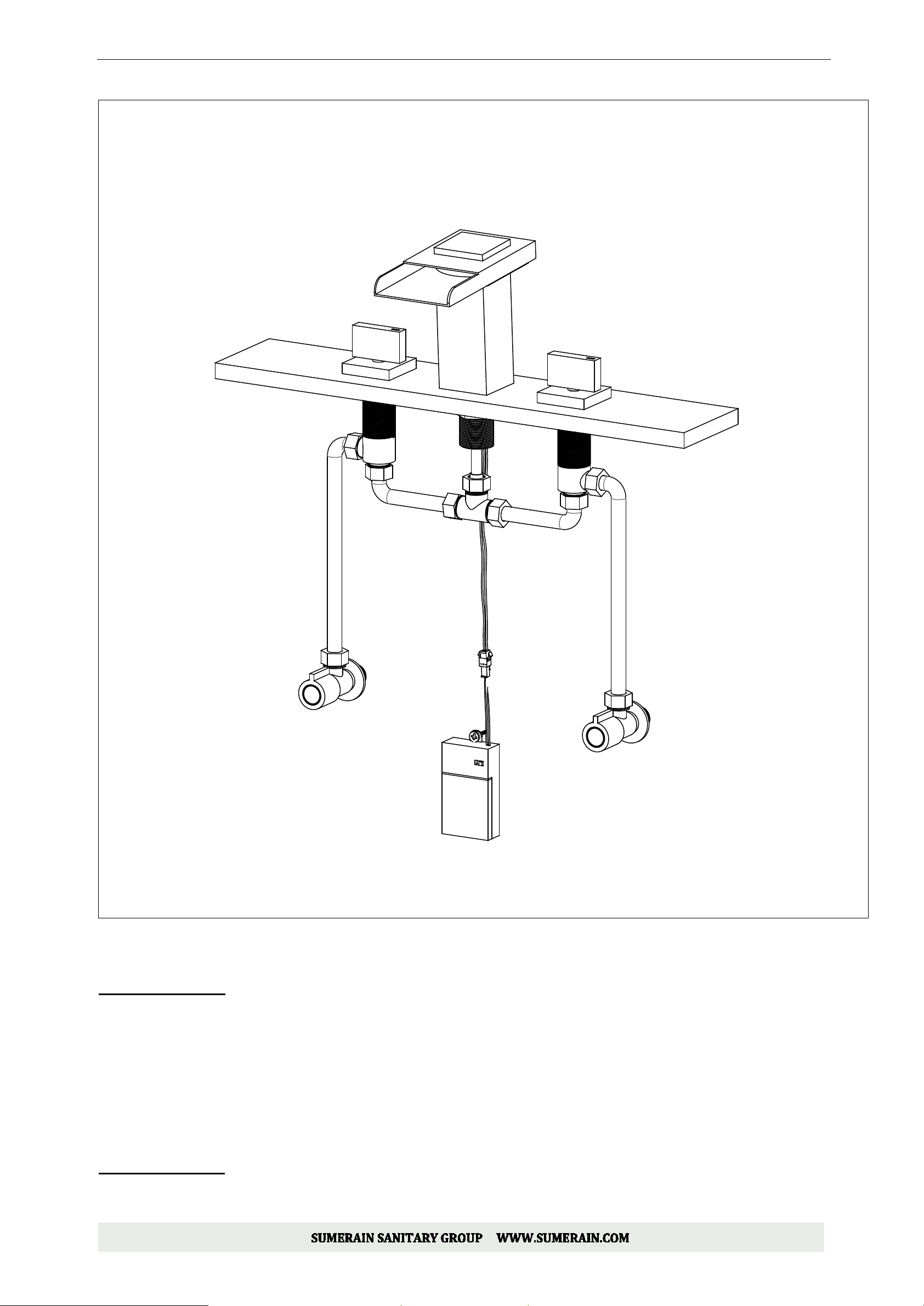

5.6 Connecting the cold water valve body and hot water valve body to tee with flexible hoses.

5.7 Connect hot valve body’s inlet connector and cold water valve inlet connector to stop valve separately with flexible hose.

The water inlet connecting of hot and cold Valve body is G1/2” [1/2 BSPP], US, CA customers may require NPT cover to
BSPP adapter for connecting.

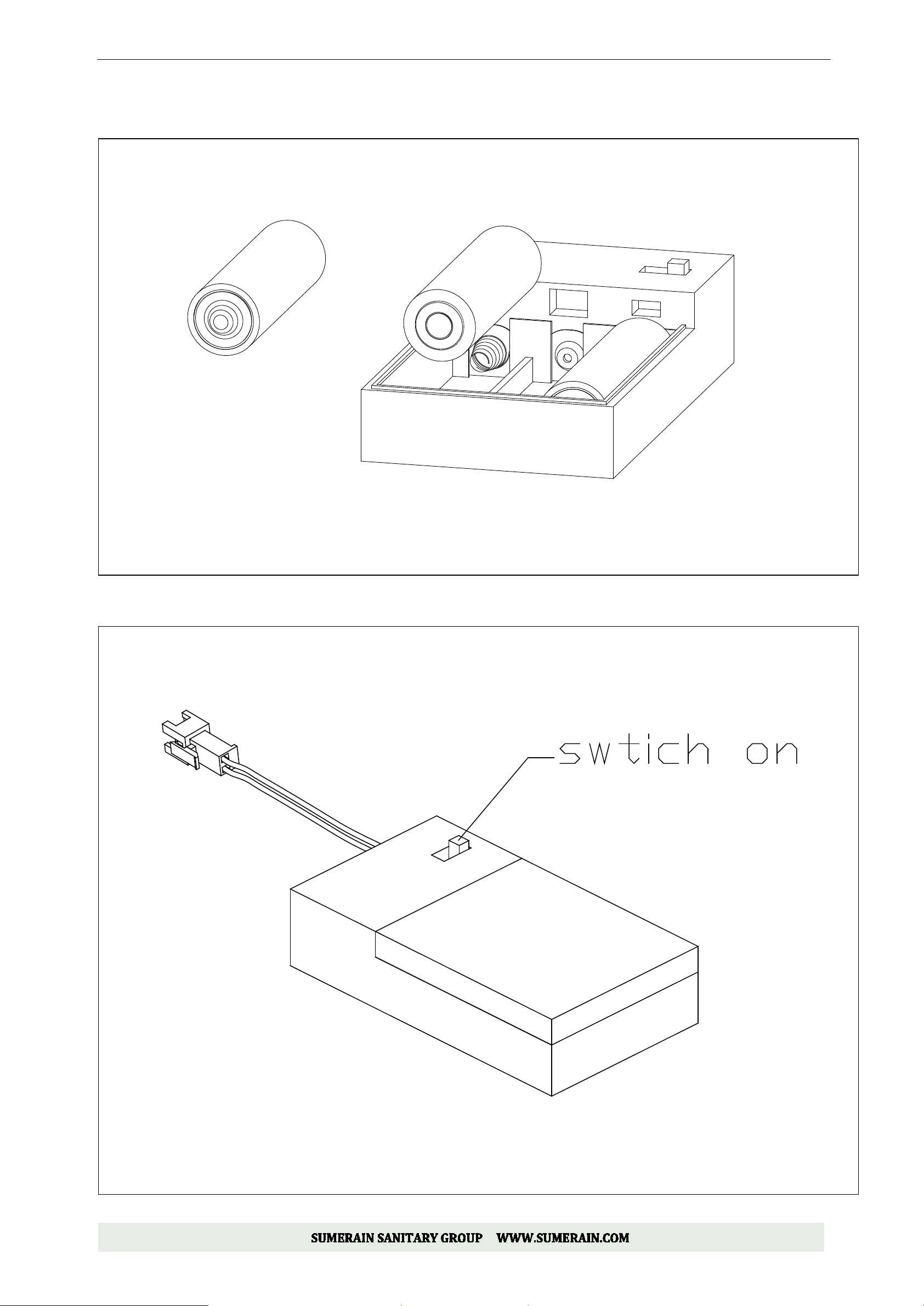

5.8 Place 3 PCS AA battery into the battery holder (please don’t make mistake on the Plus-n-Minus or else it will damage

electronic components), then turn on the power switch (Notes: 1th.No Battery are including in the shipment; 2th. Battery
holder’s switch is turn on by default before delivered).

5.9 Fasten the battery top cover.

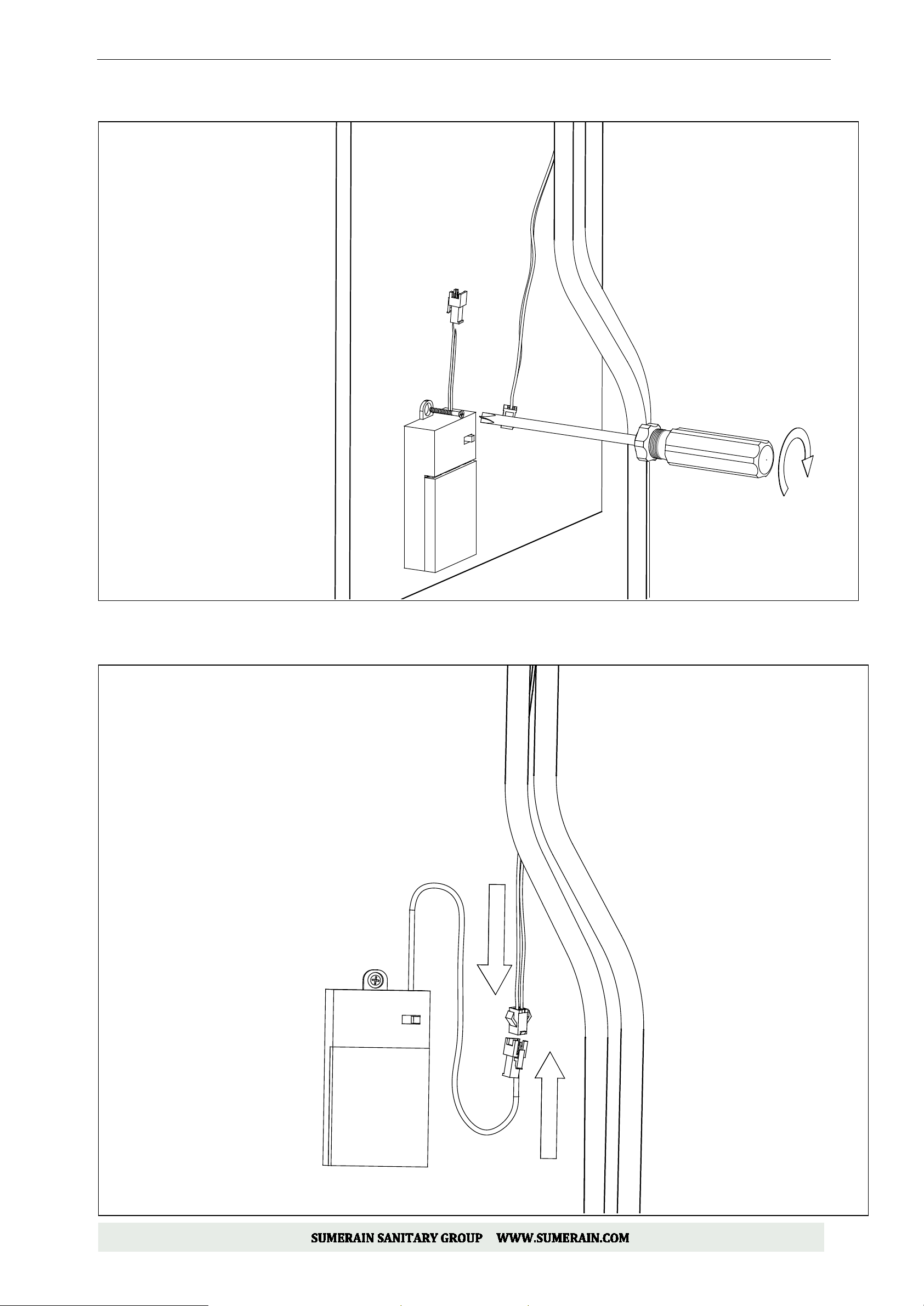

5.10 Mounting the battery holder onto wall by the screws and anchor.

5.11 Connect battery holder to the plug receptacle which comes from faucet bottom.

℃

℃

℃

Red color

5.12 Assemble finish.

6. INSPECTION

6.1 Turn on hold and cold water supply and check all connection for ensuring no leaking anywhere,

6.2 The LED lighting will be active when turn on the faucet, the lighting color will change rely on water temperature.

Lighting color displayin g
Water temperature

Water temperature
Water temperature

Water temperature

< 30
30 ℃~ 40 ℃ [ 86 °F ~ 104 °F ]

40
> 48

[ 86 °F ]

~ 48 ℃ [ 104 °F ~ 118.4 °F ]

[118.4 °F]

Blue color
Green color

Red Flash

INSTALL FINISH

Symptom

Solution

A. Tighten the packing nut

C. Replace the cartridge

A.
A. Clean or replace the aerator

B. Replace the aerator washer

A. Check the water supply connections t o the faucet

A. Remove the button and tighten the scr ew

C. Remove the handle and check for stripped teeth on the stem.

LED flash per 3 second

Low battery and need to replace battery

LED does not illuminate

A. Battery run out and need to replace battery

LED color only yellow or purple

B. Water temperature sensor damage or short out

LED light on always

unwater until no water leave on the switch (the LED will be illuminate as soon

as the two switch meet water.

Modern lavatory faucets, kitchen faucets, and showers consist of very different materials to comply with the needs of the
market with regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when
cleaning.

Cleaning Materials for faucets and showers

Acids are a necessary ingredient of cleaning materials for removing lime, however please pay attention to the following points
when cleaning faucets and showers:

■ Only use cleaning materials which are explicitly intended for this type of application.

■ Never use cleaning m aterials which contain hydrochloric, formic, phosphoric, or acetic acid, as they cause considerable

damage.

■ Never mix one cleaning material with another.

■ Never use clean ing mater ials or appl iances wit h an abrasive effect, such as unsuitable cleaning powders, sponge pads, or

micro fiber cloths.

Cleaning instructions for faucets and showers

Please follow the cleaning material manufacturer's instructions. In addition, pay attention to the following points:

■ Clean the faucets and showers as and when required.

■ Use the amount of cleaning product and t he amount of time recommended by the manufacturer. Do not leave the cleaner

on the fixture longer than necessary.

■ Regular cleaning can prevent calcification, if scale deposits are noticed on the faucet surface or the spout, you can clean it

by a commercial limescale remover, such as Lime-Away® or CLR®.Dilute the remover according to the label instructions.

■ The faucets might have some rusty if your faucet under hard water condition, please rub it with aluminum foil dipped in

water until the surface is nice and smooth, and wipe it use a small amount o f chrome polish or maybe something like car
wax(such as Meguiar®,Turtle Wax®) or polish.

■ For stainless steel faucet and spout both made of solid stainless, normally this finish has not protective coating on it(in

particular waterfall spout inside),stainless steel is by its material nature very tarnish resistant, but by no means tarnish or
stain proof. This finish might oxidize naturally over time and react to its environment. Keep your stainless fixture wiped
clean and dry and use only a cleaner specifically made for stainless steel (such as Weiman®, CLR®).

■ When using spr ay cleaners, spray first onto a soft cloth or sponge, never spray directly ont o the faucet as droplets can

enter openings and gaps and cause damage.

■ After cleaning, rinse thoroughly with clean water to remove any cleaner residue.

Important

Residues of liquid soaps, shampoos, and shower foams can also cause damage, so rinse with clean water after using.

Please note: if the surface is already damaged, the effect of cleaning materials will cause further damage.

Components with damaged surfaces must be replaced or injury could result.
Damage caused by improper treatment is not covered under the warranty.

Faucet leaks from the handle

The water pressure is too low

The spout sprays water all over

Water is leaking from the faucet under the sink

Handle is loose

B. Replace the O-ring or rubber gasket

Make sure the water supply valves under the sink are turned on all the way

B. Clean or replace the aerator
C. Check plumbing system for water press ur e problems

B. Inspect the water supply lines or hoses for leaks

B. Locate and tighten the hex set screw

A.

A.

HONGKONG SUMERAIN SANITARY INDUSTRY CO., LIMITED

Address: ROOM 1018, HOLLYWOOD PLAZA 610 NATHAN ROAD MONGKOK, KL
Factory Address: 25 building Tangkou Industrial Park,Shuikou town, Kaiping City, Guangdong Province, China (Mainland)
Tel: [phone]
Toll Free: 400-0999-075 (China mainland)
Fax: [phone]
Web: http://www.sumerain.com
E-mail: [email protected]

SUMERAIN INTERNATIONAL GROUP – AMERICA SALES Branch

Address: 13455 Harper Dr.
Saratoga, CA 95070
USA
Tel: [phone]
FAX: [phone]
E-mail: [email protected]
