sumerain SMER1041 Users manual

Version: 2.0

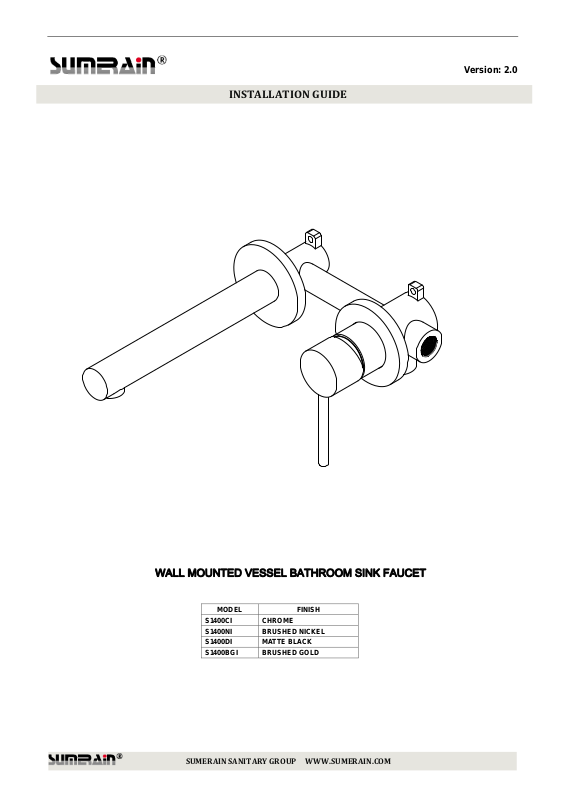

INSTALLATION GUIDE

WALL MOUNTED VESSEL BATHROOM SINK FAUCET

MODEL FINISH
S1400CI CHROME
S1400NI BRUSHED NICKEL
S1400DI MATTE BLACK
S1400BGI BRUSHED GOLD

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM

THANK YOU

Dear Valued Customer,
SUMERAIN would like to take this opportunity to thank you for purchasing SUMERAIN products. It is our sincere
hope that you are completely satisfied with your new purchase. All SUMERAIN products are carefully engineered,
and factory tested to provide long trouble-free use under normal conditions. This product is easy to install using
basic tools and our easy to follow illustrated instructions. We welcome any questions or comments you may have
and look forward to assisting you in the future. If you have any questions regarding this product, call
[phone] or email to [email protected]
Sincerely,
SUMERAIN customer service department

1. Unpack your new product and ensure that all the parts are contained in the packaging. Keep the product in its
original box until you ready to install it.

2. Locate water supply inlets and shut off the water supply valves. These are usually found near the water meter.

if you are replacing an existing unit, remove the old unit and clean the mounting surface thoroughly.

3. Observe all plumbing and building codes in your area.

4. It is recommends calling professional if you are uncertain about installing this product.

Philips screwdriver Allen wrench Adjustable wrench Channel locks Thread Sealant

BEFORE PROCEEDING

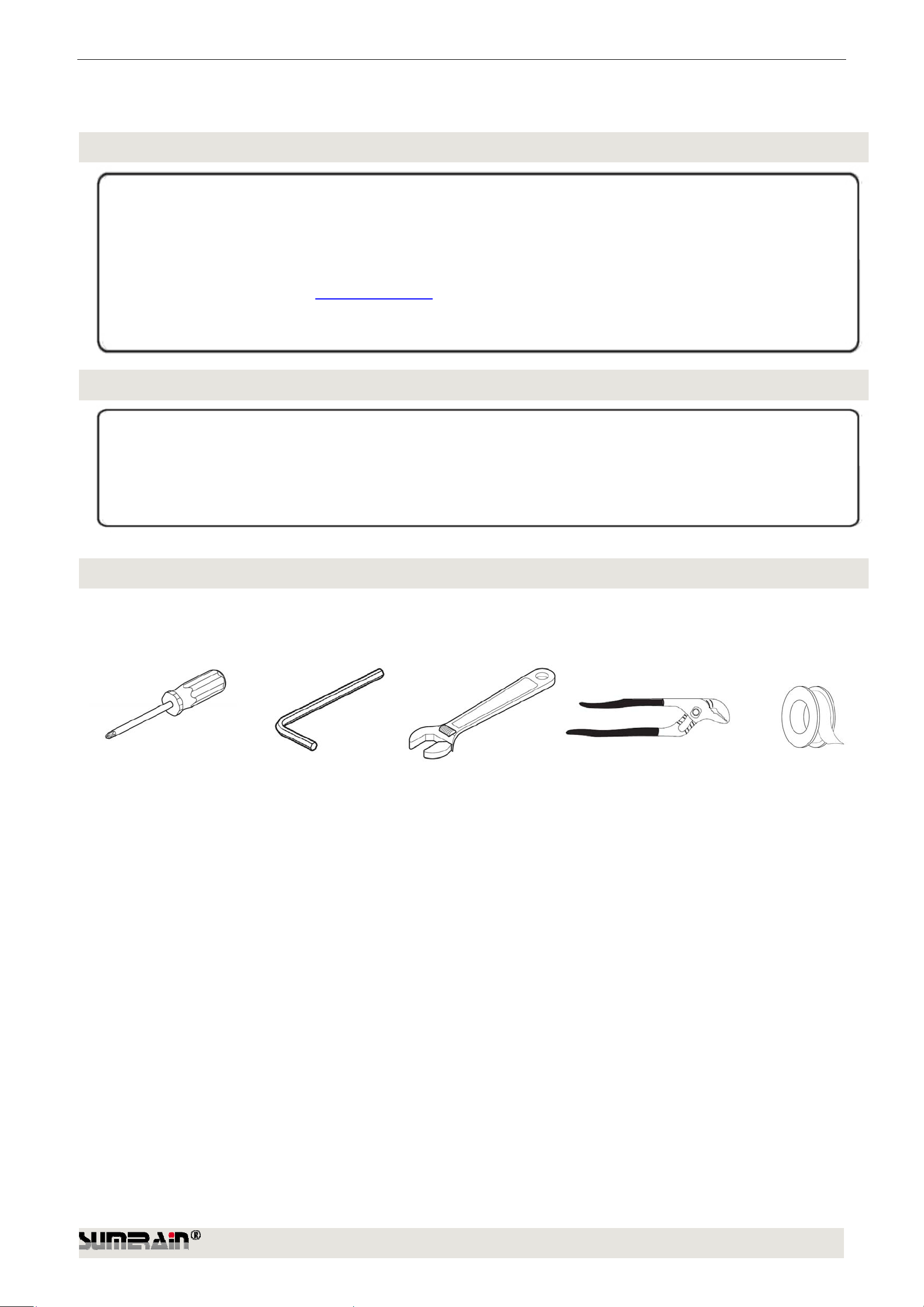

TOOLS RECOMMENDED

.

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM

VERSION: 140320.15.3

LIMITED LIFETIME CONSUMER WARRANTY

This product has been manufactured and tested to the highest quality standards by SUMERAIN sanitary Inc("SUMERAIN").This
warranty is limited to SUMERAIN products which are purchased by a consumer in the China after Jan 1,2010 and installed in China
or the state which has SUMERAIN technical support department locally.(visit http://www.sumerain.com/en/supportcenter.asp for
review the state list of SUMERAIN technical support department).If the faucet should leak or drip during normal use,SUMERAIN will,
free of charge, mail to the purchaser the cartridge necessary to put the faucet in good working condition. If a defect is found in
normal residential use, SUMERAIN will, at its election, repair, provide a replacement part or product, or make appropriate
adjustment.

WHO IS COVERED BY THE WARRANTY

This warranty extends to the original consumer purchaser only (exclusive online retail original customer, online retail original
customer cover by the "Online CONSUMER Limited Lifetime WARRANTY & Return policy"), This warranty is not-transferable.

WHAT IS COVERED BY THE WARRANTY

This warranty covers only your SUMERAIN manufactured product. SUMERAIN warrants this product against defects in material or
workmanship as follows: SUMERAIN will repair at no charge for parts only or, at its option, replace any product or part of the product
that proves defective because of improper workmanship and/or material, under normal installation, use, service and maintenance. If
SUMERAIN unable to provide replacement, SUMERAIN may elect to provide similar model upon close value.

FINISH WARRANTY

It is the responsibility of the customer to check for any material finish defects before installation. SUMERAIN doesn't warranty these
finishes after the fixture has been installed.

ELECTRONIC FAUCETS WARRANTY

SUMERAIN warrants that its electronic faucets, valves and controls to be free from manufacturing defects in material and
workmanship under normal use for three(3) years from the date of purchase and waterflow impeller-dynamo (generate power for
LED faucet) for six(6) months from the date of purchase.

LENGTH OF WARRANTY

Replacement or repaired parts of products will be covered for the term of this warranty as stated in the following two sentences, if
you are a consumer who purchased the product for use primarily for personal,family,or household purposes, this warranty extends
for 5 years since the product originally installed (Extend max 1 month From the date of purchase).if you purchased the product for
use primarily for any other purpose,including,without limitation, a commercial purpose or is installed outside of China, or if the finish
is gold, non-Vibrant or a painted or powder coated color finish this warranty extends only for one year, with respect to SUMERAIN
and commercial products.

THIS WARRANTY DOES NOT COVER, AND SUMERAIN WILL NOT PAY FOR:
A. Conditions, malfunctions or damage not resulting from defects in material or workmanship.
B. Conditions, malfunctions or damage resulting from normal wear and tear, improper installation, improper maintenance, misuse,

abuse,negligence,accident or alteration or the use of abrasive or caustic cleaning agents or "no-rinse" cleaning products, or the use
of the product in any manner contrary to the product instructions. Conditions in the home such as excessive water pressure or
corrosion.
C. Labor or other expenses for the disconnection, deinstallation, or return of the product for warranty service, or for installation or
reinstallation of the product.
D. Accessories, connected materials and products (including but not limited in handshower flexible hose, spray flexible hose,
handshower), or related products not manufactured by SUMERAIN

TO OBTAIN WARRANTY PARTS OR INFORMATION

Contact your SUMERAIN retailer or contact technical service at: [email protected]
In requesting warranty service, you will need to provide

1. The sales receipt or other evidence of the date and the place of purchase.

2. A description of the problem (Download URL: http://www.sumerain.com/download/servicerequest/sheet.pdf and fill out the Service
Request Sheet).

3. Delivery of the product or the defective part, postage prepaid and carefully packed and insured to :
SUMERAIN FACTORY SUPPORT CENTER ,25 Building,Tangkou industrial park,Shuikou Town,Jiangmen Kaiping city,
Guangdong provice,China 529301
When warranty service is completed, any repaired or replacement product or part will be returned to you postage prepaid.

EXCLUSIONS AND LIMITATIONS

Repair or replacement (or, in limited circumstances, refund of the purchase price) as provided under this warranty is the exclusive
remedy of the purchaser. SUMERAIN neither assumes nor authorizes any person to create for it any obligation or liability in
connection with this product.SUMERAIN shall not be liable to purchaser or any person for any incidental, special, or consequential
damages, arising out of breach of this warranty or any implied warranty (including merchantability) Some states do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This
warranty gives you specific legal right, and you may have other rights which vary from state to state. You may be required by law to
give us a reasonable opportunity to correct or cure any failure to comply before you can bring any action in court against us under
the Magnusson-moss warranty Act.

PRODUCT INSTRUCTIONS AND QUESTIONS

Upon purchase or prior to installation, please carefully inspect your SUMERAIN product for any damage or visible defect. Prior to
installing, always carefully study the enclosed instructions on the proper installation and the care and maintenance of the product. if

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM

you have questions at any time about the use,installation,or performance of your SUMERAIN product, or this warranty, please call or
email us at [phone], [email protected]

Function
Feature

Bathroom Sink Faucets
Wall mount

FUNCTIONS AND SPECIFICATION

Theme
Configuration
Finish
Installation Holes
Number of Handles
Handle style
Faucet Total Height
Spout Reach
Spout Height
Installation type
Valve Type
Faucet Body Material
Spout Material
Handle Material
Net Weight
Gross Weight
Working water press
Flow Rate

Modern ,Contemporary
Vessel
Chrome(S1400CI)/Nickel brushed(S1400NI)
Two
One
Lever
Adjustable
190mm [ 7-15/32”]
Adjustable
Wall mounted
Ceramic disc
Brass
Brass
Metal

1.4 KG [3,08 lbs ]

1.7KG [3,74 lbs ]

0.2 ~0.8 Mpa

6.8L/M [1.8 GPM ]

Packing box size

290mm(11-13/32”) x 195mm(7-11/16”) x 85mm(3-11/32”)

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM

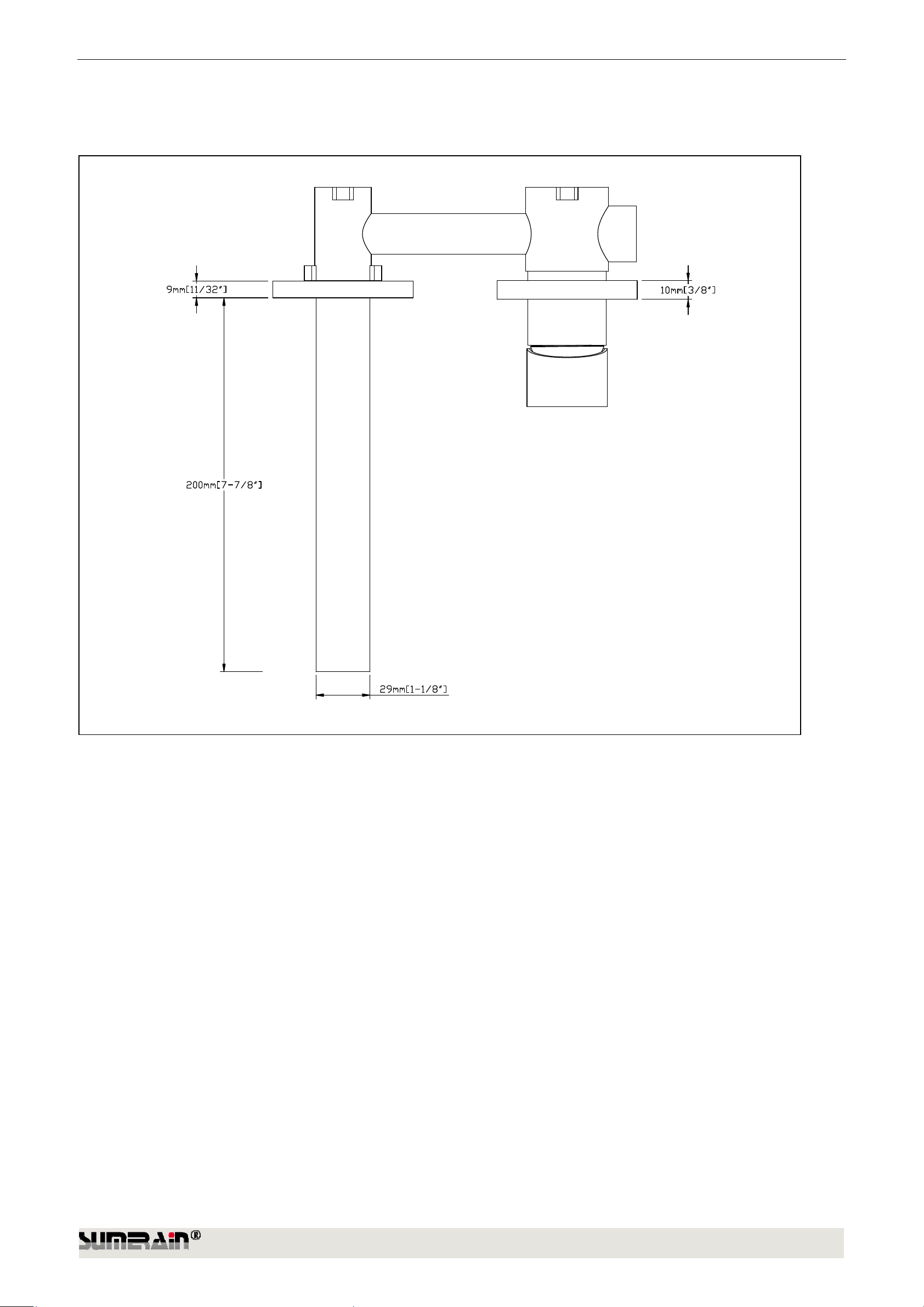

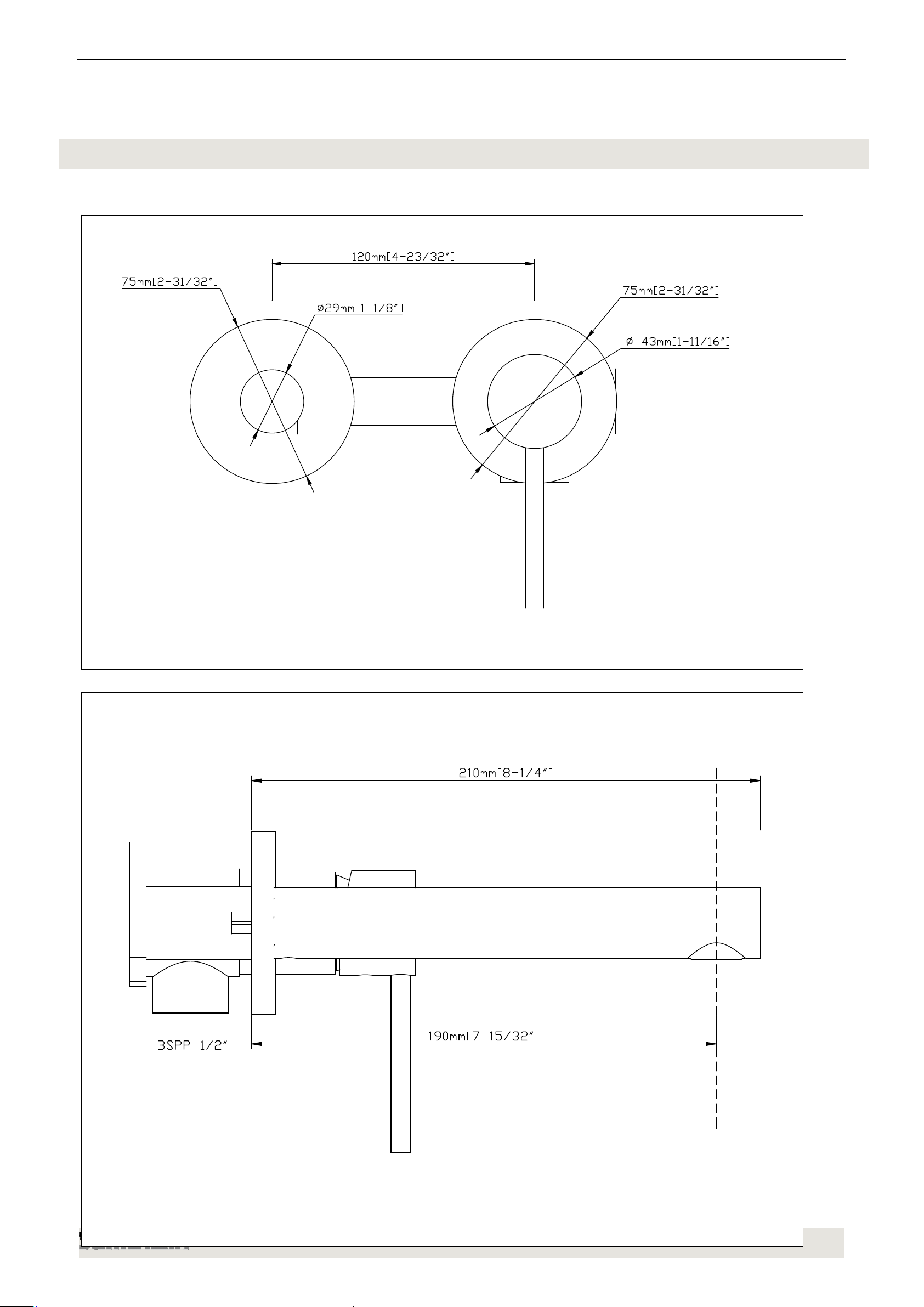

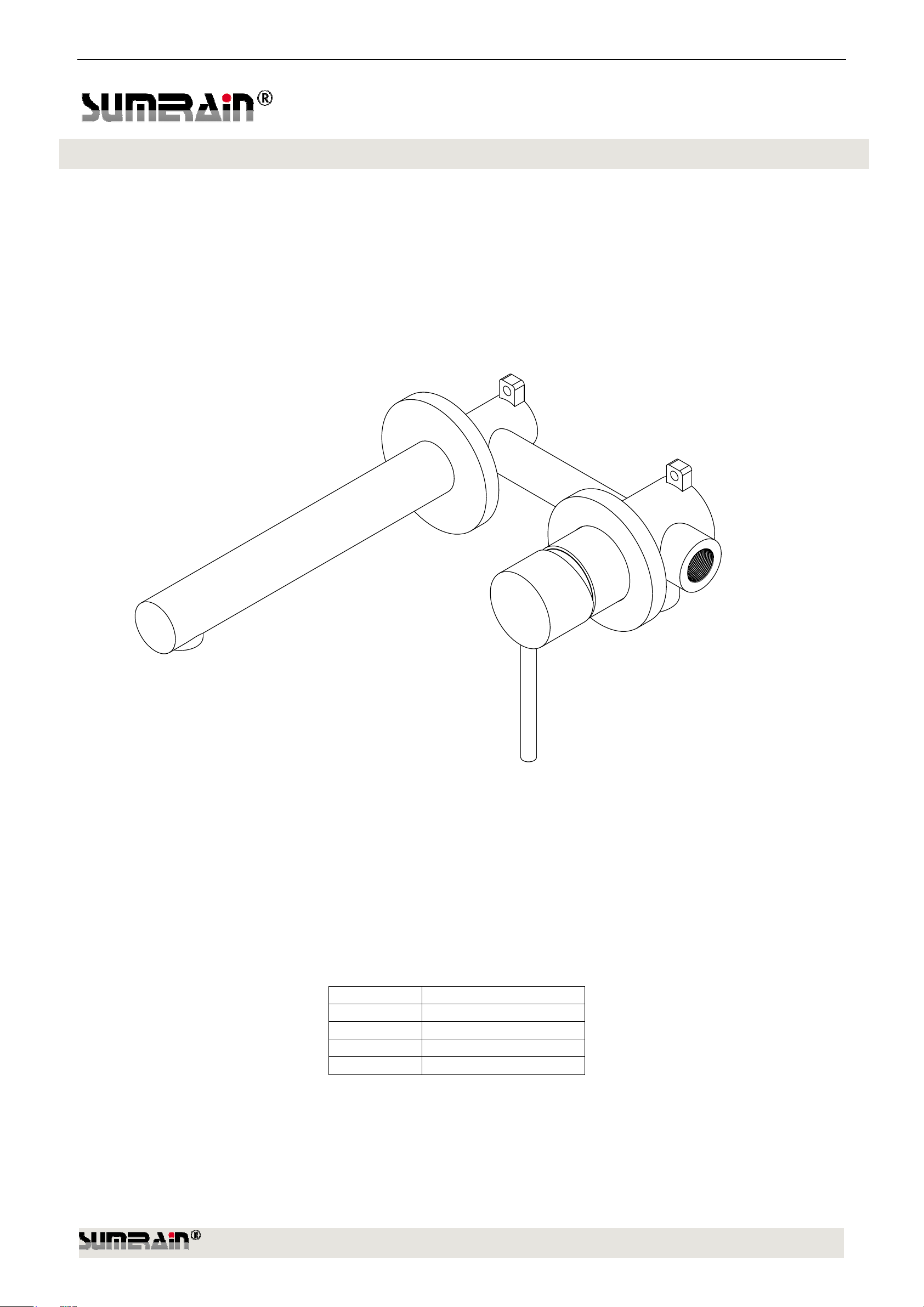

DIMENSION

FRONT VIEW OF FAUCET

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM

LEFT SIDE VIEW OF FAUCET

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM

1400008

CODE ITEM NAME QTY CODE ITEM NAME QTY

1400006

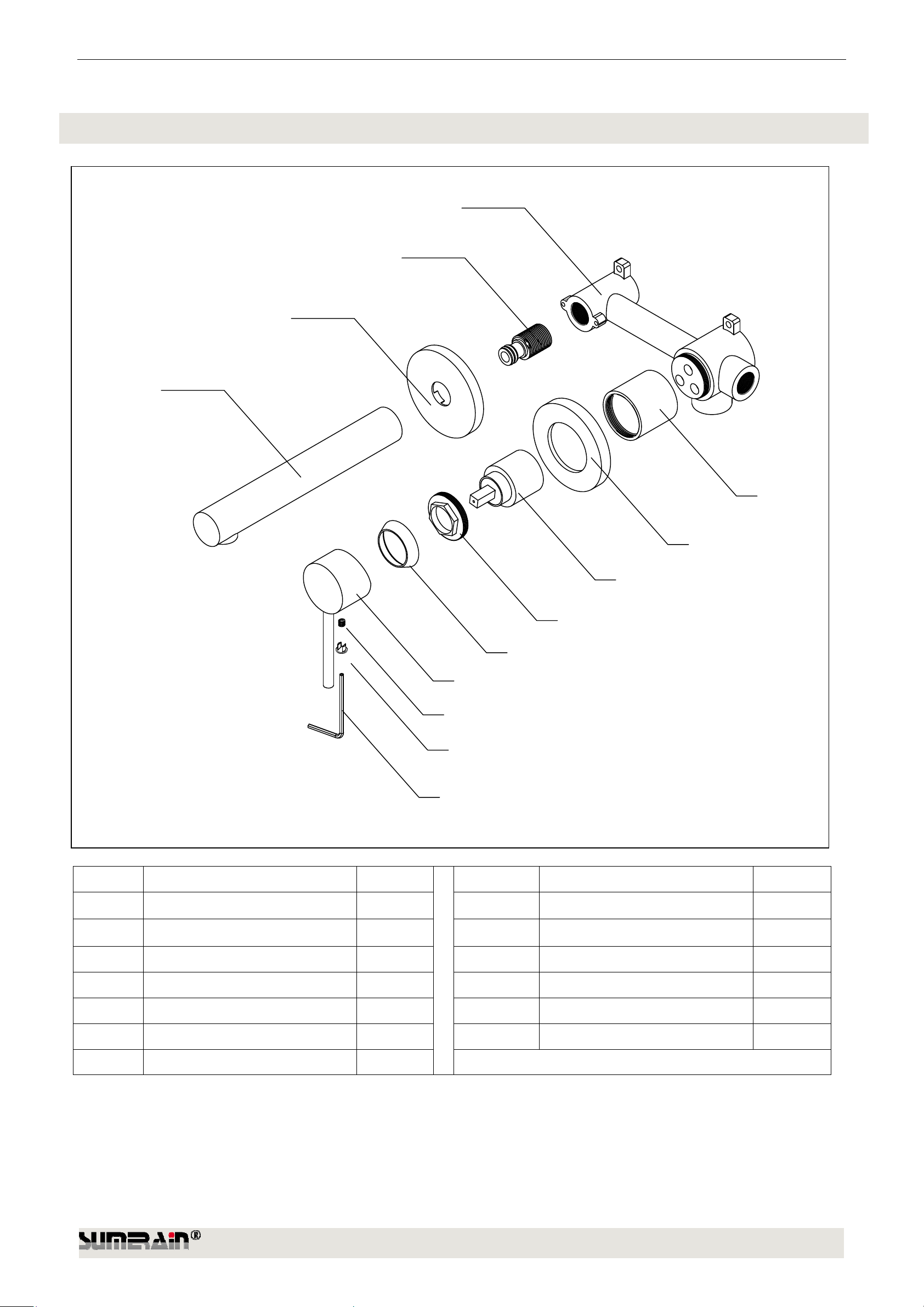

ACCESORIES LIST

1400001

1400013

1400002

1400007

1400003

1400004

1400005

1400009

1400010

1400011

1400012

1400001
1400003
1400005

1400007
1400009
1400011
1400013

Rough-in va lve 1PCS

ceramic cartridge 1PCS

Escutcheon 1PCS
Escutcheon 1PCS

Handle(Lever) 1PCS

Screw cover 1PCS

1400002
1400004
1400006

1400008
1400010
1400012

Bonnet nut 1PCS

Escutcheon 1PCS

Allen wrench 1PCS

Supply nipple 1PCS

Sleeve 1PCS

Spout 1PCS

Set screw 1PCS

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM

INSTALLATION STEPS

1. BEFORE PROCEEDING

WARNING: Read all the instructions completely before proceeding.SUMERAIN recommends calling a professional

if you are uncertain about installing this product!, this product should be installed in accordance with all
local and state plumbing and building codes.

2. SHUT OFF WATER SUPPLY

Locate water supply inlets and shut off the water supply valves. These are usually found near the water meter. if you are

replacing an existing unit, remove the old unit and clean the mounting surface thoroughly.

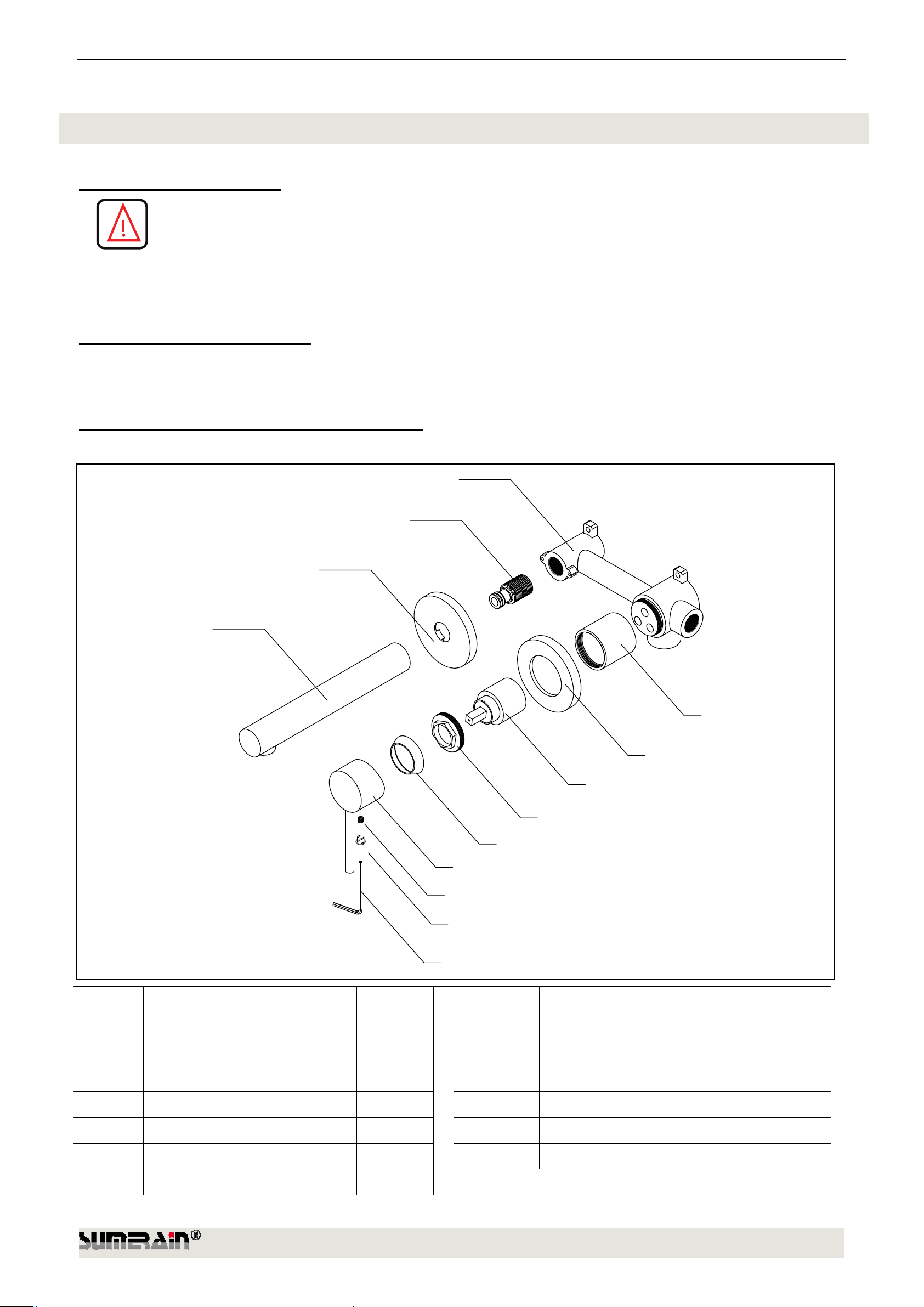

3. CHECKING THE CONTENTS OF THE BOX

Upon opening the box, check to ensure that all the following items are included.

CODE ITEM NAME QTY CODE ITEM NAME QTY

1400008

1400006

1400013

1400001

1400002

1400007

1400003

1400004

1400005

1400009

1400010

1400011

1400012

1400001
1400003
1400005

1400007
1400009
1400011
1400013

Rough-in va lve 1PCS

ceramic cartridge 1PCS

Escutcheon 1PCS
Escutcheon 1PCS

Handle(Lever) 1PCS

Screw cover 1PCS

1400002
1400004
1400006

1400008
1400010
1400012

Bonnet nut 1PCS

Escutcheon 1PCS

Allen wrench 1PCS

Supply nipple 1PCS

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM

Sleeve 1PCS

Spout 1PCS

Set screw 1PCS

If any of these items are missing, please contact SUMERAIN consumer service at [phone] or email to:

[email protected]

4. VALVE TRIM SET INSTALLATION

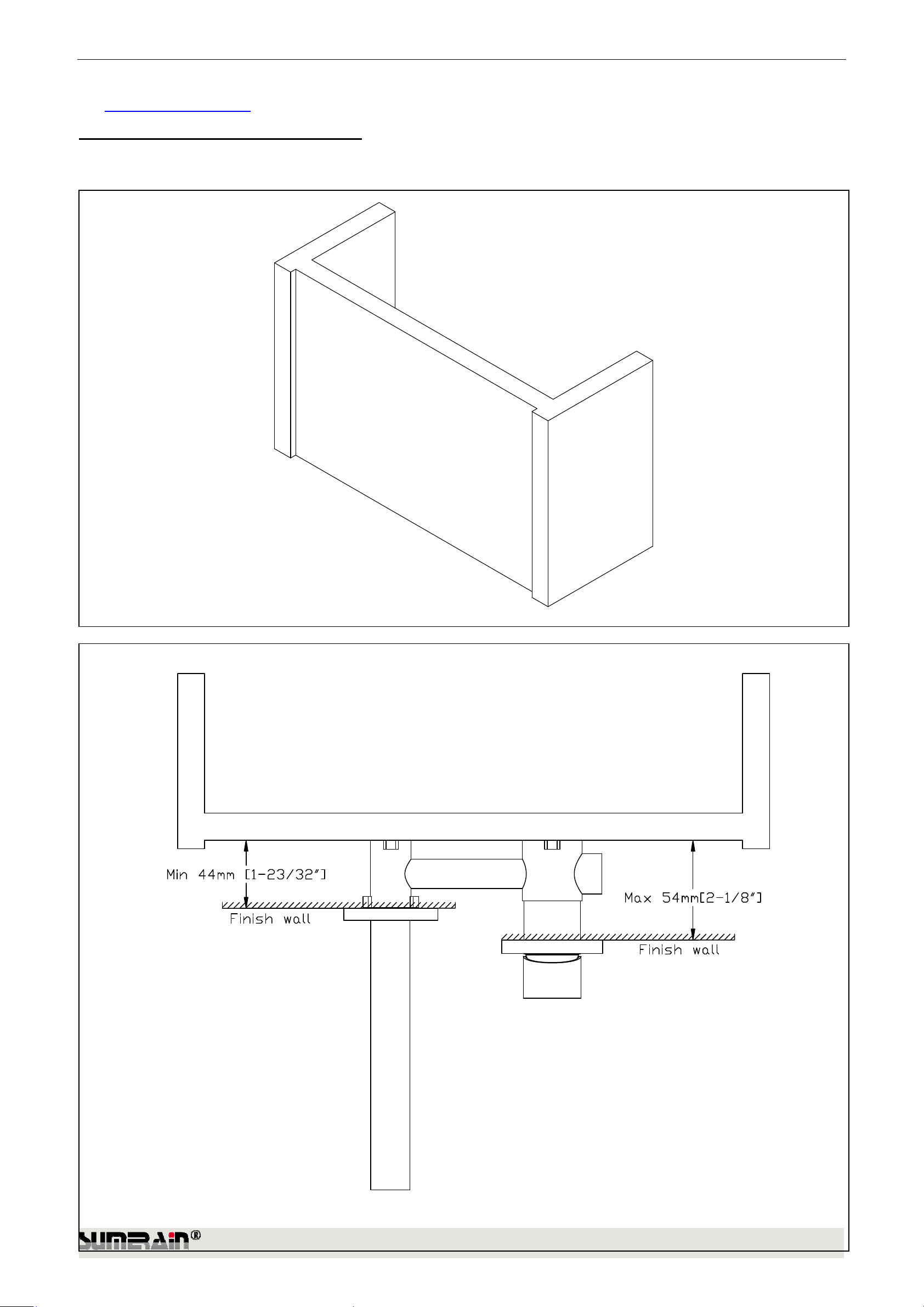

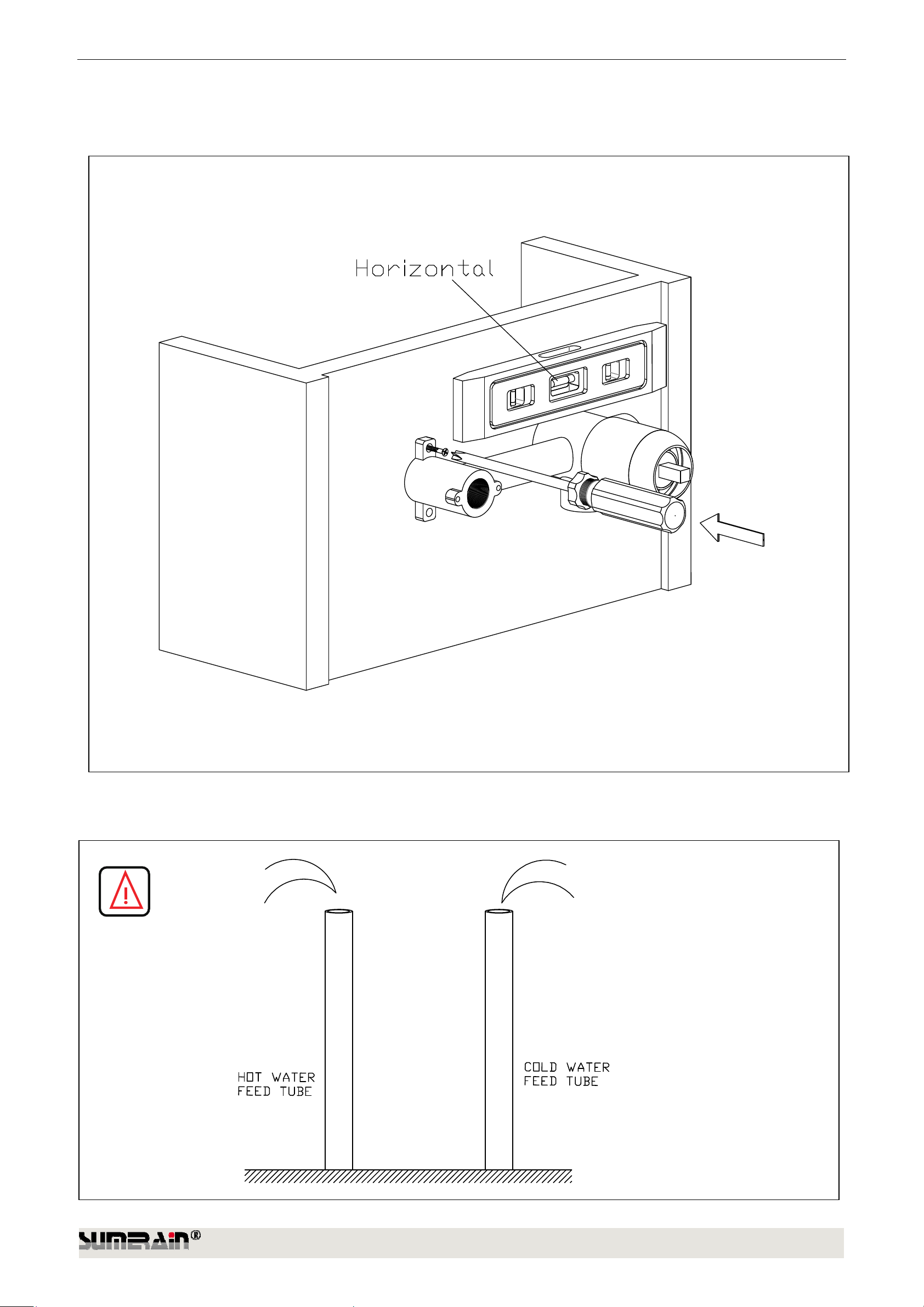

4.1 Make a mounting rack (normally use woods as materials) for preparing install the rough-in valve. The mounting rack’s face

should be 44mm (1-23/32”) at least and 54mm (2-1/8”) behind the finish wall surface.

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM

4.2

Secure the rough-in valve to the mounting rack with screws (screws not including)

4.3 Turn on your shut-off valve for cleaning the hot and cold water supply tube before connect to the valve trim, allow the water flush

3~5 minutes to flush out dirt and debris. Shut off the water supply again after finish.

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM

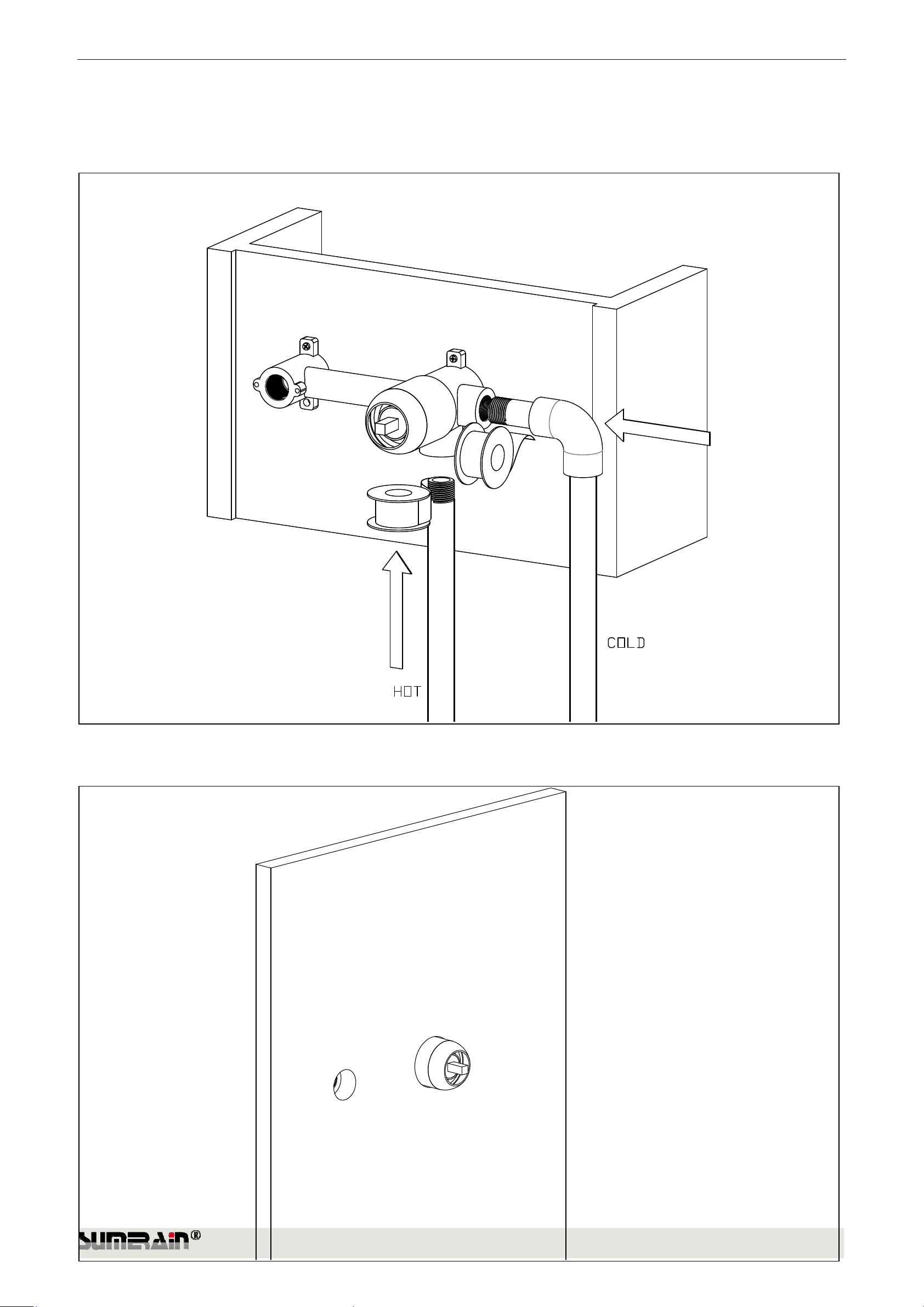

4.4 Apply Teflon tape on the thread of supply tube outlet and then connect to rough-in valve with elbow.
Rough-in Valve thread for Hot&Cold water inlet: G1/2” [1/2 BSPP], US, CA customers may require NPT cover to BSPP
adapter for connecting (if you could find this adapter please inquiry SUMERAIN support center).

4.5 Install the finished wall.

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM

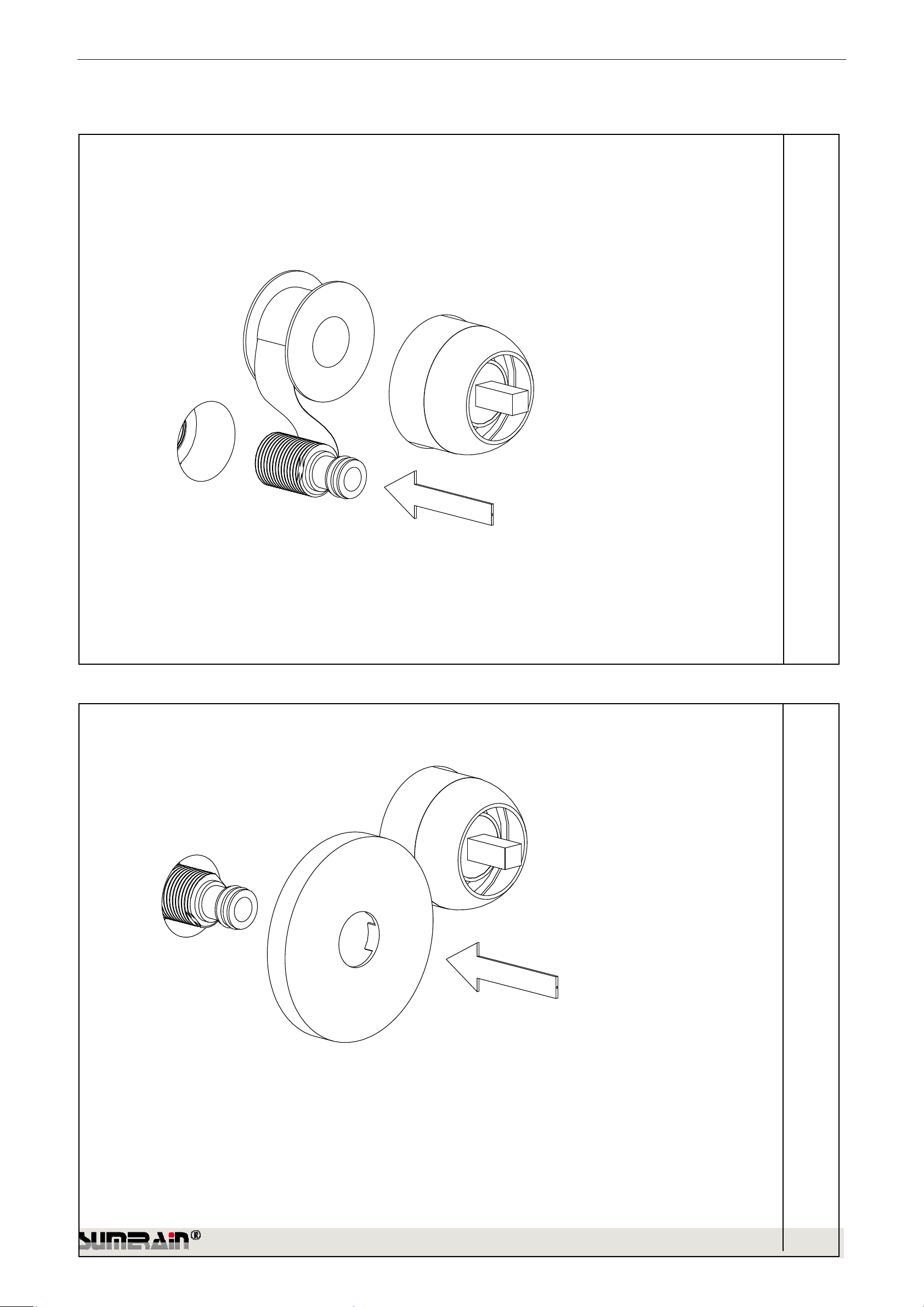

4.6 Apply Teflon tape on the thread of nipple and then connect to rough-in valve

4.7 Attach the escutcheon to nipple.

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM

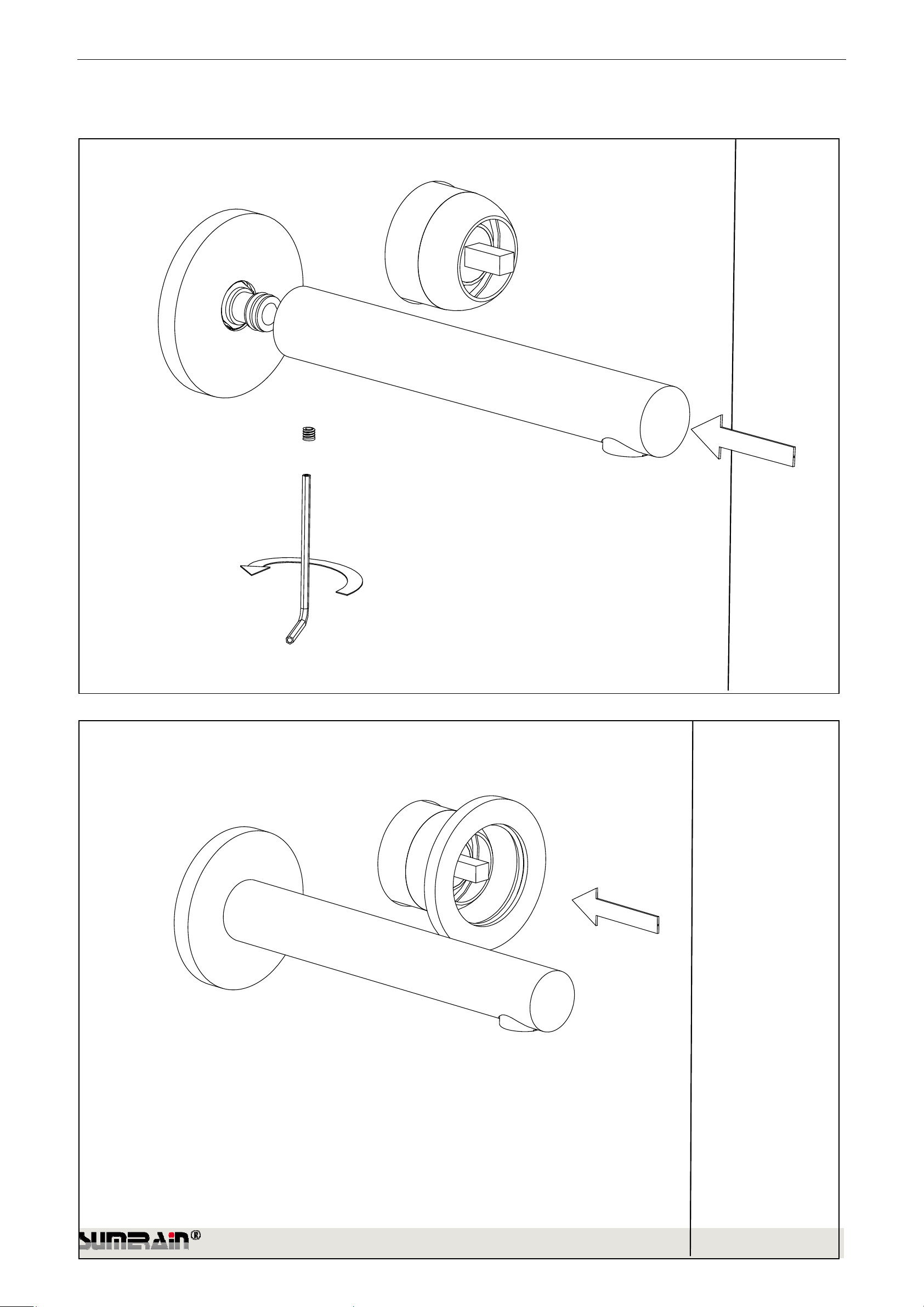

4.8 Slide the spout over the nipple and attached to the nipple and fasten by the set screw.

4.9 Slide the escutcheon over the sleeve and attached to the finished wall

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM

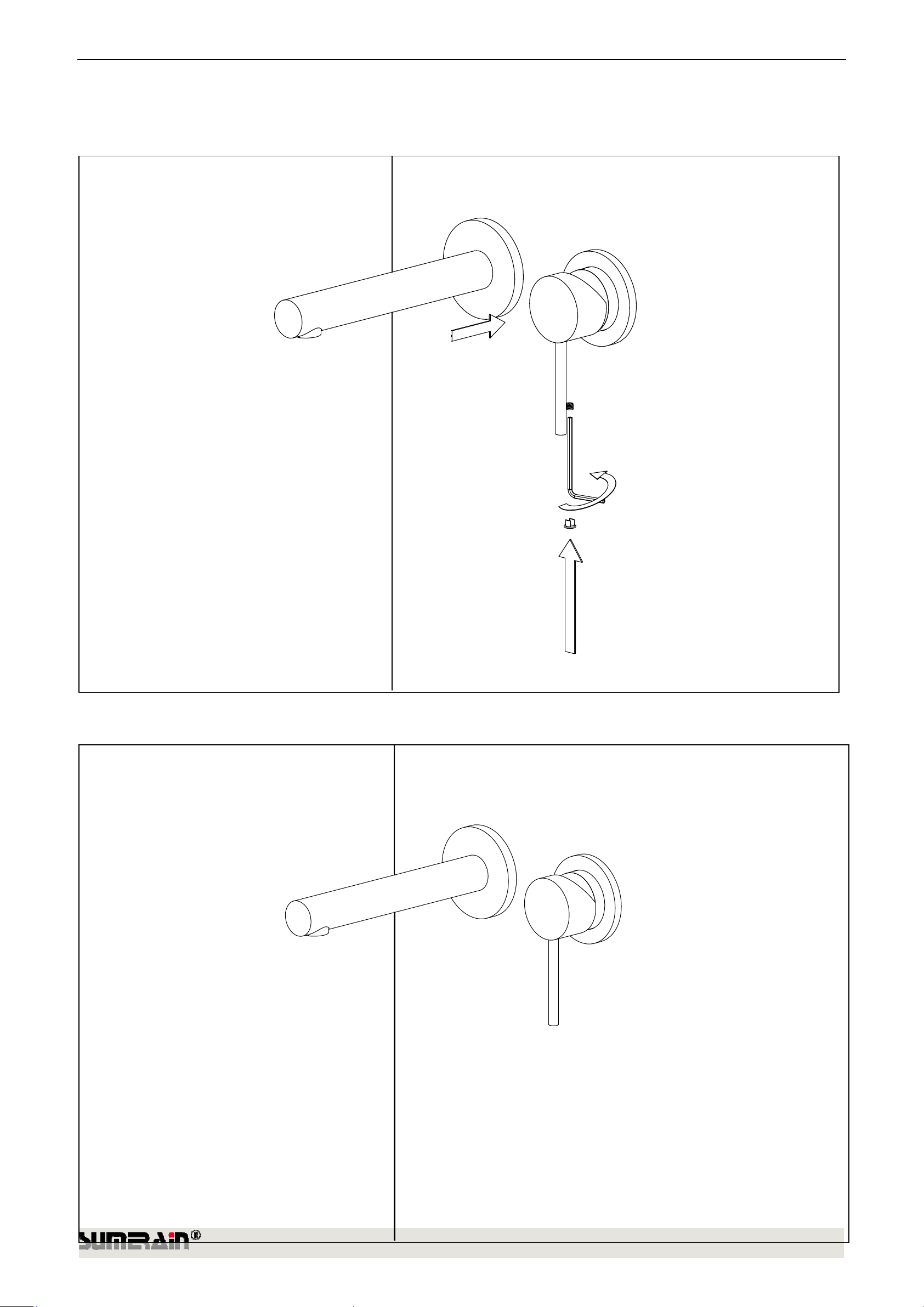

4.10 Place handle onto the valve stem and tighten set screws by using the Allen wrench that is provided.(Please don’t over tighten),

Then attach the screw cover onto handle.

ASSEMBLE FINISHED

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM

5. INSPECTION

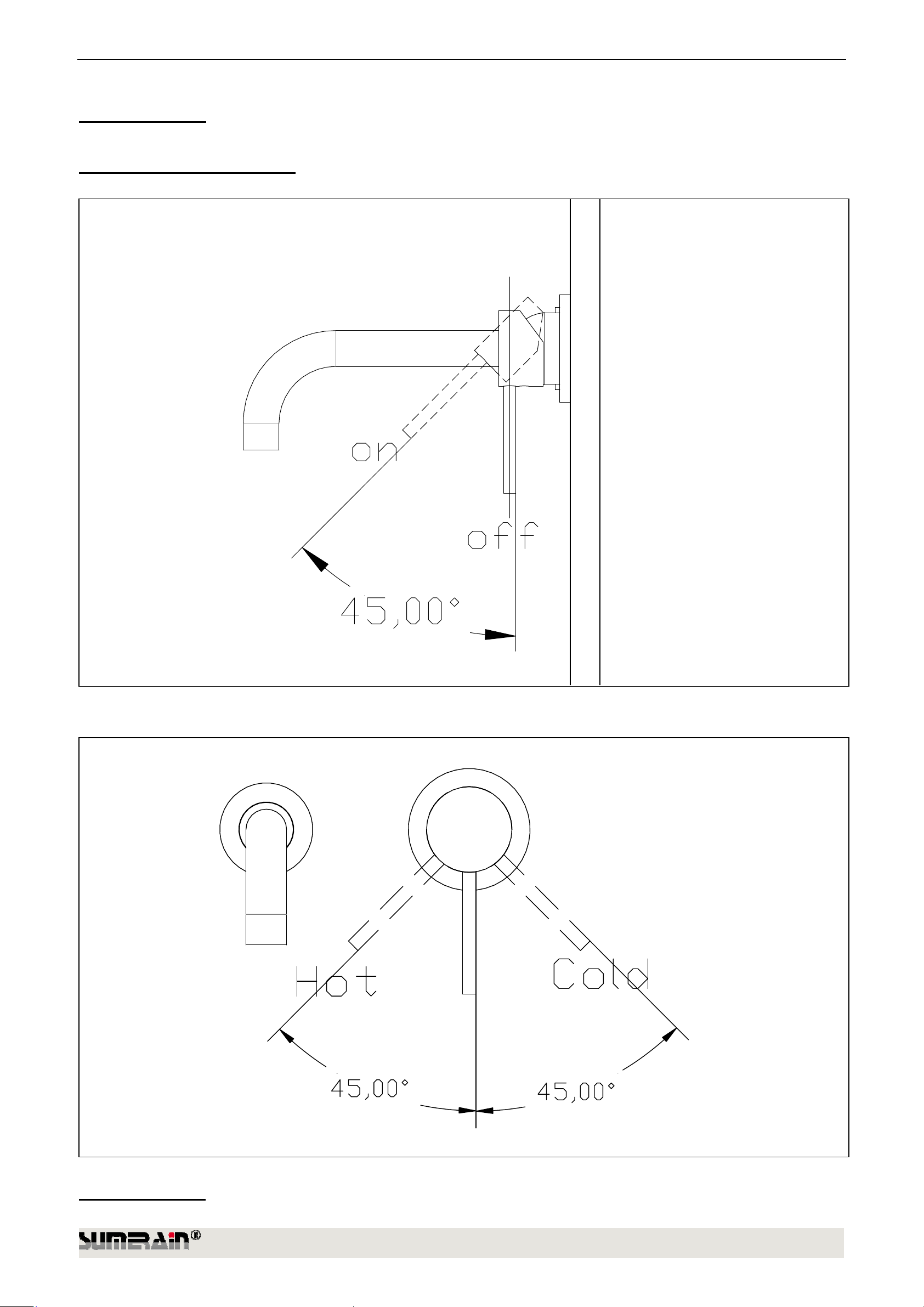

5.1 Turn on hold and cold water supply and check all connection for ensuring no leaking anywhere.

6. FUNCTION INSPECTION

6.1 Turn on the handle, the water outflow from the spout and then turn off the handle, the water stop out flowing.

6.2 Turn right the handle, the cold water coming, on the contrary way, turn left the handle, hot water coming.

INSTALL FINISH

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM

CLEARNING RECOMMENDATION FOR SUMERAIN PRODUCTS

Modern lavatory faucets, kitchen faucets, and showers consist of very different materials to comply with the needs of the market with
regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when cleaning.

Cleaning Materials for faucets and showers

Acids are a necessary ingredient of cleaning materials for removing lime, however please pay attention to the following points when
cleaning faucets and showers:

■ Only use cleaning materials which are explicitly intended for this type of application.

■ Never use cleaning materials which contain hydrochloric, formic, phosphoric, or acetic acid, as they cause considerable damage.

■ Never mix one cleaning material with another.

■ Never use cleaning materials or appliances with an abrasive effect, such as unsuitable cleaning powders, sponge pads, or micro

fiber cloths.

Cleaning instructions for faucets and showers

Please follow the cleaning material manufacturer's instructions. In addition, pay attention to the following points:

■ Clean the faucets and showers as and when required.

■ Use the amount of cleaning product and the amount of time recommended by the manufacturer. Do not leave the cleaner on the

fixture longer than necessary.

■ Regular cleaning can prevent calcification, if scale deposits are noticed on the faucet surface or the spout, you can clean it by a

commercial limescale remover, such as Lime-Away® or CLR®.Dilute the remover according to the label instructions.

■ The faucets might have some rusty if your faucet under hard water condition, please rub it with aluminum foil dipped in water until

the surface is nice and smooth, and wipe it use a small amount of chrome polish or maybe something like car wax(such as
Meguiar®,Turtle Wax®) or polish.

■ For stainless steel faucet and spout both made of solid stainless, normally this finish has not protective coating on it(in particular

waterfall spout inside),stainless steel is by its material nature very tarnish resistant, but by no means tarnish or stain proof. This
finish might oxidize naturally over time and react to its environment. Keep your stainless fixture wiped clean and dry and use only
a cleaner specifically made for stainless steel (such as Weiman®, CLR®).

■ When using spray cleaners, spray first onto a soft cloth or sponge, never spray directly onto the faucet as droplets can enter

openings and gaps and cause damage.

■ After cleaning, rinse thoroughly with clean water to remove any cleaner residue.

Important

Residues of liquid soaps, shampoos, and shower foams can also cause damage, so rinse with clean water after using.

Please note: if the surface is already damaged, the effect of cleaning materials will cause further damage.

Components with damaged surfaces must be replaced or injury could result.
Damage caused by improper treatment is not covered under the warranty.

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM

TROUBLESHOOTING

Symptom Solution

Faucet leaks from the handle

A. Tighten the packing nut
B. Replace the "O" ring or packing
A. Make sure the water supply valves under the sink are turned on all the way

The water pressure is too low

B. Clean or replace the aerator
C. Check plumbing system for water pressure problems

The spout sprays water all over

A. Clean or replace the aerator
B. Replace the aerator washer
A. Check the water supply connections to the faucet

Water is leaking from the faucet under the sink

B. Inspect the water supply lines or hoses for leaks

A. Remove the cap and tighten the screw

Handle is loose

B. Locate and tighten the hex set screw
C. Remove the handle and check for stripped teeth on the stem.

HONGKONG SUMERAIN SANITARY INDUSTRY CO..LIMITED

Address: ROOM 1018, HOLLYWOOD PLAZA 610 NATHAN ROAD MONGKOK, KL
Factory Address: Shuikou Industrial Park, Kaiping City, Guangdong Province, China (Mainland)
Tel: [phone]
Fax: [phone]
Web: www.sumerain.com
E-mail: [email protected]

SUMERAIN INTERNATIONAL GROUP – AMERICA Branch

Address: 13455 Harper Dr.
Saratoga, CA 95070
USA
Tel: [phone]
FAX: [phone]
E-mail: [email protected]

SUMERAIN INTERNATIONAL GROUP – Verkaufsniederlassung in Deutschland [EUROPE]

Adresse: Der Ecke,Moellendorffstr. 108,

10367 Berlin

Deutschland
Tel: [phone]
E-mail: [email protected]

SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM
