INSTALLATION GUIDE
Version: 1.0

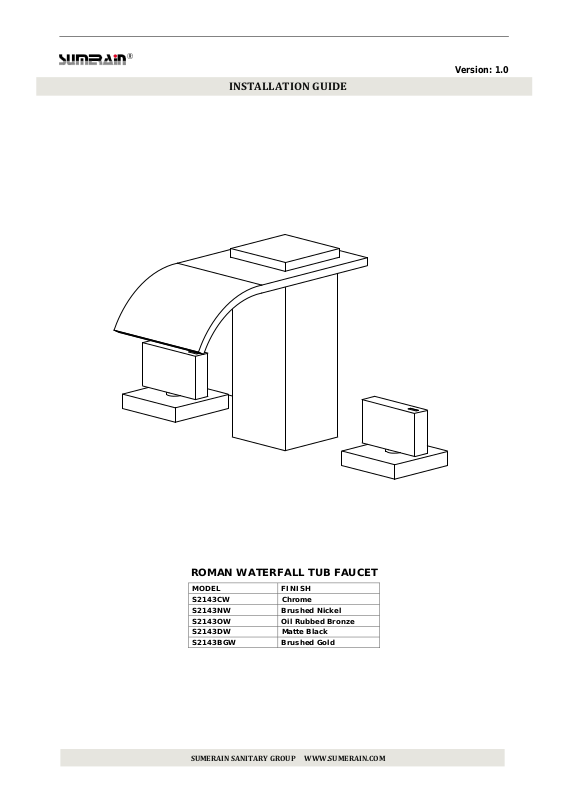

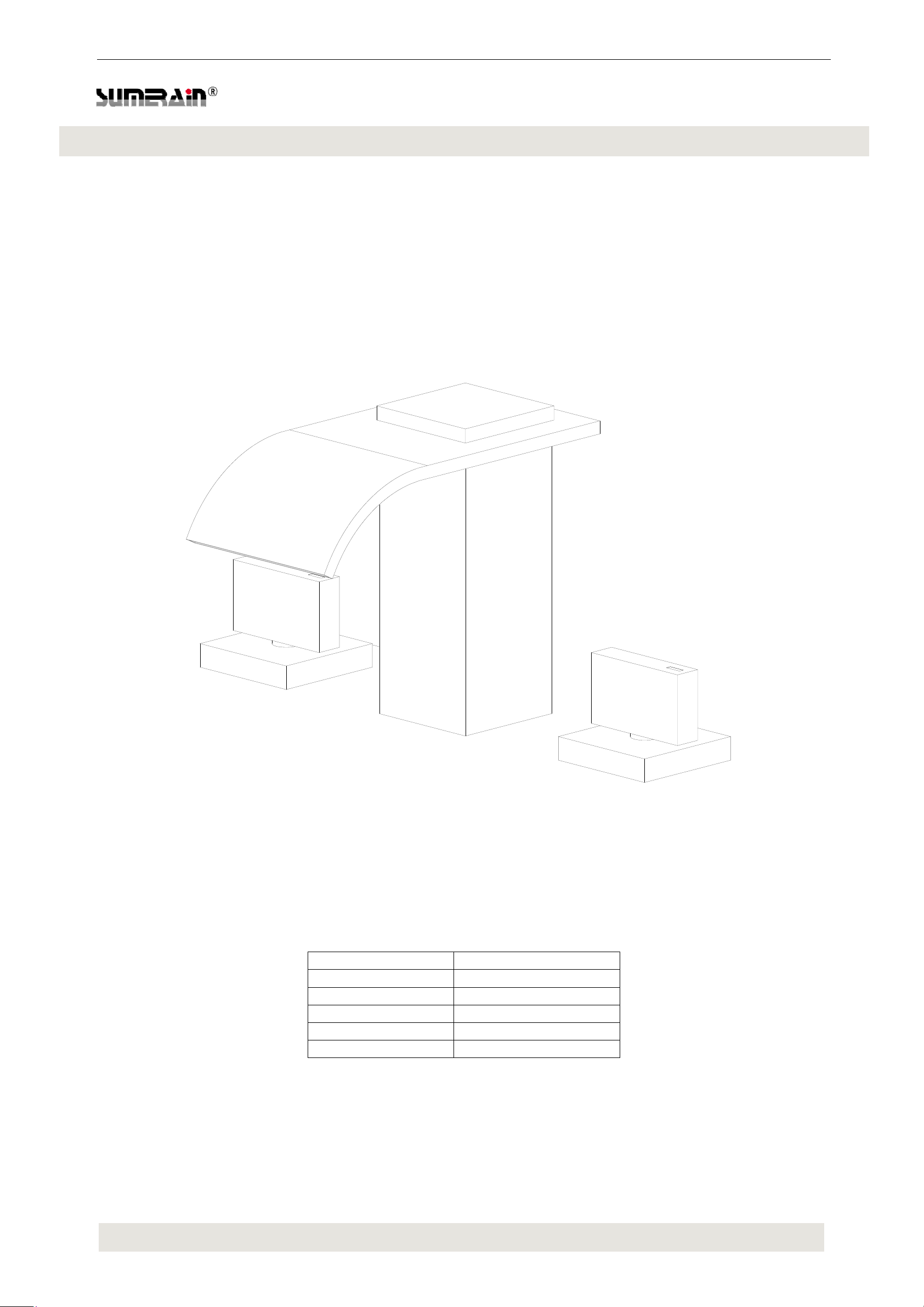

ROMAN WATERFALL TUB FAUCET
MODEL FINISH
S2143CW Chrome
S2143NW Brushed Nickel
S2143OW Oil Rubbed Bronze
S2143DW Matte Black
S2143BGW Brushed Gold
SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM
Page 2
THANK YOU
Dear Valued Customer,
SUMERAIN would like to take this opportunity to thank you for purchasing SUMERAIN products. It is our
sincere hope that you are completely satisfied with your new purchase. All SUMERAIN products are carefully
engineered, and factory tested to provide long trouble-free use under normal conditions. This product is
easy to install using basic tools and our easy to follow illustrated instructions. We welcome any questions or
comments you may have and look forward to assisting you in the future. If you have any questions regarding
this product, call +1-866-203-0866 or email to [email protected] .
Sincerely,
SUMERAIN customer service department
1. Unpack your new product and ensure that all the parts are contained in the packaging. Keep the product
in its original box until you ready to install it.
2. Locate water supply inlets and shut off the water supply valves. These are usually found near the water
meter.
if you are replacing an existing unit, remove the old unit and clean the mounting surface thoroughly.
3. Observe all plumbing and building codes in your area.
4. It is recommends calling professional if you are uncertain about installing this product.
Philips screwdriver Allen wrench Adjustable wrench Channel locks Thread
Sealant

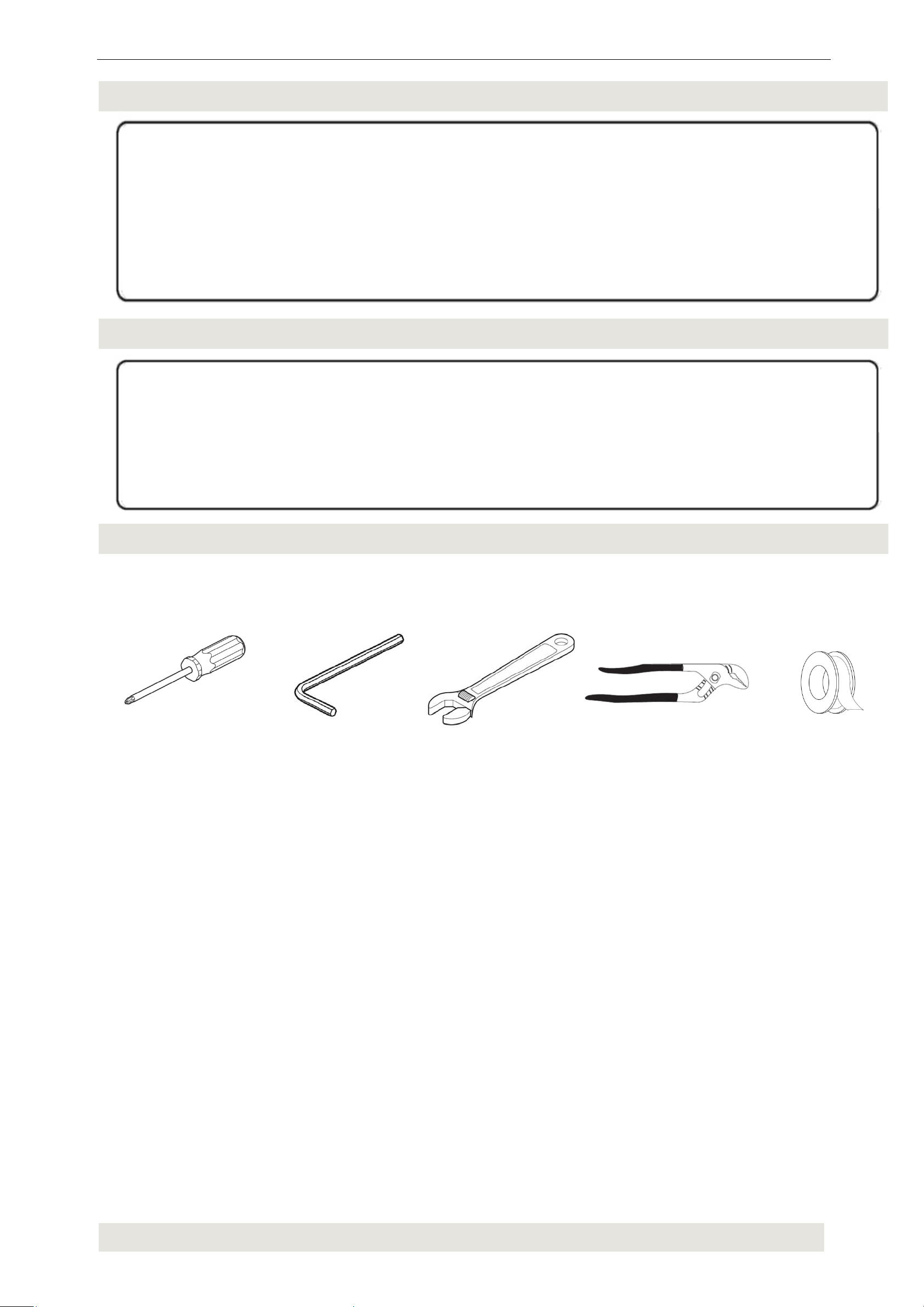

BEFORE PROCEEDING
TOOLS RECOMMENDED
SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM
Page 3
VERSION: 20160320.18.1
LIMITED LIFETIME CONSUMER WARRANTY
This product has been manufactured and tested to the highest quality standards by SUMERAIN sanitary
Inc("SUMERAIN").This warranty is limited to SUMERAIN products which are purchased by a consumer in the China after Jan
1,2010 and installed in China or the state which has SUMERAIN technical support department locally.(visit
http://www.sumerain.com/en/supportcenter.asp for review the state list of SUMERAIN technical support department).If the
faucet should leak or drip during normal use,SUMERAIN will, free of charge, mail to the purchaser the cartridge necessary to
put the faucet in good working condition. If a defect is found in normal residential use, SUMERAIN will, at its election, repair,
provide a replacement part or product, or make appropriate adjustment.
WHO IS COVERED BY THE WARRANTY
This warranty extends to the original consumer purchaser only (exclusive online retail original customer, online retail original
customer cover by the "Online CONSUMER Limited Lifetime WARRANTY & Return policy"), This warranty is not-transferable.
WHAT IS COVERED BY THE WARRANTY
This warranty covers only your SUMERAIN manufactured product. SUMERAIN warrants this product against defects in
material or workmanship as follows: SUMERAIN will repair at no charge for parts only or, at its option, replace any product or
part of the product that proves defective because of improper workmanship and/or material, under normal installation, use,
service and maintenance. If SUMERAIN unable to provide replacement, SUMERAIN may elect to provide similar model upon
close value.
FINISH WARRANTY
It is the responsibility of the customer to check for any material finish defects before installation. SUMERAIN doesn't warranty
these finishes after the fixture has been installed.
ELECTRONIC FAUCETS WARRANT Y
SUMERAIN warrants that its electronic faucets, valves and controls to be free from manufacturing defects in material and
workmanship under normal use for three(3) years from the date of purchase and waterflow impeller-dynamo (generate power
for LED faucet) for six(6) months from the date of purchase.
LENGTH OF WARRANTY
Replacement or repaired parts of product s will be covered for the term of this warranty as stated in the following two sentences,
if you are a consumer who purchased the product for use primarily for personal,family,or household purposes, this warranty
extends for 5 years since the product originally installed (Extend max 1 month From the date of purchase).if you purchased the
product for use primarily for any other purpose,including,without limitation, a commercial purpose or is installed outside of US,
or if the finish is gold, non-Vibrant or a painted or powder coated color finish this warranty extends only for one year, with
respect to SUMERAIN and commercial products.
THIS WARRANTY DOES NOT COVER, AND SUMERAIN WILL NOT PAY FOR:
A. Conditions, malfunctions or damage not resulting from defects in material or workmanship.
B. Conditions, malfunctions or damage resulting from normal wear and tear, improper installation, improper maintenance,
misuse,
abuse,negligence,accident or alteration or the use of abrasive or caustic cleaning agents or "no-rinse" cleaning products, or
the use of the product in any manner contrary to the product instructions. Conditions in the home such as excessive water
pressure or corrosion.
C. Labor or other expenses for the disconnection, deinstallation, or return of the product for warranty service, or for installation
or reinstallation of the product.
D. Accessories, connected materials and products (including but not limited in handshower flexible hose, spray flexible hose,
handshower), or related products not manufactured by SUMERAIN
TO OBTAIN WARRANTY PARTS OR INFORMATION
Contact your SUMERAIN retailer or contact technical service at: [email protected]
In requesting warranty service, you will need to provide
1. The sales receipt or other evidence of the date and the place of purchase.
2. A description of the problem (Download URL: http://www.sumerain.com/download/servicerequest/sheet.pdf and fill out the
Service Request Sheet).
3. Delivery of the product or the defective part, postage prepaid and carefully packed and insured to specified address.
When warranty service is completed, any repaired or replacement product or part will be returned to you postage prepaid.
EXCLUSIONS AND LIMITATIONS
Repair or replacement (or, in limited circumstances, refund of the purchase price) as provided under this warranty is the
exclusive remedy of the purchaser. SUMERAIN neither assumes nor authorizes any person to create for it any obligation or
liability in connection with this product.SUMERAIN shall not be liable to purchaser or any person for any incidental, special, or
consequential damages, arising out of breach of this warranty or any implied warranty (including merchantability) Some states
do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not
apply to you. This warranty gives you specific legal right, and you may have other rights which vary from state to state. You
may be required by law to give us a reasonable opportunity to correct or cure any failure to comply before you can bring any
action in court against us under the Magnusson-moss warranty Act.
PRODUCT INSTRUCTIONS AND QUESTIONS
Upon purchase or prior to installation, please carefully inspect your SUMERAIN product for any damage or visible defect. Prior
to installing, always carefully study the enclosed instructions on the proper installation and the care and maintenance of the
product. if you have questions at any time about the use,installation,or performance of your SUMERAIN product, or this
warranty, please call or email us at +1-866-2030-866, [email protected]
SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM
Page 4
Function
Feature
Style
Finish
Installation Holes
Number of Handles
Spout total Height
Spout Reach
Spout Width
Spout Height
Max deck thickness

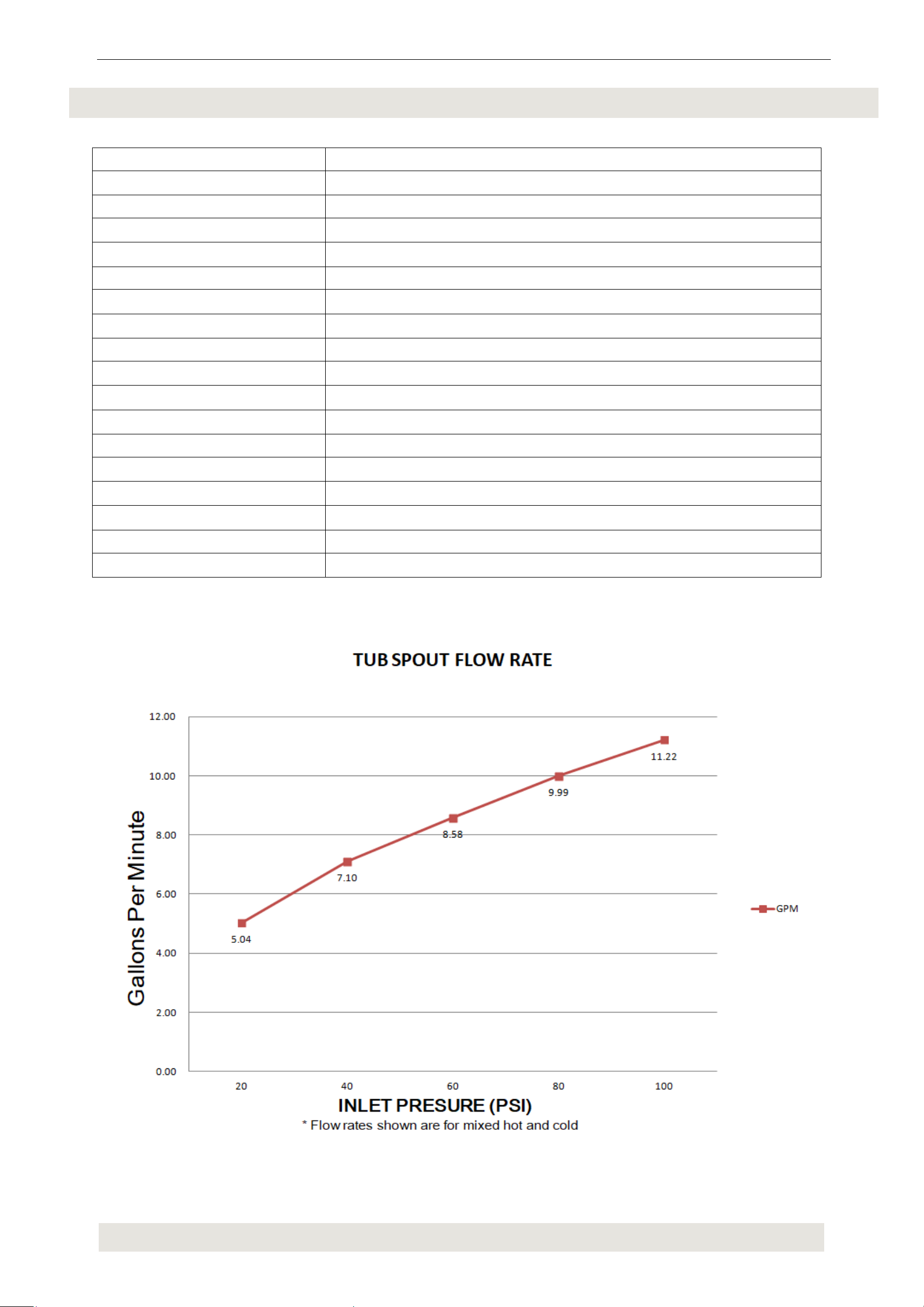

FUNCTIONS AND SPECIFICATION
Bathtub Faucets
Waterfall
Contemporary
Chrome/Brushed Nickel/Matte Black/Brushed Gold
Three Holes
Two knobs
5-7/64 Inch
4-23/32 Inch
3-9/64 Inch
3-15/32 Inch
1-1/4 Inch
Valve Type
Valve Body Material
Spout Material
Gross Weight
Working water press
Flow Rate
Packing box size
Ceramic Disc Valve
Brass
Stainless steel
5,07lbs
0.2 ~0.8 Mpa
8.6GPM @60PSI
11-13/16”x 8-11/16”x 6.0”
SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM
Page 5

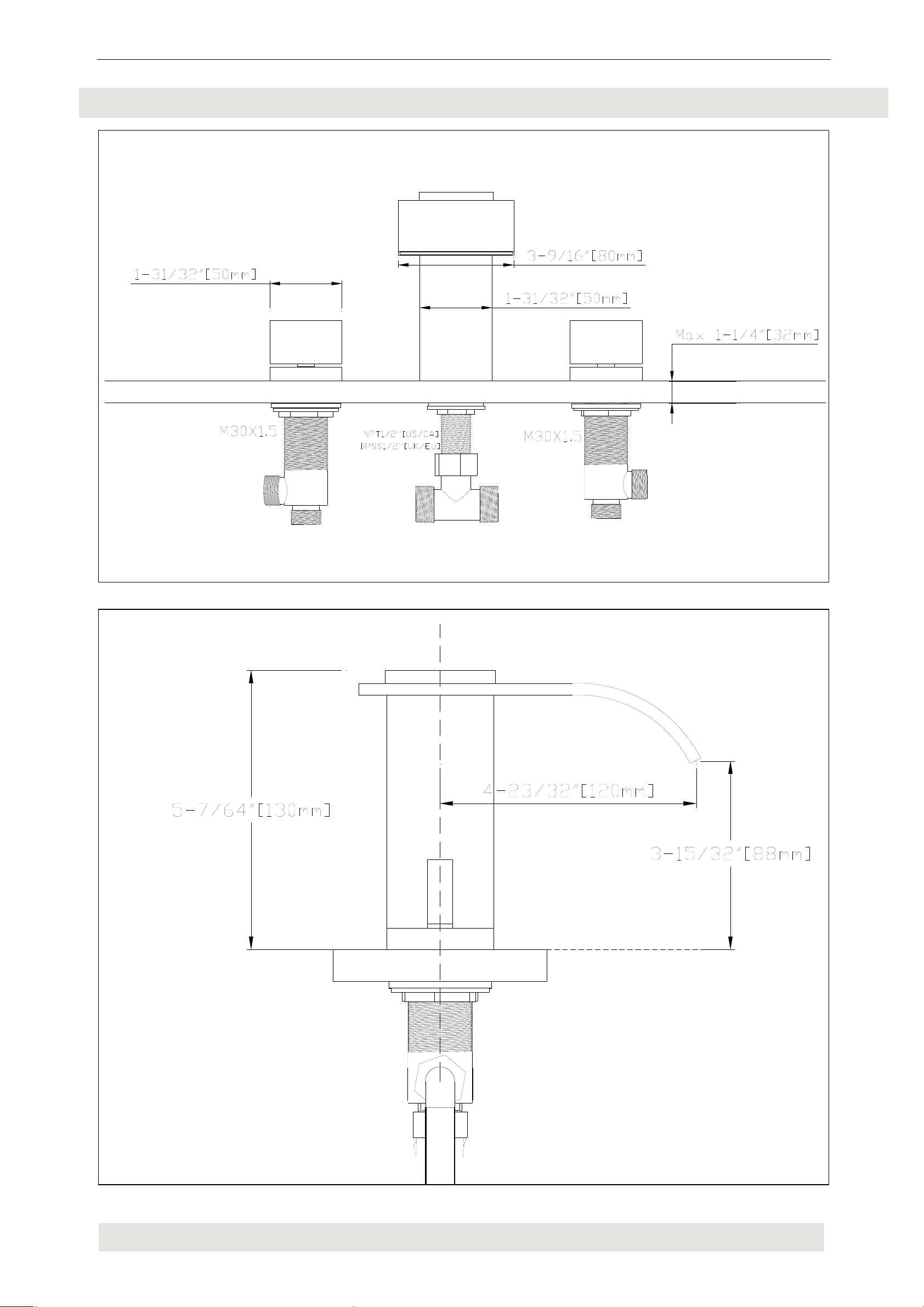

DIMENSION
FRONT VIEW OF FAUCET
SIDE VIEW OF FAUCET
SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM
Page 6
INSTALLATION STEPS
1. BEFORE PROCEEDING
WARNING: Read all the instructions completely before proceeding.SUMERAIN recommends calling a
Professional, if you are uncertain about installing this product!, this product should be installed in
accordance with all local and state plumbing and building codes.
2. SHUT OFF WATER SUPPLY
Locate water supply inlets and shut off the water supply valves. These are usually found near the water meter. if you are
replacing an existing unit, remove the old unit and clean the mounting surface thoroughly.

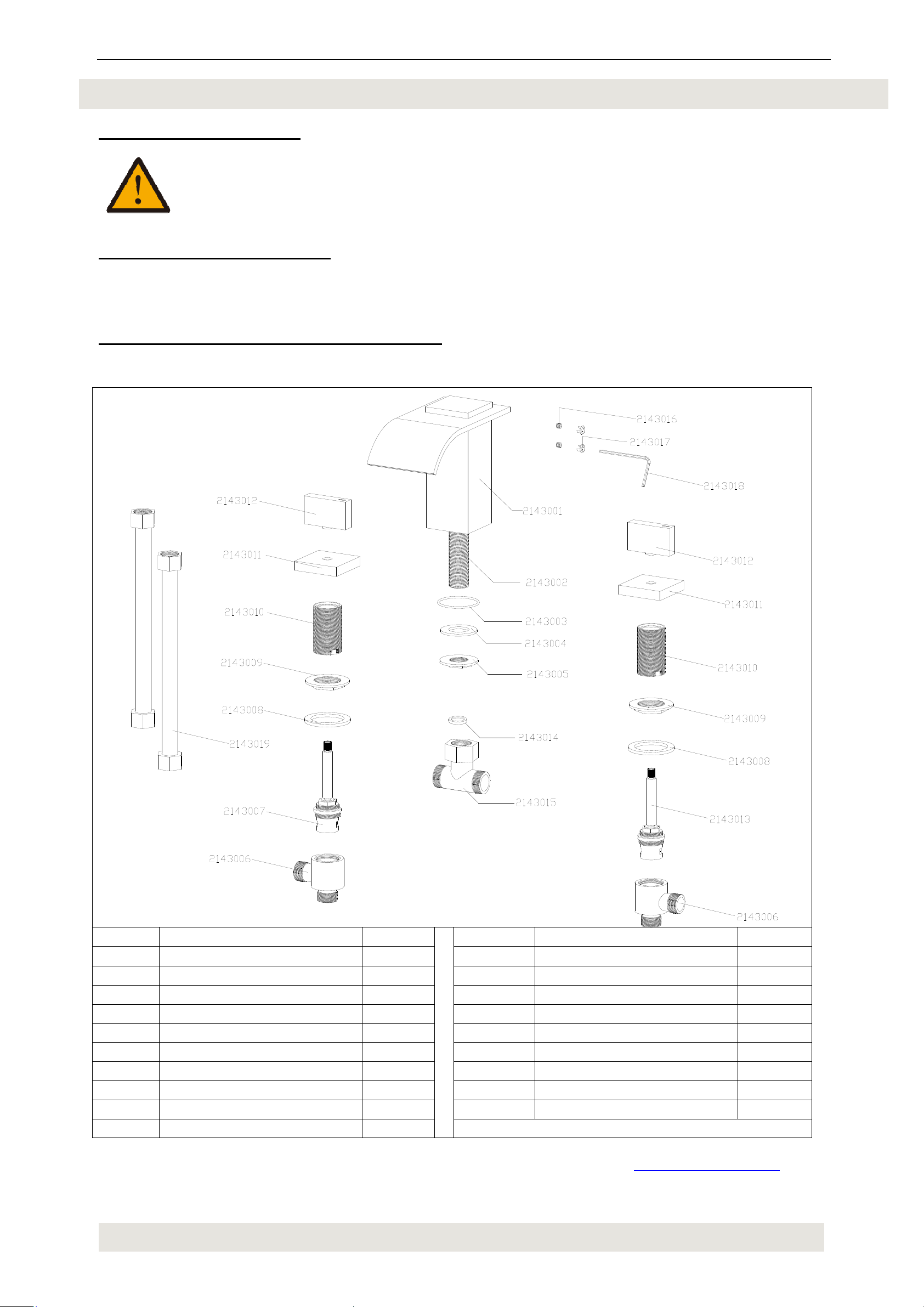

3. CHECKING THE CONTENTS OF THE BOX
Upon opening the box, check to ensure that all the following items are included.
CODE ITEM NAME QTY CODE ITEM NAME QTY
2143001
2143003
2143005
2143007
2143009
2143011
2143013
2143015
2143017
2143019
Spout assembly 1PCS
O-ring 1PCS
Lock Nut 1PCS
Hot disc cartridge 1PCS
Lock Nut 2PCS
Escutcheon 2PCS
Cold disc cartridge 1PCS
Tee 1PCS
Screw cover 2PCS
2143002
2143004
2143006
2143008
2143010
2143012
2143014
2143016
2143018
G1/2’’ hose 2PCS
Spout shank 1PCS
Rubber washer 1PCS
Valve body 2PCS
Rubber washer 2PCS
Valve shank 2PCS
Knob 2PCS
Screen washer 1PCS
Set screw 2PCS
Allen wrench 1PCS
If any of these items are missing, please contact SUMERAIN consumer service by email to: [email protected]
SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM
Page 7

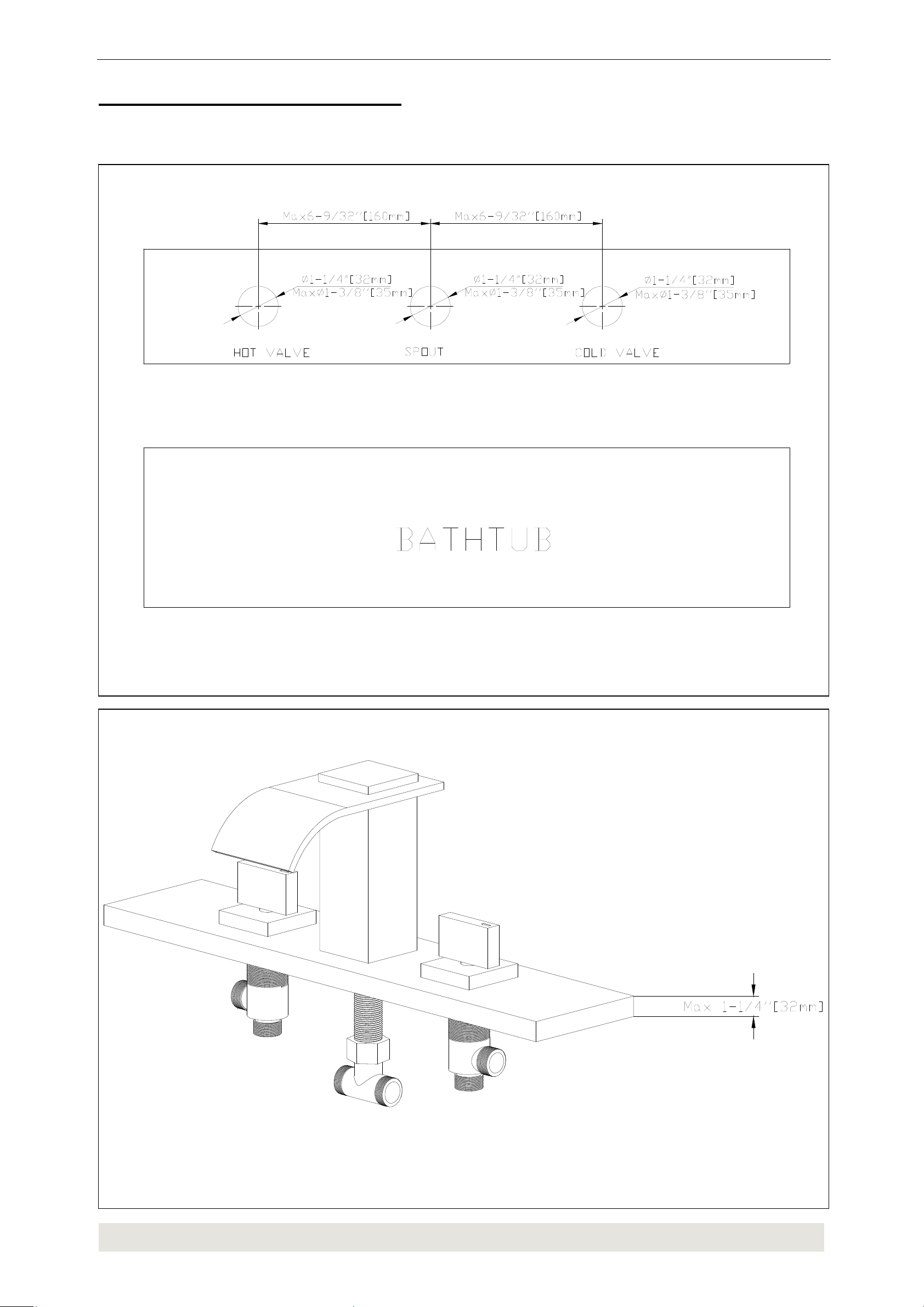

4. INSTALLATION HOLES INSPECTION
Verify that the hole sizes and positions in the wall are correct, the diameter of mounting hole recommend 1-1/4” (32mm) and
maximum 1-3/8” (35mm), the max thickness of deck should be 1-3/4” (45mm).
SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM
Page 8
5. INSTALLATION

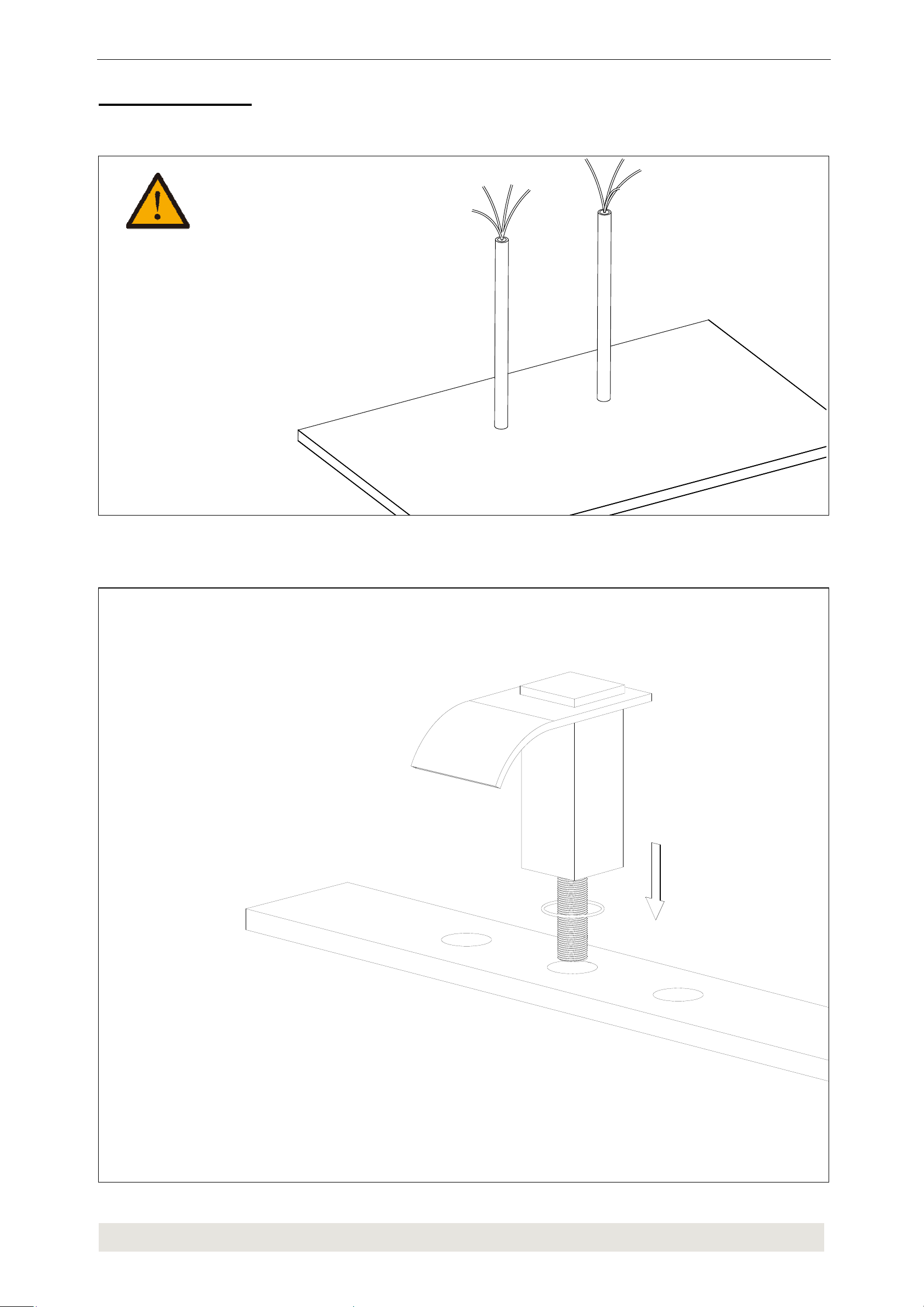

5.1 Turn on your shut-off valve for cleaning the hot and cold water supply pipe before connect to the faucet, allow the water
flush 3~5 minutes to flush out dirt and debris. Shut off the water supply again after done.
5.2 Attached the flow restrictor to shank of spout.
SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM
Page 9

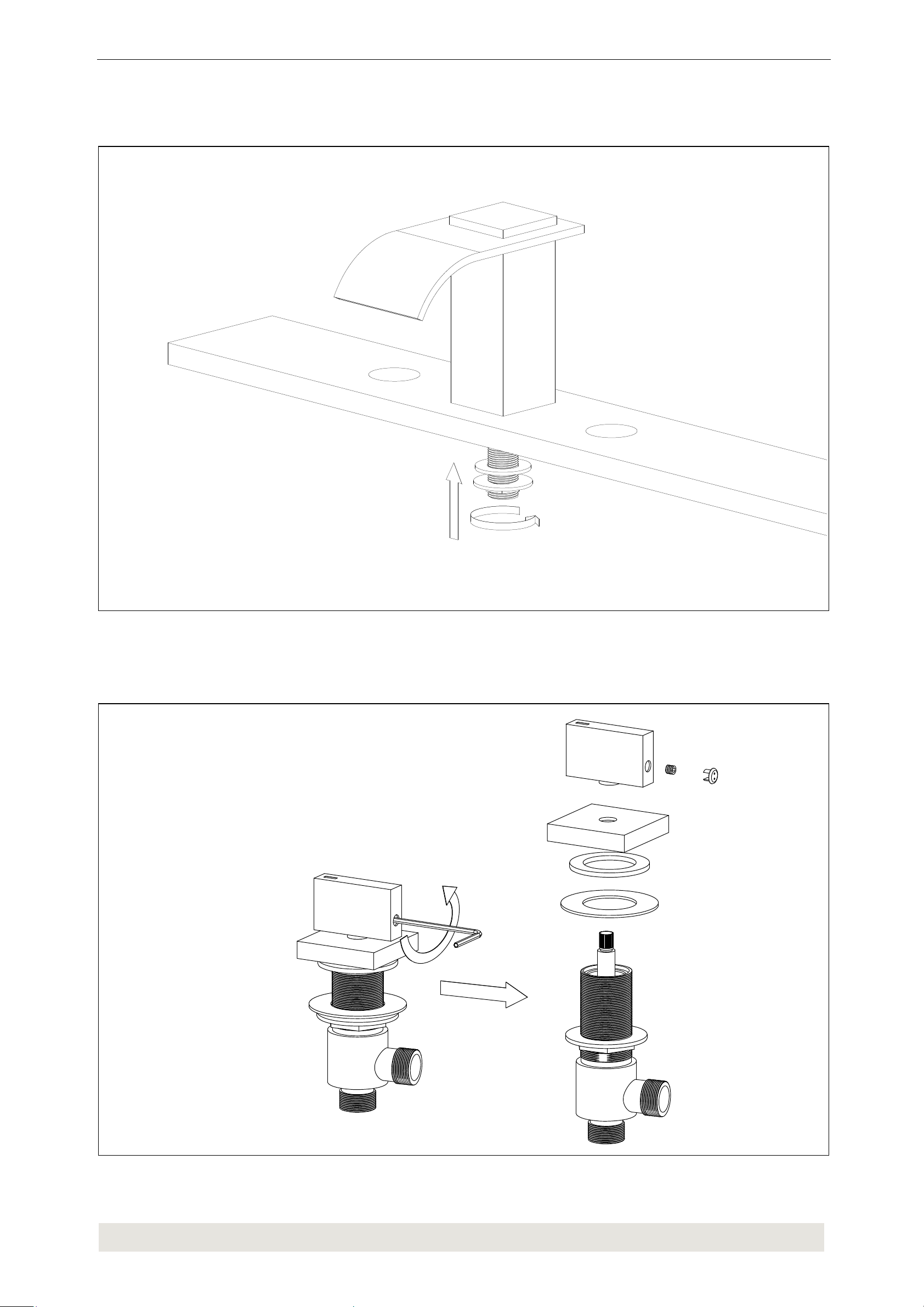

5.3 Position spout onto the hole of mounting surface, attach rubber washer on spout shank and fasten with spout shank
locknut by wrench from underneath.
5.4 Disassemble hot and cold water valve assembly to prepare for next step’s installation. Take out the screws cover from
knob and loose the inside set screw by Allen wrench anticlockwise, disassemble the knob from the valve assembly.
SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM
Page 10

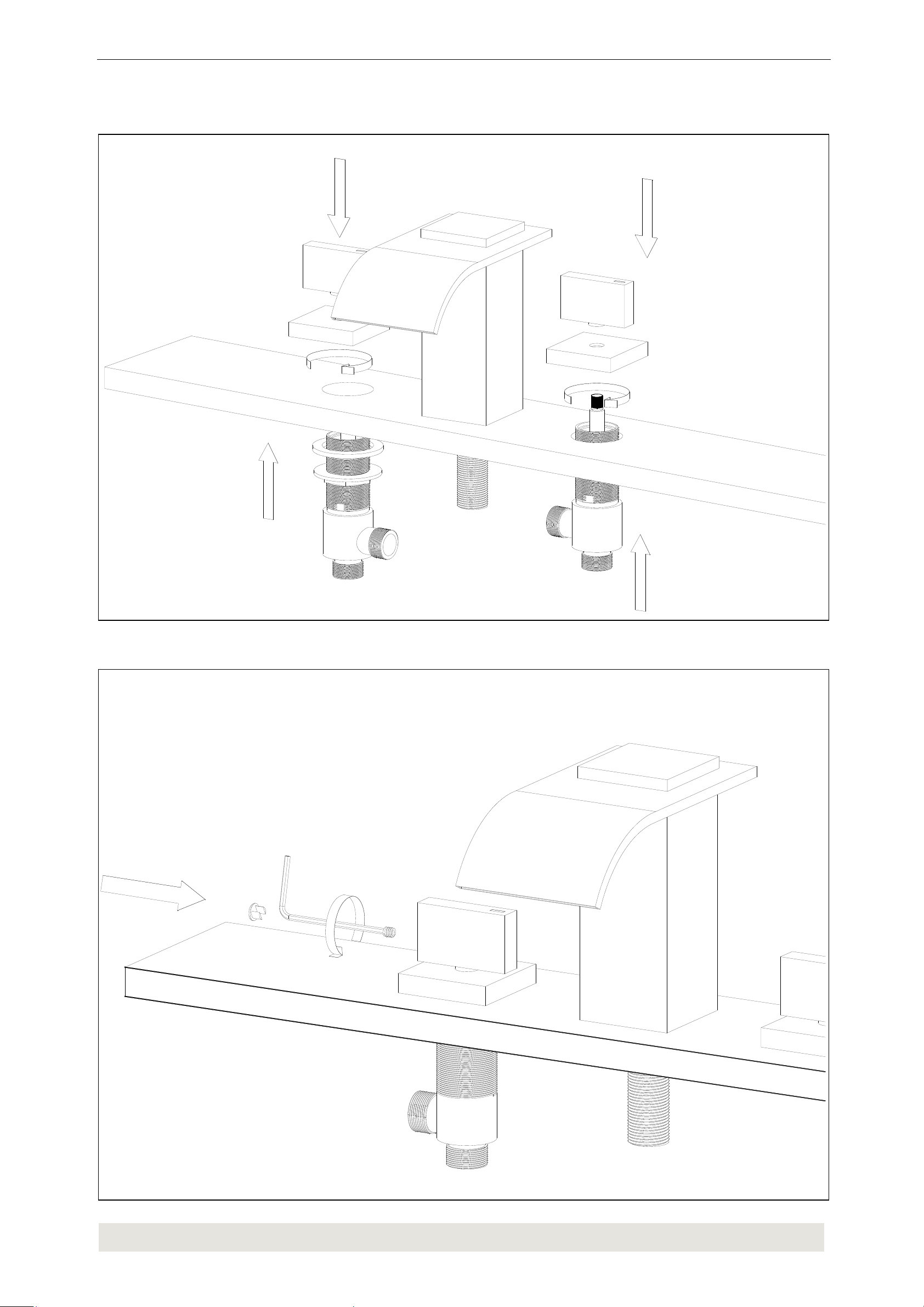

5.5 Place the valve body onto mounting surface, attach the rubber washer and locknut from underneath of mounting surface,
attached the O-ring with the escutcheon, Then reposition escutcheons as necessary to a desired height.
5.6 Fasten the knobs with set screws by Allen Key and repeat the same procedure for the right cold valve assembly.
SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM
Page 11

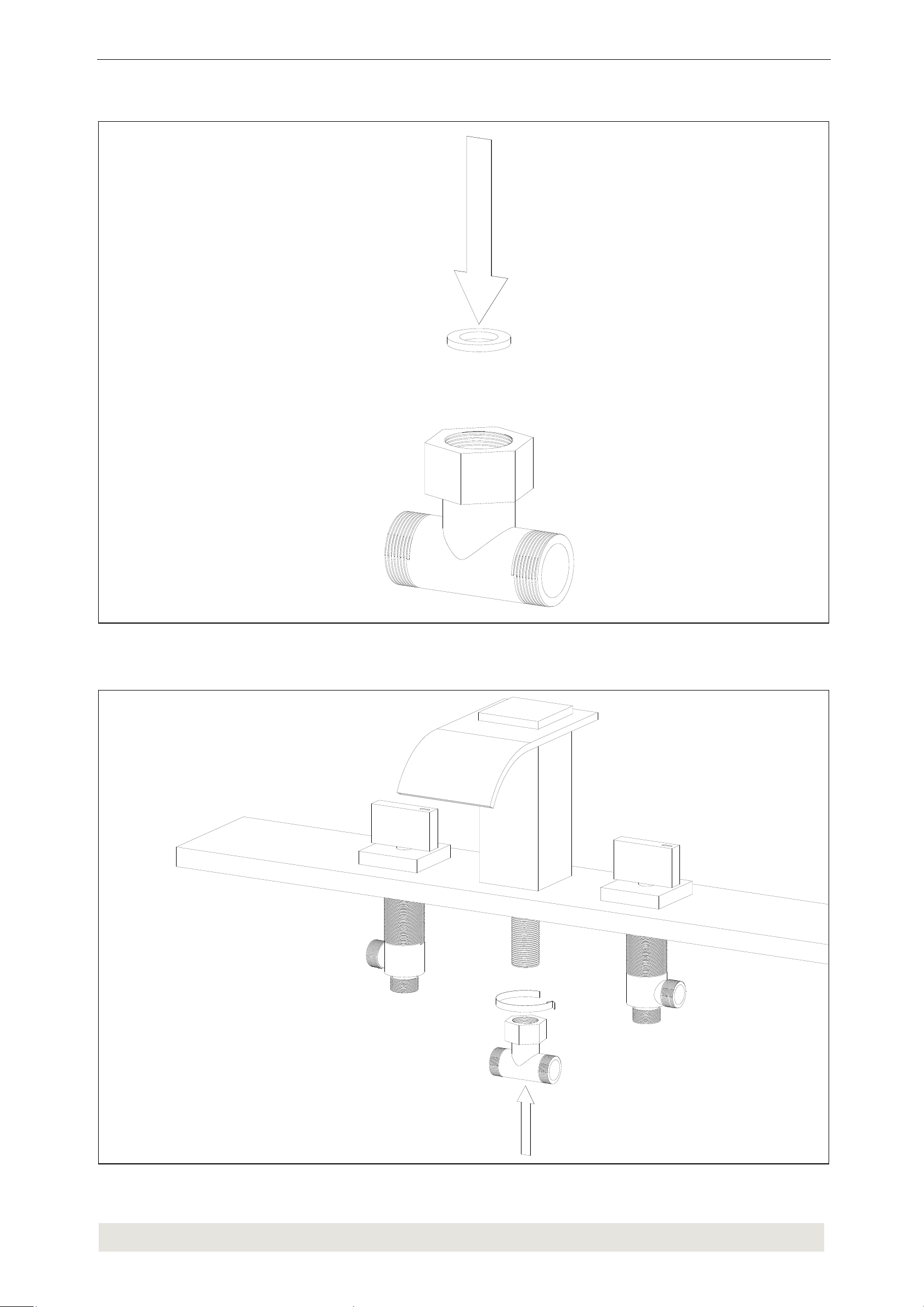

5.6 Attach the washer into the tee for water leak proof.
5.7 Screw on tee onto the spout shank
SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM
Page 12

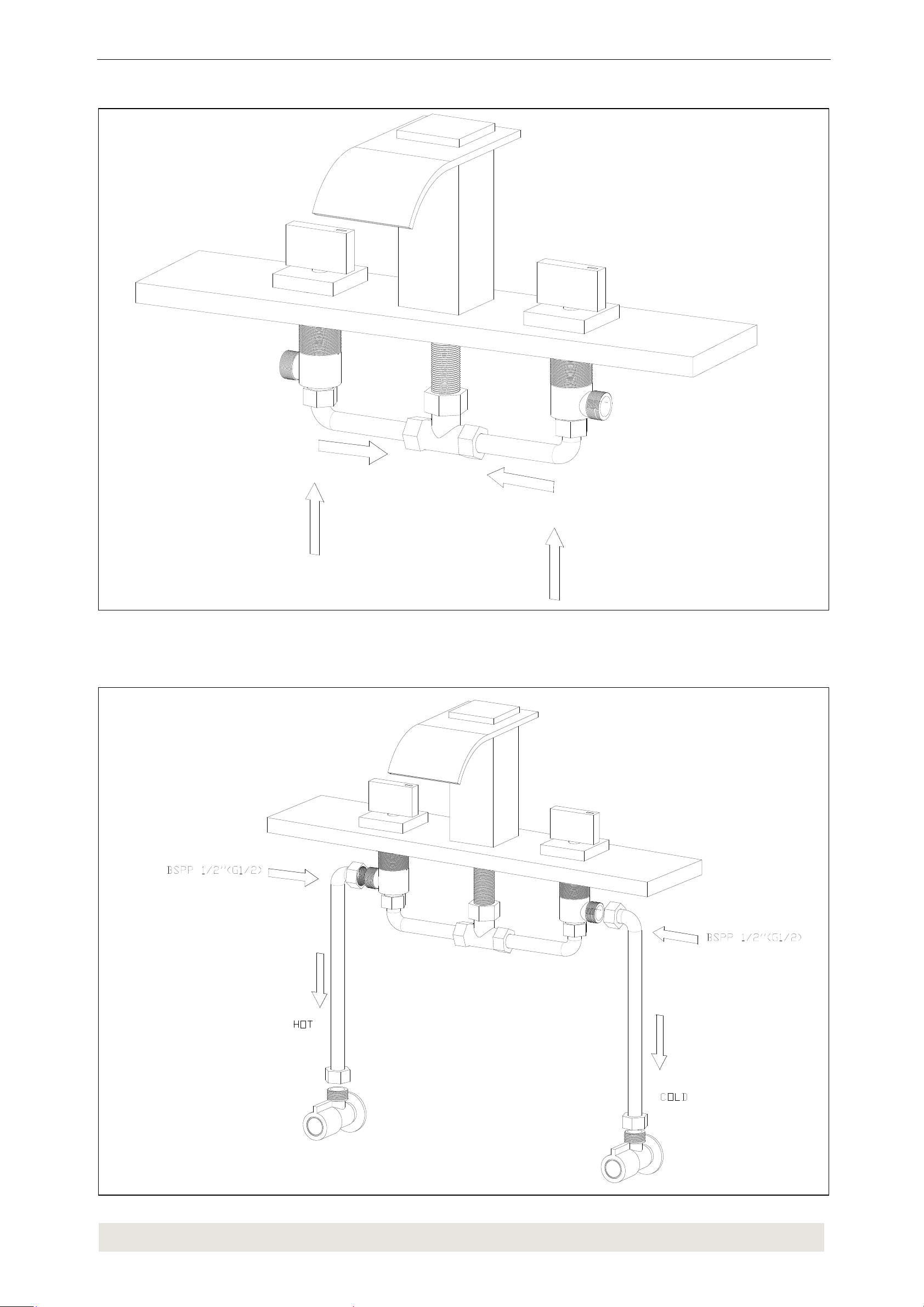

5.8 Connecting the cold water valve body and hot water valve body to tee with flexible hoses.
5.9 Connect hot valve body’s inlet connector and cold water valve inlet connector to stop valve separately with flexible hose.
The water inlet connecting of hot and cold Valve body is G1/2” [1/2 BSPP], US, CA customers may require NPT cover to
BSPP adapter for connecting.
SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM
Page 13

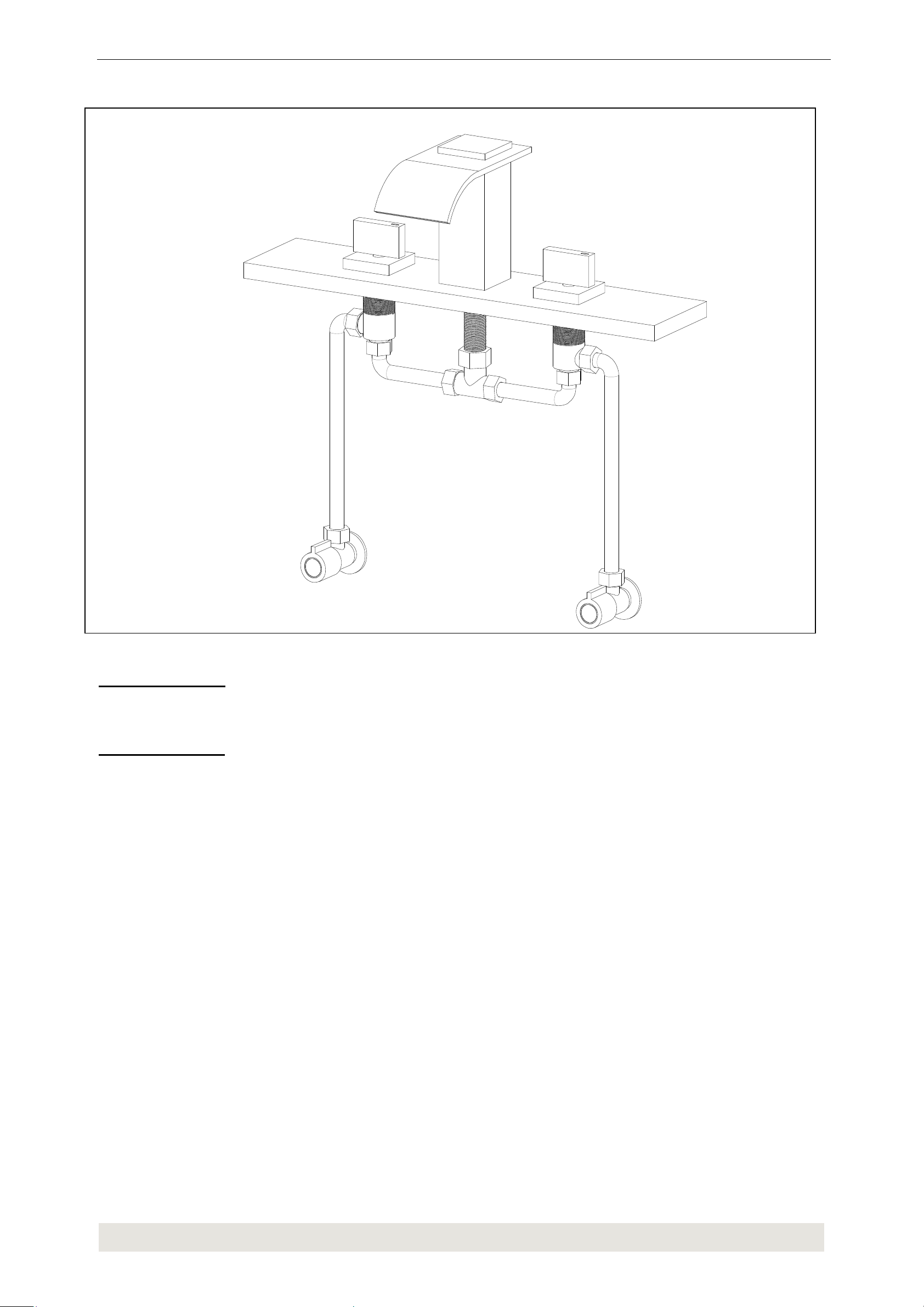

6. INSPECTION
6.1 Turn on hold and cold water supply and check all connection for ensuring no leaking anywhere.
INSTALL FINISH
SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM
Page 14
CLEARNING RECOMMENDATION FOR SUMERAIN PRODUCTS
Modern lavatory faucets, kitchen faucets, and showers consist of very different materials to comply with the needs of the
market with regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when
cleaning.
Cleaning Materials for faucets and showers
Acids are a necessary ingredient of cleaning materials for removing lime, however please pay attention to the following points
when cleaning faucets and showers:
■ Only use cleaning materials which are explicitly intended for this type of application.
■ Never use cleaning materials which contain hydrochloric, formic, phosphoric, or acetic acid, as they cause considerable
damage.
■ Never mix one cleaning material with another.
■ Never use cleaning materials or appliances with an abrasive effect, such as unsuitable cleaning powders, sponge pads, or
micro fiber cloths.
Cleaning instructions for faucets and showers
Please follow the cleaning material manufacturer's instructions. In addition, pay attention to the following points:
■ Clean the faucets and showers as and when required.
■ Use the amount of cleaning product and the amount of time recommended by the manufacturer. Do not leave the cleaner
on the fixture longer than necessary.
■ Regular cleaning can prevent calcification, if scale deposits are noticed on the faucet surface or the spout, you can clean it
by a commercial limescale remover, such as Lime-Away® or CLR®.Dilute the remover according to the label instructions.
■ The faucets might have some rusty if your faucet under hard water condition, please rub it with aluminum foil dipped in
water until the surface is nice and smooth, and wipe it use a small amount of chrome polish or maybe something like car
wax(such as Meguiar®,Turtle Wax®) or polish.
■ For stainless steel faucet and spout both made of solid stainless, normally this finish has not protective coating on it(in
particular waterfall spout inside),stainless steel is by its material nature very tarnish resistant, but by no means tarnish or
stain proof. This finish might oxidize naturally over time and react to its environment. Keep your stainless fixture wiped
clean and dry and use only a cleaner specifically made for stainless steel (such as Weiman®, CLR®).
■ When using spray cleaners, spray first onto a soft cloth or sponge, never spray directly onto the faucet as droplets can
enter openings and gaps and cause damage.
■ After cleaning, rinse thoroughly with clean water to remove any cleaner residue.
Important
Residues of liquid soaps, shampoos, and shower foams can also cause damage, so rinse with clean water after using.
Please note: if the surface is already damaged, the effect of cleaning materials will cause further damage.
Components with damaged surfaces must be replaced or injury could result.
Damage caused by improper treatment is not covered under the warranty.
HONGKONG SUMERAIN SANITARY INDUSTRY CO., LIMITED
Address: ROOM 1018, HOLLYWOOD PLAZA 610 NATHAN ROAD MONGKOK,
KL,HONGKONG
Factory Address:
25 building Tangkou Industrial Park,Shuikou town, Kaiping City,
Guangdong Province,
China
Factory Tel:
+86-750-2731579
Web: http://www.sumerain.com
E-mail: [email protected]
SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM
Loading...
