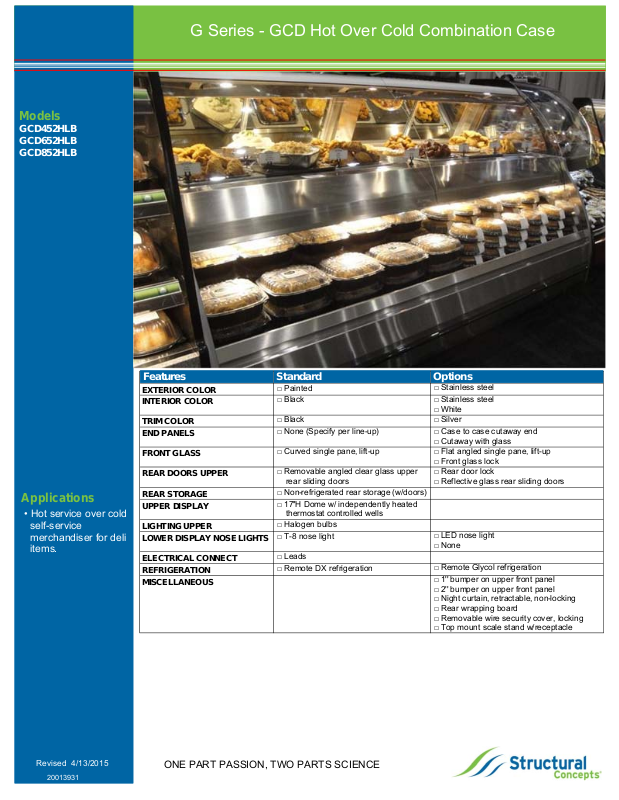

Structural Concepts GCD452HLB User Manual

Models

GCD452HLB
GCD652HLB
GCD852HLB

G Series - GCD Hot Over Cold Combination Case

Applications

• Hot service over cold
self-service
merchandiser for deli
items.

EXTERIOR COLOR
INTERIOR COLOR

TRIM COLOR
END PANELS

FRONT GLASS

REAR DOORS UPPER

REAR STORAGE
UPPER DISPLAY

LIGHTING UPPER
LOWER DISPLAY NOSE LIGHTS

ELECTRICAL CONNECT
REFRIGERATION
MISCELLANEOUS

□ Painted
□ Black

□ Black
□ None (Specify per line-up)

□ Curved single pane, lift-up

□ Removable angled clear glass upper

rear sliding doors

□ Non-refrigerated rear storage (w/doors)
□ 17''H Dome w/ independently heated

thermostat controlled wells

□ Halogen bulbs
□ T-8 nose light

□ Leads
□ Remote DX refrigeration

Options Features Standard

□ Stainless steel
□ Stainless steel

□ White
□ Silver

□ Case to case cutaway end
□ Cutaway with glass
□ Flat angled single pane, lift-up
□ Front glass lock
□ Rear door lock
□ Reflective glass rear sliding doors

□ LED nose light
□ None

□ Remote Glycol refrigeration
□ 1'' bumper on upper front panel

□ 2'' bumper on upper front panel
□ Night curtain, retractable, non-locking
□ Rear wrapping board
□ Removable wire security cover, locking
□ Top mount scale stand w/receptacle

Revised

20013931

4/13/2015

ONE PART PASSION, TWO PARTS SCIENCE

(Lengths do not include 1-1/8 " end panels)

G Series GCD Hot Over Cold Combination Case

STANDARD - CURVED PROFILE

GCD452HLB 48-3/4"L x 51-3/4"D x 51-1/4"H

Model

GCD652HLB 73-1/8"L x 51-3/4"D x 51-1/4"H
GCD852HLB 97-1/2"L x 51-3/4"D x 51-1/4"H

L x D x H

IMPORTANT
NOTES:

1) Units must be shimmed
during installation to
ensure the unit is level
and plumb.

INTENDED
ENVIRONMENT

Designed to operate in
ambient conditions of 75°F
with 55% relative humidity.

INTEGRATED AVG
PRODUCT TEMP

Zone Temp (°F)

40 1

2

160

INTENDED USE OF
DISPLAY AREAS

Zone Intended Use

Packaged

1

refrigerated products
Unpackaged heated

2

product

INFORMATION IS SUBJECT TO CHANGE WITHOUT NOTICE. Visit www.structuralconcepts.com for the most current specs.

888 E. Porter Rd. Muskegon, MI 49441 231-798-8888
