Structural Concepts DTP24 User Manual

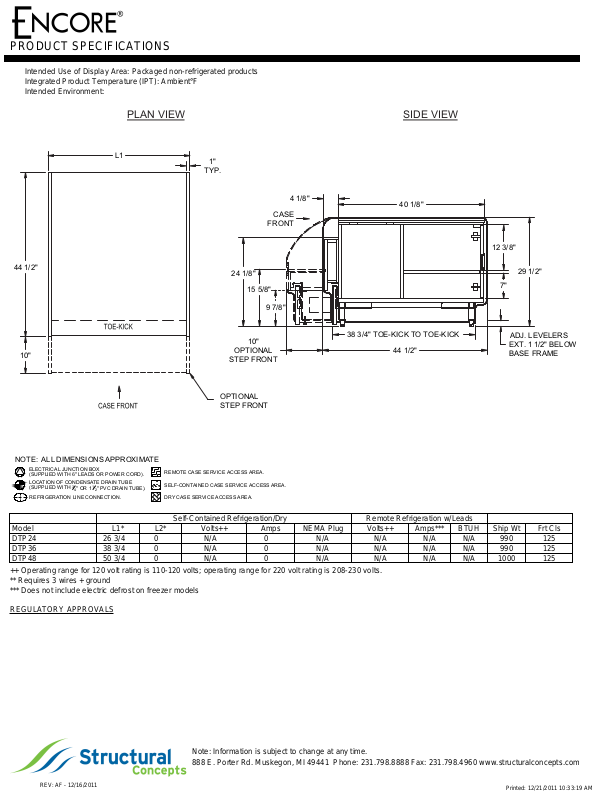

PRODUCT SPECIFICATIONS

PLAN VIEW SIDE VIEW

NOTE: ALL DIMENSIONS APPROXIMATE

ELECTRICAL JUNCTION BOX
(SUPPLIED WITH 6" LEADS OR POWER CORD).

LOCATION OF CONDENSATE DRAIN TUBE
(SUPPLIED WITH

3

4

" OR 1

1

2

" PVC DRAIN TUBE).

REMOTE CASE SERVICE ACCESS AREA.

REFRIGERATION LINE CONNECTION.

DRY CASE SERVICE ACCESS AREA.

SELF-CONTAINED CASE SERVICE ACCESS AREA.

15 5/8"

24 1/8"

9 7/8"

CASE

FRONT

10"

OPTIONAL

STEP FRONT

4 1/8"

40 1/8"

29 1/2"

ADJ. LEVELERS
EXT. 1 1/2" BELOW
BASE FRAME

7"

12 3/8"

44 1/2"

38 3/4" TOE-KICK TO TOE-KICK

10"

OPTIONAL
STEP FRONT

44 1/2"

L1

1"

TYP.

Intended Use of Display Area: Packaged non-refrigerated products
Integrated Product Temperature (IPT): Ambient°F
Intended Environment:

Model L1* L2* Volts++ Amps NEMA Plug Volts++ Amps*** BTUH Ship Wt Frt Cls
DTP24 990 12526 3/4 0 N/AN/A N/A0 N/A N/A
DTP36 990 12538 3/4 0 N/AN/A N/A0 N/A N/A
DTP48 1000 12550 3/4 0 N/AN/A N/A0 N/A N/A

++ Operating range for 120 volt rating is 110-120 volts; operating range for 220 volt rating is 208-230 volts.
** Requires 3 wires + ground
*** Does not include electric defrost on freezer models

REGULATORY APPROVALS

Self-Contained Refrigeration/Dry Remote Refrigeration w/Leads

REV: AF - 12/16/2011

Note: Information is subject to change at any time.
888 E. Porter Rd. Muskegon, MI 49441 Phone: [phone] Fax: [phone] www.structuralconcepts.com

Printed: 12/21/2011 10:33:19 AM
