Strong SRT 6500CI User Manual

Digital Satellite Receiver with Cryptoworks Embedded and Common Interface SRT 6500 CI

User Manual

PART 1 • English

TABLE OF CONTENTS

1.0 INTRODUCTION 2

1.1 Safety Instructions

1.2 Storage

1.3 Equipment Set-up

1.4 Features and Accessories

English

2.0 YOUR RECEIVER

2.1 Front Panel

2.2 Rear Panel

2.3 Remote Control

3.0 CONNECTING THE RECEIVER

3.1 To a TV set, using TV SCART connection.

3.2 To a HiFi system and a TV set, using both A/V connections

3.3 To a VCR and a TV set, using both SCART connections

3.4 To VCR and a TV set, using build-in UHF modulator

4.0 STARTING UP FOR THE FIRST TIME

5.0 SETUP AND OPERATION 1

5.1 Before Setup

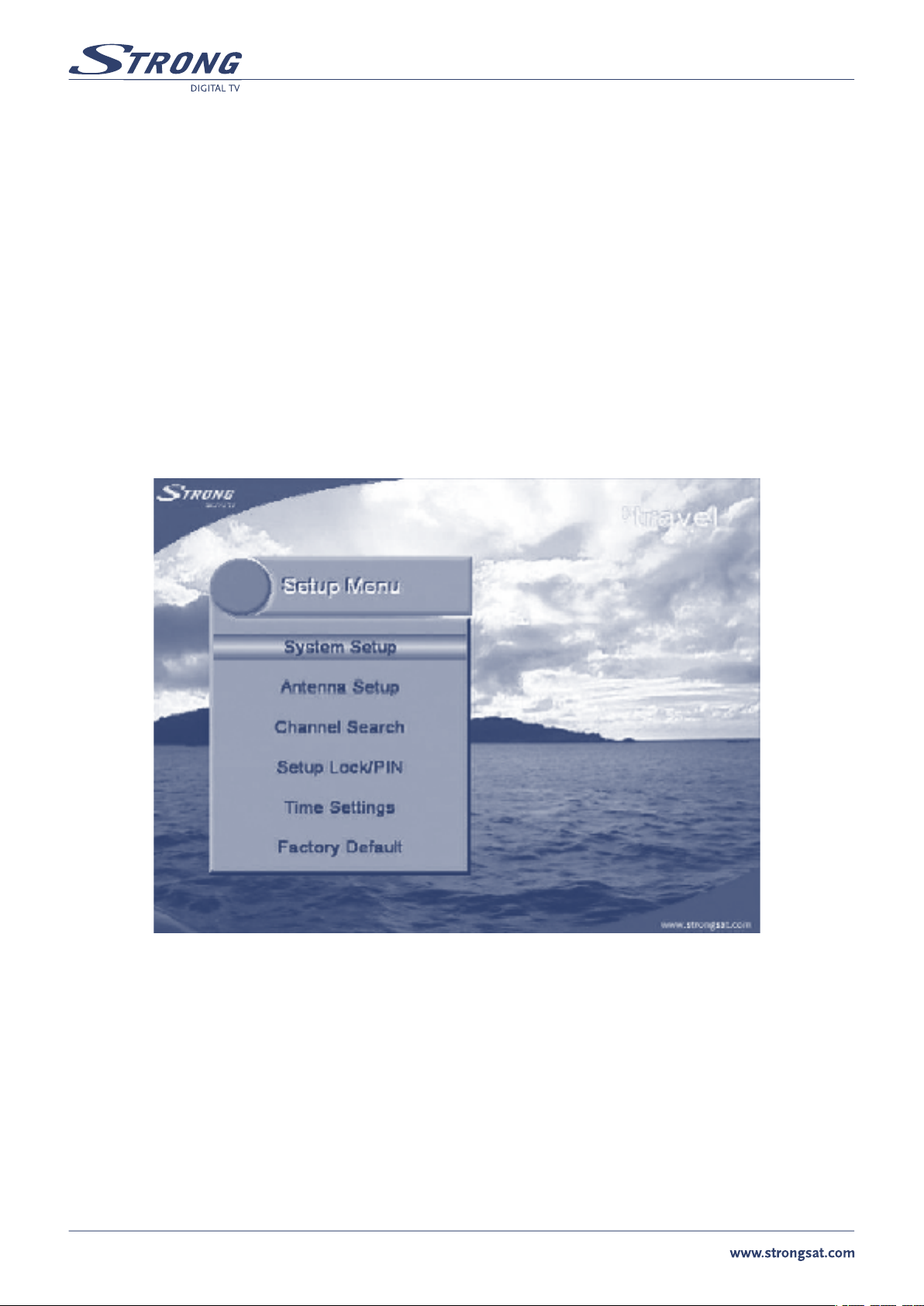

5.2 Setup Menu

5.3 Main Menu Settings

5.4 General Viewing Information

A1 PROBLEM SOLVING 2

A.2 SPECIFICATIONS 2

PART 1 • English

1.0 INTRODUCTION

1.1 Safety Instructions

DO NOT INSTALL YOUR RECEIVER:

n In a closed or poorly ventilated cabinet; directly on top of or under any another equipment; on a surface which might obstruct

the ventilation slots.

DO NOT EXPOSE THE RECEIVER OR ITS ACCESSORIES:

n To direct sunlight or near any other equipment that generates heat; to rain or intense moisture; to intense vibration and to any

shock which may cause permanent damage to your receiver or to any magnetic objects, such as loudspeakers, transformers, etc.

n Do not use a damaged power cord. It may cause a ﬁre or an electrical shock. Do not touch a power cord with wet hands. It may

cause an electric shock.

n Never open the cover. It is dangerous to touch the inside of the receiver due to high voltage currents and possible electrical

hazards. Your warranty will be void if the receiver has been opened.

n When the receiver is not used for a long period of time, you should unplug the power cord from the wall socket.

n Do not use alcohol or ammonia based liquids to clean the receiver. If you wish, you may clean your receiver with a soft lint-free

cloth slightly made damp with a mild soap solution, only after disconnecting from the mains voltage supply. Make sure no

foreign objects fall through the ventilation slots because this could cause ﬁre or an electric shock.

n Do not place any objects on top of the receiver because this might prevent proper cooling of the components inside.

Safety Precautions

n Do not open the receiver cover, as you will be exposed to a shock hazard. It will also void your warranty. Refer all maintenance

or servicing to suitably qualiﬁed personnel

n When you are connecting the cables, be sure that the receiver is disconnected from the mains supply voltage. Wait a few

seconds after switching off the receiver before you move the receiver or disconnect any equipment.

n It is a necessity that you only use an approved extension and compatible wiring that is suitable for the electrical power

consumption of the installed equipment. Please ensure that the electrical power supply corresponds with the voltage on the

electrical identiﬁcation plate at the back of the receiver.

If the receiver does not operate normally even after strictly following the instructions in this user manual, it is recommended to consult your dealer.

1.2 Storage

Your receiver and its accessories are stored and delivered in a packaging designed to protect against electric shocks and moisture.

When unpacking it, make sure that all the parts are included and keep the packaging away from children. When transporting the receiver

from one place to another or if you are returning it under warranty make sure to repack the receiver in its original packaging with its

accessories. Failing to comply with such packaging procedures could void your warranty.

1.3 Equipment Set-up

We recommend you consult a professional installer to set up your equipment. Otherwise, please follow the instructions below:

n Refer to the user manual of your TV and your antenna.

n Make sure that the SCART cable and outdoor components are in a good condition and the SCART connections are well shielded

This manual provides complete instructions for installing and using this receiver. The following symbols will serve as follow.

Warning Indicates warning information.

Tips Indicates any other additional important or helpful information.

MENU Represents a button on the remote control or the receiver

(Bold Character)

Move to Represents a menu item within a window.

(Italic Character)

PART 1 • English

1.4 Features and Accessories

This Digital satellite receiver with Cryptoworks embedded enables you to tune in on the hundREDs of digital television and radio

channels broadcasting to your region, with the highest video, audio and data quality attainable with current technology. It performs

numerous functions to provide you with a variety of services.

n For all digital Free-To-Air TV and Radio programmes via satellite

n One Smartcard Slot for Cryptoworks smartcard

n Common Interface slot compatible to all Conditional Access Modules

n Display showing channel number or time

n Separate power switch

n Digital sound through coaxial and optical outputs (S/PDIF)

n Parental lock function for menu and selectable per channel

n 3 000 TV channel memory capacity and 1000 radio channel memory capacity

n Pre-programmed popular channels per country choice

n 5 Favourite lists for TV-and Radio programme

n Quick and easy installation & user-friendly menu

n Excellent Audio & Video quality

n Teletext via VBI or OSD

n Supports DiSEqC 1.0, DiSEqC 1.2 and USALS

n Electronic Programme Guide (EPG) for present/following event information and up to 7 days for on screen programme information

n Full multi-lingual DVB subtitling and audio track support

n Multi-lingual support on screen menu (OSD): English, German, Czech, Slovak, Slovenian, Hungarian, Bulgarian

n Edit function for TV and Radio programme name, Favourite Group name, satellite PID and Transponder information

n Future-proof: Software update via satellite (OTA)

n Signal strength bar for digital transponders

n Automatic and manual channel scan options

n Power on with last viewed channel

n User-friendly remote control (Infrared up to 7 metres)

n Low power consumption (<13 W in Stand by mode)

n PAL/ NTSA/ SECAM compatible

English

Accessories

n User’s manual

n Remote control

n 2 x Batteries (AAA Type)

NOTE: The batteries should not be recharged, disassembled, electrically short-circuited or be mixed or used with other types of batteries.

2.0 YOUR RECEIVER

3 4 5

1 2

2.1 Front Panel

1. LED (4 Digit)

Displays the time when in “Stand-By” mode and the channel number when the unit is operating.

2. IR Sensor

Detects the infra-red command signals generated by the remote control handset

3. Arrow buttons

p and t

4. OK button conﬁrm selection in application screen or displays current channel list in normal application.

5. Power Button

Switches the receiver between “Stand-By” and “On” modes

6. TV/Radio to select between TV and Radio mode

7. ESC button To return to previous status or menu

8. Smart card reader (behind front panel ﬂap)

Insert your Cryptoworks smart card with golden contacts facing down.

9. Common interface slot ((behind front panel ﬂap)

Insert your Common interface Module with appropriated smart card to this slot.

q Move the cursor Up or Down in an application screen or change channels sequentially Up or Down in normal operation.

and u select value in application screen or adjust audio volume low/high in normal operation.

PART 1 • English

2.2 Rear Panel

1. SAT IN

Connect the cable from your LNB on the satellite dish to this connector.

2. SAT OUT

Gives you the possibility to connect an extra receiver (analogue or digital).

3. VCR SCART

To connect your receiver to your video recorder using a scart cable. Your video signal will now be looped through your receiver

to your TV set.

PART 1 • English

4. TV SCART

To connect your receiver to your TV set using a SCART cable.

5. S/PDIF Digital audio output

Use this coaxial output to connect your receiver to the input of your digital audio ampliﬁer

6. AUDIO-R and AUDIO-L

Audio Right (

7. Digital Audio (optical)

8. S-VHS

9. TO TV (include modulator)

to connect your receiver to your TV set or VCR using RF cable

10. ANT IN

to connect your aerial antenna or cable TV lead. Signal from aerial will be looped through TO TV output to your TV set or VCR.

11. Power On/Off switch

12. Power Cord

Your receiver requires a current of 90 ~ 250 V AC (Auto-selectable), 50 ~ 60 Hz +/-5%.

Make sure to check the power speciﬁcation before connecting your receiver to the wall outlet.

13. Serial Port RS-232

RED) and Audio Left (White) RCA connectors to connect to audio ampliﬁer

English

2.3 Remote Control

Power: Switches the receiver between Stand-By & On modes

Mute: Mutes the audio output

MENU: Accesses the main menu

SETUP: Accesses the receiver set-up menu

EXIT: To return to previous status or menu CH p/q: Change channels sequentially up or down in viewing mode and move the cursor up

or down in an application screen VOL t/u: Alter the audio output level up or down in viewing mode and change the selected

item’s setting in an application screen

OK: Selects an item or conﬁrms a choice

Numeric Keys (0~9): For direct entry of channel number or input of alphanumeric characters

Displays the current favorite channels list

FAV:

EPG (Electronic Program Guide): Provides program content information. Press again to return

to viewing mode

TV/RADIO: Switches between TV & Radio channels lists

INFO: Displays the available information on the viewed channel

Displays the teletext contents of the viewed channel, if teletext is transmitted

TXT:

RECALL: Goes back to the previously viewed channel

LANG: Select sound mode or audio language

Batteries

How to insert the batteries

n Open the cover at the top of the rear side of the handset

n Insert two ‘AAA’ type batteries (1.5V), respecting the indicated polarity +/- signs

n Close the cover

When to replace the batteries

n When the operational range of the handset gets smaller, or when the receiver no longer responds to each and every command.

Always replace both batteries at the same time.

Accident prevention

n Do not recharge, heat or disassemble the batteries

n Make sure the intended polarity alignment is respected

n If the handset is not going to be used for some time, take the batteries out. If not, the batteries may leak and cause damage to the handset

Range Of Operation

n The operating range of the handset is within +/- 30 degrees on both the vertical and horizontal planes of the Infra RED sensor

n Transmission distance does not exceed 7m

PART 1 • English

* Notes

n When the handset is not operational

Replace the batteries and make sure the receiver is connected to the power supply

Abnormal operation

Disturbance from peripheral devices may occur. You will need to move the object that is generating the disturbance.

Notes for handling

In the event the receiver is exposed to heat or water, operating it could be dangerous. Have the unit checked by a qualiﬁed technician

prior to operating it again

PART 1 • English

3.0 CONNECTING THE RECEIVER

3.1 To a TV set, using TV SCART connection.

English

3.2 To a HiFi system and a TV set, using both A/V connections

RF IN

SCART

Digital Audio/

coax

Audio R L

RF IN

SCART

3.3 To a VCR and a TV set, using both SCART connections

PART 1 • English

3.4 To VCR and a TV set, using build-in UHF modulator

RF IN

SCART

RF IN

To TV

SCART

RF IN

SCART
