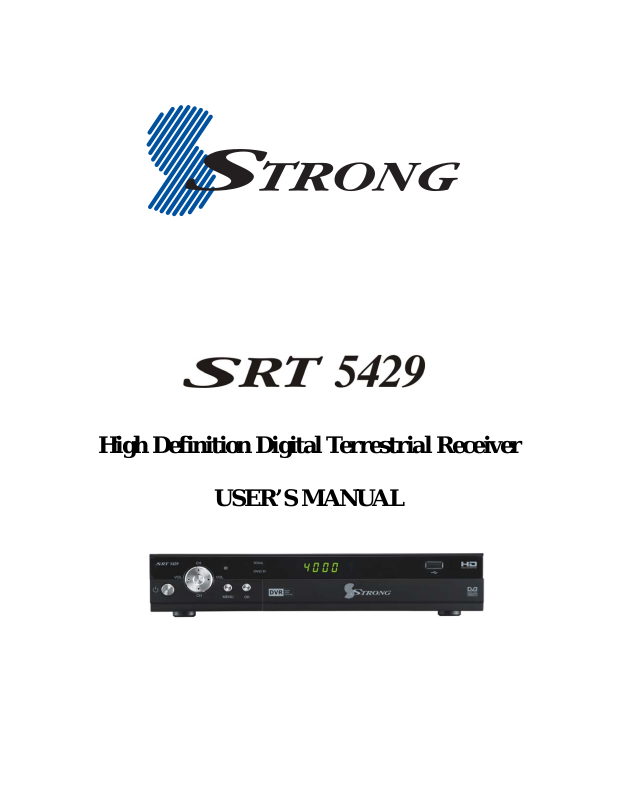

Strong SRT 5429 User's Manual
High Definition Digital Terrestrial Receiver
USER’S MANUAL
Important Safety Instructions
• To avoid electric shock, do not open the unit.
• There are no user-serviceable parts inside. Servicing can only be performed by qualified service
personnel.
• Connection can only be to a 240V AC mains supply.
• All safety and operating instructions should be read before the product is operated.
• All warnings on the product and in this user’s manual should be adhered to.
• The antenna cable must be earthed.
• Do not use attachments not recommended by the product manufacturer as they may cause
hazards or damage the equipment.
• Do not overload adaptors, wall sockets or extension cables as this can result in unit failure or
electric shock.
• For cleaning, use only a dry or lightly dampened cloth. Do not use liquid cleaners or aerosol
cleaning products.
• Do not place this product on an uneven surface.
• Do not block the ventilation slots on the top of the unit.
2
Overview
Thank you for purchasing this Strong Digital Terrestrial Television Receiver.
This product has been manufactured in accordance with strict quality control procedures and is
fully compliant with Australian specifications.
Your new receiver will enable you to experience superior picture and sound quality, widescreen
images, extra channels plus a variety of new features.
• For a complete list of all of our digital television receivers— terrestrial and satellite—please go to
our website: www.strong.com.au
• For general enquiries, please email us at tech@strong.com.au
• For technical assistance, please call our Technical Support Help Line on 1 800 820 030
Main Features
• High Definition Multimedia Interface (HDMI)
output
• Component output (Y/Pb/Pr) • Dolby Digital audio output: S/PDIF coaxial
• Composite output • USB2.0 Host for Video&MP3 Playback and
• Multi-video definitions: 576i/ 576p/720p/1080i • Auto and manual channel searching
• Fully featured infra-red remote control • Band selection: 7M & 8M
• Tuner loop-through • CD-quality audio (stereo)
• Favourite channels and stations list • EPG: Electronic Program Guide
• 16:9 and 4:3 aspect ratios • Signal level and quality indicators
• Subtitles • Parental guidance locking
• 8 timer event settings • USB port for software upgrades
• COFDM demodulation • DVB/T and MPEG-4(H.264) compliant
• Decodes high definition and standard
definition broadcasts
JPEG Viewing
3
Contents
Important Safety Instructions.................................................... ........................................................................... ...............2
Overview .............................................. ............................................................................................................................... ...3
Main Features...................................... ..................................................................................................................................3
Checklist of Accessories ................................. ... .. .. ... .... ... .. .. ..... .. ... .. ... .... ... .. .. ..... .. ... .. ..... .. .. ........................ ........................5
Controls and Indicators ....................................................................... ................................................................................6
Front panel......................... ......... .... ..... ......... ..... .... .... .......... .... ..... ......... .... ..Error! Bookmark not defined.
Rear panel......................................................... .......................................................................................... 7
Remote Control.......... .. .. ..... .. ... .. .. ..... .. ... .. .. ..... .. ... .. .. ..... .. ... .. ..... .. .. ... .. ..... .. ... .. .. ..... .. ... .. .........................................................8
Installing the batteries in the remote control .. ..... .... .......... .... ..... ......... .... ..... ..... ......... .... ..... ......... ............ 9
How to Connect........................................ ...........................................................................................................................10
Step 1: Connect to the antenna................................................................................................................. 10
Step 2: Choose an installation method............................................................ .......................................... 10
A: High Definition Multimedia Interface.................................................................................................. 11
B: Y/Pb/Pr (Component) using a RCA blue–red–green cable................................................................ 11
C: CVBS (Composite) using the supplied RCA red–white–yellow cable................................................ 12

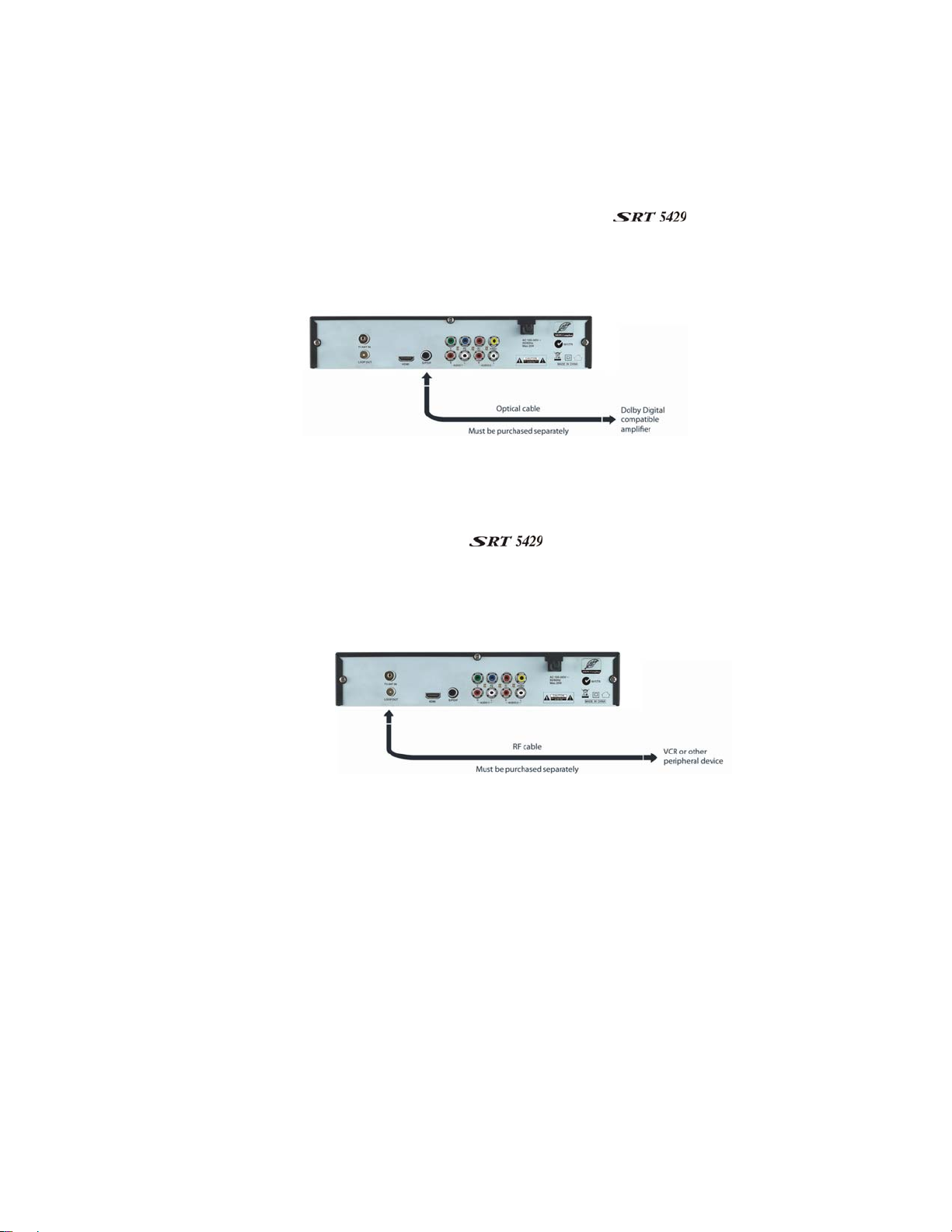

Step 3: Optional connections..................................................................................................................... 13
Dolby Digital .......................................................................................................................................... 13
Looping Out (for VCR recording)........................................................................................................... 13
Getting Started....................................................................................................................................................................14

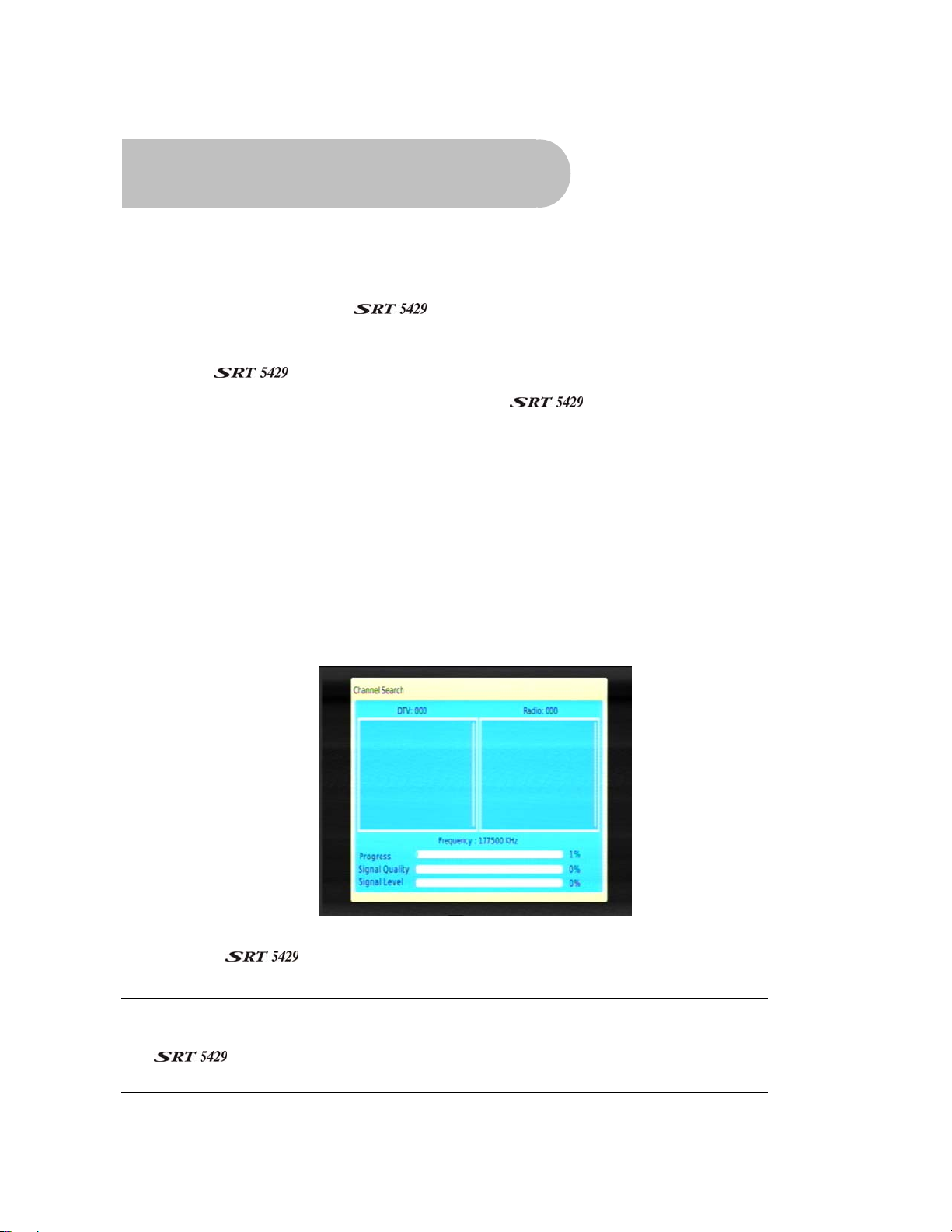

First-time use ....................................................................................................................................... ..... 14
Operation .............................................................................................................................................................................15
Basic operations........................................................................................................................................ 15

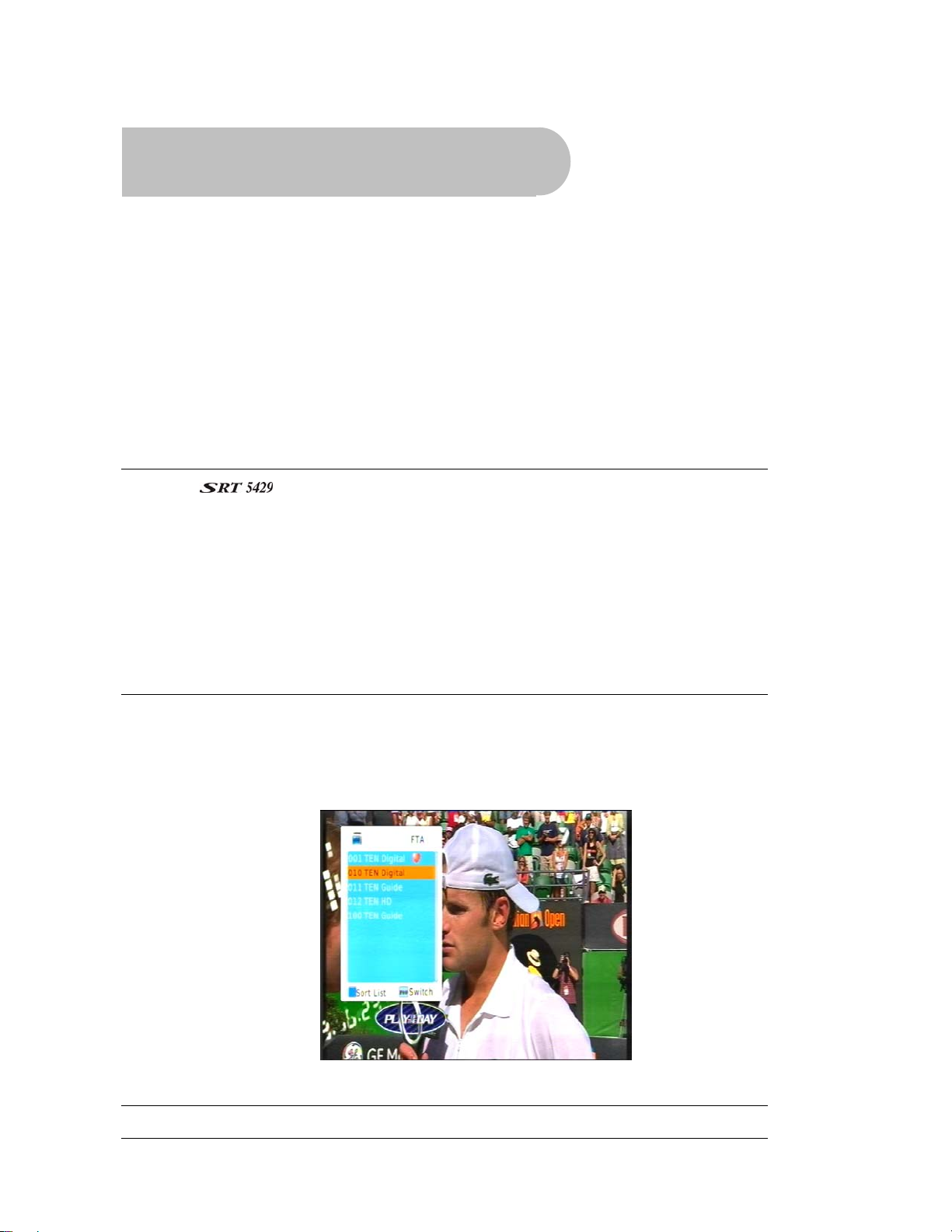

Selecting a channel..................................................... .......................................................................... 15
Adjusting the volume............................................... .............................................................................. 16

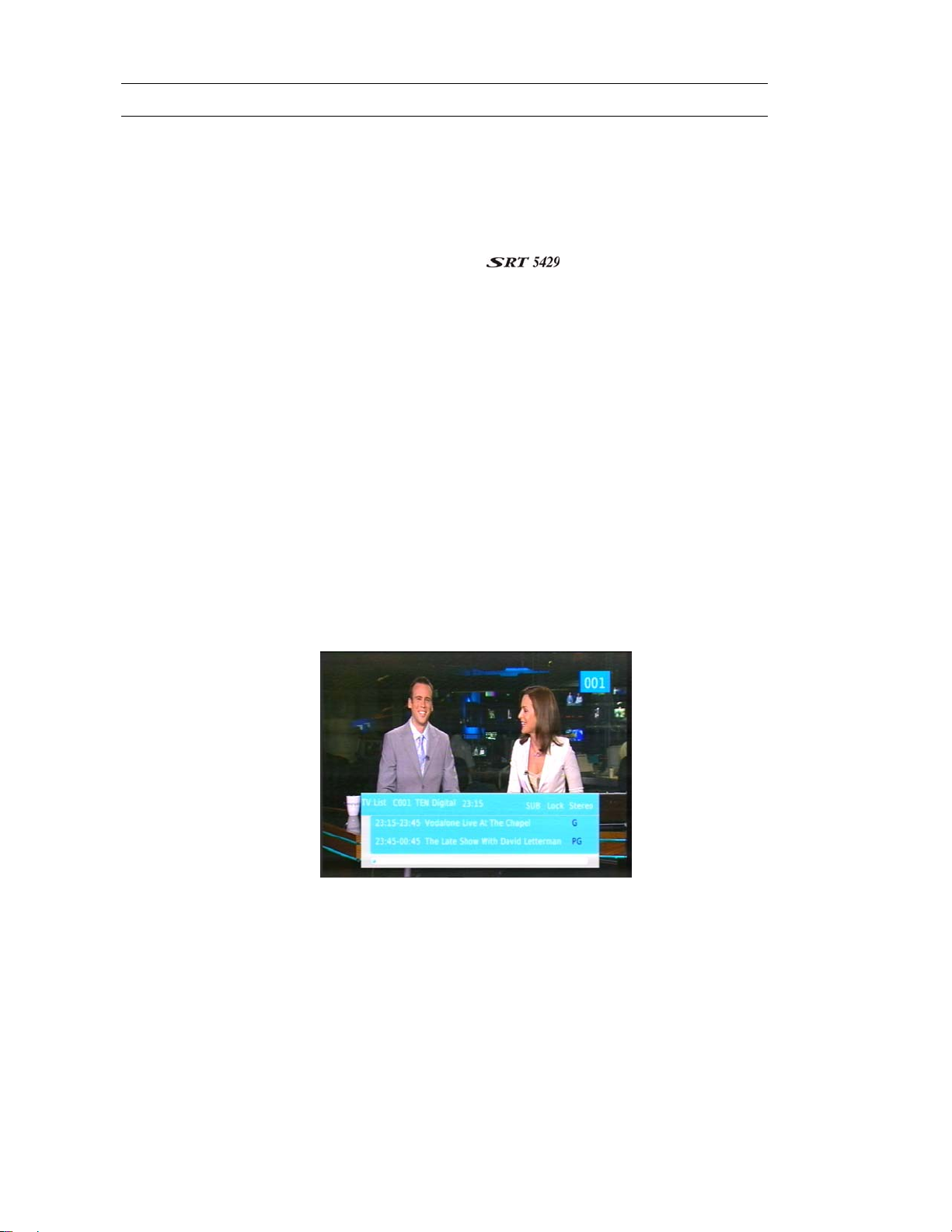

Getting channel Information....................................................... ......... ..... .... ......... ..... .... ..... .................. . 16
TV/Radio switching................................................................................................................................ 16

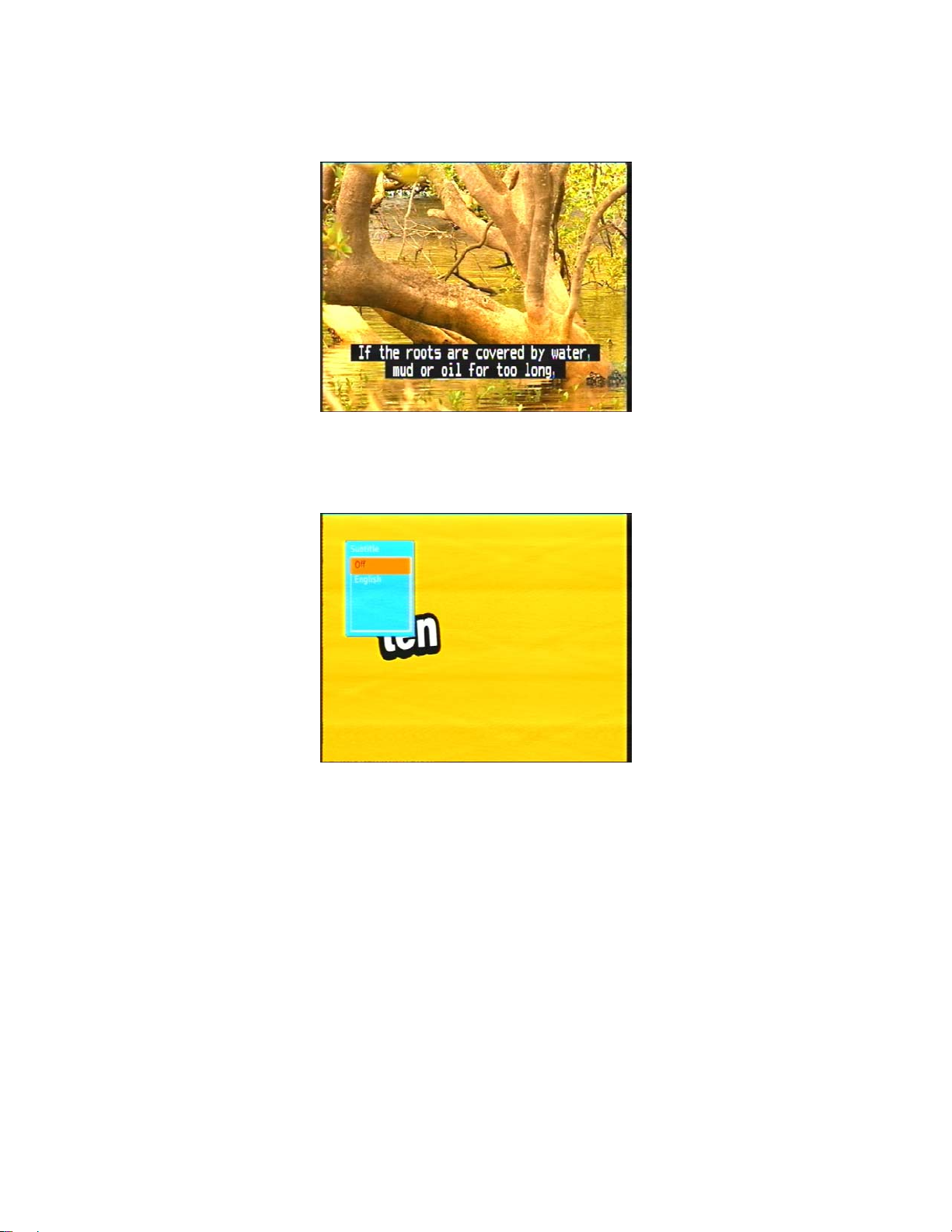

Closed captions............................................................................................................. ........................ 17
Picture freeze ........................................................................................................................................ 17
Favourites list.............................. .... ..... .... ......... ..... .... .......... .... ..... ......... .... ..... ......... ................................. 17
Adding channels or stations to your favourites list.................................................................. ............... 18
Selecting a favourite to watch or listen to............................................................................................... 20

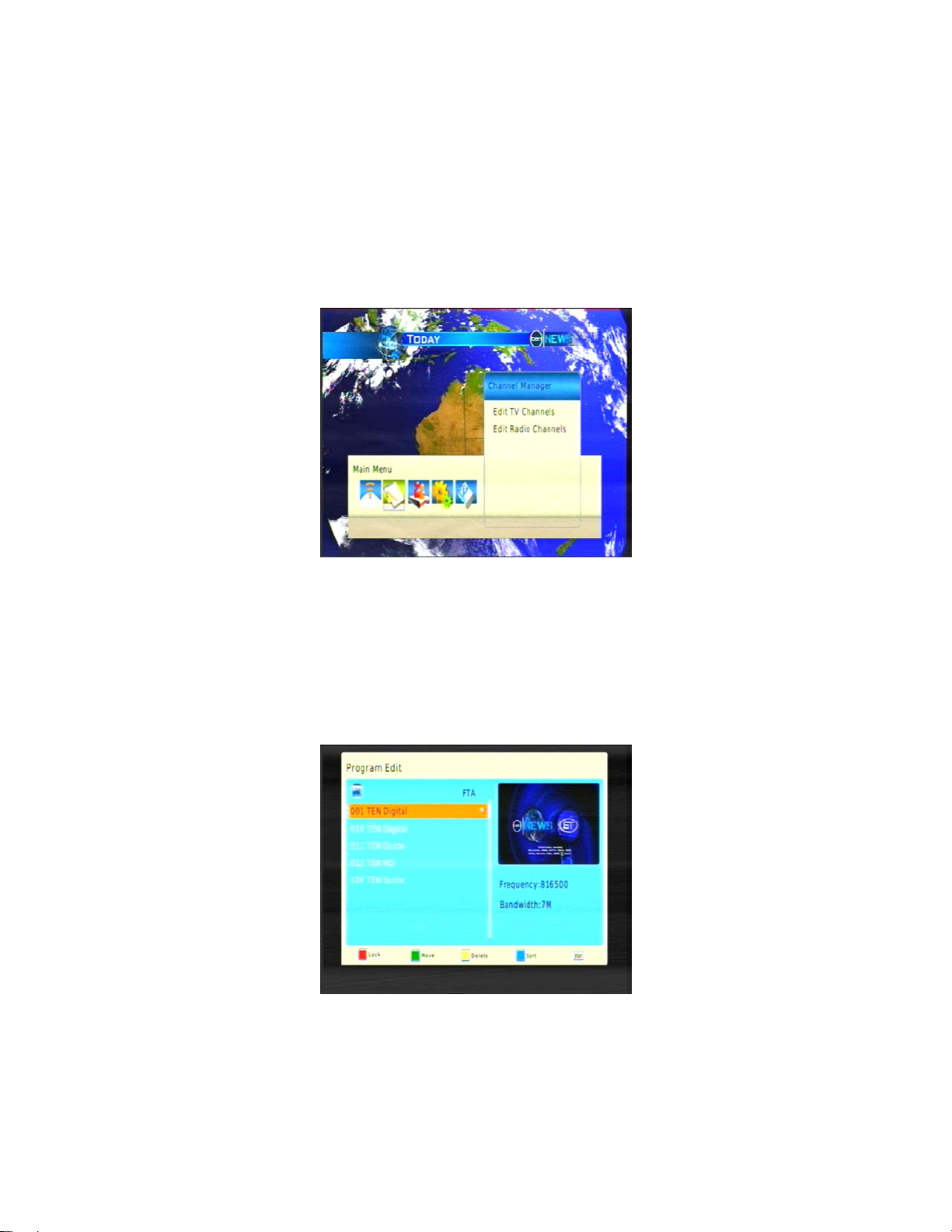

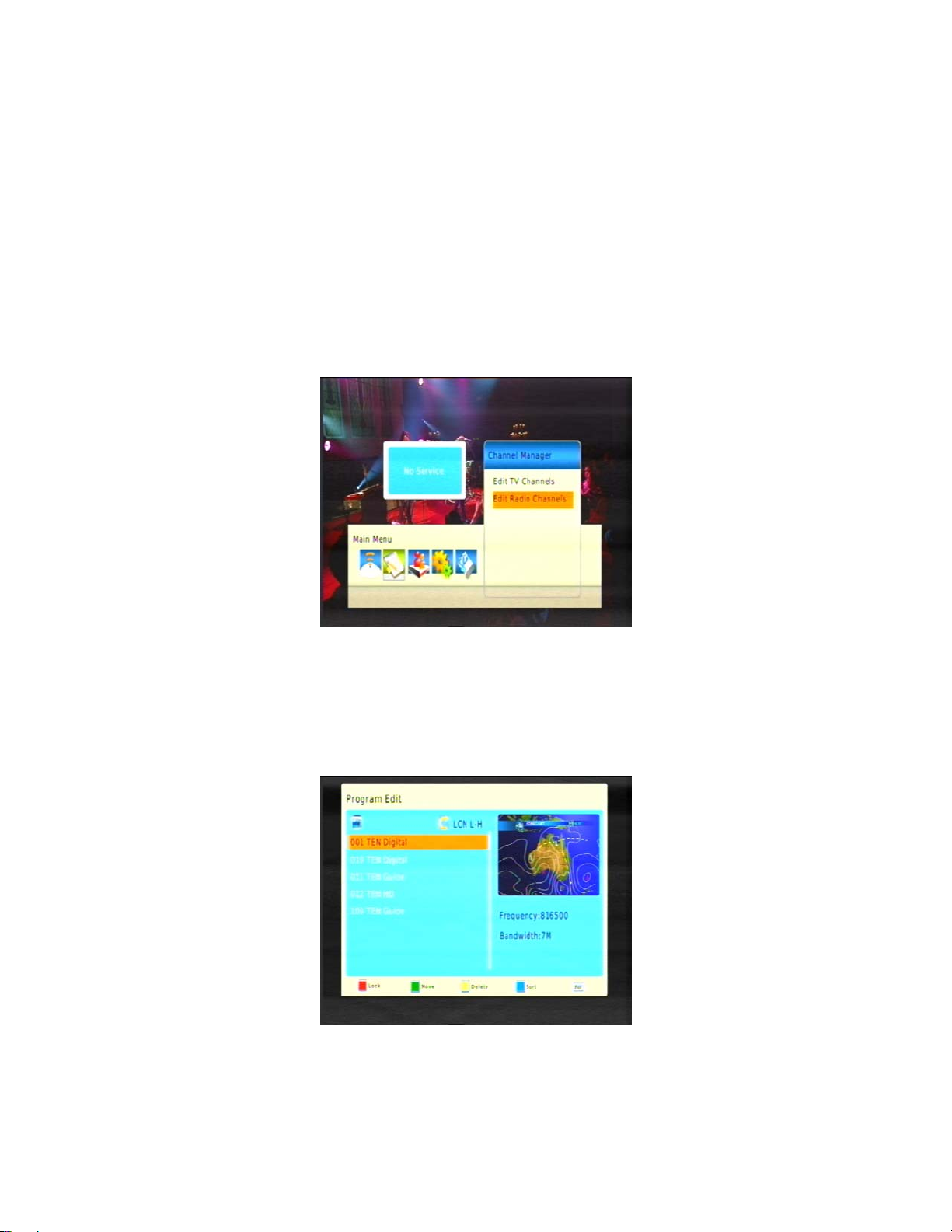

Organising channels and stations ................. .... .......... .... ..... ......... .... ..... ......... ..... .... ..... ......... ............. ...... 20

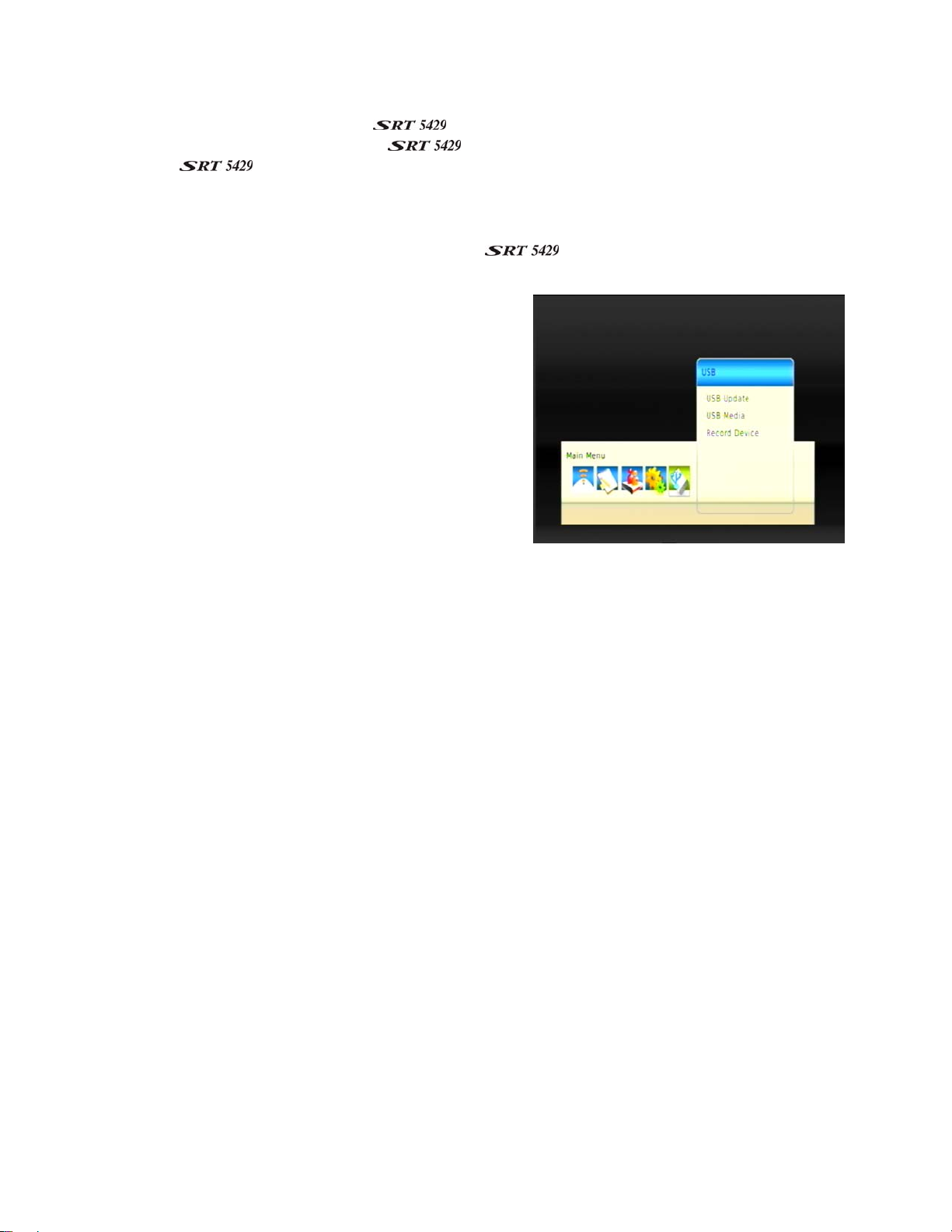

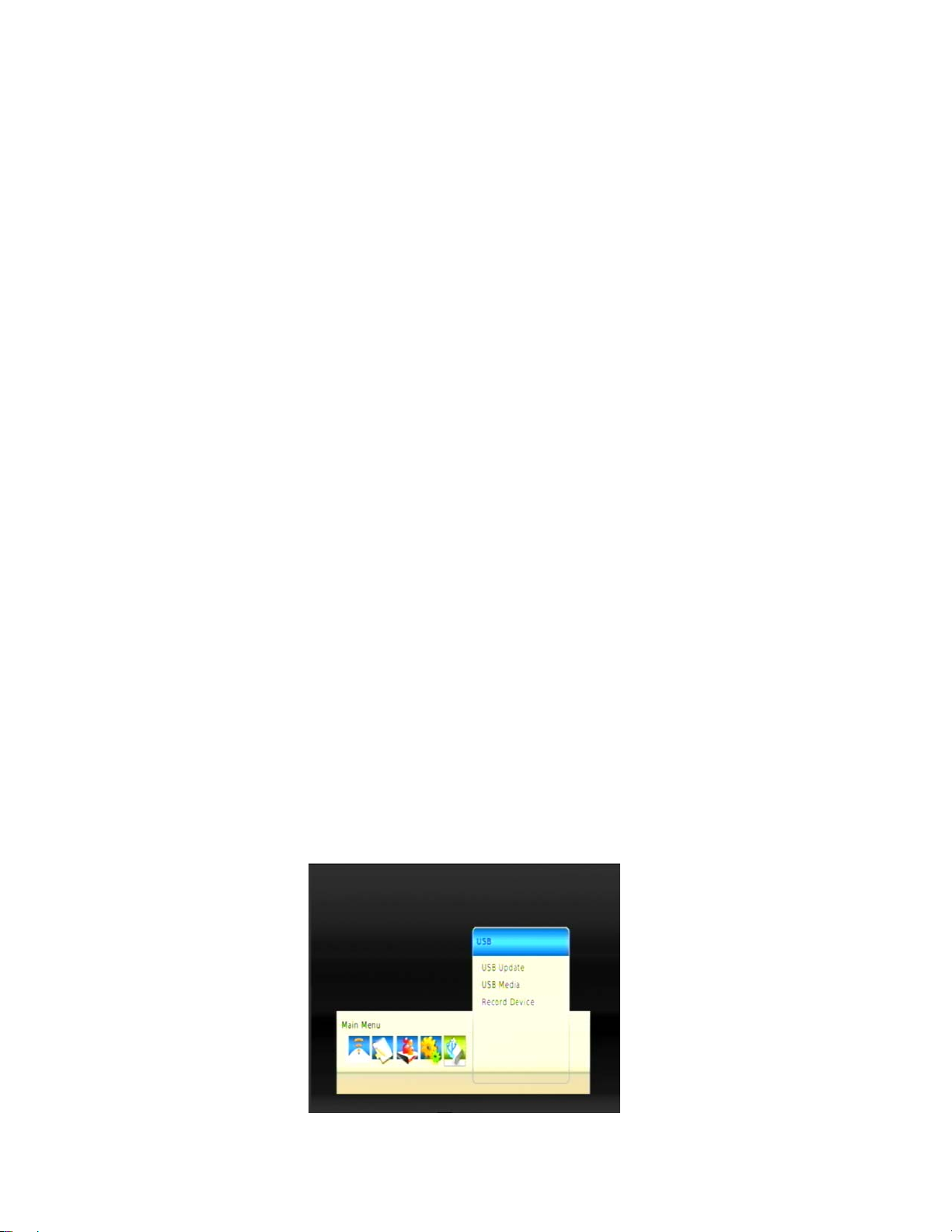

USB.................................................................... ................................................................................... 21
USB update........................................................................................................................................... 22
USB Media ........................................................................... ................................................................. 22
Instructions for recording TV programs............................................... ................................................... 22
Selecting a Partition and Partitioning your USB HDD........................................... ..... ......... .... ..... ..... ..... 23
WARNING............................................................... .............................................................................. 23

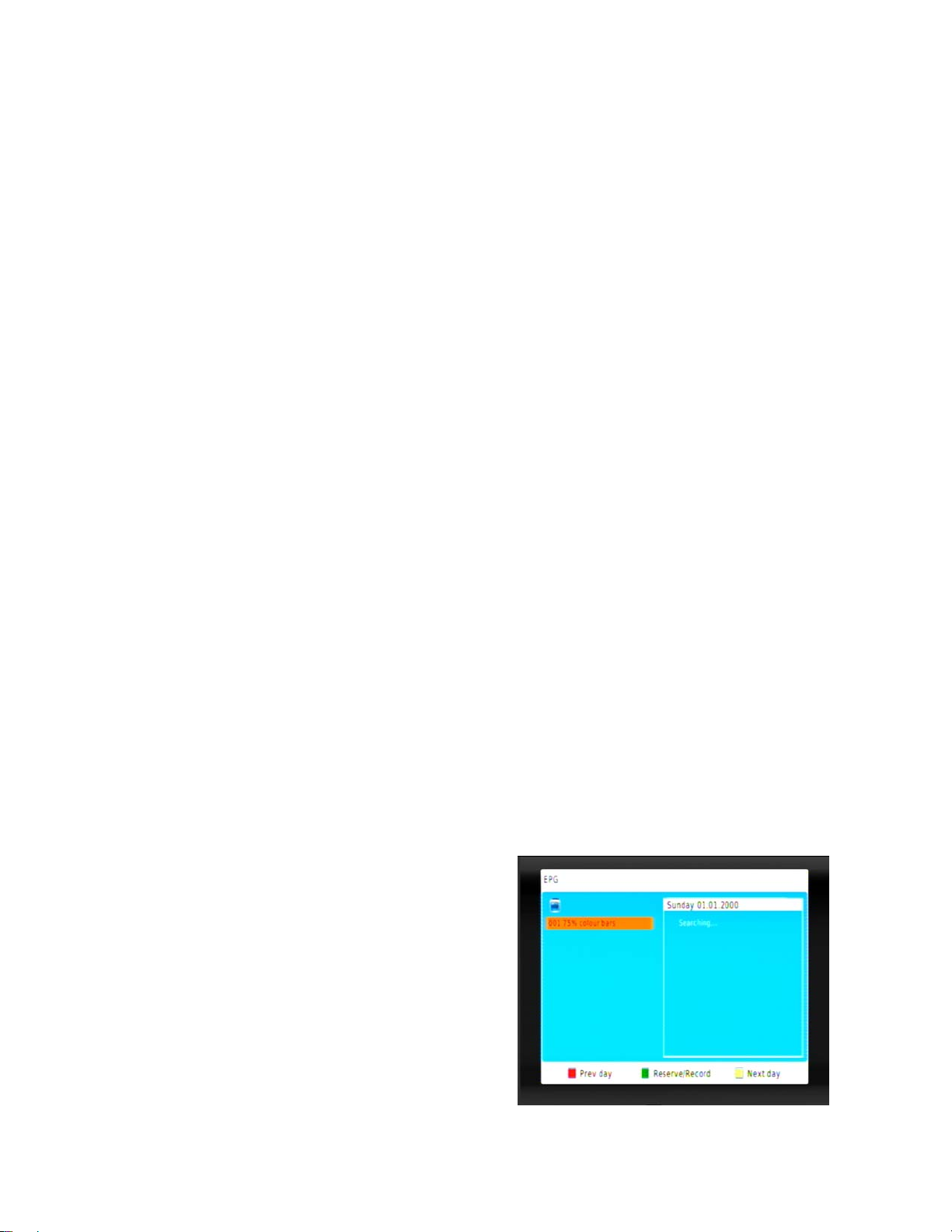

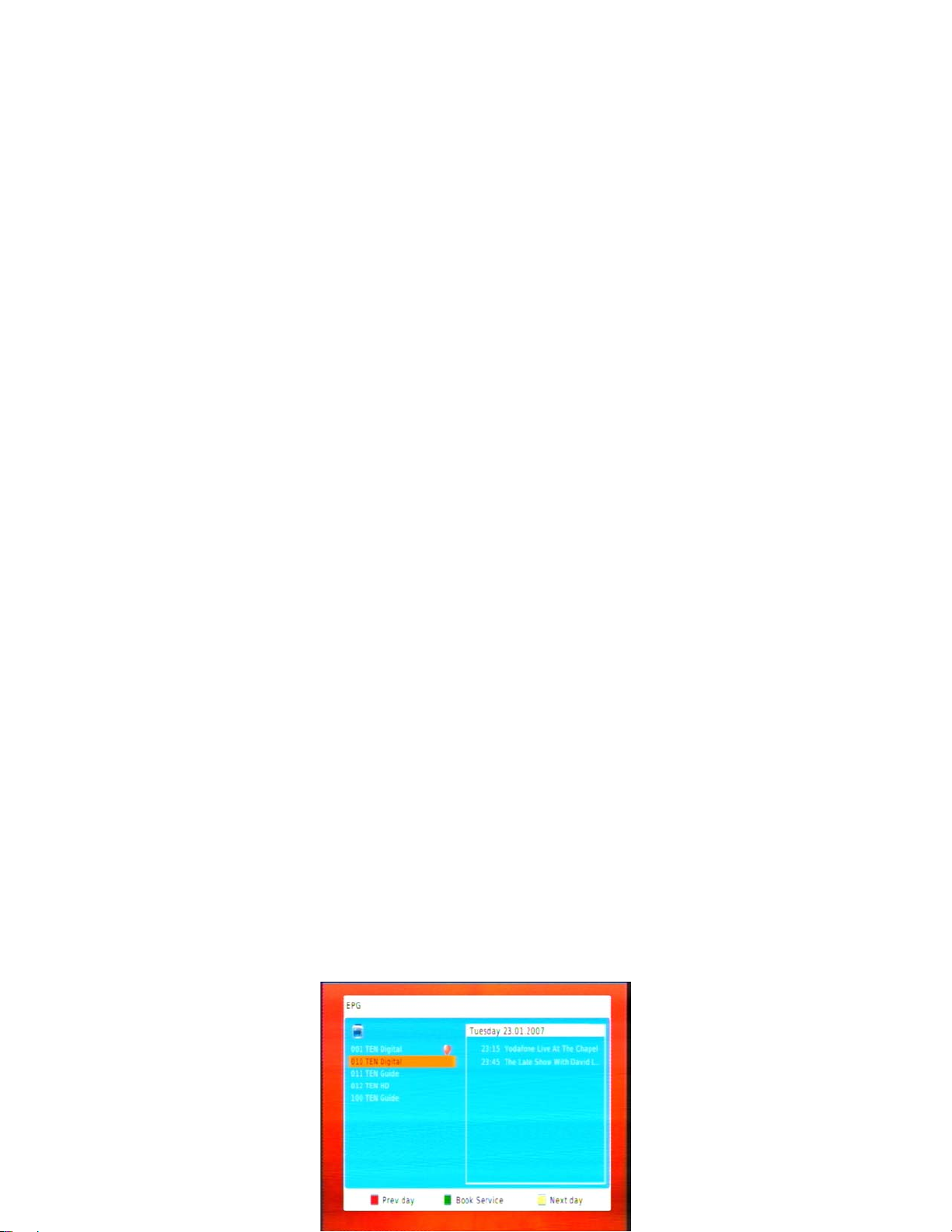

Electronic Program Guide (EPG) .............................................................................................................. 23
Displaying program infornation ................................................................................................................ 24

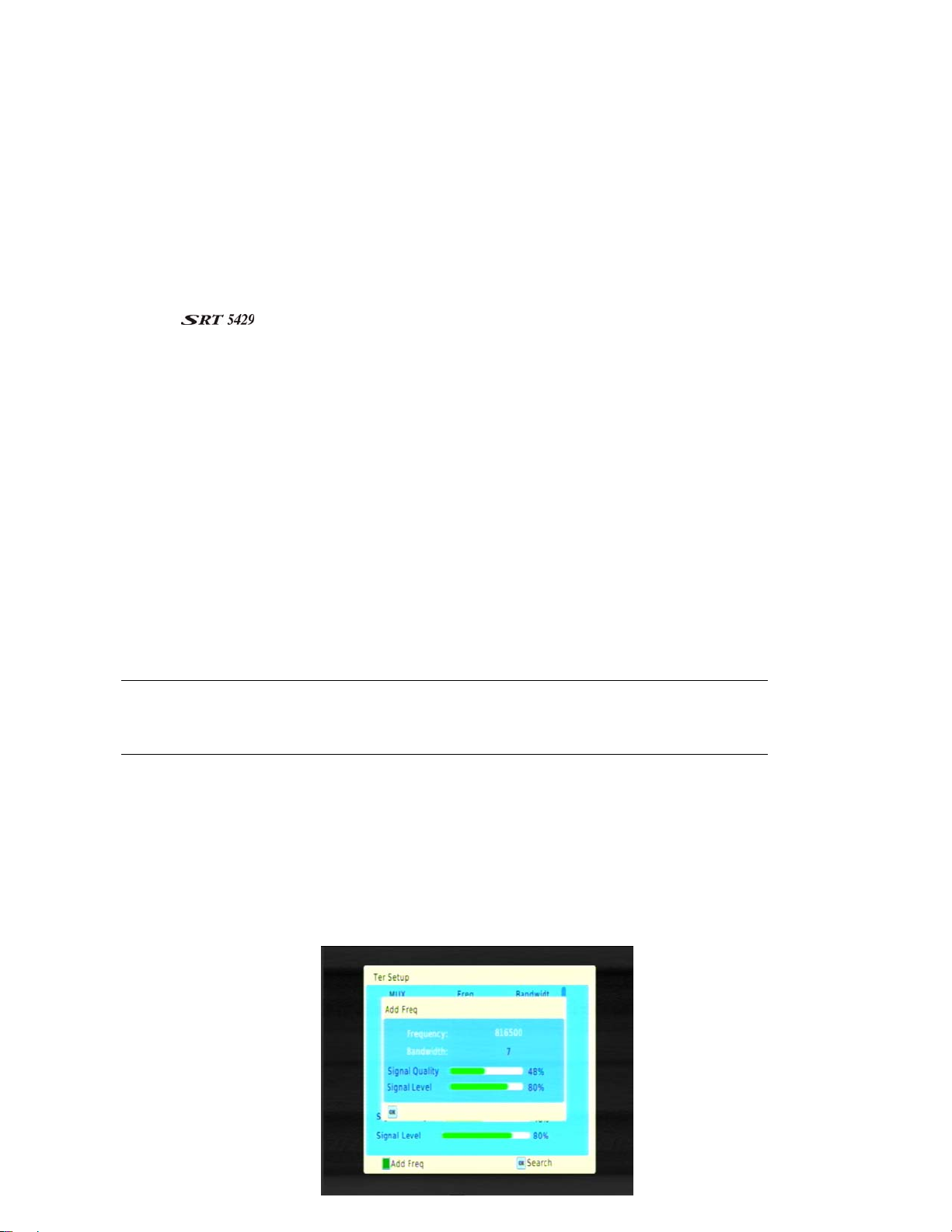

Rescanning for channels and stations....................................................................................................... 24

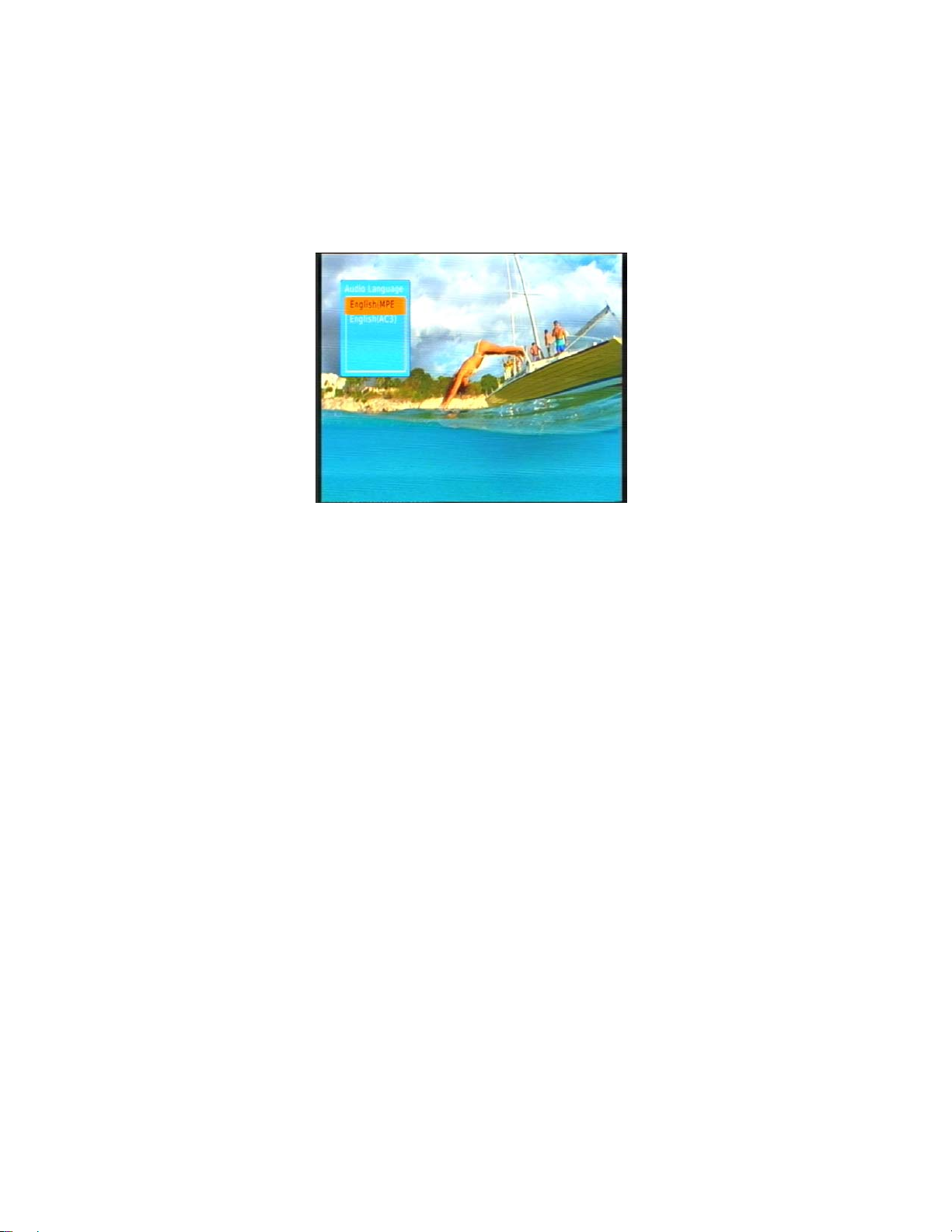

Multi-language and Dolby Digital broadcasting.......................................................................................... 26
User Settings........................................................................................... ................................................. ...........................27

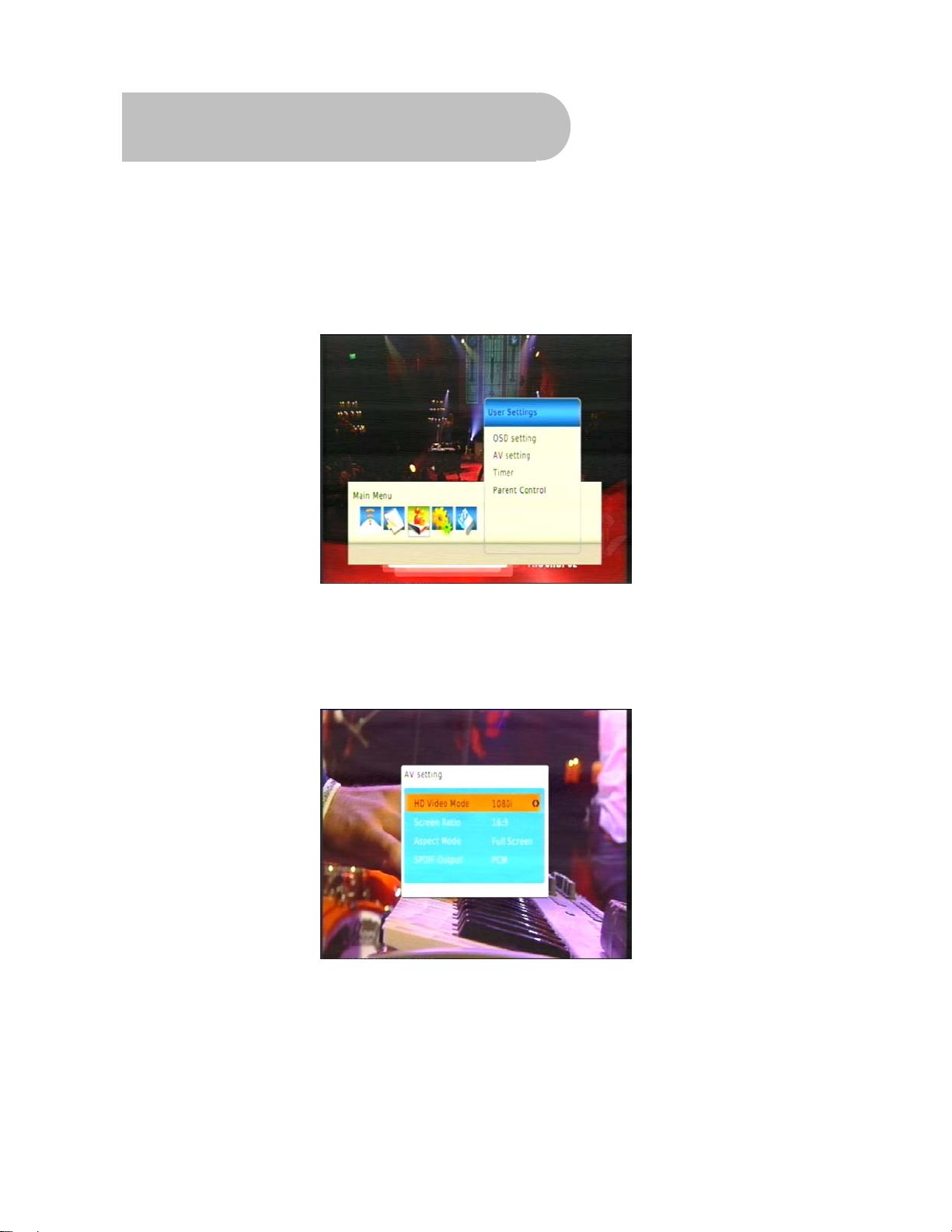

Audio–Visual (AV) settings........................................................................................................................ 27

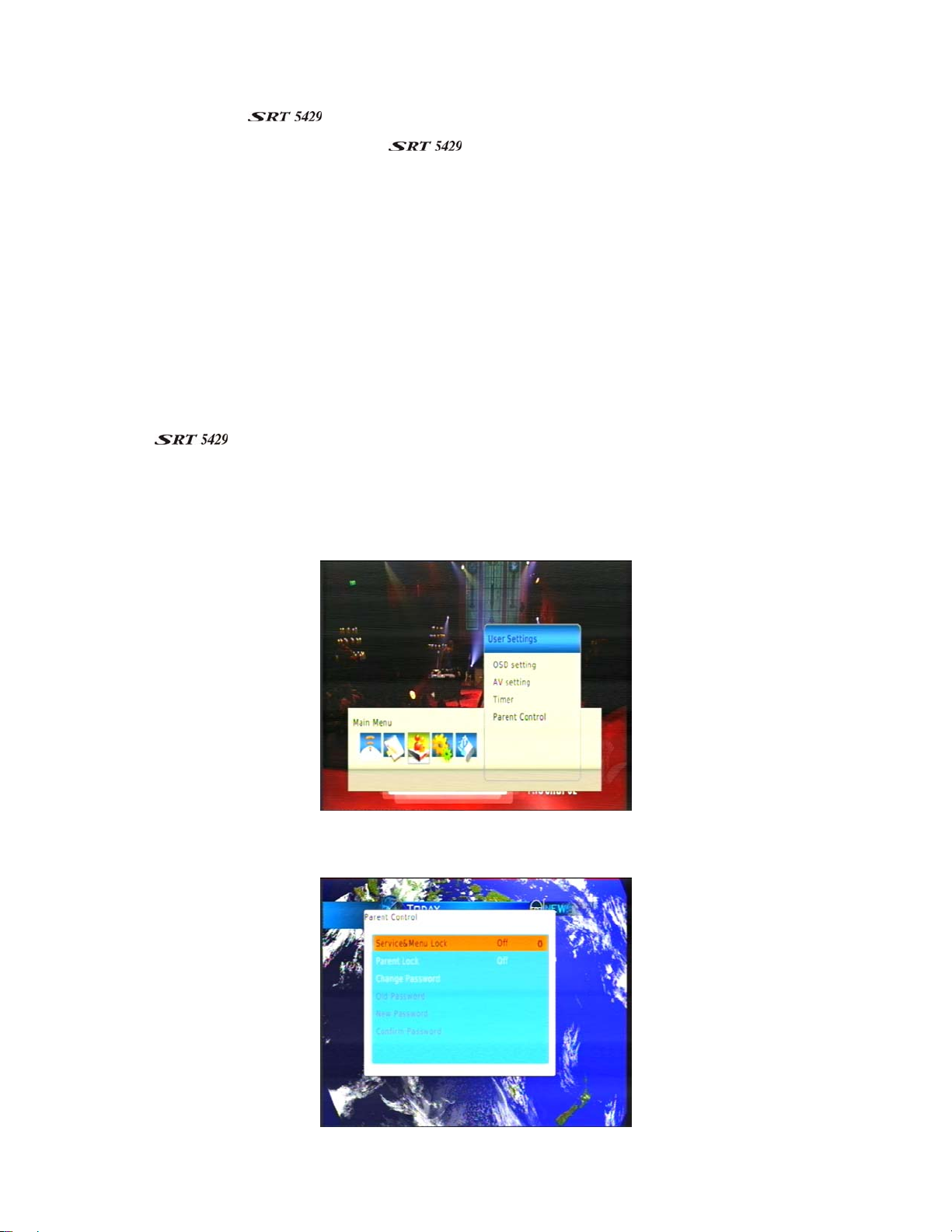

Parent control........... ..... ......... ..... .... ......... ..... .... ......... ..... ..... ......... .... ..... ......... ..... .... ....................... .......... 28

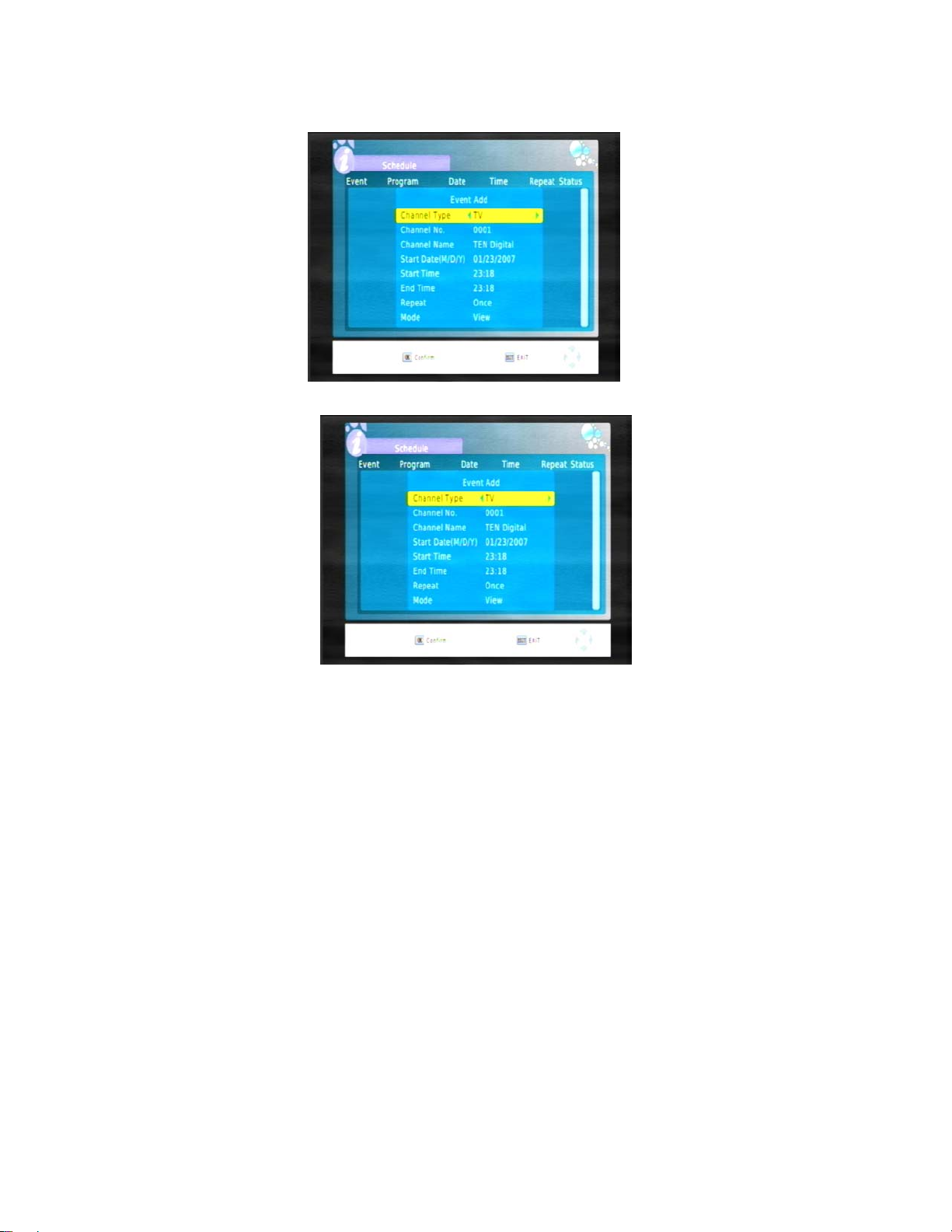

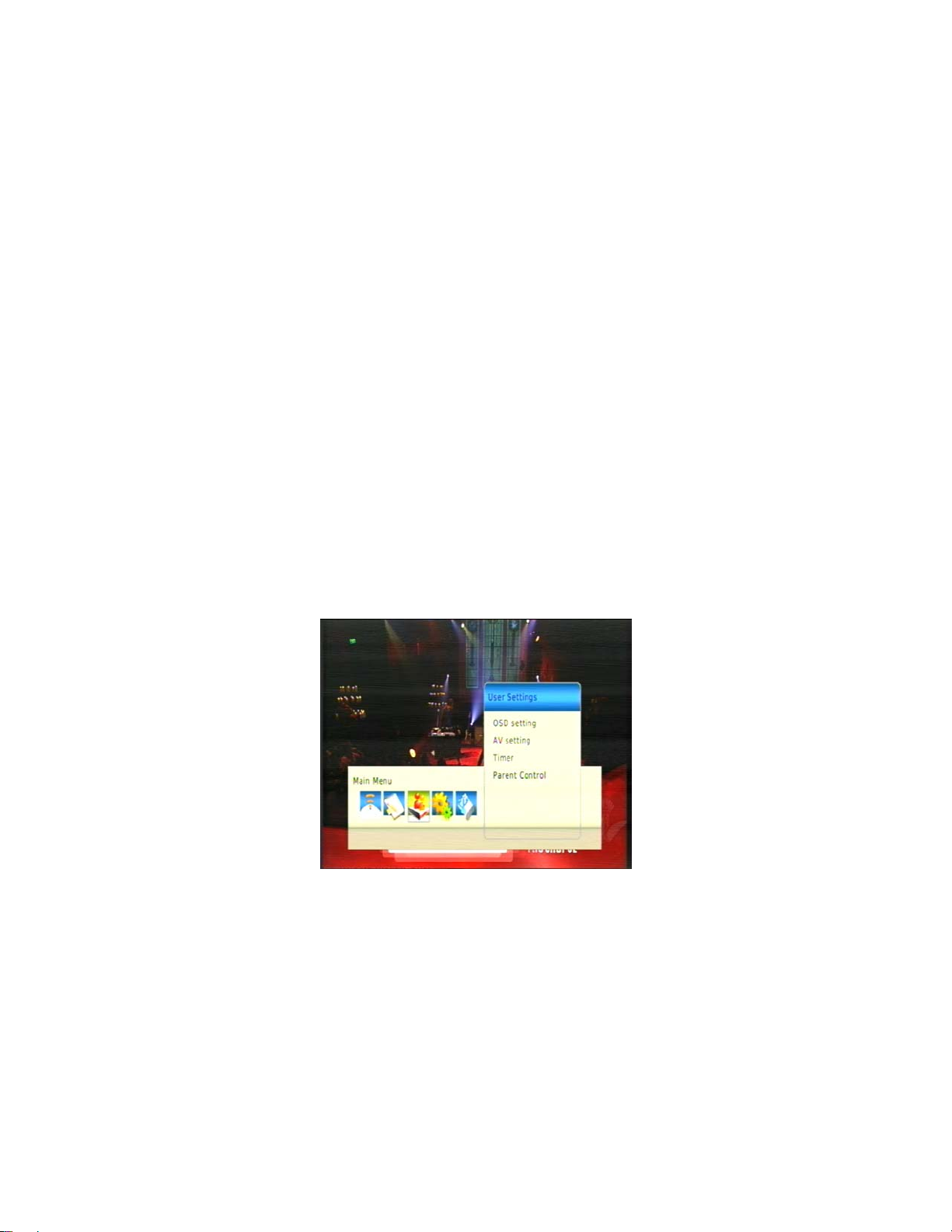

Timer settings......................................................................................... ................................................... 29

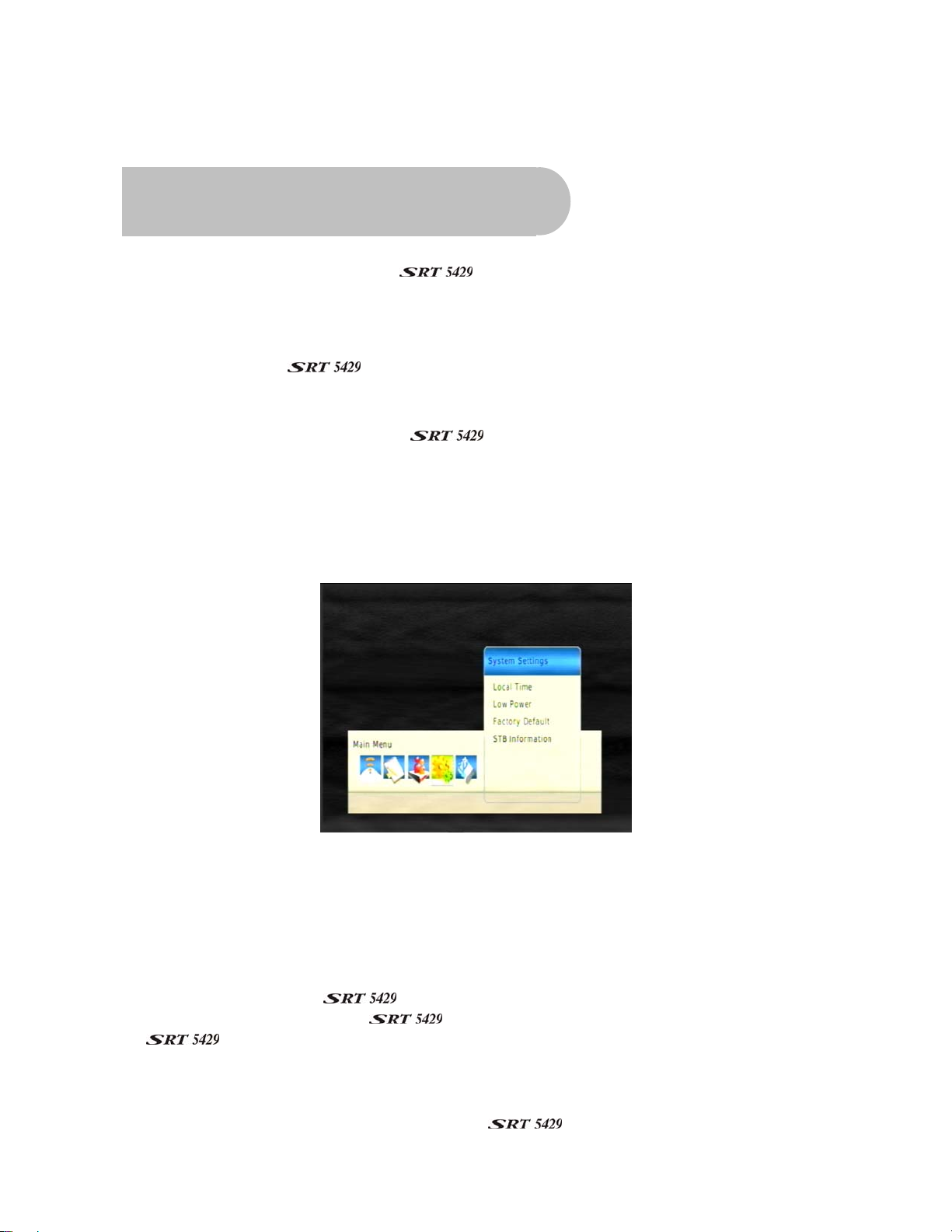

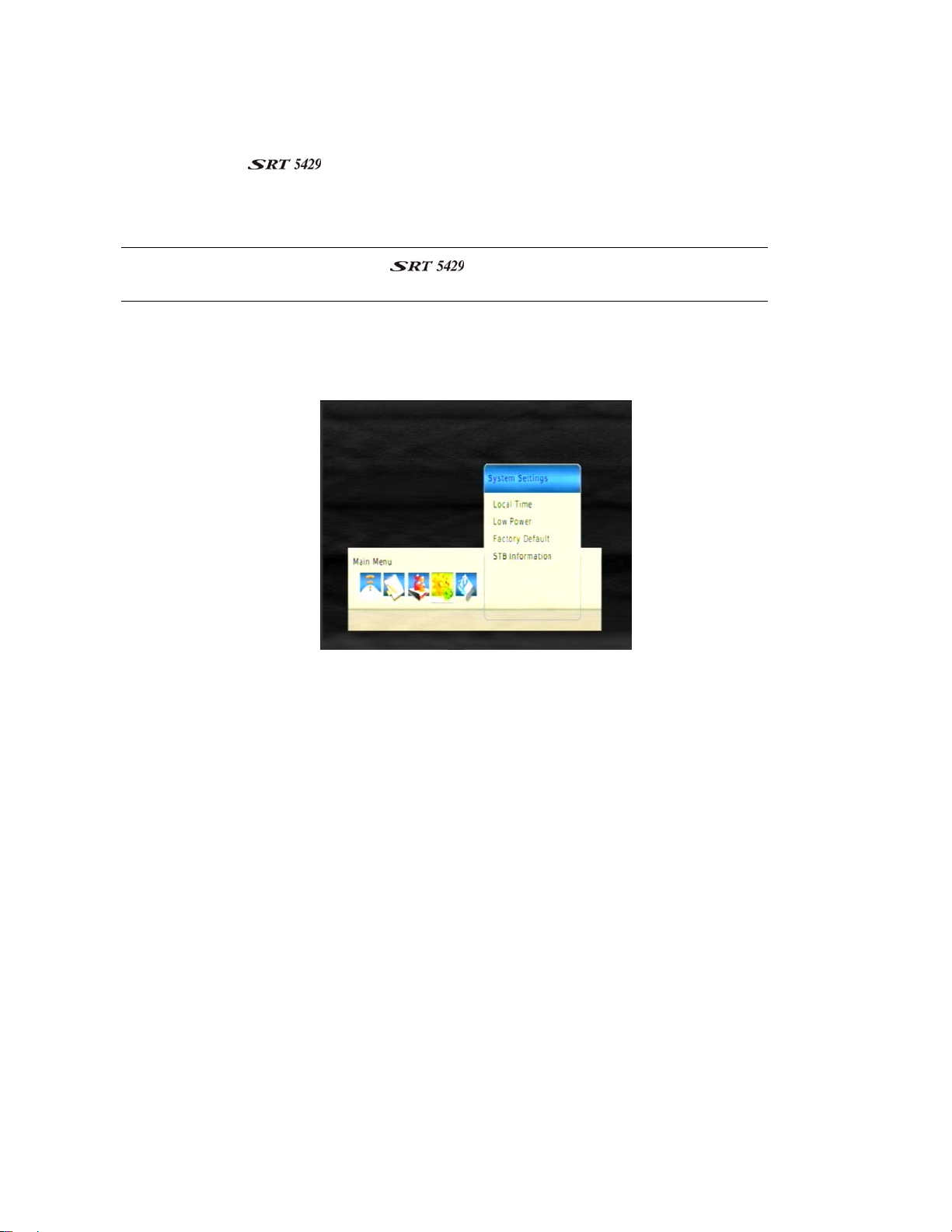

System Maintenance ..................................................................................... .....................................................................31
System information .................................................................................................................... .......... 31
Software upgrades ........................... ......... .... ..... ......... ..... .... ......... ..... .... .......... .... ..... ......... ................... 31
Clearing and resetting date……………………………………………………………………………….………33
Troubleshooting.............................................................................................................................................. ....................34
Support ............................................................................................... .................................................................................35
Specifications........................................................................................................................ ..............................................36
4
Checklist of Accessories
The following accessories have been supplied with your
contact the retailer from whom you purchased the unit.
User’s manual : 1
Remote control : 1
. If any were not supplied,
Batteries (AAA type) : 2
CVBS Composite video and
audio cable
(yellow, white, red) : 1
5
Controls and Indicators
Front panel
1 2 3 4 5
1 To switch the receiver between stand-by mode and power-on mode.
2 To change the volume, or next option in a menu.
3 To select the previous channel, or previous option in a menu.
4 To display the main menu,or return to a previous menu
5
To confirm menu selection.
6
Rear panel
No. Name Connector Function
1 LOOP OUT IEC 169-24 female Loop-through output to VCR, etc.
2 HDMI HDMI cable HDMI video-and-audio connection
3 S/PDIF RCA Coaxial Digital audio output (coaxial)
4 Audio (Left and
Right)
5 TV ANT IN IEC 169-24 female Input from terrestrial antenna
6 Y/Pb/Pr RCA
Component
7 Video RCA RCA
、Note the presence of this symbol on the rear panel. This indicates
that important operating and maintenance instructions accompany
the product. These are set out in this manual. It is highly
recommended that you read this manual thoroughly before using
the product.
To reduce the risk of electric shock, do not remove any panel of
the . Even when the unit is turned off, voltages may be
present within it that are of sufficient magnitude to constitute a risk of
electric shock.
RCA cinch
• white: left
audio
• red: right
audio
RCA cinch
(green/blue/red)
cinch( yellow)
Left and right audio for Component or
Composite connection
Component connection (Y/Pb/Pr)
Composite video connection
7
Remote Control
1. STANDBY: To switch to stand-by mode when the
receiver is on (or vice versa)
2. Numeric Keys (0–9): To choose a channel
directly, or to enter numeric information in a
menu
3. TV/RAD: To switch between TV and radio (and
vice versa)
4. GUIDE (Electronic Program Guide): To show the
TV and radio program guide
5. MENU: To display the main menu, or return to a
previous menu
6. (▲/▼): To change the channel, or to move the
cursor up or down in a menu
7. OK: To show the channel list in viewing mode,
and to select an item (or confirm a choice) in a
menu
8. PAGE
previous page
9. CH (▲/▼): To change the channel, or to
move the cursor up or down in a menu
10. SUB: To turn subtitles on or off
11. AUDIO: To choose speakers (left, right or
stereo), audio format and audio
language
12. FAV: To display the favourites list in
viewing mode, and to select a
favourite
13. PAUSE: To freeze the screen
14. DVR:To Access DVR Menu directly
15.
To fast rewind a movie or music
track
To move to the next or
/ :
8
/
To fast forward in a movie or music
16.
track
17.
To go to the end of a movie or music
track, or show the next photo
18. MUTE: To turn the sound on or off
19. FORMAT: To cycle through the video
definitions: 576i, 576p, 720p and 1080i
20 . BACK: To return to the previous channel or
station
21. EXIT: To close the current menu and return to
normal viewing
22. (▲/▼): To change the channel, or to move
the cursor up or down in a menu
23. . VOL (
/): To change the volume in viewing
mode, or to change an option or setting in a
menu
24.TIMER:To access timer menu directly.
25. INFO: To show information about the
current program
26. ASPECT: To cycle through the aspect
ratios: 16:9 and 4:3
27.STOP: To stop a movie or music track, or
to stop recording a movie
28.
To start recording a movie
/
29.
30.
To start or pause a movie or music
track
To go to the end of a movie or
music track, or show the next photo
Installing the batteries in the remote control
1. Press down on the retaining catch on the lid of the battery recess on the remote control and
remove the lid.
2. Insert two AAA batteries into the recess.
Be careful to insert the batteries as shown in the diagram inside the recess.
3. Replace the lid over the recess and gently push down on the lid until it snaps firmly into place.
9
How to Connect
Refer to the diagram on page 7 for the location of the sockets identified by numbers in the
procedures in this section.
Make sure you have installed the batteries in the remote control before you begin connecting the
receiver to your TV. Depending on the connection method you choose, you may need to adjust
certain settings using the remote control before you can see a digital broadcast.
Step 1: Connect to the antenna
Connect the antenna lead coming from your antenna wall plate to the TV ANT IN socket on the
(socket 5).
TIP: You probably already have an antenna lead coming from your antenna wall plate to
the TV ANT IN socket on the back of your TV. If so, simply unplug the lead at the TV and
plug it into the TV ANT IN socket on the
.
Step 2: Choose an installation method
There are a number of methods of connecting the . These methods are labelled A, B, C
and D below.
NOTE: The various video connection options available provide differing degrees of video
quality. In ascending order of quality, these connections are Composite (good),,
Component (better ) and HDMI (best).
10
A: High Definition Multimedia Interface
If your TV has an HDMI socket, connect an HDMI cable between the HDMI socket on the
(socket 2) and the HDMI socket on your TV.
A HDMI connection incorporates video and audio. You do not need to make separate connections for
audio.
A HDMI cable is not provided with the
.
B: Y/Pb/Pr (Component) using a RCA blue–red–green cable
For Component video, connect to your TV with a Y/Pb/Pr Component cable (with blue, red and green
leads). Connect the leads between the Y, Pb and Pr sockets on the
care to match the colour of a lead with the colour of the socket), and the corresponding Component
sockets on your TV. (The Component sockets on the TV have the same colour-coding.)
You will need to make separate connections for left and right audio via the audio sockets in socket
group 4. This can be done using the supplied RCA cable. (Match the colour of the plugs with the
colour of the sockets.)
(socket group 6, taking
11
C: CVBS (Composite) using the supplied RCA red–white–yellow cable
Using the appropriate socket colour-coding on sockets 4 and 7, you can connect to your TV with
the supplied red–white–yellow RCA cable. This gives you CVBS (Composite Video) and MPEG-4
stereo audio.
For video, connect the yellow RCA lead between the yellow video socket (socket 7) on the
and the corresponding socket on your TV.
For audio, connect the same RCA cable between the white and red sockets in socket group 4 and
the corresponding sockets on your TV. Match the colour of the leads—white and red—with the
colour of the sockets. (All three leads of the cable—yellow, white and red—should be plugged into
the same socket group on your TV.)
12
Loading...
