Strong SRT 5392 User's Manual

Download

Page 1

# 

5392

Digital Terrestrial Television Receiver

and Personal Video Recorder

USER’S MANUAL

Page 2

This symbol is intended to alert the user to the presence of insulated ‘dangerous voltage’ within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock

This symbol is intended to alert the user to the presence of important operating and maintenance instructions accompanying this product.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK PANEL)

NO USER SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Important Safety Instructions

• Connection can only be to a 240V AC mains supply.

• All safety and operating instructions should be read before the product is operated.

• All warnings on the product and in this user’s manual should be adhered to.

• Earthing: The antenna cable must be earthed.

• Do not use attachments not recommended by the product manufacturer as they may cause

hazards or damage to the equipment.

• Do not overload adaptors, wall sockets or extension cables as this can result in unit failure or electrical shock.

• For cleaning, use only a dry or lightly dampened cloth. Do not use liquid cleaners or aerosol cleaning products.

• Servicing can only be performed by qualified service personnel.

• Do not place this product in an unstable position.

Page 3

Overview

Thank you for purchasing this Strong Digital Terrestrial Television Receiver and Personal Video Recorder.

With the new SRT 5392, you can enjoy the convenience of receiving digital terrestrial broadcasts and digitally recording programs on a built-in hard disk. You can record two programs at the same time through instant or timer recording.

The simple connection and easy operation, user-friendly on-screen display (OSD), highest quality audio output with Dolby AC-3 Digital Audio, and the multi-channel screen feature are all designed to enrich your entertainment experience. The SRT 5392 also provides an enhanced Electronic Program Guide (EPG), numerous utilities, and channel-change effect modes.

This product has been manufactured in accordance with strict quality control procedures and is fully compliant with Australian specifications.

• For a complete list of all of our digital terrestrial television receivers and satellite receivers, please go to our website: www.strong-technologies.com

• For general enquiries, please email us at [email protected]

• For technical assistance, please call our Technical Support Help Line on 1800 820 030

Main Features

• Twin Tuner

• 250GB Hard Drive

• 120 Hour Recording Capability

• Simultaneous 4-Channel Recording and 1-Channel Playback

• Time Shift

• Timer Recording

• Recorded File Playback and Editing

• Powerful Functions for Channel Editing (Lock, Delete, Move, Rename Channel & Favourite

Groups)

• Picture in Picture

• USB 2.0 Interface

• MP3 Audio Playback

• Component Video (Y / Pb / Pr) Cinch Connector

• Super Video: 4-Pin Mini Din

• Composite Video (CVBS) Cinch Connector

• Digital Audio Optical & Coaxial Outputs

• Favourite Channel List

• Separate TV/Radio/All List & Favourite Group List

Page 4

• EPG: Electronic Program Guide

• Auto Search & Manual Search Function

• Parental Lock Function (Install Lock/Menu Lock/ IRD Lock)

• Picture Zoom Function

• Multi-Picture Screen (Mosaic)

• Teletext and Subtitles

• Ergonomic Full Function Remote Control

• 12 OSD Languages and 256 Colour OSD Menu

• Cooling System (fan)

• RS-232 Port for S/W Upgrade

• Software Transfer from Receiver to Receiver

• Games: Tetris, Block Out and Sokoban

• Utilities: Calendar, Calculator

• MPEG-2 / DVB(Digital Video Broadcasting) Compliant

• Power Supply Voltage (AC100–240, 50–60Hz)

• Dimensions: 370mm × 270mm × 60mm (W × D × H)

Page 5

Contents

Important Safety Instructions.............................................................................................................................................. 2

Overview ................................................................................................................................................................................ 3

Main Features ........................................................................................................................................................................ 3

Package Contents................................................................................................................................................................. 7

Controls and Indicators ....................................................................................................................................................... 8

Front panel.................................................................................................................................................. 8

Rear panel................................................................................................................................................... 9

Remote Control ................................................................................................................................................................... 10

Installing the batteries in the remote control .......................................................................................... 11

How to Connect................................................................................................................................................................... 12

A: Y / Pb / Pr (Component) using the supplied RCA blue–red–green lead............................................. 12

B. Separate S-Video (Y/C) connector .................................................................................................... 13

C: CVBS (Composite) using the supplied RCA red–white–yellow lead.................................................. 14

D. Connecting the antenna.................................................................................................................... 14

Looping Out via RF OUT socket ............................................................................................................ 14

Connecting to a computer using the supplied USB cable ...................................................................... 15

Getting Started .................................................................................................................................................................... 17

First time set-up ........................................................................................................................................ 17

Language settings ................................................................................................................................. 17

Time setting........................................................................................................................................... 18

Output setting ........................................................................................................................................ 19

Automatic search................................................................................................................................... 20

Basic Operation .................................................................................................................................................................. 22

Selecting a channel................................................................................................................................... 22

Adjusting the volume................................................................................................................................. 23

Turning off the sound (muting)............................................................................................................... 23

Selecting the audio channel................................................................................................................... 23

Switching between TV and radio............................................................................................................... 23

Pausing the screen.................................................................................................................................... 24

Subtitle language ...................................................................................................................................... 24

Audio language ......................................................................................................................................... 25

Managing channels ................................................................................................................................... 25

Scanning for channels and stations....................................................................................................... 25

Displaying the channel list ..................................................................................................................... 26

Sorting the channel list .......................................................................................................................... 27

Multi-Picture mode................................................................................................................................. 27

Editing channels........................................................................................................................................ 28

Locking channels................................................................................................................................... 28

Deleting channels .................................................................................................................................. 29

Re-arranging channels .......................................................................................................................... 29

Renaming channels............................................................................................................................... 30

Setting passwords..................................................................................................................................... 31

Favourites lists .......................................................................................................................................... 32

Creating favourites ................................................................................................................................ 32

Editing favourites ................................................................................................................................... 33

Selecting from a favourites list............................................................................................................... 34

Program information.................................................................................................................................. 35

Electronic Program guide (EPG)............................................................................................................ 35

Displaying information while viewing a program .................................................................................... 36

Teletext.................................................................................................................................................. 37

Picture settings.......................................................................................................................................... 37

Picture in Picture (PIP) .......................................................................................................................... 37

Zooming in or out................................................................................................................................... 38

Recording and Playback .................................................................................................................................................... 40

Recording.................................................................................................................................................. 40

Timeshift recording mode ...................................................................................................................... 40

Page 6

Instant recording mode.......................................................................................................................... 41

Normal recording mode ......................................................................................................................... 42

Timer recording mode............................................................................................................................ 43

Playback.................................................................................................................................................... 44

Program playback.................................................................................................................................. 44

To stop playback ................................................................................................................................... 46

MP3 playback........................................................................................................................................ 46

To stop playback ................................................................................................................................... 46

A-B repeat ............................................................................................................................................. 47

Cutting data ........................................................................................................................................... 47

Bookmarks and Scene Indexes ............................................................................................................. 47

Timeshift.................................................................................................................................................... 49

File Management ...................................................................................................................................... 51

Utilities ................................................................................................................................................................................. 53

Calendar.................................................................................................................................................... 53

Calculator.................................................................................................................................................. 54

Games .................................................................................................................................................................................. 55

Tetris ..................................................................................................................................................... 55

Blockout................................................................................................................................................. 55

Sokoban ................................................................................................................................................ 56

System Maintenance .......................................................................................................................................................... 57

System information................................................................................................................................ 57

Software upgrades ................................................................................................................................ 57

Restore default settings......................................................................................................................... 58

Troubleshooting.................................................................................................................................................................. 59

Specifications...................................................................................................................................................................... 60

Page 7

Package Contents

The following accessories have been supplied with your SRT 5392. If any were not supplied, contact the retailer from whom you purchased the unit.

User’s manual : 1

Batteries (AA type) : 2

Remote control : 1

CVBS Composite Video and

Audio Cable

(yellow, white, red) : 1

Y / Pb / Pr Component Cable

(blue, red, green) : 1

USB cable : 1

Audio Cable–RCA (white, red) : 1

Loop through cable : 1

Page 8

Controls and Indicators

Front panel

MPEG-2

TWI N TUN ER

Personal Video

PVR

Recorder

3 4 5 6

• Switch the receiver between standby mode and power-on mode.

• Select the next or previous channel (or station).

3 • Increases or decreases the volume level, or

• Change the value of an item in a menu.

4 • Select a menu or confirm a menu choice, or

• Display the channel list while watching a program.

• Display the menu.

6 • Exit from the current menu, or

• Cancel a selection in a menu.

7 • STANDBY LED: Red indicates that the SRT 5392 is in standby mode. This

light is off when the unit is in operation.

• LOCK LED: Green indicates that the channel has been successfully detected (that is, locked onto).

Page 9

Rear panel

368911

LOOP IN

TV ANT IN

RF OUT

LOOP OUT

RS-232C

45 7 10 1213 14

No. Name Connector Function

1 TV ANT IN IEC 169-2 female Input from terrestrial antenna

COMPONENT

VIDEOS/PDIF

AUDIO 2AUDIO 1

S-VIDEO

OPTICAL S/PDIF

USB

S/N LABEL

N11776

100-240V~ 50/60Hz 30W MAX.

2 LOOP OUT IEC 169-2 male

Connection from LOOP OUT to LOOP IN for activating the second tuner

3 LOOP IN IEC 169-2 female

Connection from LOOP IN to LOOP OUT for activating the second tuner

4 RF OUT IEC 169-2 male For distributing the antenna signal to

another device (such as another settop box, VCR or TV)

5 RS-232C DB-9

Serial port for connecting to a PC for software upgrades

6 S/PDIF RCA cinch (black) Digital audio output via coaxial cable

7 Audio 1 RCA cinch:

• Red: right audio

Standard audio left and right (for use with Component or S-Video)

• White: left audio

8 Component

RCA cinch (green / blue / red)

Component video connection (Y / PB / Pr)

9 Video RCA cinch (yellow) Composite video connection

10 Audio 2 RCA cinch:

• Red: right audio

• White: left audio

Standard audio left & right (for use with Composite Video)

11 Optical S/PDIF TOS-LINK Digital audio output via Optical

12 S-Video Mini-DIN S-VHS video output

13 USB USB

USB 2.0. Connect to your PC to transfer MP3 files and video files

14 POWER – To turn the unit on or off

Page 10

Remote Control

5 9

Recall

1. Standby: To switch between power-on and standby modes

2. Mute: To turn the sound on or off

3. Number Keys (0–9): To choose a

channel directly, or to enter numeric information in a menu

4. HELP: To display a menu of buttons relevant to the current menu

5. TV/STB: To switch between TV and the SRT 5392 (and vice versa)

20 22

26 28 30

34 36

PLAY FWRW

PAUSE F-SLOWR-SLOW

TIMESHIFT

6. TV/RAD: To switch between TV and radio (and vice versa)

7. Has no function with this model

8. EPG (Electronic Program Guide): To

show the TV and radio program guide

9. FAV: To create favourites lists

10. RECALL: To return to the previous

channel

11. PAGE: To quickly scroll through lists

and information

23 25

RECSTOP

29 3132

33 35

12. VOL: To change the volume

13. Has no function with this model

14. INFO: To display information about a

channel and program

15. OK: To display the channel list, or accept an option in a menu

16. VOL (

/): To change the volume in

viewing mode, or to change an option or setting in a menu CH (▲/▼): To change channels in viewing mode, or to move the cursor up or down in a menu

Page 11

17. MENU: To display the main menu, or return to a previous menu

5 9

Recall

18. PVR: To choose files to play back

19. EXIT or ZOOM To close the current

menu, or zoom in or out

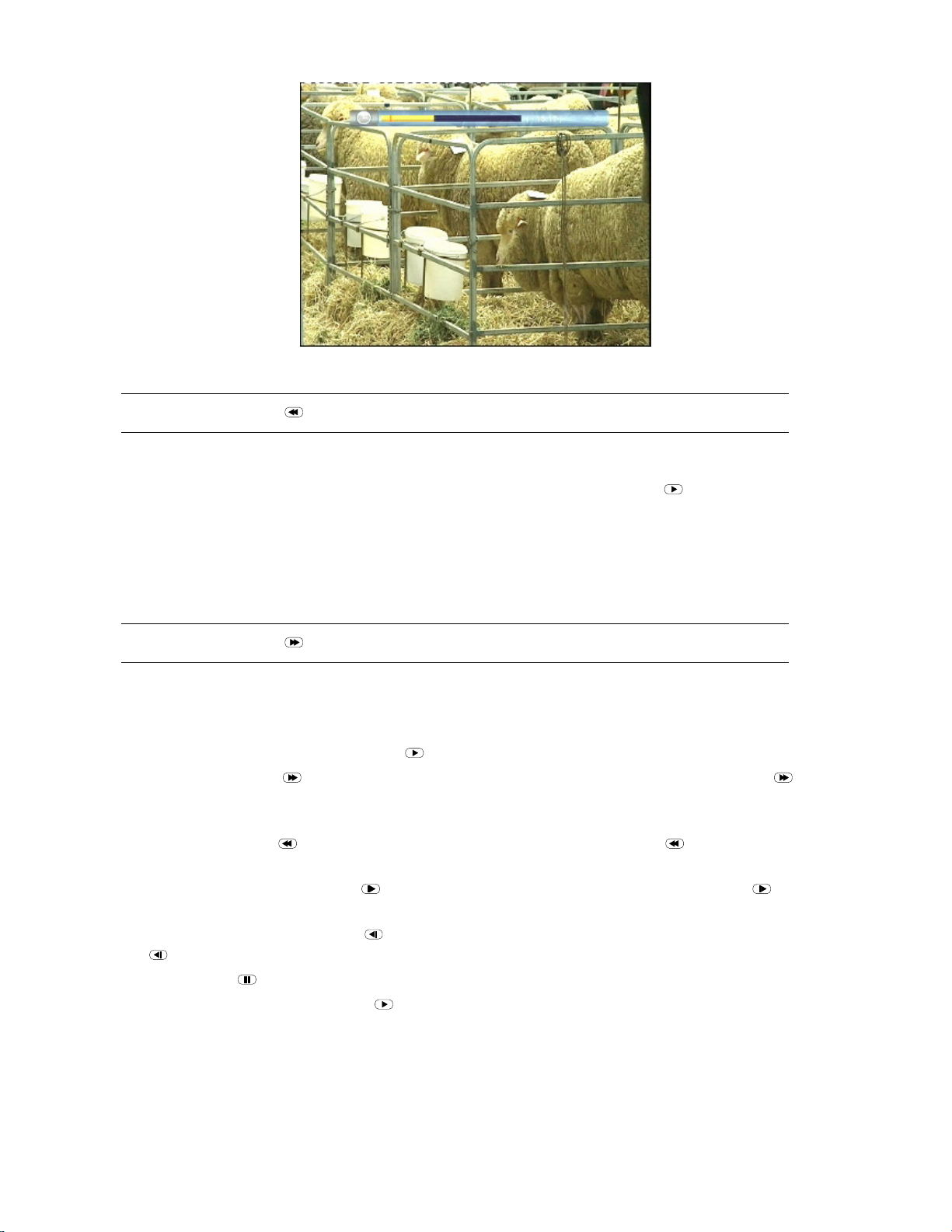

20. RW: To quickly rewind a file, or

timeshift backwards

21. FW: To quickly move forward in a file,

or timeshift forwards

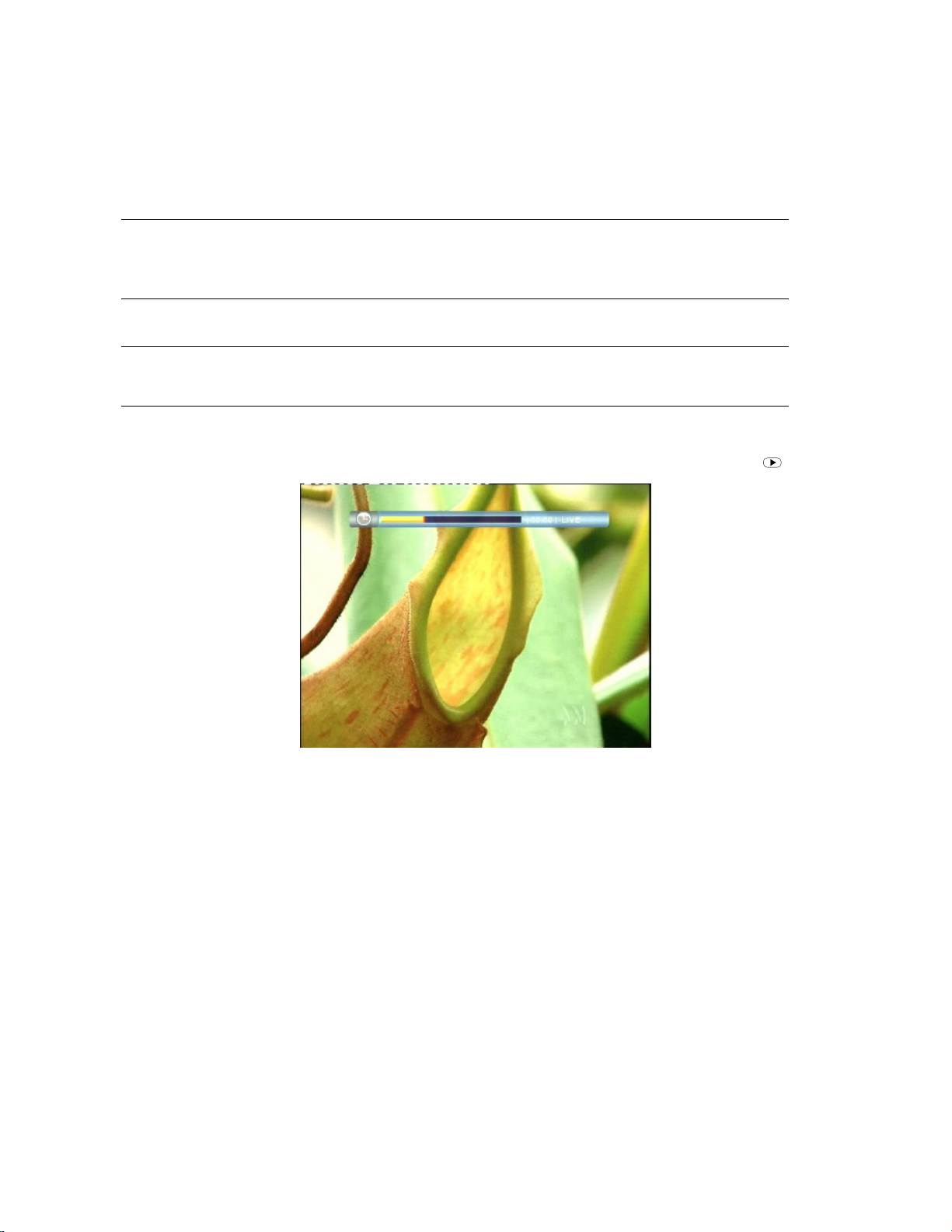

22. PLAY: To start playback, or display

the progress bar

20 22

26 28 30

34 36

PLAY FWRW

PAUSE F-SLOWR-SLOW

TIMESHIFT

23. F. SLOW: To playback in slow motion

24. R. SLOW: To reverse play in slow

motion

25. PAUSE: To pause playback

26. STOP: To stop playback or recording

27. REC: To begin recording

28. TIMESHIFT: To enable or disable

timeshift functionality

23 25

RECSTOP

29 3132

33 35

29. To jump to the next bookmark

30. To select a section for continuous

playback

31. To set a bookmark

32. To cut a section from a recorded file

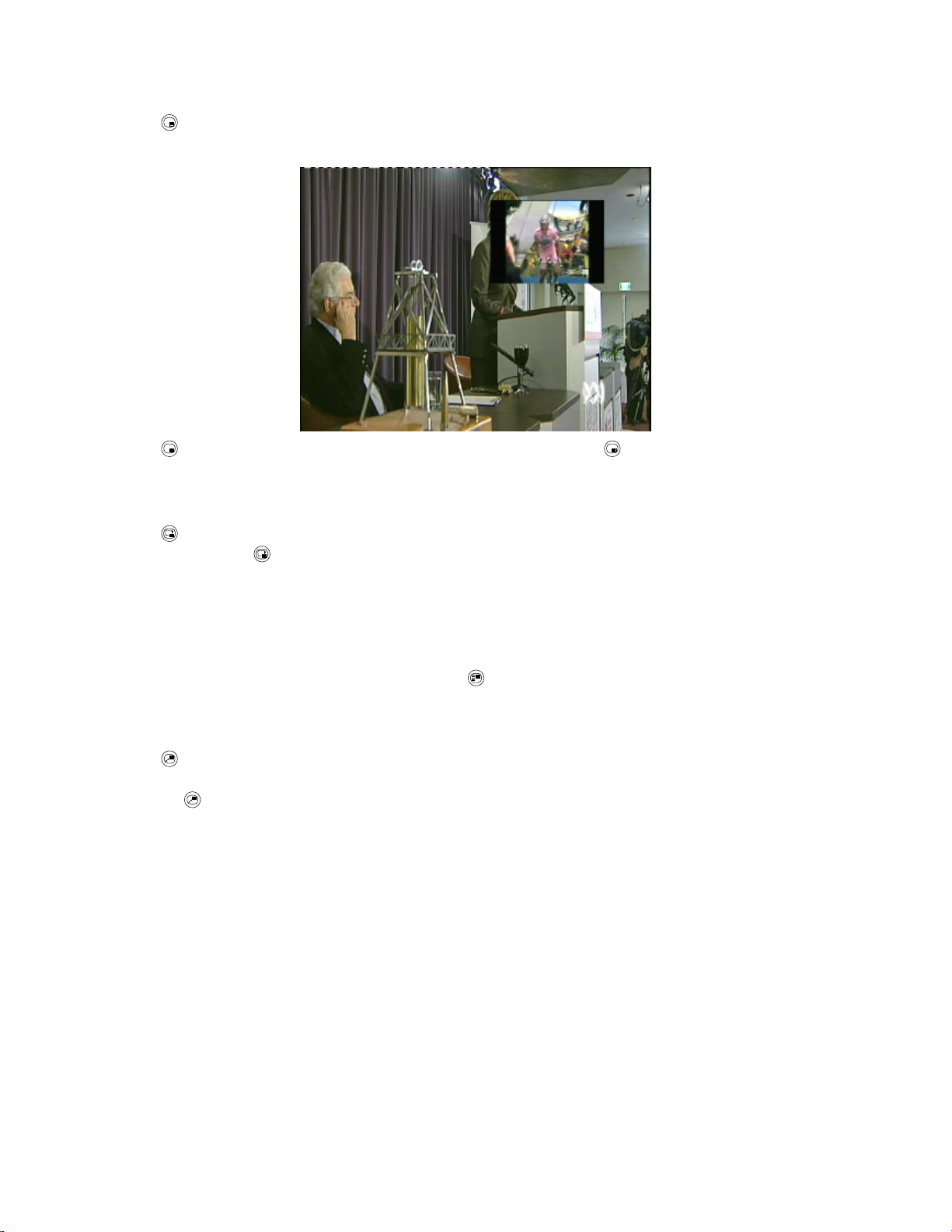

33. To move the picture in a picture

34. To display a picture in a picture

35. To swap between the main picture

and the picture in a picture

36. To show the picture-in-a-picture

channels

Installing the batteries in the remote control

1. Press down on the retaining catch on the lid of the battery recess on the remote control and remove the lid.

2. Insert two AA batteries into the recess.

Be careful to insert the batteries as shown in the diagram inside the recess.

3. Replace the lid over the recess and gently push down on the lid until it snaps firmly into place.

Page 12

How to Connect

There are a number of alternative methods for connecting the SRT 5392, depending on your preference and the connection types on your TV. These methods are labelled A, B and C below. (Connection D, connecting to an antenna, is mandatory for all connection methods.)

TIP: The various video connection options available provide differing degrees of video quality. In ascending order of quality, these connections are Composite (good), S-Video (better) and

Component (best).

IMPORTANT: Refer to the diagram on page 9 for the location of the sockets identified by numbers in

the methods listed below.

A: Y / Pb / Pr (Component) using the supplied RCA blue–red–green lead

For Component video, connect to your TV with the supplied Y / Pb / Pr Component cable (with blue, red and green leads). Connect the leads between the Y, Pb and Pr sockets on the SRT 5392 (socket group 8, taking care to match the colour of a lead with the colour of the socket), and the corresponding Component sockets on your TV. (The Component sockets on the TV have the same colour-coding.)

You will need to make separate connections for left and right audio via the audio sockets in socket group 7. This can be done using the supplied RCA cable.

For right audio, connect the red RCA lead between the red audio socket on the SRT 5392 and the corresponding socket on your TV.

For left audio, connect the white RCA lead between the white socket on the SRT 5392 and the corresponding socket on your TV. These RCA audio connections will provide MPEG-2 stereo.

NOTE: Dolby digital bitstream audio S/PDIF can be achieved using a coaxial cable or an optical cable. (These cables are not supplied.) These cables should be connected between socket 6 (coaxial cable) or socket 11 (optical cable) on the SRT 5392 and the corresponding S/PDIF socket on your Dolby Digital decoder amplifier. See “Output setting” on page 19 for instructions on how to receive Dolby Digital audio.

Page 13

B. Separate S-Video (Y/C) connector

If your TV has a 4-pin mini-din S-Video socket, you can connect an S-Video cable between socket 12 on the SRT 5392 and the corresponding S-Video socket on your TV. (An S-Video cable is not supplied.)

You will need to make separate connections for left and right audio via the audio sockets in socket set 10 on the rear of the SRT 5302. This can be done using the supplied RCA cable.

For right audio, connect the red RCA lead between the red audio socket on the SRT 5392 and the corresponding socket on your TV.

For left audio, connect the white RCA lead between the white socket on the SRT 5392 and the corresponding socket on your TV. These RCA audio connections will provide MPEG-2 stereo.

Page 14

C: CVBS (Composite) using the supplied RCA red–white–yellow lead

Using the appropriate socket colour-coding in socket groups 9 and 10, you can connect to your TV with the supplied RCA cable. This gives you CVBS (Composite Video) and MPEG-2 stereo audio.

For video, connect the yellow RCA lead between socket 9 on the SRT 5392 and the corresponding socket on your TV.

For right audio, connect the red RCA lead between the red audio socket in socket group 10 on the SRT 5392 and the corresponding socket on your TV.

For left audio, connect the white RCA lead between the white socket in socket group 10 on the SRT 5392 and the corresponding socket on your TV.

D. Connecting the antenna

1. Connect the antenna lead coming from your antenna wall plate to the TV ANT IN socket on the SRT 5392 (socket 1).

2. Connect the loop through cable between the LOOP OUT socket on the SRT 5392 (socket 2) and the LOOP IN socket on the SRT 5392 (socket 3).

Looping Out via RF OUT socket

The RF OUT socket enables the antenna signal to be distributed to another device. You can connect a cable between the RF OUT socket and

• the antenna IN socket of another TV or set-top box, or

• to a recording device (e.g. VCR/DVD) to record directly to that device.

Page 15

Connecting to a computer using the supplied USB cable

USB connection is provided so that you can transfer MP3 files from a Windows computer to the SRT

5392.

1. Connect the USB cable between socket 13 on the SRT 5392 and the corresponding socket on your computer.

2. A message appears asking you if you want to connect. Press OK on the remote control.

3. Open Windows Explorer, locate the item that represents the SRT 5392—it might, for instance, be called “Local Disk (E:)”—and double-click it. A folder called PVR appears.

4. Open the PVR folder and then the MP3 sub-folder. This is the folder where you place the MP3 files you want to be able to play on the SRT 5392.

Page 16

5. Copy your MP3 files to the MP3 folder (using standard copy-and-paste Windows functionality).

6. When you have finished copying files, disconnect the USB cable. When the “Updating TOC” message disappears from the screen, you can play the music files you have copied. See “MP3 playback” on page 46.

Page 17

Getting Started

First time set-up

Once you have connected the SRT 5392 to your antenna and to your television with your preferred video and audio connections, you need to:

1. Install the batteries in the remote control (see page 11).

2. Turn on the television.

3. Plug the SRT 5392 into mains power and turn on the power at the mains switch.

4. Turn on the SRT 5392 using the power-on switch on the back of the receiver (number 9 in the diagram on page 9).

5. Select the video or AV input channel to which the SRT 5392 is connected: this can be done by pressing the TV/AV or VIDEO button on your TV remote control. (Refer to your TV user’s manual for instructions.)

The Strong Technologies banner page briefly appears, followed by the Language Setting screen.

When setting up the SRT 5392 for the first time, the system will automatically guide you through the set-up process. You only have to perform this process once. If you have already set-up the SRT 5392 and would like to make changes to your existing set-up preferences, you can edit them from the Setup screen on the main menu.

To set-up the receiver for the first time, you need to:

• set the language

• set the time

• set the video output

• scan for channels and stations in your area.

TIP: Throughout the set-up process, there will be on-screen instructions located at the bottom of the screen that indicate what options are available and which buttons to press. Use this to help you through the set-up.

Language settings

The Language Setting screen is the first screen to appear after you turn the receiver on for the first time. This screen allows you to set the menu language, audio language, subtitle language and teletext language. It also sets the default language.

Page 18

1. In the Language Setting screen, press CH ▼or CH ▲ to highlight the option you want to set.

2. For each option, press VOL press OK to see a list of available values.

3. Follow the on-screen help to make whatever changes are necessary.

Menu language: Sets the language used for the on-screen display (OSD) such as instructions on the screen.

Audio: Sets the language for the audio channels (maximum of two languages can be set).

Subtitle: Sets the language for subtitles (maximum of two languages can be set).

4. Press the red button on the remote control (in button group 15 on page 10) to save the language settings and move to the Time Setting screen.

NOTE: The subtitle language or audio language you choose will only have effect if the broadcaster you have tuned into is broadcasting subtitles and audio in that language.

 or VOL  to scroll through the available values. You can also

Time setting

The Time Setting options allow you to set the time for the SRT 5392. There are two time-setting modes:

• Time Zone

This option will let the system determine the time based on the GMT offset you set. During daylight saving, you will not need to adjust the time. It will automatically be adjusted.

• Local System

This option allows you to set the date and time manually. During daylight saving, you will need to manually adjust the time.

Page 19

1. If Time Mode is not highlighted, press CH ▼or CH ▲ on the remote control until it is.

2. Press VOL

3. If you select Time Zone, click CH ▼ to highlight the Time Zone option. Press VOL  or VOL  to select the state in which you live in. Now go to step 5 below.

4. If you select Local System, click CH ▼ to highlight the Current Time option. Now press VOL

VOL

number keys on the remote control, enter the correct number for this digit. Continue until you have set all the digits for the date and time.

NOTE: The date and time formats are DD/MM/YYYY and HH/MM (24-hour format) respectively.

5. Press the red button on the remote control to save the time settings and move onto the Output Setting screen.

6. A message appears asking if you want to save your settings. Press OK to save your settings.

 or VOL  to select Local System or Time Zone.

 or

 to move from digit to digit. The active digit will appear with an underline. Using the

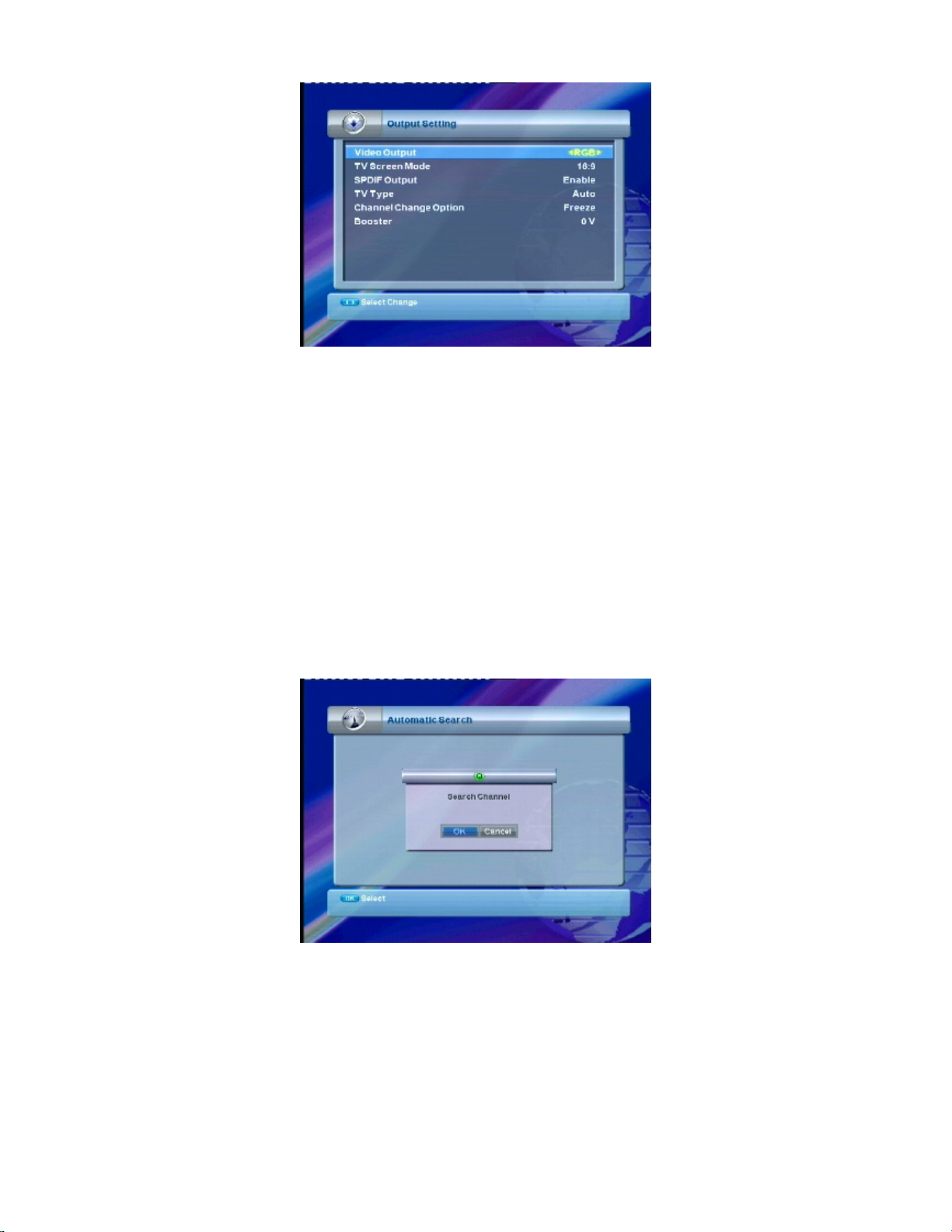

Output setting

The Output Settings options allow you to set your video and display preferences. You can set:

• Video output (YUV/Component video, RGB, CVBS/Composite video). The selection you make here should match the method you have used for connecting the SRT 5392 to your TV.

• TV screen mode (4:3 Letterbox, 16:9 or 4:3)

• SPDIF Output ((Enable, Disable). Enable this

option if you are routing audio through a Dolby Digital decoder amplifier.

• TV type (AUTO, PAL, NTSC). Select AUTO and the SRT 5392 will determine the correct setting for you.

• Channel Change Option (Freeze, Blank, Fade In/Out). This option determines how the screen transitions from one channel to the next.

• Booster: (0V, 5V). Choose 5V if you have a reception booster attached to your antenna that does not have its own power supply. (Most boosters already have a power supply.)

Page 20

1. In the Output Setting screen, press CH ▼or CH ▲ to highlight the option you want to change.

2. Press VOL

3. Repeat from step 1 for each option you want to change.

4. Press the red button on the remote control.

5. A message appears asking if you want to save your settings. Press OK to save your settings. The Automatic Search screen now appears.

 or VOL  to select the value you want for the selected option.

Automatic search

The Automatic Search option enables you to automatically search for and detect digital TV channels and radio stations within your area. Once detected, the stations can be easily selected from the remote control (or by pressing the channel keys on the front panel of the SRT 5392; see the diagram on page 8). The Automatic Search option is the default option when you first set up the SRT 5392.

1. With the Automatic Search screen displayed and the OK button highlighted, press OK on the remote control.

The SRT 5392 scans for channels and stations. As it finds them, it displays them (grouped by broadcaster).

Page 21

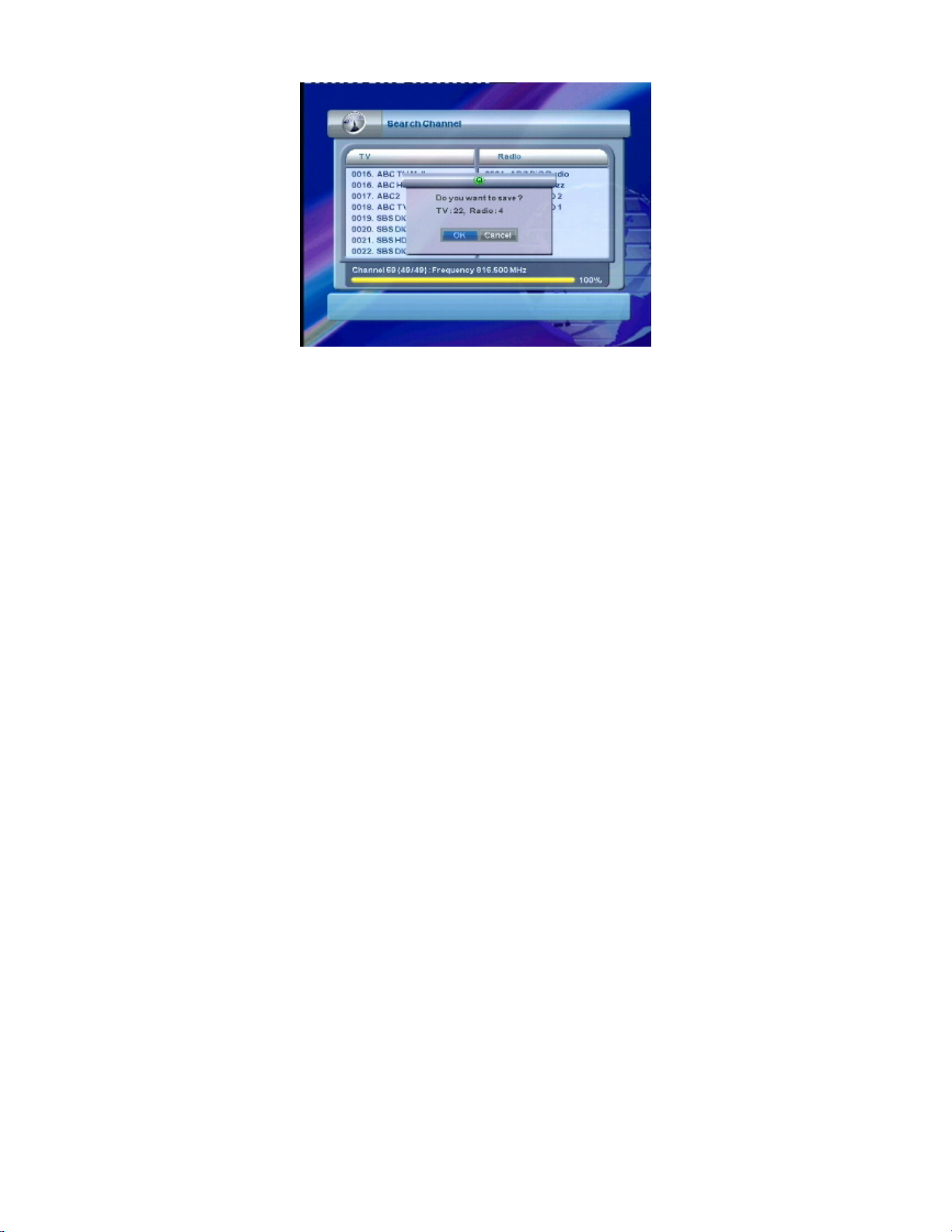

2. When the scanning is complete, you will be prompted to save the channels and stations detected. Press OK on the remote control.

3. Once you save the channels, you have completed all the necessary steps required to set up the SRT 5392 so that it can display and receive data. The final step in the set-up process is to close the menu. Press MENU on the remote control.

The SRT 5392 is now ready to use.

Page 22

Basic Operation

Selecting a channel

There are a number of ways to select a channel:

• Channel number selection buttons: If you know the channel number, enter the number using the number keys on the remote control and then press OK. (If you don’t press OK, the channel selected still appears, but only after 2 seconds.)

NOTE: The SRT 5392 uses the Logical Channel Numbering system (LCN) by default. Some samples of LCN channel numbers are:

1 = Ten network and affiliates

2 = ABC

3 = SBS

7 = Seven network and affiliates

9 = Nine network and affiliates

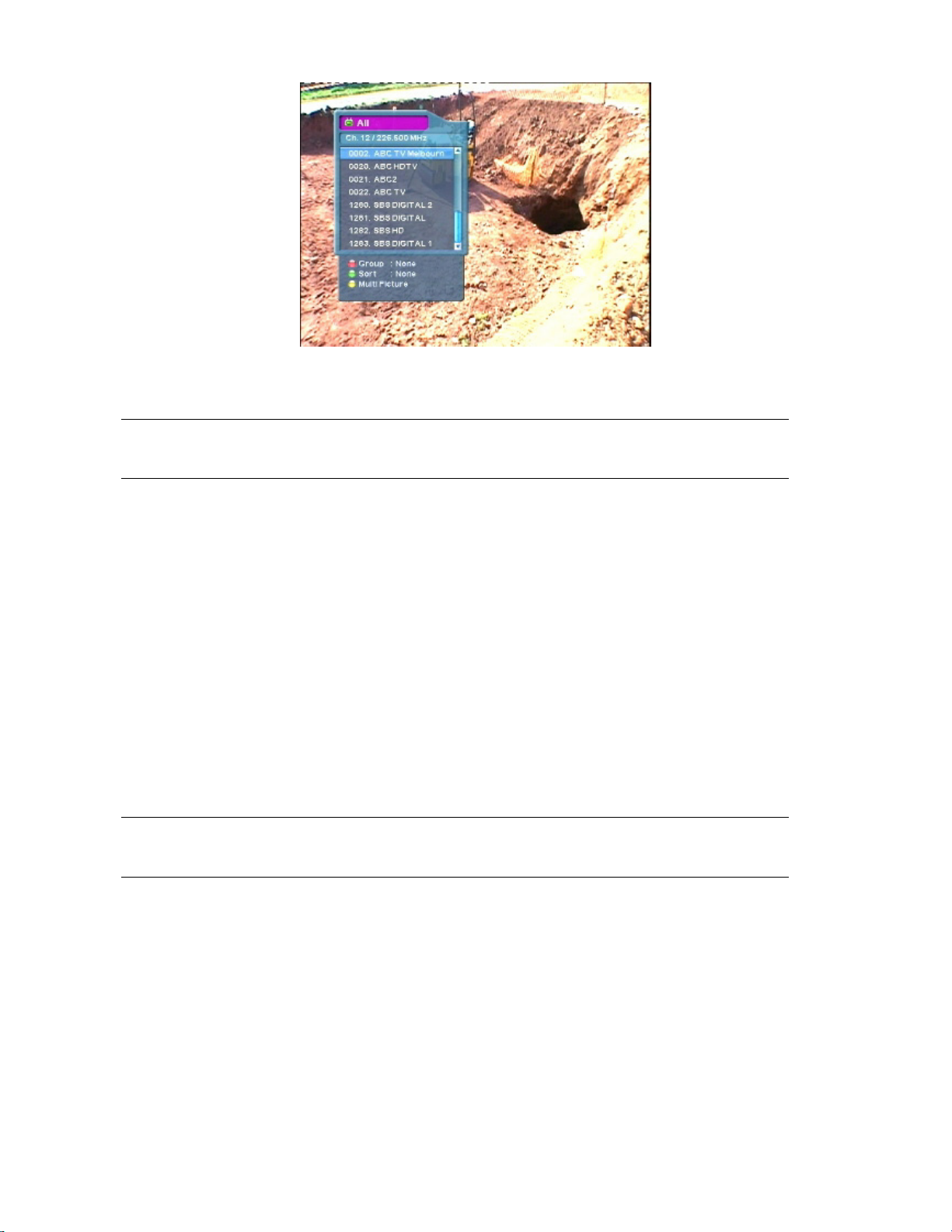

• Channel list: Press OK on the remote control. This displays the channel list. Press CH ▼or CH ▲ on the remote control to select the channel you want and then press OK.

You can also choose to display multiple channels from the channel list and then select one for normal viewing (as explained in “Multi-Picture mode” on page 27).

• Scroll: Press CH ▼or CH ▲ on the remote control to scroll through the channels in channel number order. (You can also scroll through the channels in order by pressing the channel up and channel down buttons on the front panel of the SRT 5392.)

• By EPG: Press EPG on the remote control, select the channel from the electronic program guide (EPG), press OK and then EPG, MENU or EXIT. The EPG is explained on page 35.

• Previous channel: Press the RECALL button to display the previous channel.

TIP: You can use the same techniques to select a digital radio station.

Page 23

Adjusting the volume

While you are watching a program, press VOL or VOL (or VOL ▼or VOL▲) on the remote control to decrease or increase the volume respectively. The audio and volume meter appears in the top right corner of the screen.

Audio and volume meter

Turning off the sound (muting)

To turn off the sound altogether, press the MUTE button on the remote control. The mute icon is displayed on the screen. Press the MUTE button again to restore the sound (or press VOL

).

 or VOL

Selecting the audio channel

You can select the audio channel so that the output is left, right or stereo (both). Press the green button to toggle between the audio channels. The speaker icons in the audio and volume meter at the top right corner of the screen (see picture above) indicate which audio channels are selected.

• Right audio channel: right speaker icon highlighted

• Left audio channel: left speaker icon highlighted

• Both audio channels: both speaker icons highlighted

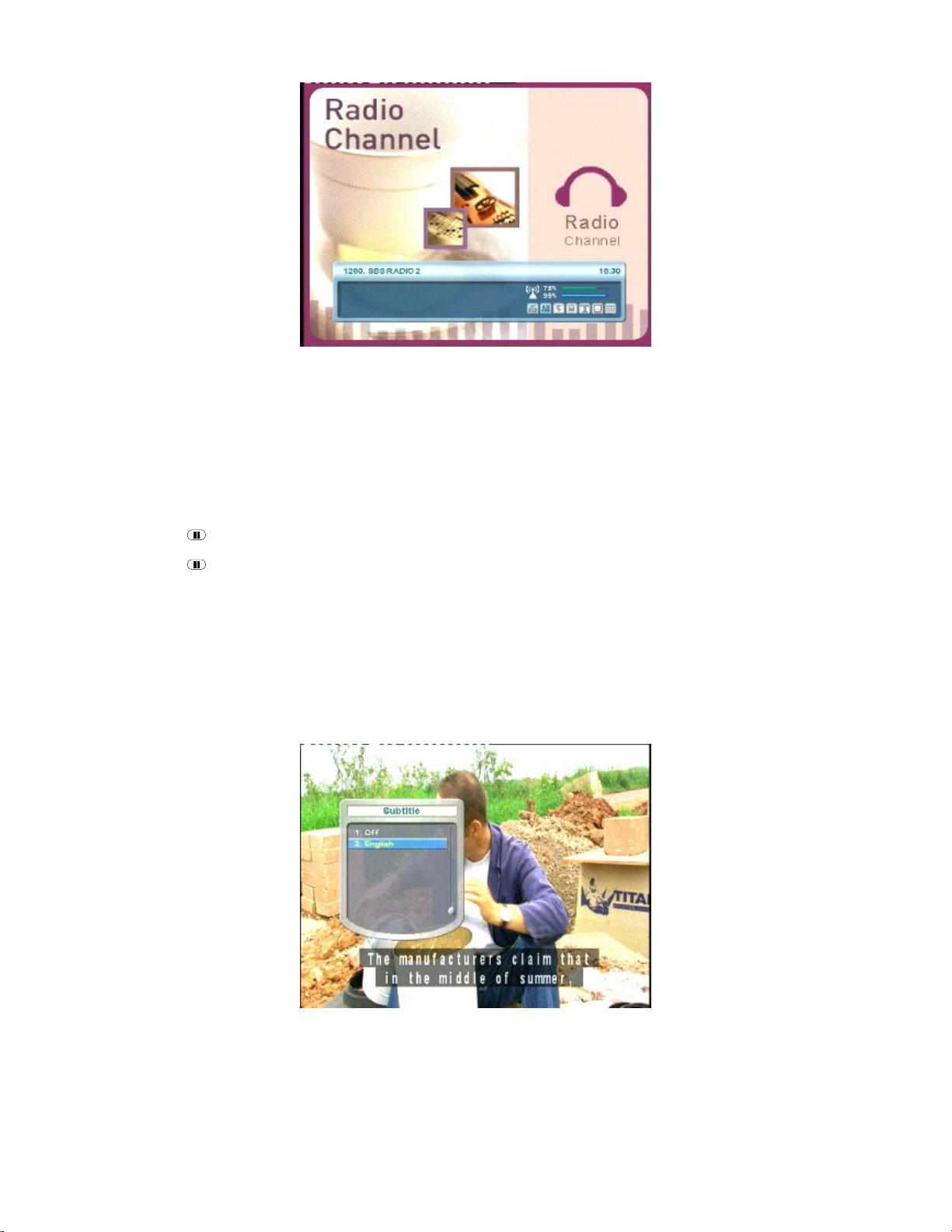

Switching between TV and radio

To switch between TV and radio mode:

1. Press TV/RAD on the remote control to switch between TV channels and radio stations (or vice versa).

Page 24

2. Press CH ▼or CH ▲ to select the station. (You can also press OK to see a menu of all radio stations. Again, press CH ▼or CH ▲ to select the station you want to hear and then press OK.)

Pausing the screen

You can pause what you are watching, thereby freezing the screen.

1. Press

2. Press

to freeze the display.

again to resume normal viewing.

Subtitle language

If a channel is being broadcast in more than one subtitle language, you can choose which subtitle language will be displayed.

1. Press the blue button on the remote control. The Subtitle menu appears.

2. Select your preferred subtitle language from the list by pressing the CH ▼or CH ▲ buttons on the remote control. (To turn off subtitles, choose Off.)

3. Press OK. The subtitles will be displayed at the bottom of the screen.

Page 25

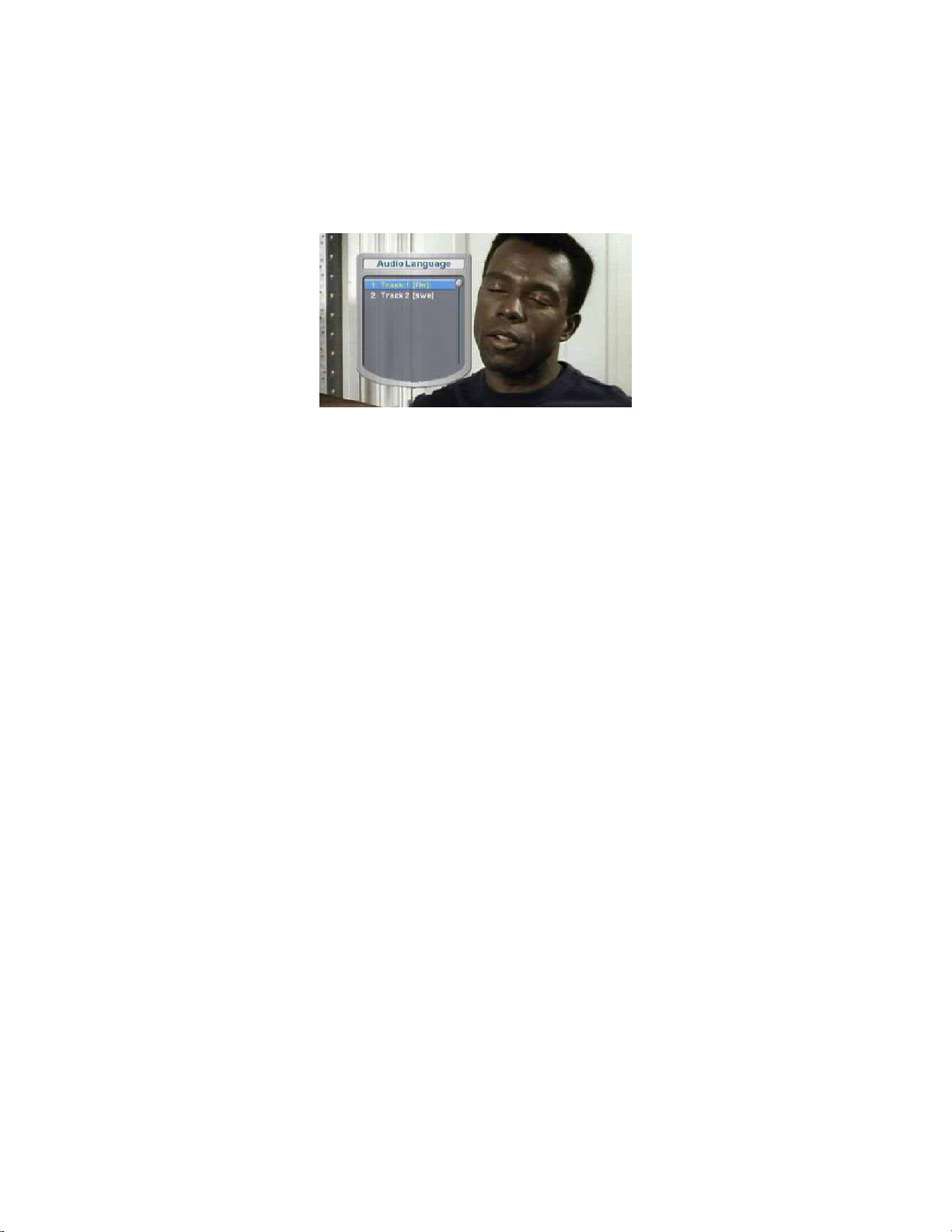

Audio language

If a channel is being broadcast in more than one audio language, you can choose which language to listen to.

1. Press the red button on the remote control to display the Audio Language menu.

2. Press CH ▼or CH ▲ to highlight your preferred language.

3. Press OK to select the language you have chosen. The audio language will change immediately.

Managing channels

Scanning for channels and stations

The Search Channel option on the main menu enables you to scan for digital TV and radio stations that can be detected in your area. Once detected, the stations can be easily selected from the remote control or by pressing the channel keys on the front panel of the SRT 5392 (see the diagram on page 8).

When you initially set-up the SRT 5392, the channels and stations in your area were automatically detected (see “First time set-up” on page 17). If you have moved locations, deleted channels or stations, or if new channels and stations have become available, you will need to search for channels and stations again. Two searching options are available:

• Automatic Search

This is the recommended option when you are first setting up the SRT 5392. It will automatically search for all digital TV and radio stations that can be detected and stores their details.

• Manual Search

This option lets you search for a particular channel (or all channels from a specified broadcaster).

Automatic Searching

1. Press MENU on the remote control.

2. If necessary, press VOL

or VOL to display the Search Channel menu.

3. With Automatic Search highlighted, press OK.

4. A confirmation message appears. Press OK again.

The SRT 5392 scans for channels and stations. As it finds them, it displays them (grouped by

Page 26

broadcaster). When scanning is complete, the Main Menu re-appears. One of the TV channels detected will appear on the menu screen. When the scanning is complete, you will be prompted to save the channels.

5. When prompted, press OK to save the channels and stations detected.

6. Press MENU to return to normal viewing.

Manual Searching

NOTE: Automatic searching (described above) is suitable in most cases. You might use manual searching if you have deleted a channel and now want to access it again. In this case, you would just search for that particular channel.

1. Press MENU on the remote control.

2. If necessary, press VOL

3. Press CH ▼or CH ▲ to highlight Manual Search and press OK.

The Manual Search screen appears. All the channels the SRT 5392 can detect are listed in the Channels list.

4. Press CH ▼or CH ▲ to highlight a channel you want to search for and then press OK. Repeat this for every channel you want to search for. A tick appears beside each channel you select.

• To select all the channels listed, press VOL

press OK.

• To deselect a selection, highlight it again and press OK. The tick beside it is deleted.

• To deselect all selections, press VOL

5. To begin the search, press the red button on the remote control.

or VOL to display the Search Channel menu.

or VOL, highlight Select all channels and

or VOL, highlight Clear selections and press OK.

If the channel can be found, the details are shown on the screen and can be saved by pressing OK.

6. Press MENU to return or EXIT to return to normal viewing.

Displaying the channel list

The channel list is a list of all the available channels.

Page 27

1. To display the selected channel list, press the OK button.

2. Press CH ▼or CH ▲ to highlight the channel you want and then press OK.

TIP: You can change the list from TV channels to radio stations, and vice versa, by pressing TV/RAD.

Sorting the channel list

You can sort the channel list to display the channels either in groups or in alphabetical order.

1. Press the OK button to display the channel list,

2. To sort the channel list by alphabetical order, press the green button on the remote control. (To re-sort the channels in number order, press the green button again.)

NOTE 1: To quickly find a channel in an alphabetically sorted channel list, press the number button on the remote control that corresponds to the first letter of the channel name. For example, press the 2 button (also labelled abc) to see channels beginning with ‘a’; press 8 (t,u,v) to see channels beginning with ‘t’ etc.

NOTE 2: The red button on the remote control has no functionality when the channel list is displayed.

3. Press MENU or EXIT to close the channel list without making a selection.

TIP: Press the VOL page of listings.

or VOL (or PAGE ▼ or PAGE ▲) to quickly jump to the next (or previous)

Multi-Picture mode

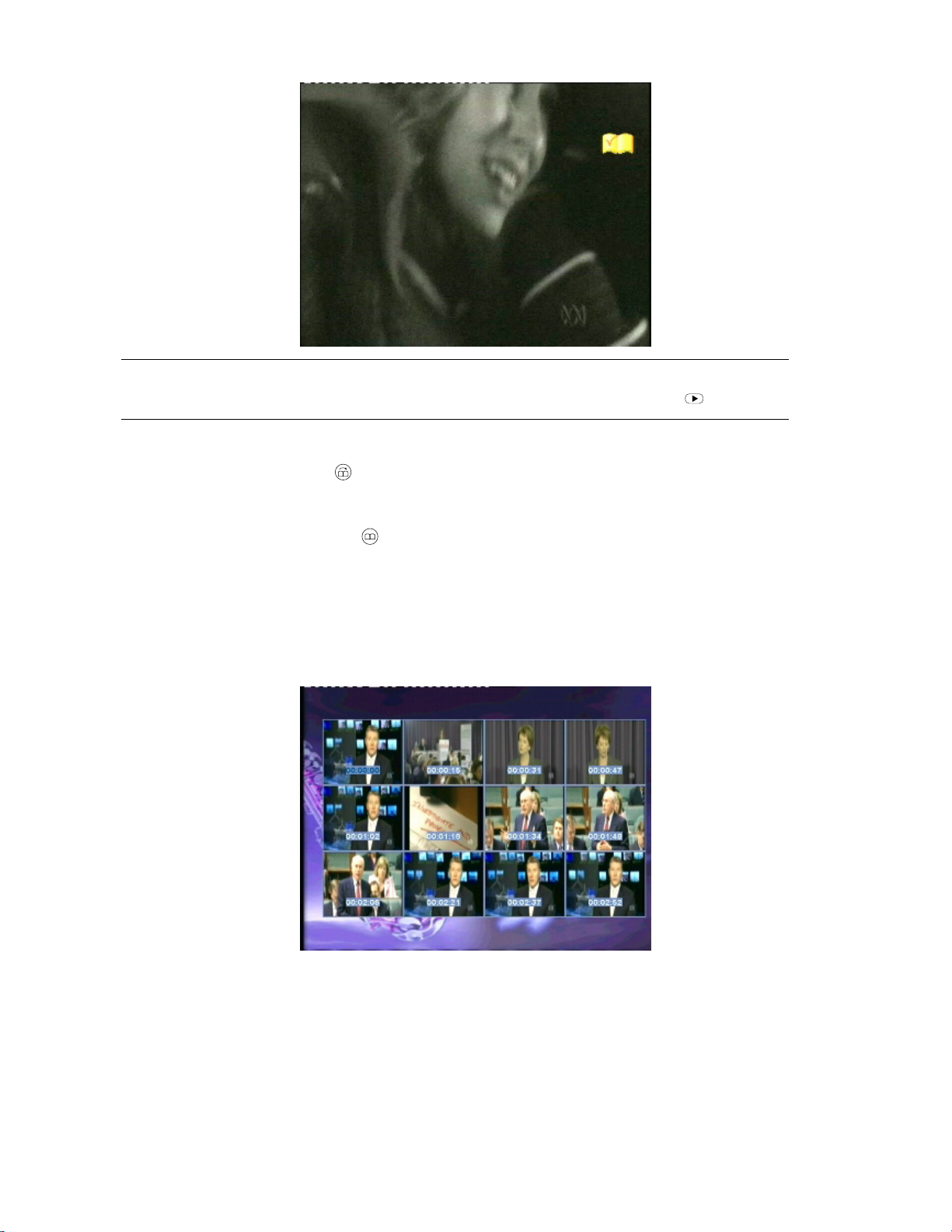

You can display more than one channel at a time. The channels are displayed in channel number order starting from a selected channel.

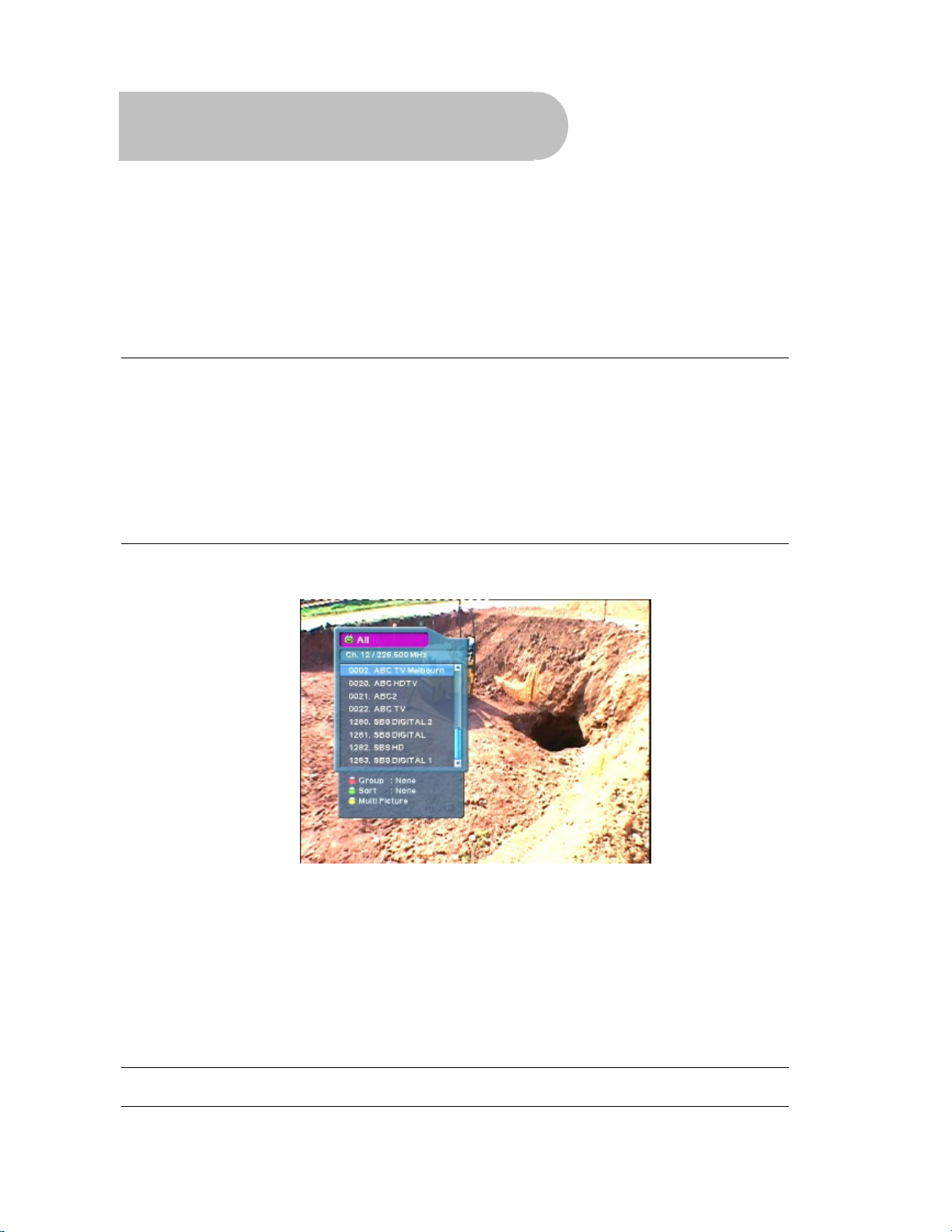

1. Press the OK button to display the channel list.

2. Press CH ▼or CH ▲ to highlight the first channel in the set of channels you want to display.

3. Press the yellow button in the remote control. The Multi Picture menu appears.

4. Press CH ▼or CH ▲ to highlight the number of channels you want to display simultaneously and press OK.

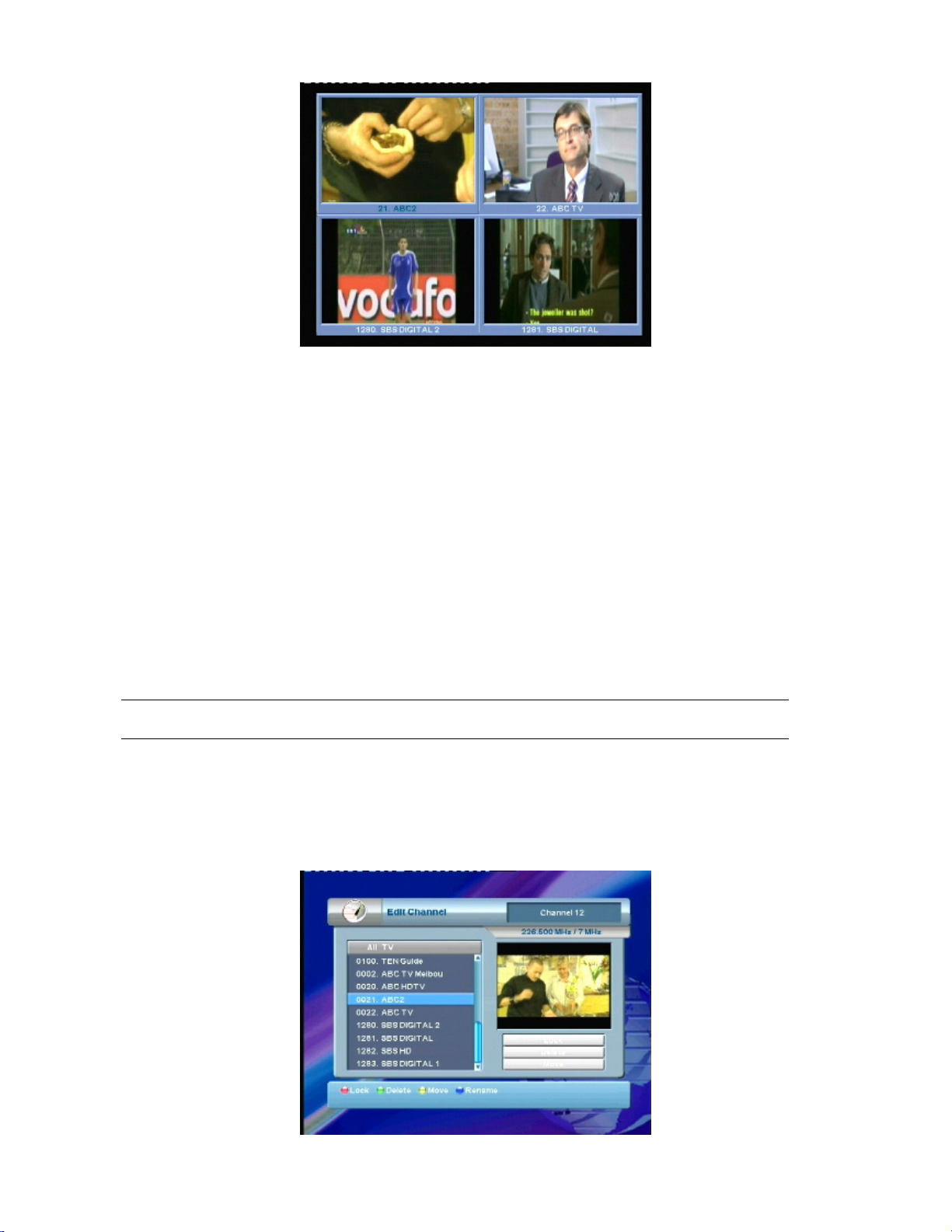

The screen is tiled to fit the number of channels you selected (four in the example below).

Page 28

5. To select a channel for normal viewing, press VOL channel and then pres OK or MENU.

6. To return to the channel list without making a selection, press EXIT.

or VOL or CH ▼or CH ▲ to highlight the

Editing channels

The Edit option on the main menu enables you to:

• lock, delete, move and rename channels

• create up to four lists (or groups) of favourite channels.

Locking channels

Locking a channel prevents a channel from being viewed unless you have the parent lock password to unlock it.

NOTE: You can also lock radio stations and recorded files.

1. Press MENU to display the main menu.

2. Use VOL

or VOL to select Edit.

3. In the Edit screen, highlight Edit Channel and then press OK.

A list of your TV channels appears.

Page 29

4. If you want to lock (or unlock) radio stations rather than TV channels, press TV/RAD on the remote control. A list of radio stations appears. Pressing TV/RAD again redisplays the TV channels.

5. Press CH ▼or CH ▲ until a channel or station you want to lock (or unlock) is highlighted.

6. Press the red button on the remote control to lock (or unlock) the highlighted channel or station.

An icon of a padlock appears beside the channel or station name to indicate that it is locked. (If you are unlocking a locked channel or station, the padlock icon disappears.)

7. Repeat from step 5 for each channel or station you want to lock (or unlock).

8. Press MENU or EXIT. A confirmation message appears asking you to confirm the changes you have made.

9. Press OK to save the changes.

When you select a locked channel or station, the password screen appears. Enter the 4-digit password using the number buttons on the remote control.

NOTE: The default password is 0000.

Deleting channels

You can delete channels that you are unlikely to watch. If you want to re-instate a channel that you have deleted, you will need to rescan for it. See “Scanning for channels and stations” on 25 for instructions.

NOTE: You can also delete radio stations.

1. Press MENU to display the main menu.

2. Press VOL

3. In the Edit screen, highlight Edit Channel and then press OK.

A list of your TV channels appears.

4. If you want to delete a radio station rather than a TV channel, press TV/RAD on the remote control. A list of radio stations appears. Pressing TV/RAD again redisplays the TV channels.

5. Use CH ▼or CH ▲ until the channel or station you want to delete is highlighted.

6. Press the green button on the remote control to mark the channel for deletion.

A tick icon appears beside the channel or station name to indicate that it has been selected for deletion. If you have accidentally marked a channel or station for deletion, deselect it by pressing OK again. The tick beside that channel or station will disappear.

7. If you want to select another channel or station for deletion, repeat from step 5.

8. Press MENU or EXIT. A confirmation message appears asking you to confirm the changes you have made.

9. Press OK to save the changes.

or VOL to select Edit.

Re-arranging channels

You can re-arrange channels so that they are arranged in an order of your choosing.

1. Press MENU to display the main menu.

Page 30

2. Press VOL

3. In the Edit screen, highlight Edit Channel and then press OK.

A list of your TV channels appears.

4. If you want to move a radio station rather than a TV channel, press TV/RAD on the remote control. A list of radio stations appears. Pressing TV/RAD again redisplays the TV channels.

5. Press CH ▼or CH ▲ until the channel or station you want to move is highlighted.

6. Press the yellow button on the remote control.

This will enable you to move the channel.

7. Use CH ▼or CH ▲ to move the highlighted channel to your preferred position and then press OK.

8. If you want to move another channel or station, repeat from step 5.

9. Press MENU or EXIT. A confirmation message appears asking you to confirm the changes you have made.

10. Press OK to save the changes.

or VOL to select Edit.

Renaming channels

1. Press MENU to display the main menu.

2. Press VOL

3. In the Edit screen, highlight Edit Channel and then press OK.

A list of your TV channels appears.

4. If you want to rename a radio station rather than a TV channel, press TV/RAD on the remote control. A list of radio stations appears. Pressing TV/RAD again redisplays the TV channels.

5. Press CH ▼or CH ▲ until the channel or station you want to rename is highlighted.

6. Press the blue button on the remote control.

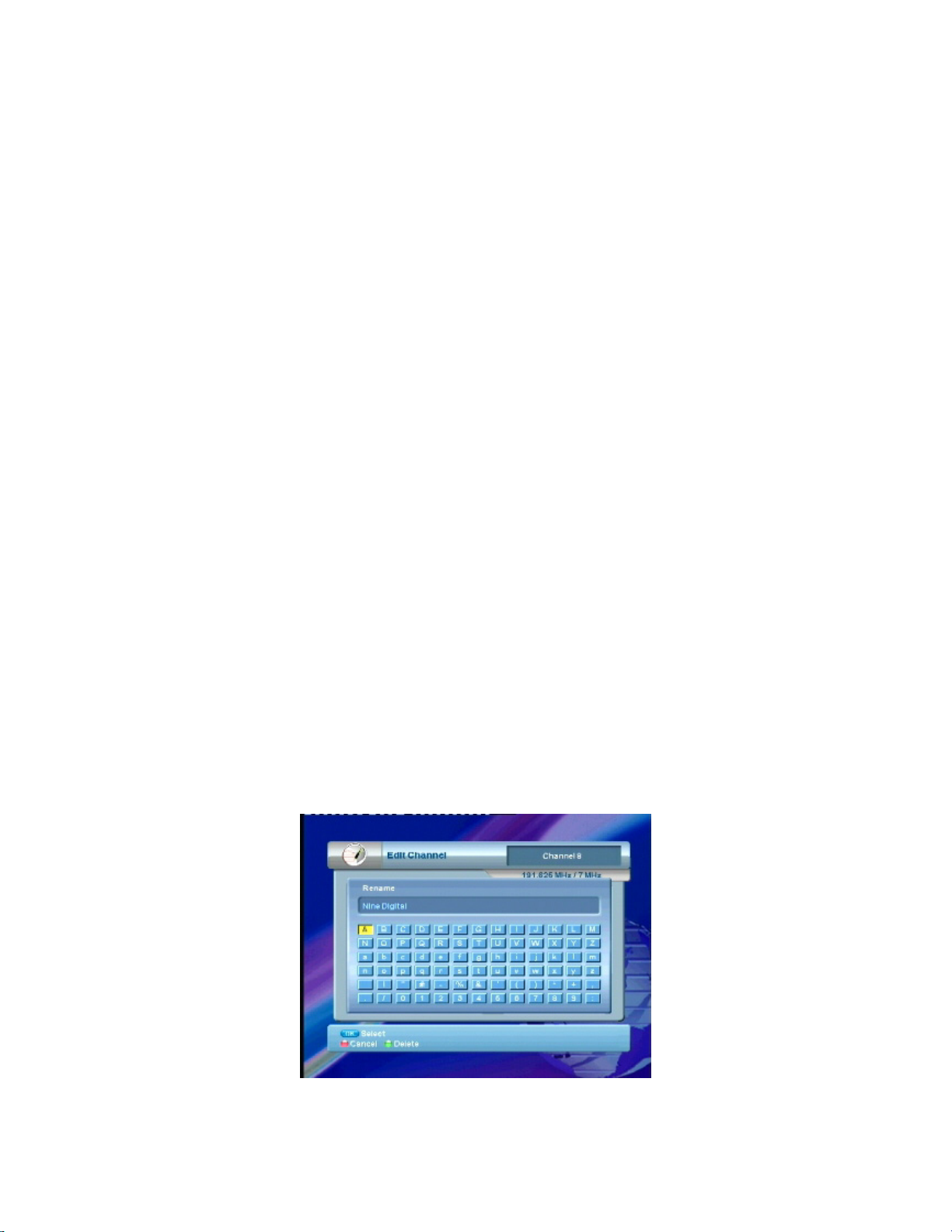

An on-screen keypad appears. It is in two parts: the title bar (showing the current name of the channel) located at the top, and the keypad (showing all the characters you can select) is located below the title bar.

or VOL to select Edit.

7. Press VOL character will be highlighted. Press OK to select that character. Continue to select characters

, VOL, CH ▼or CH ▲ to move around the on-screen keypad. The active

Page 31

until you have selected all the characters to form the new name.

NOTE: If you select the wrong character, press the green button to erase the last character.

8. When you have finished selecting all the required characters, press EXIT to return to the Edit channel screen. The new name you have created will be displayed in the channel list.

9. If you want to rename another channel or station, repeat from step 5.

10. Press MENU or EXIT. A confirmation message appears asking you to confirm the changes you have made.

11. Press OK to save the changes.

Setting passwords

You can restrict access to the SRT 5392 by specifying that a password must be entered in order to see or do certain things. You can, for instance, restrict access to menus, access to channels, access to the receiver, and access to programs of particular classifications.

To restrict access:

1. Press MENU to display the main menu.

2. Press VOL

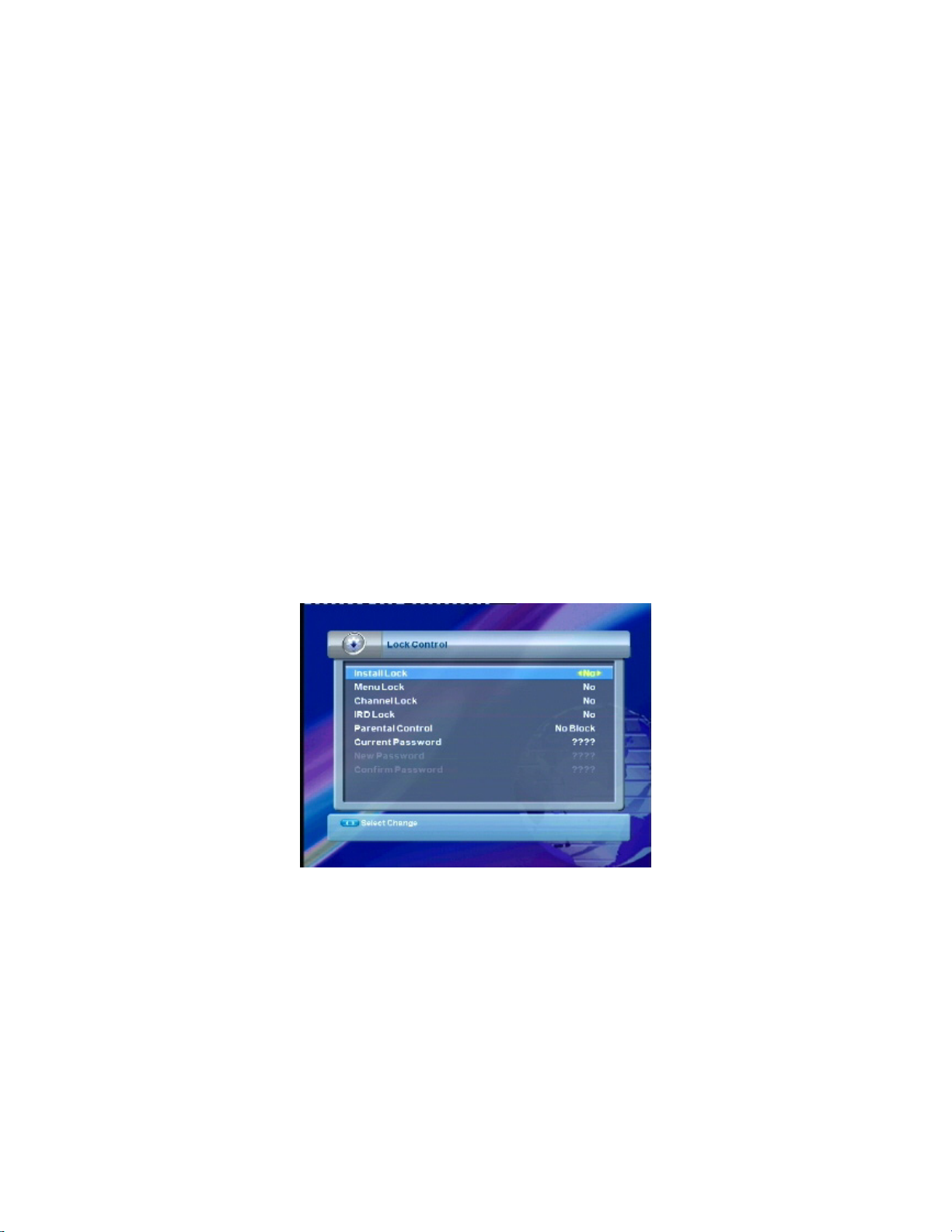

3. Press CH ▼or CH ▲ until Lock Control is highlighted. and then press OK. The Lock Control window appears.

4. To restrict access to the SRT 5392 for installation tasks (such as software upgrades), select Install Lock and press VOL

5. To restrict access to the menus, select Menu Lock and press VOL highlighted.

or VOL to select Setup.

or VOL until Yes is highlighted.

or VOL until Yes is

6. To enable channels to be locked, select Channel Lock and press VOL highlighted.

7. To restrict all access to the SRT 5392, select IRD Lock and press VOL highlighted.

8. To restrict access to channels of a particular classification, select Parental Control and press VOL

or VOL until Yes is

or VOL until the minimum classification that requires a password is highlighted. The options

are No Block, Block All, G, PG, M, MA and AV.

Page 32

9. To set a password for the options you have chosen, you first need to enter the current password. (The default password is 0000.) Select Current Password and enter it using the number keys on the remote control.

10. If you want to set a new password, select New Password and enter it using the number keys on the remote control. You will need to re-enter it in the Confirm Password field.

11. Press EXIT and then OK to save your changes.

Favourites lists

You can create a favourite list of channels and then select a channel from that list. This makes it easier to choose and switch between channels if there are many channels available in your area.

NOTE: You can also add radio stations to a favourites list.

Creating favourites

Follow this procedure to add a channel or station to a favourites list, or to remove it from a favourites list. You can create up to ten favourites lists.

1. Press MENU to display the main menu.

2. Press VOL

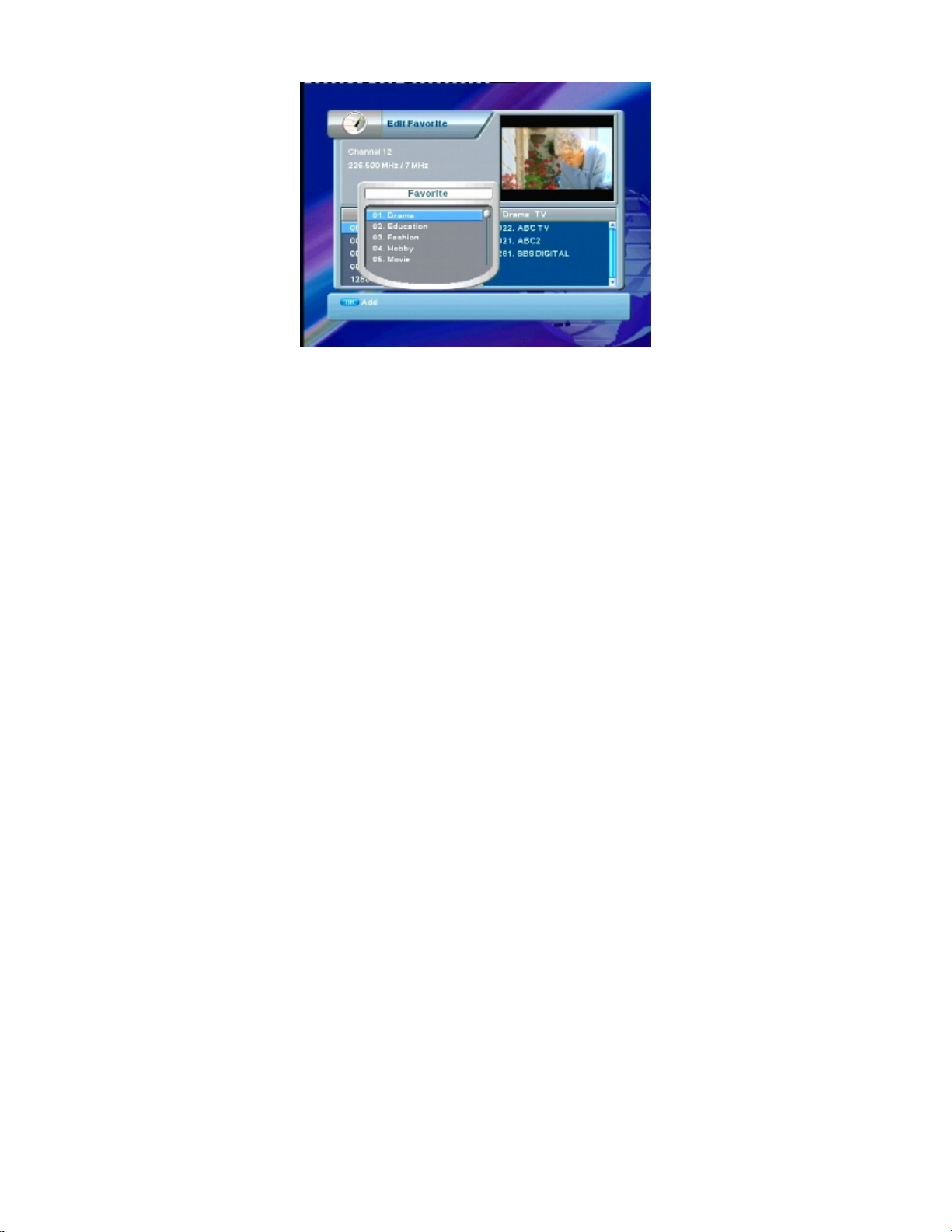

3. If Edit Favorite is not highlighted, press CH ▼ and then press OK. The Edit Favourite screen appears.

4. Press FAV on the remote control. A menu of favourites lists appears. By default, these are named Drama, Education, Fashion, Hobby, Movie, Music, News, Show, Sports and Tour.

or VOL to select Edit.

Page 33

5. Press CH ▼or CH ▲ until the list you want to add channels or stations to is highlighted, and then press OK.

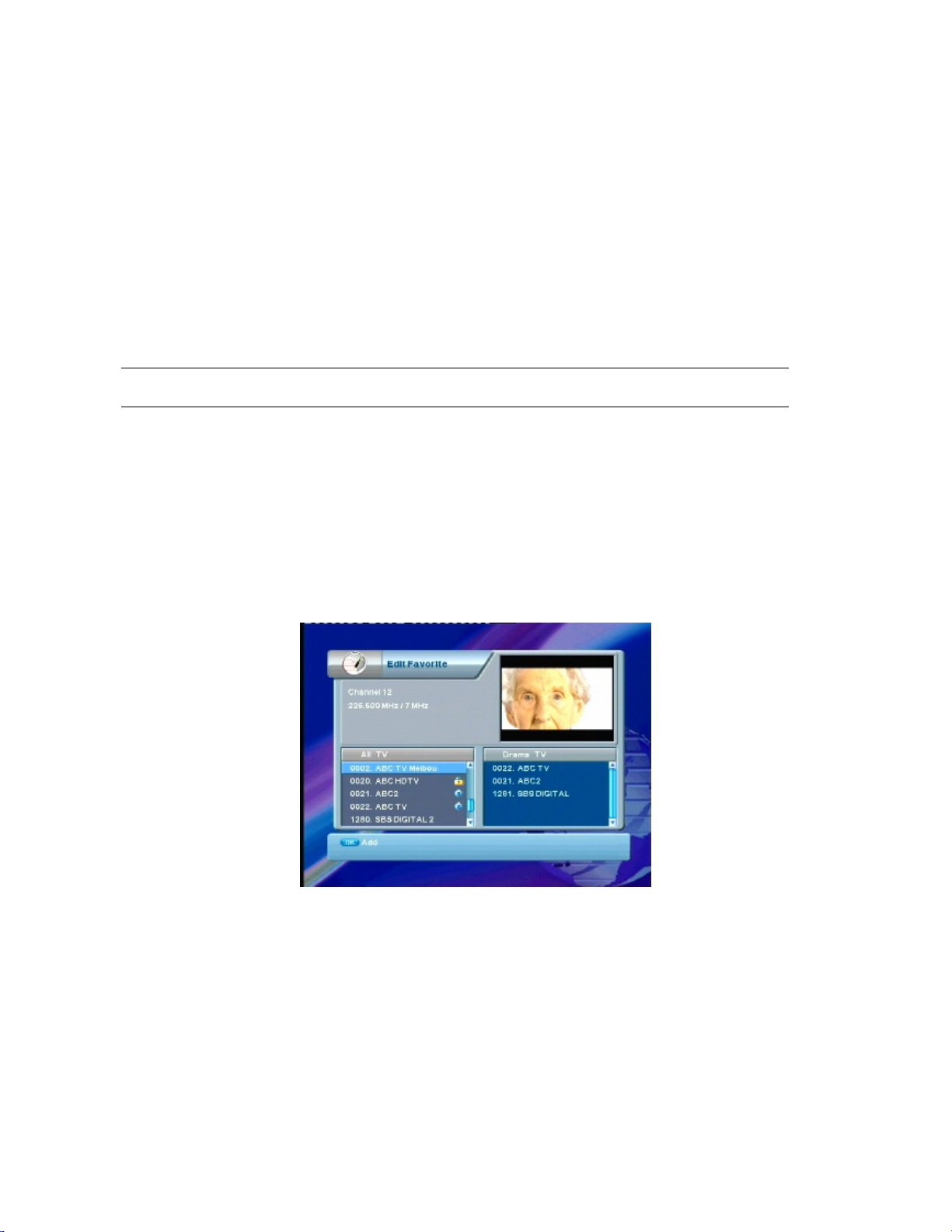

The Edit Favorite screen has 2 columns: on the left is a list of all your TV channels and on the right is a list of the channels or stations currently assigned to the selected favourites list.

6. If you want to add a radio station to your favourites list (or remove it), press TV/RAD on the remote control. A list of radio stations appears. Pressing TV/RAD again redisplays the TV channels.

7. In the All TV (or All Radio) column, press CH ▼or CH ▲ until the channel or station you want to add to (or remove from) the selected favourites list is highlighted.

8. Press OK to add the channel or station to the favourites list (or remove it if it is already on that list).

NOTE: A channel or station that is already in the favourites list has an icon beside its name. If you are removing a channel or station from your favourites list, the icon disappears.

9. If you want to add (or remove) another channel to (or from) your favourites list, repeat from step 5.

10. Press MENU or EXIT. A confirmation message appears asking you to confirm the changes you have made.

11. Press OK to save the changes.

Editing favourites

You can lock, rename and re-arrange the channels and stations in a favourites list. You can also rename a list.

1. Press MENU to display the main menu.

2. Press VOL

3. If Edit Favorite is not highlighted, press CH ▼ and then press OK.

4. Press FAV on the remote control. A menu of favourites lists appears.

5. Press CH ▼or CH ▲ until the list you want to edit is highlighted, and then press OK.

6. If necessary, press VOL

7. Press CH ▼or CH ▲ until the channel you want to lock, rename or re-arrange is highlighted. (Select any channel if you just want to rename the list.)

or VOL to select Edit.

 to move the cursor to the list of favourites.

Page 34

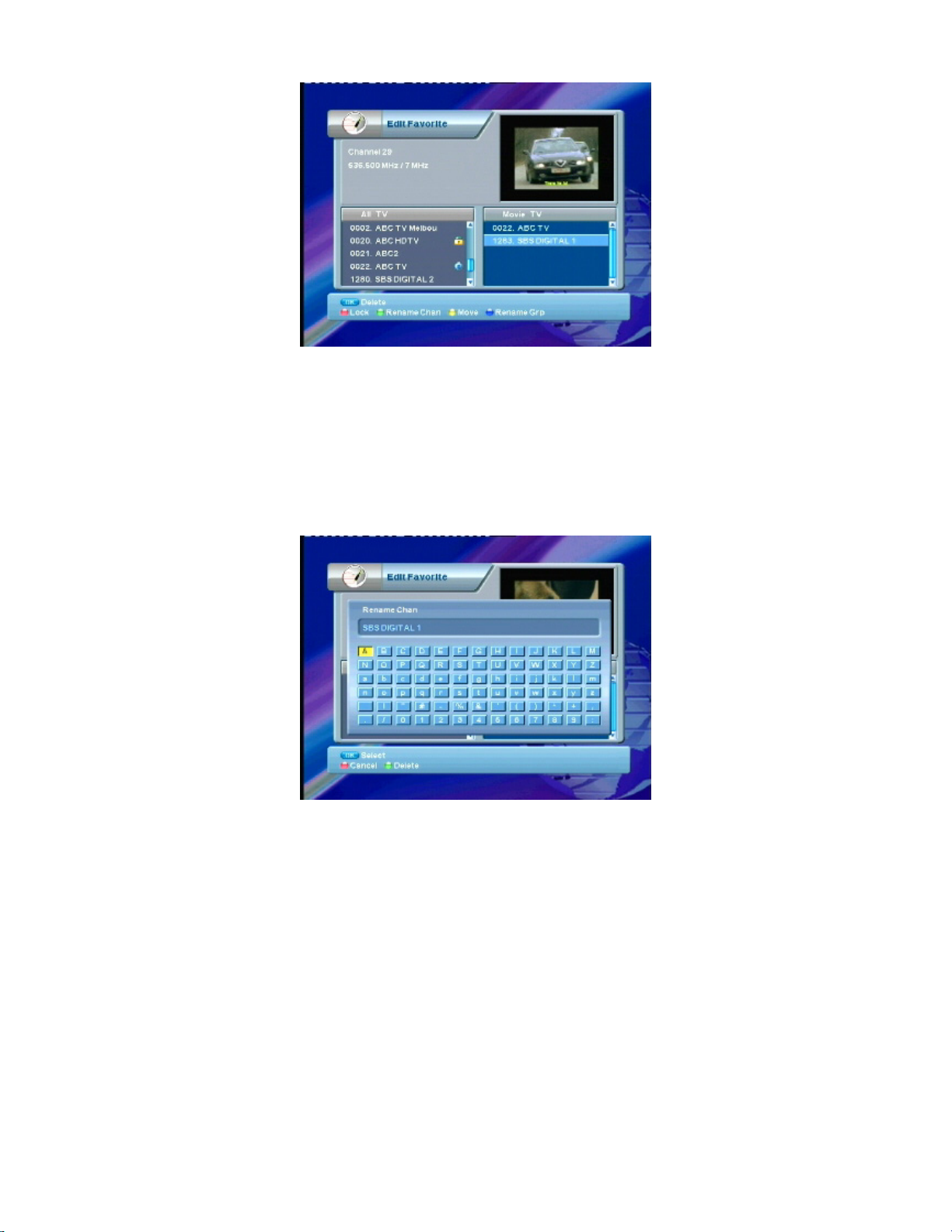

8. Press the appropriate button on the remote control (as indicated on the screen) to edit the selected channel or the list.

Red button: Locks a channel. A padlock appears beside the channel.

Green button: Displays an on-screen keyboard enabling you to rename the channel. Press VOL

, VOL, CH ▼or CH ▲ to move around the on-screen keypad, and then press OK to select

the currently highlighted letter. When you have finished renaming the channel, press EXIT to return to the Edit Favourite screen.

Yellow button: Select the channel whose position in the list you wan to change, press the yellow button, and then press CH ▼or CH ▲ to move the selected channel to its new position. Press OK when the channel is in the correct position.

Blue button: Displays an on-screen keyboard enabling you to rename the list. Press VOL VOL

, CH ▼or CH ▲ to move around the on-screen keypad, and then press OK to select the

currently highlighted letter. When you have finished renaming the list, press EXIT to return to the Edit Favourite screen.

9. When you have finished re-organising your favourites list, press MENU. A message appears asking you to confirm the changes you have made.

10. Press OK to save the changes.

,

Selecting from a favourites list

1. Press OK to display the channel list.

2. Press FAV. A menu of favourites lists is displayed.

Page 35

3. Press CH ▼or CH ▲ to select a favourites list.

4. Press OK. The channels in the selected list appear in the channel list.

5. Press CH ▼or CH ▲ to select a channel from the favourites list.

6. Press OK to view the selected channel.

The next time you display the channel list, just the channels in the last selected favourites list are displayed. To select another favourite lists (or to display all the available channels), press FAV and choose an appropriate option.

NOTE: If you find that not all the expected channels are appearing in various lists (such as the channel list), this may be because you have a favourites list selected. A favourites lists remains selected until you choose another favourites list or until you choose All from the menu of favourites (at step 3 above).

Program information

Electronic Program guide (EPG)

Some providers broadcast information about their programs. This information is available on screen via an electronic program guide (displayed by pressing EPG on the remote control). An example is shown below.

In default mode, all available channels are listed across the top of the screen of the screen. Press VOL or VOL to move from channel to channel. The programs of the currently selected channel are listed below the channel. (Pressing the red button on the remote control provides an alternative view of the same information.)

Where information is available, you can select the program and press INFO to learn more about it.

Page 36

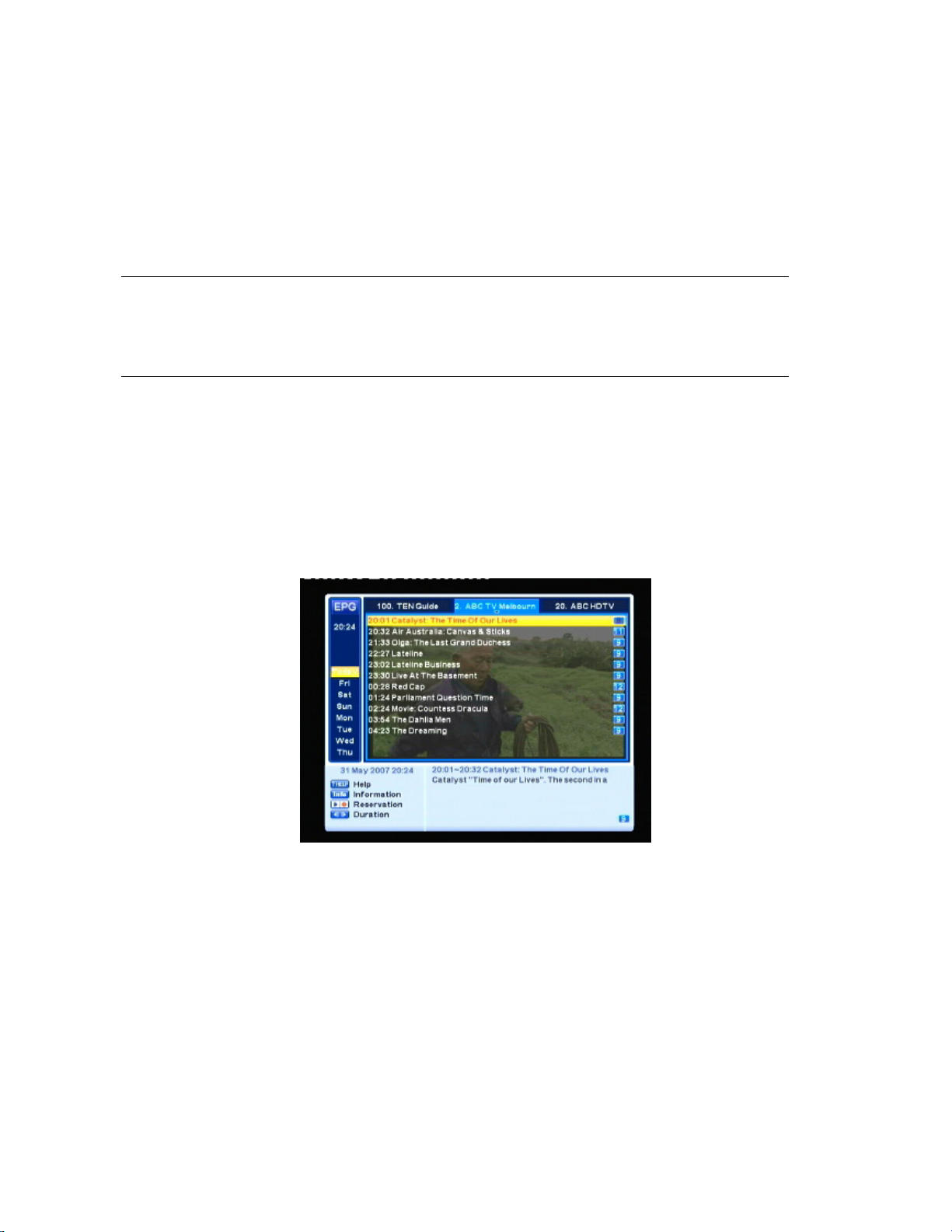

1. Press EPG on the remote control. The electronic program guide screen appears.

2. Press VOL highlighted. (You can also press the green button on the remote control to display a menu of channels. Select a channel from the menu and press OK to display the program guide for that channel.)

3. Press the buttons listed at the bottom of the screen for various options:

• Red: Switches the mode from daily to weekly program guide.

• Yellow: Shows the next day’s programs (in weekly mode) or the next program (in daily

• Green: Displays a selectable menu of channels.

• Blue: Displays the next page of event information (if there is more than one page).

• Record button (

4. Press MENU or EXIT to close the EPG.

or VOL to scroll through the channels until the channel you are interested in is

mode).

): Reserves the selected program for recording.

Displaying information while viewing a program

You can display information about a program while watching it. Three levels of information are available.

• To display basic information, press INFO once on the remote control.

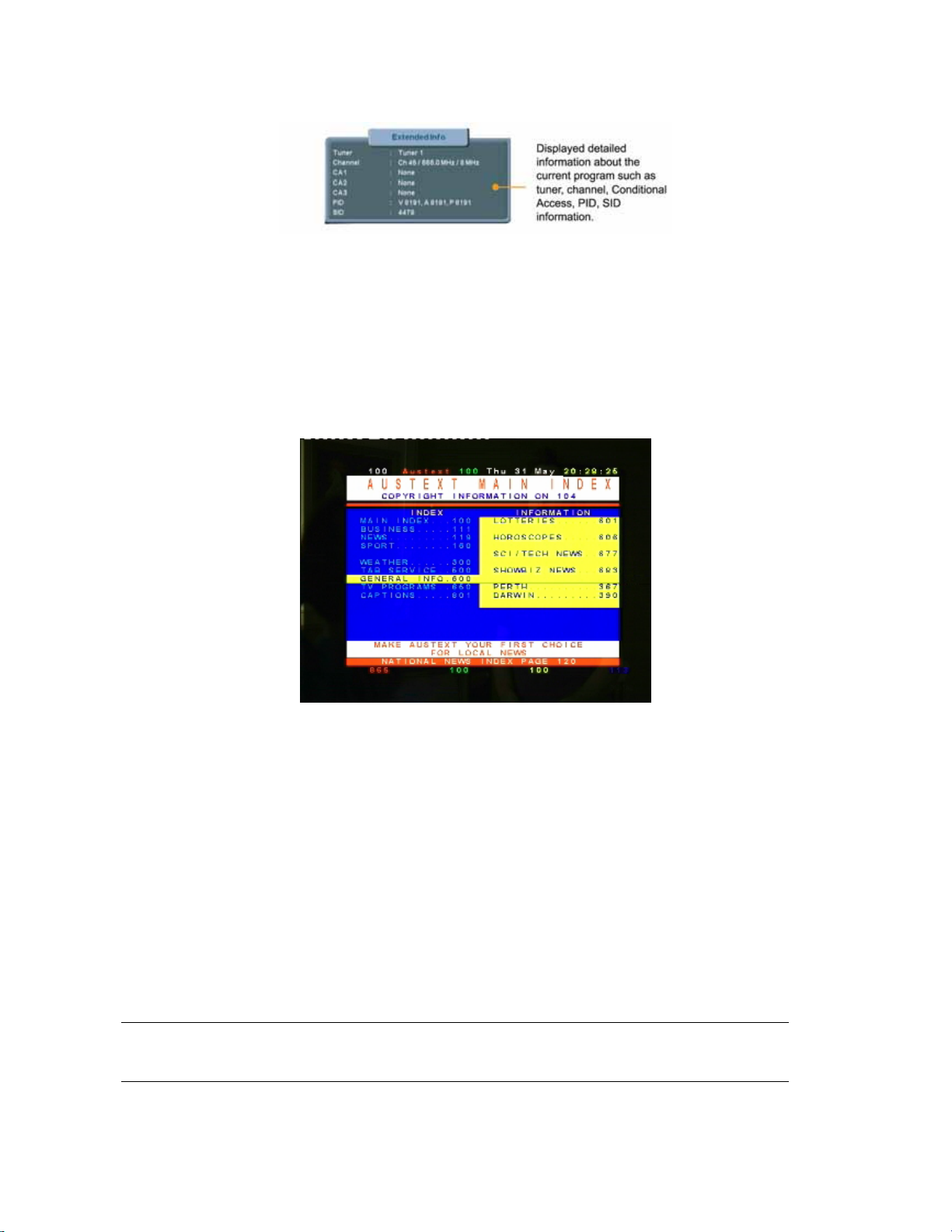

• To display program guide information, press INFO twice. A description of the program appears.

Page 37

• To display extended information, press INFO three times.

• To hide the program information, press EXIT.

Teletext

Teletext is a text-based data service. Teletext carries information such as news, weather and stock quotations. It is available only when the broadcasting signal carries such data.

1. Select a channel that is broadcasting teletext.

2. Press the yellow button on the remote control. The teletext service data is displayed.

3. Select a teletext page by pressing the corresponding number or colour button on the remote control.

4. Press EXIT to cancel teletext.

Picture settings

Picture in Picture (PIP)

The PIP function allows you to watch two different channels on one screen. PIP works by superimposing a second channel onto the main screen. You can choose between watching two live stream channels, or one playback channel and one live stream channel.

PIP works in TV, radio, playback and recording mode.

NOTE: You can also display multiple pictures simultaneously using the multi-picture functionality. See “Multi-Picture mode” on page 27 for information.

Page 38

Viewing PIP

Press on the remote control. A secondary picture (the PIP window) appears on the screen, showing another channel (or a program being played back).

Press again. The secondary picture becomes smaller. If you press a third time, the secondary window disappears.

Changing the position of the PIP window

Press on the remote control. The PIP window moves from one corner of the screen to another. Continue pressing

to move the PIP window in a cycle around the main screen.

Changing the PIP channel

You can view the main channel or the PIP channel.

1. To change the main channel (that is, the channel in the primary window), press CH ▼or CH ▲.

2. To change channels on the PIP screen, press ▲ to select the channel, and then press OK.

. The PIP channel list appears. Press CH ▼or CH

Switching between the main window and the PIP window

Press to switch the programs in the PIP window and the main window. For example, if the main window is showing a channel 7 program and the PIP window is showing a channel 9 program, pressing window.

shows the channel 9 program in the main window and the channel 7 program in the PIP

Zooming in or out

You can zoom in our out on part of the display (whether the display is paused or not).

To zoom in (or out):

1. Press EXIT on the remote control.

The corners of a rectangle (coloured yellow) appear on the screen. The contents of this zoom rectangle will fill the screen when you complete the zoom operation.

Page 39

2. To change the size of the zoom rectangle:

• Press the red button to enlarge it.

• Press the green button to shrink it.

3. To change the central point of the zoom rectangle, press CH ▼, CH ▲, VOL

4. Press OK to zoom in or out.

5. Press EXIT again to cancel zooming.

or VOL.

Page 40

Recording and Playback

Recording

The SRT 5392 has an in-built 250GB hard-disk onto which you can record programs. You can record a single program or several programs at the same time, depending on the recording mode. There are four recording modes:

• Timeshift recording mode

• Instant recording mode

• Normal recording mode

• Timer recording mode

NOTE: In timeshift recording mode, the program is recorded in a memory buffer, not onto the hard disk. In other modes, programs are recorded onto the hard disk.

Timeshift recording mode

Timeshift recording mode automatically records up to two hours of whatever you are watching. In this mode, you can watch a live TV program and use the time shift functions to return to an earlier part of that live program. You can then play back that earlier part, and then catch up with the live program. For detailed instructions, see “Timeshift” on page 49.

There are two ways to enable or disable timeshift recording.

Method 1

Press TIMESHIFT on the remote control.

If timeshift recording mode was disabled, pressing TIMESHIFT enables it and sets the maximum recording duration to the default value of 2 hours. (If you want a different recording duration, follow method 2 below.)

If timeshift recording mode was enabled, pressing TIMESHIFT disables it.

Method 2

1. Press MENU to display the main menu.

2. Press VOL

3. Press CH ▼or CH ▲ to select HDD Option and then press OK. The HDD option screen appears.

4. Highlight Timeshift and press VOL

or VOL until HDD is selected.

or VOL to set the mode to Enable (or Disable).

Page 41

5. Highlight Duration and press VOL minutes.

6. Press MENU or EXIT. A message appears asking you to confirm the changes you have made.

7. Select OK to save the setting.

or VOL to select the required duration: 30, 60, 90 or 120

Instant recording mode

To begin immediately recording the current program, press on the remote control. Unless stopped, the recording will continue for six hours. You can stop recording manually, or set a duration for the recording.

To stop recording manually

1. Press on the remote control. A message appears asking you to confirm that you want to stop recording.

2. Press OK.

To stop recording by specifying a duration

If you want recording to automatically stop before the six hour-default period has lapsed:

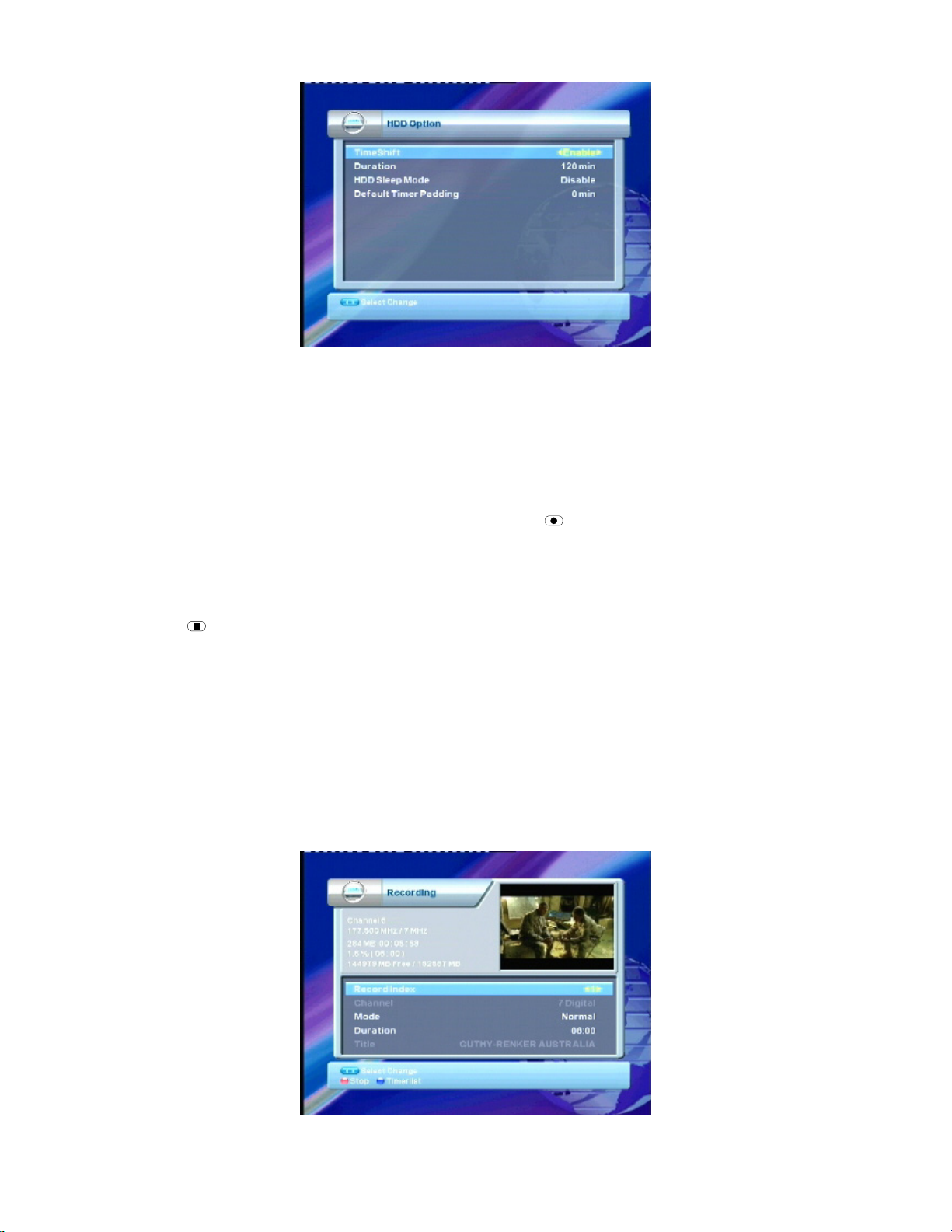

1. Press MENU to display the main menu.

2. Press VOL

or VOL until HDD is selected.

3. Press CH ▼or CH ▲ to select Recording and then press OK. The Recording screen appears.

Page 42

Details of the program currently being recorded appear on the screen.

4. Press CH ▼or CH ▲ to highlight Duration.

5. using the number keys on the remote control, enter a duration for the recording. (Press VOL move from digit to digit.)

6. Press OK. A message appears confirming that the duration has changed.

7. Press MENU to return to normal viewing.

to

Normal recording mode

Normal recording mode allows you to save up to four programs. In normal recording, you set the channel, time and duration of the recording. You can also watch a live program and use the time shift functions. For detailed instructions, see “Timeshift” on page 49.

1. Press MENU to display the main menu.

2. Press VOL

3. Press CH ▼or CH ▲ to select Recording and then press OK. The Recording screen appears.

or VOL until HDD is selected.

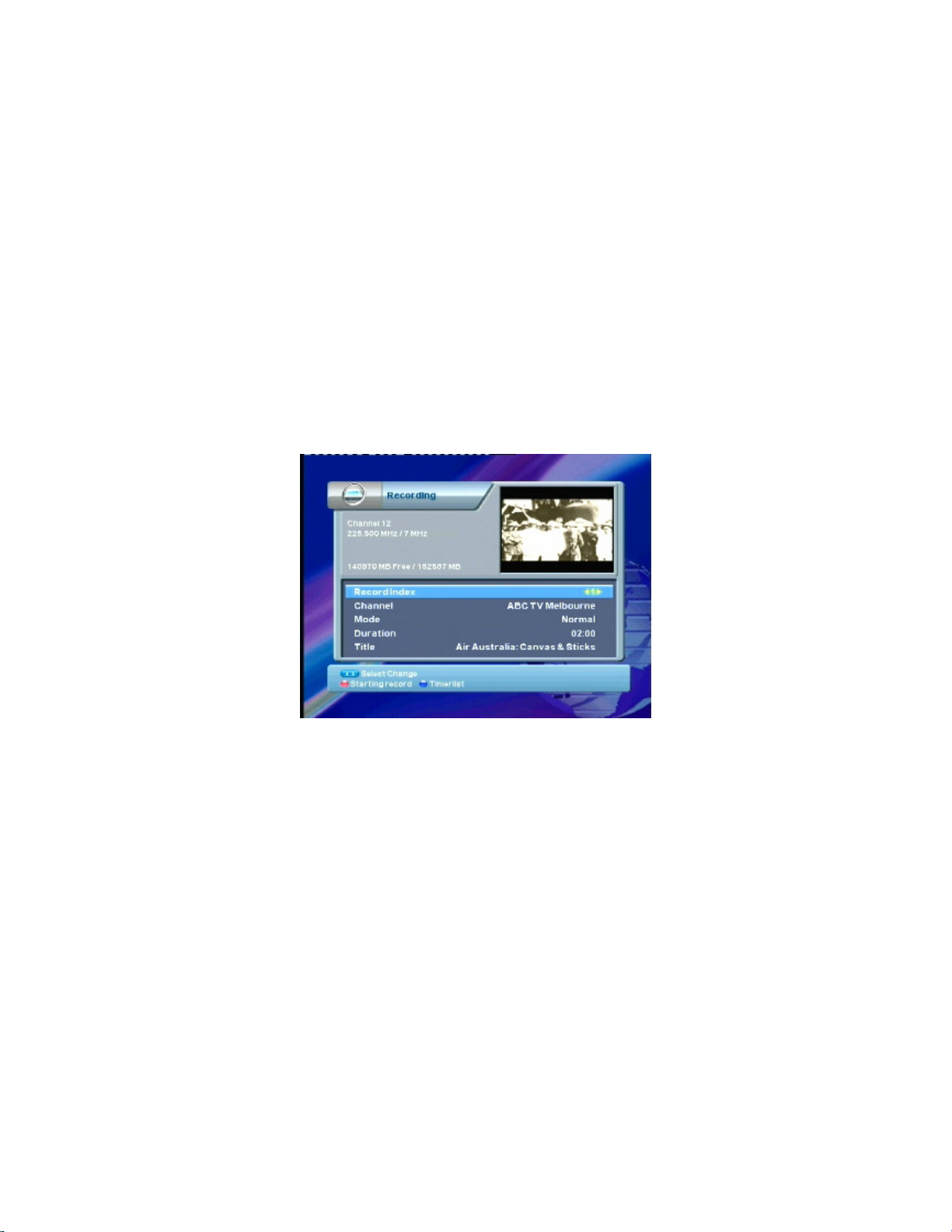

4. Set the required recording options:

• The Record Index is a number that identifies the particular recording. You can select 1, 2, 3

or 4. Press VOL

• With Channel selected, press OK to display a menu of all available channels. Press CH ▼or

CH ▲ to select the channel you want to record and press OK.

• The Mode option lets you determine how the duration of recording is to be set. There are

three options: Normal (which lets you set the duration); EPG time (which takes the duration from that shown in the Electronic Program Guide); and No Limit (which let’s you record continuously). Press VOL

• If you selected Normal mode, you can set a duration for the recording. Select the Duration

option and, using the number buttons on the remote control, enter the duration (in HHMM format).

• If you want to change the title of the program, select the Title option and press OK. An on-

screen keyboard appears. Press VOL screen keypad, and then press OK to select the currently highlighted letter. When you have finished renaming the program, press EXIT to return to the Recording screen.

5. Press the red button to begin recording immediately.

or VOL until the index number you want is displayed.

or VOL until the mode you want is displayed.

, VOL, CH ▼or CH ▲ to move around the on-

Page 43

6. Press MENU to exit the recording screen and return to normal viewing. A small recording window with the index number appears for a few seconds in the top right corner of the TV screen.

You can repeat this procedure to record up to four channels simultaneously.

Timer recording mode

Timer mode allows you to set a timer to start recording a program at a specified time. You can set up to forty timers.

1. Press MENU to display the main menu.

2. Press VOL

3. Press CH ▼or CH ▲ to select Timer Setting and then press OK. The Timer Setting screen appears.

or VOL until Setup is selected.

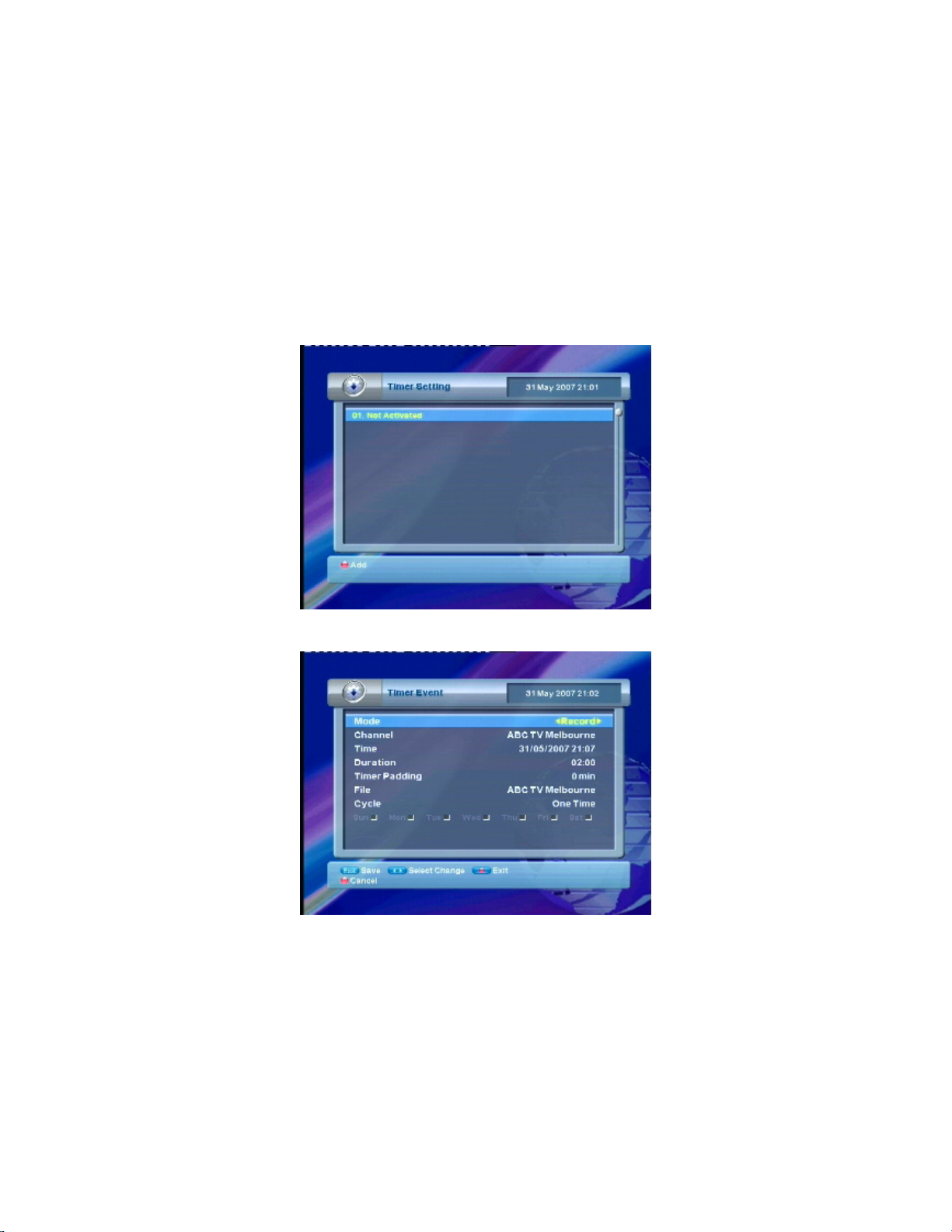

4. Press the red button to add a new timer recording. The Timer Event screen appears.

5. Set the required recording options:

• The Mode option lets you specify what is to occur at the specified time: start recording, turn

off the power, or turn on the power. Press VOL

• With Channel selected, press OK to display a menu of all available channels. Press CH ▼or

CH ▲ to select the channel you want to record (or to appear when the SRT 5392 powers on) and then press OK.

• With Time selected, press VOL

change is underlined. Enter a new digit using the number buttons on the remote control. Continue likewise until the date and time of the timer is set.

or VOL until a digit of the date or time you want to

or VOL until the mode you want appears.

Page 44

• If you chose the Record or Power On mode, you can set a duration. Select the Duration

option and, using the number buttons on the remote control, enter the duration (in HHMM format).

• The Timer Padding option allows you to specify the number of minutes that a recording

event should start earlier than the specified start time, and finish later than the specified start time plus the specified duration. Press VOL displayed.

• You can specify a name for the file that is recorded. With the File option selected, press OK.

An on-screen keyboard appears. Press VOL on-screen keypad, and then press OK to select the currently highlighted letter. When you have finished renaming the program, press EXIT to return to the Timer Event screen.

• The Cycle option lets you specify how frequently you want the event to occur. The options

are One Time, Every Day and Every Week. Press VOL want is displayed. If you choose Every Week, the days of the week are displayed at the bottom of the screen. Press CH ▼to highlight the days, press VOL particular day and then press OK. You can select any number of days in the week.

6. Press EXIT to redisplay the Timer Setting screen. The timer you have just set is listed on the screen.

7. If you want to change a listed timer, select it, press OK and continue from step 5 above.

8. If you want to add another timer, press the red button and continue from step 5 above.

9. To leave the timer setting screen, press MENU. A message appears asking you if you want to save your changes. Press OK to save your changes.

or VOL until the padding you want is

, VOL, CH ▼or CH ▲ to move around the

or VOL until the frequency you

 or VOL to select a

To stop a recording

1. Press on the remote control. A list of the programs being recorded appears.

2. Press CH ▼or CH ▲ to select the program whose recording you want to stop, and press OK.

Playback

The playback feature allows you to watch files you have recorded on the hard disk. You can also playback MP3 music files that you have copied to the SRT 5392.

The SRT 5392 offers the following playback features:

• Program playback

• MP3 playback

• A-B repeat

For information on how to playback an instant recording, see “Timeshift” on page 49.

Program playback

The program playback function lets you play a program file from an earlier recording.

1. Press PVR to display a list of your recorded files. (If you are already in playback mode, press OK to display the list.) The File Management window appears.

• Bookmarking

• Bookmark search

• Data cutting

Page 45

2. If Record File is not shown in the top right corner of the window, press VOL A list of recorded programs appears.

3. Press CH ▼or CH ▲ until the program you want to play is highlighted, and then press OK. The program starts to play.

 or VOL  until it is.

Previewing a program

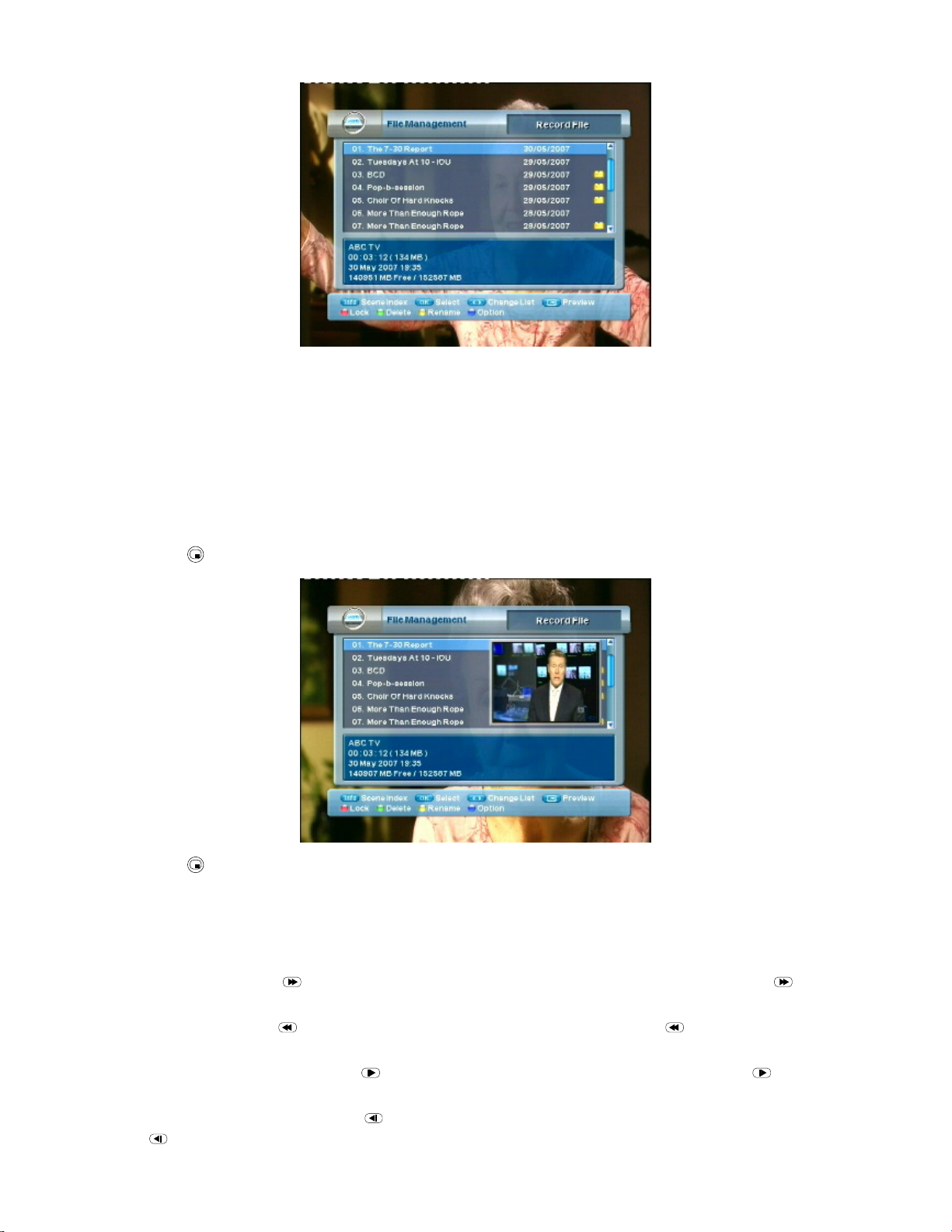

With the File Management window open, you can preview a selected program before choosing to play it back.

1. Press

. The program appears in preview window in the top right corner of the screen.

2. Press

again to close the preview window.

Playback options

While playing back a program, you can fast forward, slow forward, fast rewind, slow rewind, skip, pause, repeat and replay a program. To perform these operations, follow these instructions:

• Fast-forward: Press again. The speed can be increased by a factor 2, 4, 8 or 16.

• Fast Rewind: Press can be increased by a factor 2, 4 or 8.

• Slow-Playback Forward: Press The speed can be decreased to a half, quarter or an eighth of normal playback.

• Slow-Playback Reverse: Press

again. The speed can be decreased to a half, quarter or an eighth of normal playback.

. You can increase the speed of fast-forwarding speed by pressing

. You can increase the rewinding speed by pressing again. The speed

.You can slow down the speed of replay by pressing again.

. You can decrease the reverse playback speed by pressing

Page 46

• Skip: to skip over any portion of the file, press the number keys on the remote control. The number you enter will indicate the percentage of the file you want to skip. For example, if you enter 40, playback jumps to a position at 40% of the file’s duration. (Enter 0 to restart playback from the beginning.)

• Pause: Press

• Repeat: Press

• Replay: Press

To stop playback

Press on the remote control.

MP3 playback

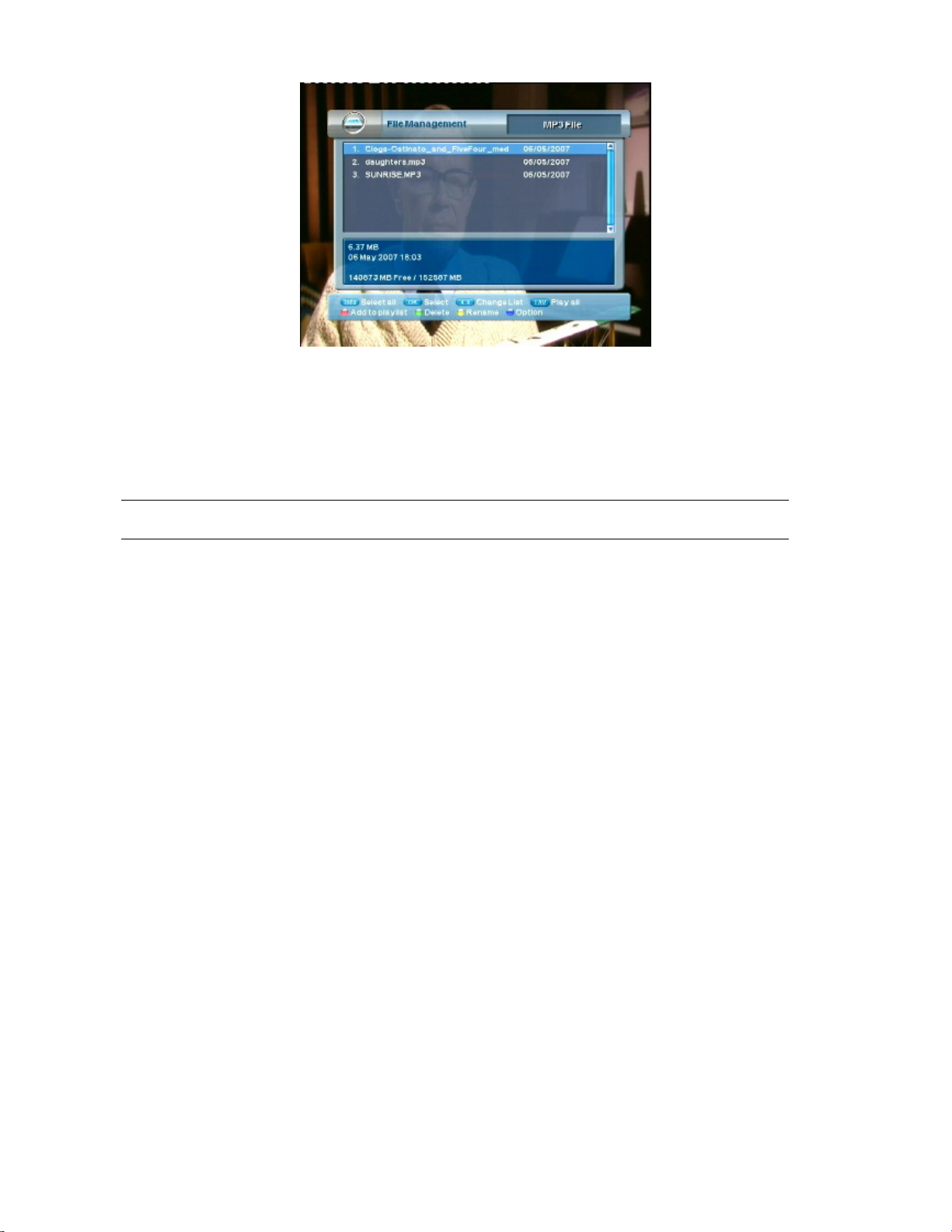

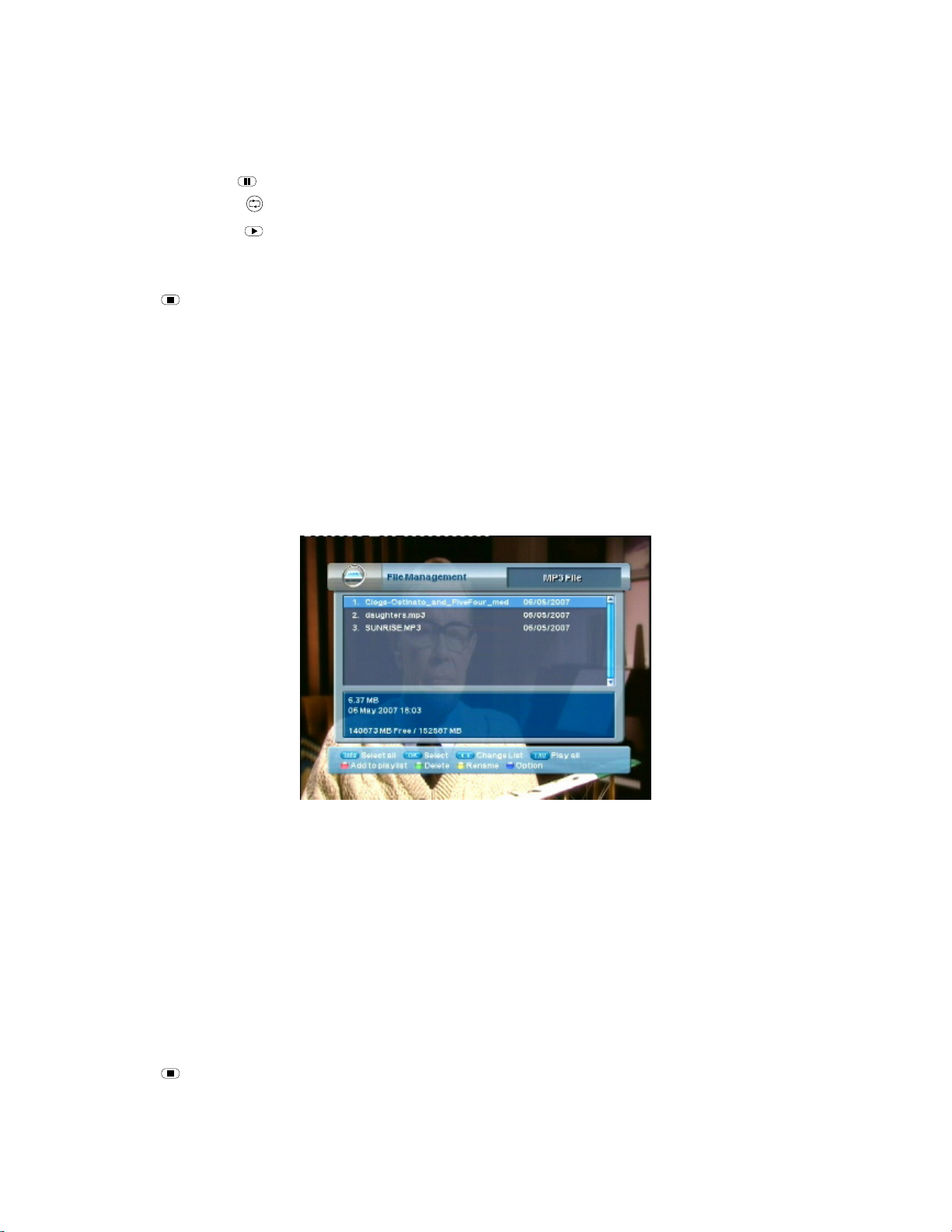

The SRT 5392 cannot create MP3 files, but it can receive files from another source. You can transfer MP3 files from a computer via the USB cable supplied. For more information, see “Connecting to a computer using the supplied USB cable” on page 15.

1. Press PVR to display a list of your recorded files. (If you are already in playback mode, press OK to display the list.) The File Management window appears.

2. If MP3 File is not shown in the top right corner of the window, press VOL list of MP3 files stored on your hard disk appears.

3. Press CH ▼or CH ▲ until the track you want to play is highlighted, and then press OK. The track starts to play.

You can press the colour button on the remote control to:

• Rewind (blue)

• Resume play (green)

• Pause (yellow)

• Fast forward (blue)

Press OK to restart the track from the beginning.

 or VOL  until it is. A

To stop playback

Press on the remote control.

Page 47

A-B repeat

The A-B repeat function allows you to set playback to run from one point to another so that you can watch that block in a continuous loop. This is handy when you want to play your favourite scenes over and over.

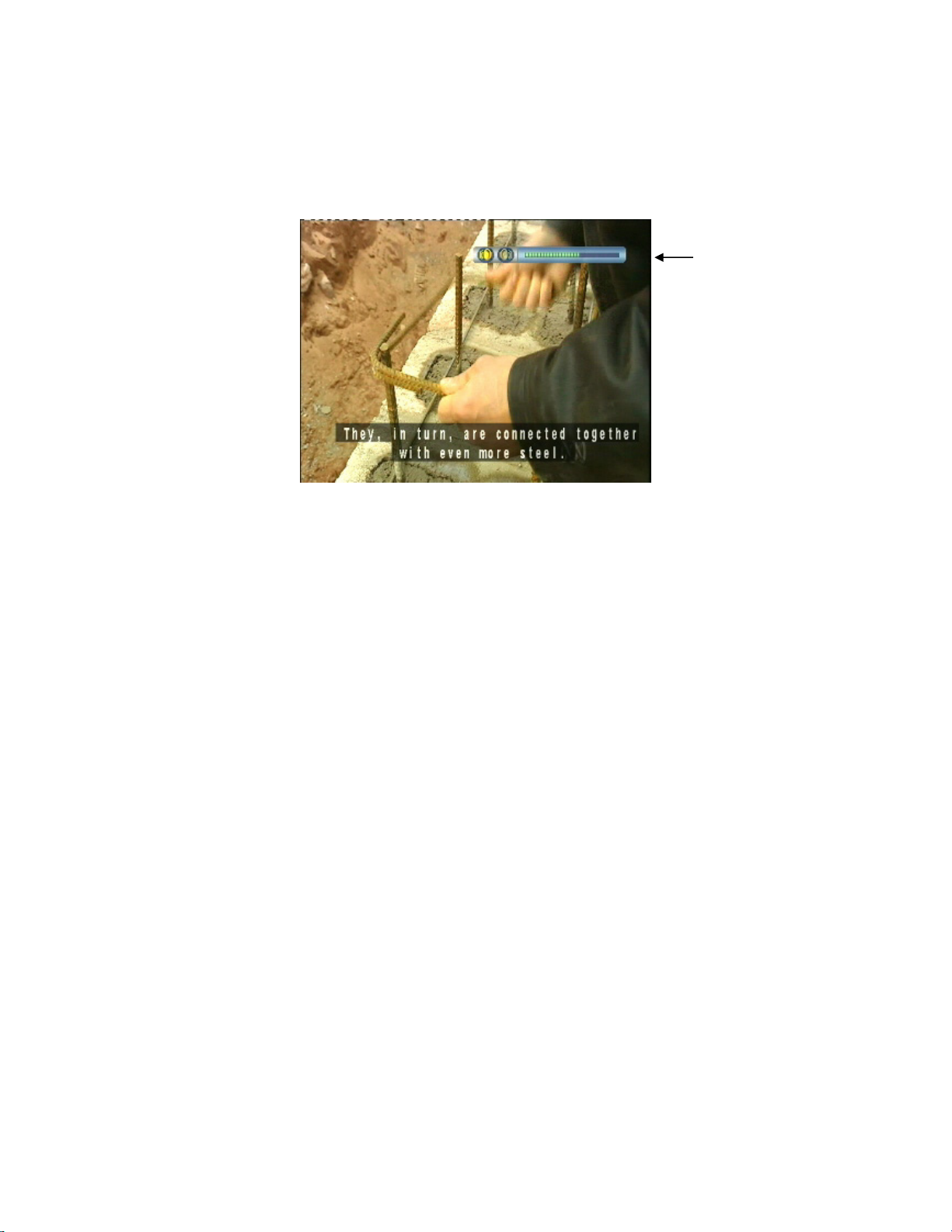

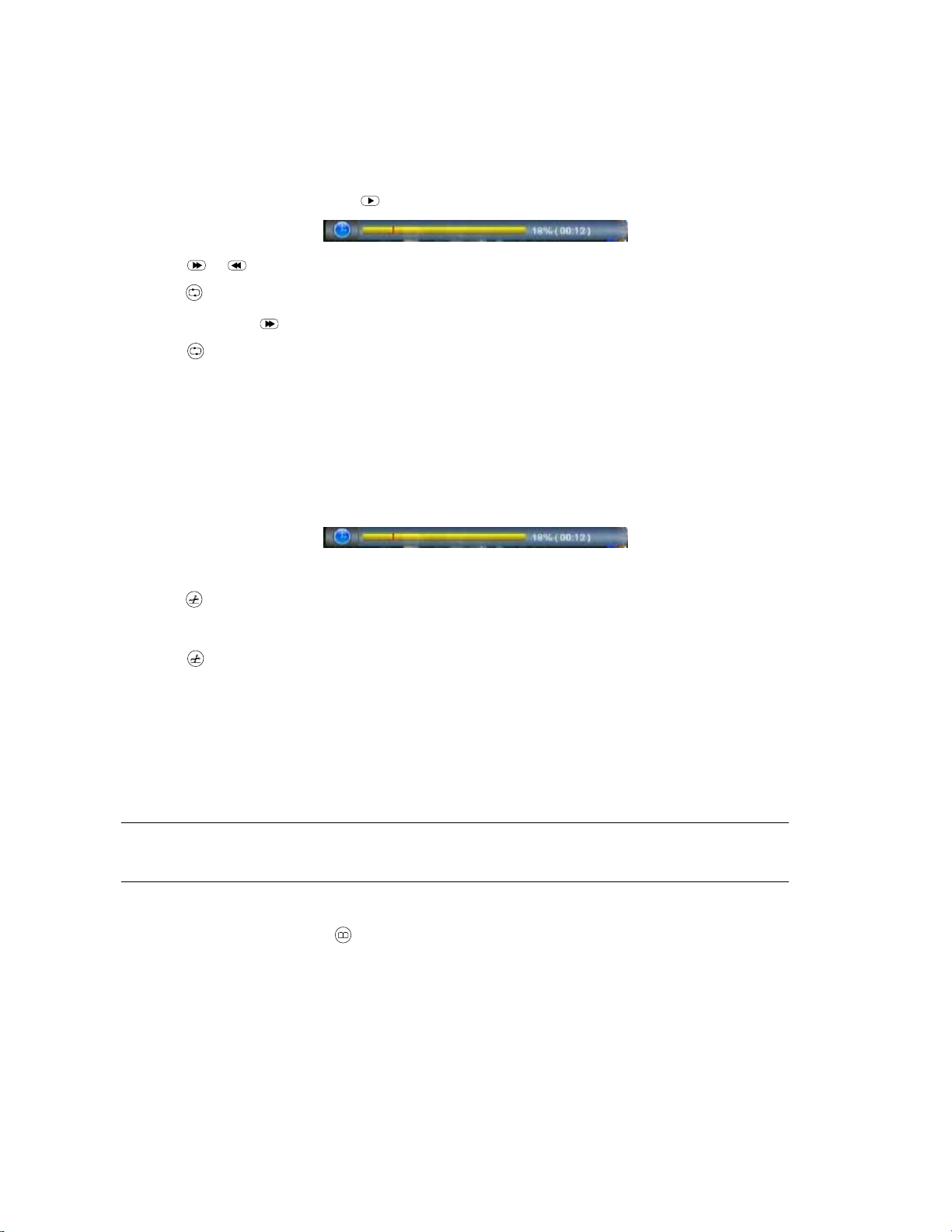

1. During playback mode, press

on the remote control. The progress bar appears.

2. Press or to locate the start of the section that you want to repeat in a continuous loop.

3. Press

4. Press VOL

5. Press repeatedly.

6. To stop the looping and resume normal viewing, press EXIT.

to mark the start point for the loop.

 (or ) to move to the location where you want to end the loop.

to mark the end point for the loop. The program will play the selected block

Cutting data

The cutting data function allows you to delete sections of a recorded file.

1. During playback mode, press the play button on the remote control. The progress bar appears.

2. Press forward or rewind to locate the start of the section that you want to delete.

3. Press

4. Press VOL

to mark the start point of the section.

 (or forward) to move to the location where the section ends.

5. Press

6. A message appears asking whether you want to save, cut or cancel. Press VOL selection and then press OK.

to mark the end point of the section.

 to make your

Bookmarks and Scene Indexes

The bookmark function allows you to mark a location within a file so that you can jump to that location quickly. To create a bookmark, the file must be in playback mode.

TIP: When you stop playback of a recorded program, you can bookmark the location so you can continue to watch from that location when you resume playback.

To create a bookmark

During playback mode, press at each desired scene. Each time you create a bookmark, the bookmark icon will briefly appear in the upper right hand corner of the screen.

Page 48

NOTE: You can create up to 64 bookmarks in each file. A bookmark is indicated by a yellow triangle along the top pf the progress bar. (Display the progress bar by pressing .)

To jump to a bookmark

During playback mode, press . Playback continues form the next bookmark in the file.

To delete to a bookmark

Jump to it and immediately press .

Scene Indexes

Another way to quickly jump to a particular section of a recorded program is to display the scenes in the program and then select the one from where the recording is to start playing back. The SRT 5392 divides the recorded program into 12 scenes of equal duration and displays the beginning of each scene, as shown below:

To quickly jump to a scene:

1. Press PVR to display a list of your recorded files. (If you are already in playback mode, press OK to display the list.) The File Management window appears.

2. Press CH ▼or CH ▲ until the program you want to replay is highlighted.

3. Press the INFO button on the remote control.

4. Press CH ▼, CH ▲, VOL highlighted, and then press OK.

 or VOL  until the scene you want to start the playback from is

Page 49

Timeshift

You can automatically record whatever program is appearing on your TV and then use timeshift functionality to jump back to a scene in that program even while the program is live. You can then catch up to the live program.

Time shift functionality requires the Instant Recording option to be enabled. See “NOTE: In timeshift recording mode, the program is recorded in a memory buffer, not onto the hard disk. In other modes, programs are recorded onto the hard disk.

Timeshift recording mode” on page 40 for instructions.

NOTE: If you change channels while instant recording is enabled, the previously recorded program is deleted.

Timeshift backwards

1. To use timeshift, you need to display the progress bar. To do this, press the play button ( ).

The yellow portion of the progress bar shows the proportion of available recording time has already been recorded. The word LIVE at the right of the progress bar indicates that you are viewing the program live, exactly as it is being broadcast at that moment.

2. To jump back to an earlier part of the live recording, press VOL

. Each time you press VOL

you move back further through the recording. A red line and a time value on the progress

bar indicate how far you have gone back.

Page 50

The program starts to play back from the point at which you stop pressing VOL

TIP: You can also press

to move back through the live program.

.

Timeshift forwards (catch-up)

1. If the progress bar is not displayed, display it by pressing the play button ( ).

2. Press VOL line and a time value on the progress bar indicate how far you have gone forward. To catch up with the live broadcast, keep pressing VOL section of the progress bar. (The word LIVE reappears on the progress bar to indicate that you have caught up with the live program.)

TIP: You can also press

. Each time you press VOL you move further forward through the recording. A red

 until the red line is at the far end of the yellow

to move forward through the live program.

Timeshift options

While a time-shifted program is being replayed, you can perform the following operations:

• Hide or show the progress bar: Press

• Fast-forward: Press

again. The speed can be increased by a factor 2, 4, 8 or 16. This option is only possible if the progress bar is hidden.

• Fast Rewind: Press can be increased by a factor 2, 4 or 8. This option is only possible if the progress bar is hidden.

• Slow-Playback Forward: Press The speed can be decreased to a half, quarter or an eighth of normal playback.

• Slow-Playback Reverse: Press

again. The speed can be decreased to a half, quarter or an eighth of normal playback.

• Pause: Press

• Replay paused playback: Press

. You can increase the speed of fast-forwarding speed by pressing

. You can increase the rewinding speed by pressing again. The speed

.You can slow down the speed of replay by pressing again.

. You can decrease the reverse playback speed by pressing

Page 51

File Management

With the File Management window open, you can lock, delete, rename and sort recorded files. You can also create folders and move files to a selected folder.

• To lock a file, select it, press the red button and enter the password. (The icon of a padlock appears beside the file.)

• To unlock a locked file, select it, press the red button and enter the password.

• To delete a file, select it, press the green button and press OK when asked to confirm the

deletion.

• To rename a file, select it and press the yellow button. An on-screen keyboard appears. Press

, VOL, CH ▼or CH ▲ to move around the on-screen keypad, and then press OK to

VOL

select the currently highlighted letter. When you have finished renaming the file, press EXIT and then OK to save the change and return to the File Management screen.

• To sort the list of files, press the blue button. The Option window appears with the Sort option highlighted. Press VOL order; Time sorts the list in the order in which the files were recorded (with the latest recording first and the oldest recording last).

• To create a folder, press the blue button. The Option window appears. Press CH ▼ to select Create Folder and then press OK. An on-screen keyboard appears. Press VOL

▼or CH ▲ to move around the on-screen keypad, and then press OK to select the currently highlighted letter. When you have finished renaming the file, press EXIT and then OK to save the change and return to the File Management screen.

• To move a file to a folder, press the blue button. The Option window appears. Press CH ▼or CH ▲ to select Move To Folder and then press OK. A menu of folders appears. Press CH ▼or CH ▲

to select the folder into which you want to move the file and press OK. Now press the blue button. The file is moved into the folder. Press EXIT twice to return to the File Management screen.

 or VOL to choose a sort option: ABC sorts the list in alphabetical

, VOL, CH

Managing music files

In addition to the file management tasks described in the previous section, you can also create a playlist of your music files. The playlist is the set of MP3 files that will play when you choose to play any one file in that set. If you don’t create a playlist, only the file you choose to play will play.

Creating a playlist

1. Press PVR to display a list of your recorded files. (If you are already in playback mode, press OK to display the list.) The File Management window appears.

2. If MP3 File is not shown in the top right corner of the window, press VOL list of MP3 files stored on your hard disk appears.

 or VOL  until it is. A

Page 52

3. Press CH ▼or CH ▲ until a track you want to add to the playlist is highlighted, and then press the red button on the remote control. An icon appears to the right of each track that has been added to the playlist.

4. Repeat step 3 for each track you want to add to the playlist.

Deleting a track from the playlist

NOTE: Deleting a track from the playlist does not delete the track from the hard disk.

1. Press PVR to display a list of your recorded files. (If you are already in playback mode, press OK to display the list.) The File Management window appears.

2. If MP3 File is not shown in the top right corner of the window, press VOL list of MP3 files stored on your hard disk appears.

3. Press CH ▼or CH ▲ until a track you want to delete is highlighted, and then press the red button on the remote control.

4. Repeat step 3 for each track you want to delete from the playlist.

 or VOL  until it is. A

Playing the playlist

Select any track that is in the playlist and press OK. The selected track begins to play. When it is finished, the next track in the playlist begins to play. Play continues until all tracks in the playlist have been played.

Playing all tracks

Select the first track that you want to play and then press FAV on the remote control. The selected track begins to play. When it is finished, the next track begins to play. Play continues until all tracks have been played (not just those in the playlist).

•

Page 53

Utilities

The SRT 5392 provides you with a calendar and a calculator. To access these utilities:

1. Press MENU to display the main menu.

2. Press VOL

3. Press CH ▼or CH ▲ until Utility is highlighted and then press OK.

The Utility window appears listing the two utilities.

4. Press CH ▼or CH ▲ to select the utility you want and then press OK.

or VOL until Tools is highlighted.

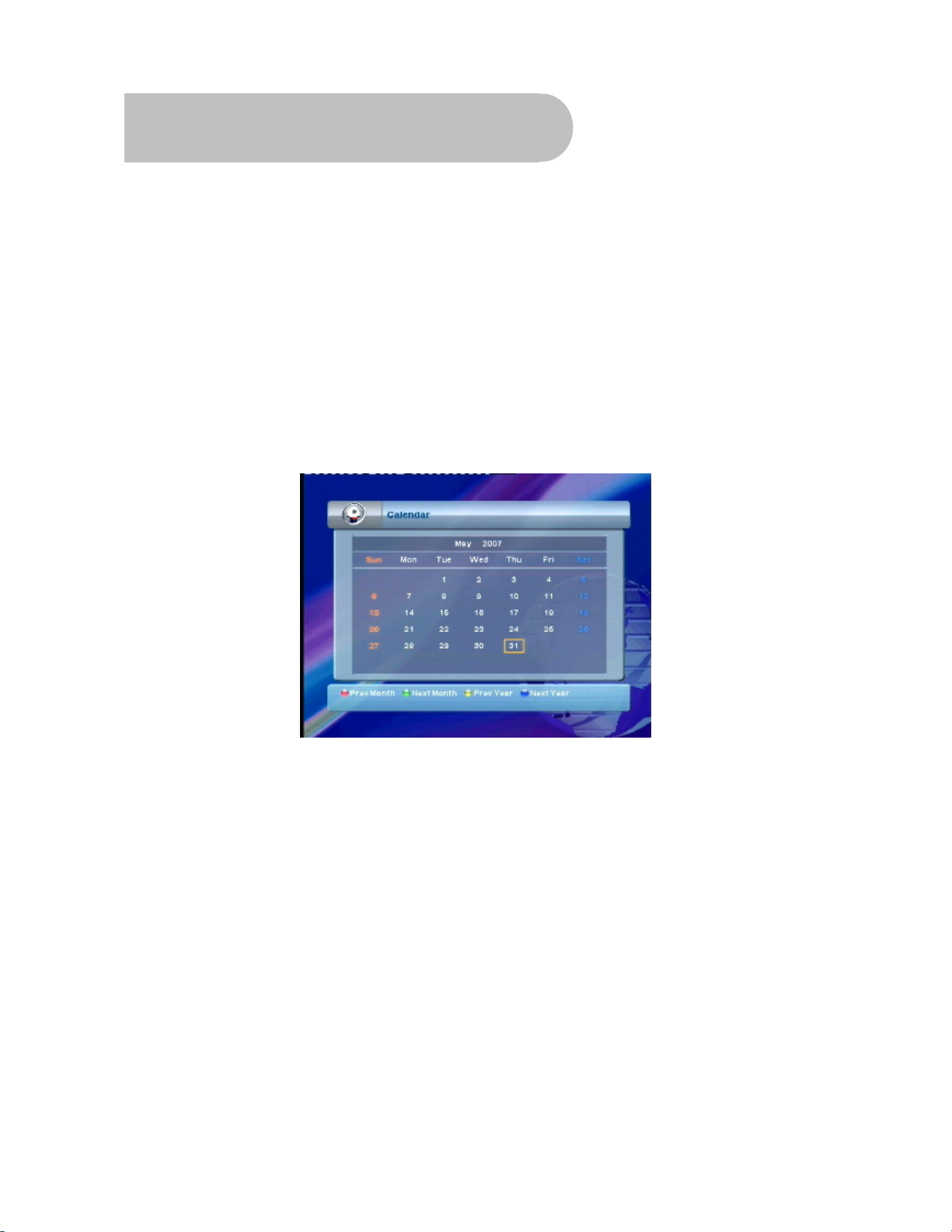

Calendar

When you display the calendar, the current day is highlighted.

Press the colour buttons to show the previous month (red button), next month (green), previous year (yellow) or next year (blue). Press MENU to return to normal viewing or EXIT to return to the Utility window.

Page 54

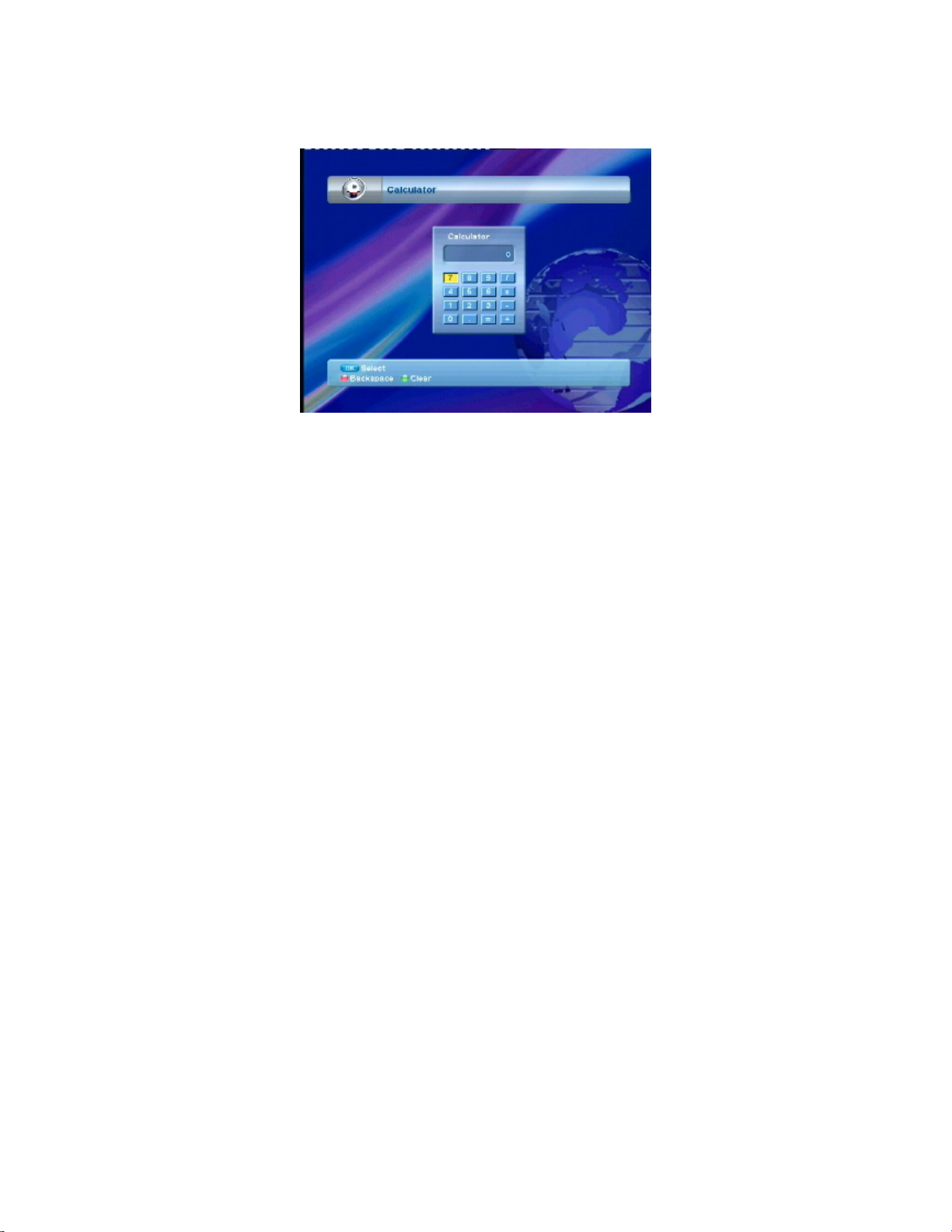

Calculator

Press VOL select the currently highlighted number or arithmetic operator. Press MENU to return to normal viewing or EXIT to return to the Utility window.

, VOL, CH ▼or CH ▲ to move around the calculator keypad, and then press OK to

Page 55

Games

The SRT 5392enables you to play the following games on your TV screen:

• Tetris

• Blockout and

• Sokoban

To access games:

1. Press MENU to display the main menu.

2. Press VOL

3. Press CH ▼or CH ▲ until Game is highlighted and then press OK.

The Game window appears.

4. Press CH ▼or CH ▲ to select the game you want to play and then press OK.

or VOL until Tools is highlighted.

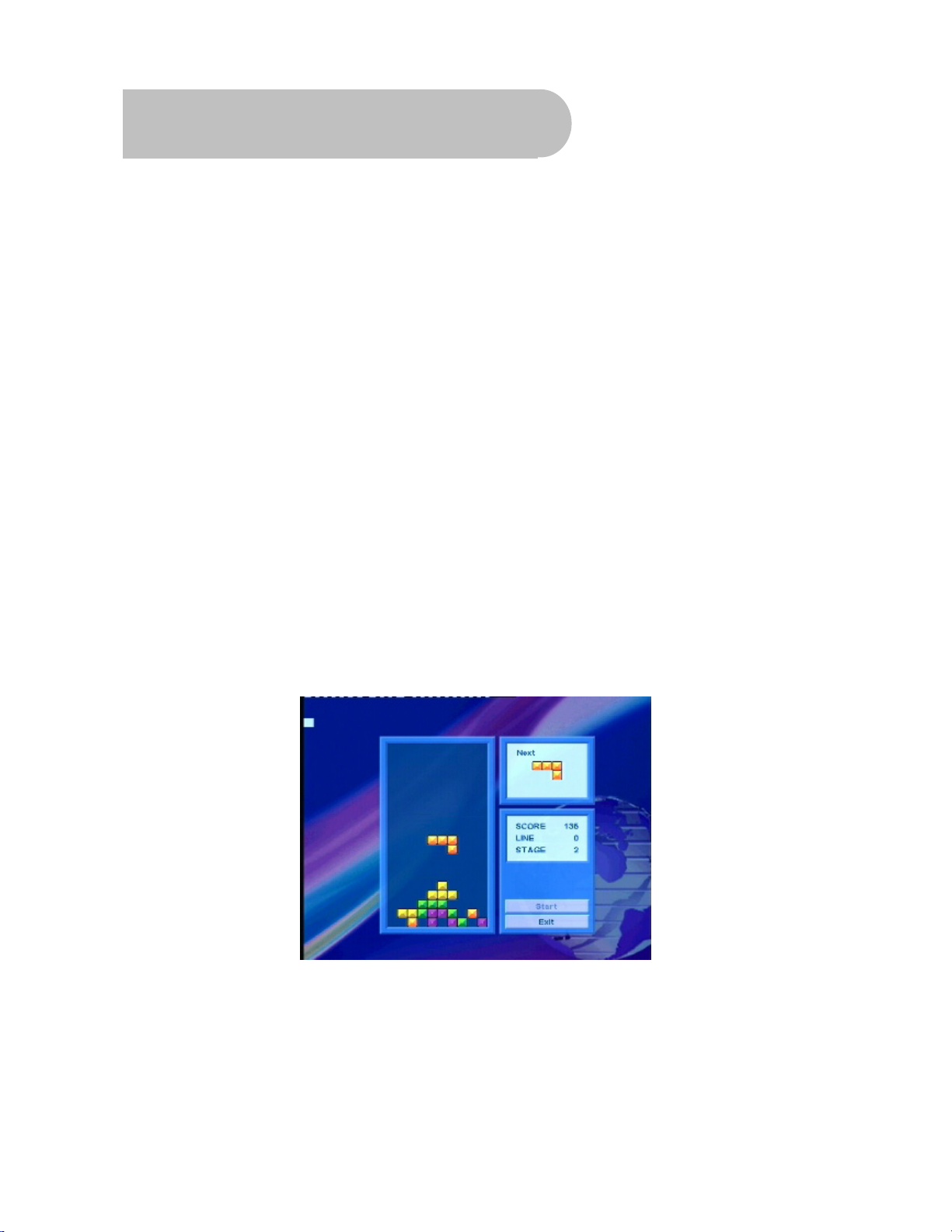

Tetris

The goal of Tetris is to orient a series of falling blocks so as to maximise the number of blocks that can fit into a well. The game is over when the height of all the blocks matches the depth of the well. Your score is the number of individual blocks you can fit into the well.

1. As the blocks drop, you can move them horizontally by pressing VOL rotate a falling block by pressing OK or CH ▲ and speed up the fall of a block by pressing CH ▼. To help you determine how best to place the block that is currently falling, a preview of the next block to fall is shown in the pane at the right of the screen.

2. To cancel a game, press MENU or EXIT.

or VOL. You can also

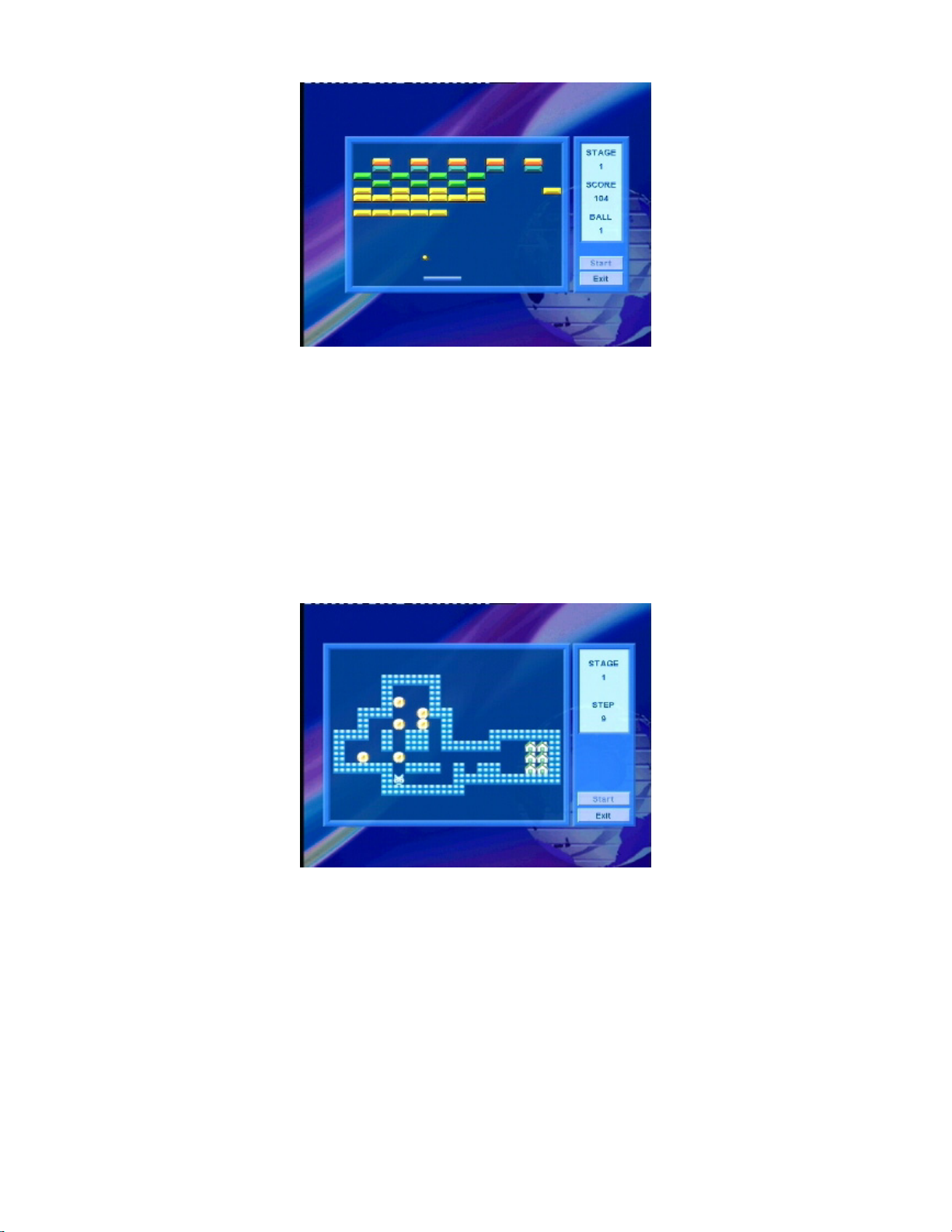

Blockout

The goal of Blockout is to knock out all the tiles with the ball without letting the ball fall outside the bat. Certain tiles need a certain number of hits before they are knocked out. The game is over when the all 5 balls are used up. Your score is the number of tiles you were able to hit.

Page 56

1. Press OK to release the ball from the bat.

2. Use the VOL

3. To cancel a game, press MENU or EXIT.

or VOL buttons to move the bat from side to side so it can hit the ball back.

Sokoban

The goal of Sokoban is to use the blue ball to push each of 6 red balls onto each of 6 squares. You use the arrow keys—CH ▼, CH ▲, VOL can only be pushed, not pulled, so you have to be careful not to push them into a corner where you can not get them out again. A better score is a score where fewer moves are needed to move all the blues balls to the yellow house squares. A partly completed game is shown below:

and VOL—to move the blue ball. Note that the red balls

1. Press any key on the remote control to start a game.

2. Repeatedly press an arrow key—CH ▼, CH ▲, VOL red ball so that the red ball can be pushed onto a house square. Continue likewise until each red ball is in a house.

To undo your very last move, press the red button on the remote control.

To restart the game, press the recall button.

3. To cancel a game, press EXIT.

or VOL—to move the blue ball behind a

Page 57

System Maintenance

You can upgrade the software in your SRT 5392 as new versions become available. Information about the current version (and information about the hardware) is available from the menu to help you determine if you need to upgrade. This information might also be useful if you need to obtain technical support from Strong Technologies.

You can also reset the SRT 5392, either by:

• clearing all the channels and stations or

• clearing all channels, stations, preferences and other user settings (thereby restoring the unit to

the default settings it had when it left the factory).

System information

To display system information about your SRT 5392, such as the model number, software version, hardware version and so on:

1. Press MENU to display the main menu.

2. Use VOL

3. Press CH ▼or CH ▲ to highlight Information, and then press OK

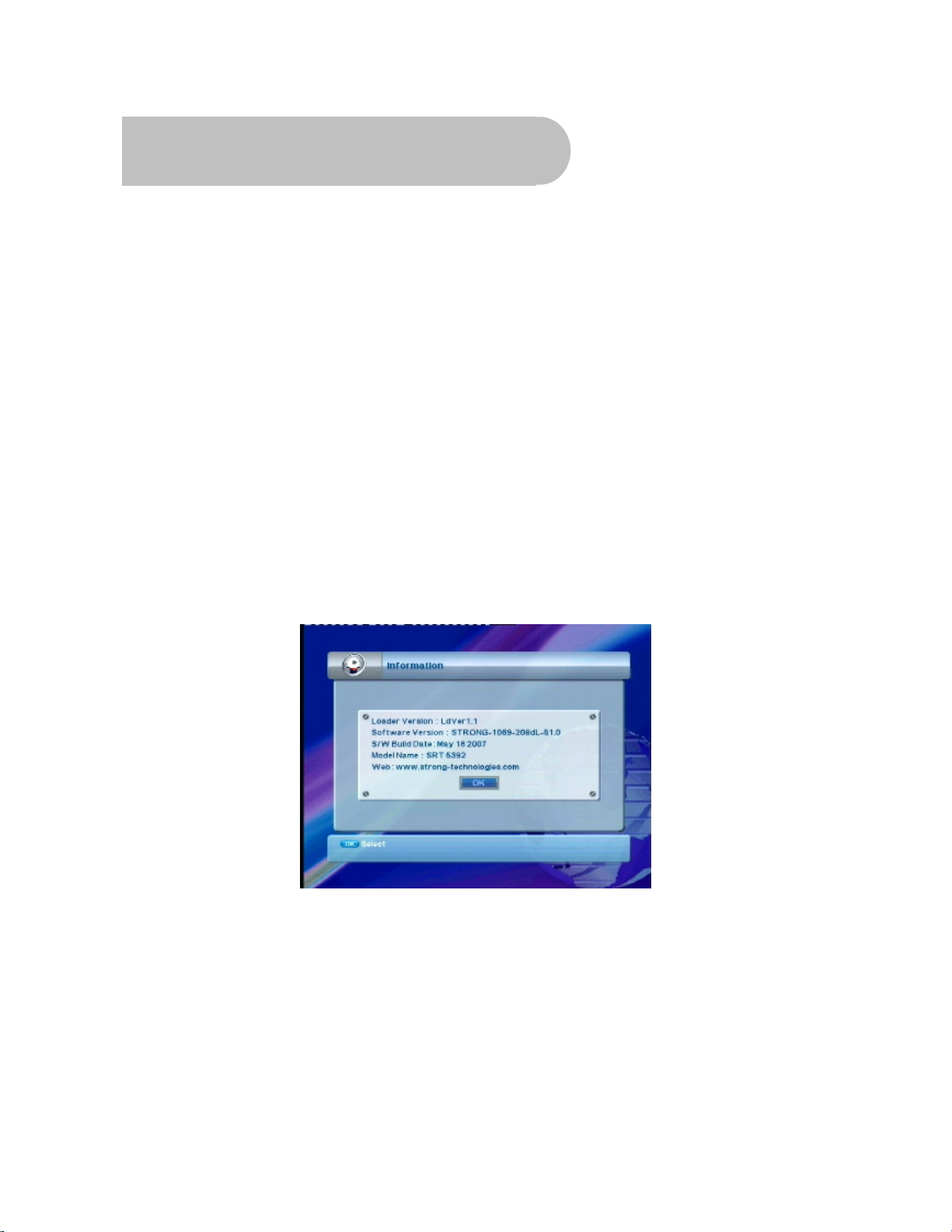

The System Information window appears.

or VOL to select Tools.

4. Press OK to return to the Tools screen.

Software upgrades

If a new version of the SRT 5392 software becomes available, you can download the software to your PC and then transfer it to your SRT 5392. You will need a null modem cable with an RS-232C plug (not supplied with the SRT 5392). Watch the Strong Technologies website for announcements of software upgrades and instructions on how to obtain an upgrade.

Once you have obtained an upgrade, connect the null modem cable between the RS-232 port on the rear of the SRT 5392 (socket 5 in the diagram on page 9) and your PC and follow the instructions given on the Strong Technologies website.

Page 58

Upgrading one SRT 5392 from another SRT 5392

Make sure both receivers are turned off before undertaking this procedure.

1. Connect a null modem cable between the RS-232 ports of both receivers.

2. Turn on the SRT 5392 that already has the latest software.

3. Turn on the SRT 5392 that needs to be upgraded. Upgrading automatically commences.

When the upgrade is finished, the second SRT 5392 restarts.

Restore default settings

You can restore the SRT 5392 to its default factory settings. This restores all default settings and all channels, stations, preferences and user settings will be lost.

To restore default settings:

1. Press MENU to display the main menu.

2. Use VOL

or VOL to select Tools.

3. Press CH ▼or CH ▲ to highlight Factory Setting and then press OK.

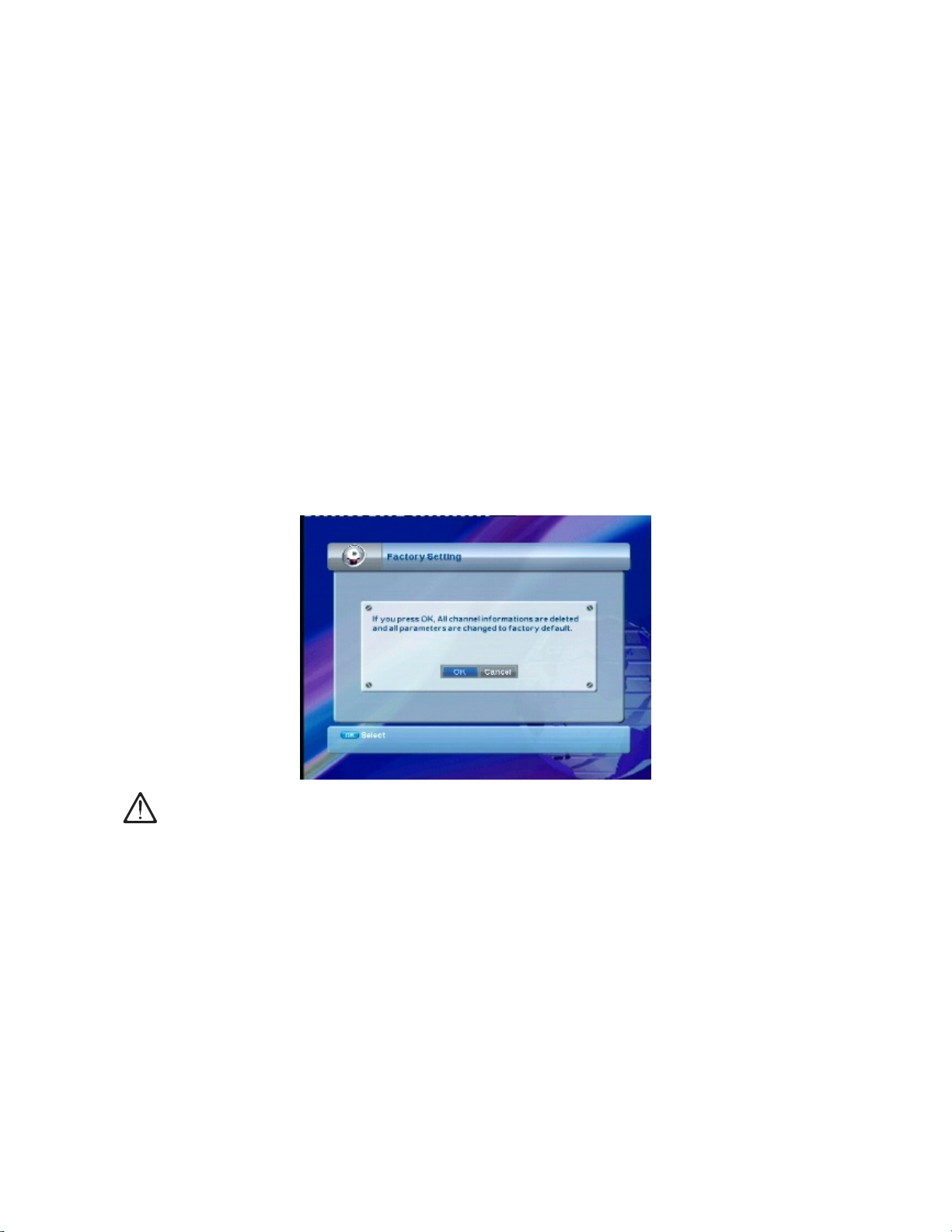

The Factory Setting window appears.

. . -768-3729.

WARNING: If you proceed with restoring defaults, all your settings and channel information will

be lost

4. To proceed, press OK (otherwise press VOL

 to select Cancel and then press OK.

Page 59

Troubleshooting

There may be a number of causes of abnormal operation. Occasionally receivers can hang (just as a PC will do from time to time). In this case, you should reset the receiver by disconnecting if from mains power, waiting 30 seconds and then reconnectting it to mains power. If the unit is still not operating correctly, refer to the following table for the indicated problem and likely solution.

Symptoms Possible causes Solution

AC power cord is not connected Check that the power cord is

Indicators on front panel do not light up

plugged into the wall socket.

Make sure the power switch is on.

No picture or sound

Picture and/or audio is unclear

No sound

The cables connecting the TV and the receiver are not properly connected

The TV mode is not correct Check that the correct video or AV

The TV is turned off Turn the TV on.

Insufficient signal strength Check that the antenna cable is

Electrical interference Check that all antenna cabling is

The receiver or TV is in mute mode Press the MUTE button on the

Initial volume level has not been set on your TV

Batteries not inserted Insert batteries

Make sure that the correct cable is connected between the TV and the receiver, and that the antenna is connected.

input has been selected on your TV.

securely plugged in and that the signal is adequate.

quad-shielded.

receiver and on the TV.

Select the desired TV volume level using the TV remote control.

Batteries are flat Change the batteries in the remote

Remote control is not working

Remote control is outside the range of operation

For Technical Assistance: Please call our Technical Support Help Line on 1 800 820030

For General Enquiries: Please email us at [email protected]

Product Return Tracking: If you need to send your receiver to Strong Technologies for repair or

evaluation, please keep a record of the unit’s serial number. This will ensure ease of tracking and identification on your behalf.

control.

Aim the remote control directly at the receiver.

Page 60

Specifications

RF input Connector PAL type (female) X 2 IEC type

RF Loop through Connector PAL type (male) X 2 IEC type

RF Frequency Range

Input Impedance 75 Ω nominal

Input Signal Level -78 dBm to -20 dBm

Tuner

& Channel Decoder

A/V Decoding

Main System

Local Storage (HDD)

A/V Data In/Out

Loop through Gain 0 dB Typical / ±5dB Max

IF Frequency 36.176 MHz

IF Bandwidth 7/8Mhz

Demodulation COFDM (2K/8K-Carrier) / MT352

Guard Interval Modes

FEC Modes Rate 1/2, 2/3, 3/4, 5/6, 7/8

Channel Bandwidth

Transport Stream

Profile Level 2 of MPEG-2 MP@ML (PIP)

Input Rate 81Mbit/S max.

Aspect Ratio 4:3, 16:9 ,Letter

Video Resolution 720 X 480(NTSC) , 720 x 576(PAL)

Audio Decoding MPEG/Musicam Layer 1,2 & 3

Audio Mode

Sampling Rate 32, 44.1 & 48 KHz

Graphic Engine

CPU uPD61130 (EMMA2)

CPU Speed 200 MIPS @ 167Mhz

Flash Memory 4 Mbytes

Graphic & System SDRAM 64 Mbytes

EEPROM 128Kbit

Type ATA - UDMA66

HDD Size 3.5 inch, 250Gb

HDD of VENDOR Seagate ,Sam-Sung, Maxtor

CINCH OUTPUT (9 PORT)

S-VHS Video S-VIDEO output

177.5MHz to 227.5MHz 474Mhz to 858 MHz

1/32,1/16,1/8,1/4 Active symbol duration

8MHz(for Europe), 7MHz(for Australia)

MPEG-2 ISO/IEC 13818 Transport Stream Specification

Single Channel / Dual Channel Joint Stereo / Stereo

3 – OSD Plane 1-Background Plane / 256 Full Colour

Video Output1 (CVBS) Video Output2 (Y / Pb / Pr) Audio Output1 (L,R) Audio Output2 (L,R) Digital Audio (SPDIF)

Page 61

Power Supply

Environment

Physical

Specification

Optical

SPDIF

USB USB2.0

RS-232C

Input Voltage 100 to 240 VAC, 50Hz/60Hz

Type SMPS

Power Consumption Max 30W

Protection

Operating Temperature +5°C ~ +50°C

Storage Temperature -40°C ~ +65°C

Cooling system (DC fan) 12V / 24mA (standby mode at off)

Size (W X D X H) 370 x 268 x 60 mm

Weight(Net) 3.5kg

Digital Audio or Dolby AC-3 Bitstream output

Transfer Rate 115.2Kbps 9 Pin D-sub Type

Separate Internal Fuse and Chassis Grounding The Input shall have lightning or

Electric Shock Protection

Page 62

STRONG TECHNOLOGIES PTY LTD.

60 WEDGEWOOD ROAD, HALLAM, VIC 3803

PH: +61 3 8795 7990 FAX: +61 3 8795 7991

TECHNICAL SUPPORT: 1 800 820030

STRONG & CO. (FAR EAST), LTD.

P. O. BOX 85, YOKOHAMA, KANAGAWA-KEN

JAPAN 231-91 FAX: +81 45 651-1842

www.strong-technologies.com

Email: [email protected]
