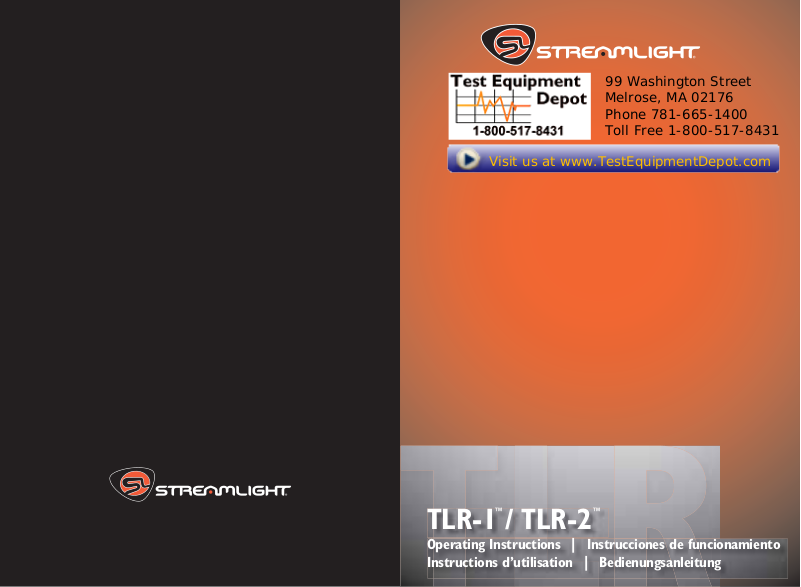

TLR-1™/ TLR-2
Operating Instructions | Instrucciones de funcionamiento
Instructions d’utilisation | Bedienungsanleitung

ENGLISH
Congratulations on your purchase of the Streamlight TLR.
Model 1 is a weapon-mounted LED flashlight. Model 2
includes a laser sight. These high quality systems offer
adjustable mounting flexibility that can accommodate
the Glock or Picatinny (1913) accesory rails featured on
a wide variety of firearms.
Features
• 3 Watt Luxeon® LED
• Up to 80 Lumens - Blinding Beam, Bright Sidelight
• Integrated Laser Sight**
• Machined Aluminum - Water*, Dust, & Shock Proof
• Fast, Safe, Adjustable, Secure Side Mounting to 1913 and Glock® Style Rails
• 2.5 Hours of Runtime
• Fits Existing Light Bearing Holsters
• Extended Warranty
• Includes (2) Two Lithium Batteries
• Ambidextrous Momentary/Steady On-Off Switch
*TLR-1 Only
**TLR-2 Only
Specifications
TM
TLR-1
4.18 oz. 118.6 g
TM
TLR-2
4.72 oz. 133.8 g 650-660 nm Laser
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
FAX 781.665.0780 - TestEquipmentDepot.com

IMPORTANT WARNINGS
FIREARMS
MAKE SURE THAT THE FIREARM IS UNLOADED AND THE BREECH IS OPEN WHEN MOUNTING OR REMOVING THE FLASHLIGHT.
IT IS IMPERATIVE THAT SAFETY MEASURES BE EMPLOYED AT ALL TIMES WHILE HANDLING THE FIREARM.
BATTERIES
WARNING: FIRE, EXPLOSION, BURN HAZARD
USE ONLY: Streamlight, Panasonic, or Sanyo size CR123A; Duracell 123A, or Energizer 123. Use of other batteries or
mixing of used and new or different brand batteries may result in leakage, fire or explosion and serious personal injury.
DO NOT recharge, misuse, short circuit, improperly store or discard, disassemble, or heat above 212°F (100°C).
Keep away from children.
LED (TLR-1 & 2)
AVOID DIRECT EYE EXPOSURE
LED Radiation (Class 2/ Max. Output <5 mW/ Wavelength: approx. 450-550 nm)
LASER (TLR-2 only)
DANGER – LASER RADIATION IS EMITTED FROM THIS PRODUCT.
CAUTION – USE OF CONTROLS OR ADJUSTMENTS OR PERFOMANCE OR PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
AVOID DIRECT EYE EXPOSURE.
DO NOT STARE DIRECTLY INTO LASER BEAM.
DO NOT VIEW THE LASER BEAM WITH OPTICAL INSTRUMENTS
(SCOPES, SPOTTING DEVICES, BINOCULARS, ETC.).
AVOID REFLECTED LASER BEAM.
DO NOT ATTEMPT TO OPEN OR MODIFY THE LASER CARTRIDGE.
LABEL INFORMATION AND LOCATION (TLR-2 only)
This important label is affixed to the laser housing.
AVOID EXPOSURE;
LASER RADIATION
COMPLIES WITH 21 CFR 1040.10 AND 1040.11
AS AMENDED BY LASER NOTICE 50., 26JULY01.
IS EMITTED FROM
THIS APERTURE.
CAUTION - LASER RADIATION
AVOID DIRECT EYE EXPOSURE
CLASS 3R LASER PRODUCT
CLASS 2 LED
MAX OUTPUT: <5 mW
WAVELENGTH: 425 - 665 nm
LASER/LIGHT LIGHT LASER
Battery Installation/Removal
To access the battery compartment you must first remove the flashlight from the firearm. Follow the TLR Removal
Procedure instructions to remove the flashlight from the firearm.
1. Unclip the door latch.
The latch is tight. It may
help to use a coin.
2. Slide the batteries from
the flashlight.
3. Insert the new batteries
observing polarity.
Note: The flashlight is polarity
protected and will not light
if the batteries are inserted
incorrectly.
4. Hold the battery switch/door
at an angle and place
the small tab on the bottom of the
battery/door switch into the slot in
the flashlight body.
5. Firmly push and hold the door closed against the flashlight body.
6. Swing the door latch over the door and snap it into place.
Battery Door Latch
Slot
Battery Door/Switch
Tab
Mounting/Removal Procedure
MAKE SURE THAT THE FIREARM IS UNLOADED AND THE BREECH IS OPEN. IT IS IMPERATIVE THAT SAFETY MEASURES BE
EMPLOYED AT ALL TIMES WHILE HANDLING THE FIREARM.
Rail Key
Rail Clamp
Tension Bolt
Adjustable Portion
Fixed Portion
of Rail Clamp
of Rail Clamp

1. The TLR is design to be quickly attached or detached from the side of the weapon or accessory rail.
2. Loosen the rail clamp tension bolt.
3. Angle the TLR, placing the fixed portion of the rail clamp against the accessory rail and align the rail key
with the appropriate cross groove in the accessory rail.
4. Slightly depress the tension bolt to open the rail clamp, rotate the TLR into place and release the pressure
on the tension bolt to “snap” the light in place.
5. Check for fit and tighten tension bolt until the TLR is securely attached to the firearm.
Switch Operation
Constant
Momentary
Maintenance
The TLR rail clamp tensioning bolt requires an application of high quality gun oil to keep it rust free. Use a soft cloth
and mild detergent to clean the glass LED lens and keep it free of dirt and grime. The laser aperture (TLR-2) can be
cleaned with a Q-tip (or similar item) and mild detergent. Note: Always avoid aggressive cleaning solutions as they
may damage the TLR.
TLR Parts
Rail Key Orientation
OFF (PADDLE)
Momentary
OFF (PADDLE)
Constant
(MODE SWITCH)
Laser Laser/LEDLED
The TLR features a paddle switch providing momentary or constant activation.
The TLR-2 has an additional mode selection switch located on the rear of the laser housing.
TLR-2 Laser Sight Zeroing
For a laser mounted below or to the side of the bore, there is only one distance where the bullet path will coincide
with the laser sight line. This point is the “zero range.” Laser adjustment and the muzzle velocity of the bullet
determine where this point occurs. The user must decide how high above or below the sight line the bullet can be
allowed to strike and adjust the sight accordingly. At distances less than the zero range the bullet will be above the
sight line. Beyond the zero range the bullet will be below the sight line. If mounted to the side, the bullet will also
deviate to the side of the laser line, as well as up and down. In practice, a TLR-2 on a handgun can be adjusted to
keep the bullet strike within about 2” high and 2” low out to about 100 feet.
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
FAX 781.665.0780 - TestEquipmentDepot.com
Lens/Bezel
Rail Key Screw
Note: The TLR rail key can be changed to accommodate several varieties of mounting rails. Remove the rail key screw
with a 7/64th hex wrench and pull the rail key from the body. Insert the new rail key and fasten it in place with the
rail key screw.
Streamlight’s “No Excuses Warranty” Streamlight warrants this product to be free of defect for a lifetime of use.
We will repair, replace or refund the purchase price, at our option, of any Streamlight product that does not work or that
you manage to break for as long as you own it. Of course, this limited lifetime warranty excludes abuse, batteries, bulbs
and chargers. Rechargeable batteries and chargers have a (1) one year warranty with proof of purchase. Please return
your Streamlight to our factory to take advantage of this guarantee. Go to www.streamlight.com for the location
of an authorized Streamlight repair center near you.
Product Registration: To register your product, go to www.streamlight.com (Online Product Registration). Retain
your receipt or any proof of purchase.
Luxeon® is a registerd trademark of Lumileds Lighting, Inc.
