ENGLISH
Thank you for selecting the Sidewinder, a truly remarkable
portable light. As with any professional tool, reasonable care and
maintenance of this product will provide years of dependable
service.
Please read these important operating instructions before using
your Sidewinder.
BATTERIES
Install batteries by unscrewing the knob in the base of the tailcap.
The tailcap is tethered to the bottom of the flashlight and does not
need to be completely removed. Insert fresh batteries into the
flashlight body (polarity is indicated on the outside of the flashlight) and replace the tailcap.
USING THE LIGHT
The integrated switch/selector is located on the side of the flashlight’s adjustable head. The center pushbutton on/off switch operates with a single click for low power, fast double-click for strobe
or push and hold to cycle through LED intensities. There are four
positions indicated on the selector knob including one raised indicator. With the raised indicator up toward the lens, either the
green or IR (depending on model) 5mm LED is selected. Pull the
knob and rotate it clockwise (in 90 degree increments) to select:
the red 5mm LED, the white (main) LED or the blue 5mm LED.
Clip can be mounted to either side of flashlight body and a lanyard
hole is included in the tailcap.
STREAMLIGHT SIDEWINDER
LIMITED WARRANTY
Streamlight warrants its Sidewinder (excepting batteries)
will be free from manufacturing defects under normal use
for 12 months after purchase. During the warranty period,
at its sole discretion, Streamlight will repair or replace any
defective part or product. TO THE EXTENT ALLOWED BY
LAW, STREAMLIGHT DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURCHASE. STREAMLIGHT SHALL NOT
BE LIABLE FOR ANY DIRECT, INDIRECT, OR CONSEQUENTIAL DAMAGES. For service or repair, return “UPS”
prepaid with a copy of the original sales receipt to
Streamlight.”
Serial # ______________________________________
(Located on battery door knob.)
Date of Purchase ______________________
S
IDEWINDER
™

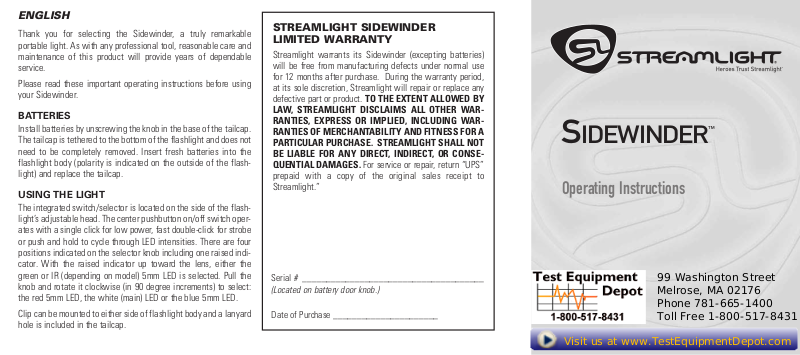

Operating Instructions
