UM2827
SPC58XXADPT144S rev. B evaluation board

Introduction

The SPC58XXADPT144S rev. B evaluation board supports STMicroelectronics SPC58xGxxE5, SPC58xCxxE5 and SPC58xBxxE5 microcontrollers in eTQFP144 package with exposed pad down.
Figure 1. SPC58XXADPT144S rev. B
UM2827 - Rev 1 - February 2021
For further information contact your local STMicroelectronics sales office.
www.st.com

1 Overview

The SPC58XXADPT144S rev. B "mini module" is an evaluation board supporting STMicroelectronics SPC58xGxxE5, SPC58xCxxE5 and SPC58xBxxE5 microcontrollers in eTQFP144 package with exposed pad down.
The "mini module" is designed to be connected onto the SPC58xxMB motherboard, offering a mechanism for easy customer evaluation of the supported devices, and to facilitate hardware and software development.
The "mini module" may be used as a stand-alone unit granting access to the MCU, but no access to the I/O pins as any motherboard peripherals.
The "mini module" is configured by default for SPC58xB and SPC58xC easily supports also SPC58xG by simply changing the following 3 TH jumper: JR14, JR18 & JR19, with the only drawback that some ports are not mapped/aligned properly.
UM2827
Overview

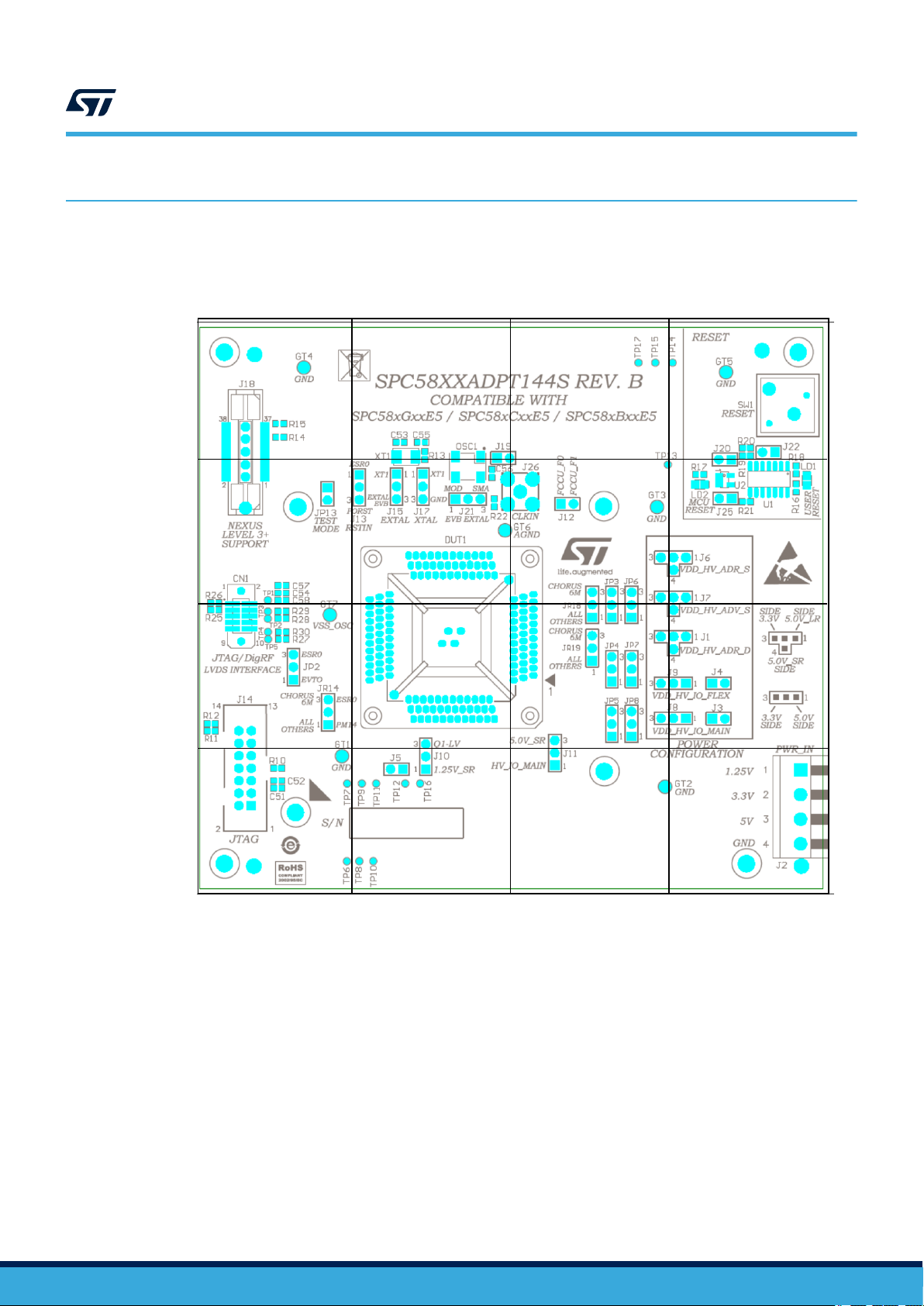

Figure 2. Overview of SPC58XXADPT144S rev. B "mini module" - top
UM2827 - Rev 1
page 2/25
Figure 3. Overview of SPC58XXADPT144S rev. B "mini module" - bottom
UM2827
Package contents

1.1 Package contents

An SPC58XXADPT144S rev. B adapter package includes the following item:
SPC58XXADPT144S rev. B "mini module"

1.2 Supported devices

The SPC58XXADPT144S rev. B "mini module" supports the following STMicroelectronics family of microcontrollers in eTQFP144 package with exposed pad down:
SPC58xBxxE5
SPC58xCxxE5
SPC58xGxxE5
UM2827 - Rev 1
page 3/25
UM2827
License agreement

2 License agreement

The packaging of this evaluation board was sealed with a seal stating, " by breaking this seal, you agree to the terms and conditions of the evaluation board license agreement, the terms and conditions of which are available at https://www.st.com/resource/en/evaluation_board_terms_of_use/evaluationproductlicenseagreement.pdf ". Upon breaking the seal, you and STMicroelectronics entered into the evaluation board license agreement, a copy of which is also enclosed with the evaluation board for convenience.
Attention: This evaluation board only offers limited features for evaluating ST products. It has not been tested for use
with other products and is not suitable for any safety or other commercial or consumer application. This evaluation board is otherwise provided “AS IS” and STMicroelectronics disclaims all warranties, express or implied, including the implied warranties of merchantability and fitness for a particular purpose.
UM2827 - Rev 1
page 4/25

3 Handling precautions

Please take care to handle the package contents in a manner such as to prevent electrostatic discharge.
Before the EVB is used or power is applied, please fully read the following sections on how to correctly configure the board. Failure to correctly configure the board may cause irreparable component, MCU or EVB damage.
UM2827
Handling precautions
UM2827 - Rev 1
page 5/25

4 Hardware description

4.1 Hardware features

The SPC58XXADPT144S rev. B "mini module" board has the following features:
Connector for external power supplies input (5.0 V, 3.3 V, 1.25 V) used in stand-alone mode
Reset button with driver and led indicator
Socket for device in eTQFP144 package with exposed pad down
Debug ports:
38-pin Mictor connector for Nexus level 3+
14-pin header connector for JTAG port
10-pin header connector for JTAG/DigRF port (LFAST)
40 Mhz crystal main oscillator with jumpers to optionally disconnect it
8 Mhz oscillator with jumpers to optionally disconnect it
Clock input through SMA connector to optionally disconnect it
2 X SAMTEC QSH series, 240 way connector to connect "mini module" to motherboard
UM2827
Hardware description

4.2 Hardware dimension and PCB component view

The "mini module" has the following dimensions:
PCB area: 127 mm x 114.3 mm
Top components height: 16.5 mm max
Bottom components height: 3.5 mm max
PCB thickness: 1.6 mm
UM2827 - Rev 1
page 6/25

5 Power and system configuration

5.1 Power supplies

When the "mini module" is plugged onto the motherboard, power is supplied directly by the motherboard. In this setup, the external power supply input available on the "mini module" should NOT be used.
When the SPC58XXADPT144S rev.B "mini module" is used as a stand-alone board, external power supplies must be used (5 V, 3.3 V, 1.25 V).
The following jumpers are used to configure the power supply:
Table 1. Supply related jumpers
Jumper Description Default Position
VDD_HV_ADR_D voltage configuration, select from 5.0V_LR (linear), 3.3V_SR
J1
(switching) or 5.0V_SR (switching) (used only for SPC58xGxxE5).
Jumper to enable the use of supply
J3
3.3V_SR
Jumper to enable the use of supply
J4
5.0V_SR
Jumper to enable the use of supply
J5
1.25V_SR
VDD_HV_ADR_S voltage configuration,
J6
select from 5.0V_LR (linear), 3.3V_SR (switching) or 5.0V_SR (switching)
VDD_HV_ADV_S voltage configuration,
J7
select from 5.0V_LR (linear), 3.3V_SR (switching) or 5.0V_SR (switching)
VDD_HV_IO_MAIN voltage configuration,
J8
select from 5.0V_SR or 3.3V_SR
VDD_HV_IO_FLEX voltage configuration,
J9
select from 5.0V_SR or 3.3V_SR
VDD_LV voltage configuration, select from
J10
1.25V_SR or from ballast circuit
Ballast supply voltage configuration, select
J11
from VDD_HV_IO_MAIN or from 5.0V_SR
VDD_HV_FLA voltage configuration:
JP1
connect or disconnect VDD_HV_FLA from VDD_HV_IO_MAIN
1-2 (5.0V_LR)
1-2 (5.0V_LR)
1-2 (5.0V_LR)
1-2 (5.0V_SR)
1-2 (5.0V_SR)
1-2 (1.25V_SR)
1-2 (5.0V_SR)
Closed
Closed
Closed
Closed
UM2827
Power and system configuration
Figure 4. SPC58XXADPT144S rev. B "mini module" -
top - D3
Figure 4. SPC58XXADPT144S rev. B "mini module" -
top - D3
Figure 4. SPC58XXADPT144S rev. B "mini module" -
top - D3
Figure 4. SPC58XXADPT144S rev. B "mini module" -
top - B4
Figure 4. SPC58XXADPT144S rev. B "mini module" -
top - D2
Figure 4. SPC58XXADPT144S rev. B "mini module" -
top - D2
Figure 4. SPC58XXADPT144S rev. B "mini module" -
top - D3
Figure 4. SPC58XXADPT144S rev. B "mini module" -
top - D3
Figure 4. SPC58XXADPT144S rev. B "mini module" -
top - B4
Figure 4. SPC58XXADPT144S rev. B "mini module" -
top - C4
Figure 5. SPC58XXADPT144S rev. B "mini module" -
bottom - C3
UM2827 - Rev 1
page 7/25

5.2 System clock configuration

The "mini module" supports the usage of crystal clock sources as well as external clock source:
Table 2. Clock configuration jumpers
Jumper Description Default Position
40 MHz crystal clock source enable
J15
for pin EXTAL
40 MHz crystal clock source enable
J17
for pin XTAL
Enable 8 MHz oscillator power
J19
supply
External clock source from 8 MHz
J21
oscillator or SMA connector

5.3 Reset circuit

The "mini module" supports different ways to reset the microcontroller.
To use and perform the reset driving there are different jumpers and switches:
1-2 (XT1 pin2)
1-2 (XT1 pin1)
Open
1-2 (8 MHz
oscillator)
UM2827
System clock configuration
Figure 4. SPC58XXADPT144S rev. B "mini module" - top -
B2
Figure 4. SPC58XXADPT144S rev. B "mini module" - top -
B2
Figure 4. SPC58XXADPT144S rev. B "mini module" - top -
B1
Figure 4. SPC58XXADPT144S rev. B "mini module" - top -
B2
Table 3. Reset configuration jumpers
Jumper Description Default Position
SW1 Reset push button Open Figure 4. SPC58XXADPT144S rev. B "mini module" - top - D1
Connect the external reset to the reset
J22
driver for ESR0 and PORST pins
J20 Connect the external reset to ESR0 pin Close Figure 4. SPC58XXADPT144S rev. B "mini module" - top - D1
J25 Connect the external reset to PORST pin Close Figure 4. SPC58XXADPT144S rev. B "mini module" - top - D2
Close Figure 4. SPC58XXADPT144S rev. B "mini module" - top - D1
UM2827 - Rev 1
page 8/25

5.4 Port configuration

The following jumpers need to configure the ports:
Jumper Description Default Position
JP13 TESTMODE settings
RSTIN configuration
J13
1-2: ESR0
2-3: PORST
JTAG/DigRF pin 9 configuration
JP2
1-2: EVTO
2-3: ESR0
PIN26 configuration
JP3
1-2: PG1
2-3: EVTI (SPC582B)
EVTI SWITCH configuration
JP4
1-2: to JP3 (SPC582B)
2-3: to JP5 (SPC58xG)
PM5/EVTI configuration
JP5
1-2: PM5
2-3: EVTI (SPC58xG)
PIN27 configuration
JP6
1-2: PG2
2-3: EVTO (SPC582B)
EVTO SWITCH configuration
JP7
1-2: to JP6 (SPC582B)
2-3: to JP8 (SPC58xG)
PIN130 configuration
JP8
1-2: PM6
2-3: EVTO (SPC58xG)
UM2827
Port configuration
Table 4. Ports related jumpers
Close (10 KΩ pull-
down)
2-3
(PORST)
1-2
(EVTO)
Closed 1-2 Figure 4. SPC58XXADPT144S rev. B "mini module" - top - C2
Closed 1-2 Figure 4. SPC58XXADPT144S rev. B "mini module" - top - C3
Closed 1-2 Figure 4. SPC58XXADPT144S rev. B "mini module" - top - C3
Closed 1-2 Figure 4. SPC58XXADPT144S rev. B "mini module" - top - C3
Closed 1-2 Figure 4. SPC58XXADPT144S rev. B "mini module" - top - C3
Closed 1-2 Figure 4. SPC58XXADPT144S rev. B "mini module" - top - C3
Figure 4. SPC58XXADPT144S rev. B "mini module" - top - A2
Figure 4. SPC58XXADPT144S rev. B "mini module" - top - B2
Figure 4. SPC58XXADPT144S rev. B "mini module" - top - A3
UM2827 - Rev 1
page 9/25

5.5 SPC58xG configuration

The following jumpers need to configure the board for support the SPC58xG:
Table 5. SPC58xG configuration related jumpers
Jumper Description Default Position
Device pin 134 port
JR2
configuration
Device pin 133 port
JR3
configuration
Device pin 132 port
JR4
configuration
Device pin 40 port
JR5
configuration
Device pin 34 port
JR6
configuration
Device pin 32 port
JR7
configuration
Device pin 30 port
JR8
configuration
Device pin 20 port
JR9
configuration
JR10
JR11
JR12
JR15
JR16
JR17
JR14
JR18
Device pin 39 port configuration
Device pin 33 port configuration
Device pin 31 port configuration
Device pin 141 port configuration
Device pin 140 port configuration
Device pin 135 port configuration
Device pin 98 port configuration / function configuration
Device pin 25 port configuration / function configuration
(closed with PCB trace for connect
1-2
pin 134 to PC[13] )
1-2
(closed with PCB trace for connect
pin 133 to PC[14] )
1-2
(closed with PCB trace for connect
pin 132 to PC[15] )
1-2
(closed with PCB trace for connect
pin 40 to PI[7] )
1-2
(closed with PCB trace for connect
pin 34 to PI[5] )
1-2
(closed with PCB trace for connect
pin 32 to PI[3] )
1-2
(closed with PCB trace for connect
pin 30 to PI[1] )
1-2
(closed with PCB trace for connect
pin 20 to PI[8] )
1-2
(closed with PCB trace for connect
pin 39 to PI[6] )
1-2
(closed with PCB trace for connect
pin 33 to PI[4] )
1-2
(closed with PCB trace for connect
pin 31 to PI[2] )
1-2
(Closed with PCB trace for connect
pin 141 to PM[2] )
1-2
(closed with PCB trace for connect
pin 140 to PM[0] )
1-2
(closed with PCB trace for connect
pin 135 to PK[14] )
1-2
(connect pin 98 to ESR0 )
1-2
(connect pin 25 to AGND )
UM2827
SPC58xG configuration
Figure 5. SPC58XXADPT144S rev. B "mini
module" - bottom - B3
Figure 5. SPC58XXADPT144S rev. B "mini
module" - bottom - B3
Figure 5. SPC58XXADPT144S rev. B "mini
module" - bottom - B3
Figure 5. SPC58XXADPT144S rev. B "mini
module" - bottom - B2
Figure 5. SPC58XXADPT144S rev. B "mini
module" - bottom - B2
Figure 5. SPC58XXADPT144S rev. B "mini
module" - bottom - B2
Figure 5. SPC58XXADPT144S rev. B "mini
module" - bottom - B2
Figure 5. SPC58XXADPT144S rev. B "mini
module" - bottom - B3
Figure 5. SPC58XXADPT144S rev. B "mini
module" - bottom - B2
Figure 5. SPC58XXADPT144S rev. B "mini
module" - bottom - B2
Figure 5. SPC58XXADPT144S rev. B "mini
module" - bottom - B2
Figure 5. SPC58XXADPT144S rev. B "mini
module" - bottom - B3
Figure 5. SPC58XXADPT144S rev. B "mini
module" - bottom - B3
Figure 5. SPC58XXADPT144S rev. B "mini
module" - bottom - B3
Figure 4. SPC58XXADPT144S rev. B "mini
module" - top - A3
Figure 4. SPC58XXADPT144S rev. B "mini
module" - top - C2
UM2827 - Rev 1
page 10/25
Jumper Description Default Position
JR19
Device pin 24 port configuration / function configuration

5.6 Test points

The "mini module" has several test points. Below all test points description:
Test point Description Position
GT1 GND test point Figure 4. SPC58XXADPT144S rev. B "mini module" - top - A4
GT2 GND test point Figure 4. SPC58XXADPT144S rev. B "mini module" - top - C4
GT3 GND test point Figure 4. SPC58XXADPT144S rev. B "mini module" - top - C2
GT4 GND test point Figure 4. SPC58XXADPT144S rev. B "mini module" - top - A1
GT5 GND test point Figure 4. SPC58XXADPT144S rev. B "mini module" - top - D1
GT6 AGND test point Figure 4. SPC58XXADPT144S rev. B "mini module" - top - B2
GT7 VSS_OSC test point Figure 4. SPC58XXADPT144S rev. B "mini module" - top - A3
TP1 TCK test point Figure 4. SPC58XXADPT144S rev. B "mini module" - top - A2
TP2 TMS/Txp test point Figure 4. SPC58XXADPT144S rev. B "mini module" - top - A3
TP3 TDI/Txn test point Figure 4. SPC58XXADPT144S rev. B "mini module" - top - A3
TP4 TDO/Rxp test point Figure 4. SPC58XXADPT144S rev. B "mini module" - top - A3
TP5 JCOMP/Rxn test point Figure 4. SPC58XXADPT144S rev. B "mini module" - top - A3
TP6 J23A, QSH connector, pin10 (PA5) test point Figure 4. SPC58XXADPT144S rev. B "mini module" - top - A4
TP7 J23A, QSH connector, pin11 (PA6) test point Figure 4. SPC58XXADPT144S rev. B "mini module" - top - A4
TP8 J23A, QSH connector, pin12 (PA7) test point Figure 4. SPC58XXADPT144S rev. B "mini module" - top - B4
TP9 J23A, QSH connector, pin13 (PA8) test point Figure 4. SPC58XXADPT144S rev. B "mini module" - top - B4
TP10 J23A, QSH connector, pin14 (PA9) test point Figure 4. SPC58XXADPT144S rev. B "mini module" - top - B4
TP11 J23A, QSH connector, pin19 (PA14) test point Figure 4. SPC58XXADPT144S rev. B "mini module" - top - B4
TP12 J23A, QSH connector, pin49 (PE4) test point Figure 4. SPC58XXADPT144S rev. B "mini module" - top - B4
TP13 J24B, QSH connector, pin210 (PD6) test point Figure 4. SPC58XXADPT144S rev. B "mini module" - top - C1
TP14 J24B, QSH connector, pin209 (PD7) test point Figure 4. SPC58XXADPT144S rev. B "mini module" - top - C1
TP15 J24B, QSH connector, pin207 (PD9) test point Figure 4. SPC58XXADPT144S rev. B "mini module" - top - C1
TP16 J23A, QSH connector, pin53 (PE8) test point Figure 4. SPC58XXADPT144S rev. B "mini module" - top - B4
TP17 J24B, QSH connector, pin183 (PF13) test point Figure 4. SPC58XXADPT144S rev. B "mini module" - top - C1
1-2
(connect pin 24 to
VDD_HV_ADR_D )
Table 6. Test points
UM2827
Test points
Figure 4. SPC58XXADPT144S rev. B "mini
module" - top - C3
UM2827 - Rev 1
page 11/25

5.7 Connectors

The "mini module" has the following connectors:
Connectors Description Position
J18 38-pin Mictor connector for Nexus level 3+ Figure 4. SPC58XXADPT144S rev. B "mini module" - top - A1
J14 14-pin header connector for JTAG interface Figure 4. SPC58XXADPT144S rev. B "mini module" - top - A3
CN1
J12
J23, J24
J2
J26 SMA connector for external clock input Figure 4. SPC58XXADPT144S rev. B "mini module" - top - C2
10-pin header connector for JTAG/DigRF port
Fault collection and control unit (FCCU) pin, for failure notification
2 X SAMTEC QSH series, 240 way connector to connect "mini module" to motherboard
External power supplies input (5 V, 3.3 V,
1.25 V)
UM2827
Connectors
Table 7. Connectors
Figure 4. SPC58XXADPT144S rev. B "mini module" - top - A2
Figure 4. SPC58XXADPT144S rev. B "mini module" - top - C2
Figure 5. SPC58XXADPT144S rev. B "mini module" - bottom -
A1/A4
Figure 4. SPC58XXADPT144S rev. B "mini module" - top - D4
UM2827 - Rev 1
page 12/25

6 Layout overview

1
2
3
4
A
B
C
D
UM2827
Layout overview
Figure 4. SPC58XXADPT144S rev. B "mini module" - top
UM2827 - Rev 1
page 13/25
Figure 5. SPC58XXADPT144S rev. B "mini module" - bottom
1
2
3
4
A
B
C
D
UM2827
Layout overview
UM2827 - Rev 1
page 14/25

7 BOM

Item QTY Reference Manufacturer code Value Part description
1 8
2 11
3 15
4 7
5 5
6 4 C35, C37, C39, C41 47 nF Mult. cer. cap. 50V 0603
7 1 C51 47 pF DNP
8 1 C52 27 pF Mult. cer. cap. 50V SMD 0603
9 2 C53, C55 10 pF DNP
10 2 C54, C57 DNM
11 1 C56 100 nF Mult. cer. cap. 50V SMD 0603
12 1 C58 27 pF Mult. cer. cap. 50V SMD 0603
13 1 CN1 TFM-105-02-L-D-WT
14 1 DUT1 OTQ-144SG-0.5-003
15 7
16 3 J1, J6, J7
17 1 J2 MC-31072104
18 4 J3, J4, J5, JP13 STRIP2PM
19 15
20 1 J12 STRIP2PM Male strip 2 poles
21 3 J13, JP4, JP7 STRIP3PM
22 1 J14 N2514-6002RB
C1, C4, C10, C28,
C31, C46, C47, C50
C2, C5, C8, C11,
C13, C15, C17, C19,
C21, C29, C32
C3, C6, C9, C22, C23, C24, C25, C26, C27, C30, C33, C42,
C43, C44, C45
C7, C34, C36, C38,
C40, C48, C49
C12, C14, C16, C18,
C20
GT1, GT2, GT3, GT4, GT5, GT6,
GT7
J8, J9, J10, J11, J15, J17, J21, JP2, JR14, JR18, JR19, JP3, JP5, JP6, JP8
Table 8. BOM
2.2 uF
100 nF Mult. cer. cap. 50V 0603
10 nF Mult. cer. cap. 50V 0603
2.2 uF
4.7uF Mult. cer. cap. 16V 0805
SAMTEC
TFM-105-02-L-D-WT
TEST2 PCB test point - raised loops
STRIP3PM +
STRIP1PM
STRIP3PM
UM2827
BOM
Mult. cer. cap. 16V 0805 - automotive
series - not mounted
Mult. Cer. cap. 16V 0805 - Automotive
Series
Mult. cer. cap. 50V SMD 0603 - Not
mounted
Mult. cer. cap. 50V SMD 0603 - not
mounted
Mult. cer. cap. 50V SMD 0603 - not
mounted
SAMTEC 5x2 TFM connector - 1.27 mm
pitch - SMD - with weld tabs
CHORUS - device under test
- eTQFP144(X6) - ENPLAS OTQ-144SG-0.5-003
Male strip 4 poles see mech part (close pin
1 and 2)
METZ CONNECT wire-to-board terminal
block, 5 mm, 4 Ways
Male strip 2 poles see mech part - normally
closed
Male Strip 3 poles see mech part (close pin
1 and 2)
Male strip 3 poles see mech part (close pin
2 and 3)
3M conn flat male 14 pins, straight - pitch
2.54 mm
UM2827 - Rev 1
page 15/25
UM2827
Item QTY Reference Manufacturer code Value Part description
23 1 J18 5767054-1
24 1 J19 STRIP2PM Malestrip 2 poles see mech part - OPEN
25 3 J20, J22, J25 STRIP2PM Male strip 2 poles see mech part - CLOSE
26 2 J23, J24
27 1 J26 BNC-SMA-FEM-180 Conn. RF SMA 180°
28 1 JP1 Jumper SMD - CLOSE with a solder drop
JR2, JR3, JR4, JR5,
29 14
30 1 LD1 KP-2012SYC Yellow Led diode yellow SMD 0805
31 1 LD2 KP-2012SRC-PRV Red Led diode red SMD 0805
32 1 OSC1
33 1 Q1 NJD2873T4G NJD2873 NPN plastic power transistor DPAK
34 2 R1, R2 0R Resistor 1/10W 5% 0805
35 7
36 1 R4 0R1 Resistor 1/2W 1% 1206
37 2 R6, R9 4K7 Resistor 1/10W 1% 0603
38 2 R7, R11 10K DNP
39 1 R8 10K Resistor 1/10W 1% 0603
40 1 R10 0R DNP
41 4 R12, R14, R15, R18 10K Resistor 1/10W 1% SMD 0603
42 1 R13 0R Resistor 1/10W 1% SMD 0603
43 2 R16, R17 560R Resistor 1/10W 1% SMD 0603
44 2 R19, R21 220R Resistor 1/10W 1% SMD 0603
45 1 R20 4K7 Resistor 1/10W 1% SMD 0603
46 1 R22 49R9 Resistor 1/16W 1% 0603
47 1 R24 100R Resistor 1/10W 1% 0603 - not mounted
48 2 R25, R26 DNM
49 1 SW1 B6110-0 Pushbutton Pushbutton NO B6110-0
50 17
51 1 U1 74LVC125AMTR 74LVC125AMTR I.C. Quad bus buffers SO14
52 1 U2 74V1G08STR 74V1G08STR
53 1 XT1 NX5032GA 40MHz
JR6, JR7, JR8, JR9,
JR10, JR11, JR12,
JR15, JR16, JR17
ECS-3953M-080-BN-
TR
R3, R5, R23, R27,
R28, R29, R30
TP1, TP2, TP3, TP4, TP5, TP6, TP7, TP8,
TP9, TP10, TP11,
TP12, TP13, TP14,
TP15, TP16, TP17
SAMTEC
QSH-120-01-L-D-A
0R
8 MHz Hybrid quartz osc SMD ECS 3953M
0R Resistor 1/10W 1% 0603
TESTPOINT Testpoint SMD - not mounted
Conn. SMD TYCO , vertical, female, 38P
MICTOR - GND pin lenght 2.74 mm
SAMTEC 0.5 mm pitch high speed SMD
socket
Resistor Jumper - Pin 1 and 2 default
closed with a PCB trace
Resistor 1/10W 1% SMD 0603 - Not
mounted
Resistor 1/10W 1% SMD 0603 - not
mounted
Resistor 1/16W 1% SMD 0603 - not
mounted
I.C. Single 2-input and gate - SMD
SOT23-5L
Quartz 40MHz SMD NX5032GA XTAL
NDK
BOM
UM2827 - Rev 1
page 16/25
J3
defaultCLOSED
J4
defaultCLOSED
J5
defaultCLOSED
0603
100nF
50V X7R
C5
VDD_HV_ADR_S
0603
10nF 50V X7R
C6
AGND AGND
0603
100nF
50V X7R
C8
VDD_HV_ADV_S
0603
10nF 50V X7R
C9
AGND AGND
1-2 CLOSED
DEFAULT
2
1 3
J8
0603
100nF 50V X7R
C29
0603
10nF 50V X7R
C30
GND GND
0805
2.2uF 16V X7R
C28
GND
N.M.
default CLOSE
JP1
0805
2.2uF 16V X7R
C36
0603
47nF 50V X7R
C37
0603
10nF 50V X7R
C43
GND GND GND
0805
2.2uF 16V X7R
C38
0603
47nF 50V X7R
C39
0603
10nF 50V X7R
C44
Pin 79
GND GND GND
0805
2.2uF 16V X7R
C40
0603
47nF 50V X7R
C41
0603
10nF 50V X7R
C45
GND GND GND
Pin 58
0805
2.2uF 16V X7R
C34
0603
47nF 50V X7R
C35
0603
10nF 50V X7R
C42
Pin 22
GND GND GND
Pin 99
NJD2873
Q1
Thermal plane
0805
2.2uF 16V X7R
C48
0805
2.2uF 16V X7R
C49
0805
2.2uF 16V X7R
C50
N.M.
0805
2.2uF 16V X7R
C46
N.M.
0805
2.2uF 16V X7R
C47
N.M.
GND
for power 2W/3W
1-2 CLOSED
GNDGND
0R1 1/2W 1206
R4
2
13
J11
VDD_HV_IO_MAIN
5.0V_SR
1-2 CLOSED
DEFAULT
2
13
J10
VDD_LV
1-2 CLOSED
DEFAULT
2
1 3
J9
0603
100nF
50V X7R
C32
0603
10nF 50V X7R
C33
GND GND
VDD_HV_IO_FLEX
VDD_HV_IO_FLEX
VDD_LV
DEFAULT
AGND
N.M.
0805
2.2uF 16V X7R
C4
0805
2.2uF 16V X7R
C7
AGND
5.0V_SR3.3V_SR 1.25V_SR
BCTRL
5.0V_LR
1-2 CLOSED
DEFAULT
1-2 CLOSED
DEFAULT
5.0V_SR
5.0V_SR
2 1
3
4
J7
2 1
3
4
J6
0805
2.2uF 16V X7R
C31
GND
N.M.
Pin 125
0805
4.7uF 16V X7R
C12
GND
0603
100nF 50V X7R
C13
0603
10nF 50V X7R
C23
GND GND
Pin 23
0805
4.7uF 16V X7R
C14
GND
0603
100nF 50V X7R
C15
0603
10nF 50V X7R
C24
GND GND
Pin 59
0805
4.7uF 16V X7R
C16
GND
0603
100nF 50V X7R
C17
0603
10nF 50V X7R
C25
GND GND
Pin 78
0603
100nF 50V X7R
C11
0603
10nF 50V X7R
C22
VSS_OSC VSS_OSCVSS_OSC
N.M.
0805
2.2uF 16V X7R
C10
Pin 83
0805
4.7uF 16V X7R
C18
GND
0603
100nF 50V X7R
C19
0603
10nF 50V X7R
C26
GND GND
Pin 115
0805
4.7uF 16V X7R
C20
GND
0603
100nF 50V X7R
C21
0603
10nF
50V
X7R
C27
GND GND
Pin 142
VDD_HV_IO_MAIN
VDD_HV_IO_MAIN
0R 1/10W 0805
R2
GND
Pin 136
1
2
3
4
MC-31072104
J2
5.0V_SR3.3V_SR1.25V_SR
GND
GT1 TEST2
GT2 TEST2
GT3 TEST2
GT4 TEST2
GT5 TEST2
RING -HEADED FOR PROBE HOOK
AGND
GT6 TEST2
0R 1/10W 0603
R5
VSS_OSC GND
1/10W 0603
AGND GND
VSS_OSC
GT7 TEST2
0603
100nF
50V X7R
C2
0603
10nF 50V X7R
C3
AGND AGNDAGND
N.M.
0805
2.2uF 16V X7R
C1
1-2 CLOSED
DEFAULT
5.0V_SR
2 1
3
4
J1
0R 1/10W 0805
R1
VDD_HV_ADR_D
Used only for CHORUS 6M
VDD_HV_ADR_D
VDD_HV_FLA
ADC
OSC & JTAG (3.3V or 5V)
I/O (3.3v - 5V)
MCU CORE LOGIC (1.25V)
SPC58xGxxE5 / SPC58xCxxE5 / SPC58xBxxE5 Power Pins
VDD_HV_ADR_S
42
VDD_HV_ADV_S
44
VDD_HV_JTAG_OSC
83
VDD_HV_N2
142
VDD_HV_IO_W0
23
VDD_HV_FLA
125
VDD_LV_W2
22
EPAD
145
EPAD
146
EPAD
147
EPAD
148
VDD_LV_S1
58
VDD_LV_E1
79
VDD_HV_N1
115
VDD_LV_E2
99
VDD_HV_IO0_S0
59
VDD_HV_IO0_E0
78
VSS_HV_ADR_S
41
VSS_HV_ADV_S
43
VSS_HV_OSC
80
I/O (3.3v - 5V)
Power Bar
FLEXRAY I/O (3.3V or 5V)
FLASH DECOUPLING
VDD_HV_IO_FLEX
136
Power Bar
BCTRL
124
DUT1A
AGND
VSS_OSC
GND
GND
0R
R3
UM2827 - Rev 1
page 17/25

8 Schematics

Figure 6. Power and decoupling
Schematics
UM2827
4K7 1/10W 0603
R9
VDD_HV_IO_MAIN
ESR0
ESR0 PM14
Jumper setting
2-3 : Chorus 6M
1-2 : All others
PI[0..15]
PI[0..15]
PM4
Jumper setting
2-3 : Chorus 6M
1-2 : All others
Jumper setting
2-3 : Chorus 6M
1-2 : All others
PIN 140 PIN 141
PM0PM2 PF4PF5
PM[0..15]
PM[0..15]
PM2
PM4
PM5
PM6
PL8
Jumper setting
2-3 : Chorus 6M
1-2 : All others
PK14PC13
Jumper setting
2-3 : Chorus 6M
1-2 : All others
PK1
Jumper setting
2-3 : Chorus 6M
1-2 : All others
PK0
PIN 24 PIN 25 PIN 135
PM14
PI8PE4 PI6PG7 PI4PB12 PI2PB14
PI7PG8 PI5PB5 PI3PB13
PIN 20
PIN 30 PIN 31 PIN 32 PIN 33 PIN 34 PIN 39 PIN 40
PI9
PI1PB15
MDO0
PI1 PI2 PI3 PI4 PI5 PI6 PI7 PI8 PI9
PH[0..15]
PH[0..15]
PH0 PH1 PH2 PH4
PG[0..15]
MDO1 MCKO
PG[0..15]
PG3 PG4 PG5 PG6
PG9 PG10 PG11 PG12 PG13 PG14 PG15
MDO11 MDO10
PF[0..15]
PF[0..15]
MDO7 MDO8
PF0 PF1 PF2 PF3
PF6 PF7 PF8 PF9 PF10 PF11 PF12 PF13 PF14 PF15
PE[0..15]
PE[0..15]
MDO3 MDO4 MDO6
PE0 PE1 PE2 PE3
PE5 PE6 PE7 PE8 PE9 PE10 PE11 PE12 PE13 PE14 PE15
EXTAL
XTAL
PORST
JP13
default CLOSED
10K DNP 1/10W 0603
R7
10K 1/10W 0603
R8
GND
VDD_HV_IO_MAIN
NOT MOUNTED
PD[0..15]
PD[0..15]
MDO9
PD0 PD1 PD2
PD4 PD5 PD6 PD7 PD8 PD9 PD10 PD11 PD12 PD13 PD14 PD15
PC[0..15]
PC[0..15]
PC0 PC1 PC2 PC3 PC4 PC5 PC6 PC7 PC8 PC9 PC10 PC11 PC12
PC13 PC14 PC15
STRIP2PM
J12
FCCU_F1 LABEL ON PCB
FCCU_F0 LABEL ON PCB
PA[0..15]
PA[0..15]
PA0 PA1 PA2 PA3 PA4
PA10 PA11 PA12 PA13 PA14 PA15
JCOMP/Rxn
TDO/Rxp
TDI/Txn
TMS/Txp
TCK
TP5TP4TP3TP2TP1
2-3 CLOSED
DEFAULT
2
1 3
J13 RSTIN
PORST
ESR0
Jumper setting
2-3 : PORST
1-2 : ESR0
PA[0]
113
PA[1]
110
PA[2]
109
PA[3]
68
PA[4]
96
TCK / PA[6]
92
TMS / PA[7]
89
TDI / PA[8]
88
TDO / PA[9]
90
PA[10]
118
PA[11]
119
PA[12]
111
PA[14]
87
PA[13]
112
PA[15]
72
PB[0]
57
PB[1]
56
PB[6] / MDO2
38
PB[7]
37
PB[8]
67
PB[9]
66
PB[10]
65
PB[11] / FCCU_F0
64
PD[0]
128
PD[1]
127
PD[2]
126
PD[4]
105
PD[5]
106
PD[6]
86
PD[7]
85
PD[8]
69
PD[9] / MDO9
62
PD[10]
63
PD[11]
53
PD[12]
17
PD[13]
18
PF[1] / MDO7
60
PF[2]
144
PF[3]
143
PF[6] / MDO10
70
PF[7]
71
PF[8] / MDO11
73
PF[9]
74
PF[10]
75
PF[12]
77
PF[13]
84
PF[14]
93
PF[15]
95
PG[1] / EVTI
26
PG[2] / EVTO
27
PG[3] / MCKO
28
PG[4]
29
PG[5] / MDO1
35
PG[6]
36
PG[9]
45
PG[10]
46
PG[11]
47
PG[12]
48
PG[13]
100
PG[14]
101
PG[15]
114
PE[0]
14
PE[1]
15
PE[2]
16
PE[3] / CLKOUT
19
PE[5]
102
PE[6]
103
PE[7]
104
PE[8]
107
PE[9]
108
PE[10]
121
PE[11]
122
PE[12]
131
PE[13] / MDO6
52
PE[14] / MDO4
50
PE[15] / MDO3
49
PORST
97
TESTMODE
94
XTAL
82
EXTAL
81
SPC58xGxxE5 / SPC58xCxxE5 / SPC58xBxxE5 Port Pins
PB[2]
55
PB[3]
54
PB[4] / MDO5
51
PC[0]
13
PC[1]
12
PC[6]
6
PC[7]
5
PC[8]
4
PC[9]
3
PC[10]
139
PC[11]
138
PC[12]
137
PC[13]
134
PC[14]
133
PC[15]
132
PC[2] / FCCU_F1
11
PC[3]
9
PC[4]
8
PC[5]
7
PD[14]
1
PD[15]
2
PF[11]
76
PF[0] / MDO8
61
PH[0]
116
PH[1]
117
PH[2]
120
PH[4]
123
PI[9]
21
PL[8]
10
PM[0]
140
PM[2] / RDY
141
PM[4]
129
PM[14]
98
JCOMP / PA[5]
91
PI[8]
20
PI[7]
40
PI[6]
39
PI[5] / MDO0
34
PI[4]
33
PI[3]
32
PI[2]
31
PI[1]
30
PK[0] / MSEO0
24
PK[1] / MSEO1
25
PK[14]
135
PM[6]
130
DUT1B
123
JR2
RESISTOR JUMPER
Jumper setting
2-3 : Chorus 6M
1-2 : All others
PC15PC14
PM0
PIN 132
PIN 133
PIN 134PC13 PC14 PC15
4K7 1/10W 0603
R6
VDD_HV_IO_MAIN
PE4
PG7 PG8
PB[0..15]
PB[0..15]
PB0 PB1 PB2 PB3 PB4
PB6 PB7 PB8 PB9 PB10 PB11
MDO2
MDO5
PB5
PB12 PB13 PB14 PB15
PK[0..15]
PK[0..15]
PK1
PK14
PK0
PF4 PF5
VDD_HV_ADR_D
AGND
CLKOUT
123
JR3
Jumper setting
2-3 : Chorus 6M
1-2 : All others
123
JR4
Jumper setting
2-3 : Chorus 6M
1-2 : All others
123
JR5
Jumper setting
2-3 : Chorus 6M
1-2 : All others
123
JR6
Jumper setting
2-3 : Chorus 6M
1-2 : All others
123
JR7
Jumper setting
2-3 : Chorus 6M
1-2 : All others
123
JR8
Jumper setting
2-3 : Chorus 6M
1-2 : All others
123
JR9
Jumper setting
2-3 : Chorus 6M
1-2 : All others
123
JR10
Jumper setting
2-3 : Chorus 6M
1-2 : All others
123
JR11
Jumper setting
2-3 : Chorus 6M
1-2 : All others
123
JR12
Jumper setting
2-3 : Chorus 6M
1-2 : All others
123
JR15
123
JR16
123
JR17
RDY
MSEO0MSEO1
1/10W 0603
R23
2
13
JR14
1-2 CLOSED
DEFAULT
2
13
JR18
1-2 CLOSED
DEFAULT
2
13
JR19
1-2 CLOSED
DEFAULT
2
13
JP3
2
13
JP4
2
1 3
JP5
PG1 PG2
PIN26 PIN27
PIN26
PG1
EVTI
EVTI
EVTI_CHO1MEVTI_CHO6M
PM5
2
13
JP6
2
13
JP7
2
1 3
JP8
PIN27
PG2
EVTO
EVTO
EVTO_CHO1MEVTO_CHO6M
PIN130
PM6
PIN130
1-2 CLOSED
DEFAULT
1-2 CLOSED
DEFAULT
1-2 CLOSED
DEFAULT
1-2 CLOSED
DEFAULT
1-2 CLOSED
DEFAULT
1-2 CLOSED
DEFAULT
PM5/EVTI
PM5/EVTI
RESISTOR JUMPER
RESISTOR JUMPER
RESISTOR JUMPER
RESISTOR JUMPER RESISTOR JUMPER
RESISTOR JUMPER
RESISTOR JUMPER
RESISTOR JUMPER RESISTOR JUMPER RESISTOR JUMPER
RESISTOR JUMPER
RESISTOR JUMPER RESISTOR JUMPER
TESTMODE
UM2827 - Rev 1
Figure 7. Signals
page 18/25
Schematics
UM2827
EXTAL
XTAL
EVB-EXTAL
ESR0
PORST
RST-MCU
OSC-MOD
EVB-EXTAL
EXTAL-SMA
RST-SW
VCC
GND
2 3
14
1
7
74LVC125AMTR
U1A
I25O2
6
OE2
4
74LVC125AMTR
U1B
VDD_HV_IO_MAIN
VDD_HV_IO_MAIN
VDD_HV_IO_MAIN
VDD_HV_IO_MAIN
3.3V_SR
VDD_HV_IO_MAIN
XTAL
EXTAL
ESR0
PORST
RST-SW
GND
GND
GND
GND
GND
GND
GND
GND
(MCU Crystal Input)
(MCU Crystal Output)
1-2 CLOSED
DEFAULT
1-2 CLOSED
DEFAULT
default OPEN
1-2 CLOSED
DEFAULT
GND
default CLOSED
default CLOSED
default CLOSED
REMOVE XTAL jumper when driving EXTAL from
Oscillator Module or External Source (PLL Enabled)
Connect XTAL jumper to GND when driving EXTAL from
Oscillator Module or External Source (PLL Bypass Mode)
Note - External 3.3V
regulator MUST be
enabled when using
oscillator module
Note - Internal
Pull-Up on Pin 1
SMA style Connector
USER RESET LED
External Cl ock Inp ut
MCU RESET LED
RESET
SO14
I39O3
8
OE3
10
74LVC125AMTR
U1C
SO14
SO14
NOT MOUNTED
NOT MOUNTED
2
13
STRIP3PM
J17
0R 1/10W 0603
R13
1 2
40MHz NX5032GA
XT1
0603
10pF DNP 50V
COG/NP0
C53
0603
10pF DNP 50V
COG/NP0
C55
0603
100nF
50V X7R
C56
STRIP2PM
J19
2
13
STRIP3PM
J21
49R9 1/16W 0603
1%
R22
EN
1
GND2OUT
3
+Vs
4
8MHz 7x5
OSC1 10K
1/10W 0603
R18
560R 1/10W 0603
R16
4K7 1/10W 0603
R20
STRIP2PM
J22
Yellow 0805
LD1
STRIP2PM
J20
STRIP2PM
J25
220R 1/10W 0603
R19
220R 1/10W 0603
R21
560R 1/10W 0603
R17
Red 0805
LD2
2
1 3
STRIP3PM
J15
1
2
BNC-SMA-FEM-180
J26
ENABLE
GND
VCC
1
2
4
53
74V1G08STR
SOT23-5L
U2
Nexus level 3+ su pport
GND
RSTIN
TDO
TCK TMS
TDI
ESR0
EVTI
MDO3 MDO2 MDO1 MDO0 EVTO MCKO
MSEO0
10K
1/10W
0603
R14
GND
N/C
1
N/C
3
MDO09
5
VSTBY
37
ToolIO0
35
VBatt
33
VBatt
31
ToolIO1
29
TDET/WDTC
27
RSTOUT
25
MDO11
23
JCOMP
21
TDI
19
TMS
17
TCK
15
MDO10
13
TDO
11
RSTIN
9
BootCFG
7
N/C
2
N/C
4
CLKOUT
6
MSEO0
38
MSEO1
36
MCKO
34
EVTO
32
MDO0
30
MDO1
28
MDO2
26
MDO3
24
MDO4
22
MDO5
20
MDO6
18
MDO7
16
RDY
14
VTREF
12
EVTI
10
MDO08
8
GND
39
GND
40
GND
41
GND
42
GND
43
5767054-1
J18
EVTI
EVTO
RSTIN
TDI TDO TCK
JCOMP
TMS
EVTI
EVTO
GND
GND
GND
NOT MOUNTED
Jtag interf ace
TDI, TDO, TCK, TMS & JCOMP are not connected to
daughter card. PORST, ESR0, EVTI and EVTO are connected to daughtercard
JTAG Connector
NOT MOUNTED
NOT MOUNTED
GND
1 2 3 4 5 6 7 8
9 10 11 12 13 14
N2514-6002RB
J14
10K 1/10W 0603
R12
10K DNP 1/10W 0603
R11
0R DNP 1/10W 0603
R10
0603
27pF 50V
COG/NP0
C52
0603
47pF DNP 50V
COG/NP0
C51
JCOMP
MDO9
MDO10
MDO11
MSEO1
MDO4
MDO5
MDO6
MDO7
RDY
MDO8
CLKOUT
10K 1/10W 0603
R15
Pushbutton
SW1
VDD_HV_IO_MAIN
VDD_HV_IO_MAIN
VDD_HV_IO_MAIN
VDD_HV_IO_MAIN
VSS_OSC
JCOMP/Rxn
TCK
TDI/Txn
TDO/Rxp
TMS/Txp
EVTI
GND
GND
GND
GND
DNM 1/16W 0603
R26
DNM 1/16W 0603
R25
0603 DNM
X7R C54
0603
DNM
X7R
C57
0603
27pF 50V COG/NP0
C58
SAMTEC TFM-105-02-L-D-WT
1 2 3 4 5 6 7 8 9 10
CN1
JTAG/DigRF LVDS INTE RFACE
10 Pin Version
NOT MOUNTED !!!
J TAG, J TAG/ Di gRF LVDS INT ER FACE , Ne xu s Le vel 3 +
Re se t a nd Cr ys t a l Osc il la t or
VDD_HV_IO_MAIN
VDD_HV_IO_MAIN
RSTIN
differential signals for DigiRF
0R 1/10W 0603
R30 0R 1/10W 0603
R29
0R 1/10W 0603
R28 0R 1/10W 0603
R27
JCOMP TMS TDI TDO
100R 1/10W 0603
R24
1-2 CLOSED
DEFAULT
ESR0
EVTO
2
13
JP2
UM2827 - Rev 1
Figure 8. JTAG, JTAG/LFast LVDS INTERFACE, reset and crystal
page 19/25
Schematics
UM2827
PA8
PA14
PG4
PG6
PG8
PG10
PG12
PG14
5.0V_SR
PE2
PE4
PE6
PE8
PE0
PE10
PE12
PE14
1.25V_SR
PC0
PC2
PC4
5.0V_SR
PC6
PC8
PC10
PC12
PC14
3.3V_SR
1.25V_SR
PA0
PA2
PA4
PA10
PA12
5.0V_SR
1.25V_SR
3.3V_SR
1.25V_SR
5.0V_SR
PA9
PG3
PG5
PG7
PG9
PG11
PG13
PG15
5.0V_SR
PE1
PE11
PE13
PE15
1.25V_SR
PE5
PE7
PE9
PE3
PC1
PC5
PC7
PC3
PC9
PC11
PC13
PC15
3.3V_SR
1.25V_SR
PA3
PA1
PA11
PA13
PA15
5.0V_SR
5.0V_SR
1.25V_SR
3.3V_SR
5.0V_SR
1.25V_SR
VDD_HV_IO_MAIN
5.0V_LR
5.0V_LR
3.3V_SR
3.3V_SR
5.0V_SR
5.0V_SR
1.25V_SR
1.25V_SR
VDD_HV_IO_MAIN
VDD_HV_IO_MAIN
5.0V_LR
5.0V_LR
VDD_HV_IO_MAIN
3.3V_SR
3.3V_SR
5.0V_SR
5.0V_SR
1.25V_SR
1.25V_SR
PE12
PF2
PG6
PG9
PG10
PG11
PG12
PH4
PC0
PC1
PC12
PC13
PC14
PC15
PA0
PA1
PA2
PA3
PA4
PA10
PA11
PA12
PA13
PA15
PB0
PB1
PB8
PB9
PB10
PB11
PD0
PD4
PD5
PD8
PD10
PD11
PD12
PD13
PD14
PD15
PE0
PE1
PE2
PE3
PE5
PE6
PE7
PE9
PE10
PE11
1.25V_SR
5.0V_LR
3.3V_SR
5.0V_SR
VDD_HV_IO_MAIN
PB15
1.25V_SR
5.0V_SR
3.3V_SR
1.25V_SR
3.3V_SR
PD7
PF13
1.25V_SR
1.25V_SR
PH3
PH1
3.3V_SR
PF1
PF11
PF15
PF3
PF5
PF7
PF9
5.0V_SR
PD1
PD3
PD5
PD9
PD11
PD13
PD15
3.3V_SR
PB1
PB3
PB5
PB7
PB9
PB11
PB13
PD6
3.3V_SR
PH0
PH2
PH4
1.25V_SR
PF0
PF10
PF12
PF14
3.3V_SR
PF2
PF4
PF6
PF8
5.0V_SR
PD0
PD2
PD4
PD8
PD10
PD12
PD14
1.25V_SR
PB0
PB2
PB4
PB6
PB8
PB10
PB12
PB14
1.25V_SR
5.0V_SR
3.3V_SR
1.25V_SR
3.3V_SR
5.0V_LR
1.25V_SR
1.25V_SR
5.0V_SR
5.0V_SR
3.3V_SR
3.3V_SR
VDD_HV_IO_MAIN
5.0V_LR
VDD_HV_IO_MAIN
5.0V_LR
1.25V_SR
1.25V_SR
5.0V_SR
5.0V_SR
3.3V_SR
3.3V_SR
VDD_HV_IO_MAIN
5.0V_LR
VDD_HV_IO_MAIN
RST-SW
PD6
PD7
PF13
3.3V_SR1.25V_SR 5.0V_LR5.0V_SR VDD_HV_IO_MAIN
RST-SW
PortE
GND
GND
GND
TP11
TP6
TP13 TP14
TP17
PA[0..15] PB[0..15] PC[0 ..15] PD[0..15] PE[ 0..15] PF[0..15] PG[0..15] PH[0..15]
PA[0..15] PB[0..15] PC[0 ..15] PD[0..15] PE [0..15] PF[0..15 ] PG[0..15 ] PH[0..15]
PortA PortB PortC PortD PortF PortG PortH
1
1
3
3
5
5
7
7
9
9
11
11
13
13
15
15
17
17
19
19
21
21
23
23
25
25
27
27
29
29
31
31
33
33
35
35
37
37
39
39
41
41
43
43
45
45
47
47
49
49
51
51
53
53
55
55
57
57
59
59
61
61
63
63
65
65
67
67
69
69
71
71
73
73
75
75
77
77
79
79
81
81
83
83
85
85
87
87
89
89
91
91
93
93
95
95
97
97
99
99
101
101
103
103
105
105
107
107
109
109
111
111
113
113
115
115
117
117
119
119
2
2
4
4
6
6
8
8
10
10
12
12
14
14
16
16
18
18
20
20
22
22
24
24
26
26
28
28
30
30
32
32
34
34
36
36
38
38
40
40
42
42
44
44
46
46
48
48
50
50
52
52
54
54
56
56
58
58
60
60
62
62
64
64
66
66
68
68
70
70
72
72
74
74
76
76
78
78
80
80
82
82
84
84
86
86
88
88
90
90
92
92
94
94
96
96
98
98
100
100
102
102
104
104
106
106
108
108
110
110
112
112
114
114
116
116
118
118
120
120
SAMTEC QSH-120-01-L-D-A
J23A
SH1
SH1
SH2
SH2
SH3
SH3
SH4
SH4
SH5
SH5
SH6
SH6
SH7
SH7
SH8
SH8
SH9
SH9
121
121
123
123
125
125
127
127
129
129
131
131
133
133
135
135
137
137
139
139
141
141
143
143
145
145
147
147
149
149
151
151
153
153
155
155
157
157
159
159
161
161
163
163
165
165
167
167
169
169
171
171
173
173
175
175
177
177
179
179
181
181
183
183
185
185
187
187
189
189
191
191
193
193
195
195
197
197
199
199
201
201
203
203
205
205
207
207
209
209
211
211
213
213
215
215
217
217
219
219
221
221
223
223
225
225
227
227
229
229
231
231
233
233
235
235
237
237
239
239
SH16
SH16
SH15
SH15
SH14
SH14
SH13
SH13
SH12
SH12
SH11
SH11
SH10
SH10
122
122
124
124
126
126
128
128
130
130
132
132
134
134
136
136
138
138
140
140
142
142
144
144
146
146
148
148
150
150
152
152
154
154
156
156
158
158
160
160
162
162
164
164
166
166
168
168
170
170
172
172
174
174
176
176
178
178
180
180
182
182
184
184
186
186
188
188
190
190
192
192
194
194
196
196
198
198
200
200
202
202
204
204
206
206
208
208
210
210
212
212
214
214
216
216
218
218
220
220
222
222
224
224
226
226
228
228
230
230
232
232
234
234
236
236
238
238
240
240
SAMTEC QSH-120-01-L-D-A
J23B
1
1
3
3
5
5
7
7
9
9
11
11
13
13
15
15
17
17
19
19
21
21
23
23
25
25
27
27
29
29
31
31
33
33
35
35
37
37
39
39
41
41
43
43
45
45
47
47
49
49
51
51
53
53
55
55
57
57
59
59
61
61
63
63
65
65
67
67
69
69
71
71
73
73
75
75
77
77
79
79
81
81
83
83
85
85
87
87
89
89
91
91
93
93
95
95
97
97
99
99
101
101
103
103
105
105
107
107
109
109
111
111
113
113
115
115
117
117
119
119
2
2
4
4
6
6
8
8
10
10
12
12
14
14
16
16
18
18
20
20
22
22
24
24
26
26
28
28
30
30
32
32
34
34
36
36
38
38
40
40
42
42
44
44
46
46
48
48
50
50
52
52
54
54
56
56
58
58
60
60
62
62
64
64
66
66
68
68
70
70
72
72
74
74
76
76
78
78
80
80
82
82
84
84
86
86
88
88
90
90
92
92
94
94
96
96
98
98
100
100
102
102
104
104
106
106
108
108
110
110
112
112
114
114
116
116
118
118
120
120
SAMTEC QSH-120-01-L-D-A
J24A
SH1
SH1
SH2
SH2
SH3
SH3
SH4
SH4
SH5
SH5
SH6
SH6
SH7
SH7
SH8
SH8
SH9
SH9
121
121
123
123
125
125
127
127
129
129
131
131
133
133
135
135
137
137
139
139
141
141
143
143
145
145
147
147
149
149
151
151
153
153
155
155
157
157
159
159
161
161
163
163
165
165
167
167
169
169
171
171
173
173
175
175
177
177
179
179
181
181
183
183
185
185
187
187
189
189
191
191
193
193
195
195
197
197
199
199
201
201
203
203
205
205
207
207
209
209
211
211
213
213
215
215
217
217
219
219
221
221
223
223
225
225
227
227
229
229
231
231
233
233
235
235
237
237
239
239
SH16
SH16
SH15
SH15
SH14
SH14
SH13
SH13
SH12
SH12
SH11
SH11
SH10
SH10
122
122
124
124
126
126
128
128
130
130
132
132
134
134
136
136
138
138
140
140
142
142
144
144
146
146
148
148
150
150
152
152
154
154
156
156
158
158
160
160
162
162
164
164
166
166
168
168
170
170
172
172
174
174
176
176
178
178
180
180
182
182
184
184
186
186
188
188
190
190
192
192
194
194
196
196
198
198
200
200
202
202
204
204
206
206
208
208
210
210
212
212
214
214
216
216
218
218
220
220
222
222
224
224
226
226
228
228
230
230
232
232
234
234
236
236
238
238
240
240
SAMTEC QSH-120-01-L-D-A
J24B
PA5
PA7PA6
PG0
PI0
PH5
PH6 PH7
PH8 PH9
PH10 PH11
PH12 PH13
PH14
VDD_HV_IO_FLEX
VDD_HV_IO_FLEXVDD_HV_IO_FLEX
PH15
PI3
VDD_HV_IO_FLEX
VDD_HV_IO_FLEX
TP7 TP8
TP10TP9
PB2
PB3
PC2
PC3
PC4
PC5
PC8
PC9
PC10
PC11
PC6
PC7
PF3
PI[0..15]
PI[0..15]
PortI
PI1
PI2
PI3
PI4
PI6
PI7
PortM
TP15
TP12
TP16
PI1
PI2
PI4
PI7
PI5
PI6
PM4
PM6
PM14
PA14
PB4
PB5
PB6
PB7
PB12
PB13
PB14
PB15
PD9
PD1
PD2
PE4
PE8
PE13
PE14
PE15
PF0
PF1
PF4
PF5
PF6
PF7
PF8
PF9
PF10
PF11
PF12
PF14
PF15
PG3
PG4
PG5
PG7
PG8
PG13
PG14
PG15
PH0
PH1
PH2
PI8 PI9
PI5
PI8
PI9
PK[0..15]
PK1
PK14
PK0
PK[0..15]
PK0 PK1
PK14
PL8
PM[0..15]
PM2
PM4
PM5
PM6
PM14
PM0
PM[0..15]
PM0
PM2
PM5
PG1
PG2
PG1 PG2
UM2827 - Rev 1
Figure 9. Motherboard connectors
page 20/25
Schematics
UM2827

Revision history

Date Version Changes
17-Feb-2021 1 Initial release.
UM2827
Table 9. Document revision history
UM2827 - Rev 1
page 21/25
UM2827
Contents
Contents
1 Overview ..........................................................................2
1.1 Package Contents..............................................................3
1.2 Supported Devices .............................................................3
2 License agreement ................................................................4
3 Handling precautions ..............................................................5
4 Hardware description ..............................................................6
4.1 Hardware features..............................................................6
4.2 Hardware dimension and PCB component view .....................................6
5 Power and system configuration ...................................................7
5.1 Power supplies ................................................................7
5.2 System clock configuration ......................................................8
5.3 Reset circuit ...................................................................8
5.4 Port configuration ..............................................................9
5.5 SPC58xG configuration ........................................................10
5.6 Test points ...................................................................11
5.7 Connectors...................................................................12
6 Layout overview ..................................................................13
7 BOM..............................................................................15
8 Schematics .......................................................................17
Revision history .......................................................................21
UM2827 - Rev 1
page 22/25
UM2827
List of tables
List of tables
Table 1. Supply related jumpers ................................................................7
Table 2. Clock configuration jumpers ............................................................8
Table 3. Reset configuration jumpers ............................................................8
Table 4. Ports related jumpers .................................................................9
Table 5. SPC58xG configuration related jumpers ................................................... 10
Table 6. Test points ....................................................................... 11
Table 7. Connectors ....................................................................... 12
Table 8. BOM ........................................................................... 15
Table 9. Document revision history .............................................................21
UM2827 - Rev 1
page 23/25
UM2827
List of figures
List of figures
Figure 1. SPC58XXADPT144S rev. B ...........................................................1
Figure 2. Overview of SPC58XXADPT144S rev. B "mini module" - top .................................... 2
Figure 3. Overview of SPC58XXADPT144S rev. B "mini module" - bottom .................................. 3
Figure 4. SPC58XXADPT144S rev. B "mini module" - top ............................................ 13
Figure 5. SPC58XXADPT144S rev. B "mini module" - bottom.......................................... 14
Figure 6. Power and decoupling ..............................................................17
Figure 7. Signals ........................................................................ 18
Figure 8. JTAG, JTAG/LFast LVDS INTERFACE, reset and crystal ......................................19
Figure 9. Motherboard connectors ............................................................ 20
UM2827 - Rev 1
page 24/25
UM2827
IMPORTANT NOTICE – PLEASE READ CAREFULLY
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement.
Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’ products.
No license, express or implied, to any intellectual property right is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
ST and the ST logo are trademarks of ST. For additional information about ST trademarks, please refer to www.st.com/trademarks. All other product or service names are the property of their respective owners.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2021 STMicroelectronics – All rights reserved
UM2827 - Rev 1
page 25/25
Loading...
