STIHL BGA 100
{
Instruction Manual
Notice d’emploi
G Instruction Manual
1 - 20
F Notice d’emploi
21 - 43
Contents
English
Guide to Using this Manual 2
IMPORTANT SAFETY
INSTRUCTIONS 2
Safety Precautions and Working
Techniques 3
Using the Unit 7
Assembling the Blower 7
Connecting Charger to Power
Supply 8
Original Instruction ManualPrinted on chlorine-free paper
Charging the Battery 8
LEDs on Battery 9
LED on Charger 11
Controls 11
Switching On 12
Switching Off 13
Storing the Machine 13
Inspection and Maintenance by
User 13
Maintenance and Care 14
Main Parts 15
Specifications 16
Troubleshooting 18
Printing inks contain vegetable oils, paper can be recycled.
Maintenance and Repairs 20
Battery Recycling 20
Disposal 20
Dear Customer,
Thank you for choosing a quality
engineered STIHL product.
It has been built using modern
production techniques and
comprehensive quality assurance.
Every effort has been made to ensure
your satisfaction and trouble-free use of
the product.
Please contact your dealer or our sales
company if you have any queries
concerning this product.
Your
Dr. Nikolas Stihl
{
© ANDREAS STIHL AG & Co. KG, 2018
0458-711-8221-A. VA1.J18.
0000007153_004_GB
BGA 100
This instruction manual is protected by copyright. All rights reserved, especially the rights to reproduce, translate and process
with electronic systems.
1
English
Guide to Using this Manual
This instruction manual covers a
STIHL cordless blower which is also
referred to as the blower or machine in
the descriptions.
Pictograms
All the pictograms attached to the
machine are shown and explained in this
manual.
Symbols in text
WARNING
Warning where there is a risk of an
accident or personal injury or serious
damage to property.
NOTICE
Caution where there is a risk of
damaging the machine or its individual
components.
Engineering improvements
STIHL's philosophy is to continually
improve all of its products. For this
reason we may modify the design,
engineering and appearance of our
products periodically.
Therefore, some changes, modifications
and improvements may not be covered
in this manual.
IMPORTANT
SAFETY
INSTRUCTIONS
When using an electric blower, basic
precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE
USING THE STIHL BGA BLOWER,
THE BATTERY AND THE CHARGER
WARNING!
To reduce the risk of fire, electric shock,
or other injury:
1. Do not leave the blower unattended
when the plug of the connecting
cord is inserted. Disconnect the
connecting cord from the blower
when blower is not in use and
before servicing.
2. Avoid Unintentional Starting –
Do not carry blower with finger on
the trigger switch if the plug of the
connecting cord is inserted. Be sure
trigger switch is not depressed
when inserting the plug of the
connecting cord.
3. Do not expose the blower, battery
and charger including plug to rain,
use on wet surfaces or handle with
wet hands. Store indoors in dry
rooms. Also see additional
instructions which comes with the
charger and battery AP or AR.
4. Use only genuine STIHL chargers.
Use charger only indoors in dry
rooms.
5. Do not allow blower to be used as a
toy. Keep Children Away – All
bystanders should be kept at a
distance from the work area.
6. Use only as described in this
manual. Use only manufacturer's
recommended attachments.
7. Do not use with damaged battery. If
the blower is not working as it
should, has been dropped,
damaged, left outdoors, or dropped
into water, take it to your STIHL
servicing dealer to have it checked
before further operation.
8. Do not put any object into openings.
Do not use with any opening
blocked; keep free of dust, lint, hair,
and anything that may reduce air
flow.
9. Keep hair, loose clothing, fingers
and all parts of body away from
openings and moving parts.
10. Turn off all controls before removing
the connecting cord.
11. Use extra care when cleaning on
stairs.
12. Do not use in areas where
flammable or combustible liquids,
such as gasoline, may be present.
13. Do not expose battery to fire or
incinerate even if it is severely
damaged. Battery can explode.
2
BGA 100
English
14. Store Idle Blower Indoors –
When not in use, blower should be
stored indoors in a dry, and high,
locked place with connecting cord
removed and retaining latch on ƒ –
out of reach of children.
15. Replacement Parts –
When servicing, use only identical
STIHL replacement parts.
SAVE THESE
INSTRUCTIONS
Safety Precautions and
Working Techniques
Special safety precautions must be observed
when working with a
power tool.
It is important that you
read the instruction manual before first use and
keep it in a safe place for
future reference. Nonobservance of the
instruction manual may
result in serious or even
fatal injury.
General
WARNING
– Minors should never be allowed to
operate this blower. Watch children
to be sure that they do not play with
the blower.
– This blower may be operated only
by persons who have been
instructed in its use and proper
handling.
– Persons who are not able to operate
the blower safely due to limited
physical, sensory or mental ability
may work with it only under
supervision or after being instructed
appropriately by a responsible
person.
– Do not lend or rent your blower
without the instruction manual. Be
sure that anyone using it
understands the information
contained in this manual.
Observe all applicable local safety
regulations, standards and ordinances.
When the blower is not in use, store it so
that it does not endanger others. Secure
it against unauthorized use.
The user is responsible for avoiding
injury to third parties or damage to their
property.
If you have not used this blower before:
Have your dealer or a trained expert
show you how to operate it properly and
safely.
The use of noise emitting power tools
may be restricted to certain times by
national or local regulations.
Do not operate your blower if any of its
components are damaged.
BGA 100
Notes on Blower
Switch off the blower,
move the retaining latch
to ƒ and pull the connecting cord plug out of
the socket:
3
English
– before performing any cleaning
work
– before leaving the blower
unattended
– before transporting
– before storing
– before performing repairs or
maintenance work
– in the event of danger or in an
emergency
This avoids the risk of the motor starting
unintentionally.
Physical Condition
To operate this blower you must be
rested, in good physical condition and
mental health.
If you have any condition that might be
aggravated by strenuous work, check
with your doctor before operating a
blower.
Do not operate the blower if you are
under the influence of any substance
(drugs, alcohol) which might impair
vision, dexterity or judgment.
Intended Use
The blower is designed for blowsweeping leaves, grass, paper and
similar materials, e.g. in gardens, sports
stadiums, car parks and driveways.
Do not blow-sweep hazardous
materials.
Do not operate your blower indoors.
Do not use the blower for any other
purpose because of the increased risk of
accidents and damage to the blower.
Never attempt to modify the blower in
any way since this may result in
accidents or damage to the blower.
Operating Conditions
This blower may be used in the rain and
wet. Dry off your blower after finishing
work.
Do not leave the blower outdoors in the
rain.
Clothing and Equipment
Wear proper protective clothing and
equipment.
Clothing must be sturdy
but allow complete freedom of movement. Wear
snug-fitting clothing, an
overall and jacket combination, do not wear a
work coat.
Avoid clothing that could
get into the air intake. Do
not wear a scarf, necktie
or jewelry. Tie up and
confine long hair (e.g.
with a hair net, cap, hard
hat, etc.).
Wear sturdy shoes with non-slip soles.
WARNING
To reduce the risk of eye
injuries, wear close-fitting safety glasses in
accordance with European Standard EN 166.
Make sure the safety
glasses are a comfortable and snug fit.
Hearing protection is recommended,
e.g. earplugs or ear muffs.
STIHL offers a comprehensive range of
personal protective clothing and
equipment.
before transporting
Always switch off the blower, move the
retaining latch to ƒ and pull the
connecting cord plug out of the socket –
even when you carry the blower for short
distances. This avoids the risk of the
motor starting unintentionally.
Carry the blower by the control handle.
Transporting by vehicle: Properly secure
the blower to prevent turnover and
damage.
Accessories
Only use parts and accessories that are
explicitly approved for this blower by
STIHL or are technically identical. If you
have any questions in this respect,
consult a servicing dealer. Use only high
quality parts and accessories in order to
avoid the risk of accidents and damage
to the blower.
4
BGA 100
English
STIHL recommends the use of genuine
STIHL replacement parts. They are
specifically designed to match the
product and meet your performance
requirements.
Never attempt to modify your blower in
any way since this may increase the risk
of personal injury. STIHL excludes all
liability for personal injury and damage
to property caused while using
unauthorized attachments.
Drive
Battery
Observe the information in the leaflet or
instruction manual supplied with the
STIHL battery and keep it in a safe
place.
For further notes on safety see
www.stihl.com/safety-data-sheets
Charger
Observe the information in the leaflet
supplied with the STIHL charger and
keep it in a safe place.
Connecting cord
Observe the information in the leaflet
supplied with the STIHL connecting cord
and keep it in a safe place.
Before Starting Work
Check that your blower is properly
assembled and in good condition – refer
to appropriate chapters in the instruction
manual.
– Never use a defective or deformed
battery.
– The trigger switch and trigger
lockout must move freely (retaining
latch to ‚) – switches must return to
the idle position when they are
released.
– The nozzle must be properly
mounted.
– Keep the handles dry and clean –
free from oil and dirt – for safe
control of the blower.
– Never attempt to modify the controls
or the safety devices in any way.
– Check condition of housing
A worn housing (cracks, nicks, chips)
may result in an increased risk of injury
from thrown foreign objects. If the
housing is damaged, consult your dealer
– STIHL recommends you contact a
STIHL servicing dealer.
To reduce the risk of accidents, do not
operate your blower if it is damaged or
not properly assembled.
During Operation
In case of imminent danger or in an
emergency, switch off the blower
immediately, move the retaining latch to
ƒ and pull the connecting cord plug out
of the socket.
Do not disconnect the connecting cord
plug from the socket while the motor is
running.
Your blower is designed to be operated
by one person only. Do not allow other
persons in the work area.
Keep bystanders, especially children,
and animals away from the work area.
To reduce the risk
of injury from
thrown objects, do
not allow any other
persons within a
radius of 5 meters
(16 ft) of your own
position.
To reduce the risk of damage to
property, also maintain this distance
from other objects (vehicles, windows).
Do not direct the air blast towards
bystanders or animals since the air flow
can blow small objects at great speed.
When blow-sweeping (in open ground
and gardens), watch out for small
animals to avoid harming them.
Never leave a running blower
unattended.
Walk slowly forwards as you work –
observe the nozzle outlet at all times –
do not walk backwards – risk of
stumbling.
Hold your power tool in a normal,
relaxed working position. Make sure you
always have good balance and secure
footing.
Take care in slippery conditions – on
slopes and uneven ground.
BGA 100
5
English
Watch out for obstacles: Be careful of
refuse, tree stumps, roots and ditches
which could cause you to trip or stumble.
Never work on a ladder or any other
insecure support.
Work calmly and carefully – in daylight
conditions and only when visibility is
good. Stay alert so as not to endanger
others.
To reduce the risk of accidents, take a
break in good time to avoid tiredness or
exhaustion.
Static electricity may build-up while
blow-sweeping large quantities of very
dusty material and suddenly discharge
in certain unfavorable conditions (e.g.
very dry work area).
If dust levels are very high, always wear
a suitable respirator.
Do not poke objects through the intake
screen or push the nozzle inside the
housing and make sure no objects are
sucked through the intake screen. Risk
of injury from expelled objects and risk of
damaging the blower.
If there is a noticeable change in running
behavior (e.g. higher vibrations), stop
work and rectify the cause of the
problem.
If your blower is subjected to unusually
high loads for which it was not designed
(e.g. heavy impact or a fall), always
check that it is in good condition before
continuing work – see also "Before
Starting Work". Make sure the safety
devices are working properly. Do not
continue operating your power tool if it is
damaged. In case of doubt, consult your
servicing dealer.
Before leaving the blower unattended:
Switch off the blower, move the retaining
latch to ƒ and pull the connecting cord
plug out of the socket,
After Finishing Work
Always clean dust and dirt off the blower
– do not use any grease solvents for this
purpose.
Do not spray the blower with water.
Do not use a pressure washer to clean
your blower. The solid jet of water may
damage parts of the blower.
Vibrations
This power tool minimizes the vibrations
transmitted to the operator's hands.
However, the operator should seek
medical advice in the event of suspected
circulatory problems in the hands (e.g.
tingling sensation in the fingers).
Maintenance and Repairs
Before performing any maintenance or
repair work, move the retaining latch to
ƒ and pull the connecting cord plug out
of the socket. This avoids the risk of the
motor starting unintentionally.
Service the machine regularly. Do not
attempt any maintenance or repair work
not described in the instruction manual.
Have all other work performed by a
servicing dealer.
STIHL recommends that you have
servicing and repair work carried out
exclusively by an authorized STIHL
servicing dealer. STIHL dealers are
regularly given the opportunity to attend
training courses and are supplied with
the necessary technical information.
Only use high-quality replacement parts
in order to avoid the risk of accidents
and damage to the machine. If you have
any questions in this respect, consult a
servicing dealer.
STIHL recommends the use of genuine
STIHL replacement parts. They are
specifically designed to match your
model and meet your performance
requirements.
Never attempt to modify your machine in
any way since this will increase the risk
of personal injury.
Regularly check the electrical contacts
and ensure that the insulation of the
connecting cord and plug of the charger
is in good condition and shows no sign
of aging (brittleness).
Electrical components, e.g. connecting
cord of charger, may only be repaired or
replaced by a qualified electrician.
Clean plastic surfaces with a cloth. Do
not use aggressive detergents. They
may damage the plastic.
Carefully clean the intake screen in the
housing with a soft brush whenever
required.
Keep the socket free from foreign matter
– clean as necessary.
Store the machine in a dry, locked
location with the retaining latch on ƒ
and the connecting cord disconnected.
6
BGA 100
English
0021BA004 KN
0021BA006 KN
3
1
2
3
0021BA005 KN
2
1
Using the Unit
Your blower is designed for one-handed
operation. It can be carried by the
control handle in either the right or left
hand.
N Always hold the blower firmly in your
hand.
Carrying ring
With the STIHL AR battery, you can
attach the blower's carrying ring to a hip
pad on the harness.
Use Type AR batteries only with the
harness provided – do not combine with
other carrying straps (e.g. shoulder
strap, full harness, etc.).
Using hip pad on STIHL AR battery
harness
N Fit the hip pad (1) on the
harness (3) with the aid of the AR
kit (2) – see leaflet supplied with
AR kit.
N Use carrying ring to attach blower to
hip pad.
Assembling the Blower
Nozzle
WARNING
To reduce the risk of injury, operate the
unit only with a properly mounted
nozzle.
Mounting the Nozzle
N Push the nozzle (1) onto the blower
tube (2) as far as mark that suits
your height.
N Rotate the nozzle (1) in the direction
of the arrow and engage it in the
slot (3).
BGA 100
Adjusting the Nozzle
N Rotate the nozzle (1) clockwise as
far as the stop.
N Slide the nozzle (1) to the
appropriate mark on the blower
tube (2) that suits your height.
N Rotate the nozzle (1) in the direction
of the arrow and engage it in the
slot (3).
7
English
3901BA015 KN
2
1
1
3901BA019 KN
Removing the Nozzle
N Rotate the nozzle (1) clockwise as
far as the stop.
N Pull the nozzle (1) off the blower
tube (2).
Connecting Charger to
Power Supply
Power supply (mains) voltage and
operating voltage must be the same.
N Insert the plug (1) in the wall
outlet (2).
A self test is performed after the charger
is connected to the power supply. During
this process, the light emitting diode (1)
on the charger lights up green for about
1 second, then red and goes off again.
Charging the Battery
A factory-new battery is not fully
charged.
Recommendation: Fully charge the
battery before using it for the first time.
N Connect the charger to the power
supply – mains voltage and
operating voltage of the charger
must be the same – see
"Connecting Charger to Power
Supply".
Operate the charger only in enclosed
and dry rooms at ambient temperatures
between +5°C and +40°C (40°F and
104°F).
Only charge dry batteries. Allow a damp
battery to dry before charging.
Charging STIHL AR Battery
For a description of the complete
charging process on the STIHL AR
battery see STIHL AR battery instruction
manual.
8
BGA 100
English
2
3901BA009 KN
4
3901BA014 KN
3
1
3901BA010 KN
Charging STIHL AP Battery
N Push the battery (1) into the
charger (2) until noticeable
resistance is felt – then push it as far
as stop.
The LED (3) on the charger comes on
when the battery is inserted – see "LED
on Charger"
Charging begins as soon as the
LEDs (4) on the battery glow green –
see "LEDs on Battery".
The charge time is dependent on a
number of factors, including battery
condition, ambient temperature, etc.,
and may therefore vary from the times
specified.
The battery heats up during operation in
the power tool. If a hot battery is inserted
in the charger, it may be necessary to
cool it down before charging. The
charging process begins only after the
battery has cooled down. The time
required for cooling may prolong the
charge time.
The battery and charger heat up during
the charging process.
AL 300, AL 500 Chargers
The AL 300 and AL 500 chargers are
equipped with a battery cooling fan.
AL 100 Charger
The AL 100 charger has no fan and
waits for the battery to cool down before
starting the charging process. The
battery is cooled by heat transfer to the
ambient air.
End of Charge
The charger switches itself off
automatically when the battery is fully
charged:
– LEDs on the battery go off.
– The LED on the charger goes off.
– The charger's fan is switched off (if
charger is so equipped)
Remove the fully charged battery from
the charger.
LEDs on Battery
LEDs on STIHL AR Battery
For a description of the LEDs on the
ST IHL AR battery see ST IHL AR battery
instruction manual.
LEDs on STIHL AP Battery
Four LEDs show the battery's state of
charge and any problems that occur on
the battery or power tool.
N Press button (1) to activate the
display – the display goes off
automatically after 5 seconds.
The LEDs can glow or flash green or
red.
LED glows continuously green.
LED flashes green.
LED glows continuously red.
LED flashes red.
BGA 100
9
English
3901BA018 KN
80 - 100 %
60 - 80 %
40 - 60 %
20 - 40 %
0 - 20 %
3901BA016 KN
80 - 100 %
60 - 80 %
40 - 60 %
20 - 40 %
0 - 20 %
3901BA041 KN
A
B
C
D
During charging
The LEDs glow continuously or flash to
indicate the progress of charge.
A green flashing LED indicates the
capacity that is currently being charged.
The LEDs on the battery go off
automatically when the charge process
is completed.
If the LEDs on the battery flash or glow
red – see "If the red LEDs glow
continuously / flash".
During Operation
The green LEDs glow continuously or
flash to indicate the state of charge.
If the LEDs on the battery flash or glow
red – see "If the red LEDs glow
continuously / flash".
If the red LEDs glow continuously / flash
A 1 LED glows
continuously
Battery is too
hot
1) 2)
/cold
1)
red:
B 4 LEDs flash
red
C 3 LEDs glow
continuously
red:
D 3 LEDs flash
red
1)
When charging: Charge process
Malfunction in
3)
battery
Power tool is too
hot – allow it to
cool down.
Malfunction in
power tool
4)
starts automatically after the battery
has cooled down / warmed up.
2)
During operation: Power tool cuts
out – allow battery to cool down; it
may be necessary to take the
battery out of the belt bag for this
purpose.
10
BGA 100
3)
1
3901BA019 KN
3
1
2
0021BA007 KN
Electromagnetic interference or
fault. Take the battery out of the
belt bag and refit it. Switch on the
machine – if the LEDs continue to
flash, the battery has a malfunction
and must be replaced.
4)
Electromagnetic interference or
fault. Take the battery out of the
belt bag and pull the plug out of the
machine's socket. Use a blunt tool
to clean dirt off the contacts in the
belt bag and the connecting cord
plug. Refit the battery and insert the
connecting cord plug in the
machine's socket. Switch on the
power tool – if the light emitting
diodes still flash, the power tool is
faulty and must be checked by a
servicing dealer – STIHL
recommends an authorized STIHL
servicing dealer.
LED on Charger
The LED (1) on the charger may glow
continuously green or flash red.
Green continuous light ...
... indicates the following:
The battery
– is being charged
– is too hot and must cool down
before charging
See also "LEDs on battery".
The green LED on the charger goes off
as soon as the battery is fully charged.
Red flashing light ...
... may indicate the following:
– No electrical contact between
battery and charger – remove and
refit the battery
– Malfunction in battery – see also
"LEDs on Battery".
– Malfunction in charger – have
checked by a servicing dealer.
STIHL recommends an authorized
STIHL servicing dealer.
English
Controls
Contents
1 Retaining latch
2 Trigger switch
3 LEDs
Function of Retaining Latch
Position ƒ
– Blower is switched off.
– Trigger switch is locked and cannot
be operated.
Position ‚
– Blower is switched on.
– Trigger switch is unlocked and can
be operated.
Selecting power level
Blowing power can be adjusted with the
retaining latch. Three power levels are
available.
BGA 100
11
English
0021BA008 KN
0021BA009 KN
0021BA013 KN
3
4
0021BA014 KN

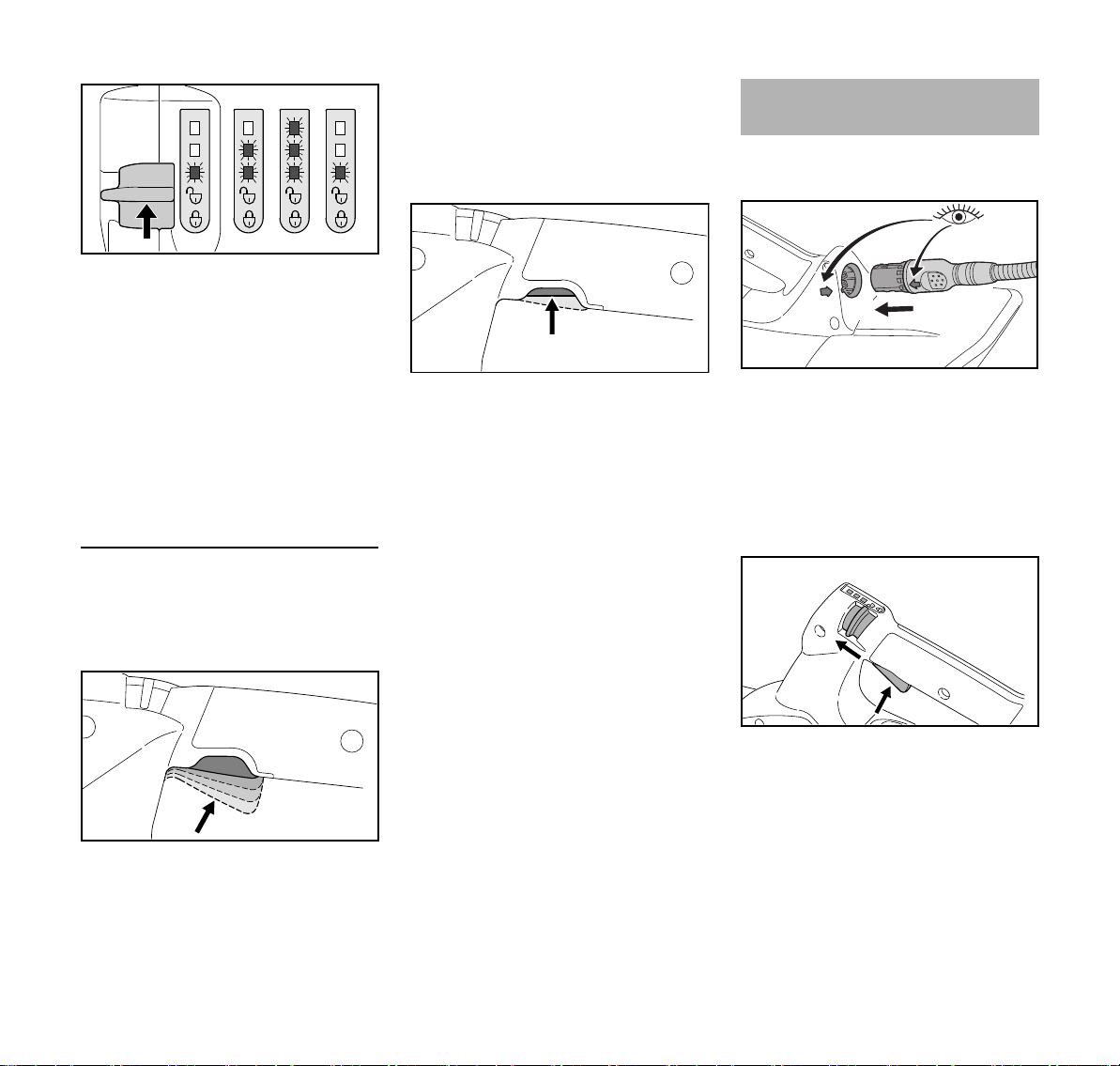

LEDs indicate the selected power level.
N If LEDs remain off: Switch on the
blower - see "Switching On".
N Push the retaining latch upwards
and allow it to spring back. This
activates the next power level.
N Repeat the procedure until the
required power level is indicated.
Power level 3 is followed by power level
1, then 2, 3, etc.
Function of Trigger Switch
Controlling blowing power
The trigger switch allows infinitely
variable control of blowing power.
Activating the boost function
The boost function can be activated
independent of the preset power level.
The boost function always provides
maximum blowing power.
N Override the trigger switch's end
position and hold it there.
The LEDs flash in sequence.
The boost function remains active until
the trigger switch is released.
The previously selected power level is
restored when the trigger switch is
released.
Switching On
N Mount the nozzle - see "Assembling
the Blower".
2
N Line up the arrows and insert
connecting cord's plug (1) in the
blower's socket (2).
N Make sure you have a secure and
firm footing.
N Stand upright, hold the blower and
stay relaxed.
1
0000-GXX-4230-A0
N Pull the trigger switch until the
required blowing power is reached.
Blowing power increases as the trigger
switch is squeezed - but only up to the
preset power level.
12
N Move the retaining latch (3) to ‚.
N Operate the trigger switch (4).
BGA 100
English
2
1
0021BA015 KN
0021BA011 KN

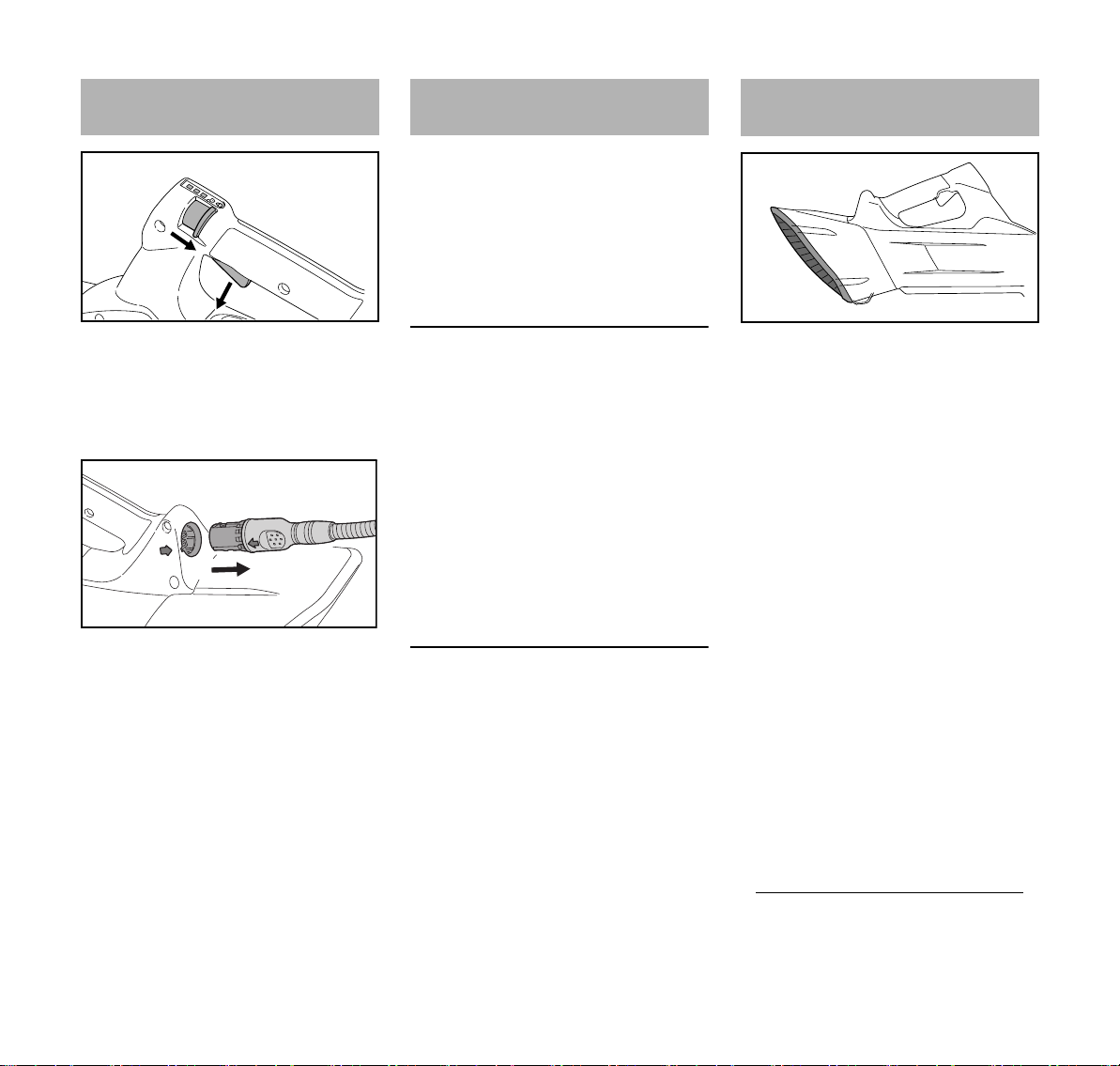

Switching Off
N Release the trigger (1).
N Move the retaining latch (2) to ƒ.
This locks the trigger so that it
cannot be operated – the blower is
switched off.
4
N Pull connecting cord plug (3) out of
the socket (4) during breaks and
after finishing work.
N Put the blower down so that it does
not endanger others.
N Secure it against unauthorized use.
3
Storing the Machine Inspection and Maintenance
by User
N Switch off the blower - see
"Switching Off".
N Store the machine in a dry and
secure location
N Keep out of the reach of children
and other unauthorized persons.
Storing the Battery
N Check intake screen for damage
N Remove the battery from the
machine or charger.
N Store indoors in a dry and secure
location. Keep out of the reach of
children and other unauthorized
persons and protected from
contamination.
N Do not store spare batteries unused
– use in rotation.
N To optimize the life of the battery,
store it with a charge of about 30%.
0000-GXX-4231-A0
Storing the Charger
N Removing the Battery
N Disconnect the plug from the wall
outlet.
N Store the charger indoors in a dry
and secure location. Keep out of the
reach of children and other
unauthorized persons and
protected from contamination.
before and after each use – have a
damaged intake screen replaced by
your servicing dealer
N Carefully clean a dirty intake screen
with a soft brush whenever
required.
1)
BGA 100
1)
STIHL recommends a STIHL
servicing dealer
13
Loading...
