Stihl BGA 100 Instruction Manual

STIHL BGA 100

WARNING

Read Instruction Manual thoroughly
before use and follow all safety
precautions – improper use can
cause serious or fatal injury.

ADVERTENCIA

Antes de usar la máquina lea y siga
todas las precauciones de
seguridad dadas en el manual de
instrucciones – el uso incorrecto
puede causar lesiones graves o
mortales.

Instruction Manual
Manual de instrucciones

Instruction Manual
1 - 28

Manual de instrucciones
29 - 57

Contents

English

Guide to Using this Manual 2
IMPORTANT SAFETY

INSTRUCTIONS 2
Safety Precautions and Working

Techniques 3
Using the Unit 10
Assembling the Blower 11
Connecting Charger to Power

Supply 11

Original Instruction ManualPrinted on chlorine-free paper

Charging the Battery 12
LEDs on Battery 13
LED on Charger 14
Controls 15
Switching On 16
Switching Off 16
Storing the Machine 16
Inspection and Maintenance by

User 17
Maintenance and Care 18
Main Parts 19
Specifications 20
Troubleshooting 22

Printing inks contain vegetable oils, paper can be recycled.

Maintenance and Repairs 24
Battery Recycling 24
Disposal 24
Limited Warranty 25
Trademarks 27
Addresses 28

Allow only persons who fully understand
this manual to operate your blower.

To receive maximum performance and
satisfaction from your STIHL blower, it is
important that you read, understand and
follow the safety precautions and the
operating and maintenance instructions
in the chapters "Important Safety
Instructions" and "Safety Precautions
and Working Techniques" before using
your blower. For further information you
can go to www.stihlusa.com.

Contact your STIHL dealer or the STIHL
distributor for your area if you do not
understand any of the instructions in this
manual.

WARNING

Because a blower is a high-speed
battery-powered tool, some special
safety precautions must be observed to
reduce the risk of personal injury.
Careless or improper use may cause
serious or even fatal injury.

© ANDREAS STIHL AG & Co. KG, 2021

0458-711-8621-B. VA3.L21.

0000007091_011_GB

BGA 100

This instruction manual is protected by copyright. All rights reserved, especially the rights to reproduce, translate and process
with electronic systems.

1

English

Guide to Using this Manual

Pictograms

All the pictograms attached to or
embossed on the machine are shown
and explained in this manual.

Symbols in Text

Many operating and safety instructions
are supported by illustrations.

The individual steps or procedures
described in the manual may be marked
in different ways:

N A bullet marks a step or procedure.
A description of a step or procedure that

refers directly to an illustration may
contain item numbers that appear in the
illustration. Example:

N Loosen the screw (1).
N Lever (2) ...

In addition to the operating instructions,
this manual may contain paragraphs
that require your special attention. Such
paragraphs are marked with the
following symbols and signal words:

DANGER

Indicates a hazardous situation that, if
not avoided, will result in death or
serious injury.

WARNING

Indicates a hazardous situation that, if
not avoided, could result in death or
serious injury.

NOTICE

Indicates a risk of property damage,
including damage to the machine or its
individual components.

Engineering Improvements

STIHL’s philosophy is to continually
improve all of its products. As a result,
engineering changes and improvements
are made from time to time. Therefore,
some changes, modifications and
improvements may not be covered in
this manual. If the operating
characteristics or the appearance of
your machine differs from those
described in this manual, please contact
your STIHL dealer or the STIHL
distributor for your area for assistance.

IMPORTANT
SAFETY
INSTRUCTIONS

When using an electric blower, basic
precautions should always be followed,
including the following:

READ ALL INSTRUCTIONS BEFORE
USING THE STIHL BGA BLOWER,
THE BATTERY AND THE CHARGER

WARNING!

To reduce the risk of fire, electric shock,
or other injury:

1. Do not leave the blower unattended
when the plug of the connecting
cord is inserted. Disconnect the
connecting cord from the blower
when blower is not in use and
before servicing.

2. Avoid Unintentional Starting –
Do not carry blower with finger on
the trigger switch if the plug of the
connecting cord is inserted. Be sure
trigger switch is not depressed
when inserting the plug of the
connecting cord.

3. Do not expose the blower, battery
and charger including plug to rain,
use on wet surfaces or handle with
wet hands. Store indoors in dry
rooms. Also see additional
instructions which comes with the
charger and battery AP or AR.

4. Use only genuine STIHL chargers.
Use charger only indoors in dry
rooms.

2

BGA 100

English

5. Do not allow blower to be used as a
toy. Keep Children Away – All
bystanders should be kept at a
distance from the work area.

6. Use only as described in this
manual. Use only manufacturer's
recommended attachments.

7. Do not use with damaged battery. If
the blower is not working as it
should, has been dropped,
damaged, left outdoors, or dropped
into water, take it to your STIHL
servicing dealer to have it checked
before further operation.

8. Do not put any object into openings.
Do not use with any opening
blocked; keep free of dust, lint, hair,
and anything that may reduce air
flow.

9. Keep hair, loose clothing, fingers
and all parts of body away from
openings and moving parts.

10. Turn off all controls before removing
the connecting cord.

11. Use extra care when cleaning on
stairs.

12. Do not use in areas where
flammable or combustible liquids,
such as gasoline, may be present.

13. Do not expose battery to fire or
incinerate even if it is severely
damaged. Battery can explode.

14. Store Idle Blower Indoors –
When not in use, blower should be
stored indoors in a dry, and high,
locked place with connecting cord
removed and retaining latch on ƒ –
out of reach of children.

15. Replacement Parts –
When servicing, use only identical
STIHL replacement parts.

SAVE THESE
INSTRUCTIONS

Safety Precautions and
Working Techniques

Because the use of any
blower may be hazard
ous, special safety
precautions must be
observed to reduce the
risk of personal injury.

It is important that you
read, fully understand
and observe the following
safety precautions and
warnings. Read the
instruction manual and
the safety precautions
periodically. Careless or
improper use may cause
serious or fatal injury.

Be thoroughly familiar with the controls
and the proper use of the equipment.
Know how to stop the unit and
disengage the controls quickly.

Have your STIHL dealer show you how
to operate your power tool. Observe all
applicable local safety regulations,
standards and ordinances.

The use of noise emitting power tools
may be restricted to certain times by
national, state or local regulations.

WARNING

Do not lend or rent your power tool
without the instruction manual. Be sure
that anyone using it understands the
information contained in this manual.

Use your blower for clearing leaves,
twigs, grass, clippings, paper, debris,
and dust in yards, gardens, sport

-

BGA 100

3

English

stadiums, parks, paths, streets,
driveways and parking lots and for
similar tasks.

WARNING

Do not use it for other purposes, since
misuse may result in personal injury or
property damage, including damage to
the machine.

WARNING

Minors should never be allowed to use a
blower. Bystanders, especially children,
and animals should not be allowed in the
area where a machine is in use.

WARNING

To reduce the risk of injury to bystanders
and damage to property, never let your
power tool run unattended. When it is
not in use (e.g. during a work break),
shut it off and make sure that
unauthorized persons do not use it. To
do this, move retaining latch to ƒ and
remove the connecting cord from the
power tool.

Most of these safety precautions and
warnings apply to the use of all STIHL
blowers. Different models may have
different parts and controls. See the
appropriate section of your instruction
manual for a description of the controls
and the function of the parts of your
model.

Always remove the connecting cord and
move retaining latch to ƒ before
transporting, storing or carrying out any
work on the power tool. This avoids the
risk of the motor starting unintentionally.

Safe use of a blower involves

1. the operator

2. the power tool

3. the use of the power tool.

THE OPERATOR

Physical Condition
You must be in good physical condition

and mental health and not under the
influence of any substance (drugs,
alcohol, etc.) which might impair vision,
dexterity or judgment. Do not operate
this machine when you are fatigued.

WARNING

Be alert – if you get tired, take a break.
Tiredness may result in loss of control.
Working with any power tool can be
strenuous. If you have any condition that
might be aggravated by strenuous work,
check with your doctor before operating
this machine.

Proper Clothing

WARNING

To reduce the risk of injury, the operator
should wear proper protective apparel.

WARNING

To reduce the risk of
injury to your eyes never
operate your power tool
unless wearing goggles
or properly fitted protec
tive glasses with
adequate top and side
protection complying with
ANSI Z87 "+" (or your
applicable national
standard).

STIHL recommends the use of sound
barriers (ear plugs or ear mufflers) to
protect your hearing.

Avoid loose-fitting jack
ets, scarfs, neckties,
jewelry, flared or cuffed
pants, unconfined long
hair or anything that
could be drawn into the
air intake. Secure hair so
it is above shoulder level.

Good footing is very
important. Do not wear
sandals, flip-flops or go
barefoot.

THE POWER TOOL

For illustrations and definitions of the
power tool parts see the chapter on
"Main Parts."

WARNING

Never modify this power tool in any way.
Only attachments supplied by STIHL or
expressly approved by STIHL for use

-

-

4

BGA 100

English

with the specific STIHL model are
authorized. Although certain
unauthorized attachments are useable
with STIHL power tools, their use may,
in fact, be extremely dangerous.

If this tool is subjected to unusually high
loads for which it was not designed (e.g.
heavy impact or a fall), always check
that it is in good condition before
continuing work. Check in particular that
the controls and safety devices are
working properly. Do not continue
operating this machine if it is damaged.
In case of doubt, have it checked by your
STIHL servicing dealer.

To reduce the risk of injury, do not
operate your blower unless it has a
properly mounted blower tube.

Connecting Cord
Always remove the connecting cord by

pulling the plug.
Do not remove the connecting cord

while the motor is running.
Do not use the connecting cord to pull,

hang up or transport the power tool.
Do not operate the power tool with a

damaged connecting cord or plug.
Straighten a twisted connecting cord

before use.
Avoid chafing, pinching or tugging the

connecting cord – risk of damage.
Protect from heat, oil, pointed objects

and sharp edges.
Read, fully understand and observe the

instructions which comes with the STIHL
Connecting Cord and keep it in a safe
place.

Battery

WARNING

Risk of fire, explosion
and/or burns, including
chemical burns. Do not
disassemble, crush, heat
above 212 °F (100 °C),
expose to fire or inciner
ate. Never expose the
battery to microwaves or
high pressures.

Do not place the battery on or near fires,
stoves or in other high-temperature
locations. Do not place the battery in
direct sunlight or store it inside a vehicle
in hot weather. Doing so may cause the
battery to generate heat, rupture or
ignite. Using the batteries in this manner
may also result in a loss of performance
and a shortened battery life.

In case of fire: stay clear of any vapors
or gases generated, taking wind
direction into account. If possible without
danger, remove battery from the vicinity
of the fire. In principle, cooling the
battery or extinguishing the fire with
water is possible. It is preferable to
extinguish the fire with a multipurpose
dry chemical fire extinguisher. As for any
fire, evacuate the area and fight the fire
from a safe distance. Once the fire has
been extinguished, the area should be
monitored (fire watch) in case of a flare­up, until the battery has cooled
sufficiently. Restrict access to the area
until completion of clean-up. Do not
touch the burnt battery or any spilled
liquids. Use inert absorbent to absorb
spilled liquids.

-

Use and store the bat
tery only within a
temperature range from

-

10 °C (14 °F) up to no
more than +50 °C
(122 °F). Protect the bat
tery from direct sunlight.

WARNING

Use only STIHL AP or AR batteries with
STIHL power tools, and charge them
only with STIHL chargers. Replace
battery with STIHL battery only. Use
only genuine STIHL rechargeable
batteries.

Charge the battery before use.

Do not immerse the bat
tery in fluids. Also see
additional instructions
which comes with the
battery AP or AR.

WARNING

Do not open, drop, hit or damage
battery. Never insert objects into the
battery's cooling slots, since they may
damage the battery. The battery
contains safety features and devices
which, if damaged, may cause the
battery to generate heat, rupture or
ignite. Never use or charge a defective,
damaged, cracked or deformed battery.

Immediately discontinue use of the
battery if, while using, charging or
storing, it emits an unusual smell, feels
hot or appears abnormal in any other
way.

-

-

-

BGA 100

5

English

WARNING

Fluid may leak from the battery if it is
damaged or is not used properly – avoid
contact with the skin! Leaking battery
fluid can cause skin irritation and
chemical burns. In the event of
accidental contact, immediately rinse
thoroughly with mild soap and water. If
fluid gets into your eye(s), do not rub
your eye(s) but rinse water over the
open eye(s) for 15 minutes at least. Also
seek medical attention immediately.

WARNING

Never bridge (short circuit) the battery
terminals with metallic objects, since this
may damage the battery and possibly
cause a fire. Keep a battery that is not in
use away from metal objects (e.g. nails,
coins, jewelry). Do not use metal
containers for transporting batteries.

Store the battery out of reach of children
in a cool and dry area away from direct
sunlight and excess heat or cold (-10 °C
to +50 °C (14 °F to 122 °F)).

Read, fully understand and observe the
instruction manual for the STIHL battery
and keep it in a safe place.

For further safety information on STIHL
batteries, see www.stihl.com/safety­data-sheets

Charger
Use only genuine STIHL chargers.
Use only for charging geometrically

matching STIHL batteries with a
maximum rated capacity of 50 Ah and a
maximum voltage of 42 V.

Never charge defective, leaking or
deformed batteries.

Connect the charger only to a power
supply with the voltage and frequency
specified on the rating plate. Always
plug the charger into a properly installed
wall outlet. Do not use an extension cord
unless absolutely neccessary (see
below).

Never use a charger with damaged
housing, damaged power supply cord or
damaged plug. Do not operate the
charger if it has received a sharp blow,
been dropped or otherwise damaged in
any way.

Do not open or dissassemble charger –
there are no user serviceable parts
inside.

Store charger out of the reach of
children.

Protect the charger from
rain and dampness. Keep
charger dry.

Use and store charger
only indoors in dry rooms.

Operate charger at temperatures
between 5 °C (41 °F) and 40 °C
(104 °F).

Allow the charger to cool down normally
– do not cover it.

Never bridge the contacts of the charger
with metallic objects (e.g. nails, coins,
jewelry) – short circuit. The charger will
be damaged by a short circuit.

In the event of smoke or fire in the
charger, disconnect it from outlet
immediately.

WARNING

To reduce the risk of electric shock or
short circuit, do not insert any objects
into the charger's cooling slots.

WARNING

The charger heats up during the
charging process. Do not operate on an
easily combustible surface (e.g. paper,
cardboard, textiles) or in an easily
combustible environment – risk of fire.

WARNING

Do not operate in a hazardous location,
i.e. in a location where there are
combustible liquids (fumes), vapors or
dusts. Chargers can produce sparks,
which may ignite the dust or vapors –
risk of explosion.

Check the charger's
power supply cord and
plug regularly for dam
age. If the power supply
cord or plug is damaged,
immediately disconnect
the plug from the wall
outlet to avoid the risk of
electric shock.

Never jerk the power supply cord to
disconnect it from the wall outlet. To
unplug, grasp the plug, not the cord.
Replace a damaged power supply cord
or have it repaired by an experienced
electrician.

-

6

BGA 100

English

Do not use the power supply cord for
any other purpose, e.g. for carrying or
hanging up the charger.

Never use power supply cords that do
not comply with regulations.

Make sure the power supply cord is
located and/or marked so that it will not
be stepped on, tripped over, come in
contact with sharp edges or moving
parts or otherwise be subjected to
damage or stress.

An extension cord should not be used
unless absolutely necessary. If an
extension cord must be used, plug the
charger into a properly wired 16 gauge
(AWG 16) or heavier gauge extension
cord with blades that are the same
number, size and shapes as the blades
on the charger.

WARNING
To reduce the risk of electric shock:
– Always connect the unit to a

properly installed wall outlet.

– Make sure the insulation of the

power supply cord and plug is in
good condition.

Unplug the power supply cord from the
outlet when charger is not in use.

Never store a battery in the charger.
Read, fully understand and observe the

instruction manual for the STIHL charger
and keep it in a safe place.

THE USE OF THE POWER TOOL

Transporting the Unit

WARNING

Always switch off the power tool, move
retaining latch to ƒ and remove the
connecting cord – even when you
transport the unit for short distances.
Carry the machine by the control handle.
When transporting it in a vehicle,
properly secure the power tool to
prevent turnover and damage.

Remove the connecting
cord from the power tool.
This avoids the risk of the
motor starting
unintentionally.

Before Starting Work

WARNING

Always check your power tool for proper
condition and operation before starting,
particularly the trigger switch and
retaining latch. The trigger switch must
move freely and always spring back
when the retaining latch is on ‚. When
the retaining latch is on ƒ, it should not
be possible to depress the trigger
switch. Never attempt to modify the
controls or safety devices.

WARNING

Never operate your power tool if it is
damaged, improperly adjusted or
maintained, or not completely or
securely assembled.

WARNING

A worn impeller housing (cracks, nicks,
chips) may result in an increased risk of
injury from thrown foreign objects. If the
impeller housing is damaged, consult
your dealer. STIHL recommends you
contact a STIHL servicing dealer.

Keep the handle clean and dry at all
times; it is particularly important to keep
it free of moisture, pitch, oil, grease or
resin in order for you to maintain a firm
grip and properly control your power
tool.

Check contacts in the socket for foreign
matter. Keep clean.

Fit the plug of the connecting cord
correctly.

For starting, see chapter on "Switching
On".

WARNING

Your power tool is a one-person
machine. Do not allow other persons in
the general work area, even when
starting.

During Operation
Holding and Controlling the Power Tool

WARNING

To reduce the risk of injury from loss of
control, never work on a ladder, in a tree
or any other insecure support. Never
hold the machine above shoulder
height.

BGA 100

7

English

0021BA004 KN

The blower is designed for single­handed operation with either the right or
left hand on the control handle.

When working with the blower, always
wrap your fingers tightly around the
handle, keeping the control handle
cradled between your thumb and
forefinger. Keep your hand in this
position to have your machine under
control at all times.

To reduce the risk of stumbling and loss
of control, do not walk backward while
operating the machine.

Special care must be taken in slippery
conditions (wet ground, snow) and in
difficult, overgrown terrain. Watch for
hidden obstacles such as tree stumps,
roots and ditches to avoid stumbling. For
better footing, clear away fallen
branches, scrub and cuttings. Be
extremely cautious when working on
slopes or uneven ground.

Working Conditions

WARNING
Operate your machine outdoors under

good visibility and daylight conditions
only. Work carefully.

The power tool may be used in rain and
wetness. Dry the power tool after
finishing work.

Do not leave the machine outdoors in
the rain.

WARNING

Static electricity may build-up while
blow-sweeping large quantities of very
dusty material and suddenly discharge
with a spark in certain unfavorable
conditions (e.g. very dry work area).

WARNING

Inhalation of certain dusts, especially
organic dusts such as mold or pollen,
can cause susceptible persons to have
an allergic or asthmatic reaction.
Substantial or repeated inhalation of
dust and other airborne contaminants, in
particular those with a smaller particle
size, may cause respiratory or other
illnesses. Control dust at the source
where possible. Use good work
practices, such as operating the unit so
that the wind or operating process
directs any dust raised by the power tool
away from the operator. Follow the
recommendations of EPA / OSHA /
NIOSH and occupational and trade
associations with respect to dust
("particulate matter"). When the
inhalation of dust cannot be
substantially controlled, i.e., kept at or
near the ambient (background) level, the
operator and any bystanders should
wear a respirator approved by NIOSH /
MSHA for the type of dust encountered.

WARNING

If the substance being blown is a
commercial substance, review,
understand and follow all warnings and
instructions contained on the label and
in the material safety data sheet for that

substance and/or consult the material
manufacturer/supplier. The state of
California and some other authorities,
for instance, have published lists of
substances known to cause cancer,
reproductive toxicity, etc.

WARNING

Breathing asbestos dust is dangerous
and can cause severe or fatal illness,
respiratory illness or cancer. The use
and disposal of asbestos-containing
products have been strictly regulated by
OSHA and the Environmental Protection
Agency. If you have any reason to
believe that you might be blowing or
otherwise disturbing asbestos,
immediately stop work and contact EPA,
your employer or a local OSHA
representative.

WARNING

Dust with silica in its composition may
contain crystalline silica. Silica is a basic
component of sand, quartz, brick, clay,
granite and numerous other minerals
and rocks, including masonry and
concrete products. Repeated and/or
substantial inhalation of airborne
crystalline silica can cause serious or
fatal respiratory disease, including
silicosis. In addition, the state of
California and some other authorities
have listed respirable crystalline silica as
a substance known to cause cancer.
When encountering such materials,
always follow the respiratory
precautions mentioned above.

Pay attention to the direction of the wind,
i.e., do not work against the wind.

8

BGA 100

English

Operating Instructions

WARNING
In the event of an emergency, switch off

the motor immediately, move retaining
latch to ƒ and remove the connecting
cord.

WARNING

In order to reduce
the risk of personal
or even fatal injury
to bystanders from
blown objects
keep bystanders at
least 5 m (16 feet)
away when the
power tool is
running.

To reduce the risk of damage to
property, also maintain this distance
from such objects as vehicles or
windows.

Be particularly alert and cautious when
wearing hearing protection because
your ability to hear warnings (shouts,
alarms, etc.) is restricted.

Switch off the motor immediately if you
are approached.

WARNING
To reduce the risk of personal injury, do

not direct air blast towards bystanders,
since the high pressure of the air flow
can injure eyes and can blow small
objects at great speed. Do not direct
airblast towards pets.

When working in open ground and
gardens, watch out for small animals to
avoid harming them.

WARNING

The blower fan between the air intake
and output openings rotates whenever
the motor is running. In order to reduce
the risk of injury from contact with the
blower fan, never operate your blower
without a properly mounted blower tube
or with a damaged intake screen.

WARNING

Never insert any foreign object into the
air intake of the machine or into the
nozzle of the blower. It will damage the
blower fan and may cause serious injury
to the operator or bystanders as a result
of the object or broken parts being
thrown out at high speed.

Do not place the blower on the ground
when operating at high speed, because
small objects such as sand, grass, dust,
etc. may be pulled into the air intake and
damage the fan wheel. It is best to turn
the machine off when putting it on the
ground.

After Finishing Work
Always clean dust and dirt off the power

tool – do not use any grease solvents for
this purpose.

MAINTENANCE, REPAIR AND
STORING

If you make a warranty claim for a
component which has not been serviced
or maintained properly, STIHL may deny
coverage.

WARNING

Use only identical STIHL replacement
parts for maintenance and repair. Use of
non-STIHL parts may cause serious or
fatal injury.

Strictly follow the maintenance and
repair instructions in the appropriate
section of your instruction manual.
Please also refer to the maintenance
chart in the manual.

Always switch off the
motor, move retaining
latch to ƒ and remove
the connecting cord from
the power tool before car
rying out any repairs or
maintenance work or
cleaning the power tool.
This avoids the risk of the
motor starting
unintentionally.

WARNING

Do not attempt any maintenance or
repair work not described in your
instruction manual. Have such work
performed by your STIHL servicing
dealer only.

Tighten all nuts, bolts and screws after
each use.

Regularly check the electrical contacts
and ensure that the insulation of the
power cord and plug of the charger and
the connecting cord from the blower is in
good condition and show no sign of
aging (brittleness).

-

BGA 100

9

English

0021BA004 KN

0021BA006 KN

3

1

2

Electrical components, e.g. power cord
of charger and connecting cord, may
only be repaired or replaced by a
qualified electrician.

Clean plastic components with a cloth.
Do not use aggressive detergents. They
may damage the plastic.

Do not spray the machine with water or
other liquid.

Do not clean your machine with a
pressure washer. The solid jet of water
may damage parts of the machine.

Keep the connecting cord socket free
from foreign matter – clean as
necessary.

Store the power tool in a dry, locked
location with the retaining latch on ƒ,
the connecting cord removed and out of
reach of children.

Using the Unit

Your blower is designed for one-handed
operation. It can be carried by the
control handle in either the right or left
hand.

N Always hold the blower firmly in your

hand.

Carrying ring

With the STIHL AR battery, you can
attach the blower's carrying ring to a hip
pad on the harness.

Use Type AR batteries only with the
harness provided – do not combine with
other carrying straps (e.g. shoulder
strap, full harness, etc.).

Using hip pad on STIHL AR battery
harness

N Fit the hip pad (1) on the

harness (3) with the aid of the AR
kit (2) – see leaflet supplied with
AR kit.

N Use carrying ring to attach blower to

hip pad.

10

BGA 100

English

3

0021BA005 KN

2

1

3901BA015 KN

2

1

1

3901BA019 KN

Assembling the Blower

Nozzle

WARNING
To reduce the risk of injury, operate the

unit only with a properly mounted
nozzle.

Mounting the Nozzle

N Push the nozzle (1) onto the blower

tube (2) as far as mark that suits
your height.

N Rotate the nozzle (1) in the direction

of the arrow and engage it in the
slot (3).

Adjusting the Nozzle
N Rotate the nozzle (1) clockwise as

far as the stop.

N Slide the nozzle (1) to the

appropriate mark on the blower
tube (2) that suits your height.

N Rotate the nozzle (1) in the direction

of the arrow and engage it in the
slot (3).

Removing the Nozzle
N Rotate the nozzle (1) clockwise as

far as the stop.

N Pull the nozzle (1) off the blower

tube (2).

Connecting Charger to
Power Supply

Power supply (mains) voltage and
operating voltage must be the same.

N Insert the plug (1) in the wall

outlet (2).

A self test is performed after the charger
is connected to the power supply. During
this process, the light emitting diode (1)
on the charger lights up green for about
1 second, then red and goes off again.

BGA 100

11

English

2

3901BA009 KN

4

3901BA014 KN

3

Charging the Battery

A factory-new battery is not fully
charged.

Recommendation: Fully charge the
battery before using it for the first time.

N Connect the charger to the power

supply – mains voltage and
operating voltage of the charger
must be the same – see
"Connecting Charger to Power
Supply".

Operate the charger only in enclosed
and dry rooms at ambient temperatures
between +5°C and +40°C (40°F and
104°F).

Only charge dry batteries. Allow a damp
battery to dry before charging.

Charging STIHL AR Battery

For a description of the complete
charging process on the STIHL AR
battery see STIHL AR battery instruction
manual.

Charging STIHL AP Battery

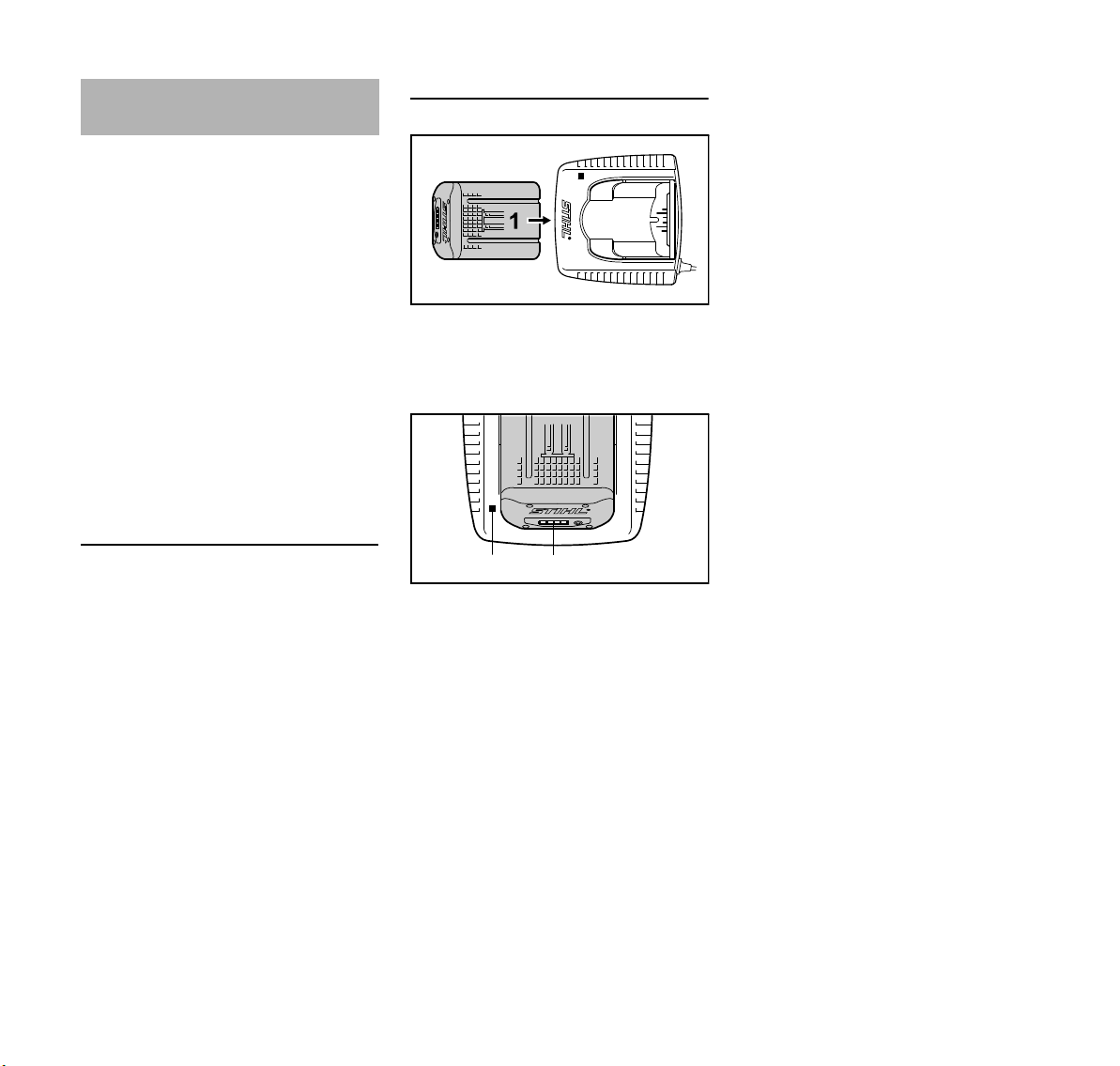

N Push the battery (1) into the

charger (2) until noticeable
resistance is felt – then push it as far
as stop.

The LED (3) on the charger comes on
when the battery is inserted – see "LED
on Charger"

Charging begins as soon as the
LEDs (4) on the battery glow green –
see "LEDs on Battery".

The charge time is dependent on a
number of factors, including battery
condition, ambient temperature, etc.,
and may therefore vary from the times
specified.

The battery heats up during operation in
the power tool. If a hot battery is inserted
in the charger, it may be necessary to
cool it down before charging. The
charging process begins only after the

battery has cooled down. The time
required for cooling may prolong the
charge time.

The battery and charger heat up during
the charging process.

AL 300, AL 500 Chargers
The AL 300 and AL 500 chargers are

equipped with a battery cooling fan.

AL 100 Charger
The AL 100 charger has no fan and

waits for the battery to cool down before
starting the charging process. The
battery is cooled by heat transfer to the
ambient air.

End of Charge
The charger switches itself off

automatically when the battery is fully
charged:

– LEDs on the battery go off.
– The LED on the charger goes off.
– The charger's fan is switched off (if

charger is so equipped)

Remove the fully charged battery from
the charger.

12

BGA 100

English

1

3901BA010 KN

3901BA018 KN

80 - 100 %

60 - 80 %

40 - 60 %

20 - 40 %

0 - 20 %

3901BA016 KN

80 - 100 %

60 - 80 %

40 - 60 %

20 - 40 %

0 - 20 %

LEDs on Battery

LEDs on STIHL AR Battery

For a description of the LEDs on the
STIHL AR battery see STIHL AR battery
instruction manual.

LEDs on STIHL AP Battery

Four LEDs show the battery's state of
charge and any problems that occur on
the battery or power tool.

N Press button (1) to activate the

The LEDs can glow or flash green or
red.

display – the display goes off
automatically after 5 seconds.

LED glows continuously green.

During charging
The LEDs glow continuously or flash to

indicate the progress of charge.
A green flashing LED indicates the

capacity that is currently being charged.

The LEDs on the battery go off
automatically when the charge process
is completed.

If the LEDs on the battery flash or glow
red – see "If the red LEDs glow
continuously / flash".

During Operation
The green LEDs glow continuously or

flash to indicate the state of charge.

If the LEDs on the battery flash or glow
red – see "If the red LEDs glow
continuously / flash".

BGA 100

LED flashes green.

LED glows continuously red.

LED flashes red.

13

English

3901BA041 KN

A

B

C

D

1

3901BA019 KN

If the red LEDs glow continuously / flash

A 1 LED glows

continuously

Battery is too

1) 2)

hot

red:

B 4 LEDs flash

C 3 LEDs glow

D 3 LEDs flash

1)

red

continuously
red:

red

When charging: Charge process

Malfunction in
battery

Power tool is too
hot – allow it to
cool down.

Malfunction in
power tool

starts automatically after the battery
has cooled down / warmed up.

2)

During operation: Power tool cuts
out – allow battery to cool down; it
may be necessary to take the
battery out of the belt bag for this
purpose.

/cold

3)

3)

Electromagnetic interference or
fault. Take the battery out of the

LED on Charger

belt bag and refit it. Switch on the
machine – if the LEDs continue to
flash, the battery has a malfunction
and must be replaced.

4)

Electromagnetic interference or
fault. Take the battery out of the
belt bag and pull the plug out of the
machine's socket. Use a blunt tool
to clean dirt off the contacts in the
belt bag and the connecting cord
plug. Refit the battery and insert the
connecting cord plug in the
machine's socket. Switch on the
power tool – if the light emitting
diodes still flash, the power tool is

The LED (1) on the charger may glow
continuously green or flash red.

Green continuous light ...

faulty and must be checked by a
servicing dealer – STIHL
recommends an authorized STIHL
servicing dealer.

1)

... indicates the following:
The battery

– is being charged
– is too hot and must cool down

before charging
See also "LEDs on battery".
The green LED on the charger goes off

as soon as the battery is fully charged.

Red flashing light ...

4)

... may indicate the following:
– No electrical contact between

battery and charger – remove and

refit the battery
– Malfunction in battery – see also

"LEDs on Battery".
– Malfunction in charger – have

checked by a servicing dealer.

STIHL recommends an authorized

STIHL servicing dealer.

14

BGA 100

English

3

1

2

0021BA007 KN

0021BA008 KN

0021BA009 KN

0021BA013 KN

Controls

Contents

1 Retaining latch
2 Trigger switch
3 LEDs

Function of Retaining Latch

Position ƒ

– Blower is switched off.
– Trigger switch is locked and cannot

be operated.

Position ‚

– Blower is switched on.
– Trigger switch is unlocked and can

be operated.

LEDs indicate the selected power level.
N If LEDs remain off: Switch on the

blower - see "Switching On".

N Push the retaining latch upwards

and allow it to spring back. This
activates the next power level.

N Repeat the procedure until the

required power level is indicated.

Power level 3 is followed by power level
1, then 2, 3, etc.

Function of Trigger Switch

Controlling blowing power
The trigger switch allows infinitely

variable control of blowing power.

Activating the boost function
The boost function can be activated

independent of the preset power level.
The boost function always provides
maximum blowing power.

N Override the trigger switch's end

position and hold it there.
The LEDs flash in sequence.
The boost function remains active until

the trigger switch is released.
The previously selected power level is

restored when the trigger switch is
released.

Selecting power level
Blowing power can be adjusted with the

retaining latch. Three power levels are
available.

BGA 100

N Pull the trigger switch until the

required blowing power is reached.

Blowing power increases as the trigger
switch is squeezed - but only up to the
preset power level.

15

English

3

4

0021BA014 KN

2

1

0021BA015 KN

Switching On

N Mount the nozzle - see "Assembling

the Blower".

2

N Line up the arrows and insert

connecting cord's plug (1) in the
blower's socket (2).

N Make sure you have a secure and

firm footing.

N Stand upright, hold the blower and

stay relaxed.

N Move the retaining latch (3) to ‚.
N Operate the trigger switch (4).

1

Switching Off

N Release the trigger (1).

0000-GXX-4230-A0

N Move the retaining latch (2) to ƒ.

This locks the trigger so that it
cannot be operated – the blower is
switched off.

4

N Pull connecting cord plug (3) out of

the socket (4) during breaks and
after finishing work.

N Put the blower down so that it does

not endanger others.

N Secure it against unauthorized use.

3

Storing the Machine

N Switch off the blower - see

"Switching Off".
N Store the machine in a dry and

secure location
N Keep out of the reach of children

and other unauthorized persons.

Storing the Battery

N Remove the battery from the

machine or charger.
N Store indoors in a dry and secure

location. Keep out of the reach of

children and other unauthorized

persons and protected from

contamination.
N Do not store spare batteries unused

– use in rotation.
N To optimize the life of the battery,

store it with a charge of about 30%.

0000-GXX-4231-A0

Storing the Charger

N Removing the Battery
N Disconnect the plug from the wall

outlet.
N Store the charger indoors in a dry

and secure location. Keep out of the

reach of children and other

unauthorized persons and

protected from contamination.

16

BGA 100
