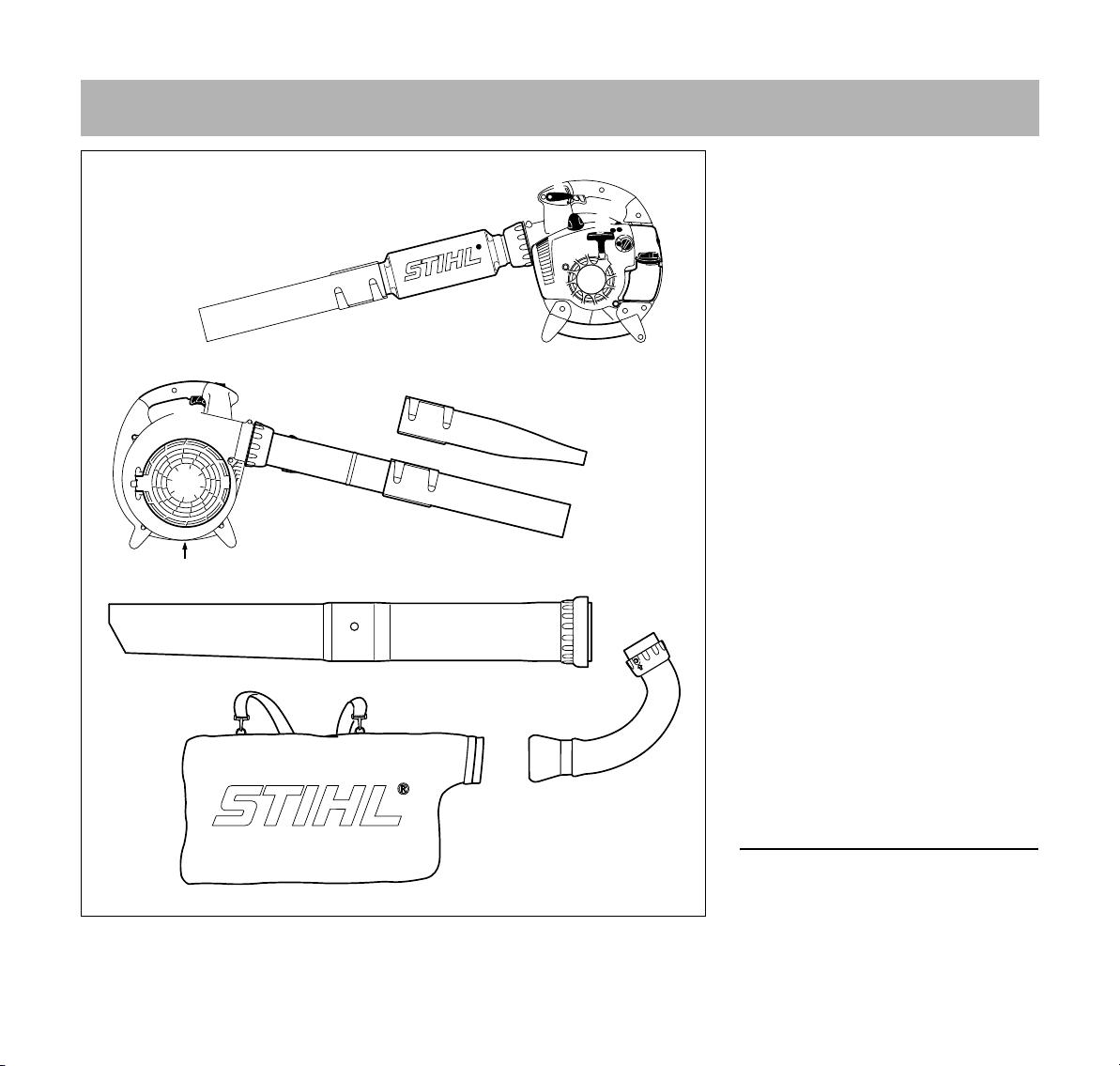

Allow only persons who fully understand
this manual to operate your blower.
To receive maximum performance and
satisfaction from your STIHL blower, it is
important that you read and understand
and follow the maintenance and safety
precautions in chapter "Safety
Precautions and Working Techniques"
before using your blower. For further
information you can go to
www.stihlusa.com.
Contact your STIHL dealer or the STIHL
distributor for your area if you do not
understand any of the instructions in this
manual.
Warning!
Because a blower is a high-speed tool,
some special safety precautions must
be observed as with any other power
tool to reduce the risk of personal injury.
Careless or improper use may cause
serious or even fatal injury. STIHL's
philosophy is to continually improve all
of its products. As a result, engineering
changes and improvements may be
made from time-to-time. If the operating
characteristics or the appearance of
your blower differs from those described
in this manual, please contact your
STIHL dealer for information and
assistance.
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
1
English
Guide to Using this Manual
Pictograms
All the pictograms attached to the
machine are shown and explained in this
manual.
Symbols in text
The operating and safety instructions
are supported by illustrations.
The individual steps or procedures
described in the manual may be marked
in different ways:
NA bullet marks a step or procedure
without direct reference to an
illustration.
A description of a step or procedure that
refers directly to an illustration may
contain item numbers that appear in the
illustration. Example:
NLoosen the screw (1)
NLever (2) ...
In addition to the operating instructions,
this manual may contain paragraphs
that require your special attention. Such
paragraphs are marked with the
symbols and signal words described
below:
Warning!
indicates a hazardous situation which, if
not avoided, could result in severe or
fatal injury.
Caution!
indicates a risk of property damage,
including damage to the machine or its
individual components.
Engineering improvements
STIHL’s philosophy is to continually
improve all of its products. As a result,
engineering changes and improvements
are made from time to time. Therefore,
some changes, modifications and
improvements may not be covered in
this manual. If the operating
characteristics or the appearance of
your machine differ from those
described in this manual, please contact
your STIHL dealer for assistance.
Safety Precautions and
Working Techniques
Because the use of any
blower may be dangerous, special safety
precautions must be
observed to reduce the
risk of personal injury.
It is important that you
read, fully understand
and observe the following
safety precautions and
warnings. Read the
instruction manual and
the safety precautions
periodically. Careless or
improper use may cause
serious or fatal injury.
Have your STIHL dealer show you how
to operate your power tool. Observe all
applicable local safety regulations,
standards and ordinances.
Warning!
Do not lend or rent your power tool without the instruction manual. Be sure that
anyone using it understands the information contained in this manual.
Danger!
indicates an imminent risk of severe or
fatal injury.
2
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
English
Warning!
Use your blower for clearing leaves,
twigs, grass, clippings, paper, debris,
dust and light snow in yards, gardens,
sport stadiums, parks, paths, streets,
driveways and parking lots and for similar tasks.
Do not use it for other purposes, since
misuse may result in personal injury or
property damage, including damage to
the machine.
Warning!
Minors should never be allowed to use
this power tool. Bystanders, especially
children, and animals should not be
allowed in the area where it is in use.
Warning!
To reduce the risk of injury to bystanders and damage to property, never let
your power tool run unattended. When it
is not in use (e.g. during a work break),
shut it off and make sure that unauthorized persons do not use it.
Most of these safety precautions and
warnings apply to the use of all STIHL
blowers. Different models may have
different parts and controls. See the
appropriate section of your instruction
manual for a description of the controls
and the function of the parts of your
model.
Safe use of a blower involves
1. the operator
2. the power tool
3. the use of the power tool
THE OPERATOR
Physical Condition
You must be in good physical condition
and mental health and not under the
influence of any substance (drugs,
alcohol, etc.) which might impair vision,
dexterity or judgment. Do not operate
this machine when you are fatigued.
Warning!
Be alert – if you get tired, take a break.
Tiredness may result in loss of control.
Working with any power tool can be
strenuous. If you have any condition
that might be aggravated by strenuous
work, check with your doctor before
operating this machine.
Warning!
Prolonged use of a power tool (or other
machines) exposing the operator to
vibrations may produce whitefinger disease (Rayn aud's phenomenon) or
carpal tunnel syndrome.
These conditions reduce the hand's
ability to feel and regulate temperature,
produce numbness and burning
sensations and may cause nerve and
circulation damage and tissue necrosis.
All factors which contribute to whitefinger disease are not known, but cold
weather, smoking and diseases or
physical conditions that affect blood
vessels and blood transport, as well as
high vibration levels and long periods of
exposure to vibration are mentioned as
factors in the development of whitefinger
disease. In order to reduce the risk of
whitefinger disease and carpal tunnel
syndrome, please note the following:
Most STIHL power tools are available
with an anti-vibration ("AV") system
designed to reduce the transmission of
vibrations created by the machine to the
operator's hands. An AV system is
recommended for those persons using
power tools on a regular or sustained
basis.
Keep your hands warm.
Keep the antivibrationsystem well
maintained. A power tool with loose
components or with damaged or worn
antivibration element will tend to have
higher vibration levels.
Maintain a firm grip at all times, but do
not squeeze the handles with constant,
excessive pressure. Take frequent
breaks.
All the above-mentioned precautions do
not guarantee that you will not sustain
whitefinger disease or carpal tunnel
syndrome. Therefore, continual and
regular users should closely monitor the
condition of their hands and fingers. If
any of the above symptoms appear,
seek medical advice immediately.
Warning!
The ignition system of the STIHL unit
produces an electromagnetic field of a
very low intensity. This field may interfere with some pacemakers. To reduce
the risk of serious or fatal injury, persons
with a pacemaker should consult their
physician and the pacemaker manufacturer before operating this tool.
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
3
English

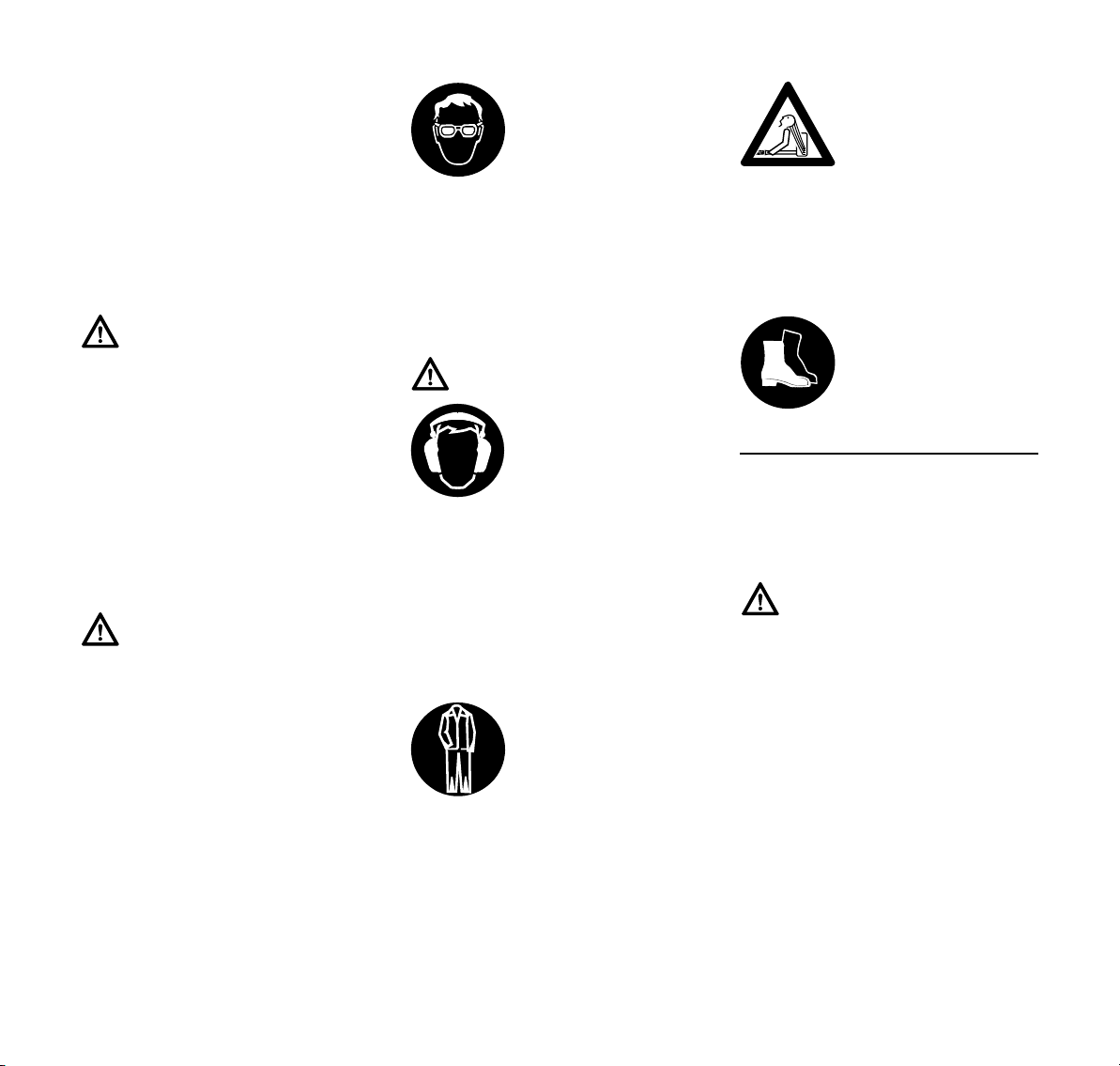

Proper Clothing
Warning!
To reduce the risk of injury, the operator
should wear proper protective apparel.
To reduce the risk of
injury to your eyes never
operate your power tool
unless wearing goggles
or properly fitted protective glasses with
adequate top and side
protection complying with
ANSI Z 87.1 (or your
applicable national
standard).
Warning!
Power tool noise may
damage your hearing.
Wear sound barriers (ear
plugs or ear mufflers) to
protect your hearing.
Continual and regular
users should have their hearing
checked regularly.
Be particularly alert and cautious when
wearing hearing protection because
your ability to hear warnings (shouts,
alarms, etc.) is restricted.
Clothing must be sturdy
and snug-fitting, but allow
complete freedom of
movement.
Avoid loose-fitting jackets, scarfs, neckties,
jewelry, flared or cuffed
pants, unconfined long
hair or anything that
could become drawn into
the air intake. Secure hair
so it is above shoulder
level.
Good footing is very
important. Do not wear
sandals or go barefoot.
THE POWER TOOL
For illustrations and definitions of the
power tool parts see the chapter on
"Main Parts and Controls."
Warning!
Never modify this power tool in any way.
Only attachments supplied by STIHL or
expressly approved by STIHL for use
with the specific STIHL model are
authorized. Although certain unauthorized attachments are useable with
STIHL power tools, their use may, in
fact, be extremely dangerous.
If this tool is subjected to unusually high
loads for which it was not designed (e.g.
heavy impact or a fall), always check
that it is in good condition before
continuing work. Check in particular that
the fuel system is tight (no leaks) and
that the controls and safety devices are
working properly. Do not continue
operating this machine if it is damaged.
In case of doubt, have it checked by your
STIHL servicing dealer.
Warning!
To reduce the risk of injury, do not operate the machine unless it is fully
assembled with a properly mounted
blower tube.
Small particles (e.g. dust) blown through
the blower tubes and nozzle can cause
a static charging of the blower tubes.
This is especially true in low humidity
and high dust conditions. In order to
reduce the risk of shock from static
charging and subsequent injury from
loss of control, your blower has features
designed to help reduce the build up of
static electricity in the blower tubes and
equalize the charge with the engine
and/or operator:
The control handle is designed to
conduct static electricity through the
throttle cable to the engine and from the
handle through the operator to the
ground.
4
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
English
THE USE OF THE POWER TOOL
Transporting the Power Tool
Warning!
When transporting your power tool in a
vehicle, properly secure it to prevent
turnover, fuel spillage and damage to
the unit.
Fuel
Your STIHL power tool uses an oilgasoline mixture for fuel (see the
chapter on "Fuel" of your instruction
manual).
Gasoline is an extremely
flammable fuel. If spilled
and ignited by a spark or
other ignition source, it
can cause fire and serious burn injury or
property damage. Use
extreme caution when
handling gasoline or fuel
mix. Do not smoke or
bring any fire or flame
near the fuel or the power
tool. Note that combustible fuel vapor may
escape from the fuel
system.
Fueling InstructionsBefore Starting
Warning!
Fuel your power tool in well-ventilated
areas, outdoors. Always shut off the
engine and allow it to cool before refueling. Gasoline vapor pressure may
build up inside the fuel tank depending
on the fuel used, the weather conditions
and the tank venting system.
In order to reduce the risk of burns and
other personal injury from escaping gas
vapor and fumes, remove the fuel filler
cap on your power tool carefully so as to
allow any pressure build-up in the tank
to release slowly. Never remove the fuel
filler cap while the engine is running.
Select bare ground for fueling and move
at least 10 feet (3 m) from the fueling
spot before starting the engine. Wipe off
any spilled fuel before starting your
machine.
Warning!
Check for fuel leakage while refueling
and during operation. If fuel leakage is
found, do not start or run the engine until
the leak is fixed and any spilled fuel has
been wiped away. Take care not to get
fuel on your clothing. If this happens,
change your clothing immediately.
Unit vibrations can cause
an improperly tightened
fuel filler cap to loosen or
come off and spill quantities of fuel. In order to
reduce the risk of fuel
spillage and fire, tighten
the fuel filler cap by hand
as securely as possible.
Warning!
Always check your power tool for proper
condition and operation before starting,
particularly the throttle trigger, throttle
trigger interlock and stop switch. The
throttle trigger must move freely. Never
attempt to modify the controls or safety
devices.
Warning!
Never use a power tool that is damaged
or not properly maintained.
Warning!
Check that the spark plug boot is
securely mounted on the spark plug – a
loose boot may cause arcing that could
ignite combustible fumes and cause a
fire.
Warning!
Keep the handles clean and dry at all
times; it is particularly important to keep
them free of moisture, pitch, oil, grease
or resin in order for you to maintain a
firm grip and properly control your
power tool.
Starting
Warning!
Start the engine at least 10 feet
(3 meters) from the fueling spot, outdoors only.
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
5
English
Warning!
Your power tool is a one-person
machine. Do not allow other persons in
the general work area, even when
starting.
For specific starting instructions, see the
appropriate section of your manual.
Place the power tool on firm ground or
other solid surface in an open area.
Maintain good balance and secure
footing.
Warning!
To reduce the risk of injury from loss of
control, do not attempt to "drop start"
your power tool.
Warning!
When you pull the starter grip, do not
wrap the starter rope around your hand.
Do not let the grip snap back, but guide
the starter rope to rewind it properly.
Failure to follow this procedure may
result in injury to your hand or fingers
and may damage the starter
mechanism.
Warning!
This unit is equipped with an ignition
system that is normally in operational
readiness. After the setting lever is used
to stop the engine, it automatically
springs back to the "on" position. If the
engine is warm, it may be possible to
start it by simply pulling the starter rope,
with no further adjustments. To reduce
the risk of injury, be particularly alert to
keep children away from the unit.
During Operation
Holding and controlling the power
tool
The blower is designed for singlehanded operation with either the right or
left hand on the control handle.
Special care must be taken in slippery
conditions (wet ground, snow) and in
difficult, overgrown terrain. Watch for
hidden obstacles such as tree stumps,
roots and ditches to avoid stumbling. For
better footing, clear away fallen
branches, scrub and cuttings. Be
extremely cautious when working on
slopes or uneven ground.
Warning!
As soon as the engine is
running, this product generates toxic exhaust
fumes containing chemicals, such as unburned
hydrocarbons (including
benzene) and carbon monoxide, that
are known to cause respiratory problems, cancer, birth defects, or other
reproductive harm. Some of the gases
(e.g. carbon monoxide) may be colorless and odorless. To reduce the risk of
serious or fatal injury/illness from inhaling toxic fumes, never run the machine
indoors or in poorly ventilated locations:
Warning!
Once the engine has started, immediately blip the throttle trigger, which
should release the starting throttle and
allow the engine to slow down to idle.
6
Warning!
To reduce the risk of injury from loss of
control, never work on a ladder, in a tree
or any other insecure support. Never
hold the machine above shoulder
height.
Working conditions
Operate and start your power tool only
outdoors in a well ventilated area.
Operate it under good visibility and
daylight conditions only. Work carefully.
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
Warning!
Inhalation of certain dusts, especially
organic dusts such as mold or pollen,
can cause susceptible persons to have
an allergic or asthmatic reaction. Substantial or repeated inhalation of dust
and other airborne contaminants, in particular those with a smaller particle size,
may cause respiratory or other illnesses. Control dust at the source
where possible. Use good work practices, such as operating the unit so that
the wind or operating process directs
any dust raised by the power tool away
from the operator. Follow the recommendations of EPA/OSHA/NIOSH and
occupational and trade associations
with respect to dust ("particulate matter"). When the inhalation of dust cannot
be substantially controlled, i.e., kept at
or near the ambient (background) level,
the operator and any bystanders should
wear a respirator approved by
NIOSH/MSHA for the type of dust
encountered.
Warning!
If the substance being blown is a commercial substance, review, understand
and follow all warnings and instructions
contained in the material safety data
sheet for that substance and/or consult
the material manufacturer/supplier. The
state of California and some other
authorities, for instance, have published
lists of substances known to cause cancer, reproductive toxicity, etc.
Warning!
Breathing asbestos dust is dangerous
and can cause severe or fatal injury,
respiratory illness or cancer. The use
and disposal of asbestos-containing
products have been strictly regulated by
OSHA and the Environmental Protection Agency. If you have any reason to
believe that you might be blowing or otherwise disturbing asbestos, immediately
contact your employer or a local OSHA
representative.
Warning!
Dust with silica in its composition may
contain crystalline silica. Silica is a basic
component of sand, quartz, brick, clay,
granite and numerous other minerals
and rocks, including masonry and concrete products. Repeated and / or
substantial inhalation of airborne crystalline silica can cause serious or fatal
respiratory disease, including silicosis.
In addition, the state of California and
some other authorities have listed
respirable crystalline silica as a substance known to cause cancer. When
encountering such materials, always
follow the respiratory precautions mentioned above
Operating instructions
Warning!
In the event of an emergency, switch off
the engine immediately – move the slide
control / stop switch to 0 or STOP
English
In order to reduce
the risk of personal
or even fatal injury
to bystanders from
blown objects
keep bystanders at
least 16 feet (5m)
away when the
power tool is
running.
Stop the engine immediately if you are
approached.
Warning!
To reduce the risk of personal injury, do
not direct air blast towards bystanders,
since the high pressure of the air flow
can injure eyes and can blow small
objects at great speed. Do not direct airblast towards pets.
Warning!
The blower fan between the air intake
and output openings rotates whenever
the engine is running.
Never insert any foreign object into the
air intake of the machine or into the nozzle of the blower. It will damage the fan
wheel and may cause serious injury to
the operator or bystanders as a result of
the object or broken parts being thrown
out at high speed.
Do not place the blower on the ground
when operating at high speed, because
small objects such as sand, grass, dust,
etc. may be pulled into the air intake and
damage the fan wheel. It is best to turn
the machine off when putting it on the
ground.
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
7
English
Warning!
The muffler other parts of the engine
(e.g. fins of the cylinder, spark plug)
become hot during operation and
remain hot for a while after stopping the
engine. To reduce risk of burns do not
touch the muffler and other parts while
they are hot.
Using the Vacuum Attachment
(only BG 56, BG 86, SH 56, SH 86)
For specific assembling instructions,
see the appropriate section of your
instruction manual.
Your shredder vacuum is designed for
two-handed operation. Hold and operate
the unit with your right hand on the
control handle and your left hand on the
assist handle.
To reduce the risk of injury, do not
operate the machine unless it is fully
assembled with a properly mounted
suction tube and catcher bag.
Wear the catcher bag shoulder strap
over your left shoulder – not across your
chest – so that you can quickly throw off
the unit and catcher bag in an
emergency.
Warning!
To reduce the risk of personal injury from fire and
explosion, never attempt
to pick up hot or burning
substances (e.g. smoldering ashes, glowing
cigarettes)
or combustible fluids (e.g.
gasoline, paint thinners).
Warning!
In order to reduce
the risk of injury
from contact with
rotating parts and
damage to the
engine, the intake screen must always
be closed and the locking tab engaged
when the suction tube is not mounted.
Stop engine and wait until the fan is
stopped before opening the intake
screen.
Warning!
To reduce the risk of fire and burn injury,
keep the area around the muffler clean.
295BA053 KN
Remove excess lubricant and all debris
such as pine needles, branches or
leaves. Let the engine cool down sitting
on concrete, metal, bare ground or solid
wood (e.g. the stump of a felled tree)
away from any combustible substances.
Warning!
Never modify your muffler. The muffler
could be damaged and cause an
increase in heat radiation or sparks,
thereby increasing the risk of fire and
burn injury. You may also permanently
damage the engine. Have your muffler
serviced and repaired by your STIHL
servicing dealer only.
8
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
English
Catalytic converter
Warning!
Some STIHL power tools
are equipped with a catalytic converter, which is
designed to reduce the
exhaust emissions of the
engine by a chemical
process in the muffler. Due to this process, the muffler does not cool down as
rapidly as conventional mufflers when
the engine returns to idle or is shut off.
To reduce the risk of fire and burn injuries, the following specific safety
precautions must be observed.
Warning!
Since a muffler with a catalytic converter
cools down less rapidly than conventional mufflers, always set your power
tool down in the upright position and
never locate it where the muffler is near
dry brush, grass, wood chips or other
combustible materials while it is still hot.
Warning!
An improperly mounted or damaged cylinder housing or a damaged/deformed
muffler shell may interfere with the cooling process of the catalytic converter.
To reduce the risk of fire or burn injury,
do not continue work with a damaged or
improperly mounted cylinder housing or
a damaged/deformed muffler shell.
Your catalytic converter is furnished with
screens designed to reduce the risk of
fire from the emission of hot particles.
Due to the heat from the catalytic
reaction, these screens will normally
stay clean and need no service or
maintenance. If you experience loss of
performance and you suspect a clogged
screen, have your muffler maintained by
a STIHL servicing dealer.
MAINTENANCE, REPAIR AND
STORING
Warning!
Use only identical STIHL replacement
parts for maintenance and repair. Use of
non-STIHL parts may cause serious or
fatal injury.
Strictly follow the maintenance and
repair instructions in the appropriate
section of your instruction manual.
Please refer to the maintenance chart in
this manual.
Warning!
Always stop the engine and make sure
that the fan is stopped before doing any
maintenance or repair work or cleaning
the power tool. Do not attempt any
maintenance or repair work not
described in your instruction manual.
Have such work performed by your
STIHL servicing dealer only.
Warning!
Use the specified spark plug and make
sure it and the ignition lead are always
clean and in good condition. Always
press spark plug boot snugly onto spark
plug terminal of the proper size. (Note: If
terminal has detachable SAE adapter
nut, it must be securely attached.) A
loose connection between spark plug
terminal and the ignition wire connector
in the boot may create arcing that could
ignite combustible fumes and cause a
fire.
Warning!
Never test the ignition system with the
boot removed from the spark plug or
with a removed spark plug, since uncontained sparking may cause a fire.
Warning!
Do not operate your power tool if the
muffler is damaged, missing or modified. An improperly maintained muffler
will increase the risk of fire and hearing
loss. If your muffler was equipped with a
spark-arresting screen to reduce the
risk of fire, never operate your power
tool if the screen is missing or damaged.
Remember that the risk of forest fires is
greater in hot or dry weather.
Tighten all nuts, bolts and screws except
the carburetor adjustment screws after
each use.
For maintenance items please also refer
to the maintenance chart in this manual.
Store the power tool in a dry and high or
locked location out of reach of children.
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
9
English
Before storing for longer than a few
days, always empty the fuel tank. See
chapter "Storing the machine" in this
manual.
Store fuel in an approved and properly
labeled safety-type canister only. Take
care when handling gasoline! For health
and safety reasons, avoid direct contact
with the skin and avoid inhaling fuel
vapor!
Using the Unit

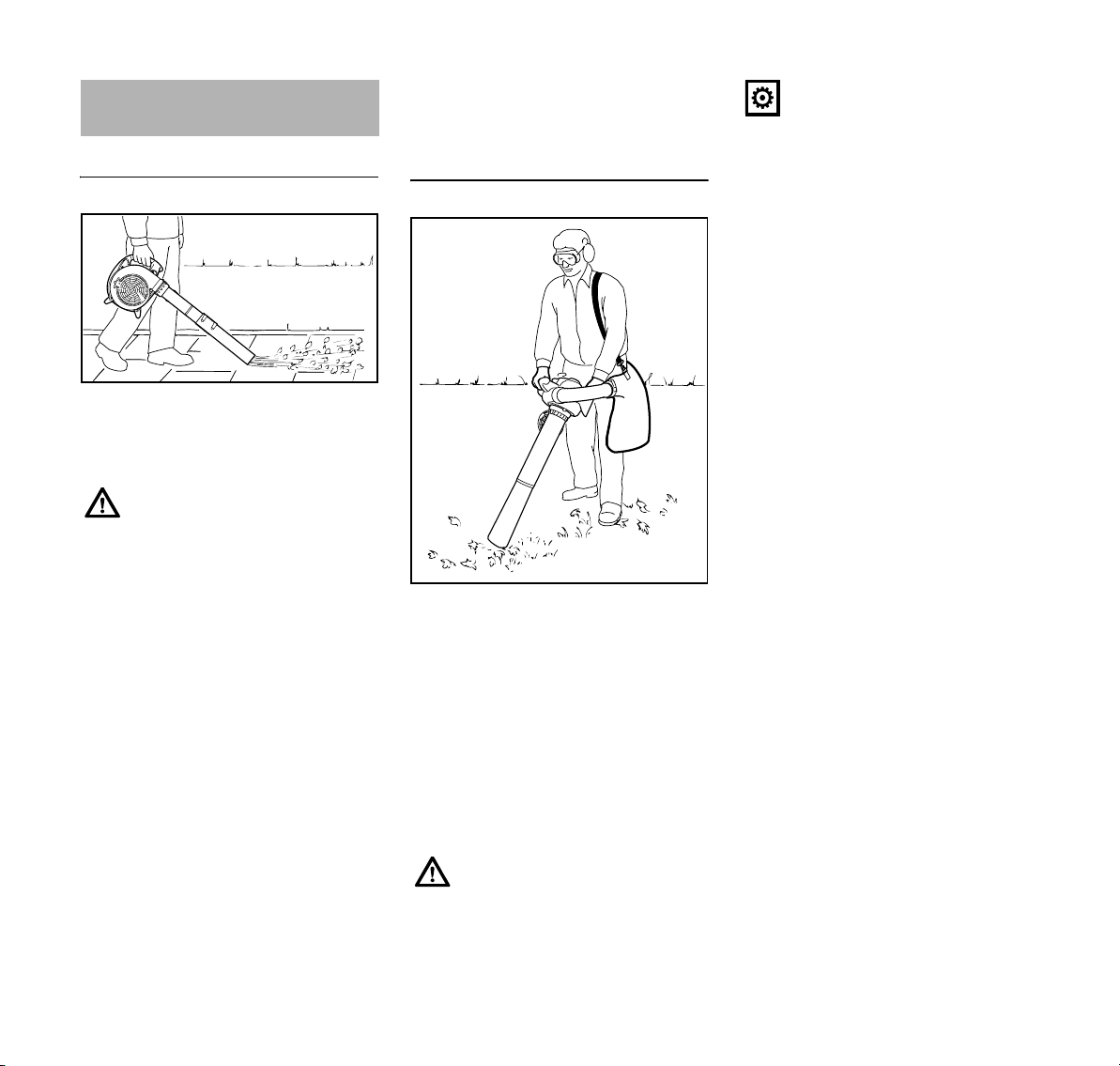

Using the Blower
Your blower is designed for one-handed
operation. It must be carried by the
control handle in the right hand.
Operate the unit only with a
properly mounted blower tube.
The round nozzle is particularly suitable
for use on uneven surfaces (e.g. fields
and lawns).
The fan nozzle (either included with unit
or available as special accessory)
produces a broad and powerful
airstream at ground level. It can be
aimed and controlled very accurately.
This nozzle is highly effective for blowsweeping sawdust, leaves, grass
cuttings, etc. on paved surfaces.
Watch out for small creatures when
blow-sweeping in open areas, yards and
gardens.
In noise-sensitive areas, operate your
unit at the lowest possible engine speed.
If necessary, dampen the surface to be
cleaned in order to avoid creating too
much dust.
Using the Vacuum Shredder
295BA052 KN
295BA053 KN
Your vacuum shredder is designed for
two-handed operation. Hold and operate
the unit with your right hand on the
control handle and your left hand on the
assist handle.
Wear the catcher bag shoulder strap
over your left shoulder, not across your
chest. This enables you to quickly
remove the power tool and catcher bag
in an emergency.
Operate the unit only with a
properly mounted suction tube
and catcher bag.
10
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
English
Vacuuming abrasive material
(such as grit, stone chips, etc.)
causes the blower wheel and
blower housing to wear at a rapid
rate. This results in a considerable
loss of suction power. In such a
case you should contact your
dealer. STIHL recommends a
STIHL servicing dealer.
Take particular care when
vacuuming wet leaves since they
may block the blower wheel and
elbow.
Watch out for small animals when
vacuuming and blow-sweeping in open
areas, yards and gardens.
Working Technique
To minimize blowing time, use a rake
and broom to loosen dirt particles before
you start blowing.
Recommended working technique to
minimize air pollution:
NIf conditions are very dusty, dampen
the surfaces before starting work.
NPull out the nozzle to full length so
that the airstream is at ground level.
NDo not blow particles in the direction
of bystanders, in particular in the
direction of children, pets, open
windows or freshly washed
vehicles. Blow the dirt particles
carefully to a central point.
NPut the dirt in garbage cans. Do not
blow it onto neighboring land.
Recommended working technique to
minimize noise:
NOperate your power tool at
reasonable times only – not early in
the morning, late at night or during
midday rest periods when people
could be disturbed. Keep to the
times prescribed locally. Normal
recommendation for professional
use on weekdays: 9:00hrs to
12:00hrs and 15:00hrs to 17:00hrs.
Be considerate towards neighbors
at weekends.
NFewer engines mean less noise.
Where possible, do not run more
than one power tool at any time.
NOperate blowers at the lowest
engine speed necessary to
accomplish the task.
NInspect your power tool before
starting work, especially the muffler,
air inlets and air filter.
Save water by using a blower instead of
a water hose for lawn and garden work
wherever possible, e.g. for cleaning
yards and patios.
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
11
English
Assembling the Blower
Mounting the Blower Tube
5
3
1
NLine up the arrows (1).
NPush the blower tube (2) into the fan
housing stub (3).
NPush the union nut (4) over the fan
housing stub (3) and turn it in the
direction of the arrow until the
tab (5) engages the opening (6).
BG 56, BG 86, SH 56, SH 86
2
8
a
NPush the nozzle (7) onto the blower
tube (2) as far as lug (8),
position (a) (long) or position (b)
(short), and rotate it in the direction
of the arrow to lock in position.
7
b
BG 66
5
1
3
NLine up the arrows (1).
NPush the blower tube (2) into the fan
295BA054 KN
housing stub (3).
NPush the union nut (4) over the fan
housing stub (3) and turn it in the
direction of the arrow until the
tab (5) engages the opening (6).
2
8
NPush the nozzle (7) in position (a)
onto the blower tube (2) as far as
lug (8) and rotate it in the direction
of the arrow to lock in position.
295BA055 KN
Removing the Blower Tube
296BA005 KN
295BA057 KN
NShut off the engine.
NInsert a suitable tool through the
opening in the union nut to press
down the tab.
NRotate the union nut in the direction
of the arrow as far as the stop.
NRemove the blower tube.
7
a
296BA004 KN
12
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
English

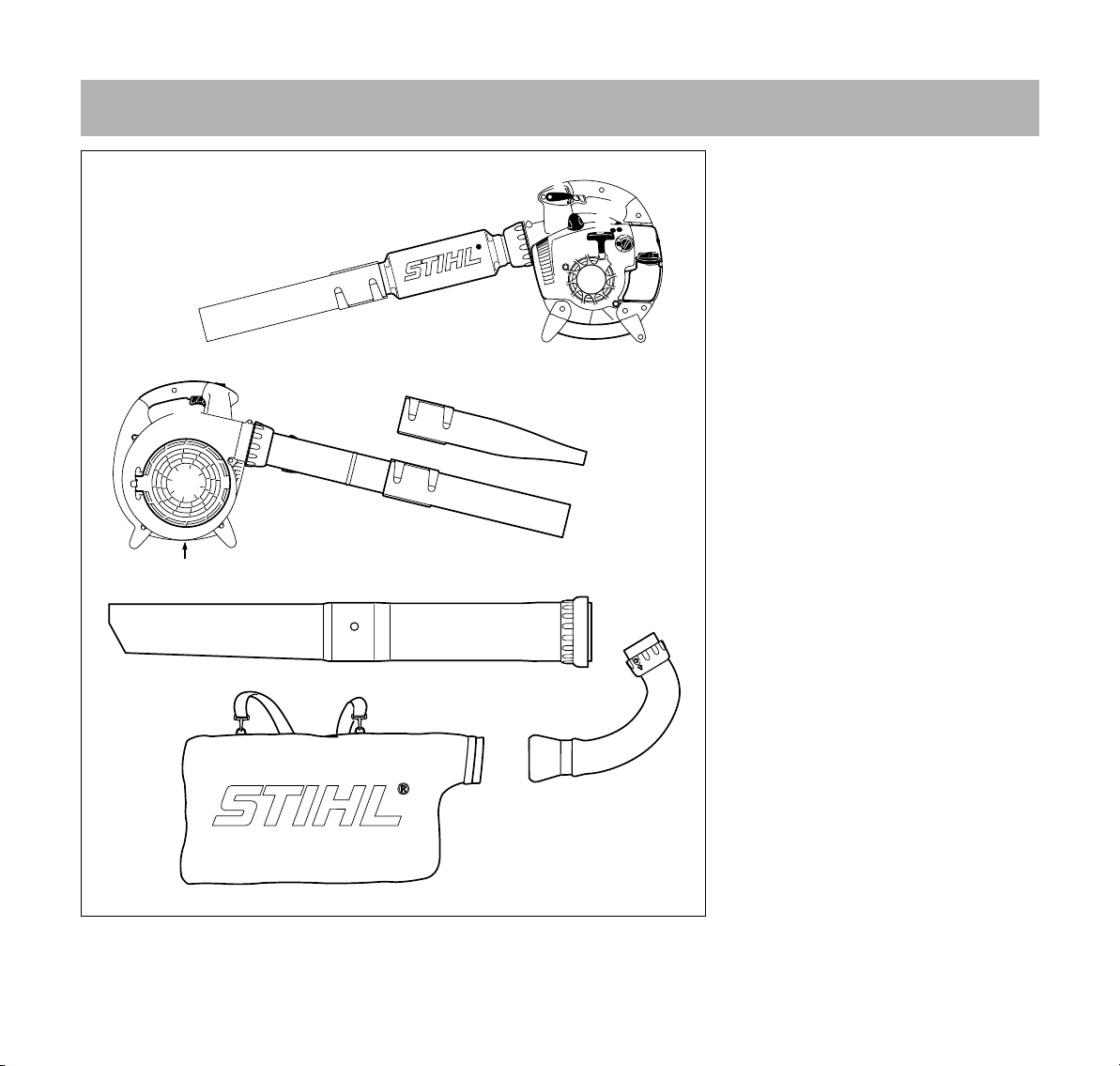

Assembling the Vacuum
Shredder
Mounting the Elbow
3
1
2
4
NPush the elbow (1) into the catcher
bag (2) as far as the mark (smaller
arrow).
NTighten strap (3) on catcher bag
and press down the tab (4).
Make sure the zipper on the
catcher bag is closed.
8
6
5
NLine up the arrows (5).
NPush the elbow into the fan housing
stub (6) as far as stop.
NPush the union nut (7) over the fan
housing stub and turn it in the
direction of the arrow until the
tab (8) engages the opening (9) in
the union nut.

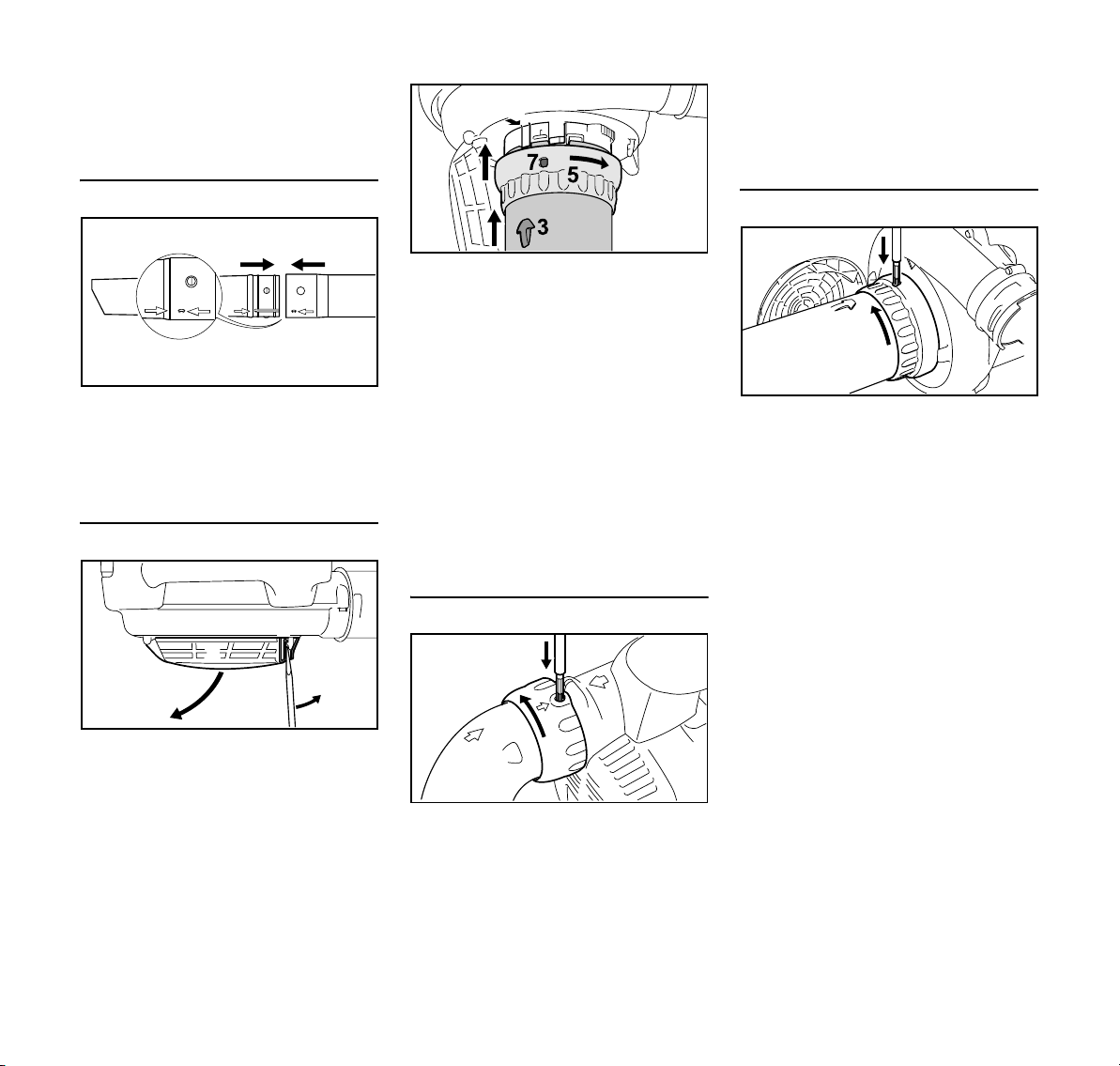

Assembling the Suction Tube
NLine up the arrows on the suction
tube and extension tube. Push
295BA058 KN
together and lock in position.
Mounting the Suction Tube
2
NShut off the engine.
NInsert screwdriver in the tap (1),
swing it to the right to disengage the
295BA059 KN
intake screen (2) and then open the
intake screen.
3
6
4
295BA061 KN
NLine up the arrows (3).
295BA080 KN
NPush the suction tube into the fan
housing stub (4) as far as stop.
NPush the union nut (5) over the fan
housing stub and turn it in the
direction of the arrow until the
tab (6) engages the opening (7) in
the union nut.
NContinue turning the union nut in
direction of arriw and tighten it down
firmly.
1
Removing the Elbow
295BA060 KN
295BA062 KN
NShut off the engine.
NInsert a suitable tool through the
opening in the union nut to press
down the tab.
NRotate the union nut in the direction
of the arrow as far as the stop.
NRemoving the Elbow
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
13
English
Removing the Suction Tube.
NShut off the engine.
NRotate the union nut in the direction
of the arrow as far as the stop.
NInsert a suitable tool through the
opening in the union nut to press
down the tab.
NContinue turning the union nut in the
direction of the arrow as far as the
next stop.
NRemove the suction tube.
NClose the intake screen and lock it
in position.
Fuel
This engine is certified to operate on
unleaded gasoline and the STIHL twostroke engine oil at a mix ratio of 50:1.
Your engine requires a mixture of highquality gasoline and quality two-stroke
air cooled engine oil.
Use mid-grade unleaded gasoline with a
295BA063 KN
minimum octane rating of 89 (R+M/2). If
the octane rating of the mid-grade
gasoline in your area is lower, use
premium unleaded fuel.
Fuel with a lower octane rating may
increase engine temperatures. This, in
turn, increases the risk of piston seizure
and damage to the engine.
The chemical composition of the fuel is
also important. Some fuel additives not
only detrimentally affect elastomers
(carburetor diaphragms, oil seals, fuel
lines, etc.), but magnesium castings and
catalytic converters as well. This could
cause running problems or even
damage the engine. For this reason
STIHL recommends that you use only
nationally recognized high-quality
unleaded gasoline!
Use only STIHL two-stroke engine oil or
equivalent high-quality two-stroke
engine oils that are designed for use
only in air cooled two-cycle engines.
We recommend STIHL 50:1 two-stroke
engine oil since it is specially formulated
for use in STlHL engines.
Do not use BIA or TCW rated (twostroke water cooled) mix oils or other
mix oils that state they are for use in both
water cooled and air cooled engines
(e.g., outboard motors, snowmobiles,
chain saws, mopeds, etc.).
Take care when handling gasoline.
Avoid direct contact with the skin and
avoid inhaling fuel vapor. When filling at
the pump, first remove the canister from
your vehicle and place the canister on
the ground before filling. Do not fill fuel
canisters that are sitting in or on a
vehicle.
The canister should be kept tightly
closed in order to avoid any moisture
getting into the mixture.
The machine‘s fuel tank and the canister
in which fuel mix is stored should be
cleaned as necessary.
Fuel mix ages
Only mix sufficient fuel for a few days
work, not to exceed 3 months of storage.
Store in approved fuel-canisters only.
When mixing, pour oil into the canister
first, and then add gasoline. Close the
canister and shake it vigorously by hand
to ensure proper mixing of the oil with
the fuel.
Gasoline
Oil (STIHL 50:1 or equivalent high-quality oils)
US gal.US fl.oz
12.6
2 1/26.4
512.8
Dispose of empty mixing-oil canisters
only at authorized disposal locations.
14
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
English

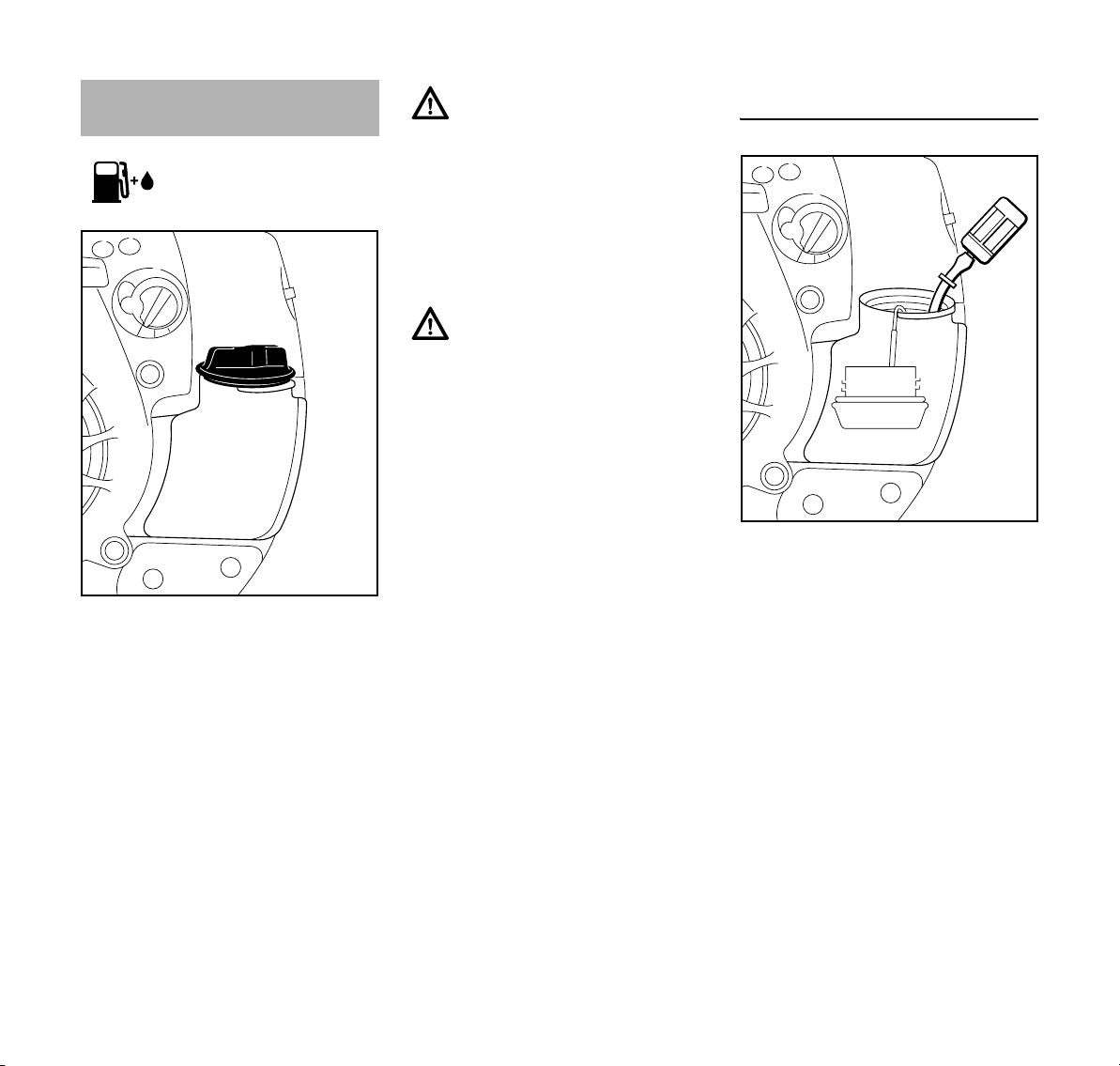

Fueling
Before fueling, clean the filler cap and
the area around it to ensure that no dirt
falls into the tank.
Always thoroughly shake the mixture in
the canister before fueling your
machine.
Warning!
After fueling, tighten fuel cap as
securely as possible by hand.
Change the fuel pick up body every
year
295BA064 KN
Before storing your machine for a long
period, drain and clean the fuel tank and
run engine until carburetor is dry.
Starting / Stopping the
Engine
Starting the engine
NObserve safety precautions.
1
295BA066 KN
NPress the fuel pump bulb (1) at least
five times – even if the bulb is filled
with fuel.
Adjusting the setting lever
Only on BG 86, SH 86
295BA065 KN
295BA069 KN
Warning!
In order to reduce the risk of burns or
other personal injury from escaping gas
vapor and fumes, remove the fuel filler
cap carefully so as to allow any pressure build-up in the tank to release
slowly.
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
NTo start, move the setting lever to
the run position F
The setting lever selects and holds any
throttle position between idle and full
throttle.
15
English
Adjusting the choke knob
If the engine is cold
NChoke-Drehknopf auf g
If the engine is warm
NChoke-Drehknopf auf <
Also use this setting if the engine has
been running but is still cold.
Starting
295BA067 KN295BA068 KN
NPlace the unit on the ground:
NMake sure you have a firm footing:
Hold the unit firmly with your right
hand on the housing and press
down.
NHold the starter grip with your left
hand.
Models with ErgoStart
NPull the starter grip steadily.
Models without ErgoStart
NPull the starter grip slowly until you
feel it engage and then give it a brisk
strong pull.
Do not pull out the starter rope all
the way – it might otherwise
break.
NDo not let the starter grip snap back.
Guide it slowly back into the housing
so that the starter rope can rewind
properly.
Other hints on starting
If the engine stops while the choke
knob in on g or during acceleration
NMove the choke knob to < and
continue cranking until the engine
runs.
If the engine does not start
NMake sure all settings are correct
(choke knob, setting lever in run
position F).
NRepeat the starting procedure.
296BA006 KN
If fuel tank has been run completely
dry and then refueled
1
NPress the fuel pump bulb (1) at least
five times – even if the bulb is filled
with fuel.
NNow start the engine.
295BA066 KN
16
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
English
As soon as the engine runs
3
NBlip the throttle trigger (3) – the
choke knob moves to the run
position F – the engine returns to
idle speed.
Stopping the Engine.
BG 56, BG 66, SH 56
BG 86, SH 86
295BA071 KN
NMove the setting lever to 0 – the
engine stops – the setting lever
springs back to the on position.
Cleaning the Air Filter
If there is a noticeable loss of engine
power
295BA073 KN
1
2
295BA074 KN
NTurn the filter cover lock (1)
counterclockwise to the vertical
position.
NRemove the filter cover (2).
NClean away loose dirt from around
the filter.
295BA072 KN
NMove the stop switch to 0 – the
engine stops – the stop switch
springs back to the on position.
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
5
3
2
NPull off the retainer (3) and take the
filter (4) out of the filter housing (5).
NInstall a new filter. As a temporary
measure you can knock it out on the
palm of your hand or blow it out with
compressed air – do not wash.
Replace damaged parts.
17
295BA075 KN
English
Installing the filter
NFit the filter in the filter housing and
push the retainer into position.
NRefit the filter cover and turn the
filter cover lock to the horizontal
position,
Engine ManagementAdjusting the Carburetor
Exhaust emissions are controlled by the
design of the fundamental engine
parameters and components (e.g.
carburation, ignition, timing and valve or
port timing) without the addition of any
major hardware.
The carburetor comes from the factory
with a standard setting.
This setting provides an optimum fuel-air
mixture under most operating
conditions.
With this carburetor it is only possible to
adjust the high speed screw within fine
limits.
Standard Setting
NShut off the engine.
NTurn high speed screw (H)
counterclockwise (no more than a
3/4 turn) as far as stop.
NTurn the low speed screw (L)
carefully home as far as stop and
then open it 1 full turn.
295BA076 KN
18
Fine Tuning for Operation in
Mountains or at Sea Level
A slight correction of the setting may be
necessary if engine power is not
satisfactory when operating at high
altitude or at sea level.
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
English
NCheck the air filter and clean it if
necessary.
NWarm up the engine.
At high altitude
NTurn high speed screw (H)
clockwise (leaner) – no further than
stop.
At sea level
NTurn high speed screw (H) slightly
counterclockwise (richer) – no
further than stop.
Adjusting Idle Speed
It is usually necessary to change the
setting of the idle speed screw (LA) after
every correction to the low speed
screw (L).
Engine stops while idling
NCheck the standard setting.
NTurn the idle speed screw (LA)
clockwise until the engine runs
smoothly.
Erratic idling behavior
If acceleration is poor even though the
standard setting is correct, the idle
setting is too rich:
NTurn the low speed screw (L) slowly
clockwise until the engine runs and
accelerates smoothly.
If acceleration is good, the idle setting is
too lean:
NTurn the low speed screw (L) slowly
counterclockwise until the engine
runs and accelerates smoothly.
295BA077 KN
Checking the Spark Plug
000BA002 KN
Wrong fuel mix (too much engine oil in
the gasoline), a dirty air filter and
unfavorable running conditions (mostly
at part throttle etc.) affect the condition
of the spark plug. These factors cause
deposits to form on the insulator nose
which may result in trouble in operation.
If engine is down on power, difficult to
start or runs poorly at idling speed, first
check the spark plug.
NRemove spark plug as described in
chapter "Starting / Stopping the
Engine".
NClean dirty spark plug.
NCheck the electrode gap (A) and
readjust if necessary – see
"Specifications".
NUse only resistor type spark plugs of
the approved range.
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
19
English
Rectify problems which have caused
fouling of spark plug:
–Too much oil in fuel mix.
–Dirty air filter.
–Unfavorable running conditions,
e.g. operating at part load.
Fit a new spark plug after approx. 100
operating hours or earlier if the
electrodes are badly eroded.
2
1
Engine Running BehaviorRewind Starter
If engine running behavior is
unsatisfactory even though the air filter
is clean and the carburetor is properly
adjusted, the cause may be the muffler.
NHave the muffler checked for
contamination (carbonization).
STIHL recommends that you have
servicing and repair work carried out
exclusively by an authorized STIHL
servicing dealer.
To help prolong the wear life of the
starter rope, observe the following
points:
NPull the starter rope only in the
direction specified.
NDo not pull the rope over the edge of
the guide bushing.
NDo not pull out the rope more than
specified.
NDo not allow the starter grip to snap
back, guide it back into the housing
slowly – see chapter on "Starting /
Stopping the Engine."
Have a damaged starter rope replaced
by your dealer before it breaks
completely. STIHL recommends that
you have servicing and repair work
carried out exclusively by an authorized
STIHL servicing dealer.
To reduce the risk of fire and burn
injury, use only spark plugs
authorized by STIHL. Always
press spark plug boot (2) snugly
onto terminal (1) of the proper
size. (Note: If terminal has
detachable SAE adapter nut, it
must be attached.) A loose
connection between spark plug
boot and ignition wire connector in
the boot may create arcing that
could ignite combustible fumes
and cause a fire.
20
002BA071 KN
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
Storing the MachineInspections and
Maintenance by Dealer
English
For periods of 3 months or longer
NDrain and clean the fuel tank in a
well ventilated area.
NDispose of fuel properly in
accordance with local
environmental requirements.
NRun the engine until the carburetor
is dry – this helps prevent the
carburetor diaphragms sticking
together.
NThoroughly clean the machine –
pay special attention to the cylinder
fins and air filter.
NStore the machine in a dry, high or
locked location, out of the reach of
children and other unauthorized
persons.
Spark Arresting Screen in Muffler
Spark arresting screen in muffler (not all
markets)
NIf the engine is down on power,
check the spark arresting screen in
the muffler.
STIHL recommends that you have
servicing and repair work carried out
exclusively by an authorized STIHL
servicing dealer.
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
21
English
Maintenance and Care
The following intervals apply to normal operating conditions only. If your daily working time is longer or operating conditions are difficult (very dusty work area, etc.),
shorten the specified intervals accordingly.
before starting work
after finishing work or daily
after each refueling stop
weekly
monthly
every 12 months
if problem
if damaged
if required
Complete machine
Control handleCheck operationxx
Air filter
Filter in fuel tank
Fuel tankCleanxx
Carburetor
Spark plug
Spark arresting screen
Cooling inletsCleanx
All accessible screws and nuts (not adjusting screws)
Antivibration elements
Safety labelsReplacex
1)
STIHL recommends that this work be done by a STIHL servicing dealer.
2)
Not in all versions, country-specific
2)
in mufflerCheckx
Visual inspection (condition, leaks)xx
Cleanx
Cleanxx
Replacexx
Checkx
Replace filterxxx
Check idle settingxx
Readjust idlex
Readjust electrode gapx
Replace after 100 hours of operation
1)
Replace
Retightenx
Checkxxx
1)
Replace
xx
x
22
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
Main Parts
13
15
16
#
14
17
18
24
21
20
19
English
1Setting Lever (BG 86, SH 86)
1
2
3
6
5
4
9
8
10
7
11
12
22
2Spark Plug Boot
3Muffler
4Starter Grip
5Carburetor Adjusting Screws
6Fuel Pump
7Choke Lever
8Filter Housing
9Filter Cover Lock
10 Fuel Filler Cap
11 Fuel Tank
12 Assist Handle
13 Control Handle
14 Stop Switch (BG 56, BG 66, SH 56)
15 Throttle Trigger
16 Intake Screen
17 Union Nut
18 Blower Tube (BG 56, BG 86,
SH 56, SH 86)
19 Round Nozzle
20 Fan Nozzle
21 Suction Tube
22 Elbow
23 Catcher Bag
24 Blower Tube Silencer (BG 66)
#Serial number
* Depending on version – special
accessory
*
*
*
*
23
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
Definitions
1. Setting Lever (BG 86, SH 86)
296BA003 KN
Holds the throttle trigger in position.
23
English
2. Spark Plug Boot
Connects the spark plug to the
ignition wire.
3. Muffler
Attenuates exhaust noises and
diverts exhaust gases away from
operator.
4. Starter Grip
The grip of the pull starter, which is
the device to start the engine.
5. Carburetor Adjusting Screws
For tuning carburetor.
6. Fuel Pump
Delivers fuel for cold start.
7. Choke Lever
Eases engine starting by enriching
mixture.
8. Filter Housing
Covers the air filter element.
9. Filter Cover Lock
Secures the filter cover.
10. Fuel Filler Cap
For closing the fuel tank.
11. Fuel Tank
For fuel and oil mixture.
12. Assist Handle
Additional handle for use with the
suction tube as a vacuum and held
by the left hand.
13. Control Handle
The handle of the blower held by the
right hand.
14. Stop Switch (BG 56, BG 66,
SH 56)
Switches the machine off.
15. Throttle Trigger
Controls the speed of the engine.
16. Intake Screen
Reduces the risk of direct contact
with the fan.
17. Union Nut
For mounting the blower tube to the
blower.
18. Blower Tube (BG 56, BG 86,
SH 56, SH 86)
Directs airstream.
19. Round Nozzle
To be mounted on the blower tube
to aim the airstream.
20. Fan Nozzle
Alternative nozzle for the blower
tube to accelerate the airstream.
21. Suction Tube
To be mounted on the blower.
22. Elbow
Directs airstream and debris into the
catcher bag.
23. Catcher Bag
Mounts to elbow to collect the
vacuumed debris.
24. Blower Tube Silencer (BG 66)
Reduces blower noise.
Specifications
EPA / CEPA
The Emission Compliance Period
referred to on the Emissions
Compliance Label indicates the number
of operating hours for which the engine
has been shown to meet Federal
emission requirements.
Category
A = 300 hours
B = 125 hours
C = 50 hours
CARB
The Emission Compliance Period used
on the CARB-Air Index Label indicates
the terms:
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
English
Engine
Single cylinder two-stroke engine
Displacement:1.66 cu in
(27.2 cc)
Bore:1.34 in (34 mm)
Stroke:1.18 in (30 mm)
Idle speed:2.500 rpm
Engine power to ISO 7293:
BG 56:0.7 kW (0.9 hp)
BG 66:0.6 kW (0.8 hp)
BG 86:0.8 kW (1.1 hp)
SH 56:0.7 kW (0.9 hp)
SH 86:0.8 kW (1.1 hp)
Ignition System
Electronic magneto ignition
Spark plug
(suppressed):NGK CMR 6 H
Electrode gap:0.020 in
(0.5 mm)
Fuel System
All position diaphragm carburetor with
integral fuel pump
Fuel tank capacity:
BG 56:18.3 oz (0,54 L)
BG 66:18.3 oz (0,54 L)
BG 86:14.9 oz (0,44 L)
SH 56:18.3 oz (0,54 L)
SH 86:14.9 oz (0,44 L)
Maximum air flow rate
Blower mode,
without
nozzleVacuum mode
BG 56:430 cf/min
BG 66:430 cf/min
BG 86:477 cf/min
SH 56:430 cf/min
SH 86:477 cf/min
(730 m
(730 m
(810 m
(730 m
(810 m
3
/h)- - -
3
/h)- - -
3
/h)- - -
3
/h)
3
/h)
418 cf/min
(710 m3/h)
453 cf/min
(770 m3/h)
Air velocity
Blower mode, at round nozzle
BG 56:143 mph
(64 m/sec)
BG 66:143 mph
(64 m/sec)
BG 86:154 mph
(69 m/sec)
SH 56:143 mph
(64 m/sec)
SH 86:154 mph
(69 m/sec)
Blower mode, at fan nozzle
BG 86:190 mph
(85 m/sec)
SH 86:190 mph
(85 m/sec)
Weight
Dry, blower mode
BG 56:9.0 lbs (4.1 kg)
BG 56 C:9.3 lbs (4.2 kg)
BG 66:9.7 lbs (4.4 kg)
BG 86:9.7 lbs (4.4 kg)
BG 86 C:9.9 lbs (4.5 kg)
Dry, vacuum mode
SH 56:11.5 lbs (5.3 kg)
SH 86:12.2 lbs (5.7 kg)
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
25
English
Special AccessoriesMaintenance and RepairsSTIHL Incorporated
Federal Emission Control
Contact your STIHL dealer for
information regarding special
accessories that may be available for
your product.
Users of this unit should carry out only
the maintenance operations described
in this manual. Other repair work may be
performed only by authorized STIHL
service shops.
Warranty claims following repairs can be
accepted only if the repair has been
performed by an authorized STIHL
servicing dealer using original STIHL
replacement parts.
Original STlHL parts can be identified by
the STIHL part number, the {
logo and, in some cases, by the STIHL
parts symbol K. The symbol may
appear alone on small parts.
Warranty Statement
Not for California
Your Warranty Rights and
Obligations
The U.S. Environmental Protection
Agency (EPA) and STIHL Incorporated
are pleased to explain the Emission
Control System Warranty on your equipment type engine. In the U.S. new 1997
and later model year small off-road
equipment engines must be designed,
built and equipped, at the time of sale, to
meet the U.S. EPA regulations for small
non road engines. The equipment
engine must be free from defects in
materials and workmanship which
cause it to fail to conform with U.S. EPA
standards for the first two years of
engine use from the date of sale to the
ultimate purchaser.
STIHL Incorporated must warrant the
emission control system on your small
off-road engine for the period of time
listed below provided there has been no
abuse, neglect or improper maintenance
of your small off-road equipment engine.
Your emission control system includes
parts such as the carburetor and the
ignition system. Also included may be
hoses, and connectors and other
emission related assemblies.
Where a warrantable condition exists,
STIHL Incorporated will repair your
small off-road equipment engine at no
26
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
English
cost to you, including diagnosis (if the
diagnostic work is performed at an
authorized dealer), parts, and labor.
Manufacturer's Warranty Coverage
In the U.S., 1997 and later model year
small off-road equipment engines are
warranted for two years. If any emissionrelated part on your engine is defective,
the part will be repaired or replaced by
STIHL Incorporated free of charge.
Owner's Warranty Responsibilities
As the small off-road equipment engine
owner, you are responsible for the
performance of the required maintenance listed in your owner's manual.
STIHL Incorporated recommends that
you retain all receipts covering
maintenance on your small off-road
equipment engine, but STIHL
Incorporated cannot deny warranty
solely for the lack of receipts or for your
failure to ensure the performance of all
scheduled maintenance.
Any replacement part or service that is
equivalent in performance and durability
may be used in non-warranty
maintenance or repairs, and shall not
reduce the warranty obligations of the
engine manufacturer.
As the small off-road equipment engine
owner, you should be aware, however,
that STIHL Incorporated may deny you
warranty coverage if your small off-road
equipment engine or a part has failed
due to abuse, neglect, improper maintenance or unapproved modifications.
You are responsible for presenting your
small off-road equipment engine to a
STIHL service center as soon as a
problem exists. The warranty repairs will
be completed in a reasonable amount of
time, not to exceed 30 days.
If you have any questions regarding your
warranty rights and responsibilities,
please contact a STIHL customer
service representative at 1-800-4678445 or you can write to
STIHL Inc.,
536 Viking Drive, P.O. Box 2015,
Virginia Beach, VA 23450-2015
Coverage by STIHL Incorporated
STIHL Incorporated warrants to the
ultimate purchaser and each subsequent purchaser that your small off-road
equipment engine will be designed, built
and equipped, at the time of sale, to
meet all applicable regulations. STIHL
Incorporated also warrants to the initial
purchaser and each subsequent
purchaser that your engine is free from
defects in materials and workmanship
which cause the engine to fail to conform
with applicable regulations for a period
of two years.
Warranty Period
The warranty period will begin on the
date the utility equipment engine is
purchased by the initial purchaser and
you have signed and sent back the
warranty card to STIHL.
If any emission related part on your
engine is defective, the part will be
replaced by STIHL Incorporated at no
cost to the owner. Any warranted part
which is not scheduled for replacement
as required maintenance, or which is
scheduled only for regular inspection to
the effect of "repair or replace as
necessary" will be warranted for the
warranty period. Any warranted part
which is scheduled for replacement as
required maintenance will be warranted
for the period of time up to the first
scheduled replacement point for that
part.
Diagnosis
You, as the owner, shall not be charged
for diagnostic labor which leads to the
determination that a warranted part is
defective. However, if you claim
warranty for a component and the
machine is tested as non-defective,
STIHL Incorporated will charge you for
the cost of the emission test. Mechanical
diagnostic work will be performed at an
authorized STIHL servicing dealer.
Emission test may be performed either
at STIHL Incorporated or at any
independent test laboratory.
Warranty Work
STIHL Incorporated shall remedy
warranty defects at any authorized
STIHL servicing dealer or warranty
station. Any such work shall be free of
charge to the owner if it is determined
that a warranted part is defective.
Any manufacturer-approved or
equivalent replacement part may be
used for any warranty maintenance or
repairs on emission-related parts and
must be provided without charge to the
owner. STIHL Incorporated is liable for
damages to other engine components
caused by the failure of a warranted part
still under warranty.
The following list specifically defines the
emission-related warranted parts:
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
27
English
–Carburetor
–Choke (Cold start enrichment
system)
–Intake manifold
–Air filter
–Spark plug
–Magneto or electronic ignition
system (ignition module)
–Catalytic converter (if applicable)
–Fasteners
Where to make a claim for Warranty
Service
Bring the product to any authorized
STIHL servicing dealer and present the
signed warranty card.
Maintenance Requirements
The maintenance instructions in this
manual are based on the application of
the recommended 2-stroke fuel-oil
mixture (see also instruction "Fuel").
Deviations from this recommendation
regarding quality and mixing ratio of fuel
and oil may require shorter maintenance
intervals.
Limitations
This Emission Control Systems
Warranty shall not cover any of the
following:
Nrepair or replacement required
because of misuse, neglect or lack
of required maintenance,
Nrepairs improperly performed or
replacements not conforming to
STIHL Incorporated specifications
that adversely affect performance
and/or durability, and alterations or
modifications not recommended or
approved in writing by STIHL
Incorporated,
and
Nreplacement of parts and other
services and adjustments
necessary for required maintenance
at and after the first scheduled
replacement point.
STIHL Incorporated
California Exhaust and
Evaporative Emissions
Control Warranty
Statement
For California only
Your Warranty Rights and
Obligations
The California Air Resources Board
(CARB) and STIHL Incorporated are
pleased to explain the emissions control
system's warranty on your 2007 and
later small off-road equipment engine.
In California, new equipment that uses
small off-road-engines must be
designed, built, and equipped to meet
the State's stringent anti-smog
standards. STIHL Incorporated must
warrant the emissions control system on
your small off-road engine for the period
listed below provided there has been no
abuse, neglect or improper maintenance
of your small off-road engine.
Your emissions control system may
include parts such as:
Air filter, Carburetor, Purger, Choke
(Cold Start Enrichment System), Control
Linkages, Intake Manifold, Magneto or
Electronic Ignition System (Ignition
module), Spark Plug, Catalytic
Converter (if applicable), Fuel Tank,
Fuel Cap, Fuel Line, Fuel Line Fittings,
Clamps, Fasteners.
28
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
English
Where a warrantable condition exists,
STIHL Incorporated will repair your
small off-road equipment engine at no
cost to you including diagnosis, parts
and labor.
Manufacturer’s Warranty
Responsabilities
This emissions control system is
warranted for two years in California. If
any emissions-related part on your
equipment is defective, the part will be
repaired or replaced by STIHL
Incorporated free of charge.
Owner’s Warranty Responsabilities
As the small off-road equipment engine
owner, you are responsible for
performance of the required
maintenance listed in your instruction
manual. STIHL Incorporated
recommends that you retain all receipts
covering maintenance on your small offroad equipment engine, but STIHL
Incorporated cannot deny warranty
solely for the lack of receipts or your
failure to ensure the performance of all
scheduled maintenance.
As the small off-road equipment engine
owner, you should however be aware
that STIHL Incorporated may deny you
warranty coverage if your small off-road
equipment engine or a part has failed
due to abuse, neglect, or improper
maintenance or unapproved
modifications.
You are responsible for presenting your
small off-road equipment engine to a
STIHL servicing dealer as soon as the
problem exists. The warranty repairs
should be completed in a reasonable
amount of time, not to exceed 30 days. If
you have any questions regarding your
warranty rights and responsibilities,
please contact a STIHL customer
service representative at 1-800-4678445 or you can write to
STIHL Inc., 536 Viking Drive,
P.O. Box 2015,
Virginia Beach, VA 23450-2015.
Coverage by STIHL Incorporated
STIHL Incorporated warrants to the
ultimate purchaser and each
subsequent purchaser that your small
off-road equipment engine is designed,
built and equipped, at the time of sale, to
meet all applicable emission
regulations.
STIHL Incorporated also warrants to the
initial purchaser and each subsequent
purchaser that your engine is free from
defects in materials and workmanship
which cause the engine to fail to conform
to applicable emission regulations for a
period of two years.
Defects Warranty Period
The warranty periods will begin on the
date the utility equipment engine is
purchased by the initial purchaser. If any
emission related part on your engine is
defective, the part will be replaced by
STIHL Incorporated at no cost to the
owner.
Add on or modified parts that are not
exempted by CARB may not be used.
The use of any non exempted add on or
modified parts will be grounds for
disallowing a warranty claim. STIHL
Incorporated will not be liable to warrant
failures of warranted parts caused by the
use of a non exempted add on or
modified part.
The warranty on emissions-related parts
will be interpreted as follows:
1. Any warranted part that is not
scheduled for replacement as
required maintenance in the written
instructions required in the
Emission Warranty Parts List (see
below) must be warranted for the
warranty period defined in
Subsection COVERAGE BY STIHL
INCORPORATED, see above. If
any such part fails during the period
of warranty coverage, it must be
repaired or replaced by the
manufacturer according to
Subsection (4) below. Any such part
repaired or replaced under the
warranty must be warranted for the
remaining warranty period.
2. Any warranted part that is
scheduled only for regular
inspection in the written instructions
required by the Emission Warranty
Parts List (see below) must be
warranted for the warranty period
defined in Subsection COVERAGE
BY STIHL INCORPORATED, see
above. A statement in such written
instructions to the effect of "repair or
replace as necessary" will not
reduce the period of warranty
coverage. Any such part repaired or
replaced under warranty must be
warranted for the remaining
warranty period.
3. Any warranted part that is
scheduled for replacement as
required maintenance in the written
instructions required by the
Emission Warranty Parts List (see
below) must be warranted for the
period of time prior to the first
scheduled replacement point for
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
29
English
that part. If the part fails prior to the
first scheduled replacement, the
part must be repaired or replaced by
the engine manufacturer according
to Subsection (4) below. Any such
part repaired or replaced under
warranty must be warranted for the
remainder of the period prior to the
first scheduled replacement point
for the part.
4. Repair or replacement of any
warranted part under the warranty
must be performed at a warranty
station at no charge to the owner.
5. Notwithstanding the provisions of
Subsection (4) above, warranty
services or repairs will be provided
at all manufacturer distribution
centers that are authorized to
service the subject engines.
6. The owner must not be charged for
diagnostic labor that leads to the
determination that a warranted part
is in fact defective, provided that
such diagnostic work is performed
at a warranty station.
Warranty Work
STIHL Incorporated shall remedy
warranty defects at any authorized
STIHL servicing dealer or warranty
station. Any such work shall be free of
charge to the owner if it is determined
that a warranted part is defective. Any
manufacturer approved or equivalent
replacement part may be used for any
warranty maintenance or repairs on
emission related parts and must be
provided without charge to the owner.
STIHL Incorporated is liable for
damages to other engine components
caused by the failure of a warranted part
still under warranty.
Emission Warranty Parts List
Air filter, Carburetor, Purger, Choke
(Cold Start Enrichment System), Control
Linkages, Intake Manifold, Magneto or
Electronic Ignition System (Ignition
Module), Spark Plug, Catalytic
Converter (if applicable), Fuel Tank,
Fuel Cap, Fuel Line, Fuel Line Fittings,
Clamps, Fasteners
Where to make a claim for Warranty
Service
Bring the STIHL product to any
authorized STIHL servicing dealer and
present the signed STIHL product
registration card, or the print-out of the
electronic product registration.
Limitations
The repair or replacement of any
warranted part otherwise eligible for
warranty coverage may be excluded
from such warranty coverage if STIHL
Incorporated demonstrates that the
STIHL product has been abused,
neglected, or improperly maintained,
and that such abuse, neglect, or
improper maintenance was the direct
cause of the need for repair or
replacement of the part. That
notwithstanding, any adjustment of a
component that has a factory installed,
and properly operating, adjustment
limiting device is still eligible for warranty
coverage.
Trademarks
STIHL Registered Trademarks
®
STIHL
{
K
The color combination orange-grey
(U.S. Registrations #2,821,860;
#3,010,057, #3,010,058, #3,400,477;
and #3,400,476)
®
4-MIX
AUTOCUT
EASYSTART
FARM BOSS
OILOMATIC
STIHL Cutquik
STIHL DUROMATIC
STIHL Quickstop
STIHL ROLLOMATIC
STIHL WOOD BOSS
TIMBERSPORTS
YARD BOSS
Some of STIHL’s Common Law
Trademarks
®
®
®
®
®
®
®
®
®
®
®
30
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
English
BioPlus™
Easy2Start™
EasySpool™
ElastoStart™
Ematic™ / Stihl-E-Matic™
FixCut™
HT Plus™
IntelliCarb™
Master Control Lever™
Micro™
Pro Mark™
Quad Power™
Quiet Line™
STIHL Arctic™
STIHL Compact™
STIHL HomeScaper Series™
STIHL Interchangeable Attachment
Series™
STIHL Magnum™ / Stihl-Magnum™
STIHL MiniBoss™
STIHL MotoPlus 4™
STIHL Multi-Cut HomeScaper Series™
Stihl Outfitters™
STIHL PICCO™
STIHL PolyCut™
STIHL PowerSweep™
STIHL Precision Series™
STIHL Protech™
STIHL RAPID™
STIHL SuperCut™
STIHL Territory™
TapAction™
TrimCut™
This listing of trademarks is subject to
change.
Any unauthorized use of these
trademarks without the express written
consent of
ANDREAS STIHL AG & Co. KG,
Waiblingen is strictly prohibited.
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
31
English
32
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
Contenido
español / EE.UU
Acerca de este manual de
instrucciones34
Medidas de seguridad y técnicas
de manejo34
Uso44
Técnica de trabajo45
Instalación del soplador45
Armado de la aspiradora picadora46
Combustible48
Manual de instrucciones originalImpreso en papel libre de cloro.
Llenado de combustible49
Arranque / parada del motor50
Limpieza del filtro de aire52
Gestión del motor52
Ajuste del carburador53
Revisión de bujías54
Funcionamiento del motor55
Dispositivo de arranque55
Almacenamiento de la máquina55
Inspección y mantenimiento por el
concesionario56
Información para mantenimiento57
Componentes importantes58
Las tintas contienen aceites vegetales, el papel es reciclable.
Especificaciones60
Accesorios especiales61
Información de reparación61
Declaración de garantía de STIHL
Incorporated sobre sistemas de
control de emisiones según normas
Federales62
Declaración de garantía de STIHL
Incorporated sobre el control de
emisiones de gases de escape y
emisiones por evaporación para el
Estado de California64
Marcas comerciales67
Permita que solamente las personas
que comprenden la materia tratada en
este manual manejen su soplador.
Para obtener el rendimiento y
satisfacción máximos del soplador
STIHL, es importante leer y comprender
las precauciones de seguridad y las
instrucciones de mantenimiento y las
precauciones de seguridad en la
sección "Medidas de seguridad y
técnicas de manejo", antes de usarlo.
Para información adicional, visite
www.stihlusa.com.
Comuníquese con el concesionario o
distribuidor de STIHL si no se entiende
alguna de las instrucciones dadas en el
presente manual.
Advertencia!
Dado que el soplador es una
herramienta que funciona a gran
velocidad, es necesario tomar medidas
especiales de seguridad igual que con
cualquier otra herramienta motorizada,
para reducir el riesgo de lesiones. El uso
descuidado o inadecuado puede causar
lesiones graves e incluso mortales. La
filosofía de STIHL es mejorar
continuamente todos sus productos.
Como resultado de ello, periódicamente
se pueden introducir cambios de diseño
y mejoras. Si las características de
funcionamiento o la apariencia de su
soplador difieren de las descritas en
este manual, comuníquese con el
concesionario STIHL para obtener la
información y ayuda que requiera.
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
33
español / EE.UU
Acerca de este manual de
instrucciones
Pictogramas
Todos los pictogramas que se
encuentran en la máquina se muestran
y explican en este manual.
Símbolos en el texto
Las instrucciones de uso y seguridad
vienen acompañadas de ilustraciones.
Los pasos individuales o
procedimientos descritos en el manual
pueden estar señalados en diferentes
maneras:
NUn punto marca un paso o
procedimiento sin una referencia
directa a una ilustración.
Una descripción de un paso o
procedimiento que se refiere
directamente a una ilustración puede
contener números de referencia que
aparecen en la ilustración. Ejemplo:
NSuelte el tornillo (1)
NPalanca (2) ...
Además de las instrucciones de uso, en
este manual pueden encontrarse
párrafos a los que usted debe prestar
atención especial. Tales párrafos están
marcados con los símbolos y las
palabras identificadoras que se
describen a continuación.
Advertencia!
identifica una situación de peligro que,
al no evitarse, puede resultar en lesiones graves o mortales.
¡Precaución!
indica el riesgo de daños a la propiedad,
incluyendo a la máquina o sus
componentes.
Mejoramientos técnicos
La filosofía de STIHL es mejorar
continuamente todos sus productos.
Como resultado de ello, periódicamente
se introducen cambios de diseño y
mejoras. Por lo tanto, es posible que
algunos cambios, modificaciones y
mejoras no se describen en este
manual. Si las características de
funcionamiento o la apariencia de su
máquina difieren de las descritas en
este manual, comuníquese con el
concesionario STIHL para obtener la
ayuda que requiera.
Medidas de seguridad y
técnicas de manejo
Puesto que el uso de un
soplador puede resultar
peligroso, es necesario
tomar precauciones de
seguridad especiales
para reducir el riesgo de
lesiones personales.
Es importante que usted
lea, comprenda bien y
respete las siguientes
advertencias y medidas
de seguridad. Lea el
manual de instrucciones
y las precauciones de
seguridad periódicamente. El uso
descuidado o inadecuado
puede causar lesiones
graves o incluso
mortales.
Pida a su concesionario STIHL que le
enseñe el manejo de la herramienta
motorizada. Respete todas las
disposiciones, reglamentos y normas de
seguridad locales del caso.
Advertencia!
No preste ni alquile nunca su herramienta motorizada sin entregar el
manual de instrucciones. Asegúrese
que todas las personas que utilicen la
máquina lean y comprendan la información contenida en este manual.
¡Peligro!
indica un riesgo inminente de lesiones
graves o mortales.
34
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
español / EE.UU
Advertencia!
Utilice el soplador para limpiar hojas,
ramas pequeñas, pasto, trozos de
papel, suciedad, polvo y capas ligeras
de nieve de los prados, jardines, complejos deportivos, parques, senderos,
calles, entradas de vehículos y estacionamientos, así como para tareas
similares.
No debe usarse para ningún otro propósito ya que el uso indebido puede
resultar en lesiones personales o daños
a la propiedad, incluso daños de la
máquina.
Advertencia!
Nunca se debe permitir a los niños que
usen esta herramienta motorizada. No
se debe permitir la proximidad de otros,
especialmente niños y animales, donde
se esté utilizando la máquina.
Advertencia!
Para reducir el riesgo de ocasionar
lesiones a las personas en la cercanía y
daños a la propiedad, nunca deje la
herramienta motorizada en marcha
desatendida. Cuando no está en uso
(por ejemplo durante el descanso), apáguela y asegúrese que las personas no
autorizadas no pueden usarla.
La mayoría de las medidas de seguridad
y avisos contenidos en este manual se
refieren al uso de todos los sopladores
de STIHL. Los distintos modelos pueden
contar con piezas y controles diferentes.
Vea la sección correspondiente de su
manual de instrucciones para tener una
descripción de los controles y la función
de los componentes de su modelo.
El uso seguro de un soplador atañe a
1. el operador
2. la herramienta motorizada
3. el uso de la herramienta motorizada
EL OPERADOR
Condición física
Usted debe estar en buenas
condiciones físicas y psíquicas y no
encontrarse bajo la influencia de
ninguna sustancia (drogas, alcohol,
etc.) que le pueda restar visibilidad,
destreza o juicio. No maneje esta
máquina cuando está fatigado.
Advertencia!
Esté alerta. Si se cansa, tómese un descanso. El cansancio puede provocar
una pérdida del control. El uso de cualquier herramienta motorizada es
fatigoso. Si usted padece de alguna
dolencia que pueda ser agravada por la
fatiga, consulte a su médico antes de
utilizar esta máquina.
Advertencia!
El uso prolongado de una herramienta
motorizada (u otras máquinas) expone
al operador a vibraciones que pueden
provocar el fenómeno de Raynaud
(dedos blancos) o el síndrome del túnel
carpiano.
Estas condiciones reducen la capacidad
de las manos de sentir y regular la
temperatura, producen entumecimiento
y ardor y pueden provocar trastornos
nerviosos y circulatorios, así como
necrosis de los tejidos.
No se conocen todos los factores que
contribuyen a la enfermedad de
Raynaud, pero se mencionan el clima
frío, el fumar y las enfermedades o
condiciones físicas que afectan los
vasos sanguíneos y la circulación de la
sangre, como asimismo los niveles altos
de vibración.por períodos largos. Por lo
tanto, para reducir el riesgo de la
enfermedad de dedos blancos y del
síndrome del túnel carpiano, sírvase
notar lo siguiente:
La mayor parte de las herramientas
motorizadas de STIHL se ofrecen con
un sistema antivibración ("AV") cuyo
propósito es reducir la transmisión de
las vibraciones creadas por la máquina
a las manos del operador. Se
recomienda el uso del sistema AV a
aquellas personas que utilizan
herramientas motorizadas en forma
constante y regular.
Mantenga las manos abrigadas.
Mantenga el sistema antivibración en
buenas condiciones de mantenimiento.
Una herramienta motorizada con los
componentes flojos o con un elemento
antivibración dañado o desgastado
también tendrá tendencia a tener
niveles más altos de vibración.
Agarre firmemente los mangos en todo
momento, pero no los apriete con fuerza
constante y excesiva. Tómese
descansos frecuentes.
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
35
español / EE.UU
Todas las precauciones antes
mencionadas no le garantizan que va a
estar totalmente protegido contra la
enfermedad de Raynaud o el síndrome
del túnel carpiano. Por lo tanto, los
operadores constantes y regulares
deben revisar con frecuencia el estado
de sus manos y dedos. Si aparece
alguno de los síntomas arriba
mencionados, consulte inmediatamente
al médico.
Advertencia!
El sistema de encendido de la máquina
STIHL produce un campo electromagnético de intensidad muy baja. El mismo
puede interferir con algunos tipos de
marcapasos. Para reducir el riesgo de
lesiones graves o mortales, las personas portadoras de marcapasos deben
consultar a sus médicos y al fabricante
del marcapasos antes de usar esta
máquina.
Vestimenta adecuada
Advertencia!
Para reducir el riesgo de lesiones el
operador debe usar el equipo protector
adecuado.
Para reducir el riesgo de
lesionarse los ojos,
nunca maneje la herramienta motorizada si no
tiene puestas gafas o
anteojos de seguridad
bien ajustados con una
protección adecuada en
las partes superior y laterales que satisfagan la
norma ANSI Z 87.1 (o la
norma nacional
correspondiente).
Advertencia!
El ruido de la herramienta
motorizada puede dañar
los oídos. Siempre use
amortiguadores del ruido
(tapones u orejeras) para
protegerse los oídos. Los
usuarios constantes y regulares deben
someterse con frecuencia a un examen
o control auditivo.
Esté especialmente alerta y tenga
cuidado cuando se usa protectores de
oídos, ya que los mismos reducen la
posibilidad de oír señales de
advertencia (gritos, alarmas, etc.).
La ropa debe ser de confección fuerte y ajustada,
pero no tanto que impida
la completa libertad de
movimiento.
Evite el uso de chaquetas
sueltas, bufandas, corbatas, joyas, pantalones
anchos o con vuelta,
cabello largo sin recoger
o cualquier cosa que
pudiera ser aspirada por
el conducto de admisión.
Sujétese el pelo de modo
que quede sobre los
hombros.
Es muy importante tener
una buena superficie de
apoyo para los pies. No
use sandalias o pies
descalzos.
LA HERRAMIENTA MOTORIZADA
Para las ilustraciones y definiciones de
los componentes de la herramienta
motorizada, vea el capítulo "Piezas
principales y controles".
Advertencia!
Nunca modifique, de ninguna manera,
esta herramienta motorizada. Utilice
únicamente los accesorios y repuestos
suministrados por STIHL o expresamente autorizados por STIHL para
usarse con el modelo específico de
STIHL. Si bien es posible conectar a la
herramienta motorizada de STIHL ciertos accesorios no autorizados, su uso
puede ser, en la práctica, extremadamente peligroso.
Si la máquina experimenta cargas
excesivas para las cuales no fue
diseñada (por ejemplo, impactos
severos o una caída), siempre
asegúrese que la máquina está en
36
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
español / EE.UU
buenas condiciones antes de seguir con
el trabajo. Inspeccione específicamente
la integridad del sistema de combustible
(ausencia de fugas) y asegúrese que los
controles y dispositivos de seguridad
funcionan como es debido. No siga
manejando esta máquina si está
dañada. En caso de dudas, pida que el
concesionario de servicio de STIHL la
revise.
Advertencia!
Para reducir el riesgo de sufrir lesiones,
nunca use la máquina sin tenerla completamente armada con un tubo de
soplado correctamente instalado.
Las partículas pequeñas (por ej. el
polvo) que pasan por los tubos del
soplador y la boquilla pueden cargar los
tubos con electricidad estática. Esto
ocurre especialmente en condiciones de
baja humedad y mucho polvo. Para
reducir el riesgo de electrochoques
causadas por cargas estáticas y la
posibilidad de lesiones causadas al
perder el control de la máquina, su
soplador tiene características que
ayudan a reducir la acumulación de
electricidad estática en los tubos y
equilibrar la carga con respecto al motor
y/o el operador:
El mango de control está diseñado para
conducir la electricidad estática hacia el
motor por vía del cable del acelerador y
desde el mango hasta tierra por vía del
operador.
USO DE LA HERRAMIENTA
MOTORIZADA
Transporte de la herramienta
motorizada
Advertencia!
Cuando transporte la herramienta
motorizada en un vehículo, sujétela firmemente para impedir su vuelco, el
derrame de combustible y el daño a la
unidad.
Combustible
La herramienta motorizada STIHL utiliza
una mezcla de aceite-gasolina como
combustible (vea el capítulo
"Combustible" en el manual del
propietario).
La gasolina es un combustible muy inflamable.
Si se derrama y arde a
causa de una chispa u
otra fuente de ignición,
puede provocar un incendio y quemaduras graves
o daños a la propiedad.
Tenga sumo cuidado
cuando manipule gasolina o la mezcla de
combustible. No fume
cerca del combustible o
la herramienta motorizada, ni acerque ningún
fuego o llama a ellos.
Puede escapar vapor
inflamable del sistema de
combustible.
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
37
español / EE.UU
Instrucciones para el llenado de
combustible
Advertencia!
Cargue de combustible su herramienta
motorizada en lugares al aire libre bien
ventilados. Siempre apague el motor y
deje que se enfríe antes de llenar de
combustible. Dependiendo del combustible utilizado, de las condiciones
climáticas y del sistema de ventilación
del tanque, es posible que se forme
vapor de gasolina a presión dentro del
tanque de combustible.
Para reducir el riesgo de quemaduras,
así como otras lesiones corporales ocasionadas por los escapes de vapor de
gasolina y otras emanaciones, quite la
tapa de llenado de combustible de la
herramienta motorizada cuidadosamente de modo que la presión que se
pueda haber acumulado en el tanque se
disipe lentamente. Nunca quite la tapa
de llenado de combustible mientras el
motor está funcionando.
Elija una superficie despejada para llenar el tanque y aléjese 3 m (10 pies) por
lo menos del lugar en que lo haya llenado antes de arrancar el motor. Limpie
todo el combustible derramado antes de
arrancar la máquina.
Advertencia!
Compruebe que no existen fugas de
combustible mientras llena el tanque y
durante el funcionamiento de la
máquina. Si detecta alguna fuga de
combustible, no arranque el motor ni lo
haga funcionar sin antes reparar la fuga
y limpiar el combustible derramado.
Tenga cuidado de no mancharse la
ropa con combustible. Si la mancha,
cámbiesela inmediatamente.
Las vibraciones de la
máquina pueden aflojar
una tapa de combustible
que ha quedado mal
apretada, o simplemente
soltarla y derramar combustible. Para reducir el
riesgo de derrames e
incendio, apriete la tapa
de llenado de combustible a mano tan
firmemente como sea
posible.
Antes de arrancar
Advertencia!
Siempre revise la herramienta motorizada para comprobar que está en
buenas condiciones y que funciona
correctamente antes de arrancarla, en
particular el gatillo de aceleración, el
bloqueo del mismo y el interruptor de
parada. El gatillo de aceleración debe
moverse libremente. Nunca intente
modificar los controles o los dispositivos
de seguridad.
Advertencia!
Nunca use una herramienta motorizada
que esté dañada o mal cuidada.
Advertencia!
Asegúrese que el casquillo de la bujía
esté firmemente colocado – un casquillo
suelto puede crear un arco voltaico y
encender los vapores del combustible,
provocando un incendio.
Advertencia!
Mantenga los mangos limpios y secos
en todo momento; es particularmente
importante mantenerlos libres de humedad, aceite, grasa o resinas para
garantizar que la máquina pueda empuñarse firmemente para mantenerla bajo
control seguro.
Arranque
Advertencia!
Arranque el motor al aire libre, por lo
menos 3 m (10 pies) del lugar en que lo
haya llenado.
38
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
español / EE.UU
Advertencia!
Su herramienta motorizada es una
máquina que debe ser manejada por
solamente una persona. No deje que
otras personas estén en el lugar de trabajo, aun durante el arranque.
Para las instrucciones específicas de
arranque, vea la sección correspondiente en el manual del usuario.
Coloque la herramienta motorizada
sobre suelo firme u otra superficie
sólida en un lugar abierto. Mantenga el
equilibrio y elija un buen punto de apoyo
para los pies.
Advertencia!
Para reducir el riesgo de sufrir lesiones
causadas por la pérdida de control, no
intente arrancar el motor de la herramienta "por lanzamiento".
Advertencia!
Cuando tire del mango de arranque, no
enrolle la cuerda de arranque alrededor
de la mano. No deje que el mango retroceda bruscamente, sino guíe la cuerda
de arranque para que se enrolle debidamente. Si no ejecuta este procedimiento
puede lastimarse la mano o los dedos y
también dañar el mecanismo de
arranque.
Advertencia!
Tan pronto arranque, accione inmediatamente por un breve momento el gatillo
de aceleración para desconectarlo de la
posición de arranque y permitir que la
velocidad del motor se reduzca al valor
de ralentí.
Advertencia!
Esta unidad tiene un sistema de encendido que normalmente está listo para
usar en todo momento. Después de
usar la palanca de ajuste para detener
el motor, la misma regresa automáticamente a la posición "activada". Si el
motor está caliente, puede ser posible
arrancarlo tirando de la cuerda de
arranque sin ajustes adicionales. Para
evitar el riesgo de lesiones, tenga sumo
cuidado y mantenga alejados a los
niños de la máquina.
Durante el trabajo
Sujeción y control de la herramienta
motorizada
El soplador ha sido diseñado para
usarse con una sola mano, con la mano
derecha o izquierda en el mango de
control.
Se debe tener cuidado especial cuando
las condiciones del suelo son
resbaladizas (suelo húmedo, nieve) y en
terreno difícil y con mucha vegetación.
Para evitar tropezarse, esté atento a los
obstáculos ocultos tales como tocones,
raíces y zanjas. Para obtener un punto
de apoyo seguro, quite las ramas
caídas, los matorrales y el material
cortado. Sea sumamente precavido
cuando trabaje en declives o terreno
irregular.
Advertencia!
Para reducir el riesgo de lesiones causadas por la pérdida del control, nunca
trabaje sobre una escalera, un árbol o
cualquier otra superficie de soporte
poco seguro. Nunca mantenga la
máquina a una altura más arriba de los
hombros.
Condiciones de trabajo
Maneje y arranque su herramienta
motorizada solamente al aire libre en un
lugar bien ventilado. Manéjela
solamente en condiciones de buena
visibilidad y a la luz del día. Trabaje con
mucho cuidado.
Advertencia!
Tan pronto arranca, este
producto genera vapores
de escape tóxicos que
contienen productos químicos (tales como
hidrocarburos sin quemar
y monóxido del carbono, incluyendo el
benceno) considerados como causantes de enfermedades respiratorias,
cáncer, defectos de nacimiento u otra
toxicidad reproductora. Algunos de
estos gases (por ej., monóxido de carbono) pueden ser incoloros e inodoros.
Para reducir el riesgo de sufrir lesiones
graves o mortales por respirar gases
tóxicos, nunca haga funcionar la
máquina puertas adentro o en lugares
mal ventilados:
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
39
español / EE.UU
Advertencia!
La inhalación de ciertos polvos, especialmente los polvos orgánicos, tales
como el moho o polen, puede provocar
reacciones alérgicas o asmáticas en las
personas sensibles. La inhalación repetida o de grandes cantidades de polvo u
otros contaminantes del aire, especialmente los de partículas pequeñas
puede causar enfermedades respiratorias o de otro tipo. Controle el polvo en
su fuente, siempre que sea posible. Utilice buenas prácticas de trabajo, tal
como trabajar de manera que el viento
o el proceso de corte dirija el polvo producido por la herramienta motorizada
en sentido opuesto del operador.
Observe las recomendaciones emitidas
por EPA/OSHA/NIOSH y las asociaciones de trabajo y los sindicatos con
respecto al polvo ("materia particulada"). Cuando sea imposible eliminar
significativamente la inhalación del
polvo, es decir mantener el nivel cerca
del valor ambiente, el operador y las
personas que se encuentren en la cercanía siempre deberán usar un
respirador aprobado por NIOSH/MSHA
para el tipo de polvo presente en el
lugar.
Advertencia!
Si la sustancia que se está soplando es
un producto comercial, repase,
entienda y respete todas las advertencias e instrucciones contenidas en la
hoja de datos de seguridad de materiales de la sustancia y/o consulte al
fabricante/proveedor del producto. El
estado de California y algunas otras
autoridades han publicado varias listas
de sustancias carcinógenas, de toxicidad reproductora, etc.
Advertencia!
La aspiración de polvo de asbesto es
peligrosa y puede causar lesiones graves o mortales, enfermedades de las
vías respiratorias o cáncer. El uso y la
eliminación de los productos que contienen asbesto están estrictamente
reglamentados por OSHA y el Organismo para la Protección del Medio
Ambiente (EPA) de los EE.UU. Si por
cualquier motivo cree que está
soplando o perturbando asbesto, póngase en contacto inmediatamente con
su empleador o un representante de
OSHA local.
Advertencia!
El polvo que contenga sílice puede contener sílice cristalina. La sílice es un
componente básico de la arena, cuarzo,
ladrillos, arcilla, granito y numerosos
minerales y rocas, incluyendo productos de mampostería y de hormigón. La
inhalación repetida y/o sustancial de la
sílice cristalina en suspensión en el aire
puede causar una enfermedad respiratoria grave o mortal, incluida la silicosis.
Además, el estado de California y algunas otras autoridades han colocado a la
sílice cristalina en la lista de sustancias
carcinógenas. Cuando trabaje con tales
materiales, siempre tome las medidas
de precaución respiratorias antes
mencionadas.
Instrucciones de manejo
Advertencia!
En caso de emergencia, apague el
motor inmediatamente – mueva el control deslizante / interruptor de parada a
0 o STOP
40
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
español / EE.UU
Para reducir el
riesgo de que
otras personas
sufran lesiones
graves o mortales
causadas por
objetos lanzados,
siempre mantenga a los
terceros a una distancia no menor
de 5 m (16 pies)
de la herramienta
motorizada
cuando se
encuentre en
marcha.
Apague el motor inmediatamente si se
le aproxima alguna persona.
Advertencia!
Para reducir el riesgo de sufrir lesiones
personales, nunca dirija el chorro de
aire hacia otras personas, puesto que la
presión elevada del chorro puede lesionar los ojos y lanzar objetos pequeños a
velocidad alta. No dirija el chorro de aire
hacia los animales domésticos.
Advertencia!
El ventilador soplador ubicado entre el
conducto de admisión y las aberturas
de salida gira siempre que el motor esté
en marcha.
Nunca inserte objetos extraños en la
toma de aire de la máquina ni en la
boquilla del soplador. Esto puede dañar
el rotor del ventilador y puede causar
lesiones graves al operador o a las
demás personas, como resultado de los
objetos o partículas lanzados a velocidad alta.
No coloque el soplador en el suelo
mientras funciona a velocidad alta,
puesto que objetos pequeños tales
como arena, pasto, polvo, etc. pueden
aspirarse por la toma de aire y dañar el
rotor del ventilador. Se recomienda apagar la máquina antes de colocarla en el
suelo.
Advertencia!
El silenciador y otros componentes del
motor (por ej., aletas del cilindro, bujía)
se calientan durante el funcionamiento
y permanecen calientes por un buen
rato después de apagar el motor. Para
reducir el riesgo de quemaduras, no
toque el silenciador y otros componentes mientras están calientes.
Uso del accesorio de aspiradora
(solamente BG 56, BG 86, SH 56, SH
86)
Para las instrucciones específicas de
armado, vea la sección correspondiente
en el manual de instrucciones.
La picadora aspiradora ha sido
diseñada para usarse con las dos
manos. Sostenga y maneje la máquina
colocando la mano derecha en el mango
de control y la mano izquierda en el
mango auxiliar.
Para reducir el riesgo de sufrir lesiones,
nunca use la máquina sin tenerla
completamente armada con un tubo de
aspiración y una bolsa correctamente
instalados.
295BA053 KN
Colóquese la correa de hombro para la
bolsa sobre el hombro izquierdo, no a
través del pecho, para poder quitar
rápidamente la unidad y la bolsa
recolectora en caso de emergencia.
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
41
español / EE.UU
Advertencia!
Para reducir el riesgo de
sufrir lesiones personales
causadas por los incendios y explosiones, nunca
intente recoger sustancias calientes o
encendidas (por ejemplo,
cenizas encendidas,
cigarrillos sin extinguir)
ni líquidos combustibles
(por ejemplo, gasolina,
adelgazadores).
Advertencia!
Para reducir el
riesgo de sufrir
lesiones causadas por el
contacto con las
piezas giratorias y daños al motor, la
rejilla de admisión siempre debe estar
cerrada y debe tener la lengüeta de
traba en su lugar cuando el tubo de
aspiración no está instalado. Antes de
abrir la rejilla de admisión, apague el
motor y espere hasta que el ventilador
se detenga.
Advertencia!
Para reducir el riesgo de incendio y
lesiones por quemadura, mantenga limpia la zona alrededor del silenciador.
Quite el lubricante excesivo y toda la
basura tal como las agujas de pinos,
ramas u hojas. Deje que el motor se
enfríe apoyado sobre una superficie de
hormigón, metal, suelo raso o madera
maciza (por ej., el tocón de un árbol
caído) lejos de cualquier sustancia
combustible.
Advertencia!
Nunca modifique el silenciador. El silenciador podría dañarse y causar el
aumento de la radiación de calor o chispas, aumentando así el riesgo de
incendio y lesiones por quemadura.
Además, se podría dañar permanentemente el motor. Haga reparar el
silenciador únicamente por el concesionario de servicio STIHL.
Convertidor catalítico
Advertencia!
Algunas herramientas
motorizadas STIHL están
equipadas con un convertidor catalítico, el que
está diseñado para redu-
cir las emisiones de
escape del motor mediante un proceso
químico en el silenciador. Debido a este
proceso, el silenciador no se enfría tan
rápidamente como los del tipo convencional cuando el motor regresa a ralentí
o es apagado. Para reducir el riesgo de
incendio y de lesiones por quemadura,
es necesario respetar las siguientes
medidas de seguridad específicas.
Advertencia!
Como un silenciador con convertidor
catalítico se enfría más lentamente que
los silenciadores convencionales,
apoye siempre su herramienta motorizada en posición vertical y no lo coloque
nunca donde el silenciador quede cerca
de material seco como por ejemplo
matorrales, pasto o virutas de madera,
o sobre otros materiales combustibles
mientras todavía está caliente.
42
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
español / EE.UU
Advertencia!
Una caja de cilindro dañada o mal instalada, o una envuelta del silenciador
dañada o deformada, puede perjudicar
el proceso de enfriamiento del convertidor catalítico. Para reducir el riesgo de
incendio o lesiones por quemadura, no
continúe trabajando con una caja de
cilindro dañada o mal instalada, o una
envuelta del silenciador dañada o
deformada.
El convertidor catalítico está dotado de
rejillas diseñadas para reducir el riesgo
de incendio debido a la emisión de
partículas calientes. Debido al calor de
la reacción catalítica, estas rejillas
normalmente permanecen limpias y no
necesitan servicio o mantenimiento. Si
el rendimiento de su máquina comienza
a disminuir y sospecha que las rejillas
están obstruidas, haga reparar el
silenciador por un concesionario de
servicio STIHL.
MANTENIMIENTO, REPARACION Y
ALMACENAMIENTO
Advertencia!
Utilice solamente piezas de repuesto de
STIHL para el mantenimiento y reparación. El uso de piezas no fabricadas por
STIHL puede causar lesiones graves o
mortales.
Siga precisamente las instrucciones de
mantenimiento y reparación dadas en la
sección correspondiente del manual de
instrucciones. Consulte la tabla de
mantenimiento en este manual.
Advertencia!
Siempre apague el motor y verifique
que el ventilador está parado antes de
llevar a cabo cualquier trabajo de mantenimiento, reparación o limpieza de la
herramienta motorizada. No intente
hacer ningún trabajo de mantenimiento
o reparación que no esté descrito en su
manual de instrucciones. Este tipo de
trabajo debe ser realizado únicamente
por el concesionario de servicio de
STIHL.
Advertencia!
Use la bujía especificada y asegúrese
de que ella y el cable de encendido
están limpios y en buen estado. Siempre inserte el casquillo de la bujía bien
apretado en el borne de la bujía del
tamaño adecuado. (Nota: Si el borne
tiene una tuerca adaptadora SAE desmontable, tiene que ser firmemente
instalada.) Una conexión suelta entre el
borne de la bujía y el conector del cable
de encendido en el casquillo puede
crear un arco voltaico y encender los
vapores del combustible, provocando
un incendio.
Advertencia!
No pruebe nunca el sistema de encendido con el casquillo del cable
desconectado de la bujía, o sin tener
instalada la bujía, ya que las chispas al
descubierto pueden causar un incendio.
Advertencia!
Nunca maneje su herramienta motorizada si el silenciador está dañado, se
ha perdido o si fue modificado. Un silenciador mal cuidado aumenta el riesgo
de incendio y puede causar pérdida del
oído. Si el silenciador está equipado
con un chispero para reducir el riesgo
de incendio, no maneje nunca su herramienta motorizada si le falta el chispero
o está dañado. Recuerde que el riesgo
de incendios forestales es mayor
durante las estaciones calurosas y
secas.
Apriete todas las tuercas, pernos y
tornillos, excepto los tornillos de ajuste
del carburador, después de cada uso.
Para mayor información, consulte
también la tabla de mantenimiento en
este manual.
Guarde la herramienta motorizada en un
lugar seco y elevado o con llave lejos del
alcance de los niños.
Antes de guardar la máquina durante un
período de más de algunos días,
siempre vacíe el tanque de combustible.
Consulte el capítulo "Almacenamiento
de la máquina" en este manual.
Guarde el combustible solamente en un
envase de seguridad aprobado para tal
uso que tiene un rótulo apropiado.
Manipule la gasolina con sumo cuidado!
Para proteger la salud y la seguridad,
¡evite el contacto directo con la piel y
evite inhalar los vapores de
combustible!
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
43
español / EE.UU
Uso
Uso del soplador
El soplador ha sido diseñado para
usarse con una sola mano. Debe
sujetarse por el mango de control con la
mano derecha.
Haga funcionar la máquina
exclusivamente con el tubo de
soplado correctamente instalado.
La boquilla redonda es particularmente
útil para usarse en superficies
desparejas (por ejemplo, campos y
prados).
La boquilla tipo abanico (suministrada
con la unidad o disponible como un
accesorio especial) produce un chorro
ancho y poderoso de aire a nivel del
suelo. Puede dirigirse y controlarse con
mucha precisión. Esta boquilla es
sumamente eficaz para limpiar aserrín,
hojas, pasto cortado, etc. de superficies
pavimentadas.
Estar atento a la presencia de animales
pequeños al soplar en zonas
despejadas, patios y jardines.
En zonas sensibles al ruido, haga
funcionar el motor de la unidad a la
velocidad más baja posible.
De ser necesario, humedezca la
superficie a ser limpiada para evitar
producir demasiado polvo.
Uso de la picadora aspiradora
295BA052 KN
La picadora aspiradora ha sido
diseñada para usarse con las dos
manos. Sostenga y maneje la máquina
colocando la mano derecha en el mango
de control y la mano izquierda en el
mango auxiliar.
Colóquese la correa de hombro para la
bolsa sobre el hombro izquierdo, no a
través del pecho. Esto le permite quitar
rápidamente la herramienta motorizada
y la bolsa recolectora en caso de
emergencia.
Haga funcionar la máquina
exclusivamente con el tubo de
soplado y la bolsa correctamente
instalados.
La aspiración de materiales
abrasivos (tales como arena, roca
picada, etc.), causa el desgaste
acelerado de la turbina y de la
caja del ventilador. Esto causa
una pérdida significativa de la
potencia de aspiración. En tal
caso, comuníquese con el
concesionario. STIHL recomienda
acudir a un concesionario STIHL
para servicio.
Tenga cuidado especial al aspirar
hojas húmedas puesto que éstas
pueden obstruir la turbina del
ventilador y el codo.
Estar atento a la presencia de animales
pequeños al aspirar y soplar en zonas
despejadas, patios y jardines.
295BA053 KN
44
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
español / EE.UU
Técnica de trabajoInstalación del soplador
Para reducir al mínimo el tiempo de
soplado, use un rastrillo y una escoba
para aflojar la basura antes de usar el
soplador.
Técnica recomendada de trabajo para
reducir la contaminación atmosférica al
mínimo:
NEn lugares muy polvorientos,
humedezca las superficies antes de
empezar a trabajar.
NExtraiga la boquilla a su largo total
para poner la corriente de aire cerca
al suelo.
NNo sople partículas hacia los
terceros, especialmente hacia los
niños, animales domésticos,
ventanas abiertas o vehículos
recién lavados. Sople las partículas
de suciedad cuidadosamente hacia
un punto central.
NPonga la suciedad en botes de
basura. No envíe la suciedad hacia
propiedades vecinas.
Técnica recomendada de trabajo para
reducir los ruidos al mínimo:
NUtilice la herramienta motorizada
solamente en horas razonables - no
muy temprano de mañana, ni muy
tarde por la noche, ni durante el
descanso del mediodía, cuando se
podría perturbar a otras personas.
Respetar el horario especificado
para el lugar. Recomendación
normal para uso profesional en días
laborales: de las 0900 a las 1200
horas y de 1500 a 1700. Tenga
consideración especial por los
vecinos durante los fines de
semana.
NAl reducir el número de motores en
marcha se reduce el ruido. Donde
sea posible, no haga funcionar más
de una herramienta motorizada a la
vez.
NManeje los sopladores a la
velocidad de motor más baja
posible que permita cumplir con la
tarea.
NInspeccione la herramienta
motorizada antes de usarla,
especialmente el silenciador, las
tomas de aire y los filtros de aire.
Siempre que sea posible, conserve el
agua usando un soplador en lugar de
mangueras para aquellas tareas de
jardinería que permitan su uso, por
ejemplo, al limpiar jardines o patios.
Montaje del tubo soplador
5
3
1
NAlinee las flechas (1).
NEmpuje el tubo de soplado (2) en el
cabo de la caja del ventilador (3).
NEmpuje la tuerca de unión (4) sobre
el cabo (3) de la caja del ventilador
y gírela en el sentido de la flecha
hasta que la lengüeta (5) se
enganche en la abertura (6).
BG 56, BG 86, SH 56, SH 86
2
8
a
b
NEmpuje la boquilla (7) en el tubo de
soplado (2) hasta la orejeta (8),
posición (a) (larga) o posición (b)
(corta), y gire la boquilla en el
sentido indicado por la flecha para
fijarla en su lugar.
295BA054 KN
7
295BA055 KN
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
45
español / EE.UU
BG 66
5
1
3
NAlinee las flechas (1).
NEmpuje el tubo de soplado (2) en el
cabo de la caja del ventilador (3).
NEmpuje la tuerca de unión (4) sobre
el cabo (3) de la caja del ventilador
y gírela en el sentido de la flecha
hasta que la lengüeta (5) se
enganche en la abertura (6).
2
8
a
NEmpuje la boquilla (7) en su
lugar (a) en el tubo de soplado (2),
hasta la orejeta (8), y gire la boquilla
en el sentido indicado por la flecha
para fijarla en su lugar.
7
Retiro del tubo de aspiración
296BA005 KN
NApague el motor.
NMeta una herramienta adecuada a
través de la abertura en la tuerca de
unión para presionar hacia abajo la
lengüeta.
NGire la tuerca de unión hasta el tope
en el sentido indicado por la flecha.
NRetire el tubo de soplado.
296BA004 KN
Armado de la aspiradora
picadora
Montaje del codo
3
295BA057 KN
1
4
NMeta el codo (1) en la bolsa
recolectora (2) hasta la marca
(flecha pequeña).
NApriete la correa (3) de la bolsa
recolectora y pulse hacia abajo la
lengüeta (4).
Asegúrese que la cremallera en la
bolsa recolectora está cerrada.
8
6
5
NAlinee las flechas (5).
NEmpuje el codo en el cabo de la
caja del soplador (6) hasta el tope.
NEmpuje la tuerca de unión (7) sobre
el cabo de la caja del ventilador y
gírela en el sentido de la flecha
2
295BA058 KN
295BA059 KN
46
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
español / EE.UU
hasta que la lengüeta (8) se
enganche en la abertura (9) en la
tuerca de unión.
Armado del tubo de aspiración
NAlinee las flechas en el tubo de
aspiración y en el tubo de
extensión. Júntelos y sujételos en
su lugar.
Instalación del tubo de aspiración
1
2
NApague el motor.
NMeta un destornillador en la
lengüeta (1), gírela a la derecha
para desenganchar la rejilla de
admisión (2) y abra la rejilla de
admisión.
3
6
4
NAlinee las flechas (3).
NEmpuje el tubo de aspiración en el
cabo de la caja del soplador (4)
hasta el tope.
NEmpuje la tuerca de unión (5) sobre
295BA080 KN
295BA060 KN
el cabo de la caja del ventilador y
gírela en el sentido de la flecha
hasta que la lengüeta (6) se
enganche en la abertura (7) en la
tuerca de unión.
NSiga girando la tuerca de unión en
el sentido de la flecha para apretarla
firmemente.
Retiro del codo
NApague el motor.
NMeta una herramienta adecuada a
través de la abertura en la tuerca de
unión para presionar hacia abajo la
lengüeta.
NGire la tuerca de unión hasta el tope
en el sentido indicado por la flecha.
NRetiro del codo
Retiro del tubo de aspiración.
295BA061 KN
295BA063 KN
NApague el motor.
NGire la tuerca de unión hasta el tope
en el sentido indicado por la flecha.
NMeta una herramienta adecuada a
través de la abertura en la tuerca de
unión para presionar hacia abajo la
lengüeta.
NSiga girando la tuerca de unión
hasta el tope siguiente en el sentido
indicado por la flecha.
NRetire el tubo de aspiración.
NCierre la rejilla de admisión y fíjela
en su lugar.
295BA062 KN
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
47
español / EE.UU
Combustible
Este motor está certificado para
funcionar con una mezcla de 50 a 1 de
gasolina sin plomo y aceite STIHL para
motores de dos tiempos.
Su motor requiere una mezcla de
gasolina de alta calidad y aceite de
calidad para motores de dos tiempos
enfriados por aire.
Use gasolina sin plomo regular con un
octanaje mínimo de 89 (R+M/2). Si el
octanaje de la gasolina regular en su
zona es más bajo, use combustible sin
plomo superior.
El combustible de octanaje bajo puede
aumentar la temperatura de
funcionamiento del motor. Esto, a su
vez, aumenta el riesgo de que se
agarrote el pistón y se dañe el motor.
La composición química del
combustible también es importante.
Algunos aditivos de combustible no
solamente tienen efectos perjudiciales
en los elastómeros (diafragmas de
carburador, sellos de aceite, tuberías de
combustible, etc.), sino también en las
piezas fundidas de magnesio y en los
convertidores catalíticos. Esto podría
causar problemas de funcionamiento e
incluso daño del motor. Por esta razón,
STIHL recomienda el uso exclusivo de
gasolina sin plomo reconocida de buena
calidad.
Use solamente el aceite STIHL para
motores de dos tiempos o un aceite de
marca equivalente para motores de dos
tiempos diseñado para usar
exclusivamente con los motores de dos
tiempos enfriados por aire.
Recomendamos el aceite STIHL para
motores de dos tiempos 50:1 pues está
especialmente formulado para usarse
en motores STIHL.
No use aceites para mezclar con
designaciones BIA o TCW (para
motores de dos tiempos enfriados por
agua) ni otros aceites para mezclar
diseñados para usar en motores
enfriados por agua o por aire (por
ejemplo, en motores marinos fuera de
borda, motonieves, motosierras,
bicimotos, etc.).
Manipule la gasolina con sumo cuidado.
Evite el contacto directo con la piel y
evite inhalar los vapores de
combustible. Cuando se reabastece de
combustible, quite primero el envase del
vehículo y colóquelo en el suelo antes
de llenarlo. No llene un envase que está
en un vehículo o apoyado sobre el
mismo.
Mantenga el envase bien cerrado para
evitar la entrada de humedad a la
mezcla.
Según sea necesario, limpie el tanque
de combustible de la máquina y el
envase en que se guarda la mezcla de
combustible.
Duración de la mezcla de
combustible
Mezcle una cantidad suficiente de
combustible para trabajar unos pocos
días, no lo guarde por más de 3 meses.
Guárdelo únicamente en envases
aprobados para combustible. Para el
proceso de mezclado, vierta el aceite en
el envase primero y luego agregue la
gasolina. Cierre el envase y agítelo
vigorosamente a mano para asegurar
que se mezclen bien el aceite y la
gasolina.
Gasolina
gal
EE.UU.
12.6
2 1/26.4
512.8
Deseche los envases vacíos usados
para mezclar el aceite únicamente en
vertederos autorizados para ello.
Aceite (STIHL 50:1 ó aceite
de alta calidad equivalente)
oz fl
EE.UU.
48
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
español / EE.UU
Llenado de combustible
Antes de llenar la máquina con
combustible, limpie a fondo la tapa de
llenado y la zona alrededor del mismo
para evitar la entrada de tierra al tanque.
Siempre agite bien la mezcla en el
recipiente antes de llenar la máquina
con combustible.
Advertencia!
Para reducir el riesgo de quemaduras,
así como otras lesiones corporales ocasionadas por los escapes de vapor de
gasolina y otras emanaciones, quite la
tapa de llenado de combustible cuidadosamente de modo que la presión que
se pueda haber acumulado en el tanque
se disipe lentamente.
Advertencia!
Después de haber cargado la máquina
con combustible, apriete la tapa del tanque tan firmemente como sea posible
con la mano.
295BA064 KN
Cambie el recogedor de combustible
una vez al año
295BA065 KN
Antes de almacenar la máquina por un
período prolongado, vacíe y limpie el
tanque de combustible y ponga el motor
en marcha hasta que se seque el
combustible del carburador.
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
49
español / EE.UU
Arranque / parada del
motor
Arranque del motor
NRespete las medidas de seguridad.
1
NOprima el bulbo (1) de la bomba de
combustible por lo menos cinco
veces, aunque el bulbo esté lleno
de combustible.
Posicionamiento de la palanca de
ajuste
Sólo en las BG 86, SH 86
NPara arrancar el motor, mueva la
palanca de ajuste a la posición de
marcha F
La palanca de ajuste le permite
seleccionar y mantener cualquier
posición de aceleración entre la de
ralentí y la máxima.
Ajuste de la perilla del estrangulador
Si el motor está frío
NPerilla del estrangulador en g
Si el motor está caliente
295BA066 KN
NPerilla del estrangulador en <
También utilice esta posición si el motor
ha estado en marcha, pero todavía se
encuentra frío.
295BA069 KN
Arranque
295BA067 KN295BA068 KN
296BA006 KN
NColoque la máquina sobre el suelo:
NAsegúrese de tener los pies bien
apoyados: Sujete la unidad con la
mano derecha en la caja y empújela
hacia abajo firmemente.
NSujete el mango de arranque con la
mano izquierda.
Modelos con ErgoStart
NTire uniformemente del mango de
arranque.
Modelos sin ErgoStart
NTire lentamente del mango de
arranque hasta que sienta el
enganche del mismo y en seguida
déle un tirón fuerte y rápido.
No tire de la cuerda de arranque
totalmente hasta fuera, se podría
romper.
50
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
español / EE.UU
NNo deje que el mango de arranque
salte bruscamente hacia atrás.
Guíelo lentamente hacia el interior
de la caja para que la cuerda de
arranque se enrolle correctamente.
Sugerencias adicionales para el
arranque
Si el motor se para con la perilla del
estrangulador en la posición g o
durante la aceleración
NMueva la perilla del estrangulador a
< y continúe haciendo girar el
motor hasta que arranque.
Si el motor no arranca
NAsegúrese que todos los ajustes
sean los correctos (perilla del
estrangulador, palanca de ajuste en
posición de marcha F).
NRepita el procedimiento de
arranque.
Si se ha dejado que se agote el
combustible y se ha vuelto a llenar el
tanque
NAhora arranque el motor.
Tan pronto arranca
3
NOprima el gatillo de aceleración
momentáneamente (3) – la perilla
del estrangulador se desplaza a la
posición de marcha F y el motor
regresa a aceleración de ralentí.
Parada del motor.
BG 56, BG 66, SH 56
BG 86, SH 86
NMueva la palanca de ajuste a la
295BA071 KN
posición 0, el motor se para y la
palanca de ajuste regresa a la
posición de marcha.
295BA073 KN
1
NPonga el interruptor de parada en la
posición 0, el motor se para y el
interruptor regresa a la posición de
295BA066 KN
marcha.
NOprima el bulbo (1) de la bomba de
combustible por lo menos cinco
veces, aunque el bulbo esté lleno
de combustible.
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
295BA072 KN
51
español / EE.UU
Limpieza del filtro de aire
Si se nota una pérdida considerable
de la potencia del motor
1
2
NGire el cierre de la cubierta del
filtro (1) en sentido contrahorario a
la posición vertical.
NQuite la cubierta del filtro (2).
NLimpie toda la suciedad de
alrededor del filtro.
Instalación del filtro
NInstale el filtro en la caja del filtro y
empuje el retenedor en su lugar.
NVuelva a colocar la cubierta del filtro
y gire el cierre de la cubierta del
filtro a la posición horizontal.
295BA074 KN
Gestión del motor
Las emisiones de gases de escape son
controladas por el diseño de parámetros
y componentes fundamentales del
motor (por ej. carburación, encendido,
regulación y regulación de las válvulas o
la lumbrera) sin la adición de ningún
equipo importante.
5
3
2
NExtraiga el retenedor (3) y saque el
filtro (4) de la caja de filtro (5).
NInstale un filtro nuevo. Como una
medida provisoria, límpielo
golpeándolo en la palma de la mano
o soplándolo con aire comprimido ¡No lo lave!
Siempre sustituya las piezas dañadas.
52
295BA075 KN
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
español / EE.UU
Ajuste del carburador
El carburador se ajusta en la fábrica al
ajuste estándar.
Este ajuste provee una mezcla óptima
de combustible y aire bajo la mayoría de
las condiciones de funcionamiento.
Con este carburador es posible ajustar
el tornillo de velocidad rápida dentro de
una gama pequeña.
Ajuste estándar
NApague el motor.
NGire el tornillo de ajuste de
velocidad alta (H) en sentido
contrahorario hasta su tope (no más
que 3/4 de vuelta).
NAtornille cuidadosamente el tornillo
de velocidad baja (L) hasta que
tope, y después aflójelo en 1 vuelta
completa.
Ajuste fino para trabajo en montañas
o a nivel del mar
Puede ser necesario efectuar un ajuste
ligero si la potencia del motor no es
adecuada para trabajar en alturas
grandes o al nivel del mar.
NRevise el filtro de aire y límpielo de
ser necesario.
NCaliente el motor.
En alturas grandes
NGire el tornillo de ajuste de
velocidad alta (H) en sentido
horario (mezcla más pobre), pero
no más allá del tope.
Al nivel del mar
NGire el tornillo de ajuste de
velocidad alta (H) en sentido
contrahorario (mezcla más rica),
pero no más allá del tope.
Ajuste de ralentí
Generalmente es necesario cambiar el
ajuste del tornillo de ralentí (LA)
después de cada corrección hecha al
tornillo de velocidad baja (L).
295BA076 KN
El motor se para durante el
funcionamiento a ralentí
NRevise el ajuste estándar.
NGire el tornillo de ajuste de
ralentí (LA) en sentido horario hasta
que el motor funcione de modo
uniforme.
Funcionamiento irregular a ralentí
Si el motor no acelera adecuadamente
aunque el ajuste estándar es correcto, la
mezcla de ralentí es muy rica:
NGire el tornillo de ajuste de
velocidad baja (L) en sentido
contrahorario hasta que el motor
funcione y se acelere de modo
uniforme.
Si la aceleración es adecuado, la
mezcla de ralentí es demasiado pobre:
NGire el tornillo de ajuste de
velocidad baja (L) lentamente en
sentido contrahorario hasta que el
motor funcione y se acelere de
modo uniforme.
295BA077 KN
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
53
español / EE.UU
Revisión de bujías
Si la mezcla del combustible es
incorrecta (demasiado aceite en la
gasolina), el filtro de aire está sucio, y
las condiciones de trabajo no son
favorables (especialmente a
aceleraciones intermedias) se afecta la
condición de la bujía. Estos factores
permiten la formación de depósitos en la
punta aislante, los cuales pueden
perjudicar el rendimiento.
Si el motor pierde potencia, es difícil
arrancarlo o funciona de modo irregular
a ralentí, revise la bujía primero.
NQuite la bujía de la manera descrita
en el capítulo "Arranque / parada
del motor".
NLimpie la bujía si está sucia.
NRevise la separación entre
electrodos (A) y ajústela de ser
necesario – vea "Especificaciones".
NUtilice únicamente bujías tipo
resistencia cuyo margen de
rendimiento sea el aprobado.
Corrija los problemas que hayan
causado la contaminación de la bujía:
–Demasiado aceite en la mezcla de
combustible.
–Filtro de aire sucio.
–Condiciones desfavorables de
funcionamiento, por ejemplo,
funcionando bajo carga parcial.
Instale una bujía nueva después de
aprox. 100 horas de funcionamiento,
o más temprano si los electrodos están
muy gastados.
000BA002 KN
2
1
002BA071 KN
Para reducir el riesgo de incendio
y de quemaduras, utilice
solamente las bujías autorizadas
por STIHL. Siempre inserte el
casquillo (2) de la bujía bien
apretado en el borne (1) del
tamaño adecuado. (Nota: Si el
borne tiene una tuerca
adaptadora SAE desmontable,
tiene que ser instalada.) Una
conexión suelta entre el casquillo
de la bujía y el conector del cable
de encendido en el casquillo
puede crear un arco voltaico y
encender los vapores del
combustible, provocando un
incendio.
54
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
español / EE.UU
Funcionamiento del motorDispositivo de arranqueAlmacenamiento de la
máquina
Si el funcionamiento del motor es
insatisfactorio aunque el filtro de aire
está limpio y el carburador ha sido
debidamente ajustado, la causa puede
hallarse en el silenciador.
NRevise si hay contaminación
(coquización) en el silenciador.
STIHL recomienda que un
concesionario STIHL autorizado efectúe
los trabajos de mantenimiento y
reparación.
Para prolongar la vida útil de la cuerda
de arranque, siempre observe los
puntos siguientes:
NTire de la cuerda de arranque
solamente en el sentido
especificado.
NNo tire de la cuerda sobre el borde
del buje guía.
NNo tire de la cuerda más de lo
especificado.
NNo deje que el mango de arranque
retroceda bruscamente, guíelo
lentamente hacia el interior de la
caja – vea el capítulo
"Arranque/Parada del motor."
Pida que el concesionario de servicio
sustituya la cuerda de arranque dañada
oportunamente. STIHL recomienda que
un concesionario STIHL autorizado
efectúe los trabajos de mantenimiento y
reparación.
Para intervalos de 3 meses o más
NVacíe y limpie el tanque de
combustible en una zona bien
ventilada.
NDeseche el combustible de acuerdo
con los requerimientos locales de
protección del medio ambiente.
NHaga funcionar el motor hasta que
el carburador se seque. Esto ayuda
a evitar que los diafragmas del
carburador se peguen.
NLimpie la máquina a fondo - preste
atención especial a las aletas del
cilindro y al filtro de aire.
NGuarde la máquina en un lugar seco
y elevado, o bajo llave, fuera del
alcance de los niños y de otras
personas no autorizadas.
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
55
español / EE.UU
Inspección y
mantenimiento por el
concesionario
Chispero en el silenciador
Chispero en silenciador (no en todos los
mercados)
NSi el motor pierde potencia, revise el
chispero del silenciador.
STIHL recomienda que un
concesionario STIHL autorizado efectúe
los trabajos de mantenimiento y
reparación.
56
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
español / EE.UU
Información para mantenimiento
Los intervalos dados a continuación corresponden únicamente a condiciones normales de trabajo. Si el tiempo de trabajo por jornada es más largo que lo normal, o
si las condiciones son extremas (zonas polvorientas, etc.), acorte los intervalos indicados de modo correspondiente.
antes de comenzar el trabajo
después de terminar el tra-
bajo o diariamente
después de cadaparada para
cargar combustible
semanalmente
mensualmente
cada 12 meses
si hay problema
si tiene daños
si se requiere
Inspección visual (condición general,
Máquina completa
Mango de controlComprobar funcionamientoxx
Filtro de aire
Filtro en tanque de combustible
Tanque de combustibleLimpiarxx
Carburador
Bujía
Chispero en silenciador
Entradas de enfriamientoLimpiarx
Todos los tornillos y tuercas accesibles(salvo los tornillos de ajuste)
Elementos antivibración
Etiquetas de seguridadReemplazarx
1)
STIHL recomienda que un concesionario de servicio STIHL efectúe este trabajo.
2)
No se instala en todas las versiones, depende del país
2)
fugas)
Limpiarx
Limpiarxx
Reemplazarxx
Revisarx
Sustituir el filtroxxx
Revisar velocidad de ralentíxx
Ajustar el ralentíx
Ajustar la distancia entre electrodosx
Cambiar después de cada 100 horas
de funcionamiento
Revisarx
Reemplazar
Volver a apretarx
Revisarxxx
Reemplazar
1)
1)
xx
xx
x
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
57
español / EE.UU
Componentes importantes
13
14
15
17
18
16
#
23
24
21
20
19
1Palanca de ajuste (BG 86, SH 86)
1
2
3
6
5
4
9
8
10
7
11
12
22
2Casquillo de bujía
3Silenciador
4Mango de arranque
5Tornillos de ajuste del carburador
6Bomba de combustible
7Palanca del estrangulador
8Caja del filtro
9Cierre de la cubierta del filtro
10 Tapa de llenado de combustible
11 Tanque de combustible
12 Mango auxiliar
13 Mango de control
14 Interruptor de parada (BG 56,
BG 66, SH 56)
15 Gatillo de aceleración
16 Rejilla de admisión
17 Tuerca de unión
18 Tubo de soplado (BG 56, BG 86,
SH 56, SH 86)
19 Boquilla redonda
20 Boquilla tipo abanico
21 Tubo de aspiración
22 Codo
23 Bolsa recolectora
24 Silenciador del tubo del soplador
#Número de serie
* Depende de la versión – accesorio
especial
*
(BG 66)
*
*
*
58
296BA003 KN
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
español / EE.UU
Definiciones
1. Palanca de ajuste (BG 86, SH 86)
Mantiene el gatillo de aceleración
en posición.
2. Casquillo de bujía
Conecta la bujía al alambre de
encendido.
3. Silenciador
Atenúa los ruidos del tubo de
escape y desvía los gases de
escape lejos del operador.
4. Mango de arranque
El mango de la cuerda de arranque,
el cual es el dispositivo usado para
arrancar el motor.
5. Tornillos de ajuste del
carburador
Para afinar el carburador.
6. Bomba de combustible
Suministra combustible para el
arranque en frío.
7. Palanca del estrangulador
Facilita el arranque del motor al
enriquecer la mezcla.
8. Caja del filtro
Cubre el elemento del filtro de aire.
9. Cierre de la cubierta del filtro
Fija la cubierta del filtro en su lugar.
10. Tapa de llenado de combustible
Para tapar el tanque de
combustible.
11. Tanque de combustible
Contiene la mezcla de combustible
y aceite.
12. Mango auxiliar
Mango adicional para usar el tubo
de aspiración como aspiradora
sujetándolo con la mano izquierda.
13. Mango de control
El mango del soplador sujetado con
la mano derecha.
14. Interruptor de parada (BG 56,
BG 66, SH 56)
Apaga la máquina.
15. Gatillo de aceleración
Regula la velocidad del motor.
16. Rejilla de admisión
Reduce el riesgo del contacto
directo con el ventilador.
17. Tuerca de unión
Para fijar el tubo de soplado a la
máquina.
18. Tubo de soplado (BG 56, BG 86,
SH 56, SH 86)
Dirige el chorro de aire.
19. Boquilla redonda
Se instala en el tubo de soplado
para dirigir el chorro de aire.
20. Boquilla tipo abanico
Boquilla alternativa para el tubo de
soplado que sirve para acelerar el
chorro de aire.
21. Tubo de aspiración
Para instalar en el soplador.
22. Codo
Para dirigir el chorro de aire y la
basura hacia la bolsa recolectora.
23. Bolsa recolectora
Se instala en el codo para recoger
la basura aspirada.
24. Silenciador del tubo del soplador
(BG 66)
Reduce el nivel de ruido del
soplador.
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
59
español / EE.UU
Especificaciones
EPA / CEPA
El período de cumplimiento de
emisiones indicado en la etiqueta de
cumplimiento de emisiones es la
cantidad de horas de funcionamiento
para la cual la máquina ha demostrado
la conformidad con los requerimientos
de emisiones del Gobierno federal de
los EE.UU.
Categoría
A = 300 horas
B = 125 horas
C = 50 horas
CARB
El período de cumplimiento de
emisiones empleado en la etiqueta del
índice de aire CARB tiene las siguientes
definiciones:
Motor de un cilindro, dos tiempos
Cilindrada:27,2 cc
(1,66 pulg cúb.)
Diámetro:34 mm
(1,34 pulg)
Carrera:30 mm
(1,18 pulg)
Ralentí:2500 rpm
Potencia del motor según ISO 7923:
BG 56:0,7 kW (0,9 hp)
BG 66:0,6 kW (0,8 hp)
BG 86:0,8 kW (1,1 hp)
SH 56:0,7 kW (0,9 hp)
SH 86:0,8 kW (1,1 hp)
Sistema de encendido
Encendido por magneto electrónico
Bujía (con supresión): NGK CMR 6 H
Distancia entre
electrodos:
Sistema de combustible
Carburador de diafragma de todas
posiciones con bomba de combustible
integral
Capacidad del tanque de combustible:
BG56:0,54l (18,3oz)
BG66:0,54l (18,3oz)
BG86:0,44l (14,9oz)
SH56:0,54l (18,3oz)
SH86:0,44l (14,9oz)
0,5 mm
(0,020 pulg)
Corriente máx. de aire
Modo de
soplador, sin
boquilla
BG 56:730 m3/h
(430 pies
cúb./min)- - -
BG 66:730 m3/h
(430 pies
cúb./min)- - -
BG 86:810 m3/h
(477 pies
cúb./min)- - -
SH 56:730 m3/h
(430 pies
cúb./min)
SH 86:810 m3/h
(477 pies
cúb./min)
Velocidad del aire
Modo de soplador, en la boquilla
redonda
BG 56:66 m/s (143 mph)
BG 66:66 m/s (143 mph)
BG 86:69 m/s (154 mph)
SH 56:66 m/s (143 mph)
SH 86:69 m/s (154 mph)
Modo de soplador, en la boquilla tipo
abanico
BG 86:85 m/s (190 mph)
SH 86:85 m/s (190 mph)
Modo de
aspiradora
710 m3/h
(418 pies
cúb./min)
770 m3/h
(453 pies
cúb./min)
60
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
español / EE.UU
Peso
Seco, en modo soplador
BG 56:4,1 kg (9,0 lb)
BG 56 C:4,2 kg (9,3 lb)
BG 66:4,4 kg (9,7 lb)
BG 86:4,4 kg (9,7 lb)
BG 86 C:4,5 kg (9,9 lb)
Seco, en modo aspirador
SH 56:5,3 kg (11,5 lb)
SH 86:5,7 kg (12,2 lb)
Accesorios especialesInformación de reparación
Comuníquese con su concesionario
STIHL para información acerca de
accesorios especiales que pueden estar
disponibles para su producto.
Los usuarios de esta máquina deben
efectuar únicamente los trabajos de
mantenimiento descritos en este
manual. Solamente los talleres
autorizados por STIHL deben llevar a
cabo los demás trabajos de reparación.
Los reclamos de garantía presentados
después de realizadas las reparaciones
serán aceptados únicamente si las
mismas fueron ejecutadas por un
concesionario de servicio autorizado
STIHL utilizando piezas de repuesto
originales de STIHL.
Es posible identificar las piezas
originales de STIHL por el número de
pieza STIHL, el logotipo de {
y, en ciertos casos, el símbolo K de
piezas STIHL. En las piezas pequeñas
el símbolo puede aparecer solo.
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
61
español / EE.UU
Declaración de garantía de
STIHL Incorporated sobre
sistemas de control de
emisiones según normas
Federales
No para California
Sus derechos y obligaciones de
garantía
La Agencia de Protección del Medio
Ambiente (EPA) de los EE.UU. y STIHL
Incorporated se complacen en
explicarle la garantía del sistema de
control de emisiones instalado en el
motor de su equipo. En los EE.UU., los
nuevos motores pequeños para equipos
de uso fuera de carretera modelos 1997
y posteriores deben estar diseñados,
construidos y equipados, al tiempo de la
venta, de conformidad con los
reglamentos de la EPA de los EE.UU.
para los motores pequeños de uso fuera
de carretera. El motor del equipo debe
carecer de defectos en el material y la
fabricación que puedan causar el
incumplimiento de las normas de la EPA
de los EE.UU. durante los primeros dos
años de uso del motor a partir de la
fecha de compra por el último
comprador.
STIHL Incorporated debe garantizar el
sistema de control de emisiones en el
motor pequeño para uso fuera de
carretera por el intervalo mencionado
más arriba, siempre que dicho motor no
haya estado sujeto a maltrato,
negligencia o cuidado inapropiado.
El sistema de control de emisiones de
su máquina incluye piezas tales como el
carburador y el sistema de encendido.
Además puede incluir mangueras,
conectores y otros conjuntos relativos a
emisiones.
En los casos de existir una condición
amparada bajo garantía, STIHL
Incorporated reparará el motor pequeño
para equipo de uso fuera de carretera
sin costo alguno, incluido el diagnóstico
(si el trabajo de diagnóstico fue
realizado por un concesionario
autorizado), las piezas y la mano de
obra.
Cobertura de garantía del fabricante
En los EE.UU., los motores pequeños
para equipos de uso fuera de carretera
modelos 1997 y posteriores también
están garantizados por dos años. En el
caso de encontrarse defectos en
cualquiera de las piezas del motor
relacionadas con el sistema de control
de emisiones, la pieza será reparada o
sustituida por STIHL Incorporated sin
costo alguno.
Responsabilidades del usuario
relativas a la garantía
Como propietario de motor pequeño
para equipo de uso fuera de carretera,
usted tiene la responsabilidad de
realizar el mantenimiento requerido
descrito en su manual del usuario.
STIHL Incorporated le recomienda
guardar todos los recibos comprobantes
de los trabajos de mantenimiento
hechos a su motor pequeño para equipo
de uso fuera de carretera, pero STIHL
Incorporated no puede negar garantía
basado en el solo hecho de faltar los
recibos o del incumplimiento del
propietario de realizar todos los trabajos
de mantenimiento programados.
El uso de cualquier pieza de repuesto o
servicio cuyo comportamiento y
durabilidad sean equivalentes está
permitido en trabajos de mantenimiento
o reparación no contemplados en la
garantía, y no reducirá las obligaciones
de la garantía del fabricante del motor.
Sin embargo, como propietario del
motor pequeño para equipo de uso
fuera de carretera usted debe estar
consciente de que STIHL Incorporated
puede negarle cobertura de garantía si
dicho motor o una pieza del mismo ha
fallado debido a maltrato, descuido,
mantenimiento inadecuado o
modificaciones no autorizadas.
Usted es responsable de llevar el motor
pequeño para equipo de uso fuera de
carretera a un centro de servicio STIHL
tan pronto surja el problema. Las
reparaciones bajo garantía serán
realizadas en un tiempo razonable, sin
exceder de 30 días.
Ante cualquier duda respecto a sus
derechos y responsabilidades bajo esta
garantía, sírvase contactar al
representante de atención al cliente
STIHL llamando al 1-800-467-8445, o si
lo prefiere puede escribir a
STIHL Inc.,
536 Viking Drive, P.O. Box 2015,
Virginia Beach, VA 23450-2015 EE.UU.
Cobertura por STIHL Incorporated
STIHL Incorporated garantiza al último
comprador y a cada comprador
subsiguiente que el motor pequeño para
equipo de uso fuera de carretera está
62
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
español / EE.UU
diseñado, construido y equipado, al
tiempo de la venta, de conformidad con
todos los reglamentos aplicables.
Además, STIHL Incorporated garantiza
al comprador inicial y a cada comprador
subsiguiente que el motor está libre de
defectos en el material y fabricación que
puedan causar el incumplimiento de los
reglamentos aplicables durante un
período de dos años.
Período de garantía
El período de garantía comienza en la
fecha en que el motor del equipo
utilitario es entregado a usted y usted
firma y remite la tarjeta de garantía a
STIHL.
Si cualquier componente relacionado
con el sistema de control de emisiones
está defectuoso, el mismo será
sustituido por STIHL Incorporated sin
costo alguno para el propietario.
Cualquier pieza garantizada cuyo
reemplazo no está programado como
mantenimiento requerido, o que debe
recibir únicamente inspección regular
en el sentido de "reparar o sustituir
según sea necesario", estará
garantizada por el período de garantía.
Cualquier pieza cuyo reemplazo está
programado como mantenimiento
requerido estará garantizada por el
intervalo hasta el primer punto de
reemplazo programado para esa pieza.
Diagnóstico
Como propietario, a usted no se le debe
cobrar la mano de obra por los
diagnósticos que determinen que una
pieza garantizada está defectuosa. No
obstante, si usted reclama garantía para
un componente y se comprueba que la
máquina no está defectuosa, STIHL
Incorporated le cobrará el costo de la
prueba del sistema de control de
emisiones. El trabajo de diagnóstico
mecánico se realiza en un centro de
servicio autorizado por STIHL. La
prueba del sistema de control de
emisiones se realiza ya sea en la fábrica
de STIHL Incorporated o en un
laboratorio de ensayos independiente.
Trabajo bajo garantía
STIHL Incorporated reparará los
defectos amparados por la garantía en
cualquier estación de garantía o centro
de servicio autorizado por STIHL. Todo
trabajo de este tipo se hará gratis para el
propietario siempre que se determine
que la pieza cubierta por la garantía está
defectuosa.
Se puede usar cualquier pieza de
repuesto aprobada por el fabricante o
equivalente en las piezas relacionadas
con el sistema de control de emisiones,
y debe ser suministrada gratis al
propietario. STIHL Incorporated es
responsable por daños a otros
componentes del motor causados por la
falla de una pieza garantizada que
todavía está bajo garantía.
La lista siguiente define
específicamente las piezas
garantizadas y relacionadas con las
emisiones:
–Carburador
–Estrangulador (sistema de refuerzo
para arranque en frío)
–Múltiple de admisión
–Filtro de aire
–Bujía
–Magneto o sistema de encendido
electrónico (módulo de encendido)
–Convertidor catalítico (si lo tiene)
–Sujetadores/pernos
Dónde presentar el reclamo para
servicio bajo garantía
Lleve el producto a cualquier centro de
servicio autorizado por STIHL y
presente la tarjeta de garantía firmada.
Requerimientos de mantenimiento
Las instrucciones presentadas en este
manual se basan en la aplicación de la
mezcla recomendada para motores de 2
tiempos (vea también la instrucción
"Combustible"). Las discrepancias de
estas recomendaciones con respecto a
la calidad y la proporción de la mezcla
de combustible y aceite pueden exigir
intervalos de mantenimiento más
cortos.
Limitaciones
Esta garantía de los sistemas de control
de emisiones no cubrirá ninguno de los
puntos siguientes:
Nreparación o sustitución requerida
debido a maltrato, negligencia o
falta del mantenimiento requerido,
Nreparaciones mal hechas o
sustituciones contrarias a las
especificaciones de STIHL
Incorporated que afecten
desfavorablemente el
funcionamiento y/o la durabilidad, y
las alteraciones o modificaciones
no recomendadas o aprobadas por
escrito por STIHL Incorporated,
y
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
63
español / EE.UU
Nla sustitución de piezas y otros
servicios y ajustes necesarios para
el mantenimiento requerido en y
después del primer punto de
reemplazo programado.
Declaración de garantía de
STIHL Incorporated sobre
el control de emisiones de
gases de escape y
emisiones por evaporación
para el Estado de
California
Solamente para California
Sus derechos y obligaciones de
garantía
El Consejo de Recursos del Aire del
Estado de California (CARB) y STIHL
Incorporated se complacen en
explicarle la garantía del sistema de
control de emisiones instalado en el
motor de su equipo de uso fuera de
carretera para el año 2007 y posteriores.
En California, el equipo nuevo que tiene
motores pequeños para uso fuera de
carretera debe estar diseñado,
construido y equipado de conformidad
con las rigurosas normas de
contaminación del aire del estado.
STIHL Incorporated debe garantizar el
sistema de control de emisiones en el
motor pequeño para uso fuera de
carretera por el intervalo mencionado
más arriba, siempre que dicho motor
pequeño para uso fuera de carretera no
haya estado sujeto a maltrato,
negligencia o cuidado inapropiado.
El sistema de control de emisiones
puede contar con los siguientes
componentes:
Filtro de aire, carburador, purgador,
estrangulador (sistema de
enriquecimiento para arranque en frío),
varillaje de control, colector de
admisión, magneto o sistema de
encendido electrónico (módulo de
encendido), bujía, convertidor catalítico
(si lo tiene), tanque de combustible, tapa
de tanque de combustible, línea de
combustible, adaptadores de líneas de
combustible, abrazaderas y
sujetadores.
En los casos de existir una condición
amparada bajo garantía, STIHL
Incorporated reparará el motor pequeño
para equipo de uso fuera de carretera
sin costo alguno, incluido el diagnóstico,
las piezas y la mano de obra.
Responsabilidades del fabricante
relativas a la garantía
El sistema de control de emisiones tiene
una garantía de dos años en California.
En el caso de encontrarse defectos en
cualquiera de los componentes del
motor relacionados con el sistema de
control de emisiones, el mismo será
reparado o sustituido por STIHL
Incorporated sin costo alguno.
Responsabilidades del usuario
relativas a la garantía
Como propietario de motor pequeño
para equipo de uso fuera de carretera,
usted tiene la responsabilidad de
realizar el mantenimiento requerido
descrito en su manual de instrucciones.
STIHL Incorporated le recomienda
guardar todos los recibos comprobantes
de los trabajos de mantenimiento
hechos a su motor pequeño para equipo
de uso fuera de carretera, pero STIHL
Incorporated no puede negar garantía
basado en el solo hecho de faltar los
64
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
español / EE.UU
recibos o de su incumplimiento de
realizar todos los trabajos de
mantenimiento programados.
Sin embargo, como propietario del
motor pequeño para equipo de uso
fuera de carretera usted debe ser
consciente de que STIHL Incorporated
puede negarle cobertura de garantía si
dicho motor o un componente del mismo
ha fallado debido a maltrato, descuido,
mantenimiento inadecuado o
modificaciones no autorizadas.
Usted es responsable de llevar el motor
pequeño para equipo de uso fuera de
carretera a un concesionario de servicio
STIHL tan pronto surja el problema. Las
reparaciones bajo garantía deben
realizarse en un tiempo razonable, sin
exceder de 30 días. Ante cualquier duda
respecto a sus derechos y
responsabilidades bajo esta garantía,
sírvase contactar al representante de
atención al cliente STIHL llamando al 1800-467-8445, o si lo prefiere puede
escribir a
STIHL Inc., 536 Viking Drive,
P.O. Box 2015,
Virginia Beach, VA 23450-2015 EE.UU.
Cobertura por STIHL Incorporated
STIHL Incorporated garantiza al último
comprador y a cada comprador
subsiguiente que el motor pequeño para
equipo de uso fuera de carretera está
diseñado, construido y equipado, al
tiempo de la venta, de conformidad con
todos los reglamentos acerca de
emisiones aplicables.
Además, STIHL Incorporated garantiza
al comprador inicial y a cada comprador
subsiguiente que el motor está libre de
defectos en el material y fabricación que
puedan causar el incumplimiento de los
reglamentos acerca de emisiones
aplicables durante un período de dos
años.
Período de garantía contra defectos
Los períodos de garantía comenzarán el
día en que el motor de equipo utilitario
es comprado por el comprador inicial. Si
cualquier componente relacionado con
el sistema de control de emisiones está
defectuoso, el mismo será sustituido por
STIHL Incorporated sin costo alguno
para el propietario.
No se permite usar componentes
adicionales o modificados que no hayan
sido eximidos por el Consejo de
Recursos del Aire (CARB). El uso de
cualquier componente adicional o
modificado no eximido será motivo para
la denegación del reclamo bajo
garantía. STIHL Incorporated no es
responsable por las fallas de los
componentes garantizados causadas
por el uso de un componente adicional o
modificado no eximido.
La garantía de los componentes
relacionados con el control de
emisiones se interpretará de la manera
siguiente:
1. Cualquier componente garantizado
cuyo reemplazo no está
programado como mantenimiento
requerido en las instrucciones
escritas requeridas en la Lista de
Piezas bajo la Garantía de Control
de Emisiones (vea más abajo) debe
garantizarse por el período de
garantía definido en la subsección
COBERTURA POR STIHL
INCORPORATED, vea más arriba.
Si uno de estos componentes falla
durante el período de garantía, el
fabricante debe reparar o sustituir el
mismo de acuerdo con la
subsección (4) más abajo. Un
componente reparado o sustituido
bajo la garantía debe garantizarse
durante el resto del período de
garantía.
2. Cualquier componente garantizado
que solamente debe
inspeccionarse periódicamente de
acuerdo con las instrucciones
escritas requeridas en la Lista de
Piezas bajo la Garantía de Control
de Emisiones (vea más abajo) debe
garantizarse por el período de
garantía definido en la subsección
COBERTURA POR STIHL
INCORPORATED, vea más arriba.
Una declaración en las
instrucciones escritas tal como
"reparar o sustituir según sea
necesario" no acortará el período
de cobertura de garantía. Un
componente de este tipo reparado o
sustituido bajo la garantía debe
garantizarse durante el resto del
período de garantía.
3. Cualquier componente garantizado
que debe sustituirse como un
elemento de mantenimiento
requerido en las instrucciones
escritas requeridas por la lista de
piezas bajo la garantía de control de
emisiones (vea más abajo) debe
garantizarse por el intervalo antes
del primer punto de sustitución
programado para este componente.
Si el componente falla antes del
primer punto de sustitución
programado, el fabricante del motor
debe reparar o sustituir el mismo de
acuerdo con la subsección (4) más
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
65
español / EE.UU
abajo. Un componente de este tipo
reparado o sustituido bajo la
garantía debe garantizarse durante
el resto del período de garantía
antes del primer punto de
sustitución programado para el
componente.
4. La reparación o sustitución de
cualquier componente garantizado
debe llevarse a cabo en una
estación de reparaciones bajo
garantía sin costo alguno para el
propietario.
5. No obstante lo expuesto en la
subsección (4) de arriba, los
servicios o las reparaciones bajo
garantía pueden obtenerse en
todos los centros de distribución del
fabricante autorizados para dar
servicio a los motores en cuestión.
6. Al propietario no se le debe cobrar
el trabajo del diagnóstico que
establece que el componente
garantizado es de hecho
defectuoso, a condición de que tal
trabajo de diagnóstico se realice en
una estación de reparaciones bajo
garantía.
Trabajo bajo garantía
STIHL Incorporated reparará los
defectos amparados por la garantía en
cualquier estación de garantía o centro
de servicio autorizado por STIHL. Todo
trabajo de este tipo se hará gratis para el
propietario siempre que se determine
que la pieza cubierta por la garantía está
defectuosa. Se puede usar cualquier
pieza de repuesto aprobada por el
fabricante o equivalente para el
mantenimiento o la reparación de los
componentes relacionados con el
sistema de control de emisiones, y la
misma debe ser suministrada gratis al
propietario. STIHL Incorporated es
responsable por daños a otros
componentes del motor causados por la
falla de una pieza garantizada que
todavía está bajo garantía.
Lista de piezas bajo la garantía de
emisiones
Filtro de aire, carburador, purgador,
estrangulador (sistema de
enriquecimiento para arranque en frío),
varillaje de control, colector de
admisión, magneto o sistema de
encendido electrónico (módulo de
encendido), bujía, convertidor catalítico
(si lo tiene), tanque de combustible, tapa
de tanque de combustible, línea de
combustible, adaptadores de líneas de
combustible, abrazaderas y
sujetadores.
Dónde presentar el reclamo para
servicio bajo garantía
Lleve el producto de STIHL a cualquier
concesionario de servicio autorizado por
STIHL y presente la tarjeta de registro
de producto STIHL firmado o la copia
impresa del registro electrónico del
producto.
Limitaciones
La reparación o la sustitución de
cualquier componente garantizado y
normalmente abarcado por la garantía
se puede excluir de la garantía si STIHL
Incorporated demuestra el maltrato,
negligencia o mantenimiento incorrecto
del producto de STIHL, y que tal
maltrato, negligencia, o mantenimiento
incorrecto era la causa directa de la
necesidad de reparación o sustitución
del componente. A pesar de lo anterior,
el ajuste de un componente que tiene un
dispositivo limitador instalado en fábrica
y funcionando correctamente no
perjudicará la cobertura bajo garantía.
66
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
español / EE.UU
Marcas comerciales
Marcas registradas de STIHL
®
STIHL
{
K
La combinación de colores anaranjadogris (Números de registro EE.UU.
2,821,860; 3,010,057, 3,010,058,
3,400,477; y 3,400,476)
®
4-MIX
AUTOCUT
EASYSTART
FARM BOSS
OILOMATIC
STIHL Cutquik
STIHL DUROMATIC
STIHL Quickstop
STIHL ROLLOMATIC
STIHL WOOD BOSS
TIMBERSPORTS
YARD BOSS
Algunos de las marcas comerciales
de STIHL por ley común
®
®
®
®
®
®
®
®
®
®
®
BioPlus™
Easy2Start™
EasySpool™
ElastoStart™
Ematic™ /Stihl-E-Matic™
FixCut™
HT Plus™
IntelliCarb™
Master Control Lever™
Micro™
Pro Mark™
Quad Power™
Quiet Line™
STIHL Arctic™
STIHL Compact™
STIHL HomeScaper Series™
STIHL Interchangeable Attachment
Series™
STIHL Magnum™ / Stihl-Magnum™
STIHL MiniBoss™
STIHL MotoPlus 4™
STIHL Multi-Cut HomeScaper Series™
Stihl Outfitters™
STIHL PICCO™
STIHL PolyCut™
STIHL PowerSweep™
STIHL Precision Series™
STIHL Protech™
STIHL RAPID™
STIHL SuperCut™
STIHL Territory™
TapAction™
TrimCut™
Esta lista de marcas comerciales está
sujeta a cambios.
Queda terminantemente prohibido todo
uso de estas marcas comerciales sin el
consentimiento expreso por escrito de
ANDREAS STIHL AG & Co. KG,
Waiblingen.
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
67
español / EE.UU
68
BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
! WARNING!
! WARNING!
! ADVERTENCIA!
The engine exhaust from this product
The engine exhaust from this product
contains chemicals known to the State
contains chemicals known to the State
of California to cause cancer, birth
of California to cause cancer, birth
defects or other reproductive harm.
defects or other reproductive harm.
0458-296-8621-A
englisch / spanisch USA
englisch / spanisch USA
U
GU
www.stihl.com
El gas de escape del motor de esta máquina
contiene productos químicos que en el estado de
California son considerados como causantes de
cáncer, defectos de nacimiento u otros efectos
nocivos para los órganos de la reproducción.
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
