Stiga Snow Throwers User Manual

www.stiga.com

Winter range

2008-2009

We love snow!

So will you, no doubt, if you let our snow throwers do the back-bending job.

Our mission is to help nature along and rearrange the drifts to where you want

them. The idea is for you to spend less time on the drive and more on the slopes

– or in front of the fire. Pop into your nearest Stiga dealer and lay your hands on

a snow thrower to find out why we think that a covering of snow is the best type

of covering!

YOUR BEST BET!

Expected amount of snow, total surface area and type of

ground; these three factors determine what type of snow

thrower to choose.

The single stage thrower (Compact Line) is suitable for

easier tasks on hard and flat surfaces, whilst the two stage

throwers (Duo Line, Duo Line+ and Royal Line) are designed

for drifts of hard packed snow in larger areas and on most

types of surfaces. Cylinder volume, working width, gear

system etc. are features that differ between the models.

DIFFERENTIAL For better steering. The wheels turn at differing speeds through a turn. You easily can turn 180° without skidding with the wheels.

Contents

Snow  rowers. ...............................2

Front mowers ....................................8

Lawn tractors ..................................10

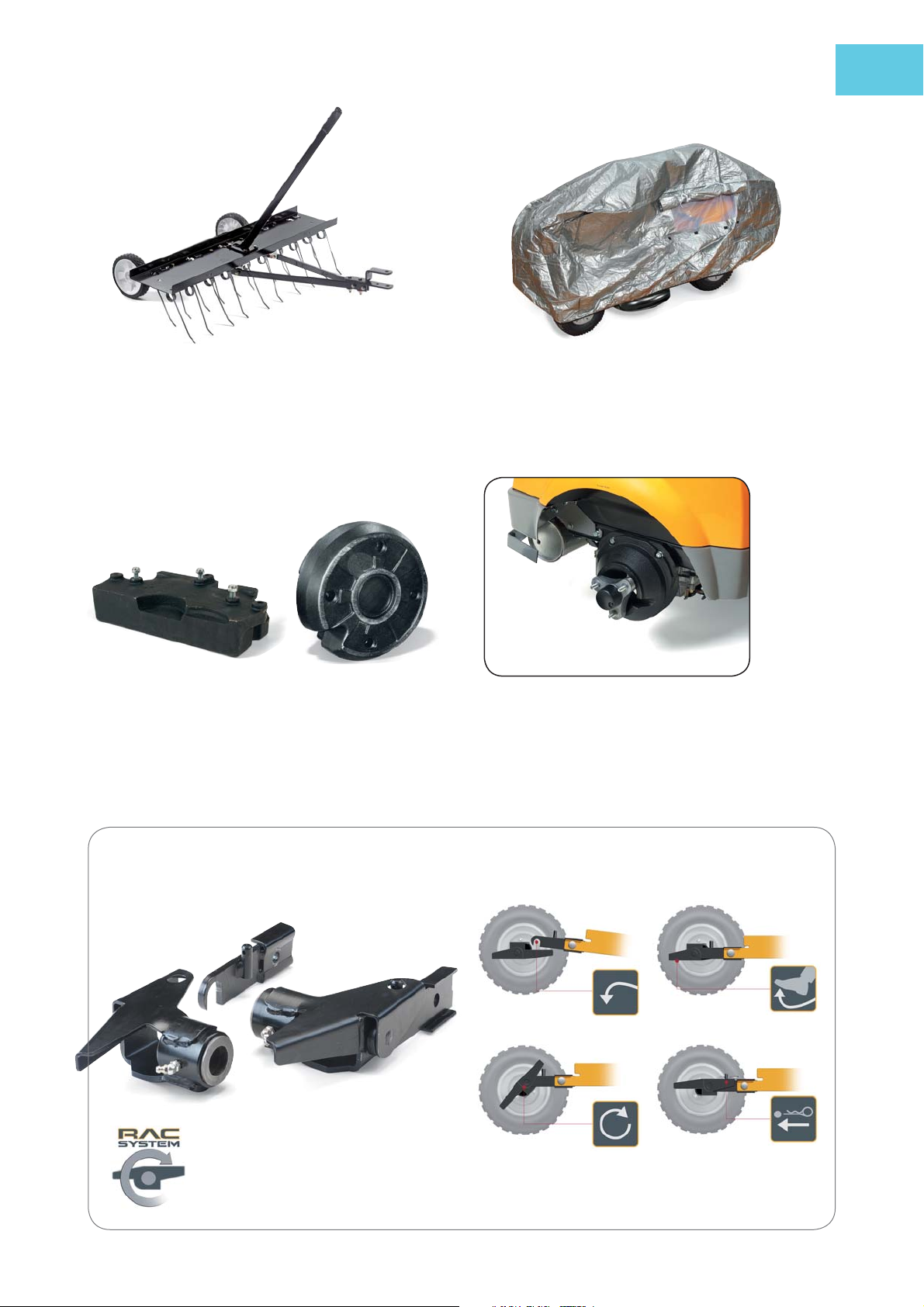

Implements ......................................12

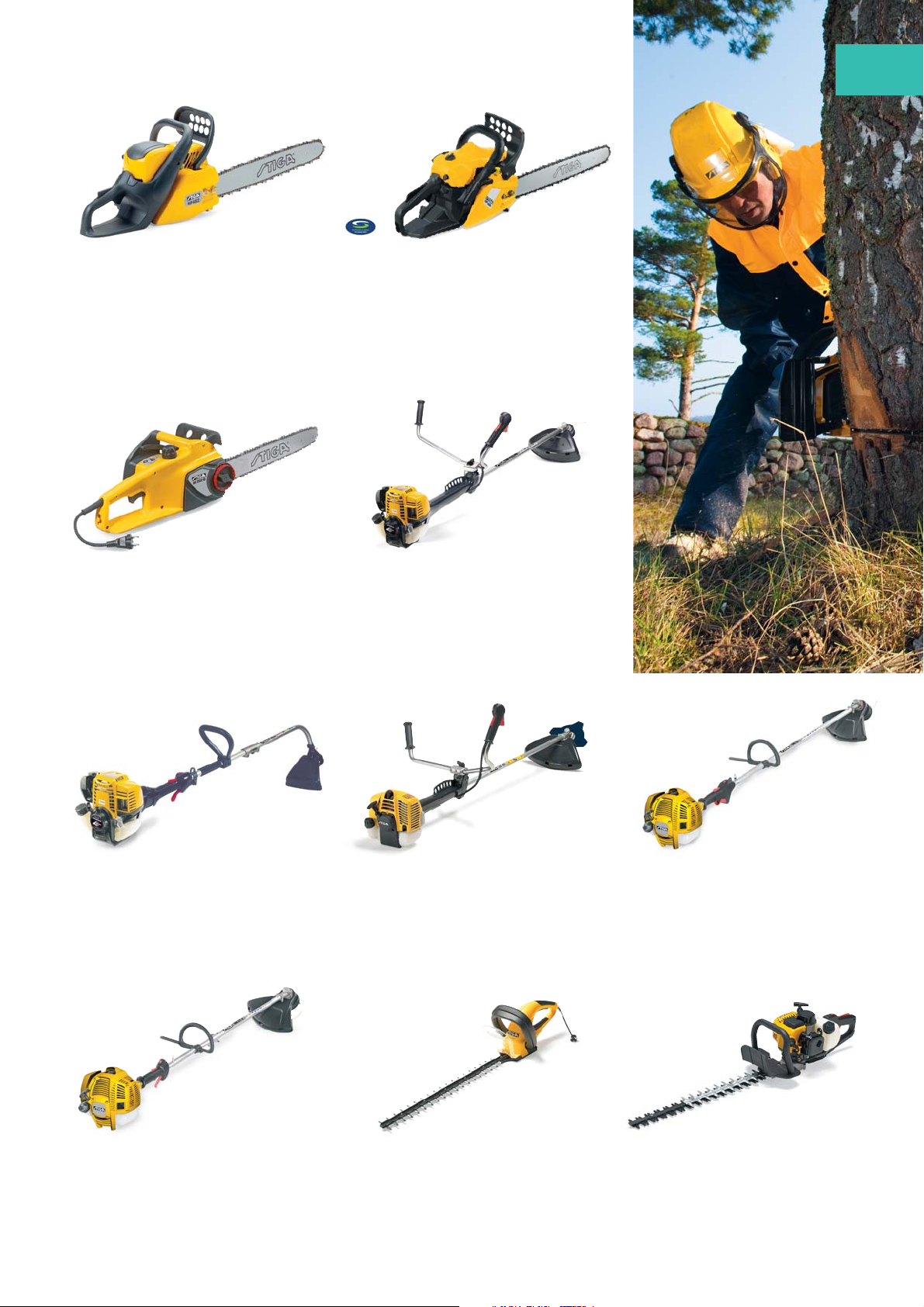

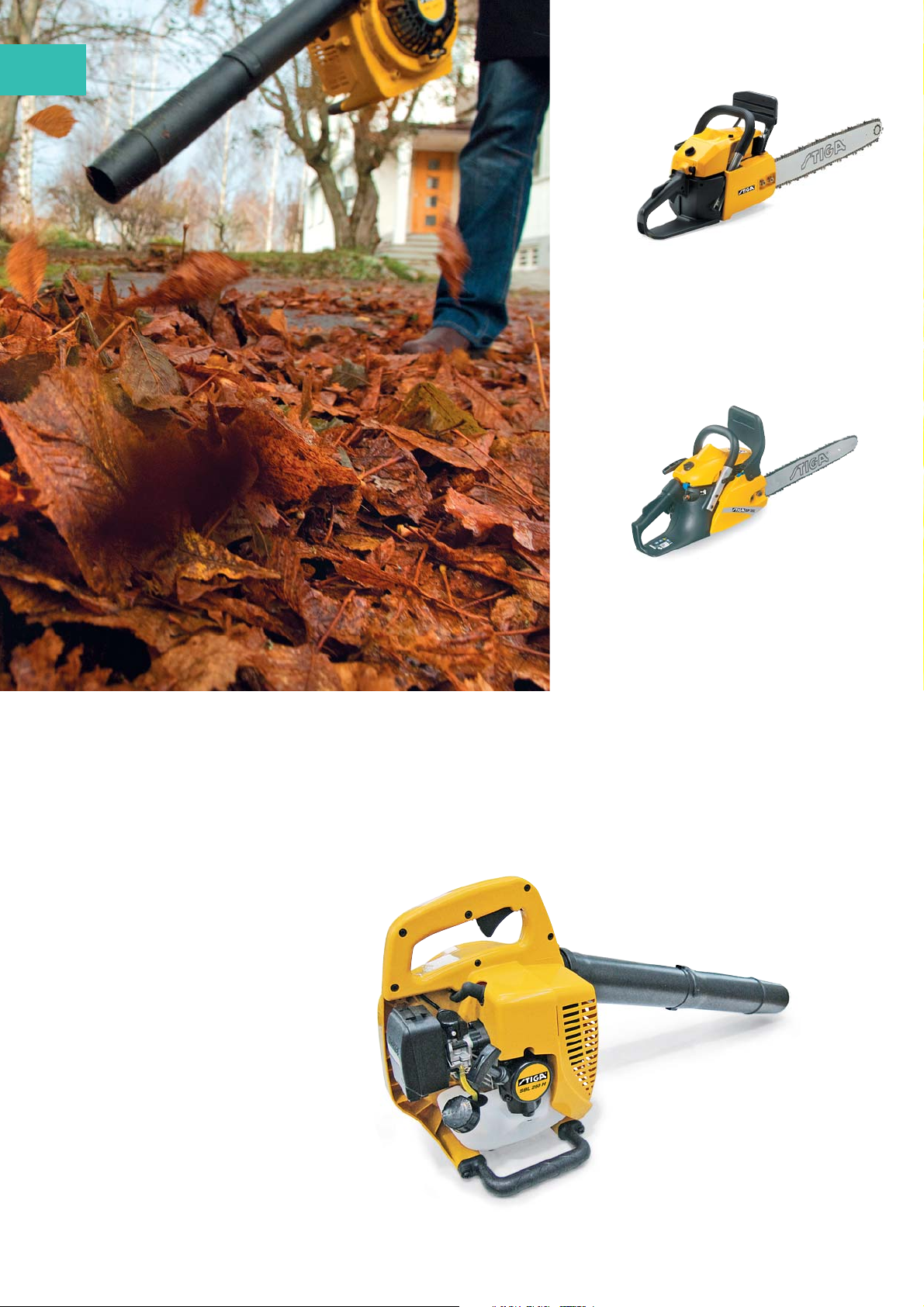

Handhelds ....................................... 16

Speci cations ..................................18

BEST IN CLASS!

SNOW THROWERS

Peak performance.

ROYAL LINE. Aimed for long working days, with large amounts of

heavy and icy snow. Features include maximum engine performance

for breaking up snowdrifts, differential and MaxiGrip tyres for maxi-

mum grip, hydrostatic transmission for ease of use and electrically

heated handles to keep you warm. In addition, you can work safely

and efficiently in the dark thanks to powerful halogen lighting.

1381 HST

Very powerful with continuously variable hydrostatic transmission for ease of use.

• Engine: 342 cc Briggs & Stratton 1650 Snow Series Max

• Hydrostatic (continuously variable transmission)

• Working width: 81 cm

• Extra wide tyres

HYDROSTATIC

TRANSMISSION

VERSATILE! !

1171 HST

A good choice for those of you who manage several properties and who regularly work after dark.

• Engine: 342 cc Briggs & Stratton 1550 Snow Series Max

• Hydrostatic (continuously variable transmission)

• Working width: 71 cm

• Extra wide tyres

Stand ard on the Roya l Line range: 230V Electric start • E lectrica lly heated han dles • Asymm etric halogen lighti ng

• Discharge chute: Vertically and late rally adjustable from the pane l • Saw toothed au ger with bear ing mountings • 16" MaxiG rip tyres

966 D

A power pack developed for those of you who handle large quantities of hard packed snow.

• Engine: 305 cc Briggs & Stratton 1350 Snow Series Max

• 6 forward gears 2 reverse

• Differential for easier steering

• Working width: 66 cm

SNOW THROWERS

The more snow the more fun!

DUO LINE. Adjustable in working height, two stage throwers can be used on most types of surface.

Note the adjustable discharge chute, which enables you to control where you relocate the snow. One hand grip

and adjustable skid shoes (no bending required) are also included as standard on all Duo Line throwers.

HEAD LIGHT!

EASY TO START!

SNOW SPARK

• Engine: 205 cc Briggs & Stratton 800 Snow Series, 4-stroke OHV

• Working width: 61 cm

• 6 forward gears and 2 reverse

• 13" SnowHog tyres

• Asymmetric halogen lighting

5 SPEED

FORWARD,

2 REVERSE

SNOW BLIZZARD

• Engine: 249 cc Briggs & Stratton 1150 Snow Series, 4-stroke OHV

• 230 V electric start

• Working width: 69 cm

• 6 forward gears and 2 reverse

• 16" MaxiGrip tyres

BIG

WHEELS !

SNOW CUBE

• Engine: 173 cc GGP SM 55, 4-stroke OHV

• Working width: 56 cm

• 5 forward gears and 2 reverse

• 13" SnowHog tyres

Stand ard on the Duo Line range: Breaks through snowdrifts • Vertically and late rally adjustable discharge chute

• One hand grip • Adjustable skid shoes

SNOW CRYSTAL

• Engine: 173 cc GGP SM 55, 4-stroke OHV

• Working width: 62 cm

• 5 forward gears and 2 reverse

• 15" SnowHog tyres

More muscles, anyone?

SNOW THROWERS

DUO LINE+. These durable two stage throwers are designed for those with high demands.

Deep snow and high snowdrifts are no obstacles. The toothed auger collects the snow and

blows it out via a fan housing to where you want to relocate it – up to 12 m away from the

machine. With Duo Line+ you also get differential to retain traction while doing a sharp turn.

DIRECT

THE HEAPS

TO WHERE YOU

WANT THEM!

BEST IN TEST!

SNOW POWER

A hard worker, designed for heavier work.

• Engine: 305 cc Briggs & Stratton 1450 Snow Series, 4-stroke OHV

• Working width: 74 cm

Stand ard on the Duo Line + range: 6 forward gea rs • Electric start and halogen lighting • One hand grip (dual)

• Vertica lly and late rally adjustable discharge chute • Toothed auge r • Differential • 16" MaxiGrip t yres

SNOW FLAKE

Designed for long paths, wide drives and large amounts of snow.

• Engine: 249 cc Briggs & Stratton 1150 Snow Series, 4-stroke OHV

• Working width: 69 cm

SNOW THROWERS

Wet snow is no problem.

COMPACT LINE. These easy-to-handle, single stage snow throwers are driven forward by the auger,

which collects and blows out the snow in one go. They are best for use on asphalt and other hard sur-

faces and are also a good environmentally-friendly choice. They are easy to transport and store thanks

to their compact shape and folding handle.

EASY TO START!

SNOW FROST RS

Well arranged controls, simple to operate, even when wearing gloves. The direction of the snow discharge chute is adjusted from the operator’s position.

• Engine: 148 cc Briggs & Stratton 525 Snow Series, 4-stroke

• Working width: 55 cm

• HDPE plastic in the cover provides an extremely durable snow thrower

• 40 kg

SNOW FROST ES

Specifications as Snow Frost RS but with electric start 230 V for easy handling.

POWER PACKAGE!

SNOW REX

Quiet, with low emissions and low vibrations.

• Engine: 190 cc Briggs & Stratton 650 Snow Series, 4-stroke

• Working width: 53 cm

• 28 kg

SILENT!

SNOW ELECTRIC 2000

Small and flexible. Easy to move and store. Fold the handle to fit it in the car.

• Engine output: 230 V, 2000 W

• Working width: 42 cm

• 21 kg

SNOW ELECTRIC

• Engine output: 230 V, 1300 W

• Working width: 35 cm

• 17 kg

Stand ard on the Compact Line range: Vertically and laterally a djustable discharge chute • Durable, rubber coated augers
