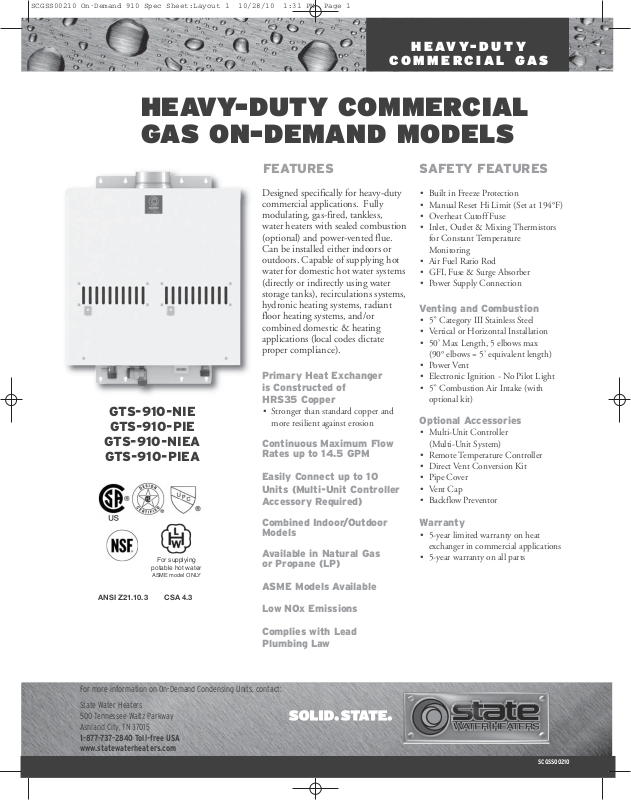

State GTS-910-PIEA User Manual

HEAVY-DUTY

COMMERCIAL GAS

HEAVY-DUTY COMMERCIAL GAS ON-DEMAND MODELS

GTS-910-NIE

GTS-910-PIE GTS-910-NIEA GTS-910-PIEA

FEATURES

Designed specifically for heavy-duty commercial applications. Fully modulating, gas-fired, tankless, water heaters with sealed combustion (optional) and power-vented flue. Can be installed either indoors or outdoors. Capable of supplying hot water for domestic hot water systems (directly or indirectly using water storage tanks), recirculations systems, hydronic heating systems, radiant floor heating systems, and/or combined domestic & heating applications (local codes dictate proper compliance).

Primary Heat Exchanger is Construct ed of HRS35 Copper

• Stronger than standard copper and more resilient against erosion

Continuous Maximum Flow Ratesupto14.5GPM

Easily Connect up to 10 Units (Multi-Unit Contr oller Accessory Required)

SAFETY FEATURES

• Built in Freeze Protection

• Manual Reset Hi Limit (Set at 194°F)

• Overheat Cutoff Fuse

• Inlet, Outlet & Mixing Thermistors for Constant Temperatur e Monitoring

• Air Fuel Ratio Rod

• GFI, Fuse & Surge Absorber

• Po w er Supply Connection

Venting and Combustion

• 5” Category III Stainless Steel

• Vertical or Horizontal Installation

• 50’ Max Length, 5 elbows max (90° elbows = 5’ equivalent length)

• Po wer Vent

• Electronic Ignition - No Pilot Light

• 5” Combustion Air Intake (with optional kit)

Optional Acce s s orie s

• Multi-U nit Controller (Multi-U nit System)

• Remote Temperature Controller

• Direct Vent Conversion Kit

• Pipe Cover

• Vent Cap

• Backflow Preventor

Combined Indoor/Outdoor Models

For supplying

potable hot water

ASME model ONLY

ANSI Z21.10.3 CSA 4.3

For more information on On-Demand Condensing Units, contact:

State Water Heaters 500 Tennessee Waltz Parkway Ashland City, TN 37015

1-877-737-2840 Toll-free USA www.statewaterheaters.com

Available in Natural Gas or Propane (LP)

ASME Models Available

Low NOx Emissions

Complies with Lead Plumbing Law

Warranty

• 5-year limited warranty on heat exchanger in commercial applications

• 5-year warranty on all parts

SCGSS00210

HEAVY-DUTY

COMMERCIAL GAS

HEAVY-DUTY COMMERCIAL GAS ON-DEMAND

MODEL

NUMBER

FUEL TYPE

GAS CONSUMPTION

INPUT

MIN.

BTU/H

MAX.

BTU/H

THERMAL

EFFICIENCY

INLET GAS PRESSURE

MIN. W.C.

MAX.

W.C.

GPM**

HEIGHT WIDTH DEPTH

DIMENSIONS

(INCHES)

VOLT AMP FLUE***

INTAKE

(OPTIONAL)

HOT/COLD

GAS CONN.

APPROX.

SHIPPING

WEIGHT

GTS-910-NIE Natural 15,000 380,000 80% 5.0 10.5 0.5 - 14.5 25.3 24.8 11.8 120 1.48 5” O.D. 5” O.D. 1” NPT 113

GTS-910-PIE Propane 15,000 380,000 82% 8.0 14.0 0.5 - 14.5 25.3 24.8 11.8 120 1.48 5” O.D. 5” O.D. 1” NPT 113

GTS-910-NIEA* Natural 15,000 380,000 80% 5.0 10.5 0.5 - 14.5 25.3 24.8 11.8 120 1.48 5” O.D. 5” O.D. 1” NPT 113

GTS-910-PIEA* Propane 15,000 380,000 82% 8.0 14.0 0.5 - 14.5 25.3 24.8 11.8 120 1.48 5” O.D. 5” O.D. 1” NPT 113

All dimensions in inches. *ASME models **Current numbers based on factory testing, 0.4 GPM required for continuous fire after initial ignition. *** Category III required 15 - 150 psi water pressure. Pressure only relief valve requires (Min. 380,000 BTUs. 150 PSI). Min 40 PSI or above recommended for maximum flow.

CLEARANCES:

Flow Rate (gpm)

Flow Rate Vs. Temperature Rise

45 65 85

Set temperature of 145° or lower Set temperature of 150° or higher

Temperature Rise (°F)

Above shown rate is based on single unit only

105

1/2" (11.9mm)

125 145

INDOOR: Top 12”, Bottom 12”, Front 24”, Back 0.5”, Sides 2”

OUTDOOR: Top 36”, Bottom 12”, Front 24”, Back 0.5”, Sides 2”

12-1/4" (311.5mm)

4-7/8" (122.9mm)

2-1/2" (62.1mm)

24-7/8" (632.9mm)

15" (381mm)

8" (203mm)

5" (127mm)

(LBS)

Pressure Loss (psi)

0.0

Set temperature of 145° or lower Set temperature of 150° or higher

Pressure Loss

5.0

Flow Rate (gpm)

10.0

15.0

Head Feet

1/2" (12.5mm)

4-3/8" (110.8mm) GAS

-3/8" (137.3mm) HOT

6-3/4" (171.3mm) 120V

7-5/8" (194.3mm) COLD

1-5/8" (40mm) COLD

5-7/8" (150mm) HOT

25-1/4" (642mm)

4" (100mm) 120V

7-3/8" (186mm)GAS

Specification

Water heater(s) shall be Model _________________ as manufactured by State Water Heaters.The water heater(s) shall be a copper coil integral fin and tube construction with quick release brass or bronze waterways. Heater(s) will be factory assembled and tested. The heater shall be vented with 5” Stainless steel Category III vent pipe a distance not to exceed 50’ (equivalent) feet terminating vertically as prescribed. Intake air with optional direct vent kit may be of such material as PVC not to exceed a total of 50’ (equivalent). The heater(s) shall be controlled by onboard solid state printed circuit board monitoring incoming and outgoing temperatures with factory installed thermistors, sensing and controlling flow rate to set point temperature with control both air and gas mixture inputs to maintain thermal combustion efficiency. Unit also consists of ground fault interrupter, inline fusing, spark ignition and sensor system, aluminized stainless steel burners, air-fuel ration rod, Hi limit switch, modulating and proportional gas valves, freeze protection sensor and heating block and overhead cut-off fuses. The water heater(s) shall be CSA listed, exceeds the energy efficiency requirements of ASHRAE 90. 1b-1992 and listed by SCAQMD rule 1146.2 Low NOx.

For complete information on limited warranties, consult written warranty or contact technical support at 1-877-737-2840.

State Industries, Inc., reserves the right to make product changes or improvements without prior notice.

For more information on On-Demand Heavy-Duty Commercial Units, contact:

28-7/8" (734mm)

State Water Heaters 500 Tennessee Waltz Parkway Ashland City, TN 37015

1-877-737-2840 Toll-free USA www.statewaterheaters.com
