Installation and Operating Manual

RESIDENTIAL GAS WATER HEATERS

DIRECT VENTED GAS MODELS

NOT FOR USE IN MANUFACTURED (MOBILE) HOMES

www.statewaterheaters.com

• For Your Safety •

AN ODO RANT IS ADDED TO THE GAS USED

BY THIS WATER HEATER.

ALL TECHNICAL AND WARRANTY QUESTIONS: SHOULD BE DIRECTED TO THE LOCAL DEALER FROM WHOM THE WATER HEATER WAS PURCHASED. IF YOU ARE UNSUCCESSFUL, PLEASE CONTACT THE COMPANY LISTED ON THE RATING PLATE ON THE WATER HEATER.

KEEP THIS MANUAL IN THE POCKET ON HEATER FOR FUTURE REFERENCE

WHENEVER MAINTENANCE ADJUSTMENT OR SERVICE IS REQUIRED.

1404 327537-000

TABLE OF CONTENTS

SAFE INSTALLATION, USE AND SERVICE . . . . . . . . . . .3

GENERAL SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Qualiﬁ ed Installer Or Service Agency . . . . . . . . . . . . 6

Preparing For The Installation. . . . . . . . . . . . . . . . . . 6

INSTALLATION REQUIREMENTS FOR THE

COMMONWEALTH OF MASSACHUSETTS . . . . . . . . . . . 7

TYPICAL INSTALLATION. . . . . . . . . . . . . . . . . . . . . . . . . . 9

Get To Know Your Water Heater - Gas Models

(List Referencing Figures 1-5). . . . . . . . . . . . . . . . . . 9

Replacement Parts And Deliming Products . . . . . . 10

Combo Heating Inlet And Outlet Side Taps . . . . . . . 10

High Limit Controls (Energy Cut Off). . . . . . . . . . . . 10

Thermostat/Water Temperature

LOCATING THE NEW WATER HEATER. . . . . . . . . . . . . 11

Facts To Consider About The Location . . . . . . . . . . .11

External/Internal Damage . . . . . . . . . . . . . . . . . . . . .11

Air Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Conﬁ ned Space Installations. . . . . . . . . . . . . . . . . . 12

Clearances To Combustibles Floors With Carpeting Clearance For Servicing

Chemical Vapor Corrosion . . . . . . . . . . . . . . . . . . . 12

Storage Of Flammable Liquids . . . . . . . . . . . . . . . . 13

Insulation Blankets . . . . . . . . . . . . . . . . . . . . . . . . . 13

Water Piping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Water Pressure Mixing Valves

INSTALLING THE NEW WATER HEATER . . . . . . . . . . .15

Water Piping Installation . . . . . . . . . . . . . . . . . . . . . 15

Closed Water Systems . . . . . . . . . . . . . . . . . . . . . . 15

Thermal Expansion . . . . . . . . . . . . . . . . . . . . . . . . . 15

Temperature-Pressure Relief Valve. . . . . . . . . . . . . 16

T&P Valve Discharge Pipe Requirements: Temperature-Pressure Relief Valve And

Pipe Insulation

Filling The Water Heater . . . . . . . . . . . . . . . . . . . . . 17

Space Heating And Potable Water Systems . . . . . . 18

Combo Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

System Requirements Installation

Gas Piping. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Sediment Trap. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

High Altitude Installations . . . . . . . . . . . . . . . . . . . . 21

Venting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Vent Terminal Clearances . . . . . . . . . . . . . . . . . . . . 22

DV Termination Safety Cover . . . . . . . . . . . . . . . . . 23

Vent Connections . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Locating Clearance Hole For Vent . . . . . . . . . . . . . 23

Standard Vent Arrangement . . . . . . . . . . . . . . . . . . 23

Vent Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Securing Vent Termination Assembly To

The Exterior Wall. . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Vent Restricter Plate . . . . . . . . . . . . . . . . . . . . . . . . 24

Uncompressing The Corrugated Tubing . . . . . . . . . 24

Vent Connection To The Water Heater . . . . . . . . . . 25

Offset Vent Arrangement. . . . . . . . . . . . . . . . . . . . . 25

Installation Checklist . . . . . . . . . . . . . . . . . . . . . . . . 27

LIGHTING INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . 28

TEMPERATURE REGULATION . . . . . . . . . . . . . . . . . . .29

Temperature Regulation . . . . . . . . . . . . . . . . . . . . . 29

Temperature Adjustment

Operating The Temperature Control System. . . . . . 29

Water Temperature Adjustment Operating Modes And Settings

FOR YOUR INFORMATION. . . . . . . . . . . . . . . . . . . . . . . 30

External Damage . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Start Up Conditions . . . . . . . . . . . . . . . . . . . . . . . . . 30

Condensate Smoke/Odor

Thermal Expansion . . . . . . . . . . . . . . . . . . . . . . . . . 30

Strange Sounds . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Operational Conditions . . . . . . . . . . . . . . . . . . . . . . 31

Smelly Water “Air” In Hot Water Faucets High Water Temperature Shut Off System

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Housekeeping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Flood Damage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Venting System Inspection . . . . . . . . . . . . . . . . . . . 32

Pilot And Main Burner . . . . . . . . . . . . . . . . . . . . . . . 32

Burner Flames. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Servicing The Water Heater . . . . . . . . . . . . . . . . . . 33

Removing And Replacing The Gas Control Valve/

Thermostat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Removing The Gas Control Valve/Thermostat: Replacing The Gas Control Valve/Thermostat:

Removing The Manifold/Burner Assembly . . . . . . . 33

Removing The Burner From The Manifold/Burner

Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Natural Gas (Low Nox) & Propane (LP) Gas Burner

Replacing The Pilot/Thermopile Assembly . . . . . . . 34

Replacing The Manifold/Burner Assembly . . . . . . . 35

Piezoelectric Igniter System . . . . . . . . . . . . . . . . . . 36

Testing The Igniter System . . . . . . . . . . . . . . . . . . . 36

Temperature-Pressure Relief Valve Test . . . . . . . . . 36

Draining, Reﬁ lling And Flushing . . . . . . . . . . . . . . . 36

To Drain The Water Heater Storage Tank To Reﬁ ll The Water Heater Storage Tank To Flush The Water Heater Storage Tank

Drain Valve Washer Replacement . . . . . . . . . . . . . 37

Anode Rod Maintenance. . . . . . . . . . . . . . . . . . . . . 37

To Remove The Anode Rod: To Install The Anode Rod:

LEAKAGE CHECKPOINTS . . . . . . . . . . . . . . . . . . . . . . . 39

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

REFERENCE PARTS LISTING . . . . . . . . . . . . . . . . . . . .40

TROUBLESHOOTING GUIDELINES. . . . . . . . . . . . . . . . 42

NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

2 www. statewaterheaters.com

SAFE INSTALLATION, USE AND SERVICE

Your safety and the safety of others is extremely important in the installation, use and servicing of this water heater. Many safety-related messages and instructions have been provided in this manual and on your own water heater to warn you and others of a potential injury hazard. Read and obey all safety messages and instructions throughout this manual. It is very

important that the meaning of each safety message is understood by you and others who install, use or service this water heater.

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

DANGER indicates an imminently

DANGER

WARNING

CAUTION

hazardous situation which, if not avoided, will result in death or injury.

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or injury.

CAUTION indicates a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.

CAUTION used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, could result in property damage

All safety messages will generally tell you about the type of hazard, what can happen if you do not follow the safety message and how to avoid the risk of injury.

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the State of California to cause cancer, birth defects or other reproductive harm and requires businesses to warn of potential exposure to such substances.

This product contains a chemical known to the State of California to cause cancer, birth defects or other reproductive harm. This appliance can cause low level exposure to some of the substances listed in the Act.

IMPORTANT DEFINITIONS

Qualiﬁ ed Installer: A qualiﬁ ed installer must have ability equivalent to a licensed tradesman in the ﬁ elds of plumbing, air supply, venting and gas supply, including a thorough understanding of the requirements of the National Fuel Gas Code as it relates to the installation of gas ﬁ red water heaters. The qualiﬁ ed installer must also be familiar with the design features and use of ﬂ ammable vapor ignition resistant water heaters and have a thorough understanding of this Installation and Operating manual.

Service Agency: A service agency also must have ability equivalent to a licensed tradesman in the ﬁ elds of plumbing, air supply, venting and gas supply, including a thorough understanding of the requirements of the National Fuel Gas Code as it relates to the installation of gas ﬁ red water heaters. The service agency must also have a thorough understanding of this Installation and Operating manual, and be able to perform repairs strictly in accordance with the service guidelines provided by the manufacturer.

Gas Supplier: The Natural Gas or Propane Utility or service who supplies gas for utilization by the gas burning appliances within this application. The gas supplier typically has responsibility for the inspection and code approval of gas piping up to and including the Natural Gas meter or Propane storage tank of a building. Many gas suppliers also offer service and inspection of appliances within the building.

www. statewaterheaters.com 3

GENERAL SAFETY

WARNING

Fire or Explosion Hazard

• Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this water heater, the vent termination hood or any other appliance.

• Avoid all ignition sources if you smell gas.

• Do not expose water heater control to excessive

gas pressure.

• Use only gas shown on rating plate.

• Maintain required clearances to combustibles.

• Keep ignition sources away from faucets after

extended period of non-use.

Read instruction manual before

installing, using or servicing

4 www. statewaterheaters.com

water heater.

GENERAL SAFETY

DANGER

WARNING

Breathing Hazard - Carbon Monoxide Gas

• Install vent system in accordance with codes.

• Do not operate water heater if flood damaged.

• For operation above 7,700’, a high altitude orifice must be installed.

• Do not operate if soot buildup is present.

• Do not place chemical vapor emitting products near water heater or vent termination hood.

• Gas and carbon monoxide detectors are available.

Breathing carbon monoxide can cause brain damage or death.

Always read and understand instruction manual.

FLAMMBLE

Vapors from flammable liquids may explode and catch fire causing death or severe burns.

Do not use or store flammable products such as gasoline, solvents or adhesives in the same room or area near the water heater or the vent termination hood. Keep flammable products:

1. far away from heater,

2. in approved containers,

3. tightly closed and

4. out of children's reach.

Installation: Do not install the water heater or the vent termination hood where flammable products will be stored or used.

Flammable Vapors

Water heater has a main burner and pilot. While operating, the pilot flame:

1. is in continuous operation and

2. will ignite flammable vapors.

Vapors:

1. cannot be seen,

2. are heavier than air,

3. go a long way on the floor and

4. can be carried from other rooms by air currents.

www. statewaterheaters.com 5

INTRODUCTION

Thank You for purchasing this water heater. Properly

installed and maintained, it should give you years of trouble free service. This water heater is suitable for potable water heating and space heating applications but not for space heating only applications.

Abbreviations found in this Installation and Operating manual:

• CSA - Canadian Standards Association

• ANSI - American National Standards Institute

• NFPA - National Fire Protection Association

• ASME - American Society of Mechanical Engineers

• UL - Underwriters Laboratories Inc.

• AHRI - Air Conditioning, Heating and Refrigeration

Institute.

This gas-ﬁ red water heater is design certiﬁ ed by CSA International, under Water Heater Standard ANSI

Z21.10.1 • CSA 4.1 (current edition).

QUALIFIED INSTALLER OR SERVICE AGENCY

Installation and service of this water heater requires ability equivalent to that of a Qualiﬁ ed Agency (as deﬁ ned by ANSI below) in the ﬁ eld involved. Installation skills such as plumbing, air supply, venting, gas supply and electrical supply are required in addition to electrical testing skills when performing service.

ANSI Z223.1 2006 Sec. 3.3.83: “Qualiﬁ ed Agency” - “Any individual, ﬁ rm, corporation or company that either in person or through a representative is engaged in and is responsible for (a) the installation, testing or replacement of gas piping or (b) the connection, installation, testing, repair or servicing of appliances and equipment; that is experienced in such work; that is familiar with all precautions required and that has complied with all the requirements of the authority having jurisdiction.”

also contains warnings throughout the manual that you must read and be aware of. All warnings and instructions are essential to proper operation of the water heater and your safety. Since we cannot put everything on the ﬁ rst few pages, READ ENTIRE MANUAL BEFORE ATTEMPTING TO INSTALL OR OPERATE THE WATER HEATER.

2. The installation must conform with these instructions and local code authority having jurisdiction. In absence of local codes, installation must comply with current editions of the “National Fuel Gas Code”, ANSI

Z223.1/NFPA 54 and “National Electrical Code”, NFPA 70. All documents are available from:

CSA International, 8501 East Pleasant Valley Road, Cleveland, Ohio, United States 44131-5575.

NFPA documents are also available from: National Fire Protection Association, 1 Batterymarch Park, Quincy, MA 02269.

3. If after reading this manual you have any questions or do not understand any portion of the instructions, call the local gas utility or the manufacturer whose name appears on the rating plate.

4. Carefully plan the place where you are going to put the water heater. Correct combustion, vent action, and vent pipe installation are very important in preventing death from possible carbon monoxide poisoning and ﬁ res (see Figure 6). Examine the location to ensure the water heater complies with the “Locating The New Water Heater” section in this manual.

5. NOTE: For California installation , this water heater must be braced, anchored, or strapped to avoid falling or moving during an earthquake. Correct installation procedure instructions may be obtained from:

If you are not qualiﬁ ed (as deﬁ ned by ANSI above) and licensed or certified as required by authority having jurisdiction to perform a given task, do not attempt to perform any of the procedures described in this manual. If you do not understand the instructions given in this manual do not attempt to perform any procedures outlined in this manual.

PREPARING FOR THE INSTALLATION

1. Read the “General Safety” section of this manual ﬁ rst and then entire manual carefully. If you don’t follow safety rules, the water heater will not operate properly. It could cause DEATH, SERIOUS BODILY INJURY AND/OR PROPERTY DAMAGE. This manual contains instructions for installation, operation, and maintenance of the gas-ﬁ red water heater. It

6 www. statewaterheaters.com

California’s Ofﬁ ce of the State Architect, 1102 Q Street, Suite 5100, Sacramento, CA 95811. Instructions can also be downloaded to your computer at www.dsa.dgs.ca.gov..

6. Massachusetts Code requires this water heater to be installed In accordance with Massachusetts 248-CMR

2.00: State Plumbing Code and 248-CMR 5.00.

7. This product is certiﬁ ed to comply with a maximum weighted average of 0.25% lead content as required in some areas.

INSTALLATION REQUIREMENTS FOR THE COMMONWEALTH OF MASSACHUSETTS

COMMONWEALTH OF MASSACHUSETTS For all side wall terminated, horizontally vented power vent, direct vent and power direct vent gas fueled water heaters installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above ﬁ nished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisﬁ ed:

INSTALLATION OF CARBON MONOXIDE DETECTORS At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gasﬁ tter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the ﬂ oor level where the gas equipment is to be installed. In addition, the installing plumber or gasﬁ tter shall observe that a battery operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the sidewall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of qualiﬁ ed licensed professionals for the installation of hard wired carbon monoxide detectors. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent ﬂ oor level. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of thirty (30) days to comply with the above requirements provided that during said thirty (30) day period, a battery operated carbon monoxide detector with an alarm shall be installed.

APPROVED CARBON MONOXIDE DETECTORS Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be ANSI/ UL 2034 listed and CSA certiﬁ ed.

SIGNAGE A metal or plastic identiﬁ cation plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The sign shall read, in print size no less than one- half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS.”

INSPECTION The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR 5.08(2)(a) 1 through 4.

EXEMPTIONS The following equipment is exempt from 248 CMR 5.08(2) (a) 1 through 4:

1. The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54 as adopted by the Board; and

2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building, or structure used in whole or in part for residential purposes.

MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED When the manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions provided by the manufacturer for installation of the equipment and the venting system shall include:

1. Detailed instructions for the installation of the venting system design or the venting system components; and

2. A complete parts list for the venting system design or venting system.

MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED When the manufacturer of Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the ﬂ ue gases, but identiﬁ es “special venting systems,” the following requirements shall be satisﬁ ed by the manufacturer:

1. The referenced “special venting system” instructions shall be included with the appliance or equipment installation instructions; and

2. The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a parts list and detailed installation instructions.

A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation.

www. statewaterheaters.com 7

INSTALLATION GRAPHIC: GAS-FIRED POTABLE WATER HEATING/SPACE HEATING SYSTEM

• If your water heater will be installed in the Commonwealth of Massachusetts, refer to the following

graphic during installation and during modifications to the water supply system.

COMBINATION SPACE HEATING / POTABLE WATER HEATING SYSTEM

TEMPERED WATER TO FIXTURES (MUST MEET TEMPS LISTED IN MASS. CODE 248 CMR

MUST BE VERTICAL TO REMOVE A

MIXING VALVE (MUST BE INSTALLED BELOW TOP OF WATER HEATER AS PER MANUFACTURER’S RECOMMENDATIONS)

WATER HEATER ACCEPTED BY THE BOARD FOR INSTALLATION IN MASSACHUSETTS.

MASSACHUSETTS INSTALLATION REQUIREMENTS:

1.) CONNECT ELECTRONICALLY-CONTROLLED TIMER TO AN ALL-BRONZE PUMP. PUMP MUST ACTIVATE EVERY 6 HOURS

2.) ALL WATER PIPING MUST BE INSTALLED AND INSULATED IN ACCORDANCE WITH MASSACHUSETTS CODE (248 CMR

3.) PIPING LOOP BETWEEN WATER HEATER AND AIR HANDLER MUST BE INSTALLED IN COMPLIANCE WITH 248 CMR.

† REQUIRED FOR MASSACHUSETTS.

‡ PIPING FROM THE TOP OF THE WATER HEATER WITH TEES IS ACCEPTABLE.

IR BUBBLES

FOR 60 SECONDS. TURN PUMP TIMER OFF BEFORE CLOSING PIPING LOOP SHUT-OFF VALVE.

& 780 CMR).

†

)

†

TYPICAL MIXING VALVE INSTALLATION

EXPANSION TANK

CHECK

VALVE

UNION

HOT

WATER

OUT

VACUUM

†

RELIEF VALVE

UNION

TEMP/ PRESSURE RELIEF VALV E

SEE NOTE ‡

100’-0” MAXIMUM DISTANCE FROM WATER HEATER TO FAN COIL AND BACK. (DEVELOPED LENGTH) NOT INCLUDING COIL

CHECK VALVE

(1/8” HOLE

DRILLED IN CLAPPER)

PUMP

AIR

HANDLER

SHUT-OFF

VALV E

IN HEATING UNIT

COLD WATER INLET

†

FLOW CONTROL

OUT

COIL

AIR

HANDLER

†

SHUT-OFF

VALVE

8 www. statewaterheaters.com

TYPICAL INSTALLATION

GET TO KNOW YOUR WATER HEATER - GAS MODELS (LIST REFERENCING FIGURES 1-5)

1 Vent Termination Hood 2 Wall Plate 3 ***Vent Pipe 4 Cold Water Inlet Nipple/Diptube 5 **Combo Heating System Supply

Outlet (Optional) 6 T&P Valve 7 Gas Control Valve/Thermostat

(Honeywell) 8 **Combo Heating System Return

Inlet (Optional) 9 *Discharge Pipe 10 Drain Valve 11 Outer Gas Door 12 Manifold Door Assembly (behind

outer door) (see Figure 3 &

Figure 4) 13 *Floor Drain 14 *Metal Drain Pan 15 Flexible Manifold Tube (see

Figure 3 & Figure 4)

16 *Sediment Trap 17 *Ground Joint Union (gas

connection) 18 *Main Manual Gas Shut-off Valve 19 *Gas Supply 20 Bafﬂ e Assembly 21 Rating Plate 22 Anode (under cap) 23 Hot Water Outlet Nipple (or

Optional Nipple/Anode) 24 *Inlet Water Shut-off Valve 25 *Union (water connection) 26 Air Inlet Snorkel 27 Air Tower 28 ***Airbox 29 *Thermal Expansion Tank (required

for all closed systems) 30 Sheet Metal Burner (see Figure 3 &

Figure 4) 31 Gas Oriﬁ ce (see Figure 3 &

Figure 4)

32 Gas Manifold (see Figure 3 &

Figure 4)

33 Manifold Door Gasket (see Figure 3

& Figure 4)

34 Manifold Door (see Figure 3 &

Figure 4)

35 Two Piece Grommet With Clip (see

Figure 3 & Figure 4) 36 Viewport (see Figure 3 & Figure 4) 37 Flexible Manifold Tube (see

Figure 3 & Figure 4) 38 Pilot (see Figure 3 & Figure 4) 39 Thermopile (see Figure 3 &

Figure 4) 40 Pilot Shield (see Figure 3 &

Figure 4) *, **, *** see notes on following page

1 32

11 12

Front View

Figure 1

www. statewaterheaters.com 9

Rear View

Figure 2

Vacuum relief valve install per local codes (not supplied with heater).

Figure 5

Natural gas and Propane (LP) main burner with igniter assembly for 38k to 42k Btu/hr models

Figure 3

Natural gas and Propane (LP) main burner with igniter assembly for 47k Btu/hr models

4039

Notes:

* Items not supplied with the water heater. ** The side recirculation loop connections may not be

used as the primary water inlet and outlet connections. See “Combo Heating Inlet And Outlet Side Taps” below.

*** During operation the vent pipe and airbox can get hot.

REPLACEMENT PARTS AND DELIMING PRODUCTS

Replacement parts and recommended delimer may be ordered through authorized servicers or distributors. When ordering parts, provide complete model and serial numbers (see rating plate), quantity and name of part desired. Standard hardware items may be purchased locally.

COMBO HEATING INLET AND OUTLET SIDE TAPS

Models equipped with Combo Heating capabilities are shipped with the two side plumbing taps OPEN (items 5 and 8 in Figure 1 and see also Figure 8). If the heater is to be operated without using the side taps, these openings must be closed with the two pipe plugs supplied with the heaters.

HIGH LIMIT CONTROLS (ENERGY CUT OFF)

Thermostat/Water Temperature

This feature is a part of the gas control valve/thermostat (see Figure 1, item 7) and limits the maximum water temperature. In the event of the water overheating, this safety feature shuts off the fuel supply to the burner.

Figure 4

10 www. statewaterheaters.com

LOCATING THE NEW WATER HEATER

FACTS TO CONSIDER ABOUT THE LOCATION

Carefully choose an indoor location for the new water heater because the placement is a very important consideration for the safety of the occupants in the building and for the most economical use of the appliance. This water heater is not for use in manufactured (mobile) homes or outdoor installation. Whether replacing an old water heater or putting the water heater in a new location, the following critical points must be observed:

1. Select a location indoors as close as practical to the vent termination position. Figure 28 shows the venting distances that the heater can be from the outside wall. Ensure the vent termination position maintains the clearances as outlined in Figure 28 thru Figure 30.

2. Selected location must provide adequate clearances for servicing and proper operation of the water heater.

3. Avoid locations that could cause the water heater to freeze from outside air.

4. Avoid locations that expose the water heater to direct sunlight.

5. Keep combustibles such as boxes, magazines, clothes, etc., away from the water heater area.

CAUTION

• Water supply shut-off devices that activate based on

the water pressure differential between the cold water and hot water pipes connected to the water heater.

• Devices that will turn off the gas supply to a gas water

heater while at the same time shutting off its water supply.

EXTERNAL/INTERNAL DAMAGE

Do not operate the water heater until it has been fully checked out by a qualiﬁ ed technician, if the water heater:

• Has been exposed to ﬁ re or damage.

• Displays evidence of sooting.

• Produces steam or unusually hot water.

If the water heater has been ﬂ ooded it must be replaced.

Property Damage Hazard

• All water heaters eventually leak.

• Do not install without adequate drainage.

Installation of the water heater must be accomplished in such a manner that if the tank or any connections should leak, the ﬂ ow of water will not cause damage to the structure. For this reason it is not advisable to install the water heater in an attic or upper ﬂ oor. In all cases, a metal drain pan should be installed under the water heater. Metal drain pans are available at your local hardware store. Such a metal drain pan must have a clearance of at least 1” greater than any point on the water heater’s outer jacket and must be piped to an adequate drain. The pan must have a maximum depth of 1.75” . Water heater life depends upon water quality, water pressure and the environment in which the water heater is installed. Water heaters are sometimes installed in locations where leakage may result in property damage, even with the use of a metal drain pan piped to a drain. However, unanticipated damage can be reduced or prevented by a leak detector or water shut-off device used in conjunction with a piped metal drain pan. These devices are available from some plumbing supply wholesalers and retailers, and detect and react to leakage in various ways:

• Sensors mounted in the metal drain pan that trigger an

alarm or turn off the incoming water to the water heater when leakage is detected.

• Sensors mounted in the metal drain pan that turn off

the water supply to the entire building when water is detected in the metal drain pan.

www. statewaterheaters.com 11

AIR REQUIREMENTS

For safe operation an adequate supply of fresh, uncontaminated air must be provided for combustion. This gas-ﬁ red water heater is a direct vent model. It connects directly to the outside of the building through the vent termination hood. The hood operates as both the combustion air intake and the heater exhaust port (see Figure 16). All combustion air is obtained from outside the building through this hood. Ensure the area around the termination hood is always kept clear and that the air supply is not exposed to contamination or ﬂ ammable vapo rs.

CONFINED SPACE INSTALLATIONS

This water heater connects to the vent termination hood using the sealed air intake and exhaust piping (see Figure 1 and Figure 2). During operation this piping can become hot, especially in areas experiencing high ambient temperatures. When installed in a conﬁ ned space such as a closet, it is recommended that the conﬁ ned space be ventilated to minimize the buildup of heat around the heater. Figure 6 and Figure 7 show an examples of ventilating a conﬁ ned space.

0” MIN.

TOP VIEW

OF CLOSET

WITHOUT DOOR

0” MIN.

5.5” MIN.

TOP VIEW OF

CLOSET WITH

DOOR

0” MIN.

Figure 6

ROOM AIR

FLOW

VENTILATION

AIR

OPENING

Floors With Carpeting

This water heater must not be installed directly on carpeting. Carpeting must be protected by a metal or wood panel beneath the appliance extending beyond the full width and depth of the appliance by at least 3” in every direction, or if the appliance is installed in an alcove or closet, the entire ﬂ oor must be covered by the panel. Failure to heed this warning may result in a ﬁ re hazard.

Clearance For Servicing

Adequate clearance of 24” for servicing this appliance should be considered before installation, such as changing the anodes, etc.

A minimum clearance of 5.5” must be allowed for access to replaceable parts such as thermostats, drain valve and relief valve. When installing the heater, consideration must be given to proper location. Location selected should be as close to the wall as practicable and as centralized with the water piping system as possible.

CHEMICAL VAPO R CORROSION

CORROSION OF THE FLUEWAYS AND VENT SYSTEM MAY OCCUR IF AIR FOR COMBUSTION CONTAINS CERTAIN CHEMICAL VAPO RS. SUCH CORROSION MAY RESULT IN FAILURE AND RISK OF ASPHYXIATION. Spray can propellants, cleaning solvents, refrigerator and air conditioning refrigerants, swimming pool chemicals, calcium and sodium chloride (water softener salt), waxes, and process chemicals are typical compounds which are potentially corrosive. Do not store products of this sort near the heater or the vent termination hood. Air which is brought in contact with the heater or the vent termination hood should not contain any of the chemicals. The Limited Warranty is voided when failure of water heater is due to a corrosive atmosphere. See “Limited Warranty” for complete terms and conditions.

WARNING

ROOM AIR

FRONT VIEW

OF DOOR

Clearances To Combustibles

Minimum clearances between water heater and combustibles are 0” at the sides and rear, 5.5” from the front and 12” from top. Minimum clearances from vent piping to combustibles is 1” except as noted in Figure

FLOW

Figure 7

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this water heater, the vent termination hood, or any other appliance.

• Avoid all ignition sources if you smell gas.

• Do not expose water heater control to excessive gas

pressure.

• Use only gas shown on rating plate.

• Maintain required clearances to combustibles.

• Keep ignition sources away from faucets after extended

period of non-use.

21. If clearances stated on the heater differ from these clearances, install water heater according to clearances stated on the heater (see Figure 6).

12 www. statewaterheaters.com

Fire or Explosion Hazard

Read instruction manual before

installing, using or servicing

water heater.

WARNING

FLAMMABLES

FIRE AND EXPLOSION HAZARD

Can result in serious injury or death

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Storage or use of gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance can result in serious injury or death.

Flammable Vapors

WARNING

Fire Hazard

For continued protection against risk of fire:

• Do not install water heater on carpeted floor.

• Do not operate water heater if flood damaged.

WARNING

Breathing Hazard - Carbon Monoxide Gas

• Install water heater in accordance with the instruction manual and NFPA54.

• To avoid injury, combustion air must be taken from outdoors.

• Do not place chemical vapor emitting products near water heater or near the vent termination hood.

• Do not obstruct the vent termination hood.

The water heater must be located and/or protected so it is not subject to physical damage by a moving vehicle.

Propellants of aerosol sprays and volatile compounds, (cleaners, chlorine based chemicals, refrigerants, etc.) in addition to being highly ﬂ ammable in many cases, will also react to form corrosive hydrochloric acid when exposed to the combustion products of the water heater. The results can be hazardous, and also cause product failure.

INSULATION BLANKETS

Insulation blankets are available to the general public for external use on gas water heaters but are not necessary with these products. The purpose of an insulation blanket is to reduce standby heat loss encountered with storage tank heaters. Your water heater meets or exceeds the current standards with respect to insulation and standby loss requirements, making an insulation blanket unnecessary. Should you choose to apply an insulation blanket to this heater, you should follow these instructions (For identiﬁ cation of components mentioned below, see Figure 1 thru Figure 5). Failure to follow these instructions will restrict the air ﬂ ow required for proper combustion and dilution, potentially resulting in ﬁ re, asphyxiation, serious personal injury or death.

• Check local codes to determine if insulation blankets

are allowed.

• Do not cover the outer door, thermostat or T&P relief

valve.

• Do not cover the “Installation And Operating manual”.

Keep it on the side of the water heater or nearby for future reference.

• Do obtain new warning and instruction labels from the

manufacturer for placement on the blanket directly over the existing labels.

Breathing carbon monoxide can cause brain damage or death.

Always read and understand instruction manual.

STORAGE OF FLAMMABLE LIQUIDS

Flammable liquids (such as gasoline, solvents, propane (LP or butane, etc.) and other substances (such as adhesives, paints, etc.) emit ﬂ ammable vapo rs which can be ignited by a gas water heater’s pilot or main burner. The resulting ﬂ ashback and ﬁ re can cause death or serious burns to anyone in the area. Even though this water heater is a ﬂ ammable vapo rs ignition resistant (FVIR) water heater and is designed to reduce the chances of ﬂ ammable vapo rs being ignited, gasoline and other ﬂ ammable substances should never be stored or used in the same vicinity or area containing a gas water heater, the vent termination hood, or other open ﬂ ame or spark producing appliance. Examples of such locations are garages, storage and utility areas.

www. statewaterheaters.com 13

WATER PIPING

Water Pressure

The water supply pressure should not exceed 80 psi. If this occurs, a pressure reducing valve with a bypass should be installed in the cold water inlet line. This should be placed on the supply to the entire house in order to maintain equal hot and cold water pressures. See also “Closed Water Systems” and “Thermal Expansion” sections.

Mixing Valves

HOT WATER CAN SCALD: Water heaters are intended to heat water. Water heated to a temperature which will satisfy space heating, clothes washing, dish washing, cleaning and other sanitizing needs can scald and permanently injure you upon contact.

Short repeated heating cycles caused by small hot water uses can cause a temperature increase of the hot water by 20F° higher than the heater’s temperature settings.

SUGGESTED PIPING

ARRANGEMENT FOR

TOP CONNECTIONS

MIXING VALVE

TEMPERED POTABLE WATER

SHUT-OFF

VALV E

COLD WATER

INLET

Water temperature over

DANGER

125°F can cause severe burns instantly resulting in severe injury or death.

Children, the elderly and the disabled and are at highest risk of scald injury.

Feel water before bathing or showering.

Temperature limiting devices

HOT

such as mixing must be installed when required by codes and to ensure safe

BURN

temperatures at fixtures.

Some people are more likely to be permanently injured by hot water than others. These include the elderly, children, the inﬁ rm and the physically/mentally disabled. Table 1 (published by U.S. Government Memorandum,

1978) shows the approximate time-to-burn relationship for normal adult skin. If anyone using hot water provided by the water heater being installed ﬁ ts into one of these groups or if there is a local code or state law requiring a certain water temperature at the point of use, then special precautions must be taken (see Figure 8).

CERTAIN

MODELS ARE

EQUIPPED WITH

TEMPERATUREPRESSURE RELIEF VALVE

DISCHARGE PIPE (DO NOT CAP OR PLUG)

GAS SUPPLY

6 ” MAX. AIR GAP*

MASSACHUSETTS: INSTALL A VACUUM RELIEF IN COLD-WATER LINE PER SECTION 19 MGL 142.

SIDE PLUMBING

CONNECTIONS

FOR SPACE HEATING. THE HOT AND COLD FITTING

ASSEMBLIES

(PART #9001262)

CAN BE ORDERED

THROUGH THE

MANUFACTURER

METAL DRAIN

PAN

DRAIN VALV E

Figure 8

Water

Temperature

°F

Time for 1st

Degree Burns

(Less Severe Burns)

Time for Permanent

Burns 2nd & 3rd

Degree (Most

Severe Burns)

110 (normal shower temp.)

116 (pain threshold)

116 35 minutes 45 minutes

122 1 minute 5 minutes

131 5 seconds 25 seconds

140 2 seconds 5 seconds

149 1 second 2 seconds

154 instantaneous 1 seconds

(U.S. Government Memorandum, C.P.S.C., Peter L. Armstrong, Sept. 15,1978)

Table 1

In addition to using lowest possible temperature setting that satisﬁ es demand of application, a mixing valve should be installed at the water heater (see Figure 8) or at hot water taps to further reduce system water temperature. Mixing valves are available at plumbing supply stores. Consult a Qualiﬁ ed Installer or Service Agency. Follow mixing valve manufacturer’s instructions for installation of the valves. Before changing the factory setting on the thermostat, read the “Operating The Temperature Control System” section in this manual.

14 www. statewaterheaters.com

INSTALLING THE NEW WATER HEATER

WATER PIPING INSTALLATION

Note: Water piping and vent piping occupy the space

above the water heater. Plan the water piping to ensure it does not cause interference with the vent piping (see “Venting”).

• The system should be installed only with piping that is

suitable for potable (drinkable) water such as copper, CPVC, or polybutylene. This water heater must not be installed using iron piping or PVC water piping.

• Use only pumps, valves, or ﬁ ttings that are compatible

with potable water.

• It is recommend that only full ﬂ ow ball or gate valves

are used in water piping installations. The use of valves that may cause excessive restriction to water ﬂ ow is not recommended.

• Use only 95/5 tin-antimony or other equivalent solder.

Any lead based solder must not be used.

• Piping that has been treated with chromates, boiler

seal, or other chemicals must not be used.

• Chemicals that may contaminate the potable water

supply must not be added to the piping system. Piping, ﬁ ttings, and valves should be installed according to the installation drawing (see Figure 9). If the indoor installation area is subject to freezing temperatures, the water piping must be protected by insulation. Important: Heat must not be applied to the water ﬁ ttings on the heater as they may contain nonmetallic parts. If solder connections are used, solder the pipe to the adapter before attaching the adapter to the hot and cold water ﬁ ttings. Important: Always use a good grade of joint compound and be certain that all ﬁ ttings are drawn up tight.

1. Install the water piping and ﬁ ttings as shown in Figure

9. Connect the cold water supply (3/4” NPT) to the cold water inlet ﬁ tting. Connect the hot water supply (3/4”

NPT) to the hot water outlet ﬁ tting. Important: These models may contain energy saving heat traps to minimize the migration of heat to the pipes. Do not remove the inserts within the heat traps.

2. The installation of unions in both the hot and cold water

supply lines is recommended for ease of removing the

water heater for service or replacement.

3. If installing the water heater in a closed water system,

install an expansion tank in the cold water line as

speciﬁ ed under “Closed Water Systems” and “Thermal

Expansion”.

4. Install a shut-off valve in the cold water inlet line. It

should be located close to the water heater and be

easily accessible. Know the location of this valve and

how to shut off the water to the heater.

5. After piping has been properly connected to the water

heater, remove the aerator at the nearest hot water

faucet. Open the hot water faucet and allow the tank

to completely ﬁ ll with water. To purge the lines of

any excess air, keep the hot water faucet open for

3 minutes after a constant ﬂ ow of water is obtained.

Close the faucet, reinstall the aerator and check all

connections for leaks. Repair as needed.

HOT WATER

OUTLET

UNION

3/4” SWEAT

FITTING

SOME

COMPONENTS

NOT SHOWN

FOR CLARITY.

SHUT-OFF

VALV E

UNION

EXPANSION

3/4” SWEAT

FITTING

TEMPERATUREPRESSURE RELIEF VALVE

DISCHARGE PIPE (DO NOT CAP OR PLUG)

DRAIN VALV E

6 ” MAX. AIR GAP

FLOOR DRAIN

COLD

WATER

INLET

TANK

METAL DRAIN PAN

Figure 9

Figure 9 shows typical attachment of water piping to the water heater. The water heater is equipped with 3/4” NPT water connections.

CLOSED WATER SYSTEMS

Water supply systems may, because of code requirements or such conditions as high line pressure, among others, have installed devices such as pressure-reducing valves, check valves, and back ﬂ ow preventers. Devices such as these cause the water system to be a closed system.

THERMAL EXPANSION

As water is heated, it expands (thermal expansion). In a closed system, the volume of water will increase when heated. As the volume of water increases, there will be a corresponding increase in water pressure due to thermal expansion. Thermal expansion can cause premature tank failure (leakage). This type of failure is not covered under the limited warranty. Thermal expansion can also cause intermittent temperature-pressure relief valve operation: water discharged from the valve due to excessive pressure build up. The temperature-pressure relief valve is not intended for the constant relief of thermal expansion. This condition is not covered under the limited warranty.

www. statewaterheaters.com 15

A properly-sized and charged thermal expansion tank must

be installed on all closed systems to control the harmful

effects of thermal expansion. Contact a plumbing service

agency or your retail supplier regarding the installation of

a thermal expansion tank.

Note: To protect against untimely corrosion of hot and cold

water ﬁ ttings, it is recommended that di-electric unions or

couplings be installed on this water heater when connected

to copper pipe.

CAUTION

designated opening nor plugged. The T&P valve must be installed directly into the ﬁ tting of the water heater designed for the relief valve. Install discharge piping so that any discharge will exit the pipe within 6 ” above an adequate ﬂ oor drain, or external to the building. In cold climates it is recommended that it be terminated at an adequate drain inside the building. Be certain that no contact is made with any live electrical part.

The discharge opening must not be blocked or reduced in size under any circumstances. Excessive length (over 30’ ), or use of more than four elbows can cause restriction and reduce the discharge capacity of the valve.

Property Damage Hazard

• Avoid water heater damage.

• Install thermal expansion tank if necessary.

• Do not apply heat to cold-water inlet or hot-water outlet.

• Contact qualified installer or service agency.

TEMPERATURE-PRESSURE RELIEF VALVE

WARNING

Explosion Hazard

• Temperature-pressure relief

valve must comply with ANSI Z21.22-CSA4.4 and ASME code.

• Properly sized temperature-

pressure relief valve must be installed in opening provided.

• Do not plug, block, or cap the

discharge line.

• Failure to follow this warning

can result in excessive tank pressure, serious injury or death.

This water heater is provided with a properly rated/sized

and certiﬁ ed combination Temperature-Pressure Relief

Valve (T&P valve) by the manufacturer. The valve is

certiﬁ ed by a nationally recognized testing laboratory

that maintains periodic inspection of production of listed

equipment of materials as meeting the requirements for

Relief Valves for Hot Water Supply Systems, ANSI

Z21.22-CSA 4.4, and the code requirements of ASME.

No valve or other obstruction is to be placed between the T&P valve and the tank. Do not connect discharge piping directly to the drain unless a maximum of 6 ” air gap is provided. To prevent bodily injury, hazard to life, or property damage, the relief valve must be allowed to discharge water in adequate quantities should circumstances demand. If the discharge pipe is not connected to a drain or other suitable means, the water ﬂ ow may cause property damage.

CAUTION

Water Damage Hazard

• Temperature-pressure relief valve discharge pipe

must terminate at an adequate drain.

T&P Valve Discharge Pipe Requirements:

• Shall not be smaller in size than the outlet pipe size

of the valve, or have any reducing couplings or other restrictions.

• Shall not be plugged or blocked.

• Shall not be exposed to freezing temperatures.

• Shall be of material listed for hot water distribution.

• Shall be installed so as to allow complete drainage

of both the temperature-pressure relief valve and the discharge pipe.

• Must terminate a maximum of 6 ” above a ﬂ oor drain

or external to the building. In cold climates, it is recommended that the discharge pipe be terminated at an adequate drain inside the building

• Shall not have any valve or other obstruction between

the relief valve and the drain.

If replaced, the new T&P valve must meet the requirements

of local codes, but not less than a combination temperature-

pressure relief valve rated/sized and certiﬁ ed as indicated

in the above paragraph. The new valve must be marked

with a maximum set pressure not to exceed the marked

hydrostatic working pressure of the water heater (150 psi)

and a discharge capacity not less than the water heater

Btu/hr input rate as shown on the water heater’s model

rating plate.

For safe operation of the water heater, the temperature-

pressure relief valve must not be removed from its

16 www. statewaterheaters.com

DANGER

HOT

BURN

• Burn hazard.

• Hot water discharge.

• Keep clear of

temperature-pressure relief valve discharge.

The T&P valve must be manually operated at least once a year. Caution should be taken to ensure

1. no one is in front of or around the outlet of the

discharge line, and

2. the water manually discharged will not cause any

bodily injury or property damage because the water

may be extremely hot. If after manually operating the valve, it fails to completely reset and continues to release water, immediately close the cold water inlet to the water heater, follow the draining instructions in this manual, and replace the temperaturepressure relief valve with a properly rated/sized new one. Note: The purpose of a temperature-pressure relief valve is to prevent excessive temperatures and pressures in the storage tank. The T&P valve is not intended for the constant relief of thermal expansion. A properly sized thermal expansion tank must be installed on all closed systems to control thermal expansion, see “Closed Water Systems” and “Thermal Expansion” sections.

Temperature-Pressure Relief Valve And Pipe Insulation

The T&P valve installed on this water heater is covered by insulation to minimize heat loss. The insulation has a hole on the bottom side to accommodate the valve outlet and allow for the piping connection. Do not restrict the outlet opening of the T&P valve.

1. Locate the hot water (outlet) and cold water (inlet) pipes to the water heater.

2. Locate the slit running the length of a section of pipe insulation.

3. Spread the slit open and slip the insulation over the cold water (inlet) pipe. Apply gentle pressure along the length of the insulation to ensure that it is fully seated around the pipe. Also, ensure that the base of the insulation is ﬂ ush with the water heater. Once seated, secure the insulation with duct tape, electrical tape, or equivalent.

4. Repeat steps 2 and 3 for the hot water (outlet) pipe.

5. Add additional sections of pipe insulation as needed.

FILLING THE WATER HEATER

CAUTION

Property Damage Hazard

• Avoid water heater damage.

• Fill tank with water before operating.

• Never use this water heater unless it is completely full

of water. To prevent damage to the tank, the tank must be ﬁ lled with water. Water must ﬂ ow from the hot water faucet before turning “ON” gas to the water heater.

T&P Relief Valve Insulation (Outlet opening on underside)

Manual Relief Lever

T&P Relief Valve

T&P Relief Valve Drain Line

Figure 10

Locate the temperature and pressure relief valve on the water heater (also known as a T&P relief valve) (see Figure 10).

1. Locate the slit running the length of the T&P relief valve insulation.

2. Spread the slit open and ﬁ t the insulation over the T&P relief valve (see Figure 10). Apply gentle pressure to the insulation to ensure that it is fully seated on the T&P Relief Valve. Once seated, secure the insulation with duct tape, electrical tape, or equivalent.

Important: The insulation and tape must not block the discharge opening or hinder access to the manual relief lever (Figure 10). Ensure a discharge pipe is installed into the T&P valve discharge opening per the instructions in this manual.

To ﬁ ll the water heater with water:

1. Close the water heater drain valve by turning handle to the right (clockwise). The drain valve is on the lower front of water heater (see Figure 9).

2. Important: If the heater is equipped with plumbing side taps and they are not connected to piping, ensure the side taps have been closed with pipe plugs.

3. Open all hot water faucets served by the water heater to allow air to escape from the tank and the water piping. Ensure any shut-off valves between the heater and the faucets are in the open position.

4. Open the cold water supply valve to the water heater. Notes:

• The cold water supply valve must be left open when

the water heater is in use.

• Avoid water leakage when ﬁ lling the tank. Do not

allow the insulation of the water heater to get wet as water can reduce the effectiveness of the insulation.

5. Allow water to run until a constant ﬂ ow is obtained. This will let air out of the water heater and the piping.

6. Check all water piping and connections for leaks. Repair as needed.

www. statewaterheaters.com 17

SPACE HEATING AND POTABLE WATER SYSTEMS

This appliance has been design certiﬁ ed as complying with American National Standard/CSA Standard for water heaters and are considered suitable for Water (Potable) Heating and Space Heating. Note: This water heater may be used in combination potable water/space heating system. Do not use in a space heating only application.

WARNING

Toxic Chemical Hazard

• Do not connect to non-potable water system.

Note: Ensure the water heater has been properly sized to accommodate the needs of the hot water demand and space heating load. Undersizing the water heater can result in insufﬁ cient hot water, excessive condensation and inefﬁ cient operation.

• This water heater should not be connected to any

heating systems or components previously used with a non-potable water heating appliance.

• All piping components connected to this unit for space

heating applications should be suitable for use with potable water.

• Pumps, valves, piping and ﬁ ttings must be compatible

with potable water.

• Toxic chemicals, such as those used for boiler treatment

shall not be introduced into the potable water used for space heating.

• When the system requires water for space heating at

temperatures higher than required for domestic water purposes, a mixing valve must be installed. Please refer to Figure 8 for suggested piping arrangement.

• Be sure to follow the manual(s) shipped with the air

handler or other type heating system.

• This water heater is not to be used as a replacement

for an existing boiler installation.

• Do not use with piping that has been treated with

chromates, boiler seal or other chemicals and do not add any chemicals to the water heater piping.

• A properly installed ﬂ ow control valve is required to

prevent thermosiphoning. Thermosiphoning is the result of a continuous ﬂ ow of water through the air handler circuit during the off cycle. Weeping (blow off) of the temperature-pressure relief valve (T&P) or higher than normal water temperatures are the ﬁ rst signs of thermosiphoning.

• The hot water line from the water heater should be

vertical past any mixing valve or supply line to the heating system to remove air bubbles from the system.

18 www. statewaterheaters.com

COMBO HEATING

This section serves as a guide for the installation and use of “Combo” heating systems utilizing a domestic water heater that has been speciﬁ cally approved for such use. It is written for those knowledgeable in the required trades and professionals involved in the design and installation of Combo Heating Systems. It is the responsibility of the installer/designer to follow all applicable codes to ensure the effectiveness and safety of the installation.

System Requirements

The following requirements must be met for the installation of Combo Heating Systems:

1. All components used for the distribution of water in the heating loop must be suitable for potable water. These include all piping, ﬁ ttings, solder and ﬂ uxes, pumps for circulation of water, valves, etc.

2. The water heater must not be connected to a hydronic heating system that has been used previously.

3. No boiler treatment chemicals of any kind shall be introduced into the system.

4. The Combo System components must be selected and sized to meet and maintain the total calculated demands for both domestic service hot water and space heating requirement. The sizing and installation must be performed in accordance with good engineering practice such as “ASHRAE

Handbooks”, HRAI’s Uniﬁ ed Combo Guidelines, “Hydronics Institute Manuals”, ANSI Z223.1, CSA F280, National/Provincial Building Codes, ANSI

and/or codes having jurisdiction.

5. The air handler (fan coil) and/or the circulating pump in a baseboard hydronic loop will require a dedicated 120V circuit. This must be provided and identiﬁ ed for this purpose.

6. All piping between the water heater and the air handler or hydronic baseboard loop must be adequately insulated to reduce heat loss.

7. If the local jurisdiction requires a back-ﬂ ow preventer in the cold water line, an expansion tank of adequate size must be installed.

8. “Combo” Heating Systems require higher water temperatures than other applications. When the system is used to supply water for Combo Heating applications, a means, such as mixing valve, must be installed to temper the water in order to reduce scald hazard potential (see Figure 11 & Figure 12).

Installation

The heating mode may be one of the following options: A. A fan coil/air handler (Figure 11). B. A hydronic baseboard (ﬁ nned tube) loop/In ﬂ oor heating

(Figure 12). The following is a list of requirements for the installation of option A or B.

1. Install shut-off valves and unions so that the water

heater can be isolated from the heating module should servicing of the water heater become necessary.

2. Install a drain valve at the lowest point of the heating loop so that water can be drained from the heating module without affecting the water heater.

3. If the air handler does not have a venting means at the highest point of the piping arrangement, install an air bleed at the highest point of the plumbing arrangement.

HOT WATER

TO HOUSE

FIXTURE

8 in TO

12 in MAX.

HOT

OUTLET

EXPANSION TANK (OPTIONAL)

COLD SUPPLY

CHECK VALVE (IF USED REQUIRES EXPANSION TANK)

MIXING

VALV E

C H

WATER

HEATER

COLD INLET

FLOW CONTROL

AIR

HANDLER

CHECK VALV E

HOSE BIB

(OPT.)

SUPPLY

(see also

Massachusetts

code requirements

on pg 8)

EXTERNAL CIRCULATOR

RETURN

DRAIN/ PURGE VALV E

INTERNAL

CIRCULATOR

Figure 11

HOT WATER

TO HOUSE

FIXTURE

8 in TO

12 in MAX.

HOT

OUTLET

EXPANSION TANK (OPTIONAL)

COLD SUPPLY

CHECK VALVE (IF USED REQUIRES EXPANSION TANK)

MIXING

VALV E

C H

WATER

HEATER

COLD INLET

FLOW CONTROL

CHECK VALV E

HOSE BIB

(OPT.)

SUPPLY

(see also

Massachusetts

code requirements

on pg 8)

EXTERNAL CIRCULATOR

RETURN

HYDRONIC

BASEBOARDS

(SERIES

CONNECTED

SHOWN)

Figure 12

www. statewaterheaters.com 19

GAS PIPING

WARNING

Fire and Explosion Hazard

• Do not use water heater with

any gas other than the gas shown on the rating plate.

• Excessive pressure to gas control valve can cause serious injury or death.

• Turn off gas lines during installation.

• Contact qualified installer or service agency.

WARNING

Explosion Hazard

Have a qualified technician make sure that the L.P. gas operating pressure does not exceed 13" water column.

Failure to do so can result in death, explosion, or fire.

Make sure the gas supplied is the same type listed on the model rating plate. The inlet gas pressure must not exceed 13 inch w.c. for natural gas and propane (LP) gas. The minimum inlet gas pressure shown on the rating plate is that which will permit ﬁ ring at rated input. All gas piping must comply with local codes and ordinances or with the “National Fuel Gas Code” (ANSI Z223.1/NFPA

54). Copper or brass tubing and ﬁ ttings (except that which is certiﬁ ed for gas usage) should not be used. If the gas control valve/thermostat is subjected to pressures exceeding 1/2 psi (14 inch w.c.), the damage to the gas control valve/thermostat could result in a ﬁ re or explosion from leaking gas.

There must be:

• A readily accessible manual shut-off valve in the gas

supply line serving the water heater, and

• A sediment trap ahead of gas control valve/thermostat

to help prevent dirt and foreign materials from entering the gas control valve/thermostat.

• A ﬂ exible gas connector or a ground joint union between

the manual gas shut-off valve and gas control valve/ thermostat to permit servicing of the unit.

Be sure to check all the gas piping for leaks before lighting the water heater. Use a soapy water solution, not a match or open ﬂ ame. Repair and retest as required. When ﬁ nished, rinse off soapy solution and wipe dry.

WARNING

Fire and Explosion Hazard

• Use joint compound or tape

compatible with propane.

• Leak test before operating heater.

• Disconnect gas piping and shut-off valve before pressure testing system.

Use pipe joint compound or Teﬂ on tape marked as being resistant to the action of gases.

The appliance and its gas connection must be leak tested before placing the appliance in operation.

The appliance and its individual manual gas shut-off valve should be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psi. It should be isolated from the gas supply piping system by closing its individual manual gas shut-off valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psi.

Connecting gas piping to the gas control valve/thermostat of water heater can be accomplished by either of two methods shown in Figure 13 & Figure 14.

If the main gas line shut-off serving all gas appliances is used, also turn “OFF” the gas at each appliance. Leave all gas appliances shut “OFF” until the water heater installation is complete.

A gas line of sufﬁ cient size must be run to the water heater. Consult the current edition of the “National Fuel Gas Code” (ANSI Z223.1/NFPA 54) and your gas supplier concerning pipe size.

20 www. statewaterheaters.com

GROUND

JOINT

UNION

(OPTIONAL)

3”

MIN.

CERTIFIED GAS

SUPPLY FLEX PIPE

(PROPERLY SIZED FOR THE HEATER

SEDIMENT

TRAP

CAP

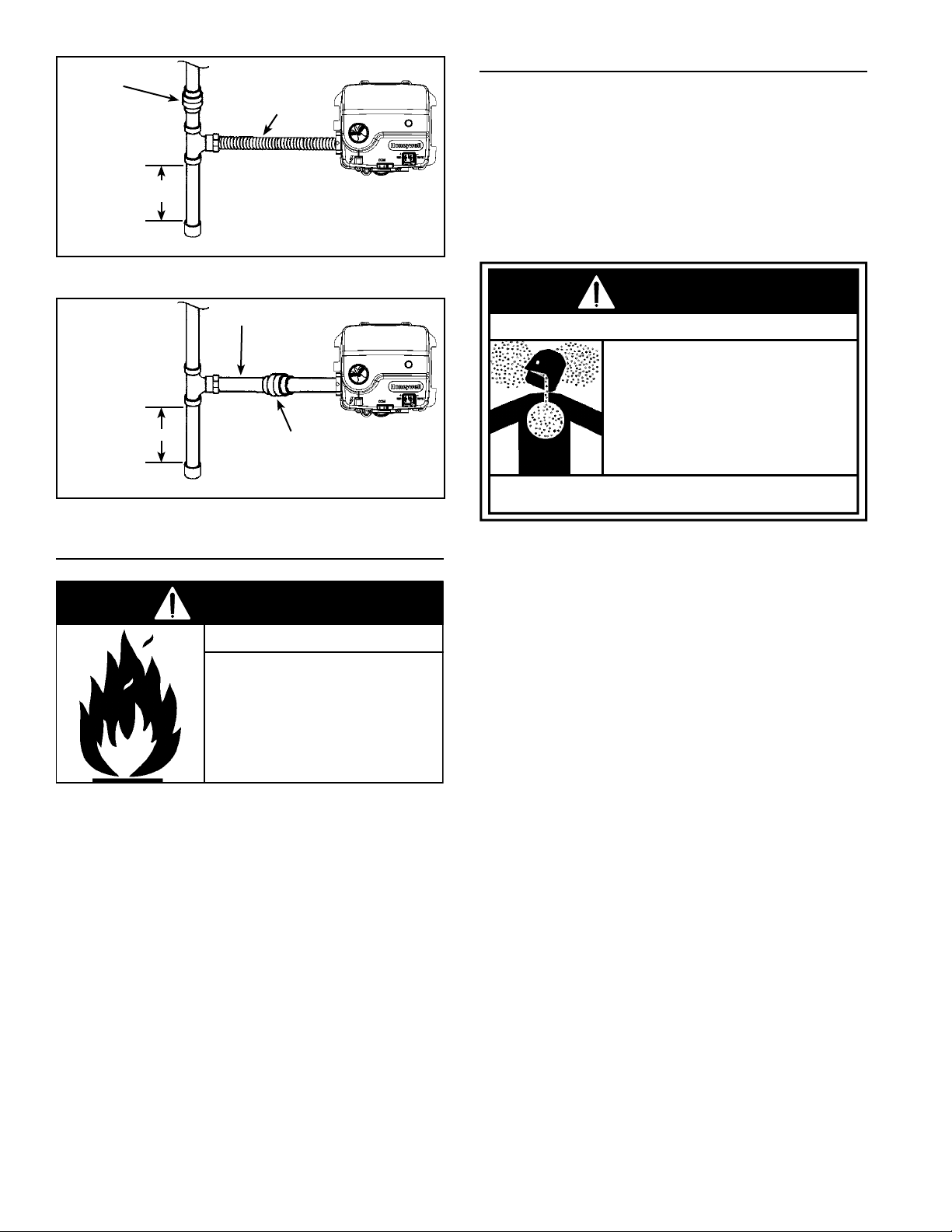

Figure 13

BLACK PIPE

INPUT RATE)

GAS

CONTROL

VALV E

HIGH ALTITUDE INSTALLATIONS

Installations above 7,700’ . require replacement of the burner oriﬁ ce in accordance with the current edition of the “National Fuel Gas Code” (ANSI Z223.1/NFPA 54). Failure to replace the oriﬁ ce could result in improper and inefﬁ cient operation of the appliance, producing carbon monoxide gas in excess of safe limits, which could result in serious personal injury or death. Contact your gas supplier for any speciﬁ c changes which may be required in your area.

WARNING

Breathing Hazard - Carbon Monoxide Gas

• High altitude orifice must be

installed for operation above 7,700 ft.

3” MIN.

SEDIMENT

CAP

TRAP

GROUND

JOINT

UNION

(OPTIONAL)

GAS

CONTROL

VALV E

Figure 14

SEDIMENT TRAP

WARNING

Fire and Explosion Hazard

• Contaminants in gas lines can

cause fire or explosion.

• Clean all gas piping before installation.

• Install sediment trap in accordance with NFPA54.

A sediment trap should be installed as close to the inlet of the water heater as practical at the time of water heater installation. The sediment trap should be either a tee ﬁ tting with a capped nipple in the bottom outlet or other device recognized as an effective sediment trap. If a tee ﬁ tting is used, it should be installed in conformance with one of the methods of installation shown in Figure 13 & Figure 14. Contaminants in the gas lines may cause improper operation of the gas control valve/thermostat that may result in ﬁ re or explosion. Before attaching the gas line be sure that all gas pipe is clean on the inside. To trap any dirt or foreign material in the gas supply line, a sediment trap (sometimes called a dirt leg) must be incorporated in the piping. The sediment trap must be readily accessible. Install in accordance with the “Gas Piping” section. Refer to the current edition of the “National Fuel Gas Code” (ANSI Z223.1/NFPA 54) .

• Contact a qualified installer or service agency.

Breathing carbon monoxide can cause brain damage or death.

Always read and understand instruction manual.

www. statewaterheaters.com 21

VENTING

This direct vent water heater uses a sealed venting system to supply fresh combustion air to the heater and to exhaust the products of combustion (ﬂ ue gases) to the outdoors. The venting is a “pipe in a pipe” system. The inner (3”) piping carries out the exhaust ﬂ ue gases while the outer (6”) piping carries in fresh combustion air. The corrugated end of the vent piping connects to the top of the water heater and the opposite end connects to the vent termination hood which will be mounted on the exterior wall (see Figure 16). Figure 16 shows the hot exhaust gas exit and the location of the combustion air intake. Figure 19 thru Figure 26 show how to assemble and connect the venting system. Figure 28 thru Figure 30 show various installation options.

DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPO RS AND LIQUIDS IN THE VICINITY OF THE VENT TERMINATION HOOD.

WARNING

Breathing Hazard - Carbon Monoxide Gas

• Install vent system In accordance with codes.

• Do not operate water heater if flood damaged.

• Install water heater in accordance with the

instruction manual.

• Do not operate if soot buildup is present.

• Do not obstruct water heater air intake.

• Do not place chemical vapor emitting products near

water heater or vent terminal hood.

• Gas and carbon monoxide detectors are available.

• Never operate the heater unless it is vented to the

outdoors and has adequate air supply to avoid risks of improper operation, fire, explosion or asphyxiation.

• Analyze the entire vent system to make sure that condensate will not become trapped in a section of vent pipe and therefore reduce the open cross sectional area of the vent.

• Chemical corrosion of flue and vent system can cause serious injury or death.

Breathing carbon monoxide can cause brain damage or death.

Always read and understand instruction manual.

NEVER OPERATE THE WATER HEATER UNLESS IT IS VENTED TO THE OUTDOORS AND HAS ADEQUATE AIR SUPPLY TO AVOID RISKS OF IMPROPER OPERATION, FIRE, EXPLOSION OR ASPHYXIATION.

DO NOT OBSTRUCT THE FLOW OF COMBUSTION AND VENTILATING AIR. ADEQUATE AIR FOR COMBUSTION AND VENTILATION MUST BE PROVIDED FOR SAFE OPERATION.

*Minimum 9 in. to a window or door that may be opened

Minimum 12 in.

from soffit

**Minimum

18 in.

from outside

corner

VENT TERMINAL CLEARANCES

The vent system must terminate so that proper clearances are maintained as cited in local codes or the current edition of the “National Fuel Gas Code”, ANSI Z223.1/NFPA 54 as follows:

**Minimum 12 in.

Minimum 12 in. above grade or

anticipated snow

level

** Or as required by local authorities.

Minimum

3 ft.

clearance to a

service regulator

vent outlet

Minimum 12 in.

under veranda, porch,

deck or balcony

(see footnote 1)

Minimum

3 ft.

above if within

10 ft.

horizontally to

a mechanical air

supply inlet

Minimum 9 in. to a non mechanical air supply inlet

into building or combustion air inlet to another appliance

VENT TERMINAL AIR SUPPLY INLET

1. Permitted only if veranda, porch, deck or balcony is fully opened on a minimum of two sides beneath the floor.

2. A vent shall not terminate above a sidewalk or paved driveway that is located between two single family dwellings and serves both dwellings.

AREA WHERE TERMINAL IS NOT PERMITTED

Figure 15

22 www. statewaterheaters.com

FRESH

COMBUSTION

AIR IN

HOT EXHAUST GAS OUT

Figure 18

VENT CONNECTIONS

After the location for the vent terminal has been selected as outlined in Figure 6 & Figure 15, use the following illustrations for installation:

SCREW

Figure 16

Be sure venting is properly connected to prevent escape of dangerous flue gases which could cause deadly asphyxiation.

DV TERMINATION SAFETY COVER

When the heater is in operation the vent termination hood will be hot (see Figure 16).

A Safety cover (see Figure 17) is available to prevent accidental contact with the vent terminal. Contact your Customer Service Department for ordering information.

LOCATING CLEARANCE HOLE FOR VENT

Cut a clearance hole, approximately 7” in diameter, through the exterior wall for the vent assembly. The recommended height is 64” for 40 gal. models, 73” for 50 gal. models and 74” for 50 gal. Hi-Input models, as measured from the hole center to bottom of water heater. Where the wall is combustible and the wall thickness is over 14” , 1” clearance to combustible surfaces around the vent terminal is needed. The ﬁ rst 14” is zero clearance (see Figure 21).

STANDARD VENT ARRANGEMENT

* If the horizontal length of the venting is less than 30” the restricter plate must be installed (see Figure 22, Figure 28 thru Figure 30).

• Do not use the restricter plate in an offset installation

(see Figure 26).

• Do not use the restricter plate the horizontal length of

the venting is greater than 30” . Note: The length of “unstretched” corrugated tube could cause the length of the vent run to exceed the minimum. In this case cut off a piece of the corrugated tube to achieve the 17” minimum vent length.

Figure 17

Alternatively, a wire mesh or louvered fencing guard can be built around the termination as shown in Figure 18.

www. statewaterheaters.com 23

VENT ASSEMBLY

The vent piping and the vent termination hood are to be connected as shown in Figure 20. Maintain vent clearances to combustibles as shown in Figure 21. Depending on your access to where the vent termination passes through the wall, you may wish to connect the piping and vent termination hood together ﬁ rst. Inside the vent piping there are springs that hold the two corrugated pipes in position. When the pipes are stretched to the required length, the springs will remain properly spaced. To connect the vent piping to the vent termination hood, ﬁ rst slide the inner (3”) corrugated pipe over the inner vent termination pipe. Continue this action until the locking clip on the corrugated pipe snaps into position in the corresponding groove (see Figure 19). Secure corrugated pipe with screw (supplied) inserted through hole opposite the locking clip. Repeat this process with the outer (6”) corrugated pipe and lock it into position on the outer pipe on the vent termination (see Figure 19). Secure corrugated pipe with screw (supplied) inserted through hole opposite the locking clip. Note: To reduce the friction between the corrugated pipe and the O-rings, it is recommended to dampen the O-rings with water. The completed connection is shown in Figure 20.

OUTER

CORRUGATED

PIPE

LOCKING

CLIP

INNER VENT

TERMINATION PIPE

O-RING

OUTER VENT

TERMINATION PIPE

junction of the vent terminal base plate and the exterior wall with exterior type sealant (not included). Slide the trim plate (inside) over the outer corrugated tube and fasten the trim plate to the interior wall. Caulk the junction of the outer corrugated tube and the trim plate (inside) with suitable sealant. The vent termination hood attaches to the vent piping as shown in Figure 20.

1”

CLEARANCE

SPRING

CUTAWAY TO

SHOW SPRING

PLACEMENT

TRIM PLATE

(INSIDE)

SEALANT

APPLY

14” ZERO

CLEARANCE

TRIM PLATE

(OUTSIDE)

APPLY

SEALANT

Figure 21

VENT RESTRICTER PLATE

The vent restricter plate (see Figure 22) is required for short horizontal runs on low vent installations (see Figure

29) and high vent installations (see Figure 30). For short horizontal vent runs (see Figure 29) place the restricter plate over the ﬂ ue tube reducer before connecting the inner corrugated tube to the ﬂ ue tube reducer. DO NOT use the restricter plate if the horizontal run is greater than 30” . For high vertical runs use the restricter plate only when the vertical run of the venting above the heater is greater than 48” (see Figure 30).

INNER

CORRUGATED PIPE

LOCKING CLIP

GROOVE

Figure 19

SCREW

Figure 20

SECURING VENT TERMINATION ASSEMBLY TO THE EXTERIOR WALL

Some models are supplied with trim plates which may be used to cover the holes in the wall (see Figure 1 and Figure 21). Slide one trim plate (if supplied) over the outer corrugated tube, then insert the outer corrugated tube through the clearance hole from exterior wall. Secure the trim plate to the exterior wall, then secure the vent terminal to the exterior wall with 4 screw anchors (included) appropriate for the type of wall construction. Caulk the

FLUE TUBE REDUCER

UPPER AIR INLET BOX

RESTRICTER PLATE

Figure 22

UNCOMPRESSING THE CORRUGATED TUBING

1. Pull the inner corrugated tube towards the water heater and leave some length over the water heater’s center for bending (see Figure 23).

2. Pull the outer corrugated tube toward the water heater and leave it 2” shorter than the inner corrugated tube.

3. Make sure there are two springs evenly spaced at the bend in the tube.

4. Use metal hangers to keep venting level or with a slope upward from the heater to terminal.

24 www. statewaterheaters.com

OUTER

CORRUGATED PIPE

INNER

CORRUGATED

PIPE

RESTRICTER

PLATE

FLUE TUBE

REDUCER

APPLY

SILICONE

SMOOTH,

EASY CURVE

APPLY

SILICONE

TO AIRBOX

BEFORE

ATTACHING

PIPING

SECURE

WITH A

SHEET METAL

SCREW

GEAR

CLAMP

Figure 23

VENT CONNECTION TO THE WATER HEATER

Bend both the corrugated pipes toward the ﬂ ue connection on the water heater. Pull and connect the inner corrugated pipe to the water heater’s ﬂ ue tube reducer with hi-temp red silicone (included) and gear clamp. Make sure this connection is tight and leak proof (see Figure 24). *The sealant between the inner corrugated pipe and water heater’s ﬂ ue tube reducer must be hi-temp red silicone or other material suitable for 600°F continuous service.

Note: If you are using the vent restricter plate, the inner vent pipe is to go over the side legs and down the stops.

SMOOTH,

EASY CURVE

RESTRICTER PLATE STOP

CUTAWAY TO

SHOW DETAILS

GEAR

CLAMP

Figure 25

OFFSET VENT ARRANGEMENT

Where a straight vent arrangement is impossible, a horizontal 90° maximum bend can be made. Use the water heater casing outer diameter as a template to form the corrugated tube.

SMOOTH,

EASY CURVE

90°

MAXIMUM

BEND

Figure 26

Figure 24

Apply hi-temp red silicone (included) around the collar on air manifold box. Pull the outer corrugated pipe all the way on to collar and secure with the gear clamp. Pull the free end of the corrugated pipe past the gear clamp and secure with one sheet metal screw (see Figure 25).

Figure 27

Note: To ensure good exhaust gas ﬂ ow, bend vent piping

using a smooth, easy curve as shown in Figure 24 thru Figure 26. Do not use reverse or compound curves as shown in Figure 27.

www. statewaterheaters.com 25

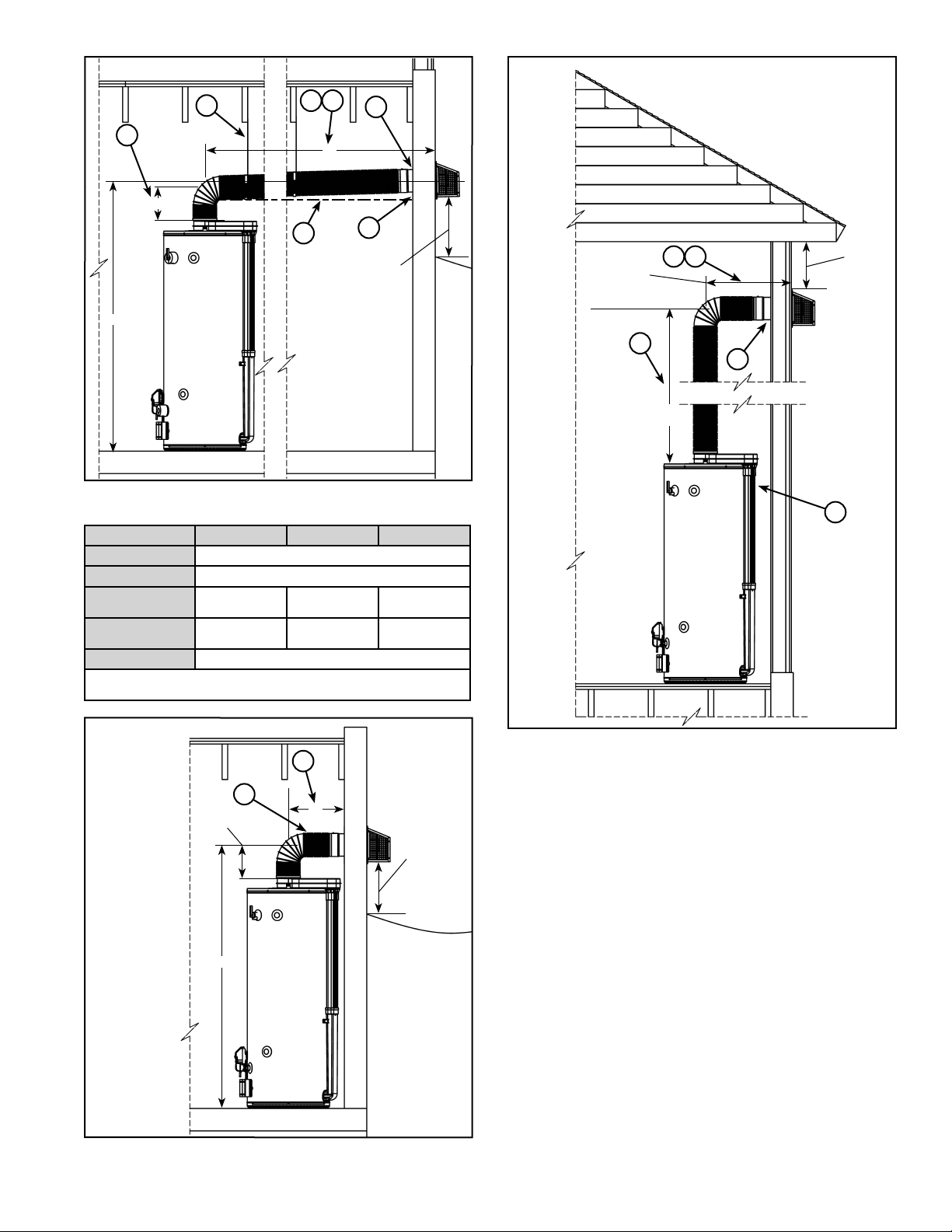

Low Vent installation

High Vent installation

ABOVE

ANTICIPATED

SNOW

LEVEL OR

12” ABOVE

GRADE

Figure 28

DIM. 4038 5040 5047

A 80” MAX.

B 9” MIN.

(RECOMMENDED)

(MINIMUM)

D 14.25” MIN.

NOTE: Dimension “C” is the height above to ﬂ oor to the center of the termination hole through the exterior wall.

63.63” 73.00” 74.00”

60.75 69.50 70.50

17”

MIN.

72”

MAX.

12” MIN.

BELOW SOFFIT

Minimum Vent installation

9”

Figure 29

Figure 30

NOTES: (applies to Figure 28 thru Figure 30)

1. In any installation the total of dimension “A” plus

ABOVE

ANTICIPATED

SNOW

LEVEL OR

12” ABOVE

GRADE

dimension “B” must not exceed 89” .

2. This heater can be installed with 0” clearance to a wall.

3. Minimum vent pipe clearance to combustibles is 1” (see Figure 21).

4. Minimum distance from center of heater to wall is

14.25” .

5. Dimension “A” includes wall thickness.

6. Hole diameter in wall is 7” .

7. Venting must slope up away from the heater a minimum of 0.25” per foot of length to prevent condensation from collecting and to provide sufﬁ cient draft.

8. Distance above horizontal at full extension is 2” .

9. Use support stays to hold the venting to avoid sags or valleys.

26 www. statewaterheaters.com

INSTALLATION CHECKLIST

Note: Use and complete this checklist before lighting the heater. Correct any conditions that do not meet these instructions.

Water Heater Location

Centrally located with the water piping system.



Located as close to gas piping and vent pipe system as possible.

Located indoors and in a vertical position. Protected



from freezing temperatures.

Proper clearances from combustible surfaces



maintained and not installed directly on a carpeted floor.

Provisions made to protect the area from water



damage. Metal drain pan installed and piped to an adequate drain.

Installation area free of corrosive elements, flammable



material and flammable vapo r emitting products.

Sufficient room to service the water heater.



Gas Supply and Piping

Gas supply is the same type as listed on the water



heater data plate.

Gas line equipped with shut-off valve, union and



sediment trap.

Adequate pipe size and of approved material.



Approved pipe joint compound or tape used.



Chloride-free soap and water solution or other



approved means used to check all connections and fittings for possible gas leaks.

Vent Termination Hood

Securely fastened to exterior wall.



Above anticipated snow level or 12” above grade.



Proper clearances from windows, doors, corners,



other vent openings etc.

Area around vent termination hood clear and



unobstructed.

No flammable vapo r emitting products stored nearby.



Safety covers in place (when applicable).



Water System Piping

Temperature-Pressure relief valve properly installed



with a discharge line run to an open drain and protected from freezing.

All piping properly installed and free of leaks.



Heater completely filled with water.



Closed system pressure build-up precautions installed.



Mixing valve installed (when applicable).



After all actions on checklist are checked/

completed, read the Lighting Instructions and

proceed with lighting the heater.

Vent Pipe System

Evenly stretched out between water heater and vent



termination hood.

Smooth bend with adequate support to prevent



sagging, 0.25” per foot .

Inside pipe (3”) and outside pipe (6”) securely



fastened to vent termination hood.

Vent restricter plate installed on heater flue outlet as



applicable.

Inside pipe (3”) and outside pipe (6”) securely fastened



to water heater with silicone and gear clamps.

Not obstructed in any way.



www. statewaterheaters.com 27

LIGHTING INSTRUCTIONS

FOR YOUR SAFETY READ BEFORE LIGHTING

WARNING: If you do not follow these instructions exactly, a fire or explosion may

result causing property damage, personal injury or loss of life.

BEFORE LIGHTING: ENTIRE SYSTEM MUST BE FILLED

WITH WATER AND AIR PURGED FROM ALL LINES

A. This appliance has a pilot which is lit by a piezoelectric spark gas ignition system. Do not open the inner door

of the appliance and try to light the pilot by hand.

B. BEFORE LIGHTING smell all around the appliance area for gas. Be sure to smell next to the floor because

some gas is heavier than air and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.

• If you cannot reach your gas supplier, call the fire department. C. Use only your hand to push in or turn the gas control knob. Never use tools. If the knob will not push in or

turn by hand, don't try to repair it, call a qualified service technician. Force or attempted repair may result in a fire or explosion.

D. Do not use this appliance if any part has been under water. Immediately contact a qualified installer or service

agency to replace a flooded water heater. Do not attempt to repair the unit! It must be replaced!

LIGHTING INSTRUCTIONS

Gas Control & Temperature Knob

Status Light

Igniter Button

FIGURE 'A'

120°F

Mark

FIGURE 'B'

120°F

Mark

FIGURE 'C'

120°F

Mark

Pilot Flame

FIGURE 'D'

FLAMMABLE

Main Burner

"OFF" POSITION

GAS CONTROL

"PILOT" POSITION

CONTROL KNOB

"ON" POSITION

Thermopile

1. STOP! It is imperative that you read all safety warnings before lighting the pilot.

2. Turn the gas control/temperature knob counterclockwise to the "OFF" position.

3. Wait ten (10) minutes to clear out any gas. If you then smell gas, STOP! Follow “ B” in the safety information above on this label. If you do not smell gas, go to the next step.

4. Turn the gas control/temperature knob clockwise to “PILOT”. See Figure ‘B’.

5. Press the gas control/temperature knob all the way in and hold it in. The knob should travel in about 1/4 inch if it is set to "PILOT" correctly. While holding the gas control/temperature knob in, click the igniter button continuously (about once a second) for up to 90 seconds or until status light begins to blink. The pilot flame should envelop the thermopile. See Figure ‘D’.

6. When the status light starts blinking, release the gas control/temperature knob. Set the gas control/temperature knob to the desired setting. See Figure ‘C’.

• If the status light does not start blinking within 90 seconds, repeat steps 2 through 5 up to THREE (3) times, waiting 10 minutes between lighting attempts.

• The circuitry in this advanced gas valve requires that you wait 10 minutes between lighting attempts.

• If the status light turns a solid color, release the gas control/temperature knob and repeat steps 2 through 5 (waiting 10 minutes before attempting to relight the pilot). If the status light does not start blinking after three lighting attempts, turn the gas control/temperature knob to the "OFF" position and call a qualified service technician or your gas supplier.

DANGER: Hotter water increases the risk of scald injury. Consult the instruction manual before

DANGER: changing the temperature setting.

Refer to the Lighting Instructions in the Installation Manual for more detailed troubleshooting information.

TO TURN OFF GAS TO APPLIANCE

1. Turn the gas control/temperature knob counterclockwise to the "OFF" position. The status light will stop blinking and stay on for a short time after the water heater is turned off. See Figure ‘A’.

28 www. statewaterheaters.com

329352-000

TEMPERATURE REGULATION

Temperature Adjustment

Valves for reducing the point-of-use temperature by mixing cold and hot water are available (see Figure 8). Also available are inexpensive devices that attach to faucets to limit hot water temperatures. Contact a licensed plumber or the local plumbing authority. Note: During low demand periods, a lower thermostat setting will reduce energy losses and may satisfy your normal hot water needs. If hot water use is expected to be more than normal, a higher thermostat setting may be required to meet the increased demand. When leaving your home for extended periods (e.g., vacations etc.) turn the temperature dial to its lowest setting. This will maintain the water at low temperatures with minimum energy losses and prevent the tank from freezing during cold weather.

GAS CONTROL VALVE/THERMOSTAT SETTINGS

GAS CONTROL/ TEMPERATURE KNOB

STATUS LIGHT

120°F MARK

130°F MARK

140°F MARK

150°F MARK

155°F MARK

Important: Adjusting the thermostat past the 120°F mark on the temperature dial will increase the risk of scald injury. Hot water can produce ﬁ rst degree burns within:

Water

Temperature

°F

110 (normal shower temp.)

116 (pain threshold)

116 35 minutes 45 minutes

122 1 minute 5 minutes

131 5 seconds 25 seconds

140 2 seconds 5 seconds

149 1 second 2 seconds

154 instantaneous 1 seconds

(U.S. Government Memorandum, C.P.S.C., Peter L. Armstrong, Sept. 15,1978)

Time for 1st

Degree Burns

(Less Severe Burns)

Time for Permanent

Burns 2nd & 3rd

Degree (Most

Severe Burns)

Table 2

Should overheating occur or the gas supply fail to shut off, turn “OFF” the manual gas shut-off valve to the appliance (see Figure 1, item 18).

OPERATING THE TEMPERATURE CONTROL SYSTEM

Water Temperature Adjustment

The water temperature setting can be adjusted from 91°F to 155°F . Turn the Gas Control Valve/Temperature Knob to the desired setting/temperature. Note: The temperatures indicated are approximates. The actual temperature of the heated water may vary.

Operating Modes And Settings

Standard Mode - The controller adjusts the water heater to maintain the temperature set by the user.

91°F MARK

Setting for vacation - The “LOW” position sets the controller at approximately 91°F . This setting is recommended for

IGNITER

Figure 31

The thermostat is adjusted to the “OFF” position when it is shipped from the factory. Water temperature can be

times when the water heater will not be in use for an extended period of time. It effectively turns the controller temperature setting down to a temperature that prevents the water in the water heater from freezing while still conserving energy.

regulated by moving the temperature dial to the preferred setting. The preferred starting point is 120°F at the “HOT” setting. Align the knob with the desired water temperature as shown in Figure 31. There is a hot water scald potential if the thermostat is set too high. Note: Temperatures shown on the gas control valve/ thermostat are approximates. The actual temperature of the heated water may vary.

www. statewaterheaters.com 29

FOR YOUR INFORMATION

EXTERNAL DAMAGE

Do not operate the water heater until it has been fully checked out by a qualiﬁ ed technician, if the water heater:

• Has been exposed to ﬁ re or damage.

• Displays evidence of sooting.

• Produces steam or unusually hot water.

If the water heater has been ﬂ ooded it must be replaced.

START UP CONDITIONS

NEVER OPERATE THE HEATER WITHOUT FIRST BEING CERTAIN IT IS FILLED WITH WATER AND A TEMPERATURE AND PRESSURE RELIEF VALVE IS INSTALLED IN THE RELIEF VALVE OPENING OF THE HEATER. DO NOT ATTEMPT TO OPERATE HEATER WITH COLD WATER INLET VALVE CLOSED.

Condensate

Whenever the water heater is ﬁ lled with cold water, some condensate will form while the burner is on. A water heater may appear to be leaking when in fact the water is condensate. This usually happens when: a. A new water heater is ﬁ lled with cold water for the

ﬁ rst time.

b. Burning gas produces water vapo r in water heaters,

particularly high efficiency models where flue temperatures are lower.

c. Large amounts of hot water are used in a short time

and the reﬁ ll water in the tank is very cold.

Moisture from the products of combustion condense on the cooler tank surfaces and form drops of water which may fall onto the burner or other hot surfaces to produce a “sizzling” or “frying” noise.

Because of the suddenness and amount of water, condensate water may be diagnosed as a “tank leak”. After the water in the tank warms up (about 1-2 hours), the condition should disappear.

Do not assume the water heater is leaking until there has been enough time for the water in the tank to warm up.

An undersized water heater will cause more condensation. The water heater must be sized properly to meet the family’s demands for hot water including dishwashers, washing machines and shower heads.

Smoke/Odo r

It is not uncommon to experience a small amount of smoke and odo r during the initial start-up. This is due to burning off of oil from metal parts, and will disappear in a short while.

THERMAL EXPANSION

Water supply systems may, because of such events as high line pressure, frequent cut-offs, the effects of water hammer among others, have installed devices such as pressure reducing valves, check valves, back ﬂ ow preventers, etc. to control these types of problems. When these devices are not equipped with an internal by-pass, and no other measures are taken, the devices cause the water system to be closed. As water is heated, it expands (thermal expansion) and closed systems do not allow for the expansion of heated water.

As water is heated, it expands (thermal expansion). As the volume of water increases, there will be a corresponding increase in water pressure due to thermal expansion. Thermal expansion can cause premature tank failure (leakage). This type of failure is not covered under the limited warranty. Thermal expansion can also cause intermittent temperature-pressure relief valve operation: water discharged from the valve due to excessive pressure build up. The temperature-pressure relief valve is not intended for the constant relief of thermal expansion. This condition is not covered under the limited warranty.

A properly-sized thermal expansion tank should be installed on all closed systems to control the harmful effects of thermal expansion. Contact a plumbing service agency or your retail supplier regarding the installation of a thermal expansion tank.

Excessive condensate may be noticed during the winter and early spring months when incoming water temperatures are at their lowest.

Good venting is essential for a gas ﬁ red water heater to operate properly as well as to carry away products of combustion and water vapo r.

30 www. statewaterheaters.com

STRANGE SOUNDS

Possible noises due to expansion and contraction of some metal parts during periods of heat-up and cool-down do not necessarily represent harmful or dangerous conditions.

Condensation causes sizzling and popping within the burner area during heating and cooling periods and should be considered normal. See “Condensate” in this section.

Sediment collecting over time in the bottom of the tank can result in “rumbling” or “percolating” sounds. Follow the directions given in “Draining, Reﬁ lling And Flushing”.

OPERATIONAL CONDITIONS

Smelly Water

In each water heater there is installed at least one anode rod (see Figure 1, item 22) for corrosion protection of the tank. Some models will have an additional anode which is connected to the hot water outlet nipple (see Figure 1, item 23). Certain water conditions will cause a reaction between the anode rod and the water. The most common complaint associated with the anode rod is one of a “rotten egg smell” in the hot water. The smell is a result of four factors which must all be present for the odo r to develop:

“Air” In Hot Water Faucets

HYDROGEN GAS: Hydrogen gas can be produced in a hot water system that has not been used for a long period of time (generally two weeks or more). Hydrogen gas is extremely ﬂ ammable and explosive. To prevent the possibility of injury under these conditions, we recommend the hot water faucet, located farthest away, be opened for several minutes before any electrical appliances which are connected to the hot water system are used (such as a dishwasher or washing machine). If hydrogen gas is present, there will probably be an unusual sound similar to air escaping through the pipe as the hot water faucet is opened. There must be no smoking or open ﬂ ame near the faucet at the time it is open.

1. A concentration of sulfate in the supply water.

2. Little or no dissolved oxygen in the water.

3. A sulfate reducing bacteria which has accumulated within the water heater (this harmless bacteria is nontoxic to humans).

4. An excess of active hydrogen in the tank. This is caused by the corrosion protective action of the anode.

For certain water conditions, setting the gas control valve/ thermostat at 140°F can reduce the smell generated in the water heater. Note: Under these conditions install a mixing valve to limit the temperature of the water delivered to the system (see “Water Piping” section).

Smelly water may be eliminated or reduced in some water heater models by replacing the anode(s) with one of less active material, and then chlorinating the water heater tank and all water lines. Contact the local water heater supplier or service agency for further information concerning an Anode Replacement Kit and this chlorination treatment.

If the smelly water persists after the anode replacement and chlorination treatment, we can only suggest that chlorination or aeration of the water supply be considered to eliminate the water problem.

High Water Temperature Shut Off System

This water heater is equipped with an automatic gas shut-off system. This system works when high water temperatures are present. Turn “OFF” the entire gas supply to the water heater. The high temperature shut-off is built into the gas control valve. It is non-resettable. If the high temperature shut-off activates, the gas control valve must be replaced. Contact your gas supplier or service agency.

Do not remove the anode leaving the tank unprotected. By doing so, all warranty on the water heater tank is voided.

www. statewaterheaters.com 31

MAINTENANCE

FOR YOUR SAFETY AND SATISFACTORY OPERATION, IT IS RECOMMENDED THAT THIS HEATER BE CHECKED ONCE A YEAR BY A COMPETENT SERVICE PERSON.

USERS OF THIS WATER HEATER SHOULD BE AWARE THAT GAS COMPONENTS WEAR OUT OVER A PERIOD OF TIME. THE GAS CARRYING COMPONENTS OF THIS WATER HEATER SHOULD BE INSPECTED FOR PROPER OPERATION PERIODICALLY BY A QUALIFIED SERVICE TECHNICIAN.

HOUSEKEEPING

DANGER

Fire and Explosion Hazard

• Do not obstruct combustion air

openings at the vent termination hood.

• Do not use or store flammable vapor products such as gasoline, solvents or adhesives in the same room or area near water heater, the vent termination hood, or other appliance.

• Can cause serious injury or death.

INSTALLED IN SUITABLE AREA: To ensure sufficient ventilation and combustion air supply, proper clearances from the water heater must be maintained. See “Locating The New Water Heater” section. Combustible materials such as clothing, cleaning materials, or ﬂ ammable liquids, etc. must not be placed against or adjacent to the water heater which can cause a ﬁ re.

FLOOD DAMAGE

Flood damage to a water heater may not be readily visible or immediately detectable. However, over a period of time a ﬂ ooded water heater will create dangerous conditions which can cause DEATH, SERIOUS BODILY INJURY, OR PROPERTY DAMAGE. Contact a qualiﬁ ed installer or service agency to replace a ﬂ ooded water heater. Do not attempt to repair the unit! It must be replaced!

VENTING SYSTEM INSPECTION

At least once a year a visual inspection should be made of the venting system. You should look for:

1. Obstructions which could cause improper venting. The combustion and ventilation air ﬂ ow must not be obstructed.

2. Damage or deterioration which could cause improper venting or leakage of combustion products.

Be sure the vent piping is properly connected to prevent escape of dangerous ﬂ ue gasses which could cause deadly asphyxiation. Obstructions and deteriorated vent systems may present serious health risk or asphyxiation. Chemical vapo r corrosion of the ﬂ ue and vent system may occur if air for combustion contains certain chemical vapo rs. Spray can propellants, cleaning solvents, refrigerator and air conditioner refrigerants, swimming pool chemicals, calcium and sodium chloride, waxes, bleach and process chemicals are typical compounds which are potentially corrosive. If after inspection of the vent system you found sooting or deterioration, something is wrong. Call the local gas utility to correct the problem and clean or replace the ﬂ ue and venting before resuming operation of the water heater.

WARNING

Breathing Hazard - Carbon Monoxide Gas

• Flue gases may escape if vent pipe is not connected.

• Be alert for obstructed, sooted or deteriorated vent system to avoid serious injury or death.

• Do not store corrosive chemicals in vicinity of the water heater or the vent termination hood.

• Chemical corrosion of flue and vent system can cause serious injury or death.

Breathing carbon monoxide can cause brain damage or death.

Always read and understand instruction manual.

PILOT AND MAIN BURNER

At least once a year a visual inspection should be made of the main burner and the pilot assembly for proper ﬂ ame characteristics. This can be done by removing the Outer Door and viewing the main burner operation through the Viewport on the Inner Door (see Figure 38). The main burner should provide complete combustion of gas, ignite rapidly, give reasonably quiet operation, and cause no excessive ﬂ ame lifting from the burner ports. If the proper ﬂ ame characteristics are not evident (see Figure 32), make sure that the ﬂ ow of combustion and ventilation air is not blocked in the venting system. You should also check for sooting. Soot is not normal and will impair proper combustion. Soot build-up indicates a problem that requires correction before further use. Turn “OFF” gas to water heater and leave off until repairs are made, because failure to correct the cause of the sooting can result in a ﬁ re causing death, serious injury, or property damage. If proper ﬂ ame characteristics are not evident, call your service agency to remove and clean the burner and correct any operational problem.

32 www. statewaterheaters.com

BURNER FLAMES

Inspect the burner flames through the viewport and compare them to the drawings in Figure 32. A properly operating burner should produce a soft blue ﬂ ame. Blue tips with yellow inner cones are satisfactory. The tips of the ﬂ ame may have a slight yellow tint. The ﬂ ame should not be all yellow or have a sharp blue-orange colo r. Contaminated air may cause an orange colo red ﬂ ame. Contact a qualiﬁ ed service technician if the ﬂ ame is not satisfactory

TIPS MAY HAVE A YELLOW TINT

YELLOW INNER

CONES ARE

SATISFACTORY

CORRECT FLAME

SOFT BLUE

INCORRECT FLAME LAZY

YELLOW

Figure 32

SERVICING THE WATER HEATER

Servicing this water heater shall be done by qualiﬁ ed service personnel only.

1. Before performing any maintenance, it is important to turn “OFF” the gas supply to the water heater at the manual gas shut-off valve. This valve is typically located beside the water heater. Note the position of the shut-off valve in the open/on position, then proceed to turn it “OFF” (see Figure 1).

2. With the water heater shut-off, allow sufﬁ cient time for the it to cool off before performing any service.

REMOVING AND REPLACING THE GAS CONTROL VALVE/THERMOSTAT

Removing The Gas Control Valve/Thermostat:

1. Turn the gas control/temperature knob to the “OFF” position (see Figure 31 and Figure 33).

2. Turn “OFF” the gas at the manual gas shut-off valve (see Figure 1).

3. Drain the water heater. Refer to the “Draining, Reﬁ lling And Flushing” section and follow the procedure.

4. Disconnect the igniter wire from the igniter lead wire. Use needle nose pliers to disconnect the thermopile connector. Disconnect the pilot tube (7/16” wrench) and manifold tube (3/4” wrench) at the gas control valve/thermostat (see Figure 33).

Note: Propane (LP) Gas systems use reverse (left-hand) threads on the manifold tube.

5. Refer to “Gas Piping” and disconnect the ground joint union in the gas piping (see Figure 13 & Figure 14). Disconnect the remaining pipe from the gas control valve/thermostat.

6. To remove the gas control valve/thermostat, thread a 4” section of gas pipe into the inlet and use it to turn the gas control valve/thermostat (counterclockwise). Do not use a pipe wrench or equivalent to grip body. Damage may result, causing leaks. Do not insert any sharp objects into the inlet or outlet connections. Damage to the gas control valve/thermostat may result.

Replacing The Gas Control Valve/Thermostat:

To replace the gas control valve/thermostat, reassemble in reverse order. When replacing the gas control valve/ thermostat, thread a 4” section of gas pipe into the inlet and use it to turn the gas control valve/thermostat (clockwise). DO NOT OVER TIGHTEN; damage may result.

• Be sure to use approved Teﬂ on

tape or pipe joint compound on the gas piping connections and ﬁ tting on the back of the gas control valve that screws into the tank.

• Be sure to remove the pilot ferrule nut from the new gas

control valve/thermostat. Reconnect the manifold tube, pilot tube, igniter wire and the thermopile connections.

• Turn the main gas supply “ON” and check the gas

supply connections for leaks. Correct any leak found.

• Light the pilot and main burner, then check the manifold

tube and pilot tube connections for leaks. Use an approved noncorrosive leak detection solution. If such a solution is not available, use a mixture of hand dish washing soap and water (one part soap to 15 parts water) or childrens’ soap bubble solution. Bubbles forming indicate a leak. Correct any leak found.

• Be sure tank is completely ﬁ lled with water before

lighting and activating the water heater. Follow the lighting instructions on the label or see “Lighting Instructions” to restart the water heater.

If additional information is required, reference the number on the cover of this manual for service information.

TEFLON® is a registered trademark of E.I. Du Pont De Nemours and Company

REMOVING THE MANIFOLD/BURNER ASSEMBLY

1. Turn the gas control/temperature knob to the “OFF” position (see Figure 31 and Figure 33).

2. Turn “OFF” the gas at the manual gas shut-off valve (see Figure 1).

GAS CONTROL/ TEMPERATURE KNOB

THERMOPILE CONNECTOR

IGNITER BUTTON

IGNITER LEAD WIRE

IGNITER WIRE

PILOT TUBE

Figure 33

3. Remove the outer door.

4. Disconnect the following from the gas control valve/ thermostat: pilot tube (7/16” wrench), igniter wire (from the igniter lead wire), and manifold tube (3/4” wrench) (see Figure 33).

Note: Propane (LP) Gas systems use reverse (left-hand) threads on the manifold tube.

5. Use needle nose pliers to disconnect the thermopile connector from the gas control valve/thermostat (see Figure 33).

6. Grasp the manifold tube and push down slightly to

WHITE WIRE

RED WIRE

MANIFOLD TUBE

www. statewaterheaters.com 33

free the manifold tube and pilot tube.

7. Remove the screws (1/4” nut driver) securing the manifold/burner assembly to the combustion chamber (Figure 34).

8. Carefully remove the manifold/burner assembly from the combustion chamber. BE SURE NOT TO DAMAGE ANY INTERNAL PARTS.

GAS CONTROL/ TEMPERATURE

KNOB

PIEZO IGNITER

BUTTON

PILOT TUBE

VIEWPORT

OUTER DOOR NOT SHOWN

MANIFOLD COMPONENT

BLOCK

GAS CONTROL

VALVE/THERMOSTAT

THERMOPILE

WIRE

CONNECTIONS

MANIFOLD

TUBE

MANIFOLD

SCREW (2)

MANIFOLD

DOOR

Figure 34

REPLACING THE PILOT/THERMOPILE ASSEMBLY

1. Remove the manifold door assembly as described in “Removing The Manifold/Burner Assembly” section.

2. Remove the burner to access the pilot/thermopile assembly. Remove and keep the screws securing the burner to the manifold (see Figure 35).

Important: DO NOT remove the oriﬁ ce.

3. Remove the screw securing the pilot/thermopile assembly to the pilot bracket and keep for reuse later (see Figure 36 & Figure 39).

4. Lift the retainer clip straight up from the back of the manifold component block (using a ﬂ at-blade screwdriver), then remove the manifold component block from the manifold door (see Figure 36).

Important: Be careful not to bend or alter the position of the pilot tube. It will be used as a bending template for the new pilot assembly. Note the placement/order of the wires in the manifold component block.

THERMOPILE CONNECTOR

PILOT

TUBE

RETAINER

CLIP

PILOT/THERMOPILE

ASSEMBLY SCREW

REMOVING THE BURNER FROM THE MANIFOLD/ BURNER ASSEMBLY

Natural Gas (Low Nox) & Propane (LP) Gas Burner

1. Take off the burner by removing the two (2) screws located underneath the burner.

2. Check the burner to see if it is dirty or clogged. The burner may be cleaned with soap and hot water (see Figure 35).

Important: DO NOT remove the oriﬁ ce.

SCREWS

KEEP DRAIN

HOLE IN THIS

POSITION

BURNER

(BOTTOM VIEW)

PILOT

ASSEMBLY

(BOTTOM VIEW)

Figure 35

3. When replacing the burner, ensure the drain hole is in the position shown in Figure 35.

VIEWPORT

MANIFOLD

COMPONENT

BLOCK

IGNITER

WIRE

PILOT/THERMOPILE

SLOT

OTHER FITTINGS

NOT SHOW FOR

ASSEMBLY

BRACKET

BURNER AND

CLARITY.

GASKET

MANIFOLD

DOOR

TAB

Figure 36

5. Lift the pilot/thermopile assembly (including the igniter wire) from the manifold assembly (see Figure 37).

6. Read this step carefully before proceeding. Using the old pilot/pilot tube assembly as a guide, bend the new pilot tube to match the old one. Make only the bends closest to the pilot before going to the next step.

THERMOPILE

CONNECTOR

PILOT

IGNITER

CONNECTOR

THERMOPILE

PILOT/

THERMOPILE

ASSEMBLY

THERMOPILE

WIRES

PILOT TUBE NOT

SHOWN FOR CLARITY

Figure 37

7. Route the new pilot tube, igniter wire and thermopile wires through the opening in the manifold door (see Figure 36).

34 www. statewaterheaters.com

8. Using the pilot screw removed earlier, attach the new pilot/thermopile assembly. Reattach the burner to the manifold using the screws removed earlier.

9. Reinstall the manifold component block in the manifold door. Ensure that the pilot tube and wires are positioned as shown in Figure 38.

MANIFOLD

COMPONENT

BLOCK

VIEWPORT

PILOT TUBE PASSES

THROUGH TOP

HOLE OF MANIFOLD

COMPONENT BLOCK

(LARGEST HOLE)

THERMOPILE WIRES

PASS THROUGH

BOTTOM HOLE

OF MANIFOLD

COMPONENT BLOCK

IGNITER WIRE

PASSES THROUGH

CENTER OF MANIFOLD

COMPONENT BLOCK

(SMALLEST HOLE)

Figure 38

10. Carefully bend the new pilot tube to match the bend of the manifold tube.

Note: When bending, DO NOT crimp or crease the pilot tube.

11. Before you proceed to the next step, install the new brass ferrule nut in the gas control valve/thermostat’s pilot tube opening, HAND TIGHT ONLY.

12. Install the manifold/burner assembly. Refer to the “Replacing The Manifold/Burner Assembly” section for instructions.

REPLACING THE MANIFOLD/BURNER ASSEMBLY

1. Check the door gasket for damage or imbedded debris prior to installation (see Figure 36).

2. Inspect the viewport for damage and replace as required (see Figure 36).

3. Insert the new manifold/burner assembly into the burner compartment, making sure that the tab of the manifold tube engages the slot of the bracket inside the combustion chamber (see Figure 36).

4. Inspect the door gasket and make sure there is no ﬁ berglass insulation between the gasket and the combustion chamber (see Figure 36).

5. Tighten the two screws that secure the manifold/burner assembly to the combustion chamber. (Use a 1/4” nut driver.) There should be no space between the gasket part of the manifold door and combustion chamber.

Important: Do not operate the water heater if the door gasket does not create a seal between the manifold door and the combustion chamber.

6. Reconnect the manifold tube (3/4” wrench) and pilot tube (7/16” wrench) to the gas control valve/thermostat (see Figure 33). Do not cross-thread or apply any thread sealant to the ﬁ ttings.

Important: If you were supplied with a new ferrule nut in a parts kit, follow these steps to connect the pilot tube:

1.) Install the ferrule nut into the gas valve at the pilot tube location, hand tight only.

2.) Insert the pilot tube into the ferrule nut until the tube bottoms out, then tighten the nut with a 7/16” wrench until the crimp connection seals to the pilot tube.

3.) Continue to tighten until the nut is tight in the gas valve.

Note: Propane (LP) Gas systems use reverse (left-hand) threads on the manifold tube.

7. Connect thermopile connector to the gas control valve/ thermostat (see Figure 33).

8. Reconnect the igniter wire (see Figure 33).

9. Turn “ON” the gas supply to the water heater at the manual gas shut-off valve (see Figure 1).

10. Follow the lighting instructions on the label or see “Lighting Instructions” to restart the water heater. With the main burner lit, check for leaks at the manifold and pilot connections by brushing on an approved noncorrosive leak detection solution. If such a solution is not available, use a mixture of hand dish washing soap and water (one part soap to 15 parts water) or childrens’ soap bubble solution. Bubbles forming indicate a leak. Correct any leak found.

11. Verify proper operation, then replace the outer door.

WARNING

Explosion Hazard

Tighten both manifold door screws securely.

Remove any fiberglass between gasket and combustion chamber.

Replace viewport if glass is missing or damaged.

Replace manifold component block if missing or removed.

Replace door gasket if damaged.

Failure to do so can result in death, explosion, or fire.

www. statewaterheaters.com 35

PIEZOELECTRIC IGNITER SYSTEM

The piezoelectric igniter system consists of the igniter button, electrode, and wire. The pilot is ignited by an electric spark generated when the igniter button is pressed (see Figure 39).

THERMOPILE

PILOT

PILOT/ THERMOPILE BRACKET

ELECTRODE

WIRE TO ELECTRODE

IGNITER BUTTON

Figure 39

TESTING THE IGNITER SYSTEM

Turn “OFF” the gas to the water heater at the manual gas shut-off valve. Watch the electrode tip while activating the igniter. A visible spark should jump from the electrode. To avoid shock, do not touch the burner or any metal part on the pilot or pilot assembly. If no spark is visible, check the wire connections and make sure the electrode is not broken. Replace the igniter if defective. Dirt and rust on the pilot or electrode tip can prevent the igniter spark. Wipe clean with a damp cloth and dry completely. Rust can be removed from the electrode tip and metal surfaces by lightly sanding with an emery cloth or ﬁ ne grit sandpaper.

Figure 40

If the Temperature-Pressure Relief Valve on the water heater weeps or discharges periodically, it may be due to thermal expansion. Note: Excessive water pressure is the most common cause of temperature-pressure relief valve leakage. Excessive water system pressure is most often caused by “thermal expansion” in a “closed system.” See “Closed Water Systems” and “Thermal Expansion” sections of this manual. The T&P valve is not intended for the constant relief of thermal expansion.

DANGER

• Burn hazard.

• Hot water discharge.

HOT

BURN

• Keep clear of

temperature-pressure relief valve discharge.

TEMPERATURE-PRESSURE RELIEF VALVE TEST

It is recommended that the temperature-pressure relief valve be checked to ensure it is in operating condition at least once a year.

When checking the temperature-pressure relief valve operation, make sure that (1) no one is in front of or around the outlet of the T&P valve discharge line, and (2) that water discharge will not cause any property damage, as water may be extremely hot. Use care when operating valve as the valve may be hot. To check the relief valve, lift lever at the end of valve several times (see Figure 40). The valve should seat properly and operate freely.

If after manually operating the valve, it fails to completely reset and continues to release water, immediately close the cold water inlet to the water heater and drain the water heater, see “Draining, Refilling And Flushing” section. Replace the T&P valve with a properly rated/ sized new one, see “Temperature-Pressure Relief Valve” for instructions on replacement.

DRAINING, REFILLING AND FLUSHING

Periodic draining and cleaning of sediment from the tank maybe necessary. It is recommended that the tank be drained and ﬂ ushed every 6 months to remove sediment which may build up during operation. The water heater should be drained if being shut down during freezing temperatures or for an extended period of time. See “Typical Installation” section (Figure 1) in this manual for location of the water heater components described below.

To Drain The Water Heater Storage Tank

1. Turn the gas control/temperature knob to the “OFF” position (see Figure 31 and Figure 33).

2. Turn “OFF” the gas supply at the manual gas shut-off valve.

3. Close the cold water inlet valve to the water heater.

4. Open a nearby hot water faucet and leave open to allow for draining.

5. Connect a hose to the drain valve and terminate to an adequate drain.

Note: If the water heater is going to be shut down and drained for an extended period, the drain valve should be left open with hose connected allowing water to terminate to an adequate drain.

6. Open the water heater drain valve.

7. Close the water heater drain valve when all water in the storage tank has drained.

36 www. statewaterheaters.com

To Reﬁ ll The Water Heater Storage Tank

1. Close the water heater drain valve.

2. Remove the drain hose.

3. Open a nearby hot water faucet and leave open to allow air to escape.

4. Open the cold water inlet valve to the water heater.

5. To purge the lines of any excess air, keep the hot water faucet open for 3 minutes after a constant ﬂ ow of water is obtained.

6. Turn “ON” the gas supply at the manual gas shut-off valve.

7. Follow the lighting instructions on the label or see “Lighting Instructions” to restart the water heater.

7. Check for leaks. Repair as needed.

8. Follow the lighting instructions on the label or see “Lighting Instructions” to restart the water heater.

ALTERNATIVE

STEM HANDLE

HANDLE AND

CAP ASSEMBLY

WASHER

Figure 41

To Flush The Water Heater Storage Tank

1. Turn “OFF” the gas at the manual gas shut-off valve (see Figure 1).

2. Ensure the cold water inlet valve is open.

3. Connect a hose to the drain valve and terminate it to an adequate drain.

4. Ensure the drain hose is secured before and during the entire ﬂ ushing procedure. Flushing is performed with system water pressure applied to the water heater.

5. Open the water heater drain valve to ﬂ ush the storage tank. Caution: Water will be hot.

6. Flush the water heater storage tank to remove sediment and allow the water to ﬂ ow until it runs clean.

7. Close the water heater drain valve when ﬂ ushing is completed.

8. Remove the drain hose.

9. Ensure the heater is full of water.

10. Turn “ON” the gas supply at the manual gas shut-off valve.

11. Follow the lighting instructions on the label or see “Lighting Instructions” to restart the water heater.

12. Allow the water heater to complete several heating cycles to ensure it is operating properly.

Caution: Do not turn on the gas to the water heater unless the tank is full. Open a hot water faucet and allow the water to run until the air is purged and the water ﬂ ows uninterrupted from the faucet.

Important: When operating a cold tank, condensation can occur and drip on the burner. This should not be confused with a tank leak.

DRAIN VALVE WASHER REPLACEMENT

1. Turn “OFF” the gas at the manual gas shut-off valve (see Figure 1).

2. Follow “Draining” instructions in the “Draining, Reﬁ lling And Flushing” section.

3. Turning counterclockwise (

), remove the hex cap

below the screw handle.

4. Remove the washer and put the new one in place.

5. Screw the handle and cap assembly back into the drain valve and retighten using a wrench. DO NOT OVER TIGHTEN.

6. Follow “Reﬁ lling” instructions in the “Draining, Reﬁ lling And Flushing” section.

ANODE ROD MAINTENANCE

Each water heater contains at least one anode rod, which will slowly deplete (due to electrolysis) prolonging the life of the water heater by protecting the glass-lined tank from corrosion. Adverse water quality, hotter water temperatures, high hot water usage, hydronic heating devices, and water softening methods can increase the rate of anode rod depletion. Once the anode rod is depleted, the tank will start to corrode, eventually developing a leak.

Certain water conditions will cause a reaction between the anode rod and the water. The most common complaint associated with the anode rod is a “rotten egg smell” produced from the presence of hydrogen sulﬁ de gas dissolved in the water. See “Operational Conditions”.

Important: Do not remove this rod permanently as it will void any warranties. A special anode rod may be available if water odo r or discolo ration occurs.

CAP

* THE ANODE ROD IS COVERED BY URETHANE FOAM LOCATED UNDER THE CAP. CHIP AWAY THE FOAM TO EXPOSE THE TOP OF THE ANODE ROD

ANODE ROD *

Figure 42

www. statewaterheaters.com 37

Note: This rod may reduce but not eliminate water odo r problems. The water supply system may require special ﬁ ltration equipment from a water conditioning company to successfully eliminate all water odo r problems.

Artiﬁ cially softened water is exceedingly corrosive because the process substitutes sodium ions for magnesium and calcium ions. The use of a water softener may decrease the life of the water heater tank. The anode rod (see Figure

42) should be inspected after a maximum of three years and annually thereafter until the condition of the anode rod dictates its replacement (see Figure 43).

EXPOSED SUPPORT WIRE

PITTED ANODE ROD

Figure 43

Note: Artiﬁ cially softened water requires the anode rod to

be inspected annually. The following are typical (but not all) signs of a depleted anode rod:

• The majority of the rods diameter is less than 3/8” .

• Signiﬁ cant sections of the support wire (approx. 1/3 or

more of the anode rod’s length) are visible. If the anode rod show signs of either or both it should be replaced. Note: Whether re-installing or replacing the anode rod, check for any leaks and immediately correct if found.

To Install The Anode Rod:

1. Use Teﬂ on

tape or an approved pipe sealant on

threads of the new anode rod.

2. Place the anode rod in the spud (top of the tank) (see Figure 42) and turn clockwise until the threads are hand tight. Using a ratchet and 1-1/16” socket tighten down water tight.

3. Open a nearby hot water faucet to purge air from the water line. Fill water heater tank completely. (Refer to “Draining, Reﬁ lling And Flushing” for proper procedures).

Note: To assure the water heater tank is full, keep the hot water faucet open for 3 minutes after a constant ﬂ ow of water is obtained.

4. After turning closing the hot water faucet, check for water leaks around anode rod and immediately correct any if found.

5. Reinstall the insulation and anode cap which were removed in step 5 of removal process.

6. Turn “ON” the manual gas shut-off valve (see Figure

1).

7. Turn the gas control/temperature knob to the “ON” position (see Figure 31 and Figure 33).

8. Follow the lighting instructions on the label or see “Lighting Instructions” to restart the water heater.

To Remove The Anode Rod:

1. Turn the gas control/temperature knob to the “OFF” position (see Figure 31 and Figure 33).

2. Turn “OFF” the gas at the manual gas shut-off valve (see Figure 1).

3. Shut off the incoming water supply to the water heater and open a nearby hot water faucet to depressurize the water tank.

4. Connect a hose to the drain valve and terminate it to adequate drain or to the exterior of the building. Open the drain valve and drain approximately 5 gallons of water from tank. (Refer to “Draining, Reﬁ lling And Flushing” for proper procedures). Close drain valve and remove hose.

5. Remove and retain the anode cap on top of the heater and remove and retain just enough insulation so you can access to the anode head (see Figure 42). Keep in a safe place for reinstallation later.

6. Remove the anode rod by using a ratchet and a 1-1/16” socket turning counter-clockwise (see Figure

42).

38 www. statewaterheaters.com

LEAKAGE CHECKPOINTS

SERVICE

If a condition persists or you are uncertain about the operation of the water heater contact a service agency.

Use this guide to check a “Leaking” water heater (see Figure 44). Many suspected “Leakers” are not leaking tanks. Often the source of the water can be found and corrected.

If you are not thoroughly familiar with gas codes, your water heater, and safety practices, contact your gas supplier or qualiﬁ ed installer to check the water heater.

Read this manual ﬁ rst. Then before checking the water heater make sure the gas supply has been turned “OFF”, and never turn the gas “ON” before the tank is completely full of water.

Never use this water heater unless it is completely ﬁ lled with water. To prevent damage to the tank, the tank must be ﬁ lled with water. Water must ﬂ ow from the hot water faucet before turning “ON” gas to the water heater.

D. Water at the vent assembly is water vapo r which has

condensed out of the combustion products. This is caused by a problem in the vent. Contact the gas utility.

E. *Condensation may be seen on pipes in humid weather

or pipe connections may be leaking.

F. *The anode rod ﬁ tting may be leaking (anode is located

under the plastic plug and insulation).

G. Small amounts of water from temperature-pressure

relief valve may be due to thermal expansion or high water pressure in your area.

H. *The temperature-pressure relief valve may be leaking

at the tank ﬁ tting.

I. Water from a drain valve may be due to the valve being

slightly opened. J. *The drain valve may be leaking at the tank ﬁ tting. K. Combustion products contain water vapo r which can

condense on the cooler surfaces of the tank. Droplets

form and drip onto the burner or run on the ﬂ oor. This

is common at the time of start-up after installation and

when incoming water is cold. L. Water in the water heater bottom or on the ﬂ oor may

be from condensation, loose connections, or the relief

valve. DO NOT replace the water heater until a full

inspection of all possible water sources is made and

necessary corrective steps taken. M. The combo heating system connections may be

leaking.

• * To check where threaded portion enters tank, insert

cotton swab between jacket opening and ﬁ tting. If cotton is wet, follow the draining instructions in this manual, and then remove ﬁ tting. Put pipe dope or Teﬂ on on the threads and replace. To reﬁ ll the water heater follow the instructions in “Draining, Refilling And Flushing”.

tape

Figure 44

Leakage from other appliances, water lines, or ground seepage should also be checked.

www. statewaterheaters.com 39

REFERENCE PARTS LISTING

Replacement parts may be ordered through your plumber or the local distributor. When ordering replacement parts, always have the following information ready:

1. Model, Serial and Product number

2. Type of gas

3. Item number

4. Parts description

1 Vent Termination Hood 2 Wall Plate 3 ***Vent Pipe 4 Cold Water Inlet Nipple/Diptube 6 T&P Valve 7 Gas Control Valve/Thermostat

(Honeywell) 9 *Discharge Pipe 10 Drain Valve 11 Outer Gas Door

12 Manifold Door Assembly (behind

outer door) (see Figure 3 &

Figure 4) (see also Figure 47 &

Figure 48

13 *Floor Drain 14 *Metal Drain Pan

)

15 Flexible Manifold Tube (see

Figure 3 & Figure 4) (see also

Figure 47 & Figure 48) 22 Anode (under cap) 23 Hot Water Outlet Nipple (or Optional

Nipple/Anode) 26 Air Inlet Snorkel 27 Air Tower 28 ***Airbox 29 *Thermal Expansion Tank (required

for all closed systems) 30 Sheet Metal Burner (see Figure 3 &

Figure 4) (see see also Figure 47 &

Figure 48) 31 Gas Oriﬁ ce (see Figure 3 &

Figure 4) (see also Figure 47 &

Figure 48) 32 Gas Manifold (see Figure 3 & Figure

4) (see also Figure 47 & Figure 48)

33 Manifold Door Gasket (see Figure 3 &

Figure 4) (see also

Figure 47 & Figure 48) 34 Manifold Door (see Figure 3 & Figure

4) (see also Figure 47 & Figure 48)

35 Two Piece Grommet With Clip (see

Figure 3 & Figure 4) (see also

Figure 47 & Figure 48)

36 Viewport (see Figure 3 & Figure 4)

(see also

37 Flexible Manifold Tube (see

Figure 3 & Figure 4) (see also

Figure 47 & Figure 48)

38 Pilot (see Figure 3 & Figure 4) (see

also Figure 47 & Figure 48)

39 Thermopile (see Figure 3 &

Figure 4) (see also Figure 47 &

Figure 48

40 Pilot Shield (see Figure 3 &

Figure 4) (see also Figure 47 &

Figure 48

Figure 47 & Figure 48)

)

* Items not supplied with the water

heater.

*** During operation the vent pipe and

airbox can get hot.

1 32

11 12

Front View

Figure 45 Figure 46

40 www. statewaterheaters.com

Rear View

Flare Nut ††

Natural gas and Propane (LP) main burner with igniter assembly for 47k Btu/hr

†

models

†

Flare Nut ††

Natural gas and Propane (LP) main burner with igniter assembly for 38k to 42k Btu/hr models

Figure 47

Notes:

† The oriﬁ ce on Natural gas models has Right-hand

thread, the oriﬁ ce on Propane (LP) models has Left- hand thread.

†† For Natural gas models the Flare Nut has Right-hand

thread. For Propane (LP) models the Flare Nut has Left-hand thread.

Figure 48

www. statewaterheaters.com 41

TROUBLESHOOTING GUIDELINES

PROBLEM POSSIBLE CAUSE(S) CORRECTION

BURNER WILL NOT

IGNITE

SMELLY WATER

BURNER FLAME

YELLOW-LAZY

PILOT WILL NOT LIGHT

OR REMAIN LIT

HIGH OPERATION

COSTS

PILOT FLAME TOO

SMALL

1. Pilot not lit

2. Thermostat set too low

3. No gas

4. Dirt in the gas lines

5. Pilot line clogged

6. Main burner line clogged

7. Defective thermopile

8. Defective gas control/thermostat

1. Sulfur in the water 1. Replace the anode with a special

1. Low gas pressure

2. Flue clogged

3. Main burner line clogged

4. Obstruction in main burner orifice

5. Insufficient combustion air

1. Air in gas line

2. No gas

3. Dirt in gas lines

4. Pilot line or orifice clogged

5. Defective thermopile

6. Insufficient combustion air

7. Gas control/thermostat ECO switch open

8. Defective igniter or electrode

9. Low gas pressure

10. Incorrect gas

1. Thermostat set too high

2. Sediment or lime in tank

3. Water heater too small for job

4. Wrong piping connections

5. Leaking faucets

6. Gas leaks

7. Wasted hot water

8. Long runs of exposed piping

9. Hot water piping in exposed wall

1. Pilot line or orifice clogged

2. Low gas pressure

3. Defective pilot

4. Incorrect gas

1. Light pilot

2. Turn temp. dial to desired temperature

3. Check with gas utility company

4. Notify utility-install trap in gas line

5. Clean, locate source and correct

6. Clean, locate source and correct

7. Replace thermopile

8. Replace gas control/thermostat

anode

2. Raising the water heater temperature setting to 140°F may help to eliminate the odo r (will require the use of a mixing valve)

1. Check with gas utility company

2. Clean, locate source and correct

3. Clean, locate source and correct

4. Clean or replace orifice

5. Check that the vent termination hood and venting pipe is not blocked

1. Bleed the air from the gas line

2. Check with gas utility company

3. Notify utility-install sediment trap (dirt leg) in gas line

4. Clean, locate source and correct

5. Replace thermopile

6. Check that the vent termination hood and venting pipe is not blocked

7. Replace gas control/thermostat

8. Replace igniter or pilot assembly

9. Check with gas utility company

10. Check rating plate for correct gas type. Check with gas utility company

1. Set temperature dial to lower setting

2. Drain/Flush-Provide water treatment if needed

3. Install adequate size heater

4. Correct piping-dip tube must be in cold inlet

5. Repair faucets

6. Check with utility-repair at once

7. Advise customer

8. Insulate piping

9. Insulate piping

1. Clean, locate source and correct

2. Check with gas utility company

3. Replace pilot

4. Check rating plate for correct gas type. Check with gas utility company

42 www. statewaterheaters.com

PROBLEM POSSIBLE CAUSE(S) CORRECTION

INSUFFICIENT HOT

WATER

SLOW HOT WATER

RECOVERY

DRIP FROM RELIEF

VALVE

THERMOSTAT FAILS TO

SHUT OFF

COMBUSTION ODO RS

SMOKING AND CARBON

FORMATION (SOOTING)

CONDENSATION

BURNER FLAME

FLOATS AND LIFTS OFF

PORTS

BURNER FLAME TOO

HIGH

FLAME BURNS AT

ORIFICE

1. Thermostat set too low

2. Sediment or lime in tank

3. Water heater too small

4. Wrong piping connections

5. Leaking faucets

6. Wasted hot water

7. Long runs of exposed piping

8. Hot water piping in outside wall

9. Low gas pressure

10. Leaks or cracks in dip tube

11. Incorrect plumbing/plumbing crossover

1. Insufficient combustion air

2. Venting/flue clogged

3. Low gas pressure

4. Improper calibration

5. Gas control/thermostat set too low

6. Water heater too small

7. Wrong piping connections

8. Wasted hot water

9. Sediment or lime in tank

1. Excessive water pressure

2. Heater stacking

3. Closed water system/thermal expansion

1. Defective gas control/thermostat

2. Improper calibration

1. Insufficient ventilation air

2. Flue clogged or vent system blocked

3. Heater installed in a confined area

1. Insufficient combustion air

2. Low gas pressure

3. Venting/flue clogged

4. Defective gas control/thermostat

5. Burner flame yellow-lazy

1. Temperature setting too low

2. Water heater too small

1. Orifice too large

2. High gas pressure

3. Flue clogged

1. Orifice too large

2. High gas pressure

1. Defective gas control/thermostat

2. Low gas pressure

3. Orifice not properly installed

1. Turn temperature dial to desired setting

2. Drain/flush-provide water treatment if needed

3. Install adequate size heater

4. Correct piping-dip tube must be in cold inlet

5. Repair faucets

6. Advise customer

7. Insulate piping

8. Insulate piping

9. Check with gas utility company

10. Check dip tube. Replace if faulty

11. Correct cold water crossover

1. Check vent termination hood and venting, flueway, flue baffle and burner

2. Clean flue, locate source and correct

3. Check with gas utility company

4. Replace gas control/thermostat

5. Turn temperature dial to desired setting

6. Install adequate size heater

7. Correct piping-dip tube must be in cold inlet

8. Advise customer

9. Drain/flush - provide water treatment if needed

1. Use a pressure reducing valve and relief valve

2. Lower the thermostat setting

3. See “Closed System/Thermal Expansion”

1. Replace gas control/thermostat

2. Replace gas control/thermostat

1. Provide ventilation to the water heater. Check flueway, flue baffle, burner

2. Clean, locate source and correct

3. Provide fresh air ventilation

1. Check vent termination hood and venting, flueway, flue baffle and burner

2. Check with gas utility company

3. Clean, locate source and correct

4. Replace gas control/thermostat

5. See “Burner Flame Yellow-Lazy”

1. Increase the temperature setting

2. Install adequate size heater

1. Replace with correct orifice

2. Check with gas utility company

3. Clean flue and burner-locate source and correct

1. Replace with correct orifice

2. Check with gas utility company

1. Replace gas control/thermostat

2. Check with gas utility company

3. Reinstall the orifice

www. statewaterheaters.com 43

STATUS LIGHT AND DIAGNOSTIC CODE

TROUBLESHOOTING CHART

LED STATUS PROBLEM CORRECTIVE ACTION

0 FLASHES (LED NOT LIT) Pilot light is not lit or

thermopile has not yet reached normal operating temperature.

RED LIGHT ON (SOLID) Pilot light was recently

extinguished and the thermopile is cooling down.

1 FLASH (EVERY 3 SECONDS)

2 FLASHES Pilot is lit but the thermopile

Normal operation. No corrective action necessary.

is not producing the required output voltage.

Turn Gas Control Valve/Thermostat knob to “OFF”. Wait 10 minutes, then attempt to relight Pilot by following the lighting instructions on the water heater’s label. Until the thermopile reaches its normal operating temperature, the Status Light will not blink, even if the Pilot is lit. It may take up to 90 seconds of continuous Pilot operation before the thermopile reaches normal operating temperature and the Status Light starts to blink. If the Status Light does not blink after three lighting attempts, check to make sure unit is getting gas. Remove the outer door. Press reset button. Replace outer door. Turn Gas Control Valve/Thermostat knob to “OFF”. Wait 10 minutes, then attempt to light Pilot by following the lighting instructions on the water heater’s label. Look through the view port for the Pilot flame. If Pilot is not visible, the spark igniter or gas supply to the Pilot should be checked. If the Pilot is visible and the Status Light does not blink after 90 seconds of continuous Pilot operation, the Pilot flame may not be heating the thermopile sufficiently (weak Pilot), the thermopile may be defective, or wiring connectors may be loose.

Turn Gas Control Valve/Thermostat knob to “OFF”. Wait 10 minutes for the thermopile to cool, then attempt to relight Pilot by following the lighting instructions on the water heater’s label. NOTE: This gas control valve/thermostat has built-in circuitry that requires waiting 10 minutes between lighting attempts. Until the thermopile reaches its normal operating temperature, the Status Light will not blink, even if the Pilot is lit. It may take up to 90 seconds of continuous Pilot operation before the thermopile reaches normal operating temperature and the Status Light starts to blink.

Turn Gas Control Valve/Thermostat knob to “OFF”. The thermopile is probably defective, but loose wiring connections or a weak Pilot flame can also cause this symptom.

44 www. statewaterheaters.com

LED STATUS PROBLEM CORRECTIVE ACTION

4 FLASHES The Gas Control Valve’s

temperature sensor has detected that the water temperature was too high. Once this condition occurs, the Main Burner and the Pilot

Relight pilot and verify 4 flashes. If 4 flashes are observed, turn Gas Control Valve/Thermostat knob to “OFF”. Turn Main Gas Supply “OFF.” Replace the Gas Control Valve/Thermostat. See “Removing and Replacing the Gas Control Valve/

Thermostat.” Light will be shut off. Since the Pilot light will be off, should this condition occur, this Flash Code will only be displayed immediately after the Pilot has been relit. Turn Gas Control Valve/Thermostat knob to “OFF”.

5 FLASHES The temperature sensor

(thermistor) is defective.

Turn Gas Control Valve/Thermostat knob

to “OFF”. Replace the temperature sensor

(thermistor).

7 FLASHES Gas Control Valve failure. Turn Gas Control Valve/Thermostat knob to

“OFF”. Turn Main Gas Supply “OFF”. Replace

the Gas Control Valve/Thermostat. See

“Removing and Replacing the Gas Control Valve/

Thermostat.”

8 FLASHES This condition only appears if

the gas control/temperature knob has been turned off and the thermopile continued to produce electric power. This condition can occur if the thermopile does not cool down as quickly as expected when the unit is shut off. This condition can also occur if the gas control/temperature knob has been turned off and the pilot continues to operate because the pilot valve is stuck in the open position.

Make sure that the gas control valve/thermostat

knob is set to “OFF”. Wait one minute. Remove

the outer door. Look through the sight glass for

a pilot flame. If a pilot flame is observed with

the gas control valve/thermostat knob set to the

“OFF” position, the pilot valve is stuck open. Turn

the main gas supply “OFF”. Replace the gas

control valve/thermostat. For instructions, see

“Removing and Replacing the Gas Control Valve/

Thermostat.”

If the pilot flame is not observed when the gas

control valve/thermostat knob is set to the “OFF”

position, wait 10 minutes for the thermopile to

cool, then attempt to relight the pilot by following

the lighting instructions on the water heater’s

label. If this condition returns, replace the gas

control valve/thermostat. See “Removing And

Replacing The Gas Control Valve/Thermostat” for

instructions.

www. statewaterheaters.com 45

NOTES

46 www. statewaterheaters.com

NOTES

www. statewaterheaters.com 47

500 Tennessee Waltz Parkway, Ashland City, TN 37015

Phone: 800-821-2017 • Fax: 800-644-9306

www.statewaterheaters.com

State GS6 75 YRDS L User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
