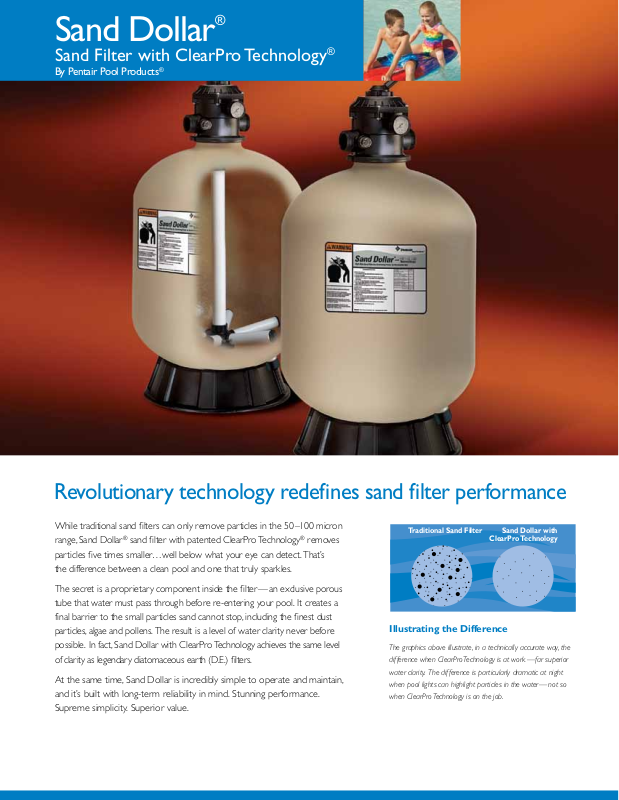

Sta-Rite SD 80 CP User Manual

Sand Dollar

Sand Filter with ClearPro Technology

By Pentair Pool Products

Revolutionary technology redefines sand filter performance

While traditional sand filters can only remove particles in the 50–100 micron range, Sand Dollar® sand filter with patented ClearPro Technology® removes particles five times smaller…well below what your eye can detect. That’s the difference between a clean pool and one that truly sparkles.

The secret is a proprietary component inside the filter—an exclusive porous tube that water must pass through before re-entering your pool. It creates a final barrier to the particles, algae and pollens. The possible. In fact, Sand Dollar with ClearPro Technology achieves the same level of clarity as legendary diatomaceous earth (D.E.) filters.

At the same time, Sand Dollar is incredibly simple to operate and maintain, and it’s built with long-term reliability in mind. Stunning performance. Supreme simplicity. Superior value.

small particles sand cannot stop, including the finest dust

result is a level of water clarity never before

Traditional Sand Filter Sand Dollar with

Illustrating the Difference

The graphics above illustrate, in a technically accurate way, the

difference when ClearPro Technology is at work—far superior

water clarity. The difference is particularly dramatic at night

when pool lights can highlight particles in the water —not so

when ClearPro Technology is on the job.

ClearPro Technology

Sand Dollar

Sand Filter with ClearPro Technology

Six-function multi-port valve for easy control of all filter functions

• Filter • Waste

• Backwash • Closed

• Rinse • Recirculate

One-piece thermoplastic tank for strength and corrosion resistance

Combination water and sand drain for easy service and winterizing

Sand Dollar Top Mount

Model Filter Vertical* Filter Required

Number Area Sq. Ft. Clearance Diameter Sand

SD 80 CP 3.5 74.0" 26" 350 75 36,000 45,000 54,000

Stunning performance and supreme simplicity

Pool filter operation doesn’t come any easier. The Sand Dollar® sand filter features a multi-port valve that puts all filter functions right at your finger tips—just rotate the handle to the desired position and Sand Dollar does the rest for sure and simple operation.

One-piece thermoplastic tank for exceptional strength, corrosion

•

resistance and long life.

Combination water and sand drain makes servicing and winterizing

•

fast and easy.

Special internal design keeps sand bed level for consistent

•

performance and extended time between cleaning cycles.

Attractive almond color blends with any outdoor décor.

•

One-year limited warranty. See warranty for details.

•

†

(lbs) GPM**

Flow Rate Turnover Capacity-Res. (Gallons)

Available from:

8hrs. 10hrs. 12hrs.

† Use standard #20 silica sand. * Required clearance to remove the valve. ** Maximum flow rate.

www.pentairpool.com Phone: 800-831-7133

pumps / filters / heaters / heat pumps / automation / lighting / cleaners / sanitizers / water features / maintenance products

3/11 Part # P1-021
