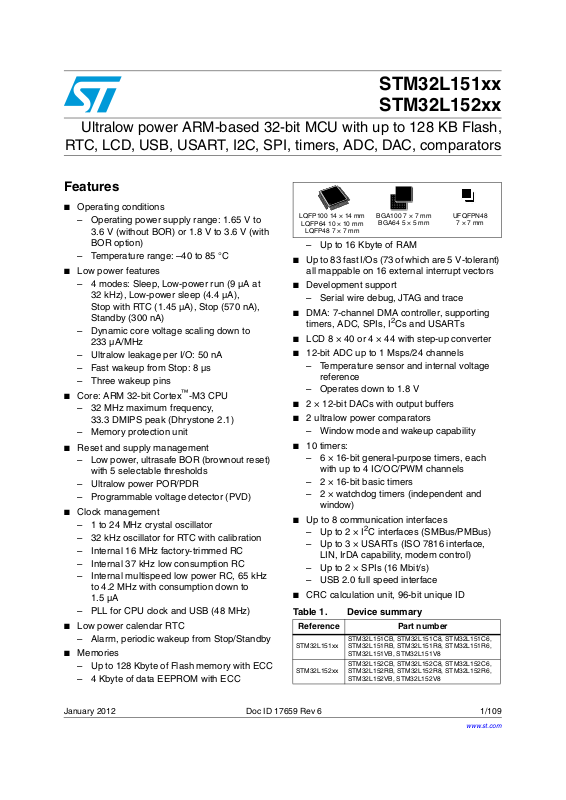

ST STM32L151CB, STM32L151C8, STM32L151C6, STM32L151RB, STM32L151R8 User Manual

STM32L151xx

LQFP100 14 × 14 mm

LQFP64 10 × 10 mm

LQFP48 7 × 7 mm

BGA100 7 × 7 mm

BGA64 5 × 5 mm

UFQFPN48

7 × 7 mm

STM32L152xx

Ultralow power ARM-based 32-bit MCU with up to 128 KB Flash,

RTC, LCD, USB, USART, I2C, SPI, timers, ADC, DAC, comparators

Features

■ Operating conditions

– Operating power supply range: 1.65 V to

3.6 V (without BOR) or 1.8 V to 3.6 V (with
BOR option)

– Temperature range: –40 to 85 °C

■ Low power features

– 4 modes: Sleep, Low-power run (9 µA at

32 kHz), Low-power sleep (4.4 µA),
Stop with RTC (1.45 µA), Stop (570 nA),
Standby (300 nA)

– Dynamic core voltage scaling down to

233 µA/MHz
– Ultralow leakage per I/O: 50 nA
– Fast wakeup from Stop: 8 µs
– Three wakeup pins

■ Core: ARM 32-bit Cortex

™

-M3 CPU

– 32 MHz maximum frequency,

33.3 DMIPS peak (Dhrystone 2.1)

– Memory protection unit

■ Reset and supply management

– Low power, ultrasafe BOR (brownout reset)

with 5 selectable thresholds
– Ultralow power POR/PDR
– Programmable voltage detector (PVD)

■ Clock management

– 1 to 24 MHz crystal oscillator
– 32 kHz oscillator for RTC with calibration
– Internal 16 MHz factory-trimmed RC
– Internal 37 kHz low consumption RC
– Internal multispeed low power RC, 65 kHz

to 4.2 MHz with consumption down to

1.5 µA

– PLL for CPU clock and USB (48 MHz)

■ Low power calendar RTC

– Alarm, periodic wakeup from Stop/Standby

■ Memories

– Up to 128 Kbyte of Flash memory with ECC
– 4 Kbyte of data EEPROM with ECC

– Up to 16 Kbyte of RAM

■ Up to 83 fast I/Os (73 of which are 5 V-tolerant)

all mappable on 16 external interrupt vectors

■ Development support

– Serial wire debug, JTAG and trace

■ DMA: 7-channel DMA controller, supporting

timers, ADC, SPIs, I

■ LCD 8 × 40 or 4 × 44 with step-up converter

■ 12-bit ADC up to 1 Msps/24 channels

2

Cs and USARTs

– Temperature sensor and internal voltage

reference

– Operates down to 1.8 V

■ 2 × 12-bit DACs with output buffers

■ 2 ultralow power comparators

– Window mode and wakeup capability

■ 10 timers:

– 6 × 16-bit general-purpose timers, each

with up to 4 IC/OC/PWM channels
– 2 × 16-bit basic timers
– 2 × watchdog timers (independent and

window)

■ Up to 8 communication interfaces

– Up to 2 × I

2

C interfaces (SMBus/PMBus)

– Up to 3 × USARTs (ISO 7816 interface,

LIN, IrDA capability, modem control)
– Up to 2 × SPIs (16 Mbit/s)
– USB 2.0 full speed interface

■ CRC calculation unit, 96-bit unique ID

Table 1. Device summary

Reference Part number

STM32L151xx

STM32L152xx

STM32L151CB, STM32L151C8, STM32L151C6,
STM32L151RB, STM32L151R8, STM32L151R6,
STM32L151VB, STM32L151V8

STM32L152CB, STM32L152C8, STM32L152C6,
STM32L152RB, STM32L152R8, STM32L152R6,
STM32L152VB, STM32L152V8

January 2012 Doc ID 17659 Rev 6 1/109
