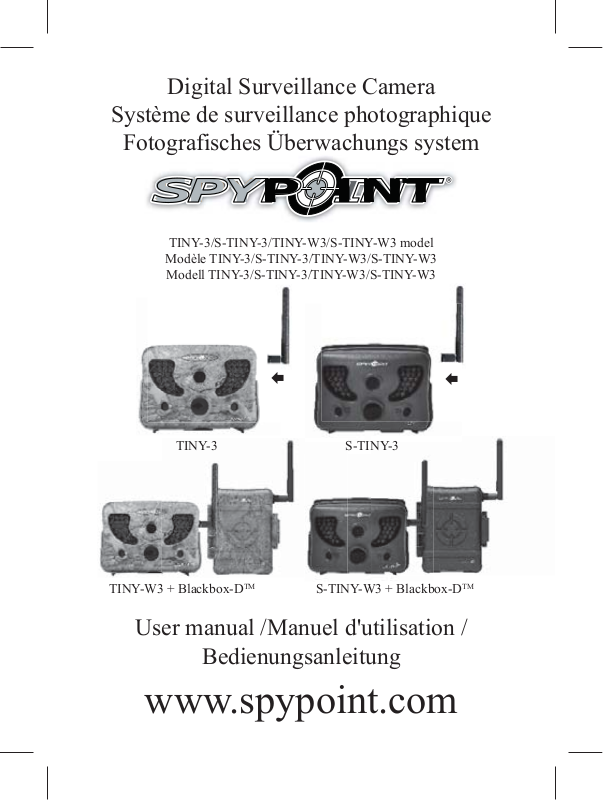

Digital Surveillance Camera

ggy

Système de surveillance photographique

Fotografisches Überwachungs system

P INTSPY INTPSPY

TINY-3/S-TINY-3/TINY-W3/S-TINY-W3 model
Modèle TINY-3/S-TINY-3/TINY-W3/S-TINY-W3
Modell TINY-3/S-TINY-3/TINY-W3/S-TINY-W3



TINY-3 S-TINY-3

TINY-W3 + Blackbox-D

TM

S-TINY-W3 + Blackbox-D

User manual /Manuel d'utilisation /

Bedienungsanleitung

www.spypoint.com



TM

3

English

v.1.7

Thank you for choosing the SPYPOINT
TINY-3/ S-TINY-3/ TINY-W3/ S-TINY-W3 monitoring
system. This manual will help you get the most out
of your new device. For the latest version of the user
manual or for additional information, visit our website at
www.spypoint.com.

®

English

4

FEATURES

Photo recording:

Photo resolution 10 MP

File format JPG

English

Time Lapse Predefined intervals from

30sec to 1h

Multi-shot Up to 6 pictures per detection

Stamp Date, time, temperature

and moon phase printed
on pictures

Capture mode Color by day,

black and white by night

Video recording:

Video resolution 1280 x 720 (720p)

File format AVI

Sequence length Adjustable from 10 to 90sec

Capture mode Color by day, black

and white by night

Sound recording:

Automatically recorded
in video mode

Memory storage:

SD/SDHC card up to 32 GB
(No internal memory)

Viewing:

Built-in screen 2.4" LCD

TV output Composite video

(PAL/NTSC)

Computer output USB 2.0

Power supply:

(accessories sold separately, see "Options")

Alkaline or lithium

6x AA

batteries

Lithium battery pack Rechargeable battery pack

(LIT-09/LIT-C-8)

External
(12V jack)

12-volt battery
(KIT-12V/BATT-12V)
12-volt adapter (AD-12V)

Solar panel
(12V jack)

Solar panel (SP-12V)
combined with rechargeable
battery pack (LIT-09)

5

English

6

Detection system:

Motion sensor PIR

Detection angle of the
main sensor

English

Detection angle of the

30°

70°

side sensors

Detection range Adjustable from 5 to 50ft

Delay between each
detection

Adjustable from 1 to 30min

*Additional 10 sec. setting
(see "Delay")

Electricity mode Instant trigger time

(Connected to a 12V DC
Main source only)

External trigger 1/8" jack for normally

open contact

Night time illumination system:

LEDs 38 LEDs
Type Invisible Black LEDs

Exposure Automatic infrared level

adjustment

Optical field of view:

40°

Wireless:

Wireless range Maximum 500 ft to the

Blackbox-DTM controller
(included with TINY-W3/
S-TINY-W3)

Remos™ Technology This camera is compatible

with the SPYPOINT

®

Remos™ Technology (see
"Settings")

Recommendations:

Operating temperature (-20 °C to + 50 °C)

(-4 °F to +122 °F)

Storage temperature (-30 °C to + 75 °C)

(-22 °F to +167 °F)

CONTENTS

SPYPOINT

®

TINY-3/S-TINY-3

• Installation strap

• USB cable

• Audio/video cable

• User manual

SPYPOINT
TINY-W3/ S-TINY-W3

• Blackbox-DTM controller

• Installation straps (2)

• USB cable

• Audio/video cable

®

• User manuals

7

English

8

REAR VIEW

1.

English

BOTTOM VIEW

7.

9

1. Power button

2. LED recording indicator

BUSY

2.

3.

4.

OK

5.

6.

3. "UP" button

4. "BACK" button

5. "OK" button

6. "DOWN" button

7. ALK / RECH (switch for battery)

English

8. SD card slot

9. USB port

10. 12-volt jack

11. External trigger jack

12. TV OUT

13. Removable battery case

POWER

The battery level is shown in the "Report" mode.

(4/4 = full, 1/4= low) When the battery level shows 2/4,

8.

9.

10.

11.

the camera will continue to take pictures but we strongly
recommend changing the batteries before they are empty.

AA batteries

12.

13.

This camera requires the use of 6 AA batteries (1.5V). The use
of alkaline or lithium batteries is strongly recommended. Also

note that the voltage of rechargeable AA batteries (1.2V)
is insufficient to power your SPYPOINT® camera. During

the installation of alkaline batteries, place the switch inside
the battery case to "ALK" (i.e. alkaline). Insert the batteries
in the battery case as indicated and insert it inside the camera
(see figure below). Exact polarity must be followed. We also
recommend the use of new batteries to ensure maximum
performance of your camera.

10

English

Top

TO INSERT THE BA TTER Y CASE INSIDE

11

THE CAMERA

ConnectorConnector

English

TINY-3

Lithium battery pack

This SPYPOINT® camera can be powered by a rechargeable
lithium battery LIT-09/LIT-C-8 (sold separately, refer to
the section "Options"). This type of battery is less affected
by cold temperatures and lasts up to 3 times more than an
alkaline battery. During the installation of the lithium battery,
place the switch inside the battery case to "RECH". Insert
the battery in the case as indicated and insert it inside the
camera (see figure below)

Top

ConnectorConnector

P INTSPY

TM

INTPSPY

ConnectorConnector

P INTSPYTMINTPSPY

External (12V)

The camera can also be powered from an external 12-volt
DC input such as a 12-volt battery (KIT-12V/BATT-12V, sold
separately) or a 12-volt adapter (AD-12V, sold separately).
During the installation of 12-volt battery, place the switch
inside the battery case to "ALK" (i.e. alkaline).

If combined

with a lithium battery pack, slide the switch to "RECH".

To find the accessories available for the 12-volt, refer to the
section "Options".

12

Solar panel

This model also offers the possibility of a connection to
a solar panel SP-12V (sold separately, refer to the section
"Options") to maintain the charge of the lithium battery
(sold separately, refer to the section "Options") or the 12­volt battery (sold separately, refer to the section "Options").
During the installation of the rechargeable lithium battery

English

or 12-volt battery, slide the switch inside the battery case to
"RECH" to activate the charging system of the solar panel.

MEMORY CARD

Using a memory card (sold separately, refer to the section
"Options") is required to operate this SPYPOINT® camera.
When the camera is turned on, the screen displays "Insert
memory card" in "Photo", "Video" or "Test" mode if
no memory card is used, the camera also beeps. The
SD slot of the camera and the controller (supplied with
TINY-W3/S-TINY-W3) have a 32 GB memory capacity.

Before inserting or removing the memory card, the
camera must be turned off. Failing to do so may cause

loss of or damage the pictures already recorded from
the memory card. When the SD card is full, the viewing
screen indicates "Disk full" when "Photo", "Video" or
"Test" mode are selected. The following data shows an
approximate quantity of photos or video length that can be
taken by the camera depending on the memory card capacity.

RESOLUTION 2.0 GB 4.0 GB 8.0 GB 32 GB

3 MP
5 MP

10 MP

VIDEO RESOLUTION

1280 x 720 (720p) 20 min 40 min 1h20 5h20

2000
1700
1000

4100
3400
1900

8200
6800
3800

32800
27300
15200

"BUSY" LED

The "BUSY" light, located beside the LCD screen, lights up
when the camera records a file.

WIRELESS

REMOSTM TECHNOLOGY

This Remos

TM

compatible camera benefits from wireless

capabilities and can be combined with:

• RC-1 ― Remote control (control of the camera remotely)

• MS-1 ― Motion sensor (triggers the camera remotely)

• IRB-W ― Infrared Booster (increases the lighting power)

Refer to the section "Settings" for details

Note: The optional steel security box (SB-T) affects wireless

functionalites of products compatible with Remos

TM

technology. The wireless transmission of pictures from the
camera to the BLACKBOXTM-D is also affected.

13

English

14

COMBINE THE TINY -3/S-TINY-3 TO THE
WIRELESS SYSTEM TINY-W3/S-TINY-W3

Remove the cap and screw the antenna on the side of the
TINY-3/S-TINY-3 camera. The camera can be added to
the wireless system TINY-W3/
S-TINY-W3 composed of TINY-W3/
S-TINY-W3 camera and Blackbox-D

English

controller. Up to 10 cameras can be

TM

combined to a single Blackbox-DTM
(see Blackbox-DTM manual for more
details).

PROGRAMMING

T urn on the camera to navigate in the interface by pressing
"" or "" and press "OK" for selection. To modify the
selection, press "" and "" again and press "OK" to
confirm. To return to the previous menu press "".



VIDEO

To take videos. The "Video" mode must be selected

by pressing "OK"; the test light in the front of the
camera will flash for 60 seconds to allow the operator to walk
away from the camera.

TEST

To set the camera and the desired distance. When

"Test" mode is selected, no picture or video is
recorded. Walk perpendicularly in front of the camera. When
the camera detects movement, the light winks to indicate that
normally, a photo or video would have been recorded. If the
system does not detect the movement, increase the distance
detection using the "Settings" menu (the option "Sensitivity"
allows the user to set the sensitivity to "High", "Medium" or
"Low"). You can also realign the camera differently. Once
you understand how the device responds to detections, you
can better adjust the direction or the height of the camera

15

English


To take pictures. The "Photo" mode must be selected

by pressing "OK"; the test light in front of the camera
will flash for 60 seconds to allow the operator to walk away
from the camera.

2s

TINY-W

Test light

In "T est" mode, it is possible to take a picture by pr essing
the "OK" button. The photo is saved and appears in
"View" mode.

16

How to properly install your camera
using the supplied installation strap:

English

(Recommanded installation height: about 3 feet).

SETTINGS

To define the options of the camera. To configure

the system in English, hold the button "" until
"Language" is highlighted. Press "OK", select "English" and
confirm your choice with "OK". The system will change all
the menus in English by itself.

Camera ID

Allow the user to name the camera
(maximum 8 characters)

Time Start /
Time Stop:

Allow the user to set the period of operation
of the camera. The start and stop time are
the hours during the camera is in action
and records pictures or videos. Example: if
the user selects a start time "7:00 am" and
a stop time "11:00 am", the camera will
only detect for that period of time and will
stay inactive for the remaining hours. Press
"OK" and use "" or "" to adjust the hour.

Press again "OK" to set the minutes. When
the time is properly set, press

"OK" once

more to go back.

For an activation of 24 hours, the same start
and stop time must be entered (example:
00:00 as start time and 00:00 as stop time.

These hours are the basic settings of your
camera.

Note: The hours can be recorded over a

12 or 24 hours period. Refer to "Setting"/
"Time format" (00:00 means midnight)

17

English

18

English

Wireless:

(On/Off)

Enables or disables the wireless
transmission of images to the Blackbox­DTM controller (supplied with the TINY-W3/
S-TINY-W3).

When the transmission is enabled:

• Only pictures are transmitted to the
controller, not videos.

• The quality of the photos on the controller
is reduced to maximize transmission:

10MP = 800 x 600 pixels
5MP = 640 x 480 pixels
3MP = 320 x 240 pixels

• When in

"Time Lapse" mode, photos

are sent to the controller except for the

"30s" setting.

• When the delay setting "10s" is selected,
the time between each detection is
calculated when the transmission is
completed. For example, if the transmission
takes two seconds, the time between the two
detections is 12 seconds.

Note: When the wireless option is activated,
it is only possible to take up to 2 consecutive
shots.

Delay:

(10s/1m/3m/5m/
10m/15m/30m)

Multi-shot:

(1/2/3/4/5/6
consecutive
shots)

Select the time interval between photos or
videos.

Additional setting: it is possible to
decrease the delay between detections to 10
seconds (instead of 1 minute) by using the
following procedure. Note that the battery

life will be affected.

Turn OFF the camera. Press and hold the
"" button and turn the camera ON . "10sec
enabled" appears on the screen meaning
the minimum delay is now 10 seconds. If
this option is used, the 30 minute delay
disappears. To reset the camera to 1 minute
delay, follow the same procedure. "10sec
disabled" appears on the screen (see figure
below)

10SEC DISABLED10SEC ENABLED

10 sec delay 1 min delay

Take up to 6 consecutive shots at each
detection, with a 10 second delay between
each photo. This option allows up to 6
pictures from different angles when the
camera is in "Photo" mode.

19

English

20

Video length:

(10s/30s/60s/90s)

Allow the user to select the recording time
when the camera is set in "Video" mode.

Stamp:

(Yes/No)

Select or cancel printing the date, time,
temperature and moon phases on photos.

21

Language:

(English/Français/
Deutsch/Italiano/

Norsk/Česky/

English

Suomi/Magyar/
Polski)

Sensitivity:

(High/Medium/
Low)

Date:

Time format:

(12h/24h)

Time:

Select a language for the camera’s menu.

Allow the user to choose between three

different levels of sensitivity:

"High",

"Medium" or "Low". The camera will only

detect sources of heat in movement. Make

sure to have the least possible objects in
front of the camera during the positioning.
This prevents picture taken by the camera
when oriented towards the sun while an
object moves in front of the camera (e.g. a
branch)

Set the date as Month / Day / Year

Allow the user to choose between a 12 or
24 hours period time displays on the photos
(eg. 6:00 pm or 18:00)

Set the time as Hour / Minute

Resolution:

(High/Medium/
Low)

Temperature:

(°C/°F)

Continuous:

(Yes/No)

Power:

(Batteries/
Electricity)

New moon:
Waxing Crescent:
First Quarter:
Waxing Gibbous:
Full moon:
Waning Gibbous:
Last Quarter:
Waning crescent:

Set the photo resolution.

High: 10 MP
Medium: 5 MP
Low: 3 MP

Select the temperature display in °F or °C.

Allow the user to take pictures or videos
even if the memory card is full. The camera
will continue to record photos or videos by
deleting the first files recorded.

Allow the user to select the battery power or
the electricity power.

English

22

English

Choose "Electricity" if the camera is
powered by a main electric supply. (using
a 12-volt DC adapter AD-12V, sold
separately). Main electric power supply
is recommended when use for security
purposes. It provides an instant trigger time
when a movement is detected. When the
power supply is used the lithium battery
pack or the AA batteries can remain safely
inside the camera and it is ideal in case of
a blackout. A 12-volt DC adapter that can
provide a minimum of 800 mA is required
(See "Options" for accessories).

Infrared:

(On/One LED/
Off)

Allow the user to choose how many LEDs
will be turned on.

On: Every LEDs work when taking photos
or videos at night.

One LED: Only a single LED works (see
figure). This option can be useful when
using an IR-Booster/Black LEDs IR­Booster (sold separately, refer to the section
"Options").

23

English

Note: When using the electricity power, the
"Multi-shot" mode and the "Delay" between
photos are disabled as the camera triggers
instantly every time it detects motion. Also,
the printing of the temperature on each
picture is disabled.

LED for
infrared
sensor

TINY-3

Off: LEDs are deactivated so your night
photos or videos are pitch black.

24

English

Side Sensors:

(On/Off)

When the side sensors are activated, a
total of 7 zones is covered. The central
sensor covers 5 zones. The side detectors
are mainly used to prepare the camera so
when your target passes through the central
sensor, the system is already pre triggered,
increasing greatly the reaction time of your
camera.

Note: The side sensors require more battery
power.

s: side sensors
c: central sensor

Camera

6

&

6

Viewing angle

30° 70°40°

Detection angles

30’

(9m)

Detection distance

50’

(central)

(15m)

Detection distance
of the side sensors

26’

(8m)

Time Lapse:

(Off/30s/1m/3m/
5m/15m/30m/1h)

RC-1

(

RemosTM):

(On/Off)

1 2

3

Allow the user to set the frequency at which
time the camera takes a picture, without
detection. For example, if the option "5
minutes" is selected in the "Time Lapse"
mode, the camera takes a picture every 5
minutes during that period of operation
(time start and time stop) even if there is no
detection.

This option allows the user to obtain
pictures of game outside the detection range
of the camera.

Note: The "Time Lapse" mode only applies
in "Photo" mode, not in "Video" mode.
When "Time Lapse" mode is selected, the
"Delay" mode and the "Multi-shot" mode
are disabled. In addition, the photo
resolution is reduced to 800 x 600 to allow
the possibility of video editing.

The RC-1 remote control is required
(sold separately, see "Options"). Allows the
user to activate or deactivate the detection
of the camera (#1,2), to remotely take a
photo or a video on command in an area of
500ft (#3) and to activate the buzzer signal

4

on the controller (TINY-W3/ S-TINY-W3
only) in an area of 500ft (#4).

25

English

26

MS-1

(RemosTM):

(On/Off)

The MS-1 motion sensor is required
(sold separately, see "Options"). Allows the
camera to be triggered wirelessly by one or
more MS-1 devices.

English

IR-Booster

(

RemosTM):

(On/Off)

Allows the camera to trigger, up to a distance
of 50 ft, one or more remote IR-BOOSTER
infrared lighting devices without the use of
an additional transmitter.

REPORT

The report mode keeps a record of the last period of
use of the camera. The beginning date corresponds

with the moment the camera is set to either "Photo" or
"Video" mode. Thus, the report is reset when changing

modes.

1.

2.

3.

4.

5.

6.

7.

8.

9.

1. Beginning and end date of the report

2. Number of photos or videos taken during the day

3. Number of photos or videos taken at night

4. Total of photos or videos taken

5. Current time of the camera

6. Current date of the camera

7. Battery level (1/4 = low, 4/4 = full)

8. Remaining space on the SD card estimated by a number
of photos

9. Used space on the SD card (total number of files, only
includes photos and videos taken by a SPYPOINT

®

camera)

EXTERNAL TRIGGERING

Input which triggers the taking of photos or videos using a
normally open contact. (Example: using a magnetic door
switch connected to an alarm system).

DOWNLOAD TO A COMPUTER

To transfer or view photos and videos on a PC, you must first
turn off the camera and connect the USB cable (supplied)
from the camera to your computer. The computer will
recognize the camera and will install the software itself.
Click on "My Computer" and select "Removable Disk".
Then click "DCIM" and "100DSCIM" to find all your photos
and videos.

27

English

28

Taking the SD card out of the camera and inserting it into the
computer port will achieve the same results. If no SD slot
is built into the computer, use a multi-card reader RD25-1
(sold separately, refer to the section "Options").

English

VIEW

To view recorded photos or videos on TFT 2.4"
viewing camera screen or on a TV set at home.

• Viewing with the 2.4" screen: When camera is set to
"View", the last recorded photo or video recorded appears
on the screen automatically. Press "" or "" to view next or
previous images.

Press "OK" to view the different options available in "View"
mode.

View Date/Time:

Allows the view of the date and time
printed on the picture.

Protect:

To protect the photo or video on the
screen.

Erase one:

To erase the photo or the video on the
screen.

Erase All:

To erase all stored photos and videos,
with the exception of protected photos
and videos.

Format:

To format memory card and to erase all
protected photos and videos.

Exit:

To return to viewing screen.

Note: The number of yellow stars that appear to the right of

the screen corresponds to the resolution of the photos.

=Low (3MP)
=Medium (5 MP)
=High (10MP)

• Watching on TV: You can view the photos or videos

directly from a TV. Connect the yellow end of the audio­video cable supplied into the "VIDEO IN" of the TV and the
other end into the "TV OUT" of the camera. The last photo
or video recorded appears on the screen automatically. Press
"" or "" to view next or previous images. The options are
the same as when viewing on the 2.4" screen (see above).

SOUND RECORDING

This SPYPOINT® camera offers the possibility to record
the sound in " Video " mode. When the " Video " mode is
selected, the camera automatically records the sound. Under
the camera, you can find a rubber cap with the inscription
MIC. If the user does not want to record the sound, the rubber
cap needs to stay in place. If the sound recording is required,
the user must lift the rubber cap and turned it slightly so that
the microphone receiver is completely cleared (See figure
below).

29

English

30

TROUBLESHOOTING

No person / animal on photos

1. Rising sun or sunset can trigger sensor. Camera must be
reoriented.

2. At night, motion detector may detect beyond range of
the IR illumination. Reduce the distance setting of the

English

camera ("Settings" / "Sensitivity").

3. Small animals may trigger the unit. Reduce the distance
setting and/or raise height of camera.

4. Motion detector may sense animals through foliage.

5. If person/animal moves quickly, it may move out of
the camera’s field of view before photo is taken. Move
camera further back or redirect camera.

6. Camera must be set on a stable and motionless object e.g.
large tree.

Red light in front of camera that blinks

Camera is set in "Photo" or "Video" mode. Red light on the
front of the camera flashes for 60 seconds to allow the user to
leave without being photographed or filmed.

The camera screen turns off

The camera may be set to " Photo " or " Video " mode and
the screen turns off after a period of 60 seconds in order to
preserve battery life.

OPTIONS

To obtain more information on the available options, go to
www.spypoint.com. The following items are the options
which can be added to the SPYPOINT® camera.

SD Memory card, SD-8GB

SDHC memory card 8GB High speed
Class 6.

Multi-card reader RD25-1

USB Multi-card reader all-in-one.
Compatible with most memory cards
(SD, CF, MS, MMC, MS, XD...)

Rechargeable lithium battery pack
including charger , LIT-C-8

Rechargeable lithium battery and AC
charger with charge indicator light. Fits
most SPYPOINT

®

products.

Additional lithium battery pack,
LIT -09

Additional rechargeable lithium battery,
fits more SPYPOINT® products.

Water -Resistant battery box, KIT-12V

12 volt 7.0Ah rechargeable battery and
AC charger with water resistant ABS
plastic case. 12ft power cable (#PW­12FT) and carrying strap included.

12ft power cable, PW-12FT

Spare 12 ft power cable, fits with KIT­12V.

31

English

32

English

12-volt rechargeable battery and
charger , BATT-12V

12-volt 7.0Ah rechargeable battery and
AC charger.

12-volt power cable, CB-12FT

Power cable with alligator clips at one
end to connect a 12 volt battery to a
camera,12ft long.

Water resistant battery box,
KIT6V-12V

Universal kit with two 6V rechargeable
batteries (2.8Ah), with 6V (5.6Ah)
and 12V (2.8Ah) output configuration,
AC charger with water resistant ABS
plastic case. 12ft power cable and strap
included. Camo pattern.

12-volt adapter , AD-12V

AC adaptor (6V to 12V) to power the
camera from electrical supply.

Solar Panel, SP-12V

Solar panel with adjustable steel
mounting kit. Can be used to maintain
recharged lithium battery directly
into compatible devices. Can also be
combined with any 12-volt battery.

IR-Booster , IRB-W

100 LED wireless infrared module that
allows the user to amplify the infrared
lights at night for clearer shots.

Black LEDs IR-Booster , IRB-W-B

100 invisible LED (completely invisible
to the naked eye) wireless infrared
module that allows the user to amplify
the infrared lights at night for clearer
shots.

Motion Sensor, MS-1

Wireless motion sensor that allows
to trigger the camera remotely, up to
500ft away. Works with all cameras
compatible with Remos™ technology.
Requires 1 alkaline 9V battery or a
12V power supply (not included).Also
available in black.

Remote control, RC-1

Four button wireless remote control.
Works with all cameras compatible
with Remos™ technology (up to
500ft). Battery included.

Secure Metal Box, SB-T

Steel box to secure the camera against
theft. It also protects it from breakage
that can be caused by bears or other
animals. Also available in black.

33

English
