Digital Surveillance Camera Système de surveillance photographique
Fotografisches Überwachungs system
IR-5 model / Modèle IR-5 / Modell IR-5
User manual / Manuel d'utilisation / Bedienungsanleitung
www.spypoint.com
2
English
3
English
English
Thank you for choosing one of our excellent SPYPOINT products. You can now enjoy many benefits of a full feature and easy to use digital surveillance camera. This 5 MP digital camera was developed and designed by our team of highly qualified engineers and can take sharp and clean photos or videos either day or night without using any flash.
v1.8
4
English
FEATURES
Photo recording:
Photo resolution |
5 MP |
|
|
File format |
JPG |
|
|
Multi-shot |
Up to 4 pictures per detection |
|
|
Stamp |
Date, time, temperature and moon |
|
phase |
|
|
Capture mode |
Color by day, black and white by |
|
night |
|
|
Video recording: |
|
|
|
Video resolution |
640 x 480 |
|
|
File format |
AVI |
|
|
Sequence length |
Adjustable from 10 to 90sec |
|
|
Capture mode |
Color by day, black and white by |
|
night |
|
|
Memory storage: |
SD/SDHC card up to 32 GB (No |
|
internal memory) |
|
|
Viewing: |
|
|
|
TV output |
Composite video (PAL/NTSC) |
Computer output |
USB 2.0 |
|
|
Power supply: (accessories sold separately, see “Options”)
Alkaline or lithium |
6x AA |
batteries |
|
|
|
Lithium battery pack |
Rechargeable battery pack |
|
(LIT-09/LIT-C8) |
External (12V jack) |
12 volt battery (KIT-12V/BATT- |
|
12V) / |
|
12 volt adapter (AD-12V) |
Detection system: |
|
|
|
Motion sensor |
PIR |
|
|
Detection angle |
30° |
|
|
Detection range |
Adjustable from 5 to 50ft |
|
|
Delay between each |
Adjustable from 1 to 15min |
detection |
*Additional 10 sec. setting |
|
(see DELAY) |
Night time illumination system: |
|
|
|
Infrared LEDs |
35 infrared LEDs |
|
|
Optical field of view: |
50° |
Recommendations: |
|
|
|
Operating temperature |
(-20 °C to + 50 °C) |
|
(-4 °F to +122 °F) |
Storage temperature |
(-30 °C to + 75 °C) |
|
(-22 °F to +167 °F) |
CONTENTS
•SPYPOINT IR-5
•Installation strap
•USB cable
•Video cable
•User manual
5
English
6
English
POWER
The battery level is shown on the LCD screen. When a single line remains, the camera will continue to take pictures but we strongly recommend changing the batteries before they are empty. (See figure below)
AA batteries
This camera requires the use of 6 AA batteries (1.5V). The use of alkaline or lithium batteries is strongly recommended. Also note that the voltage of rechargeable AA batteries (1.2V) is insufficient to power your SPYPOINT camera. During the installation of AA batteries, place the switch inside the battery case to «ALKALINE». Insert the batteries as indicated inside the battery case. Exact polarity must be followed. We also recommend the use of new batteries to ensure maximum performance of your camera.
Lithium battery pack
The camera SPYPOINT IR-5 can be powered by a rechargeable lithium battery LIT-09/LIT-C-8 (sold separately, refer to the section «OPTIONS»). This type of battery is less affected by cold temperatures and lasts up to 3 times more then an alkaline battery. During the installation of lithium battery, place the switch inside the battery case to «RECHARGEABLE».
External (12V)
The camera can be powered from an external 12 volt DC input such as a 12 volt battery (KIT-12V/BATT-12V, sold separately) or a 12 volt adapter (AD-12V, sold separately). When using a 12 volt connection, we recommend removing the AA batteries to prevent surcharges. During the installation of a 12 volt connection, place the switch inside the battery case to «ALKALINE». If combined with a lithium battery pack, slide the switch to «RECHARGEABLE». To find the accessories available for the 12 volts, refer to the section «OPTIONS».
MEMORY CARD
Using a memory card is required to operate the camera SPYPOINT IR-5. When the camera is « ON » and no memory card is used, the LCD panel displays « CArd » meaning to insert one. The SD slot of the camera can accept memory cards up to 32 GB capacity. Before inserting or removing the memory card, the camera must be turned « OFF ». Failing to do so may cause loss of or damage the pictures already recorded from the memory card. When the SD card is full, the LCD panel indicates « FULL ». The following data shows an approximate quantity of photos which can be recorded by the camera depending on the memory card capacity.
RESOLUTION |
2.0 GB |
4.0 GB |
8.0 GB |
32 GB |
|
|
|
|
|
5 MP |
1900 |
3800 |
7600 |
30400 |
6 MP |
1580 |
3160 |
6320 |
25280 |
8 MP |
1190 |
2380 |
4760 |
19040 |
10 MP |
950 |
1900 |
3800 |
15200 |
12 MP |
790 |
1580 |
3160 |
12640 |
|
|
|
|
|
VIDEO RESOLUTION |
|
|
|
|
|
|
|
|
|
320 x 240 |
45 min |
1h30 |
3h |
12h |
640 x 480 |
30 min |
1h |
2h |
8h |
|
|
|
|
|
« BUSY » LED
The « BUSY » light, located next to the screen, lights up when the camera is recording.
SETTINGS
Date, Time, Temperature and Picture Quality
Turn « OFF » your camera; set switch « MODE » to « SET/ TEST » and turn « ON » the camera. Press « MENU/OK ». An « H » will flash on the screen indicating that the camera is in High Resolution (5 MP). Use the « DOWN » button if you want to reduce the resolution to « L » (3 MP). Press
«MENU/OK » to set the date and time (mm/dd/yy, hh/mm). Use « UP » and « DOWN » to change the blinking digit. Choose
«F » or « C » to display the temperature in Fahrenheit (°F) or Celsius (°C). Press « MENU/OK » to go to the next option. Once finished, press « MENU/OK » and turn « OFF » the system to save the changes.
7
English
8
English
MODE When the « PHOTO » or « VIDEO » mode is selected, the test light in the front of the camera flashes for 60 seconds to allow the user to leave without being photographed or filmed. When the « SET/TEST » mode is selected, no picture or video is recorded. Walk perpendicularly in front of the camera. When the camera detects movement, the light winks to indicate that normally, a photo or video would be recorded. If the system does not detect the movement, increase the distance detection using the wheel « DISTANCE » or realign the system differently. When you understand how the device responds to detections, you can better adjust the direction or the height of the installation. When the switch is set to « VIEW », you can view the recorded pictures or videos on television.
DELAY To select the time interval before the camera records another photo or video.
Additional setting: it is possible to decrease the delay between detections to 10 seconds (instead of 1 minute) by using the following procedure. Note that the battery life will be affected.
Turn OFF the camera. Press and hold the « UP » button, turn the camera on. « 10_S » appears on the screen meaning the 1 minute delay has been replaced by a 10 second delay. To reset the camera to 1 minute delay, follow the same procedure. « 1_M » appears on the screen (see figure below).
10_5
10 sec. delay 1 min. delay
MULTI-SHOT
To take up to 4 consecutive shots at each detection, with a 10 second delay between each photo. This option is available in « PHOTO » mode.
VIDEO LENGTH
Allows you to select the recording duration when the camera is set in « VIDEO » mode.
DISTANCE
Turn the dial to the right to increase distance.
The « DISTANCE » dial (placed on the side of the camera) can adjust the sensitivity of the detector. The camera is equipped with a detector sensitive to infrared. The system detects only heat source in motion. The greater the mass of heat, more sensitive is the system. Range of detector is between 5 and 50 feet. The best way to adjust the distance is to set the camera in « SET/TEST » mode (see above). Make sure to have the least possible objects in front of the camera during the positioning. This prevents picture taken by the camera when oriented towards the sun while an object moves in front of the camera (eg. a branch)
9
English
10
English
DOWNLOAD TO A COMPUTER
To transfer or view photos and videos on a PC, you must first turn the camera « OFF » and connect the USB cable (supplied) from the camera and to your computer. The computer will recognize the camera and install the software itself. Click on
«My Computer » and select « Removable Disk ». Then click
«DCIM » and « 100DSCIM » to find all your photos and videos.
Taking the SD card out of the camera and inserting it into the computer port will achieve same results. If no SD slot is built into the computer, a multi-card reader RD25-1 (sold separately) must be used.
TELEVISION
To see photos and videos directly on a TV screen, turn
«OFF » your camera and select « VIEW ». Connect the yellow end of the cable (supplied) into the « VIDEO IN » of the TV and the other end into the « TV OUT » of the camera. Turn « ON » the camera. You will see the last picture or video recorded by your system. To change the picture or the video, use the key
«UP » or « DOWN ». If you press « MENU/OK », the following options will appear:
View Date/Time: To increase the view of the date and time imprinted on the picture.
Erase one: To erase the photo or the video on the screen.
Erase All: To erase all stored photos and videos, with the exception of protected photos and videos.
Format: To format memory card and to erase all protected photos and videos.
Protect: |
To protect the photo or video on the |
||
|
screen. |
||
Language: |
To select language. |
||
Exit: |
To return to viewing screen. |
||
|
|
||
|
Full moon: |
|
|
|
New moon: |
|
|
|
First quarter: |
|
|
|
Last quarter: |
|
|
TROUBLESHOOTING
No person / animal on photos
1.Rising sun or sunset can trigger sensor. Camera must be reoriented.
2.At night, motion detector may detect beyond range of the IR illumination. Reduce distance setting.
3.Small animal may be triggering unit. Reduce distance setting and/or raise height of camera.
4.Motion detector may sense animals through foliage.
5.If person/animal moves quickly, it may move out of the camera’s field of view before photo is taken. Move camera further back or redirect camera. Camera must be set on a stable and immovable object i.e. large tree.
6.Make sure the mounting post or tree is stable and does not move.
Red light in front of camera winks
1.« MODE » switch is in « SET/TEST ».
2.« MODE » switch is in « PHOTO » or
« VIDEO ». Red light on the front of the camera flashes for 60 seconds to allow the user to leave without being photographed or filmed.
11
English
12
English

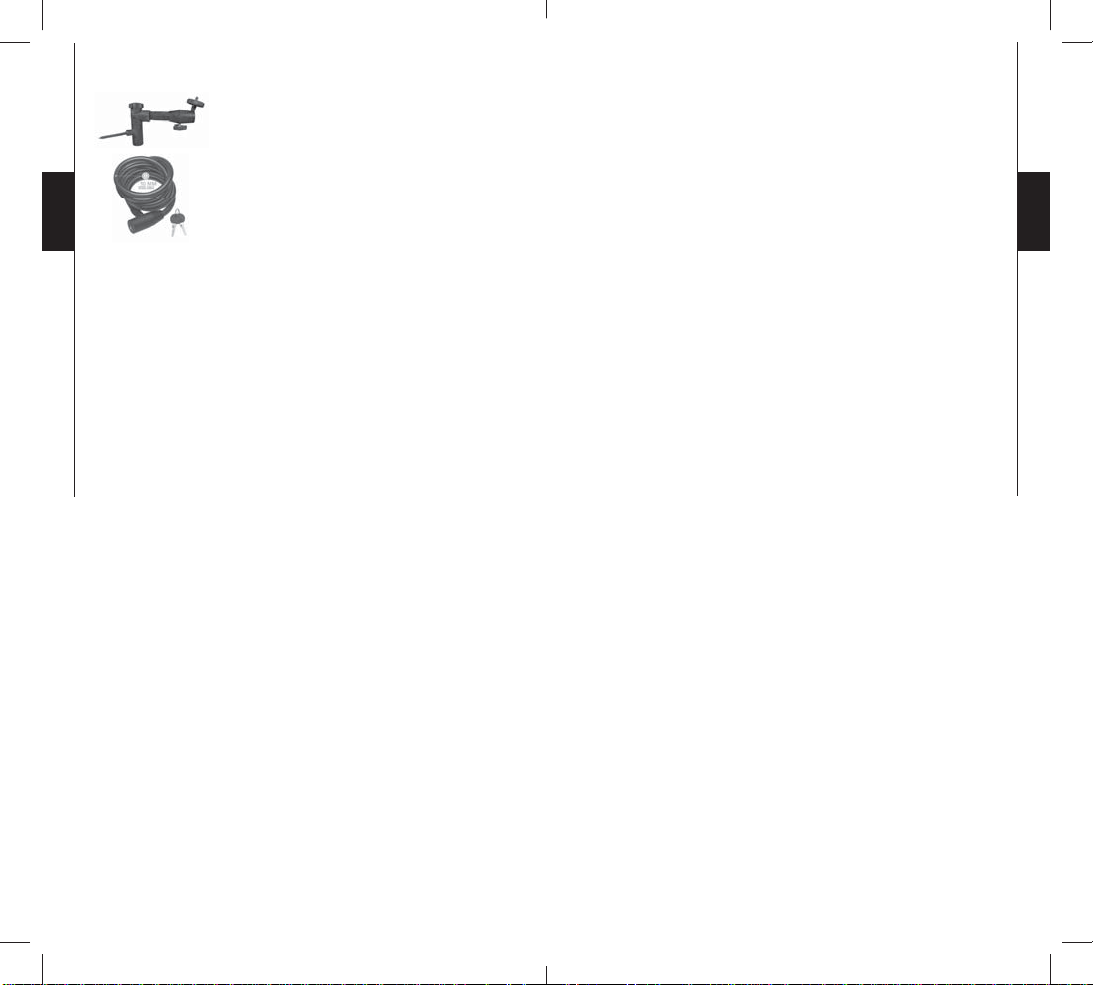

OPTIONS
See your local dealer or visit www.spypoint.com to find available products. The following items are popular options that can be added to a SPYPOINT camera model IR-5:
SD Memory card, SD-8GB
Allows the user to record photos and videos.
Multi-card reader RD25-1
Allows the download of photos and videos directly into a personal computer, without using the SPYPOINT camera. This reader works with 25 different types of memory cards and is compatible with SD card.
Picture viewer, PV-2.4
Digital camera. Picture viewer, SD card slot, 2.4" viewing screen, 2GB internal memory, MP3, radio, headphone, leather transport pocket, rechargeable lithium battery, charger and USB cable included.
Photo and video viewer, PV-9
Photo and video viewer. 2.5" viewing screen.
Rechargeable lithium battery pack including charger, LIT-C-8
Rechargeable lithium battery pack for camera, to replace alkaline batteries. This type of battery is much less affected by cold temperatures and lasts up to 3 times the alkaline batteries.
Additional lithium battery pack, LIT-09
An additional lithium battery pack is a handy spare.
Water resistant battery box, KIT-12V
Water resistant battery box. Includes a 12 volt rechargeable battery, charger, 12 feet power cable and carrying strap.
12ft power cable, PW-12FT
Spare 12 ft power cable, fits with KIT12V.
12 volt rechargeable battery and charger, BATT-12V
To allow using external rechargeable battery to power the camera.
12 volt power cable, CB-12FT
A 12 ft. cable allows connecting the camera to an external 12 volt DC power.
12 volt adapter, AD-12V
12 volt adapter for wall outlet, fits all Spypoint cameras.
IR-Booster, IRB-W
100 LED wireless infrared module that allows the user to amplify the infrared lights at night for clearer shots.
Black LEDs IR-Booster, IRB-W-B
100 invisible LED (completely invisible to the naked eye) wireless infrared module that allows the user to amplify the infrared lights at night for clearer shots.
Secure Metal Box, SB-91
Metal Box to secure the camera against theft. It also protects it from breakage that can be caused by bears or other animals.
13
English
