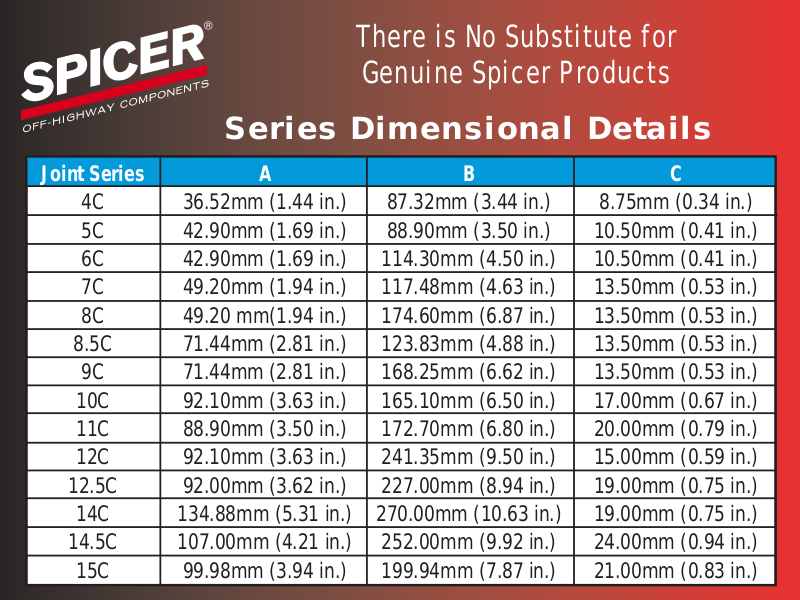

Series Dimensional Details

Joint Series A B C

4C 36.52mm (1.44 in.) 87.32mm (3.44 in.) 8.75mm (0.34 in.) 5C 42.90mm (1.69 in.) 88.90mm (3.50 in.) 10.50mm (0.41 in.) 6C 42.90mm (1.69 in.) 114.30mm (4.50 in.) 10.50mm (0.41 in.) 7C 49.20mm (1.94 in.) 117.48mm (4.63 in.) 13.50mm (0.53 in.) 8C 49.20 mm(1.94 in.) 174.60mm (6.87 in.) 13.50mm (0.53 in.)

8.5C 71.44mm (2.81 in.) 123.83mm (4.88 in.) 13.50mm (0.53 in.) 9C 71.44mm (2.81 in.) 168.25mm (6.62 in.) 13.50mm (0.53 in.)

10C 92.10mm (3.63 in.) 165.10mm (6.50 in.) 17.00mm (0.67 in.) 11C 88.90mm (3.50 in.) 172.70mm (6.80 in.) 20.00mm (0.79 in.) 12C 92.10mm (3.63 in.) 241.35mm (9.50 in.) 15.00mm (0.59 in.)

12.5C 92.00mm (3.62 in.) 227.00mm (8.94 in.) 19.00mm (0.75 in.) 14C 134.88mm (5.31 in.) 270.00mm (10.63 in.) 19.00mm (0.75 in.)

14.5C 107.00mm (4.21 in.) 252.00mm (9.92 in.) 24.00mm (0.94 in.) 15C 99.98mm (3.94 in.) 199.94mm (7.87 in.) 21.00mm (0.83 in.)
