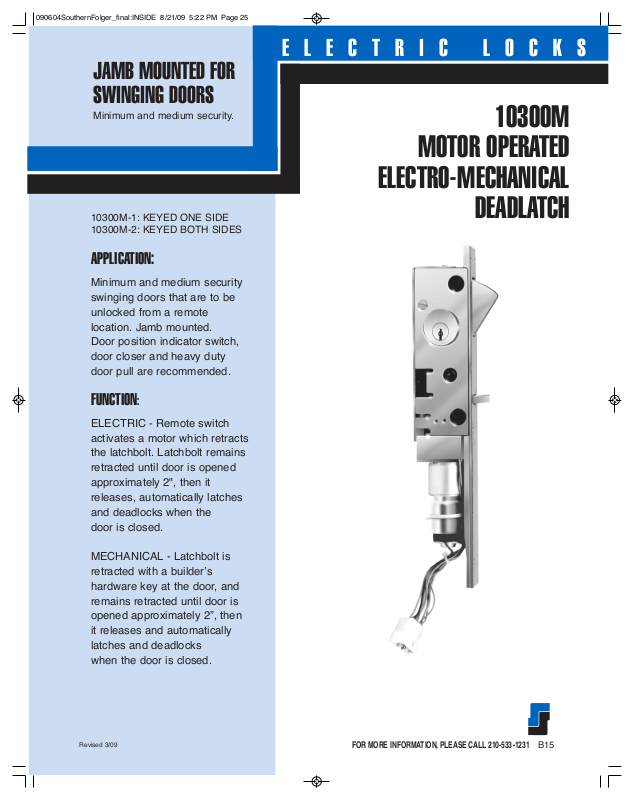

JAMB MOUNTED FOR
SWINGING DOORS
Minimum and medium security.
E L E C T R I C L O C K S
10300M
MOTOR OPERATED
ELECTRO-MECHANICAL
10300M-1: KEYED ONE SIDE
10300M-2: KEYED BOTH SIDES
APPLICATION:
Minimum and medium security
swinging
unlocked
location.
Door
door
door
doors that are to be
from a remote
Jamb mounted.
position indicator switch,
closer and heavy duty
pull are recommended.
FUNCTION:
ELECTRIC - Remote switch
activates a motor which retracts
the latchbolt. Latchbolt remains
retracted until door is opened
approximately 2", then it
releases,
and deadlocks when the
door
automatically latches
is closed.
DEADLATCH
MECHANICAL - Latchbolt is
retracted with a builder’s
hardware
remains retracted until door is
opened approximately 2”, then
it releases and automatically
latches and deadlocks
when
Revised 3/09
key at the door, and
the door is closed.
FOR MORE INFORMATION, PLEASE CALL 210-533-1231
B15
JAMB MOUNTED FOR
SWINGING DOORS
Minimum and medium security.
STANDARD FEATURES:
• Deadlock indication switch
• Mechanical latchback
• Strike with security fasteners
• Faceplate with security fasteners
• Plug connector
• High torque motor
• Fail secure
• Mounting fasteners
Note #1: 1-11/16” O.D. x 1/8” wall
cold
drawn tubes furnished by
hollow
metal manufacturer.
E L E C T R I C L O C K S
10300M MOTOR OPERATED
ELECTRO-MECHANICAL
DEADLATCH
1-11/16” O.D. x 1/8”
wall cold drawn tubes
are required.
See Note 1
OPTIONAL FEATURES:
HALF CYCLE HOLDBACK Remote two-position maintained
contact switch is required for this
function. Latchbolt is retracted
electrically when switch is in open
position.
returned to locked position, latch
bolt will extend when door is
opened approximately 2".
Specify “D.” UL listing not
available with this function.
NO LATCHBACK - Allows latch
bolt to extend without opening
door. Normally used with “D”
function. Specify “NL.”
LOCAL ELECTRIC KEYSWITCH Day key provides local electric
operation and may be disabled
from remote control point. Master
key provides both electric and
mechanical operation. Requires
dual-function enhancement to
builder's cylinder.
BUILDER’S HARDWARE
CYLINDERS Specify:
• “10300M-1” keyed one side.
• “10300M-2” keyed both sides.
KEY CYLINDER EXTENDER Required whenever lock is keyed
on stop side. Overall frame depth
4" minimum. Specify “KCE.”
Full body rim cylinder required on stop side.
Full body mortise cylinder required on
hinge
PROVIDE: (See Fig. 1)
1. Dimension “A” (overall frame width)
2. Dimension “B” (edge of frame to
When remote switch is
Specify “LEK.”
side.
centerline
of lockbolt)
NOTE: Drawing for illustration only. Reference template
Swing Chart: Specify circled swing number when ordering.
TECHNICAL DATA:
• STANDARD FINISH:
US32D
• LOCK BODY:
Stainless steel
• FACE PLATE:
Stainless steel
• LATCHBOLT:
Stainless steel
• DEADLOCK ACTUATOR:
Stainless steel
Frame Preparation
for specific Information.
• ELECTRICAL: 24 VDC, Inrush: .3A
Locked Rotor Current: 1.5A
• LOCK SIZE:
10-5/8” H x 1-1/2” W x 1-3/4” D
• LOCK WEIGHT: 3.6 lbs.
• LATCHBOLT SIZE:
1-5/8" H x 5/8" TK
• LATCHBOLT THROW: 3/4"
• BUILDER’S CYLINDER:
1-5/32" diameter with
standard Yale cam or equal
• UL Listed for use
on three-hour fire doors.
• ASTM F 1577 Certified
Impact Test-Grade 1
B16
Revised 12/10
P.O. BOX 2021 • SAN ANTONIO, TX • 78297 • 210-533-1231 • FAX: 210-533-2211
