Soundcraft VI6 USER GUIDE
Soundcraft Vi6™
User Guide
Soundcraft Vi6™ User Guide i
IMPORTANT
Please read this manual carefully before using
your mixer for the first time.
© Harman International Industries Ltd. 2006, 2007
All rights reserved
Parts of the design of this product may be protected by worldwide patents.
Part No. ZM0346-01 Issue 2.4
E&OE
Soundcraft is a trading division of Harman International Industries Ltd.
Information in this manual is subject to change without notice and does not
represent a commitment on the part of the vendor. Soundcraft shall not be
liable for any loss or damage whatsoever arising from the use of information
or any error contained in this manual.
No part of this manual may be reproduced, stored in a retrieval system, or
transmitted, in any form or by any means, electronic, electrical, mechanical,
optical, chemical, including photocopying and recording, for any purpose
without the express written permission of Soundcraft.
Harman International Industries Limited
Cranborne House
Cranborne Road
POTTERS BAR
Hertfordshire
EN6 3JN
UK
Tel:+44 (0)1707 665000
Fax: +44 (0)1707 660742
http://www.soundcraft.com
Soundcraft Vi6™ User Guideii
Contents
INTRODUCTION 1 -1
SAFETY NOTICES.............................................................................................................. 1 -1
SAFETY SYMBOL GUIDE ................................................................................................... 1 -1
IMPORTANT SAFETY WARNINGS ....................................................................................... 1 -2
WARNINGS ....................................................................................................................................... 1 -3
WORKING SAFELY WITH SOUND........................................................................................ 1 -4
WARRANTY ....................................................................................................................... 1 -4
Soundcraft Vi6™ FEATURES AND SPECIFICATIONS ............................................................ 1 -5
Audio Channels ................................................................................................................................ 1 -5
I/O Capability .................................................................................................................................. 1 -5
Miscellaneous .................................................................................................................................. 1 -6
Channel Processing .......................................................................................................................... 1 -6
Control Surface ................................................................................................................................ 1 -7
CONSOLE OVERVIEW ........................................................................................................ 1 -8
Bays ................................................................................................................................................. 1 -8
Layers .............................................................................................................................................. 1 -9
Encoders ........................................................................................................................................ 1 -10
Master Audio Functions .................................................................................................................. 1 -11
Master Control ............................................................................................................................... 1 -12
SYSTEM COMPONENTS 2 -1
SYSTEM HARDWARE OVERVIEW ....................................................................................... 2 -2
NOTE ON INSTALLATION OF THE COOLING FANS/FILTERS .................................................. 2 -3
THE CONSOLE REAR CONNECTORS................................................................................... 2 -4
Mains Power Supply Inlet .................................................................................................................. 2 -4
Audio And Data Rearcon ................................................................................................................... 2 -4
LOCAL RACK.................................................................................................................... 2 -6
Local Rack Description ..................................................................................................................... 2 -6
How It Works .................................................................................................................................... 2 -6
Front Panel....................................................................................................................................... 2 -6
Local Rack Rear ............................................................................................................................... 2 -7
Card Function Overview ................................................................................................................... 2 -10
STAGE BOX .................................................................................................................... 2 -13
Stage Box Description..................................................................................................................... 2 -13
Card Function Overview ................................................................................................................... 2 -13
Redundant MADI Cable Operation ................................................................................................... 2 -14
Front Panel..................................................................................................................................... 2 -15

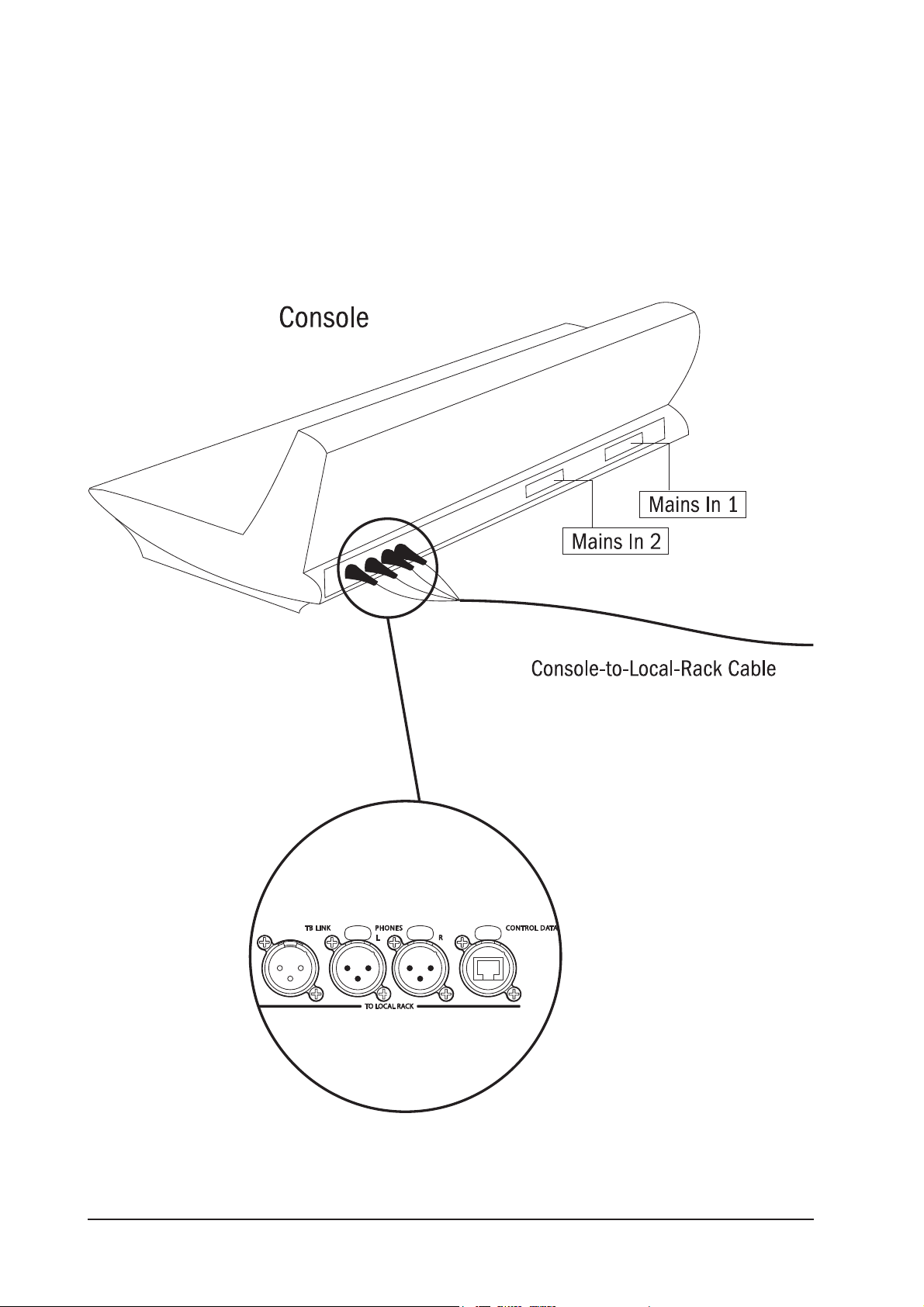

CONNECTING THE PARTS OF THE SYSTEM
(With Cat 5 Breakout Panel Fitted) ........................................................................... 2 -16
CONNECTING THE PARTS OF THE SYSTEM
(Without Cat 5 Breakout Panel Fitted) ...................................................................... 2 -18
OPERATION OVERVIEW 3 -1
GENERAL RULES.............................................................................................................. 3 -1
CONVENTIONS USED IN THIS MANUAL.............................................................................. 3 -1
SCREENS ........................................................................................................................ 3 -1
Input Screens ................................................................................................................................... 3 -1
Screen Colour Codes ........................................................................................................................ 3 -2
VISTONICS II™ KNOBS ..................................................................................................... 3 -3
AUDIO FUNCTION STATES................................................................................................. 3 -3
MOMENTARY/LATCHING CONTROL ACTION ....................................................................... 3 -3
SOLO/SEL KEYS .............................................................................................................. 3 -4
Soundcraft Vi6™ User Guide iii
LABELLING ...................................................................................................................... 3 -4
General ............................................................................................................................................ 3 -4
Channel Labels ................................................................................................................................. 3 -5
BUS CONFIGURATION ...................................................................................................... 3 -6
GANG .............................................................................................................................. 3 -7
General ............................................................................................................................................ 3 -7
Creating A Gang ............................................................................................................................... 3 -7
Switching-Off Gang Mode ................................................................................................................. 3 -7
Clearing A Gang ................................................................................................................................ 3 -7
Gang All Input Channels ................................................................................................................... 3 -7
INPUT 4 -1
SIGNAL FLOW .................................................................................................................. 4 -1
INPUT CHANNEL STRIP .................................................................................................... 4 -2
INPUT CHANNEL TOUCH FIELDS ....................................................................................... 4 -3
Change A Parameter Of An Input Channel .......................................................................................... 4 -3
INPUT .............................................................................................................................. 4 -4
INPUT field ....................................................................................................................................... 4 -4
GAIN field ........................................................................................................................................ 4 -5
TRIM field ........................................................................................................................................ 4 -5
LO CUT field ..................................................................................................................................... 4 -5
HI CUT field ...................................................................................................................................... 4 -5
FORMAT field .................................................................................................................................... 4 -5
PAIRING field ................................................................................................................................... 4 -5
PHANTOM field ................................................................................................................................. 4 -5
PHASE field ...................................................................................................................................... 4 -5
IN1 PATCH field ................................................................................................................................ 4 -5
IN2 PATCH field ................................................................................................................................ 4 -5
CH Label field ................................................................................................................................... 4 -5
DLY field ........................................................................................................................................... 4 -5
STEREO CONFIGURATION ................................................................................................. 4 -6
Pairing of input channels .................................................................................................................. 4 -6
Pair An input Channel ....................................................................................................................... 4 -6
Stereo Busses .................................................................................................................................. 4 -7
EQUALISER...................................................................................................................... 4 -8
General ............................................................................................................................................ 4 -8
Equaliser Band Highlight .................................................................................................................. 4 -9
BAND Field ....................................................................................................................................... 4 -9
SHELF Switch ................................................................................................................................... 4 -9
EQUALISER Field .............................................................................................................................. 4 -9
DYNAMICS..................................................................................................................... 4 -10
General .......................................................................................................................................... 4 -10
GATE Function ................................................................................................................................ 4 -10
DE-ESS Function ............................................................................................................................. 4 -12
COMPRESSOR Function .................................................................................................................. 4 -13
LIMITER Function............................................................................................................................ 4 -13
MKUP ............................................................................................................................................. 4 -13
BUS .............................................................................................................................. 4 -14
General .......................................................................................................................................... 4 -14
AUX (Mono) .................................................................................................................................... 4 -14
AUX (Stereo) .................................................................................................................................. 4 -14
GRP (Mono) ................................................................................................................................... 4 -14
GRP (Stereo) .................................................................................................................................. 4 -14
Empty ............................................................................................................................................. 4 -14
PANNING ....................................................................................................................... 4 -15
General .......................................................................................................................................... 4 -15
PAN Function LR Mode.................................................................................................................... 4 -15
PAN Function LCR Mode ................................................................................................................. 4 -16
Soundcraft Vi6™ User Guideiv
...................................................................................................................................................... 4 -16
AUDIO FORMAT .............................................................................................................. 4 -17
General .......................................................................................................................................... 4 -17
Input Channels ............................................................................................................................... 4 -17
Mix Busses ..................................................................................................................................... 4 -17
Masters .......................................................................................................................................... 4 -17
PAN/BAL ........................................................................................................................................ 4 -18
INSERT Function ............................................................................................................................. 4 -19
Direct Out Function......................................................................................................................... 4 -19
OUTPUTS 5 - 1

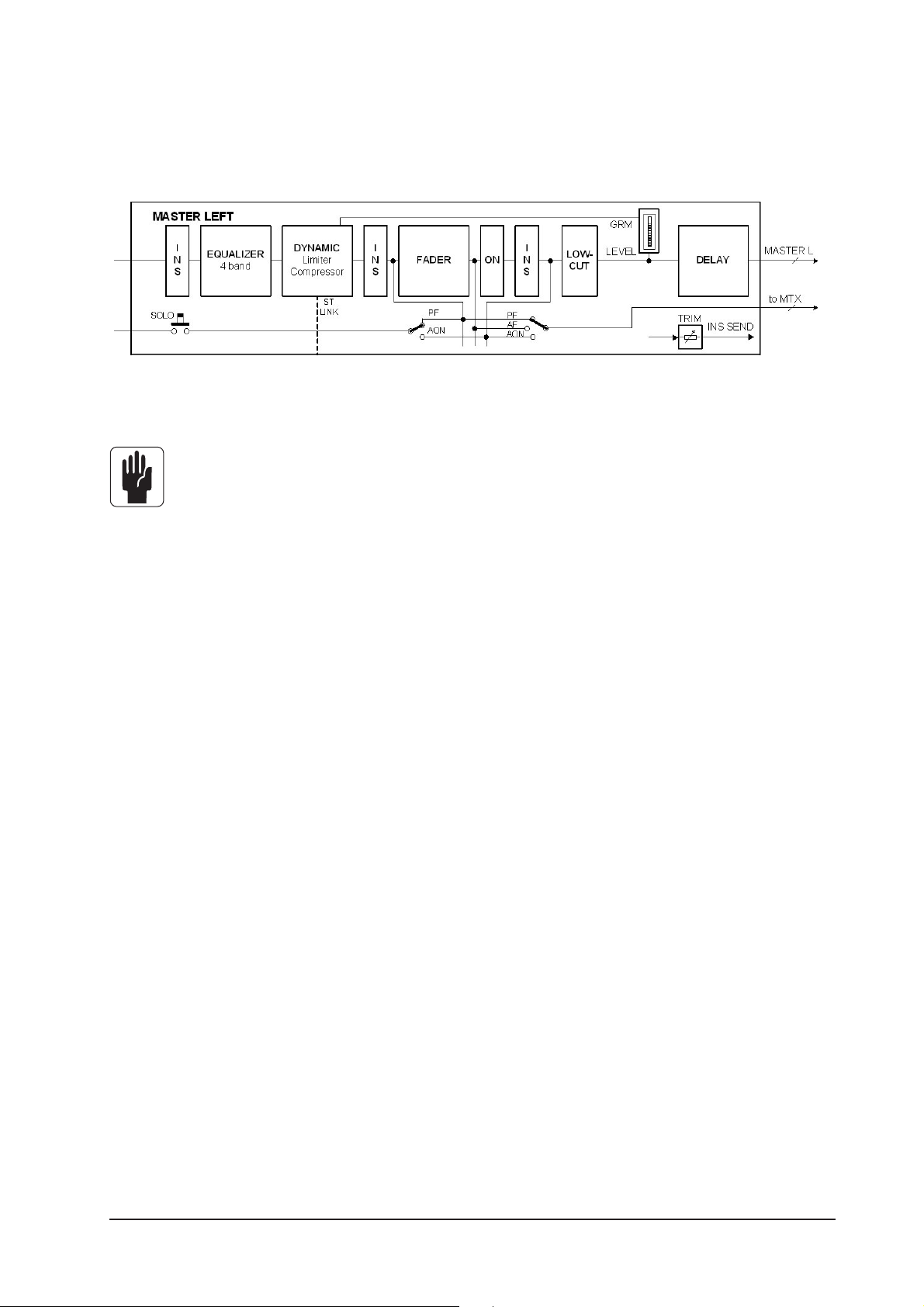

SIGNAL FLOW .................................................................................................................. 5 - 1
GENERAL.........................................................................................................................5 - 2
L,R & C Master Processing................................................................................................................ 5 - 3
MASTER EQ LINKING (V2.0 Software and above) .............................................................. 5 - 4
Default settings ................................................................................................................................ 5 - 4
MASTER BAY OUTPUT STRIPS........................................................................................... 5 - 5
Bus Master Processing ..................................................................................................................... 5 - 6
INPUT BAY STRIP USING [ALL BUSSES]............................................................................ 5 - 7
MASTER BAY VISTONICS™ ENCODERS & KEYS ................................................................. 5 - 8
VST Key Function .............................................................................................................................. 5 - 8
CHANGING OUTPUT BUS PARAMETERS ............................................................................ 5 - 9
Changing A Parameter Of A Bus ........................................................................................................ 5 - 9
EQUALISER.................................................................................................................... 5 - 10
DYNAMIC....................................................................................................................... 5 - 11
PAN ............................................................................................................................... 5 - 12
LOW CUT Field ................................................................................................................................ 5 - 12
PHASE Field ................................................................................................................................... 5 - 12
DLY Field ........................................................................................................................................ 5 - 12
MATRIX 6 -1
SIGNAL FLOW .................................................................................................................. 6 -1
FUNCTION ....................................................................................................................... 6 -1
Adjusting A Matrix Send Level ........................................................................................................... 6 -3
MATRIX CONFIGURATION ................................................................................................. 6 -3
SOURCE field ................................................................................................................................... 6 -3
MTX Point Field ................................................................................................................................ 6 -4
ENCODERS 7 -1
GENERAL INTRODUCTION ................................................................................................. 7 -1
CHANNEL ENCODERS ...................................................................................................... 7 -2
CHANNEL VST ENCODER 1& 2 .......................................................................................... 7 -3
VST Encoder Priority .......................................................................................................................... 7 -3
Changing Encoder Function .............................................................................................................. 7 -4
MASTER BAY PANEL ENCODERS ....................................................................................... 7 -5
MASTER BAY VST ENCODERS ........................................................................................... 7 -5
Master Vistonics Switch Function Panel ............................................................................................ 7 -6
LAYERING (FADER PAGES) 8 -1
GENERAL......................................................................................................................... 8 -1
INPUTS............................................................................................................................ 8 -1
Temporary Layer ................................................................................................................................ 8 -2
OUTPUTS ......................................................................................................................... 8 -3
Master Fader section ........................................................................................................................ 8 -3
ALL Busses ....................................................................................................................................... 8 -4
VST Master Area ............................................................................................................................... 8 -5
VCA & MUTE GROUPS 9 -1
VCA/MUTE GROUP INDICATION ....................................................................................... 9 -1
Soundcraft Vi6™ User Guide v
MUTE GROUP MASTER SWITCHES .................................................................................... 9 -2
VCA CONTROL GROUP BEHAVIOUR ................................................................................... 9 -2
AUDIO BEHAVIOUR .......................................................................................................... 9 -2
ASSIGNING VCAs ............................................................................................................. 9 -3
ASSIGNING MUTE GROUPS .............................................................................................. 9 -3
ASSIGNING VCAS AND MUTE GROUPS TO OUTPUT CHANNELS ........................................... 9 -3
VCA GROUPS WHEN AUX SENDS ARE CONTROLLED BY CHANNEL FADERS ......................... 9 -3
Procedure ......................................................................................................................................... 9 -4
PATCH SYSTEM 10 -1
SIGNAL FLOW ................................................................................................................ 10 -1
OVERVIEW ..................................................................................................................... 10 -2
GENERAL RULES............................................................................................................ 10 -2
INPUT ............................................................................................................................ 10 -3
Patch A Source To An Input Channel ................................................................................................ 10 -4
Using A Spare Mic For Several Inputs .............................................................................................. 10 -4
OUTPUT ......................................................................................................................... 10 -5
Patch a BUS to an OUTPUT ............................................................................................................. 10 -5
INSERT .......................................................................................................................... 10 -6
Patching An Insert Point To An Input Channel ................................................................................. 10 -6
Patching Insert Send Or Return Signals To The Connectors Or MADI Channels ............................................
10 -7
Stereo Inserts ................................................................................................................................. 10 -7
DIRECT OUT ................................................................................................................... 10 -8
KEY SIGNAL ................................................................................................................... 10 -9
MATRIX ....................................................................................................................... 10 -10
TIE LINES .................................................................................................................... 10 -11
MONITORING 11 -1
SIGNAL FLOW ................................................................................................................ 11 -1
FUNCTION ..................................................................................................................... 11 -1
DESK VIEW .................................................................................................................... 11 -2
SOLO TRIM ..................................................................................................................................... 11 -2
SOLO BLEND ................................................................................................................................... 11 -2
PHONES Volume.............................................................................................................................. 11 -2
SETUP ............................................................................................................................................ 11 -2
Level Meter .................................................................................................................................... 11 -3
PFL/AFL Indication ......................................................................................................................... 11 -3
ON ................................................................................................................................................. 11 -3
Monitor Volume............................................................................................................................... 11 -3
Monitor B ....................................................................................................................................... 11 -3
MONITOR SETUP PAGE ................................................................................................... 11 -4
SOLO Section ................................................................................................................................. 11 -4
MNTR A Section .............................................................................................................................. 11 -5
MNTR B and HP Sections ................................................................................................................ 11 -6
DLY Field ........................................................................................................................................ 11 -7
MONITOR SETUP SUB-PAGE ........................................................................................... 11 -8
Output Solo Selection ................................................................................................................... 11 -10
SOLO SYSTEM ............................................................................................................. 11 -11
Solo Operation Logic ..................................................................................................................... 11 -12
Input Priority Mode ....................................................................................................................... 11 -13
Autocancel Behaviour ................................................................................................................... 11 -14
Follow Output Solo Mode .............................................................................................................. 11 -15
TALKBACK & OSCILLATOR 12 -1
DESK VIEW .................................................................................................................... 12 -1
Setup Key ....................................................................................................................................... 12 -1
Soundcraft Vi6™ User Guidevi
TB Mic XLR ..................................................................................................................................... 12 -1
TB /Osc Level control ..................................................................................................................... 12 -1
Routing the TB signal...................................................................................................................... 12 -1
SETUP ........................................................................................................................... 12 -2
OSC Section ................................................................................................................................... 12 -2
TB Send Section ............................................................................................................................. 12 -5
TB Return Section ........................................................................................................................... 12 -6
METERING 13 -1
Input Channel Meter ..................................................................................................... 13 -1
Bus Master Meters ........................................................................................................ 13 -2
Master Output Meters ................................................................................................... 13 -2
Monitor Meters ............................................................................................................. 13 -2
Scale ............................................................................................................................ 13 -2
Meters On The Master Section Screen ........................................................................... 13 -3
Touch Selection .............................................................................................................................. 13 -3
Peak Hold ..................................................................................................................... 13 -4
Ballistics ....................................................................................................................... 13 -4
MAIN MENU 14 -1
MAIN............................................................................................................................. 14 -1
SECURITY Field ............................................................................................................................... 14 -1
BRIGHTNESS Control ...................................................................................................................... 14 -1
SHOW............................................................................................................................ 14 -2
GPIO ............................................................................................................................. 14 -3
SYNC ............................................................................................................................. 14 -4
TIE LINES ...................................................................................................................... 14 -5
FX ................................................................................................................................. 14 -6
MIDI.............................................................................................................................. 14 -7
LOG ............................................................................................................................... 14 -8
SETTINGS ...................................................................................................................... 14 -9
POINT ............................................................................................................................................. 14 -9
DEACTIVATE FADER TOUCH .............................................................................................................. 14 -9
SYSTEM MONITORING .................................................................................................. 14 -10
Overview ....................................................................................................................................... 14 -10
DESK ............................................................................................................................................ 14 -11
LOCAL IO ...................................................................................................................................... 14 -12
STAGE BOX ................................................................................................................................... 14 -13
HiQNET ......................................................................................................................................... 14 -14
SNAPSHOTS AND CUES 15 -1
FRONT PANEL DISPLAY AND CONTROLS .......................................................................... 15 -1
SETUP ............................................................................................................................................ 15 -2
DATA Socket ................................................................................................................................... 15 -2
STORE ............................................................................................................................................ 15 -2
UNDO ............................................................................................................................................. 15 -2
PREV MODE .................................................................................................................................... 15 -2
LAST............................................................................................................................................... 15 -2
NEXT .............................................................................................................................................. 15 -2
The Arrow Keys and RECALL ............................................................................................................ 15 -2
SETUP ........................................................................................................................... 15 -3
Snapshop Pool ............................................................................................................................... 15 -3
Cue List .......................................................................................................................................... 15 -3
MANAGING SHOWS........................................................................................................ 15 -4
Hard Drive ...................................................................................................................................... 15 -4
Memory Stick ................................................................................................................................. 15 -5
Exporting A Show To A Memory Stick. .............................................................................................. 15 -5
Importing A Show From A Memory Stick. ......................................................................................... 15 -5
Soundcraft Vi6™ User Guide vii
RECORDED DATA............................................................................................................ 15 -6
Settings Recorded Within A Show Snapshot’s Show Settings ............................................................ 15 -6
Settings Recorded Within Audio Settings ......................................................................................... 15 -7
Settings Not Recorded .................................................................................................................... 15 -7
GPIO 16 -1
CONFIGURATION............................................................................................................ 16 -1
Screen Touch-Pads.......................................................................................................................... 16 -1
GPI VST Keys & Encoders ................................................................................................................ 16 -2
GPO VST Keys & Encoders ............................................................................................................... 16 -2
HARDWARE ................................................................................................................... 16 -4
Schematic Diagram ........................................................................................................................ 16 -4
Pin Lists ......................................................................................................................................... 16 -5
SOUNDCRAFT FaderGlow ™ 17 -1
GENERAL....................................................................................................................... 17 -1
Colour Code.................................................................................................................................... 17 -1
COPY, PASTE & LIBRARIES 18 - 1
INTRODUCTION .............................................................................................................. 18 - 1
CONSOLE CONTROL KEYS .............................................................................................. 18 - 1
COPY & PASTE PRINCIPLES ........................................................................................... 18 - 2
DATA SELECTION & INDICATORS ..................................................................................... 18 - 2
PARAMETERS NOT INCLUDED IN CHANNEL & BUS COPY MODES .................................... 18 - 3
COPYING CHANNEL OR BUS PARAMETERS ..................................................................... 18 - 3
COPYING A BUS MASTER INCLUDING ALL CHANNEL SEND LEVELS .................................. 18 - 3
CHANNEL COPY: ITEMS NOT INCLUDED IN COPY WITH SEL BUTTON ................................ 18 - 4
BUS OUTPUT COPY: ITEMS NOT INCLUDED IN COPY WITH SEL BUTTON ........................... 18 - 4
EXAMPLE: COPYING A WHOLE CHANNEL, INCLUDING THE ‘IN1 PATCH’ PARAMETER ......... 18 - 4
COPYING FX PARAMETERS ............................................................................................. 18 - 5
LIBRARIES..................................................................................................................... 18 - 7
NAVIGATING AND MANAGING LIBRARIES ........................................................................ 18 - 9
COPY TO LIBRARY ........................................................................................................ 18 - 11
PASTE FROM LIBRARY ................................................................................................. 18 - 12
EXPORTING AND IMPORTING LIBRARIES ...................................................................... 18 - 13
SOUNDCRAFT Vi6™ FEATURES AND SPECIFICATIONS 19 -1
AUDIO CHANNELS .......................................................................................................... 19 -1
Max number of simultaneous mixing channels ................................................................................. 19 -1
Insert points ................................................................................................................................... 19 -1
Direct Outputs ................................................................................................................................ 19 -1
Busses ........................................................................................................................................... 19 -1
I/O CAPABILITY ............................................................................................................. 19 -1
Local Rack Inputs ........................................................................................................................... 19 -1
Local Rack Outputs ......................................................................................................................... 19 -1
Stagebox Inputs .............................................................................................................................. 19 -1
Stagebox Outputs ........................................................................................................................... 19 -1
MISCELLANEOUS........................................................................................................... 19 -2
Connection from local rack to stagebox ........................................................................................... 19 -2
Max distance, local rack to stagebox: .............................................................................................. 19 -2
GPIO facility ................................................................................................................................... 19 -2
MIDI ............................................................................................................................................... 19 -2
CHANNEL PROCESSING ................................................................................................. 19 -2
Inputs ............................................................................................................................................ 19 -2
Ouputs ........................................................................................................................................... 19 -2
CONTROL SURFACE ........................................................................................................ 19 -3
Inputs ............................................................................................................................................ 19 -3
Outputs .......................................................................................................................................... 19 -3
Soundcraft Vi6™ User Guideviii
Misc ............................................................................................................................................... 19 -3
Vi6 TYPICAL SPECIFICATIONS ......................................................................................... 19 -4
BLOCK DIAGRAM 20 -1
Vi Processor™ Card 21 - 1
General .........................................................................................................................21 - 1
LEXICON® Effects ........................................................................................................................... 21 - 1
BSS® Graphic Equalisers ................................................................................................................ 21 - 1
LEXICON® Effects Format............................................................................................... 21 - 1
FX Overview Page........................................................................................................... 21 - 2
Snapshot integration ..................................................................................................... 21 - 2
TAP ............................................................................................................................... 21 - 3
ASSIGNING F1-6 KEYS TO FX TAP TEMPO (V2.0 Software and above) .............................. 21 - 3
Changing the assignment of F-keys to TAP function ......................................................................... 21 - 4
ASSIGNING FX PROCESSORS ......................................................................................... 21 - 4
Channel Insert ................................................................................................................................ 21 - 4
Master Insert .................................................................................................................................. 21 - 7
Return in Channel section ............................................................................................................... 21 - 9
FX TYPE ....................................................................................................................... 21 - 11
FX DESCRIPTIONS ........................................................................................................ 21 - 13
REVERBS ...................................................................................................................................... 21 - 13
DELAYS ........................................................................................................................................ 21 - 15
MISC EFFECTS .............................................................................................................................. 21 - 17
BSS® GRAPHIC EQUALISERS ....................................................................................... 21 - 21
Soundcraft Vi6™ User Guide ix
Soundcraft Vi6™ User Guidex
INTRODUCTION
SAFETY NOTICES
For your own safety and to avoid invalidation of the warranty please read
this section carefully.
SAFETY SYMBOL GUIDE
For your own safety and to avoid invalidation of the warranty all text marked with
these symbols should be read carefully.
WARNINGS
The lightning flash with arrThe lightning flash with arr
The lightning flash with arr
The lightning flash with arrThe lightning flash with arr
aleraler
t the user to the prt the user to the pr
aler
t the user to the pr
aleraler
t the user to the prt the user to the pr
voltage” within the prvoltage” within the pr
voltage” within the pr
voltage” within the prvoltage” within the pr
sufsuf
ficient magnitude to constitute a risk of electric shockficient magnitude to constitute a risk of electric shock
suf
ficient magnitude to constitute a risk of electric shock
sufsuf
ficient magnitude to constitute a risk of electric shockficient magnitude to constitute a risk of electric shock
owhead symbol, is intended toowhead symbol, is intended to
owhead symbol, is intended to
owhead symbol, is intended toowhead symbol, is intended to
esence of un-insulated “dangeresence of un-insulated “danger
esence of un-insulated “danger
esence of un-insulated “dangeresence of un-insulated “danger
oduct’s enclosuroduct’s enclosur
oduct’s enclosur
oduct’s enclosuroduct’s enclosur
to persons.to persons.
to persons.
to persons.to persons.
e that may be ofe that may be of
e that may be of
e that may be ofe that may be of
ousous
ous
ousous
CAUTIONS
The exclamation point within an equilateral triangle isThe exclamation point within an equilateral triangle is
The exclamation point within an equilateral triangle is
The exclamation point within an equilateral triangle isThe exclamation point within an equilateral triangle is
intended to alerintended to aler
intended to aler
intended to alerintended to aler
operating and maintenance (servicing) instructions in theoperating and maintenance (servicing) instructions in the
operating and maintenance (servicing) instructions in the
operating and maintenance (servicing) instructions in theoperating and maintenance (servicing) instructions in the
literaturliteratur
literatur
literaturliteratur
t the user to the prt the user to the pr
t the user to the pr
t the user to the prt the user to the pr
e accompanying the appliance.e accompanying the appliance.
e accompanying the appliance.
e accompanying the appliance.e accompanying the appliance.
esence of imporesence of impor
esence of impor
esence of imporesence of impor
tanttant
tant
tanttant
NOTES
Contain imporContain impor
Contain impor
Contain imporContain impor
tant infortant infor
tant infor
tant infortant infor
eration of your equipment.eration of your equipment.
eration of your equipment.
eration of your equipment.eration of your equipment.
mation and useful tips on the op-mation and useful tips on the op-
mation and useful tips on the op-
mation and useful tips on the op-mation and useful tips on the op-
HEADPHONES SAFETY WARNING
Contain imporContain impor
Contain impor
Contain imporContain impor
headphone outputs and monitoring levels.headphone outputs and monitoring levels.
headphone outputs and monitoring levels.
headphone outputs and monitoring levels.headphone outputs and monitoring levels.
tant infortant infor
tant infor
tant infortant infor
mation and useful tips onmation and useful tips on
mation and useful tips on
mation and useful tips onmation and useful tips on
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipmentis operated in a commercial
environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his own expense.
This Class A digital apparatus meets the requirements of the Canadian Interference-Causing Equipment Regulations.
Cet appareil numérique de la Classe A respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.
Soundcraft Vi6™ User Guide Page 1 - 1
IMPORTANT SAFETY WARNINGS
THIS UNIT MUST BE EARTHED
Under no circumstances should the mains earth be disconnected from the mains lead.
The wires in the mains lead are coloured in accordance with the following code:
Earth: Green and Yellow (Green/Yellow - US)
Neutral: Blue (White - US)
Live: Brown(Black - US)
As the colours of the wires in the mains lead may not correspond with the coloured markings identifying
the terminals in your plug, proceed as follows:
The wire which is coloured Green and Yellow must be connected to the terminal in the plug which is
marked with the letter E or by the earth symbol.
The wire which is coloured Blue must be connected to the terminal in the plug which is marked with
the letter N.
The wire which is coloured Brown must be connected to the terminal in the plug which is marked
with the letter L.
Ensure that these colour codings are followed carefully in the event of the plug being changed.
The internal power supply unit contains no user serviceable parts. Refer all servicing to a
qualified service engineer, through the appropriate Soundcraft dealer.
Soundcraft Vi6™ User GuidePage 1 - 2
WARNINGS
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Clean the apparatus only with a dry cloth.
• Do not install near any heat sources such as radiators, heat resistors, stoves, or other apparatus (includ-
ing amplifiers) that produce heat.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
• Do not use this apparatus near water.
• Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your safety. When the provided plug does
not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles
and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally or has been dropped.
• Use only with the cart, stand, tripod, bracket or table specified by the manufacturer, or sold
with the apparatus. When the cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
• No naked flame sources, such as lighted candles or cigarettes etc., should be placed on the apparatus.
• Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Do
not expose the apparatus to dripping or splashing and do not place objects filled with liquids, such
as vases, on the apparatus.
• This unit contains no user serviceable parts. Refer all servicing to a qualified service engineer, through
the appropriate Soundcraft dealer.
• Ventilation should not be impeded by covering the ventilation openings with items such as newspapers,
table cloths, curtains etc.
• The disconnect device is the mains plug; it must remain accessible so as to be readily operable in use.
• It is recommended that all maintenance and service on the product should be carried out by Soundcraft
or its authorised agents. Soundcraft cannot accept any liability whatsoever for any loss or damage
caused by service, maintenance or repair by unauthorised personnel.
Soundcraft Vi6™ User Guide Page 1 - 3
WORKING SAFELY WITH SOUND
Although your new console will not make any noise until you feed it signals, it has the capability to produce sounds which when monitored through a PA system or headphones can damage hearing over time.
The table below is taken from the Occupational Safety & Health Administration directive on Occupational
noise exposure (1926.52):
PERMISSABLE NOISE EXPOSURE
DURATION PER DAY, HOURS SOUND LEVEL dBA SLOW RESPONSE
890
692
495
397
2 100
1.5 102
1 105
0.5 110
<0.25 115
Conforming to this directive will minimise the risk of hearing damage caused by long listening periods. A
simple rule to follow is the longer you listen the lower the average volume should be.
Please take care when working with your audio - if you are manipulating controls which you don’t understand (which we all do when we are learning), make sure your monitors are turned down. Remember that
your ears are the most important tool of your trade, look after them, and they will look after you.
Most importantly - don’t be afraid to experiment to find out how each parameter affects the sound - this
will extend your creativity and help you to get the best results.
Recommended headphone impedance is 50-600 ohms.Recommended headphone impedance is 50-600 ohms.
Recommended headphone impedance is 50-600 ohms.
Recommended headphone impedance is 50-600 ohms.Recommended headphone impedance is 50-600 ohms.
WARRANTY
1 Soundcraft is a trading division of Harman International Industries Ltd.
End User means the person who first puts the equipment into regular operation.
Dealer means the person other than Soundcraft (if any) from whom the End User purchased the Equipment, provided
such a person is authorised for this purpose by Soundcraft or its accredited Distributor.
Equipment means the equipment supplied with this manual.
2 If within the period of twelve months from the date of delivery of the Equipment to the End User it shall prove defective
by reason only of faulty materials and/or workmanship to such an extent that the effectiveness and/or usability thereof
is materially affected the Equipment or the defective component should be returned to the Dealer or to Soundcraft and
subject to the following conditions the Dealer or Soundcraft will repair or replace the defective components. Any
components replaced will become the property of Soundcraft.
3 Any Equipment or component returned will be at the risk of the End User whilst in transit (both to and from the Dealer or
Soundcraft) and postage must be prepaid.
4 This warranty shall only be available if:
a) the Equipment has been properly installed in accordance with instructions contained in Soundcraft's manual; and
b) the End User has notified Soundcraft or the Dealer within 14 days of the defect appearing; and
c) no persons other than authorised representatives of Soundcraft or the Dealer have effected any replacement of parts
maintenance adjustments or repairs to the Equipment; and
d) the End User has used the Equipment only for such purposes as Soundcraft recommends, with only such operating
supplies as meet Soundcraft's specifications and otherwise in all respects in accordance Soundcraft's recommendations.
5 Defects arising as a result of the following are not covered by this Warranty: faulty or negligent handling, chemical or
electro-chemical or electrical influences, accidental damage, Acts of God, neglect, deficiency in electrical power, airconditioning or humidity control.
6. The benefit of this Warranty may not be assigned by the End User.
7. End Users who are consumers should note their rights under this Warranty are in addition to and do not affect any other
rights to which they may be entitled against the seller of the Equipment.
Soundcraft Vi6™ User GuidePage 1 - 4
Soundcraft Vi6™ FEATURES AND SPECIFICATIONS
Audio Channels
Max number of simultaneous mixing channels
64 mono inputs into 35 mix busses. Pairs of mono inputs can be linked to create stereo channels.
Insert points
24 insert send/return pairs can be configured (using available I/O) and assigned to any of the 64 inputs
or 35 output channels
Direct Outputs
All 64 input channels can have direct outputs in addition to their internal bus routing, assuming sufficient
I/O is available (eg via 64ch optical MADI card, see below)
Busses
32 Grp/Aux/Matrix*, plus main LCR Mix and LR Solo busses.
* a maximum of 16 matrix outputs can be configured.
I/O Capability
The following I/O is available and can be patched to any channel input, direct output, bus output or insert
point as required:
Local Rack Inputs
16 analogue line inputs
3 analogue mic/line inputs
1 Talkback Mic input (mounted on control surface – 2 parallel sockets front/rear)
8 pairs of AES/EBU inputs (=16 channels)
64ch MADI In via optical SC connectors
Local Rack Outputs
16 analogue line outputs
8 pairs of AES/EBU outputs (= 16 channels)
LCR Local monitor A analogue line outputs
LR Local Monitor B analogue line outputs
TB line output
64ch MADI Out via optical SC connectors
Stagebox Inputs
64 analogue mic/line inputs (with remote gain control, PAD, 48V and pre-A-D 80Hz HPF)
Stagebox Outputs
32 analogue line outputs
Soundcraft Vi6™ User Guide Page 1 - 5
Miscellaneous
Connection from local rack to stagebox
Standard fit: Cat 5e Neutrik Etherflex cable ZNK CT2672601. Shielded cable must be used in order to
comply with EMC regulations.
Optional: Fibre Optical interface card with 150 or 200m cable (additional cost).
Max distance, local rack to stagebox:
80m using flexible reel-mounted Cat5 cable (Neutrik Etherflex only, part number ZNK CT2672601)
130m using Cat7 permanent installation cable (Amp Netconnect 600MHz PiMF, part no. 57893-x).
1500m using a single run of multimode 50/125 optical fibre.
600m using 3 X 200m reels of multimode 50/125 optical fibre joined in series.
GPIO facility
16 GPIO inputs and outputs on the local rack
8 GPIO inputs and outputs on the stagebox (All outputs are relay contact closure)
MIDI
1 MIDI Input and 2 MIDI Outputs on rear of control surface.
Channel Processing
Inputs
Analogue gain (remote control of stagebox or local mic preamp)
Digital Gain Trim (+18/-36dB)
Delay (0-100ms)
HPF, LPF (variable 20-600Hz and 1-20kHz)
4-band fully parametric EQ, shelf mode on HF/LF.
Compressor (variable threshold, attack, release, ratio, makeup gain with ‘auto’ mode)
Limiter (variable threshold, attack, release)
Gate or De-Esser. Gate switchable to ducker.
Insert point for external processing.
Pan – LR or LCR switchable.
Direct Output, patchable to any I/O and with selectable tap-off point.
Outputs
HPF (variable 20-600Hz)
4-band fully parametric EQ, shelf mode on HF/LF.
Compressor
Limiter
Delay (0-1sec)
Insert point for external processing.
Pan (Output bus to LCR) – LR or LCR switchable.
Bus Feed feature – allows switched routing of one bus to another.
Graphic EQ 1/3-octave (with FX Card)
Assignable Lexicon Multi-FX processors x8 (with FX Card)
Soundcraft Vi6™ User GuidePage 1 - 6
Control Surface
Inputs
32 input faders, switchable in 2 fixed layers to access 64 inputs.
Vistonics™ II channel strip interface x 4, each Vistonics™ controls 8 input channels.
The Vistonics™ II interface contains 16 rotary encoders and switches, and a touch screen.
Fader tray contains motorised faders, Mute, Solo, Isolate and F (user defined) switches, plus one assignable rotary encoder with LED display ring. This encoder is globally assignable to Gain, Pan, Gate Threshold,
or one of 2 user-definable parameters.
Input level and gain reduction meters are located above each fader.
Input faders can be assigned to the 16 VCA (control group) masters and/or 4 Mute Groups.
Input faders can be switched to control all 32 Grp/Aux/Matrix Outputs, or can control an individual Aux
send mix, using the switchable ‘Follow Solo’ function. Soundcraft FaderGlow™ clearly indicates using
colours when faders are not controlling inputs.
Outputs
8 assignable Output faders, plus dedicated LR and C Master faders, plus 16 assignable rotary Output
faders. Output faders are colour-coded using Soundcraft FaderGlow.
Output faders can be assigned to the 16 VCA (control group) masters and/or 4 Mute Groups.
Single Vistonics II interface for Output processing control, also functions as complete meter overview
display for all Inputs & Outputs, plus snapshot Cue List and diagnostics info display.
Misc
Gang mode for temporary linking of any number of channels or outputs for quick adjustment and setup
Controls for Mute Group and VCA Group assignment.
Controls for assignment of Vistonics™ rows to bus sends (when channel parameters are not assigned to
Vistonics).
Snapshot automation controls.
Talkback & Oscillator controls.
Controls for Monitor Output level, phones level and Solo Trim and blend level.
Soundcraft Vi6™ User Guide Page 1 - 7
CONSOLE OVERVIEW
Bays
The Desk is based on 5 bays:
* 4 INPUT bays
* 1 MASTER bay
Figure 1-1. Console Bays.
* Each Input bay contains 8 complete Fader strips with full state overview, giving in total 32 directly
accessible Input Strips.
* The Master bay contains 8 Output Fader strips, the 3 Masters and 16 Output encoders that give a total
of 27 Output levels that can be directly controlled without changing Layers. General Functions like Snapshot, Monitoring, TB & OSC and so on are also located on the Master bay.
Soundcraft Vi6™ User GuidePage 1 - 8
Layers
Figure 1-2. Layer Controls.
The console is able to control 64 inputs and 35 mix busses via its 32 input strips, 8 bus master strips and
the LCR masters. To do this the console has a number of layers which the user accesses via the layer
controls shown above.
Full details are given in chapter 8 of this manual.
Soundcraft Vi6™ User Guide Page 1 - 9
Encoders
Figure 1-3. Encoders.
* The 64 Vistonics™II row 1 and 2 encoders, including switches, are used in different modes, in which
they can change in order to show various functions in a context-sensitive way.
* In normal operation they act as Input channel related controls.
* The 32 Channel encoders are assigned with Input channel related functions.
* The 16 Vistonics™ II output encoders are normally used as Output faders and are also context sensitive.
* There are four panel-mounted encoders with LED rings: the TB/OSC Level Control encoder, and the Sold
Blend, Solo Trim & Phones Volume encoders. These are dedicated to their respective functions.
A detailed explanation of encoder use is given in chapter 7 of this manual.
Soundcraft Vi6™ User GuidePage 1 - 10
Master Audio Functions
Figure 1-4. Master Audio Functions.
* The Monitoring system contains the functionality to listen to and monitor the audio signal at several
points in the console.
* TB/OSC system contains the Talkback functionality and the oscillator settings.
* The Meter panel provides a full overview of all 64 Input and 35 Output levels.
Soundcraft Vi6™ User Guide Page 1 - 11
Master Control
Figure 1-5. Master Control.
* VCA/Mute Groups: this functional block contains the VCA (control groups in VCA style) and Mute Group
functions.
* Snapshot allows the console’s automated settings to be saved and recalled.
* Menu opens the Menu page where central configurations can be done.
* Copy / paste functionality can be used in different modes and speeds up repetative tasks..
* Gang is a superb feature that links channels functions together for temporary changes.
* [Power] switches the Desk on and off, while [MUTE ALL] Outputs is helpful in emergency situations.
Soundcraft Vi6™ User GuidePage 1 - 12
SYSTEM COMPONENTS
Soundcraft Vi6™ User Guide Page 2 - 1
SYSTEM HARDWARE OVERVIEW
Figure 2-1. The System’s Three Component Parts.
Soundcraft Vi6™ User GuidePage 2 - 2
NOTE ON INSTALLATION OF THE COOLING FANS/FILTERS
The Stage Box and Local Rack may be ordered already fitted into flight cases, in which case the cooling
fans/filters will already be located correctly as shown in the diagrams below.
If the system has been ordered without flightcases, in order that it can be permanently installed, please
ensure that the cooling fans/filters are located as shown below.
Local Rack
Figure 2-2a: Layout Of Local Rack.
Stage Box
Figure 2-2b: Layout Of Stage Box.
NOTE: Ensure fan units on Local Rack and Stagebox are connected and operational.
The filters are outlined in yellow in the figures above.
CLEAN FILTERS REGULARLY!
Soundcraft Vi6™ User Guide Page 2 - 3
THE CONSOLE REAR CONNECTORS
Mains Power Supply Inlet
The mains input is via an IEC connector, with an associated switch, as shown below. This feeds power to the
primary PSU.
Figure 2-3a: Main Primary Supply Inlet.
An optional redundant primary supply may also be fitted. Its inlet connector is as shown below.
Figure 2-3b: Redundant Primary Supply Inlet.
Audio And Data Rearcon
MIDI Connectors
These are provided by the usual 5-pin DIN connectors.
HiQNet™ Connector
This is an XLR-housed EtherCon connector.
USB Connectors
Use one of these to connect a PC-type keyboard. There is another USB connector on the front panel. A
memory stick can be used with either of these two free connectors.
Talkback Mic
This connector is a parallel connection to the front-panel talkback mic connector, and has an associated
48V switch for use if the microphone used requires phantom power.
TB Link, Phones L & R and Control Data
This group of four sockets (3 XLRs and an XLR-housed EtherCon connector) are used to link the console’s
control surface to the Local Rack. The cable to do this (part number RL0267-01) is supplied with the
system. The function of each of the connectors in this cable is marked with a cable
Soundcraft Vi6™ User GuidePage 2 - 4
Figure 2-4: Console Rearcon Panel.
Soundcraft Vi6™ User Guide Page 2 - 5
LOCAL RACK
Local Rack Description
The Local Rack is the audio ‘brain’ of the Soundcraft Vi6™, it contains the DSP mixing processor and the
local I/O connections.
The rack consists of a 6U processing and I/O unit, developed by Studer, called the S-Core. Below this is a
4U low-noise cooling fan unit. The S-Core itself consists of two sections: the upper 3U section houses the
DSP mixing core, and the lower 3U section houses the local audio I/O and also the connections to the
remote Stage Box.
The audio processing inside the S-Core is independent of the control surface. This means that the audio
will continue to pass even if the control surface is switched off or disconnected from the core.
How It Works
The control surface sends control data to the Bridge Card, which is a communication and processing hub
situated in the centre of the top 3U section of the Local Rack. The Bridge Card interprets the control data
and sends internal data to the two DSP Pro cards and the FX Card (when fitted). These cards actually
process the audio. The audio input and output connections to the DSP cards are made via 4 short CAT 5
patch cables, which connect the DSP cards with the I/O rack in the lower 3U section of the core.
Front Panel
The front panel contains the Status LED array.
Figure 2-5: Status LEDs.
These LEDs give an at-a-glance indication that the Local Rack is functioning correctly, or that an error
condition has occured. An illuminated green LED indicates the presence of a card, an illuminated red LED
warns of a card error.
Note that there is a RECONFIG button behind a small hole at the bottom right of the panel. When pressed
with a small screwdriver or similar a reset is applied to the lower row of cards in the local rack: this will
force a re-polling of the loaded cards to reconfigure the console. This needs to be done only if the card
configuration has been changed.
Soundcraft Vi6™ User GuidePage 2 - 6
Local Rack Rear
The rear of the Local Rack gives access to the cards in the card frame, and to the XLR breakout box.
Primary Power Supply
The primary power supply connects directly to the IEC inlet and provides a full range ac inlet, converting
100V to 240V ac to 24V dc. The Local Rack can hold up to two power supplies, providing seamless redundancy for those that require it. The rack fan control connection is also provided by one of the power supplies.
XLR Breakout Box
This provides connectors for analogue and AES/EBU audio, and interfaces to the Line In cards, Line Out
cards, Mic card and AES/EBU Card within the Local Rack card frame. All the connectors on the Breakout
Box are of the XLR type.
It is possible to order the console without this part, in this case the user will have to provide suitable
cabling and connectors to interface with the appropriate Local Rack cards. A complete pin list is given later
in this chapter.
The Breakout Box connector labelling references are used by the patching system (see chapter 11) when
the user wishes to patch the connectors to input channels or output busses.
Audio I/O Cards
The following cards are supported.
1 X Mic/Line Input card providing four electronically balanced Mic/Line Input channels, each
with digitally-controlled analogue gain, a 80Hz low-cut filter, and phantom power.
2 X Line Input cards, each providing eight line input channels.
3 X Line Output cards, each providing eight line output channels.
1 X AES I/O card, providing 16 AES input channels and 16 AES output channels.
1 X MADI Stage Box interface card ( normally Cat 5, but it can optionally be replaced by an
optical MADI card).
1 X Optical MADI card, providing 64 MADI input and 64 MADI output channels.
See page 2-10 for more details.
Soundcraft Vi6™ User Guide Page 2 - 7
Local Rack Rear View
The rear view is shown below. Note that the last remaining connector from the console surface (the RJ45
ethernet connector) goes into the top socket on the bridge card.
Figure 2-6: Local Rack Rear View.
Soundcraft Vi6™ User GuidePage 2 - 8
