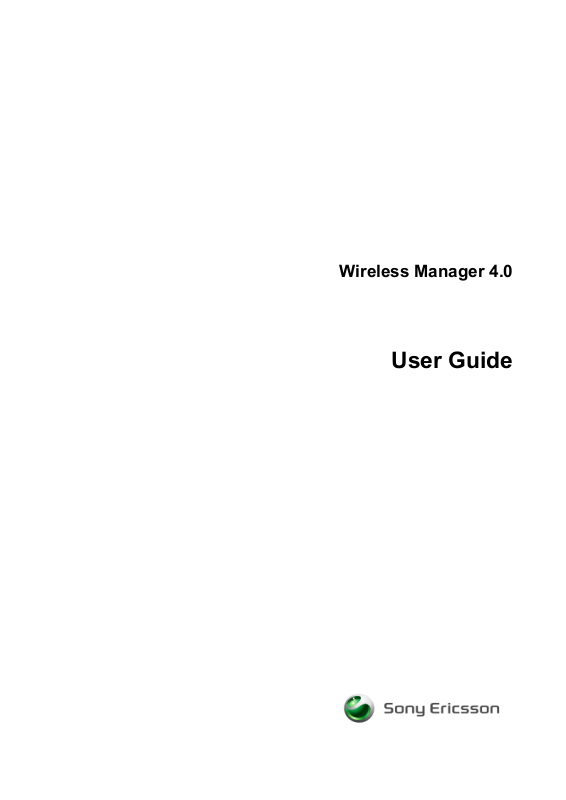

Sony ericsson Wireless Manager 4.0 User Guide

Download

Wireless Manager 4.0

User Guide

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii

About this guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi

How this guide is organized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi

Additional resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii

Conventions used in this guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii

Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Installing and uninstalling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Installing your software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Preparing your PC card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Inserting your PC card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Removing your PC card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Uninstalling your software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Using Wireless Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Starting Wireless Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Navigating in Wireless Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Wireless Manager status icon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Windows status icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Creating a GPRS/EDGE/UMTS or CSD connection . . . . . . . . . . . . . . . . . 16

Creating a GPRS/EDGE/UMTS connection . . . . . . . . . . . . . . . . . . . . . . . . 17

Creating a CSD connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Modifying a connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Deleting a connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Using your connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Browsing the Internet via a GSM GPRS/EDGE/UMTS connection . . . . . . 20

Sending and receiving e-mail messages . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Creating a GPRS/EDGE/UMTS connection by using Windows dial-up

networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Logging on to Windows using a GPRS/EDGE/UMTS dial-up connection . 22

Configuring Wireless Manager preferences . . . . . . . . . . . . . . . . . . . . . . . . 23

Wireless Manager – Status view . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Wireless Manager – Telephony Settings view. . . . . . . . . . . . . . . 33

ii Contents

Displaying the GSM GPRS/EDGE/UMTS panel. . . . . . . . . . . . . . . . . . . . . 30

Establishing a connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Displaying the 802.11 WLAN panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Displaying usage summary information . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Displaying incoming calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Networks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Forward (Divert) Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Restrict Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

SMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Wireless Manager – Phone Book view . . . . . . . . . . . . . . . . . . . . . 41

Navigating the Phone Book view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Managing entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Wireless Manager – SMS Messages view . . . . . . . . . . . . . . . . . . 46

Displaying the SMS Messages view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Creating and sending SMS messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Managing SMS messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Wireless Manager – Online Services view . . . . . . . . . . . . . . . . . . 50

Using the Sony Ericsson Wireless Utility . . . . . . . . . . . . . . . . . . 51

Opening the Sony Ericsson Wireless Utility . . . . . . . . . . . . . . . . . . . . . . . . 51

Enabling the Sony Ericsson Wireless Utility . . . . . . . . . . . . . . . . . . . . . . . . 51

Navigating in the Wireless Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Wireless Utility status icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Accessing the Wireless Utility status icon menu. . . . . . . . . . . . . . . . . . . . . 53

Enabling and disabling the 802.11 radio. . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Configuring your location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Creating a wireless LAN connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Connecting to an open wireless LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Connecting to a secure wireless LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Running diagnostic tests on your wireless LAN adapter . . . . . . . . . . . . . . 62

Using the Windows XP wireless network connection utility . . . 63

Opening the Windows XP wireless network connection utility . . . . . . . . . . 63

Enabling the Windows XP wireless network connection utility . . . . . . . . . . 63

Configuring your location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Creating a wireless LAN connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Connecting to an open wireless LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Connecting to a secure wireless LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Advanced wireless LAN features . . . . . . . . . . . . . . . . . . . . . . . . . 70

Setting up an ad hoc group network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Connecting to an ad hoc network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Sharing an Internet connection in an ad hoc network. . . . . . . . . . . . . . . . . 72

Bridging connections on Windows XP . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Managing static IP addresses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Wireless LAN adapter diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Wireless LAN information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Displaying Windows network connections . . . . . . . . . . . . . . . . . . . . . . . . . 77

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Status information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Status log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Wireless Manager icon errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Software errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

GSM GPRS/EDGE/UMTS error messages . . . . . . . . . . . . . . . . . . . . . . . . 79

SIM card errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Wireless LAN error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Wireless LAN performance and connectivity problems . . . . . . . . . . . . . . . 81

Windows error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Contents iii

Appendix A - Connection parameters . . . . . . . . . . . . . . . . . . . . . 84

General connection parameters for CSD and GPRS . . . . . . . . . . . . . . . . . 84

CSD-specific parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

TCP/IP optimisation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Appendix B - Changing the wireless LAN adapter properties . . 87

Appendix C - Additional information . . . . . . . . . . . . . . . . . . . . . . 89

License agreement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Wireless LAN regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

iv Contents

Trademarks and Notices

Second edition (July 2007)

This manual is published by Sony Ericsson Mobile Communications AB, without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson at any time and without notice. Such changes will, however, be incorporated into new editions of this manual.

All materials, including all images, software, text and graphics, buttons, as well as the general “look and feel”, (“the Content”), contained in this document are protected by copyright under national laws and international treaties. The marks, corporate logos and emblems displayed in this document are subject to the trademark and other rights of Sony Ericsson or its content providers. Without limiting the foregoing,

is the trademark or registered trademark of Sony Ericsson or is used under licence from Sony Corporation or Telefonaktiebolaget LM Ericsson.

You cannot use the Content except as specified herein. Violation of these terms may constitute violation(s) of our or our content providers’ intellectual property rights, and Sony Ericsson or its content providers may be required to take legal actions to protect these rights.

The Content may be viewed and printed, and distributed provided such documents are used for information and non-commercial personal purposes only and reference is made to Sony Ericsson whenever the document is used. You may not exchange, modify, sell or transmit anything in this document.

Microsoft, Windows and Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

All other product or service names mentioned in this manual are trademarks of their respective companies.

Publication number: EN/LZT 123 8312 R1B

Contents v

About this guide

This guide describes how to use Wireless Manager to configure and operate a Sony Ericsson PC card.

Note:

Be sure to read all safety guidelines in your PC Card User Guide before using your PC card.

Wireless Manager includes the following tools to meet your needs:

• Wireless Manager is the application you use to configure and manage mobile network connections.

• Sony Ericsson Wireless Utility is the utility you use to configure and manage wireless LAN connections. Check the User Guide for your PC card to determine whether your PC card contains a wireless LAN adapter.

• Sony Ericsson PC card drivers, which are required to operate your PC card.

Note:

Some of the features that Wireless Manager and Wireless Utility support might not be available on your PC card. For detailed information about features that your PC card supports, refer to your PC card documentation.

How this guide is organized

Chapter 1: Getting started on page 1, contains an overview of Wireless Manager and the system requirements to run the software.

Chapter 2: Installing and uninstalling on page 3, contains instructions for installing your software and PC card. This chapter also provides information about where the drivers are located on the Wireless Manager CD.

Chapter 3: Using Wireless Manager on page 11, describes the Wireless Manager interface including how to navigate within the application. This chapter also provides instructions for starting and stopping Wireless Manager and making mobile network connections.

Chapter 4: Wireless Manager – Status view on page 29, describes how to check the status of the network connections that are established with your PC card.

Chapter 5: Wireless Manager – Telephony Settings view on page 33, describes how to configure the telephony settings for your PC card, such as phone lock, preferred mobile networks, and call diverting.

Chapter 6: Wireless Manager – Phone Book view on page 41, describes how to add, delete, and modify phonebook entries on your SIM card and your hard drive.

Chapter 7: Wireless Manager – SMS Messages view on page 46, describes how to create, send, and organize your SMS messages.

Chapter 8: Wireless Manager – Online Services view on page 50, describes how to use the services menu that your network operator may have placed on your SIM card.

Chapter 9: Using the Sony Ericsson Wireless Utility on page 51, describes the Sony Ericsson Wireless Utility interface. This chapter also provides instructions about how to use the Sony Ericsson Wireless Utility to set up and connect to Wireless LANs.

Chapter 10: Using the Windows XP wireless network connection utility on page 63, describes the Windows XP wireless network connection utility interface. This chapter also provides instructions about how to use the Windows XP wireless network utility to set up and connect to Wireless LANs.

vi About this guide

Chapter 11: Advanced wireless LAN features on page 70, provides instructions for some of the advanced wireless LAN features including, setting up an ad hoc network using your PC card, sharing an Internet connection, and managing IP addresses.

Chapter 12: Troubleshooting on page 78, provides instruction for some of the most common issues that you might encounter when using your PC card.

Appendix A - Connection parameters on page 84, provides general connection information that you can use to optimize your PC card.

Appendix B - Changing the wireless LAN adapter properties on page 87, provides instructions for changing wireless LAN properties for your PC card.

Additional resources

Additional resources can be found on the CD that came with your Sony Ericsson PC card or on the Internet at the Sony Ericsson support Web site.

Publications

The following documents are provided with your Sony Ericsson PC card:

• A printed Quick Start Guide aimed at getting you operational as quickly as possible.

• An online Wireless Manager User Guide (this document) that provides a comprehensive description of how to use Wireless Manager to manage and operate the wireless connections for your Sony Ericsson PC card. The Wireless Manager User Guide is saved as an Adobe Acrobat PDF file on the CD-ROM that came with your PC card.

• An online PC Card User Guide containing a detailed description of your Sony Ericsson PC card, the features that it supports, and the guidelines for safe and efficient use. The PC Card User Guide is saved as an Adobe Acrobat PDF file on the CD-ROM that came with your PC card.

The CD-ROM also contains Adobe Acrobat Reader

, which you can install if necessary.

Sony Ericsson support Web site

You can visit the Sony Ericsson Web site to find the most up-to-date product information and support wherever you are. It gives you access to online customer services, online user manuals, the latest software downloads, and other useful information. The address is:

http://www.sonyericsson.com/support

General information about wireless LANs can be obtained from:

http://www.wlana.org

About this guide vii

Conventions used in this guide

This document uses the following conventions:

Convention Description

Bolded text When describing window elements that require you to click or type,

Italicized text Cross references and other publications: These items are displayed

<variables> Information that is specific to you, such as where your Windows®

Notices Notes: These notices provide important tips, guidance, or advice.

such as a button, field, or icon, the name of the window is displayed as bolded text.

For example, click OK.

as italicized text within this document.

For example, for more information about installing Wireless Manager, see Installing and uninstalling on page 3.

temp directory is located or the letter that is used to access your hard drive, is represented as a variable. Variables are displayed as italicized text between left and right angle brackets <>.

For example, to install Wireless Manager on your hard drive, select <your_drive>, where <your_drive> is the letter of your hard drive.

Caution: These notices help you avoid situations that might result in the loss of data, signal, or service.

Important: These notices alert you to unsafe practices and situations that could potentially result in minor injury to your PC card or computer.

viii About this guide

Getting started

Congratulations and thank you for purchasing a Sony Ericsson PC card.

Your Sony Ericsson PC card comes with the Wireless Manager application. Wireless Manager provides a set of tools that you can use to configure and manage wireless connections on your laptop computer.

You can use Wireless Manager to:

• Connect to the Internet or a corporate wireless network

• Display GPRS/EDGE/UMTS and wireless LAN status information

• Create or modify connection settings

• Manage your Sony Ericsson PC card settings

• Manage phone books for your SIM card and laptop computer

• Send and receive SMS messages

System requirements

This section lists the network subscriptions and hardware and software requirements for using your Sony Ericsson PC card.

Network and subscription

The network subscription that you use depends on which services are available from your network operator. Contact your network operator or service provider to make sure the options that you require are available. Make sure that data options are included in your subscription, as these are usually optional services.

Note:

Network operators often provide multiple connection options via UMTS/EDGE/GPRS such as WAP, MMS, and Internet. Verify the services that you require, such as Internet, email or corporate VPN (Virtual Private Network) service is available through your network operator and enabled on your subscription.

This section describes the mobile network services supported by Sony Ericsson PC cards. Check your PC Card User Guide for information about supported services for your specific model.

Circuit Switched Data (CSD)

CSD is the original GSM network data transfer method, used in the past for WAP. Almost all GSM networks have this capability at 9.6 kbps. It is possible for the network to upgrade the speed to 14.4 kbps. Depending on the Sony Ericsson PC card that you have, your PC card may operate at this higher speed where available.

General Packet Radio Service (GPRS)

GPRS is a type of network connection which provides “always on” mobility. The connection setup is fast and, once connected, applications may send and receive data whenever required. In today’s GPRS networks, the Sony Ericsson PC card receives data at speeds up to 53.6 kbps and transmits at speeds up to 26.8 kbps.

Getting started 1

Enhanced Data Rates for Global Evolution (EDGE)

EDGE enhances GPRS by increasing data throughput by a factor of 3. GPRS networks enhanced with EDGE are often referred to as Enhanced GPRS (E-GPRS) networks. EDGE provides the “always on” capability of GPRS but at faster speeds. EDGE technology is transparent, simply make a GPRS connection as usual and benefit from the increase in speed where EDGE is available in a network. When EDGE is available you can expect increased speeds of up to 200 kbps, dependent on network coverage.

Universal Mobile Telecommunications System (UMTS)

UMTS is a 3G technology standard for wide-area wireless data communication. The UMTS standard uses advanced network operator mobile Internet services to achieve data transfer rates up to 384 kbps, which are ideal for connecting your laptop to the Internet or a corporate network.

Short Message Service (SMS)

The PC can send and receive SMS text messages using the SMS Messages window in Wireless Manager, see Wireless Manager – SMS Messages view on page 46, for more details.

Wireless LAN connection

Your PC card may also contain wireless LAN functionality. For detailed information about features that your PC card supports, refer to your PC Card User Guide.

To use your Sony Ericsson PC card as a wireless LAN adapter for a corporate, small office, or home network, you must have the appropriate access and logon rights to that network. If necessary, contact your network administrator to arrange access.

Hardware

Software

You will need the following hardware:

• PC that has the minimum specification recommended by Microsoft

to run the version of Windows

installed on it

• PC card slot that is compatible with your PC card

• Sony Ericsson PC card

• SIM card

You will need the following software:

• Windows 2000 with Service Pack 4 (SP4), Windows XP with Service Pack 2 (SP2) or Windows Vista™.

• Sony Ericsson Wireless Manager CD-ROM

Note:

You can download Wireless Manager from the Sony Ericsson Web site. For more information about accessing support information, see Additional resources on page vii.

2 Getting started

Installing and uninstalling

The Wireless Manager CD-ROM contains the software required to operate your Sony Ericsson PC card.

Make sure that the GSM/UMTS services that you require are included on your SIM card subscription. For an explanation of the services that are supported see Network and subscription on page 1. Contact the organization that supplied you with your SIM card and request that the specific services (UMTS, GSM GPRS/EDGE, CSD and SMS) you require are added to your subscription. If you want to use wireless LAN, you will need to have access rights to the corporate networks and hotspots that you intend to use.

The Wireless Manager CD-ROM contains the following:

• Wireless Manager software

• User documentation

• Online help

• Readme text file containing the latest information about your Sony Ericsson PC card

• Sony Ericsson PC card drivers

Installing your software

Before you insert your PC card into your computer, install the software.

Important:

The installation process might pause for several minutes. During this time the drivers are installed. Do not cancel.

To install Sony Ericsson Wireless Manager on your computer

1. Insert the Sony Ericsson Wireless Manager CD-ROM in your CD drive.

After a few seconds a Sony Ericsson Welcome window is displayed.

Installing and uninstalling 3

Note:

If the CD-ROM does not automatically start, select Start Run, and then type <D>:\Setup.exe in the Open field (where <D> is the letter of your CD drive).

2. Click Next. The License Agreement window is displayed.

3. Read the agreement and click Ye s. The Choose Destination Location window is displayed.

4. To change the default location where the Wireless Manager files are saved, click Browse and navigate to the directory that you want to use for the installation. After you select the directory, click OK.

4 Installing and uninstalling

5. Click Next. The Select Program Folder window is displayed.

6. Click Next. The Setup Type window is displayed.

7. To display a Wireless Manager shortcut icon on the Windows desktop, click Yes. Otherwise click No.

Installing and uninstalling 5

8. Click Next. The second Setup Type window is displayed.

9. To configure Wireless Manager to start each time that you start Windows, click Ye s . To configure Wireless Manager to start only when you run it, click No. You can change this setting from the Preferences window after Wireless Manager is installed. For more information, see Configuring Wireless Manager preferences on page 23.

10. Click Next. The Setup Status window is displayed and a progress bar indicates the progress of the installation.

Important:

The installation process might pause for several minutes at one or more stages. During this time the drivers are installed. Do not cancel.

Wireless Manager is installed in the same language as your Windows installation, or English if your Windows language is not available.

11. When the installation process is complete click Finish.

6 Installing and uninstalling

Preparing your PC card

Before you can connect to a mobile network, your SIM card must be inserted into your Sony Ericsson PC card. Additionally, your SIM card must include a subscription that provides access to data services.

To install your SIM card into your Sony Ericsson PC card

1. Remove your Sony Ericsson PC card from its protective case.

2. Insert your SIM card into the slot on the back of the PC card, with the gold contacts facing downwards.

Note:

The angled corner of the SIM card must be placed into the PC card as demonstrated below. The gold contacts of the SIM card should face downwards.

SIM

Card

564464

8695

89034

To use the PCMCIA slot for another device, remove the Sony Ericsson PC card as instructed in Removing your PC card on page 9, then insert the other device.

When your Sony Ericsson PC card is not in use it is recommended that you store it in the protective carrier box provided.

Important:

Do not insert the card into the laptop until you have installed the software from the CD-ROM. If you accidentally insert the PC card before you install the software, simply cancel the

New Hardware wizard.

Installing and uninstalling 7

Inserting your PC card

Before you insert your PC card, install the Wireless Manager software.

To insert your PC card for the first time

1. Turn on your PC and start Windows.

2. Insert your Sony Ericsson PC card. Make sure it is fully inserted.

GC99

UMTS/EDGE/WLAN PC

Card

WAN

WLAN

3. After a few seconds, the New Hardware Wizard opens and installs the necessary drivers onto your PC from the CD. Several Found New Hardware pop-up messages are displayed indicating that new hardware is being installed.

The wizard may require you to locate a specific driver file. If this happens, a dialogue box opens; click Browse and select the applicable location for the component that is being installed:

Component

Sony Ericsson GCxx UMTS Modem (where xx is the version number of your PC card)

Sony Ericsson Wireless WAN Adapter D:\Driver\Driver2k

Sony Ericsson SIM Card Reader D:\Driver\Driver2k

Sony Ericsson 802.11g Wireless LAN Adapter D:\WLAN

Location of files on the CD-ROM

D:\Driver\Driver2k

In the above table, D represents your CD drive. Select the driver file requested by the Hardware Wizard and click Open. The Hardware Wizard finishes the installation.

8 Installing and uninstalling

4. After Windows finishes installing the hardware, a final message displays in the system tray indicating that your new hardware is installed and ready to use.

Select Programs Sony Ericsson Wireless Manager to start using your Sony Ericsson PC card.

From the Windows desktop, double-click the Wireless Manager shortcut .

Note:

If you are prompted to reboot the laptop during software installation, you may find that Wireless Manager may attempt to start before all of the drivers are installed. The reason this occurs is the New Hardware Wizard is still busy installing the device drivers. The Wireless Manager splash screen is displayed, followed by a warning dialogue box that indicates “You must have a Sony Ericsson Wireless Modem installed to run this application. Please install a Sony Ericsson Wireless Modem and try again”. If this occurs:

1. Click Ok.

2. Wait for the New Hardware Wizard to complete the driver installation.

3. Reboot the laptop.

4. To start Wireless Manager, from the WIndows desktop, double-click on the Wireless Manager icon .

Select Programs Sony Ericsson Wireless Manager.

Removing your PC card

As a best practice, stop your Sony Ericsson PC card from transmitting before you attempt to remove it. This ensures that your Sony Ericsson PC card is safely removed. Additionally, always remove your Sony Ericsson PC card antenna before you transport or store your laptop in a carrying case. Leaving your PC card antenna attached during transport could damage your PC card.

To remove your Sony Ericsson PC card

1. Disconnect any active Sony Ericsson PC card network connections.

2. Exit Wireless Manager.

3. From the Windows desktop, click on the PC Card icon in the system tray. All the currently connected devices are listed.

4. From the list of devices, select your Sony Ericsson modem. A message box is displayed indicating that it is safe to remove the card.

Important:

Incorrect removal of your Sony Ericsson PC card can damage the card.

Uninstalling your software

Before you uninstall the software, remove your PC card from your PC.

To remove Sony Ericsson Wireless Manager from your computer

1. From the Windows desktop, select Start Settings Control Panel

Add or Remove Programs.

2. From the Currently installed programs list, select Sony Ericsson Wireless Manager, and click Change/Remove.

Installing and uninstalling 9

3. Follow the on-screen instructions.

4. Repeat steps 2 and 3 to remove each of the following programs:

• Sony Ericsson Wireless Modem

• Sony Ericsson 802.11 Wireless LAN Adapter Driver

• Sony Ericsson 802.11 Wireless LAN Adapter Control Panel

5. (Optional) To remove the SMS messages and Phonebook entries that are saved on your hard drive, complete the following steps:

a. Navigate to the following directory:

c:\Documents and Settings\<username>\Application Data \Sony Ericsson\GCXX Manager

where <username> is the user name of the Windows account that was used to install Wireless Manager.

b. Delete the files in this directory.

10 Installing and uninstalling

Using Wireless Manager

Use Wireless Manager to configure your Sony Ericsson PC card settings such as, network connections, telephony settings, phonebook, and SMS messaging.

Starting Wireless Manager

There are several methods that you can use to start Wireless Manager.

To start Wireless Manager

1. From the Windows desktop, select Start Programs Sony Ericsson Wireless Manager.

From the Windows desktop, double-click the Wireless Manager shortcut .

From the Windows system tray, double-click the Wireless Manager status icon . The Wireless Manager status icon is displayed in the system tray only when Wireless Manager is active.

Note:

To successfully run the Wireless Manager application, a SIM card must be inserted in your Sony Ericsson PC card. If your PC card includes wireless LAN functionality, the wireless LAN features may be used without a SIM card inserted. To access the Sony Ericsson Wireless Utility that is used to manage wireless LAN functionality, right-click the Wireless Utility status icon in the Windows system tray and select Open Wireless Utility.

2. If requested, enter your SIM card PIN and Phone Lock code, and then click OK. You are allowed three attempts to enter the correct PIN and lock code. If you fail to enter the SIM card PIN correctly, you are blocked from accessing the SIM card. If you fail to enter the Phone Lock code correctly, your Sony Ericsson PC card is locked. Contact your network operator for your personal unblocking key (PUK). Enter the unblock key into the Card Blocked dialogue box and enter a new PIN code and confirm it.

To set the SIM card PIN and Phone Lock code, see Locks on page 33.

Using Wireless Manager 11

The Wireless Manager window is displayed.

If your PC card supports wireless LAN, the Wireless Manager window displays information about your GSM GPRS/EDGE/UMTS and wireless LAN network connections. If your PC card does not support wireless LAN, the Wireless Manager window displays the GSM GPRS/EDGE/UMTS connection information only:

To close Wireless Manager

1. Click the close button in the upper-right corner of the Wireless Manager window. A confirmation window is displayed.

2. Click Ye s. When you close Wireless Manager any existing mobile network connections are terminated.

12 Using Wireless Manager

Navigating in Wireless Manager

This section provides information about the menus and toolbars that are displayed in Wireless Manager.

Menu bar

Toolbar

Standard toolbar

Stat us Bar

Window control buttons

Menu bar

Toolbar

The Menu bar provides access to all the supported functions in Wireless Manager.

Use the buttons that are displayed on the toolbar to access the main views in Wireless Manager.

Button Description

Status Displays the Status view.

Use the Status view to display information about your wireless connections and to quickly connect and disconnect from existing network connection profiles. For more information about the Status view, see Wireless Manager – Status view on page 29.

Telephony Settings Displays the Telephony Settings view.

Use the Telephony Settings view to display and configure settings such as, preferred networks, SIM lock code, network selection, and call diverting. For more information about the Telephony Settings view, see Wireless Manager – Telephony Settings view on page 33.

Phone Book Displays the Phone Book view.

Use the Phone Book view to read and update phonebook entries that are saved to your SIM card and your hard drive. For more information about the Phone Book view, see Wireless Manager – Phone Book view on page 41.

Using Wireless Manager 13

SMS Messages Displays the SMS Messages view.

Online Services Displays the Online Services view.

Standard toolbar

The standard toolbar provides access to the edit, copy, and paste functions in addition to tools that are specific to the current view. The buttons on this toolbar become active when you select or navigate to a view or dialogue box that contains information that you can edit. For example, the Add phone book entry button is active only on the Phone Book view.

This toolbar also provides access to a group of quick launch buttons that you can configure to start other applications that you frequently use.

Wireless Manager status icon

The Wireless Manager status icon that is displayed in your desktop system tray allows you to view the current status of your Sony Ericsson PC card radio and connection.

Use the SMS Messages window to view and manage your SMS messages. For more information about the SMS Messages window, see Wireless Manager – SMS Messages view on page 46.

Use the Online Services window to access the menu of online services that your mobile operator may have placed on your SIM card. For more information about the Online Services window, see Wireless Manager – Online Services view on page 50.

Viewing the GSM/GPRS/EDGE/UMTS connection status

Move your mouse pointer over the Wireless Manager status icon in the Windows system tray. The status of your connection is displayed.

Some of the status icons that display in the system tray have menus associated with them. See Accessing the Wireless Manager menu on page 15 for details.

Viewing the GSM/GPRS/EDGE/UMTS radio status

The appearance of the Wireless Manager status icon indicates the status of the GSM GPRS/EDGE/UMTS radio. The following icons represent the different versions of the Wireless Manager status icon.

Icon Description

Wireless Manager is waiting for your Sony Ericsson PC card card to be inserted.

GSM GPRS/EDGE/UMTS radio is set to Off.

The GSM GPRS/EDGE/UMTS radio is set to On, but there is no GSM or GPRS/EDGE/UMTS service available.

14 Using Wireless Manager

The PC card has GSM and GPRS/EDGE/UMTS service. GPRS/EDGE/UMTS, CSD, and SMS may be used, provided these are supported by your subscription.

Your PC card has GSM service and a signal strength of 3 out of 5 bars. CSD and SMS may be used, provided these are supported by the subscription. GPRS/EDGE/UMTS is not available.

Accessing the Wireless Manager menu

Right-click on the Wireless Manager status icon in the Windows system tray to access the GSM/GPRS/EDGE/UMTS menu options.

The GSM/GPRS/EDGE/UMTS menu is displayed.

Some of these menu options are disabled depending on the current state of your Sony Ericsson PC card.

Open Wireless Manager

This menu option starts Wireless Manager. You also can double click the Wireless Manager status icon to start Wireless Manager.

Turn GSM GRPS/EDGE/UMTS Radio On/Off (Radio status)

This menu option is dynamic. It monitors the current state of the Sony Ericsson PC card radio transmitter and gives you the option to change it to the opposite state. For example, if your GSM GPRS/EDGE/UMTS radio transmitter is on, the menu option reads Turn GSM GPRS/ EDGE/UMTS Radio Off.

You also can set the status of the GSM GPRS/EDGE/UMTS radio transmitter by selecting Turn GSM GPRS/EDGE/UMTS Radio On/Off from the File menu in Wireless Manager.

Connect/Disconnect

If you are currently disconnected, the menu gives you the option to connect to the most recently used GSM GPRS/EDGE/UMTS connection. If you are connected, the menu gives you the option to disconnect.

Help

Opens the Wireless Manager online help. You also can launch the online help from the Help menu in Wireless Manager. Press F1 in any of the Wireless Manager dialogue boxes to open the relevant help window.

About

Displays a dialogue box that contains information about the version of Wireless Manager that is installed on your computer.

Hide to tray

When you select Hide to tray, the Wireless Manager application continues to run, however, the Wireless Manager window is not displayed. The Wireless Manager status icon remains in the system tray when the application is hidden. Use the Open Wireless Manager option from the menu, or double-click the Wireless Manager status icon to display the Wireless Manager window again.

Using Wireless Manager 15

Exit

Exits the Wireless Manager application completely. Use the stop/remove commands if you want the application to remain in the background. See Removing your PC card on page 9 for more details.

Windows status icons

In addition, the following standard Windows operating system icons also appear in the system tray when your Sony Ericsson PC card is inserted in your PC and in use.

Status icon Description

Active Windows network connection. Position your mouse pointer over the icon or doubleclick it to display information about the network connection. For example, you can position your mouse pointer over this icon to display the number of bytes sent or received. Several of these icons may be displayed, each representing a different connection: dial-up, CSD, GPRS/EDGE/UMTS, and wireless LAN connections.

Disconnected Windows Local Area Connection. Several of these icons may be displayed, each representing a different connection: GPRS/EDGE/UMTS and wireless LAN connections.

PC Card icon. This icon indicates that a PC card is present. It displays the properties associated with the PC card. You also can stop the PC card activity and remove it. See Logging on to Windows using a GPRS/EDGE/UMTS dial-up connection on page 22 for details.

The Windows network connection icons, displayed in the system tray, normally disappear after a connection is made. As a result, the network connection icon might not be displayed for your GPRS/EDGE/UMTS, CSD, and wireless LAN connections.

To display the Windows network connection icon in the system tray

1. From the Windows desktop, select Start Settings Control Panel Network Connections. The Network Connections window displays the network connections configurations that have been set up on your PC.

2. Right-click on the connection that you want to display in the system tray, and select Properties.

3. On the General tab, select the Show icon in notification when connected check box.

4. Click OK to close the dialogue. When the selected network connection is active, the Windows connection icon is displayed in the system tray.

Creating a GPRS/EDGE/UMTS or CSD connection

Predefined customized connection settings may have already been entered by your network operator or administrator. Check the connection drop-down list in Wireless Manager Connection Wizard for any existing entries. If they are available, refer to Using your connection on page 19.

If no predefined customized connections exist, Network Connection Wizard automatically starts when Wireless Manager is started for the first time.

You also can create a GPRS connection by using Windows Dial-up Networking. For information about GPRS over DUN, see Creating a GPRS/EDGE/UMTS connection by using Windows dial-up networking on page 20.

16 Using Wireless Manager

To create a connection

1. From the Wireless Manager window, select File Connection Wizard. The Connection Wizard opens.

Click the Connection Wizard button .

2. Select Create a new connection.

3. In the Enter the connection name field, type a descriptive name for the connection. For example ‘My Connection’.

4. Click Next.

Note:

Your connection name should not exceed 16 characters in length for it to be fully visible in Wireless Manager.

5. The Type of Connection dialogue box is displayed. Select the type of connection that you require:

• For GPRS/EDGE/UMTS see steps 1 to 8.

• For CSD see steps 1 to 10.

Creating a GPRS/EDGE/UMTS connection

1. Select GPRS/EDGE/UMTS.

2. If your network operator is listed in the Choose Network drop-down list, complete the following steps:

3. Select your network operator, and then click Next. The APN is displayed.

4. Click Next. The user name and password are displayed.

5. If your network operator is NOT listed in the Choose Network drop-down list or you have a dedicated corporate APN, complete the following steps.

a. Obtain the APN, user name, and password from your network operator or network

administrator.

a. Select <Other>, and then click Next.

a. In the Primary APN field, enter the APN, and then click Next.

a. On the User ID dialogue box, enter the user ID and password.

6. If you are required to enter a one-time use password each time you log on, clear the Save Password check box.

Notes:

• Many network operators leave user ID and password blank.

• Windows deliberately changes the number of asterisks that represent a password and place

asterisks in the Password field when the password is empty to make the display secure.

7. Click Next.

8. Click Finish to create your connection or Back to review your settings.

Using Wireless Manager 17

Creating a CSD connection

1. Select CSD.

2. Select your network operator from the Choose Network drop-down list. If your network operator is not listed, select <Other>.

3. Click Next.

4. If you selected a network operator from the Choose Network drop-down list, the telephone number dialogue box is automatically filled in. If you selected <Other> from the Choose Network drop-down list, type the phone number that you need to dial to connect to your network operator in the Telephone number field. Make sure to include your country and area code. Also, make sure that the Use area code and country code check box is cleared.

Note:

If necessary, contact your network operator, Internet service provider, or corporate network administrator for a telephone number.

5. Click Advanced.... If your PC card supports multiple connection speeds, you can specify your

preferred CSD network connection speed from the drop-down list, and the method you want to use to connect to the network on the Speed tab of the Advanced dialogue box.

6. Click Next.

Note:

If you are unsure which speed to choose from the Speed tab, start with Analogue 9600, and check to see if it works. Once your connection works on analogue, you can try the V110/V120 settings. V110/V120 connects faster than analogue. When roaming you may need to repeat this procedure to adapt your settings to the capability of the network.

7. To specify a callback number, select the Options tab in the Advanced dialogue box. Callback is a service that allows the

call direction to be reversed. If you want to watch the progress of a callback in a terminal window select the Show Terminal Window After Dialing check box.

See Appendix A - Connection parameters on page 84, for descriptions of the parameters that can be updated in the Advanced dialogue box. Click Apply to save any changes before closing the dialogue box.

18 Using Wireless Manager

8. If you need a user ID and password to log on to your service provider, enter them into the appropriate fields. If you do not need a user ID and password, leave the fields blank.

9. Click Next.

Note:

Windows changes the number of asterisks that represent a password and place asterisks in the Password field when the password is blank in order to make the display secure.

10. Click Finish to create your connection or Back to review your settings.

Modifying a connection

To modify a connection

1. From the Wireless Manager window, select File Connection Wizard. The Connection Wizard opens.

2. Select Modify a Connection. The Select a Connection drop-down list is activated.

3. From the Select a Connection drop-down list, click on the menu and select the connection you want to modify.

4. Click Next.

5. Change the connection settings as required.

Deleting a connection

To delete a connection

1. From the Wireless Manager window, select File Connection Wizard. The Connection Wizard opens.

2. Select Delete a Connection. The Select the connection name drop-down list is activated.

3. From the Select the connection name drop-down list, select the connection you want to delete.

4. Click Next. The Success dialogue box is displayed.

5. Click Finish to close the Connection Wizard.

Using your connection

To connect to a mobile network by using your GPRS/EDGE/UMTS or CSD connection

1. Open Wireless Manager.

2. If requested, enter your SIM card PIN and click OK. The Status view is displayed.

3. From the connection drop-down list, select the connection that you want to use and click Connect.

4. If requested, enter your user ID and password.

To disconnect from an active GPRS/EDGE/UMTS or CSD connection

1. From the Wireless Manager window, select View Status. The Status view is displayed.

2. In the GSM GPRS/EDGE/UMTS panel, click Disconnect.

Right-click on the Wireless Manager icon in the system tray and select Disconnect.

Using Wireless Manager 19

Note:

You can also use the Preferences dialogue box to set up an auto connection when Wireless Manager is opened. See Configuring Wireless Manager preferences on page 23 for more details.

Browsing the Internet via a GSM GPRS/EDGE/UMTS connection

You can use your GPRS/EDGE/UMTS or CSD connection to connect to your mobile network and browse the Internet.

To browse the Internet via a GPRS/EDGE/UMTS or CSD connection

1. Open your preferred connection from the Status view. See Using your connection on page 19 for details on opening a connection.

Note:

Computers that are configured to connect to a corporate local area network typically connect to the Internet through a proxy server. Depending on your configuration, you might have to bypass the proxy server to browse the Internet via a GSM GPRS/EDGE/UMTS connection. To bypass your proxy server, from the Windows desktop, select Start

Internet Options. From the Connections tab, click LAN settings. In the Proxy Server panel, clear the Use a proxy server for your LAN check box. Make sure to change change the proxy server settings back when want to reconnect to your corporate LAN.

2. Start your Internet browser. You are online and can browse the Internet.

Settings Control Panel

Sending and receiving e-mail messages

You can use your Sony Ericsson PC card to send and receive e-mail messages.

To send and receive email messages using a GPRS/EDGE/UMTS or CSD connection

1. Open your preferred connection from the Wireless Manager – Status view. See Using your connection on page 19 for details on opening a connection.

2. Start your email program or navigate to the Web site that hosts your Web-mail. You are online and can send and receive email messages.

Note:

To access your email over a mobile network, might need to modify your email connection settings. If necessary, check with your email provider for instructions.

Creating a GPRS/EDGE/UMTS connection by using Windows dial-up networking

Wireless Manager normally makes GPRS connections via the Wireless WAN (NDIS) adapter. These connections are made by using the Connect button in the Wireless Manager or they are made automatically if Wireless Manager is configured to start when Windows starts and to make the nominated GPRS connection.

20 Using Wireless Manager

In some applications, it may be necessary to connect to GPRS by using Windows Dial-Up Networking (DUN) instead. The following examples typically require a GPRS over DUN connection:

• Where a LAN proxy is in use for a corporate network connection and a separate proxy is required

for a GPRS connection. Windows can manage only one Web proxy across all LAN connections, however individual proxies can be set up for each DUN connection.

• Where it is useful to initiate the connection from a Windows application rather than

in Wireless Manager.

Configuring a GPRS over DUN connection

Instead of dialling a conventional telephone number, GPRS connections are made by dialling the code *99***1# to *99***10# as the telephone number. When the PC card processes this number, it initiates a GPRS connection using the AT+CGDCONT command.

In Windows, each modem has an “extra initialization” string. This is typically used to store special AT commands that initialize the modem. The commands are sent to the modem before the DUN connection is established.

To configure a GPRS over DUN connection

1. From the Windows desktop, select Start Settings Control Panel Phone and Modem Options. The Phone and Modem Options dialogue box displays.

2. Click the Modems tab.

3. Select the Sony Ericsson GCxx modem and click Properties. The Modem Properties dialogue box displays.

4. Click the Advanced tab.

5. In the Extra initialization commands field, type the following command:

AT+CGDCONT=<connection_ID>,”IP”,”<APN>”

where <connection_ID> is the connection ID for your connection, and <APN> is the access point for your service.

For example,

AT+CGDCONT=3,“IP”,“MyCompanyAPN”

Note:

Using CID 3 prevents the CID from being overwritten by Wireless Manager.

6. Click OK. The Phone and Modem Options dialogue box displays.

7. Click OK.

8. From the Windows desktop, select Start Settings Control Panel Network Connections.

This example uses GPRS Context 3. There are 10 possible contexts supported by your Sony Ericsson PC card (1..10). Context ID 2 is reserved for use by connections created by the Wireless Manager.

Refer to the AT Command Manual or contact your service provider or network administrator for further assistance.

To define a Windows DUN Connection

1. From the Windows desktop, select Start Settings Control Panel Network Connections. The Phone and Modem Options dialogue box displays.

2. Select File New Connection. The New Connection Wizard starts.

3. Click Next.

4. Select Connect to the Internet, and then click Next.

Using Wireless Manager 21

5. Select Set up my connection manually, and then click Next.

6. Select Connect using a dial-up modem, and then click Next.

7. From the Select a Device list, select your Sony Ericsson modem, and then click Next.

8. In the ISP Name field, type a descriptive name to identify the connection.

9. In the Phone number field, type the following:

*99***<connection_ID>#

where <connection_ID> is the connection ID of the DUN configuration that you created.

For example, type the following to connect to connection ID 3:

*99***3#

10. In the Connection Availability dialogue box, select who can use the connection: Anyone’s use or My use only, and then click Next.

11. In the Connection Availability dialogue box, enter your user name and password information. You can leave these fields empty to be prompted each time you use this connection.

12. Click Next.

13. Click Finish. A dial-up connection dialogue box displays for your new connection.

Note:

If a proxy is required for Web access, close the dial-up connection dialogue box. Open your Web browser and select Tools Internet Options. On the Connections tab, select your GPRS DUN connection and click Settings. Enter the proxy details in the Proxy Settings pane, and then click OK. Click OK.

To connect to a GPRS over DUN connection

1. From the Windows desktop, Start Settings Control Panel Network Connections.

2. Double-click on the GPRS over DUN connection that you created. The receive and transmit byte counts are displayed.

Note:

You also can create a shortcut to the connection and place it on the WIndows desktop. It is also possible to configure applications such as Internet Explorer and Outlook Express to use the DUN connection by default.

To disconnect from a GPRS over DUN connection

From the Windows system tray, right-click the DUN connection icon and select Disconnect.

Click the Disconnect button in Wireless Manager.

Logging on to Windows using a GPRS/EDGE/UMTS dial-up connection

Your Sony Ericsson PC card supports the Windows Log on using dial-up connection feature.

To log on to Windows using a dial-up connection, your Sony Ericsson PC card must be inserted and the radio must be enabled before you log on. To enable the radio prior to logging on, select Enable radio immediately when card inserted check box in the Radio Power preferences tab. See Radio Power tab for GSM GPRS/EDGE/UMTS on page 24 for more details.

Caution:

Never start your PC in this mode if you are in a location where mobile devices should not be used (for example, on an airplane, in a hospital, or near a blast site).

22 Using Wireless Manager

Only check this option if you need to log on to a Windows domain via a wireless dial-up connection. This will permit you to register with the network and establish a connection when the Windows logon window is displayed.

Note:

It is not possible to display network status or signal strength during the Windows logon procedure. You should allow enough time for your Sony Ericsson PC card to find and register with the wireless network prior to attempting to log on.

The dial-up connections available to the Windows Logon must have been created by a user account with administrator privileges and designated For all users. This must be done using the Windows Network Connection Wizard, because the Wireless Manager can create connections only for the current user ID.

Normally, the Windows Logon using dial-up connection feature will use a CSD session to connect to a corporate network, so that the logon credentials can be validated by a Windows Domain Server.

There may be special circumstances where a GPRS/EDGE/UMTS dial-up connection is required for logon.

Configuring Wireless Manager preferences

You can configure the Preferences settings in Wireless Manager to change the general behaviour of the Wireless Manager application.

To configure your preferences for Wireless Manager

1. Start Wireless Manager.

2. Select File Preferences. The Preferences dialogue box displays the Radio Power tab.

Using Wireless Manager 23

Radio Power tab for GSM GPRS/EDGE/UMTS

Use this tab to manage the state of the GSM GPRS/EDGE/UMTS radio transmitter.

you specify at Wireless Manager start-up is selected by default on the Radio tab.

Option Description

The radio mode

Enable radio immediately when card inserted

On application start-up and stand-by-resume

You should normally leave this check box cleared. When enabled, the Windows driver turns the radio transmitter on when the card is inserted and leaves it enabled even when the card is not in use. You should check this option if your Windows logon requires you to log on using a dial-up connection; see Logging on to Windows using a GPRS/EDGE/UMTS dial-up connection on page 22 for more details. When you click OK to activate this option, Wireless Manager displays the following dialogue box.

When this option is selected, the Wireless Manager radio power start-up and shutdown options are disabled.

You can select one of the following options to configure the radio status when Wireless Manager is started or when it resumes from being in stand-by:

• Turn Radio On

Select this check box to automatically turn on the radio when Wireless Manager starts or resumes from stand-by. When Wireless Manager is running in radio-on mode, the connection is registered to the mobile network and will transmit signals to the network even if no wireless connection is in progress. This option is selected by default when you install Wireless Manager.

• Turn Radio Off

Select this option to automatically ensure that the radio is not turned on when Wireless Manager starts or resumes from stand-by. When Wireless Manager is running in radio-off mode no connection is made to the mobile network. You may perform non-communication related activities such as, phonebook maintenance. To send or receive SMS messages, however, you must turn on the radio to make a connection.

• Ask Me

Select this option to automatically be prompted with a dialogue box that allows you to set the radio status every time the Wireless Manager is started. This is a useful feature in areas where radio transmitters are not allowed such as, aircrafts, hospitals, or blasting areas. As a best practice, remove your PC card when on an aircraft.

On application shutdown You can select one of the following options to configure the radio status

24 Using Wireless Manager

when Wireless Manager is closed:

• Turn Radio Off

Select this option to turn off the radio when Wireless Manager is closed.

• Reset card

Select this option to turn the radio off and reset the PC card to its default settings when Wireless Manager is closed.

• Leave Radio As Is

Select this option to leave the radio in its current state when Wireless Manager closes.

Text Messages tab

This tab also allows you to set a validity period for the SMS messages that you send. For example, if a message you send cannot be delivered because the recipient’s phone is not turned on, the validity period sets a time limit on how long the service centre should keep attempting delivery.

Notifications tab

Use this tab to configure the following notifications that are displayed in Wireless Manager:

• Show splash screen at program start

• Confirm that the program should be ended

• Show splash screen during shut down

• Enable incoming call notification When an incoming call is received, the following pop-up message is displayed:

Select a check box to activate an option.

Data Connection tab

Use this tab to specify whether to establish a GPRS/EDGE/UMTS connection when Wireless Manager is started.

Wireless Manager establishes the specified connection successfully registering to the mobile network.

To automatically connect to a GPRS/EDGE/UMTS connection when you start your computer

1. From Wireless Manager, select File Preferences Miscellaneous.

2. Select the Run this program when Windows starts check box.

3. Select the Data Connections tab.

4. Select the Establish GPRS/EDGE/UMTS connection at start-up check box.

5. From the Select a connection drop-down list, select the connection that you want to use.

6. Click OK.

Notes:

• If you have Establish GPRS/EDGE/UMTS connection at start-up selected, the connection

is automatically established when you insert the card.

• To start the laptop with your Sony Ericsson PC card removed and automatically start

Wireless Manager when the PC card is later inserted:

- Set Preferences Miscellaneous Run this program when Windows starts.

- Set Preferences Miscellaneous Allow this program to run in the background.

If you want to connect when Windows starts, see Logging on to Windows using a GPRS/EDGE/ UMTS dial-up connection on page 22.

Using Wireless Manager 25

Miscellaneous tab

Use this tab to configure additional settings for Wireless Manager.

• Hide to tray when minimized Select this check box to remove the Wireless Manager application from the Windows Taskbar when Wireless Manager is minimized.

Note:

The Wireless Manager status icon remains displayed in the system tray whenever Wireless Manager is running, unless Hide tray icon when no card inserted is selected and no PC card is present.

To re-open the Wireless Manager application, double-click the Wireless Manager icon in the system tray or select Open Wireless Manager from the icon menu.

• Run this program when Windows starts Select this check box to start Wireless Manager when Windows is started. If a Sony Ericsson PC card is detected, Wireless Manager starts automatically. If a Sony Ericsson PC card is not detected, Wireless Manager either runs in the background or closes depending on whether Allow this program to run in the background is selected.

When used with Establish GPRS/EDGE/UMTS connection at start-up, this option establishes the selected connection when Wireless Manager starts with Windows and the PC card successfully registers to the mobile network. If your laptop is configured to require a Windows log on, the connection is established before Wireless Manager is started. This option is best for automatically connecting, if you are not required to log on to Windows or you enter a username/password without needing to be on a network.

starts a GPRS/EDGE/UMTS connection automatically when the user logs on, see Logging on to Windows using a GPRS/EDGE/UMTS dial-up connection on page 22 for more details.

• Minimize when Windows starts Select this check box to minimize the application when Windows starts. Clear this check box to display the Wireless Manager Status view when Windows is started.

• Allow this program to run in the background Select this check box to run Wireless Manager in the background even when a PC card is not inserted. When the card is detected, Wireless Manager automatically opens and begins normal operations.

When the close box or File Exit is selected, Wireless Manager closes but does not exit. It releases control of the card so that it may be stopped and removed.

26 Using Wireless Manager

You can stop Wireless Manager from running in the background by right clicking on the Wireless Manager icon in the system tray and selecting Exit.

If you attempt to start Wireless Manager without a Sony Ericsson PC card inserted, a message box is displays a warning that the Sony Ericsson PC card is not present, and Wireless Manager switches back to background mode.

• Hide tray icon when no card inserted Select this check box to run Wireless Manager in background mode and prevent the Wireless Manager icon from displaying in the system tray when your Sony Ericsson PC card is not inserted. If the card is inserted, the Wireless Manager icon is displayed in the Windows system tray and Wireless Manager is started.

Launch Buttons tab

Use this tab to specify which application shortcut icons are displayed on the standard toolbar in Wireless Manager. You can add up to five icons on the Wireless Manager that provide shortcuts to start other applications.

Wireless Manager standard toolbar

Launch buttons

To add an application shortcut to the Wireless Manager standard toolbar

1. From the Wireless Manager window, select File Preferences.

2. Click the Launch Buttons tab.

3. Click to select the launch button (1-5) that you want to configure. The bottom panel displays the location of the target application and the command line arguments that are used when you run the application.

4. In the Target field, type the directory path to the application that you want to display on the toolbar. You also can click Browse to navigate to the application and select it.

To select default email application that is configured for Windows, click Email.

To select the default Web browsing application that is configured for Windows, click Web Browser. The fully qualified directory path to the application (Email or Web Browser) is automatically entered in the Target field.

5. If necessary, in the Arguments field, type the command line arguments that are used by the application when you run it. Email does not require any arguments. The argument for a Web browser application can be any valid URL. For example, http://www.sonyericsson.com.

Using Wireless Manager 27

Note:

Click the Web Browser or Email button to automatically enter the Target information for those applications.

6. To automatically start the selected application when a connection is made, select the Launch automatically when connected check box.

7. When finished configuring the launch buttons, click OK. The shortcuts to the applications that you configured will display on the standard toolbar in Wireless Manager.

Wireless Manager standard toolbar

Launch buttons

28 Using Wireless Manager

Wireless Manager – Status view

When you start Wireless Manager, the Status view is displayed by default. Use the Status view to view mobile network name and signal strength and to quickly disconnect from existing network connection profiles.

The following illustration identifies the features on the Status view:

SMS message indicator

Voice mail indicator

Online indicator

GSM GPRS/EDGE/UMTS panel

Signal strength indicator

Network operator indicator

Connection drop-down list

Connection details

The Status view displays information about your GSM GPRS/EDGE/UMTS and wireless LAN network connections. The window is divided into two panels.

If your PC card does not support wireless LAN, the Wireless Manager window displays the GSM GPRS/EDGE/UMTS connection information only:

802.11 WLAN panel

Wireless Manager – Status view 29

Displaying the GSM GPRS/EDGE/UMTS panel

To display the Status view

1. From Wireless Manager, click the Status button .

Select View Status. The GSM GPRS/EDGE/UMTS panel is displayed on the left side of the Status view.

The GSM GPRS/EDGE/UMTS panel displays information about your GPRS/EDGE/UMTS connection. It also displays various icons that represent the following information:

• Signal strength.

• Type of service available (GPRS, EDGE, UMTS).

• Unread SMS message indicator (or SIM card full indication ). See Wireless Manager

– SMS Messages view on page 46 for more details.

• Connection status

The left side of the window also displays:

• Current network status. For example, searching, radio off.

• Connection progress messages.

When a connection is established, the connection statistics (duration, bytes transmitted, bytes received) are displayed and updated at regular intervals.

The appearance of the GSM GPRS/EDGE/UMTS signal strength indicator icon that is displayed in the Status view indicates the status of the GSM GPRS/EDGE/UMTS radio. The following table lists the different versions of the GSM GPRS/EDGE/UMTS signal strength indicator icon and describes each one.

Icon Description

GSM/GPRS/EDGE/UMTS radio is disabled.

The GSM/GPRS/EDGE radio transmitter is enabled, but there is no GSM or GPRS/EDGE/UMTS service available.

Your Sony Ericsson PC card has service and indicates a signal strength of 3 out of 5 bars. CSD and SMS may be used, provided these are supported by your subscription. You cannot make a GPRS/EDGE/UMTS connection when your PC card is in this state. The connection button will be greyed out if you select a GPRS/EDGE/UMTS connection.

Your Sony Ericsson PC card has GSM and GPRS service. GPRS, CSD, and SMS may be used, provided these are supported by the subscription.

Your Sony Ericsson PC card has GPRS/EDGE service. EDGE, CSD, and SMS may be used, provided these are supported by the subscription. GPRS service is automatically used if EDGE is not available.

Your Sony Ericsson PC card has UMTS service. UMTS, CSD, and SMS may be used, provided these are supported by the subscription. If UMTS coverage is lost, the connection automatically switches to EDGE or GPRS, depending on which service is available in the mobile network.

30 Wireless Manager – Status view

Establishing a connection

To connect, cancel, or disconnect from a GPRS/EDGE/UMTS or CSD data session use the connection drop-down list. The drop-down list displays all the defined connections.

The button located on the right of the drop-down list changes its appearance depending on the state of the Sony Ericsson PC card connection. The button allows you to:

• Initiate a connection (Connect)

• Cancel a connection attempt (Cancel)

• End an existing session (Disconnect)

To create a wireless LAN connection see Creating a wireless LAN connection on page 55.

Displaying the 802.11 WLAN panel

The 802.11 WLAN panel is displayed on the right side of the Status view. This panel provides information about your wireless LAN connection, including:

•Status

• Signal strength

• Network name (SSID)

The Disable/Enable button allows you to switch the wireless LAN radio on and off.

Displaying usage summary information

To display usage summary information

From the Wireless Manager menu bar, select View Usage Summary. A dialogue box displays the total connection time, data received and data sent for GPRS/EDGE/UMTS, CSD, and WLAN connections.

To clear the usage summary information

1. From the Wireless Manager menu bar, select View Usage Summary. The Usage Summary dialogue box is displayed.

2. Select the row that contains the information that you want to clear.

3. Click the Reset button to clear the counter. You may want to clear the counters to correspond with your billing intervals.

Wireless Manager – Status view 31

Note:

Information in this dialogue box is indicative and may not correspond to the accurate billing information maintained by your network operator.

Displaying incoming calls

To display the incoming calls list

From the Wireless Manager menu bar, select View Incoming Call List. The Incoming Call List dialogue box is displayed.

To clear the incoming call information

1. From the Wireless Manager menu bar, select View Incoming Call List. The Incoming Call List dialogue box is displayed.

2. Select one or more rows that contain the information that you want to clear.

3. Click the Reset button to clear the incoming call.

32 Wireless Manager – Status view

Wireless Manager – Telephony Settings view

The Telephony Settings view allows you to view and change the GSM, GPRS/EDGE/UMTS settings for your Sony Ericsson PC card.

The settings that are available on the Telephony Settings view are very similar to the basic forwarding (diversion), barring, and network settings you would use on a mobile handset. A Wireless 802.11 option provides access to the Sony Ericsson Wireless Configuration Utility.

To configure the telephony settings for your

1. Start Wireless Manager.

2. Click the Telephony Settings button .

Select View Telephony Settings. The Telephony Settings view is displayed.

Sony Ericsson PC card

The Telephony Settings view is divided into two panels: the navigation panel on the left and the information panel on the right. When you select a setting in the navigation panel, the corresponding information is displayed in the right panel.

Locks

Phone Lock panel

The phone lock protects your Sony Ericsson PC card against unauthorized use if it is stolen or used with another SIM card. The Phone Lock feature is not activated when you purchase your Sony Ericsson PC card. From the Phone Lock panel, you can change the default phone lock security code (0000) to any four to eight digit personalized code.

Wireless Manager – Telephony Settings view 33

You can configure the Phone Lock setting to one of the following states:

•On

Select this setting to be prompted to enter a phone lock code to access your Sony Ericsson PC card each time you start Wireless Manager. When you turn on your computer, the Enter phone lock code dialogue box opens. To access your phone you must enter your code into the dialogue box and click OK.

• Off Select this setting to disable the Phone Lock feature. You will not be prompted to enter a phone lock code to use your Sony Ericsson PC card.

• Automatic

Select this setting to save automatically unlock your Sony Ericsson PC card by using the existing SIM card. If a different SIM card is inserted into the Sony Ericsson PC card, you will be prompted to enter the security code. After you correctly enter the security code you can use your Sony Ericsson PC card the new SIM card.

Caution:

Make sure to keep a secure copy of your PIN number.

To change the Phone Lock code for your Sony Ericsson PC card:

1. From the Telephony Settings view, select Phone Lock. The Phone Lock panel is displayed on the right.

2. Click Change Phone Code. The Change the Phone Lock code dialogue box is displayed.

3. In the Old Code field, type the existing Phone Lock code. If this is the first time you have configured the Phone Lock code, the old code is 0000.

4. In the New Code field, type a four to eight digits that you want to use for the new code.

5. In the Confirm New Code field, type the new code again.

6. Click OK.

7. When finished, click Apply. The Phone Lock settings are saved to your Sony Ericsson PC card.

SIM Lock panel

Some SIM cards are protected with a Personal Identity Number (PIN) at the time of purchase. If SIM Lock is activated for your SIM card, you have to enter the PIN each time you start Wireless Manager. If you enter your PIN incorrectly three times in succession, the SIM card is blocked and you need a PUK code, from your network operator, to unblock the SIM card.

You can configure the SIM Lock setting to one of the following states:

•On

Select this setting to activate SIM Lock for your SIM card.

•Off

Select this setting to disable SIM Lock for your SIM card.

Note:

You have to use your PIN code to turn SIM Lock off.

To change the PIN Code for your SIM card:

1. From the Telephony Settings view, select SIM Lock. The SIM Lock panel is displayed on the right.

2. In the SIM lock panel, select On.

3. Click Change PIN Code. The Change the PIN Code dialogue box is displayed.

4. In the Old Code field, type the existing SIM Lock code.

34 Wireless Manager – Telephony Settings view

5. In the New Code field, type four to eight digits that you want to use for the new code.

6. In the Confirm New Code field, type the new code again.

7. Click OK.

8. When finished, click Apply. The SIM Lock settings are saved to your SIM card.

Note:

The SIM Lock protects only your subscription and not your Sony Ericsson PC card from unauthorised use. If you change your SIM card, the Sony Ericsson PC card will still work with a new SIM card.

Networks

Current Networks panel

From the Current Networks panel, you can retrieve the networks that are present in your location. You also can select which of those networks you want to use.

To search for available networks

1. From the Telephony Settings view, select Current Network. The Current Networks panel is displayed on the right.

2. Click Retrieve. The networks that are currently available are displayed in the Select a network list box.

The available networks will fall into one of the following three categories:

• The home network.

• Available networks. These are networks that your home network operator has a roaming agreement with.

• Forbidden networks. These are networks that you cannot use. Normally, you will not be able to access these networks. You may try a forbidden network. If your home network has come to an agreement that allows you to use the forbidden network, you will be able to access it.

To select another network

1. From the Telephony Settings view, select Current Networks. The Current Networks panel is displayed on the right.

2. Click Retrieve. The networks that are currently available are displayed in the Select a network list box.

3. Clear the Automatically choose a network for me check box.

4. In the Select a network list box, select the network that you want to use.

5. Click Apply to save the settings to your SIM card. The message Updating SIM card. Please wait appears briefly on the window. If you are not allowed to use the network that you have chosen, Forbidden is displayed.

Note:

GPRS, EDGE and UMTS roaming may be restricted, even on a network that is listed as “Available”. Contact your network operator to determine which are the appropriate roaming networks to use.

Wireless Manager – Telephony Settings view 35

Preferred Networks panel

A list of preferred networks are typically saved to your SIM card by your network operator. Preferred roaming partners are placed in the list so that you have the greatest range of available services when roaming. When the home network is not available, your Sony Ericsson PC card will check the available networks against the preferred network list and select the network that is placed highest in the list. Automatic network selection must be enabled.

Note:

You may not be able to view or edit the preferred network list.

To add a preferred network to your SIM card

1. From the Telephony Settings view, select Preferred Networks. The Preferred Networks panel is displayed on the right.

2. If the preferred networks list is empty, click Retrieve. The preferred networks that are saved to your SIM card are displayed.

3. Click Add. The Add Preferred Networks dialogue box lists all the networks that are saved to your Sony Ericsson PC card.

4. Select the network that you want to add and click OK.

5. Click Apply to save the settings to your SIM card.

To delete a preferred network from your SIM card

1. From the Telephony Settings view, select Preferred Networks. The Preferred Networks panel is displayed on the right.

2. If the preferred networks list is empty, click Retrieve. The preferred networks that are saved to your SIM card are displayed.

3. Select the network that you want to delete.

4. Click Remove.

5. Click Apply to save the settings to your SIM card.

To re-arrange the order of the preferred networks

1. From the Telephony Settings view, select Preferred Networks. The Preferred Networks panel is displayed on the right.

2. If the preferred networks list is empty, click Retrieve. The preferred networks that are saved to your SIM card are displayed.

3. Select the network that you want to move.

4. Click the Move Up or Move Down arrows to rearrange the order.

5. Click Apply to save the settings to your SIM card.

Note:

If the list of preferred networks is full, the Add button is disabled (grey).

Frequency Band panel

GSM GPRS/EDGE connections operate in a number of different frequency bands. 900 and 1800MHz are used in Europe, Asia, Australia, Asia and Africa, while 850 and 1900MHz are used in North and South America.

By default, your Sony Ericsson PC card automatically scans all available bands that are supported. As a best practice, you should not change your frequency band settings.

Note:

This feature may not be supported by your PC Card. Refer to your PC Card User Guide for information about supported features.

36 Wireless Manager – Telephony Settings view

To change the frequency band setting

1. From the Telephony Settings view, select Frequency Band. The Frequency Band panel is displayed on the right.

2. In the drop-down list, select the frequency band that you want to use.

Note:

To use normal (automatic) mode, select Auto-Select from the drop-down list.

3. Click Apply to save the settings to your Sony Ericsson PC card.

4. Eject your PC card and reinsert it.

Forward (Divert) Calls

Your Sony Ericsson PC card does not support voice calls. You can use the Divert Calls feature to send a voice call that is received to an alternative number where it can be answered. For example, you can divert voice calls to a mobile network voice mail service. Your Sony Ericsson PC card supports incoming mobile terminated (MT) data calls, provided you have appropriate software on your PC to handle them.

Voice pan el

From the Voice panel, you can configure your call diversion settings for voice calls that you receive.

Note:

The Call divert service may not be available on all networks.

To retrieve your current call diversion settings from the network

1. From the Telephony Settings view, select Forward (Divert) Calls Voice. The Forward (divert) voice calls panel is displayed on the right.

2. Click Retrieve.

To configure your call diversion settings for voice calls

1. From the Telephony Settings view, select Forward (Divert) Calls Voice. The Forward (divert) voice calls panel is displayed on the right.

2. Click Retrieve.

3. Select one of the following options to specify when to divert voice calls:

•Always

Select this option to divert all incoming voice calls.

• When busy

Select this option to divert voice calls when your line is in use.

• No reply

Select this option to divert voice calls when there is no reply.

• Not reachable

Select this option to divert voice calls when your phone is outside of the network or turned off.

4. In the field next to the divert option that you select, type the phone number to which you want to divert the calls.

Click the ellipsis button to choose a phone number from your phonebook.

5. Click Apply to save the settings.

Wireless Manager – Telephony Settings view 37

Fax panel

Data panel

Your Sony Ericsson PC card does not support fax calls. You can use the Divert Calls feature to divert fax calls that you receive to an alternative number that can receive faxes.

Note:

The Call divert service may not be available on all networks. Also, if you are using the Call restricting function, this may affect Call divert.

To configure your call diversion settings for fax calls

1. From the Telephony Settings view, select Forward (Divert) Calls Fax. The Forward (divert) fax calls panel is displayed on the right.

2. Click Retrieve.

3. Select the Always check box to divert incoming fax calls:

4. In the field next to the Always option, type the phone number to which you want to divert the calls.

Click the ellipsis button to choose a phone number from your phonebook.

5. Click Apply to save the settings to your Sony Ericsson PC card.

You can use the Divert Calls feature to divert incoming CSD calls to another number.

Note:

The Call divert service may not be available on all networks. Also, if you are using the Call restricting function, this may affect Call divert.

Restrict Calls

Data panel

To configure your call diversion settings for data calls

1. From the Telephony Settings view, select Forward (Divert) Calls Data. The Forward (divert) data calls panel is displayed on the right.

2. Click Retrieve.

3. Select the Always check box to divert incoming data calls:

4. In the field next to the Always option, type the phone number to which you want to divert the calls.

Click the ellipsis button to choose a phone number from your phone book.

5. Click Apply to save the settings to your Sony Ericsson PC card.

You can use the Restrict Call feature to prevent specific types of outgoing and incoming data calls to your Sony Ericsson PC card. The following restrictions can be set:

• All outgoing calls

• Outgoing international calls

• Outgoing international calls except to your own country

• All incoming calls

• Incoming calls when you are abroad (when roaming)

38 Wireless Manager – Telephony Settings view

A password, issued with your subscription, is required to turn a call restriction on or off. Contact your network operator for further information.

To configure call restriction settings for your data calls

1. From the Telephony Settings view, select Restrict Calls Data. The Restrict data calls panel is displayed on the right.

2. Click Retrieve. The call restriction settings that are saved to your SIM card are displayed.

3. Select one of the following options for outgoing calls:

• Outgoing calls

• Outgoing international calls

• Outgoing international calls except to my country

4. Select one of the following options for incoming calls:

• Incoming calls

• Incoming calls when I am abroad

5. Click Apply to save the settings to your Sony Ericsson PC card. The Enter the Restrict Calls password dialogue box is displayed.

6. In the Enter Password field, type your restriction password, and then click OK.

Note:

Data Call Restriction applies only to CSD Data calls. There is no equivalent function to restrict GPRS/EDGE/UMTS connections.

SMS

SMS Service Centre panel

When you send a text message, it is first sent to your network operator's service centre, which then diverts it to the correct recipient. The SMS Service Centre is identified by a telephone number. From the SMS Service Centre panel, you can configure the service centre number.

Note:

The SMS Service Centre number is normally read automatically from your SIM card. Do not change this number.

To set or change the SMS Service Centre number

1. From the Telephony Settings view, select SMS Service Centre.

2. In the Set active service centre number to field, type the phone number of your operator's service centre.

3. Click Apply to save the number to your Sony Ericsson PC card.

Cell Broadcast Message panel

From the Cell Broadcast Message panel, you can enter the Short Message Service Cell Broadcast (SMS CB) message classes that are available from your network operator. SMS CB is used by your mobile operator to broadcast information messages to users in a specific area. You must select the required information types.

Wireless Manager – Telephony Settings view 39

Bearer panel

Example of SMS Cell Broadcast message types:

Code Cell Broadcast Message

000 Index

010 News Flashes

020 Hospitals

030 Long-distance road reports

040 Weather

To enter multiple SMS Cell Broadcast message types, separate each entry with a comma, for example: 000, 034, 076.

Note:

SMS Cell Broadcast message types are network operator specific. Contact your network operator for more details.

From the SMS bearer panel, you can specify the connection method that is used to send SMS messages.

Caution:

As a best practice, you should not modify any settings on the Bearer panel unless directed to do so from your network operator.

Wireless

802.11 panel

From the Wireless 802.11 panel you can launch the wireless utility that is used to manage your wireless LAN connections.

Note:

This feature is supported only on Sony Ericsson PC cards that include a wireless LAN adapter.

To launch the Sony Ericsson Wireless Utility

Click on the Launch Wireless Control Panel button.

If you configured your PC to use the Windows XP user interface, the Windows Wireless Connection Properties dialogue box is displayed. If you configured your PC to use the Sony Ericsson Wireless Utility, the Sony Ericsson Wireless Utility dialogue box will open.

See Creating a wireless LAN connection on page 55 for details.

40 Wireless Manager – Telephony Settings view

Wireless Manager – Phone Book view

The Phone Book view helps organize the contacts that are saved to the SIM card that is installed in your Sony Ericsson PC card.

Navigating the Phone Book view

From this view you can manage the phone book entries that are saved to your SIM card and a Saved phonebook that is maintained on your hard drive. You can add new numbers, edit existing numbers, and export and import entries.

To navigate to the Phone Book view

1. Start Wireless Manager.

2. From the Toolbar, click the Phone Book button to display the Phone Book view.

Select View Phone Book. The Phone Book view is displayed.

The Phone Book view is divided into two panels: the navigation panel on the left and the information panel on the right. When you select an icon in the navigation panel, the corresponding information is displayed in the right panel.

Wireless Manager – Phone Book view 41

Managing entries

The Phone Book view allows you to access the phonebook that is saved to your SIM card and the phonebook that is saved to your computer.

To select multiple entries

When you with phonebook entries, you might need to select more than one entry at a time.

• To select nonadjacent entries, press Ctrl and select each entry you want.

• To select a range of entries, select the first entry, press and hold the Shift key,

To add a phone number to your phonebook

1. From the Phone Book view, select one of the following icons:

• SIM Phone Book icon to add the phone number to your SIM card

• Saved Phone Book icon to add the phone number to your Saved Phone book

2. Select Phone Book Add New.... The New Phone Book Entry dialogue box is displayed.

and then select the last entry in the range.

3. In the Name field, type the name for the phonebook entry.

4. In the Phone Number field, type the phone number.

5. Click OK to save the entry or Cancel to close the dialogue box.

Notes:

• Typically, Phonebook numbers are limited to 20 digits (including the plus sign +)

and names are limited to 18 alphanumeric characters.

• New entries are added to the next available SIM index position.

To edit a number in you phonebook

1. From the Phone Book view, select one of the following icons:

• Select the SIM Phone Book icon to edit a phone number that is saved in the phonebook

on your SIM card.

• Select the Saved Phone Book icon to edit a phone number that is saved in the

phonebook on your computer.

2. In the right panel, select the number that you want to modify.

3. Select Phone Book Modify. The Edit Phone Book Entry dialogue box is displayed.

4. Edit the information as needed.

5. Click OK to save the entry or Cancel to close the dialogue If the modified entry is in the SIM Phone Book, the changes are automatically sent to the SIM.

42 Wireless Manager – Phone Book view

To find a phonebook entry

1. From Wireless Manager, select Phone Book Find. The Phone Book - Find dialogue box is displayed.

2. In the Look for field, type the text or number that you want to use to perform the search. You can type any portion of the phone number or name that you want to find.

3. Click Find. The Wireless Manager searches the both the phonebook on your SIM card and computer. The entries that match your search criteria are displayed in the right pane.

4. Click Close when you have finished searching.

To copy a phone book entry

1. From the Phone Book view, select one of the following icons:

• Select the SIM Phone Book icon to copy a phone number from the phonebook

on your SIM card.

• Select the Saved Phone Book icon to copy a phone number from the phonebook

on your computer.

2. In the right panel, select the number that you want to copy.

3. Select one of the following options:

• To copy a phone number to your computer, select Phone Book

Copy to Saved Phone Book.

• To copy a phone number to your SIM card, select Phone Book

Copy to SIM Phone Book.

4. A duplicate entry is created in the specified phonebook. The new entry is assigned the next available position in the destination phonebook.

To move a phonebook entry

1. From the Phone Book view, select one of the following icons:

• Select the SIM Phone book icon to move a phone number from the phonebook

on your SIM card.

• Select the Saved Phone book icon to move a phone number from the phonebook

on your computer.

2. In the right panel, select the number that you want to move.

3. Select one of the following options:

• To move a phone number to your computer, select Phone book

Move to Saved Phone book.

• To move a phone number to your SIM card, select Phone book

Move to SIM Phone book.

The selected entry is moved from its current phone book and placed in the selected one. The new entry is assigned the next available position in the destination phonebook.

To delete a phonebook entry

1. From the Phone Book view, select one of the following icons:

• Select the SIM Phone book icon to delete a phone number from the phonebook

on your SIM card.

• Select the Saved Phone book icon to delete a phone number from the phonebook

on your computer.

2. In the right panel, right-click the phone number that you want to delete and select Delete.

3. A confirmation dialogue opens. Click Ye s to delete the number.

Wireless Manager – Phone Book view 43

Note:

If you want to delete all numbers, select Edit Select All, and then select Edit Delete.

To import a phonebook or a phonebook entry

1. From the Phone Book view, select one of the following icons:

• Select the SIM Phone book icon to import to your SIM card.

• Select the Saved Phone book icon to import to your computer.

2. Select Phone Book Import. The Import Phone Book dialogue box is displayed.

3. Select one of the following options:

• Replace Existing Phone Book

Select this option to replace the entire phonebook with the contents of the file that you import.

• Merge With Existing Phone Book

Select this option to keep the existing phonebook entries and add to it the contents of the file that you import.

4. Click the ellipsis button and browse to find the file that you want to import.

Note:

The file must be a text file in comma separated value (CSV) format. Any invalid lines or files are ignored. Microsoft

Excel can be used to edit this file.

For example,

5. Click OK in the browse dialogue box. The path and file name are displayed in the Import File Name field.

6. Click Import to import the contents of the file.

To export an entry or phonebook

1. From the Phone Book view, select one of the following icons:

• Select the SIM Phone Book icon to export from your SIM card.

• Select the Saved Phone Book icon to export from your computer.

2. In the right panel, select the entries that you want to export.

44 Wireless Manager – Phone Book view

3. Select Phone Book Export. The Export Phone Book dialogue box is displayed.

4. Select one of the following options:

•All

Select this option to export the entire phonebook.

• Selected Items

Select this option export only the selected phonebook entries.

5. Click the ellipsis button and browse to the location to which you want to export the file.

6. In the File name field, type the name of the file to which you want to save the phonebook.

7. Click OK in the browse dialogue box. The path and file name are displayed in the Export File Name field.

Note:

The exported file will be saved as a text file in comma separated value (CSV) format. Microsoft® Excel can be used to edit this file.

8. Click Export to export the information to the file.

To send an SMS message by using a phonebook entry

1. From the Phone Book view, select the phonebook that contains the phone number entry to which you want to send an SMS message.

Note:

To send an SMS to multiple numbers, hold down Ctrl and select multiple numbers from the phonebook.

2. Select Messages Create New Message...

From the standard toolbar, click . The New Message dialogue box is displayed.

3. The To field displays the phone numbers to which the message will be sent.

4. In the Message field, type your SMS message.

5. To display how many SMS message blocks your message will be divided into, click Calculate SMS blocks.

6. To get confirmation when your SMS message arrives at its destination (if this service is supported by your network), select the Request Status Report check box.

7. To send the SMS message, click Send. Or, you can close the dialogue without sending the SMS by clicking Cancel.

Wireless Manager – Phone Book view 45

Wireless Manager – SMS Messages view

The SMS Messages view enables you to view, create, edit, save, copy, delete, reply or forward SMS messages from your Sony Ericsson PC card to other mobile devices.

Note:

To use the SMS messaging features, an SMS message service plan must be included in your service subscription (contact your network operator for more details).

Displaying the SMS Messages view

To navigate to the SMS Messages view

From Wireless Manager, click the SMS Messages button .

Select View SMS Messages. The SMS Messages view is displayed.

The SMS Messages view is divided into two panels: the folder panel on the left and the contents panel on the right. When you select a folder in the folder panel, the contents of the folder are displayed in the right panel.

The top half of the right pane displays a list of received messages (sorted by date), and the bottom half displays the content of a selected message. This is referred to as the Information View.

46 Wireless Manager – SMS Messages view

The names and locations of the folders that are displayed in the folder panel cannot be changed. The following table lists the folders that are displayed and describes their contents.

Folder Description

Select this folder to display the contents of the SIM Inbox. When Wireless Manager

SIM SMS

Saved

Messages

is running, any new SMS in the SIM Inbox are uploaded to your computer automatically.

The status column displays one of the following icons for each message to indicate whether the message has been read:

• Read

• Unread

If a new SMS arrives when the Wireless Manager is running, an SMS message icon is displayed on the Status view and on the Wireless Manager status bar. Additionally, the SMS audio sound is played if it is enabled in the Settings dialogue box.

Incoming messages are stored to your SIM Inbox, which typically holds 10 - 30 messages. When the SIM card inbox becomes full, you must move or delete some SMS messages to free storage space so that you can continue to receive new SMS messages from the network. To do this you can either:

• Move your SMS messages from your SIM card to your hard drive.

• Right-click on an SMS message in the SIM SMS folder and select Delete.

Select this folder to display the SMS messages that you have saved. If you want to keep an SMS, use the Copy or Move menu option to place it in the Saved folder. Move or copy SMS messages to this folder in order to maintain space in the SIM SMS folder. Click on the folder icon to display the contents of the Saved folder.

A copy of each SMS message that you send is saved in this folder. Click on the folder

Sent Items

Unsent

Items

icon to display your saved SMS messages.

Any messages that you have created but have not sent are displayed when you click on this icon.

You can edit the SMS messages that are stored in this folder or you can sent them when your Sony Ericsson PC card is inserted into the computer. Any SMS messages that fail during transmission are also stored here; you can resend them at any time.

Note:

You must have a GPRS/EDGE/UMTS signal to send an SMS message. The Send button is disabled (grey) when there is not a GPRS/EDGE/UMTS signal from which to send your message.

Creating and sending SMS messages

To create and send an SMS message

1. From the SMS Messages view, select Messages Create New Message...

From the standard toolbar, click . The New Message dialogue box is displayed.

2. In the To field, type the recipient’s mobile phone number or select a number from a phonebook by clicking Lookup...

Note:

Separate multiple phone number by using a semicolon (;).

To send an SMS message to multiple numbers, hold down Ctrl and select multiple numbers from the phonebook.

3. In the Message field, type your SMS message.

Wireless Manager – SMS Messages view 47

4. To display how many SMS message blocks your message will be divided into, click Calculate SMS blocks.

5. To get confirmation when your SMS message arrives at its destination (if this service is supported by your network), select the Request Status Report check box.

6. To send the SMS message, click Send. Or, you can close the dialogue without sending the SMS by clicking Cancel. If you cancel, the message that you typed is deleted.

To edit an SMS message

When you are working with an SMS message, you can edit the text by cutting, copying, and pasting it using the keyboard shortcuts and the buttons on the toolbar. You also can cut and copy text from other applications. Use the following cut, copy, and paste directions to edit your messages:

• To cut text, select the text that you want to cut and click the Cut button , or press Ctrl + x, or select Edit Cut.

• To copy text, select the text that you want to copy and click the Copy button , or press Ctrl + c, or select Edit Copy.

• To paste text that has been cut or copied, select the location where you want to paste the text, and then click the Paste button , or press Ctrl + v, or select Edit Paste.

To reply to an SMS message

1. From the SMS Messages view, select the folder where the SMS message that you want to reply to is located.

2. From the list of messages, select the message to which you want to reply. The contents of the message are displayed in the Information view.

3. Select Messages Reply. The New Message dialogue box is displayed.

4. The To field is automatically filled in with the recipient’s phone number.

5. In the Message field, type your reply.

6. To display how many SMS message blocks your message will be divided into, click Calculate SMS blocks.

7. To get confirmation when your SMS message arrives at its destination (if this service is supported by your network), select the Request Status Report check box.

8. To send the SMS message, click Send. Or, you can close the dialogue without sending the SMS by clicking Cancel.

To forward an SMS message

1. From the SMS Messages view, select the folder where the SMS message that you want to forward is located.

2. From the list of messages, select the message that you want to forward. The contents of the message are displayed in the information view.

3. Select

4. In the To field, type the recipient’s mobile phone number or select a number from a phonebook

5. To display how many SMS message blocks your message will be divided into, click

6. To get confirmation when your SMS message arrives at its destination (if this service

7. To send the SMS message, click Send. Or, you can close the dialog without sending

48 Wireless Manager – SMS Messages view

Forward in the Messages menu, a dialogue box opens.

by clicking Lookup....

To send an SMS to multiple numbers, hold down Ctrl and select multiple numbers from the phonebook.

Calculate SMS blocks.

is supported by your network), select the Request Status Report check box.

the SMS by clicking Cancel.

To delete an SMS message

1. From the SMS Messages view, select the folder where the message is located.

2. From the list of messages, select the message that you want to delete. The contents of the message are displayed in the information view.

3. Select Edit Delete. A confirmation message is displayed.

4. Click OK.

Note:

To delete all messages, select Edit Select All, and then select Edit Delete.

Managing SMS messages

To sort your SMS messages

1. From the SMS Messages view, select the folder where the messages that you want to sort are located. By default, the messages are sorted in order according to the date and time they were sent.

2. From the list of messages, click the column heading that you want to use to sort the messages. For example, to sort the messages by the phone number to which they were sent, click the To column heading. Click the column heading again to reverse the sort order of the messages.

To move an SMS message from your SIM card to your hard drive

1. From the SMS Messages view, select the SIM SMS folder.

2. From the list of messages, select the message that you want to move. The content of the message is displayed in the information view.

Note:

To select all the messages on your SIM card, select Edit Select All.

3. Select Messages Move to Saved Messages. A progress bar is displayed during the move process.

4. The selected message is saved to the Saved Messages folder.

To copy an SMS message from your SIM card to you computer

1. From the SMS Messages view, select the SIM SMS folder.

2. From the list of messages, select the message that you want to copy. The content of the message is displayed in the information view.

Note:

To select all the messages on your SIM card, select Edit Select All.

3. Select Messages Copy to Saved Messages. A progress bar is displayed during the move process.

4. The selected message is copied to the Saved Messages folder.

Broadcast messages

If you receive a broadcast message, it is displayed in a pop-up dialog box, which you can save or dismiss. If you save the message it is saved in your Saved Messages folder.

Wireless Manager – SMS Messages view 49

Wireless Manager – Online Services view

The Online Services view provides access to customized services that are offered by network operators. This service is network or subscription dependant. The Online Services view allows applications that exist on the SIM card to interact and operate with your PC card. Typical services offered by network operators include:

• Sports scores

•News

• Financial data

• Horoscopes

• Interactive text game messages

Online Services are placed on your SIM card by your network operator. If Wireless Manager detects these services on the SIM card the Online Services button is displayed on the Wireless Manager toolbar.

To display the Online Service view

1. Click the Online Services button .

The Online Service view displays a menu of the online services offered by your network operator.

Click on the category you require and click Select.

More detailed choices are sometimes displayed. If necessary select the required option and click Select.

The response may take various forms, depending on the network operator. For example, the news headlines might be sent as an SMS message, which will be delivered to the SMS inbox.

Online Services menus are sometimes used to provide a list of voice-based services such as directory inquiries. If one of these is selected, you will not be connected because your Sony Ericsson PC card does not support voice calls.

Note:

Contact your network operator to find out which services are available for your account.

50 Wireless Manager – Online Services view

Using the Sony Ericsson Wireless Utility

The Sony Ericsson Wireless Utility provides the tools to configure the wireless LAN adapter features of your Sony Ericsson PC card.

You can use the information in this section to:

• Discover available wireless networks

• Connect to open networks

• Configure security settings

• Connect to a secured network

• View statistics about network activity

• Perform diagnostic tests

The user interface that displays when Sony Ericsson Wireless Utility starts may look slightly different than the illustrations in this user guide, depending on the operating system that you are using.

Opening the Sony Ericsson Wireless Utility

The Sony Ericsson 802.11 Wireless LAN Adapter Utility starts automatically every time you start your computer. When the system start-up process is complete, is displayed in the system tray at the lower right corner of your screen.

The Wireless Utility scans for Wireless LAN services within range of your PC card to locate wireless access points and other wireless clients. The appearance of the Wireless Utility status icon varies depending on the strength of the signal being received from the wireless access point or wireless client (if any) with which your computer has associated. If your PC card has not yet established a wireless network connection, the Wireless Utility icon displays without any shading.

There are several methods that you can use to open the Wireless Utility.

To open the Wireless Utility

1. From the Windows desktop, select Start Settings Control Panel Sony Ericsson Wireless Utility.

From the Windows system tray, right-click the Sony Ericsson Wireless Utility status icon , and select Open Utility. If the Sony Ericsson Wireless Utility status icon is not in the system tray, you must open the Wireless Utility from the control panel by using the steps described above.

Enabling the Sony Ericsson Wireless Utility

If you are using Windows XP, you can use the Windows XP user interface or you can use the Sony Ericsson Wireless Utility to create and manage your wireless LAN connections. The Sony Ericsson Wireless Utility provides more information about the wireless network and supports CISCO security features.

Using the Sony Ericsson Wireless Utility 51

Note:

If Windows XP is your operating system, the Windows XP user interface is enabled by default. To use the Sony Ericsson Wireless Utility, you must enable it.

If you are using Windows 2000, you must use the Sony Ericsson Wireless Utility.

To enable the Sony Ericsson Wireless Utility

1. Open the Sony Ericsson Wireless Utility.

2. On the Wireless Networks tab, select the Let this tool manage your wireless settings check box.

3. Click OK.

Navigating in the Wireless Utility

The following tabs are displayed in the Wireless Utility:

• Wireless Networks

Use this tab to view and manage your connections to the wireless LANs. For instructions on how to configure your wireless network connection using Sony Ericsson Wireless Utility, see Creating a wireless LAN connection on page 55.

• Link Status

Use this tab to view your wireless LAN connection information. The Signal panel on this tab provides advanced information (signal strength and noise level) about the access point signal that is detected by your Sony Ericsson 802.11 Wireless LAN Adapter.

The Connection panel provides information about your connection, including the location setting, which is represented by a two-character country code.

•Statistics

Use this tab to view current and accumulated wireless LAN transmission activity information.

•Site Monitor

Use this tab to view broadcasting wireless networks that are within range of the wireless LAN adapter on your PC card. Network properties such as the channel on which the network is operating, the strength of the received signal, and the type of security are displayed for each network.

Note:

Use of Site Monitor may degrade performance of the IEEE 802.11 network while Site Monitor is in use.

•Diagnostics

Use this tab to run a diagnostic tests against the wireless LAN adapter on your PC card to verify its operational and functional status.

• Information

Use this tab to view important information about your Sony Ericsson Wireless Utility and your wireless LAN adapter.

52 Using the Sony Ericsson Wireless Utility

Wireless Utility status icon

The quality of your wireless network connection is affected by a number of factors including the following:

• The strength of your wireless networking signal.

• The level of noise created by other wireless signals in your home or office.

To view the status of your 802.11 wireless LAN connection

Move your mouse pointer over the Wireless Utility status icon in the Windows system tray. The client IP address, and the name, speed, signal strength, and status of your wireless network connection is displayed.

Note:

On Windows XP you can also view the connection status and signal strength by moving your mouse pointer over the Windows Wireless Network Connection icon in the system tray.

The signal strength of the 802.11 radio is graphically indicated by the Wireless Utility status icon

that is displayed in the Windows system tray. The appearance of the icon indicates the strength

or weakness of the signal.

The following table describes how the different signal strengths are represented graphically:

Icon Description

A fully green icon indicates that your Sony Ericsson PC card has made a wireless LAN network connection and the signal strength is very good or excellent.

A partially green icon indicates that your Sony Ericsson PC card has made a wireless LAN network connection and the signal is good or low.

Suggested action: Move closer to the access point.

An unshaded icon indicates that wireless LAN radio transmitter is enabled, but there is no signal being received.

Probable causes:

No connection has been configured.

The computer is trying to establish an initial connection but has not yet succeeded.

You may have moved out of range of the access point.

Suggested actions:

Wait.

Move closer to the access point.

An icon with a red “X” indicates that the radio is disabled.

Suggested action: Enable the WLAN radio by right-clicking the icon and then selecting Enable Radio.

Accessing the Wireless Utility status icon menu

Right-click on the Wireless Utility status icon in the Windows system tray to access the Sony Ericsson Wireless Utility menu options.

Using the Sony Ericsson Wireless Utility 53

The Wireless Utility menu is displayed.

Some of these menu options are disabled depending on the current state of your Sony Ericsson PC card and the version of Wireless Manager that is installed.

The Wireless Utility menu options are described below.

•Help

This menu option provides information about Sony Ericsson Wireless Utility.

• Country (where provided)

This menu option is displayed only if the wireless LAN connection for your Sony Ericsson PC card has not been configured for a specific country. This option allows you to select the operating characteristics that comply with the regulations in a specific country. See Configuring your location on page 55 for details.

• Open Utility

Opens Sony Ericsson Wireless Utility.

See Creating a wireless LAN connection on page 55 for details.

Note:

Use this option to access the wireless LAN functions if there is no SIM in your Sony Ericsson PC card.

• Enable Radio/Disable Radio (802.11 only)

This menu option is dynamic. It monitors the current state of the 802.11 (wireless LAN) radio transmitter and gives you the option to switch to the opposite state. For example, if the 802.11 radio transmitter in your Sony Ericsson PC card is enabled, the menu option reads Disable Radio. This option does not control the GSM GPRS/EDGE/UMTS radio.

You can also set the status of the 802.11 radio transmitter by selecting Turn 802.11 Radio

On/Off from the File menu in the Wireless Manager application.

•Hide

When you select Hide, the Sony Ericsson Wireless Utility status icon is removed from the system tray. To display the Sony Ericsson Wireless Utility icon in the system tray after it has been hidden, select Start Settings Control Panel Sony Ericsson Wireless Utility. On the Wireless Networks tab, select Show wireless icon in systray.

Enabling and disabling the 802.11 radio

To disable the 802.11 radio

Right-click in the Windows system tray and select Disable Radio.

To enable the 802.11 radio

Right-click in the Windows system tray and select Enable Radio.

54 Using the Sony Ericsson Wireless Utility

Configuring your location

If you purchased your PC card in the United States, but are using it in another country, you must set the Location property to that country. Additionally, if you purchased you PC card outside of the United States, but are using it in the United States, you must change the Location property from Worldwide to USA. This option allows you to select the operating characteristics that comply with the regulations in a specific country. Before connecting to a wireless network, you should verify that the Country configuration is correct. If you travel to different countries, you must remember to change the Country configuration as appropriate.

This ensures compliance with local regulatory restrictions on transmit power and optimizes network performance.

Note:

Outdoor use of a wireless LAN in France is subject to regulations.

To configure your location

1. From the Windows system tray, right-click the Wireless Utility status icon. The Wireless Utility menu is displayed.

2. Select Country. This menu option is displayed only if the wireless LAN connection for your Sony Ericsson PC card has not been configured for a specific country.

3. From the Country dialogue box, select the location that you want to use for your wireless LAN adapter configuration. If the destination country is not listed, set the value to Worldwide.

Creating a wireless LAN connection

The method that you use to create a Wireless LAN Connection depends on the Windows operating system that is installed on your PC.

When the 802.11 radio is enabled for your PC card, the wireless LAN adapter scans for available networks. These networks are displayed in the Wireless Utility and in the 802.11 panel in Wireless Manager. You can use Wireless Utility to select one of the available open system networks and connect to it without any configuration. If, however, the network is secured, you must first configure a network connection by providing the authentication and network information to enable Wireless Utility to connect to that network.

Connecting to an open wireless LAN

Some wireless networks are configured as open systems, which do not require authentication. Open wireless networks allow anyone to connect to the access point. You may need to enter a user name and password in to a Web page before full Internet access is available.

Open wireless networks are typically used for public hotspots, such as hotels and cafes.

To connect to an existing open wireless network

1. From the Windows desktop, click the Wireless Utility status icon in the system tray. The Connect to Wireless Network window is displayed.

2. In the Available Networks panel, select the wireless network that you want to access.

3. Click Connect.

Using the Sony Ericsson Wireless Utility 55

If you want to connect to a wireless network that is not in the Available networks panel, you can manually configure a network connection to connect to that wireless network.

To manually configure your network connection

1. Open the Wireless Utility.

Note:

The names of wireless networks that are visible to your computer are displayed under Available networks.

2. On the Wireless Networks tab, verify that the Let this tool manage your wireless settings check box is selected. If it is not, select the check box.

Note:

If this check box is unavailable, you cannot use Sony Ericsson Wireless Utility to manage your wireless settings. For this check box to be available, you must log on to your system as Administrator. If you are unable to log on as Administrator, contact your network administrator for assistance. Alternatively, if you are using Windows XP you can use Windows user interface to manage your wireless settings.

3. In the Preferred networks panel, click Add. The Wireless Network Properties dialogue box is displayed.

4. On the Wireless Network Properties tab, type the name of the network that you want to connect to in the Network name (SSID) field.

5. Click OK. Your network name is displayed on the Wireless Networks tab under Preferred networks.

56 Using the Sony Ericsson Wireless Utility

6. Click OK. To connect to the network, click Wireless Utility status icon from the Windows desktop, select the connection, and then click Connect.

Connecting to a secure wireless LAN

Some wireless LANs are configured to require connecting users to authenticate with the access point. Sony Ericsson Wireless Utility provides the tools that you need to configure the authentication and data encryption settings to connect to a secure wireless LAN.

Secure wireless LANs are typically used in corporate environments or by advanced users who require higher levels of security.

To connect to a secure wireless LAN, you must have the appropriate access and logon rights to that network. You must ensure that the security settings that you configure for your wireless connections match exactly with those that are supplied to you by the network administrator.

The following table lists the authentication methods that the Sony Ericsson Wireless Utility supports:

Authentication method

Open No authentication is used.

Shared A pre-shared key (PSK) must be entered into the network

802.1x Requires authentication. The authentication credentials that are

WPA Requires Wi-Fi Protected Access (WPA) authentication. This method

WPA-PSK WPA authentication is used with a pre-shared key. This method

Description

configuration settings to connect to the wireless network.

required depends on how the access point has been configured. For example, you might have to enter a user name and password which is verified with an authentication server.

requires that you also configure the encryption key settings.

enables you to enter a static network key.

CCKM Requires Cisco Centralised Key Management (CCKM) authentication.

This method requires that you also configure the encryption settings.

Using the Sony Ericsson Wireless Utility 57

If necessary, contact your network administrator to arrange access and request the following information:

• Network names (SSID) of the specific wireless networks to which you want to connect.

• Wi-Fi Protected Access (WPA) wireless network key information (may include network

authentication type, encryption type, network key) for any WPA-enabled networks to which you want to connect.

• Wired Equivalent Privacy (WEP) wireless network key information (network key) for any

WEP-enabled networks to which you want to connect. Your network key is either 5 or 13 ASCII (text) characters, or 10 or 26 hexadecimal (0-9, A-F) characters.

Note:

If you require access to a network account, you will also require the domain name of the account, a user name, and a password.

To configure a network connection to use Open authentication and WEP encryption

1. Open the Wireless Utility.

2. On the Wireless Networks tab, verify that the Let this tool manage your wireless settings check box is selected. If it is not, select it, and then click Apply.

3. In the Preferred networks panel, select the wireless network for which you want to configure a connection and click Properties. If the network you want is not listed, click Add, and then type the SSID of the network to be configured in the Network name (SSID) field.

4. From the Network Authentication drop-down list, select Open.

5. From the Data Encryption drop-down list, select WEP.

6. Clear the The key is provided for me automatically check box.

7. In the Network key field, type the network key.

8. In the Confirm key field, retype the network key.

9. Click the Authentication tab and clear the Enable IEEE 802.1X authentication for the network check box.

Note:

Authenticate Prior to Windows Login is used to guarantee a network connection (including association, authentication, and DHCP). To enable this feature, select the Authenticate Prior to Windows Login check box. To disable this feature, clear the check box.

10. Click OK. The configuration of your wireless network connection is now complete.

To configure a network connection to use 802.1x with WEP or CKIP encryption and TLS or TTLS authentication

1. Open the Wireless Utility.

2. On the Wireless Networks tab, verify that the Let this tool manage your wireless settings check box is selected. If it is not, select it, and then click Apply.

3. In the Preferred networks panel, select the wireless network for which you want to configure a connection and click Properties. If the network you want is not listed, click Add; and then, in the Network name (SSID) field, type the SSID of the network to be configured.

4. From the Network Authentication drop-down list, select 802.1x.

5. From the Data Encryption drop-down list, select WEP or CKIP, depending on your network encryption. Contact your network administrator if you are unsure of which encryption type to use.

58 Using the Sony Ericsson Wireless Utility

Note:

The Authenticate Prior to Windows Login feature is used to guarantee a network connection (including association, authentication, and DHCP). To enable this feature, select the Authenticate Prior to Windows Login check box. To disable this feature, clear the check box.

6. Click the Authentication tab.

7. From the EAP Method drop-down list, select TLS or TTLS.

Note:

You need a certificate to use TLS authentication. Contact you network administrator to obtain a certificate.

8. In the Certificate pane, select the settings that are applicable for your network and usage.

9. In the Logon/Identity field, enter your logon information.

10. Click OK.

11. Click Apply.

To configure a network connection to use 802.1x with WEP or CKIP encryption and LEAP, FAST, PEAP, or MD5 authentication

1. Open the Wireless Utility.

2. On the Wireless Networks tab, verify that the Let this tool manage your wireless settings check box is selected. If it is not, select it, and then click Apply.

4. From the Network Authentication drop-down list, select 802.1x.

5. From the Data Encryption drop-down list, select WEP or CKIP, depending on your network encryption. Contact your network administrator if you are unsure of which encryption type to use.

Note:

6. Click the Authentication tab.

7. From the EAP Method drop-down list, select LEAP, FAST, PEAP, or MD5.

8. If you selected PEAP, select the appropriate protocol from the Tunneled Authentication Protocol drop-down list.

9. In the Username and Password pane, configure the settings as appropriate for your network and usage.

10. Click OK.

11. Click Apply.

To configure a network connection to use WPA-PSK with automatic encryption

1. Open the Wireless Utility.

2. On the Wireless Networks tab, verify that the Let this tool manage your wireless settings check box is selected. If it is not, select it, and then click Apply.

Using the Sony Ericsson Wireless Utility 59

4. From the Network Authentication drop-down list, select WPA-PSK.

5. In the Network key field, type the network key.

6. In the Confirm key field, retype the network key.

Note:

7. Click OK.

8. Click Apply.

To configure a network connection to use WPA with automatic encryption and TLS or TTLS authentication

1. Open the Wireless Utility.

2. On the Wireless Networks tab, verify that the Let this tool manage your wireless settings check box is selected. If it is not, select it, and then click Apply.

4. From the Network Authentication drop-down list, select WPA.

Note:

5. Click the Authentication tab.

6. From the EAP Method drop-down list, select TLS or TTLS.

Note:

You need a certificate to use TLS authentication. Contact you network administrator to obtain a certificate.

7. In the Certificate pane, select the settings that are applicable for your network and usage.

8. In the Logon/Identity field, enter your logon information.

9. Click OK.

10. Click Apply.

To configure a network connection to use WPA with automatic encryption and LEAP, FAST, or PEAP authentication and WPA encryption

1. Open the Wireless Utility.

2. On the Wireless Networks tab, verify that the Let this tool manage your wireless settings check box is selected. If it is not, select it, and then click Apply.

4. From the Network Authentication drop-down list, select WPA.

60 Using the Sony Ericsson Wireless Utility

Note:

5. Click the Authentication tab.

6. From the EAP Method drop-down list, select LEAP, FAST, or PEAP.

7. If you selected PEAP, select the appropriate protocol from the Tunneled Authentication Protocol drop-down list.

8. In the Username and Password pane, configure the settings as appropriate for your network and usage.

9. Click OK.

10. Click Apply.

To configure a network connection to use CCKM with WEP, CKIP, or TKIP encryption and LEAP or FAST authentication

1. Open the Wireless Utility.

2. On the Wireless Networks tab, verify that the Let this tool manage your wireless settings check box is selected. If it is not, select it, and then click Apply.

4. From the Network Authentication drop-down list, select CCKM.

Note:

5. Click the Authentication tab.

6. From the EAP Method drop-down list, select LEAP or FAST.

7. In the Username and Password pane, configure the settings as appropriate for your network and usage.

8. Click OK.

9. Click Apply.

To connect to a secure wireless network

1. Make sure that the connection settings are configured for the wireless network that you want to access.

2. From the Windows desktop, click the Wireless Utility status icon in the system tray. The Connect to Wireless Network window is displayed.

3. In the Available Networks panel, select the wireless network that you want to access.

4. Click Connect.

Using the Sony Ericsson Wireless Utility 61

Running diagnostic tests on your wireless LAN adapter

You can run diagnostic tests on your Sony Ericsson 802.11 Wireless LAN Adapter to verify its operational and functional status.

Note:

Your network connection is temporarily disabled when you run a diagnostic test. When the test is completed, however, your network connection is automatically reestablished.

To run a diagnostic test on your wireless LAN adapter

1. Open the Wireless Utility.

2. Click the Diagnostics tab.

3. To see a description of a test, select a test. The Recommendations panel displays information about the selected test.

4. To run one or more tests, select the check box for each test that you want to run. Clear the check box for those tests that you do not want to run.

5. Click Run.

If the Sony Ericsson 802.11 Wireless LAN Adapter fails any of the diagnostic tests, see Troubleshooting on page 78.

62 Using the Sony Ericsson Wireless Utility

Using the Windows XP wireless network connection utility

Microsoft Windows XP provides support for wireless networking technology. If you are using Windows XP, you can use the Windows XP user interface or you can use the Sony Ericsson Wireless Utility to create and manage your wireless LAN connections.

Note:

If Windows XP is your operating system, the Windows XP user interface is enabled by default. To use the Sony Ericsson Wireless Utility, you must enable it. For information about how to enable the Sony Ericsson Wireless Utility, refer to To enable the Sony Ericsson Wireless Utility on page 52.

Important!

If you are using the Windows Vista operating system, you must configure and use the Wireless LAN feature of your GC89 via the Windows Vista user interface. Refer to the GC89 Wireless LAN Guide for more information.

Opening the Windows XP wireless network connection utility

To open the Windows XP wireless network connection utility

1. From the Windows desktop, select Start Settings Control Panel Network Connections.

2. From the Network Connections window, right-click on the Wireless Network Connection and select Properties. The Windows XP Wireless Network Connection Properties dialogue box is displayed.

Enabling the Windows XP wireless network connection utility

When you enable the Windows XP wireless network configuration utility, the Windows XP user interface becomes the default utility for managing wireless LAN connections. Also, any other wireless LAN utility (such as Sony Ericsson Wireless Utility) currently configured to manage your wireless LAN connections is disabled.

To enable the Windows XP wireless network connection utility

1. Open the Windows XP wireless network connection utility.

2. On the Wireless Networks tab, select the Use Windows to configure my wireless network settings check box.

Note:

To configure settings on the Wireless Networks tab, you must be logged on as an administrator. If you cannot change the settings on your Wireless Networks tab, contact your network administrator.

3. Click OK.

Using the Windows XP wireless network connection utility 63
