Sony XR-M75 Operating Manual

~lTK&

DIGITAL AUDIO

‘-

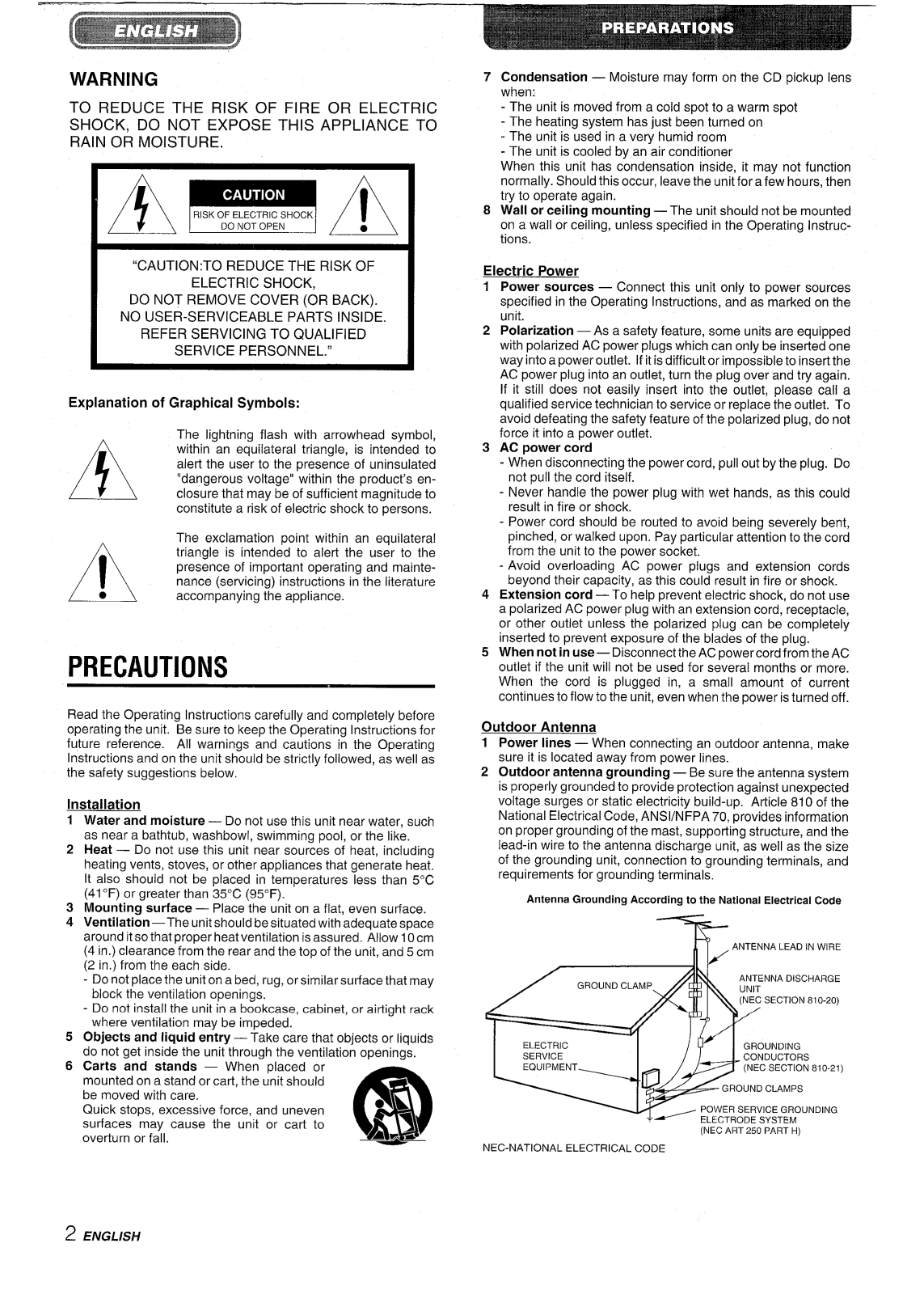

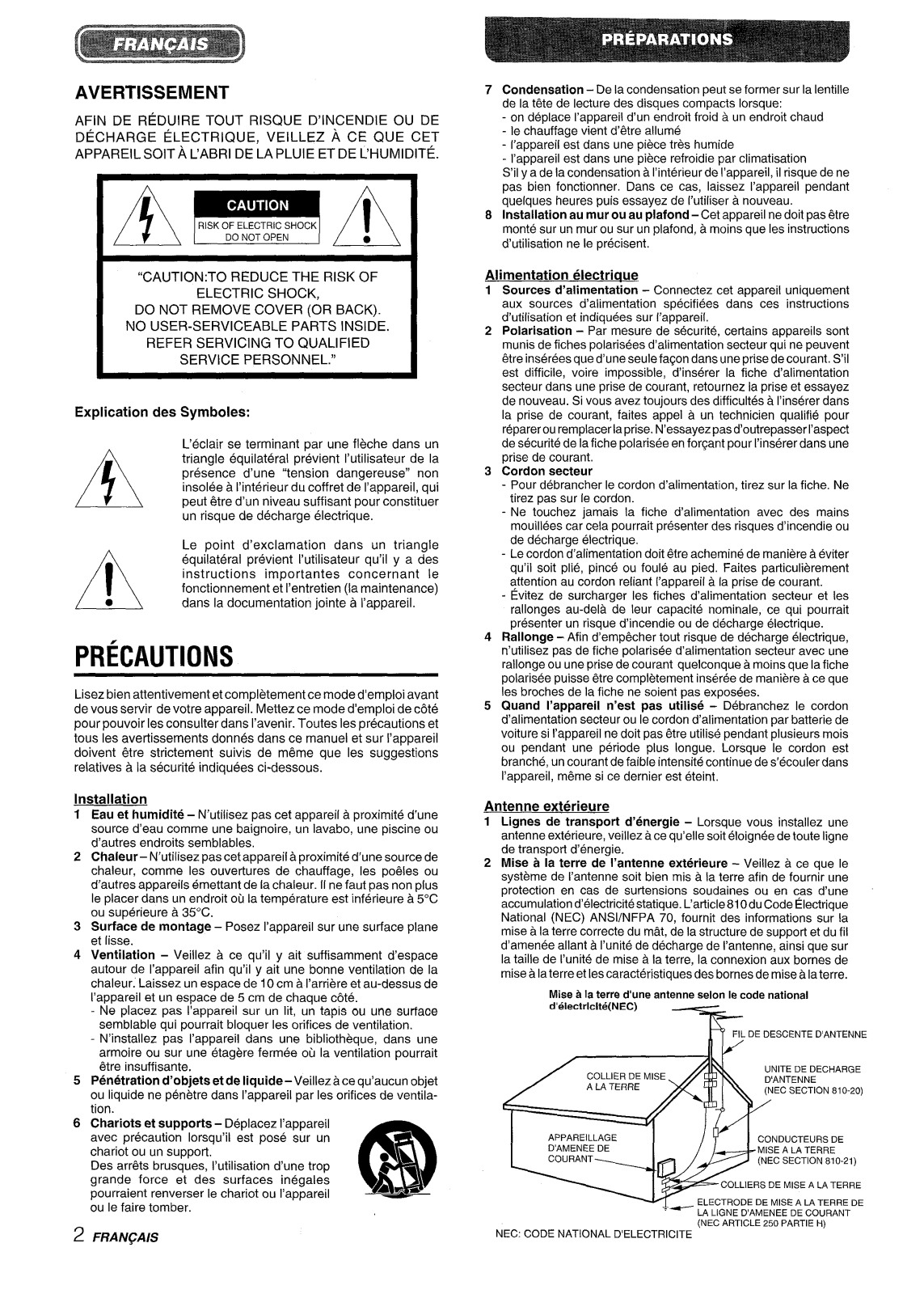

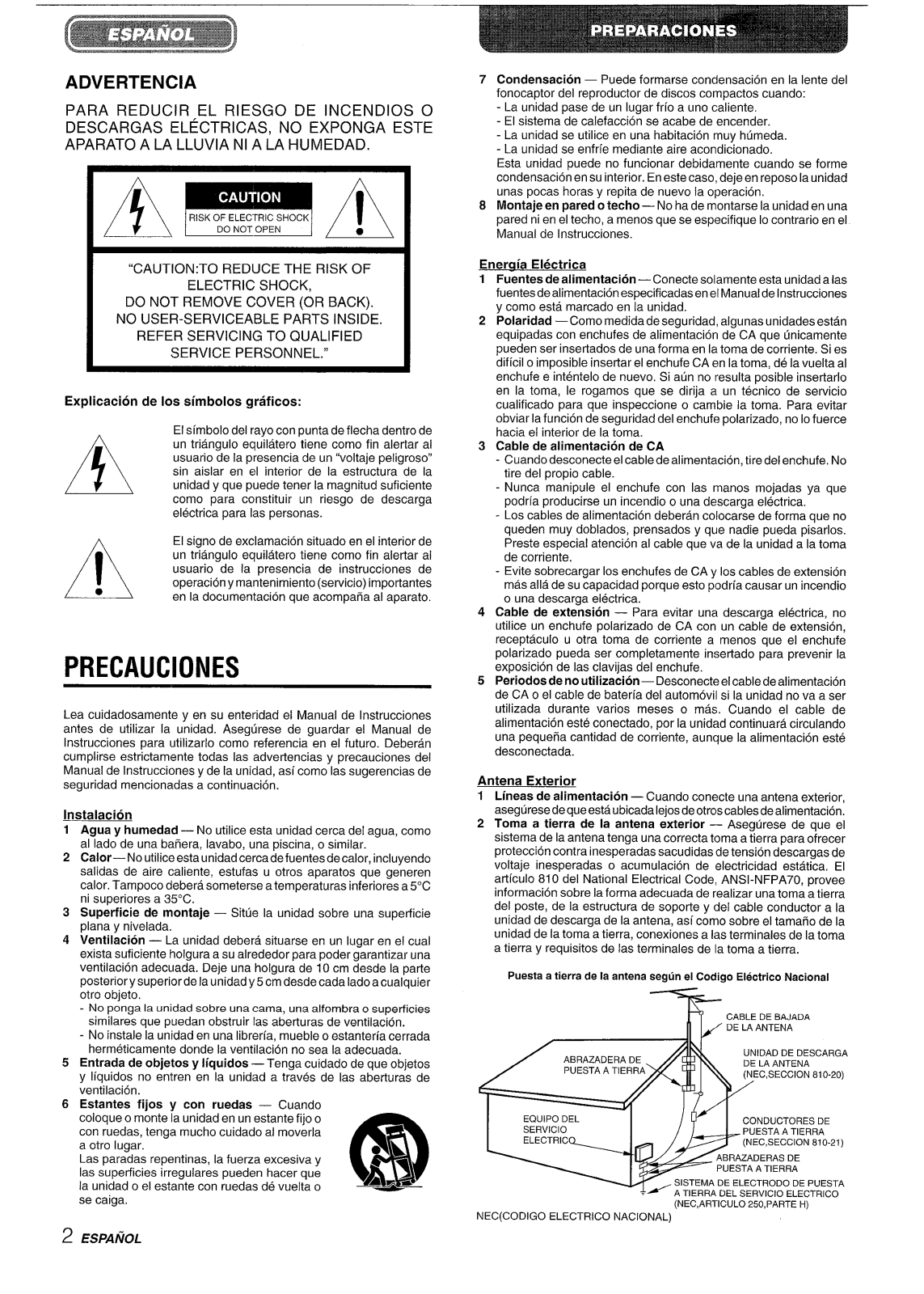

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

●

RISK OF ELECTRIC SHOCK

DO NOT OPEN

~ A

●

Condensation — Moisture may form on the CD pickup lens

when:

- The unit is moved from a cold spot to a warm spot

- The heating system has just been turned on

- The unit is used in a very humid room

- The unit is cooled by an air conditioner When this unit has condensation inside, it may not function normally. Should this occur, leave the unit forafew hours, then try to operate again.

Wall or ceiling mounting — The unit should not be mounted on a wall or ceiling, unless specified in the Operating instructions.

“CAUTIONTO REDUCE THE RISK OF

ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.”

Explanation of Graphical Symbols:

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated

“dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

PRECAUTIONS

Read the Operating Instructions carefully and completely before operating the unit, Be sure to keep the Operating Instructions for future reference. All warnings and cautions in the Operating Instructions and on the unit should be strictly followed, as well as the safety suggestions below,

Installation 1

Water and moisture — Do not use this unit near water, such

as near a bathtub, washbowl, swimming pool, or the like.

Heat — Do not use this unit near sources of heat, including heating vents, stoves, or other appliances that generate heat. It also should not be placed in temperatures less than 5°C (41 ‘F) or greater than 35°C (95”F).

Mounting surface — Place the unit on a flat, even surface.

Ventilation —The unit should be situated with adequate space around it so that proper heat ventilation is assured. Allow 10 cm (4 in.) clearance from the rear and the top of the unit, and 5 cm (2 in,) from the each side.

- Do not place the unit on abed, rug, orsimilarsurface that may

block the ventilation openings.

Do not install the unit in a bookcase, cabinet, or airtight rack

where ventilation may be impeded.

Objects and liquid entry — Take care that objects or liquids

do not get inside the unit through the ventilation openings.

Carts and stands — When placed or mounted on a stand or cart, the unit should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the unit or cart to overturn or fall.

($!!!)

●\

A&*

Electric Power

Power sources — Connect this unit only to power sources specified in the Operating Instructions, and as marked on the unit.

Polarization — As a safety feature, some units are equipped with polarized AC power plugs which can only be inserted one way into a power outlet. If it is difficult or impossible to insert the AC power plug into an outlet, turn the plug over and try again. If it still does not easily insert into the outlet, please call a qualified service technician to service or replace the outlet. To avoid defeating the safety feature of the polarized plug, do not force it into a power outlet.

AC power cord

- When disconnecting the power cord, pull out by the plug. Do

not pull the cord itself.

- Never handle the power plug with wet hands, as this could

result in fire or shock.

- Power cord should be routed to avoid being severely bent,

pinched, or walked upon, Pay particular attention to the cord

from the unit to the power socket.

- Avoid overloading AC power plugs and extension cords

beyond their capacity, as this could result in fire or shock.

Extension cord — To help prevent electric shock, do not use a polarized AC power plug with an extension cord, receptacle, or other outlet unless the polarized plug can be completely inserted to prevent exposure of the blades of the plug.

When not in use— Disconnect the AC ~owercord from the AC outlet if the unit will not be used for several months or more. When the cord is plugged in, a small amount of current continues to flow to the unit, even when the power is turned off.

Outdoor Antenna 1 Power lines — When connecting an outdoor antenna, make

sure it is located away from power lines.

2 Outdoor antenna grounding — Be sure the antenna system

is properly grounded to provide protection against unexpected voltage surges or static electricity build-up. Article 810 of the National Electrical Code, ANS1/NFPA 70, provides information on proper grounding of the mast, supporting structure, and the lead-in wire to the antenna discharge unit, as well as the size of the grounding unit, connection to grounding terminals, and requirements for grounding terminals.

Antenna Grounding According to the National Electrical Coda

ELECTRIC GROUNDING SERVICE EQUIPMENT (NEC SECTION 810-21)

NEC-NATIONAL ELECTRICAL CODE

, ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE

(NEC SECTION 810-20)

CONDUCTORS

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM

(NEC ART 250 PART H)

2 ENGLISH

Maintenance

Clean the unit only as recommended in the Operating Instructions.

Damaae Reauirina Service

Have the units serviced by a qualified service technician if:

- The AC power cord or plug has been damaged

- Foreign objects or liquid have gotten inside the unit

- The unit has been exposed to rain or water

- The unit does not seem to operate normally

- The unit exhibits a marked change in performance

- The unit has been dropped, or the cabinet has been damaged DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.

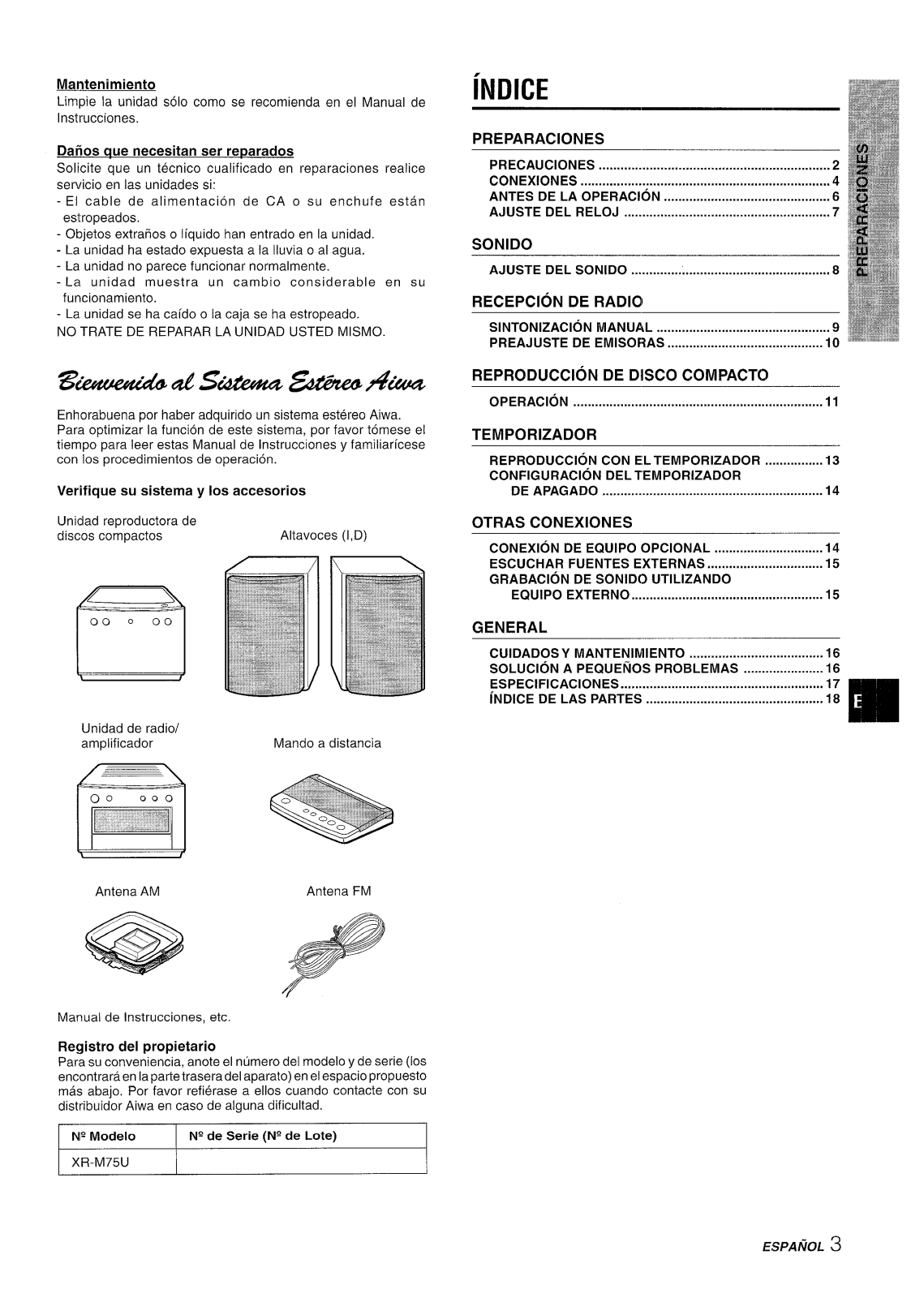

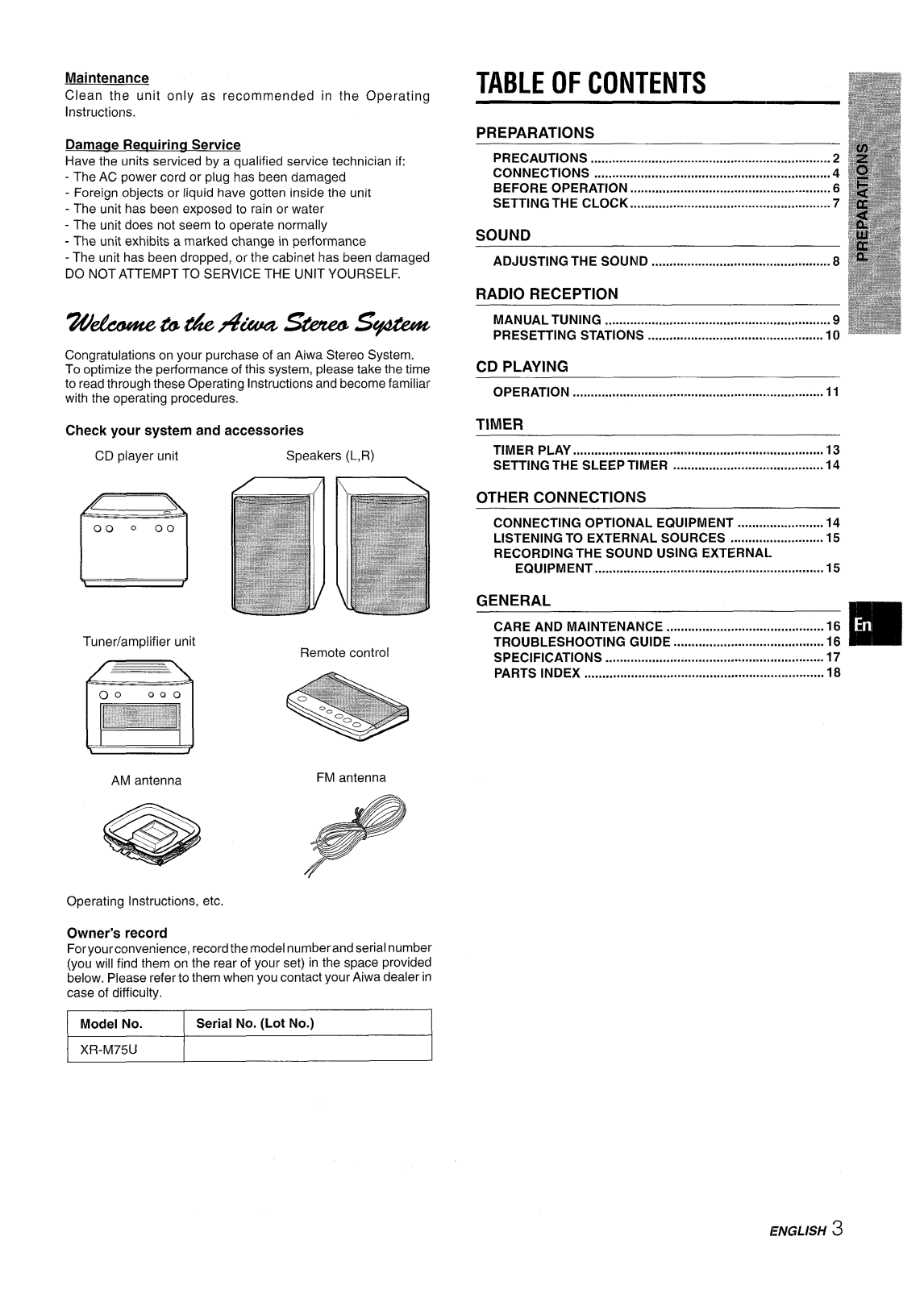

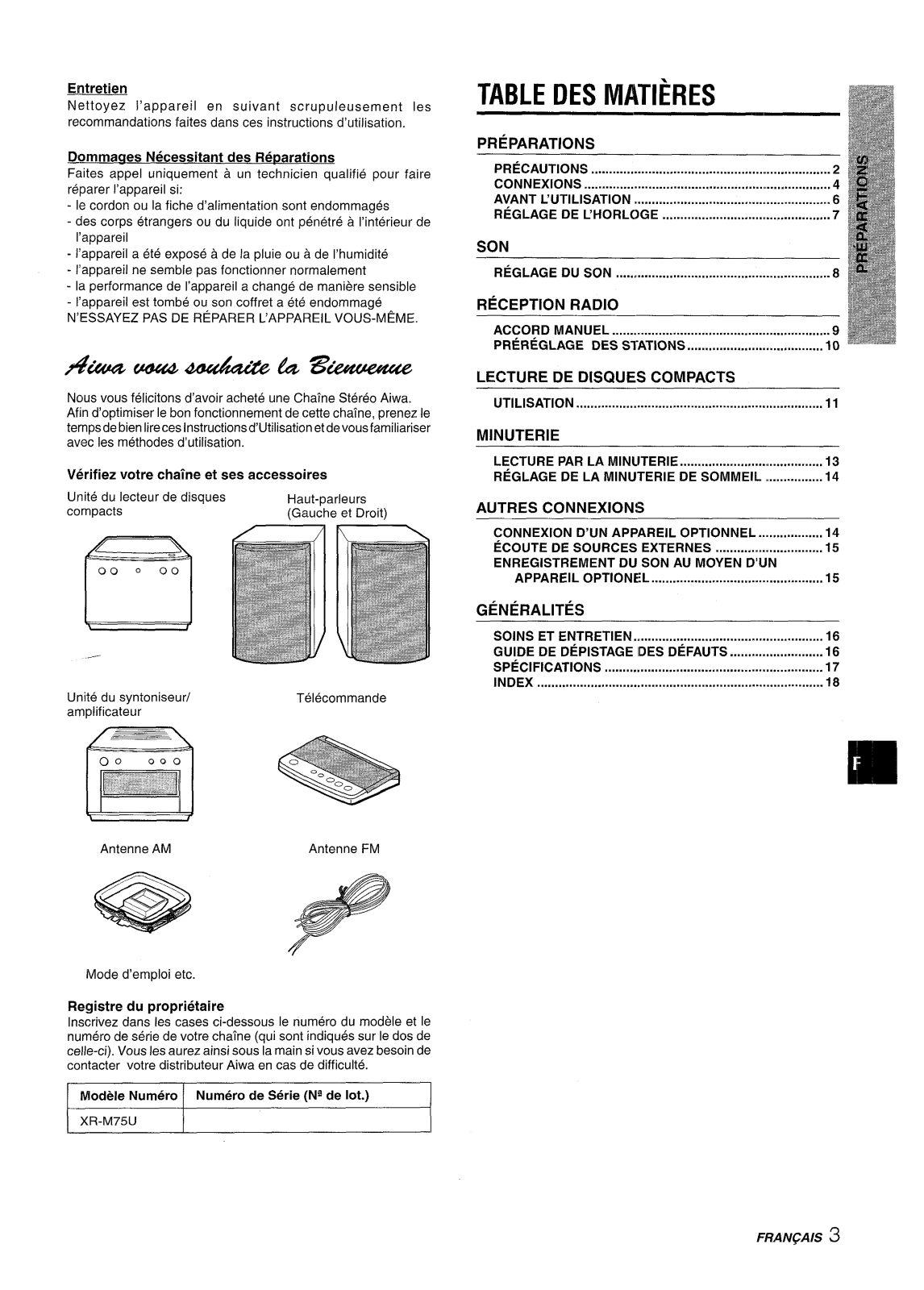

TABLE OF CONTENTS

PREPARATIONS

PRECAUTIONS ................................................................... 2

CONNECTIONS ..................................................................4

BEFORE OPERATION ........................................................ 6

SETTING THE CLOCK ........................................................ 7

SOUND

ADJUSTING THE SOUND .................................................. 8

RADIO RECEPTION

w2e&f3zb64vAfAzsk?ze*t%

Congratulations on your purchase of an Aiwa Stereo System. To optimize the performance of this system, please take the time to read through these Operating Instructions and become familiar with the operating procedures.

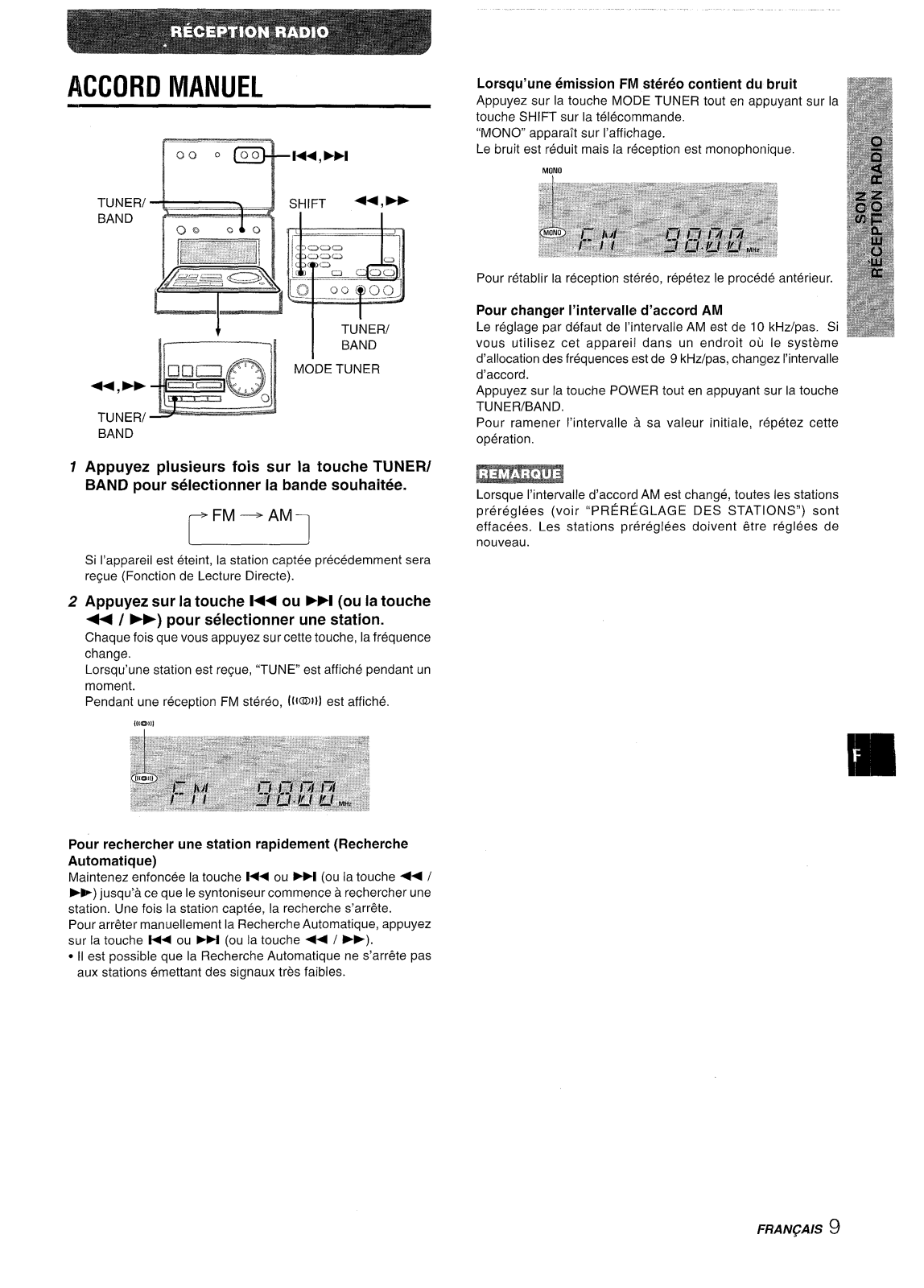

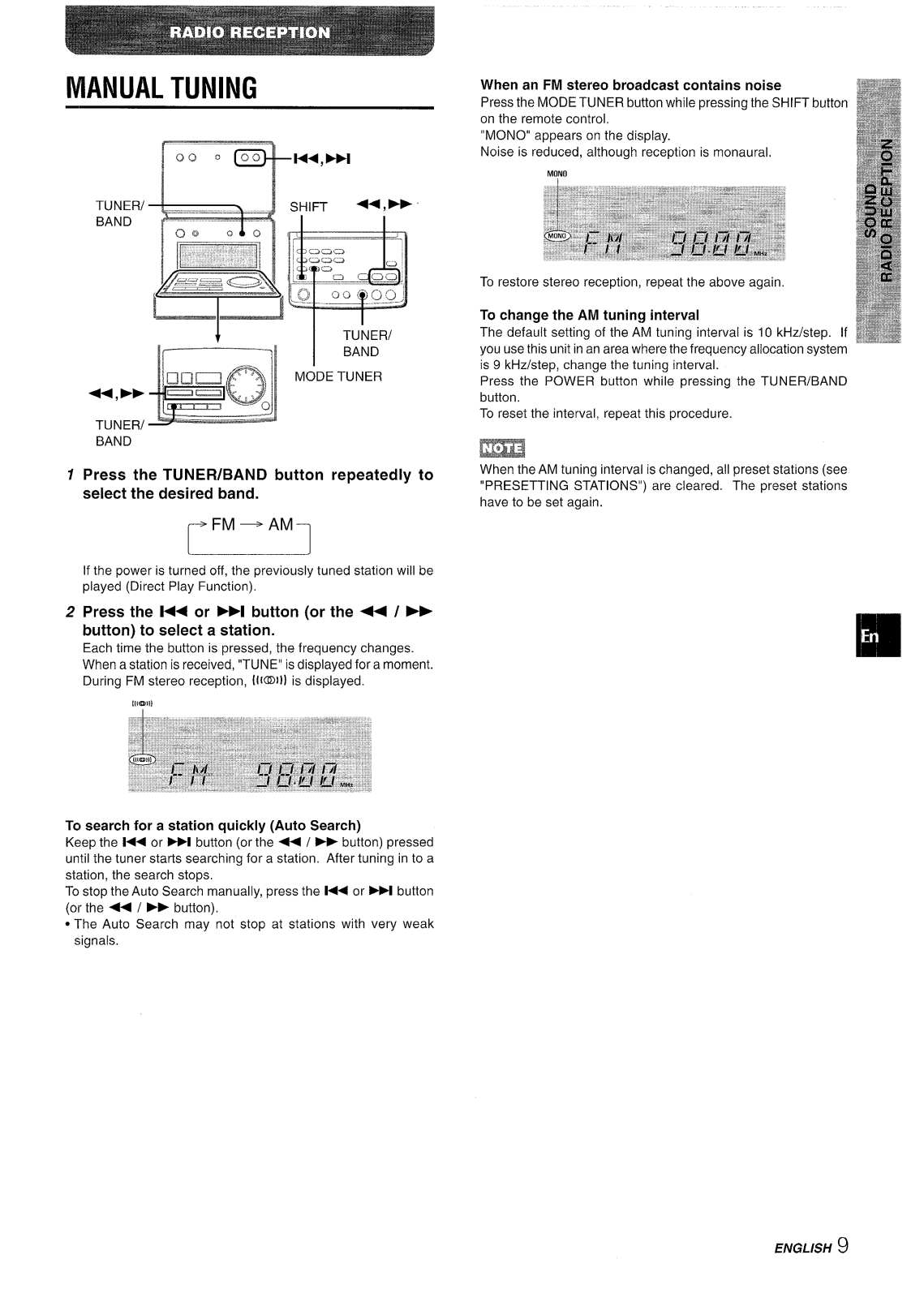

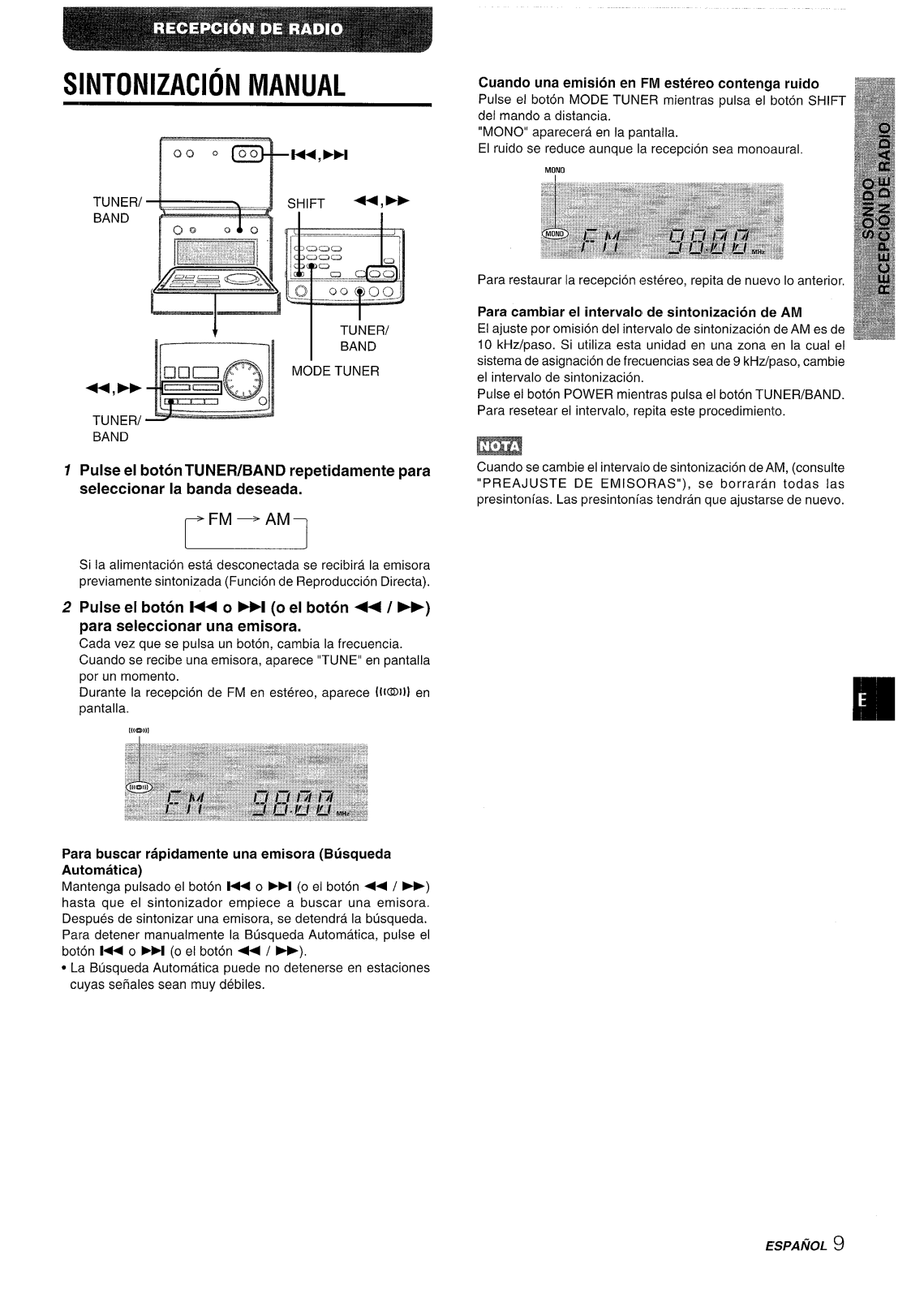

MANUAL TUNING ............................................................... 9

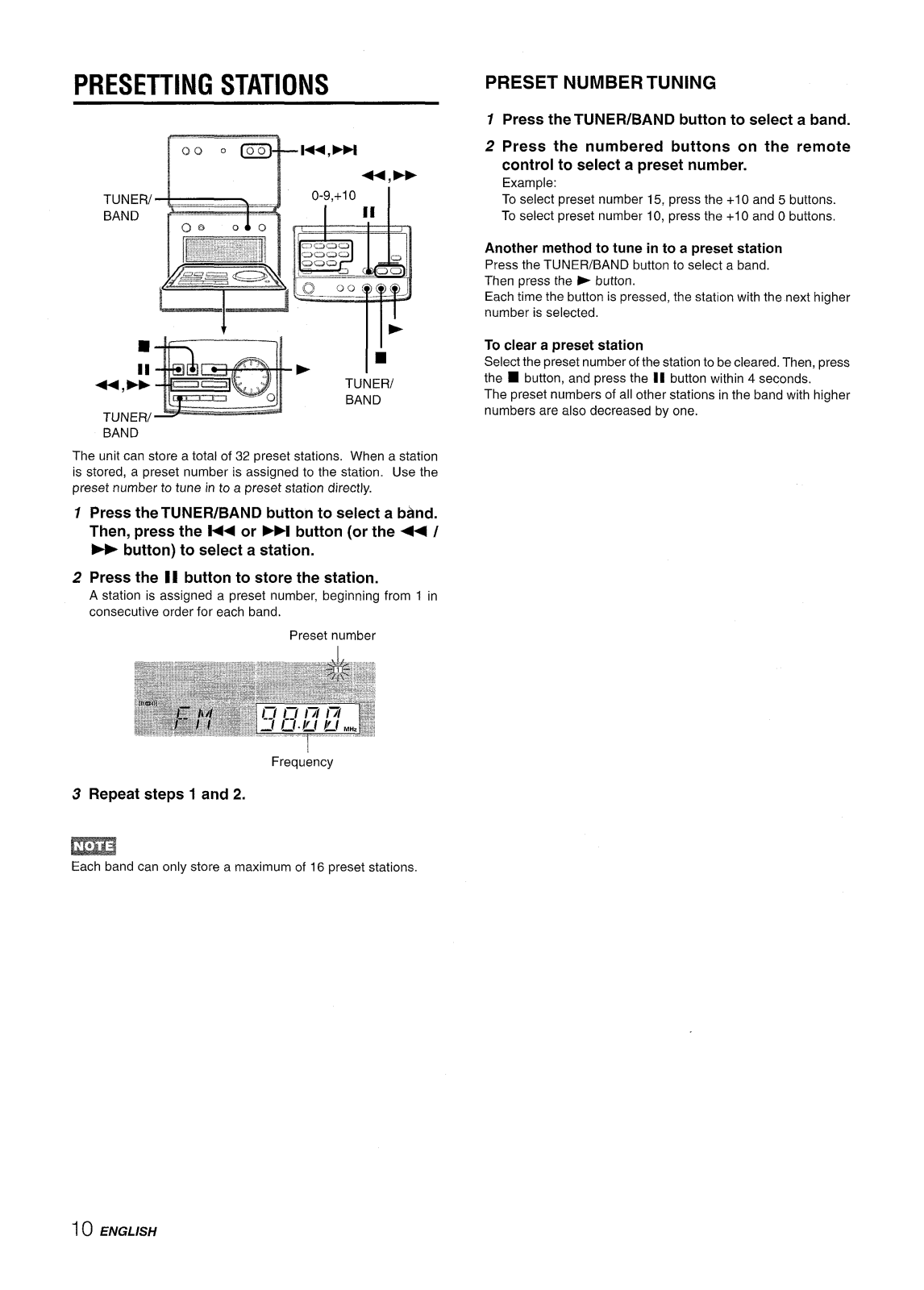

PRESETTING STATIONS

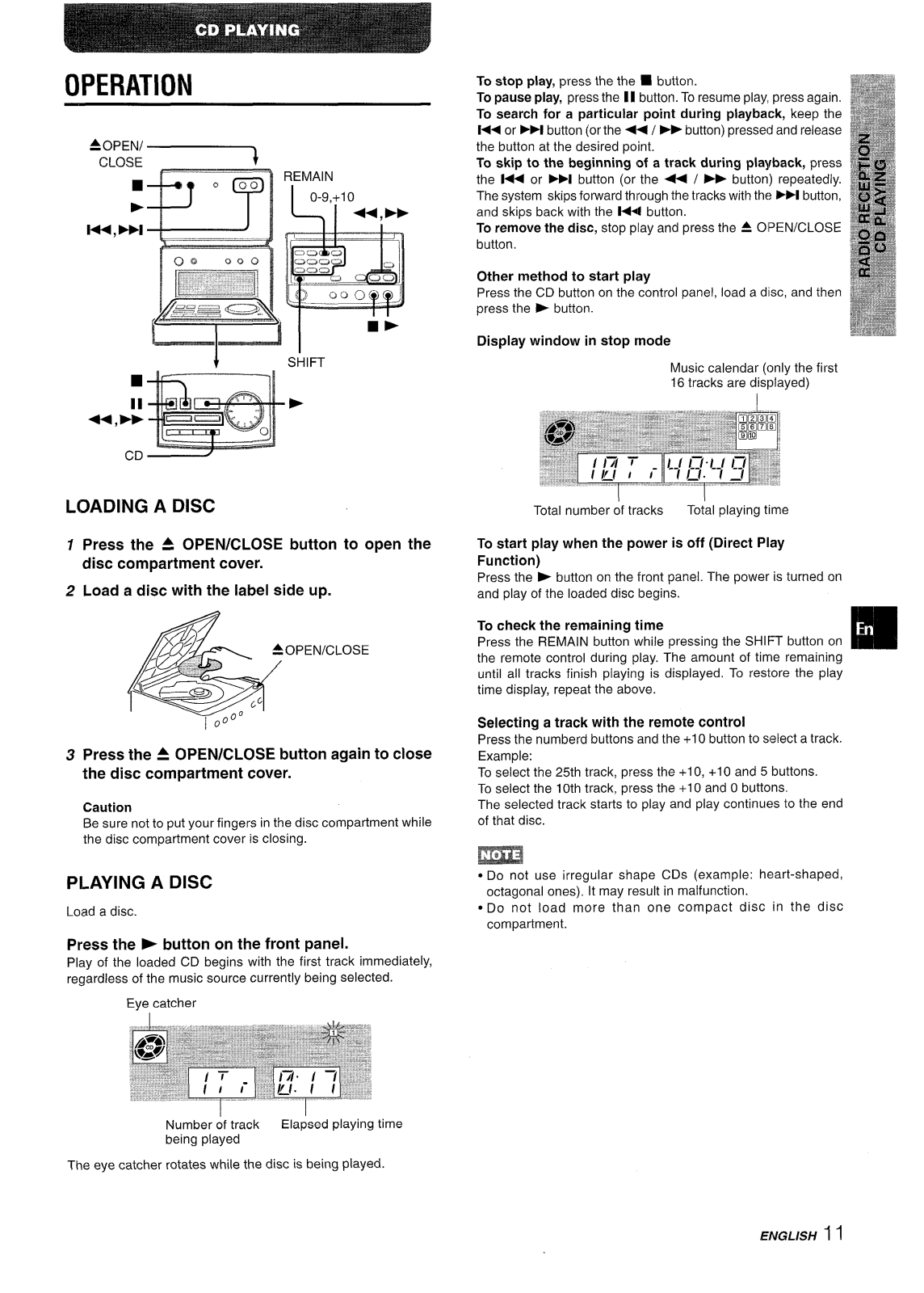

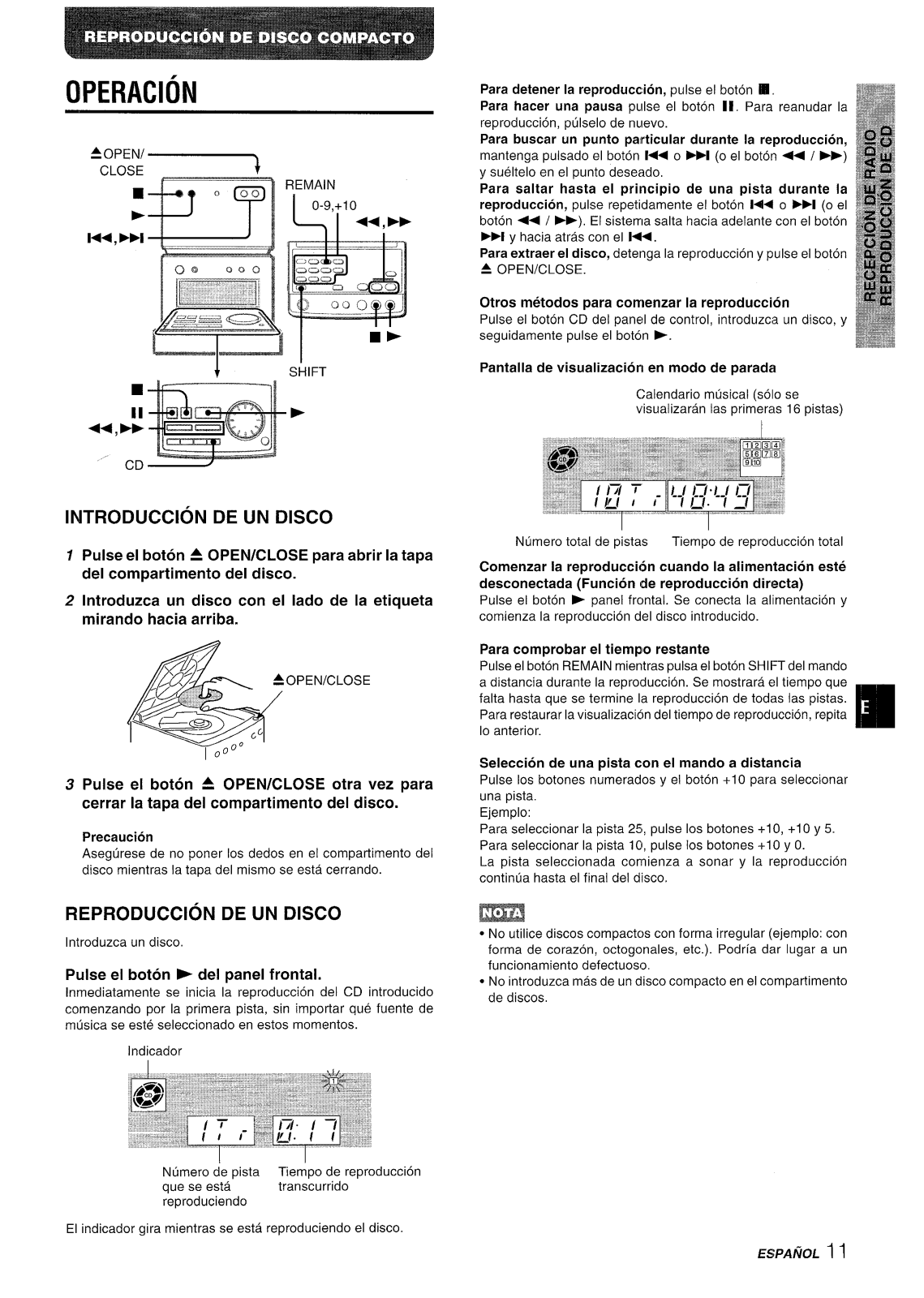

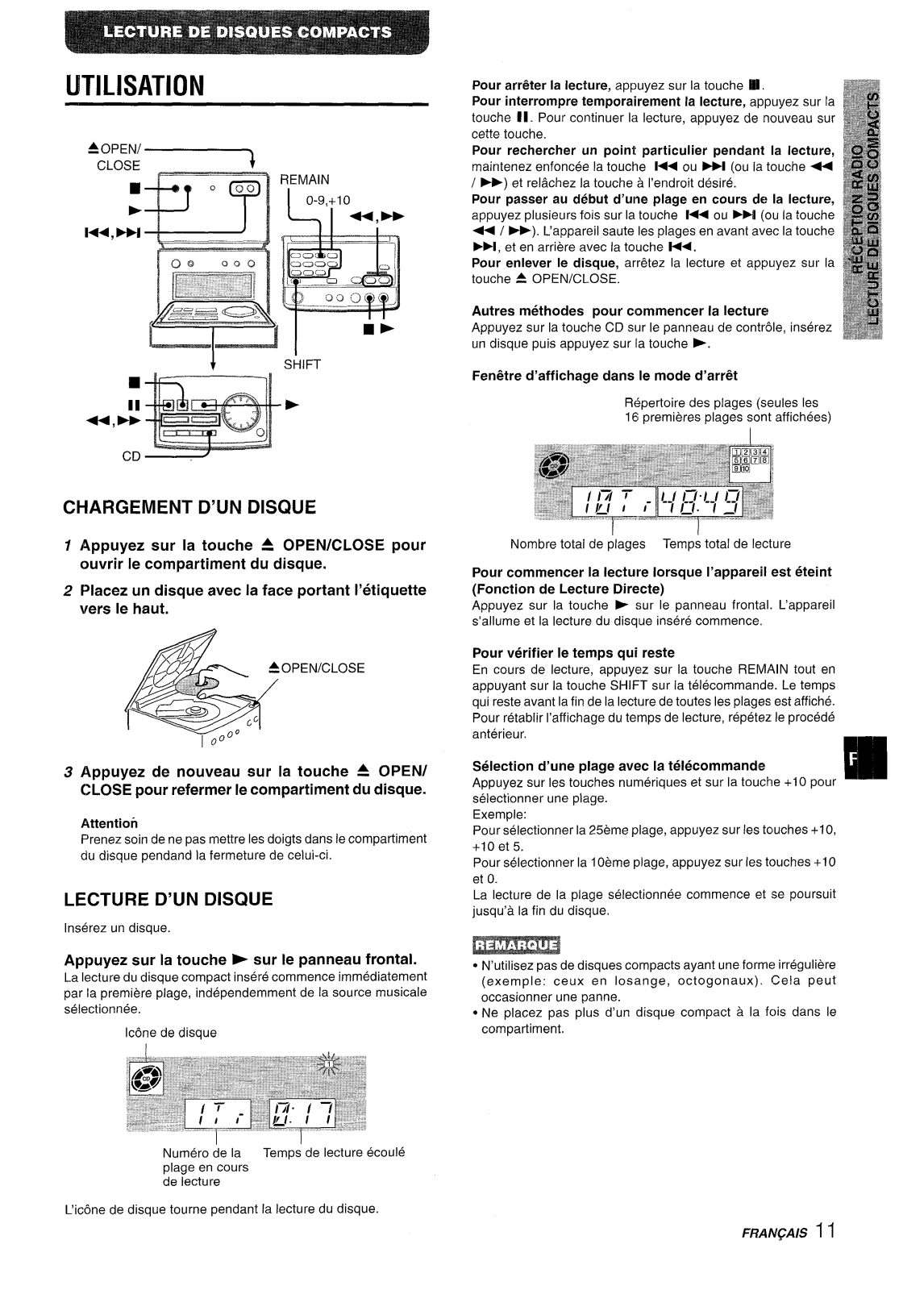

CD PLAYING

OPERATION ..................................................................... 11

........................m........................ 10

Check your system and accessories

CD player unit

Tuner/amplifier unit

AM antenna

TIMER

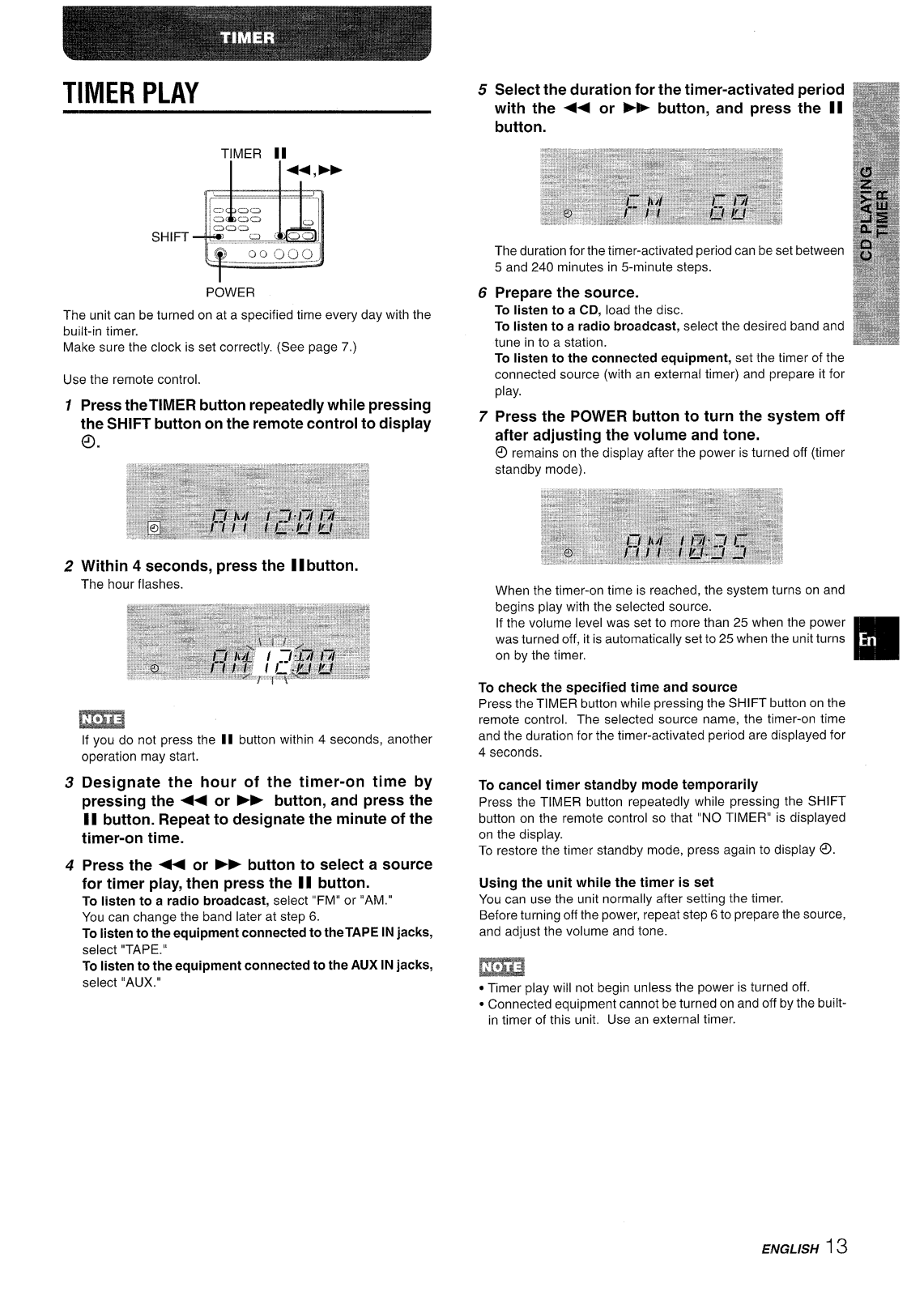

TIMER PLAY ...............................m...................................... 13

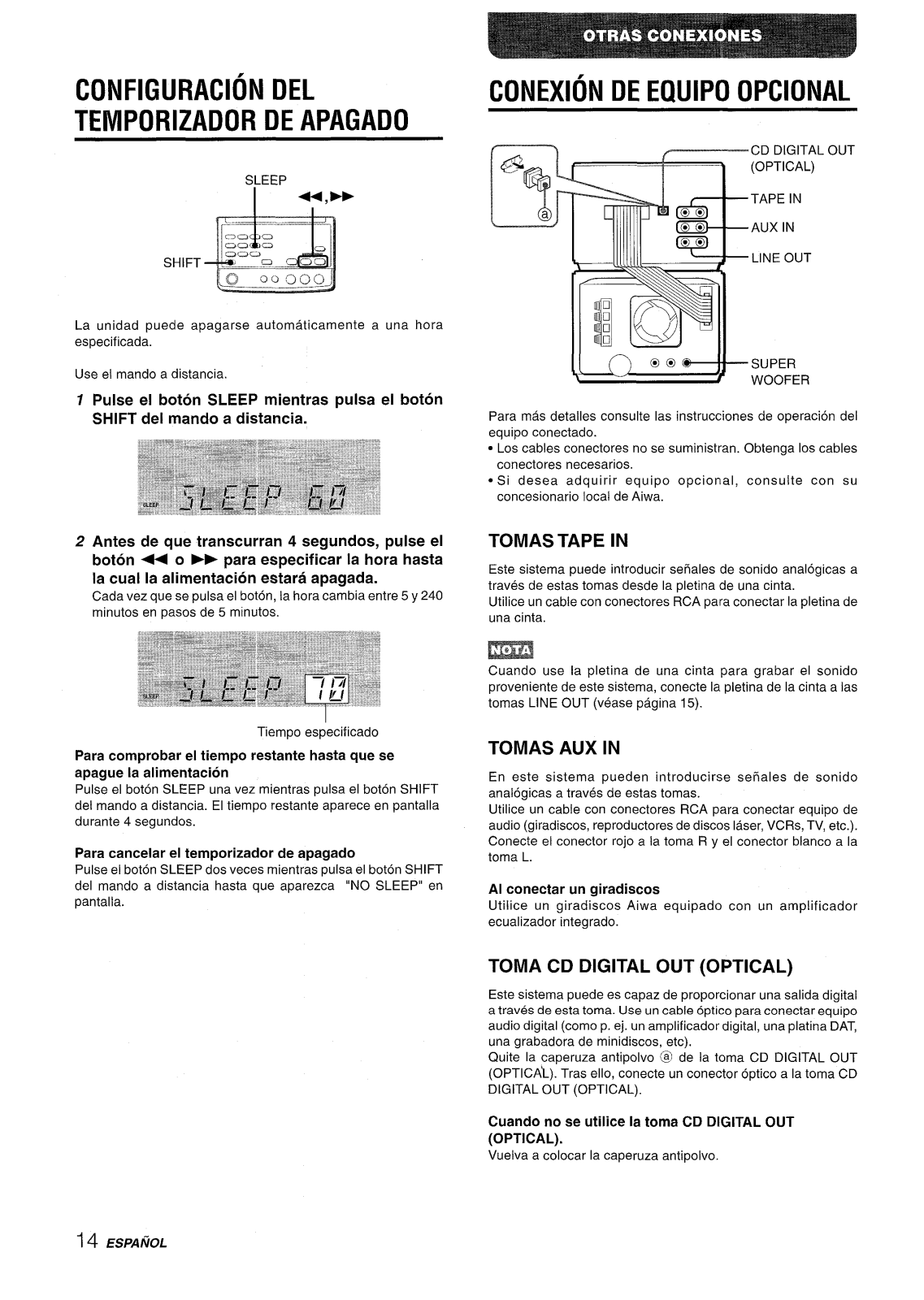

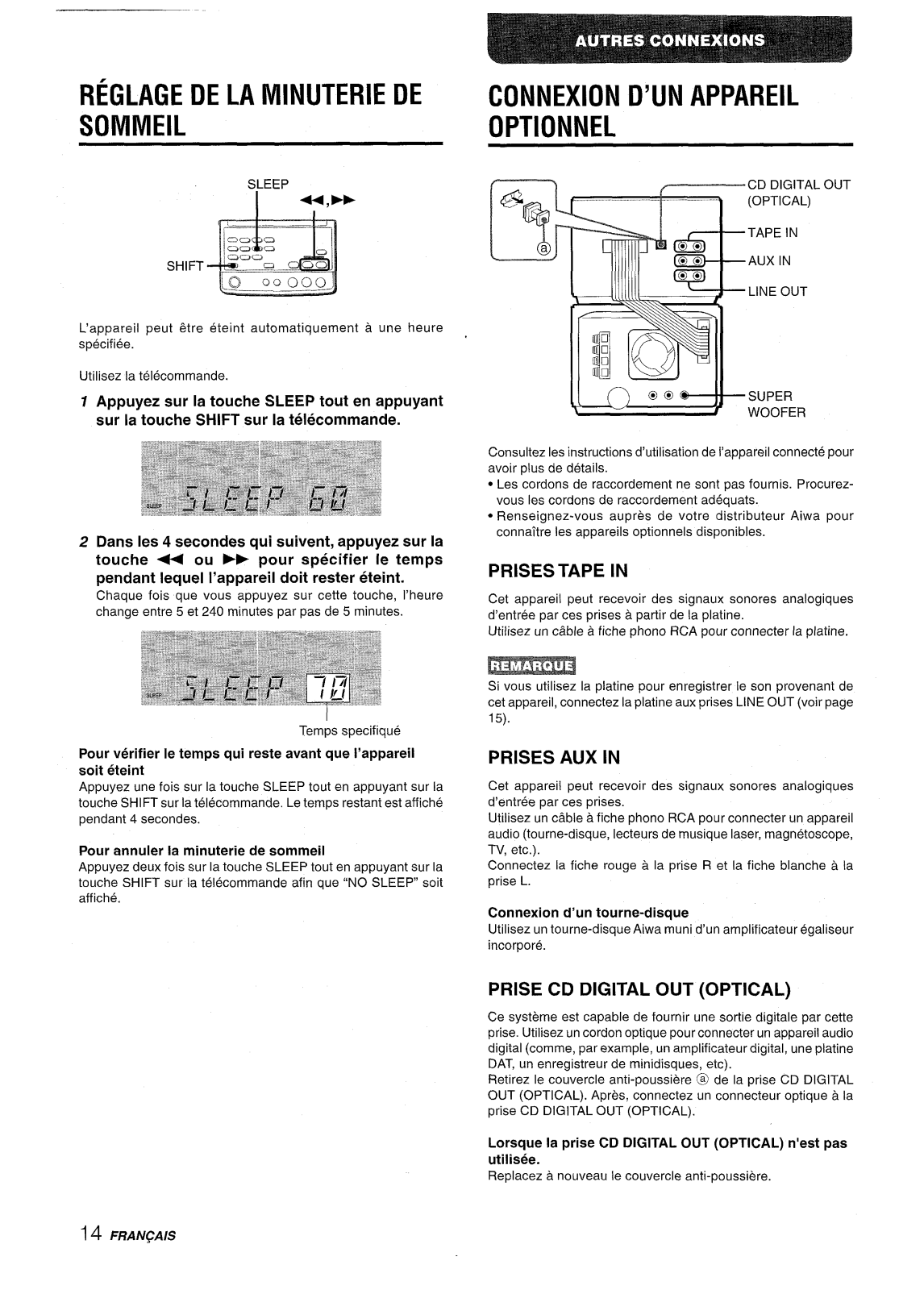

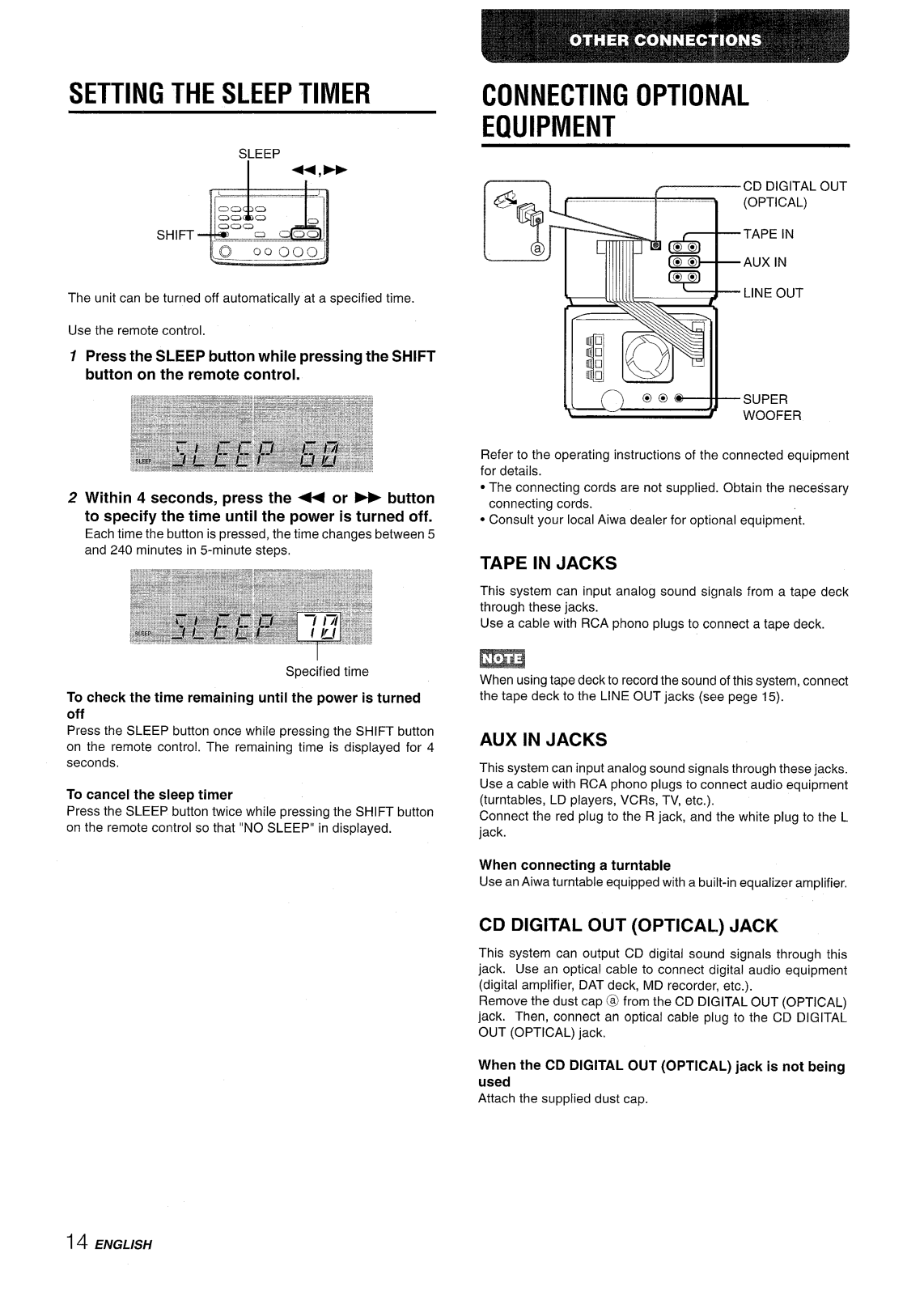

SETTING THE SLEEP TIMER ......................................... 14

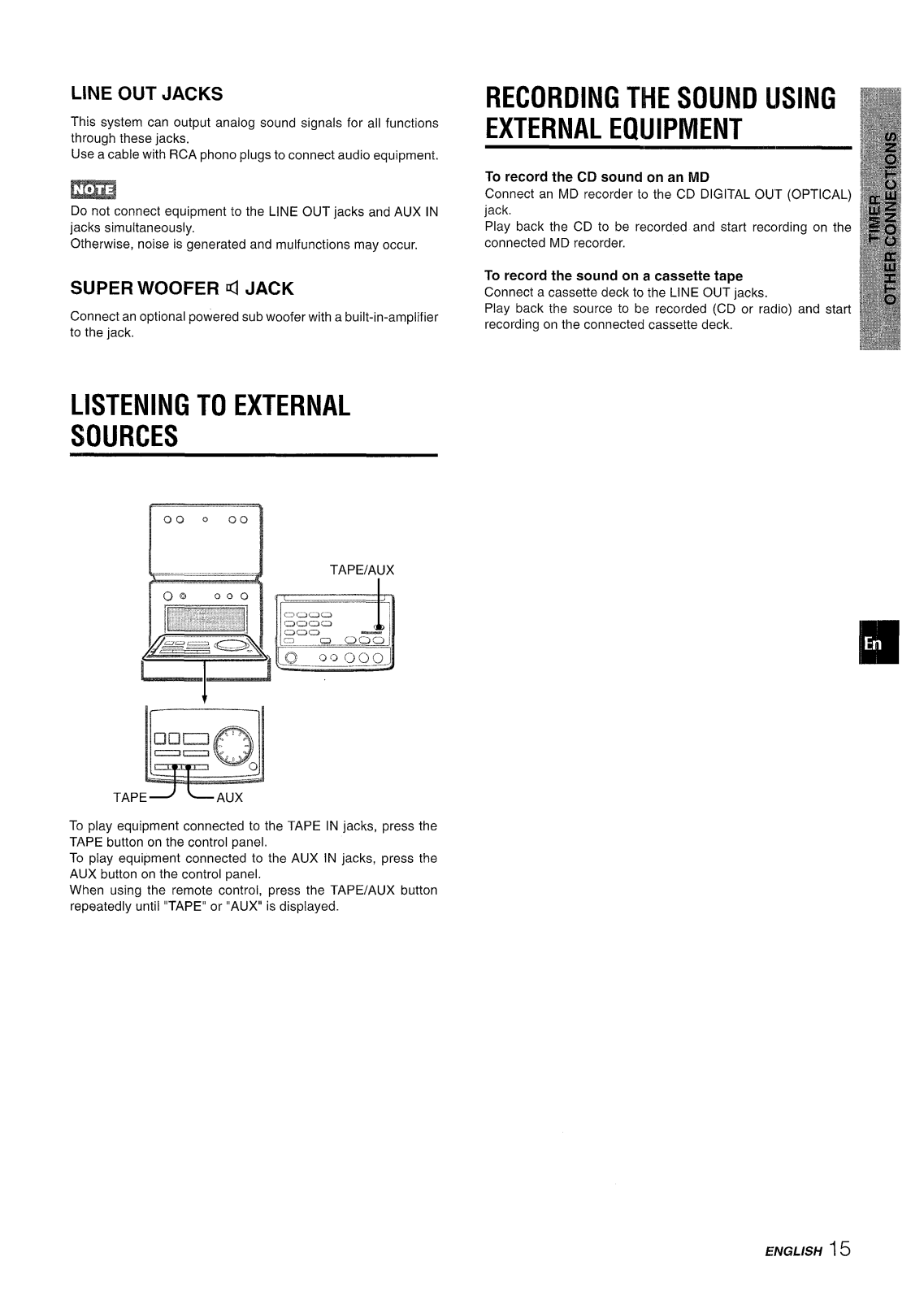

OTHER CONNECTIONS

CONNECTING OPTIONAL EQUIPMENT

LISTENING TO EXTERNAL SOURCES ..........................

RECORDING THE SOUND USING EXTERNAL

Equipment .......................................................m........l5

........................ 14

GENERAL

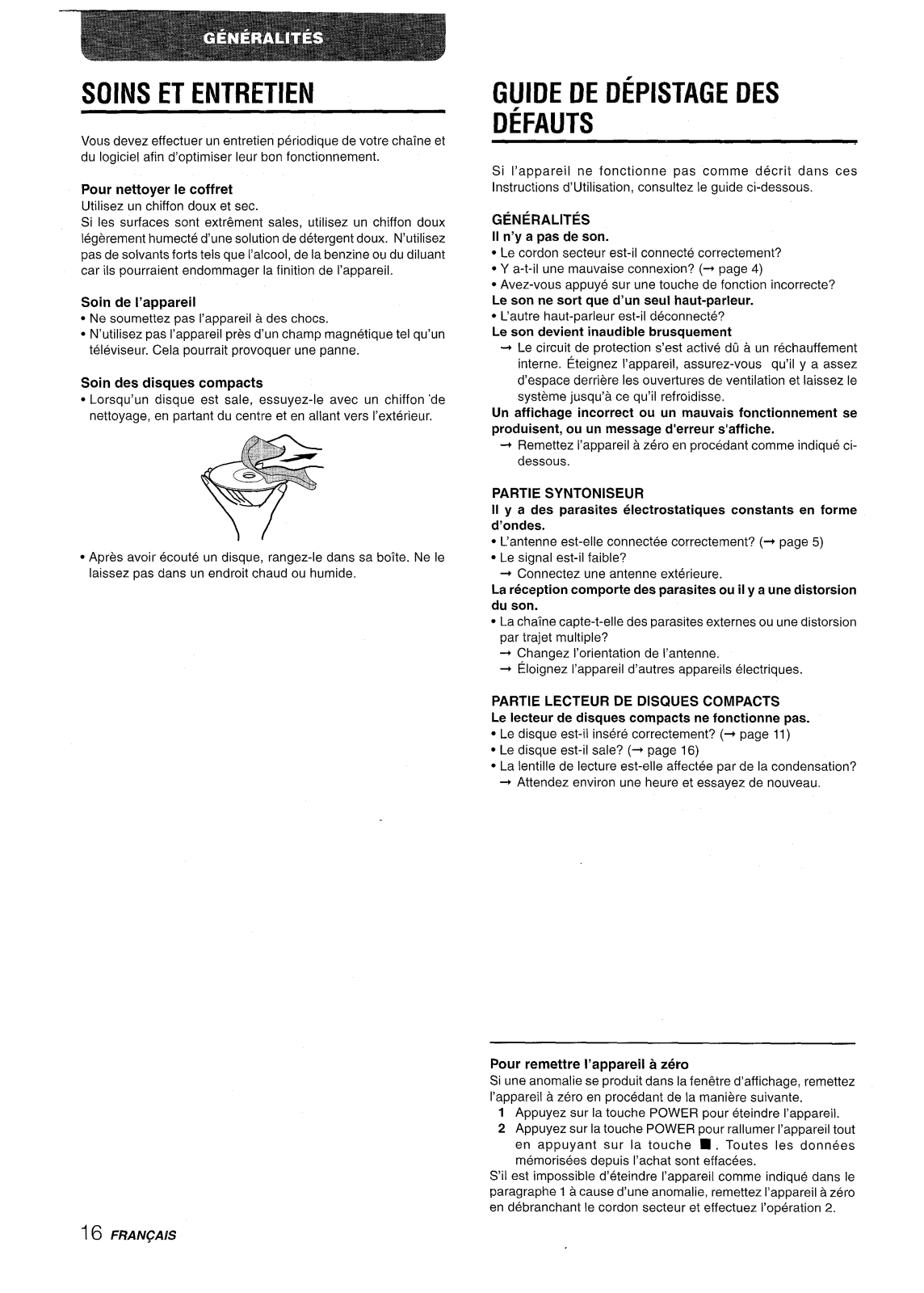

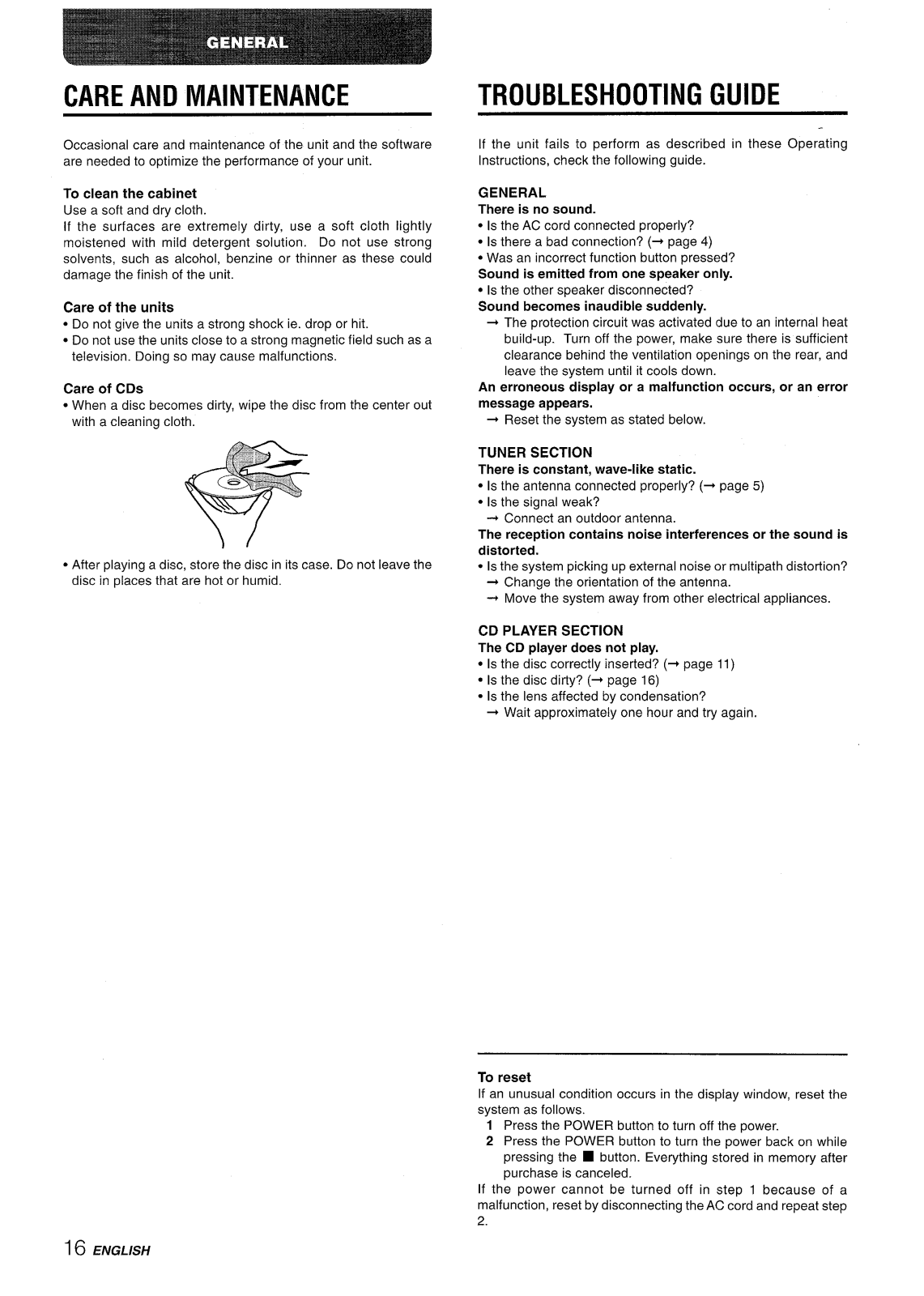

CARE AND MAINTENANCE ............................................ 16

TROUBLESHOOTING GUIDE .......................................... 16

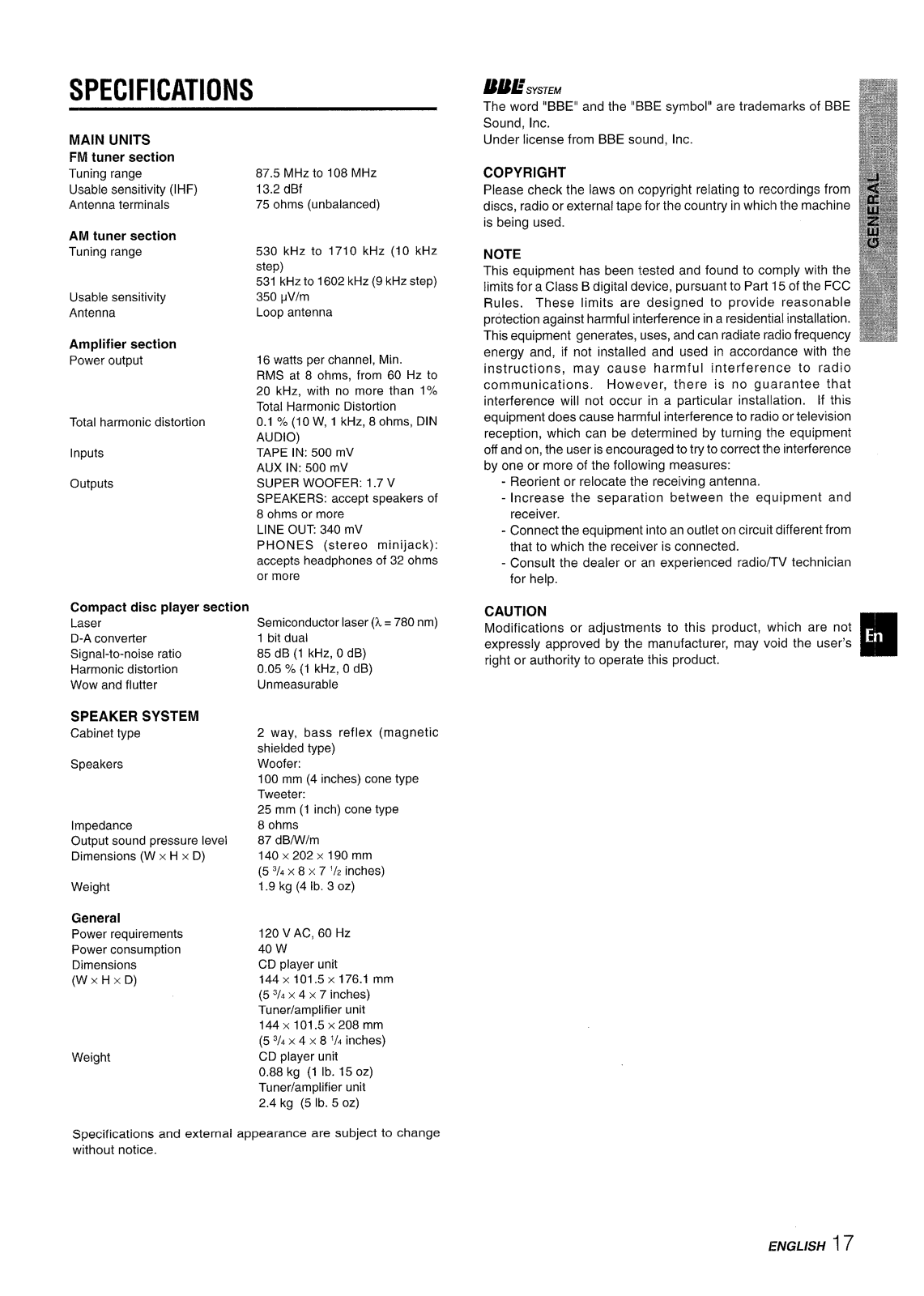

SPECIFICATIONS ............................................................. 17

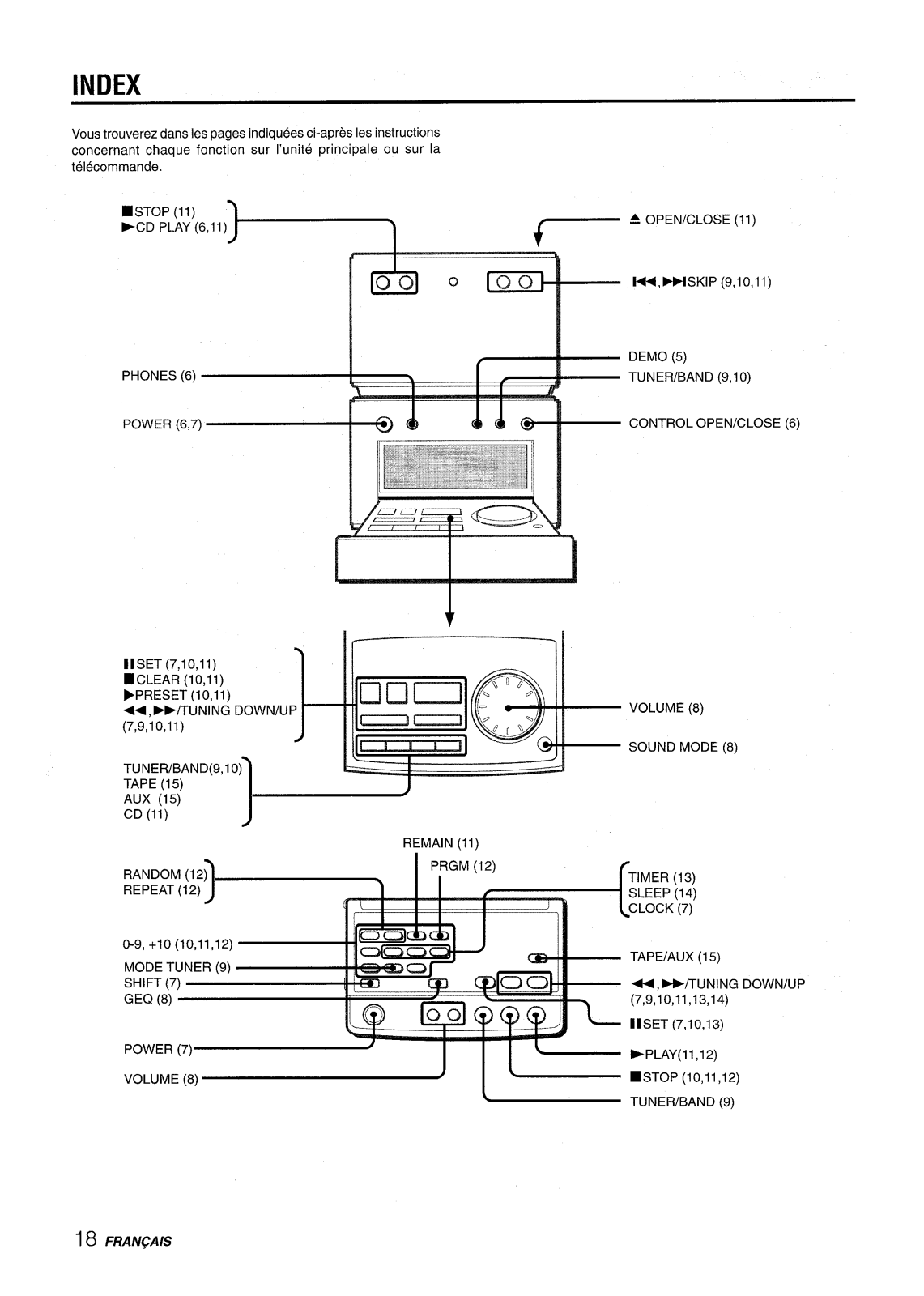

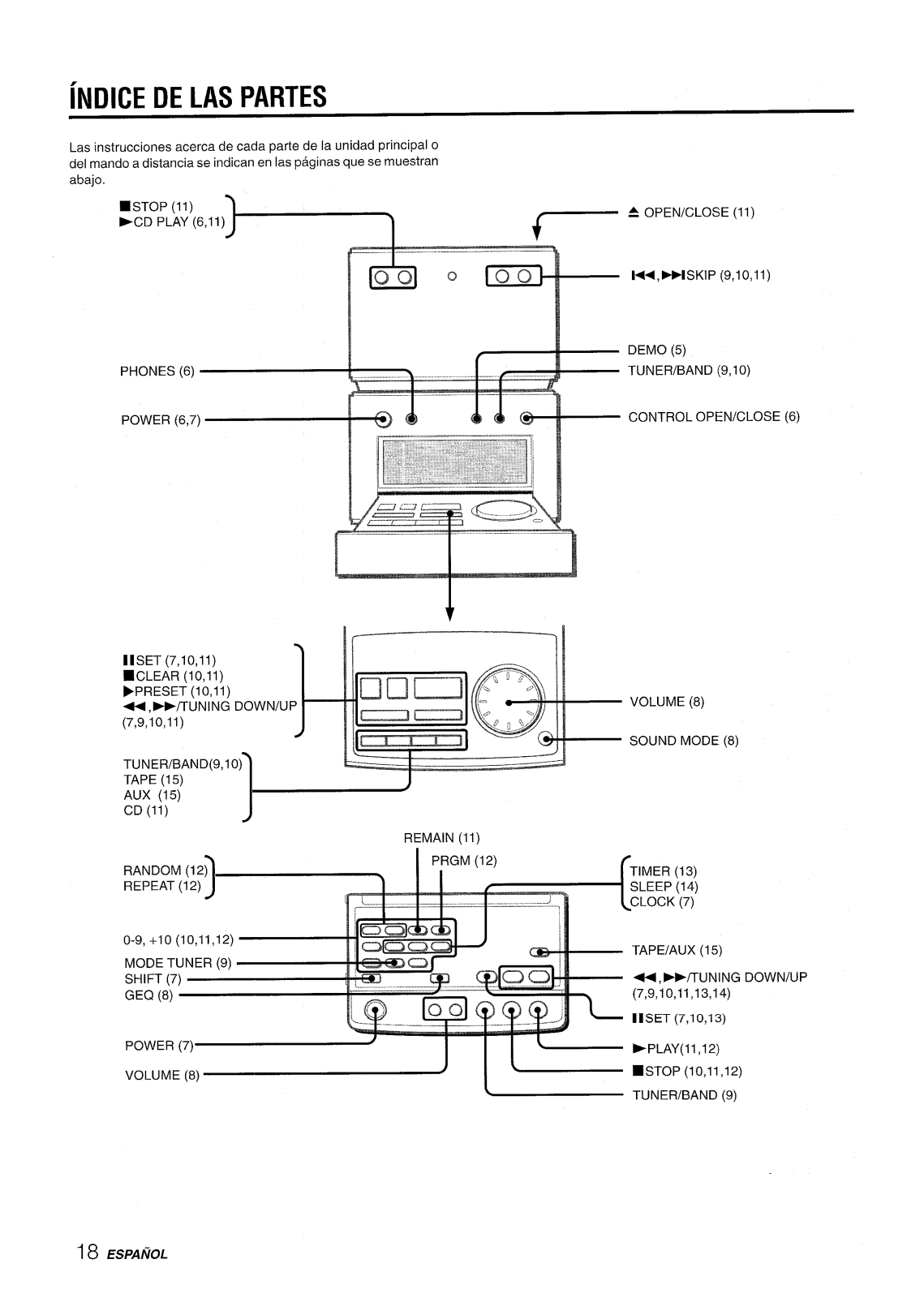

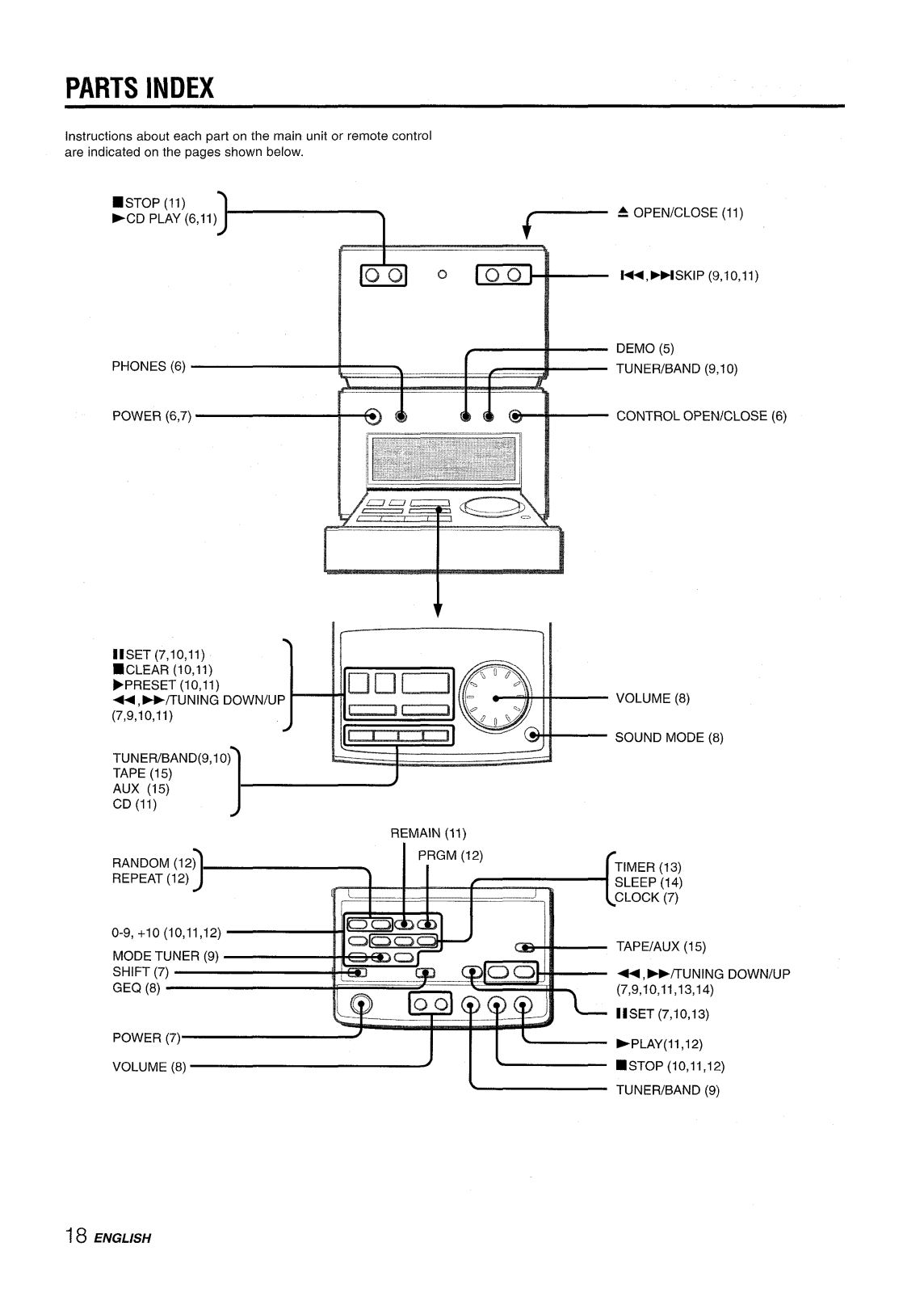

PARTS INDEX ................................................................... 18

Operating Instructions, etc.

Owner’s record

Foryourconvenience, record the model number and serial number (you will find them on the rear of your set) in the space provided below. Please refer to them when you contact your Aiwa dealer in case of difficulty.

Model No.

I XR-M75U I

Serial No. (Lot No.)

ENGLISH 3

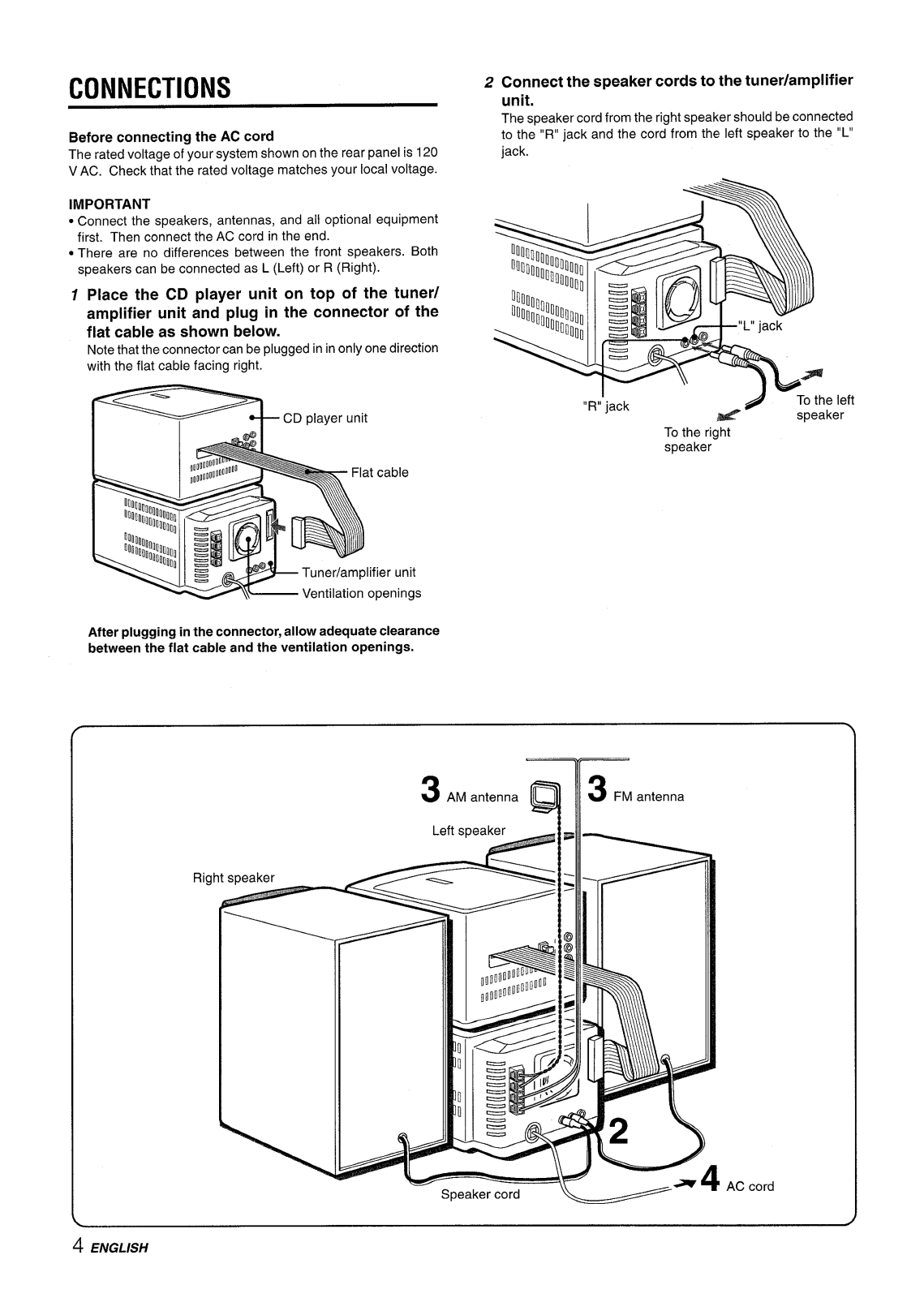

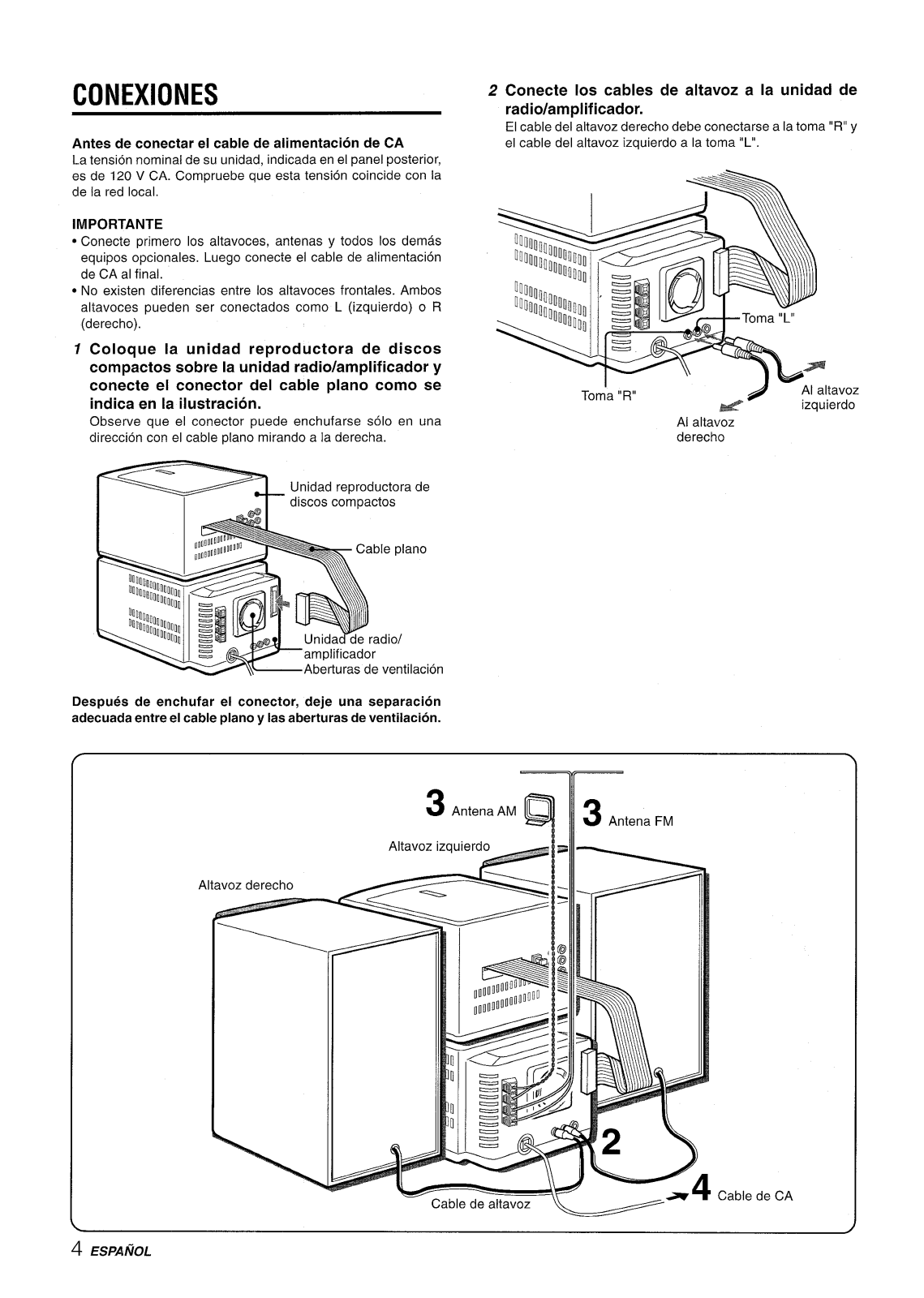

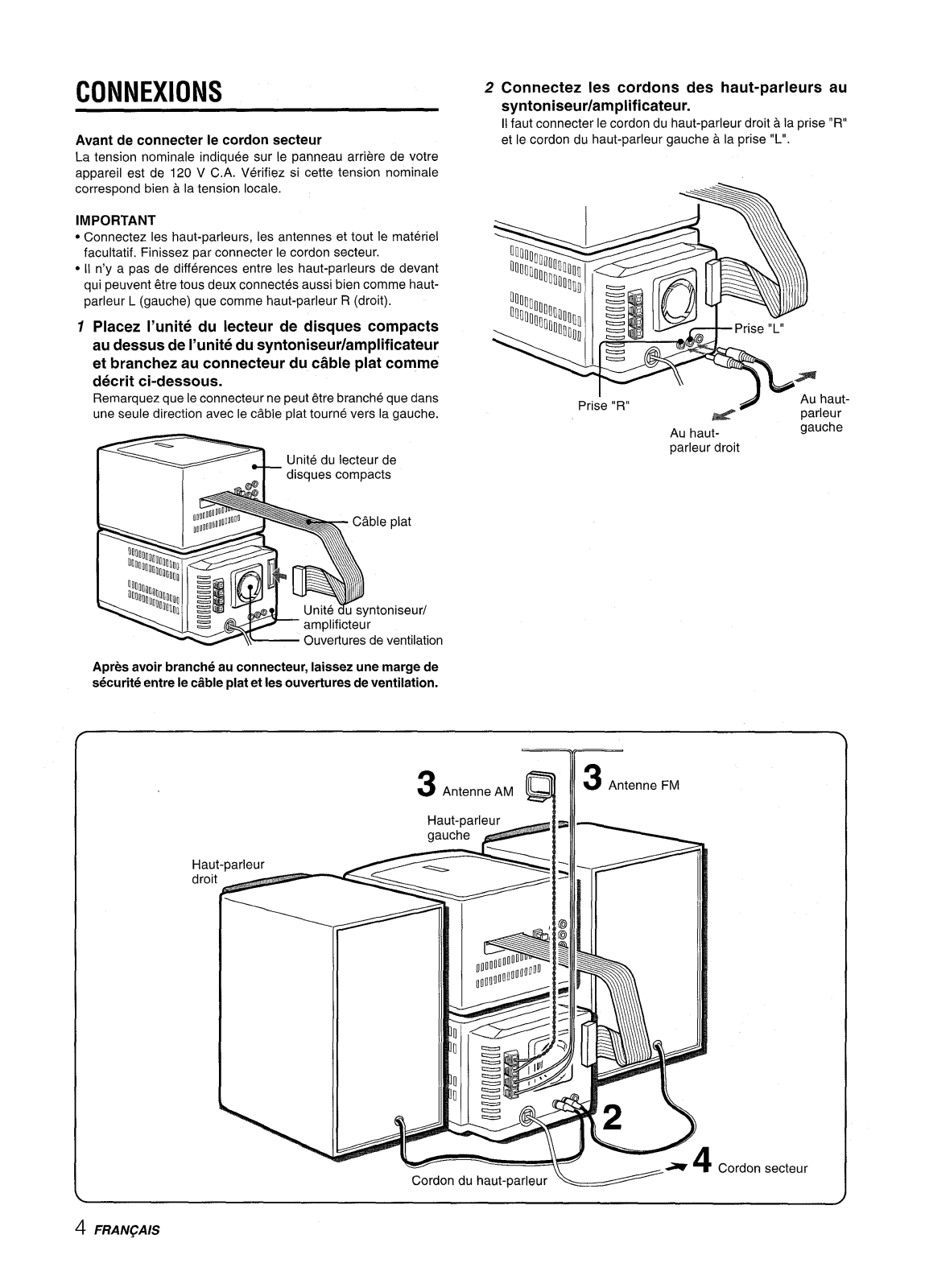

CONNECTIONS

Before connecting the AC cord

The rated voltage of your system shown on the rear panel is 120

V AC. Check that the rated voltage matches your local voltage.

IMPORTANT

● Connect the speakers, antennas, and all optional equipment

first. Then connect the AC cord in the end.

● There are no differences between the front speakers. Both

speakers can be connected as L (Left) or R (Right).

7 Place the CD player unit on top of the tuner/

amplifier unit and plug in the connector of the flat cable as shown below.

Note that the connector can be plugged in in only one direction with the flat cable facing right.

Connect the speaker cords to the tuner/amplifier

unit.

The speaker cord from the right speaker should be connected to the “R” jack and the cord from the left speaker to the “L jack.

~CD,la,erunit

After plugging in the connector, allow adequate clearance between the flat cable and the ventilation openings.

“R’’ijack

= # To the left

speaker

To the right speaker

4 ENGLISH

Rig

Speaker cord

G--

AC cord

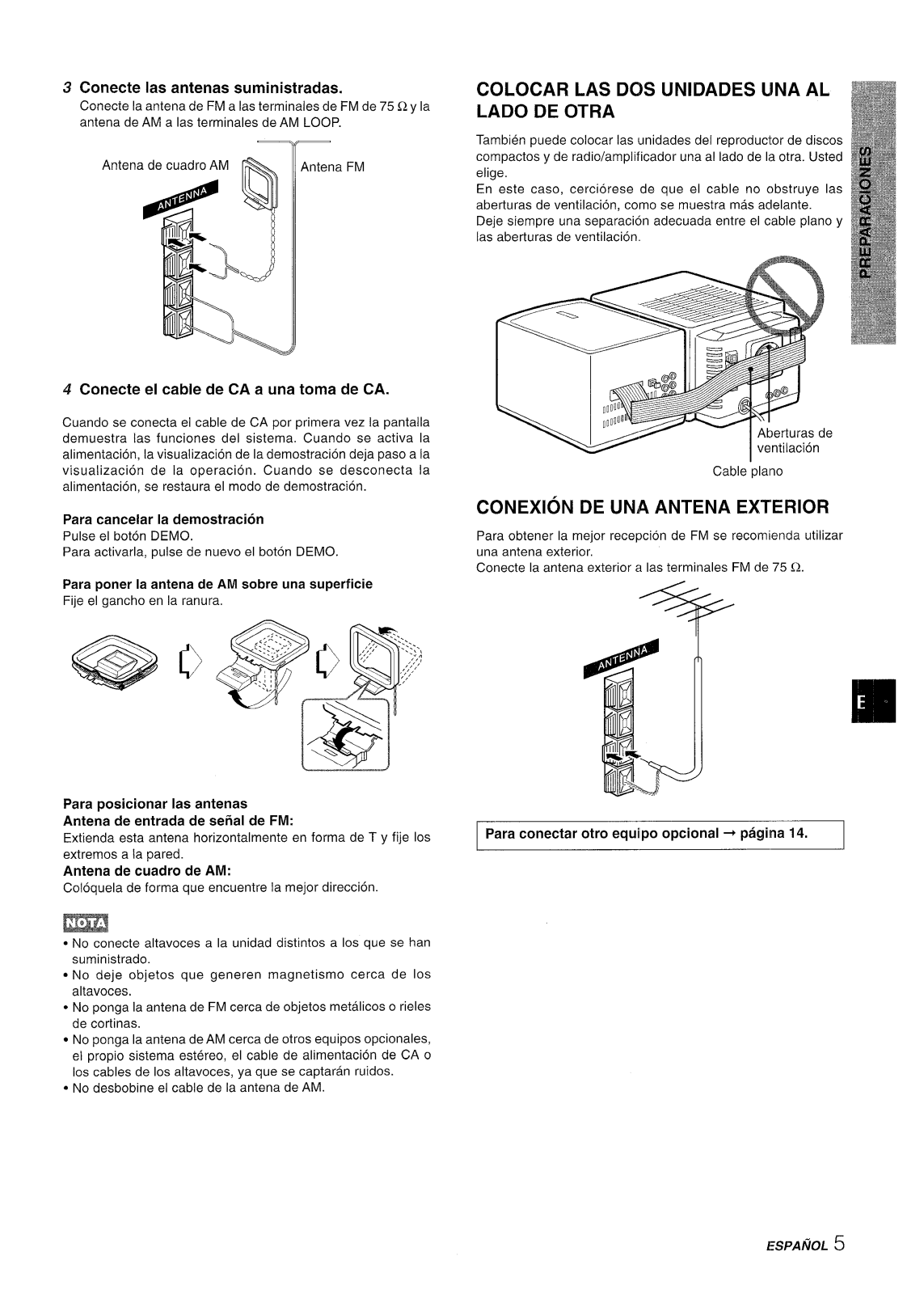

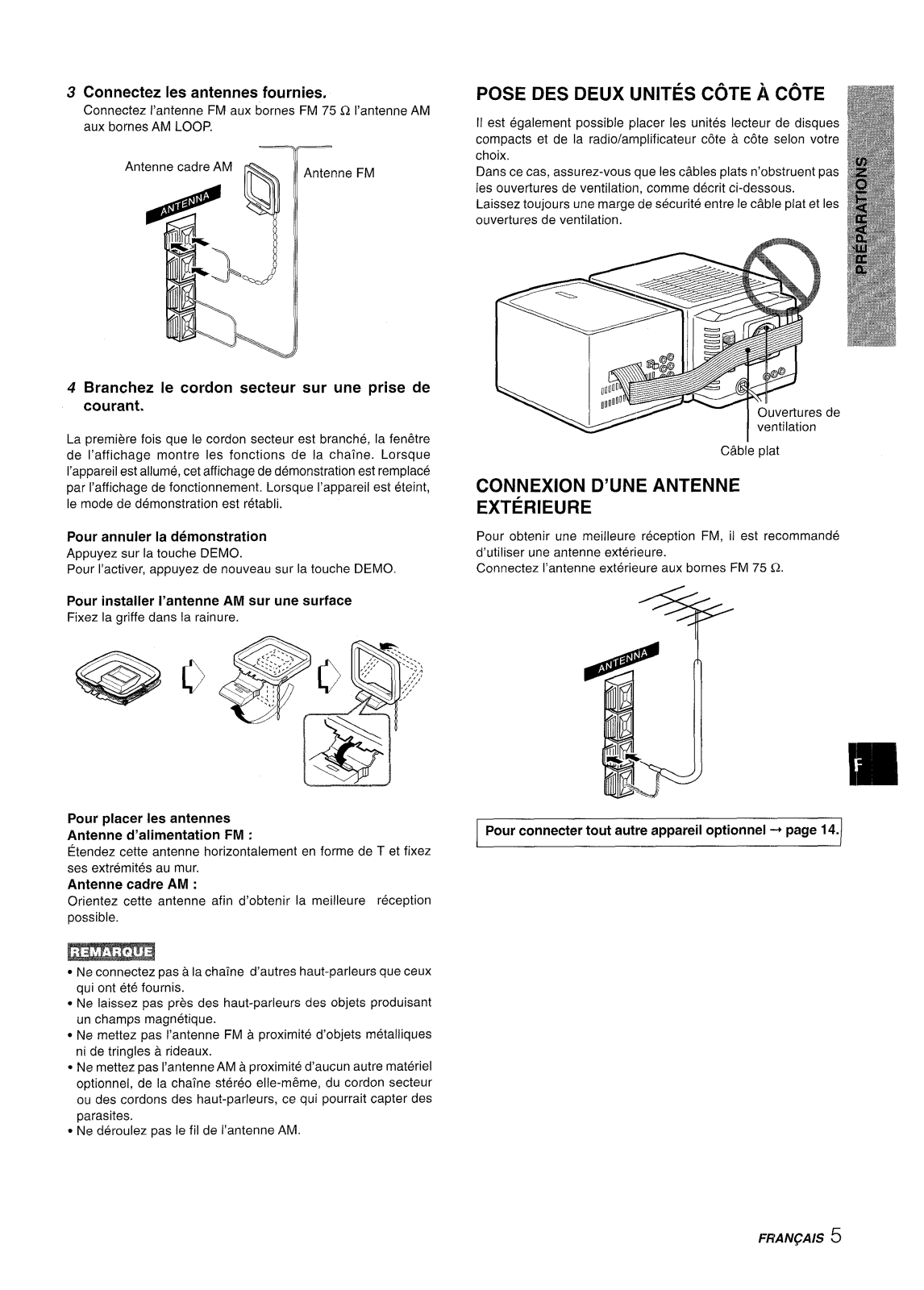

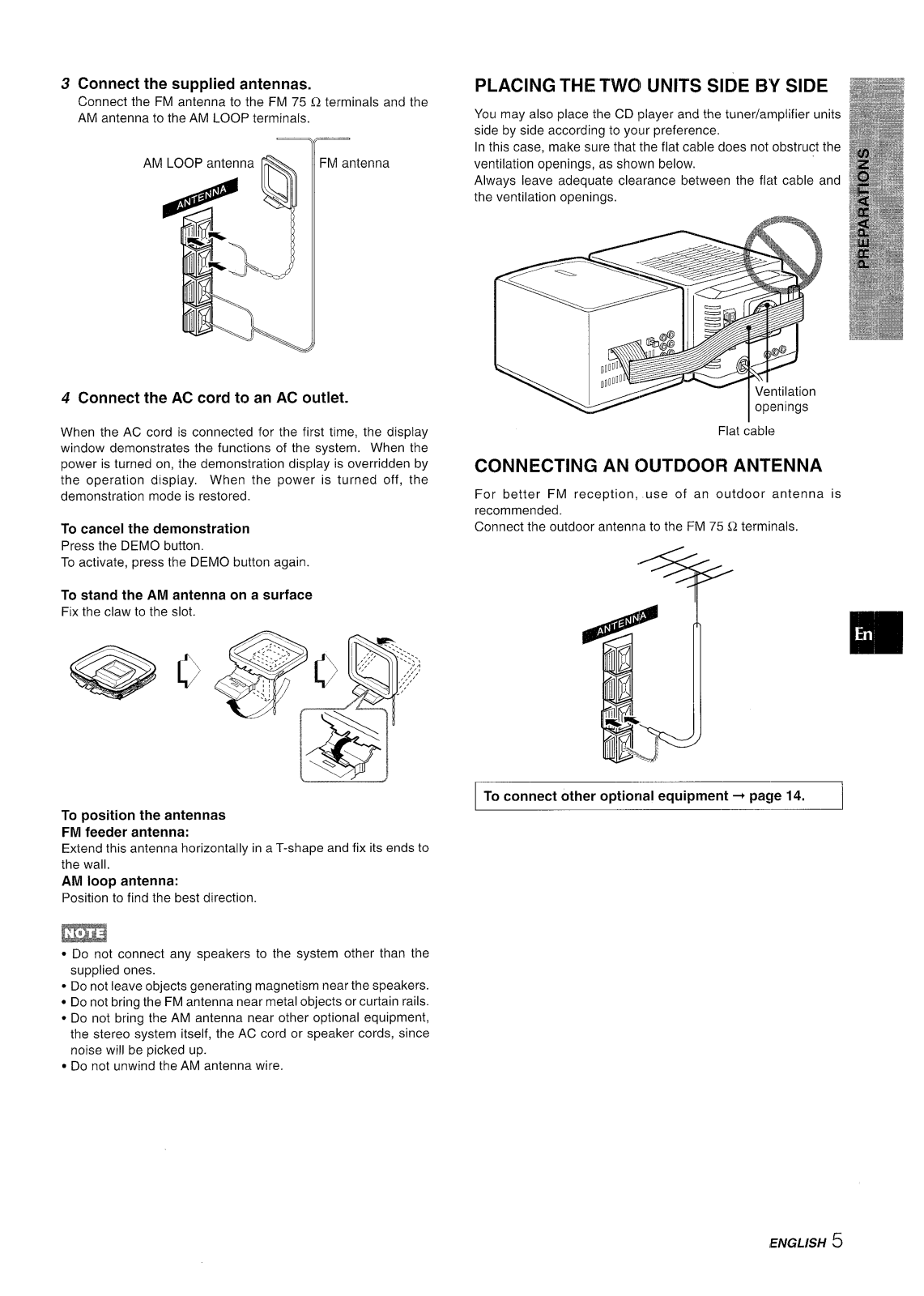

34Connect the supplied antennas.

Connect the FM antenna to the FM 75 Cl terminals and the

AM antenna to the AM LOOP terminals.

‘M antenna

Connect the AC cord to an AC outlet.

PLACING THE TWO UNITS SIDE BY SIDE

You may also place the CD player and the tuner/arnplifier units side by side according to your preference. In this case, make sure that the flat cable does not obstruct the ventilation openings, as shown below. Always leave adequate clearance between the flat cable and the ventilation openings.

When the AC cord is connected for the first time, the display window demonstrates the functions of the system. When the power is turned on, the demonstration display is overridden by the operation display. When the power is turned off, the demonstration mode is restored.

To cancel the demonstration

Press the DEMO button. To activate, press the DEMO button again.

To stand the AM antenna on a surface Fix the claw to the slot.

To position the antennas

FM feeder antenna:

Extend this antenna horizontally in a T-shape and fix its ends to the wall. AM loop antenna:

Position to find the best direction.

Flat cable

CONNECTING AN OUTDOOR ANTENNA

For better FM reception, use of an outdoor antenna is recommended. Connect the outdoor antenna to the FM 75 Q terminals.

I To connect other optional equipment + page 14. I

c Do not connect any speakers to the system other than the

supplied ones.

● Do not leave objects generating magnetism near the speakers.

● Do not bring the FM antenna near metal objects or curtain rails.

● Do not bring the AM antenna near other optional equipment,

the stereo system itself, the AC cord or speaker cords, since

noise will be picked up.

s Do not unwind the AM antenna wire.

IENGLISH 5

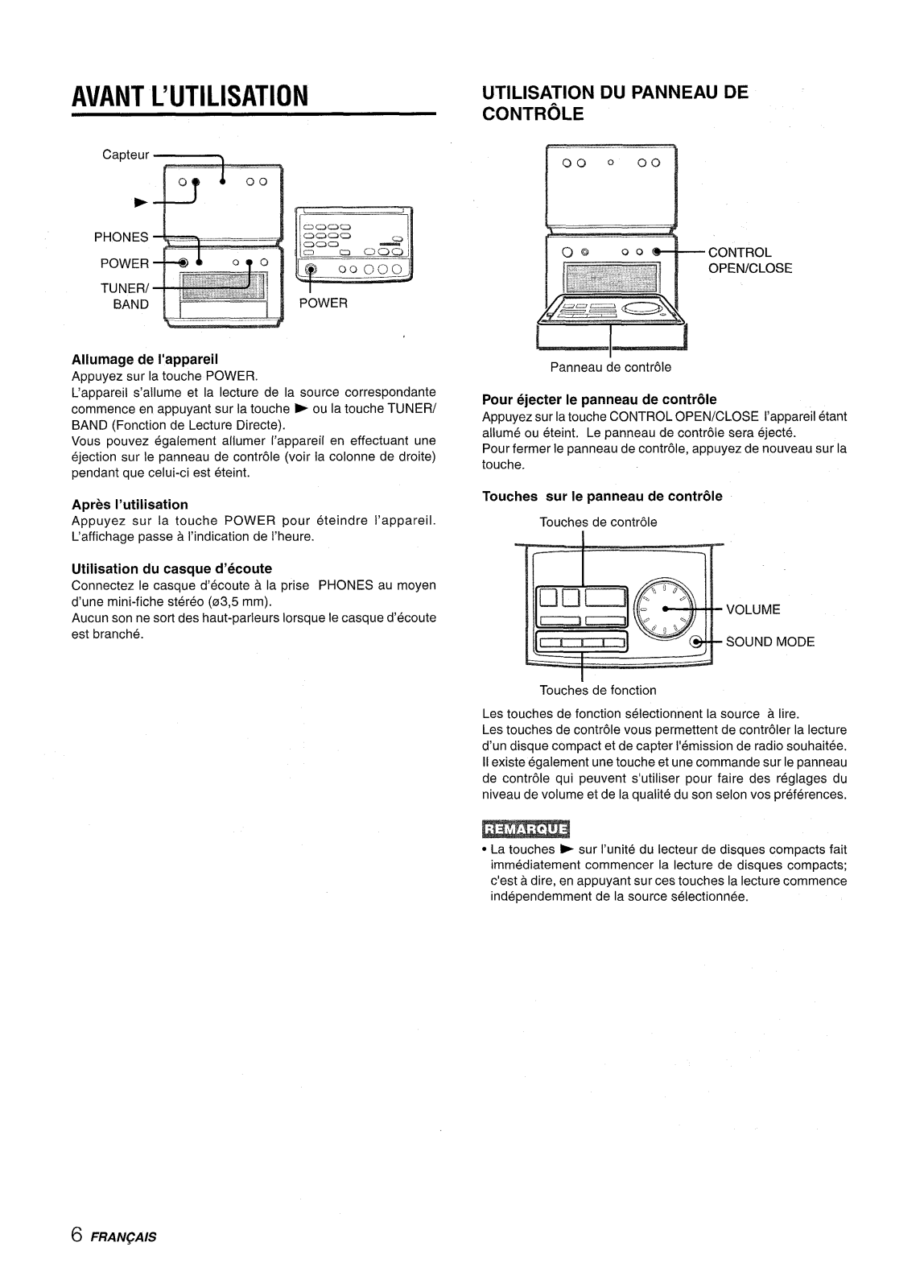

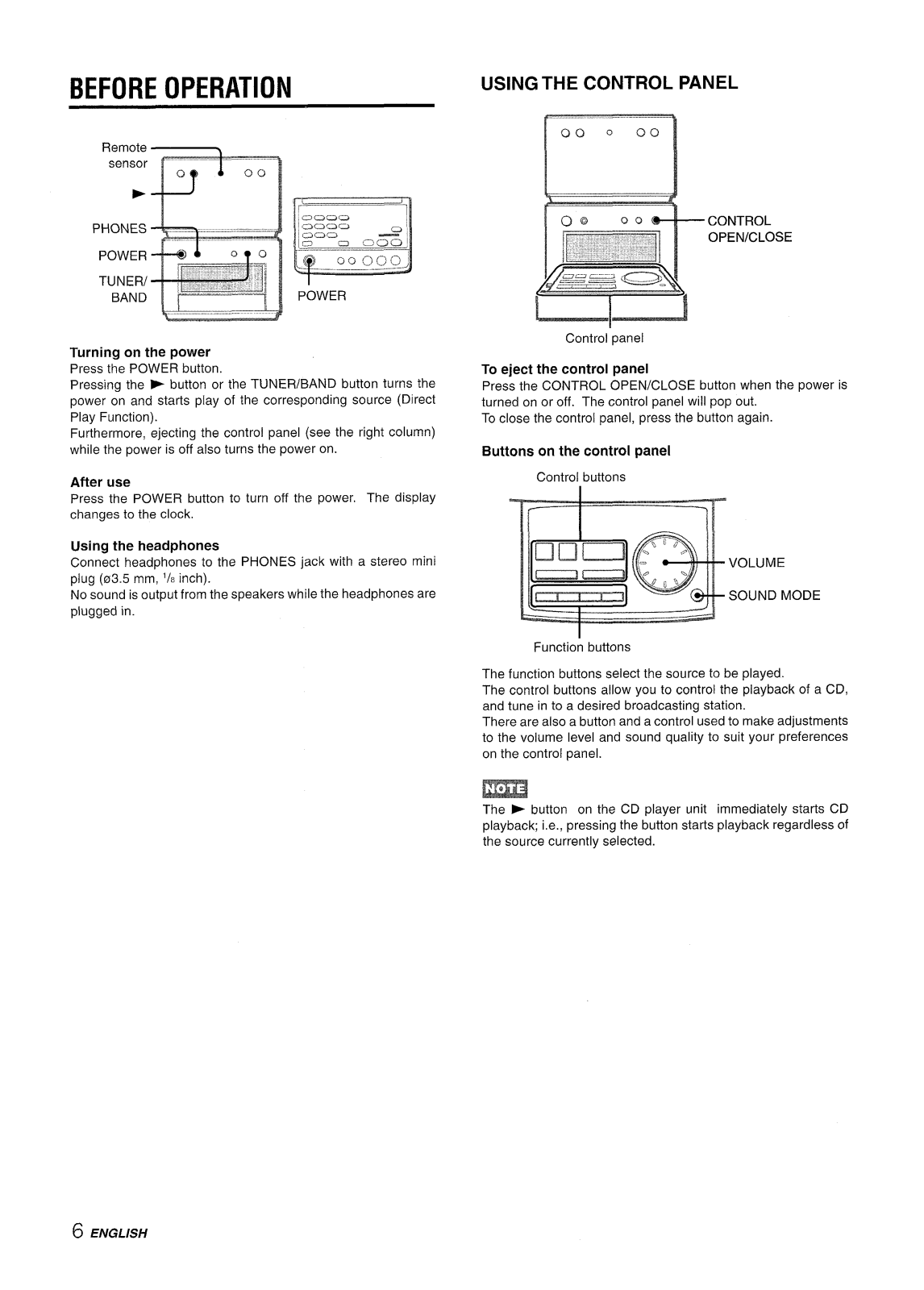

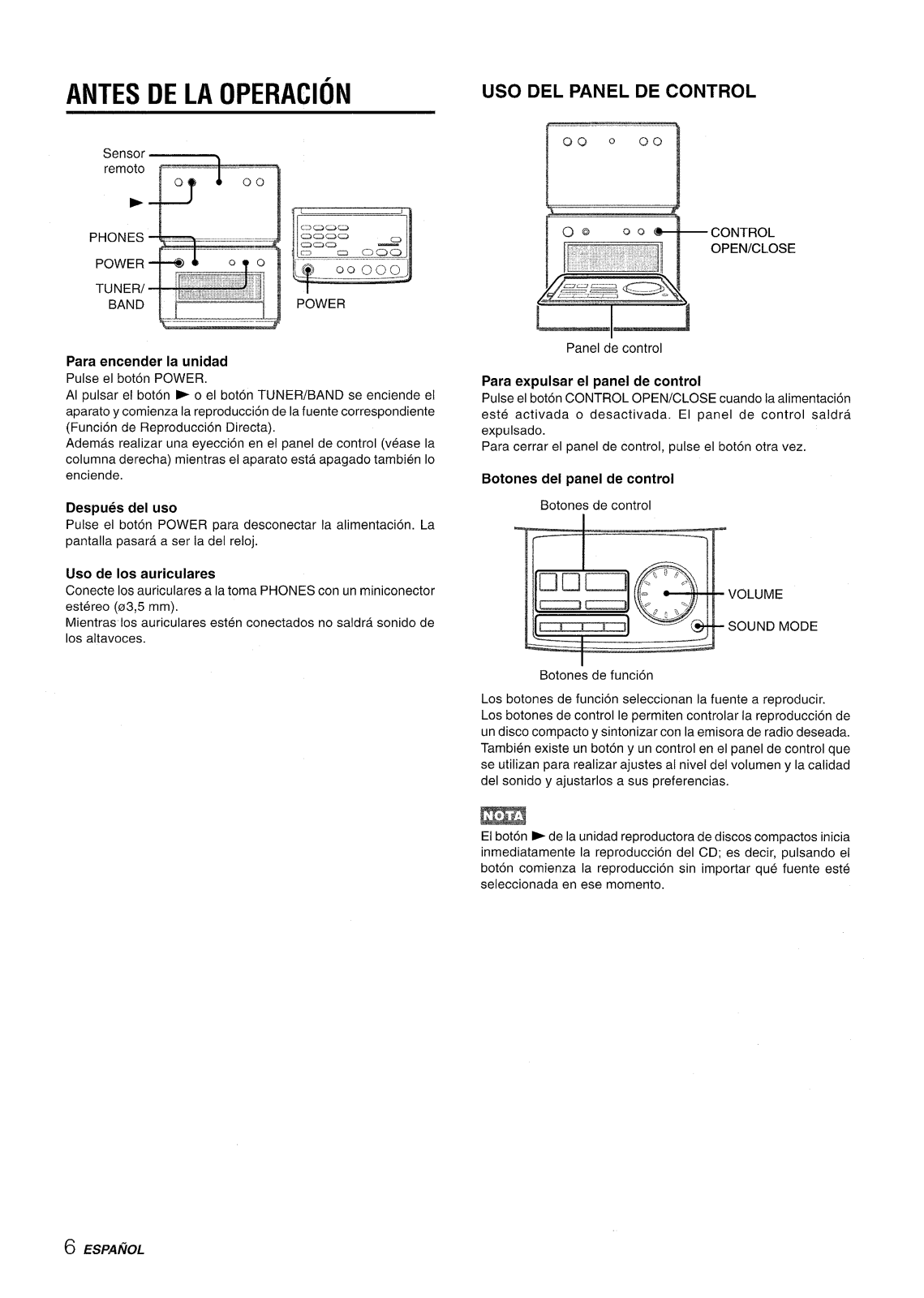

BEFORE OPERATION

Remote

sensor

USING THE CONTROL PANEL

POWER

Turning on the power

Press the POWER button. Pressina the F button or the TUNER/BAND button turns the power ~n and starts play of the corresponding source (Direct Play Function). Furthermore, ejecting the control panel (see the right column)

while the power is off also turns the power on.

After use

Press the POWER button to turn off the power. The display

changes to the clock.

Using the headphones

Connect headphones to the PHONES jack with a stereo mini plug (@3.5 mm, ‘/a inch). No sound is output from the speakers while the headphones are plugged in.

Control panel

To eject the control panel

Press the CONTROL OPEN/CLOSE button when the power is turned on or off. The control panel will pop out. To close the control panel, press the button again.

Buttons on the control panel

Control buttons

11-- 11

VOLUME

SOUND MODE

Pi’”

Functio~ buttons

The function buttons select the source to be played.

The control buttons allow you to control the playback of a CD,

and tune in to a desired broadcasting station.

There are also a button and a control used to make adjustments

to the volume level and sound quality to suit your preferences

on the control panel.

6 ENGLISH

The > button on the CD player unit immediately starts CD

playback; i.e., pressing the button starts playback regardless of

the source currently selected.

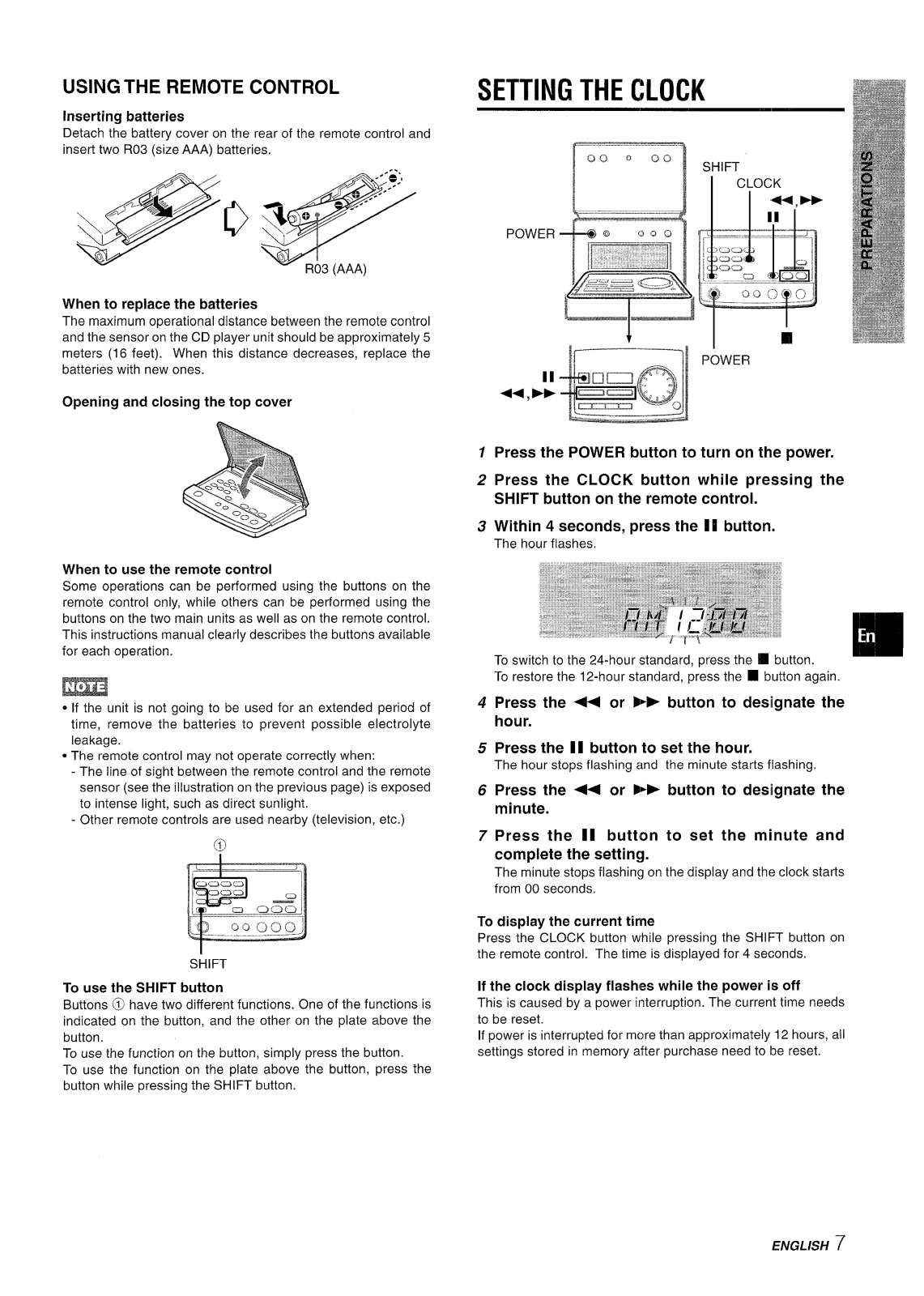

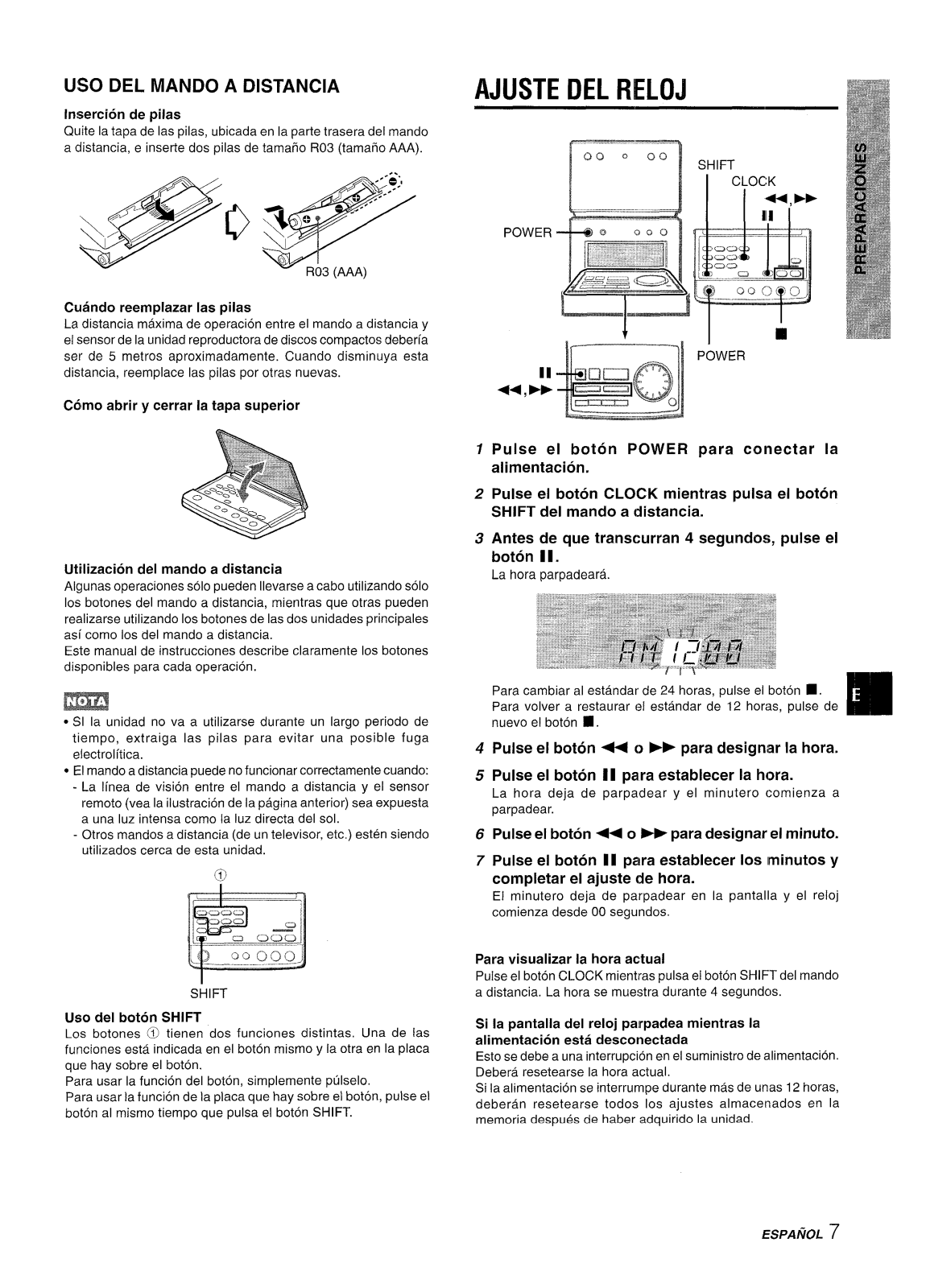

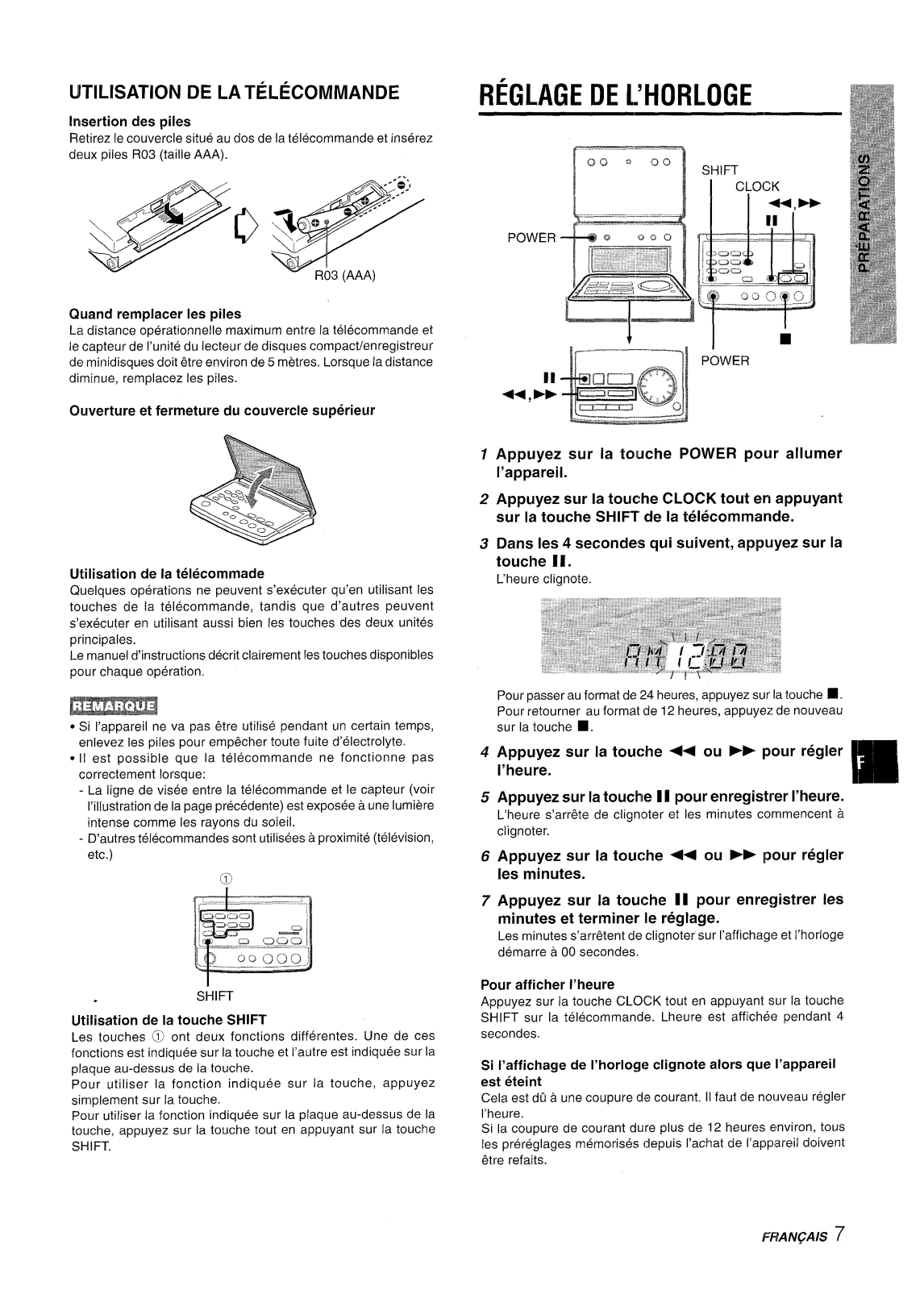

USING THE REMOTE CONTROL

Inserting batteries

Detach the battery cover on the rear of the remote control and insert two R03 (size AAA) batteries.

.;’0;8

&>”

1</

yo&

Q o

When to replace the batteries

The maximum operational distance between the remote control and the sensor on the CD player unit should be approximately 5 meters (16 feet). When this distance decreases, replace the batteries with new ones.

Opening and closing the top cover

e ‘“”””’”

R03 (AAA)

SETTING THE CLOCK

POWER

Press the POWER button to turn on the power.

Press the CLOCK button while pressing the SHIFT button on the remote control.

Within 4 seconds, press the I ~ button.

The hour flashes,

When to use the remote control

Some operations can be performed using the buttons on the

remote control only, while others can be performed using the buttons on the two main units as well as on the remote control. This instructions manual clearly describes the buttons available for each operation.

● If the unit is not going to be used for an extended period of

time, remove the batteries to prevent possible electrolyte leakage.

● The remote control may not operate correctly when:

- The line of sight between the remote control and the remote sensor (see the illustration on the previous page) is exposed to intense light, such as direct sunlight.

- Other remote controls are used nearby (television, etc.)

————-

CJLJL.JU

~aa

–= i

Oo(joo”

{’l._ ..__.._

–-J

SHIFT

To use the SHIFT button

Buttons O have two different functions. One of the functions is indicated on the button, and the other on the plate above the

button. To use the function on the button, simply press the button. To use the function on the plate above the button, press the

button while pressing the SHIFT button.

To restore the 12-hour standard, p~ess the

Press the <+ or b+ button to designate the

hour. Press the 11 button to set the hour.

The hour stops flashing and the minute starts flashing.

Press the ++ or B+ button to designate the

minute. Press the II button to set the minute and

complete the setting.

The minute stops flashing on the display and the clock starts from 00 seconds,

To display the current time

Press the CLOCK button while pressing the SHIF:T button on the remote control. The time is displayed for 4 seconds.

If the clock display flashes while the power is off This is caused by a power interruption. The current time needs to be reset. If power is interrupted for more than approximately 12 hours, all settings stored in memory after purchase need to Ibe reset.

■ button again.

ENGLISH 7

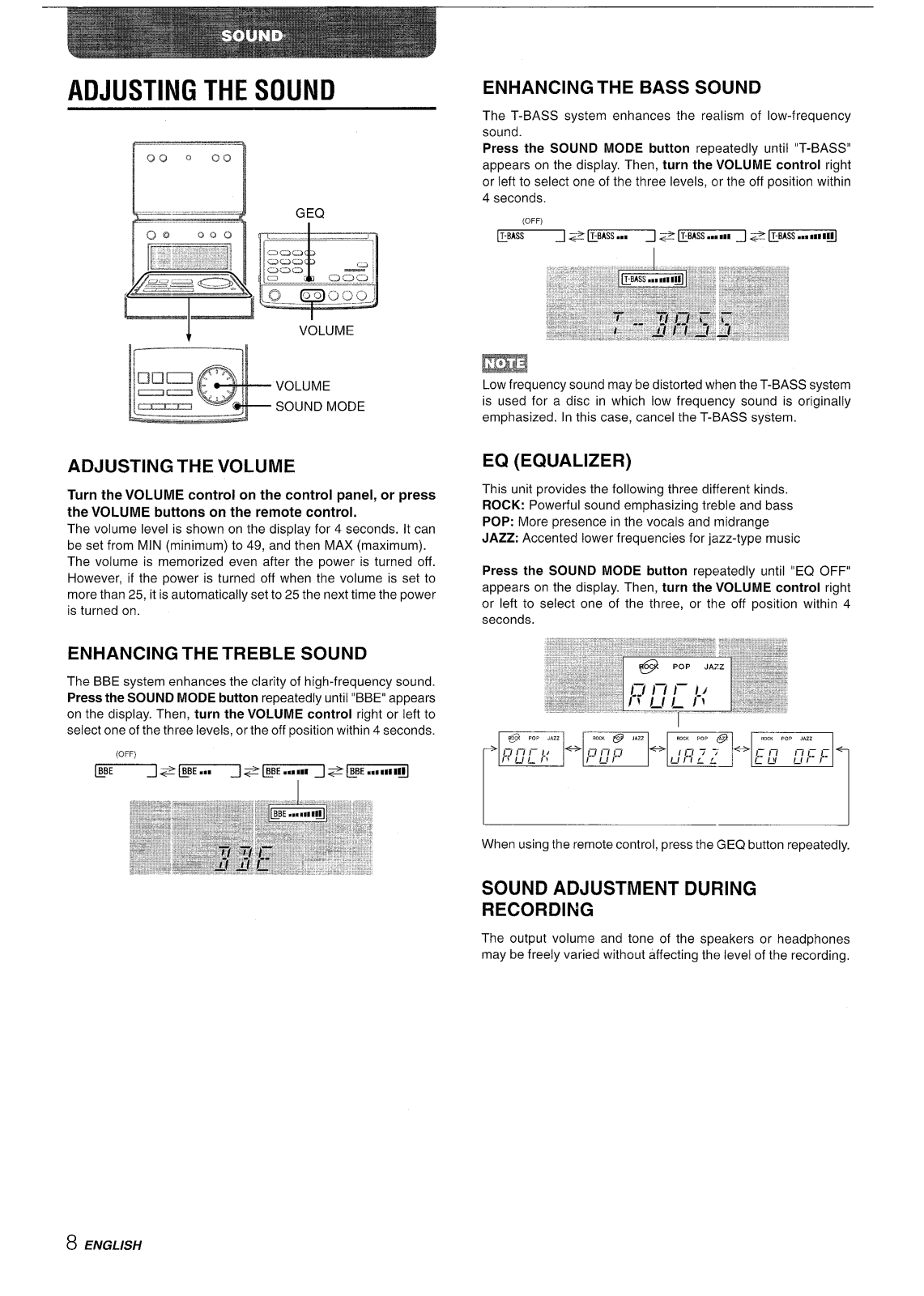

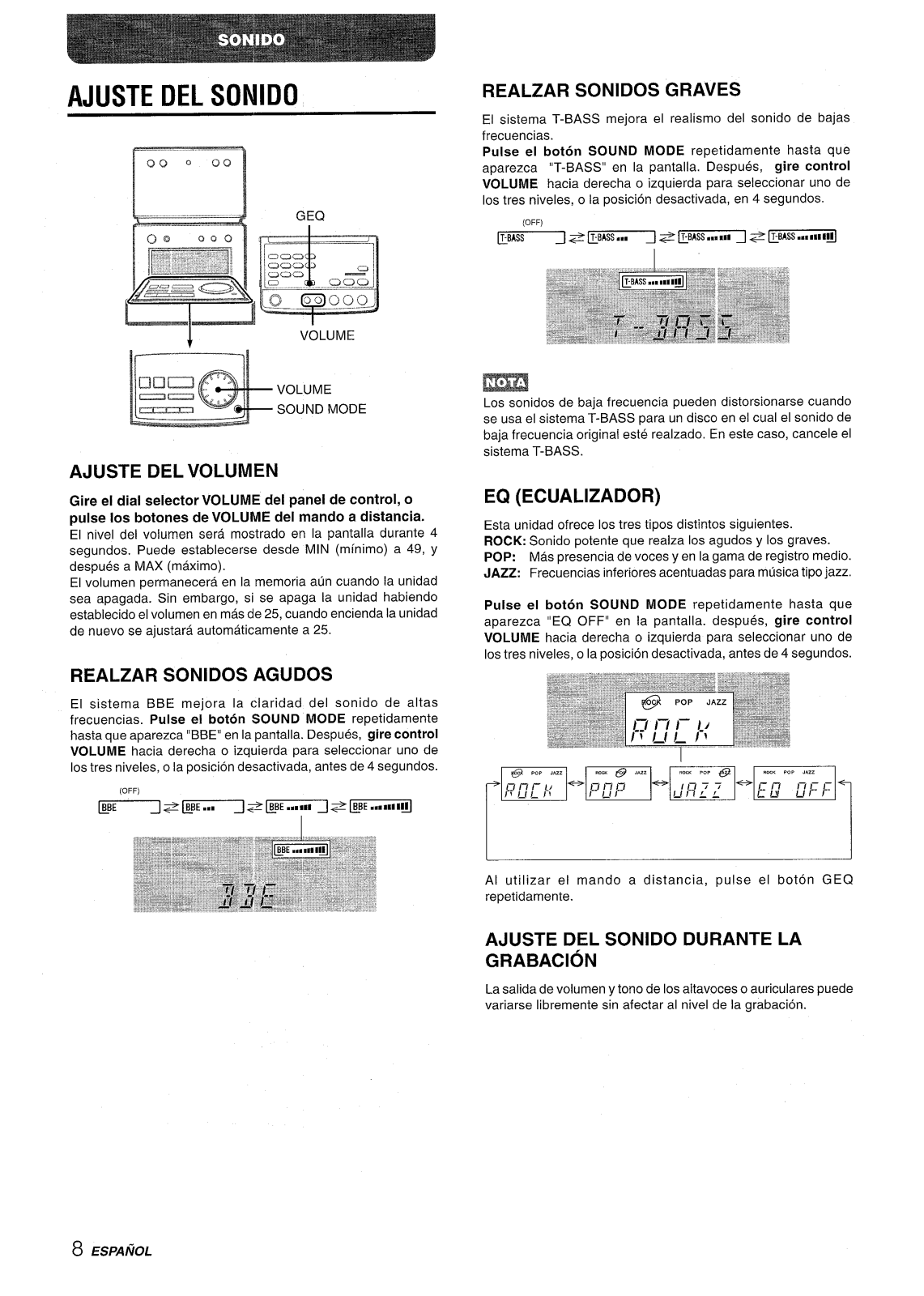

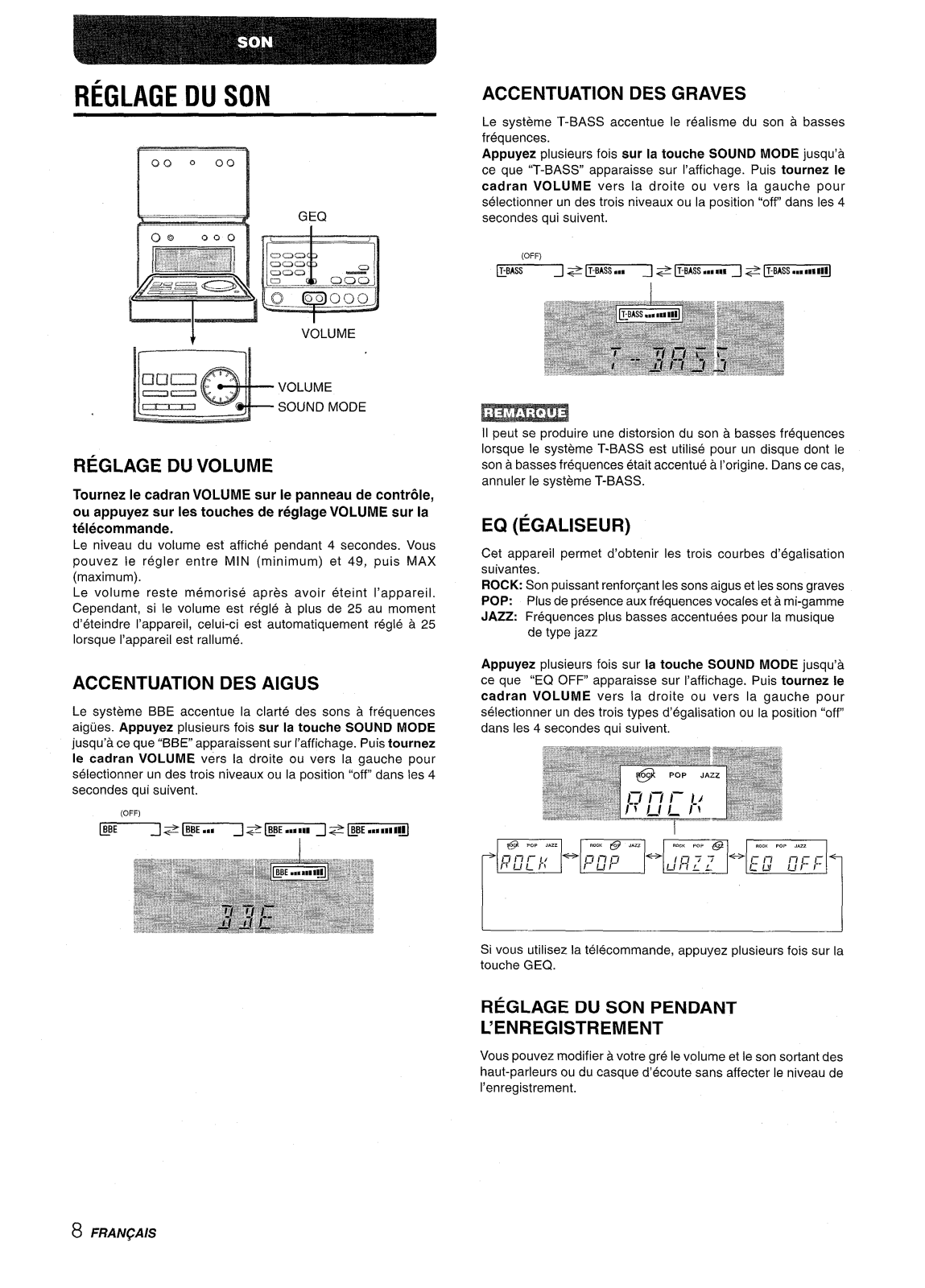

ADJUSTING THE SOUND

.—__ ___

ENHANCING THE BASS SOUND

The T-BASS system enhances the realism of low-frequency sound.

Press the SOUND MODE button repeatedly until “T-BASS” appears on the display. Then, turn the VOLUME control right or left to select one of the three levels, or the off position within 4 seconds.

(OFF)

~BAss

~ T-BASS... ~ T-BASS... m ~ T-BASS... m III

Low frequency sound may be distorted when the T-BASS system is used for a disc in which low frequency sound is originally emphasized. In this case, cancel the T-BASS system.

ADJUSTING THE VOLUME

Turn the VOLUME control on the control panel, or press

the VOLUME buttons on the remote control.

The volume level is shown on the display for 4 seconds. It can be set from MIN (minimum) to 49, and then MAX (maximum). The volume is memorized even after the power is turned off. However, if the power is turned off when the volume is set to more than 25, it is automatically set to 25 the next time the power is turned on.

ENHANCING THE TREBLE SOUND

The BBE system enhances the clarity of high-frequency sound.

Press the SOUND MODE button repeatedly until “BBE” appears on the display. Then, turn the VOLUME control right or left to select one of the three levels, or the off position within 4 seconds.

(OFF)

EE_’_7~L~J~@==’IJaL-l

EQ (EQUALIZER)

This unit provides the following three different kinds. ROCK: Powerful sound emphasizing treble and bass POP: More presence in the vocals and midrange JAZZ: Accented lower frequencies for jazz-type music

Press the SOUND MODE button repeatedly until “EQ OFF” appears on the display. Then, turn the VOLUME control right or left to select one of the three, or the off position within 4

seconds.

When using the remote control, press the GEQ button repeatedly.

SOUND ADJUSTMENT DURING RECORDING

8 ENGLISH

The output volume and tone of the speakers or headphones may be freely varied without affecting the level of the recording,

MANUAL TUNING

TUNER/

BAND

[l-----n

When an

Press the MODE TUNER button while pressing the SHIFT button on the remote control, “MONO” appears on the display. Noise is reduced, although reception is monaural,

To restore stereo reception, repeat the above again,

TUNER/ BAND

The default setting of the AM tuning interval is 10 kHz/step. If you use this unit in an area where the frequency allocation system is 9 kHz/step, change the tuning interval. Press the POWER button while pressing the T~JNER/BAND button,

To reset the interval, repeat this procedure.

FM stereo broadcast contains noise

change the AM tuning interval

BAND

Press the TUNER/BAND button repeatedly to select the desired band.

FM -AM

( J

If the power is turned off, the previously tuned station will be played (Direct Play Function).

Press the l++ or

button) to select a station.

Each time the button is pressed, the frequency changes. When a station is received, “TUNE” is displayed for a moment. During FM stereo reception, [1[~1)) is displayed.

1[1011)

search for a station quickly (Auto Search)

Keep the 1<< or ➤>1 button (or the ++ / ➤> button) pressed until the tuner starts searching for a station. After tuning in to a station, the search stops, To stop the Auto Search manually, press the 1<< or (or the + /

● The Auto Search may not stop at stations with very weak

signals.

➤- button),

➤>1 button (or the +< / ➤-

➤>1 button

When the AM tuning interval is changed, all preset stations (see “PRESETTING STATIONS”) are cleared. The preset stations have to be set again.

ENGLISH 9

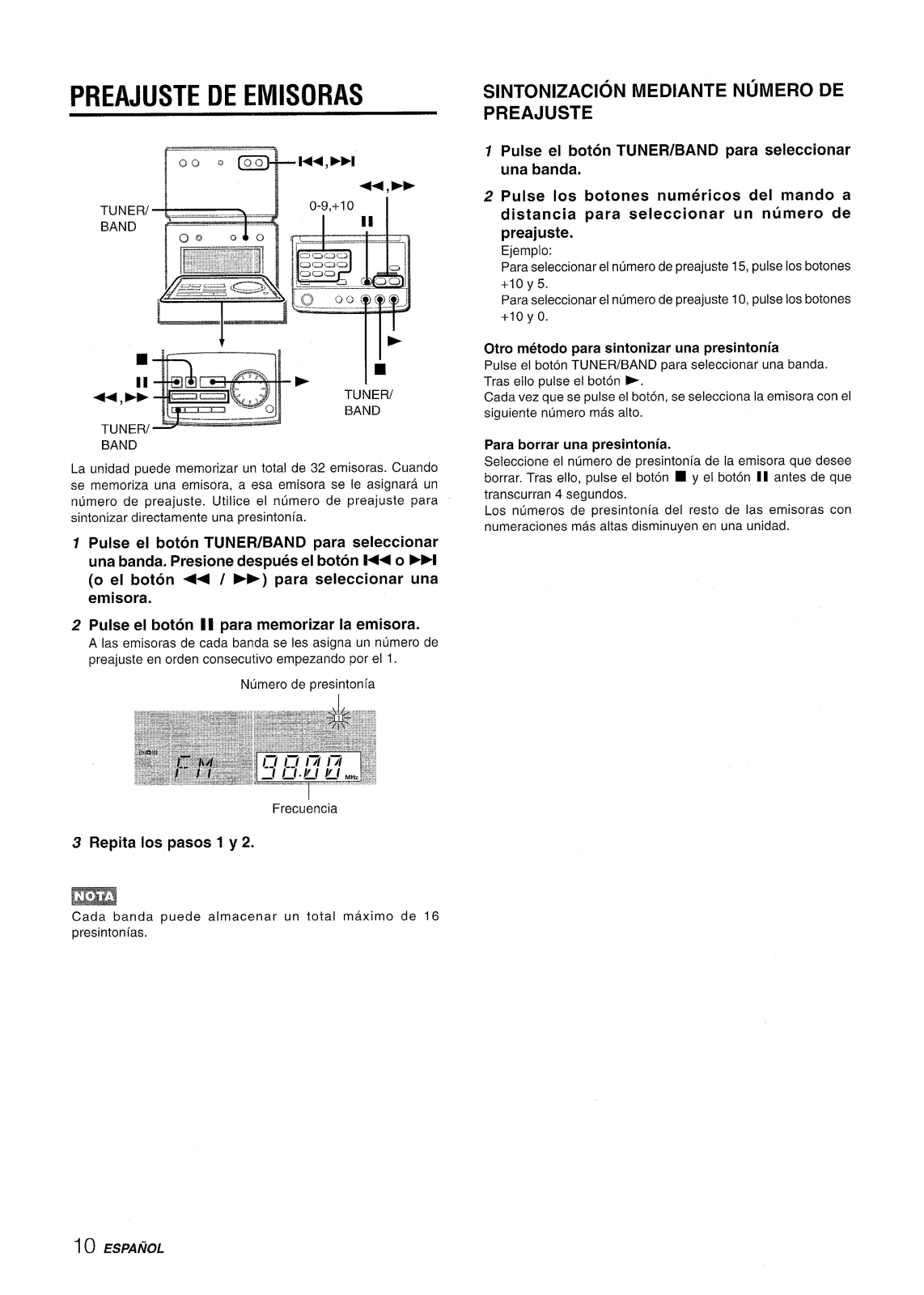

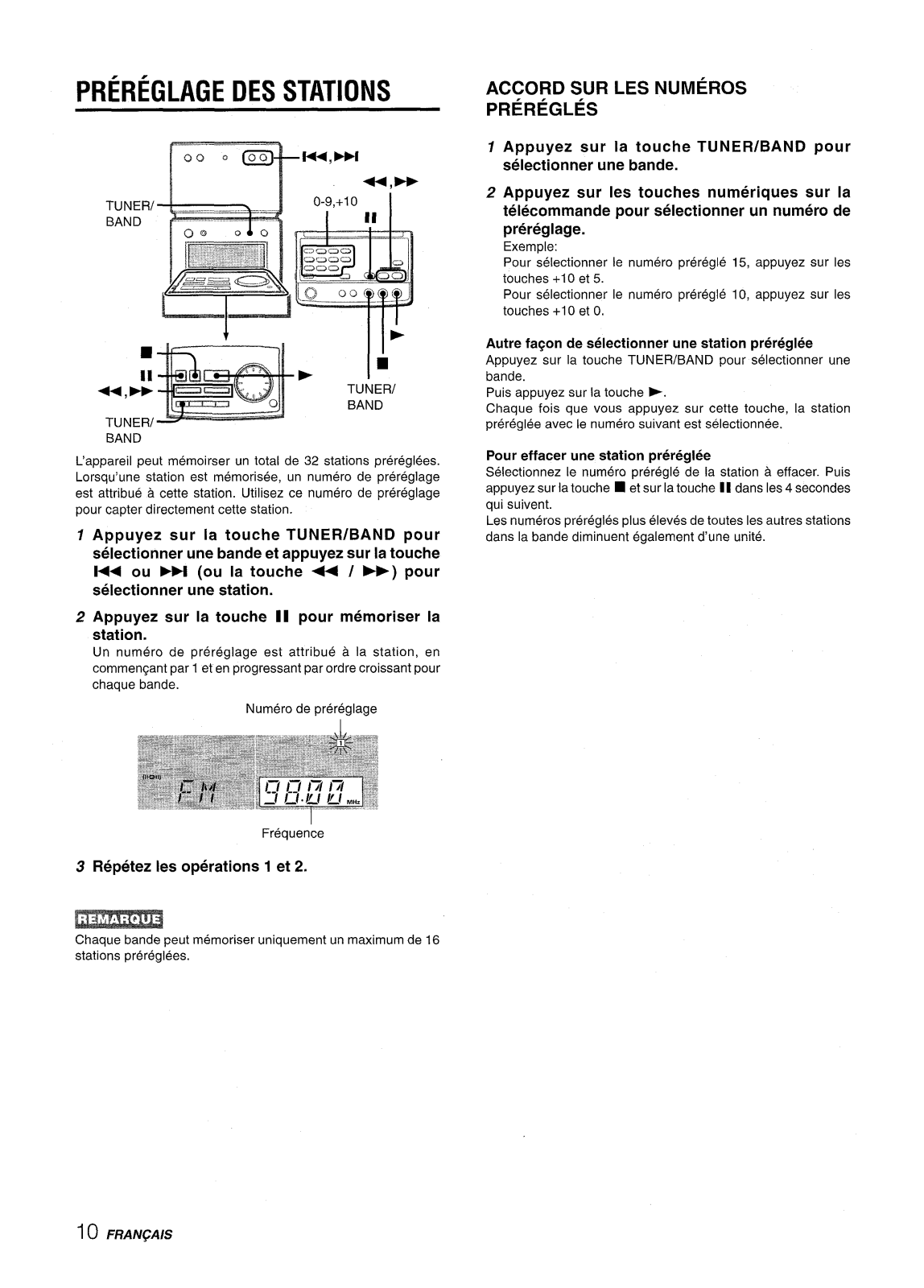

PRESETTING STATIONS

■

u,>b

TUNER/

BAND

The unit can store a total of 32 preset stations. When a station

is stored, a preset number is assigned to the station. Use the

preset number to tune in to a preset station directly.

1 Press the TUNER/BAND button to select a band.

Then, press the K+ or ➤PI button (or the ++ /

~ button) to select a station.

■

TUNER/

BAND

PRESET NUMBER TUNING

1 Press the TUNER/BAND button to select a band.

Press the numbered buttons on the remote

control to select a preset number.

Example: To select preset number 15, press the +10 and 5 buttons.

To select preset number 10, press the +10 and O buttons,

Another method to tune in to a preset station

Press the TUNER/BAND button to select a band. Then press the E button. Each time the button is pressed, the station with the next higher number is selected.

To clear a preset station

Select the preset number of the station to be cleared. Then, press

■ button, and press the II button within 4 seconds.

the The preset numbers of all other stations in the band with higher numbers are also decreased by one.

2 Press the 11 button to store the station.

A station is assigned a preset number, beginning from 1 in consecutive order for each band.

Preset number

Frequency

3 Repeat steps 1 and 2.

Each band can only store a maximum of 16 preset stations.

1() ENGLISH

OPERATION

REMAIN

To stop play, press the the I button.

To pause play, press the II button. To resume play, press again. To search for a particular point during playback, keep the

l<< or ➤Pl button (or the<</ - button) pressed and release

the button at the desired point. To skip to the beginning of a track during playback, press the 1<< or The system skips forward through the tracks with the ~ button,

and skips back with the 1<4 button.

To remove the disc, stop play and press the A OIPEN/CLOSE

button.

Other method to start play

Press the CD button on the control panel, load a dllsc, and then press the > button.

➤>1 button (or the < / ➤- button) repeatedly.

SHIFT

LOADING A DISC

Press the 4 OPEN/CLOSE button to open the disc compartment cover.

Load a disc with the label side up.

Press the A OPEN/CLOSE button again to close

the disc compartment cover.

Caution

Be sure not to put your fingers in the disc compartment while the disc compartment cover is closing.

PLAYING A DISC

Load a disc.

Press the F button on the front panel.

Play of the loaded CD begins with the first track immediately, regardless of the music source currently being selected.

Eye catcher

Display window in stop mode

Music calendar (only the first 16 tracks are displayed)

Total number of tracks

To start play when the power is off (Direct Play Function)

Press the * button on the front panel. The power is turned on and play of the loaded disc begins.

To check the remaining time

Press the REMAIN button while pressing the SHlf:T button on the remote control during play. The amount of time remaining until all tracks finish playing is displayed. To restore the play time display, repeat the above.

Total playing time

Selecting a track with the remote control

Press the numberd buttons and the +1 Obutton to select a track.

Example: To select the 25th track, press the +1 O, +10 and 5 buttons. To select the 10th track, press the +1 O and O buttons. The selected track starts to play and play continues to the end of that disc.

c Do not use irregular shape CDs (example: heart-shaped,

octagonal ones), It may result in malfunction.

● Do not load more than one compact disc in the disc

compartment.

Number of track being played

The eye catcher rotates while the disc is being played.

Elapsed playing time

EPIGL/SH 11

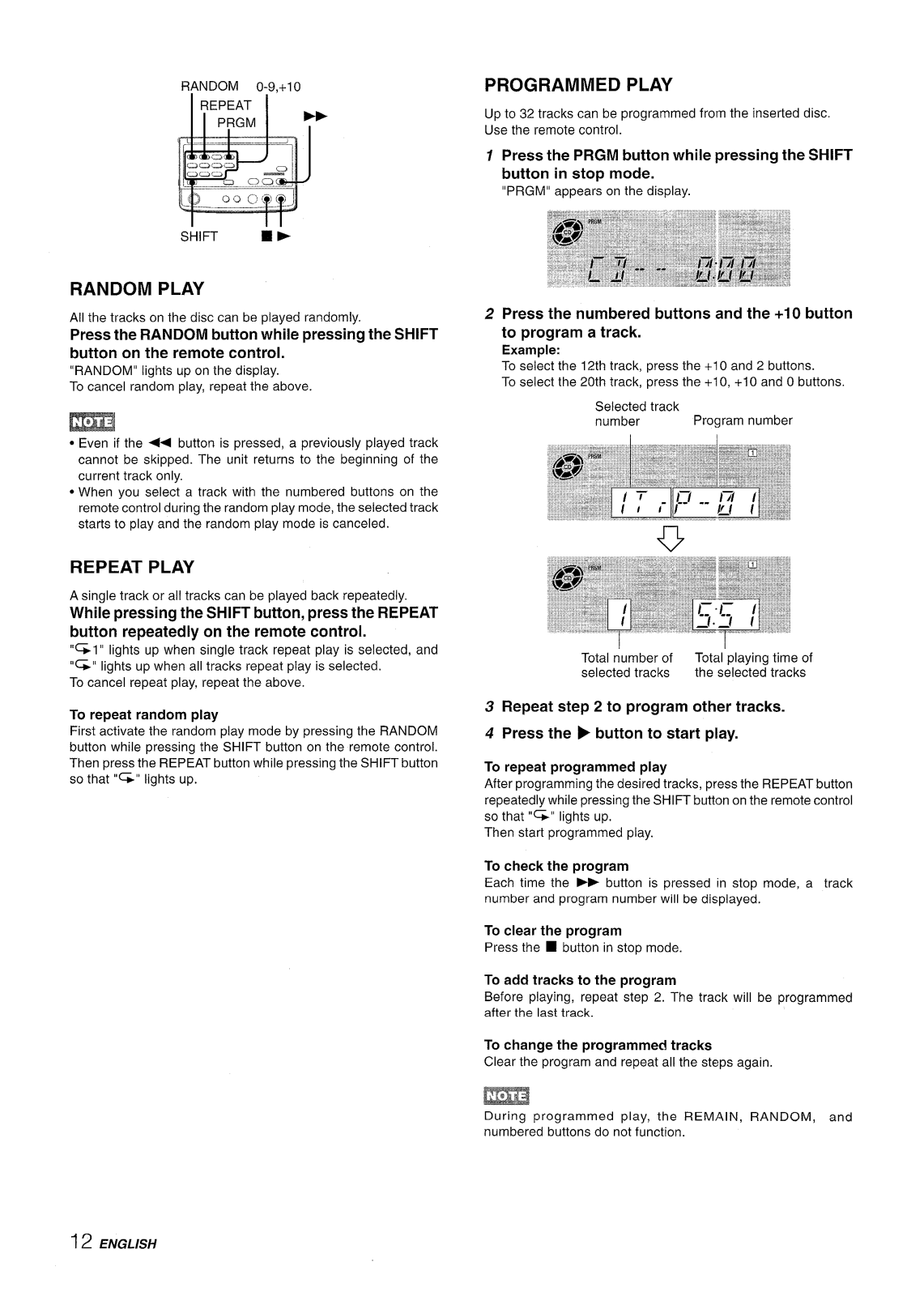

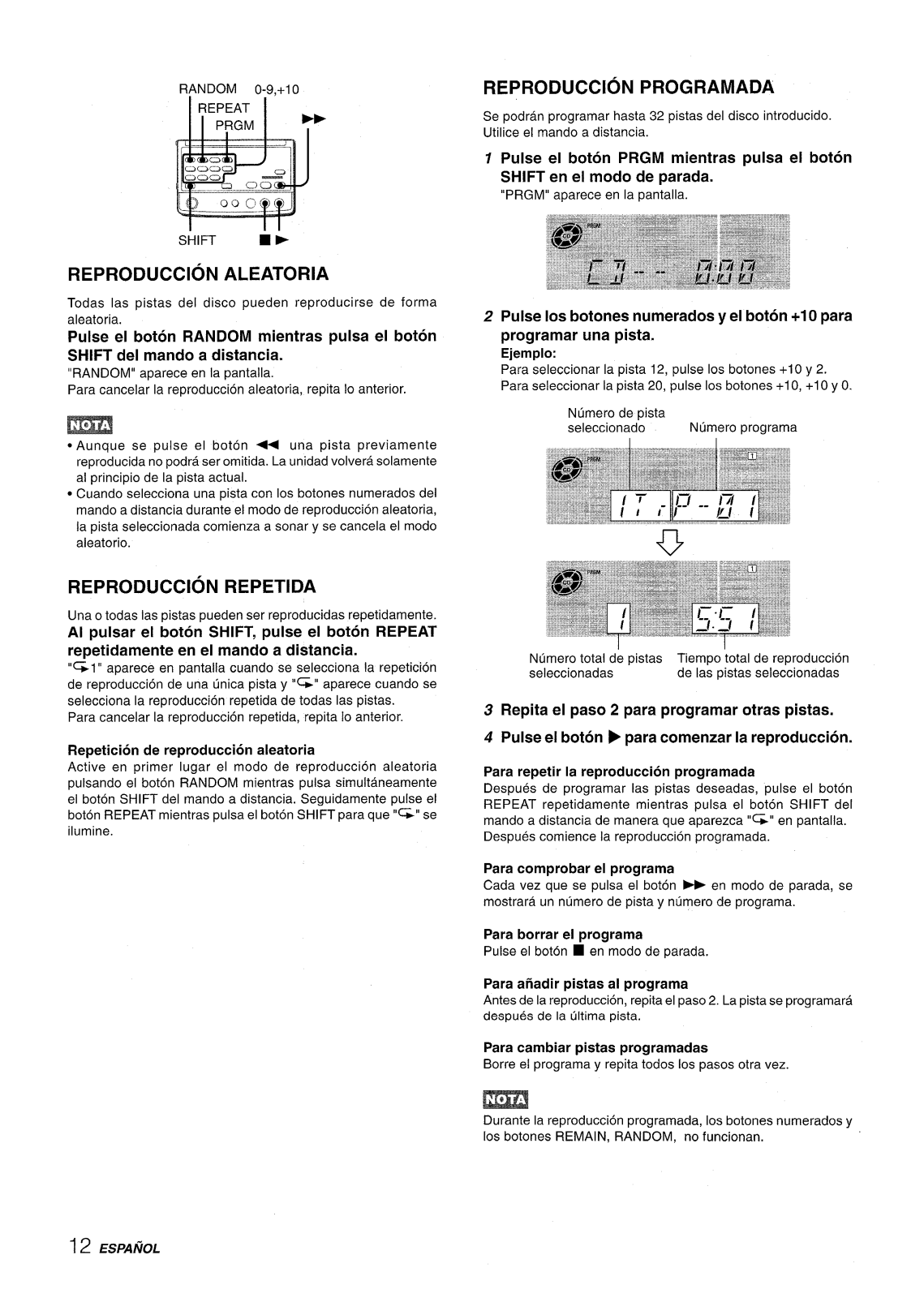

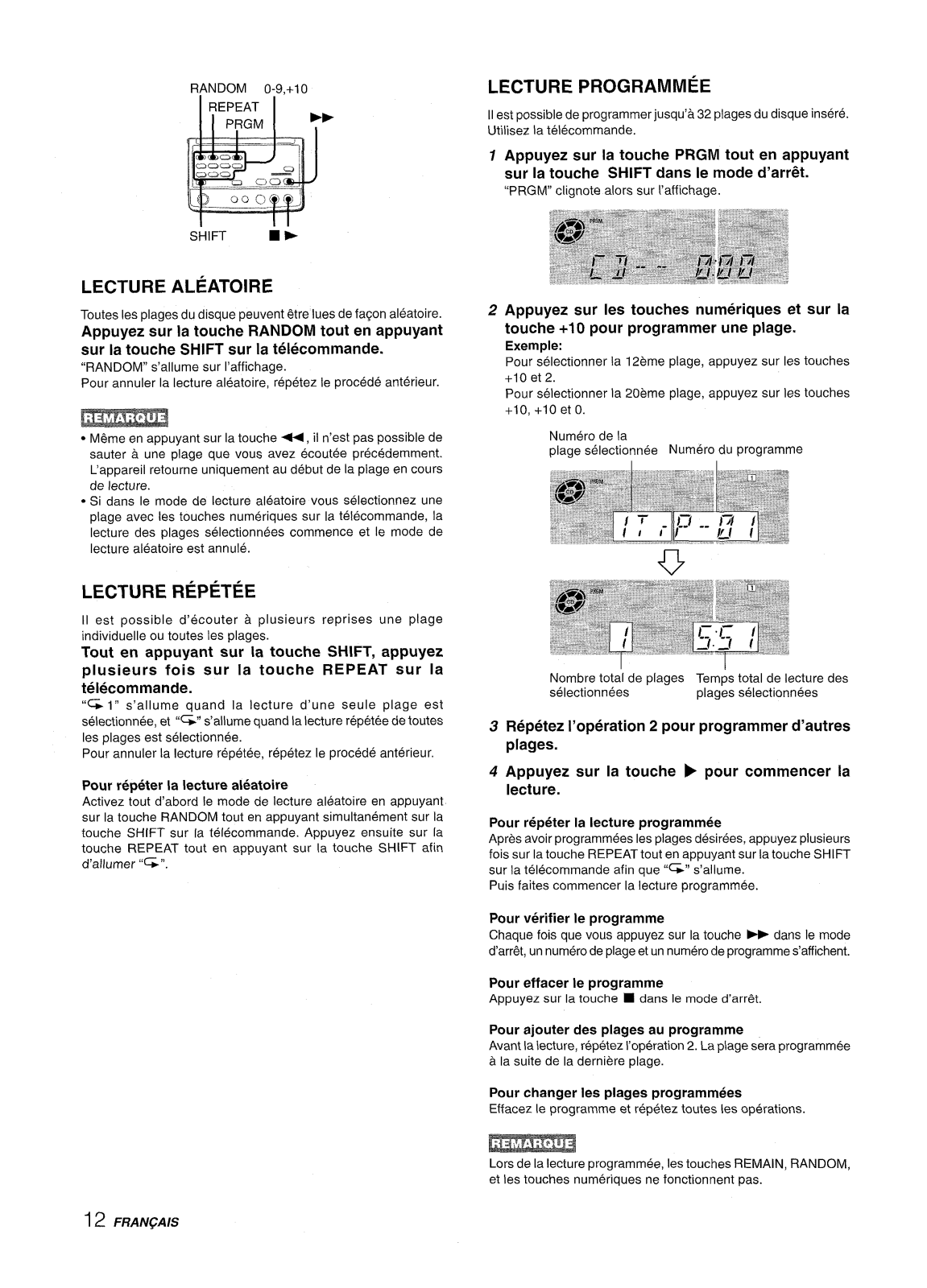

PROGRAMMED PLAY

Up to 32 tracks can be programmed from the inserted disc. Use the remote control.

1 Press the PRGM button while pressing the SHIFT

button in stop mode.

“PRGM” appears on the display.

SHIFT

❑ E

RANDOM PLAY

All the tracks on the disc can be played randomly.

Press the RANDOM button while pressing the SHIFT button on the remote control.

“RANDOM” lights up on the display.

To cancel random play, repeat the above.

● Even if the +< button is pressed, a previously played track

cannot be skipped. The unit returns to the beginning of the current track only.

● When you select a track with the numbered buttons on the

remote control during the random play mode, the selected track starts to play and the random play mode is canceled.

REPEAT PLAY

A single track or all tracks can be played back repeatedly. While pressing the SHIFT button,

button repeatedly on the remote control.

lights up when single track repeat play is selected, and

“%1”

“~” lights up when all tracks repeat play is selected.

To cancel repeat play, repeat the above.

To repeat random play

First activate the random play mode by pressing the RANDOM button while pressing the SHIFT button on the remote control.

Then press the REPEAT button while pressing the SHIFT button

so that “%” lights up.

press the REPEAT

2 Press the numbered buttons and the +1 O button

to program a track.

Example: To select the 12th track, press the +1 O and 2 buttons. To select the 20th track, press the +1 O, +10 and O buttons,

Selected track number

Total number of selected tracks

Repeat step 2 to program other tracks.

4 Press the

➤button to start play.

To repeat programmed play

After programming the desired tracks, press the REPEAT button repeatedly while pressing the SHIFT button on the remote control so that “=” lights up. Then start programmed play.

Program number

Total’playing time of the selected tracks

12 ENGLISH

check the program

To Each time the ➤> button is pressed in stop mode, a track number and program number will be displayed.

To clear the program

Press the ■ button in stop mode.

To add tracks to the program Before playing, repeat step 2. The track will be programmed

after the last track.

To change the programmed tracks

Clear the program and repeat all the steps again.

During programmed play, the REMAIN, RANDOM, and numbered buttons do not function.

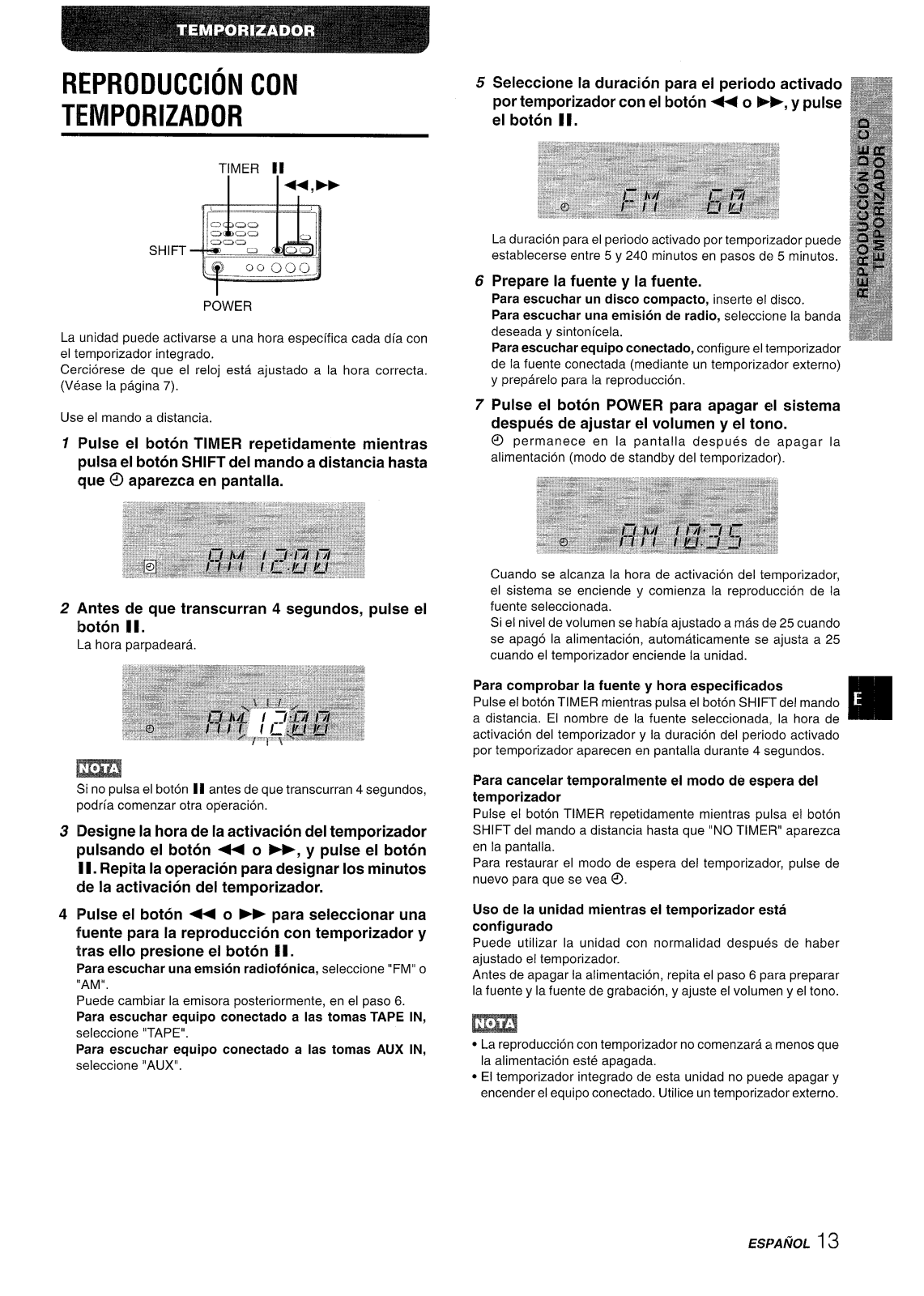

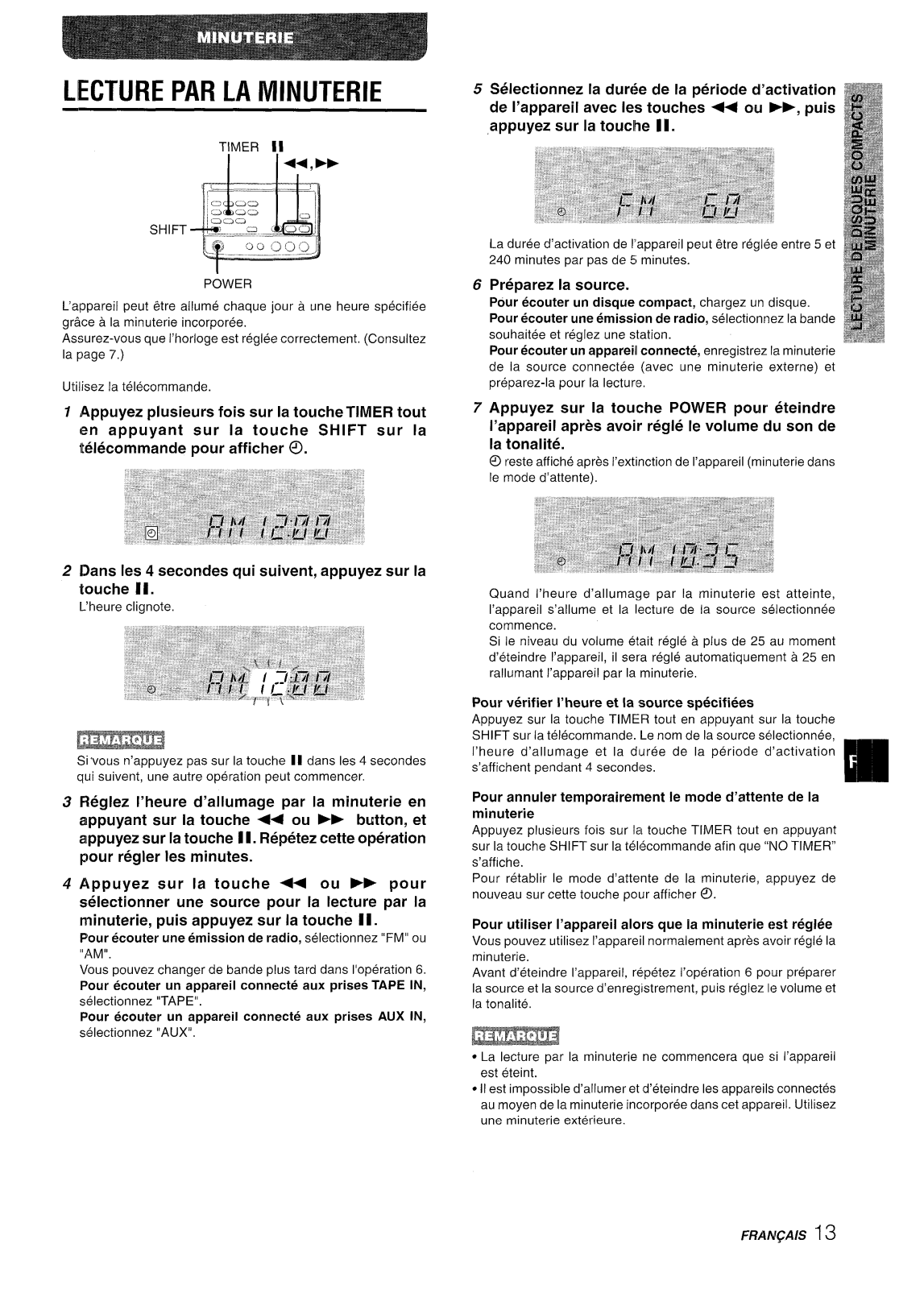

TIMER PLAY

POWER

The unit can be turned on at a specified time every day with the built-in timer. Make sure the clock is set correctly. (See page 7.)

Use the remote control.

1 Press theTIMER button repeatedly while pressing

SHIFT button on the remote control to display

the

Select the duration for the timer-activated period

with the 4+ or >> button, and press

the 11

button.

The duration for the timer-activated period can be set between

5 and 240 minutes in 5-minute steps. Prepare the source.

To listen to a CD, load the disc. To listen to a radio broadcast, select the desired band and tune in to a station.

To listen to the connected equipment, set the timer of the

connected source (with an external timer) and prepare it for play.

Press the POWER button to turn the system off

after adjusting the volume and tone.

remains on the display after the power is turned off (timer

standby mode).

2 Within 4 seconds, press the 11button.

The hour flashes.

If you do not press the II button within 4 seconds, another

operation may start.

Designate the hour of the timer-on time by

pressing the +< or ➤F button, and press the 1I button. Repeat to designate the minute of the

timer-on time.

Press the 44 or ➤F button to select a source

for timer play, then press the II button.

To listen to a radio broadcast, select “FM” or “AM. ”

You can change the band later at step 6.

listen to the equipment connected to theTAPE IN jacks,

select “TAPE.”

listen to the equipment connected to the AUX IN jacks,

select ‘rAUX.”

When the timer-on time is reached, the system turns on and begins play with the selected source.

If the volume level was set to more than 25 when the power was turned off, it is automatically set to 25 when the unit turns on by the timer. m

To check the specified time and source

Press the TIMER button while pressing the SHIFT Ibutton on the

remote control, The selected source name, the timer-on time and the duration for the timer-activated period are displayed for 4

seconds.

To cancel timer standby mode temporarily

Press the TIMER button repeatedly while pressing the SHIFT

button on the remote control so that “NO TIMER” is displayed on the display. To restore the timer standby mode, press again to display ~.

Using the unit while the timer is set

You can use the unit normally after setting the timer.

Before turning off the power, repeat step 6 to prepare the source,

and adjust the volume and tone.

● Timer play will not begin unless the power is turned off.

● Connected equipment cannot be turned on and off by the built-

in timer of this unit. Use an external timer.

ENGLISH 13

SETTING THE SLEEP TIMER

SLEEP

u,-

CONNECTING OPTIONAL EQUIPMENT

f \

—CD DIGITAL OUT

(OPTICAL)

SHIFT

The unit can be turned off automatically at a specified time.

Use the remote control.

1 Press the SLEEP button while pressing the SHIFT

button on the remote control.

2 Within 4 seconds, press the + or M

button

to specify the time until the power is turned off.

Each time the button is pressed, the time changes between 5

and 240 minutes in 5-minute steps,

Specified time

check the time remaining until the power is turned

off

Press the SLEEP button once while pressing the SHIFT button on the remote control. The remaining time is displayed for 4 seconds,

To cancel the sleep timer

Press the SLEEP button twice while pressing the SHIFT button on the remote control so that “NO SLEEP” in displayed.

TAPE IN

AUX IN

LINE OUT

@@@

Refer to the operating instructions of the connected equipment for details.

● The connecting cords are not supplied. Obtain the necessary

connecting cords.

● Consult your local Aiwa dealer for optional equipment.

SUPER

WOOFER

TAPE IN JACKS

This system can input analog sound signals from a tape deck through these jacks.

Use a cable with RCA phono plugs to connect a tape deck.

When using tape deck to record the sound of this system, connect the tape deck to the LINE OUT jacks (see pege 15).

AUX IN JACKS

This system can input analog sound signals through these jacks. Use a cable with RCA phono plugs to connect audio equipment (turntables, LD players, VCRs, TV, etc.). Connect the red plug to the R jack, and the white plug to the L

jack.

14 ENGLISH

When connecting a turntable

Use an Aiwa turntable equipped with a built-in equalizer amplifier,

CD DIGITAL OUT (OPTICAL) JACK

This system can output CD digital sound signals through this jack. Use an optical cable to connect digital audio equipment (digital amplifier, DAT deck, MD recorder, etc.).

Remove the dust cap @ from the CD DIGITAL OUT (OPTICAL) jack. Then, connect an optical cable plug to the CD DIGITAL OUT (OPTICAL) jack.

When the CD DIGITAL OUT (OPTICAL)

used

Attach the supplied dust cap,

jack is not being

LINE OUT JACKS

This system can output analog sound signals for all functions

through these jacks. Use a cable with RCA phono plugs to connect audio equipment.

Do not connect equipment to the LINE OUT jacks and AUX IN jacks simultaneously. Otherwise, noise is generated and malfunctions may occur.

SUPER WOOFER Xl JACK

Connect an optional powered sub woofer with a built-in-amplifier to the jack,

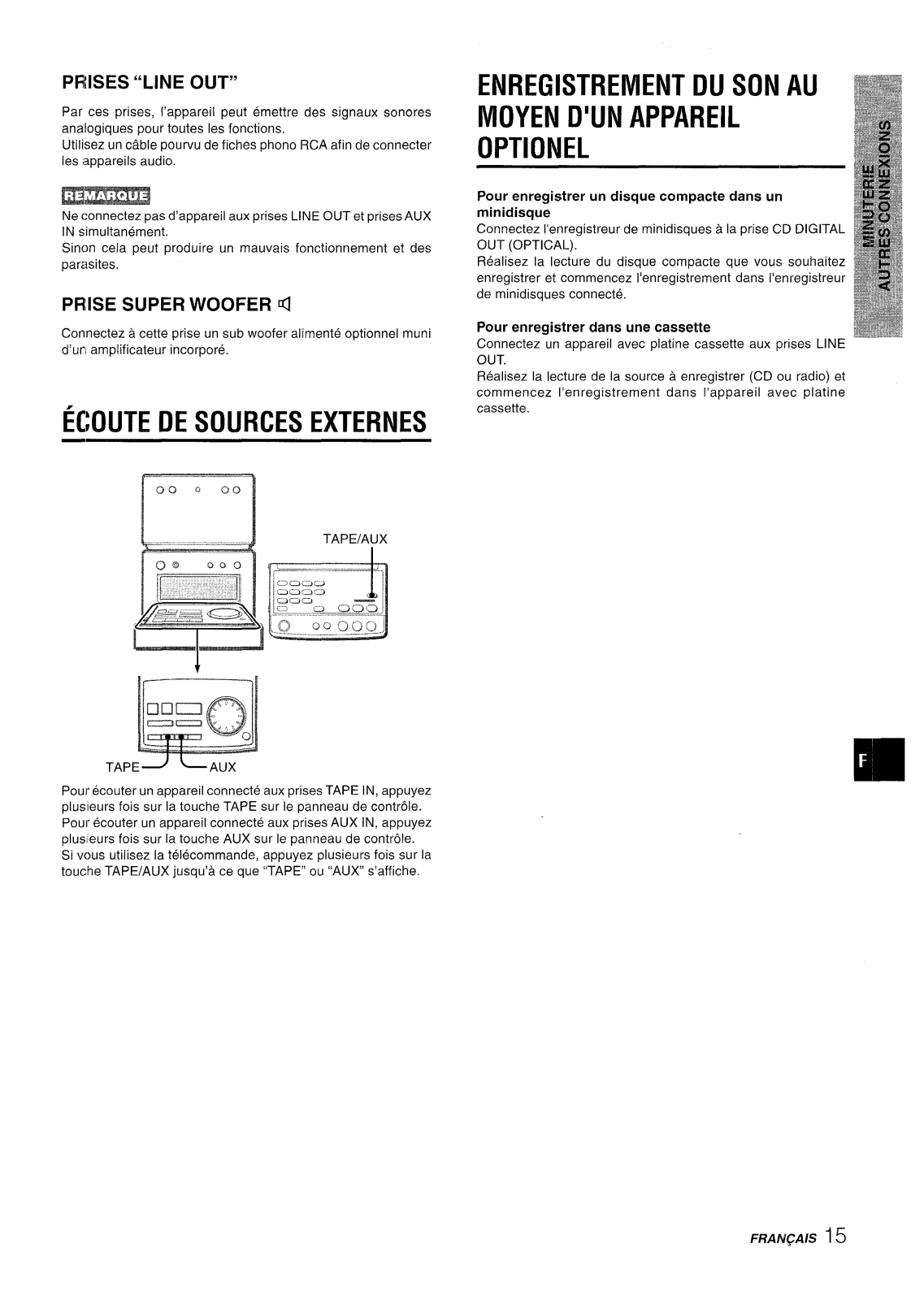

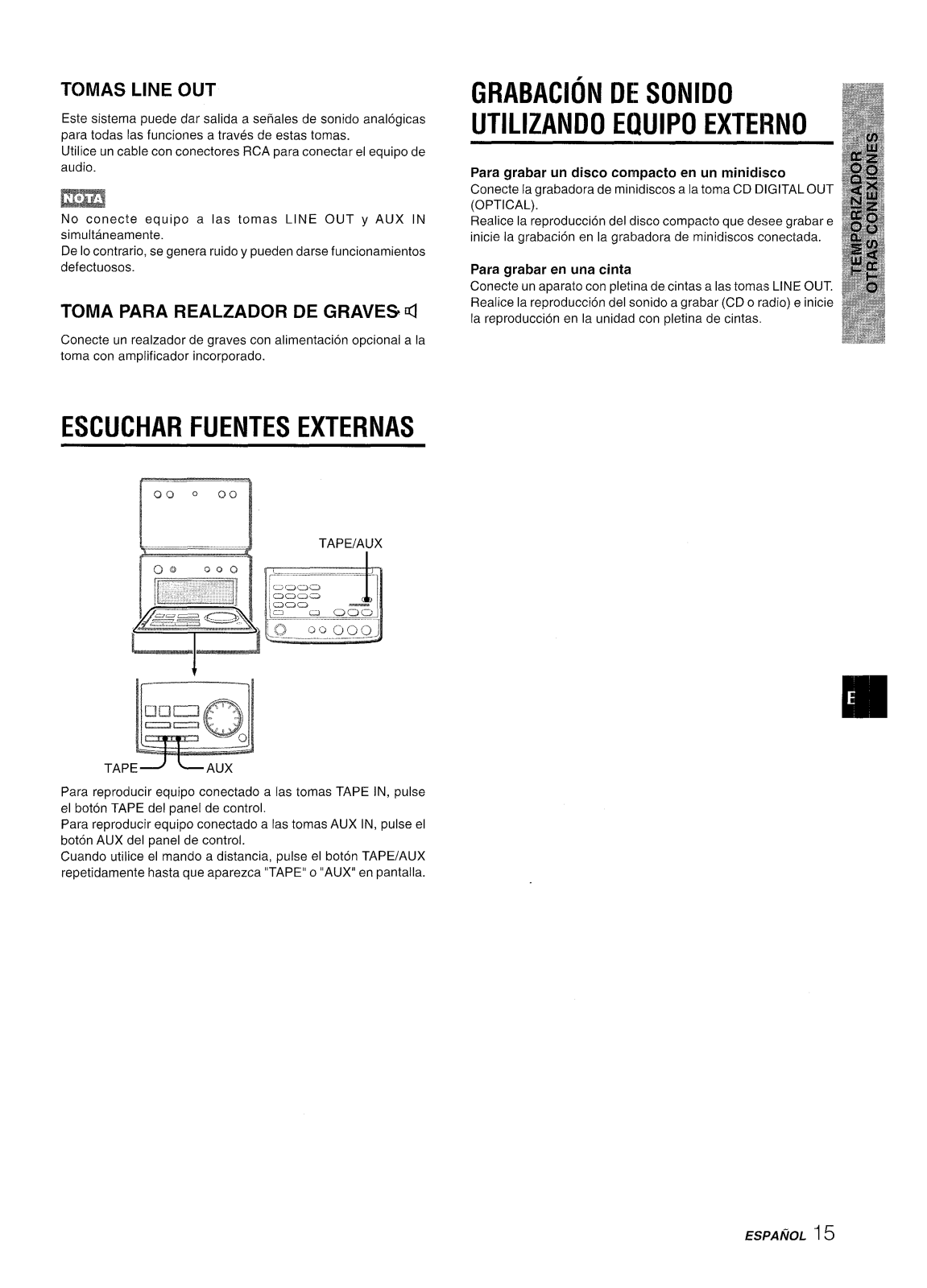

LISTENING TO EXTERNAL

SOURCES

00 ~ (20

RECORDING THE SOUND USING EXTERNAL EQUIPMENT

To record the CD sound on an MD

Connect an MD recorder to the CD DIGITAL OUT (OPTICAL)

jack.

Play back the CD to be recorded and start recc)rding on the

connected MD recorder.

To record the sound on a cassette tape

Connect a cassette deck to the LINE OUT jacks.

Play back the source to be recorded (CD or raciio) and start recording on the connected cassette deck.

TAPEIAUX

0’$3

To play equipment connected to the TAPE IN jacks, press the TAPE button on the control panel. To play equipment connected to the AUX IN jacks, press the

AUX button on the control panel.

When using the remote control, press the TAPE/AUX button

repeatedly until “TAPE” or “AUX” is displayed.

000

ENGLISH15

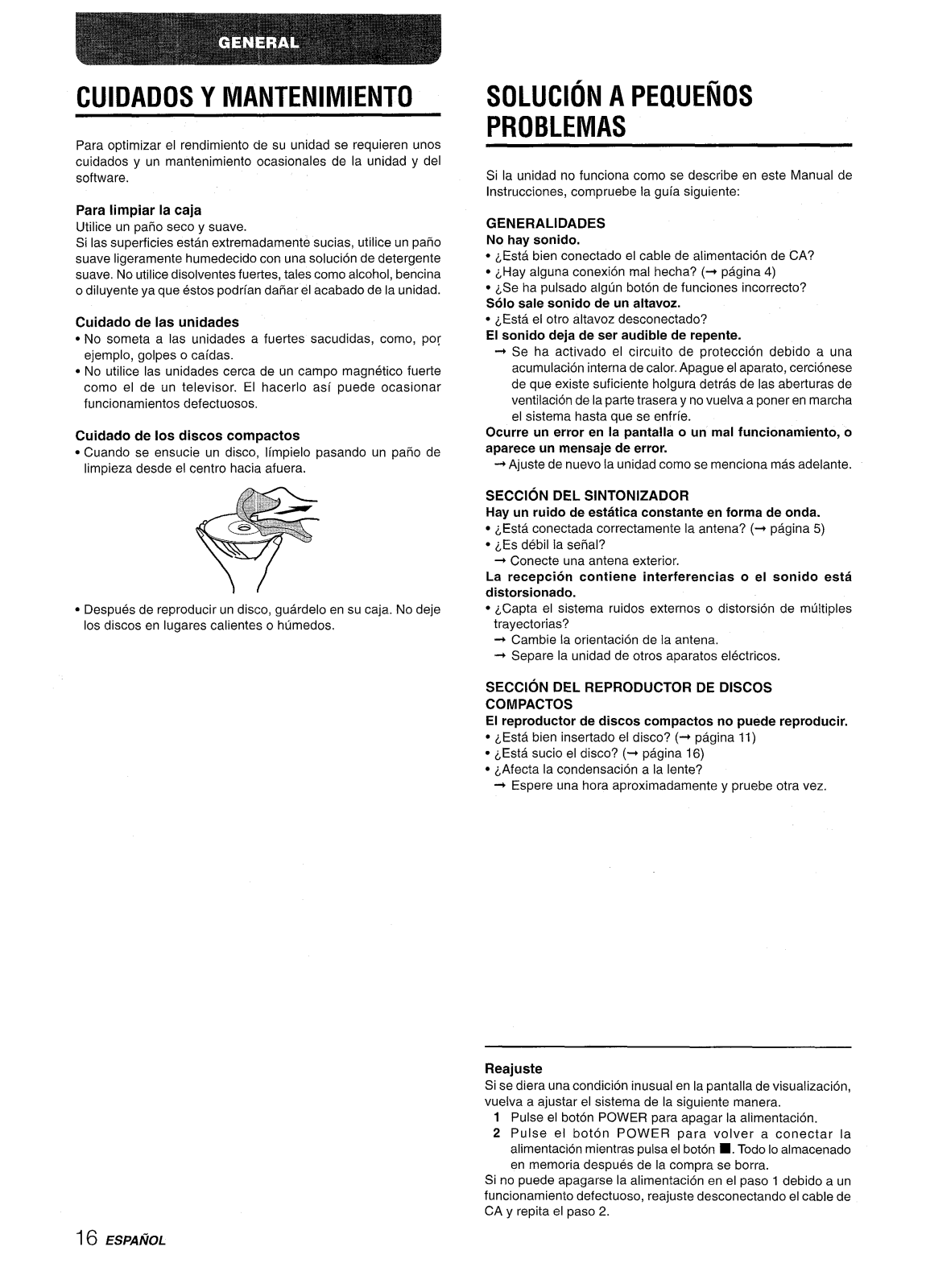

CARE AND MAINTENANCE

TROUBLESHOOTING GUIDE

Occasional care and maintenance of the unit and the software are needed to optimize the performance of your unit.

To clean the cabinet

Use a soft and dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with mild detergent solution. Do not use strong solvents, such as alcohol, benzine or thinner as these could damage the finish of the unit.

Care of the units

● Do not give the units a strong shock ie. drop or hit.

● Do not use the units close to a strong magnetic field such as a

television. Doing so may cause malfunctions.

Care of CDs

When a disc becomes dirty, wipe the disc from the center out

with a cleaning cloth.

● After playing a disc, store the disc in its case. Do not leave the

disc in places that are hot or humid.

If the unit fails to perform as described in these Operating Instructions, check the following guide.

GENERAL There is no sound.

● Is the AC cord connected properly?

● Is there a bad connection? (+ page 4)

● Was an incorrect function button pressed?

Sound is emitted from one speaker only.

● Is the other speaker disconnected?

Sound becomes inaudible suddenly.

+ The protection circuit was activated due to an internal heat

build-up. Turn off the power, make sure there is sufficient clearance behind the ventilation openings on the rear, and leave the system until it cools down.

An erroneous display or a malfunction

occurs, or an error

message appears.

Reset the system as stated below.

TUNER SECTION There is constant, wave-like static.

● Is the antenna connected properly? (+ page 5)

● Is the signal weak?

~ Connect an outdoor antenna.

The reception contains noise interferences or the sound is distorted.

● Is the system picking up external noise or multipath distotiion?

+ Change the orientation of the antenna.

-+ Move the system away from other electrical appliances.

CD PLAYER SECTION The CD player does not play.

● Is the disc correctly inserted? (+ page 11)

● Is the disc dirty? (+ page 16)

● IS the lens affected by condensation?

+ Wait approximately one hour and try again.

To reset

If an unusual condition occurs in the display window, reset the system as follows.

1 Press the POWER button to turn off the power. 2 Press the POWER button to turn the power back on while

pressing the

purchase is canceled. If the power cannot be turned off in step 1 because of a malfunction, reset by disconnecting the AC cord and repeat step

■ button. Everything stored in memory after

16 ENGLISH

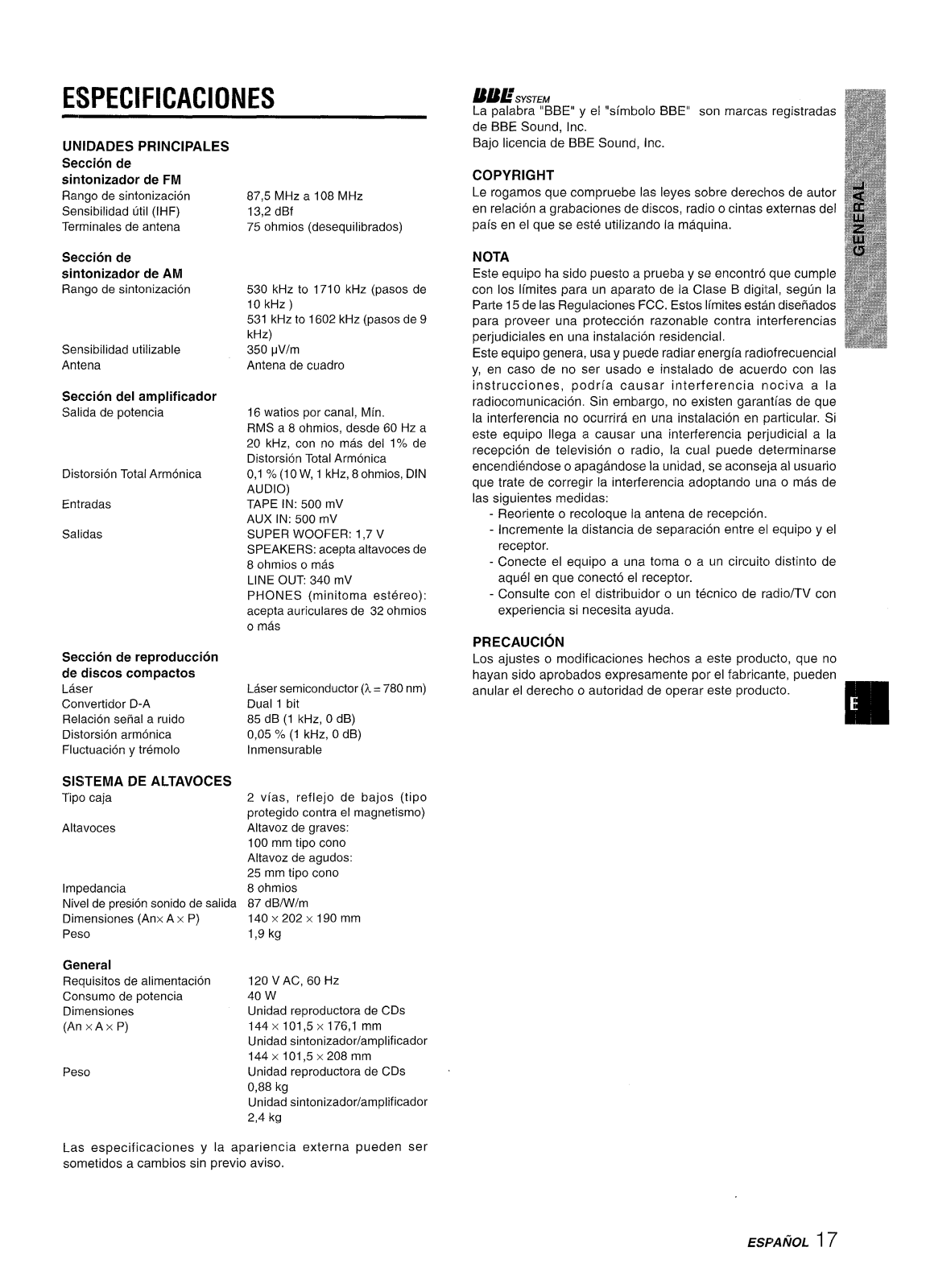

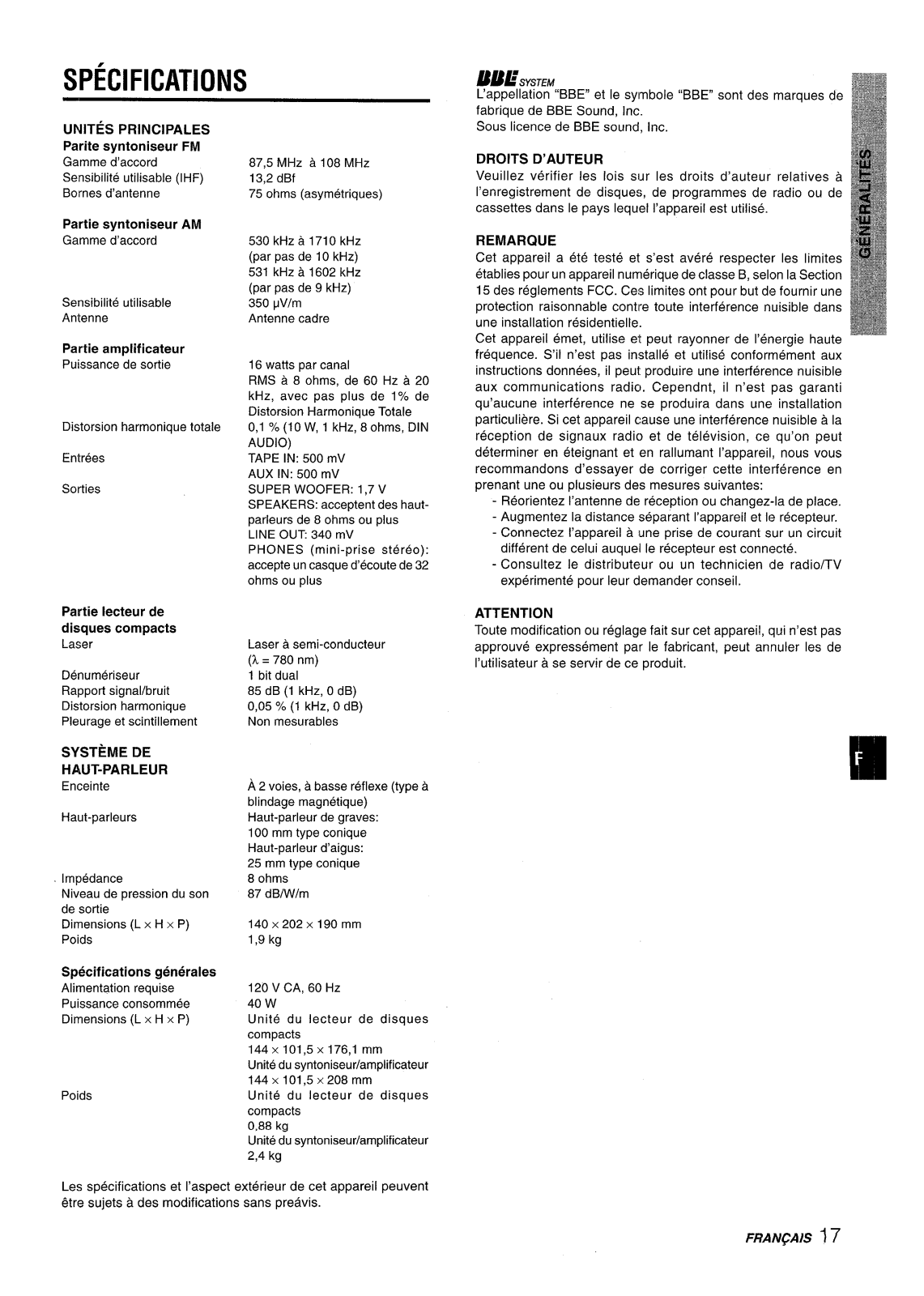

SPECIFICATIONS

MAIN UNITS FM tuner section

Tuning range 87.5 MHz to 108 MHz Usable sensitivity (IHF) Antenna terminals

tuner section

Tuning range

Usable sensitivity

Antenna

Amplifier section

Power output

Total harmonic distortion

Inputs

outputs

13.2 dBf 75 ohms (unbalanced)

530 kHz to 1710 kHz (10 kHz step) 531 kHz to 1602 kHz (9 kHz step) 350 pV/m Loop antenna

16 watts per channel, Min. RMS at 8 ohms, from 60 Hz to 20 kHz, with no more than 17. Total Harmonic Distortion

0.1 % (10 W, 1 kHz, 8 ohms, DIN AUDIO) TAPE IN: 500 mV AUX IN: 500 mV SUPER WOOFER: 1.7 V SPEAKERS: accept speakers of 8 ohms or more LINE OUT 340 mV PHONES (stereo mini jack): accepts headphones of 32 ohms or more

BBESYSTEM

The word “BBE” and the “BBE symbol” are trademarks of BBE Sound, Inc. Under license from BBE sound, Inc.

COPYRIGHT Please check the laws on copyright relating to recordings from discs, radio or external tape for the country in whicl~ the machine is being used.

NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference

by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on circuit different from

that to which the receiver is connected.

- Consult the dealer or an experienced radio[TV technician

for help.

Compact disc player section

Laser D-A converter

Signal-to-noise ratio

Harmonic distortion

Wow and flutter

SPEAKER SYSTEM

Cabinet type

Speakers

Impedance Output sound pressure level Dimensions (W x H x D)

Weight

General

Power requirements Power consumption

Dimensions

(W XHXD)

Weight

Semiconductor laser (k= 780 nm)

1 bit dual

85 dB (1 kHz, OdB)

0.05 % (1 kHz, O dB) Unmeasurable

2 way, bass reflex (magnetic shielded type) Woofer:

100 mm (4 inches) cone type

Tweeter: 25 mm (1 inch) cone type

8 ohms 87 dBiWlm 140x202 x190mm (5 ‘/,x8x 7 ‘/2 inches)

1.9 kg (4 lb. 3

120 VAC, 60 tfz 40 w CD player unit

144x IOI.5X176. I mm

(5 ‘/,x4x 7 inches) Tuner/amplifier unit

144x 101.5 x208mm

(5 3/,x4x 8 ‘/, inches)

CD player unit

0.88 kg (1 lb. 15

Tuner/amplifier unit

2.4 kg (5 lb. 5

02)

OZ)

CAUTION

Modifications or adjustments to this product, vvhich are not expressly approved by the manufacturer, may void the user’s right or authority to operate this product.

Specifications and external appearance are subject to change without notice.

ENGLISH I 7

+ 39 hidden pages
