Sony XR-M70 Operating Manual

(

For assistance and information,

call toll free I-800-BUY-AIWA.

B8-CLB-913-01 98041 0AYK-H-6

(United States and Puerto Rico)

ai3i?3

DIGITAL AUDID

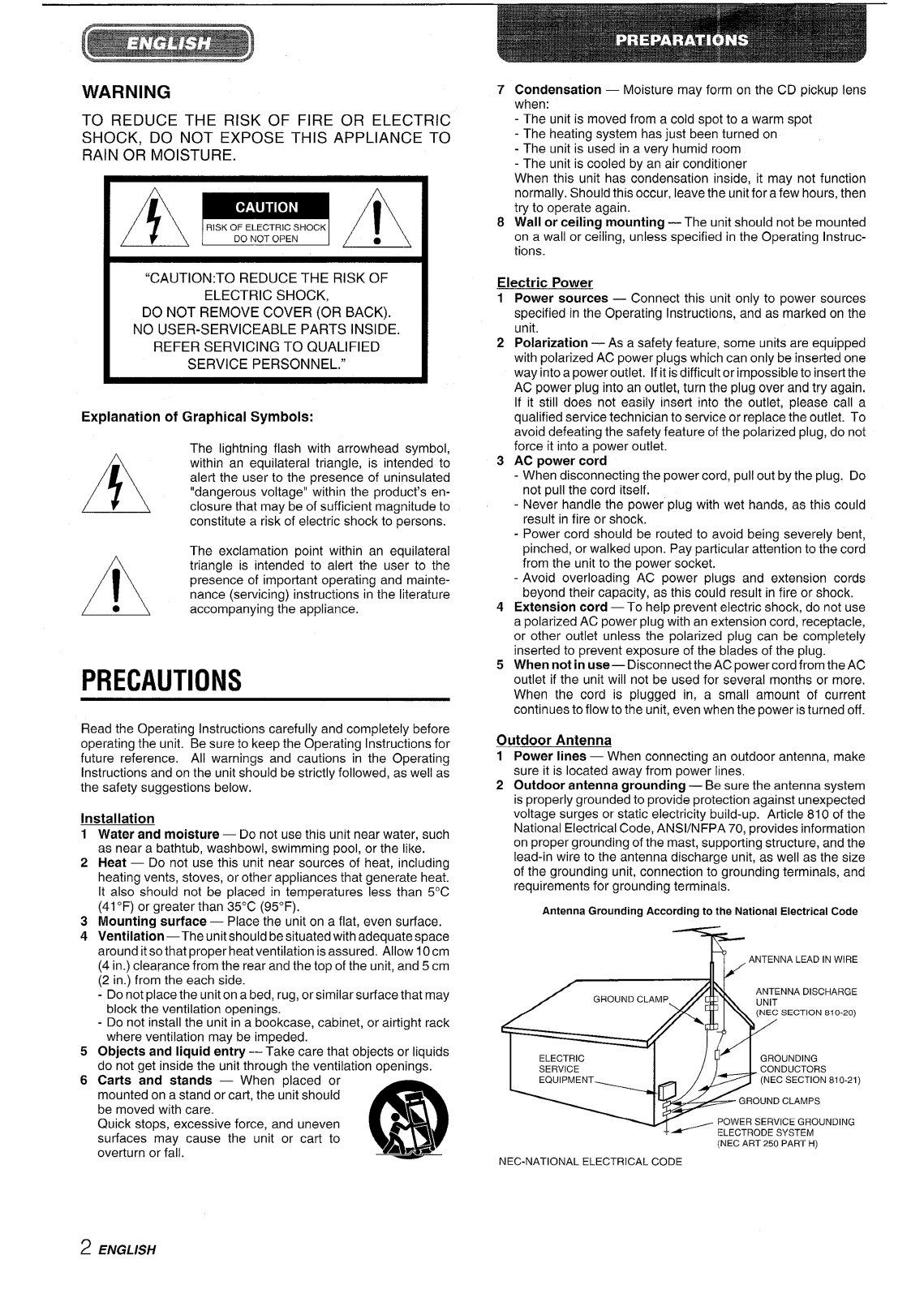

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO

RAIN OR MOISTURE.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

~ A

●

7 Condensation — Moisture may form on the CD pickup lens

when:

- The unit is moved from a cold spot to a warm spot

- The heating system has just been turned on

- The unit is used in a very humid room

- The unit is cooled by an air conditioner When this unit has condensation inside, it may not function normally. Should this occur, leave the unit for a few hours, then try to operate again.

8 Wall or ceiling mounting — The unit should not be mounted

on a wall or ceiling, unless specified in the Operating instructions.

“CAUTION TO REDUCE THE RISK OF

ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.”

Explanation of Graphical Symbols:

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated

●

“dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

PRECAUTIONS

Read the Operating Instructions carefully and completely before operating the unit. Be sure to keep the Operating Instructions for future reference. All warnings and cautions in the Operating Instructions and on the unit should be strictly followed, as well as the safety suggestions below.

Installation

Water and moisture — Do not use this unit near water, such as near a bathtub, washbowl, swimming pool, or the like. Heat — Do not use this unit near sources of heat, including

heating vents, stoves, or other appliances that generate heat. [t also should not be placed in temperatures less than 5°C (41 ‘F) or greater than 35°C (95”F).

Mounting surface — Place the unit on a flat, even surface.

Ventilation —The unit should be situated with adequate space around itsothat proper heat ventilation is assured. Allow 10cm (4 in.) clearance from the rear and the top of the unit, and 5 cm (2 in.) from the each side.

- Do not place the unit on a bed, rug, orsimilarsurface that may block the ventilation openings.

- Do not install the unit in a bookcase, cabinet, or airtight rack where ventilation may be impeded.

Objects and liquid entry — Take care that objects or liquids do not get inside the unit through the ventilation openings.

Carts and stands — When placed or mounted on a stand or cart, the unit should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the unit or cart to overturn or fall.

●L

A&*

Electric Power

Power

sources — Connect this unit only to power sources

specified in the Operating Instructions, and as marked on the unit. Polarization — As a safety feature, some units are equipped with polarized AC power plugs which can only be inserted one way into a power outlet. If it is difficult orimpossibleto insert the AC power plug into an outlet, turn the plug over and try again, If it still does not easily insert into the outlet, please call a qualified service technician to service or replace the outlet. To avoid defeating the safety feature of the polarized plug, do not force it into a power outlet. AC power cord

- When disconnecting the power cord, pull out by the plug. Do not pull the cord itself.

- Never handle the power plug with wet hands, as this could result in fire or shock.

- Power cord should be routed to avoid being severely bent, pinched] or walked upon. Pay particular attention to the cord from the unit to the power socket.

- Avoid overloading AC power plugs and extension cords beyond their capacity, as this could result in fire or shock.

Extension cord — To help prevent electric shock, do not use a polarized AC power plug with an extension cord, receptacle, or other outlet unless the polarized plug can be completely inserted to prevent exposure of the blades of the plug. When not in use— Disconnect the AC Dower cord from the AC

outlet if the unit will not be used for several months or more. When the cord is plugged in, a small amount of current continues to flow to the unit, even when the power is turned off.

Outdoor Antenna

Power lines — When connecting an outdoor antenna, make

sure it is located away from power hnes.

Outdoor antenna grounding — Be sure the antenna svstem is properly grounde~ to provi~e protection against unexpected voltage surges or static electricity build-up. Article 810 of the National Electrical Code, ANS1/NFPA 70, provides information on proper grounding of the mast, supporting structure, and the lead-in wire to the antenna discharge unit, as well as the size of the grounding unit, connection to grounding terminals, and requirements for grounding terminals.

Antenna Grounding According to the National Electrical Code

(NEC ART 250 PART H)

NEC-NATIONAL ELECTRICAL CODE

)

2 ENGLISH

]Vlaintenance Clean the

Instructions.

unitonly as recommended in the Operating

lDamage Requiring Service

I+ave the units serviced by a qualified service technician if:

The AC power cord or plug has been damaged

- Foreign objects or liquid have gotten inside the unit

- The unit has been exposed to rain or water . The unit does not seem to operate normally

- The unit exhibits a marked change in performance

- The unit has been dropped, or the cabinet has been damaged IDO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.

76k&u#wzb6&A%asbze@s#i?#lw

Congratulations on your purchase of an Aiwa Stereo System. “ro optimize the performance of this system, please take the time to read through these Operating Instructions and become familiar with the operating procedures,

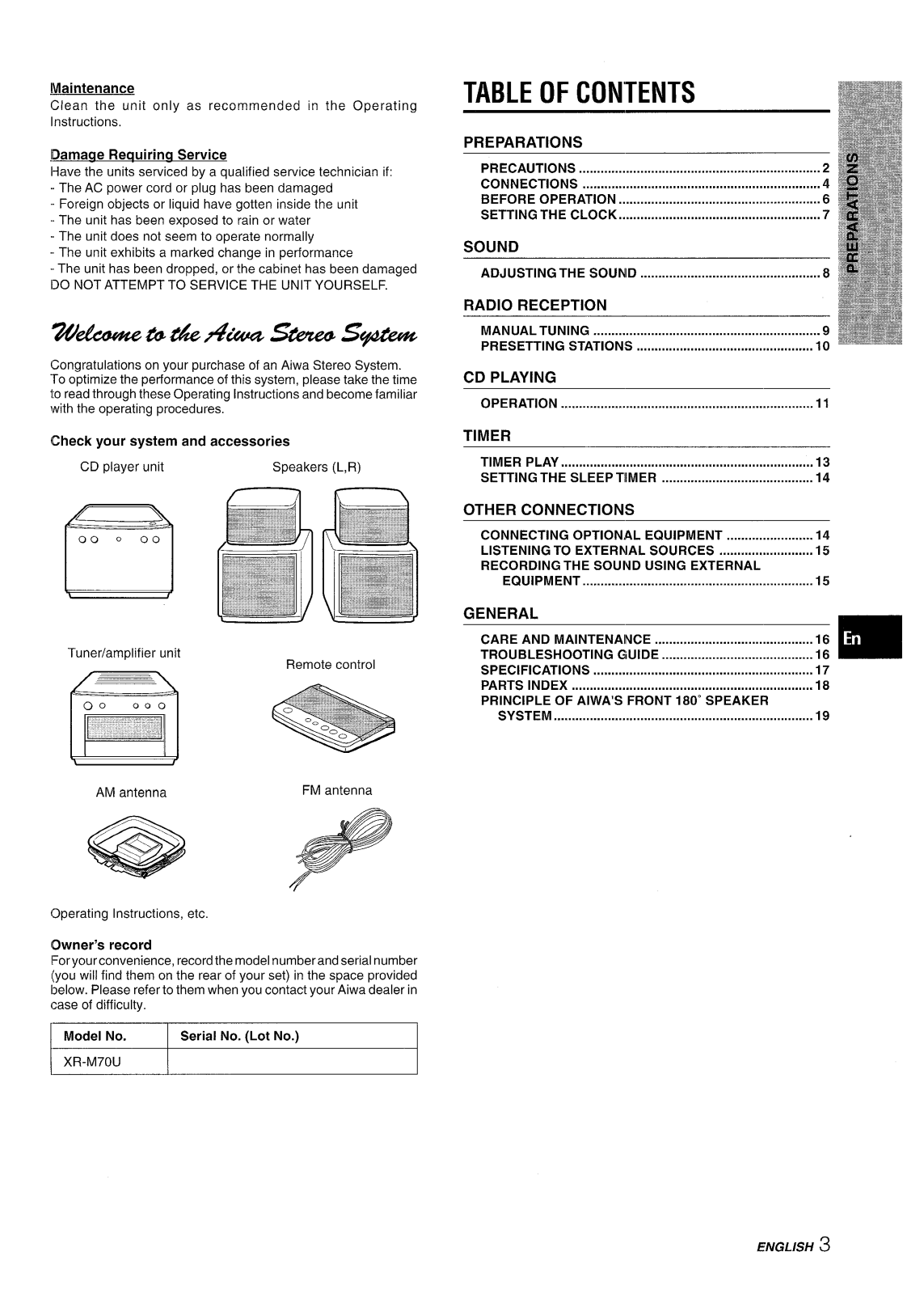

TABLE OF CONTENTS

PREPARATIONS

PRECAUTIONS ................................................................... 2

CONNECTIONS ..................................................................4

BEFORE OPERATION ........................................................6

SETTING THE CLOCK ........................................................7

SOUND

ADJUSTING THE SOUND .................................................. 8

RADIO RECEPTION

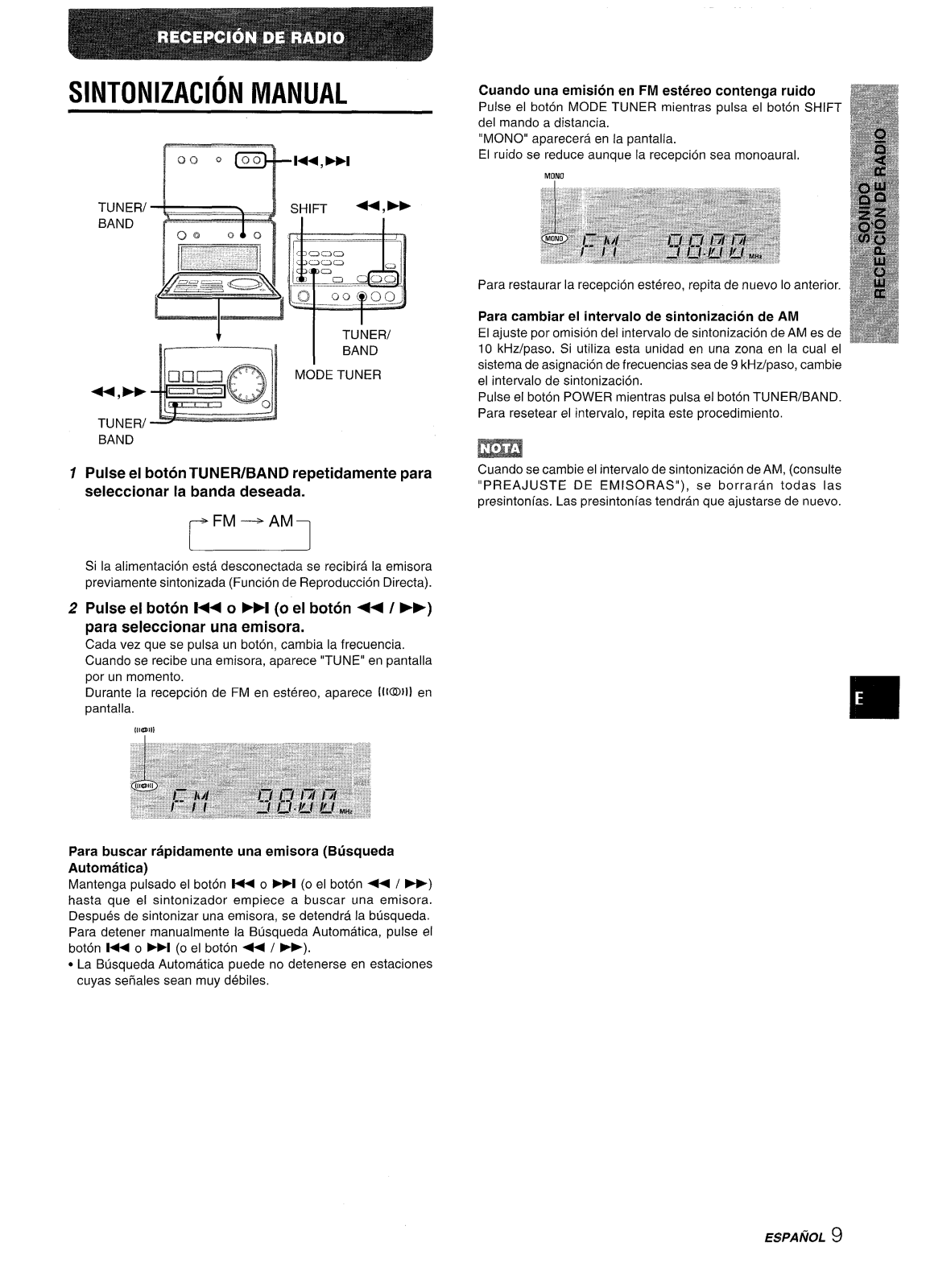

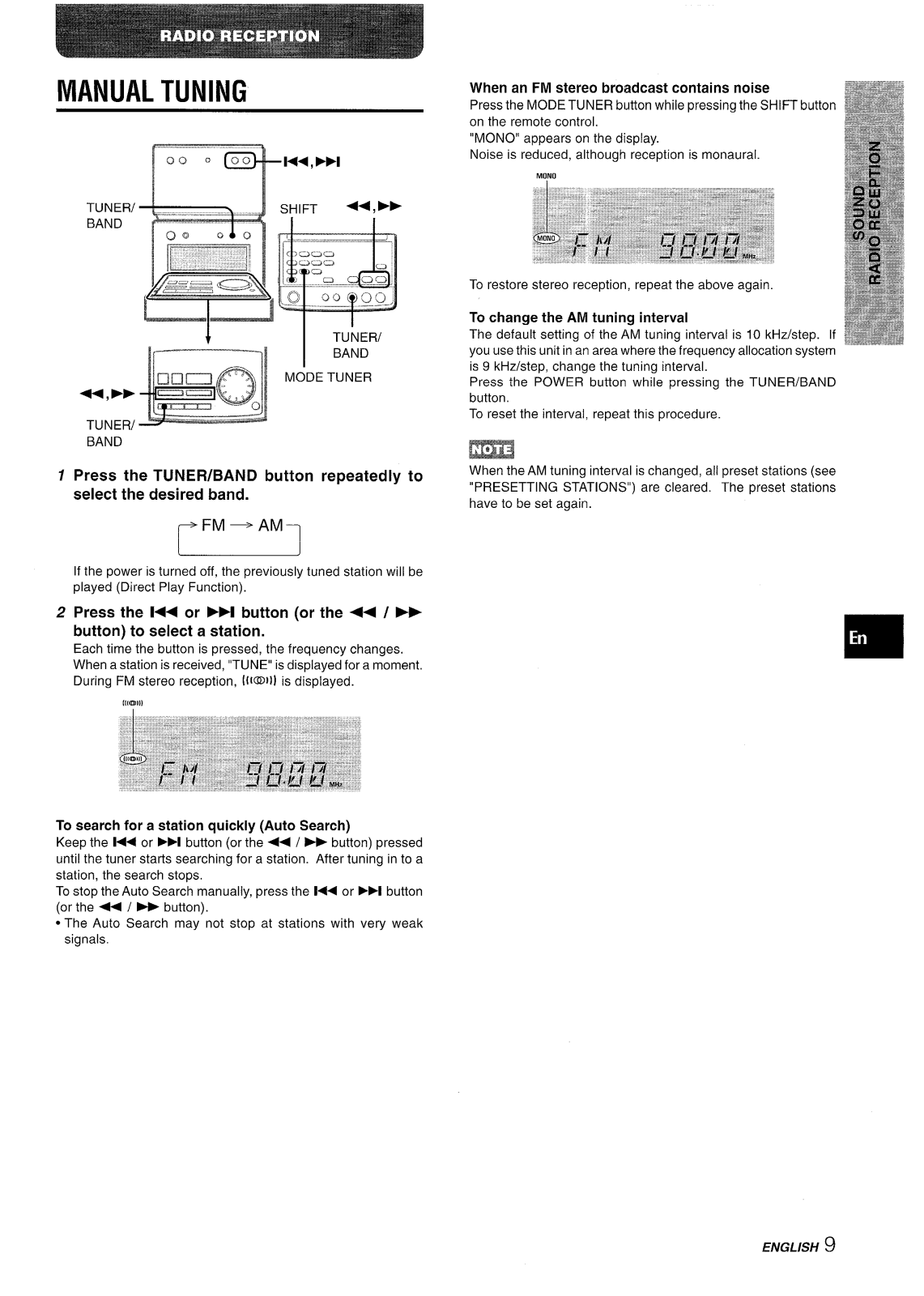

MANUAL TUNING ............................................................... 9

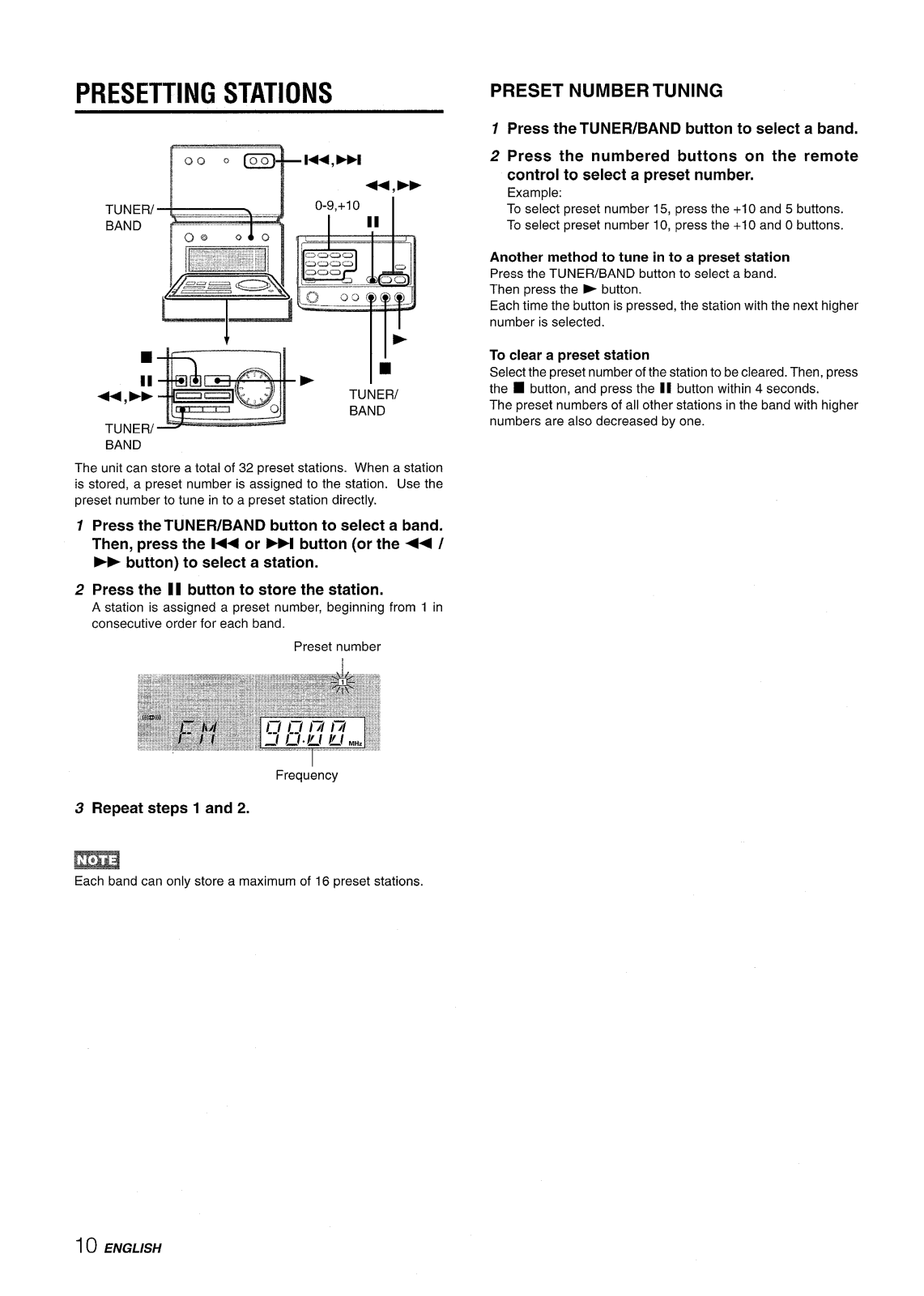

PRESETTING STATIONS ................................................. 10

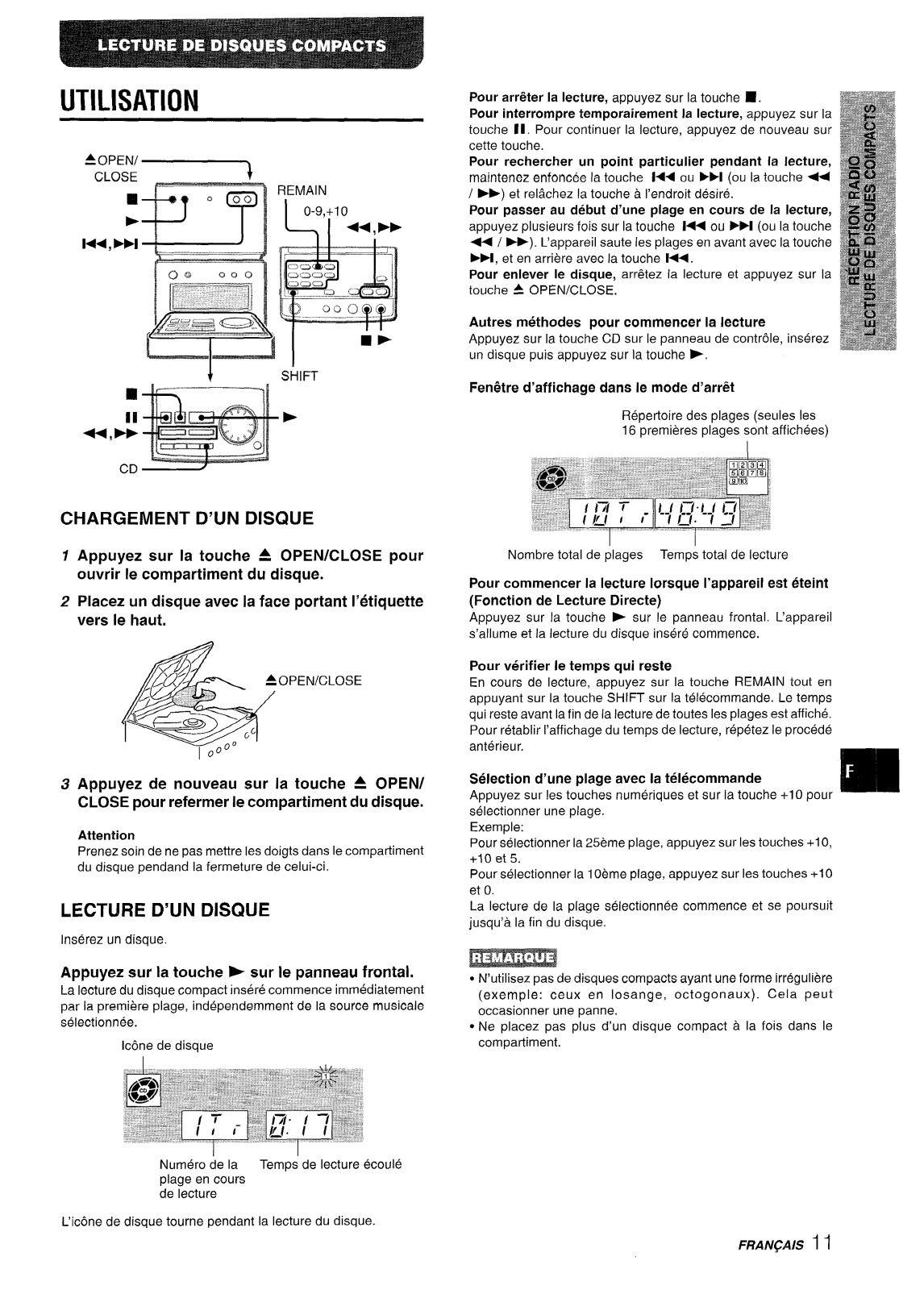

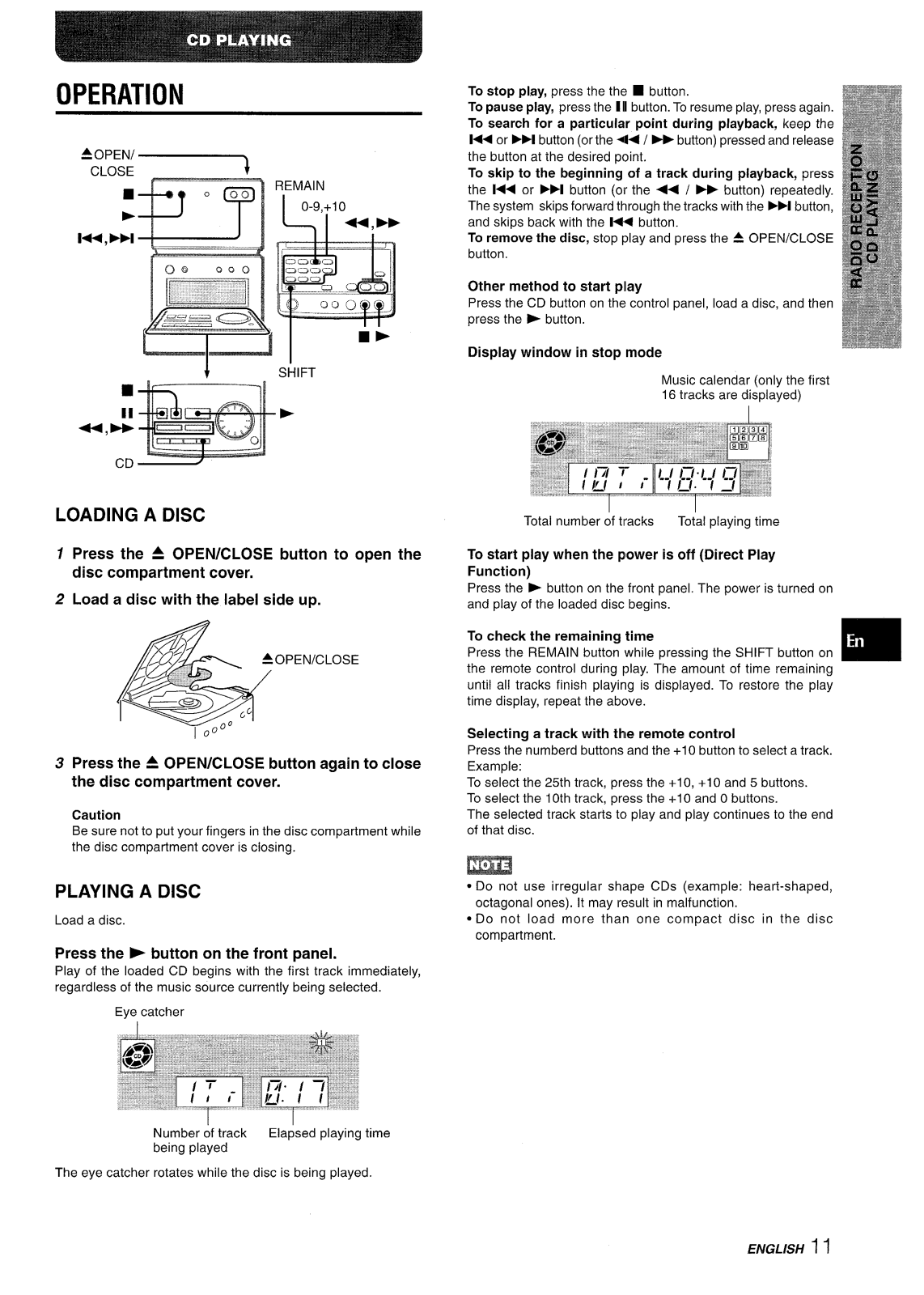

CD PLAYING

OPERATION ...................................................................... 11

{Check your system and accessories

CD player unit

Tuner/amplifier unit

AM antenna

Speakers (L,R)

TIMER

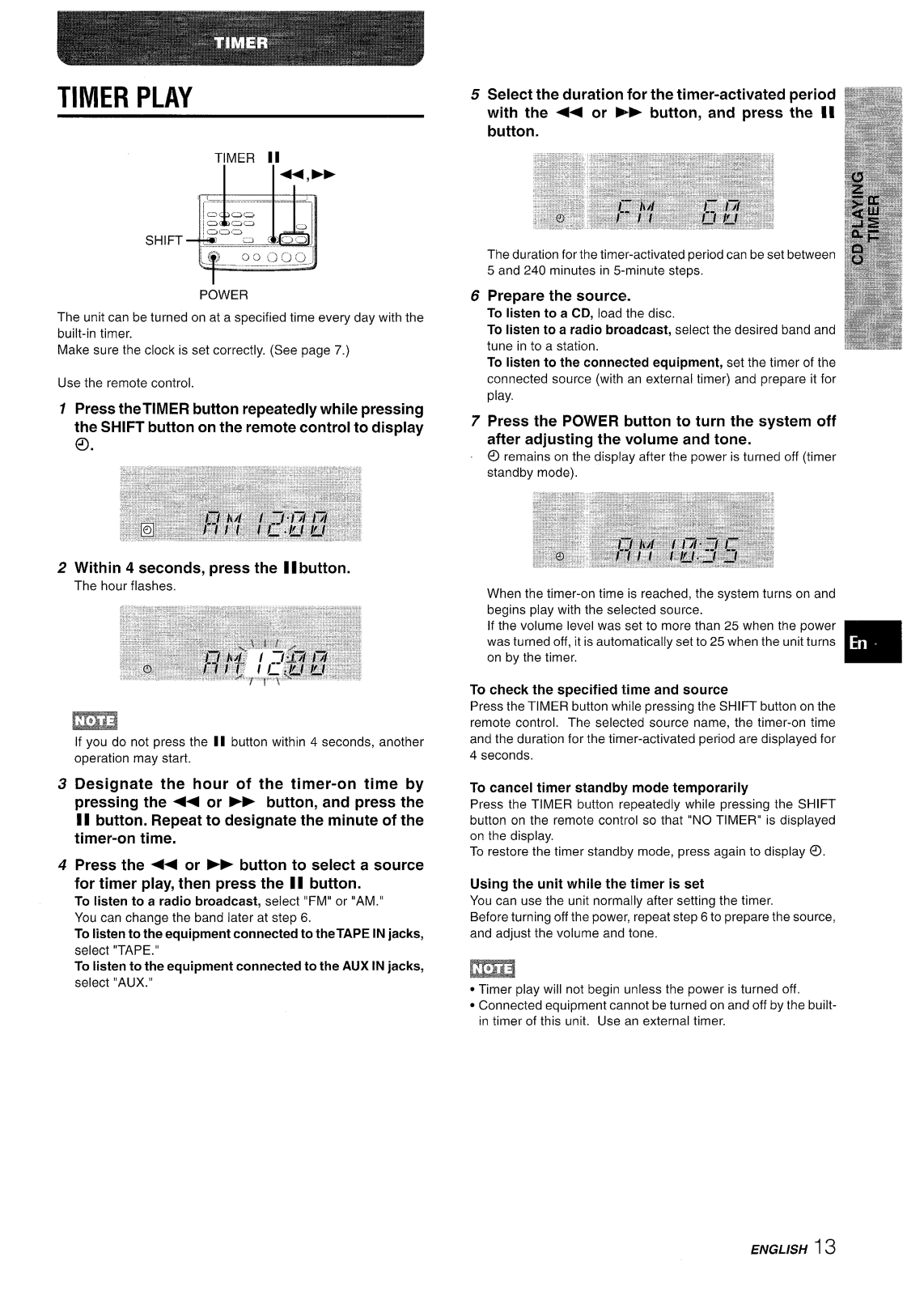

TIMER PLAY ...................................................................... 13

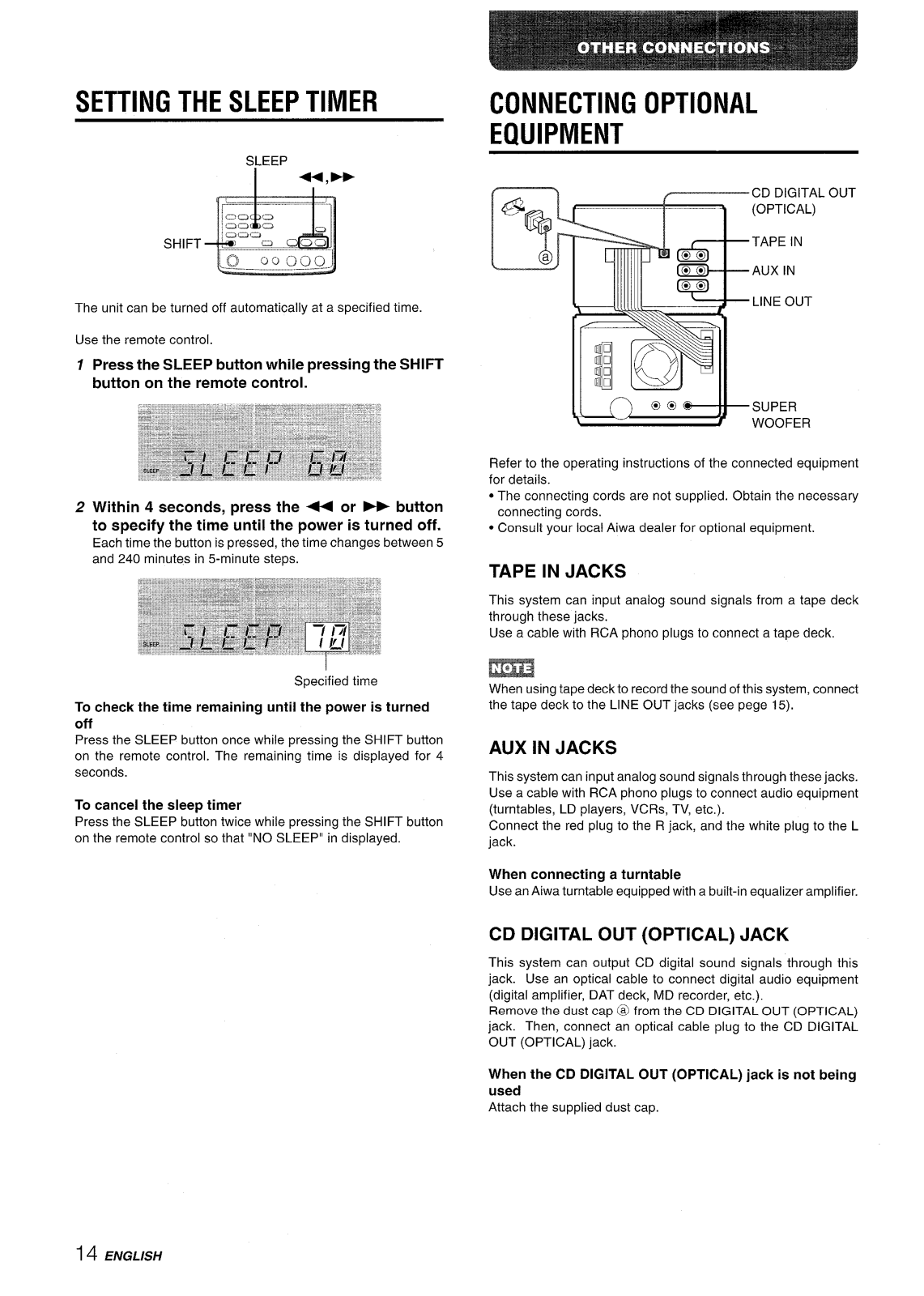

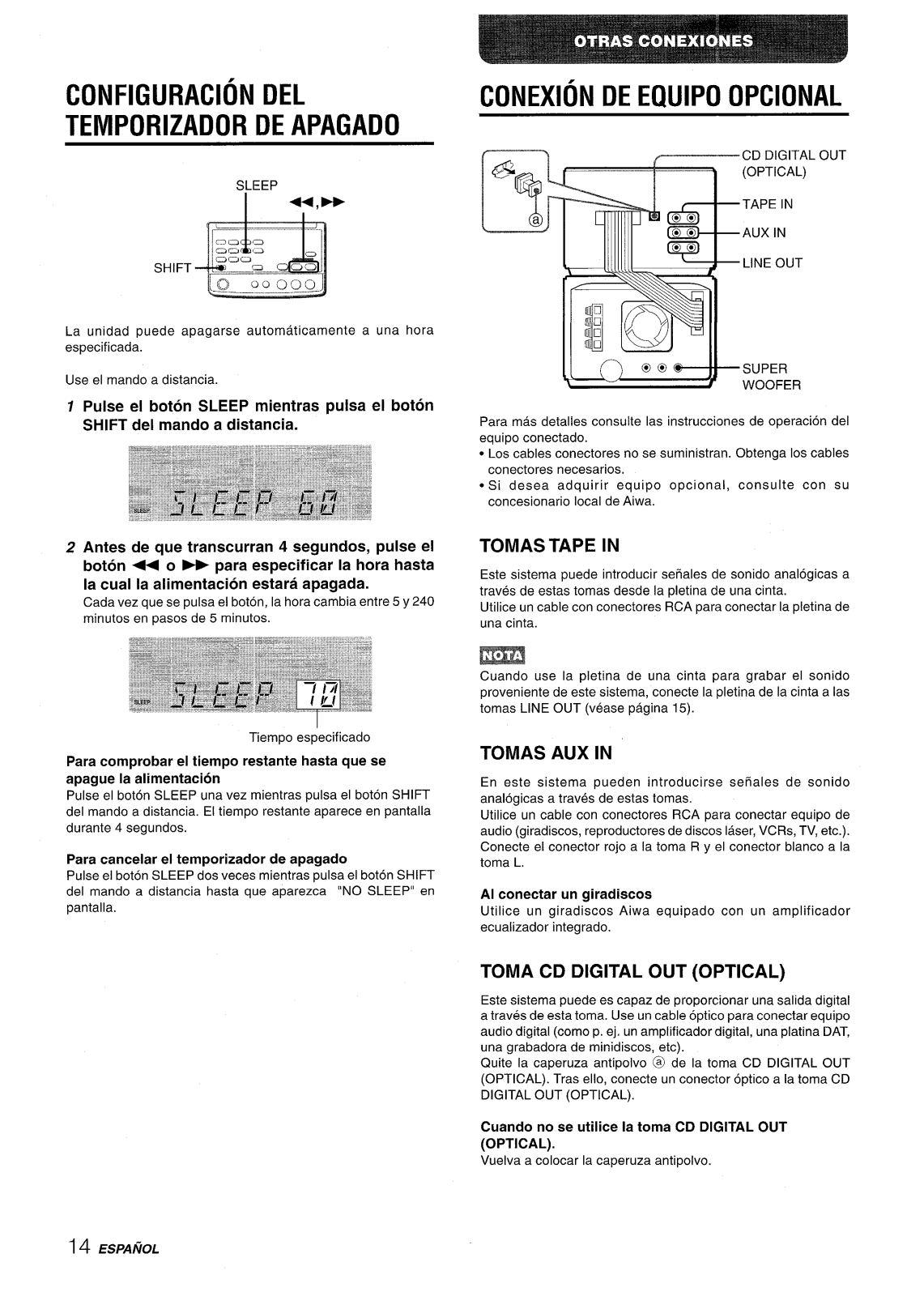

SETTING THE SLEEP TIIMER .......................................... 14

OTHER CONNECTIONS

CONNECTING OPTIONAL EQUIPMENT

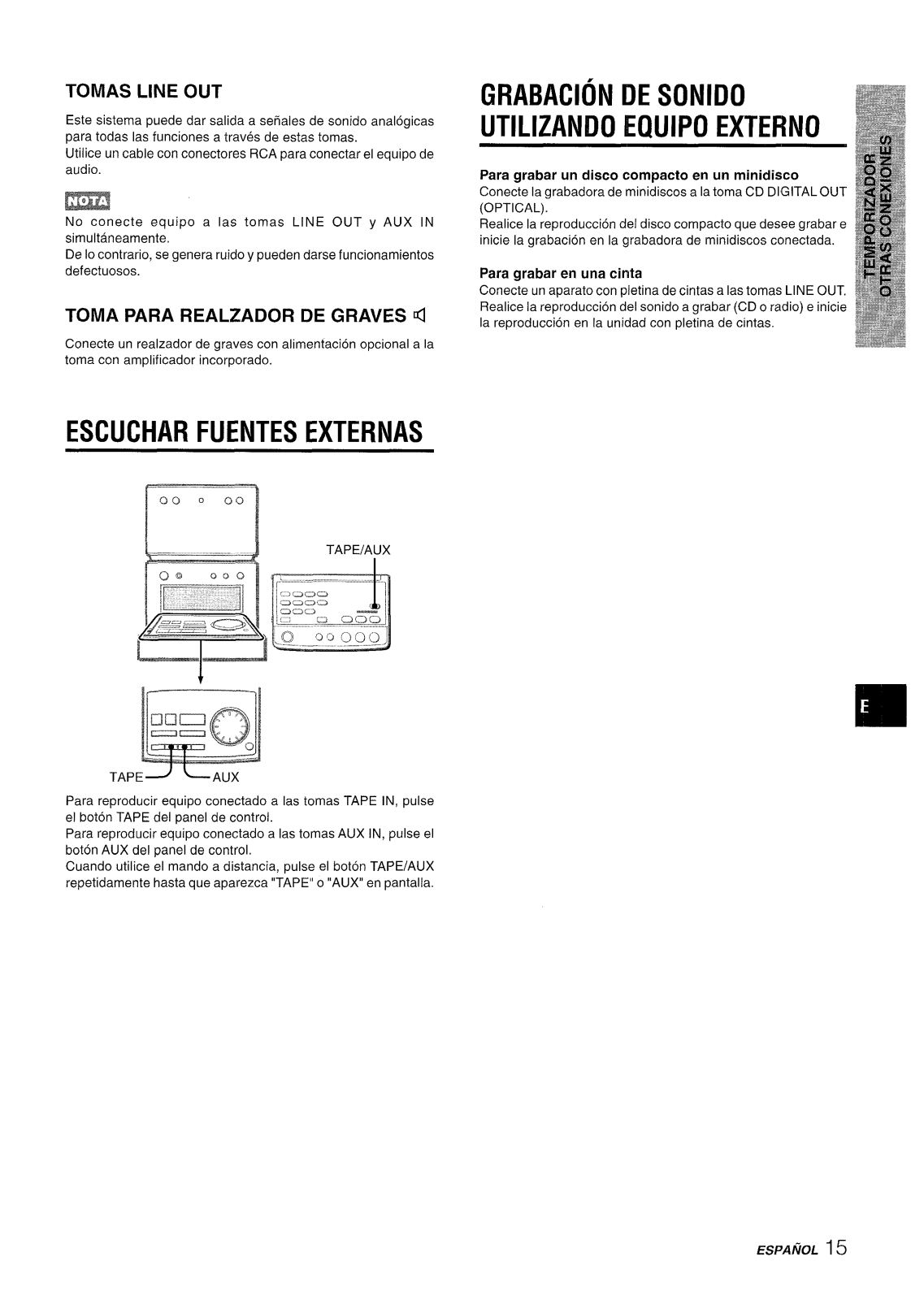

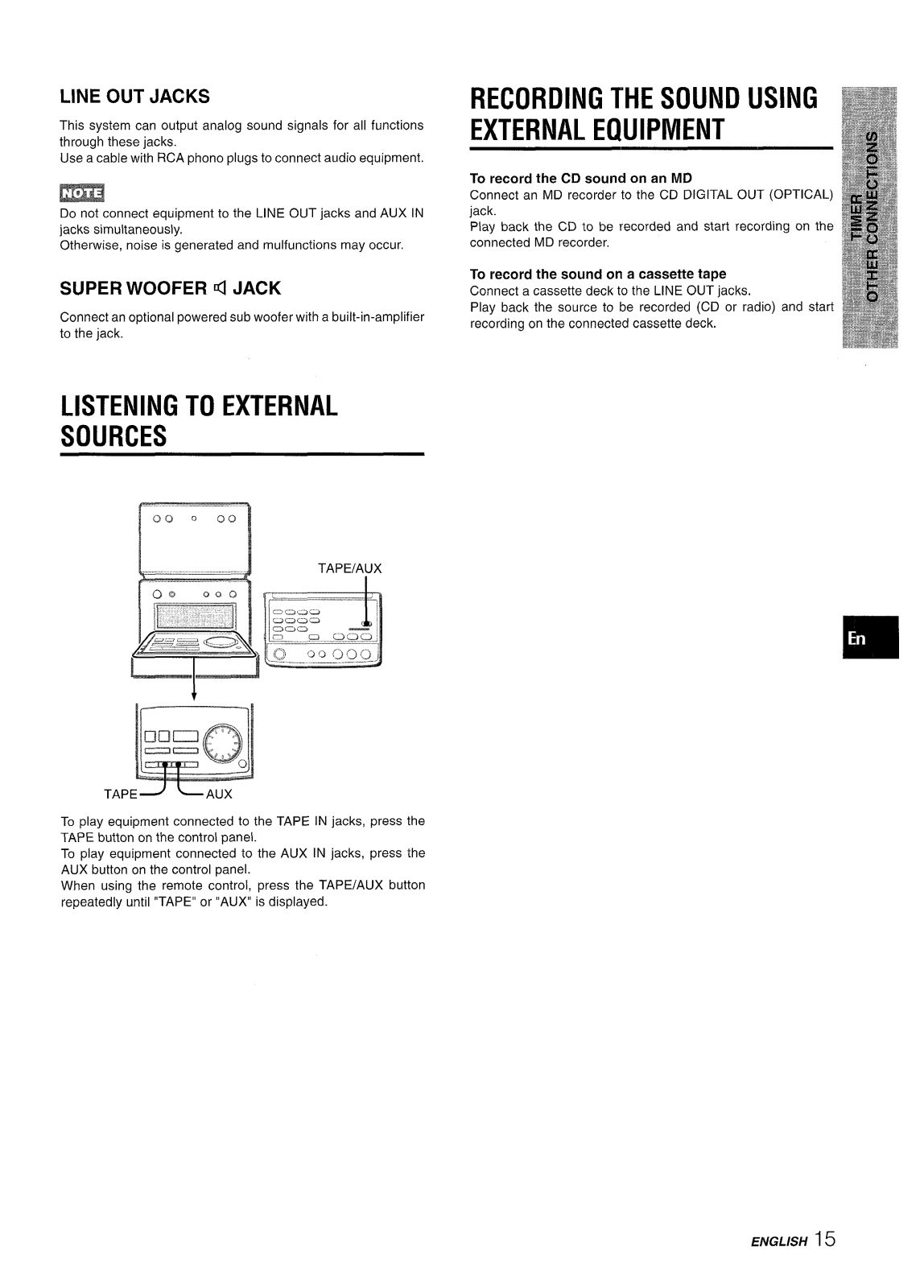

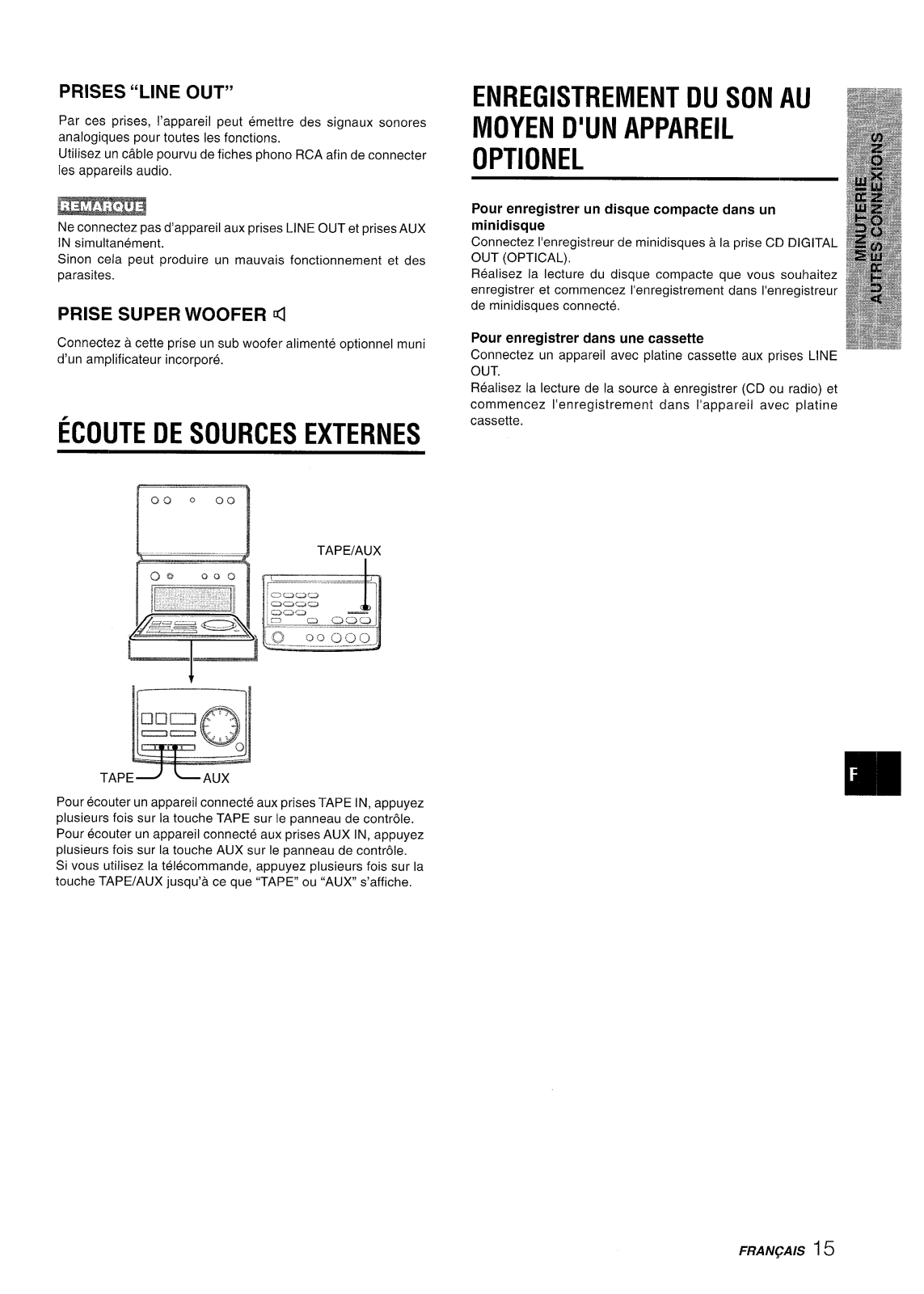

LISTENING TO EXTERNAL SOURCES .......................... 15

RECORDING THE SOUND USING EXTERNAL

Equipment ................................................................l5

........................ 14

GENERAL

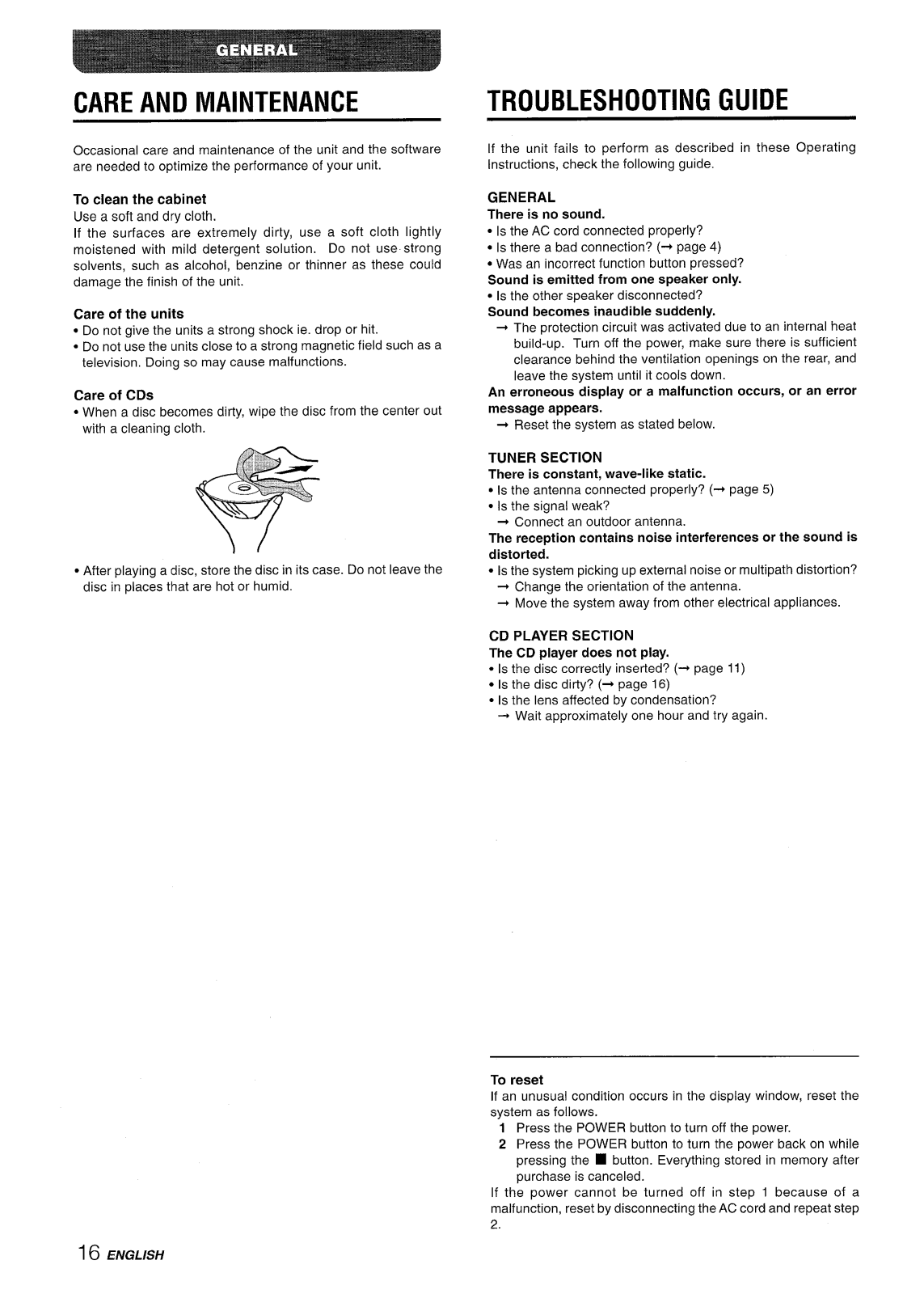

CARE AND MAINTENANCE .s.......................................... 16

TROUBLESHOOTING GUIDE .......................................... 16

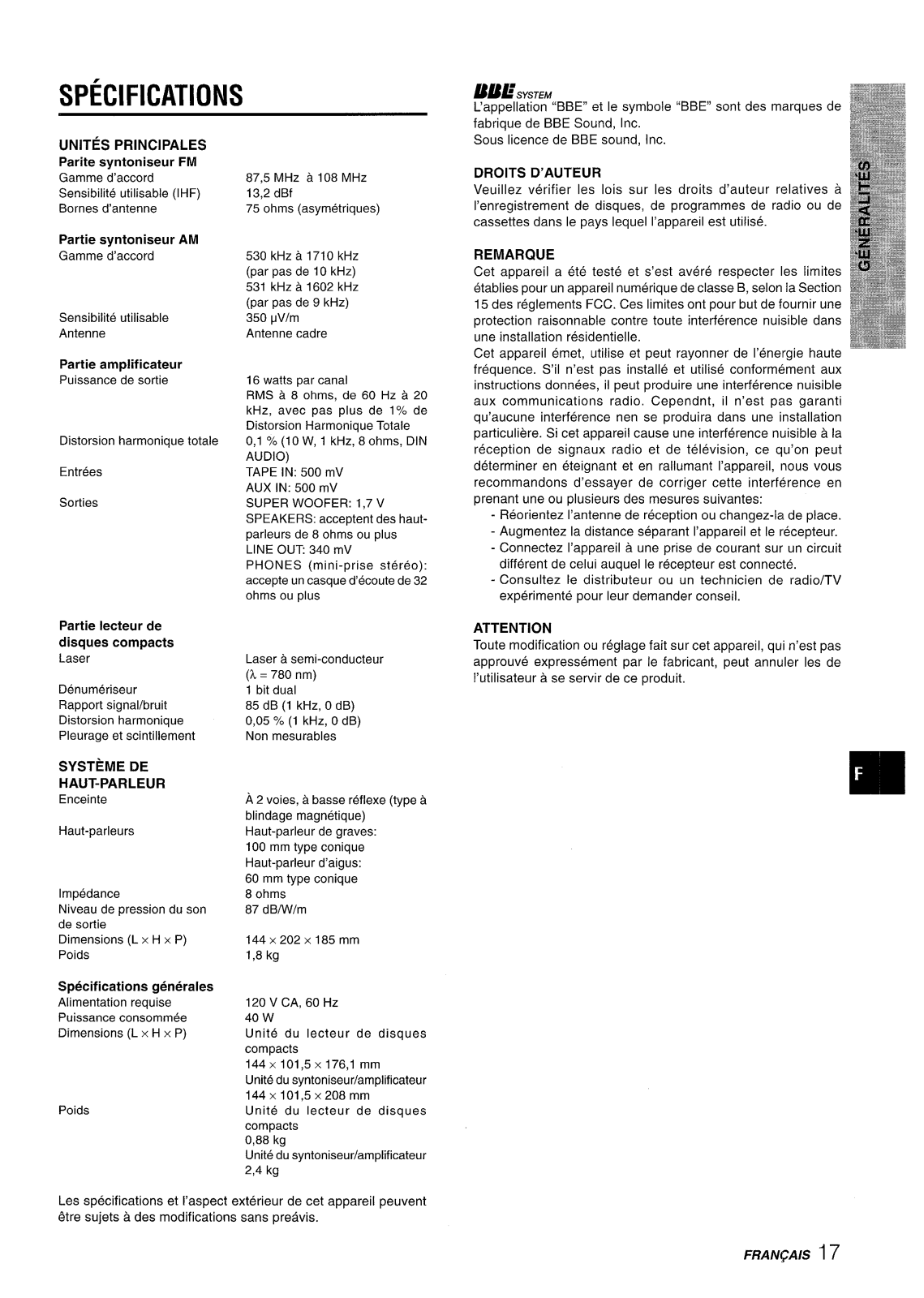

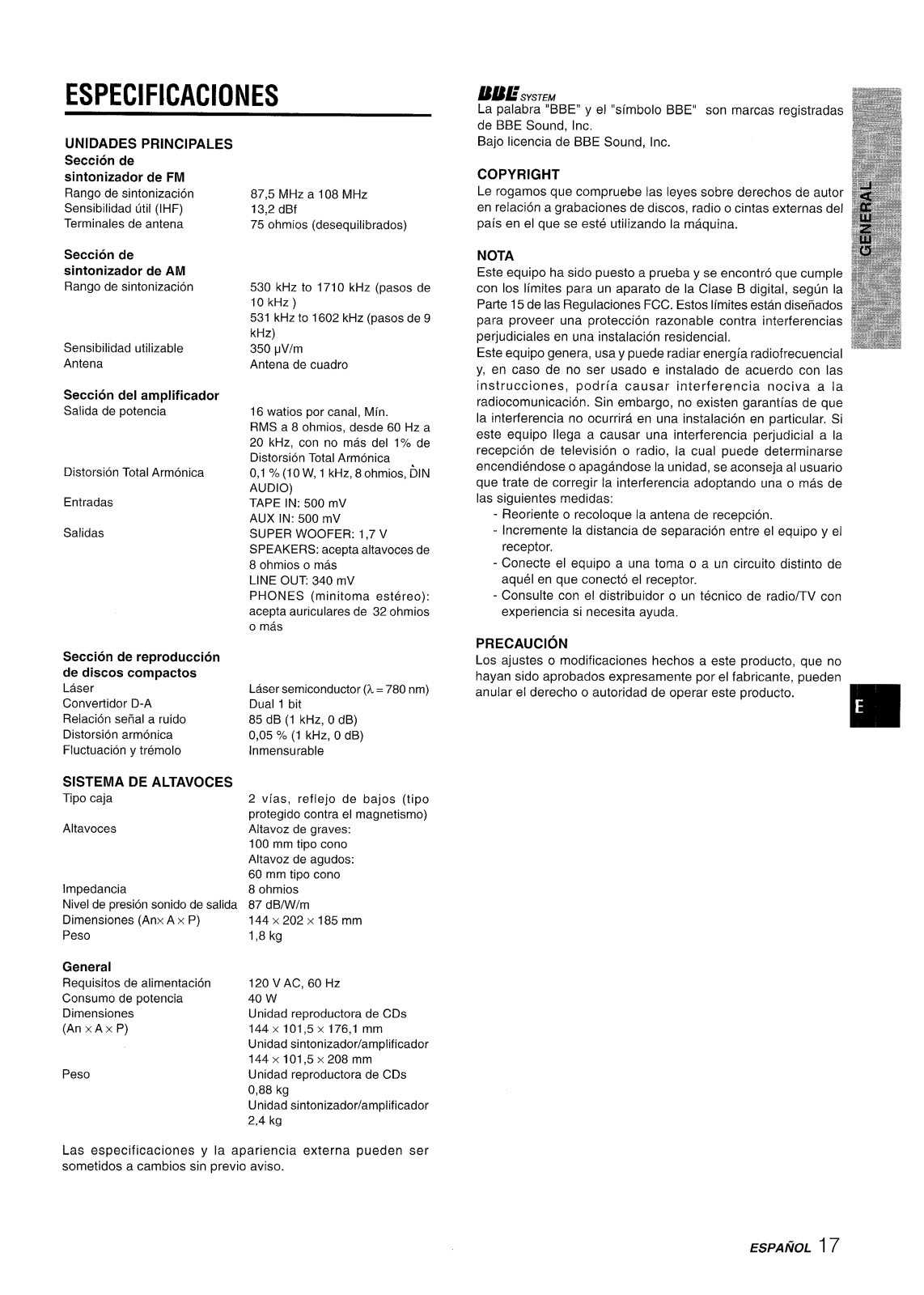

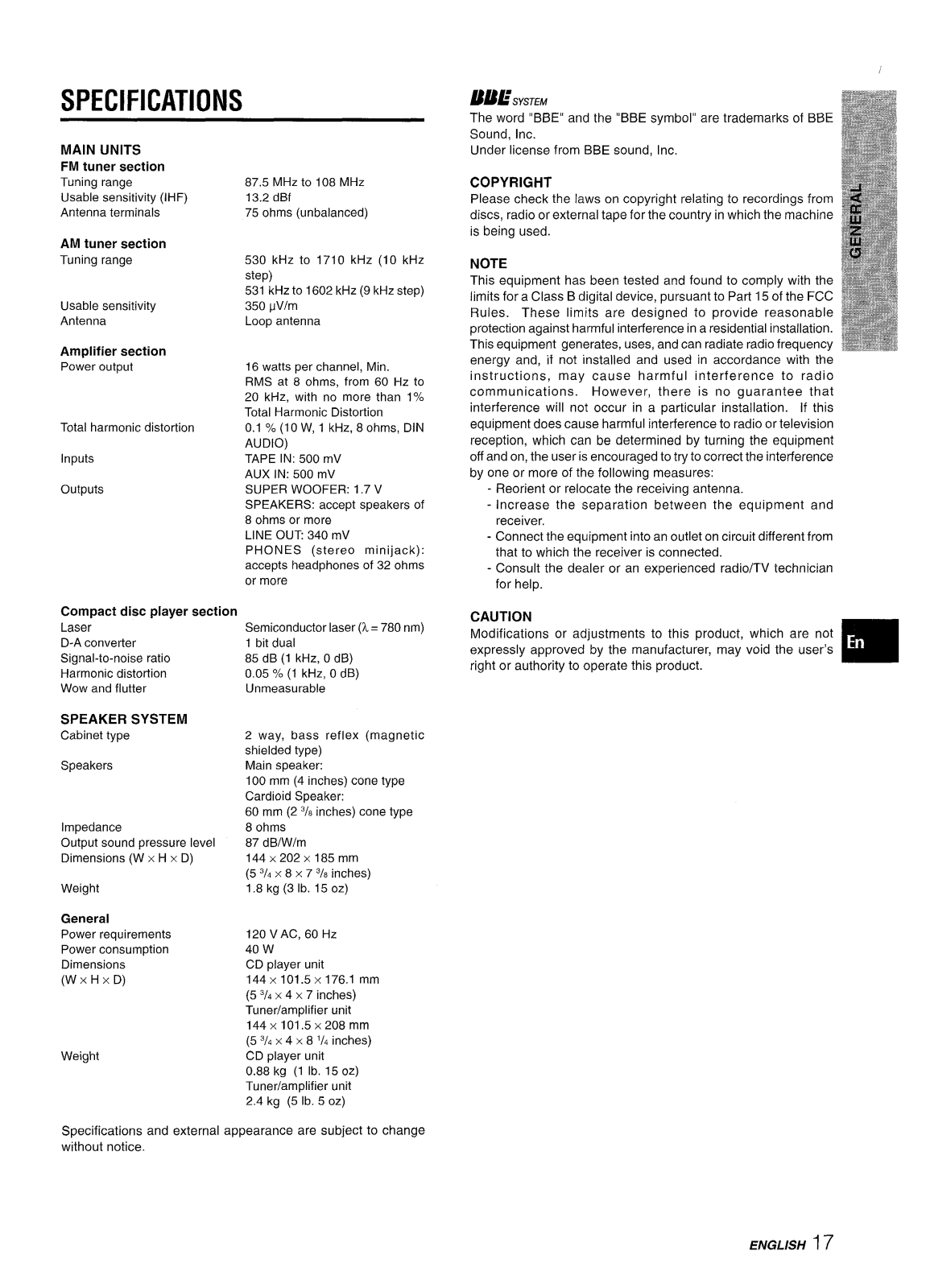

SPECIFICATIONS

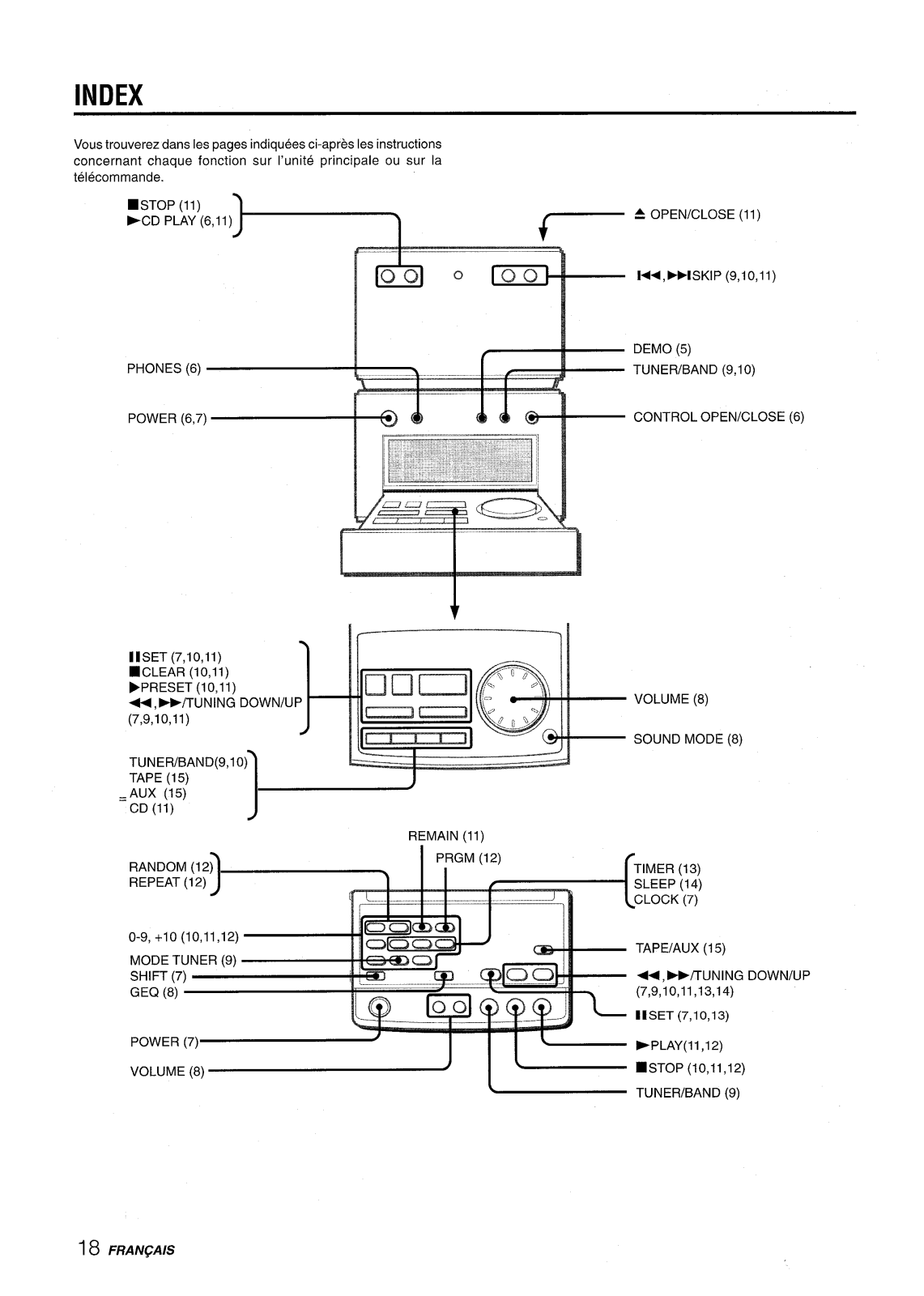

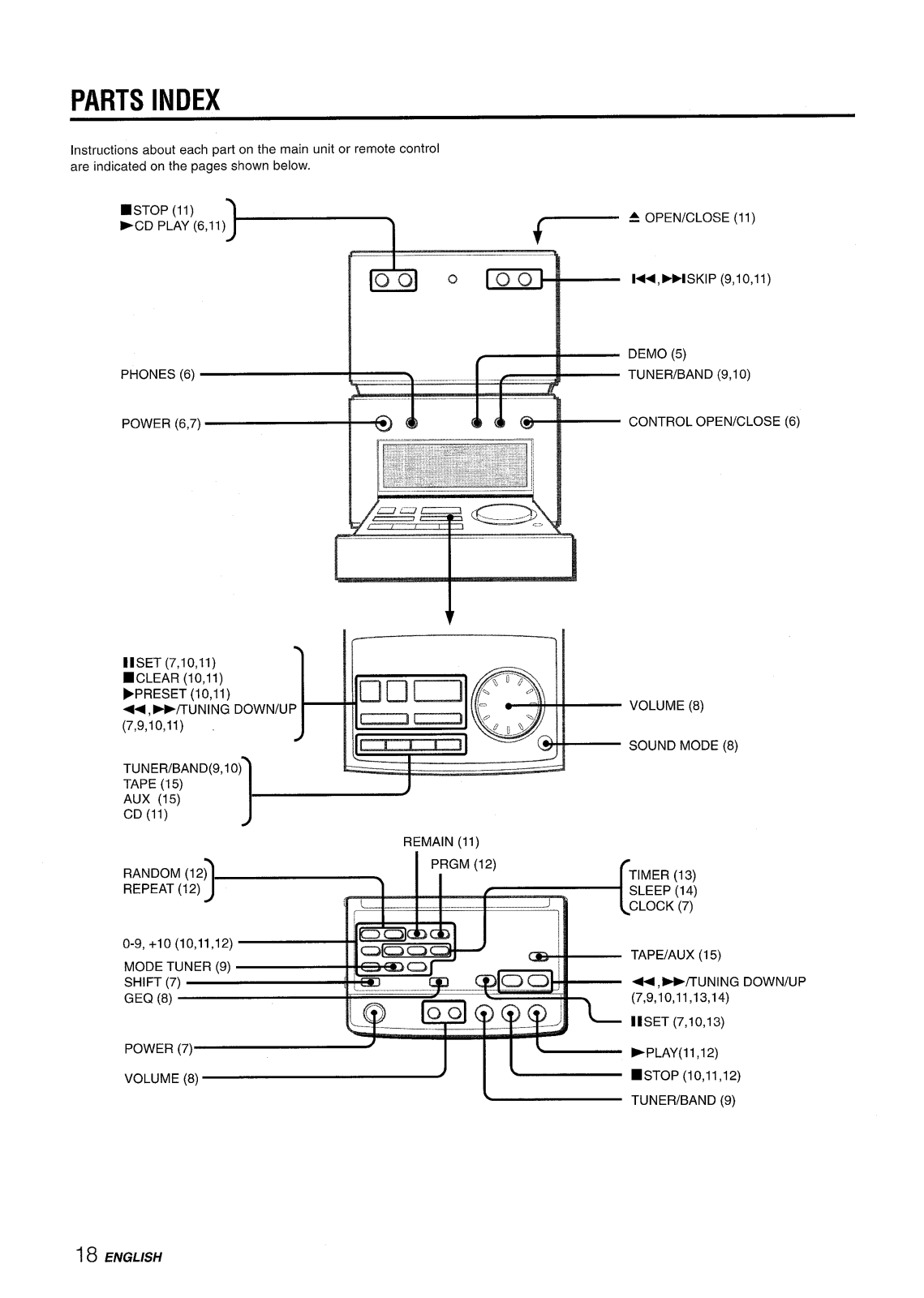

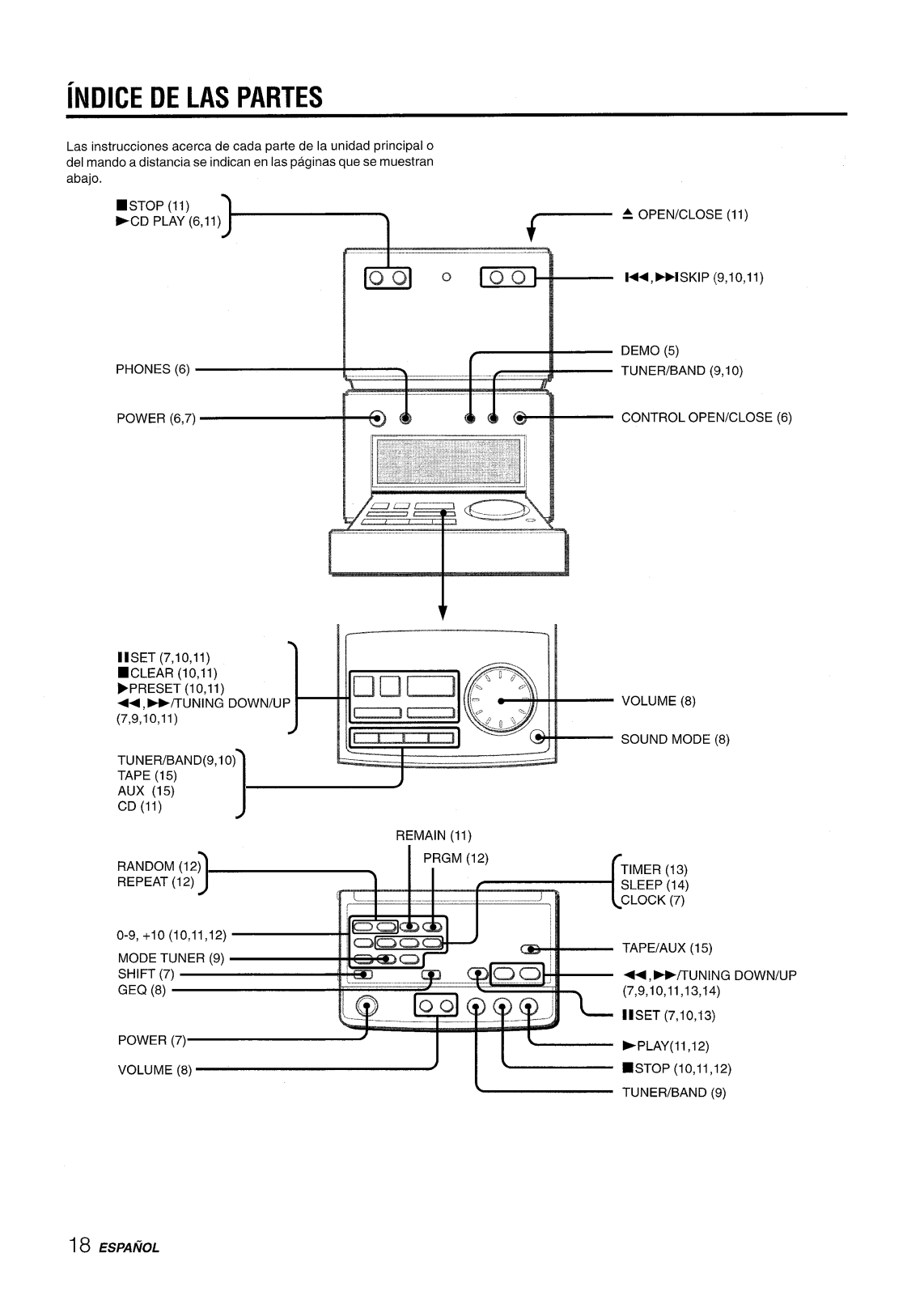

PARTS INDEX ................................................................... 18

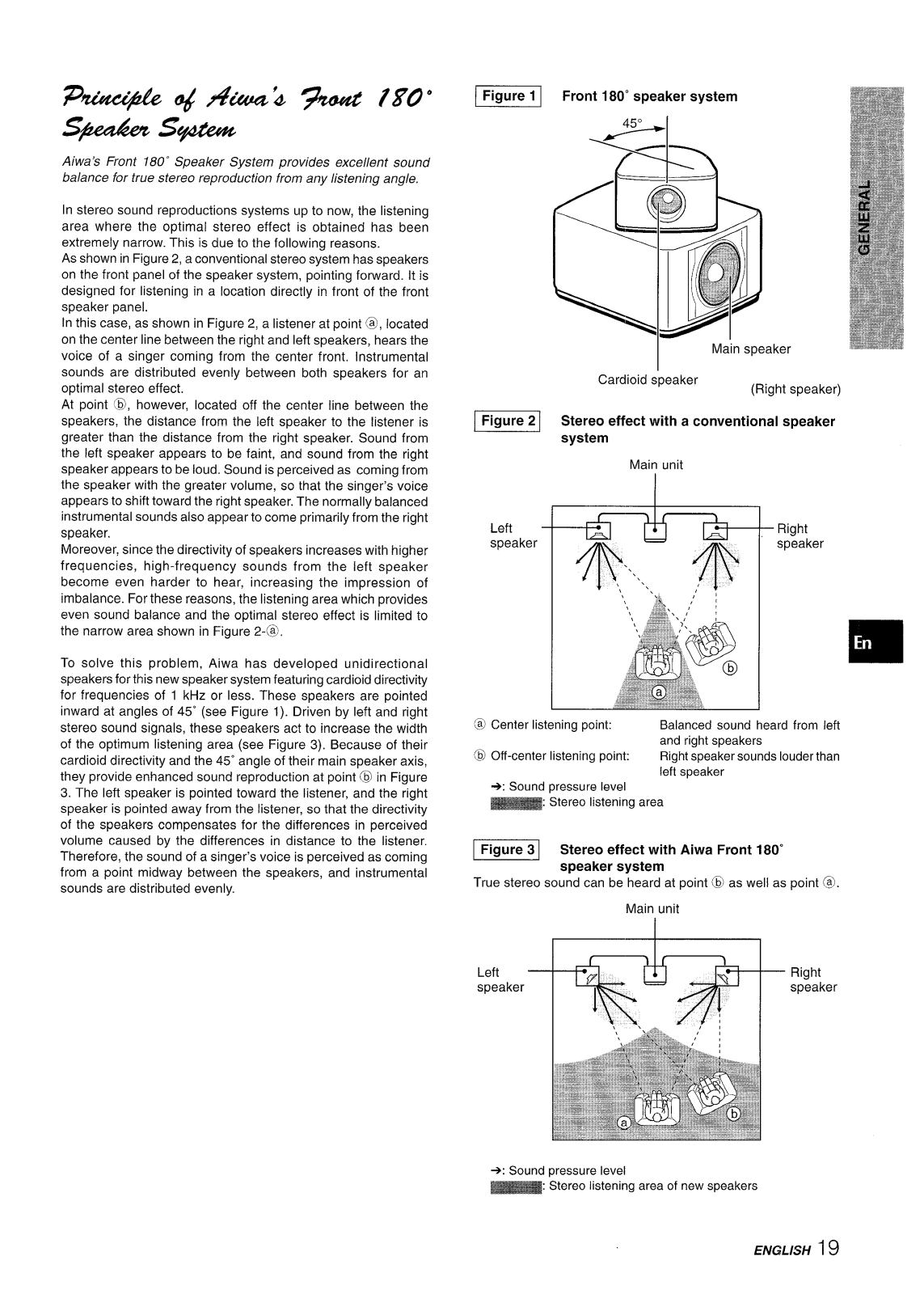

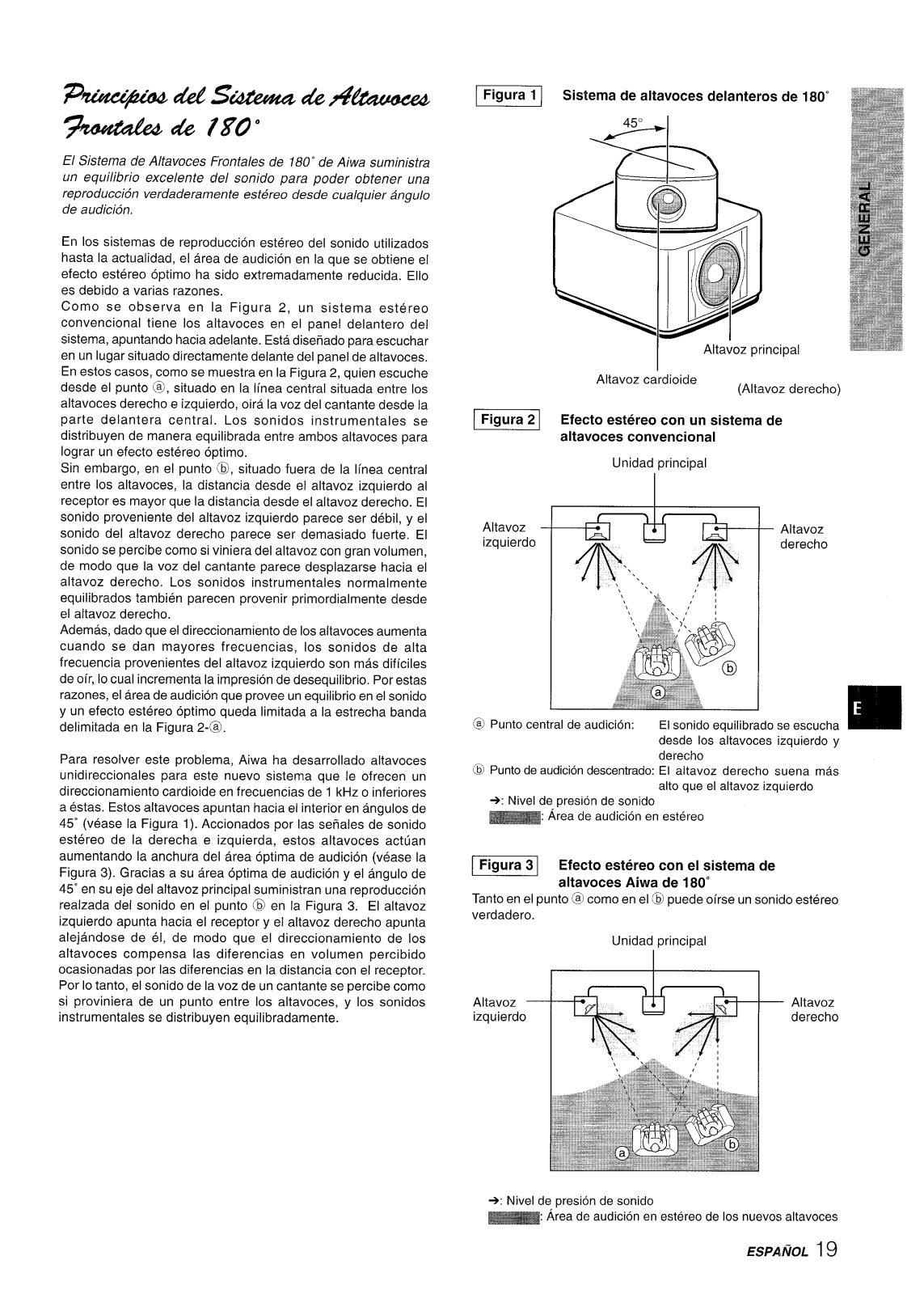

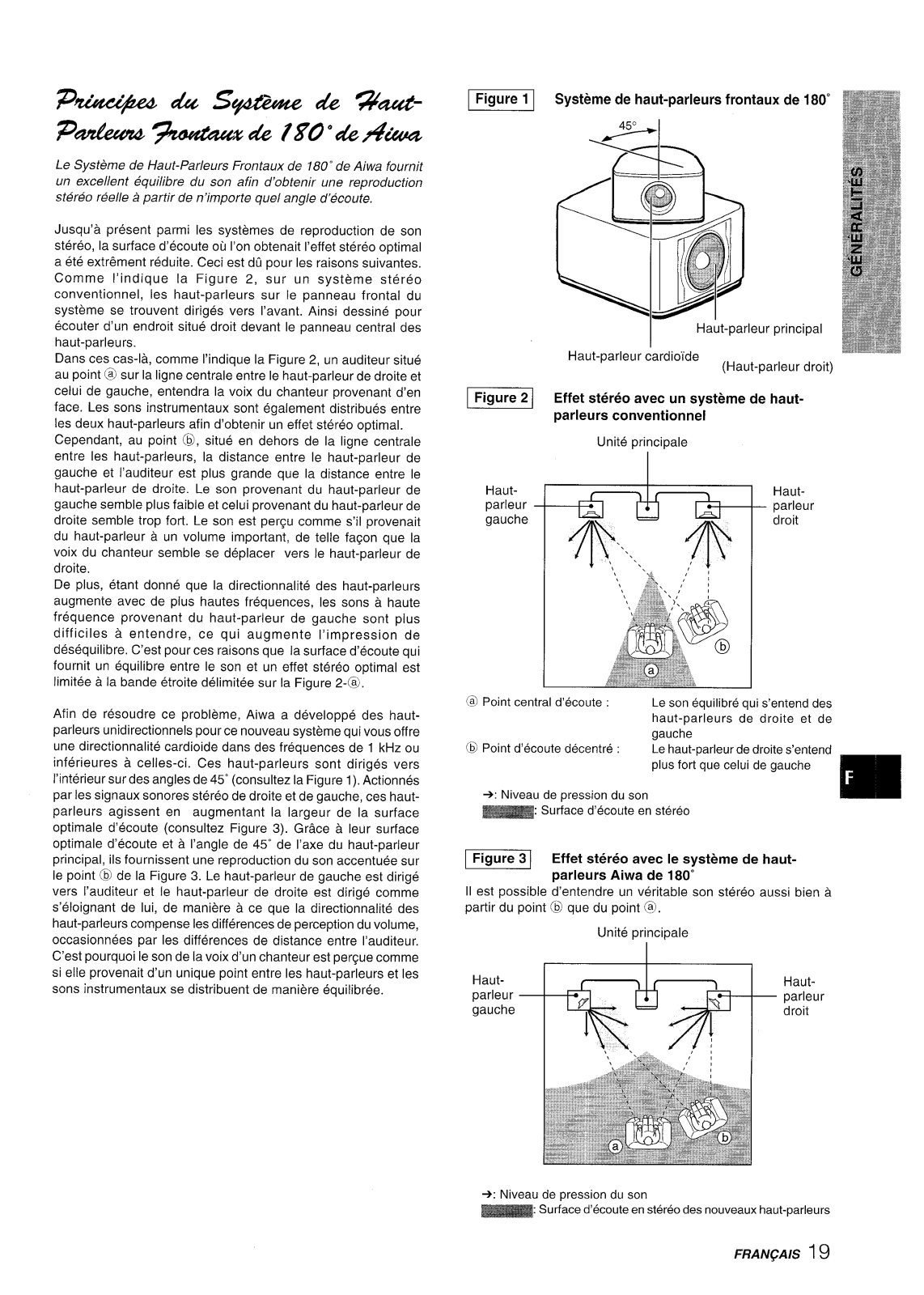

PRINCIPLE OF AIWA’S FRONT 180” SPEAKER

sYsTEM .................m......................................................l9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..m...m . . . . . . . . ..m . . . . . ..m 17

Operating Instructions, etc.

Owner’s record Foryourconvenience, record the model number and serial number (you will find them on the rear of your set) in the space provided below. Please refer to them when you contact your Aiwa dealer in

case of difficulty,

[ Model No. Serial No. (Lot No.)

I XR-M70U I

ENGLISH 3

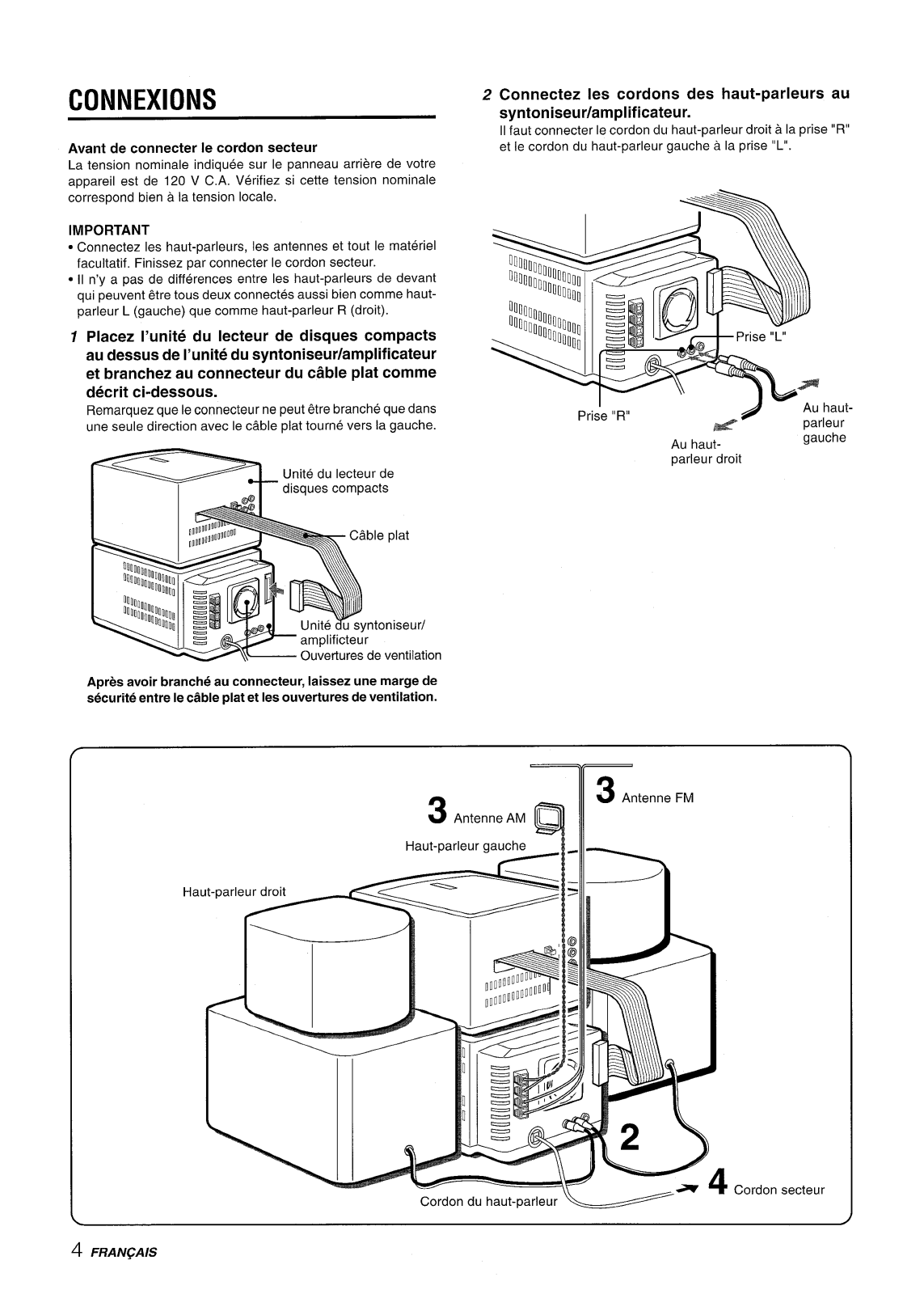

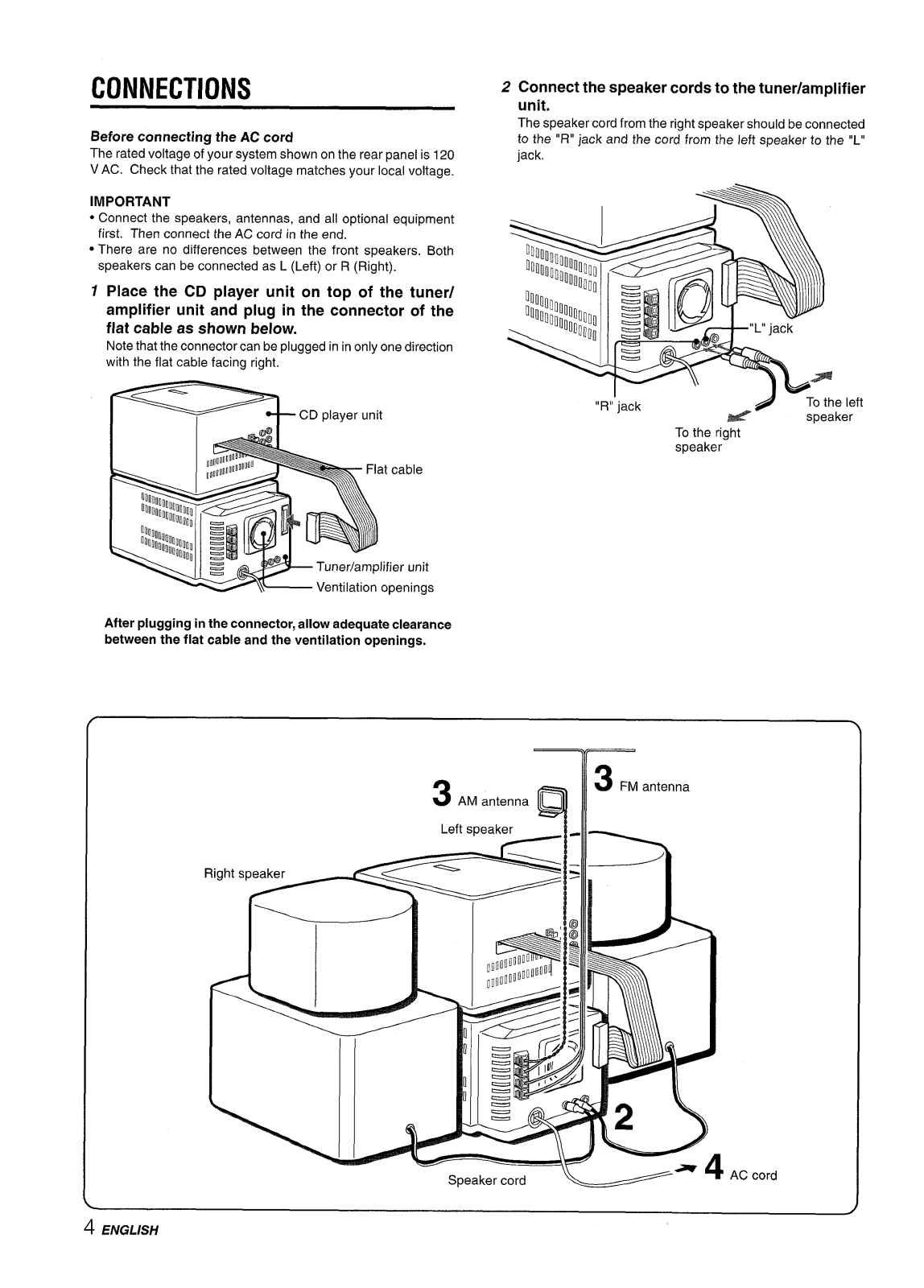

CONNECTIONS

Before connecting the AC cord

The rated voltage of your system shown on the rear panel is 120 V AC. Check that the rated voltage matches your local voltage.

IMPORTANT

● Connect the speakers, antennas, and all optional equipment

first. Then connect the AC cord in the end.

● There are no differences between the front speakers. Both

speakers can be connected as L (Left) or R (Right).

7 Place the CD player unit on top of the tuner/

amplifier unit and plug in the connector of the flat cable as shown below.

Note that the connector can be plugged in in only one direction

with the flat cable facing right.

Connect the speaker cords to the tuner/amplifier unit.

The speaker cord from the right speaker should be connected to the “R” jack and the cord from the left speaker to the “L”

jack.

~c.pbferunit

After plugging in the connector, allow adequate clearance between the flat cable and the ventilation openings.

AM antenna ~

Left speaker

,lRtl’jack

~1-111~

& To;ot:::ft

To the right speaker

FM antenna

4 ENGLISH

AC cord

—

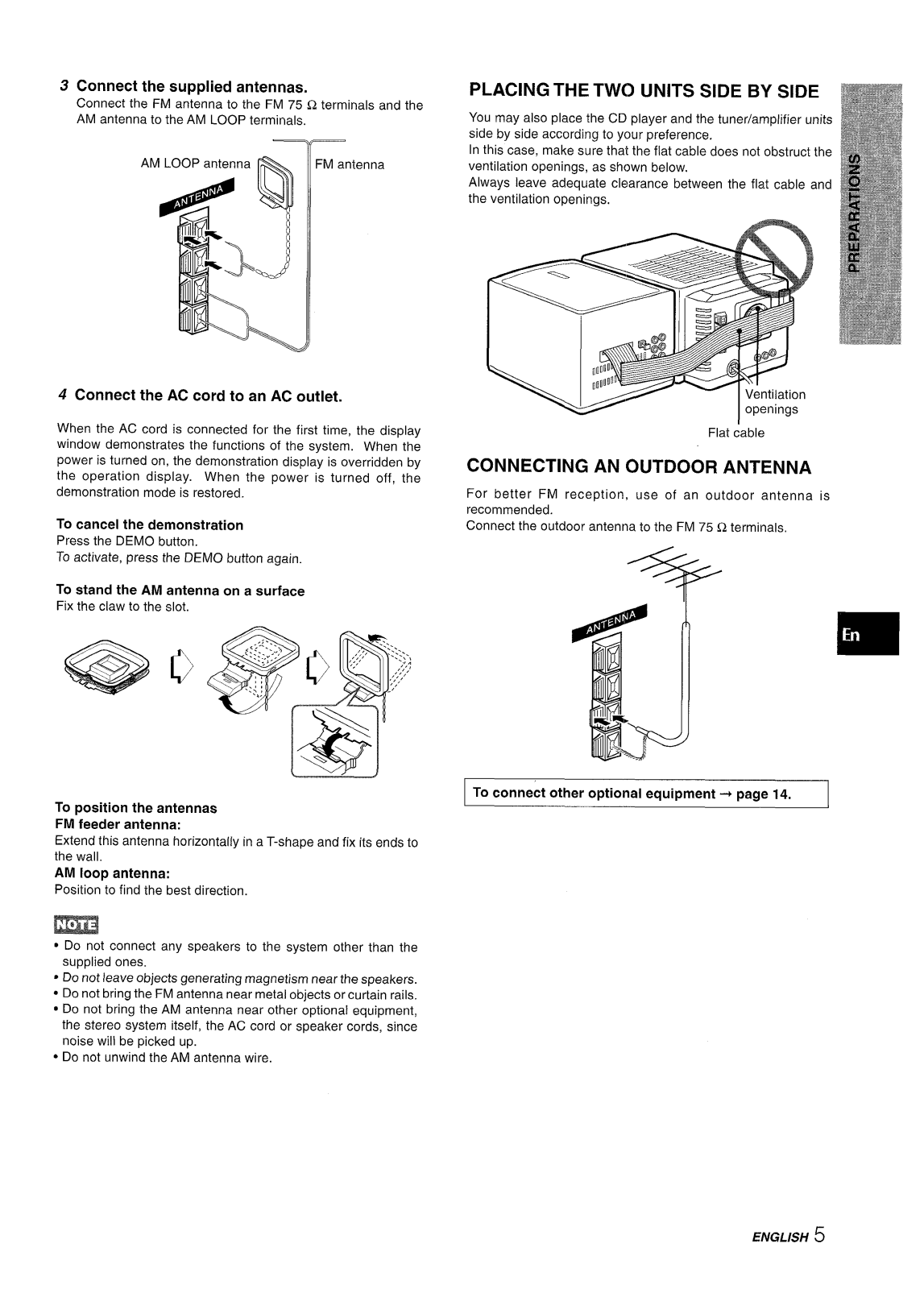

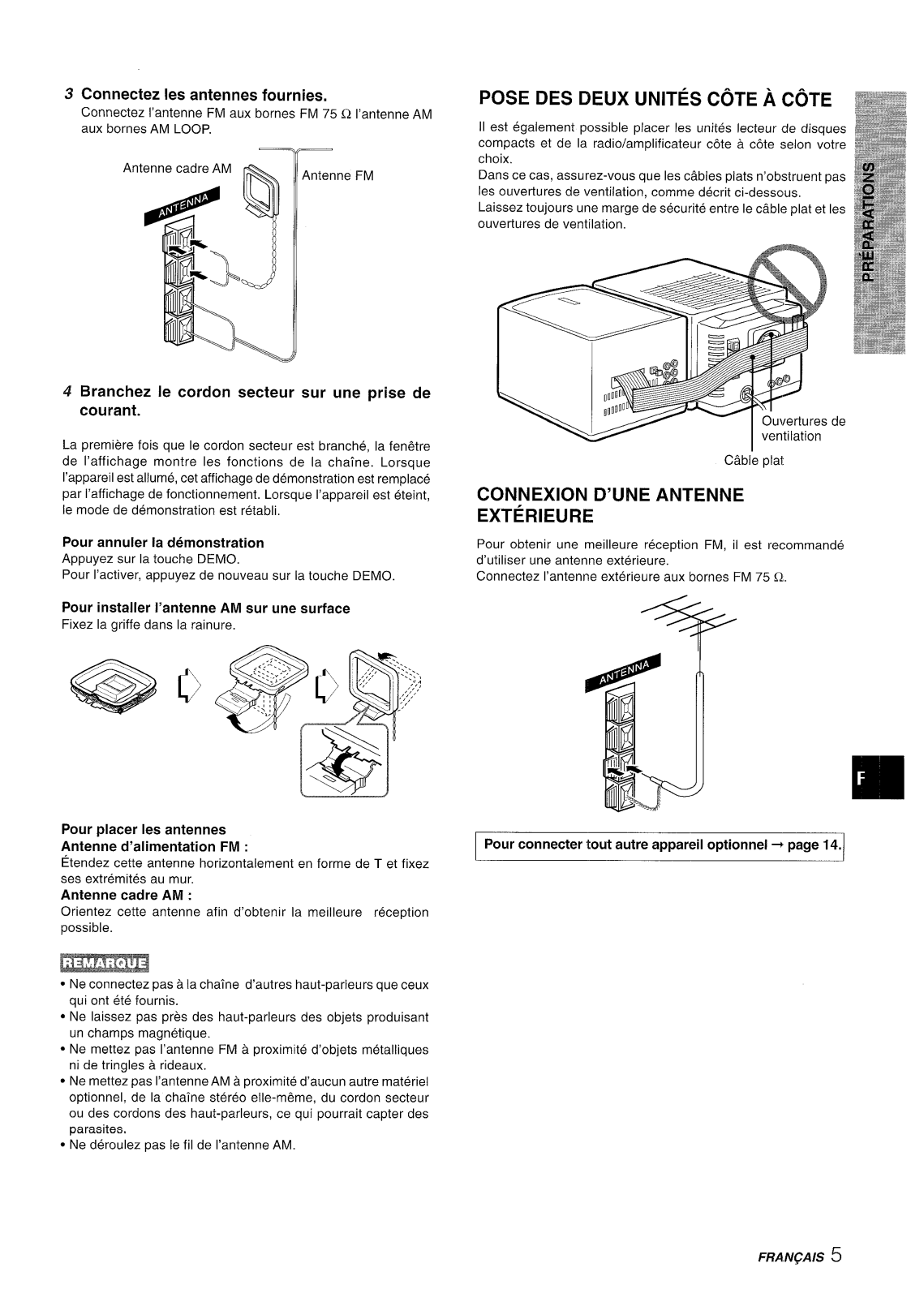

Connect the supplied antennas,

Connect the FM an_tenna to the FM 75 Q terminals and the AM antenna to the AM LOOP terminals.

FM antenna

PLACING THE TWO UNITS SIDE BY SIDE

You may also place the CD player and the tuner/amplifier units side by side according to your preference. In this case, make sure that the flat cable does not obstruct the ventilation openings, as shown below. Always leave adequate clearance between the flat cable and the ventilation openings.

4 Connect the AC cord to an AC outlet.

When the AC cord is connected for the first time, the display window demonstrates the functions of the system. When the power is turned on, the demonstration display is overridden by the operation display. When the power is turned off, the demonstration mode is restored.

To cancel the demonstration

Press the DEMO button. To activate, press the DEMO button again.

To stand the AM antenna on a surface

Fix the claw to the slot.

To position the antennas FM feeder antenna:

Extend this antenna horizontally in a T-shape and fix its ends to the wall.

AM loop antenna:

Position to find the best direction.

openings

Flat cable

CONNECTING AN OUTDOOR ANTENNA

For better FM reception, use of an outdoor antenna is recommended. Connect the outdoor antenna to the FM 75 Q terminals,

I To connect other optional equipment+ page 14. I

● Do not connect any speakers to the system other than the

supplied ones.

● Do not leave objects generating magnetism near the speakers.

● Do not bring the FM antenna near metal objects or curtain rails.

● Do not bring the AM antenna near other optional equipment,

the stereo system itself, the AC cord or speaker cords, since noise will be picked up.

c Do not unwind the AM antenna wire.

ENGLISH

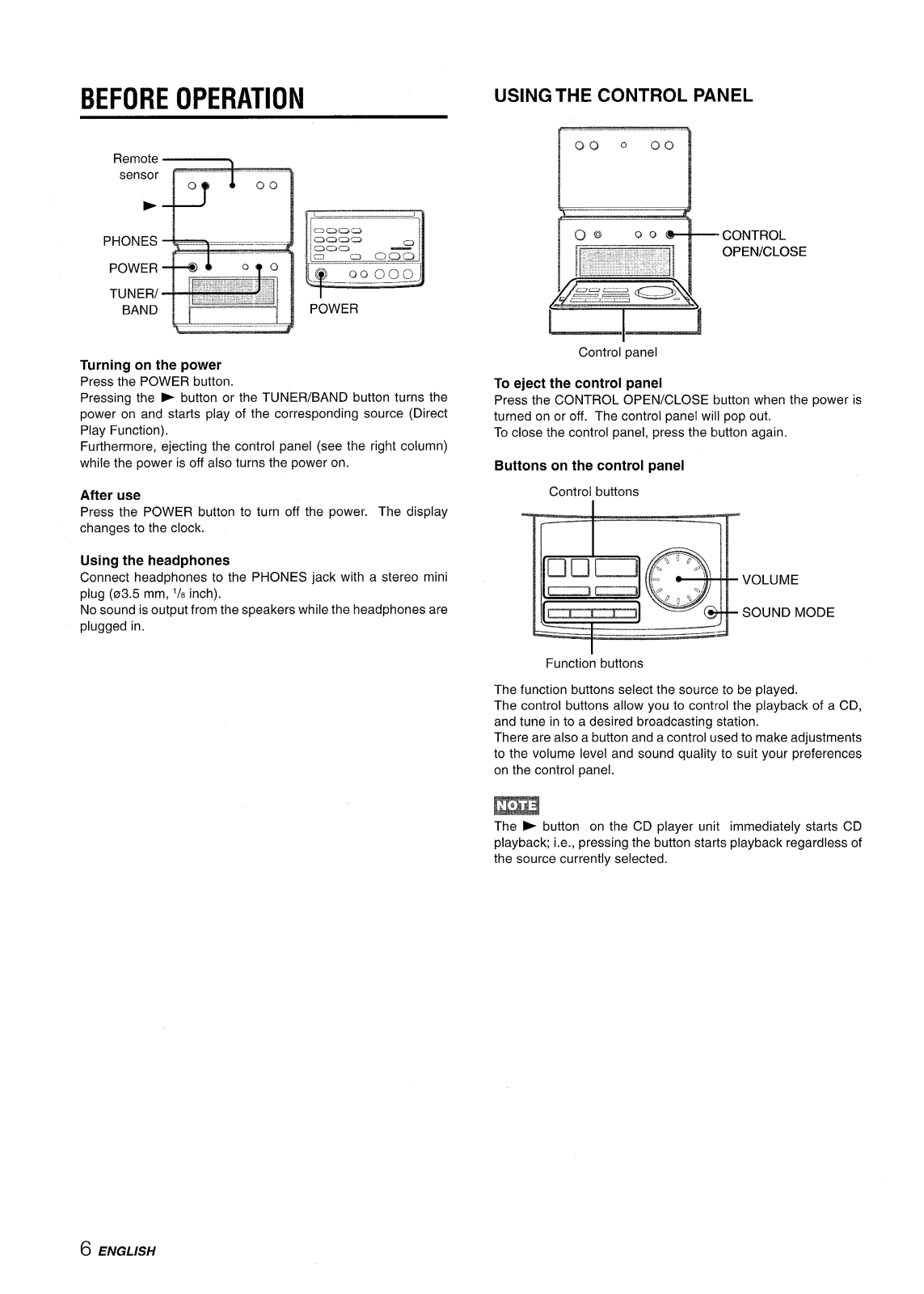

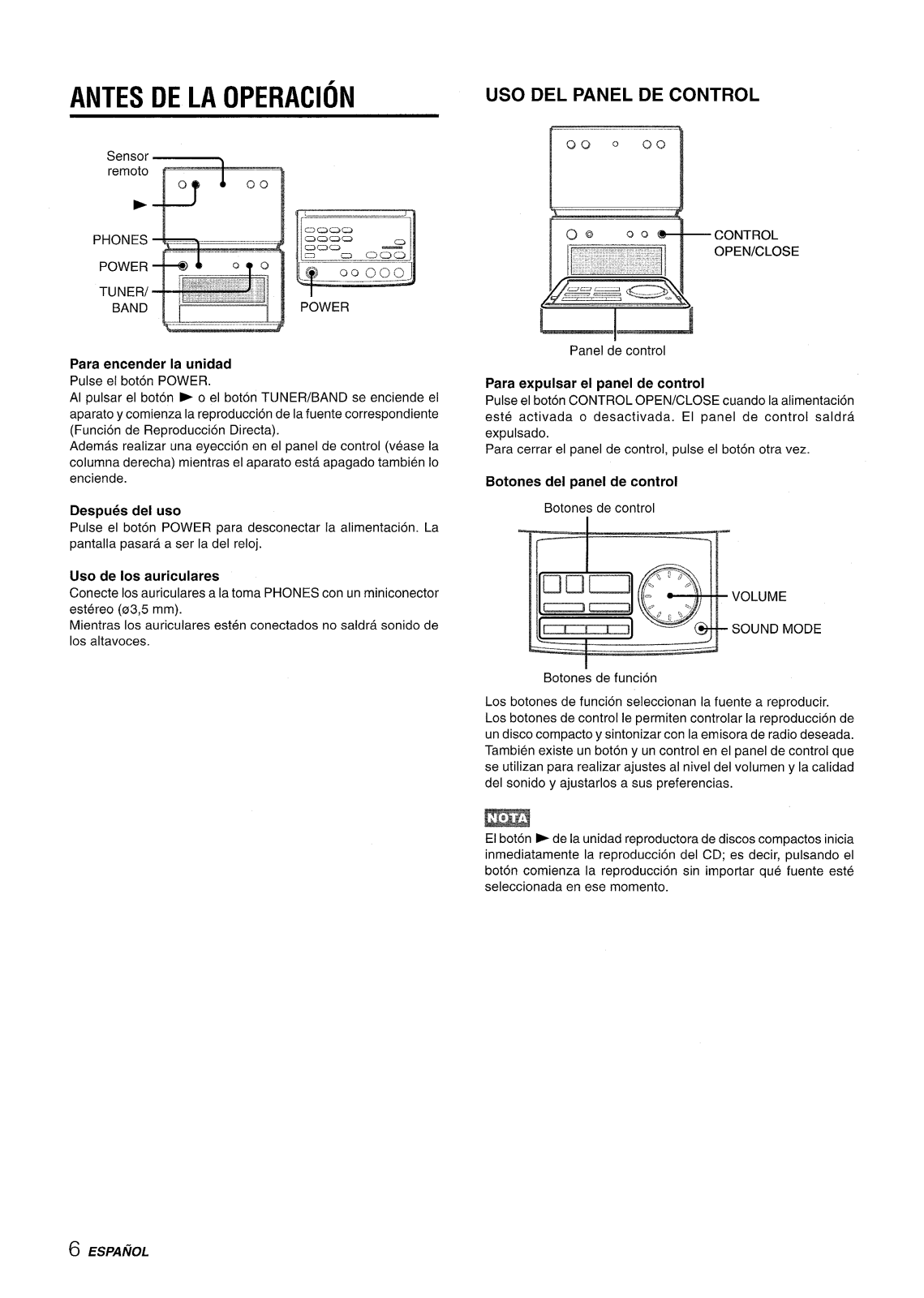

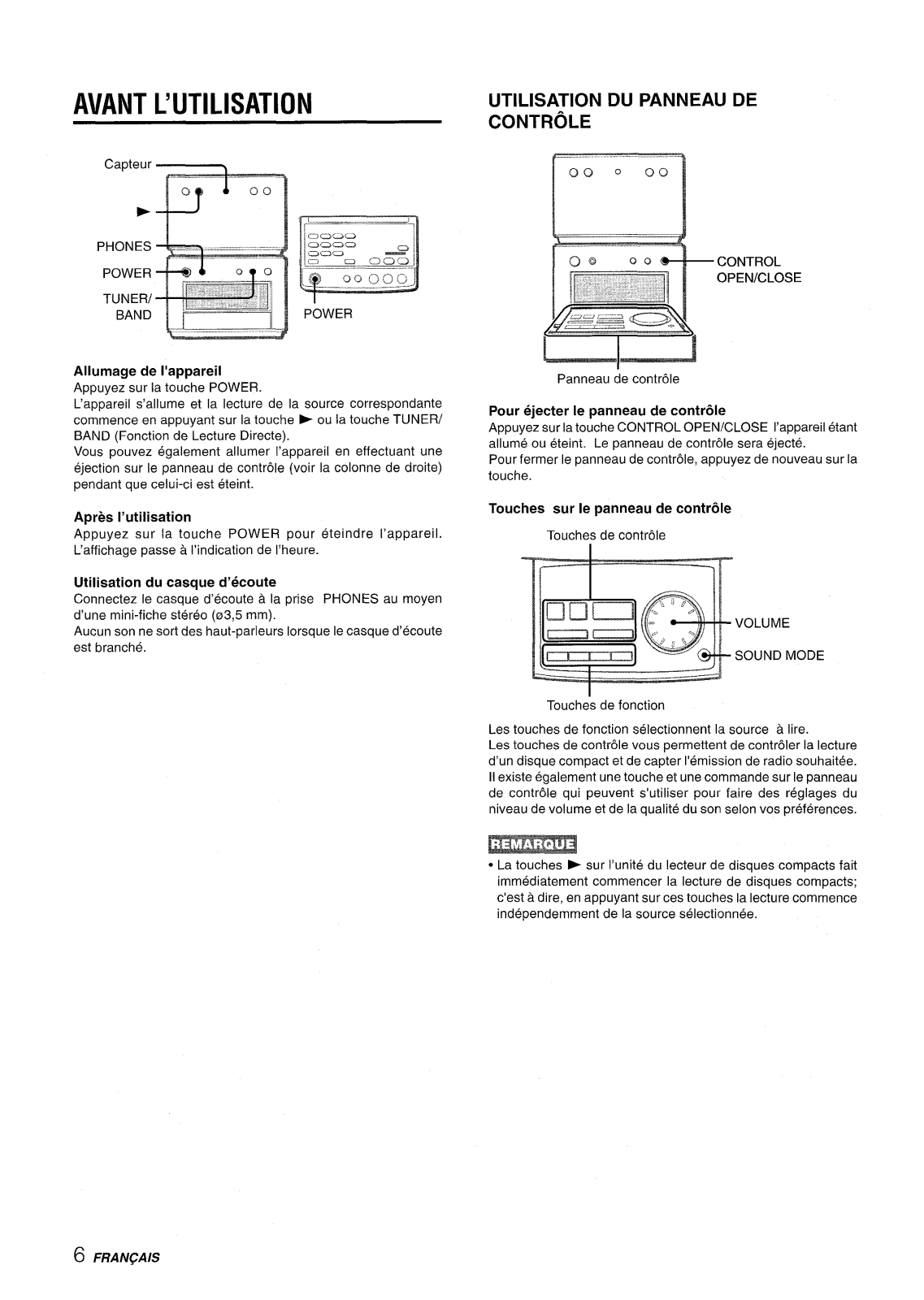

BEFORE OPERATION

Remote

sensor ‘--

POWER

USING THE CONTROL PANEL

1’ 1

(20 0 00

CONTROL

Control panel

Pressing the ~ button orthe TUNER/BAND button turns the power on and starts play of the corresponding source (Direct Play Function). Furthermore, ejecting the control panel (see the right column) while the power is off also turns the power on.

After use

Press the POWER button to turn off the power. The display changes to the clock.

Using the headphones

Connect headphones to the PHONES jack with a stereo mini plug (03.5 mm, ‘/8 inch). No sound is output from the speakers while the headphones are plugged in.

To eject the control panel

Press the CONTROL OPEN/CLOSE button when the power is turned on or off. The control panel will pop out. To close the control panel, press the button again.

Buttons on the control panel

Control buttons

[

VOLUME

SOUND MODE

Function buttons

The function buttons select the source to be played. The control buttons allow you to control the playback of a CD, and tune in to a desired broadcasting station. There are also a button and a control used to make adjustments to the volume level and sound quality to suit your preferences on the control panel.

The - button on the CD player unit immediately starts CD playback; i.e., pressing the button starts playback regardless of the source currently selected.

6 ENGLISH

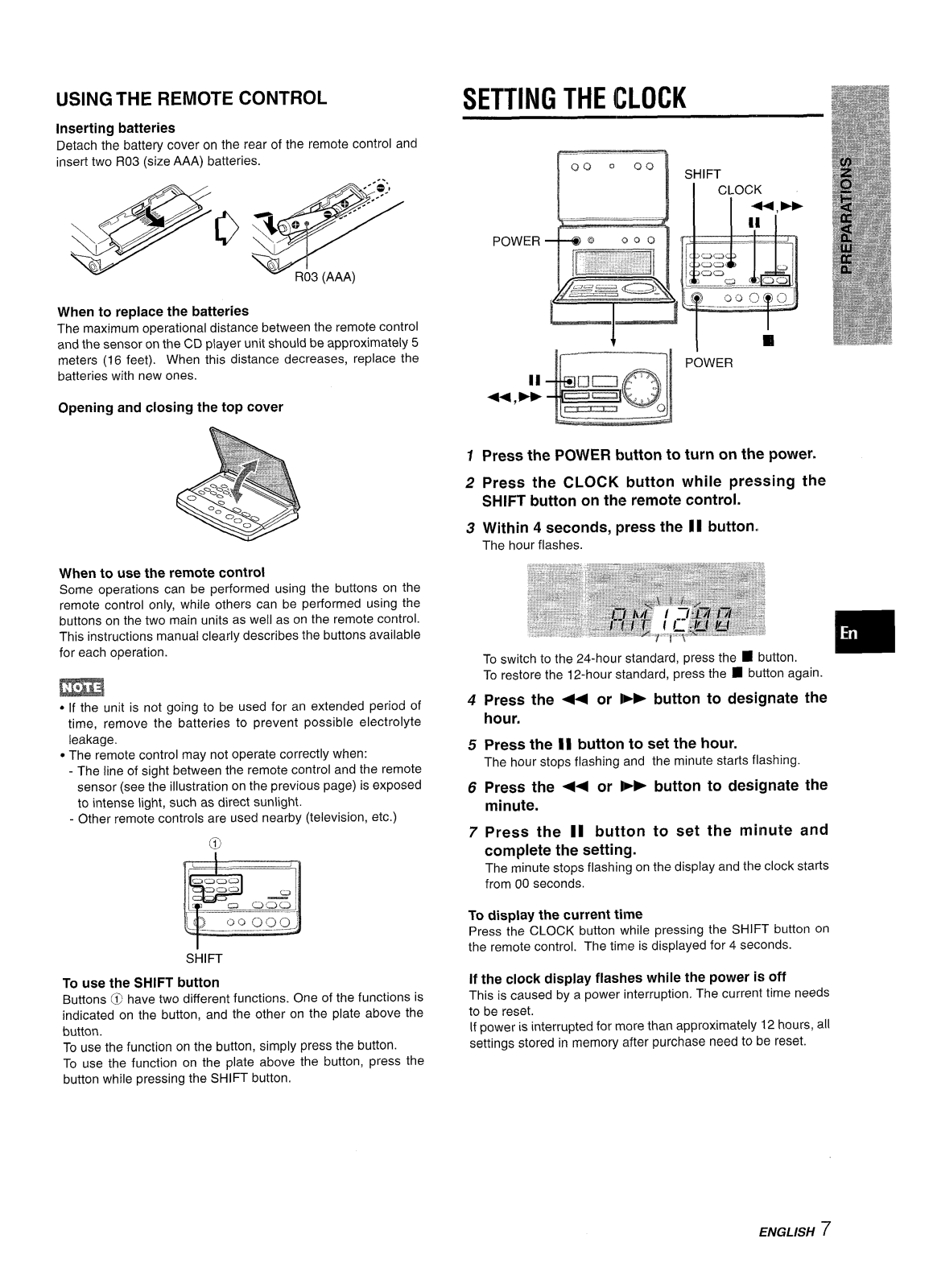

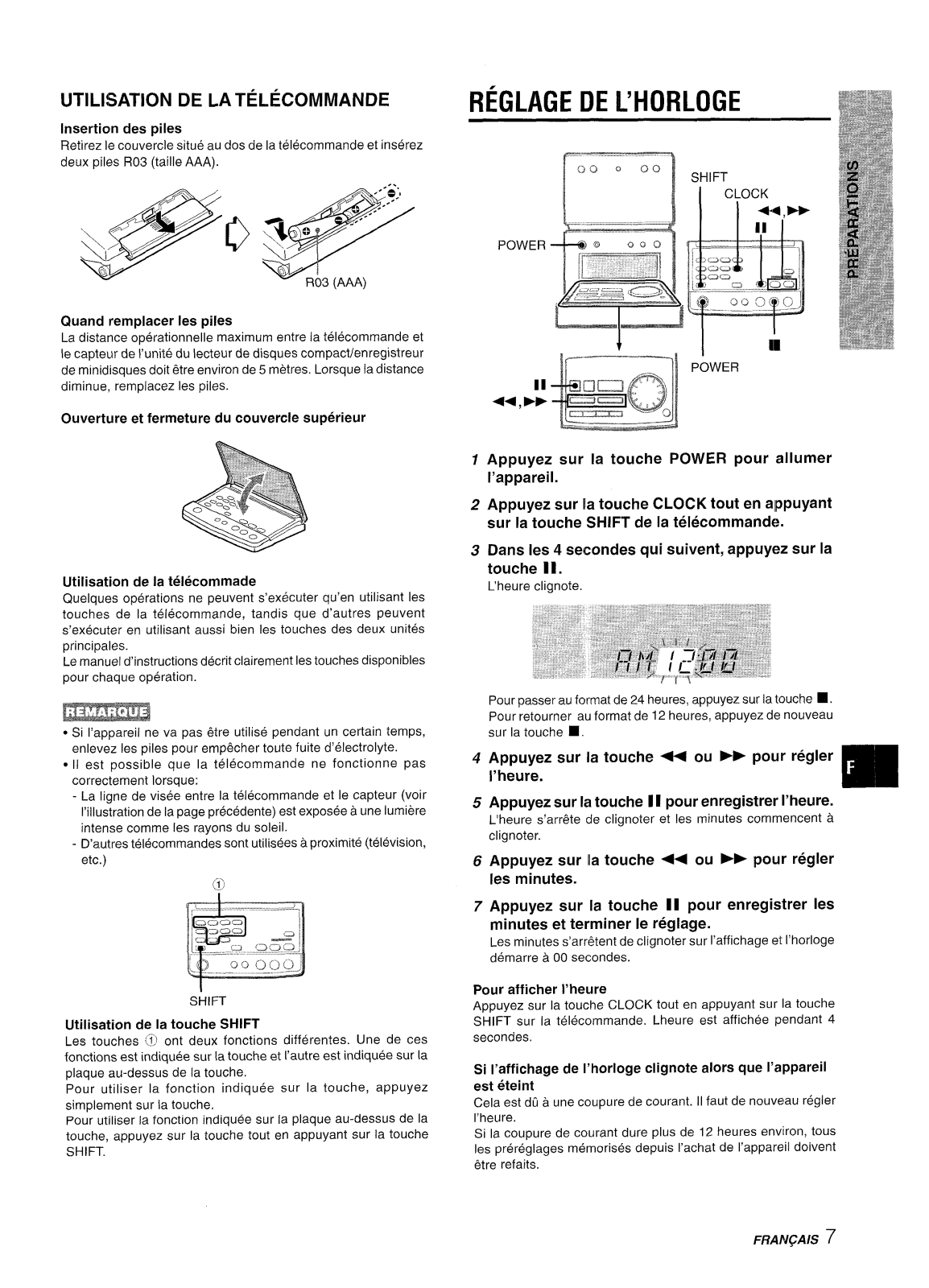

USING THE REMOTE CONTROL

Inserting batteries

Detach the battery cover on the rear of the remote control and insert two R03 (size AAA) batteries.

When to replace the batteries

The maximum operational distance between the remote control

and the sensor on the CD player unit should be approximately 5 meters (16 feet). When this distance decreases, replace the batteries with new ones.

Opening and closing the top cover

SETTING THE CLOCK

POWER

Press the POWER kwtton to turn on the power. Press the CLOCK button while pressing the

SHIFT button on the remote control. Within 4 seconds, press the II button,,

The hour flashes.

❑

When to use the remote control

Some operations can be performed using the buttons on the

remote control only, while others can be performed using the buttons on the two main units as well as on the remote control. This instructions manual clearly describes the buttons available for each operation.

● If the unit is not going to be used for an extended period of

time, remove the batteries to prevent possible electrolyte leakage.

● The remote control may not operate correctly when:

- The line of sight between the remote control and the remote sensor (see the illustration on the previous page) is exposed to intense light, such as direct sunlight.

- Other remote controls are used nearby (television, etc.)

SHIFT

To use the SHIFT button Buttons C! have two different functions. One of the functions is indicated on the button, and the other on the plate above the button.

To use the function on the button, simply press the button. To use the function on the plate above the button, press the button while pressing the SHIFT button,

To restore the 12-hour standard, press the ■ button again.

Press the + or ~- button to designate the

hour,

Press the 1I button to set the hour.

The hour stops flashing and the minute starts flashing.

Press the ++ or ~~ button to designate the

minute. Press the II button to set the minute and

complete the setting.

The minute stops flashing on the display and the clock starts from 00 seconds.

To display the current time

Press the CLOCK button while pressing the SHIFT button on

the remote control. The time is displayed for 4 seconds.

If the clock display flashes while This is caused by a power interruption. The current time needs to be reset.

If power is interrupted for more than approximately 12 hours, all

settings stored in memory after purchase need to be reset.

the power is off

ENGLISH

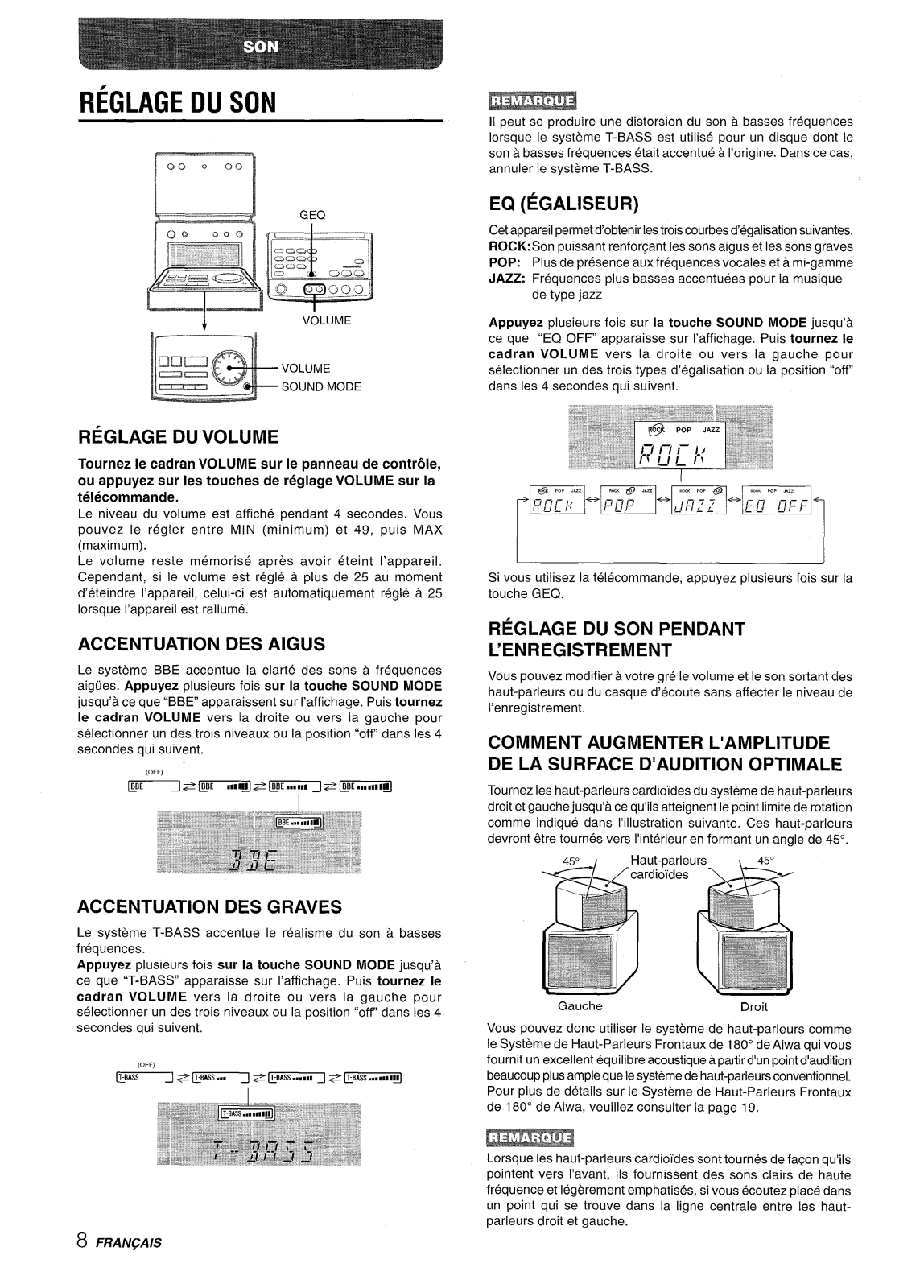

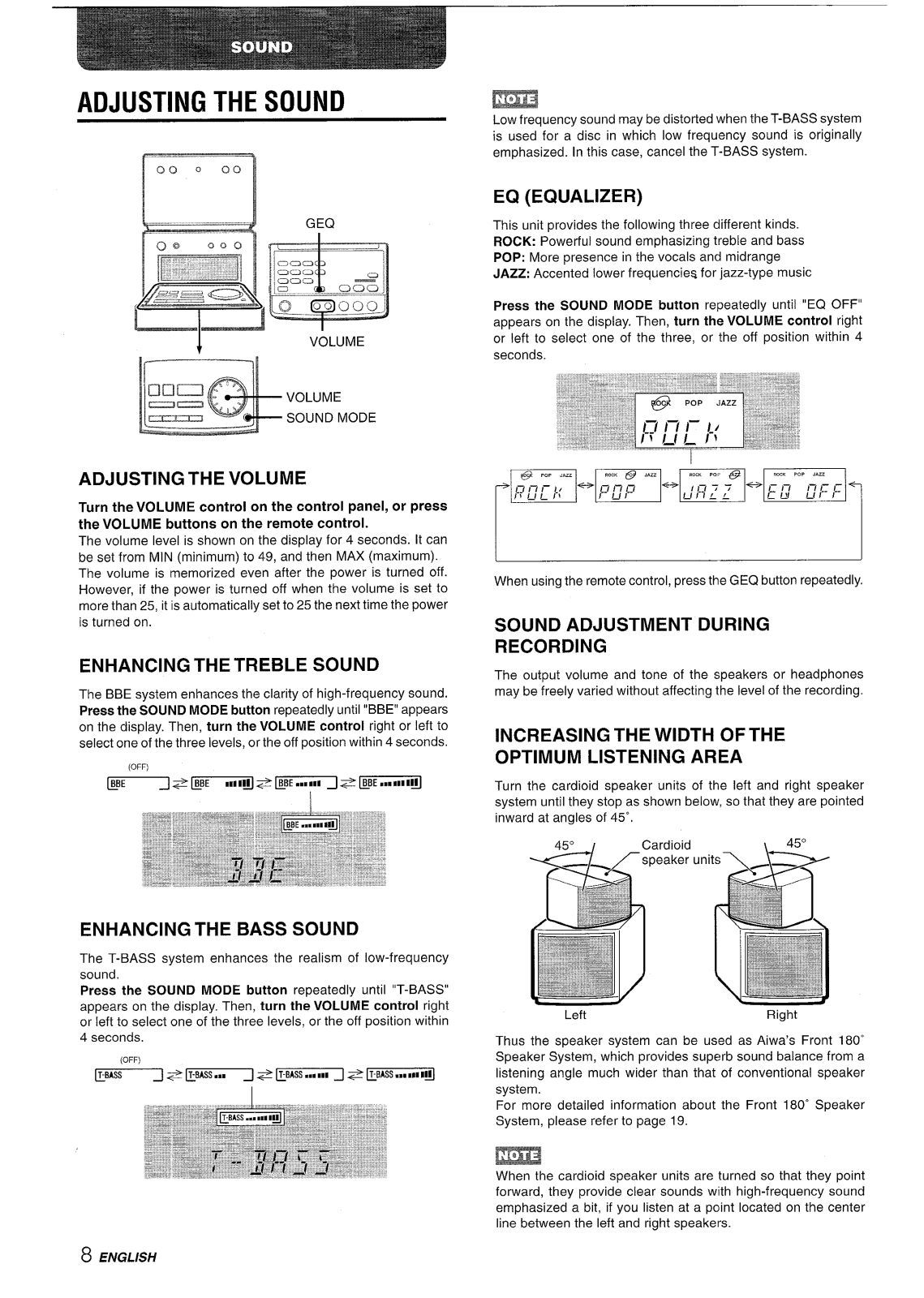

ADJUSTING THE SOUND

00 0 00

ADJUSTING THE VOLUME

Turn the VOLUME control on the control panel, or press

VOLUME buttons on the remote control.

the

The volume level is shown on the display for 4 seconds. It can

be set from MIN (minimum) to 49, and then MAX (maximum).

The volume is memorized even after the power is turned off.

However, if the power is turned off when the volume is set to more than 25, it is automatically set to 25 the next time the power is turned on.

ENHANCING THE TREBLE SOUND

The BBE system enhances the clarity of high-frequency sound.

Press the SOUND MODE button repeatedly until “BBE” appears

on the display. Then, select one of the three levels, or the off position within 4 seconds.

(OFF)

L~J = L-J = L-J= L-l

turn the VOLUME control right or left to

VOLUME SOUND MODE

Low frequency sound may be distorted when the T-BASS system is used for a disc in which low frequency sound is originally emphasized. In this case, cancel the T-BASS system.

EGl (EQUALIZER)

This unit provides the following three different kinds.

ROCK: Powerful sound emphasizing treble and bass

POP: More presence in the vocals and midrange

JAZZ: Accented lower frequencies for jazz-type music

Press the SOUND MODE button repeatedly until “EQ OFF”

appears on the display. Then, or left to select one of the three, or the off position within 4 seconds.

When using the remote control, press the GEQ button repeatedly.

SOUND ADJUSTMENT DURING

RECORDING

The output volume and tone of the speakers or headphones

may be freely varied without affecting the level of the recording.

INCREASING THE WIDTH OF THE OPTIMUM LISTENING AREA

Turn the cardioid speaker units of the left and right speaker

system until they stop as shown below, so that they are pointed inward at angles of 45”.

turn the VOLUME control right

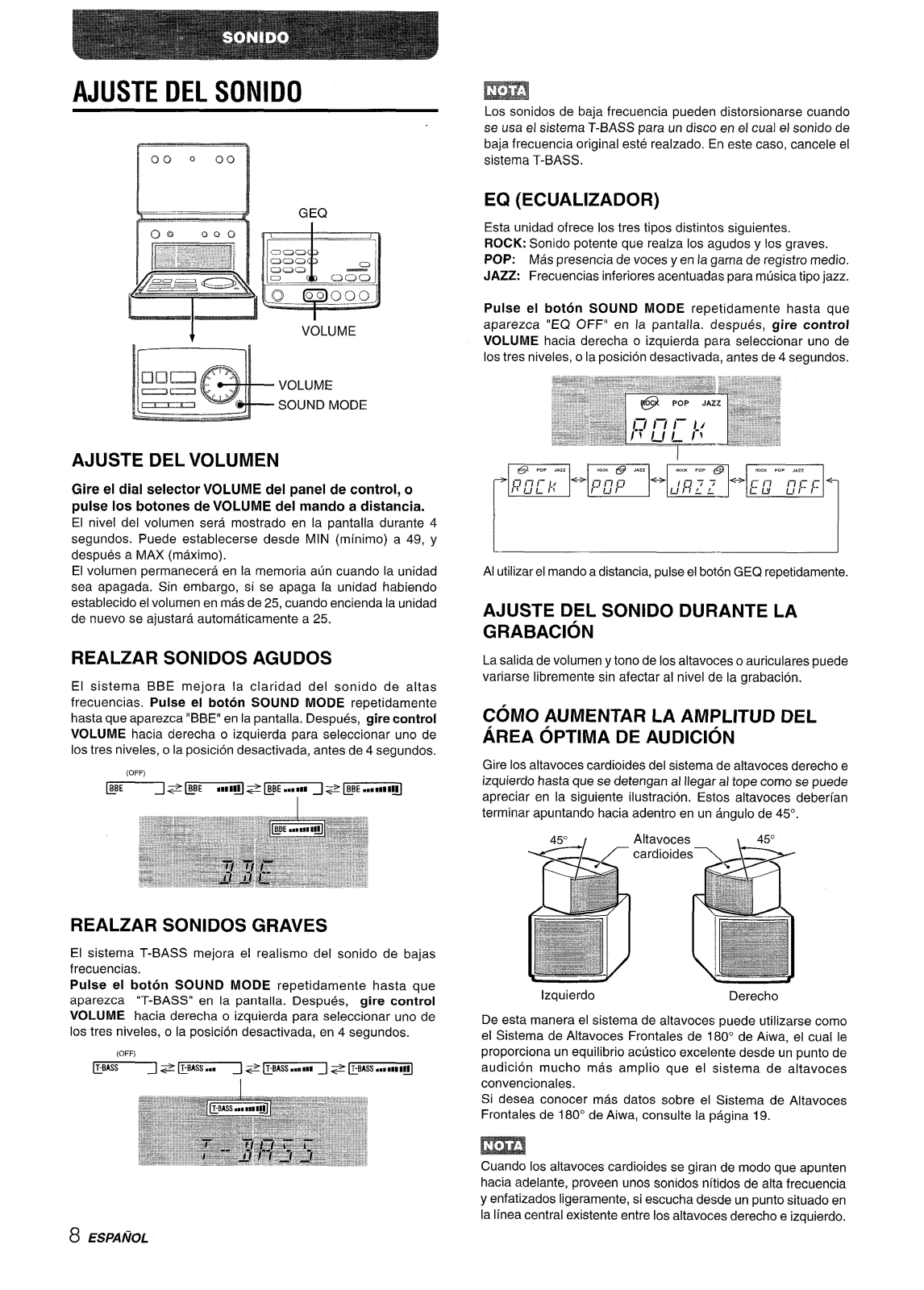

ENHANCING THE BASS SOUND

The T-BASS system enhances the realism of low-frequency

sound.

Press the SOUND MODE button repeatedly until “T-BASS”

appears on the display. Then, or left to select one of the three levels, or the off position within 4 seconds.

(OFF)

~BASS ~ T-BASS

turn the VOLUME control right

~ T-BASS.,, III ~ T-BASS,,, m III

■,,

8 ENGLISH

Left

Thus the speaker system can be used as Aiwa’s Front 180” Speaker System, which provides superb sound balance from a

listening angle much wider than that of conventional speaker

system.

For more detailed information about the Front 180” Speaker System, please refer to page 19.

Right

When the cardioid speaker units are turned so that they point forward, they provide clear sounds with high-frequency sound

emphasized a bit, if you listen at a point located on the center line between the left and right speakers.

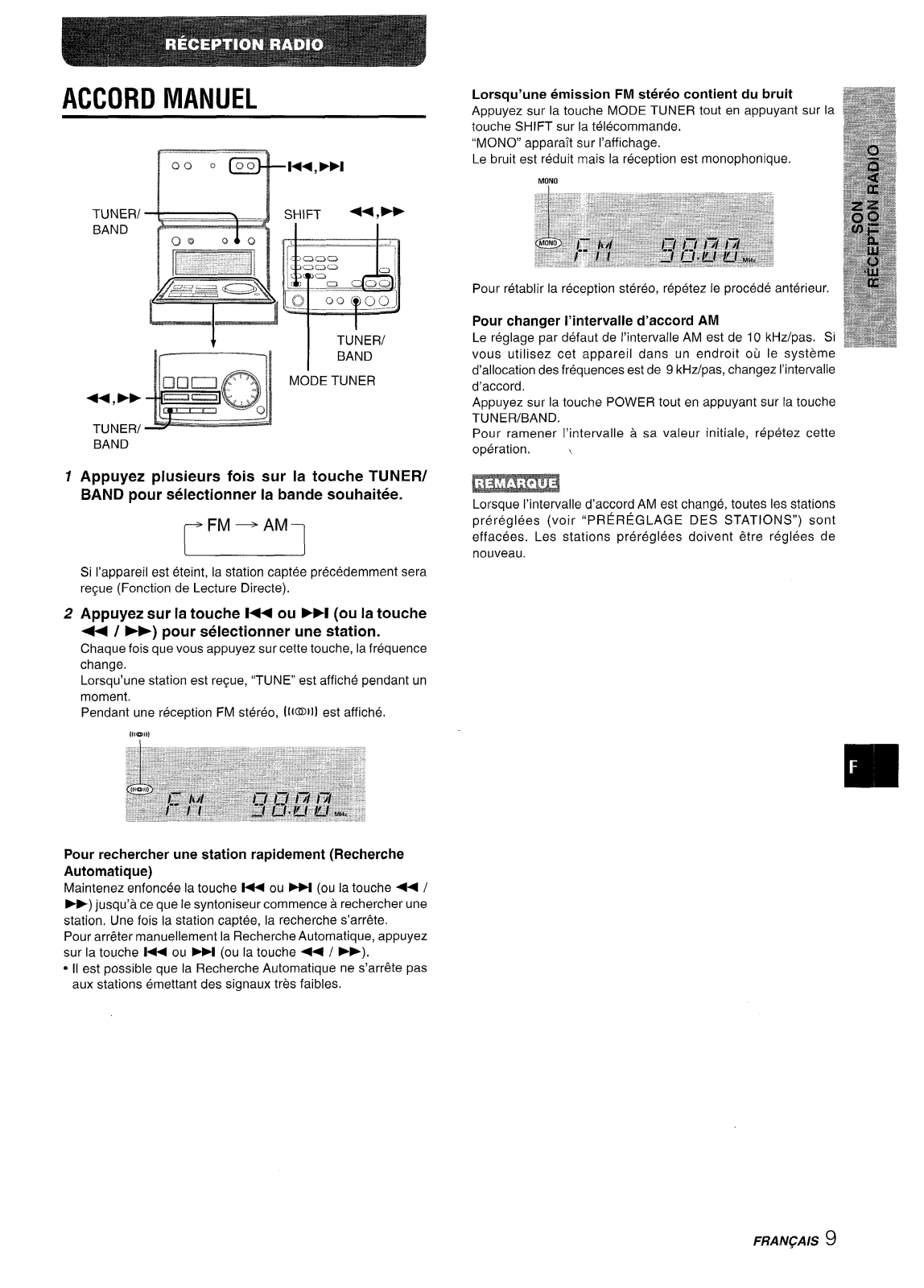

MANUAL TUNING

m’””’’”

TUNER/ BAND

MODE TUNER

Press the TUNER/BAND button repeatedly to

select the desired band.

When an FM stereo broadcast contains noise

Press the MODE TUNER button while pressing the SHIFT button on the remote control. “MONO” appears on the display. Noise is reduced, although reception is monaural.

MONO

To restore stereo reception, repeat the above again.

To change the AM tuning interval

The default setting of the AM tuning interval is 10 kHz/step. If you use this unit in an area where the frequency allocation system is 9 kHz/step, change the tuning interval. Press the POWER button while pressing the TUNER/BAND button.

To reset the interval, repeat this procedure.

When the AM tuning interval is changed, all preset stations (see “PRESETTING STATIONS”) are cleared, The preset stations have to be set again.

If the power is turned off, the previously tuned station will be played (Direct Play Function).

Press the l<< or FM button (or the < / ~

button) to select a station. ‘

Each time the button is pressed, the frequency changes. When a station is received, “TUNE” is displayed for a moment, During FM stereo reception, [[MDI1] is displayed.

To search for a station quickly (Auto Search)

Keep the 1<< or FM button (or the <+ / ~ button) pressed

until the tuner starts searching for a station. After tuning in to a station, the search stops. To stop the Auto Search manually, press the 14< or

(or the +< / - button).

● The Auto Search may not stop at stations with very weak

signals.

➤>1 button

ENGLISH

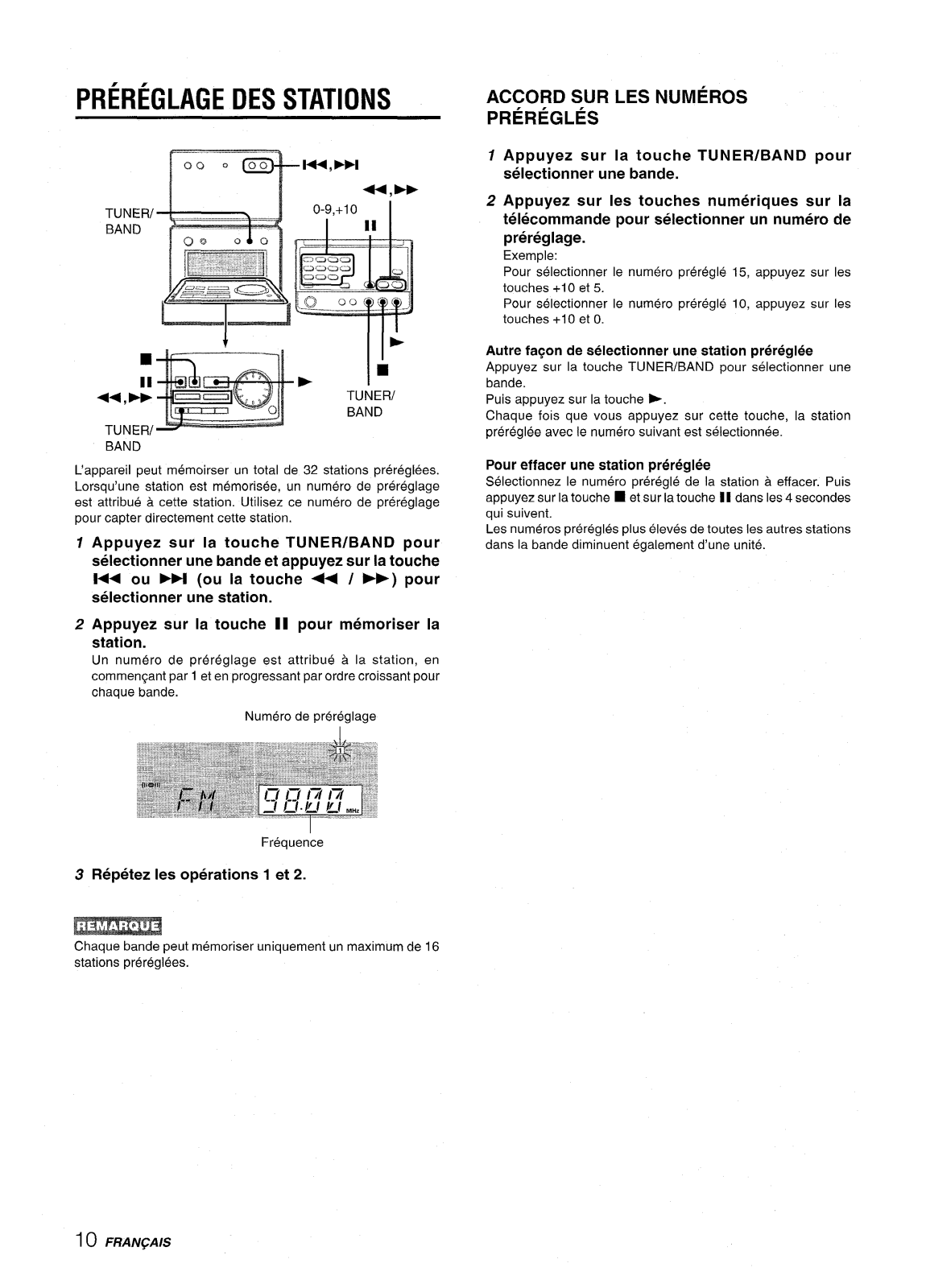

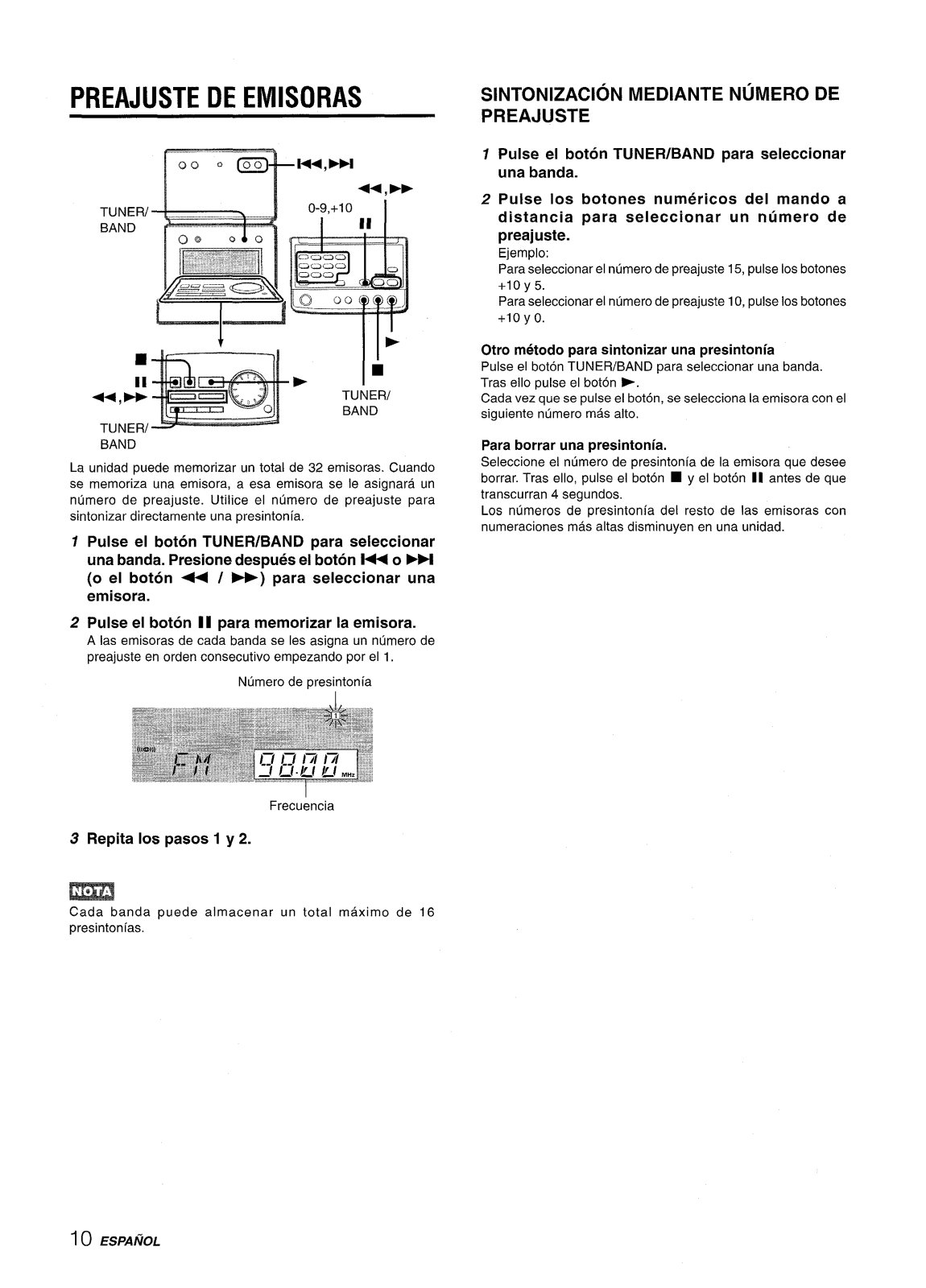

PRESETTING STATIONS

m’””7”’

TUNER/ BAND

BAND

The unit can store a total of 32 preset stations. When a station is stored, a preset number is assigned to the station. Use the preset number to tune in to a preset station directly.

1 Press the TUNER/BAND button to select a band.

Then, press the 1++ or M button (or the < /

➤- button) to select a station.

PRESET NUMBER TUNING

Press the TUNER/BAND button to select a band.

2 Press the numbered buttons on the remote

control to select a preset number.

Example: To select preset number 15, press the +10 and 5 buttons. To select preset number 10, press the +10 and O buttons.

Another method to tune in to a preset station

Press the TUNER/BAND button to select a band. Then press the - button. Each time the button is pressed, the station with the next higher number is selected.

To clear a preset station

Select the preset number of the station to be cleared. Then, press

■ button, and press the II button within 4 seconds.

the The preset numbers of all other stations in the band with higher numbers are also decreased by one.

2 Press the 11 button to store the station.

A station is assigned a preset number, beginning consecutive order for each band.

Preset number

Frequency

Repeat steps 1 and 2.

from 1 in

Each band can only store a maximum of 16 preset stations.

1() ENGLISH

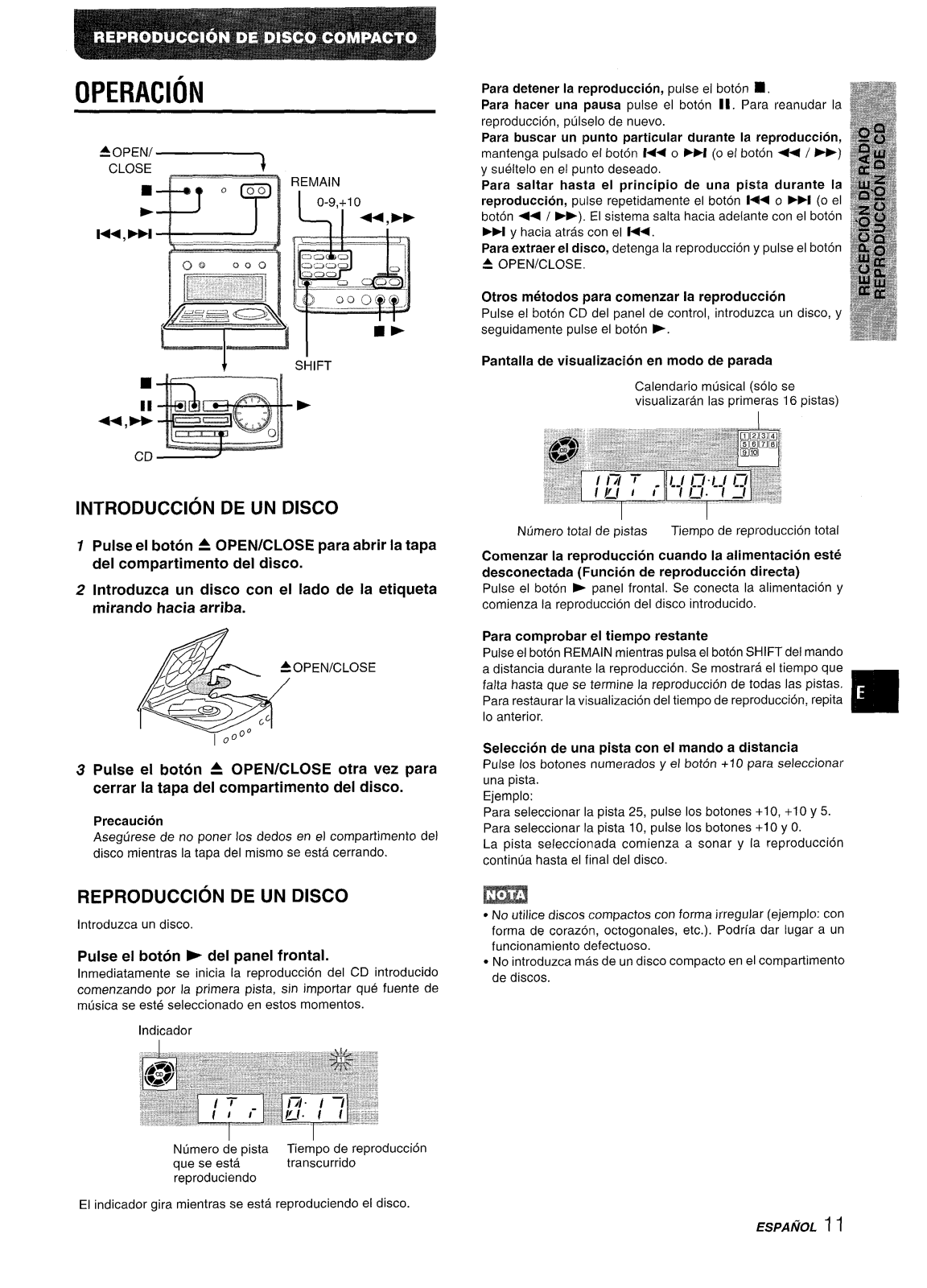

OPERATION

~opEN/ ,

REMAIN

stop play, press the the ■ button.

pause play, press the 1IIbutton. To resume play, press again.

search for a particular point during playback, keep the

➤>1 button (or the 4+ / ➤* button) pressed and release

1< or the button at the desired point. To skip to the beginning of a track during playback, press the 14< or The system skips forward through the tracks with the

and skips back with the 1<4 button. To remove the disc, stop play and press the ~ OPEN/CLOSE

button.

Other method to start play

Press the CD button on the control panel, load a disc, and then press the > button.

➤>1 button (or the <+ / W button) repeatedly.

➤Fl button,

Display window in stop mode

Music calendar (only the first 16 tracks are displayed)

LOADING A DISC

Press the 4 OPEN/CLOSE button to open the disc compartment cover.

Load a disc with the label side up.

40 PEN/CLOSE

Press the A OPEN/CLOSE button again to close

the disc compartment cover.

Caution

Be sure not to put your fingers in the disc compartment while

the disc compartment cover is closing.

PLAYING A DISC

Load a disc.

Press the - button on the front panel.

Play of the loaded CD begins with the first track immediately, regardless of the music source currently being selected.

Eye catcher

Total number of tracks

Total playing time

To start play when the power is off (Direct Play Function)

Press the - button on the front panel. The power is turned on and play of the loaded disc begins.

check the remaining time

To Press the REMAIN button while pressing the SHIFT button on the remote control during play. The amount of time remaining until all tracks finish playing is displayed. To restore the play time display, repeat the above.

Selecting a track with the remote control

Press the numberd buttons and the +10 button to select a track. Example: To select the 25th track, press the +10, +10 and 5 buttons. To select the 10th track, press the +10 and O buttons. The selected track starts to play and play continues to the end of that disc.

● Do not use irregular shape CDs (example: heart-shaped,

octagonal ones). It may result in malfunction.

● Do not load more than one compact disc in the disc

compartment.

Number of track being played

The eye catcher rotates while the disc is being played.

Elapsed playing time

ENGLISH 11

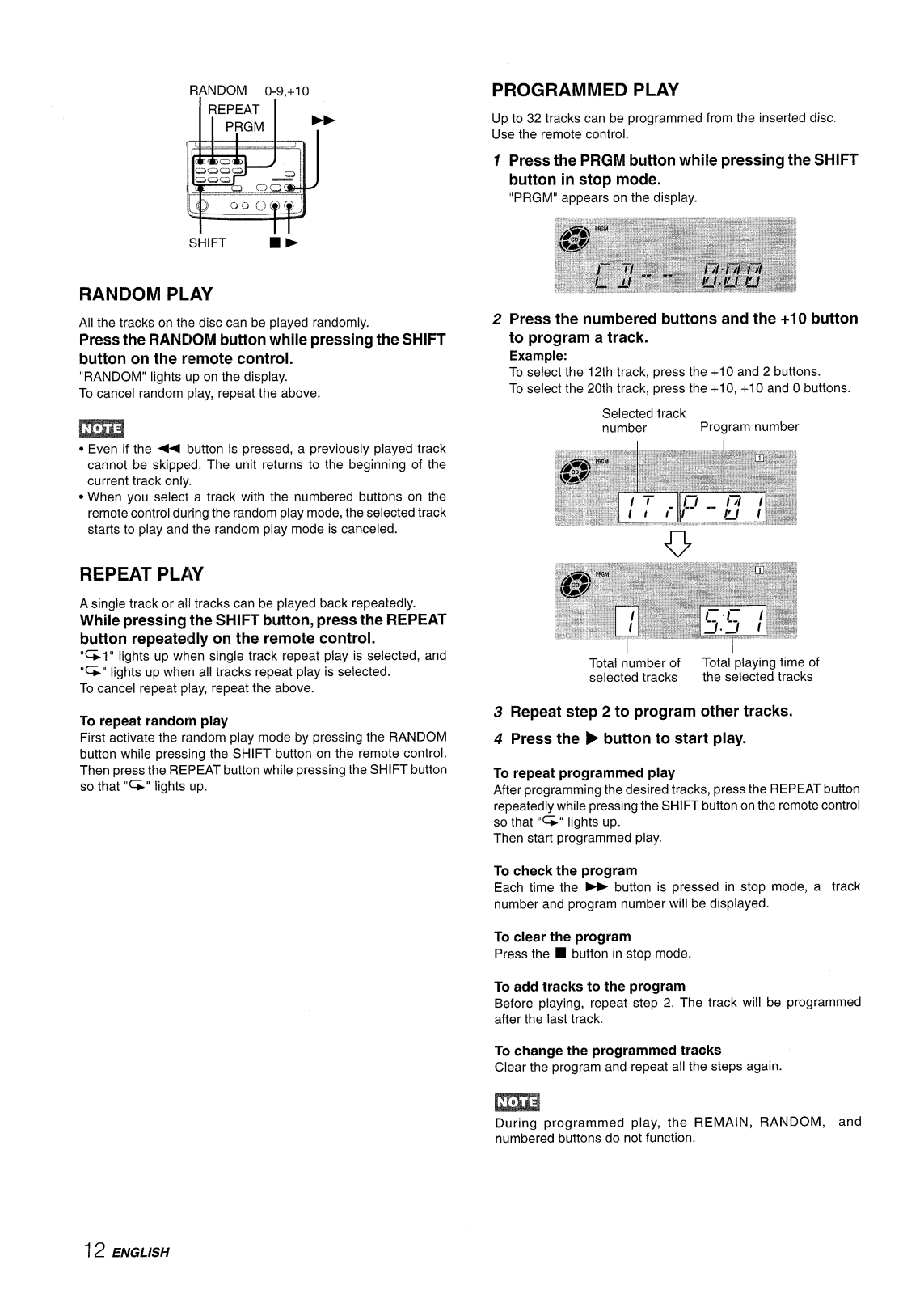

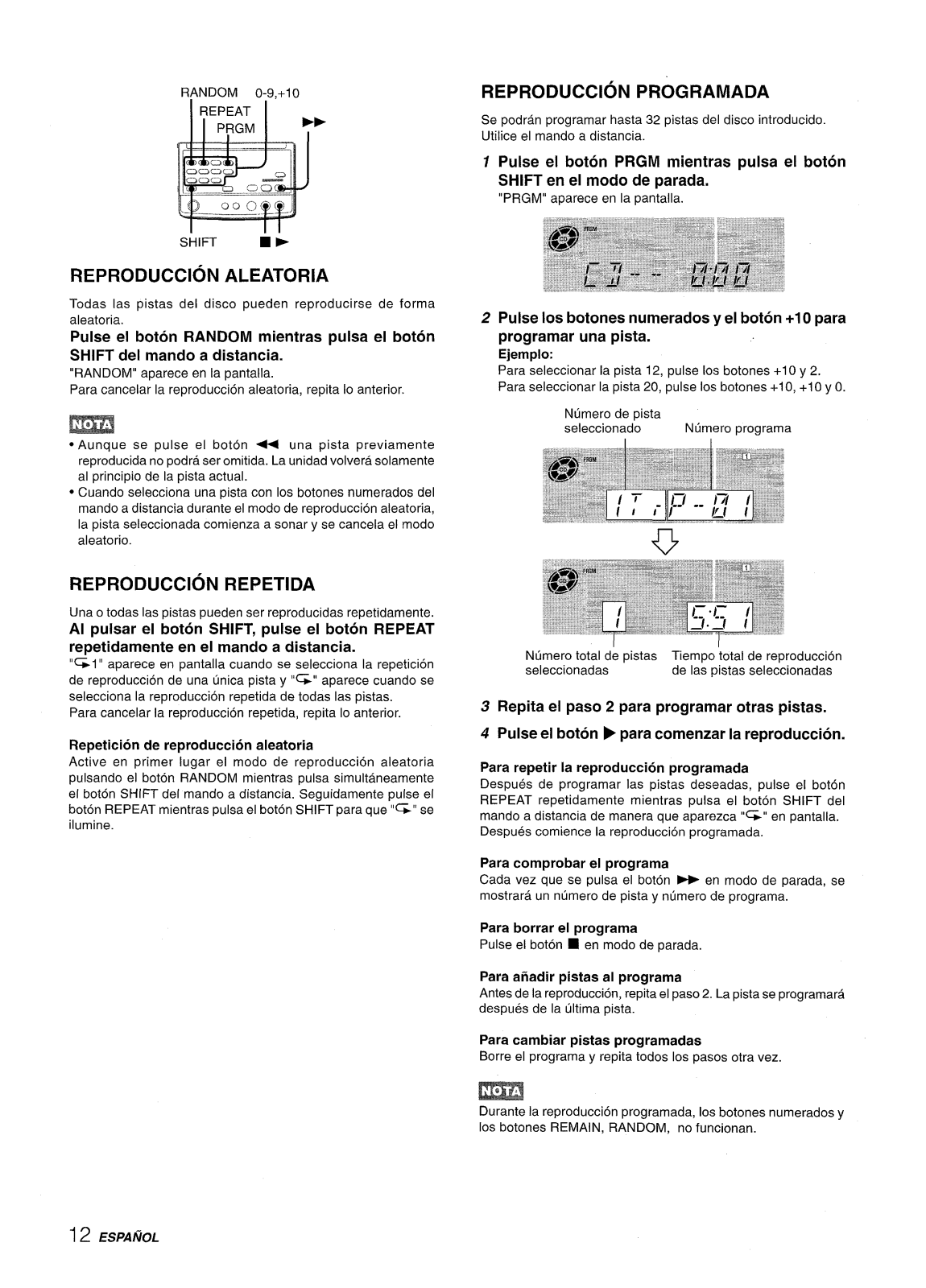

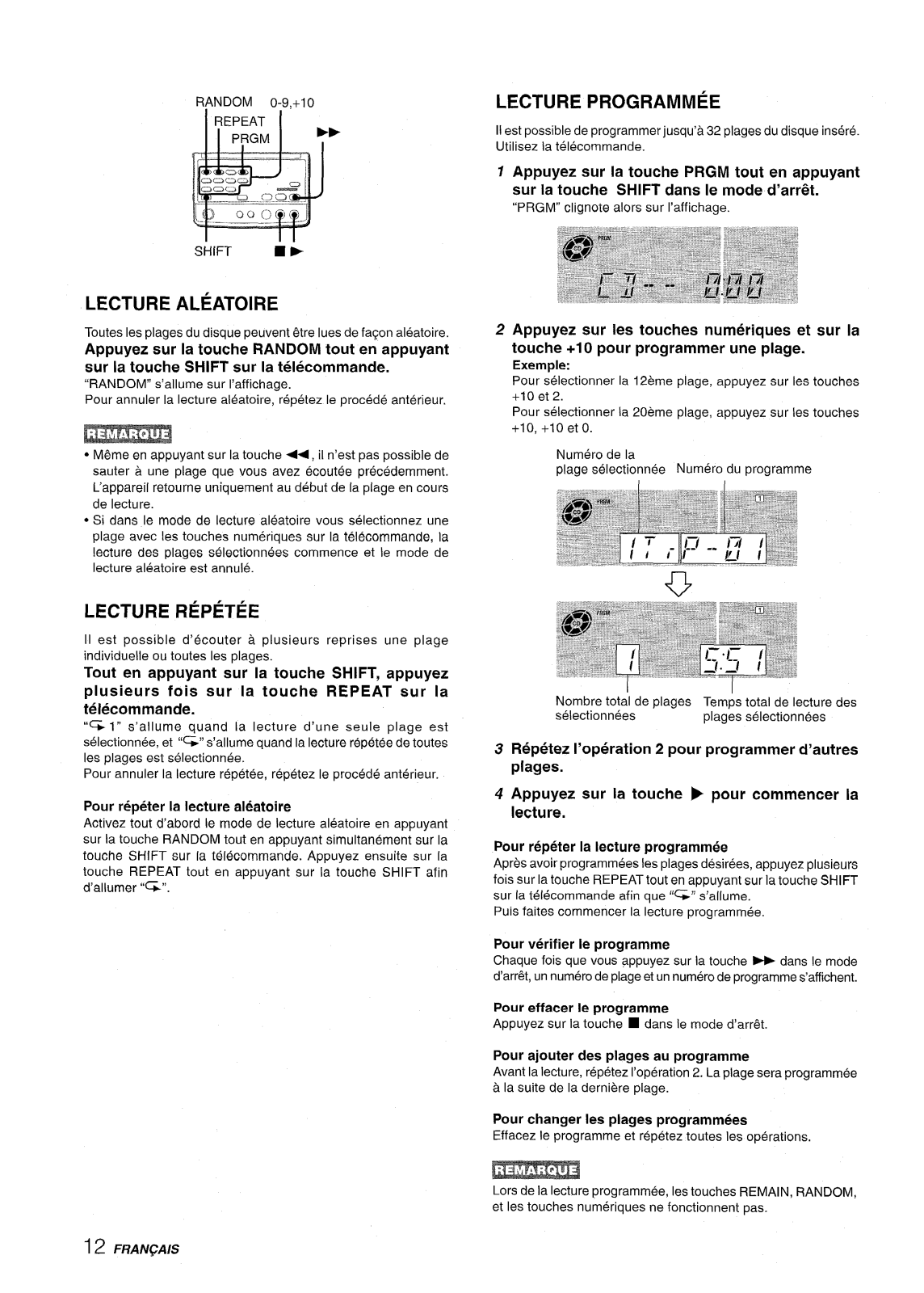

PROGRAMMED PLAY

Up to 32 tracks can be programmed from the inserted disc Use the remote control.

12Press the PRGM button while pressing the SHIFT

button in stop mode.

“PRGM” appears on the display.

SHIFT

tik

RANDOM PLAY

All the tracks on the disc can be played randomly.

Press the RANDOM button while pressing the SHIFT

button on the remote control.

“RANDOM” lights up on the display. To cancel random play, repeat the above.

● Even if the + button is pressed, a previously played track

cannot be skipped. The unit returns to the beginning of the current track only.

● When you select a track with the numbered buttons on the

remote control during the random play mode, the selected track starts to play and the random play mode is canceled.

REPEAT PLAY

A single track or all tracks can be played back repeatedly.

While pressing the SHIFT button, press the REPEAT button repeatedly on the remote control.

lights up when single track repeat play is selected, and

“=1”

“G” lights up when all tracks repeat play is selected. To cancel repeat play, repeat the above.

To repeat random play

First activate the random play mode by pressing the RANDOM button while pressing the SHIFT button on the remote control. Then press the REIPEAT button while pressing the SHIFT button so that “GI’ lights up.

Press the numbered buttons and the +1O button to program a track.

Example:

To select the 12th track, press the +10 and 2 buttons. To select the 20th track, press the +10, +10 and O buttons.

Selected track number

Total number of selected tracks

Program number

Total playing time of the selected tracks

3 Repeat step 2 to program other tracks. 4 Press the

To repeat programmed play

After programming the desired tracks, press the REPEAT button repeatedly while pressing the SHIFT button on the remote control so that “=” lights up. Then start programmed play.

➤button to start play.

12 ENGLISH

To check the program

Each time the ~ button is pressed in stop mode, a track number and program number will be displayed.

To clear the program

Press the ■ button in stop mode.

To add tracks to the program

Before playing, repeat step 2. The track will be programmed after the last track.

To change the programmed tracks

Clear the program and repeat all the steps again.

During programmed play, the REMAIN, RANDOM, and numbered buttons do not function.

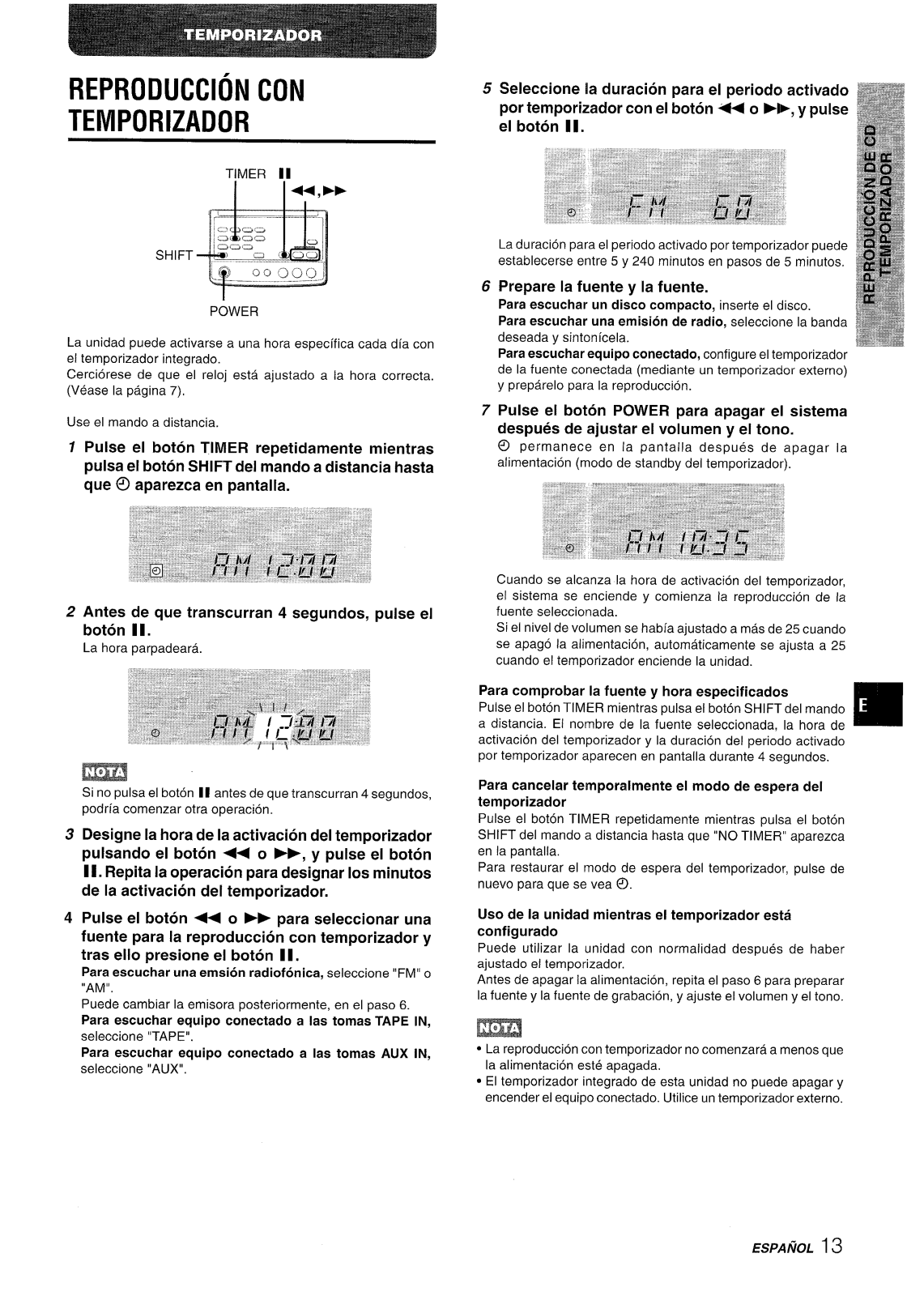

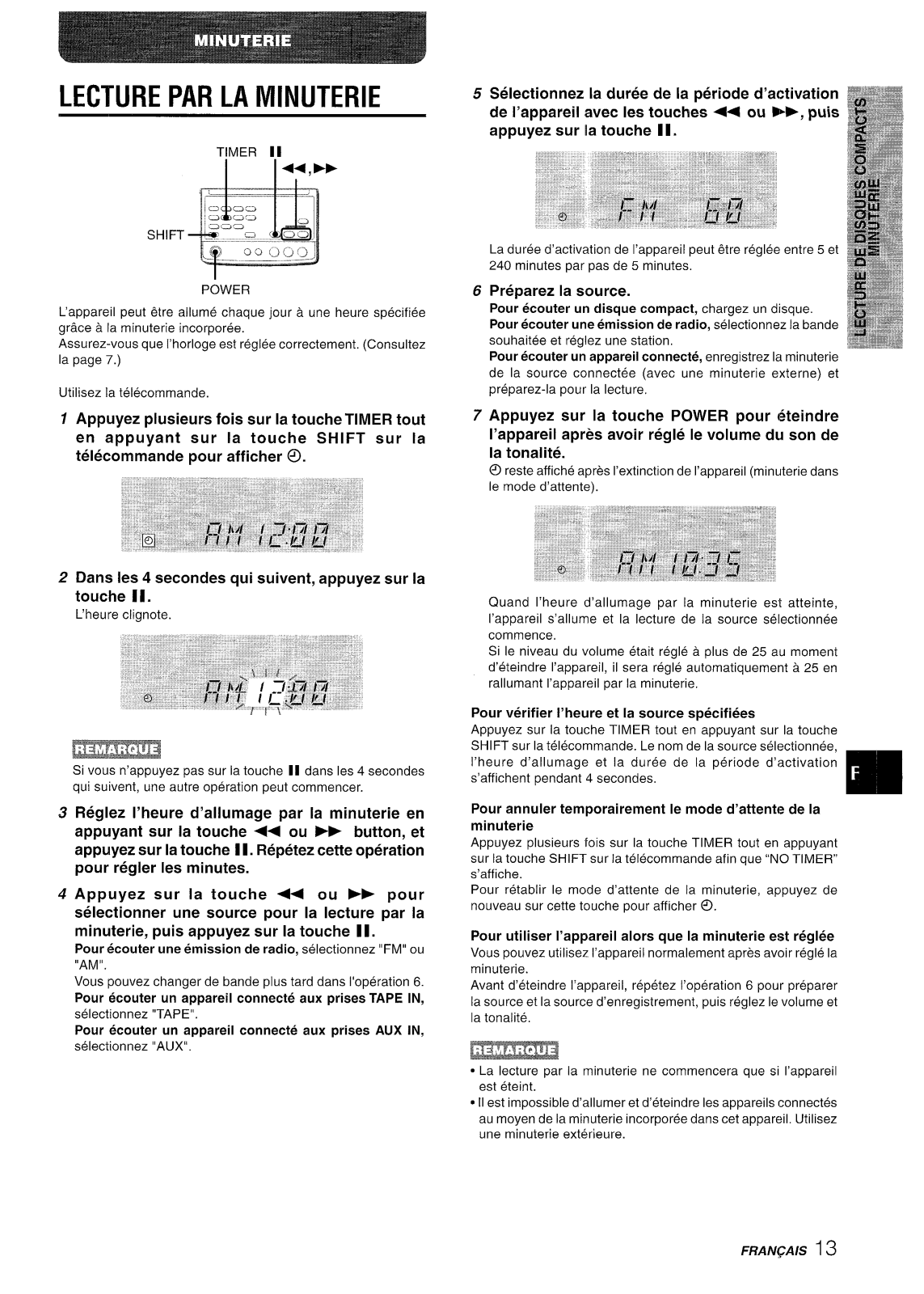

TIMER PLAY

POWER

The unit can be turned on at a specified time every day with the

built-in timer. Make sure the clock is set correctly. (See page 7.)

Use the remote control.

7 Press the TIMER button repeatedly while pressing

the SHIFT button on the remote control to display

Select the duration for the timer-activated period

with the 4< or E-P button, and press button.

The duration for the timer-activated period can be set between 5 and 240 minutes in 5-minute steps.

Prepare the source.

To listen to a CD, load the disc,

To listen to a radio broadcast, select the desired band and

tune in to a station. To listen to the connected equipment, set the timer of the connected source (with an external timer) and prepare it for play,

Press the POWER button to turn the svstem off

after adjusting the volume and tone.

remains on the display after the power is turned off (timer

standby mode).

2 Within 4 seconds, press the 11button.

The hour flashes.

If you do not press the II button within 4 seconds, another

operation may start.

Designate the hour of the timer-on time by pressing the ++ or > button, and press the

1I button. Repeat to designate the minute of the

timer-on time.

Press the +< or EP button to select a source

for timer play, then press the 11button.

To listen to a radio broadcast, select “FM” or “AM.”

You can change the band later at step 6. To listen to the equipment connected to theTAPE IN jacks, select “TAPE.” To listen to the equipment connected to the AUX IN jacks, select “AUX.”

When the timer-on time is reached, the system turns on and begins play with the selected source. If the volume level was set to more than 25 when the power was turned off, it is automatically set to 25 when the unit turns on by the timer.

To check the specified time and source

Press the TIMER button while pressing the SHIFT button on the remote control. The selected source name, the timer-on time and the duration for the timer-activated period are displayed for 4 seconds,

To cancel timer standby mode temporarily

Press the TIMER button repeatedly while pressing the SHIFT button on the remote control so that “NO TIMER” is displayed on the display. To restore the timer standby mode, press again to display ~,

Using the unit while the timer is set

You can use the unit normally after setting the timer. Before turning off the power, repeat step 6 to prepare the source, and adjust the volume and tone.

● Timer play will not begin unless the power is turned off.

● Connected equipment cannot be turned on and off by the built-

in timer of this unit. Use an external timer.

ENGLISH 13

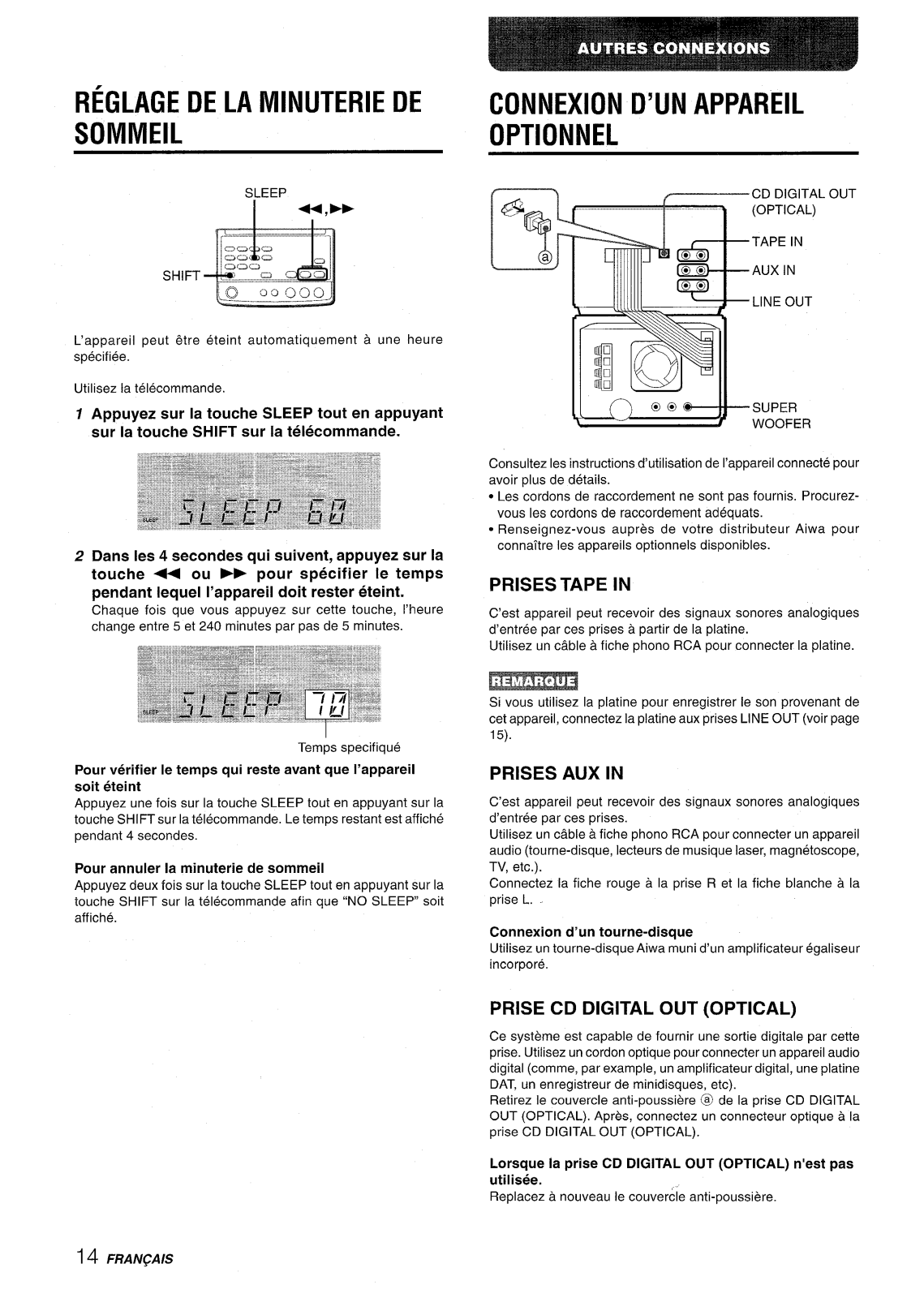

SETTING THE SLEEP TIMER

SLEEP

U,bb

CONNECTING OPTIONAL EQUIPMENT

f’” ‘1

~CD DIGITAL

OUT

(OPTICAL)

TAPE IN

AUX IN

The unit can be turned off automatically at a specified time.

Use the remote control.

7 Press the SLEEP button while pressing

the SHIFT

button on the remote control.

2 Within 4 seconds, press the - or ➤>

to specify the time-until the power is turned off.

Each time the button is pressed, the time changes between 5

and 240 minutes in 5-minute steps.

Specified time

To check the time remaining until the power is turned

off

Press the SLEEP button once while pressing the SHIFT button on the remote control. The remaining time is displayed for 4 seconds.

To cancel the sleep timer

Press the SLEEP button twice while pressing the SHIFT button on the remote control so that “NO SLEEP” in displayed.

button

LINE OUT

@@@

\~ ~

Refer to the operating instructions of the connected equipment

for details.

● The connecting cords are not supplied. Obtain the necessary

connecting cords.

● Consult your local Aiwa dealer for optional equipment.

SUPER WOOFER

TAPE IN JACKS

This system can input analog sound signals from a tape deck through these jacks. Use a cable with RCA phono plugs to connect a tape deck.

When using tape deck to record the sound of this system, connect the tape deck to the LINE OUT jacks (see pege 15).

AUX IN JACKS

This system can input analog sound signals through these jacks. Use a cable with RCA phono plugs to connect audio equipment (turntables, LD players, VCRs, TV, etc.). Connect the red plug to the R jack, and the white plug to the L

jack.

14 /3VGL/SH

When connecting a turntable Use an Aiwa turntable equipped with a built-in equalizer amplifier.

CD DIGITAL OUT (OPTICAL) JACK

This system can output CD digital sound signals through this jack. Use an optical cable to connect digital audio equipment

(digital amplifier, DAT deck, MD recorder, etc.). Remove the dust cap @ from the CD DIGITAL OUT (OPTICAL)

jack. Then, connect an optical cable plug to the CD DIGITAL

OUT (OPTICAL) jack.

When the CD DIGITAL OUT (OPTICAL) jack is not being

used

Attach the supplied dust cap.

LINE OUT JACKS

This system can output analog sound signals for all functions through these jacks.

Use a cable with RCA phono plugs to connect audio equipment.

Do not connect equipment to the LINE OUT jacks and AUX IN jacks simultaneously. Otherwise, noise is generated and malfunctions may occur.

SUPER WOOFER d JACK

Connect an optional powered sub woofer with a built-in-amplifier to the jack.

LISTENING TO EXTERNAL

SOURCES

RECORDING THE SOUND USING

EXTERNAL EQUIPMENT

record the CD sound on an MD

Connect an MD recorder to the CD DIGITAL OUT (OPTICAL)

jack.

Play back the CD to be recorded and start recording on the connected MD recorder.

To record the sound on a cassette tape

Connect a cassette deck to the LINE OUT jacks. Play back the source to be recorded (CD or radio) and start recording on the connected cassette deck.

TAPE/AUX

To play equipment connected to the TAPE IN jacks, press the TAPE button on the control panel. To play equipment connected to the AUX IN jacks, press the AUX button on the control panel. When using the remote control, press the TAPE/AUX button

repeatedly until “TAPE” or “AUX” is displayed.

ENGLISH

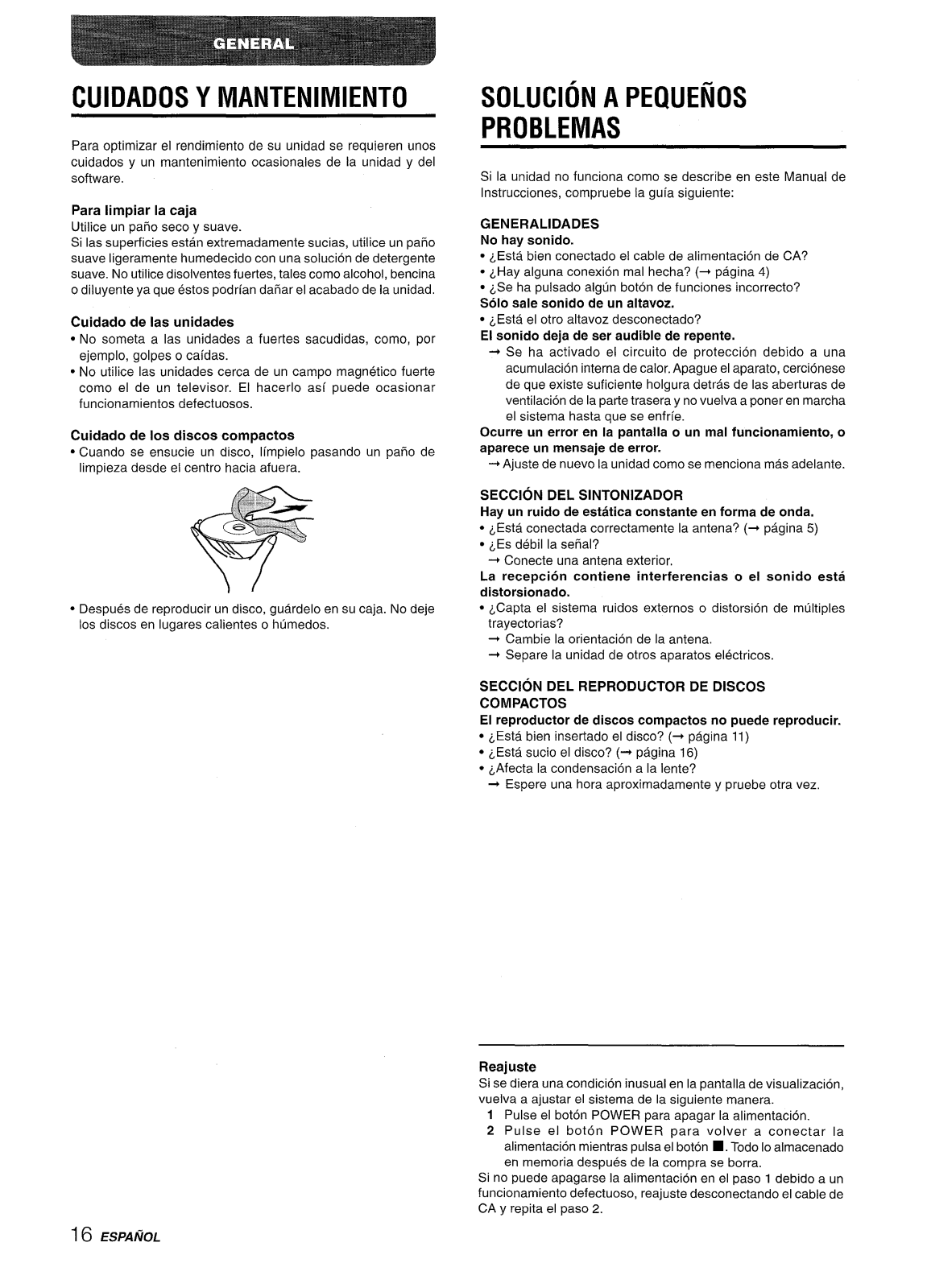

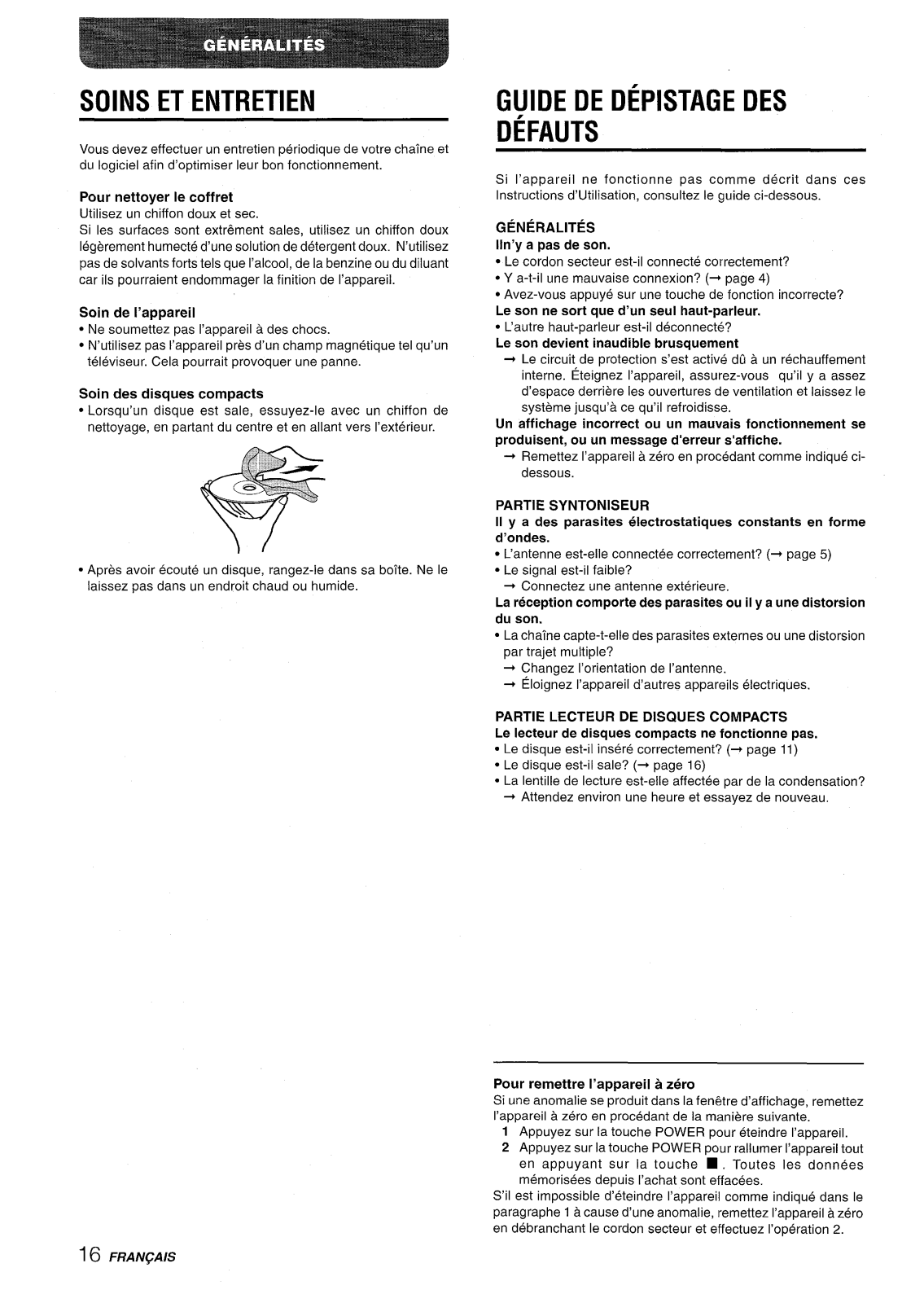

CARE AND MAINTENANCE

TROUBLESHOOTING GUIDE

Occasional care and maintenance of the unit and the software are needed to optimize the performance of your unit.

To clean the cabinet

Use a soft and dry cloth.

If the surfaces are extremely dirty, use a soft cloth lightly

moistened with mild detergent solution. Do not use strong solvents, such as alcohol, benzine or thinner as these could damage the finish of the unit.

Care of the units

● Do not give the units a strong shock ie. drop or hit.

● Do not use the units close to a strong magnetic field such as a

television. Doing so may cause malfunctions.

Care of CDs

● When a disc becomes dirty, wipe the disc from the center out

with a cleaning cloth.

● After playing a disc, store the disc in its case. Do not leave the

disc in places that are hot or humid.

If the unit fails to perform as described in these Operating Instructions, check the following guide.

GENERAL

There is no sound.

● Is the AC cord connected properly?

● Is there a bad connection? (+ page 4)

● Was an incorrect function button pressed?

Sound is emitted from one speaker only.

● Is the other speaker disconnected?

Sound becomes inaudible suddenly.

+ The protection circuit was activated due to an internal heat

build-up. Turn off the power, make sure there is sufficient clearance behind the ventilation openings on the rear, and leave the system until it cools down.

An erroneous display or a malfunction occurs, or an error message appears.

+ Reset the system as stated below.

TUNER SECTION There is constant, wave-like static.

● Is the antenna connected properly? (+ page 5)

● Is the signal weak?

+ Connect an outdoor antenna.

The reception contains noise interferences or the sound is

distorted.

● Is the system picking up external noise or multipath distortion?

+ Change the orientation of the antenna. + Move the system away from other electrical appliances.

CD PLAYER SECTION

The CD player does not play.

● Is the disc correctly inserted? (+ page 11)

● Is the disc dirty? (+ page 16)

● Is the lens affected by condensation?

+ Wait approximately one hour and try again.

To reset

If an unusual condition occurs in the display window, reset the system as follows.

1 Press the POWER button to turn off the power. 2 Press the POWER button to turn the power back on while

pressing the purchase is canceled.

If the power cannot be turned off in step 1 because of a

malfunction, reset by disconnecting the AC cord and repeat step

■ button. Everything stored in memory after

16 ENGLISH

SPECIFICATIONS

MAIN UNITS FM tuner section

Tuning range Usable sensitivity (IHF) Antenna terminals

AM tuner section

Tuning range

Usable sensitivity Antenna

Amplifier section Power output

Total harmonic distortion

Inputs

outputs

87.5 MHz to 108 MHz

13.2 dBf 75 ohms (unbalanced)

530 kHz to 1710 kHz (10 kHz step) 531 kHz to 1602 kHz (9 kHz step) 350 pV/m Loop antenna

16 watts per channel, Min. RMS at 8 ohms, from 60 Hz to 20 kHz, with no more than l% Total Harmonic Distortion

0.1 % (10 W, 1 kHz, 8 ohms, DIN AUDIO) TAPE IN: 500 mV AUX IN: 500 mV SUPER WOOFER: 1.7 V SPEAKERS: accept speakers of 8 ohms or more LINE OUT 340 mV PHONES (stereo mini jack): accepts headphones of 32 ohms or more

UWSYSTEM

The word “BBE” and the “BBE symbol” are trademarks of BBE Sound, Inc.

Under license from BBE sound, Inc.

Please check the laws on copyright relating to recordings from discs, radio or external tape for the country in which the machine is being used.

NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver,

- Connect the equipment into an outlet on circuit different from

that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician

for help.

Compact disc player section Laser

D-A converter Signal-to-noise ratio Harmonic distortion Wow and flutter

SPEAKER SYSTEM

Cabinet type

Speakers

Impedance

Output sound pressure level

Dimensions (W x H x D)

Weight

General

Power requirements Power consumption Dimensions (W XHXD)

Weight

Semiconductor laser (k= 780 nm) 1 bit dual 85 dB (1 kHz, OdB)

0.05 % (1 kHz, OdB) Unmeasurable

2 way, bass reflex (magnetic shielded type) Main speaker: 100 mm (4 inches) cone type Cardioid Speaker: 60 mm (2 8 ohms 87 dBIWlm

144x 202x 185mm

(5 3/~x8x73/8 inches)

1.8 kg (3 lb. 15

120 V AC, 60 Hz 40 w CD player unit

144x101.5x176. I mm (5 3/,x4x 7 inches) Tuner/amplifier unit

144x 101.5 x208mm

(5 3/~x 4 x 8 1/, inches) CD player unit

0.88 kg (1 lb. 15 Tuner/amplifier unit

2.4 kg (5 lb. 5

3/8 inches) cone type

02)

OZ)

CAUTION

Modifications or adjustments to this product, which are not expressly approved by the manufacturer, may void the user’s right or authority to operate this product.

Specifications and external appearance are subject to change without notice.

ENGLISH ~

+ 39 hidden pages
