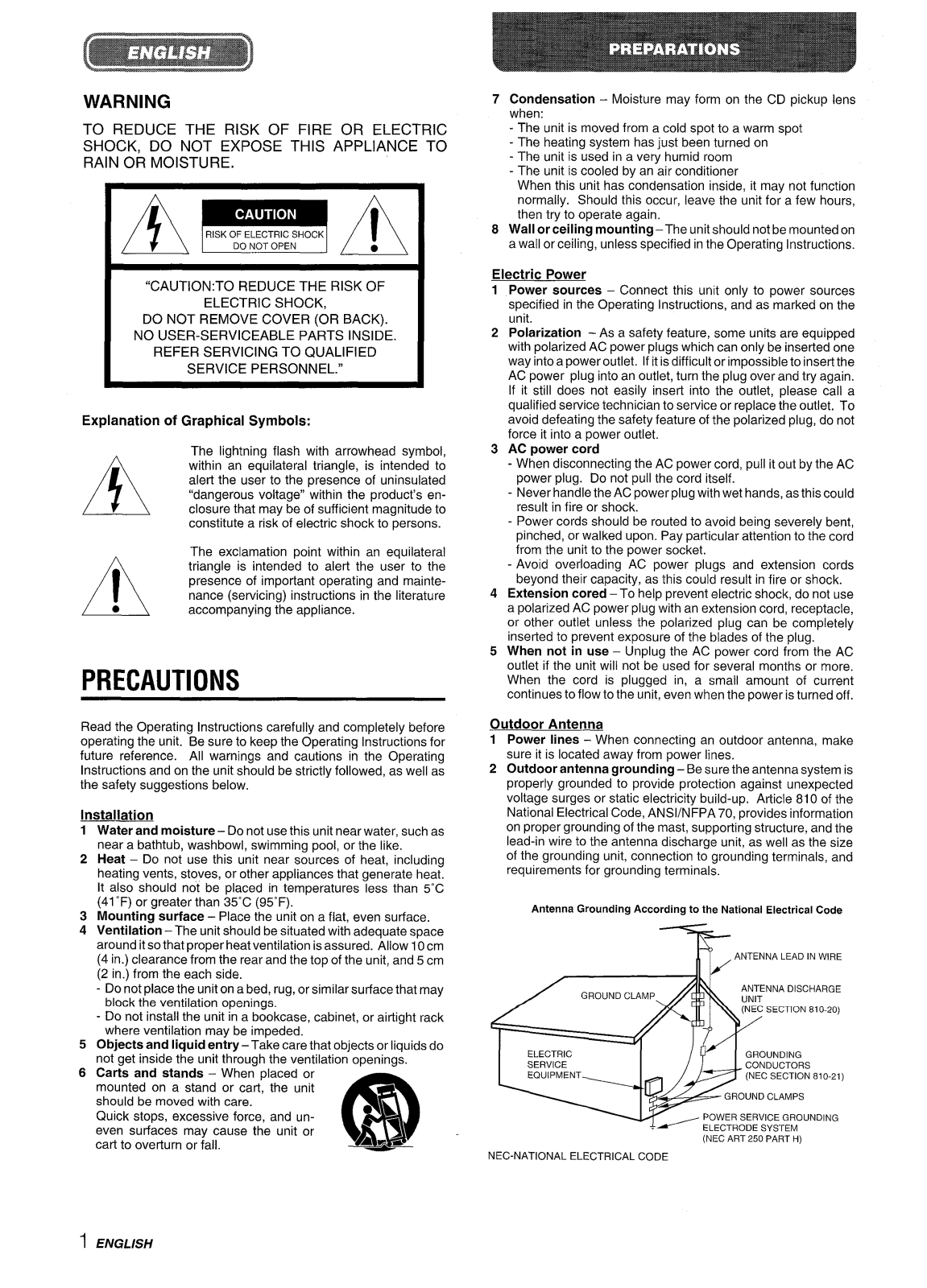

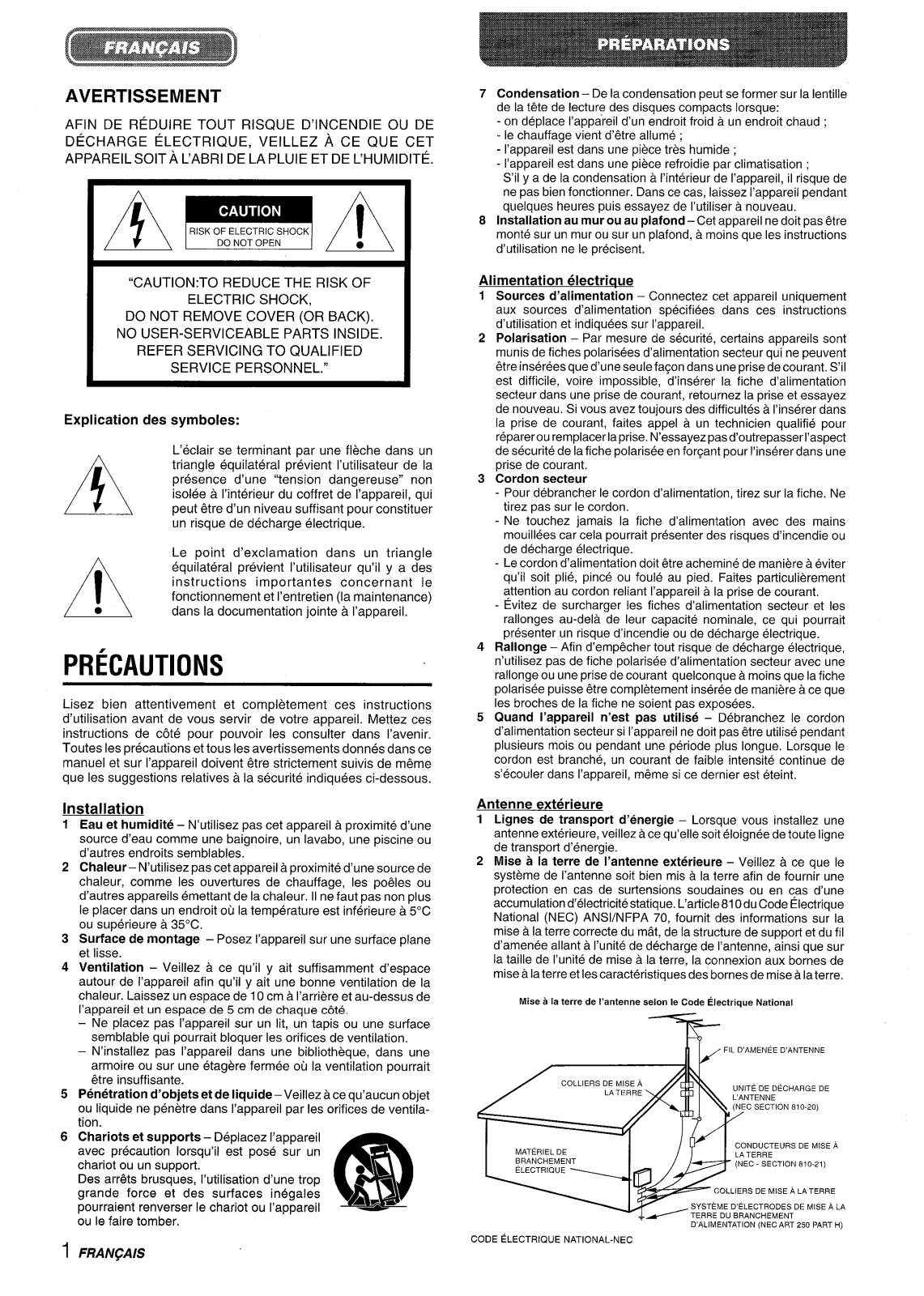

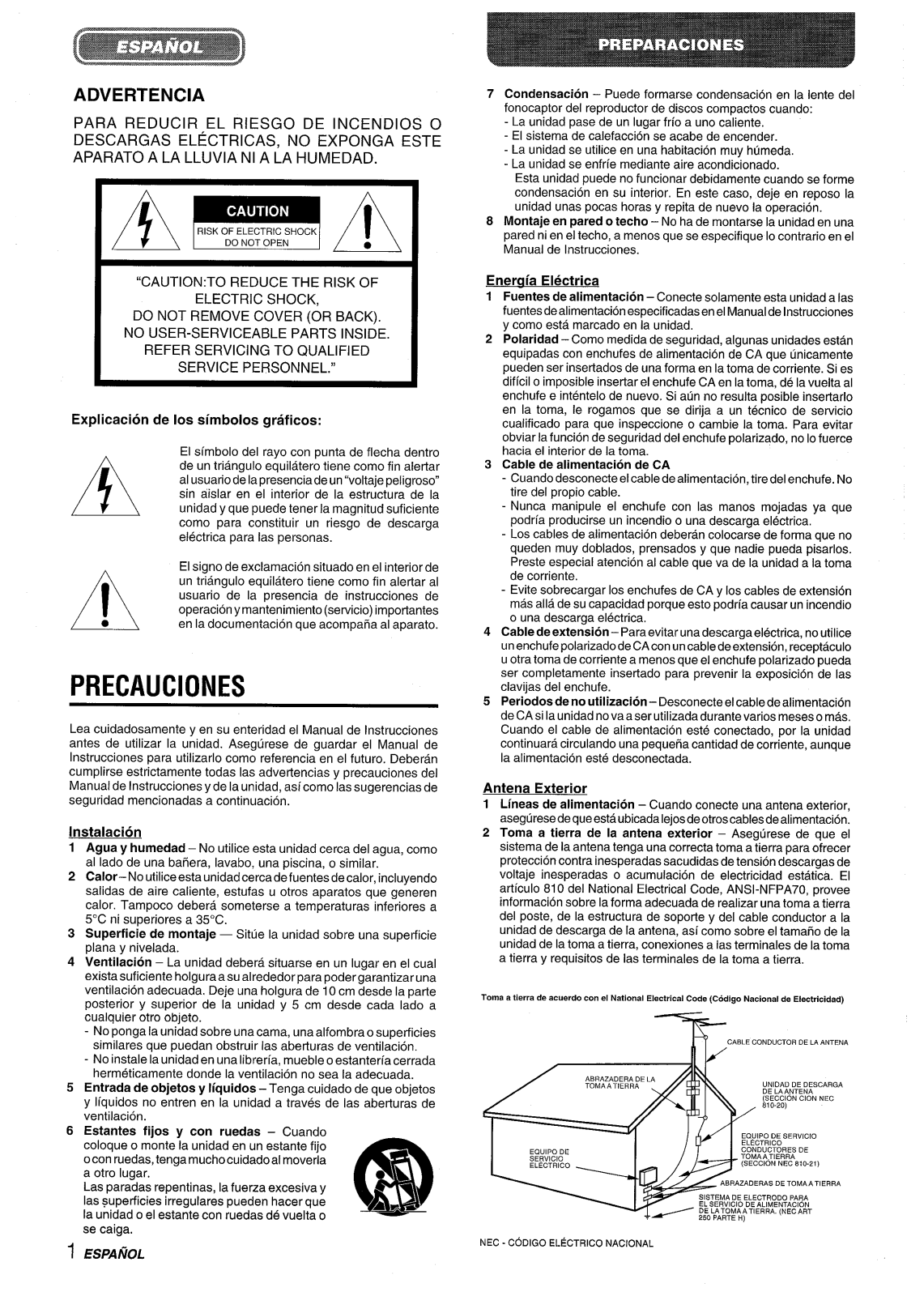

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK. DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

●

RISK OF ELECTRIC SHOCK

DO NOT OPEN

●

“CAUTION:TO REDUCE THE RISK OF

ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.”

Explanation of Graphical Symbols:

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature

●

accompanying the appliance.

PRECAUTIONS

Read the Operating Instructions carefully and completely before operating the unit. Be sure to keep the Operating Instructions for

future reference. All warnings and cautions in the Operating

Instructions and on the unit should be strictly followed, as well as

the safety suggestions below.

Installation

3 4

Water and moisture – Do not use this unit near water, such as

near a bathtub, washbowl, swimming pool, or the like.

Heat – Do not use this unit near sources of heat, including

heating vents, stoves, or other appliances that generate heat. It also should not be placed in temperatures less than 5°C (41 “F) or greater than 35-C (95-F).

Mounting surface – Place the unit on a flat, even surface. Ventilation – The unit should be situated with adequate space

around itso that proper heat ventilation is assured. Allow 10 cm (4 in.) clearance from the rear and the top of the unit, and 5 cm (2 in.) from the each side.

- Do not place the unit on a bed, rug, orsimilarsurface that may

block the ventilation openings.

- Do not install the unit in a bookcase, cabinet, or airtight rack

where ventilation may be impeded.

Objects and liquid entry –Take care that objects or liquids do

not get inside the unit through the ventilation openings.

Carts and stands – When placed or

mounted on a stand or cart, the unit

should be moved with care.

Quick stops, excessive force, and un-

even surfaces may cause the unit or

cart to overturn or fall.

A&*

7 Condensation – Moisture may form on the CD pickup lens

when:

- The unit is moved from a cold spot to a warm spot

- The heating system has just been turned on

- The unit is used in a very humid room

- The unit is cooled by an air conditioner When this unit has condensation inside, it may not function normally. Should this occur, leave the unit for a few hours, then try to operate again.

Wall or ceiling mounting–The unit should not be mounted on

a wall or ceiling, unless specified in the Operating Instructions.

Electric Power

Power sources –

Connect this unit only to power sources specified in the Operating Instructions, and as marked on the unit.

Polarization - As a safetv feature, some units are equipped

with polarized AC power p(ugs which can only be inserted one way into a power outlet. If it is difficult orimpossibleto insert the AC power plug into an outlet, turn the plug over and try again. i If it still does not easily inserf into the outlet, please call a qualified service technician to service or replace the outlet. To : avoid defeating the safety feature of the polarized plug, do not force it into a power outlet. AC

power cord

When disconnecting the AC power cord, pull it out by the AC power plug. Do not pull the cord itself.

- Never handle the AC power plug with wet hands, asthiscould

result in fire or shock.

- Power cords should be routed to avoid being severely bent,

pinched, or walked upon. Pay particular attention to the cord from the unit to the power socket.

- Avoid overloading AC power plugs and extension cords

beyond their capacity, as this could result in fire or shock.

Extension cored – To help prevent electric shock, do not use

a polarized AC power plug with an extension cord, receptacle, or other outlet unless the polarized plug can be completely inserted to prevent exposure of the blades of the plug.

When not in use – Urmlua the AC power cord from the AC

outlet if the unit will not be used for several months or more. When the cord is plugged in, a small amount of current continues to flow to the unit, even when the power is turned off.

Outdoor Antenna

Power lines - When connecting an outdoor antenna, make

sure it is located away from power lines.

Outdoor antenna grounding – Be sure the antenna system is

properly grounded-to provide protection against unexpected voltage surges or static electricity build-up. Article 810 of the

National Electrical Code, AN S1/NFPA 70, provides information on proper graunding of the mast, supporting structure, and the lead-in wire to the antenna discharge unit, as well as the size of the grounding unit, connection to grounding terminals, and requirements for grounding terminals.

Antenna Grounding Accordingto the National Electrical Code

, ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE

(NEC SECTION 81 0-20)

ELECTRIC

GROUNDING

SERVICE

CONDUCTORS

EQUIPMENT

(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250 PART H)

NEC-NATIONAL ELECTRICAL CODE

1 ENGLISH

Wtenance

Clean the unit only as recommended in the Operating Instructions.

m~qe Reauirina Service

Have the units serviced by a qualified service technician if:

- The AC power cord or plug has been damaged

- Foreign objects or liquid have gotten inside the unit

- The unit has been exposed to rain or water

- The unit does not seem to operate normally

- The unit exhibits a marked change in performance

- The unit has been dropped, or the cabinet has been damaged DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.

7t%&u#waAv#&uashf?tzsm

Congratulations on your purchase of an Aiwa Stereo System. To optimize the performance of this system, please take the time to read through these Operating Instructions and become familiar with the operating procedures.

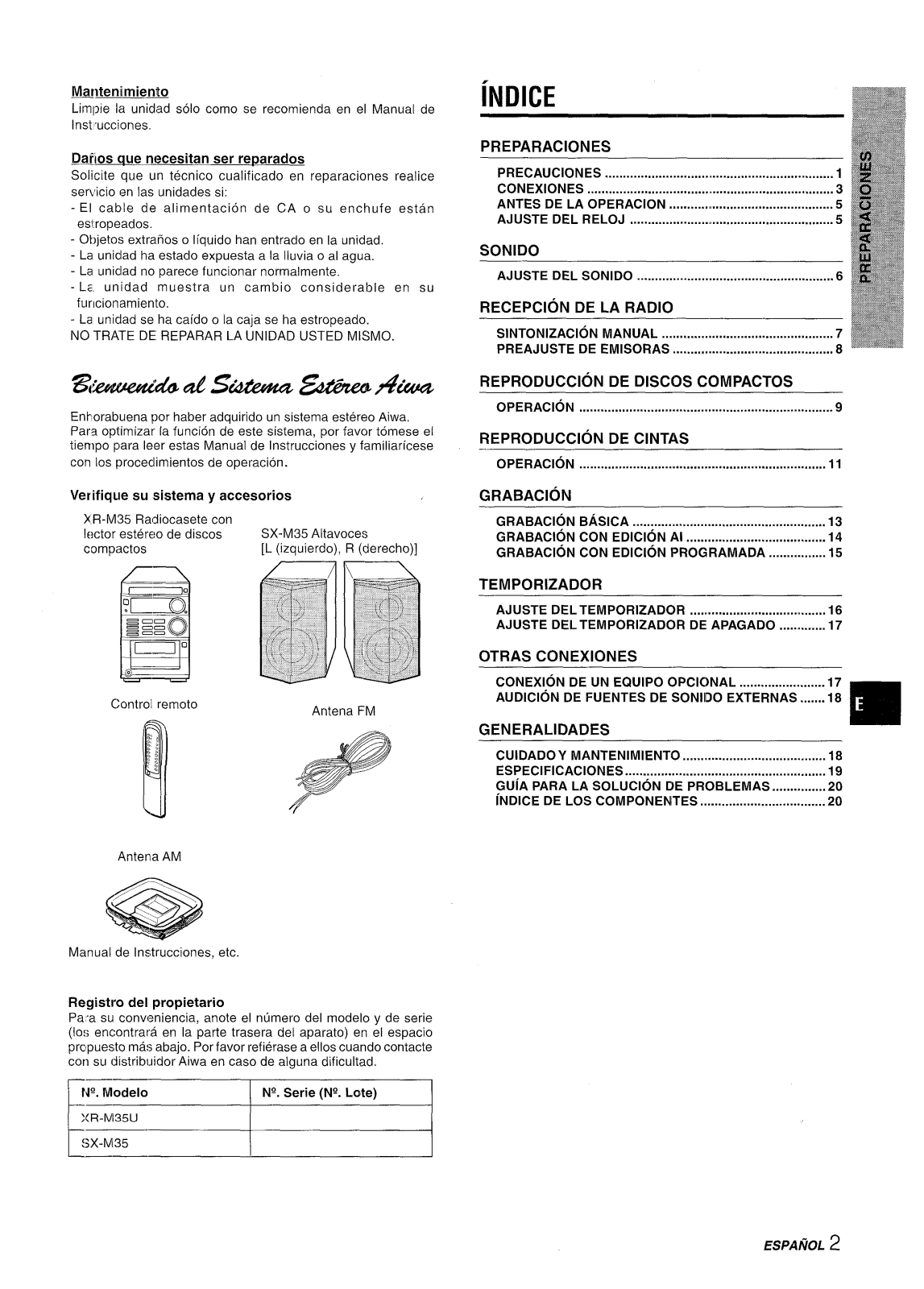

Check your system and accessories

XR-M35 Compact disc SX-M35 (L, R) stereo cassette receiver speakers

Remote control

FM antenna

AM antenna

Operating Instructions, etc.

Owner’s record

Forycwrconvenience, record the model number and serial number (you will find them on the rear of your set) in the space provided below. Please refer to them when you contact your Aiwa dealer in case of difficulty.

I Model No.

I Serial No. (Lot No.) I

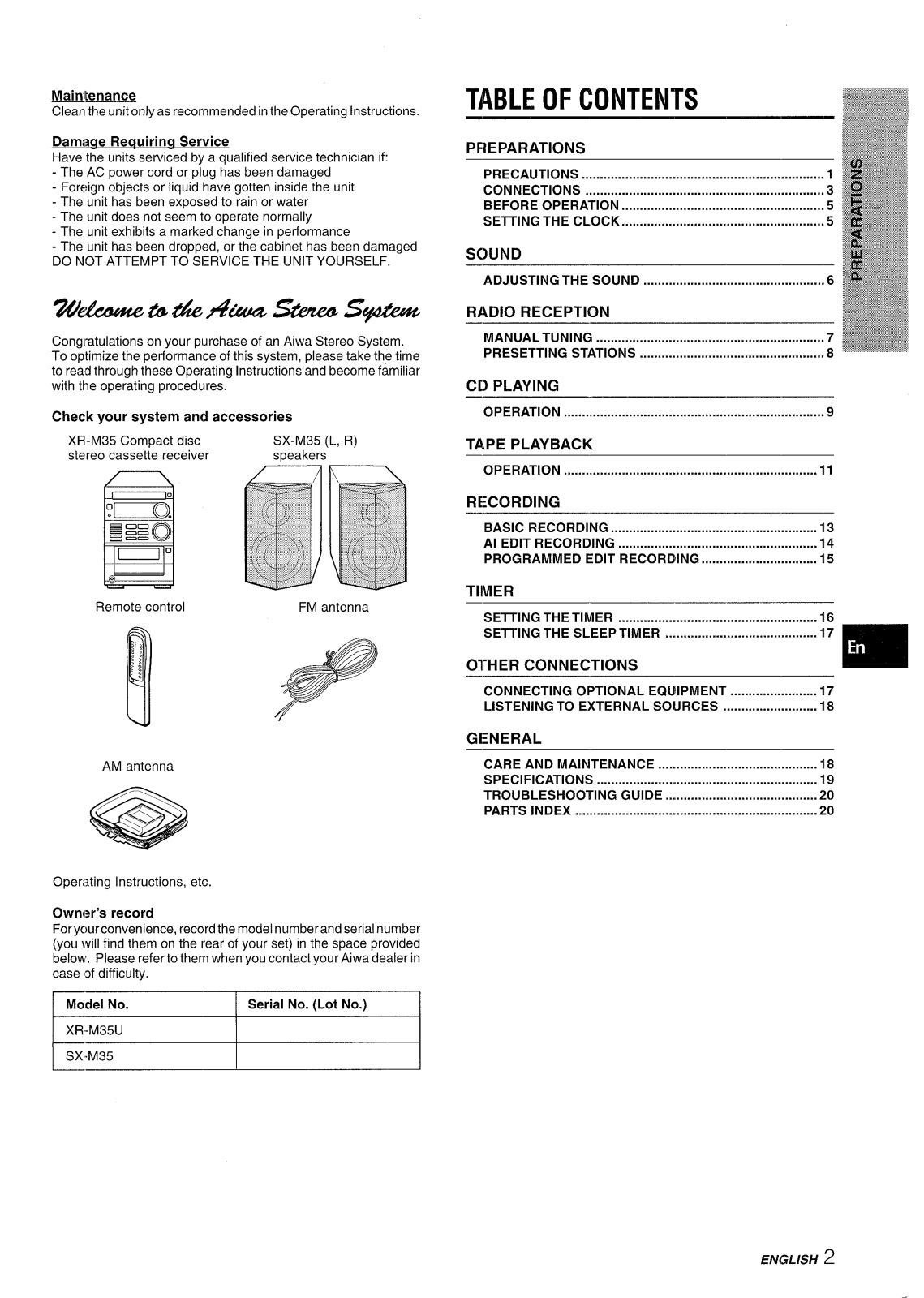

TABLE OF CONTENTS

PREPARATIONS

PRECAUTIONS ................................................................... 1

CONNECTIONS ..................................................................3

BEFORE OPERATION ........................................................5

sETTING THEcLocK .......m...............................m....m...........5

SOUND

ADJUSTING THE SOUND ..................................................6

RADIO RECEPTION

MANUAL TUNING ...............................................................7

PRESETTING STATIONS ...................................................8

CD PLAYING

OPERATION ........................................................................9

TAPE PLAYBACK

Operation ......................................................................ll

RECORDING

BASIC RECORDING .........................................................13

Al EDIT RECORDING .......................................................l4

PROGRAMMED EDIT RECORDING ................................ 15

TIMER

SETTING THE TIMER ....................................................m..l6

SETTING THE SLEEP TIMER .......................................... 17

OTHER CONNECTIONS

CONNECTING OPTIONAL EQUIPMENT

........................17

LISTENING TO EXTERNAL SOURCES

..........................18

GENERAL

CARE AND MAINTENANCE ............................................ 18

SPECIFICATIONS ............................................................. 19

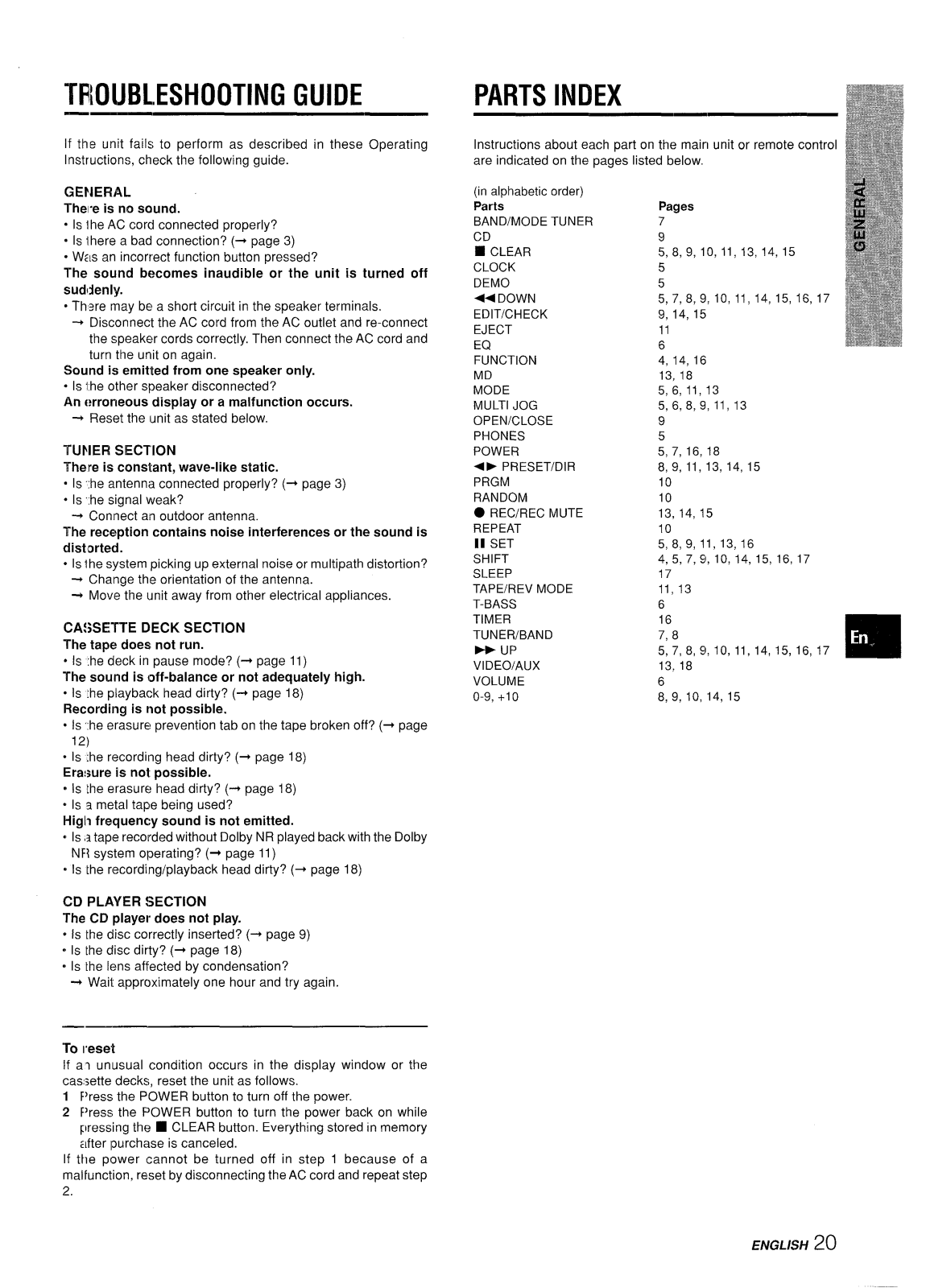

TROUBLESHOOTING GUIDE .......................................... 20

PARTS INDEX ................................................................... 20

XR-M35U SX-M35

ENGLISH

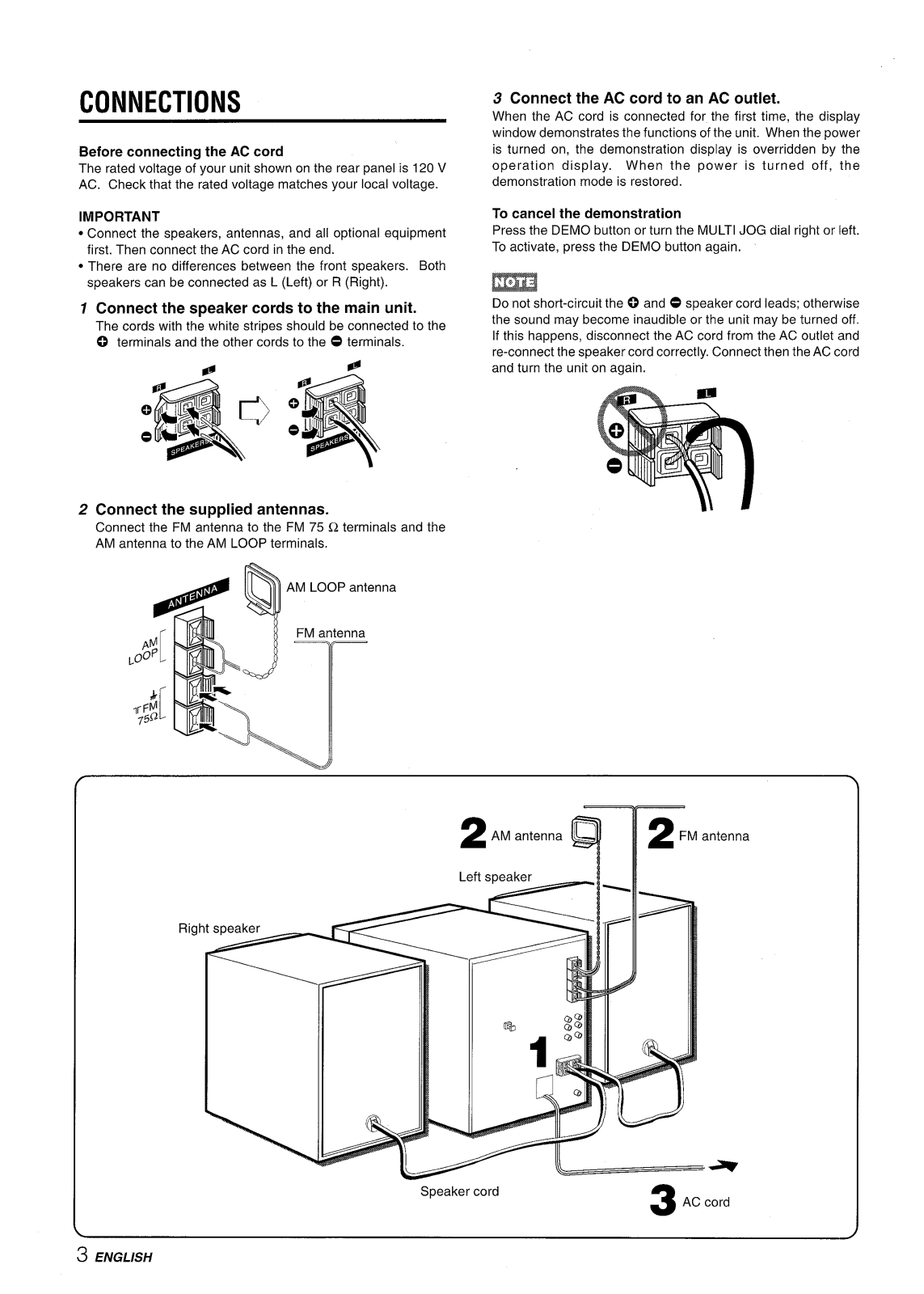

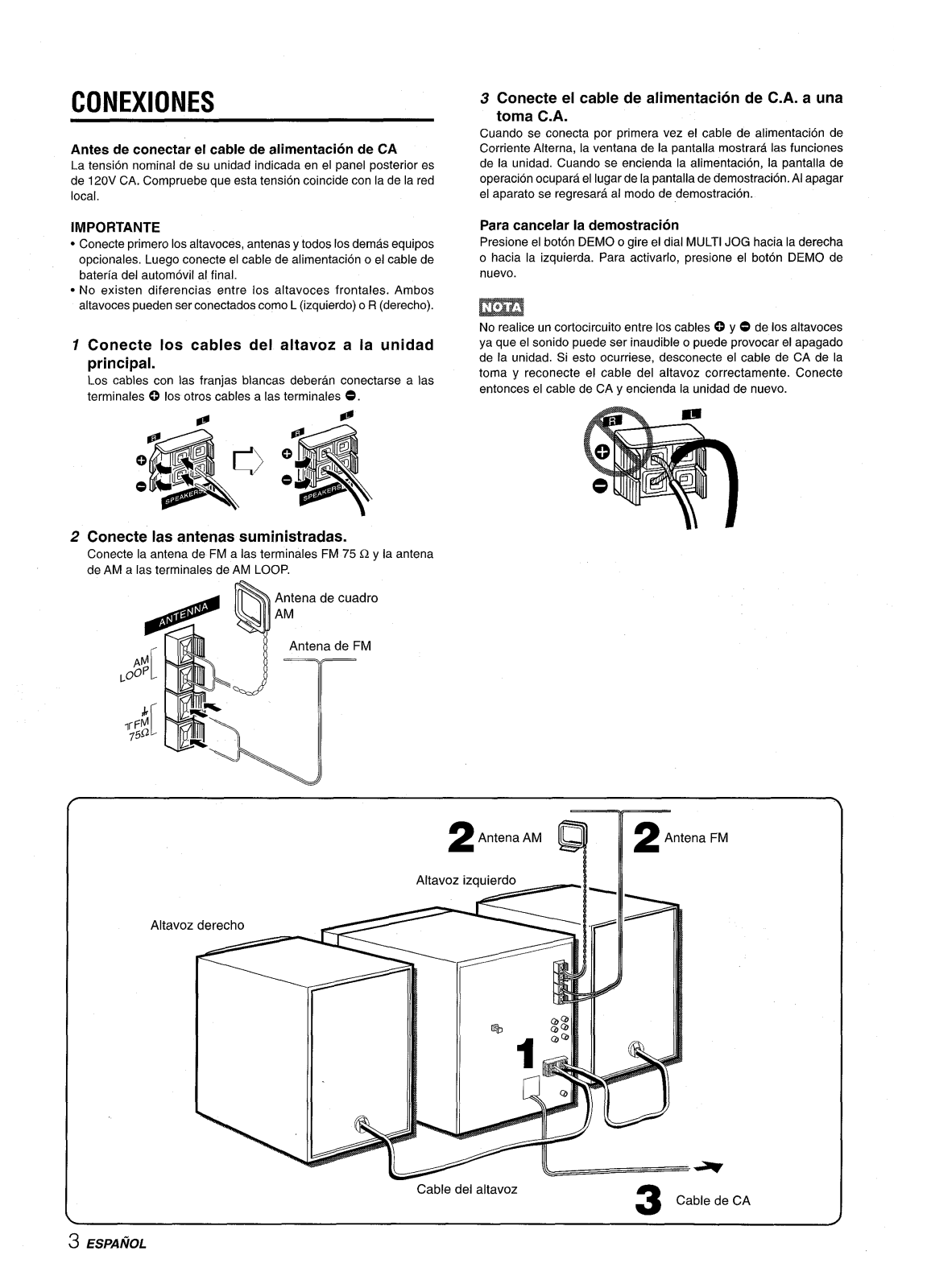

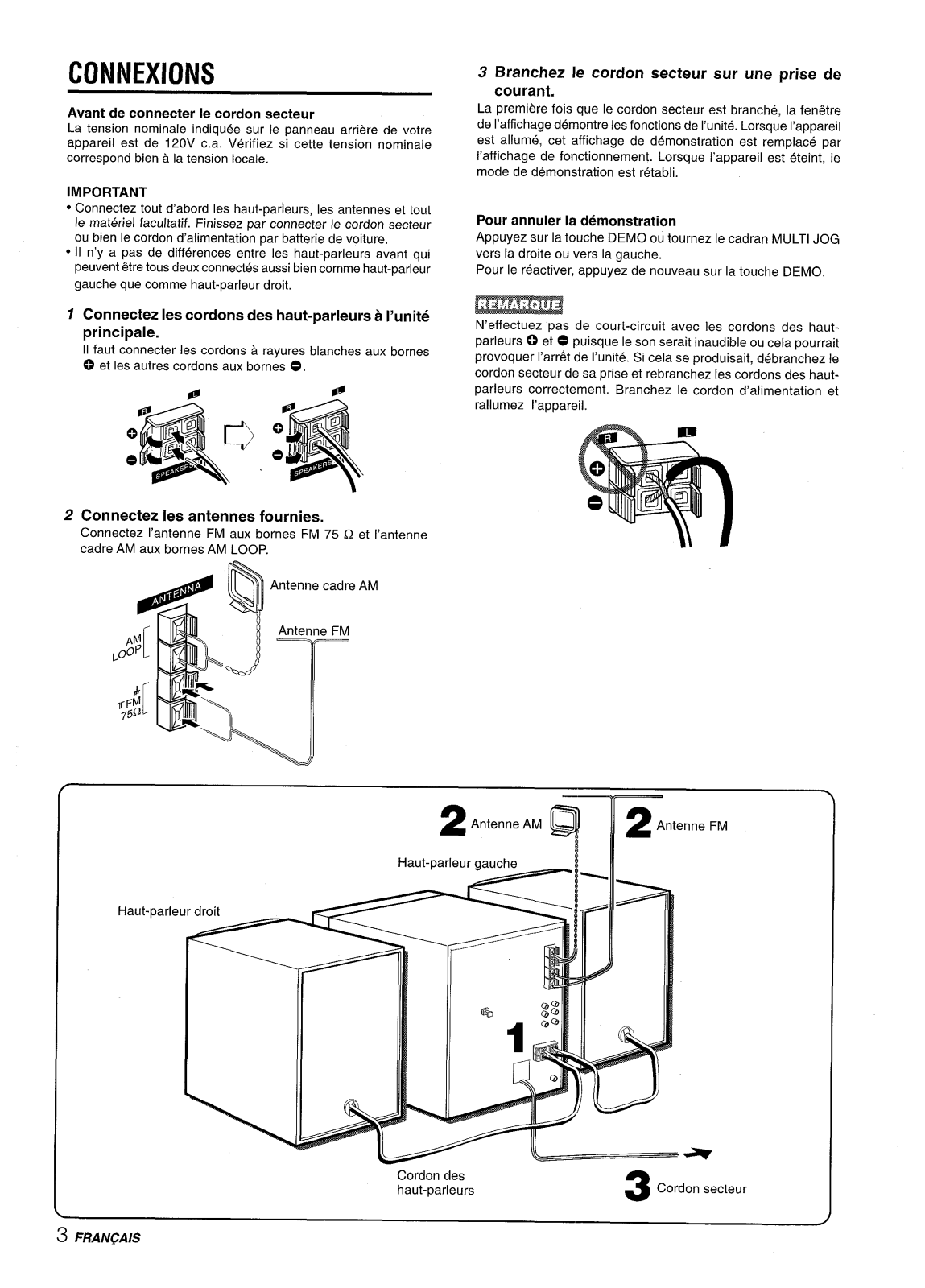

CONNECTIONS

Before connecting the AC cord

The rated voltage of your unit shown on the rear panel is 120 V AC. Check that the rated voltage matches your local voltage.

IMPORTANT

● Connect the speakers, antennas, and all optional equipment

first. Then connect the AC cord in the end.

● There are no differences between the front speakers. Both

speakers can be connected as L (Left) or R (Right).

1 Connect the speaker cords to the main unit.

The cords with the white stripes should be connected to the

~ terminals and the other cords to the O terminals.

2 Connect the supplied antennas.

Connect the FM antenna to the FM 75 Q terminals and the AM antenna to the AM LOOP terminals.

3 Connect the AC cord to an AC outlet.

When the AC cord is connected for the first time, the display window demonstrates the functions of the unit. When the power is turned on, the demonstration display is overridden by the operation display. When the power is turned off, the demonstration mode is restored.

To cancel the demonstration

Press the DEMO button or turn the MULTI JOG dial right or left. To activate, press the DEMO button again.

Do not short-circuit the ~ and

O speaker cord leads; otherwise

the sound may become inaudible or the unit may be turned off. If this happens, disconnect the AC cord from the AC outlet and re-connect the s~eaker cord correctlv. Connect then the AC cord

and turn the unit on again.

AM antenna

FM antenna

Speaker cord

AC cord

3 ENGLISH

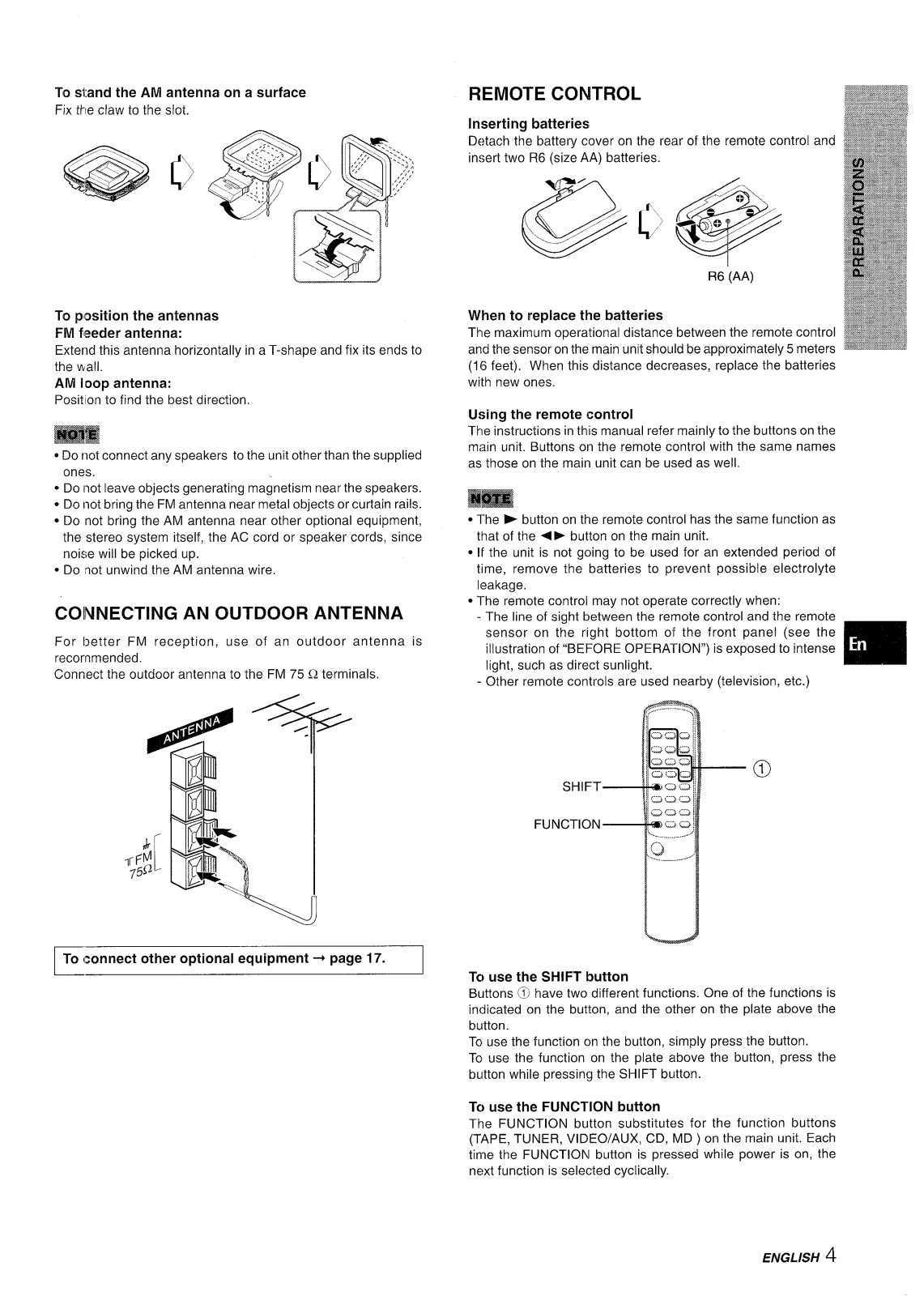

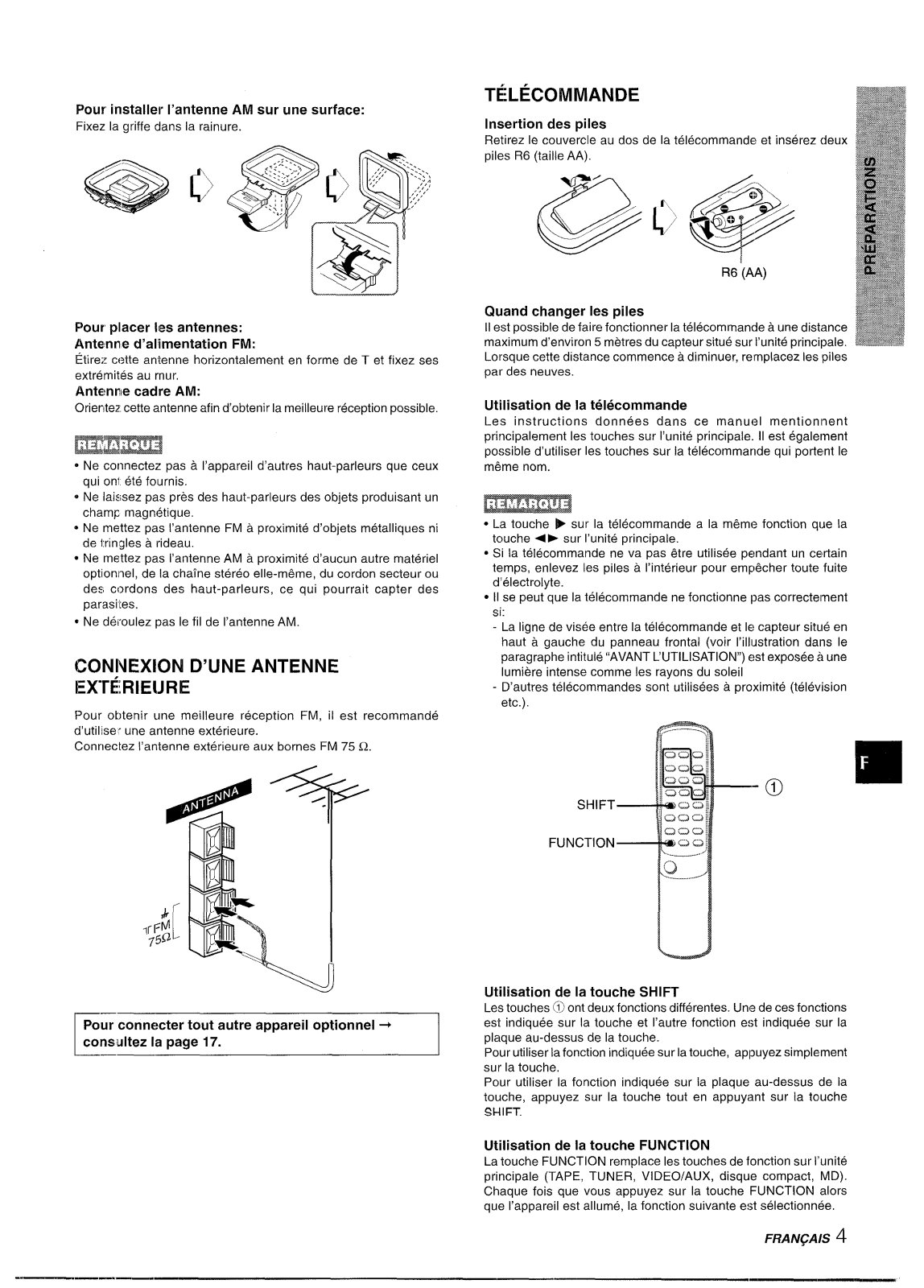

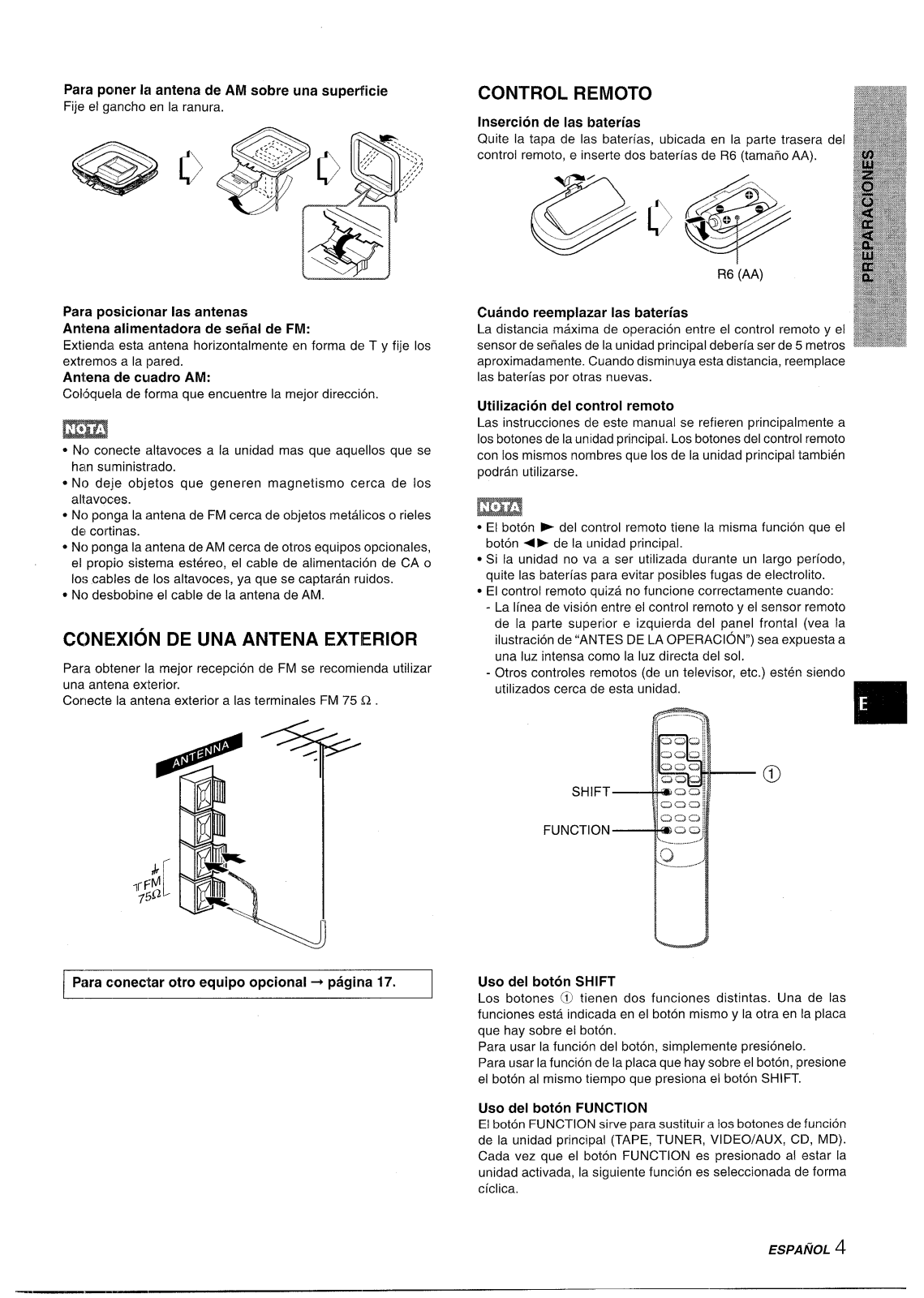

To stand the AM antenna on a surface

Fix the claw to the slot.

To prxition the antennas FM feeder antenna:

Extend this antenna horizontally in a T-shape and fix

its ends to the wall. AM

loop antenna:

PositIon to find the best direction.

oDo not connect any speakers to the unit other than the supplied

ones. = Do Inot leave objects generating magnetism near the speakers. * Do [not bring the FM antenna near metal objects or curtain rails. * Do not bring the AM antenna near other optional equipment,

the stereo system itself, the AC cord or speaker cords, since

noise will be picked up. * Do not unwind the AM antenna wire.

CONNECTING AN OUTDOOR ANTENNA

For [better FM reception, use of an outdoor antenna is recommended. Connect the outdoor antenna to the FM 75 Q terminals.

REMOTE CONTROL

Inserting batteries

Detach the battery cover on the rear of the remote control and insert two R6 (size AA) batteries.

)

R6 (AA)

When to replace the batteries

The maximum operational distance between the remote control and the sensor on the main unit should be atwroximatelv 5 meters (16 feet). When this distance decreases, replace the batteries with new ones.

Using the remote control

The instructions in this manual refer mainly to the buttons on the main unit. Buttons on the remote control with the same names as those on the main unit can be used as well.

● The > button on the remote control has the same function as

that of the 4P button on the main unit.

● If the unit is not going to be used for an extended period of

time, remove the batteries to prevent possible electrolyte leakage,

● The remote control may not operate correctly when:

- The line of sight between the remote control and the remote sensor on the right bottom of the front panel (see the illustration of “BEFORE OPERATION”) is exposed to intense Iiaht, such as direct sunlight.

- O-ther remote controls ar~ used nearby (television, etc.)

SHIFT

FUNCTION

I To connect other optional equipment+ page Ii’. I

TCJuse the SHIFT button

Buttons (~ have two different functions. One of the functions is indicated on the button, and the other on the plate above the

button. To use the function on the button, simply press the button. To use the function on the plate above the button, press the

button while pressing the SHIFT button.

TCIuse the FUNCTION button

The FUNCTION button substitutes for the function buttons

(TAPE, TUNER, VIDEO/AUX, CD, MD) on the main unit. Each time the FUNCTION button is pressed while power is on, the

next function is selected cyclically.

ENGLISH

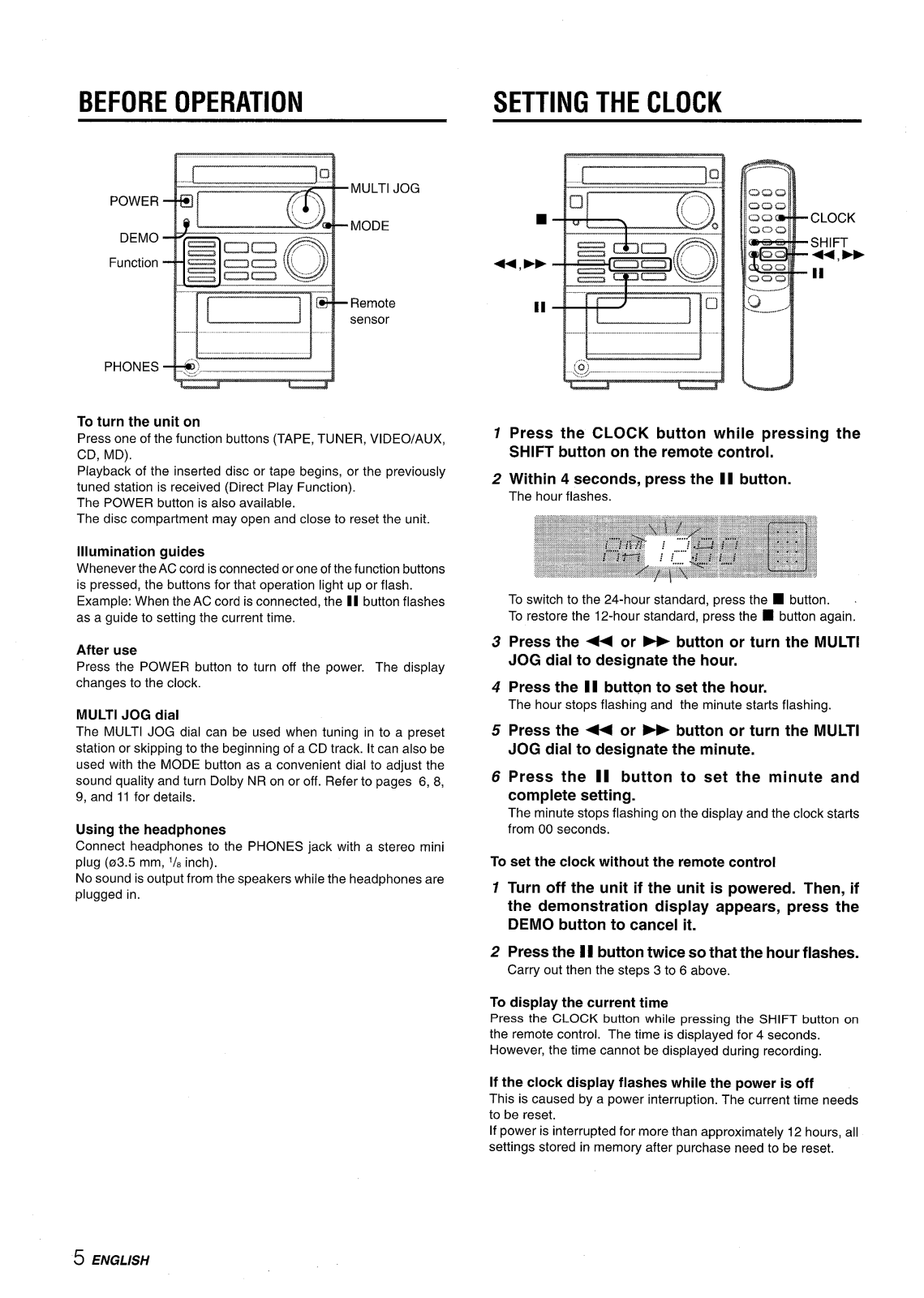

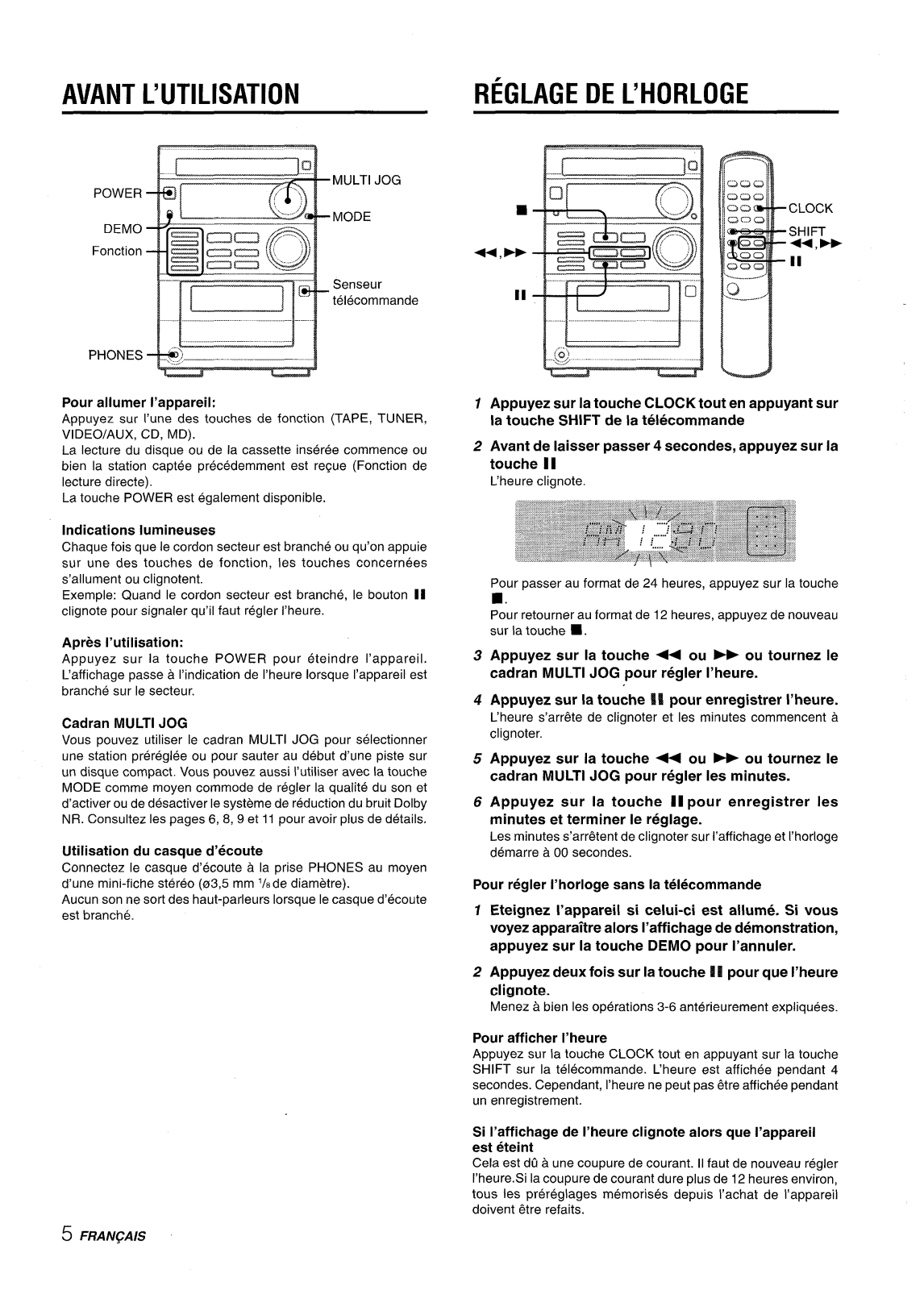

BEFORE OPERATION

SETTING THE CLOCK

POWER – -@l

DEMO

Function

PHONES

U - sensor

Remote

,.-,

—........

To turn the unit on

Press one of the function buttons (TAPE, TUNER, VIDEO/AUX, CD, MD). Playback of the inserted disc or tape begins, or the previously tuned station is received (Direct Play Function). The POWER button is also available. The disc compartment may open and close to reset the unit.

Illumination guides

Whenever the AC cord is connected or one of the function buttons is pressed, the buttons for that operation light up or flash. Example: When the AC cord is connected, the II button flashes as a guide to setting the current time.

After use

Press the POWER button to turn off the power. The display changes to the clock.

MULTI JOG dial

The MULTI JOG dial can be used when tuning in to a preset station or skipping to the beginning of a CD track. it can also be used with the MODE button as a convenient dial to adjust the sound quality and turn Dolby NR on or off. Refer to pages 6, 8, 9, and 11 for details.

Using the headphones

Connect headphones to the PHONES jack with a stereo mini plug (03.5 mm, l/s inch). No sound is output from the speakers while the headphones are plugged in.

““m

1“””””””’”~

– CLOCK –SHIFT

–44, -

- II

Press the CLOCK button while pressing the SHIFT button on the remote control.

Within 4 seconds, press the 11 button.

The hour flashes.

To switch to the 24-hour standard, press the

■ button.

To restore the 12-hour standard, press the

■ button again.

Press the < or W button or turn the MULTI JOG dial to designate the hour.

Press the 11 button to set the hour.

The hour stops flashing and the minute starts flashing.

Press the + or * button or turn the MULTI JOG dial to designate the minute.

Press the II button to set the minute and complete setting.

The minute stops flashing on the display and the clock starts from 00 seconds.

To set the clock without the remote control

1 Turn off the unit

if the unit is powered. Then, if the demonstration display appears, press the DEMO button to cancel it.

2 Press the 1I button twice so that the hour flashes.

Carry out then the steps 3 to 6 above.

To display the current time

Press the CLOCK button while pressing the SHIFT button on the remote control. The time is displayed for 4 seconds.

However, the time cannot be displayed during recording.

If the clock display flashes while the power is off

This is caused by a power interruption. The current time needs

to be reset. If

power is interrupted for more than approximately 12 hours, all

settings stored in memory after purchase need to be reset.

5 ENGLISH

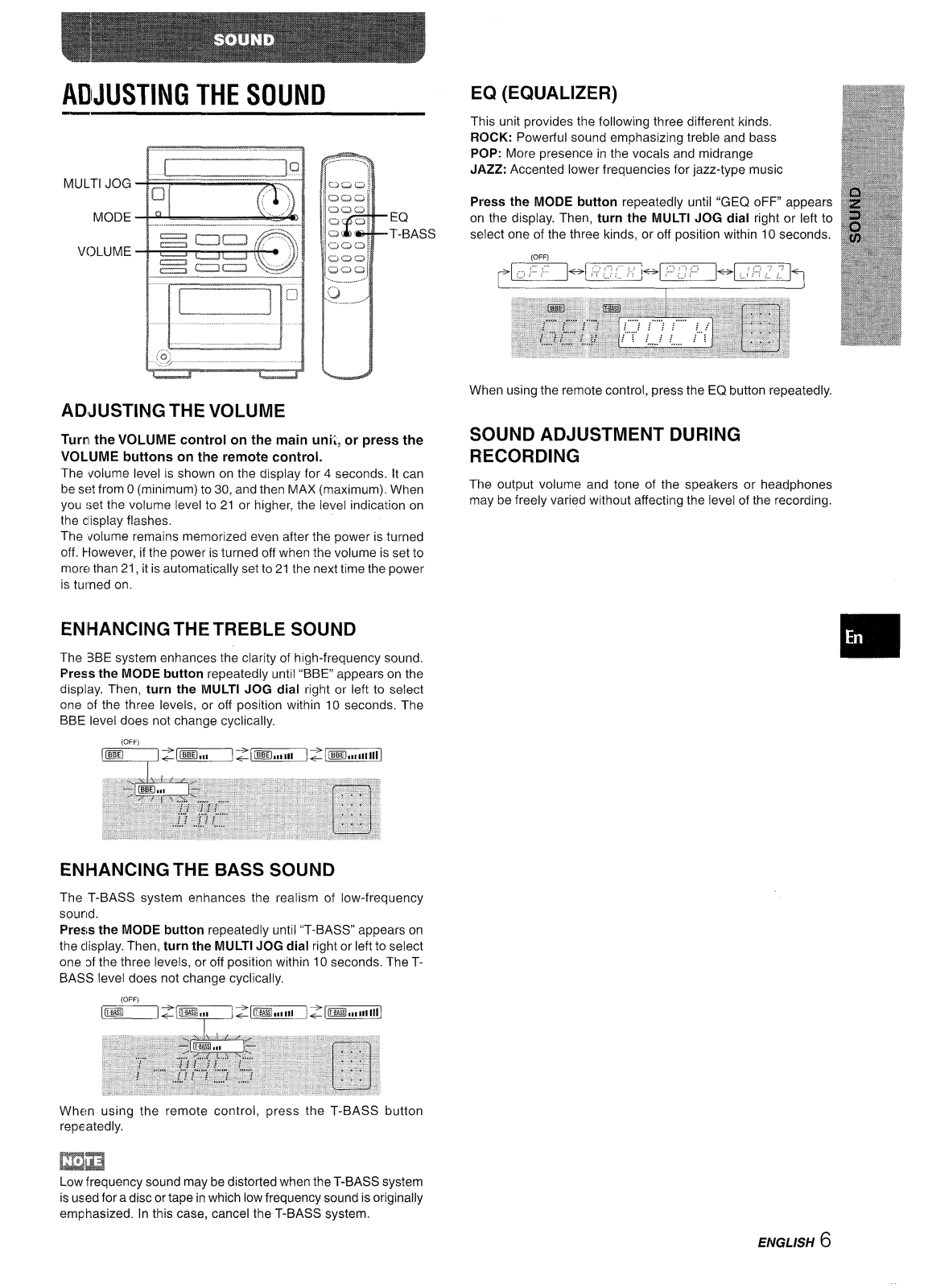

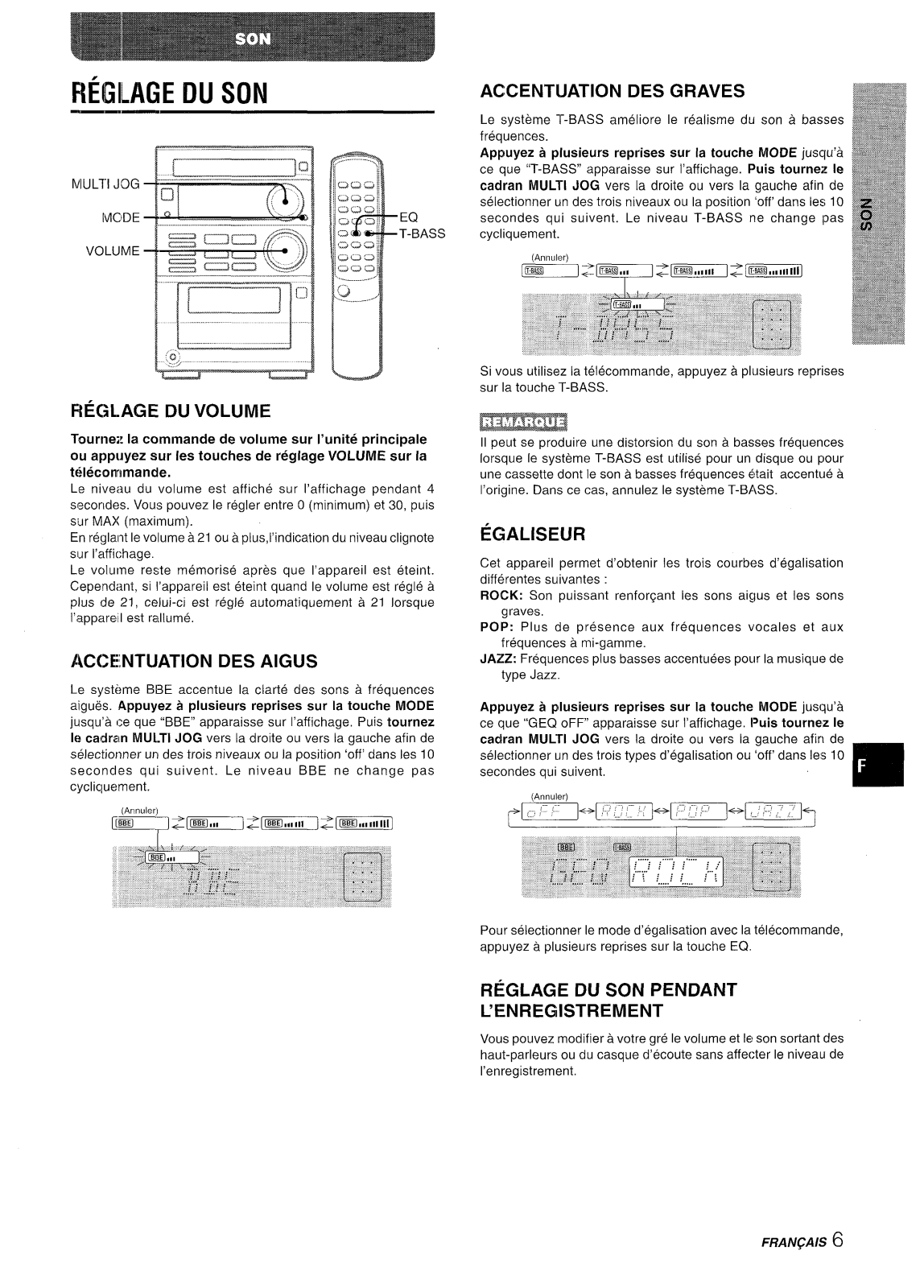

~BIJIJsTING THE SOUND

~—–

—.—.....

T-BASS

A13JUSTINGTHEVOLUME

Turn the VOLUME control on the main uni’i, or press the VOLUME buttons on the remote control.

The volume level is shown on the display for 4 seconds. It can be set from O(minimum) to 30, and then MAX (maximum). When you set the volume level to 21 or higher, the level indication on the clisplay flashes, The (olume remains memorized even after the power is turned off. However, if the power is turned off when the volume is set to more than 21, it is automatically set to 21 the next time the power is turned on.

ENIHANCING THE TREBLE SOUND

The 3BE system enhances the clarity of high-frequency sound,

Press the MODE button repeatedly until “BBE” appears on the

display. Then,

turn the MULTI JOG dial right or left to select

one of the three levels, or off position within 10 seconds. The BBE level does not change cyclically.

ENHANCING THE BASS SOUND

The T-BASS system enhances the realism of low-frequency sourld.

Press the MODE button repeatedly until “T-BASS” appears on

the clisplay. Then,

turn the MULTI JOG dial right or left to select

one of the three levels, or off position within 10 seconds. The TBASS level does not change cyclically.

When using the remote control, press the T-BASS button repeatedly.

EQ (EQUALIZER)

This unit provides the following three different kinds.

ROCK: Powerful sound emphasizing treble and bass

POP: More presence in the vocals and midrange

JAZZ: Accented lower frequencies for jazz-type music

Press the MODE button repeatedly until “GEQ oFF” appears

on the display. Then,

turn the MULTI JOG dial right or left to

select one of the three kinds, or off position within 10 seconds.

When using the remote control, press the EQ button repeatedly,

SOUND ADJUSTMENT DURING RECORDING

The output volume and tone of the speakers or headphones may be freely varied without affecting the level of the recording.

Low frequency sound may be distorted when the T-BASS system is used fora disc or tape in which Iowfrequency sound is originally emphasized. In this case, cancel the T-BASS system,

ENGLISH6

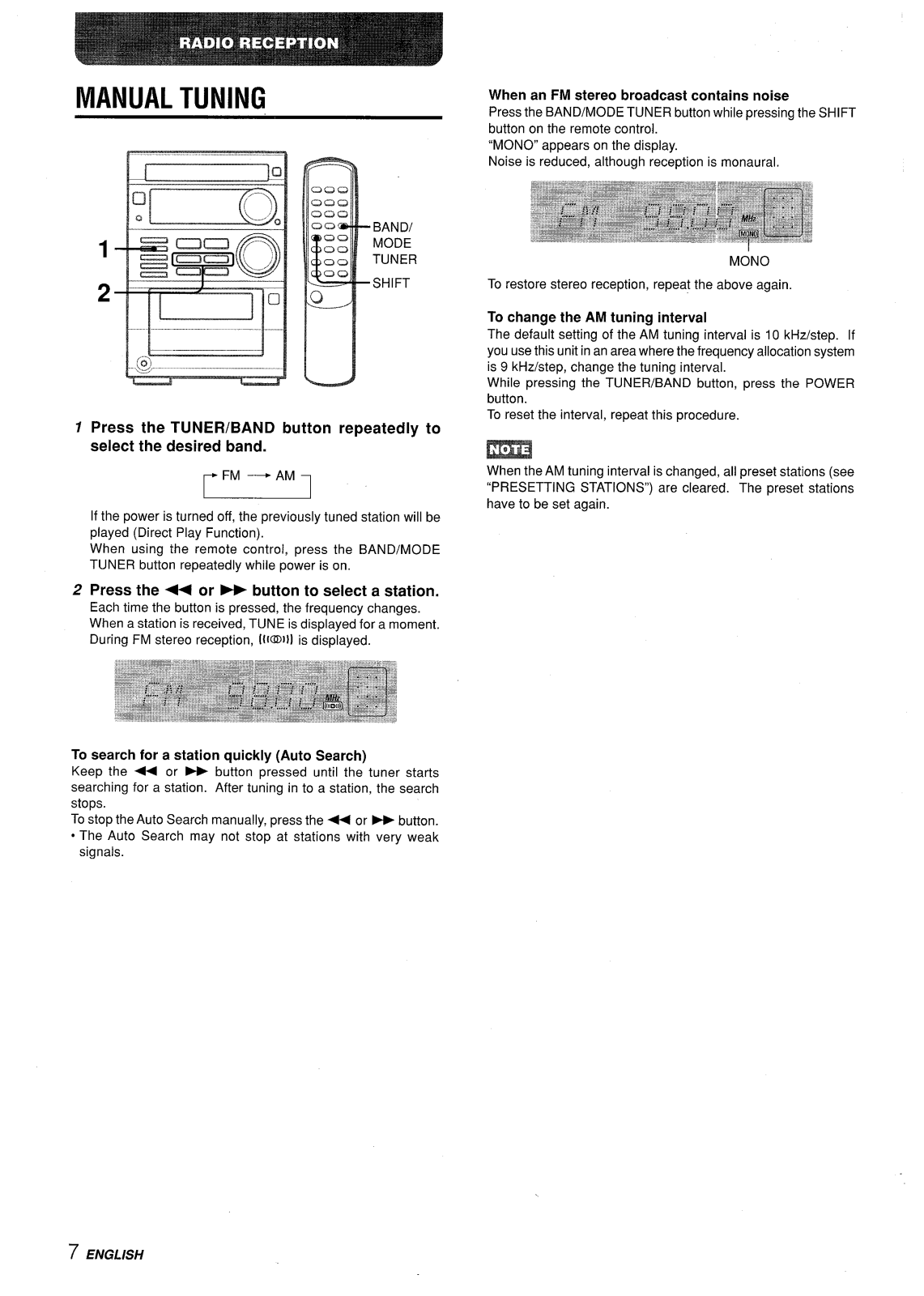

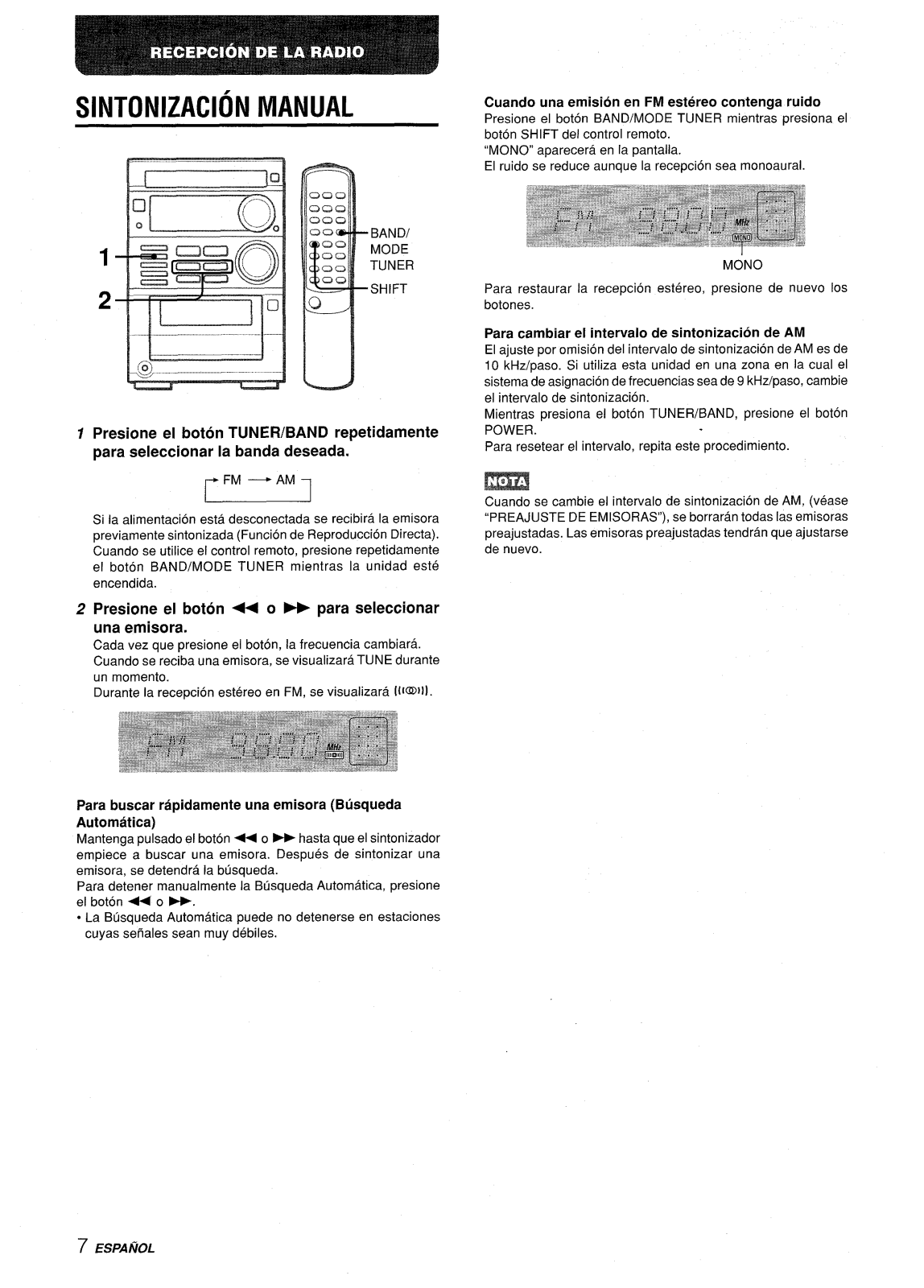

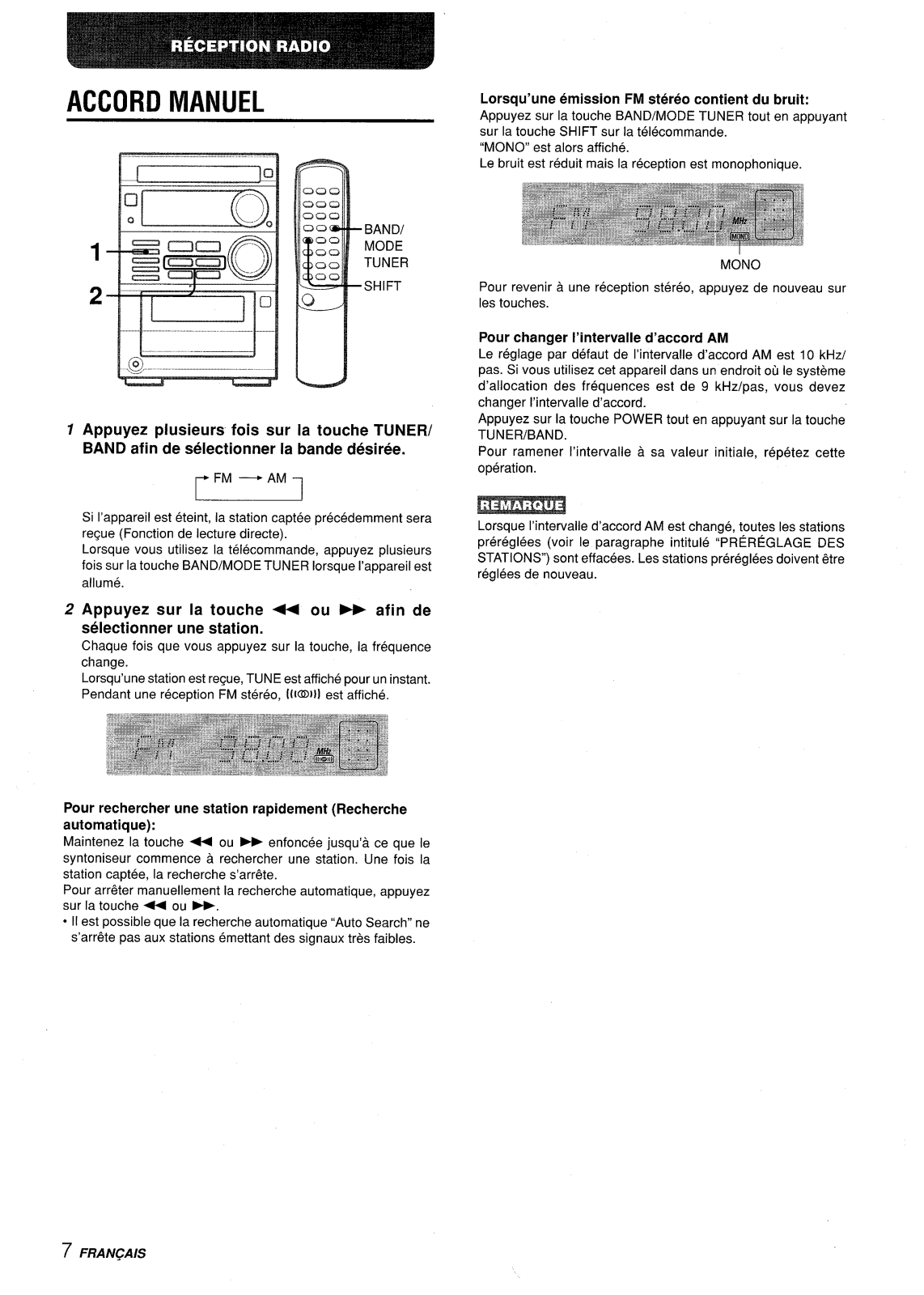

MANUAL TUNING

BANDI

MODE TUNER

SHIFT

Press the TUNER/BAND button repeatedly to

select the desired band.

If the power is turned off, the previously tuned station will be played (Direct Play Function). When using the remote control, press the BAND/MODE TUNER button repeatedly while power is on.

Press the ++ or ~ button to select a station.

Each time the button is pressed, the frequency changes. When a station is received, TUNE is displayed for a moment. During FM stereo reception, [[[01] is displayed.

When an FM stereo broadcast contains noise

Press the BAND/MODE TUNER button while pressing the SHIFT button on the remote control.

“MONO” appears on the display.

Noise is reduced, although reception is monaural.

MONO

To restore stereo reception, repeat the above again.

To change the AM tuning interval

The default setting of the AM tuning interval is 10 kHz/step. If you use this unit in an area where the frequency allocation system is 9 kHz/step, change the tuning interval. While pressing the TUNER/BAND button, press the POWER button. To reset the interval, repeat this procedure.

When the AM tuning interval is changed, all preset stations (see “PRESETTING STATIONS”) are cleared.

The preset stations

have to be set again.

To search for a station quickly (Auto Search)

Keep the + or - button pressed until the tuner starts searching for a station. After tuning in to a station, the search stops. To stop the Auto Search manually, press the+ or - button.

● The Auto Search may not stop at stations with very weak

signals.

7 ENGLISH

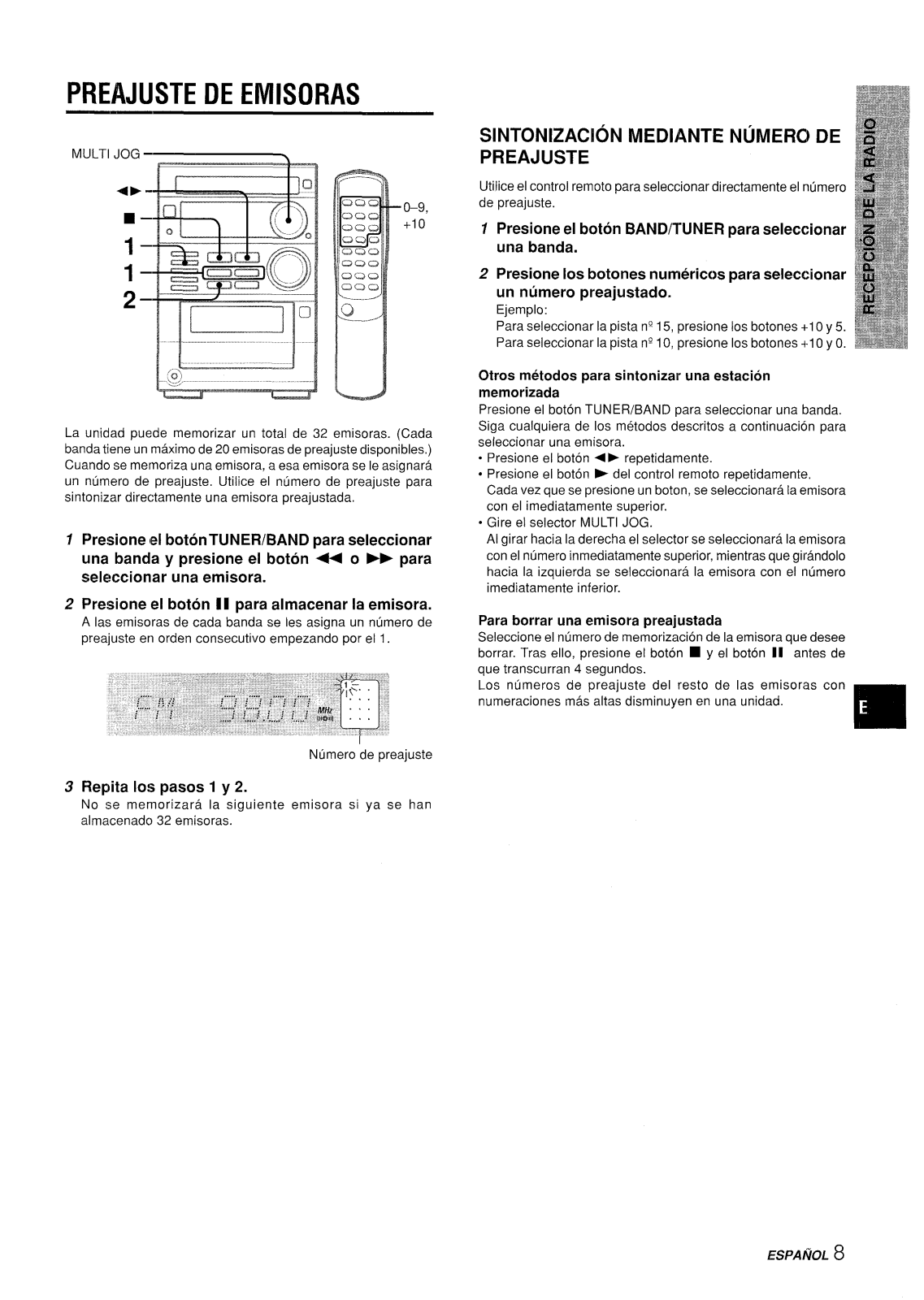

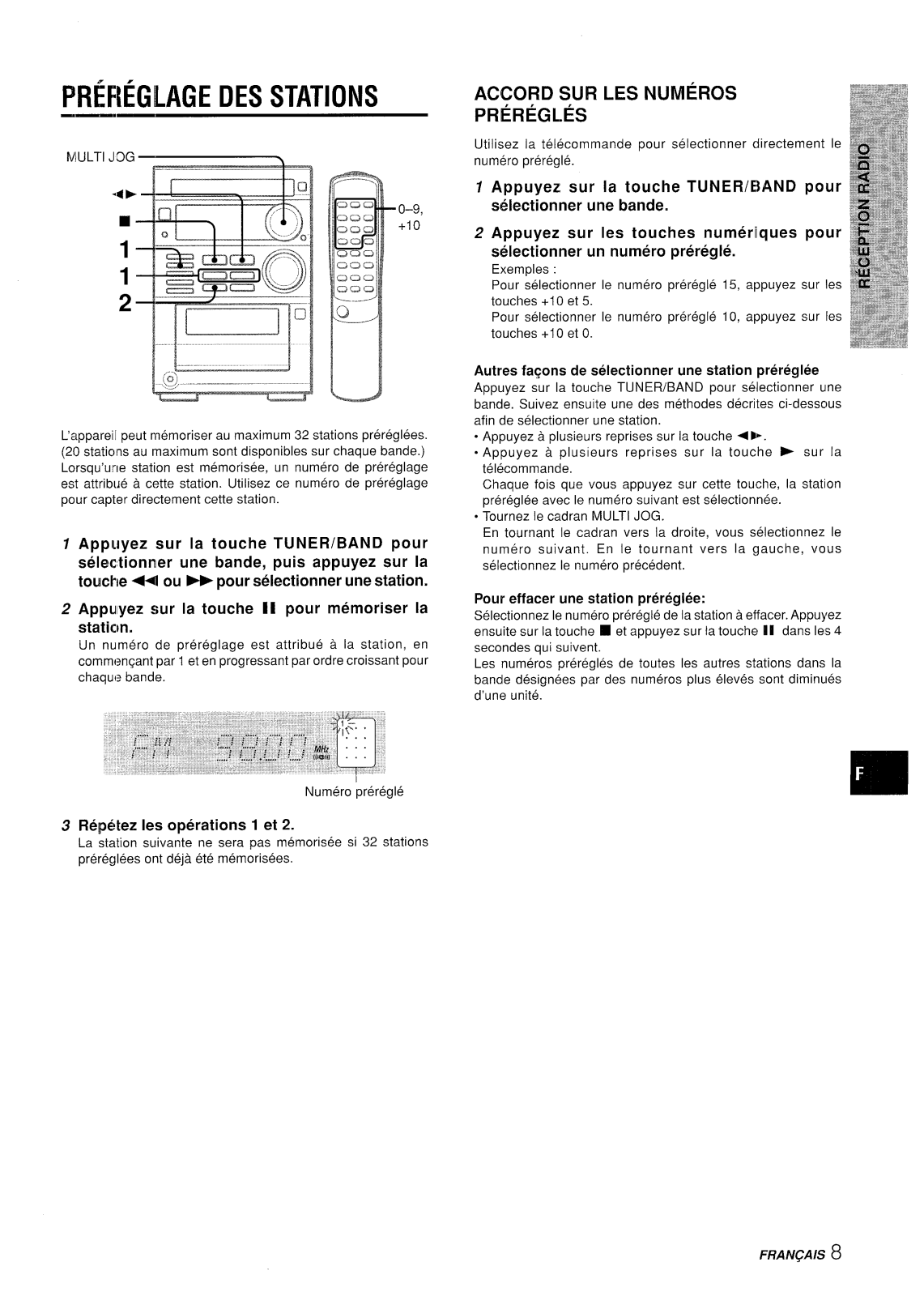

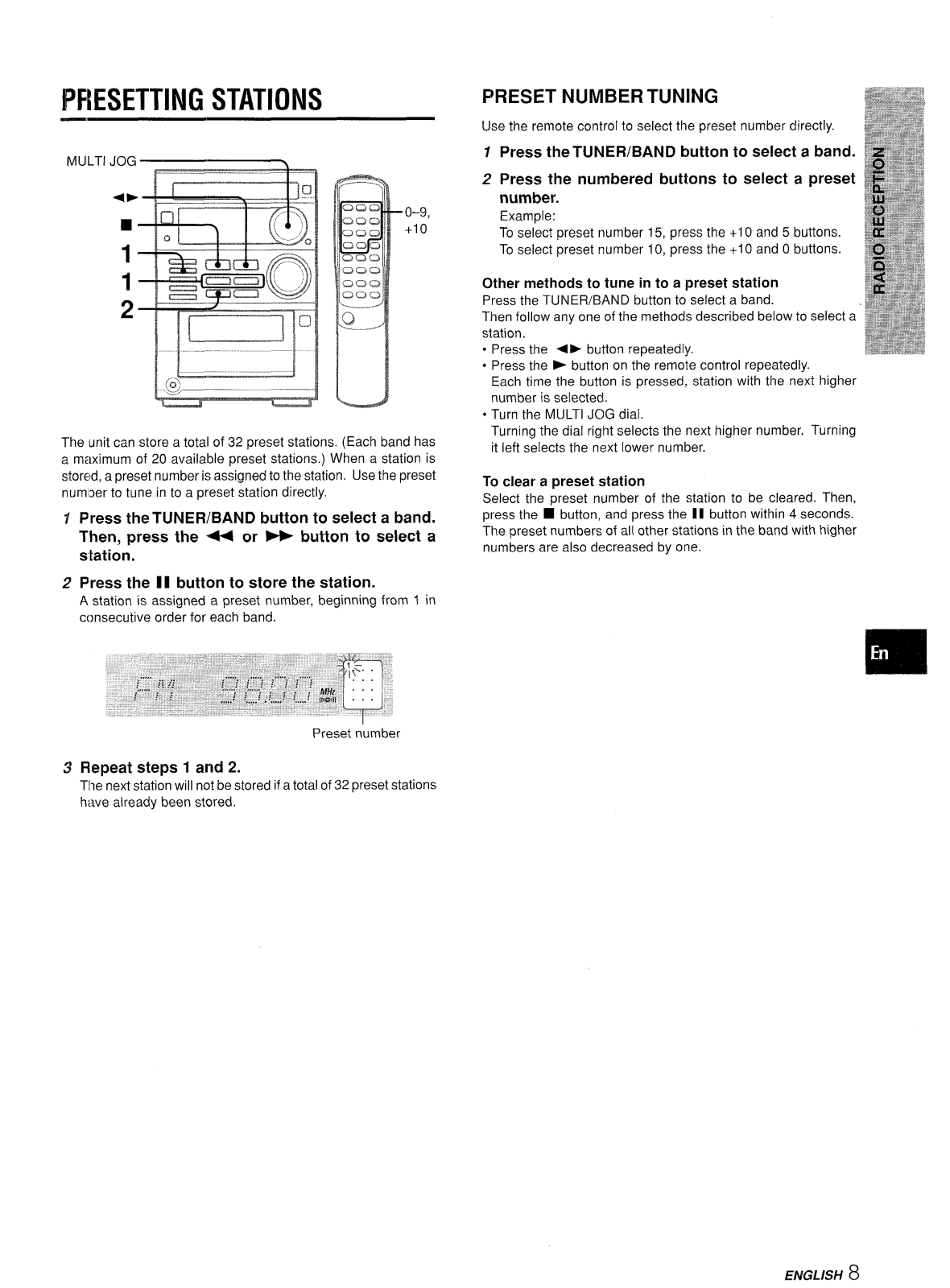

PFIESETTING STATIONS

PRESET NUMBER TUNING

The unit can store a total of 32 preset stations. (Each band has a maximum of 20 available preset stations. ) When a station is stored, a preset number is assigned to the station. Use the preset num~er to tune in to a preset station directly.

Press the TUNER/BAND button to select a band.

Then, press the ++ or - button to select a

station. Press the 11 button to store the station.

A station is assigned a preset number, beginning from 1 in consecutive order for each band.

Preset number

Repeat steps 1 and 2.

The next station will not be stored if a total of 32 preset stations have already been stored.

Use the remote control to select the preset number directly.

Press the TUNER/BAND button to select a band.

2 Press the numbered buttons to select a preset

number.

Example: To select preset number 15, press the +1 O and 5 buttons. To select preset number 10, press the +1 O and O buttons.

Other methods to tune in to a preset station

Press the TUNER/BAND button to select a band. Then follow any one of the methods described below to select a station. . Press the +

➤ button repeatedly.

● Press the E button on the remote control repeatedly.

Each time the button is pressed, station with the next higher number is selected.

● Turn the MULTI JOG dial.

“Turning the dial right selects the next higher number. Turning it left selects the next lower number.

To clear a preset station

Select the preset number of the station to be cleared. Then, press the

■ button, and press the II button within 4 seconds.

The preset numbers of all other stations in the band with higher numbers are also decreased by one.

ENGLISH 8

—

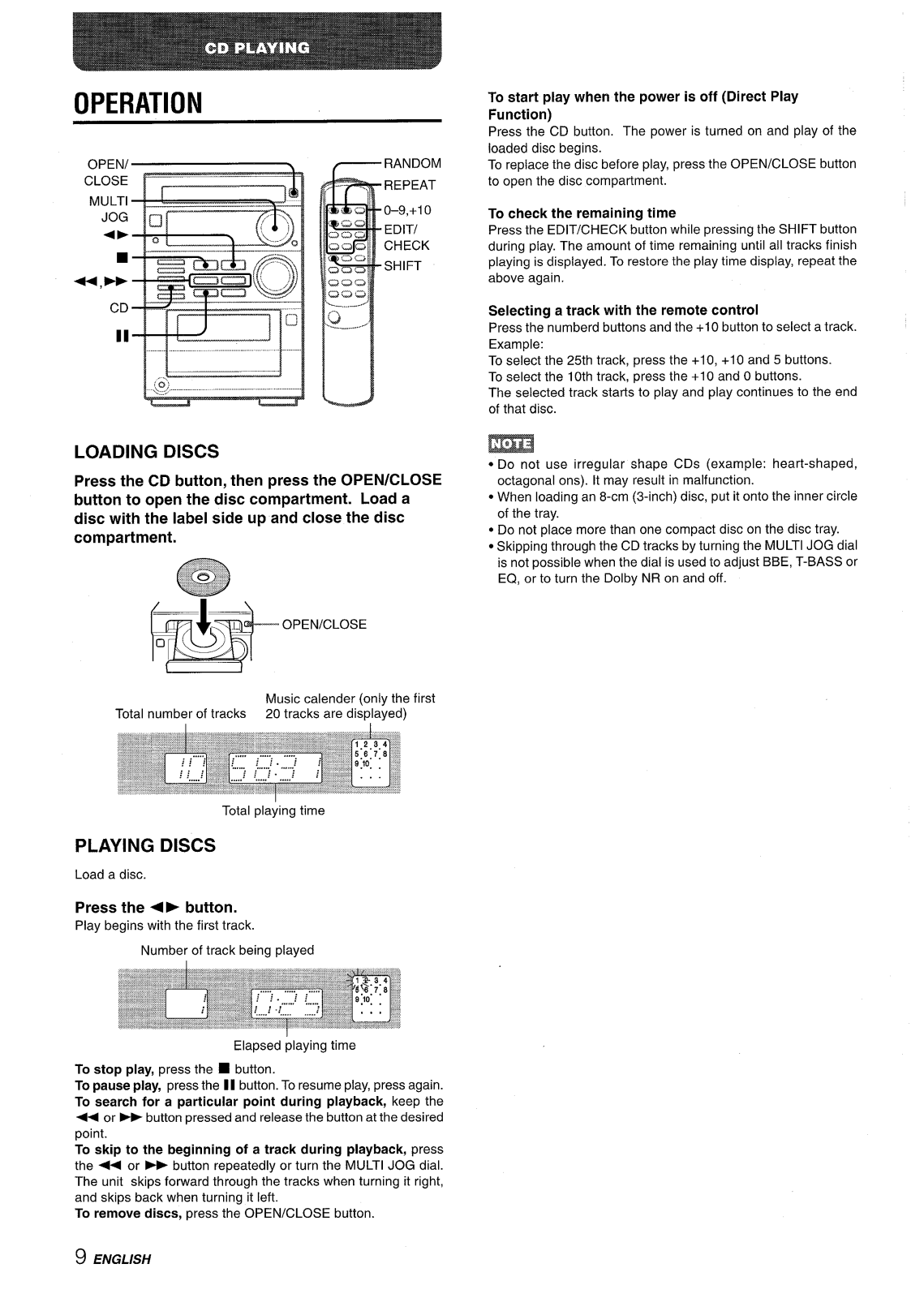

OPERATION

OPENI \

Z- RANDOM

MULTI

JOG

■

U,*

LOADING DISCS

REPEAT 0–9,+1 o

EDITI CHECK

SHIFT

Q...-...

Press the CD button, then press the OPEN/CLOSE button to open the disc compartment. Load a disc with the label side up and close the disc compartment.

I I

Music calender (only the first

Total number of tracks 20 tracks are displayed)

Total playing time

PLAYING DISCS

Load a disc.

Press the <F button.

Play begins with the first track.

Number of track being played

Elapsed playing time

To stop play, press the ■ button.

To pause play, press the 1I button. To resume play, press again.

To search for a particular point during playback, keep the

+< or> button pressed and release the button at the desired point. To skip to the beginning of a track during playback,

press the 4< or * button repeatedly or turn the MULTI JOG dial. The unit skips forward through the tracks when turning it right, and skips back when turning it left.

To remove discs, press the OPEN/CLOSE button.

To start play when the power is off (Direct Play

Function)

Press the CD button. The power is turned on and play of the loaded disc begins. To replace the disc before play, press the OPEN/CLOSE button to open the disc compartment.

To check the remaining time

Press the EDIT/CHECK button while pressing the SHIFT button during play. The amount of time remaining until all tracks finish playing is displayed. To restore the play time display, repeat the above again.

Selecting a track with the remote control

Press the numberd buttons and the +10 button to select a track.

Example: To select the 25th track, press the +10, +10 and 5 buttons. To select the 10th track, press the +10 and O buttons. The selected track starts to play and play continues to the end

of that disc.

● Do not use irregular shape CDs (example: heart-shaped,

octagonal ens). It may result in malfunction.

● When loading an 8-cm (3-inch) disc, put it onto the inner circle

of the tray.

● Do not place more than one compact disc on the disc tray.

● Skipping through the CD tracks by turning the MULTI JOG dial

is not possible when the dial is used to adjust BBE, T-BASS or

EQ, or to turn the Dolby NR on and off.

9 ENGLISH

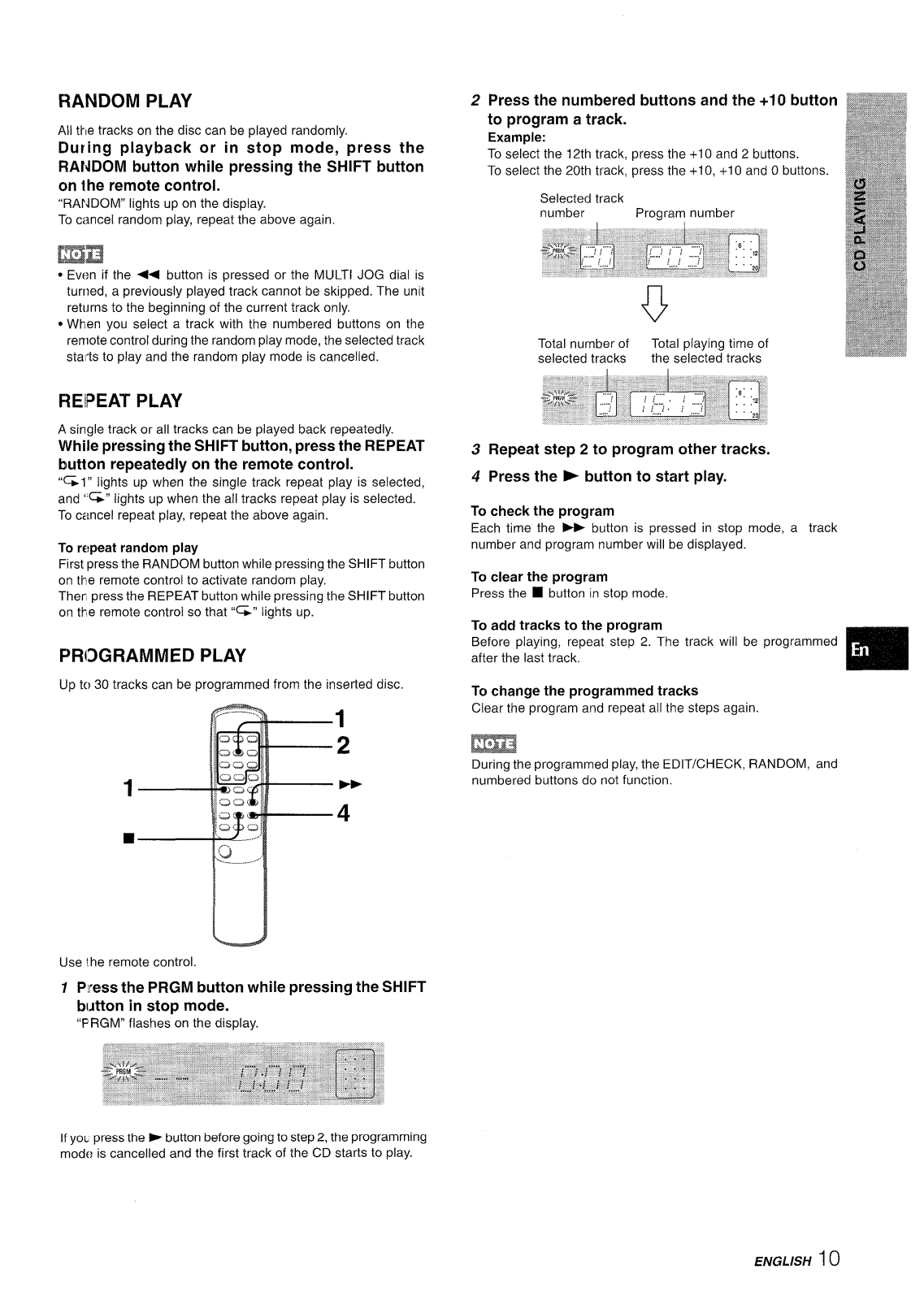

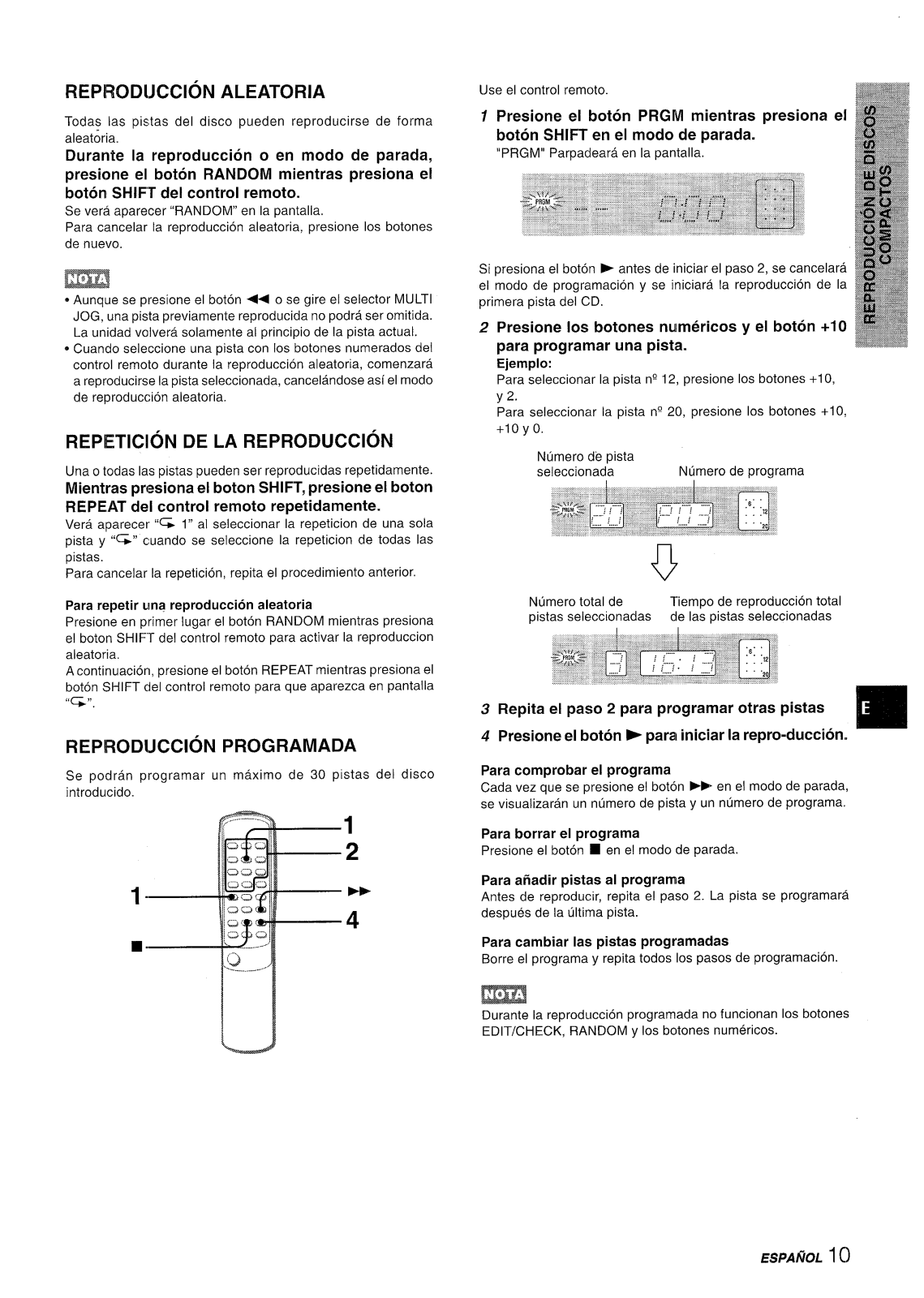

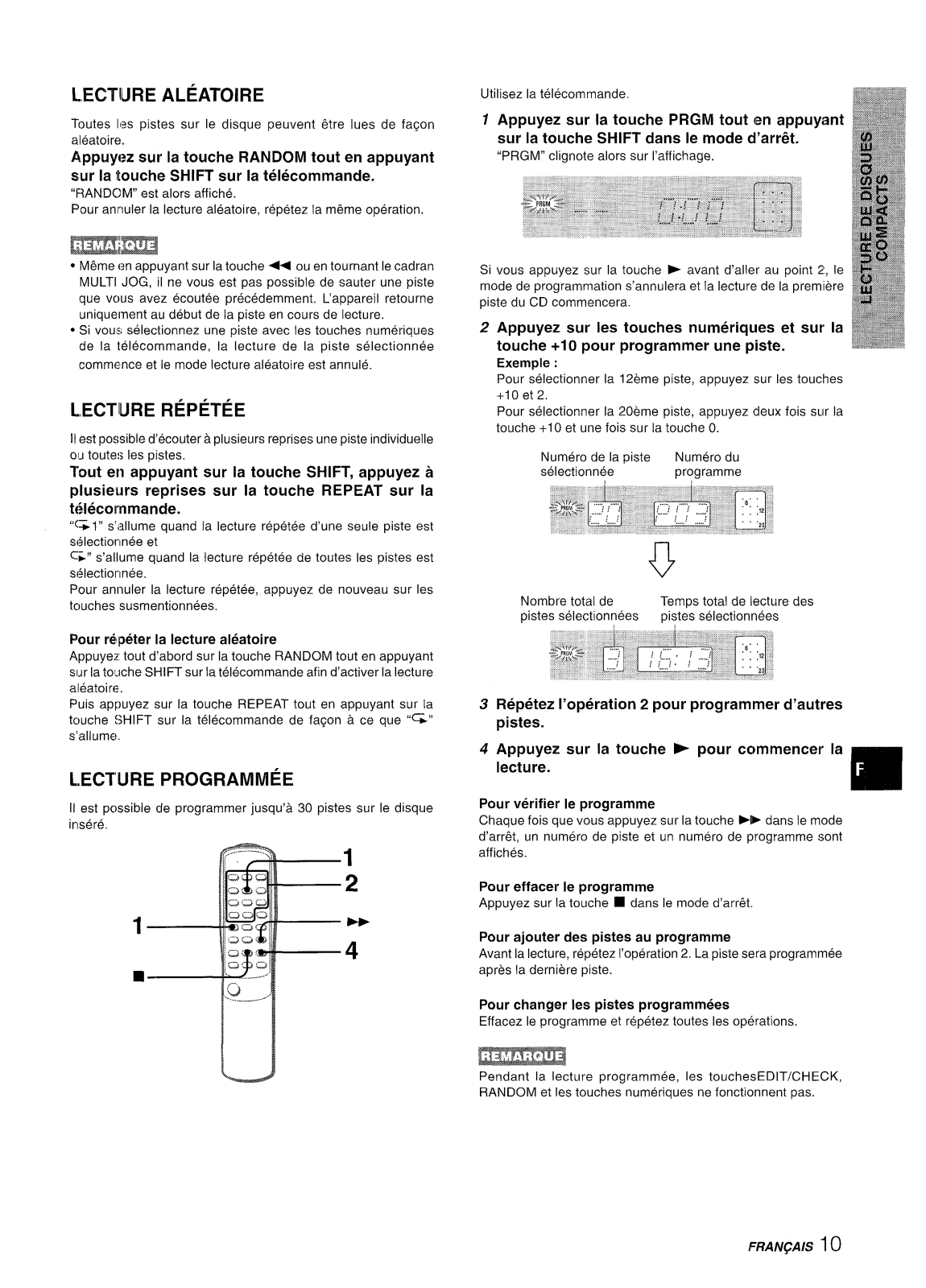

RANDOM PLAY

All ttle tracks on the disc can be played randomly.

During playback or in stop mode, press the RANDOM button while pressing the SHIFT button on the remote control.

“RAPdDOM” lights up on the display. To cancel random play, repeat the above again.

● Even if the 4< button is pressed or the MULTI JOG dial is

turned, a previously played track cannot be skipped. The unit returns to the beginning of the current track only.

● When you select a track with the numbered buttons on the

remote control during the random play mode, the selected track stal’ts to play and the random play mode is cancelled.

REIPEAT PLAY

A single track or all tracks can be played back repeatedly.

While pressing the SHIFT button, press the REPEAT

button repeatedly on the remote control.

“G1”

lights up when the single track repeat play is selected, and ‘“~” lights up when the all tracks repeat play is selected. To cancel repeat play, repeat the above again.

To repeat random play

First press the RANDOM button while pressing the SHIFT button on the remote control to activate random play. Ther, press the REPEAT button while pressing the SHIFT button

on the remote control so that “=” lights up.

PROGRAMMED PLAY

Up to 30 tracks can be programmed from the inserted disc.

Use the remote control.

1 Press the PRGM button while pressing the SHIFT

button in stop mode.

“PRGM” flashes on the display.

3 4

Press the numbered buttons and the +10 button

to program a track.

Example:

To select the 12th track, press the +1 O and 2 buttons. To select the 20th track, press the +10, +1 O and O buttons.

Selected track number

Program number

Total number of

Total playing time of

selected tracks

the selected tracks

Repeat step 2 to program other tracks. Press the > button to start play.

To check the program

Each time the - button is pressed in stop mode, a track number and program number will be displayed.

To clear the program

Press the ■ button in stop mode.

To add tracks to the program

Before playing, repeat step 2. The track will be programmed

after the last track.

To change the programmed tracks

Clear the program and repeat all the steps again.

During the programmed play, the EDIT/CHECK, RANDOM, and numbered buttons do not function.

yoL press the > button before going to step 2, the programming

mode is cancelled and the first track of the CD starts to play.

ENGLISH

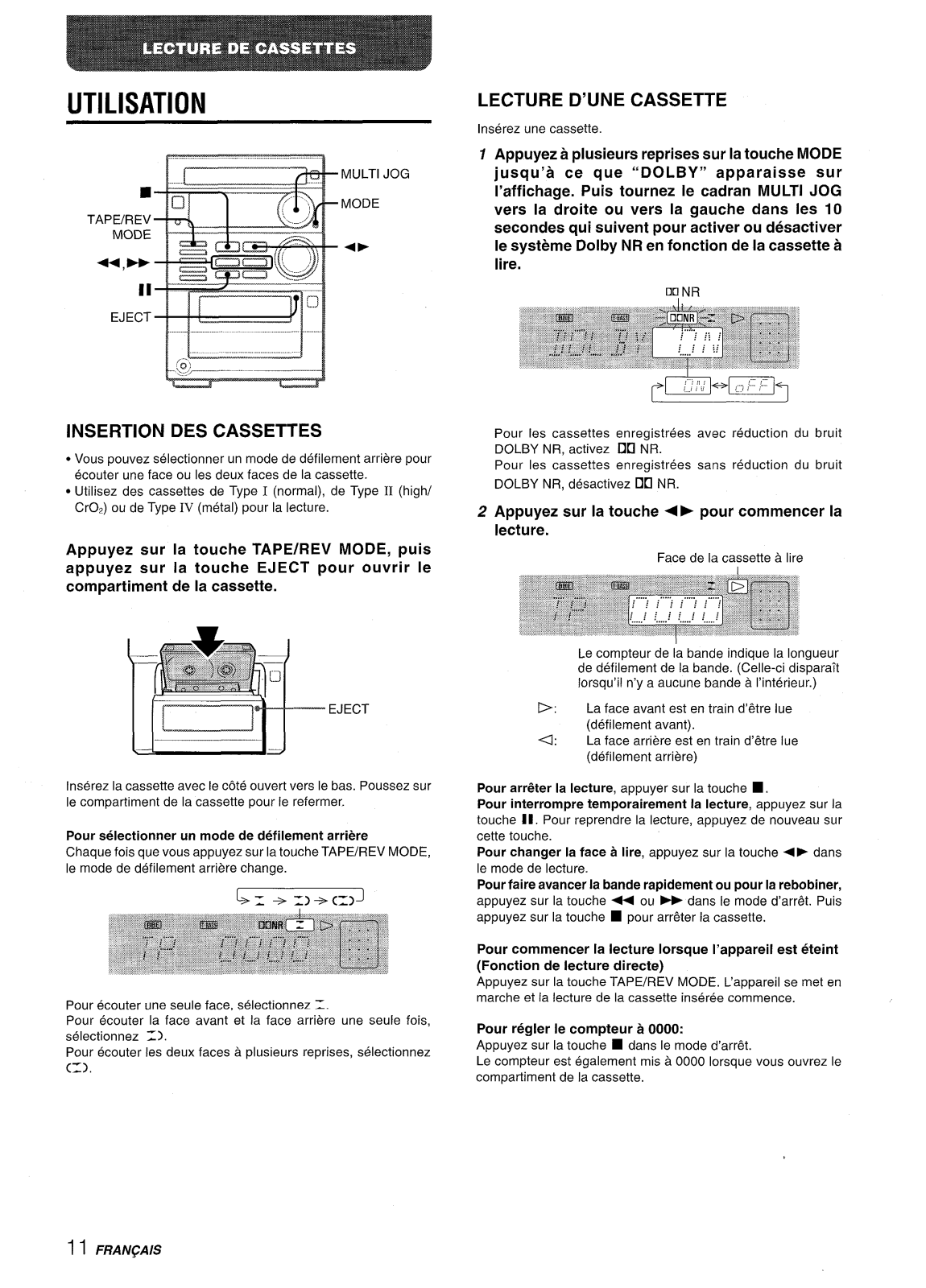

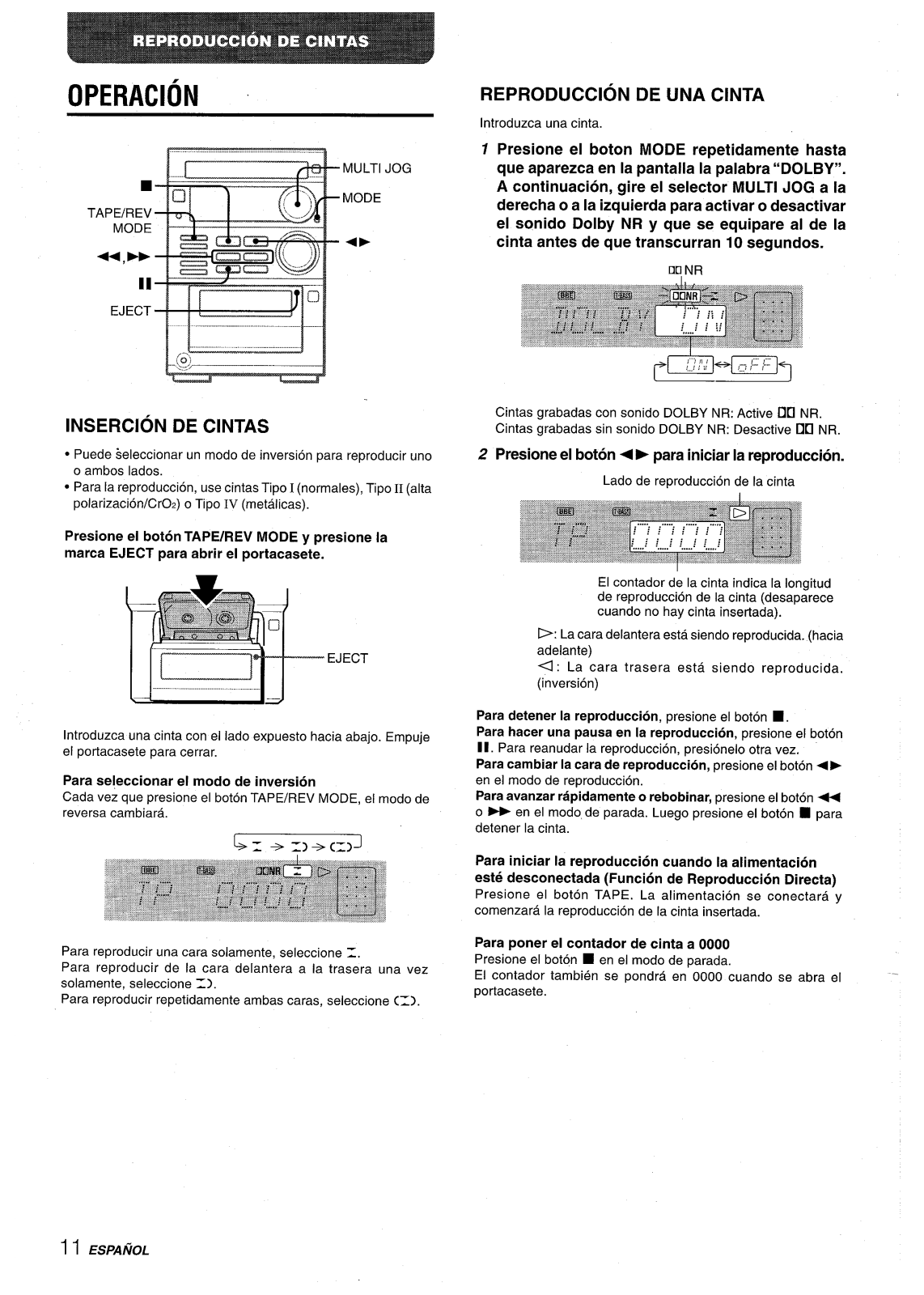

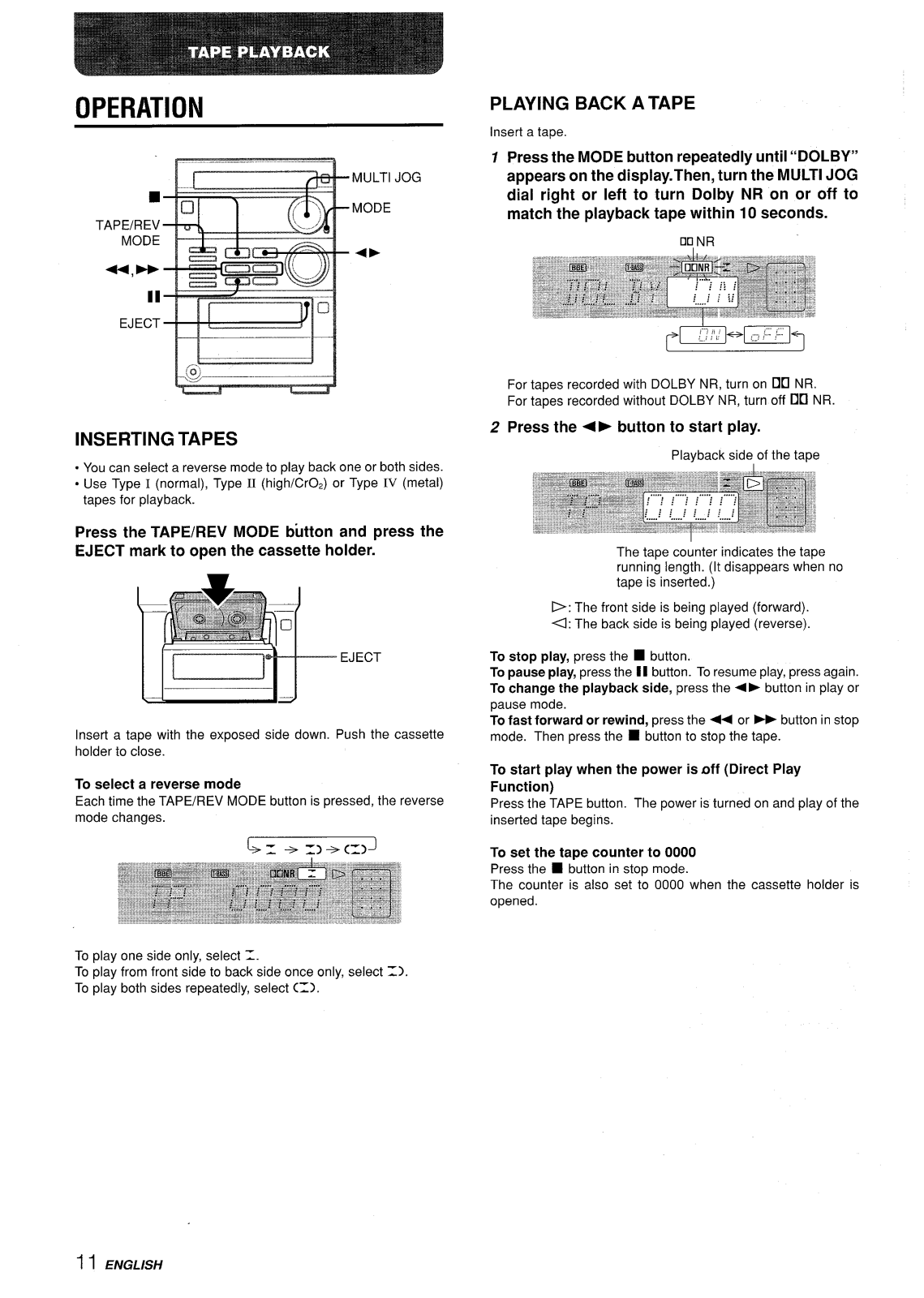

OPERATION

TAPEIREV

MODE

EJECT

INSERTING TAPES

MULTI JOG

MODE

. You can select a reverse mode to play back one or both sides.

● Use Type I (normal), Type II (high/CrOdOrTwe Iv (metal)

tapes for playback.

Press the TAPE/REV MODE button and press the EJECT mark to open the cassette holder.

I-EJECT

Insert a tape with the exposed side down. Push the cassette

holder to close.

To select a reverse mode

Each time the TAPE/REV MODE button is pressed, the reverse mode changes.

To play one side only, select Z.

To play from front side to back side once only, select Z). To play both sides repeatedly, select (Z).

PLAYING BACK A TAPE

Insert a tape

7 Press the MODE button repeatedly until “DOLBY”

appears on the display. Then, turn the MULTI JOG dial right or left to

turn Dolby NR on or off to

match the playback tape within 10 seconds.

For tapes recorded with DOLBY NR, turn on no NR. For tapes recorded without DOLBY NR, turn off DU NR.

2 Press the + ➤ button to start play.

Playback side of the tape

The tape counter indicates the tape running length. (It disappears when no tape is inserted.)

D: The front side is being played (forward).

~: The back side is being played (reverse).

To stop play, press the ■ button. To pause play, press the II button. To resume play, press again. To change the playback side, press the +> button in play or

pause mode.

To fast forward or rewind, press the - or> button in stop

mode. Then press the

■ button to stop the tape.

To start play when the power is off (Direct Play

Function)

Press the TAPE button. The power is turned on and play of the inserted tape begins.

To set the tape counter to 0000

Press the ■ button in stop mode. The counter is also set to 0000 when the cassette holder is opened.

I 1 ENGLISH

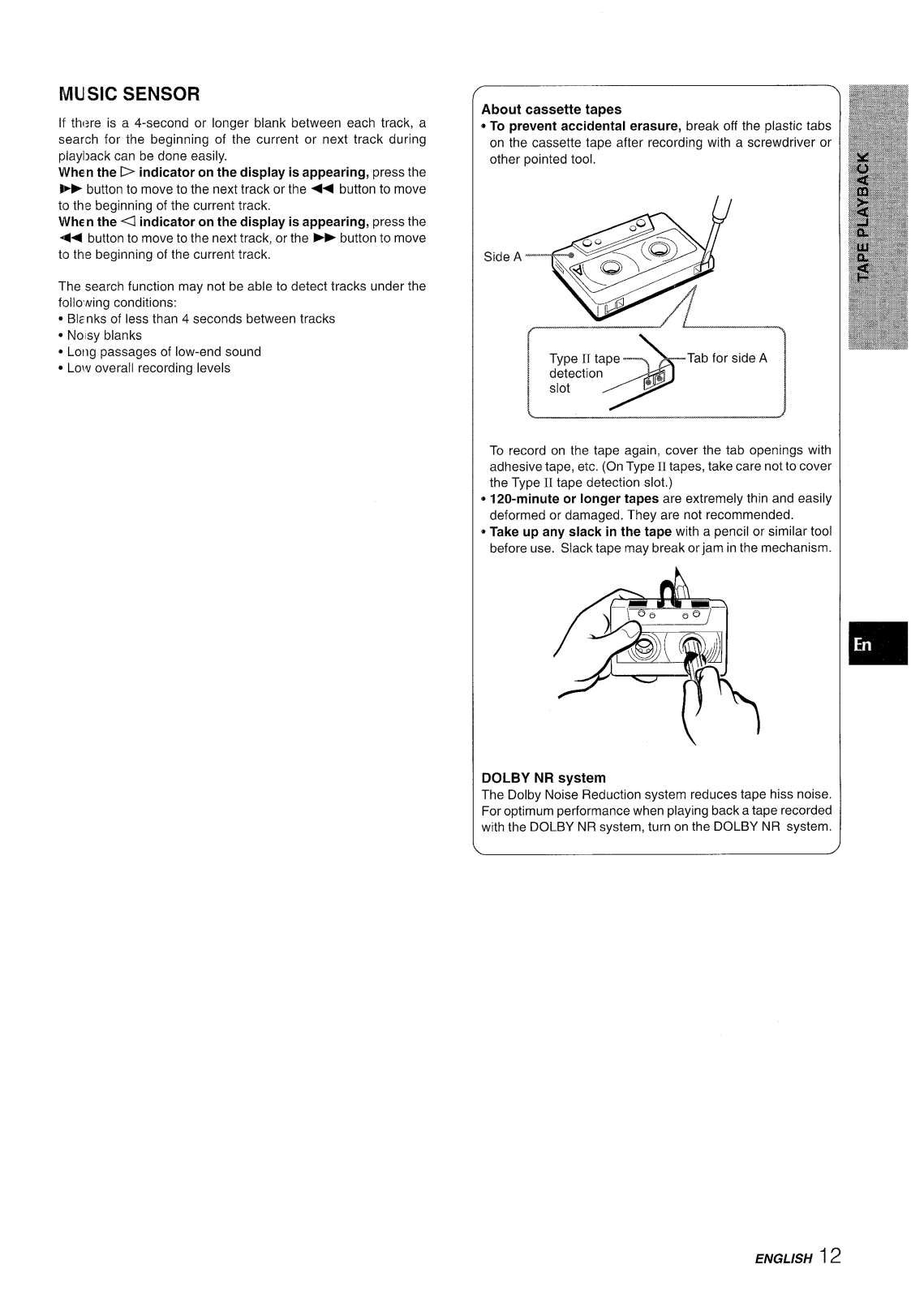

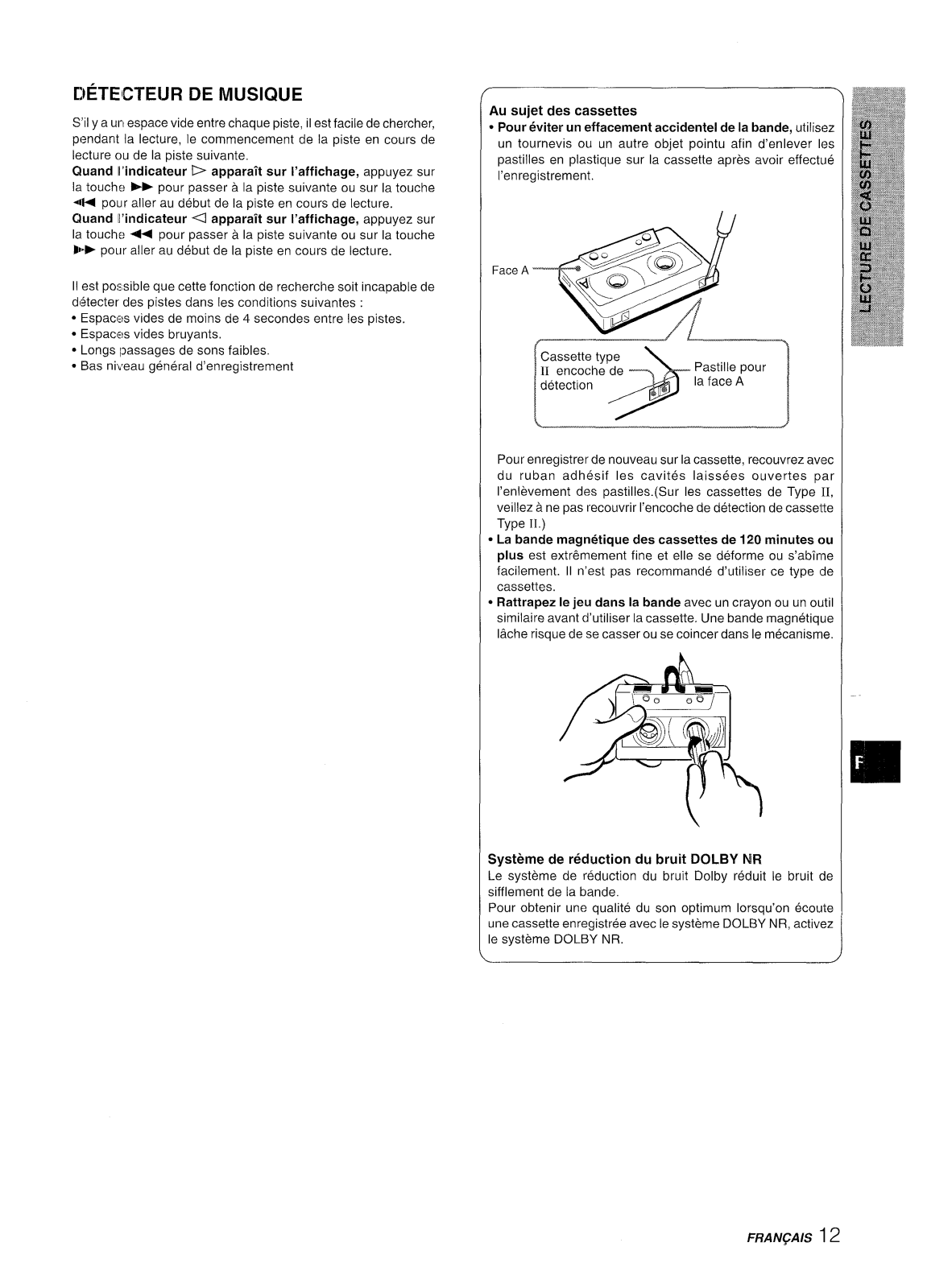

MUSIC SENSOR

If there is a 4-second or longer blank between each track, a search for the beginning of the current or next track during

playl]ack can be done easily.

When the D indicator on the display is appearing, press the

* button to move to the next track or the << button to move to the beginning of the current track,

When the U indicator on the display is appearing, press the

44 button to move to the next track, or the *P button to move to the beginning of the current track,

The search function may not be able to detect tracks under the follo~ing conditions: * Blenks of less than 4 seconds between tracks * NoIsy blanks * Long passages of low-end sound s Low overall recording levels

About cassette tapes oTo prevent accidental erasure,

break off the plastic tabs on the cassette tape after recording with a screwdriver or other pointed tool.

Type 11tape

Tab for side A

detection slot

To record on the tape again, cover the tab openings with adhesive tape, etc. (On Type 11tapes, take care not to cover the Type II tape detection slot.)

120-minute or longer tapes are extremely thin and easily

deformed or damaged. They are not recommended.

Take up any slack in the tape with a pencil or similar tool

before use. Slack tape may break or jam in the mechanism.

DOLBY NR system

The Dolby Noise Reduction system reduces tape hiss noise. For optimum performance when playing back a tape recorded with the DOLBY NR system, turn on the DOLBY NR system.

ENGLISH I

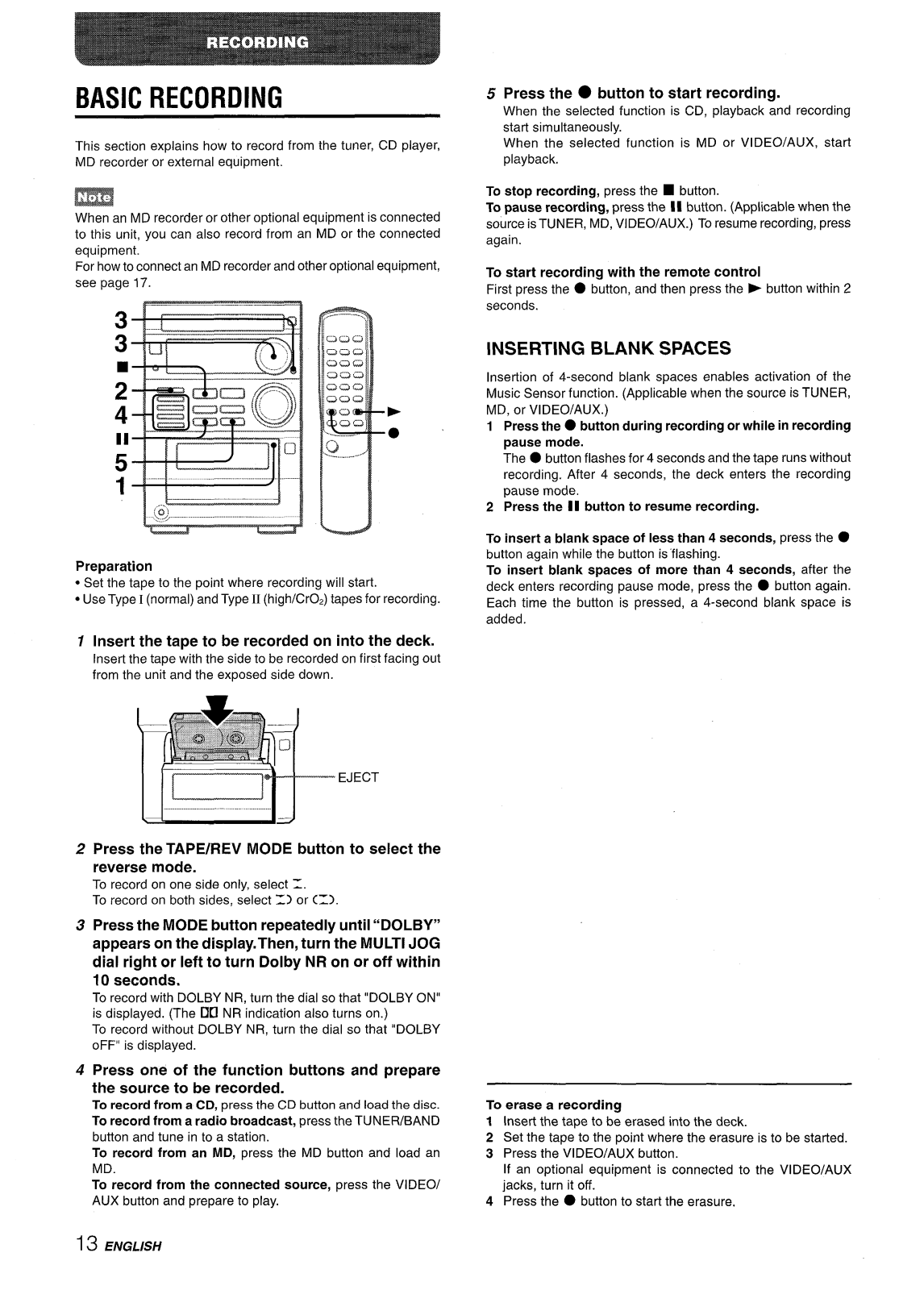

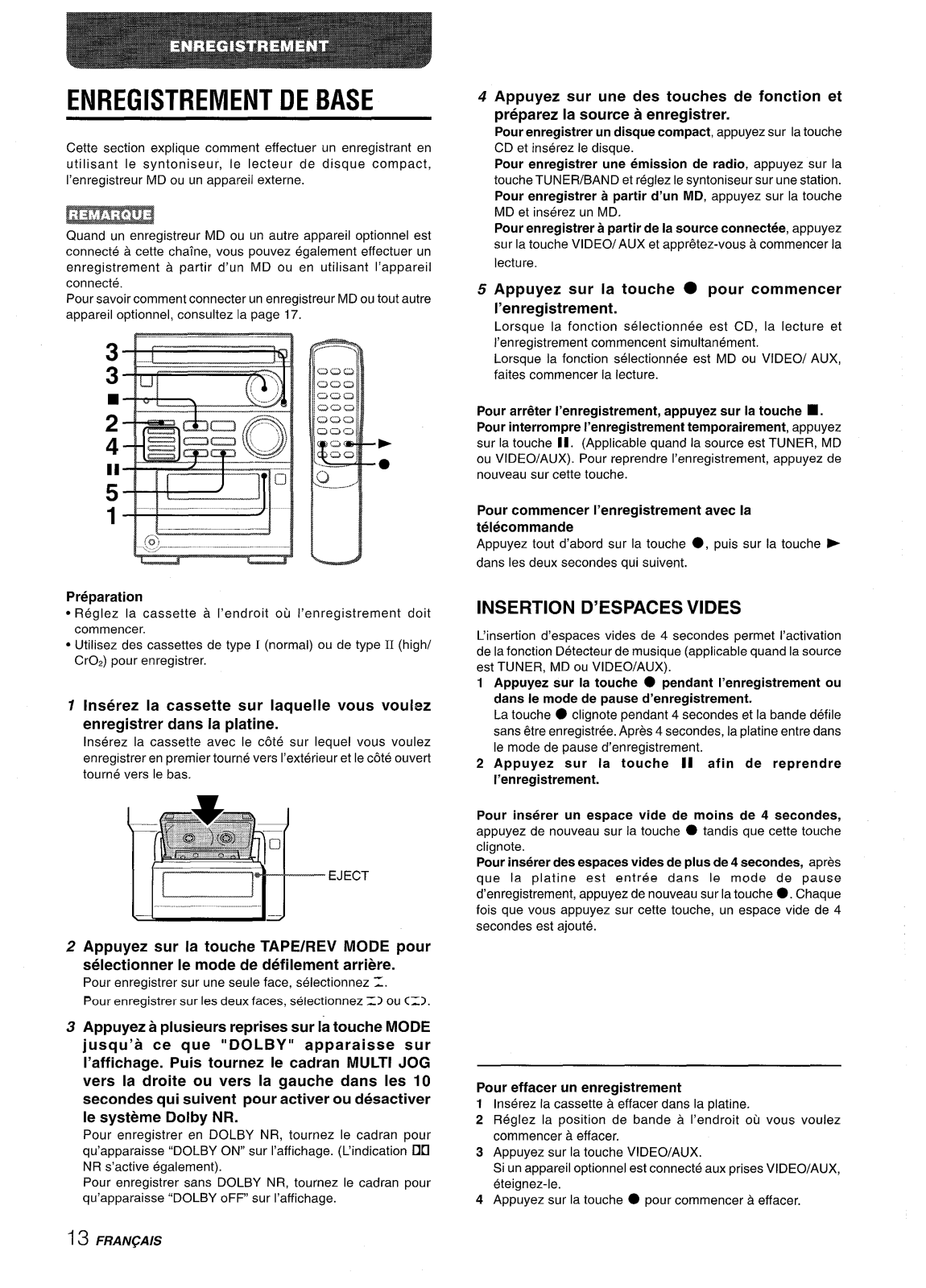

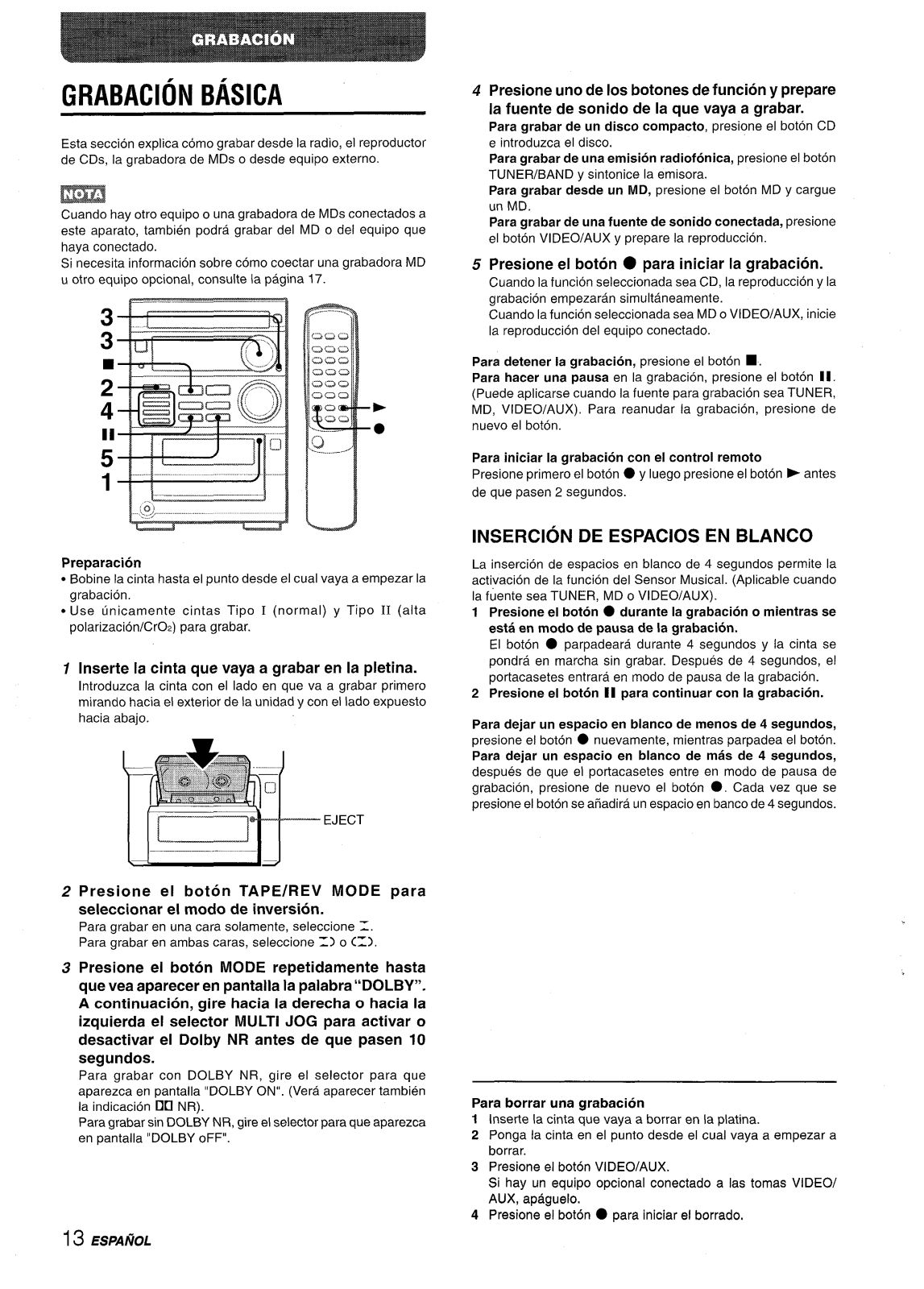

BASIC RECORDING

This section explains how to record from the tuner, CD player, MD recorder or external equipment.

When an MD recorder or other optional equipment is connected

to this unit, you can also record from an MD or the connected

equipment. For how to connect an MD recorder and other optional equipment, see page 17.

●

1 ““”’”””!’

......

Preparation

● Set the tape to the point where recording will start.

● Use Type I (normal) and Type II (high/CrOz) tapes for recording.

Insert the tape to be recorded on into the deck.

Insert the tape with the side to be recorded on first facing out

from the unit and the exposed side down.

— EJECT

Press the TAPE/REV MODE button to select the reverse mode.

To record on one side only, select Z. To record on both sides, select 11 or (1).

Press the MODE button repeatedly until “DOLBY” appears on the display. Then, turn the MULTI JOG dial right or left to turn Dolby NR on or off within 10 seconds.

To record with DOLBY NR, turn the dial so that “DOLBY ON” is displayed. (The Do

NR indication also turns on.)

To record without

DOLBY NR, turn the dial so that “DOLBY

oFF’r is displayed.

Press one of the function buttons and prepare the source to be recorded.

To record from a CD, press the CD button and load the disc.

To record from a radio broadcast, press the TUNER/BAND

button and tune in to a station.

To record from an MD, press the MD button and load an

MD.

To record from the connected source, press the VIDEO/

AUX button and prepare to play.

5 Press the ● button to start recording.

When the selected function is CD, playback and recording start simultaneously. When the selected function is MD or VI DEO/AUX, start playback.

To stop recording, press the ■ button. To pause recording, press the II button. (Applicable when the

source is TUNER, MD, VI DEO/AUX.) To resume recording, press again.

To start recording with the remote control

First press the ● button, and then press the > button within 2

seconds.

INSERTING BLANK SPACES

Insertion of 4-second blank spaces enables activation of the Music Sensor function. (Applicable when the source is TUNER, MD, or VIDEO/AUX.)

Press the ● button during recording or while in recording

pause mode.

The. button flashes for 4 seconds and the tape runs without recording. After 4 seconds, the deck enters the recording pause mode.

Press the II button to resume recording.

To insert a blank space of less than 4 seconds,

press the ●

button again while the button is”flashing.

To insert blank spaces of more than 4 seconds, after the

deck enters recording pause mode, press the . button again.

Each time the button is pressed, a 4-second blank space is

added.

To erase a recording 1

2 3

Insert the tape to be erased into the deck.

Set the tape to the point where the erasure is to be started. Press the VIDEO/AUX button. If an optional equipment is connected to the VIDEO/AUX

jacks, turn it off.

Press the

● button to start the erasure.

13 ENGLISH

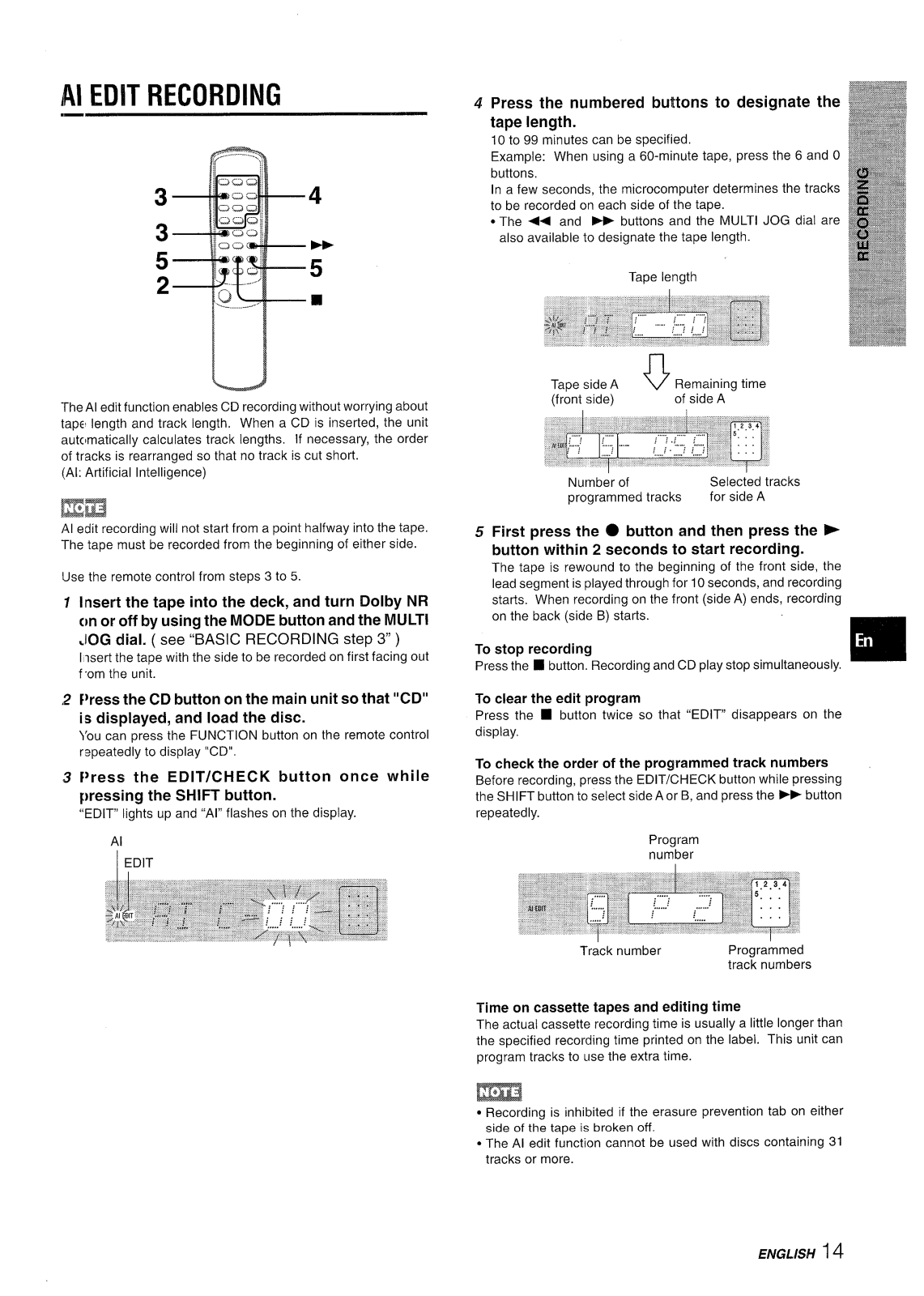

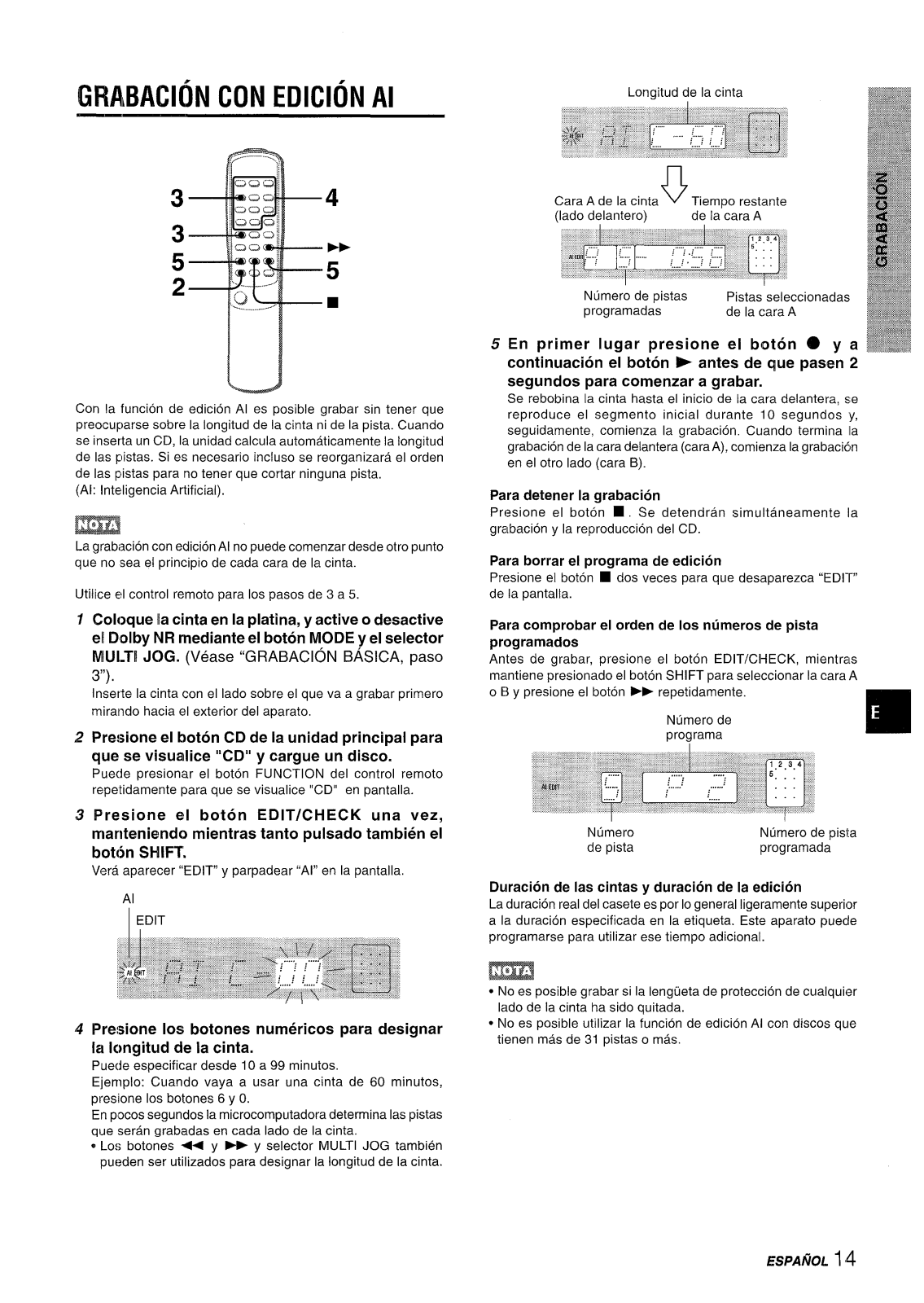

Al EDIT RECORDING

5 2

5 E

The Al edit function enables CD recording without worrying about tap~ length and track length, When a CD is inserted, the unit autc,matically calculates track lengths. If necessary, the order of tracks is rearranged so that no track is cut short.

(Al: Artificial Intelligence)

Al edit recording will not start from a point halfway into the tape. The tape must be recorded from the beginning of either side.

Use the remote control from steps 3 to 5.

Insert the tape into the deck, and turn Dolby NR on or off by using the MODE button and the MULTI

JOG dial. ( see “BASIC RECORDING step 3 )

Ilsert the tape with the side to be recorded on first facing out

f’om the

unit.

Press the CD button on the main unit so that “CD” is displayed, and load the disc.

}’OUcanpress

the FUNCTION button on the remote control

repeatedly to display “CD”.

Press the EDIT/CHECK button once while

pressing the SHIFT button.

“EDIT lights up and “Al” flashes on the display.

45Press the numbered buttons to designate the

tape length.

10 to 99 minutes can be specified. Example: When using a 60-minute tape, press the 6 and O

buttons.

In a few seconds, the microcomputer determines the tracks to be recorded on each side of the tape. * The 44 and PP buttons and the MULTI JOG dial are

also available to designate the tape length.

Tape length

Tape side A

Remaining time

(front side)

of side A

Number of Selected tracks programmed tracks

for side A

First press the @ button and then press the >

button within 2 seconds to start recording.

The tape is rewound to the beginning of the front side, the

lead segment is played through for 10 seconds, and recording starts, When recording on the front (side A) ends, recording on the back (side B) starts.

To stop recording

Press the ■ button, Recording and CD play stop simultaneously.

❑

To clear the edit program

Press the 9 button twice so that “EDIT” disappears on the display,

To check the order of the programmed track numbers

Before recording, press the EDIT/CHECK button while pressing the SHIFT button to select side A or B, and press the

➤P button

repeatedly.

Program number

Track number

Programmed track numbers

Time on cassette tapes and editing time

The actual cassette recording time is usually a little longer than the specified recording time printed on “the label. This unit can program tracks to use the extra time.

● Recording is inhibited if the erasure prevention tab on either

side of the tape is broken off.

● The Al edit function cannot be used with discs containing 31

tracks or more.

ENGLISH

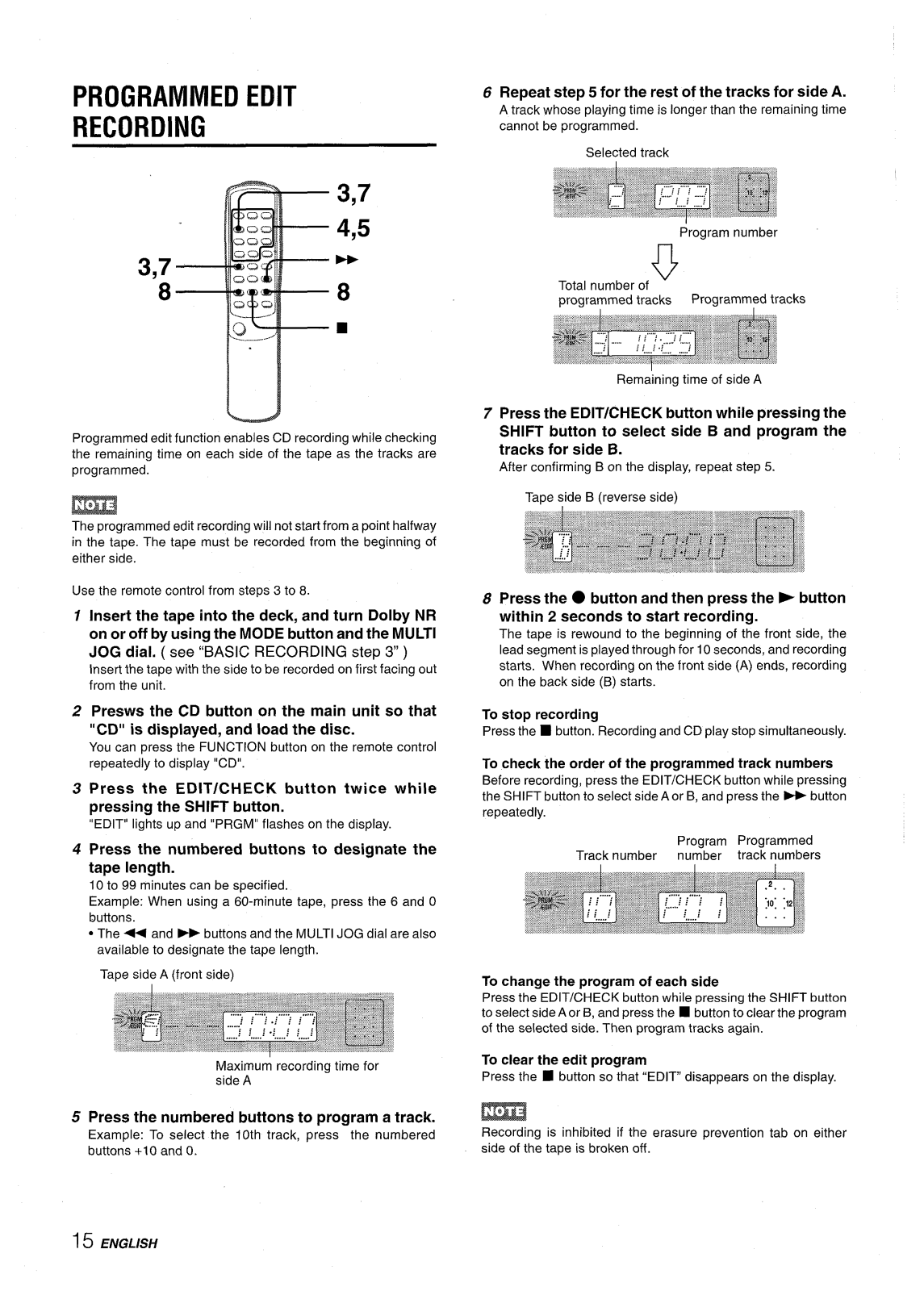

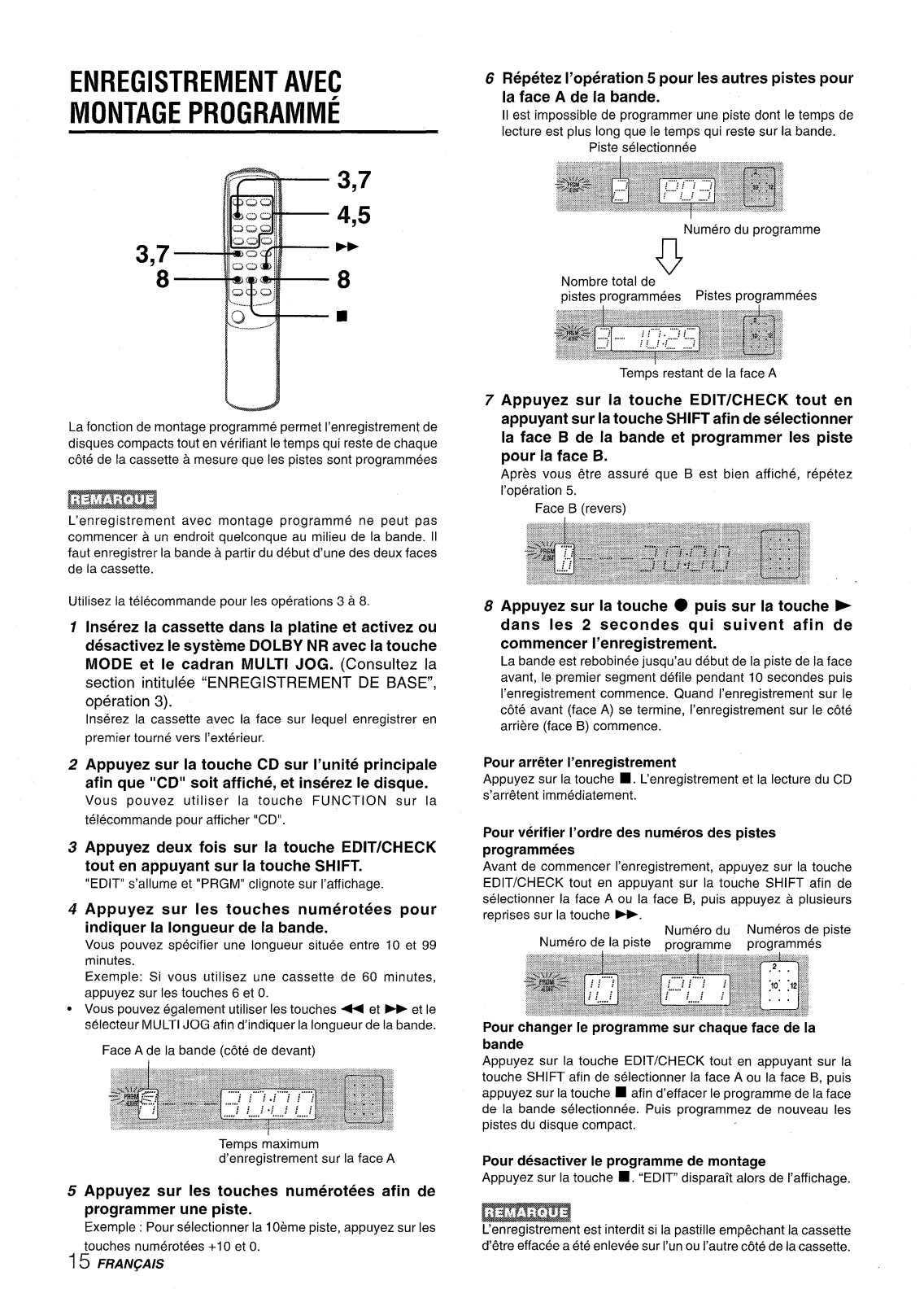

PROGRAMMED EDIT RECORDING

3,7

4,5

3,7

■

Programmed edit function enables CD recording while checking the remaining time on each side of the tape as the tracks are programmed.

The programmed edit recording will not start from a point halfway in the tape. The tape must be recorded from the beginning of either side.

Use the remote control from steps 3 to 8.

Insert the tape into the deck, and turn Dolby NR on or off by using the MODE button and the MULTI JOG dial. ( see

‘(BASIC RECORDING step 3“ )

Insertthetapewiththesidetobe recordedonfirstfacingout fromthe unit.

Presws the CD button on the main unit so that

“CD” is displayed, and load the disc.

You can press the FUNCTION button on the remote control

repeatedly to display “CD”.

Press the EDIT/CHECK button twice while

pressing the SHIFT button.

“EDIT” lights up and “PRGM” flashes on the display.

Press the numbered buttons to designate the tape length.

10 to 99 minutes can be specified. Example: When using a 60-minute tape, press the 6 and O buttons.

● The < and - buttons and the MULTI JOG dial are also

available to designate the tape length.

Tape side A (front side)

Maximum recording time for side A

Press the numbered buttons to program a track.

Example: To select the 10th track, press ‘the numbered buttons +1O and O.

6 Repeat step 5 for the rest of the tracks for side A.

A track whose playing time is longer than the remaining time cannot be programmed.

Program number

Total number of programmed tracks

Programmed tracks

Remaining time of side A

7 Press the EDIT/CHECK button while pressing the

SHIFT button to select side B and program the tracks for side B.

After confirming B on the display, repeat step 5.

Tape side B (reverse side)

8 Press the ● button and then press the - button

within 2 seconds to start recording.

The tape is rewound to the beginning of the front side, the lead segment is played through for 10 seconds, and recording starts. When recording on the front side (A) ends, recording on the back side (B) starts.

To stop recording

Press the ■ button. Recording and CD play stop simultaneously.

To check the order of the programmed track numbers

Before recording, press the EDIT/CHECK button while pressing the SHIFT button to select side A or B, and press the - button repeatedly.

Program Programmed

Track number

number track numbers

To change the program of each side

Press the EDIT/CHECK button while pressing the SHIFT button

to select side A or B, and press the

■ button to clear the program

of the selected side. Then program tracks again.

To clear the edit program

Press the ■ button so that “EDIT” disappears on the display.

Recording is inhibited if the erasure prevention tab on either side of the tape is broken off.

15 ENGLISH

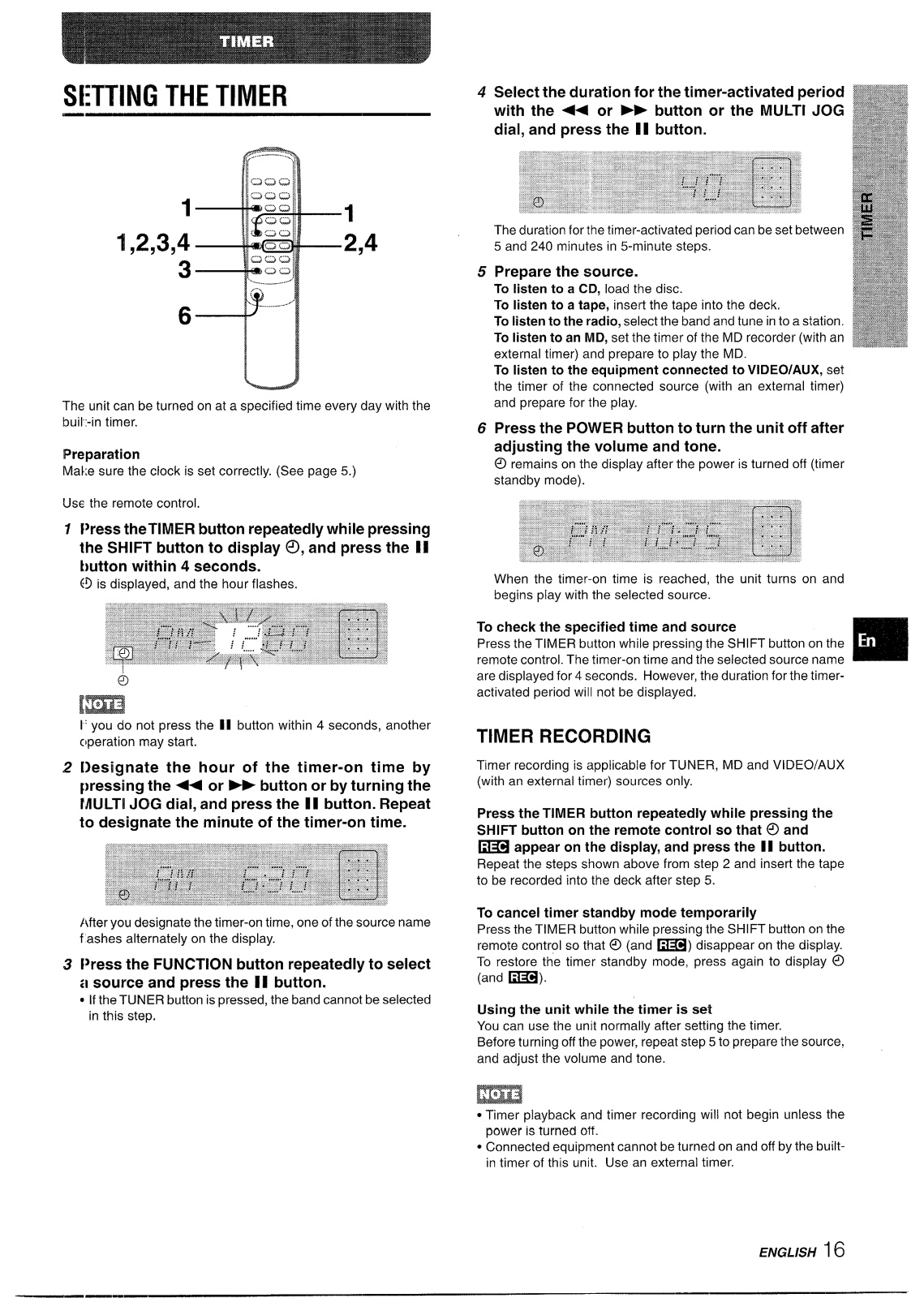

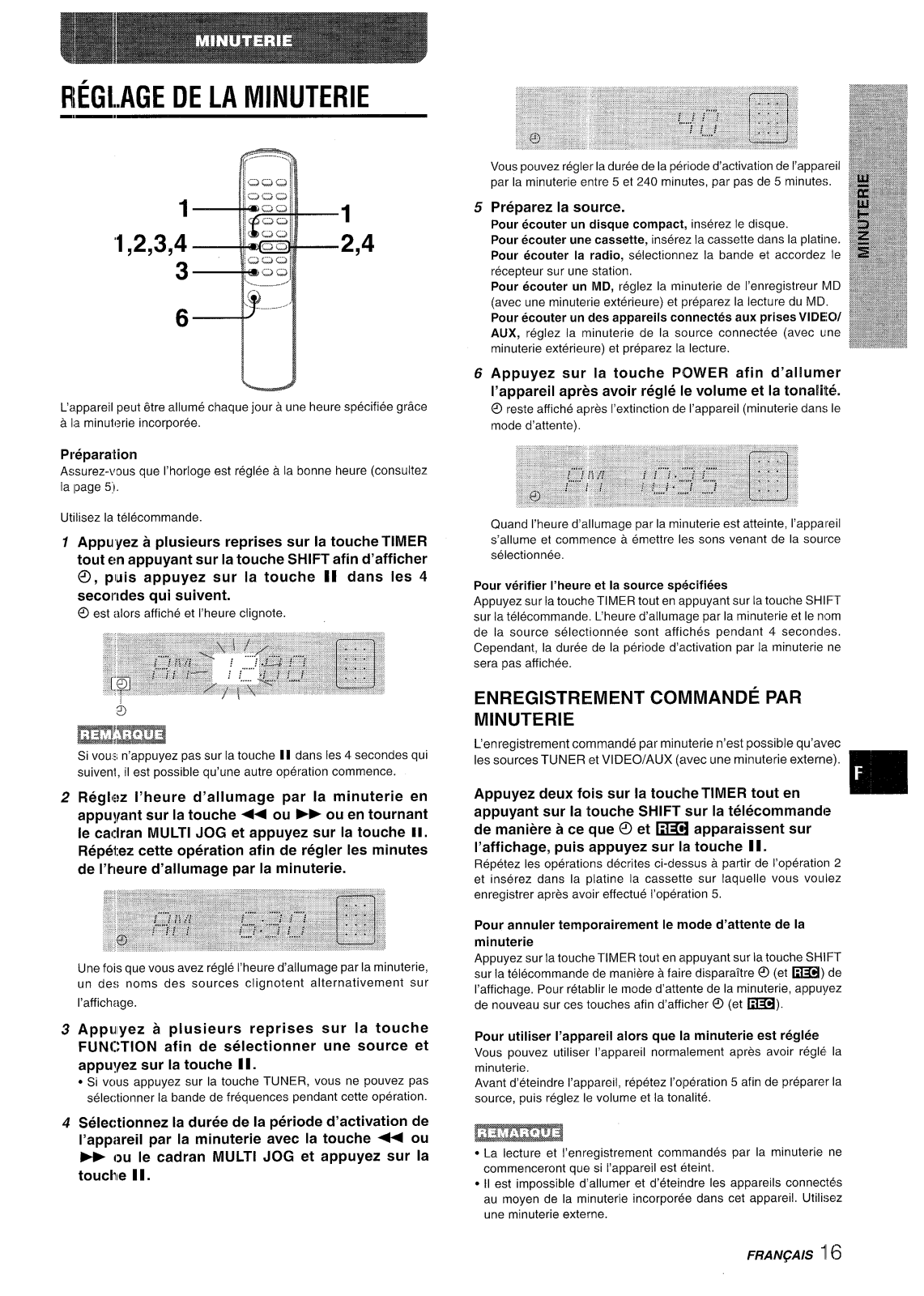

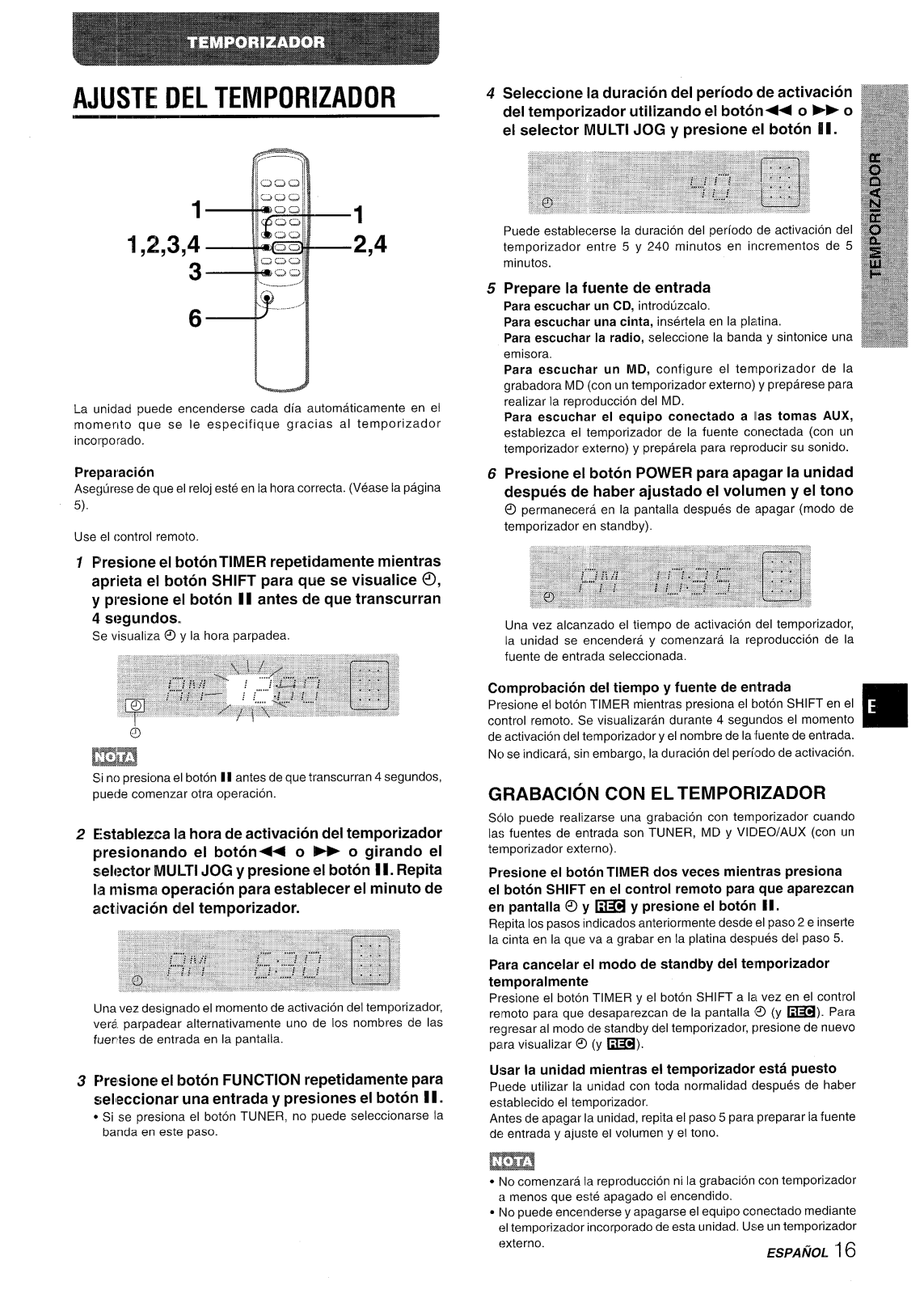

SETTING THE TIMER

1,2,3,4

2,4

......-.-.’

The unit can be turned on at a specified time every day with the buil”:-in timer.

Preparation

Make sure the clock is set correctly. (See page 5.)

Use the remote control.

7 Press theTIMER button repeatedly while pressing

the SHIFT button to display 0, and press the 11

button within 4 seconds. @

is displayed, and the hour flashes.

I‘ you do not press the 11 button within 4 seconds, another

CIperation may start.

2 [)esignate the hour of the timer-on time by

pressing the * or _ button or by turning the !flULTl JOG dial, and press the 11 button. Repeat

to designate the minute of the timer-on time.

After you designate the timer-on time, one of the source name

f ashes alternately on the display.

.3 Press the FUNCTION button repeatedly to select

a source and press the Ii button.

● Ifthe TUNER button is pressed, the band cannot be selected

in this step.

Select the duration for the timer-activated period with the +< or ➤F button or the MULTI JOG dial, and press the 11 button.

The duration for the timer-activated period can be set between 5 and 240 minutes in 5-minute steps.

Prepare the source.

To listen to a CD, load the disc. To listen to a tape, insert the tape into the deck. To listen to the radio, select the band and tune into a station. To listen to an MD, set the timer of the MD recorder (with an

external timer) and prepare to play the MD.

To listen to the equipment connected to VIDEO/AUX, set the timer of the connected source (with an external timer) and prepare for the play.

Press the POWER button to turn the unit off after adjusting the volume and tone. @

remains on the display after the power is turned off (timer

standby mode).

When the timer-on time is reached, the unit turns on and begins play with the selected source.

To check the specified time and source

Press the TIMER button while pressing the SHIFT button on the

remote control. The timer-on time and the selected source name

❑

are displayed for 4 seconds. However, the duration for the timeractivated period will not be displayed.

TIMER RECORDING

Timer recording is applicable for TUNER, MD and ViDEO/AUX (with an external timer) sources only.

Press the TIMER button repeatedly while pressing the

SHIFT button on the remote control so that @ and

~ appear on the display, and press the 11 button.

Repeat the steps shown above from step 2 and insert the tape

to be recorded into the deck after step 5.

To cancel timer standby mode temporarily

Press the TIMER button while pressing the SHIFT button on the remote control so that @ (and ~) disappear on the display.

To restore the timer standby mode, press again to display @

(and ~).

Using the unit while the timer is set

You can use the unit normally after setting the timer.

Before turning off the power, repeat step 5 to prepare the source,

and adjust the volume and tone.

● Timer playback and timer recording will not begin unless the

power is turned off.

● Connected equipment cannot be turned on and off by the built-

in timer of this unit. Use an external timer.

ENGLISH 16

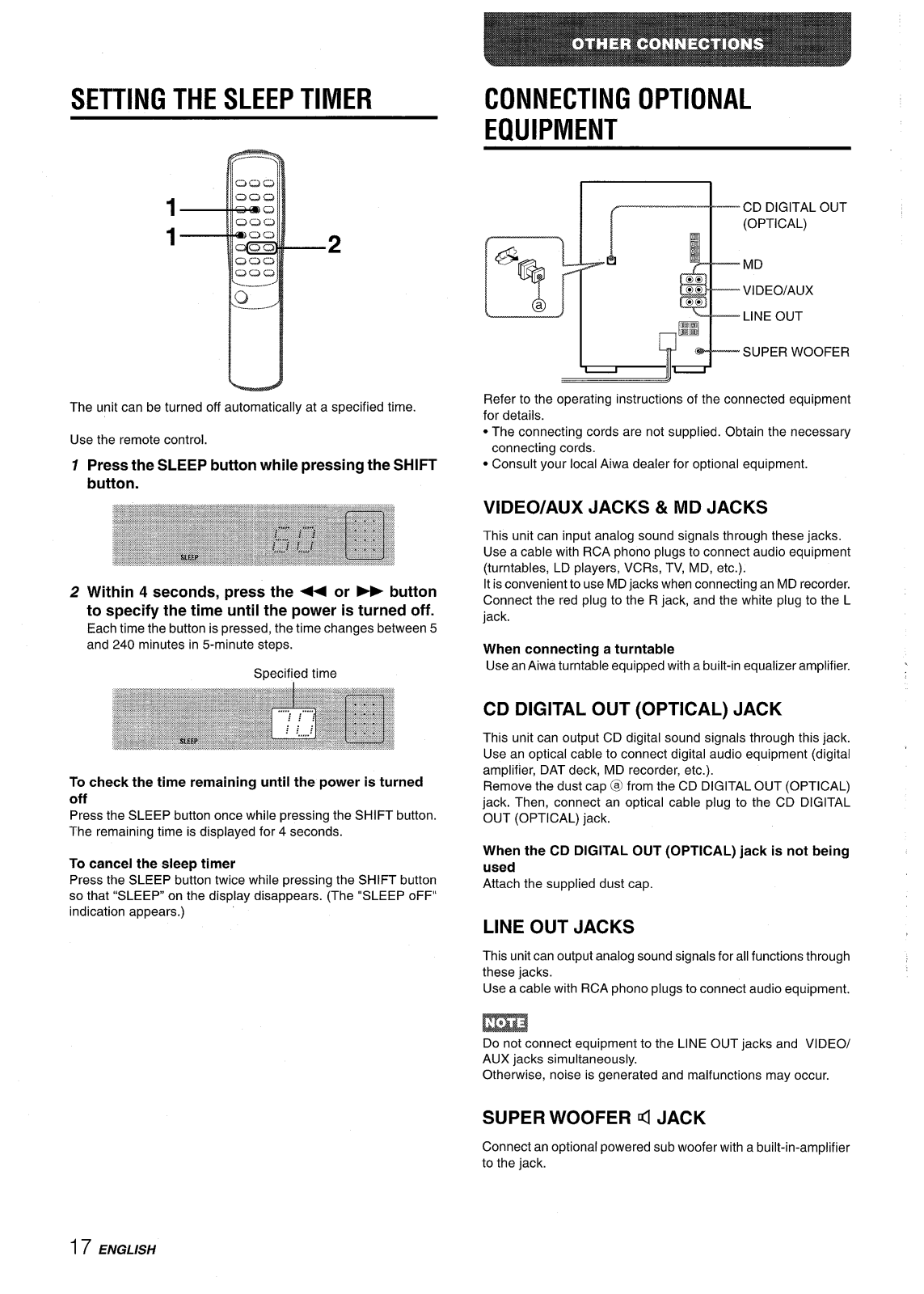

SETTING THE SLEEP TIMER

The unit can be turned off automatically at a specified time.

Use the remote control.

7 Press the SLEEP button while pressing the SHIFT

button.

2 Within 4 seconds, press the - or - button

to specify the time until the power is turned off.

Each time the button is pressed, the time changes between 5 and 240 minutes in 5-minute steps.

Specified time

To check the time remaining until the power is turned off

Press the SLEEP button once while pressing the SHIFT button. The remaining time is displayed for 4 seconds.

To cancel the sleep timer

Press the SLEEP button twice while pressing the SHIFT button so that “SLEEP on the display disappears. (The “SLEEP oFF” indication appears.)

CONNECTING OPTIONAL EQUIPMENT

MD VI DEO/AUX LINE OUT

SUPER WOOFER

Refer to the operating instructions of the connected equipment

for details.

● The connecting cords are not supplied. Obtain the necessary

connecting cords.

● Consult your local Aiwa dealer for optional equipment.

VIDEO/AUX JACKS & MD JACKS

This unit can input analog sound signals through these jacks,

Use a cable with RCA phono plugs to connect audio equipment (turntables, LD players, VCRs, TV, MD, etc.). It is convenient to use MD jacks when connecting an MD recorder. Connect the red plug to the R jack, and the white plug to the L

jack.

When connecting a turntable

Use an Aiwa turntable equipped with a built-in equalizer amplifier.

CD DIGITAL OUT (OPTICAL) JACK

This unit can output CD digital sound signals through this jack.

Use an optical cable to connect digital audio equipment (digital

amplifier, DAT deck, MD recorder, etc.).

Remove the dust cap @ from the CD DIGITAL OUT (OPTICAL) jack. Then, connect an optical cable plug to the CD DIGITAL OUT (OPTICAL) jack.

When the CD DIGITAL OUT (OPTICAL) jack is not being

used

Attach the supplied dust cap.

LINE OUT JACKS

This unit can output analog sound signals for all functions through these jacks.

Use a cable with RCA phono plugs to connect audio equipment.

Do not connect equipment to the LINE OUT jacks and VIDEO/ AUX jacks simultaneously. Otherwise, noise is generated and malfunctions may occur.

SUPER WOOFER 4 JACK

Connect an optional powered sub woofer with a built-in-amplifier

to the jack.

17 ENGLISH

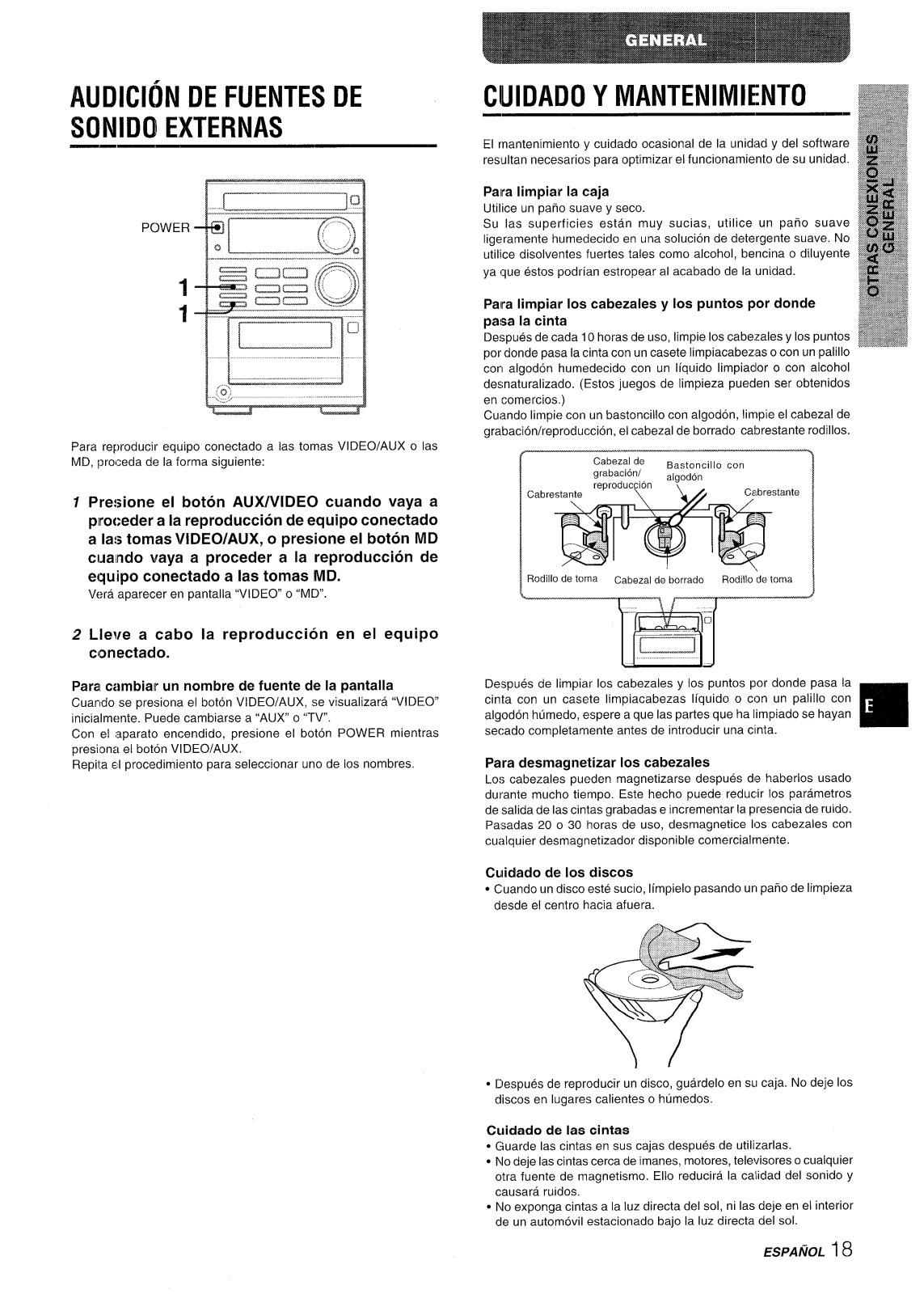

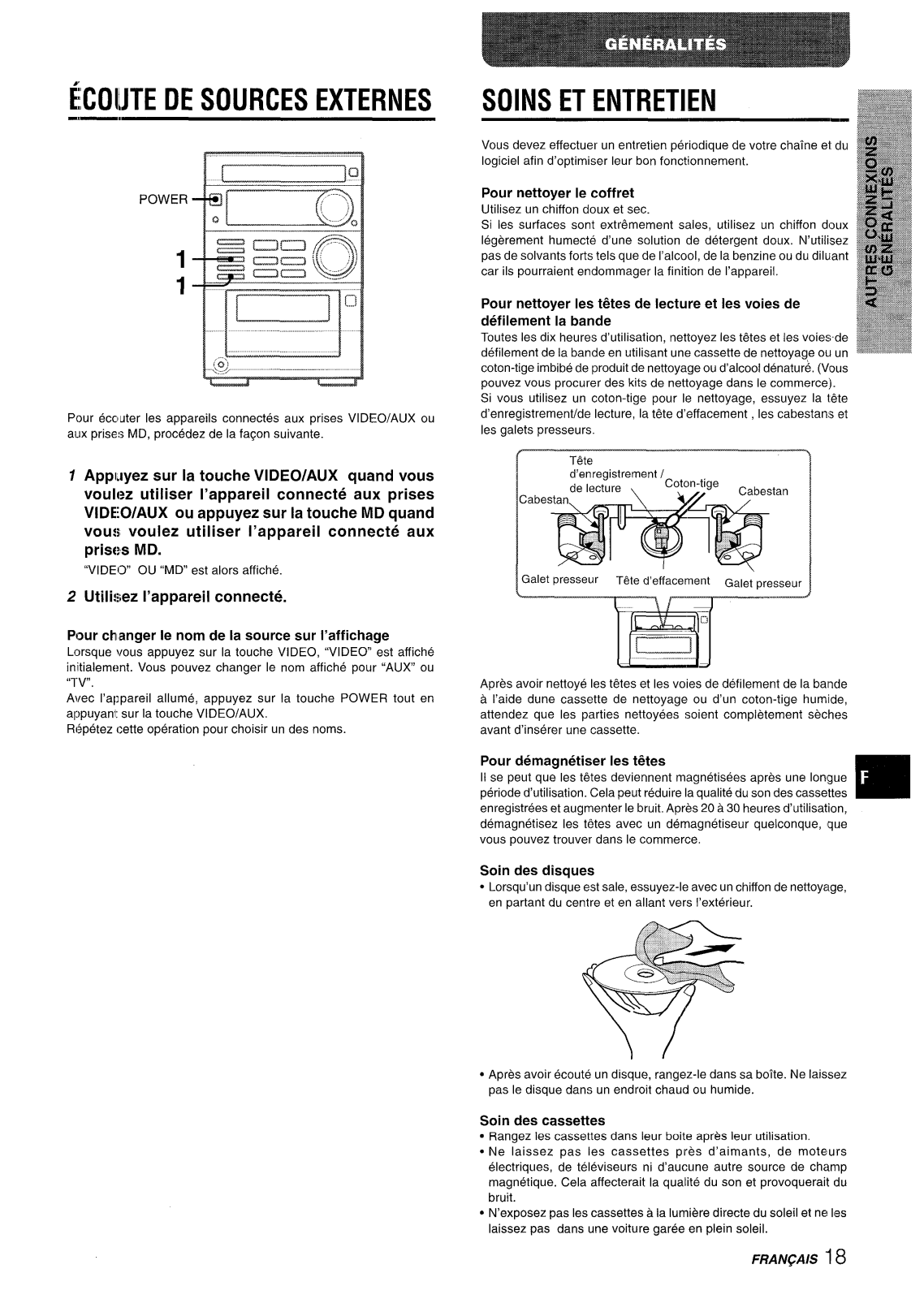

LISTENING TO EXTERNAL SOURCES

POWER -

11-

—.

..l.................. ..

““r

To play equipment connected to the VIDEO/AUX jacks or the

MD ,acks, proceed as follows.

Press the VI DEO/AUX button when playing equipment connected to VIDEO/AUX jacks, or press the MD button when playing equipment connected to MD jacks.

“\llDEO”

or “MD” appears on the display.

Play the connected equipment.

To change a source name

in the display

When the VIDEO/AUX button is pressed, “VIDEO is displayed initiclly. It can be changed to “AUX or “TV.

With the power on, press the POWER button while pressing the

VIDf:O/AUX button, Rep?at the procedure to select one of the names.

CARE AND MAINTENANCE

Occasional care and maintenance of the unit and the software are needed to optimize the performance of your unit.

To clean the cabinet

Use a soft and dry cloth, If the surfaces are extremely dirty, use a soft cloth lightly moistened with mild detergent solution. Do not use strong solvents, such as alcohol, benzine or thinner as these could damage the finish of the unit.

To clean the heads and tape paths

After every 10 hours of use, clean the heads and tape paths

with a head cleaning cassette or cotton swab moistened with

cleaning fluid or denatured alcohol. (These cleaning kits are commercially available.)

When cleaning with a cotton swab, wipe the recording/playback

head, erasure head, capstans, and pinchrollers.

Recordino/

Pinchroller Erasure head Pinchroller

n “

After cleaning the heads and tape paths with a liquid head

cleaning cass-ette or a moistened swab, wait until the cleaned

parts are completely dry before inserting the tapes.

To demagnetize the heads

The heads may become magnetized after long-term use, This

may narrow the output range of recorded tapes and increase noise. After 20 to 30 hours use, demagnetize the heads with any commercially available demagnetizer.

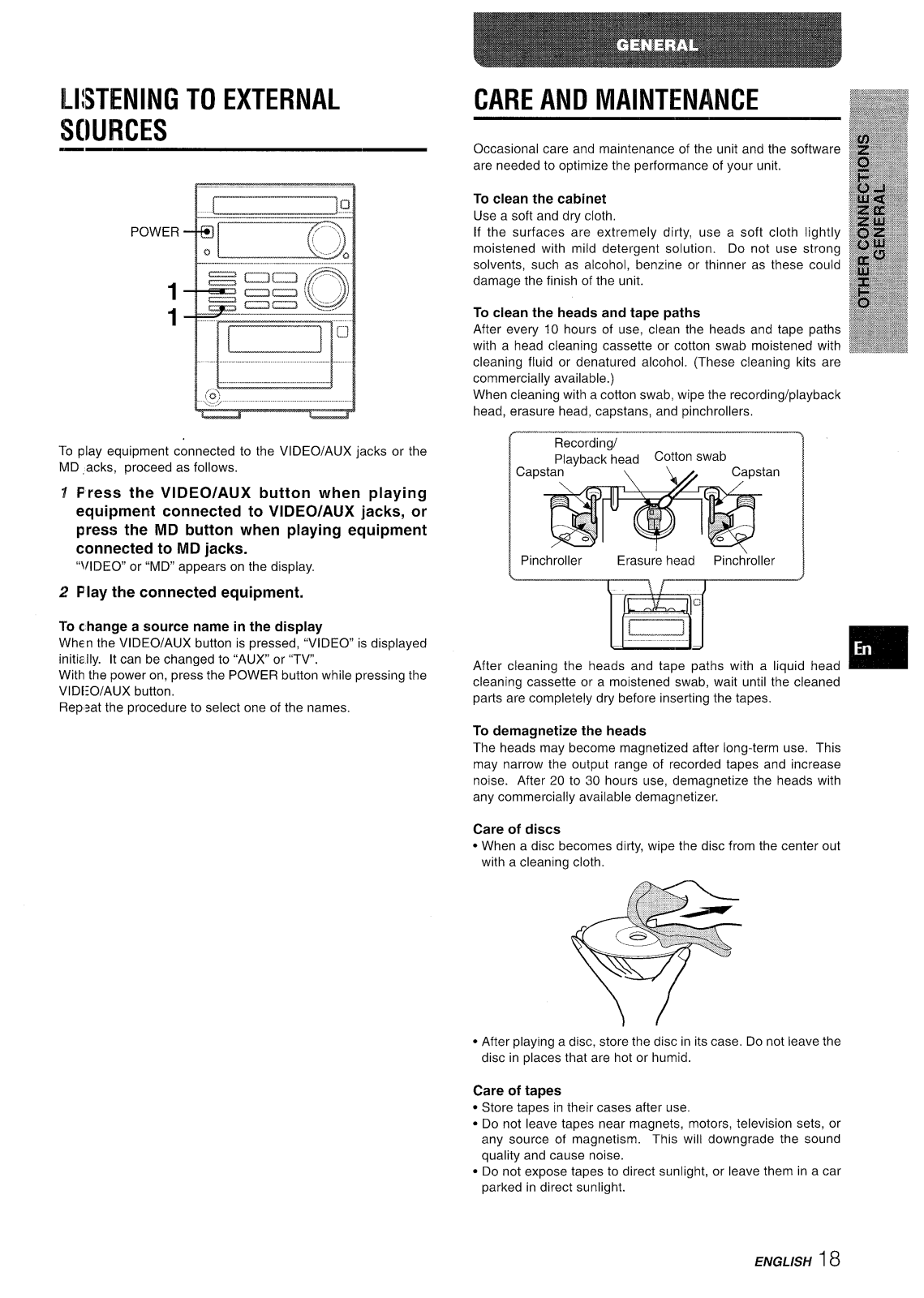

Care of discs

● When a disc becomes dirty, wipe the disc from the center out

with a cleaning cloth.

● After playing a disc, store the disc in its case. Do not leave the

disc in places that are hot or humid.

Care of tapes

● Store tapes in their cases after use.

● Do not leave tapes near magnets, molors, television sets, or

any source of magnetism. This will downgrade the sound quality and cause noise.

● Do not expose tapes to direct sunlight, or leave them in a car

parked in direct sunlight.

ENGLISH18

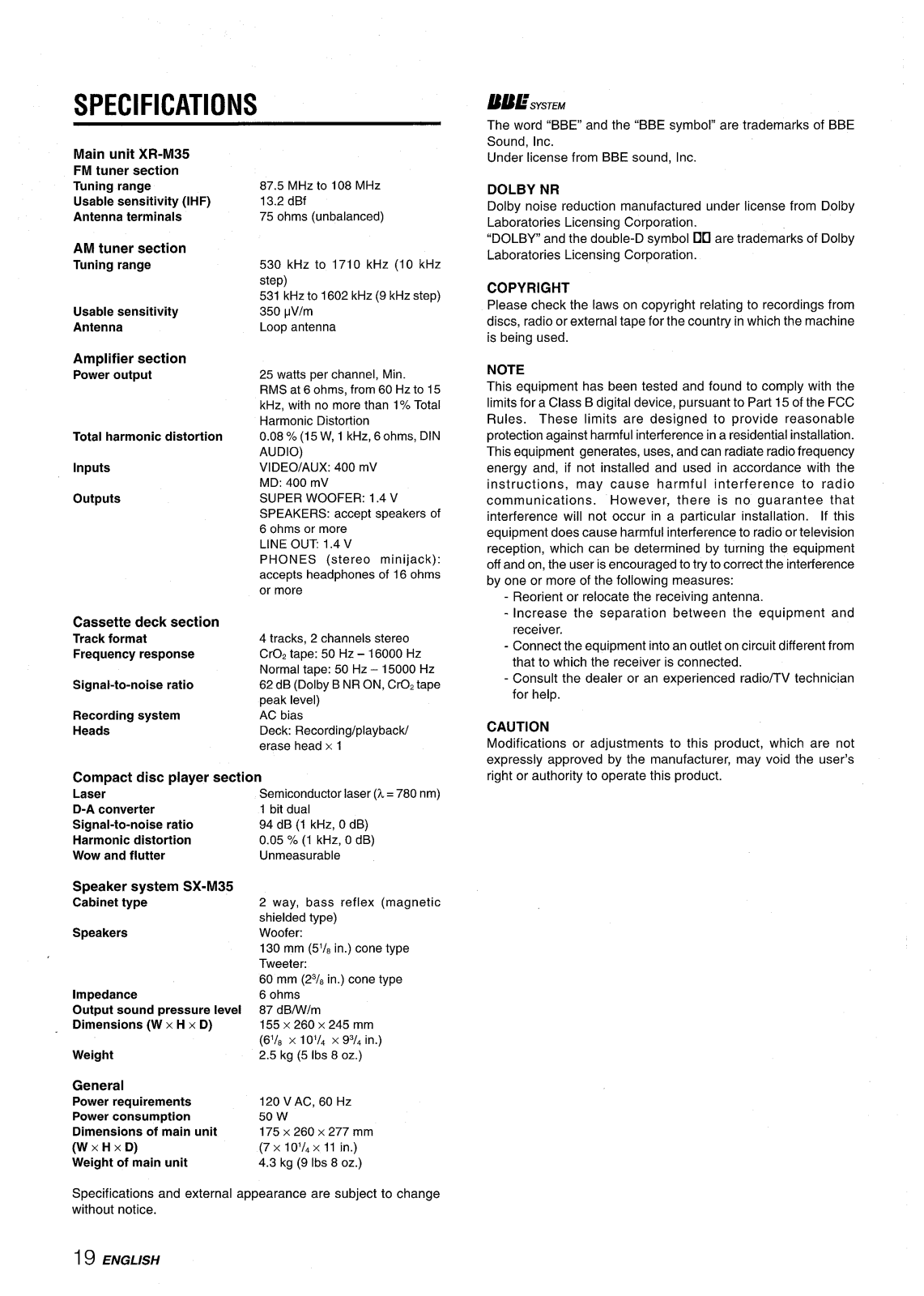

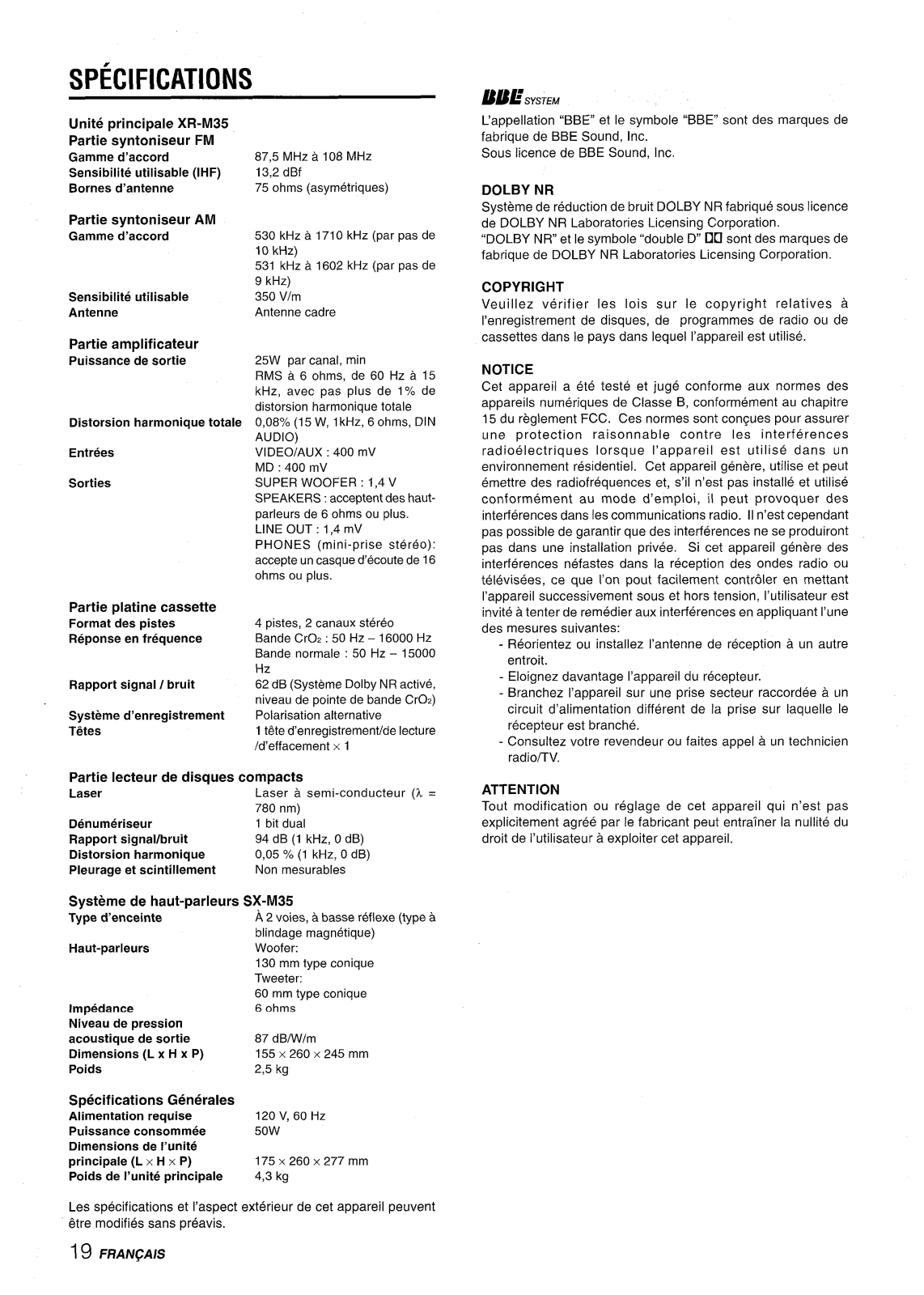

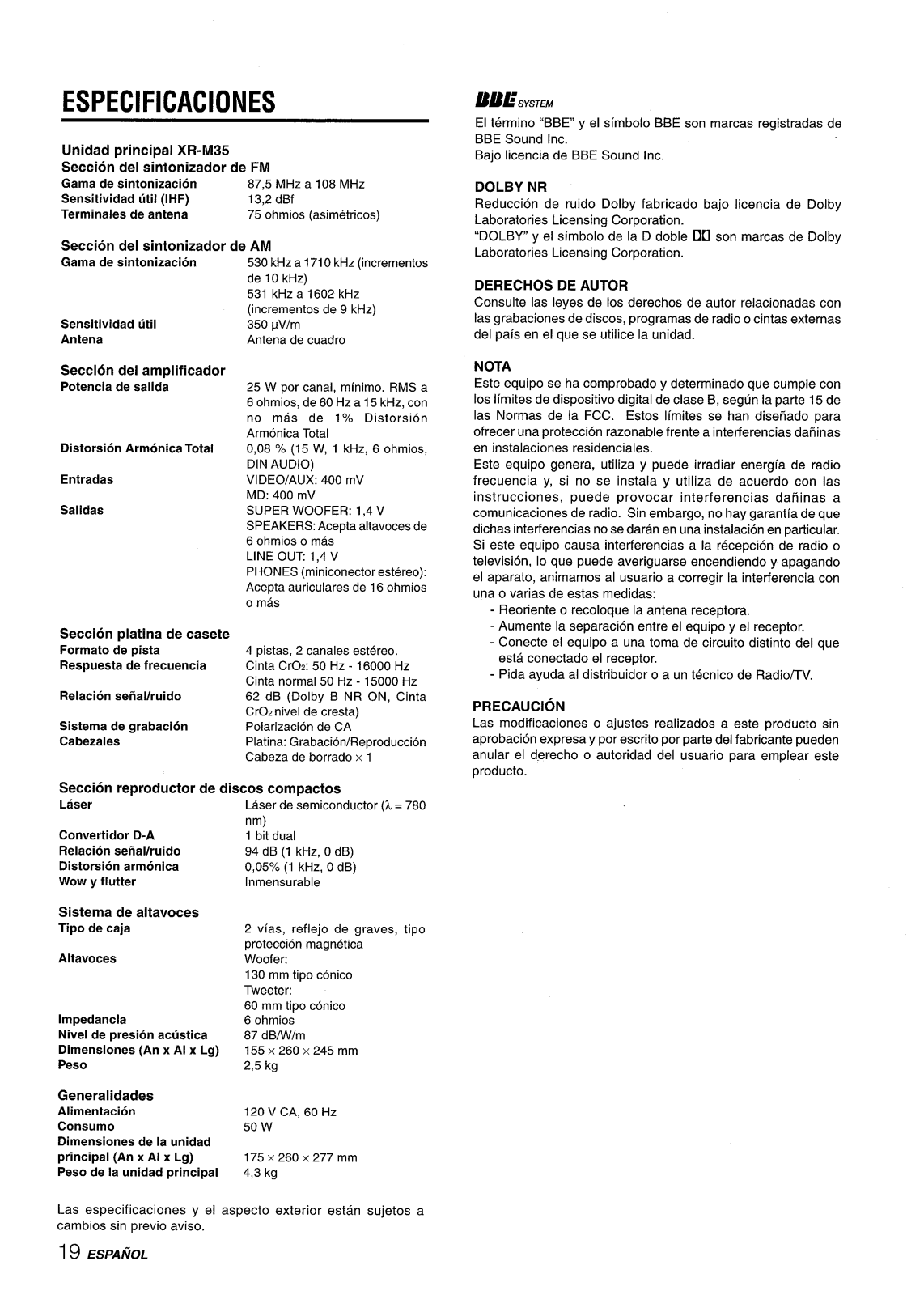

SPECIFICATIONS

ltltEskiTEh.i

Main unit XR-M35 FM tuner section

Tuning range

Usable sensitivity (IHF)

Antenna terminals

AM tuner section Tuning range

Usable sensitivity

Antenna

Amplifier section

Power output

Total harmonic distortion

Inputs

outputs

Cassette deck section

Track format Frequency response

Signal-to-noise ratio

Recording system Heads

87.5 MHz to 108 MHz

13.2 dBf 75 ohms (unbalanced)

530 kHz to 1710 kHz (10 kHz step) 531 kHz to 1602 kHz (9 kHz step) 350 l.rV/m Loop antenna

25 watts per channel, Min. RMS at 6 ohms, from 60 Hz to 15 kHz, with no more than 17. Total Harmonic Distortion

0.08 % (15 W, 1 kHz, 6 ohms, DIN AUDIO) VIDEO/AUX: 400 mV MD: 400 mV SUPER WOOFER: 1.4 V SPEAKERS: accept speakers of 6 ohms or more LINE OUT 1.4 V PHONES (stereo mini jack): accepts headphones of 16 ohms

or more

4 tracks, 2 channels stereo CrO, tape: 50 Hz -16000 Hz Normal tape: 50 Hz – 15000 Hz 62 dB (Dolby B NR ON, Cr02tape peak level) AC bias Deck: Recording/playback/

erase head x 1

Compact disc player section Laser

D-A converter

Signal-to-noise ratio Harmonic distortion Wow and flutter

Speaker system SX-M35 Cabinet type

Speakers

Impedance Output sound pressure level Dimensions (W x H x D)

Weight

General Power requirements Power consumption

Dimensions of main unit (W XHXD) Weight of main unit

Semiconductor laser (k= 780 nm) 1 bit dual 94 dB (1 kHz, OdB)

0.05 % (1 kHz, O dB)

Unmeasurable

2 way, bass reflex (magnetic shielded type) Woofer: 130 mm (5’/a in.) cone type Tweetec 60 mm (23/sin.) cone type 6 ohms 87 dBIW/m

155 x 260x 245 mm

(6’/8 x 10’/, x 93/, in.)

2.5 kg (5 Ibs 8

OZ.)

120 VAC, 60 tiz 50 w 175 x 260 x 277 mm (7x 101/, x 11 in.)

4.3 kg (9 Ibs 8

OZ.)

The word “BBE” and the “BBE symbol” are trademarks of BBE

Sound, Inc. Under license from BBE sound, Inc.

DOLBY NR

Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.

“DOLBY” and the double-D symbol no are trademarks of Dolby

Laboratories Licensing Corporation.

Please checkthelawsoncopyrightrelatingto recordingsfrom

discs, radio or external tape for the country in which the machine

is being used.

NOTE

This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on circuit different from

that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician

for help.

CAUTION

Modifications or adjustments to this product, which are not

expressly approved by the manufacturer, may void the user’s

right or authority to operate this product.

Specifications and external appearance are subject to change

without notice.

9 ENGLISH

+ 44 hidden pages
