Sony XR-M33 User Manual

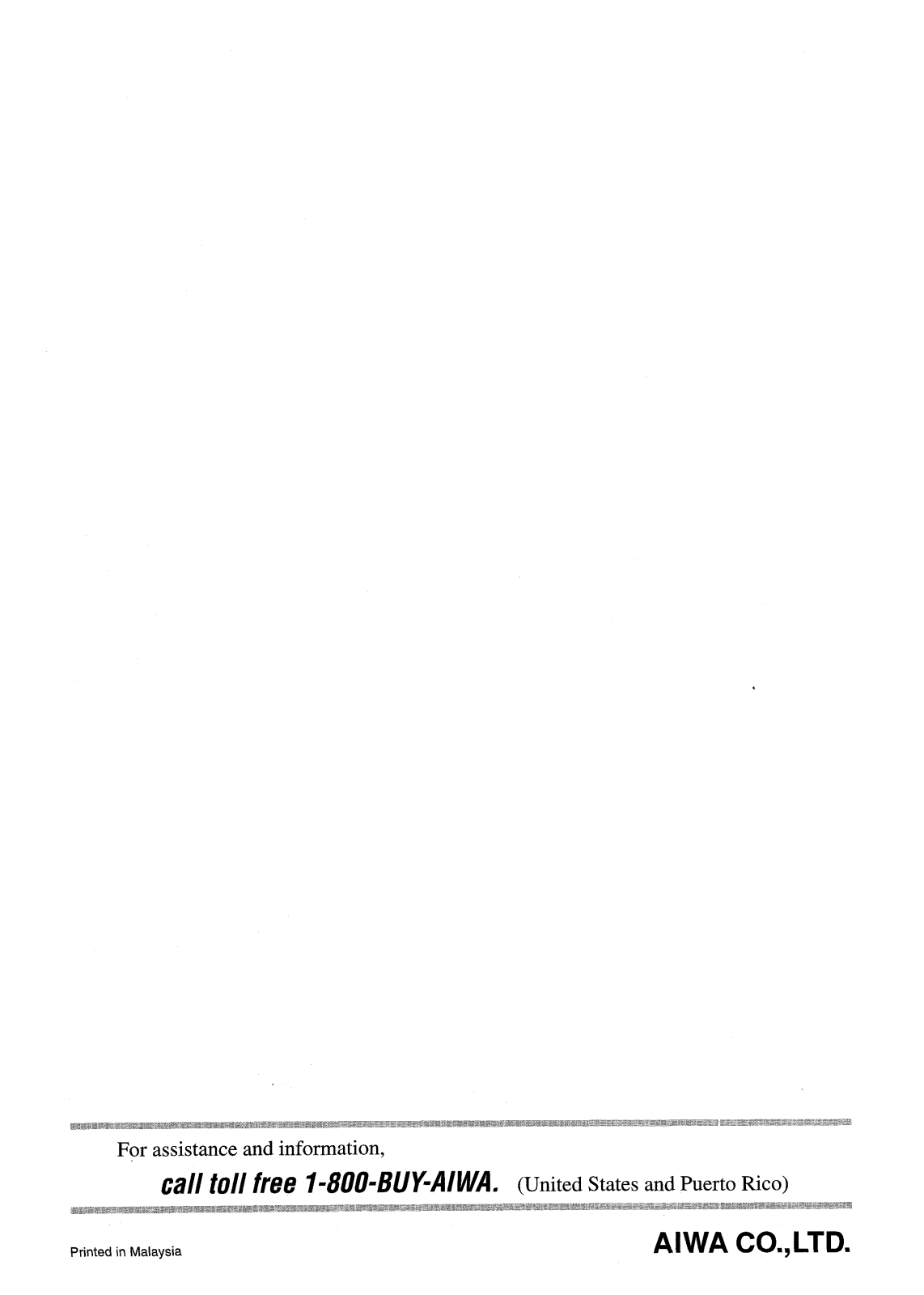

For assistance and information,

8Z-CL7-901 -01 980922APA-X9

toll free I-800-BUY-AIWA.

(United States and Puerto Rico)

COMPACT

“cl

dugu

EiiG!TAL Akll)lQ

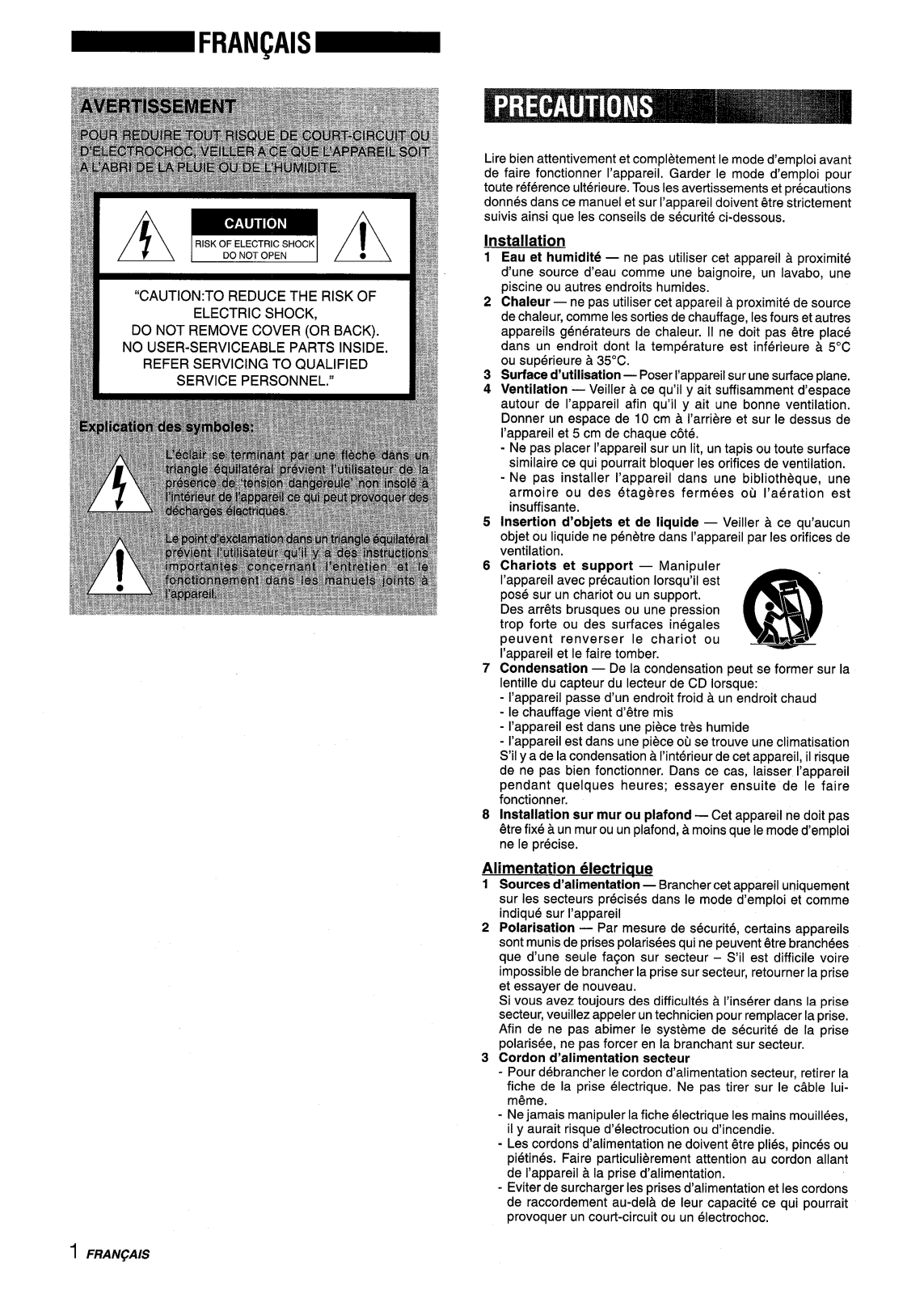

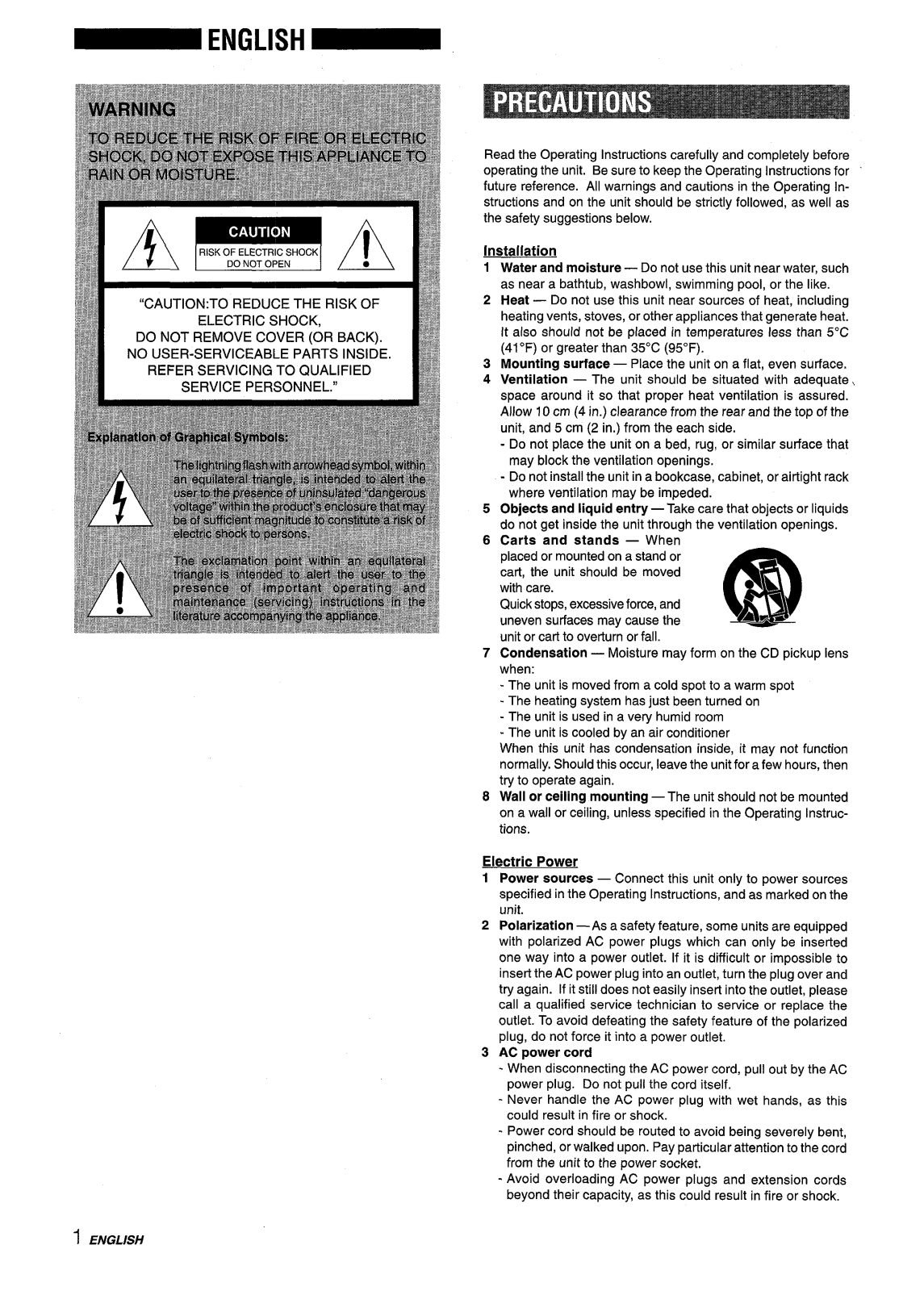

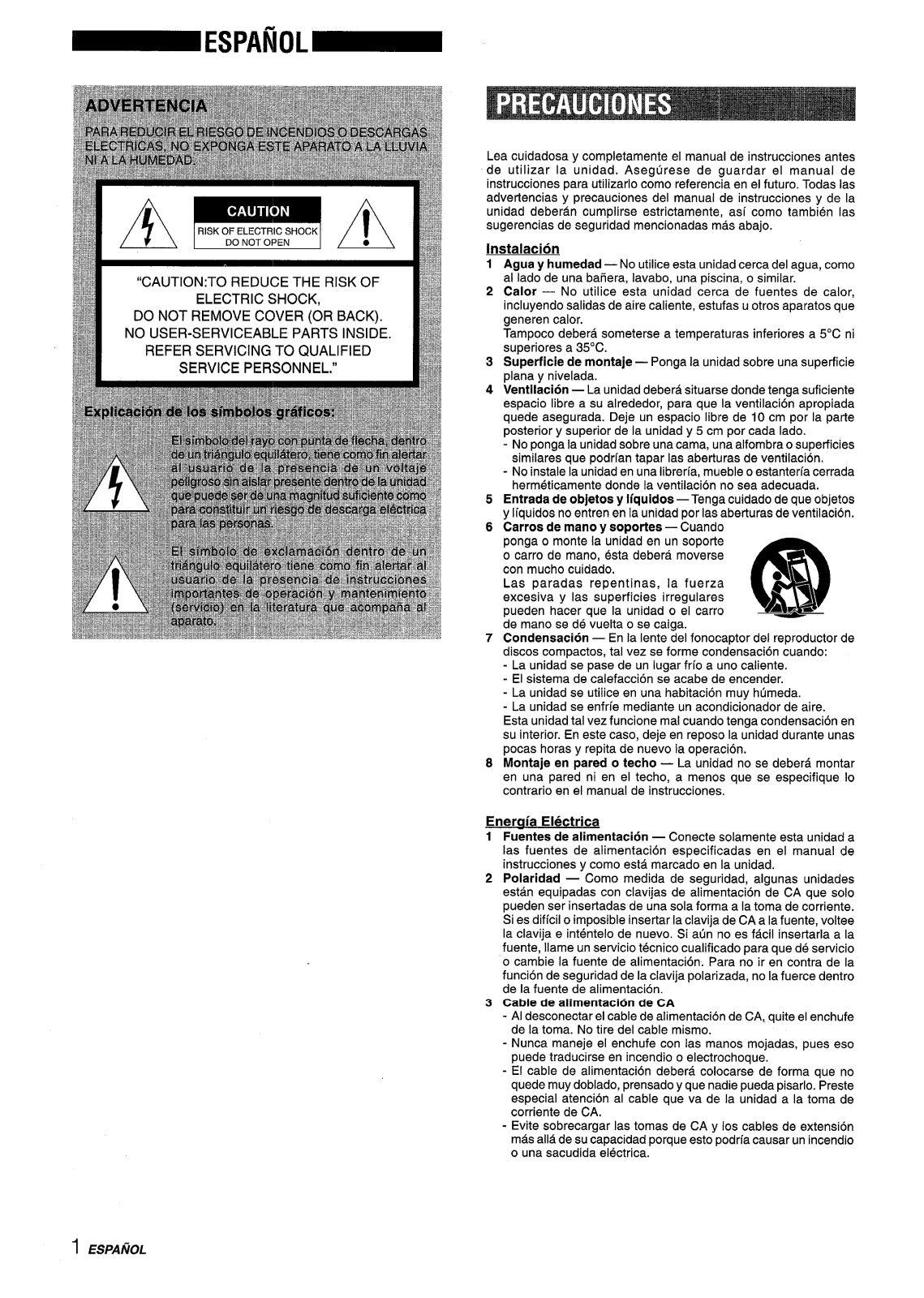

“CAUTION:TO REDUCE THE RISK OF

ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.”

Read the Operating Instructions carefully and completely before operating the unit. Be sure to keep the Operating Instructions for future reference. All warnings and cautions in the Operating in-

structions and on the unit should be strictly followed, as well as the safety suggestions below.

Installation

Water and moisture — Do not use this unit near water, such

as near a bathtub, washbowl, swimming pool, or the like.

Heat — Do not use this unit near sources of heat, including heating vents, stoves, or other appliances that generate heat. It also should not be placed in temperatures less than 5°C (41‘F) or greater than 35°C (95°F).

Mounting surface — Place the unit on a flat, even surface.

Ventilation —

The unit should be situated with adequate,

space around it so that proper heat ventilation is assured.

Allow 10 cm (4 in.) clearance from the rear and the top of the

unit, and 5 cm (2 in,) from the each side.

- Do not place the unit on a bed, rug, or similar surface that may block the ventilation openings.

- Do not install the unit in a bookcase, cabinet, or airtight rack where ventilation may be impeded.

Objects and liquid entry — Take care that objects or liquids do not get inside the unit through the ventilation openings.

Carts and stands — When

placed or mounted on a stand or cart, the unit should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the

A&*

unit or earl to overtur_nor fall.

Condensation — Moisture may form on the CD pickup lens when:

- The unit is moved from a cold spot to a warm spot

- The heating system has just been turned on

- The unit is used in a very humid room

- The unit is cooled by an air conditioner When this unit has condensation inside, it may not function normally. Should this occur, leave the unit for a few hours, then

try to operate again.

Wall or ceiling mounting — The unit should not be mounted on a wall or c~ling, unless specified in the Operating instructions.

1 ENGLISH

Electric Power 1

Power sources — Connect this unit only to power sources

specified in the Operating Instructions, and as marked on the unit.

Polarization —As a safety feature, some units are equipped with polarized AC power plugs which can only be inserted one way into a power outlet. If it is difficult or impossible to insert the AC power plug into an outlet, turn the plug over and try again. If it still does not easily insert into the outlet, please call a qualified service technician to service or replace the outlet. To avoid defeating the safety feature of the polarized plug, do not force it into a power outlet.

AC power cord

- When disconnecting the AC power cord, pull out by the AC

power plug. Do not pull the cord itself.

- Never handle the AC power plug with wet hands, as this could result in fire or shock.

- Power cord should be routed to avoid being severely bent, pinched, or walked upon. Pay particular attention to the cord from the unit to the power socket.

- Avoid overloading AC power plugs and extension cords beyond their capacity, as this could result in fire or shock.

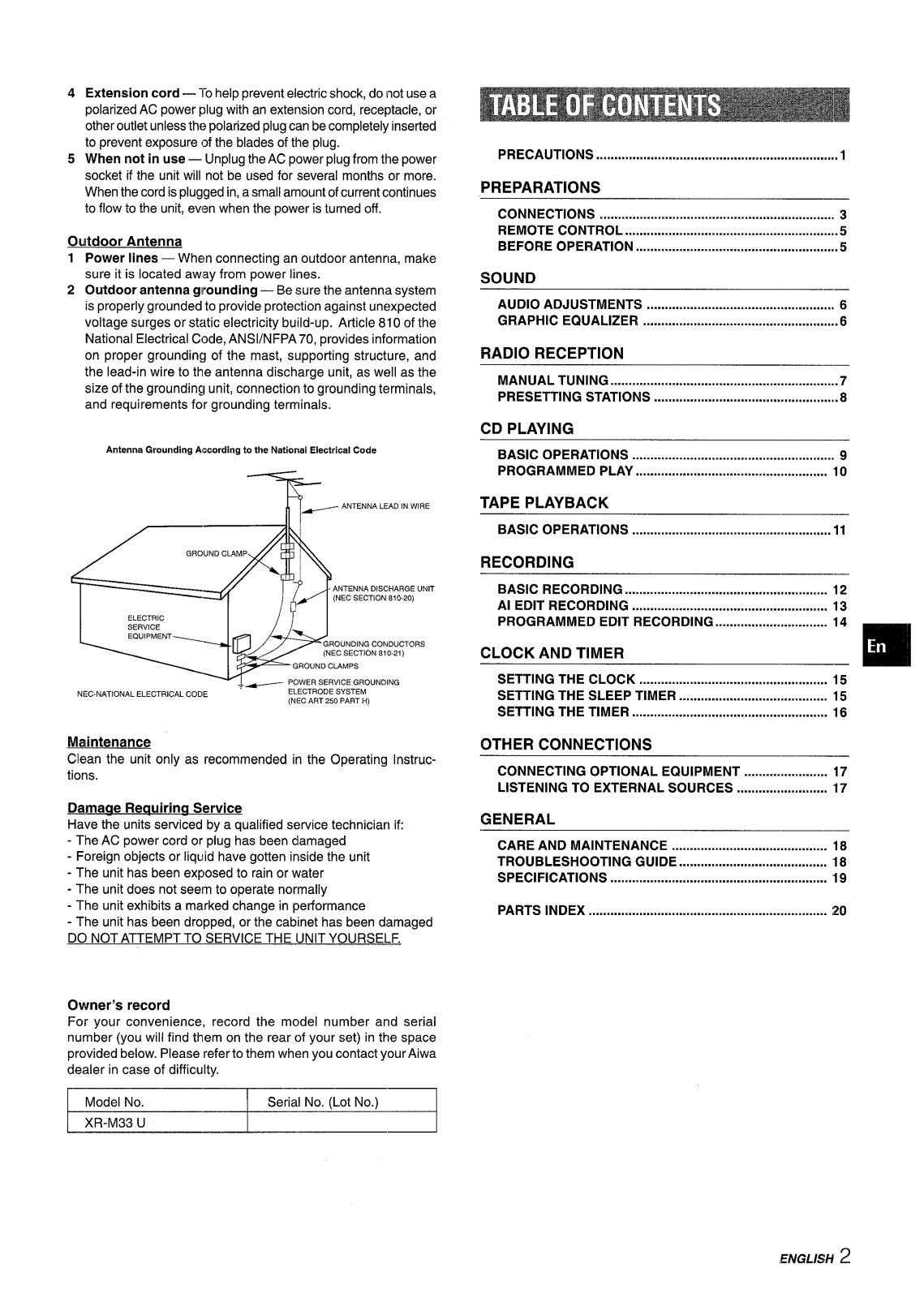

45Extension cord — To help prevent electric shock, do not use a

polarized AC power plug with an extension cord, receptacle, or other outlet unless the polarized plug can be completely inserted to prevent exposure (ofthe blades of the plug. When not in use — Unplug the AC power plug from the power socket if the unit will not be used for several months or more. When the cord is plugged in, a small amount of current continues to flow to the unit, even when the power is turned off.

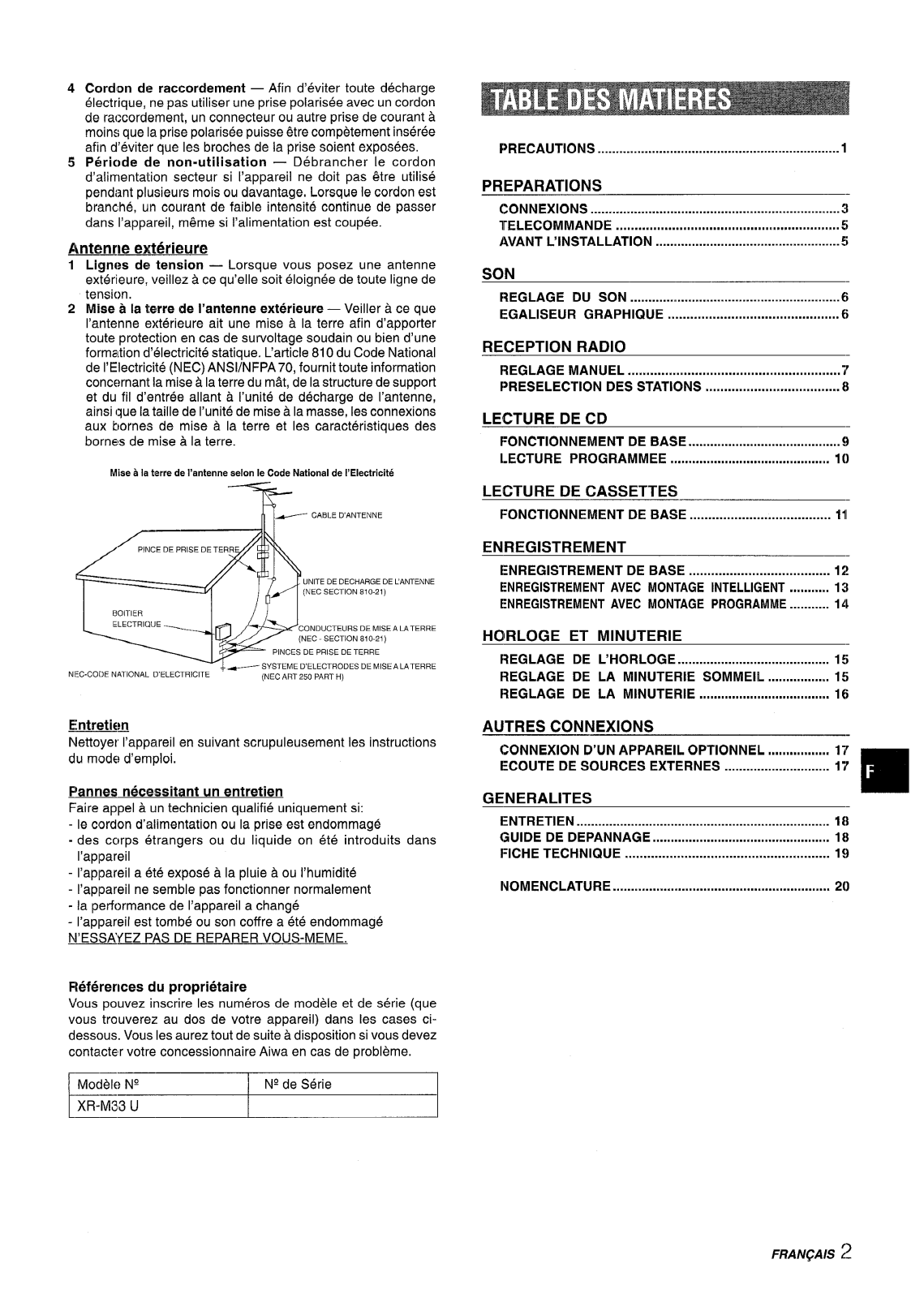

Outdoor Antenna 1 Power lines — When connecting an outdoor antenna, make

sure it is located away from power lines.

2 Outdoor antenna grounding — Be sure the antenna system

is properly grounded to provide protection against unexpected voltage surges or static electricity build-up. Article 810 of the National Electrical Code, AN S1/NFPA70, provides information on proper grounding of the mast, supporting structure, and the lead-in wire to the antenna discharge unit, as well as the size of the grounding unit, connection to grounding terminals, and requirements for grounding terminals.

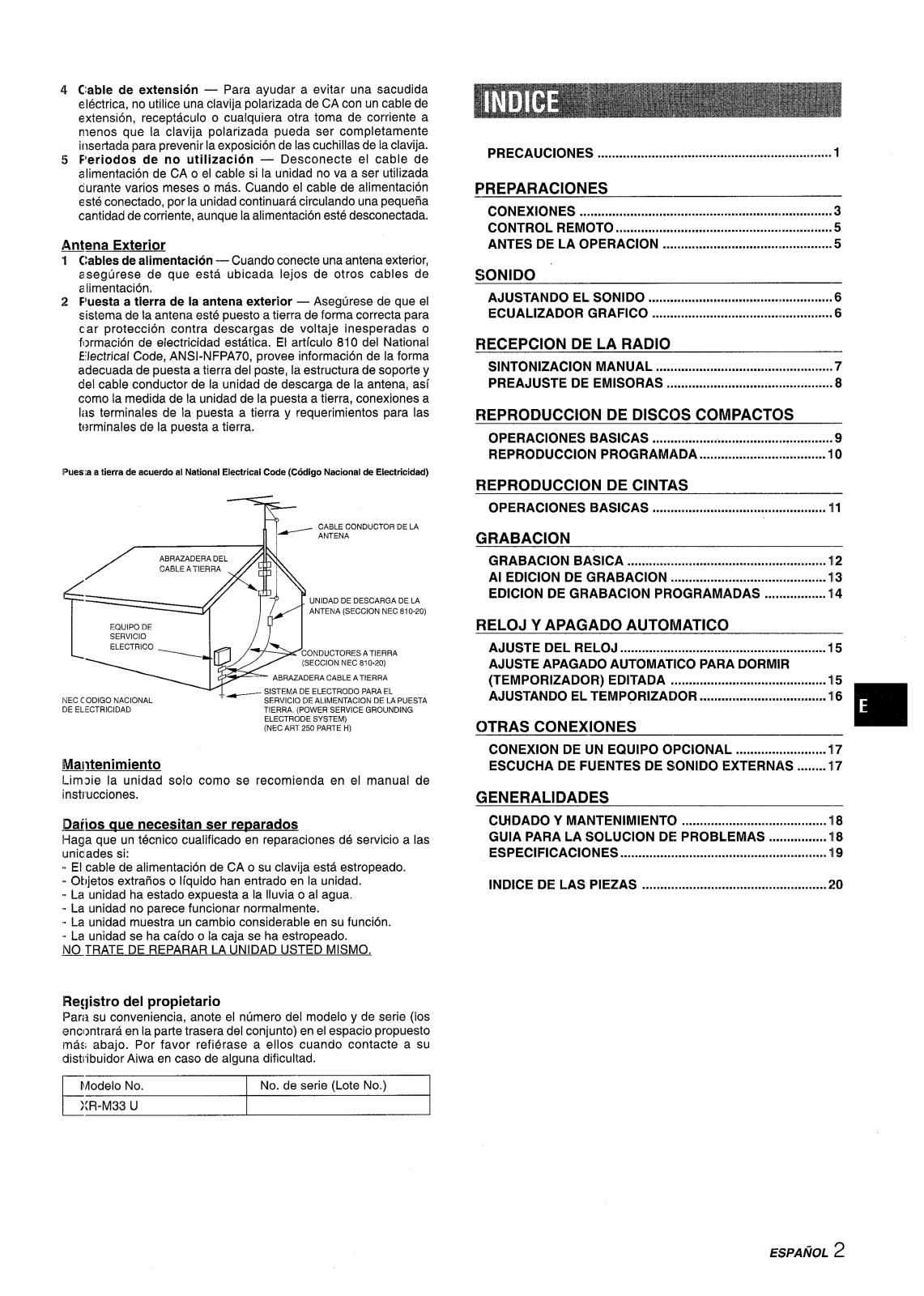

Antenna Grounding According to the National Electrical Code

PRECAUTIONS .................................................................,,

PREPARATIONS

CONNECTIONS ................................................................. 3

REMOTE CONTROL ...........................................................5

BEFORE OPERATION ............................................m...........5

SOUND

AUDIO ADJUSTMENTS .................................................... 6

GRAPHIC EQUALIZER ......................................................6

RADIO RECEPTION

MANUAL TUNING ...............................................................7

PRESETTING STATIONS ...................................................8

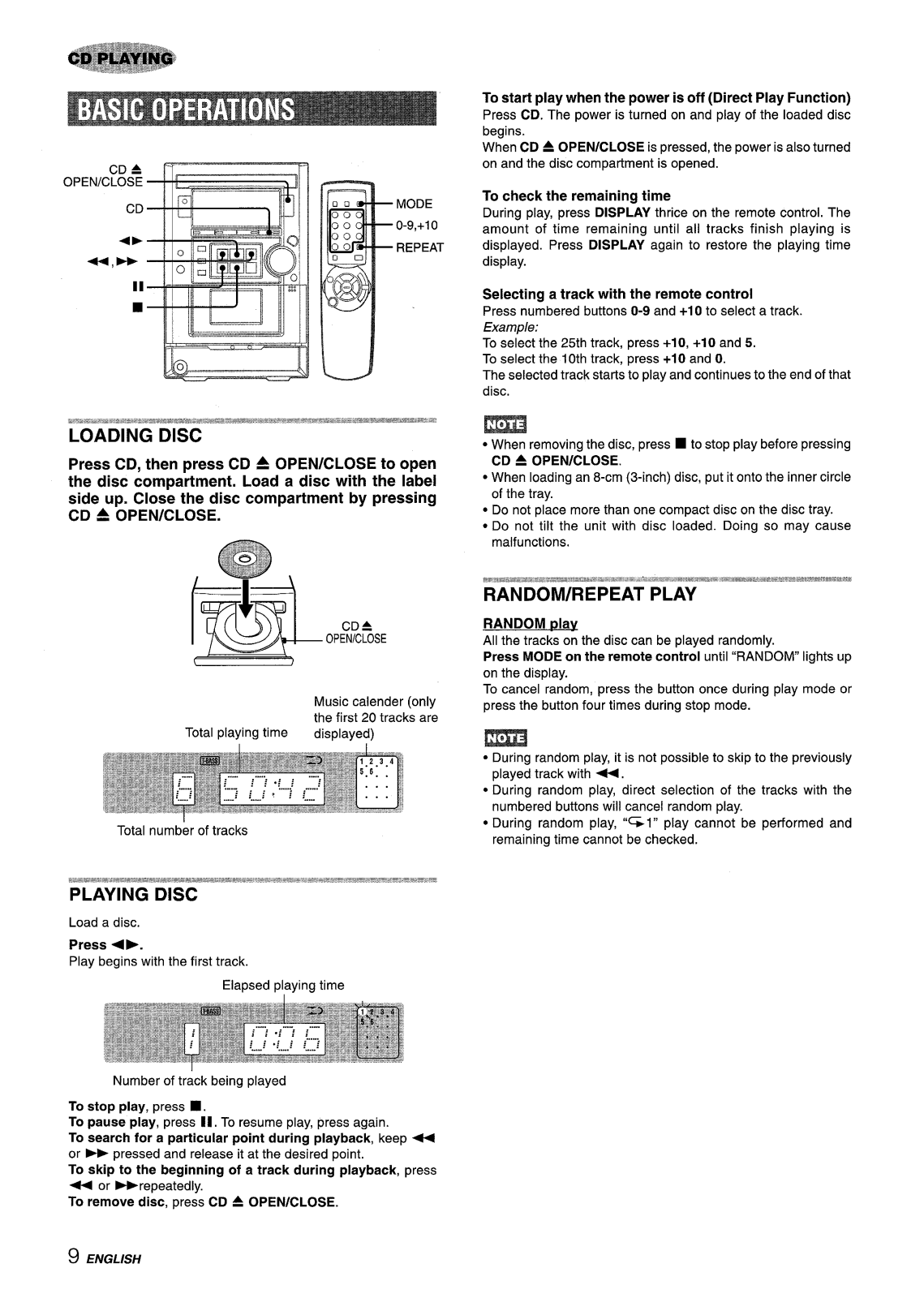

CD PLAYING

BASIC OPERATIONS

. .. . .. . ..m . .. . .. . . .. . .. . . . . .. . .. . . . . .. . .. . .. . . .. . .. . . . .. 9

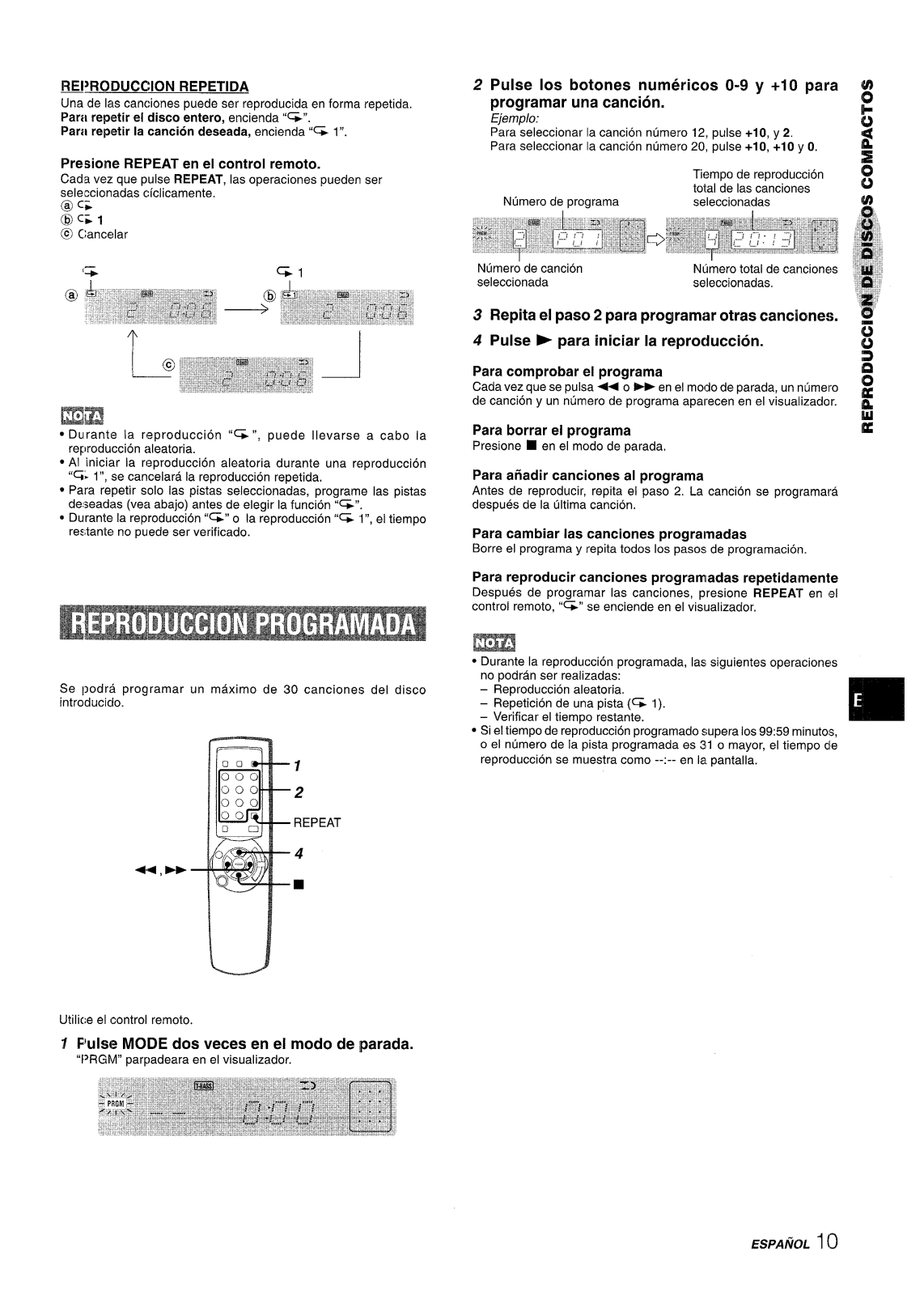

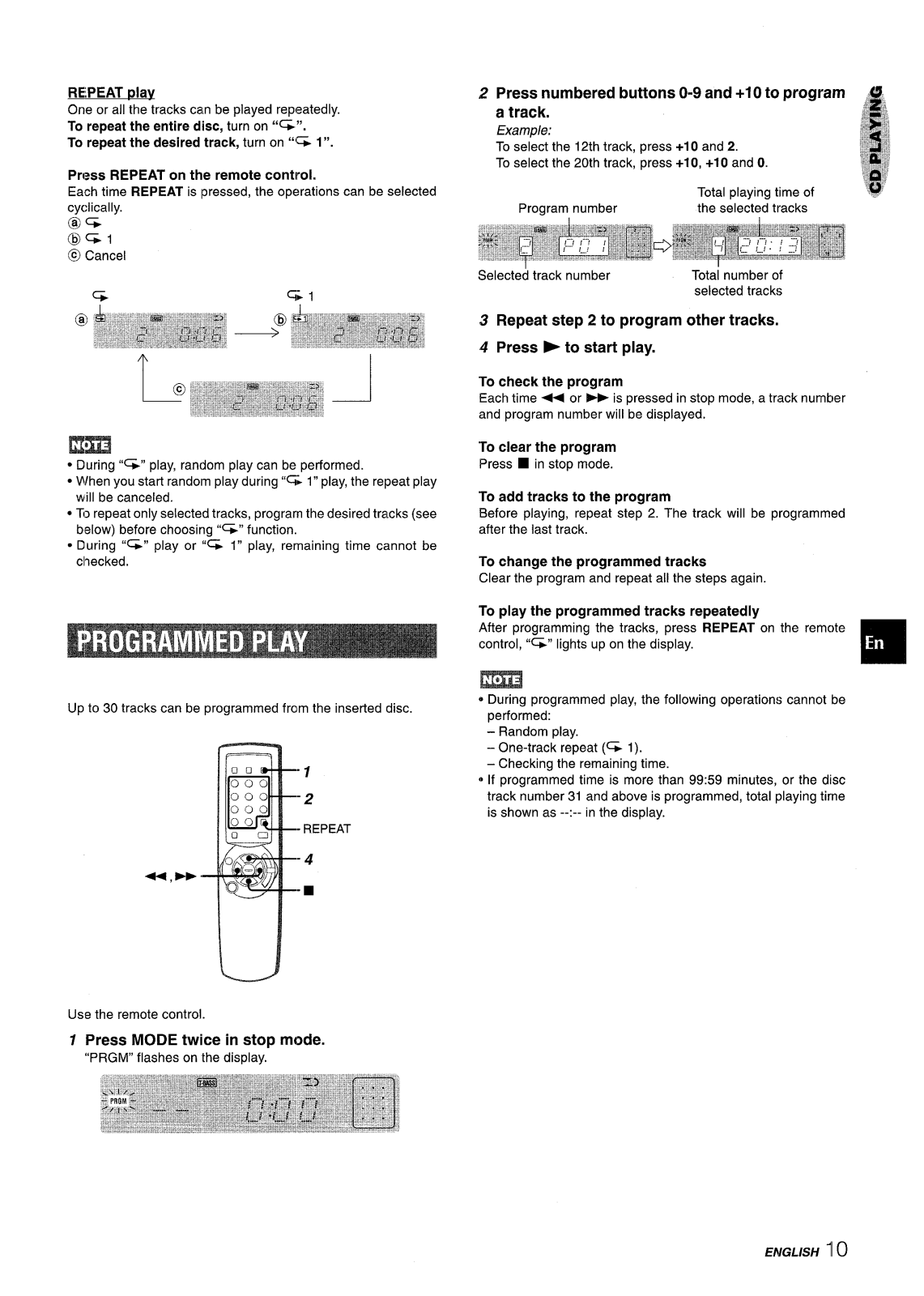

PROGRAMMED PLAY ..................................................... 10

——

Ti=-

ANTENNA LEAD IN WIRE

DISCHARGE UNIT

,,.ti-..-

I —1 Iv I

NEC-NATIONAL ELECTRICAL CODE —

ELECTRODE !

------ ---

Maintenance

Clean the unit only as recommended in the Operating instructions.

Damaae Reauirina Service

Have the units serviced by a qualified service technician if:

- The AC power cord or plug has been damaged

- Foreign objects or liquid have gotten inside the unit

- The unit has been exposed to rain or water

- The unit does not seem to operate normally

- The unit exhibits a marked change in performance

- The unit has been dropped, or the cabinet has been damaged DO NOT ATTEMPT TO SERVICE THE

UNITYOURSELF.

FION 810-20)

TAPE PLAYBACK

BASIC OPERATIONS ....................................................... 11

RECORDING

BASIC RECORDING ........................................................ 12

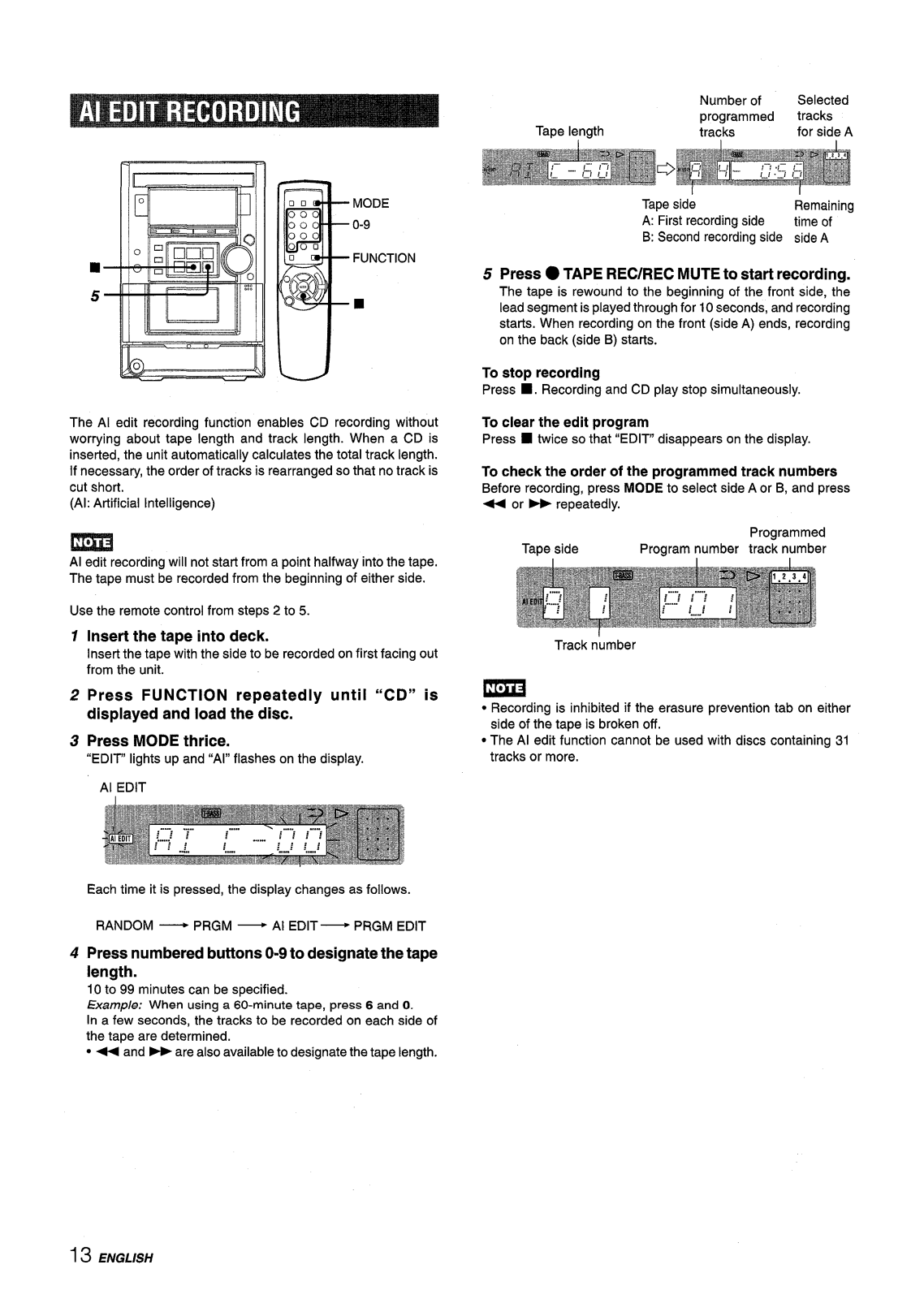

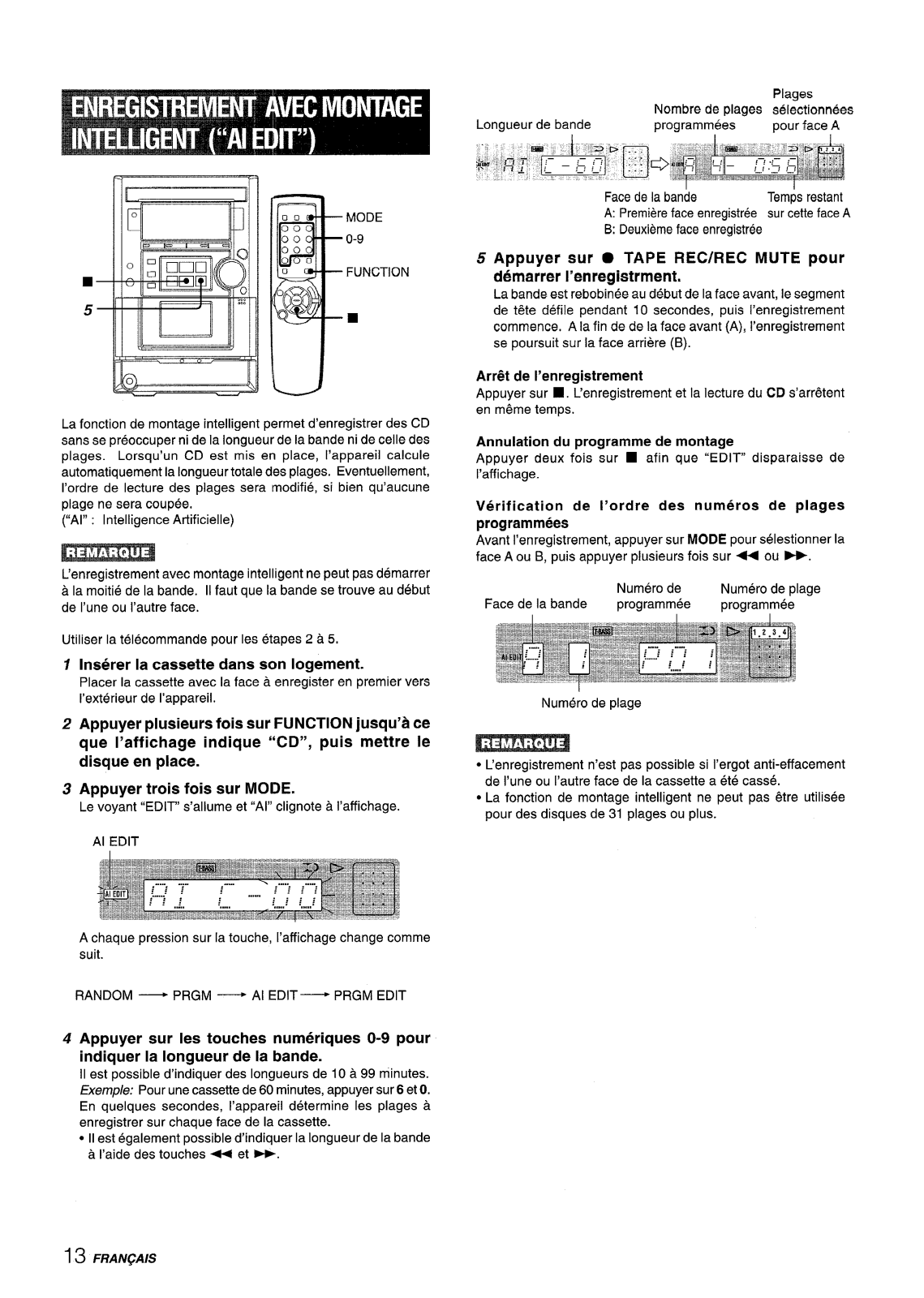

Al EDIT RECORDING

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..u . . . . . . . . 13

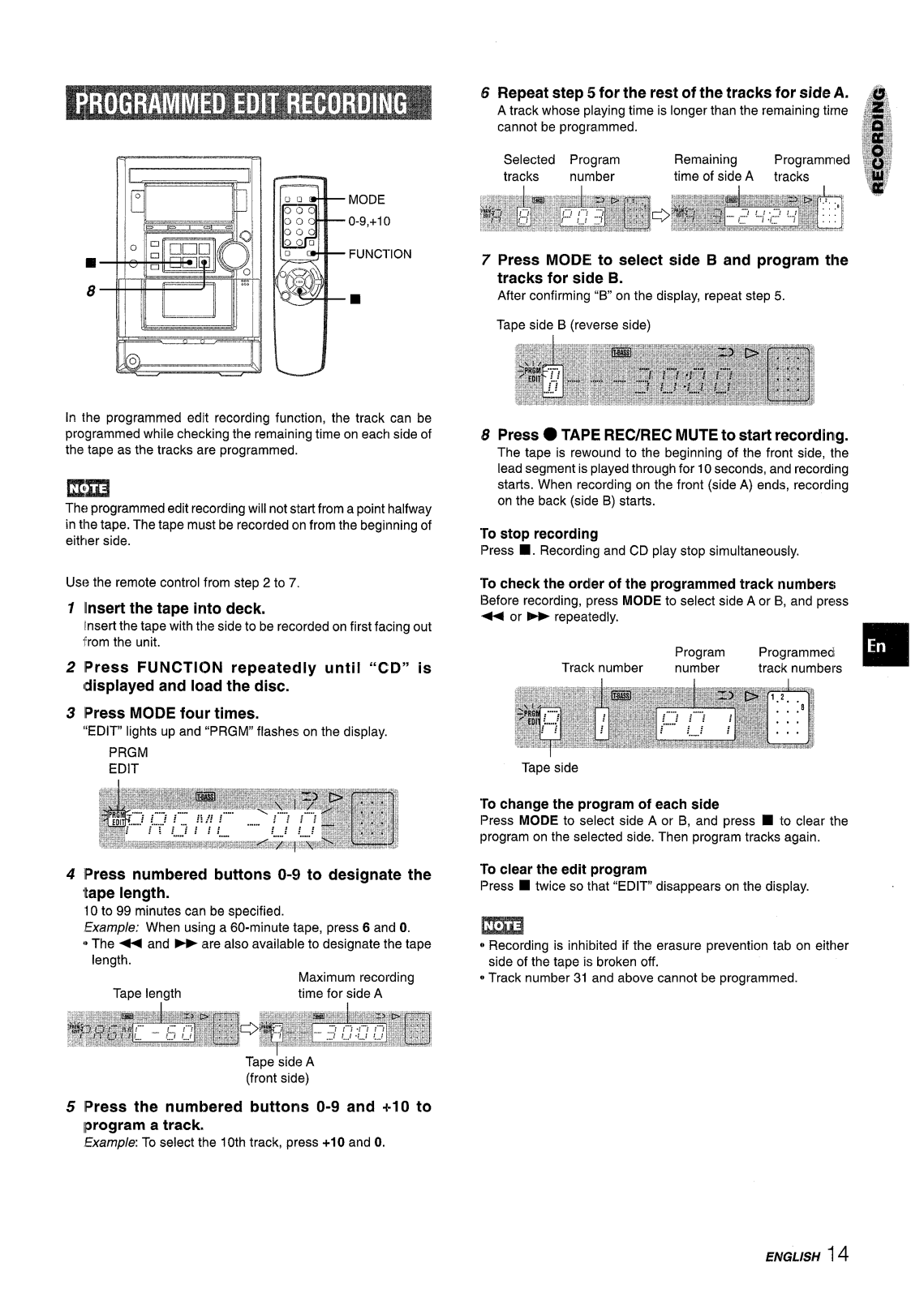

PROGRAMMED EDIT RECORDING ............................... 14

CLOCK AND TIMER

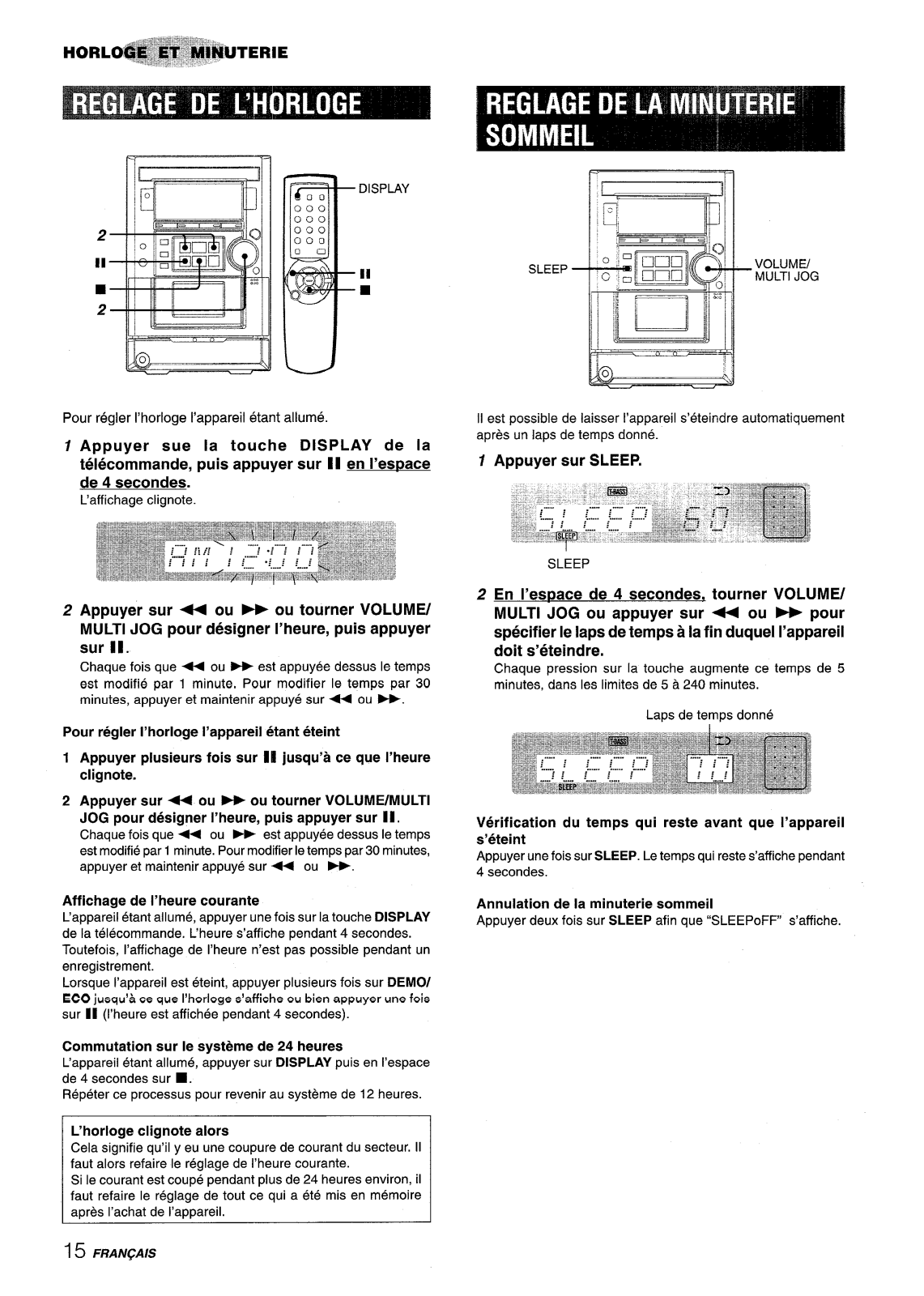

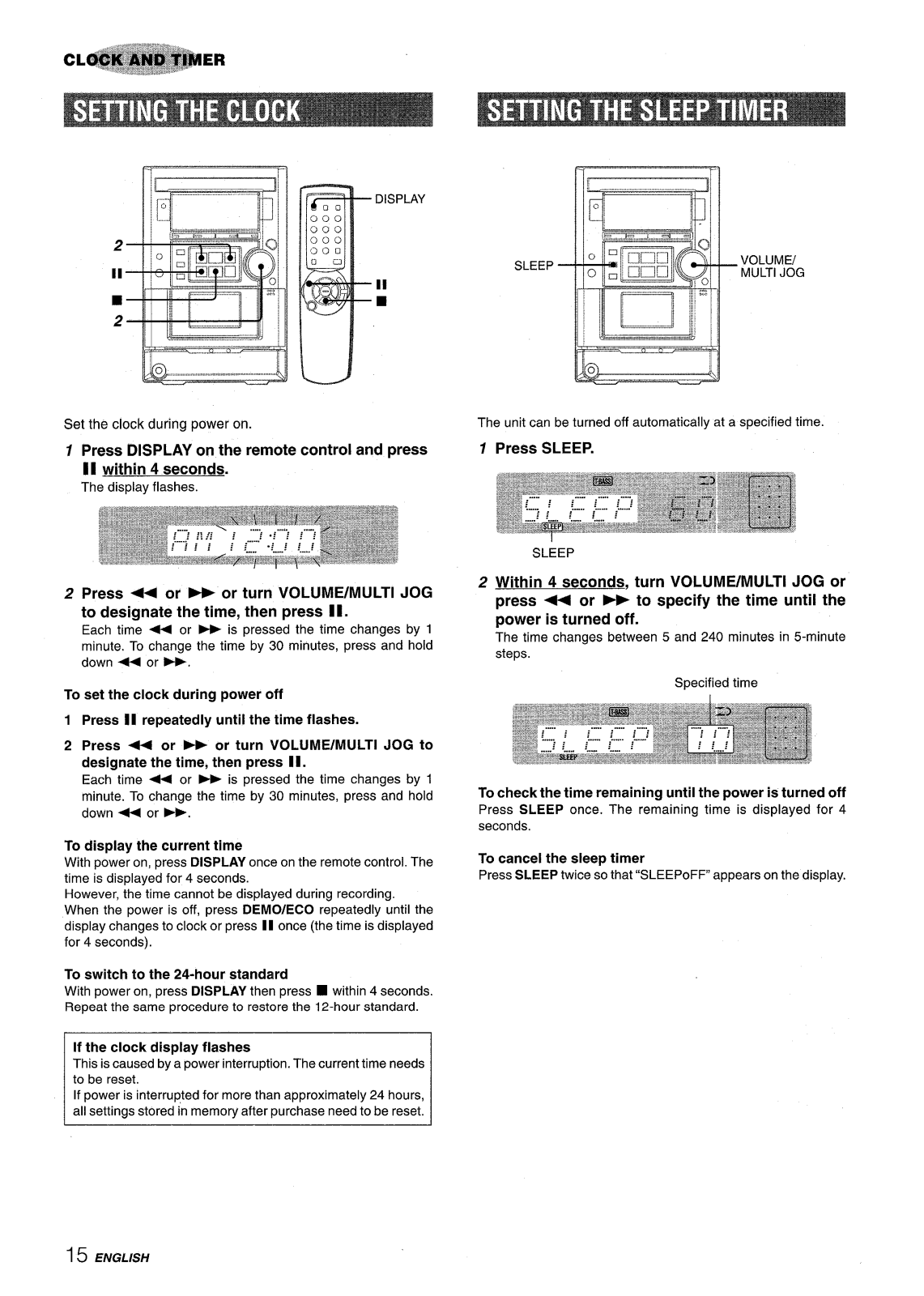

SETTING THE CLOCK

. . . . . .. . .. . . . . .. . .. . . . . . ...m . .. . . . .. . .. . . ..m . .. . .. . . 15

SETTING THE SLEEP TIMER ......................................... ’15

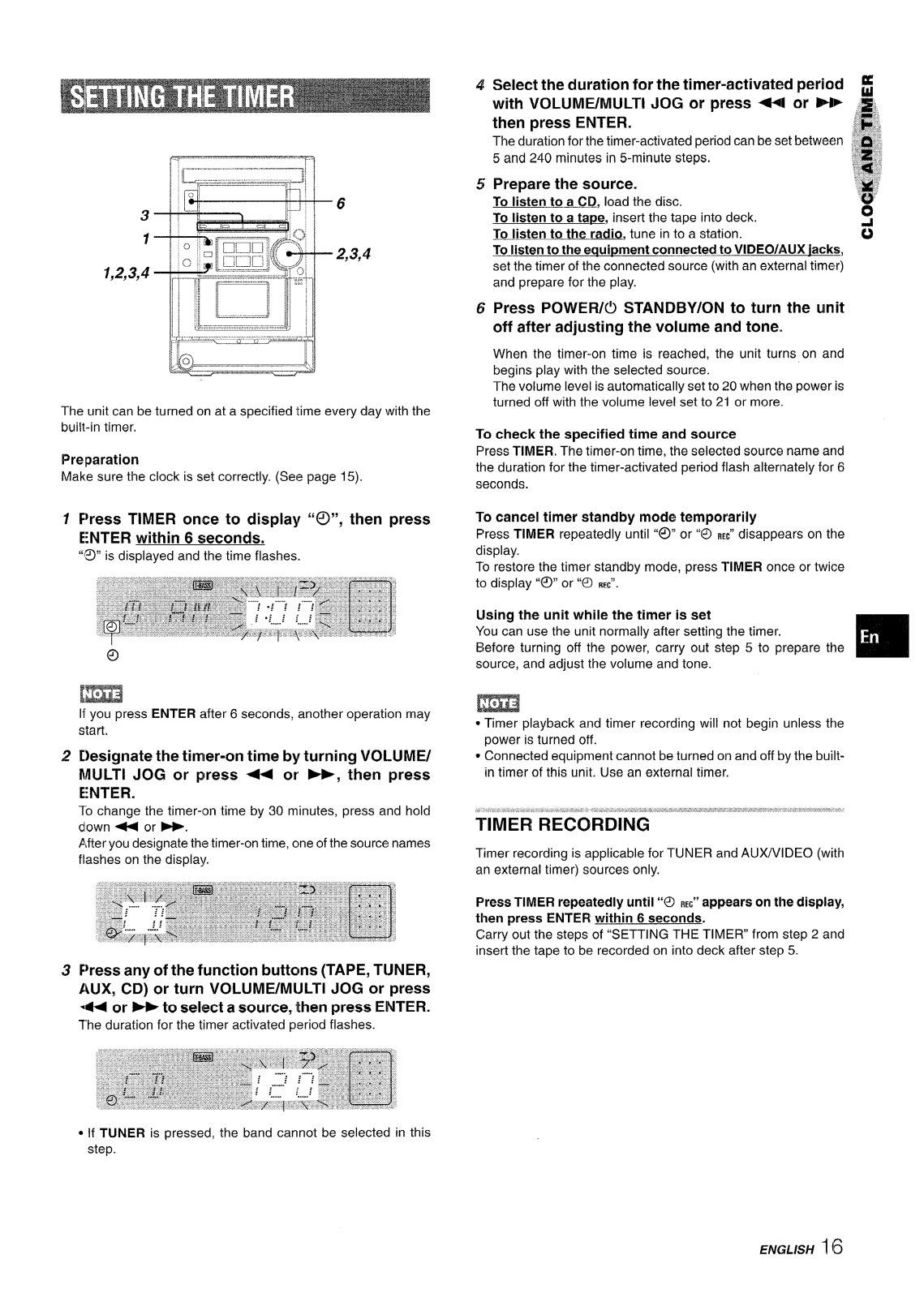

SETTING THE TIMER .............................................u........ 16

OTHER CONNECTIONS

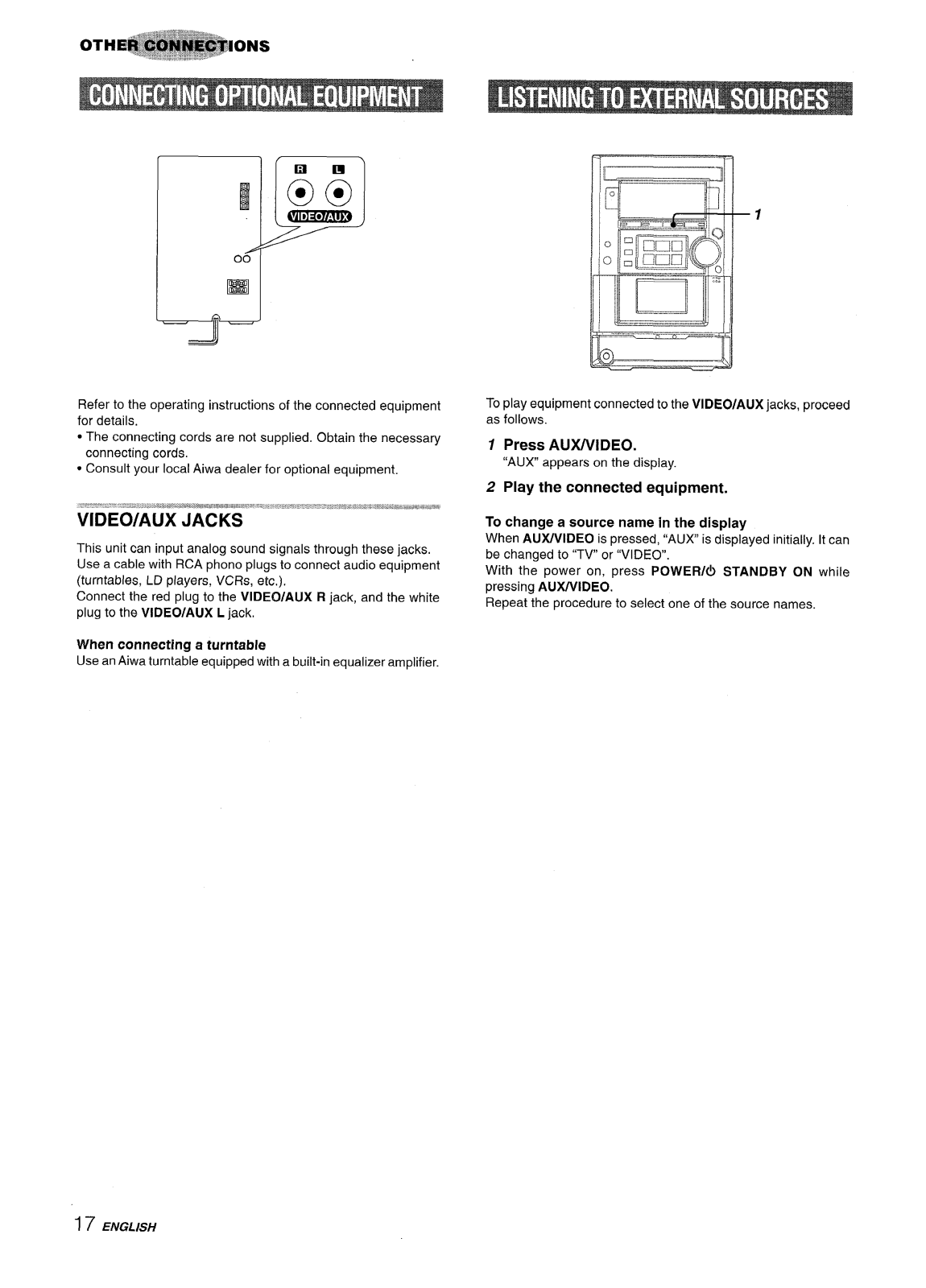

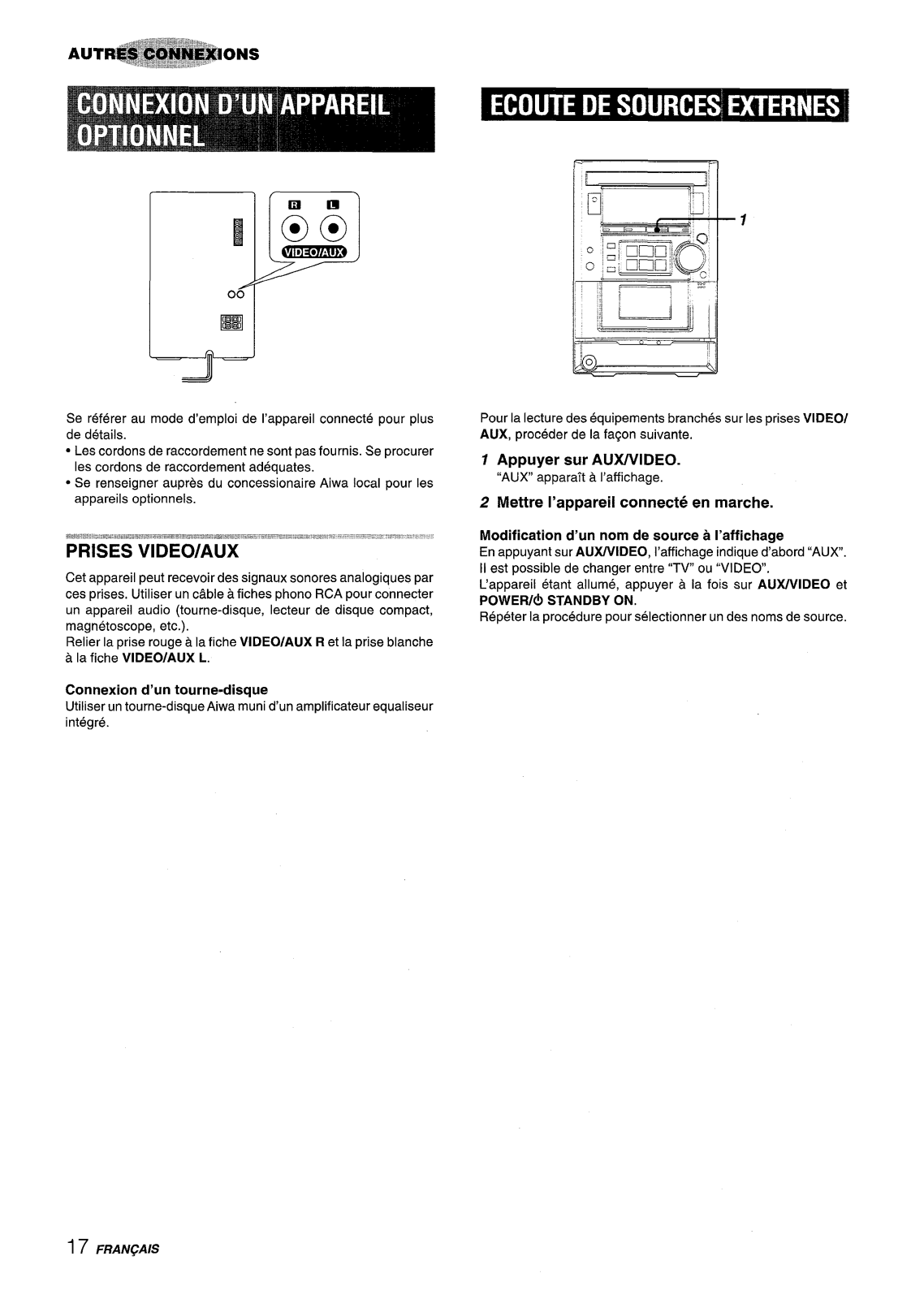

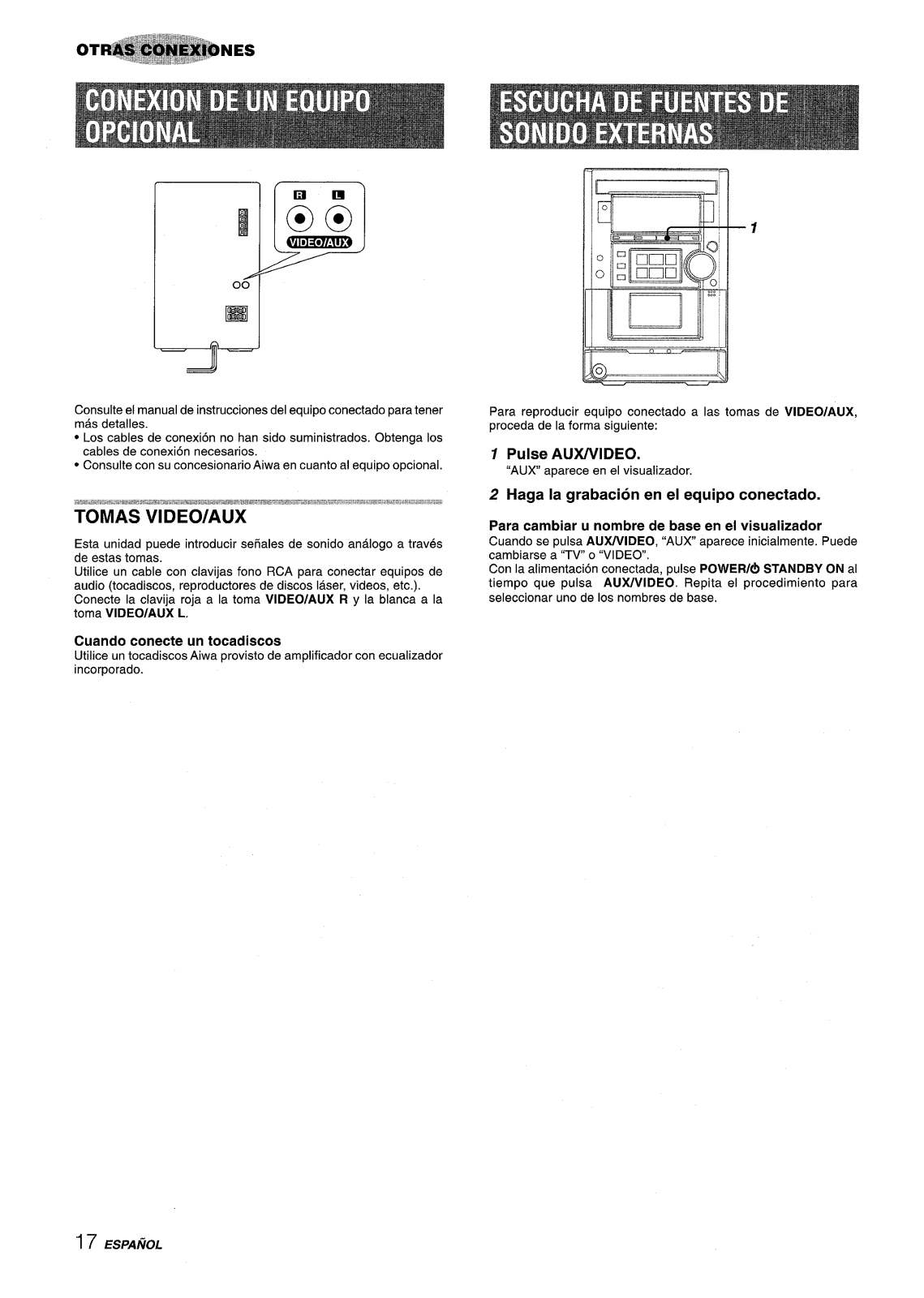

CONNECTING OPTIONAL EQUIPMENT ....................... 17

LISTENING TO EXTERNAL SOURCES ......................... 17

GENERAL

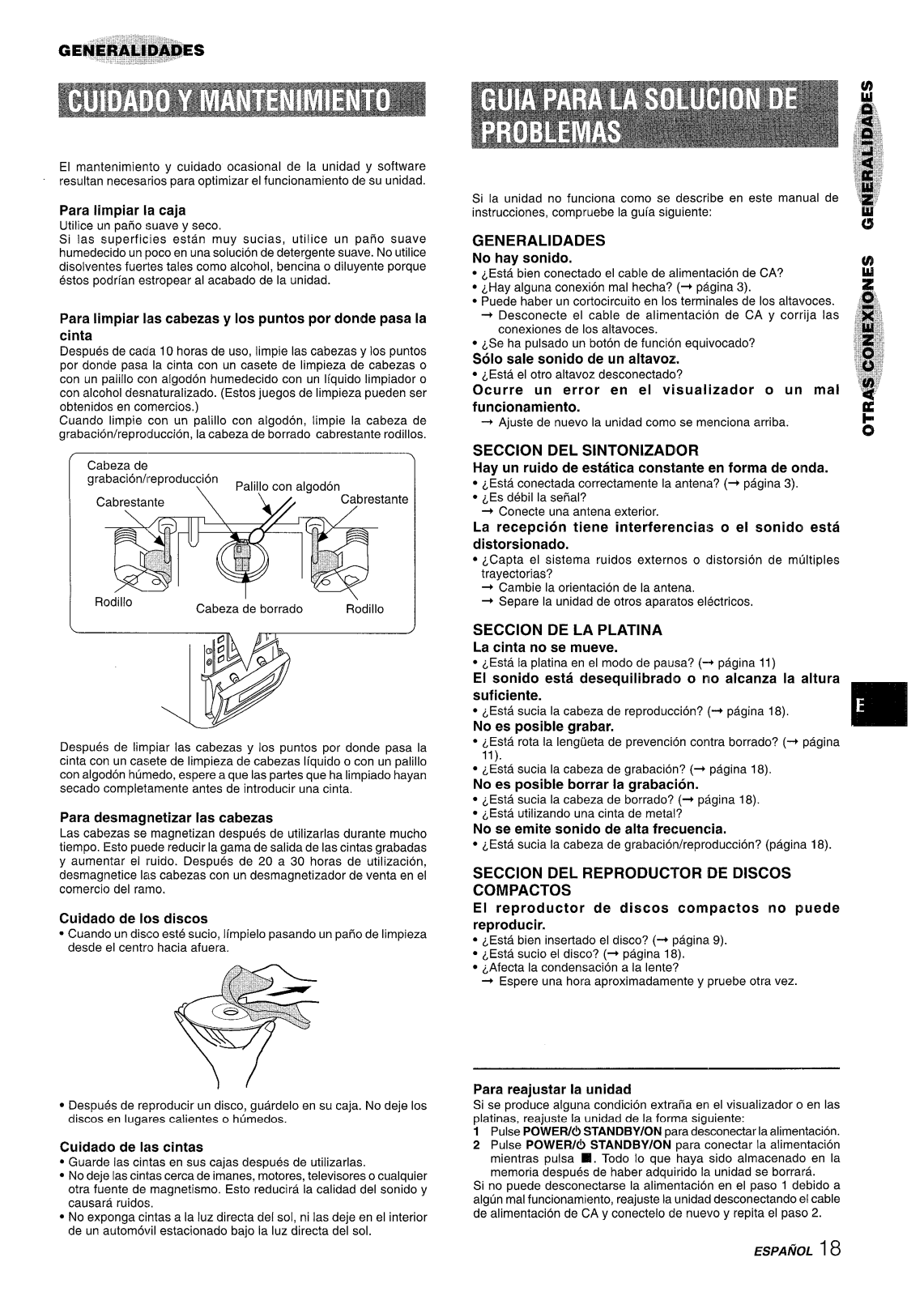

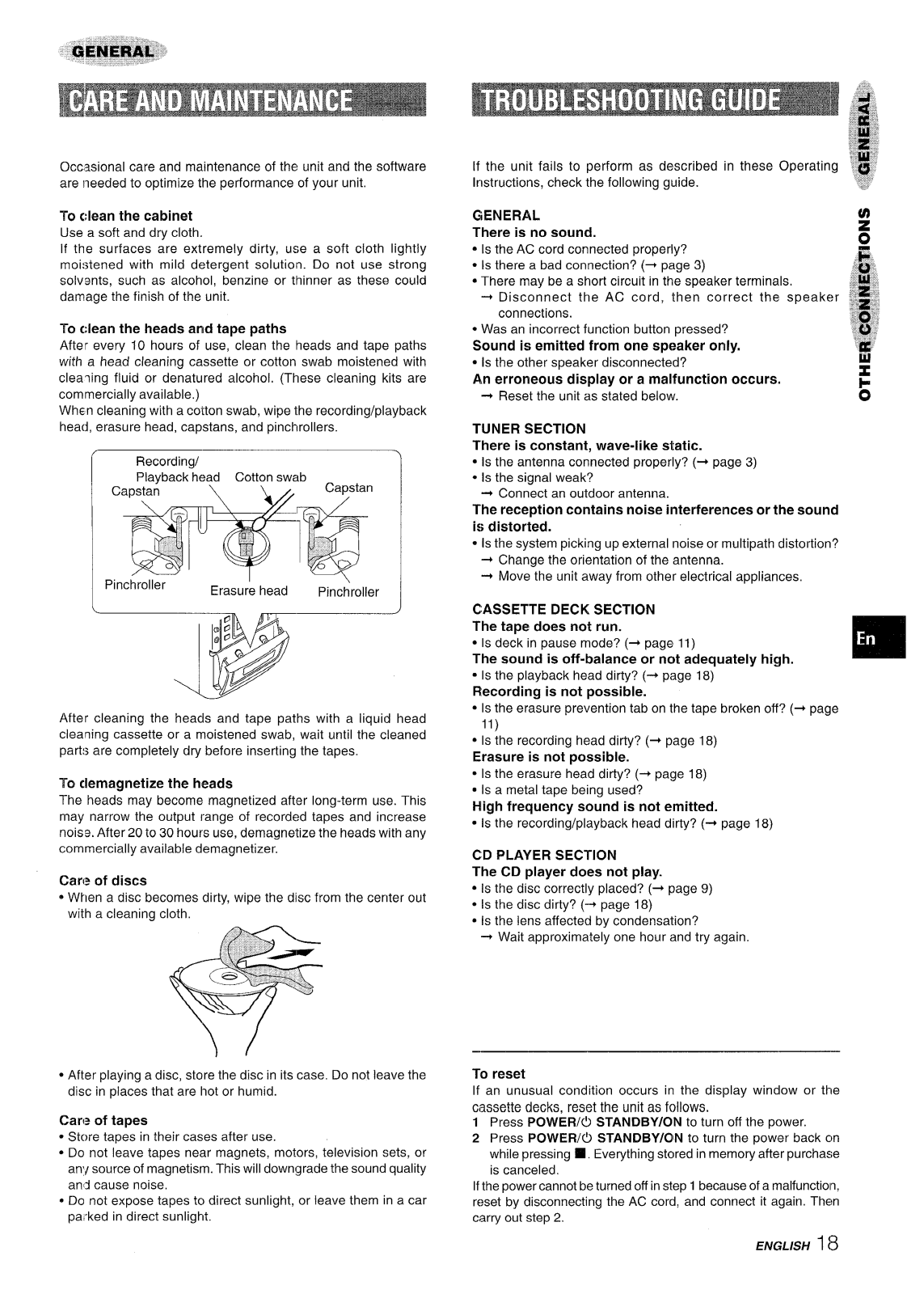

CARE AND MAINTENANCE ........................................... 18

TROUBLESHOOTING GUIDE ......................................... ’18

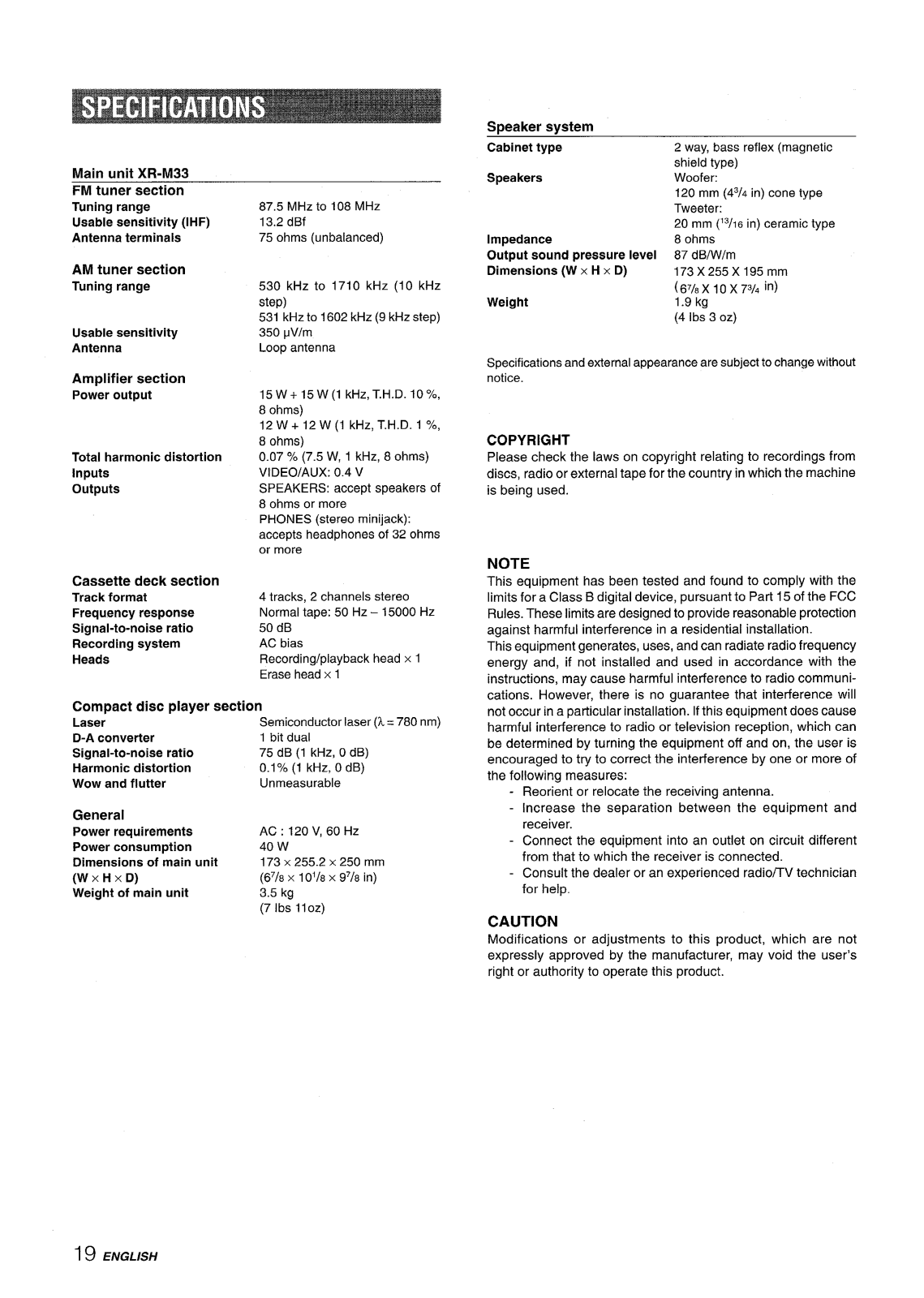

SPECIFICATIONS ............................................................ ’19

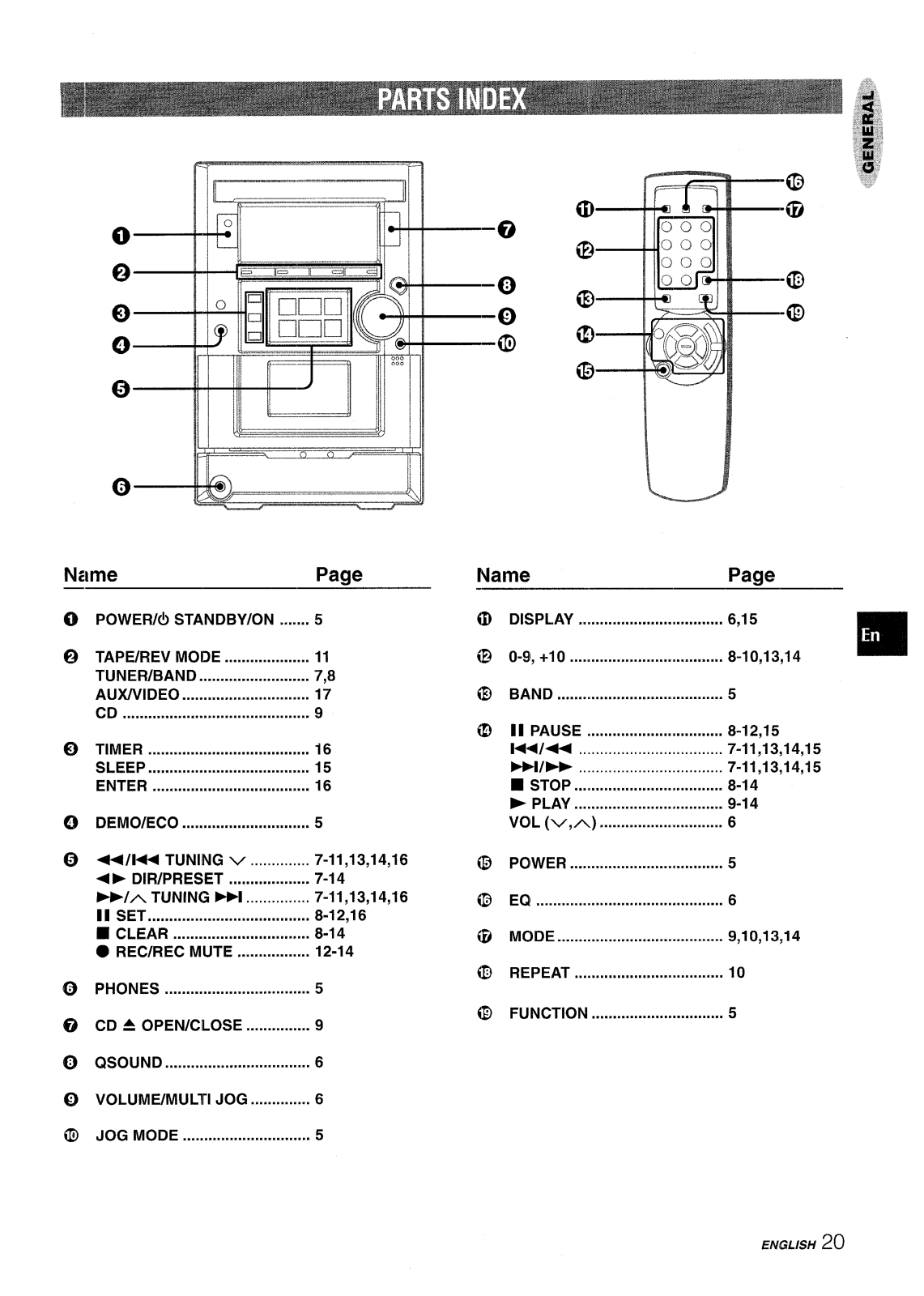

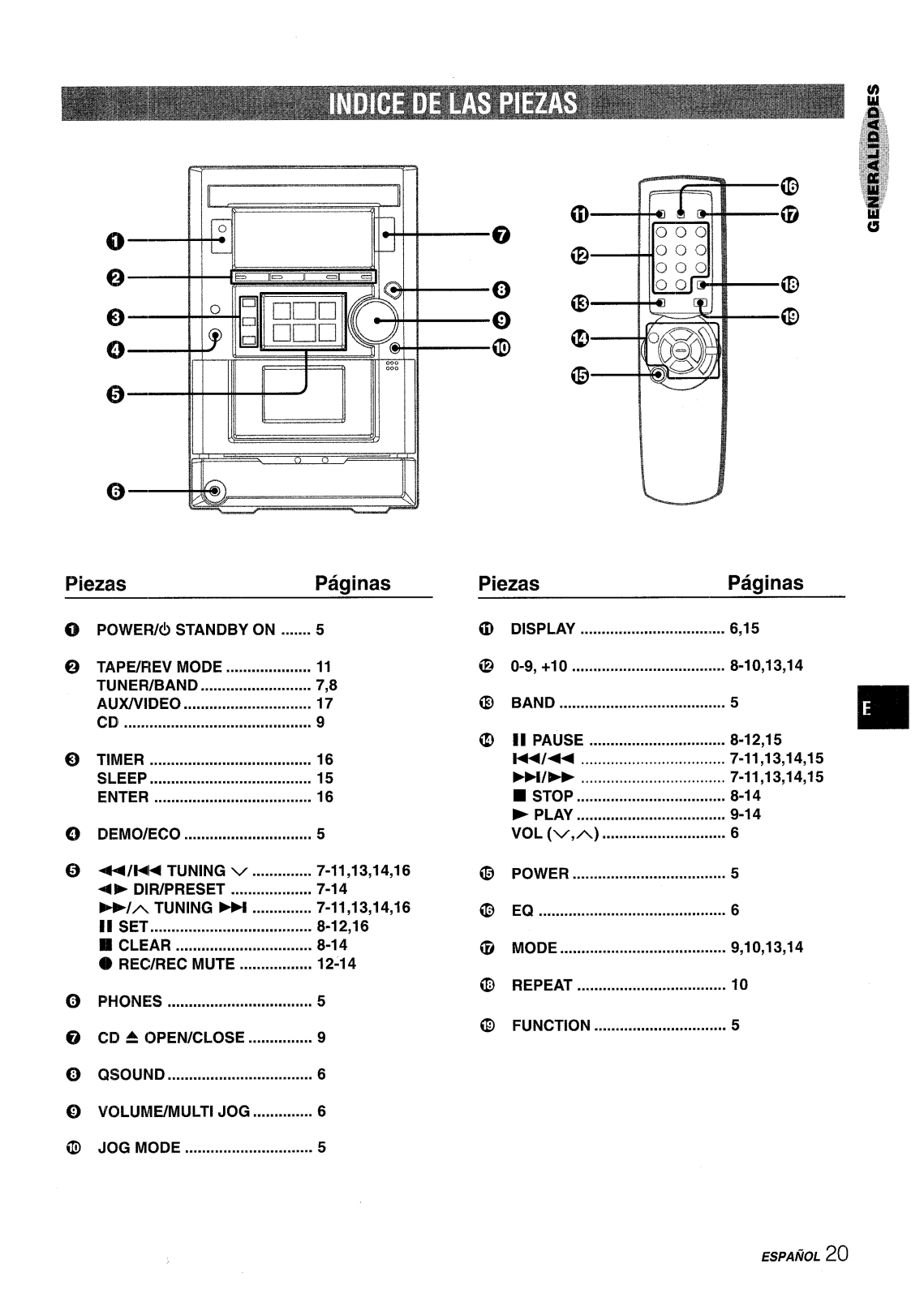

PARTS INDEX .................................................................. :20

—

Owner’s record

For your convenience, record the model number and serial number (you will find them on the rear of your set) in the space provided below. Please refer to them when you contact your Aiwa dealer in case of difficulty.

I Model No. \ Serial No. (Lot No.) I

I XR-M33u I I

ENGLISH 2

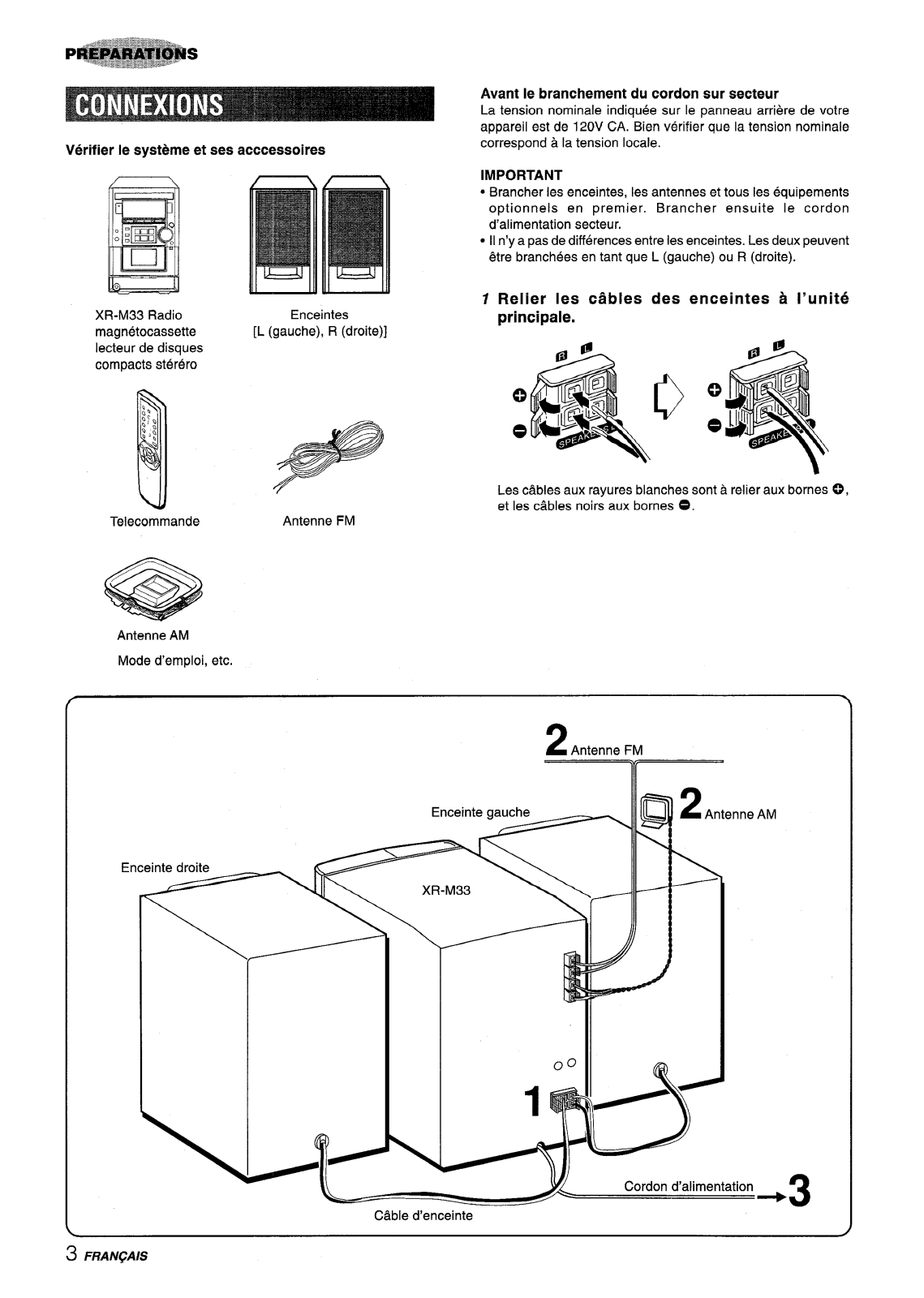

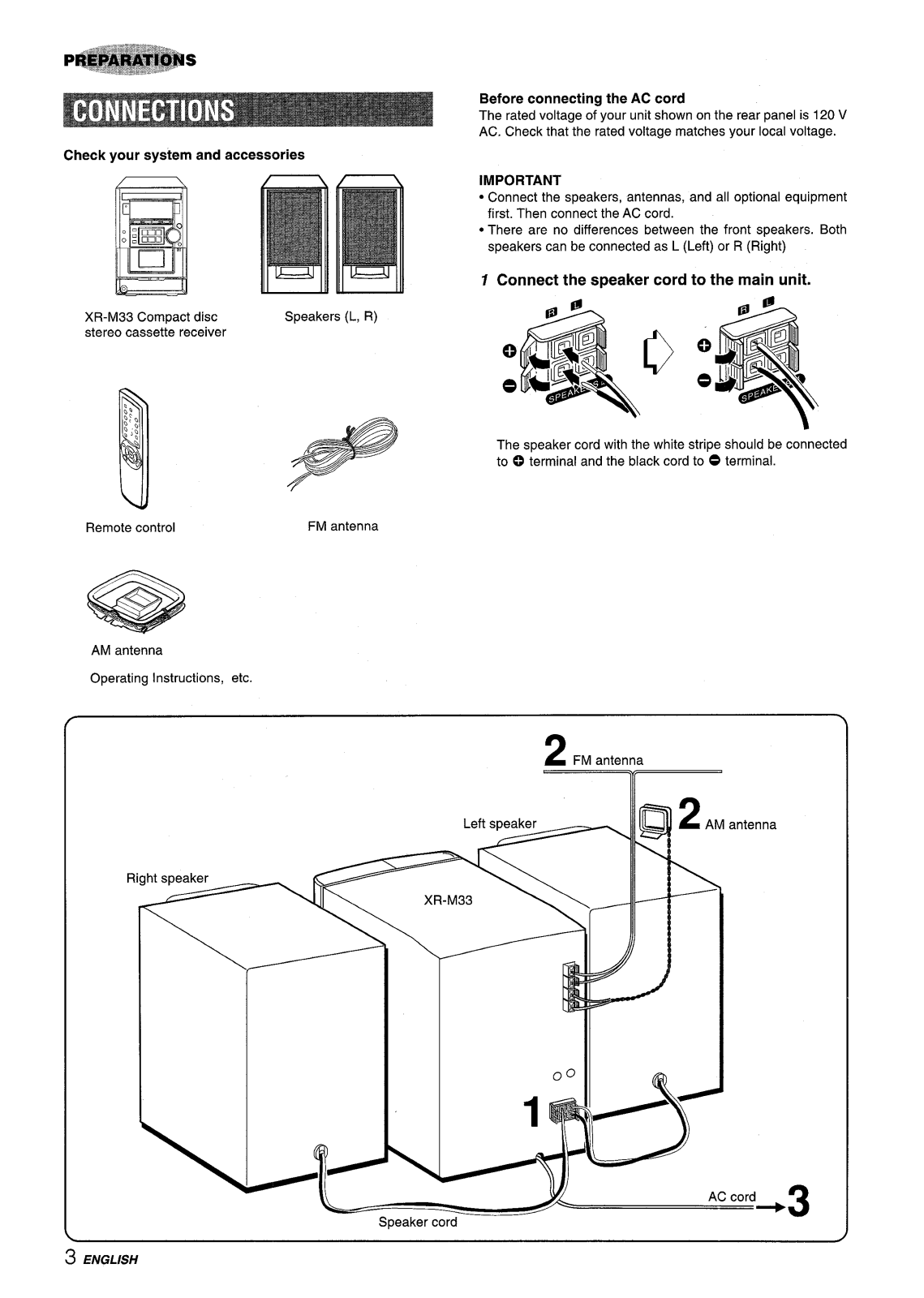

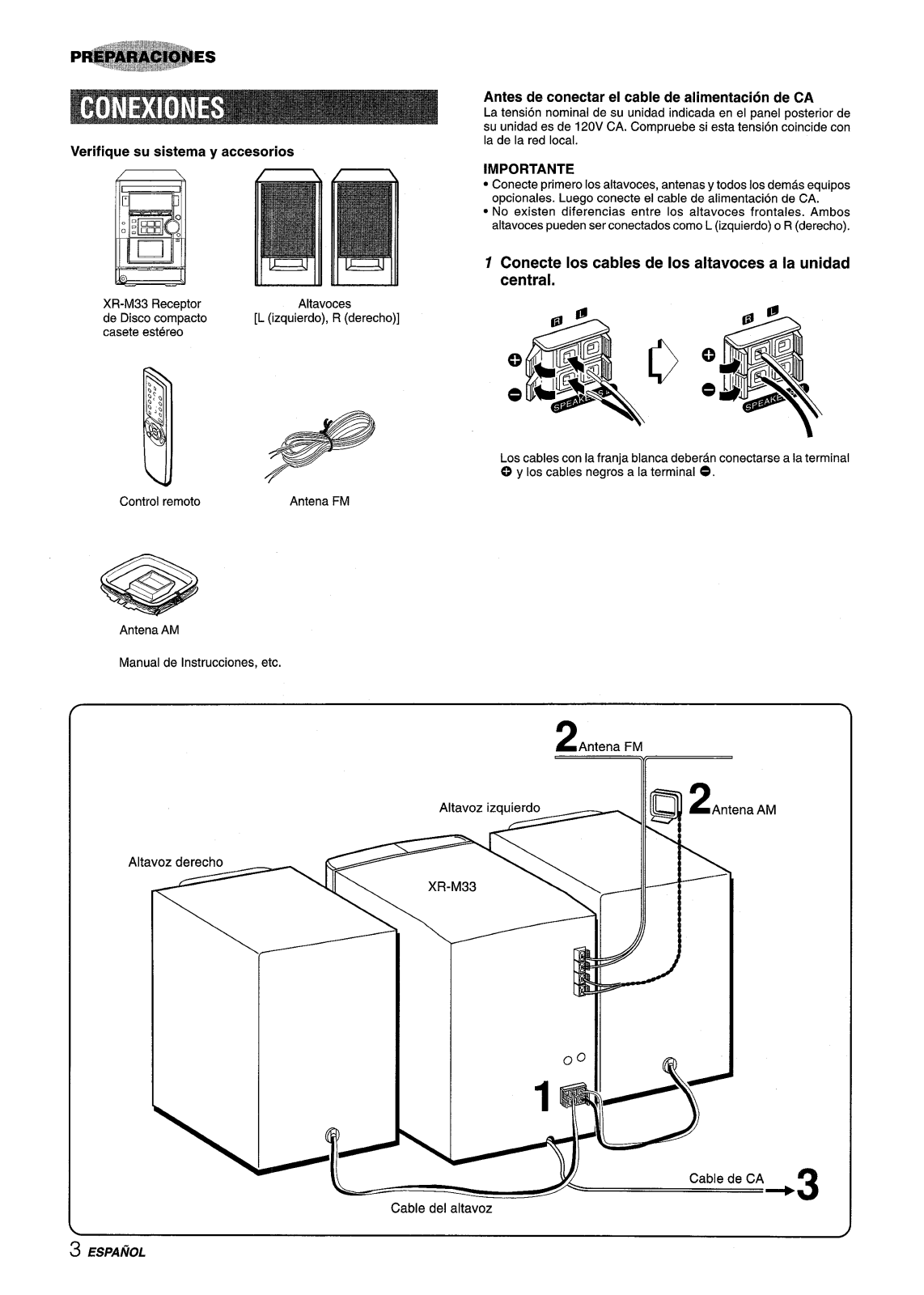

your system and accessories

Check

Before connecting the AC cord

The rated voltage of your unit shown on the rear panel is 120 V AC. Check that the rated voltage matches your local voltage.

IMPORTANT “ Connect the speakers, antennas, and all optional equipment

first. Then connect the AC cord.

● There are no differences between the front speakers. Both

speakers can be connected as L (Left) or R (Right)

7 Connect the speaker cord to the main unit.

XR-M33 Compact disc stereo cassette receiver

Remote control

AM antenna Operating Instructions, etc.

Speakers (L, R)

FM antenna

The speaker cord with the white stripe should be connected to 0 terminal and the black cord to O terminal.

FM antenna

3 ENGLISH

nna

Speaker cord

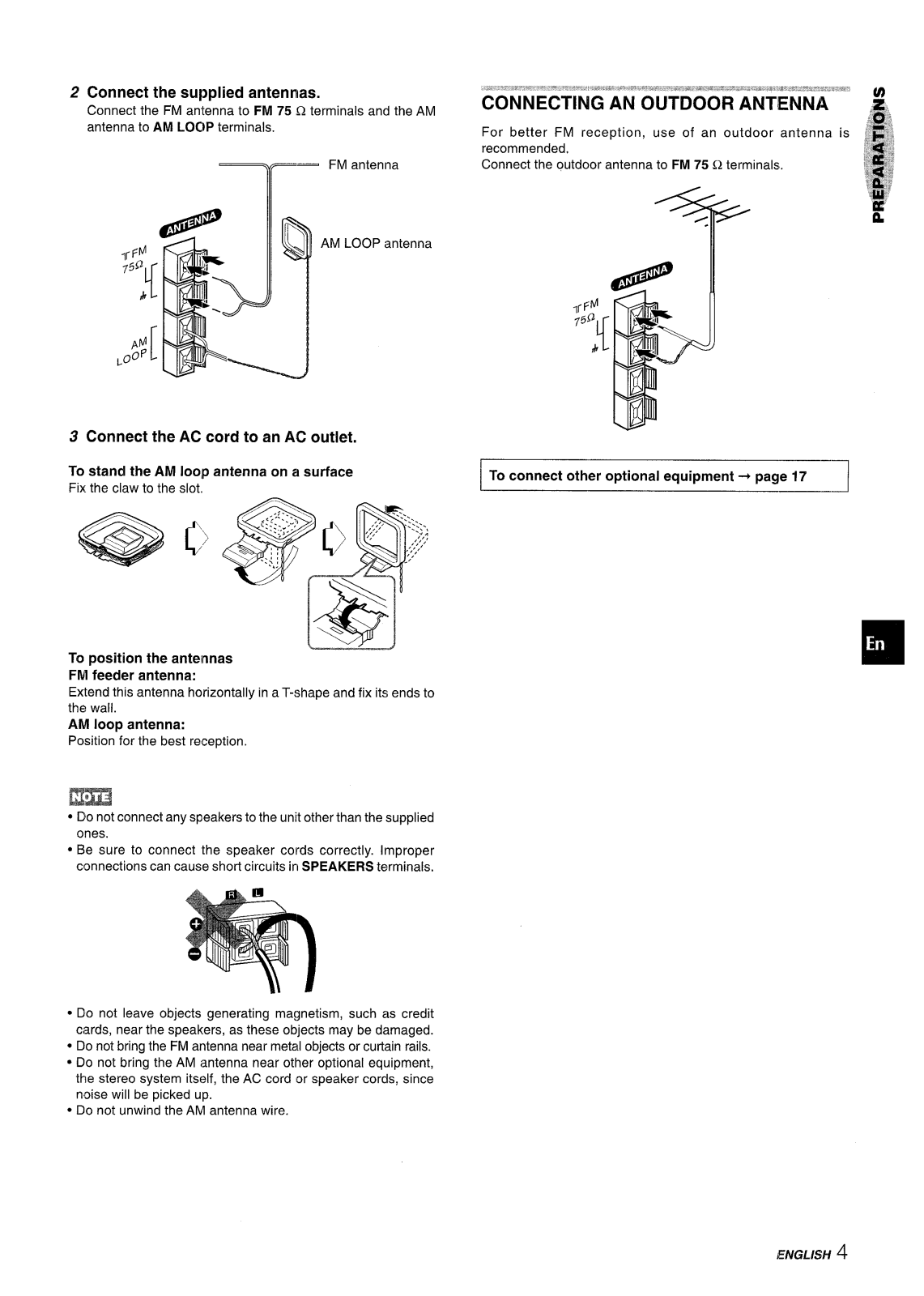

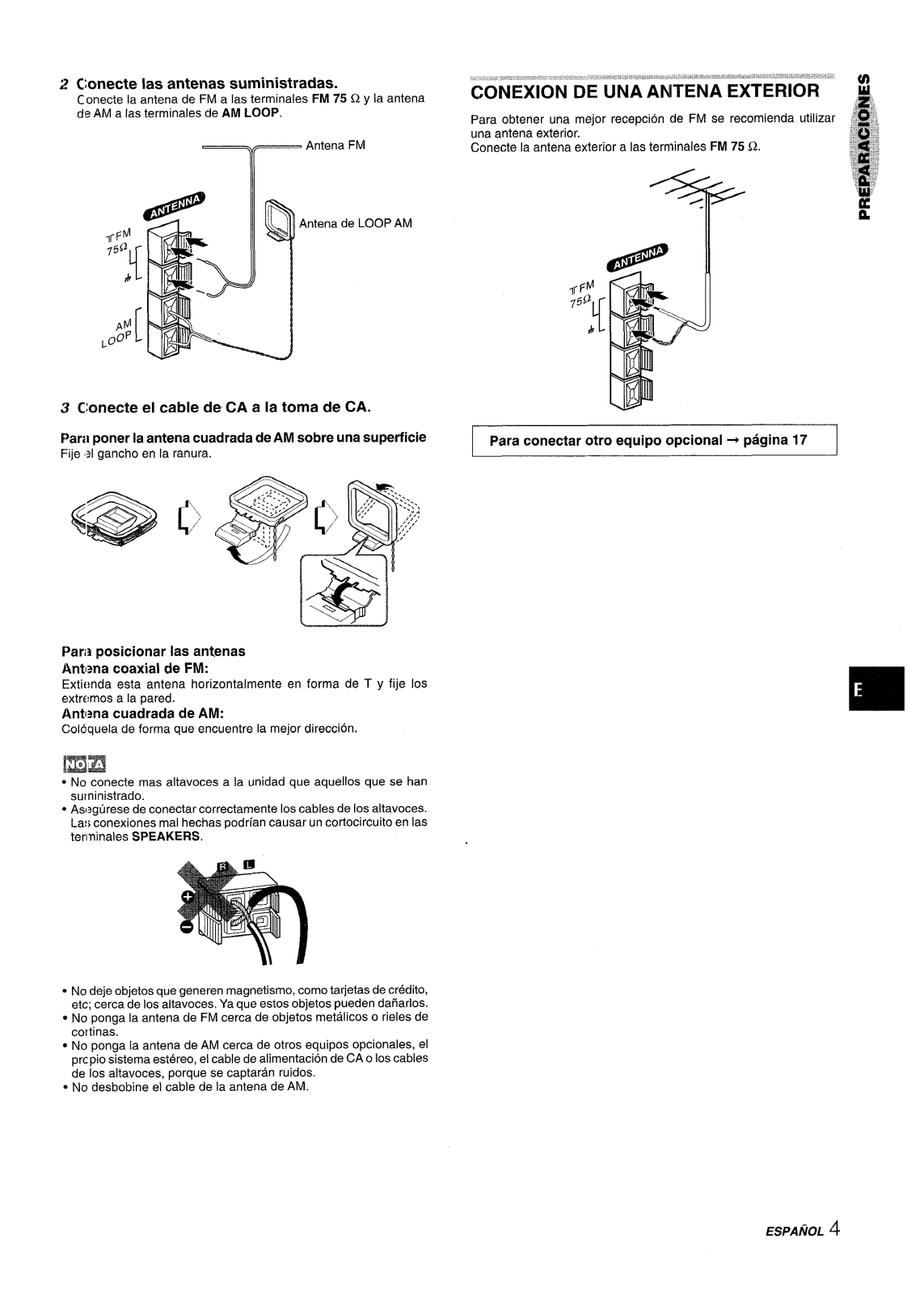

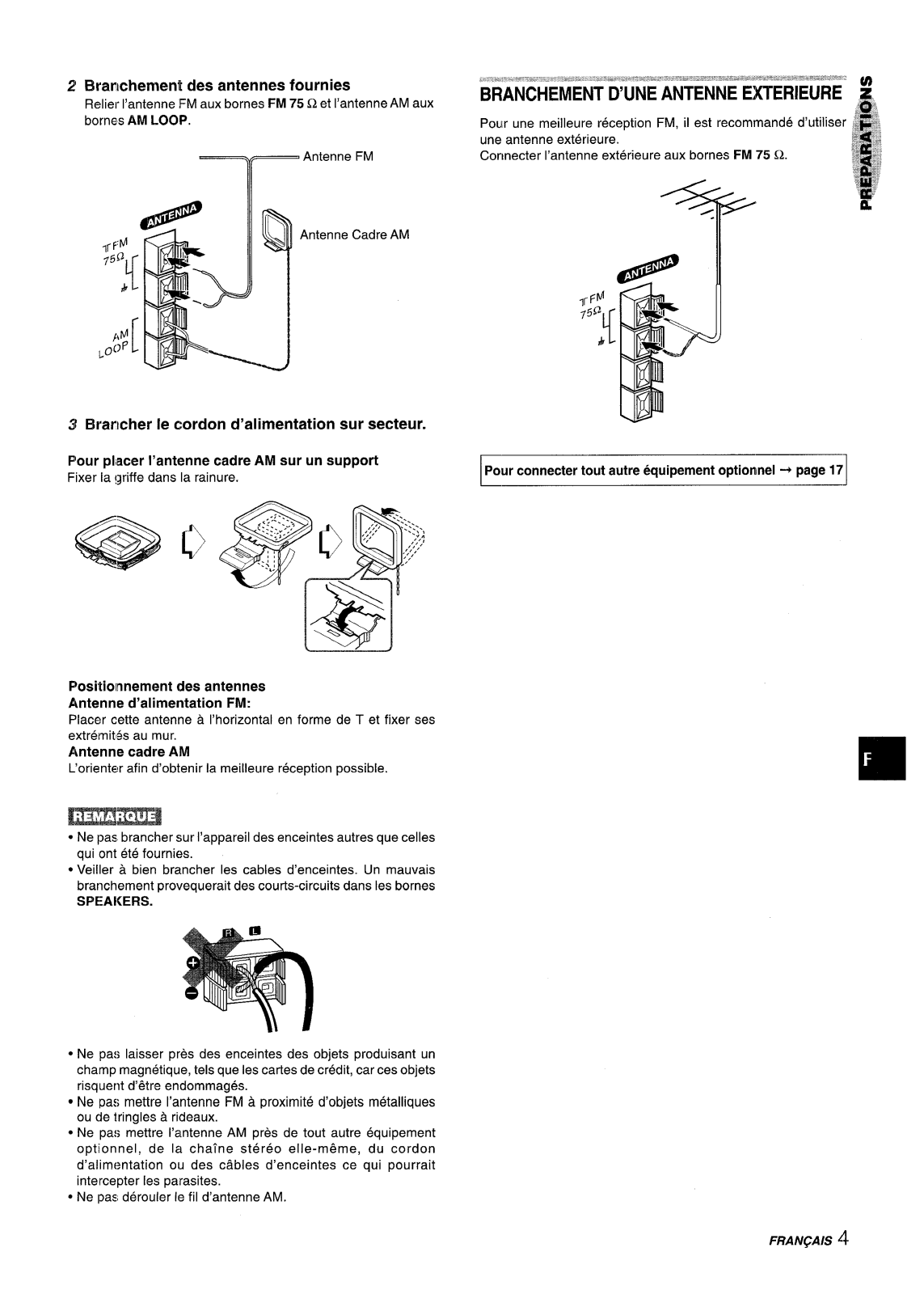

Connect the supplied antennas.

Connect the FM antenna to FM 75 Q terminals and the AM antenna to AM LOC~Pterminals.

T ‘Mantenna

For better FM reception, use of an outdoor antenna is recommended, Connect the outdoor antenna to FM 75 Q terminals.

AM LOOP

prd

~oo?

Connect the AC cord to an AC outlet.

To stand the AM looIp antenna on a surface

Fix the claw to the slot,

)

To position the antennas

FM feeder antenna:

Extend this antenna horizontally in a T-shape and fix its ends to

the wall.

AM loop antenna:

Position for the best reception.

antenna

To connect other optional equipment+ page 17

—

● Do not connect any speakers to the unit other than the supplied

ones.

● Be sure to connect the speaker cords correctly. Improper

connections can cause short circuits in SPEAKERS terminals.

● Do not leave objects generating magnetism, such as credit

cards, near the speakers, as these objects may be damaged.

● Do not bring the FM antenna near metal objects or curtain rails.

● Do not bring the AM i~ntenna near other optional equipment,

the stereo system itself, the AC cord or speaker cords, since noise will be picked up.

● Do not unwind the AM antenna wire.

ENGLISH 4

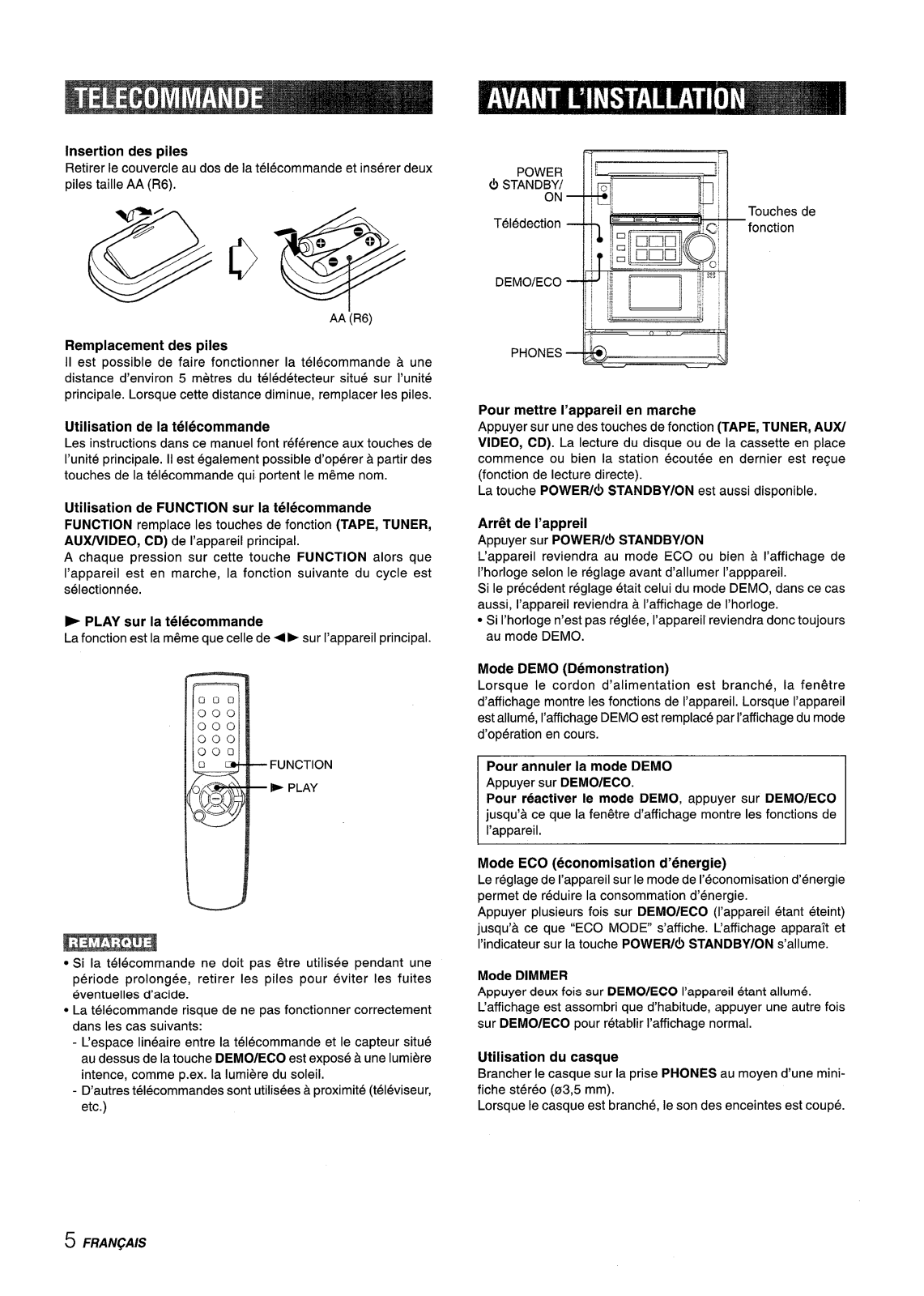

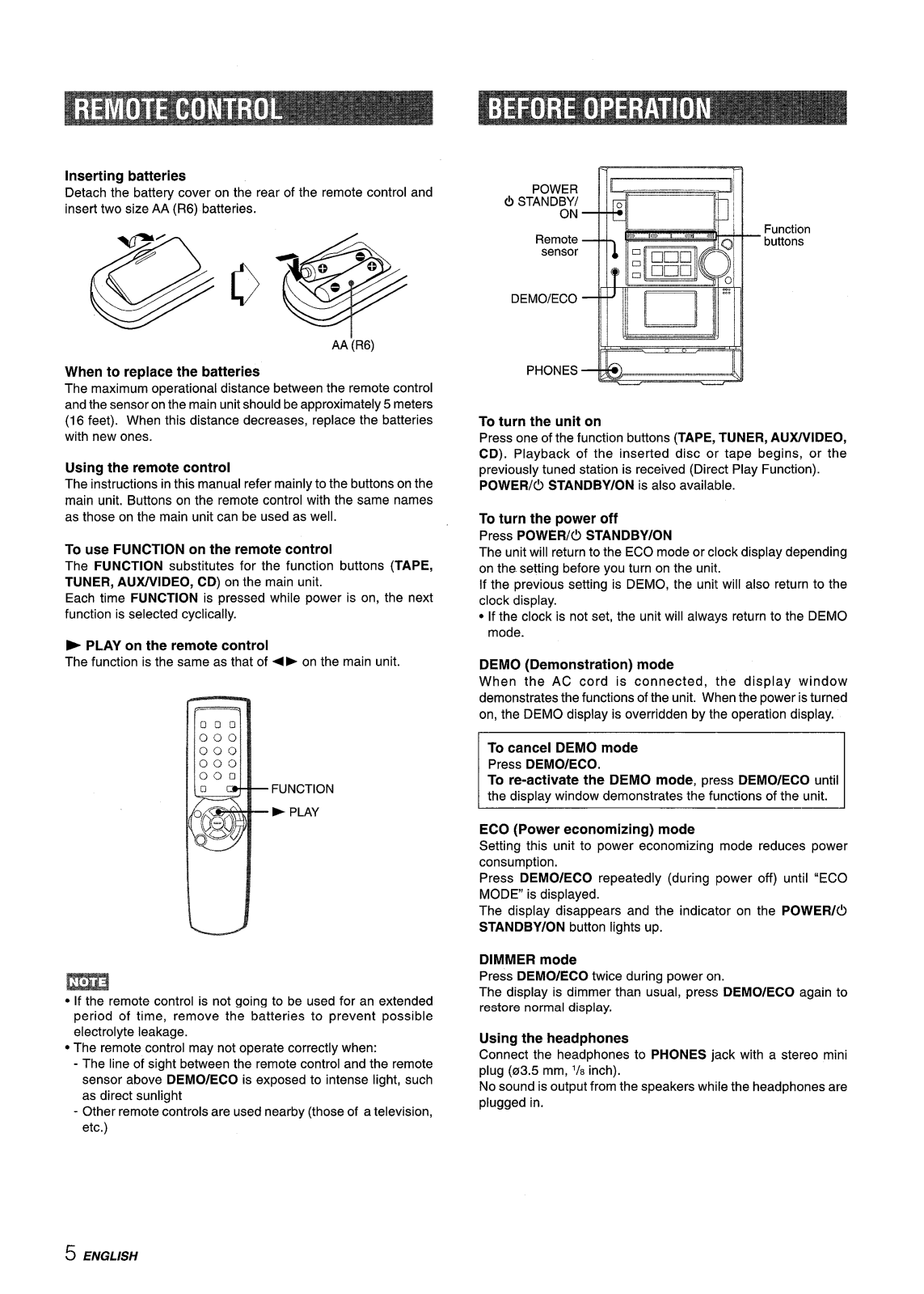

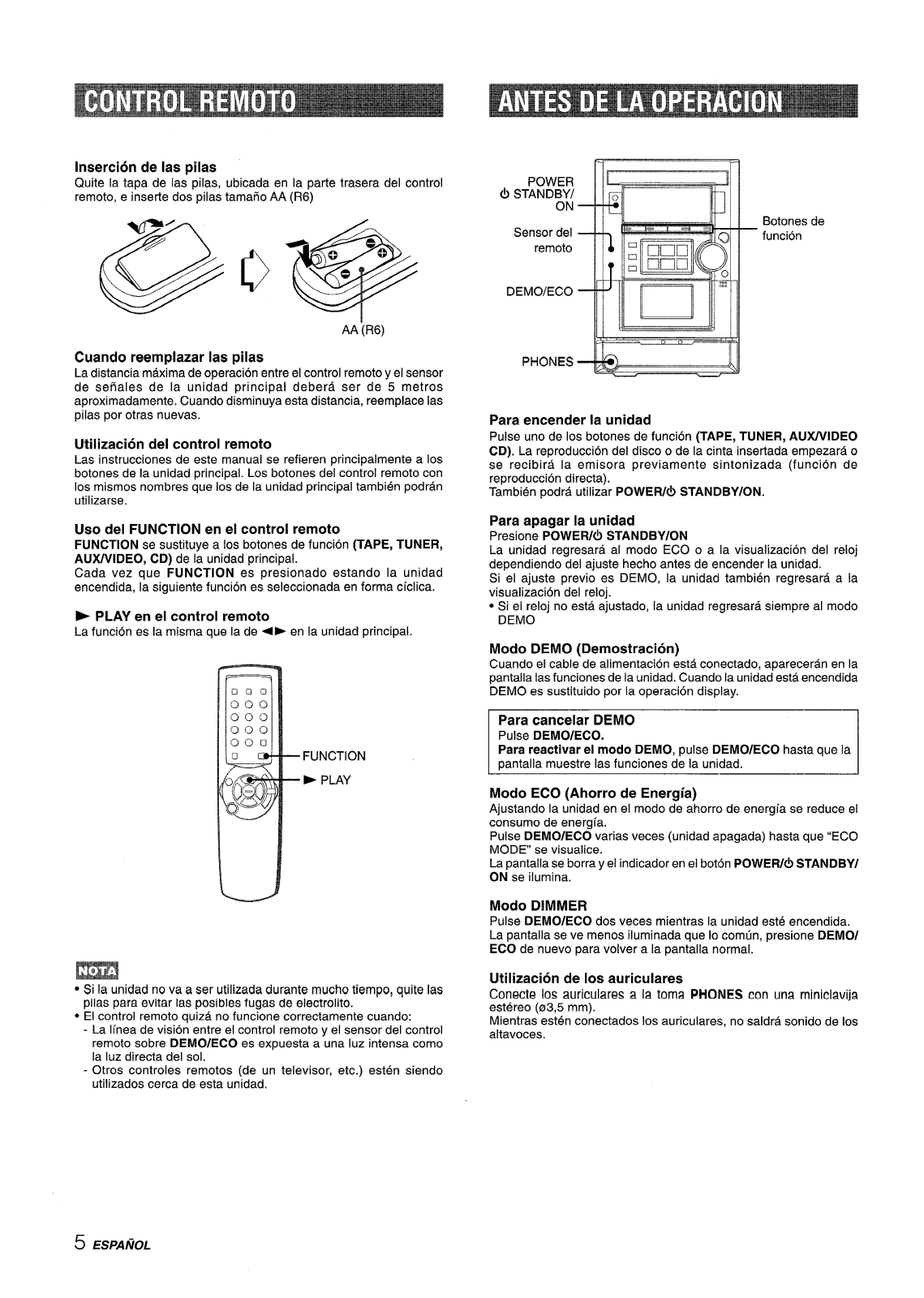

Inserting batteries

Detach the battery cover on the rear of the remote control and insert two size AA (R6) batteries.

AA ‘(R6)

When to replace the batteries

The maximum operational distance between the remote control and the sensor on the main unit should be approximately 5 meters (16 feet). When this distance decreases, replace the batteries with new ones.

Using the remote control

The instructions in this manual refer mainly to the buttons on the main unit. Buttons on the remote control with the same names as those on the main unit can be used as well.

To use FUNCTION on the remote control

The FUNCTION substitutes for the function buttons (TAPE, TUNER, AUWVIDEO, CD) on the main unit.

Each time FUNCTION is pressed while power is on, the next

function is selected cyclically.

* PLAY on the remote control

The function is the same as that of <P on the main unit.

POWER

(!)STANDBY/

Remote

sensor

Function

— buttons

DEMO/ECO

PHONES

‘L

To turn the unit on

Press one of the function buttons (TAPE, TUNER, AU)UVIDEO, CD). Playback of the inserted disc or tape begins, or the previously tuned station is received (Direct Play Function). POWER/O STANDBY/ON is also available.

To turn the power off

Press POWER/O STANDBY/ON

The unit will return to the ECO mode or clock display depending

on the. setting before you turn on the unit. If the previous setting is DEMO, the unit will also return to the

clock display.

● If the clock is not set, the unit will always return to the DEMO

mode.

DEMO (Demonstration) mode

When the AC cord is connected, the display window

demonstrates the functions of the unit. When the power isturned on, the DEMO display is overridden by the operation display.

FUNCTION b PLAY

● If the remote control is not going to be used for an extended

period of time, remove the batteries to prevent possible electrolyte leakage.

● The remote control may not operate correctly when:

- The line of sight between the remote control and the remote sensor above DEMO/ECO is exposed to intense light, such as direct sunlight

- Other remote controls are used nearby (those of a television, etc.)

To cancel DEMO mode Press DEMO/ECO. To re-activate the DEMO mode, press DEMO/ECO until

the display window demonstrates the functions of the unit.

ECO (Power economizing) mode

Setting this unit to power economizing mode reduces power consumption. Press DEMO/ECO repeatedly (during power off) until “ECO MODE is displayed.

The display disappears and the indicator on the POWER/O

STANDBY/ON button lights up.

DIMMER mode

Press DEMO/ECO twice during power on.

The display is dimmer than usual, press DEMO/ECO again to

restore normal display.

Using the headphones Connect the headphones to PHONES jack with a stereo mini plug (03.5 mm,

‘/8 inch).

No sound is output from the speakers while the headphones are plugged in.

5 ENGLISH

~~r=:”--”----”” ““~

-———————v

E(2

— VOL

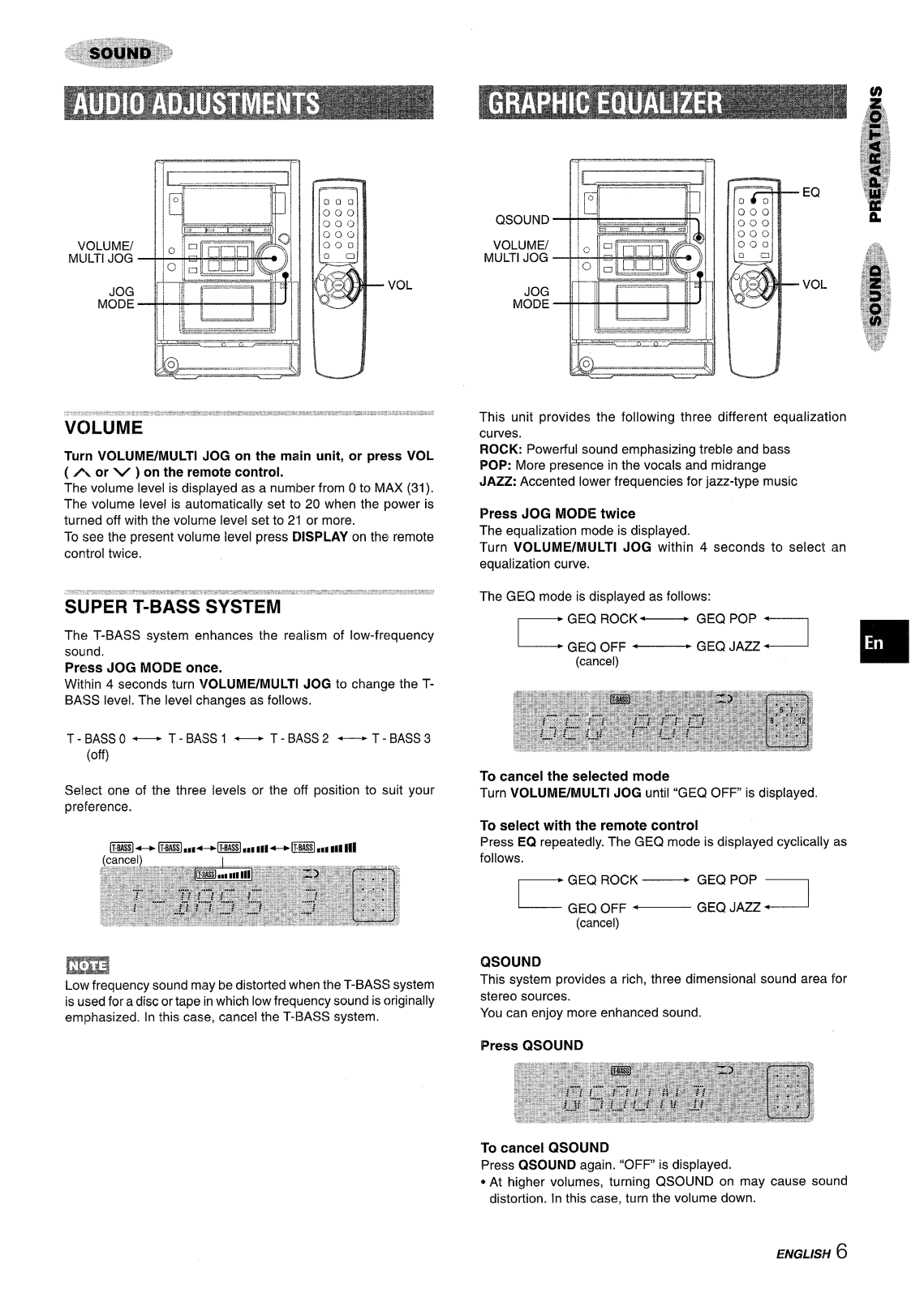

VOLUME

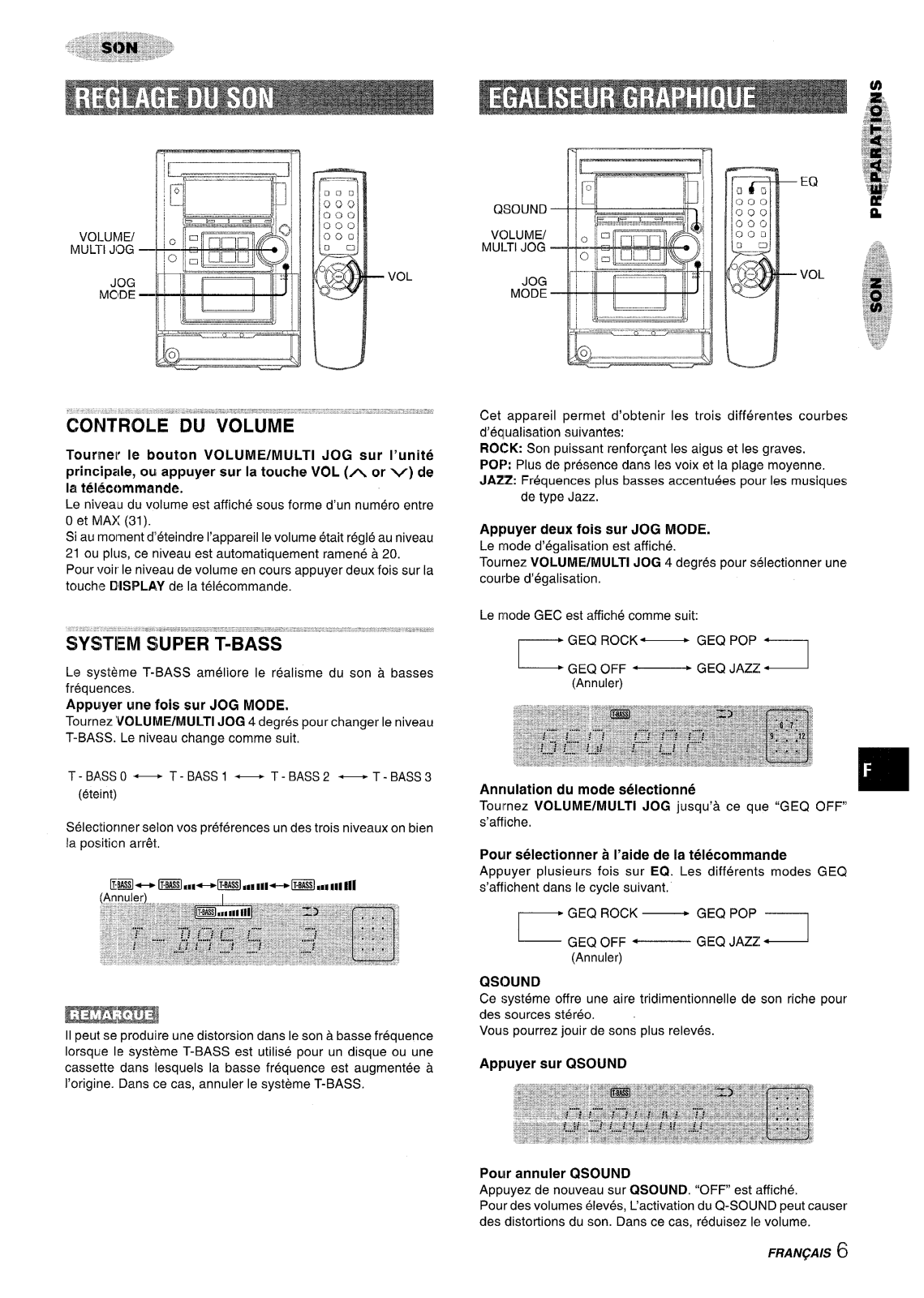

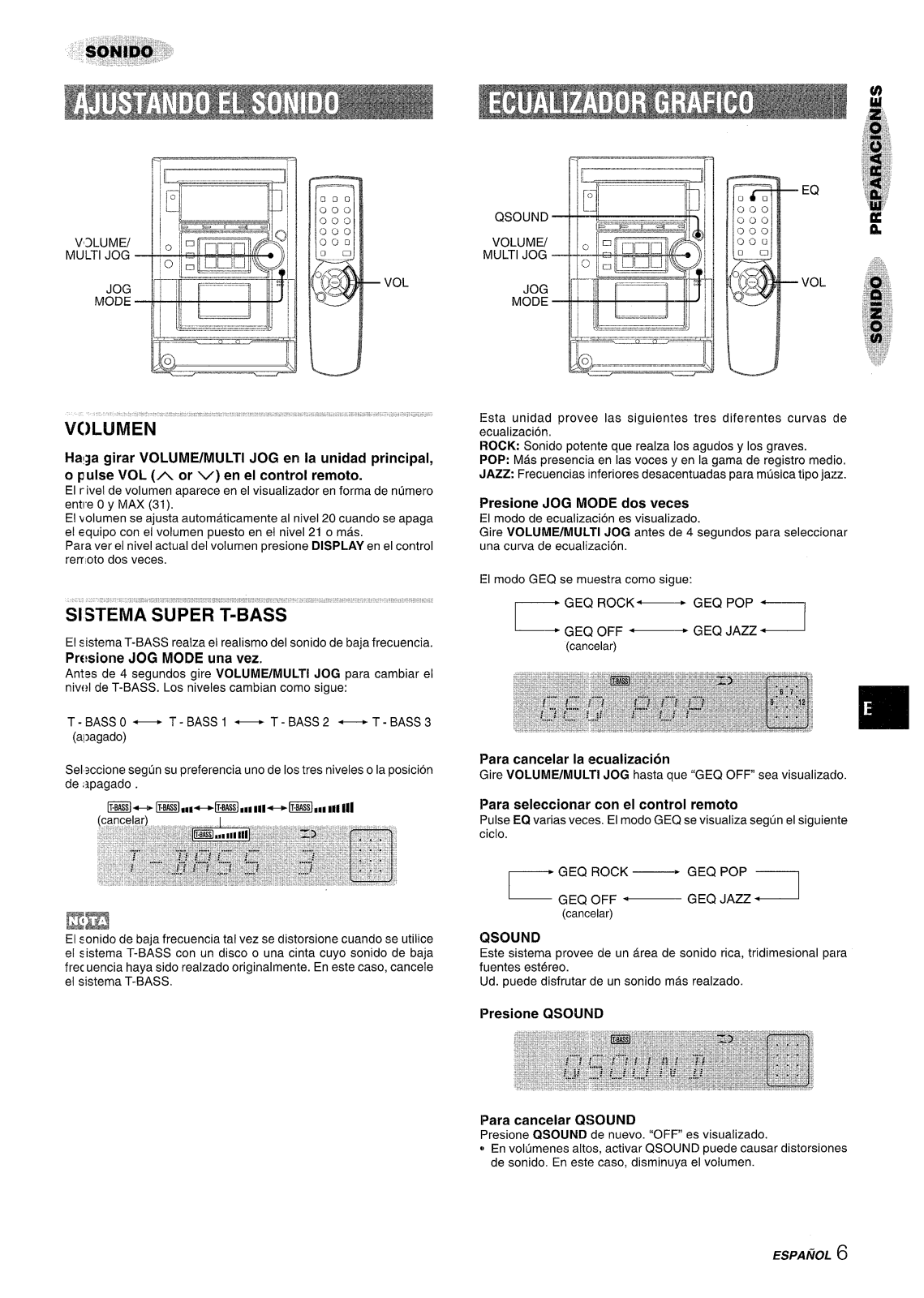

Turn VOLUME/MULTl JOG on the main unit, or press VOL ( A or v ) on the remote control.

The volume level is displayed as a number from Oto MAX (31). The volume level is automatically set tc)20 when the power is turned off with the volume level set to 2“1or more. To see the present volume level press DISPLAY on the remote control twice.

SUPER T-BASS SYSTEM

The T-BASS system enhances the realism of low-frequency

sound.

Press JOG MODE once.

Within 4 seconds turn VOLUME/MULTI JOG to change the T-

BA!3S level. The level changes as follows.

vol.

This unit provides the following three different equalization curves.

ROCK: Powerful sound emphasizing treble and bass

POP: More presence in the vocals and midrange

JAZZ: Accented lower frequencies for jazz-type music

Press JOG MODE twice

The equalization mode is displayed. Turn VOLUME/MULTl JOG within 4 seconds to select

equalization cuwe.

The GEQ mode is displayed as follows:

● GEQ ROCK— GEQ POP ●

k GEQ OFF —

(cancel)

GEQ JAZZ+

i~tl

T-BASSO—

(off)

Select one of the three levels or the c)ff position to suit your preference.

Low frequency sound may be distorted when the T-BASS system is used fora disc or tape inwhich Iowfrequency sound is originally emphasized. In this case, cancel the T-13ASS system.

T - BASSi —T-B14SS2 +--+ T- BASS3

To cancel the selected mode Turn VOLUME/MULTl JOG until “GEQ OFF is displayed.

To select with the remote control

Press EQ repeatedly. The GEQ mode is displayed cyclically as follows.

● GE(2 ROCK — GEQ POP

~ GEQ OFF —

(cancel)

QSOUND This system provides a rich, three dimensional sound area for stereo sources. You can enjoy more enhanced sound.

Press QSOUND

To cancel QSOUND

Press QSOUND again. “OFF” is displayed.

* At higher volumes, turning QSOUND on may cause sound

distortion. In this case, turn the volume down.

GEQ JAZZ ~

ENGLISH6

MODE

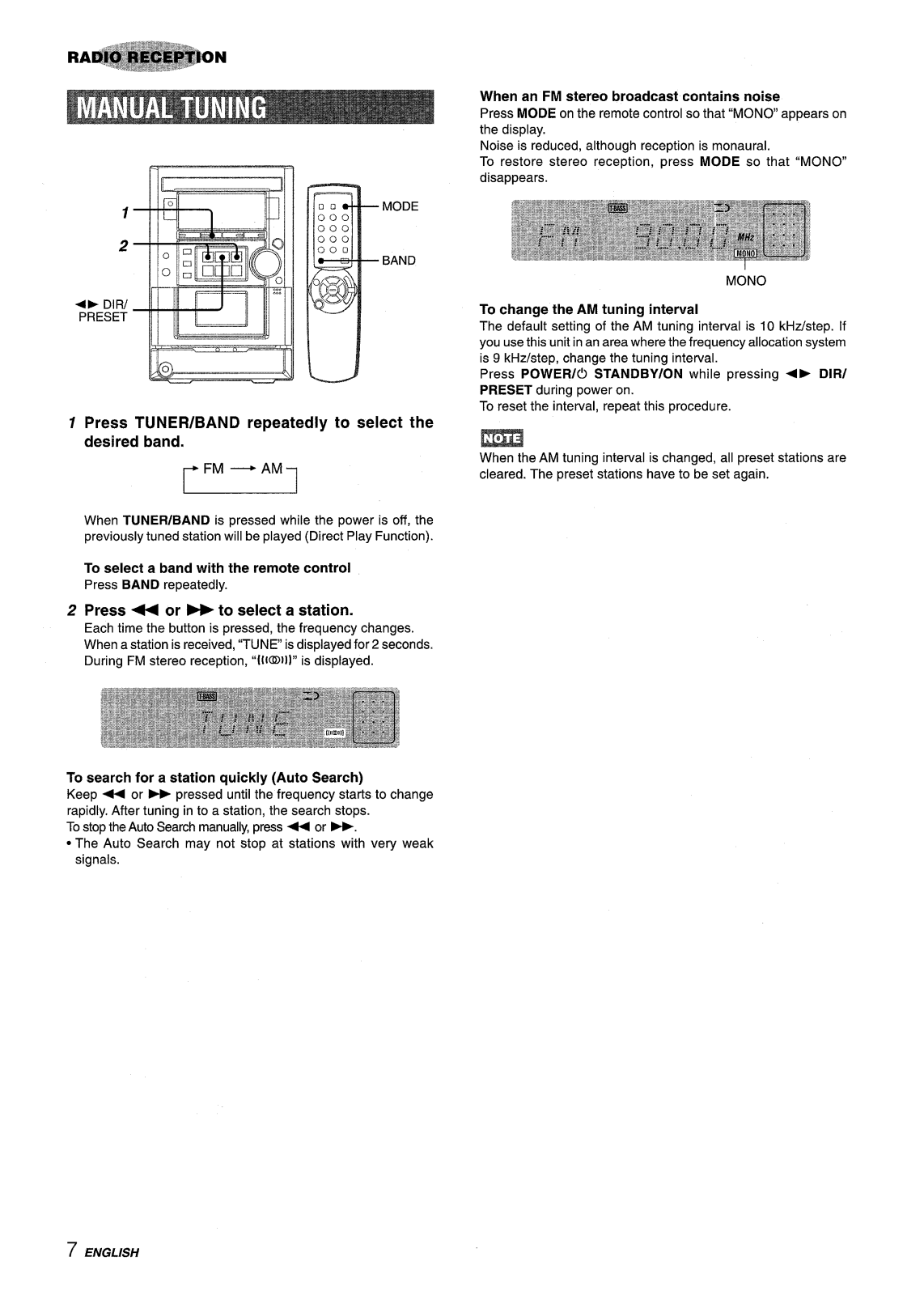

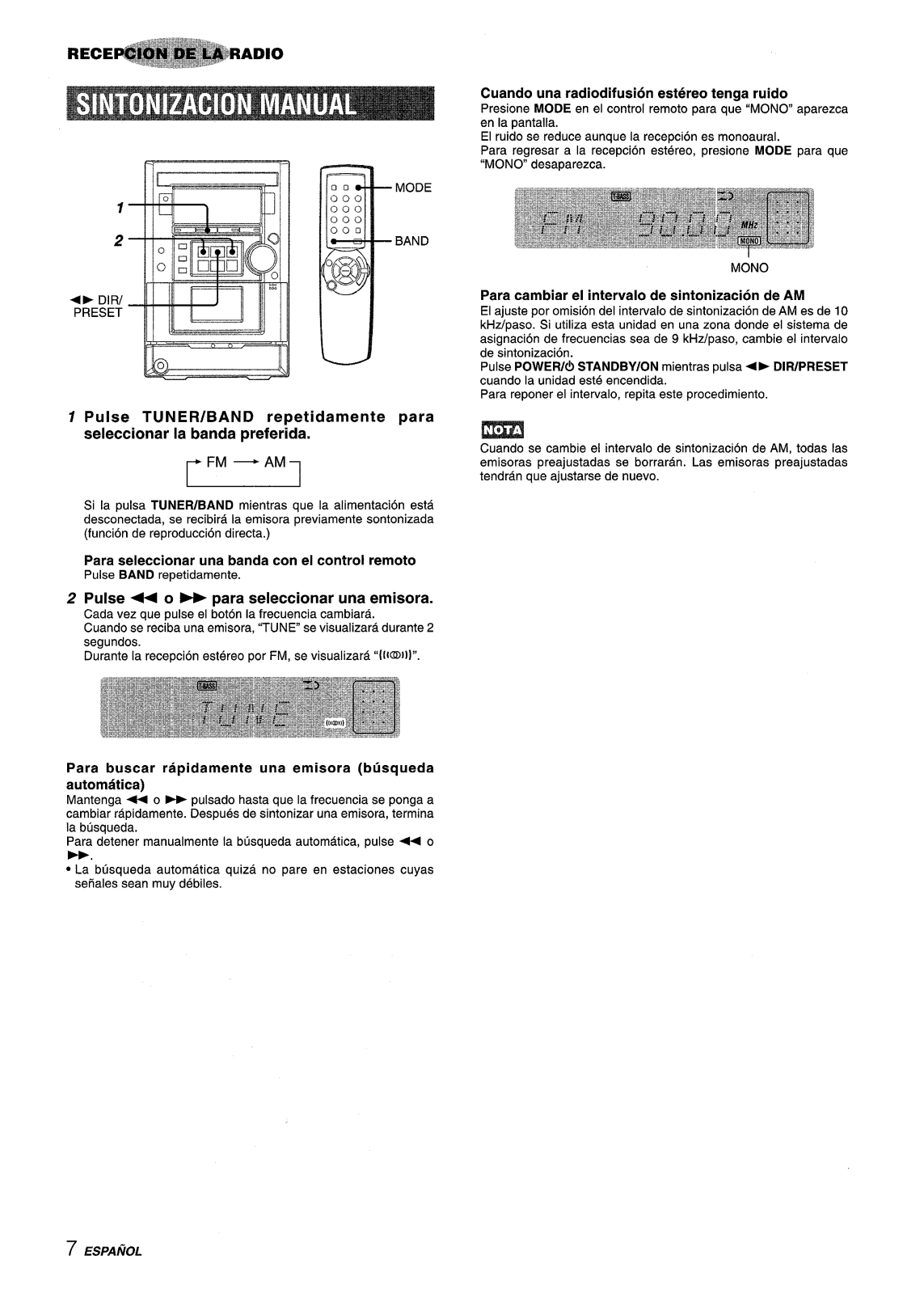

When an FM stereo broadcast contains noise

Press MODE on the remote control so that “MONO appears on the display. Noise is reduced, although reception is monaural. To restore stereo reception, press MODE so that “MONO” disappears.

4P DIR/

PRESET

Press TUNER/BAND repeatedly to select the

BAND

desired band.

When TUNER/BAND is pressed while the power is off, the previously tuned station will be played (Direct Play Function).

To select a band with the remote control

Press BAND repeatedly.

Press + Each time the button is pressed, the frequency changes. When a station is received, “TUNE is displayed for 2 seconds. During FM stereo reception, “[lI@Jl]” is displayed.

or B to select a station.

MONO

To change the AM tuning interval

The default setting of the AM tuning interval is 10 kHz/step. If you use this unit in an area where the frequency allocation system

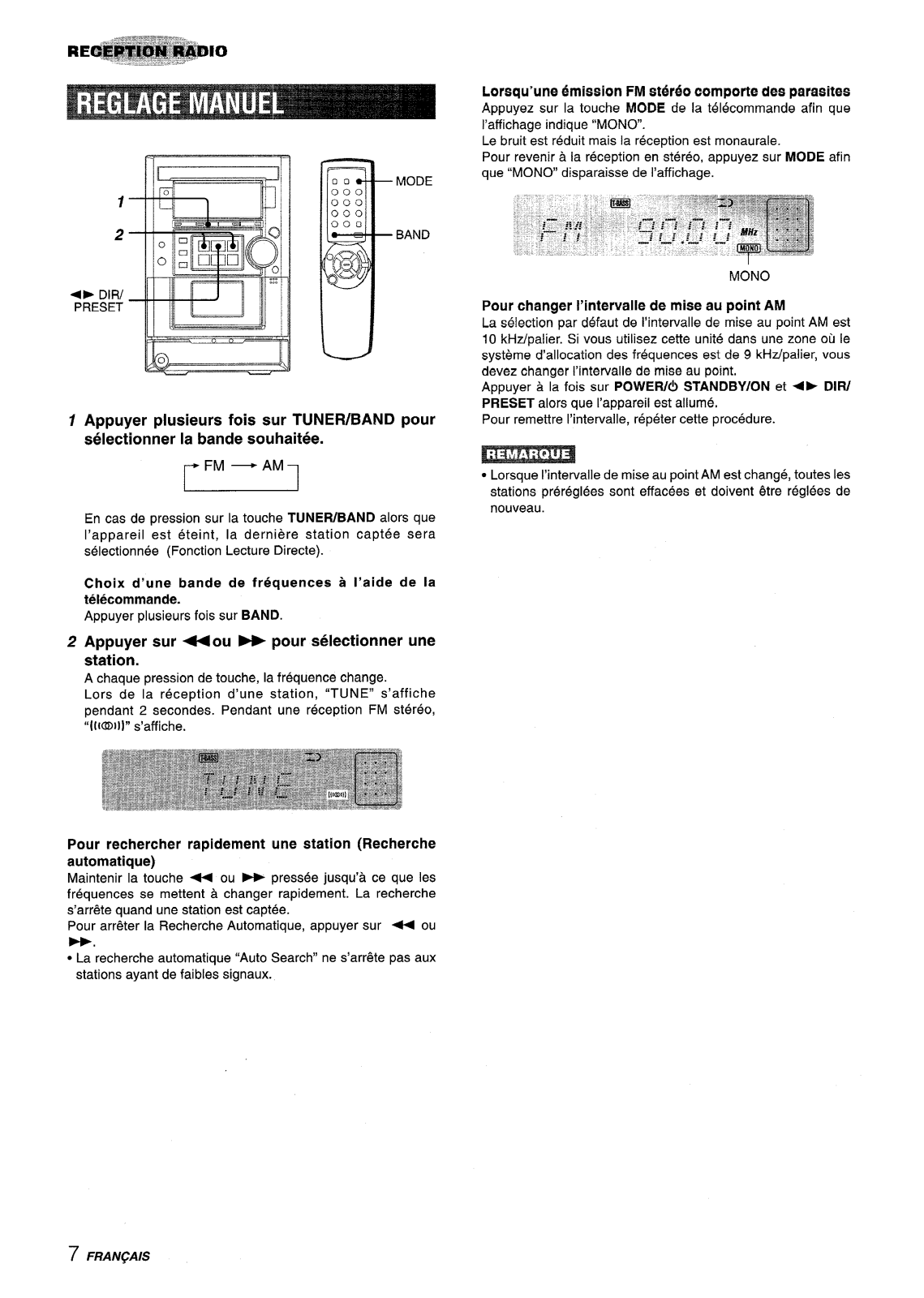

is 9 kHz/step, change the tuning interval. Press POWER/O STANDBY/ON while pressing +> DIR/ PRESET during power on.

To reset the interval, repeat this procedure.

When the AM tuning interval is changed, all preset stations are cleared. The preset stations have to be set again.

To search for a station quickly (Auto Search)

Keep + or > pressed until the frequency starts to change

rapidly. After tuning in to a station, the search stops.

To stop the Auto Search manually, press + or -.

● The Auto Search may not stop at stations with very weak

signals.

7 ENGLISH

I l“—————— I

+- DIR/

PRESET

0-9,+1o

BAND

❑

r~g ~

&:-----------

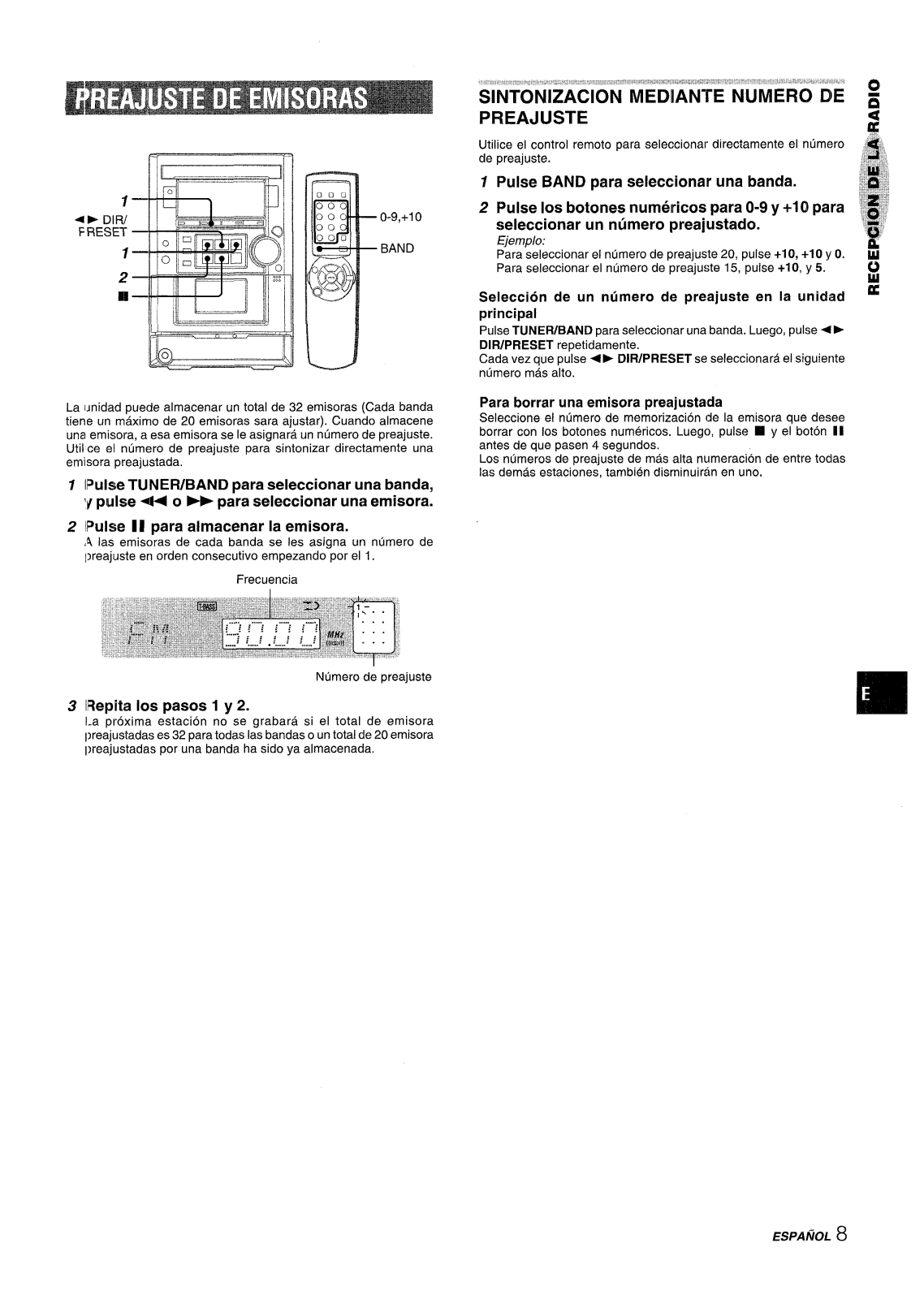

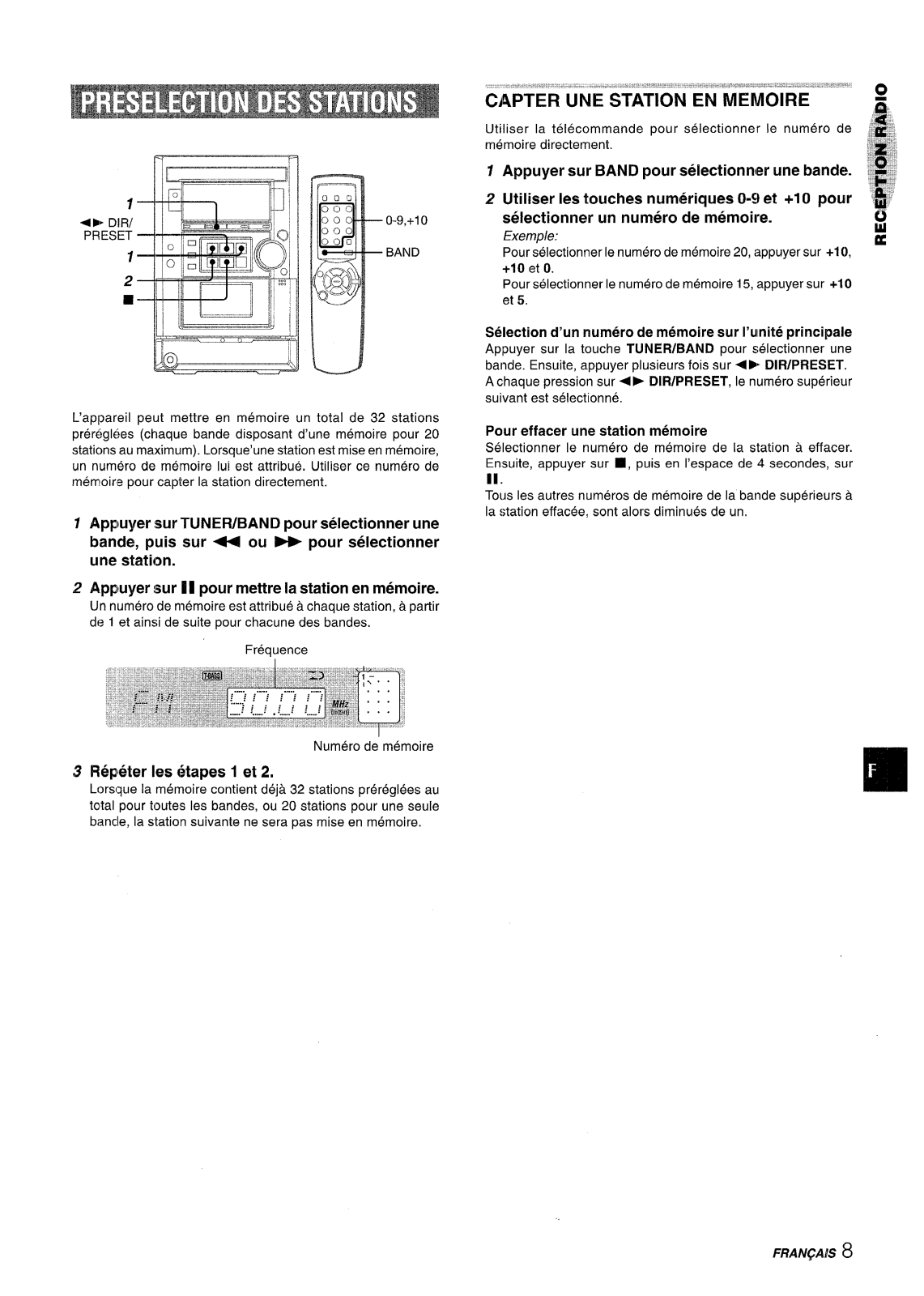

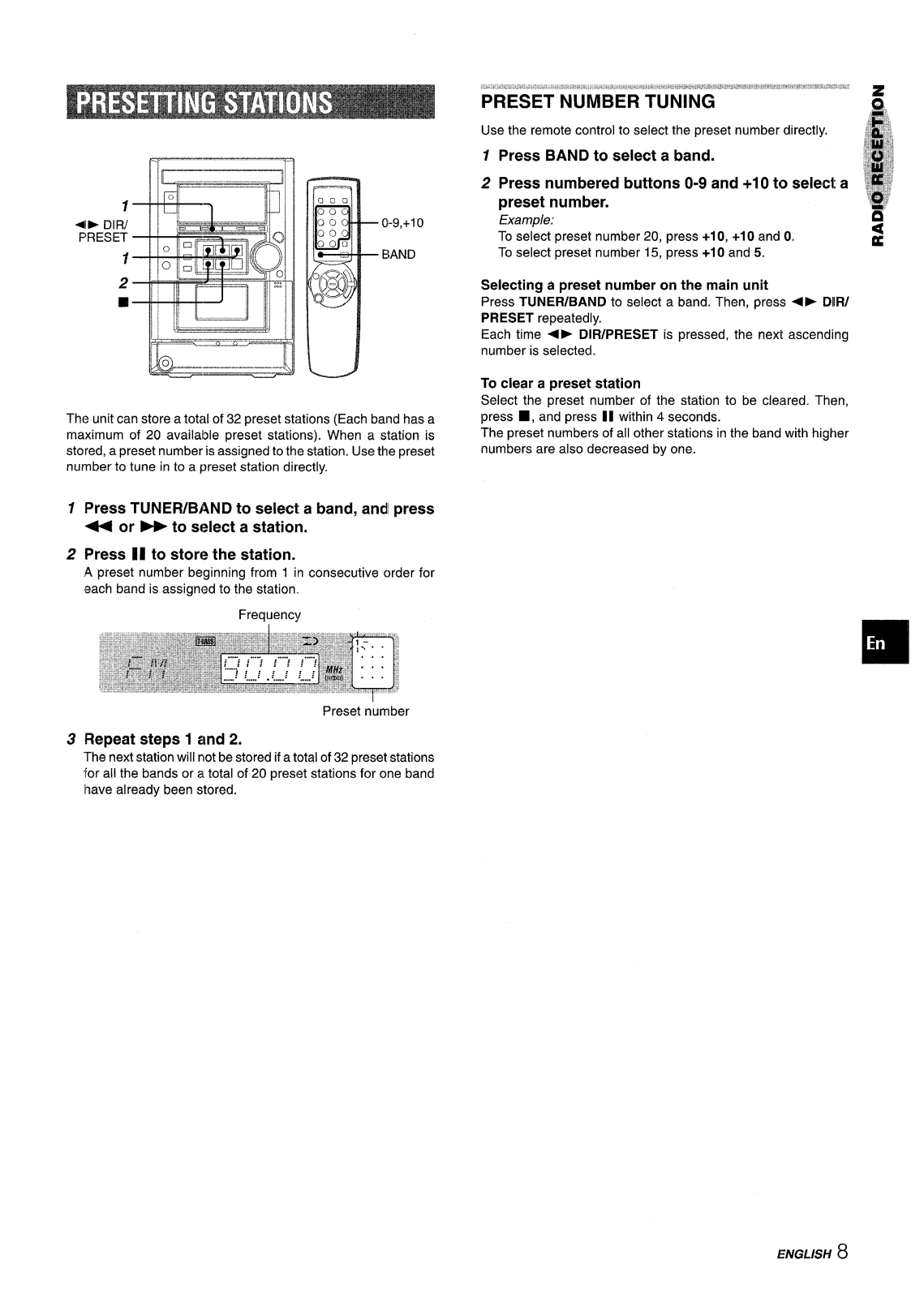

The unit can store a total of 32 preset stations (Each band has a maximum of 20 available preset stations). When a station is stored, a preset number is assigned to the station. Use the preset number to tune in to a preset station directly.

Press TUNER/BAND to select a band, and press 44 or B to select a station.

Press II to store the station.

A preset number beginning from 1 in consecutive order for each band is assigned to the

StatiOtI

Use the remote control to select the preset number directly.

1 Press BAND to select a band.

2 Press numbered buttons O-9 and +1 Oto select a

preset number.

Example:

To select preset number 20, press +10, +10 and O. To select preset number 15, press +10 and 5.

Selecting a preset number on the main unit

Press TUNER/BAND to select a band. Then, press ~> DllR/ PRESET repeatedly. Each time <F DIR/PRESET is pressed, the next ascending number is selected.

To clear a preset station

Select the preset number of the station to be cleared. Then, press g, and press II within 4 seconds.

The preset numbers of all other stations in the band with higher

numbers are also decreased by one.

Frequency

Preset number

Repeat steps 1 and 2.

“Thenext station will not be stored if a total of 32 preset stations for all the bands oral total of 20 preset stations for one band

have already been stored.

ENGLISH 8

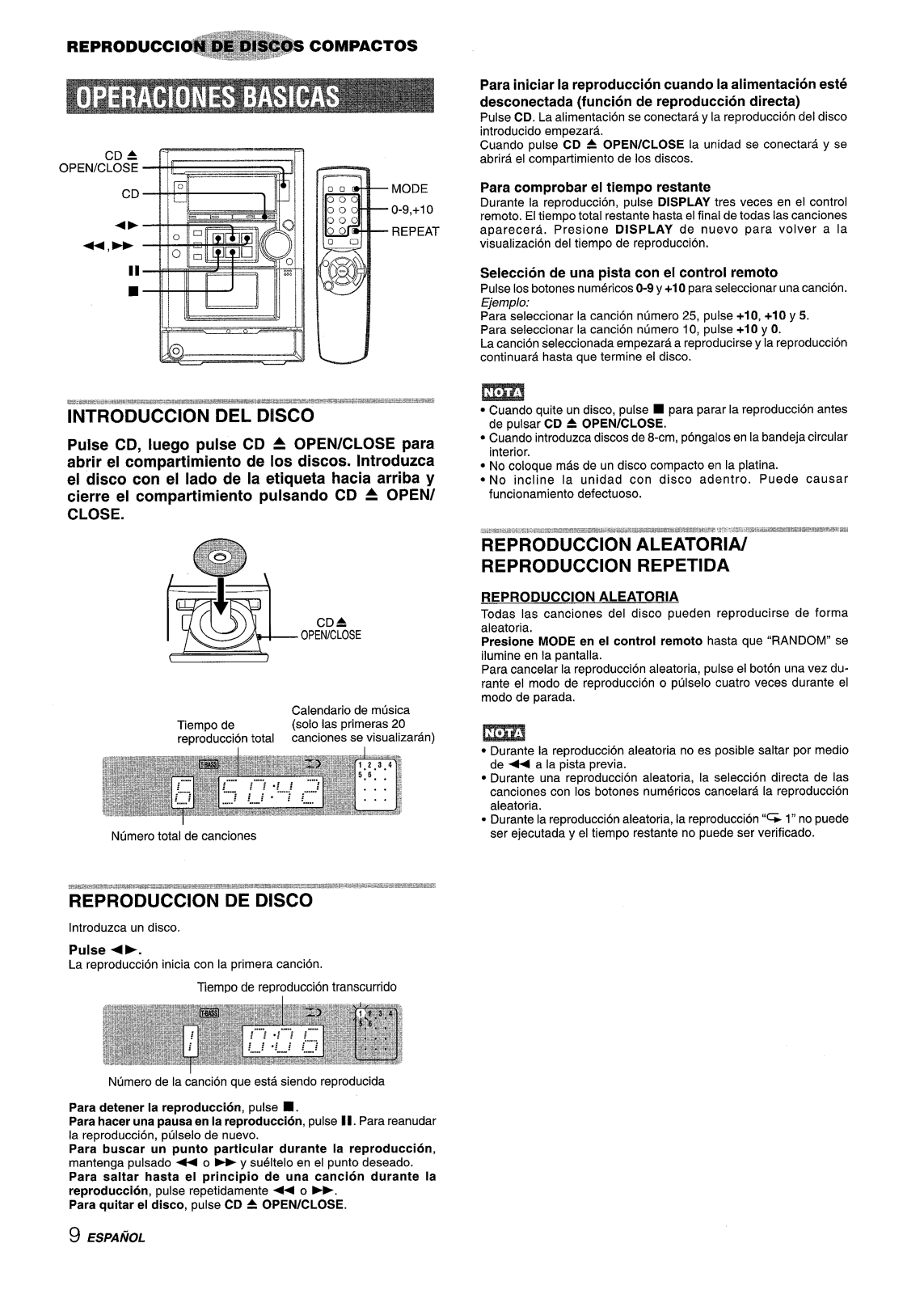

CD =

OPEN/CLOSE

+,P-P-

❑

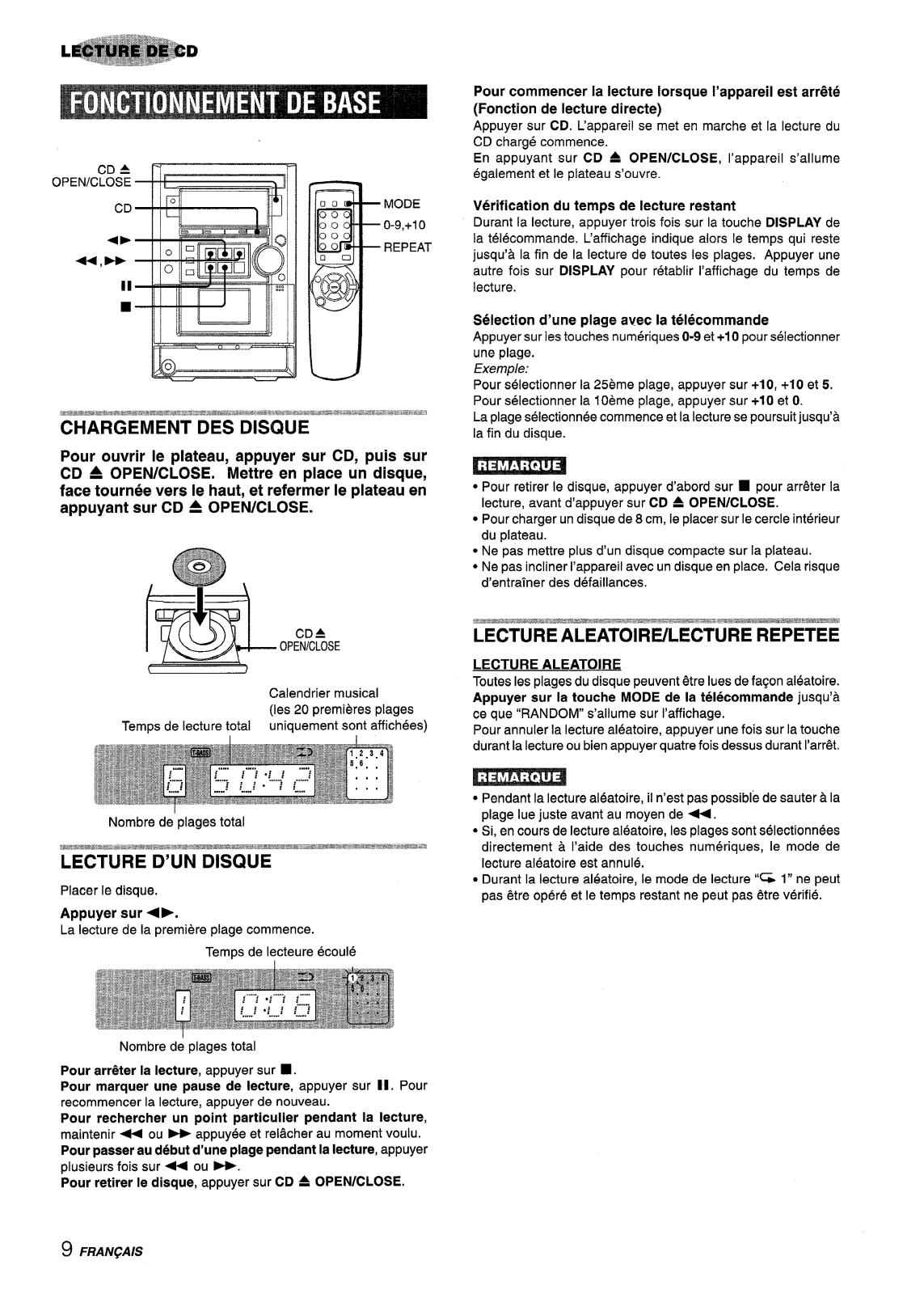

Press CD, then press CD 4 OPEN/CLOSE to open the disc compartment. Load a disc with the label side up. Close the disc compartment by pressing

CD = opEN/CLOSE.

MODE 0-9,+10 REPEAT

To start play when the power is off (Direct Play Function)

Press CD. The power is turned on and play of the loaded disc begins. When CD = OPEN/CLOSE is pressed, the power is also turned on and the disc compartment is opened.

To check the remaining time

During play, press DISPLAY thrice on the remote control. The amount of time remaining until all tracks finish playing is displayed. Press DISPLAY again to restore the playing time

display.

Selecting a track with the remote control

Press numbered buttons O-9 and +1Oto select a track.

Example:

To select the 25th track, press +1O,+1O and 5. To select the 10th track, press +1Oand O. The selected track starts to play and continues to the end of that disc.

● When removing the disc, press ■ to stop play before pressing

CD = OPEN/CLOSE.

● When loading an 8-cm (3-inch) disc, put it onto the inner circle

of the tray.

● Do not place more than one compact disc on the disc tray.

● Do not tilt the unit with disc loaded. Doing so may cause

malfunctions.

I . \

J!IQ!L

Total playing time

Total number of tracks

Load a disc.

Press +-.

Play begins with the first track.

Elapsed playing time

CD&

OPEN/CLOSE

Music calender (only the first 20 tracks a;e displayed)

amS#!mwas&#$#=##!P-mP=w*=..n.=-m.....

~’‘-’-- ~mPaw=.lmw-mamw~wmbsmxswamwa

RANDOM/REPEAT PLAY

RANDOM dav

All the tracks on the disc can be played randomly.

Press MODE on the remote control until “RANDOM lights up

on the display. To cancel random, press the button once during play mode or

press the button four times during stop mode.

● During random play, it is not possible to skip to the previously

played track with U.

● During random play, direct selection of the tracks with the

numbered buttons will cancel random play.

● During random play, “G1” play cannot be performed and

remaining time cannot be checked.

Number of track being played

To stop play, press To pause play, press II. To resume play, press again. To search for a particular point during playback, keep + or - pressed and release it at the desired point. To skip to the beginning of a track during playback, press

++ or -repeatedly.

To remove disc, press CD & OPEN/CLOSE.

■ .

9 ENGLISH

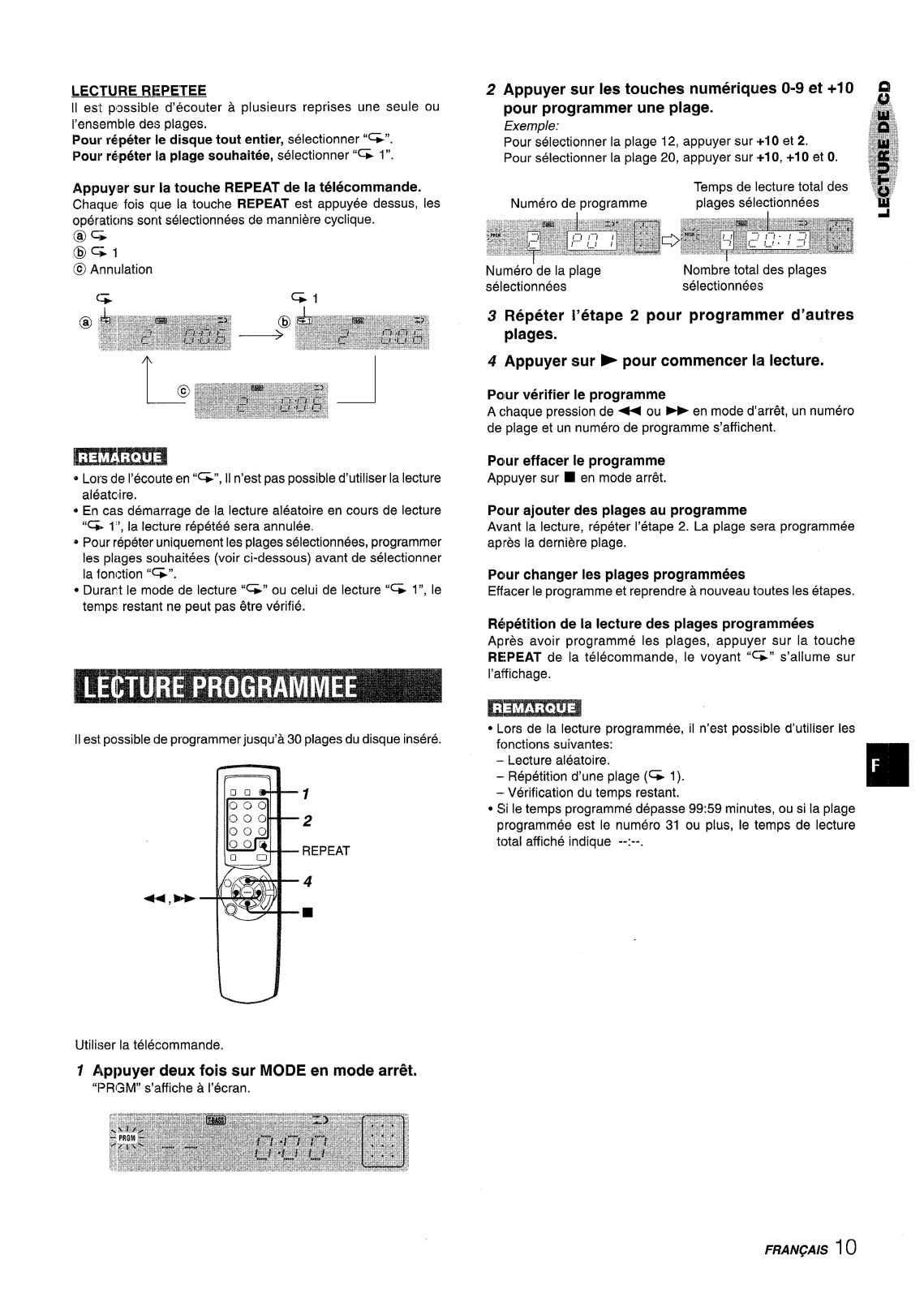

REPEAT play One or all the tracks can be played repeatedly. To repeat the entire disc, turn on “~”.

To repeat the desired track, turn on “- 1”.

Press REPEAT on the remote control. Each time REPEAT is pressed, the operations can be selected

cyclically. @=

(@)Gl @l Cancel

2 Press numbered buttons O-9 and +10 to program

a track.

Example:

To select the 12th track, press +1Oand 2. To select the 20th track, press +10, +10 and O.

Total playing time of

Program number

Selected track number

the selected tracks

Totai number of

selected tracks

3 Repeat step 2 to program other tracks.

4 Press E to start play.

To check the program Each time + or - is pressed in stop mode, a track number and program number will be displayed.

?s.

● During “%” play, random play can be performed.

● M/hen you start random play during”% 1” play, the repeat play

will be canceled.

* To repeat only selected tracks, program the desired tracks (see

below) before choosing “=” function.

● During “G” play or “~ 1“ play, remaining time cannot be

checked.

Up to 30 tracks can be programmed from the inserted disc.

-1

-2

- REPEAT

-4

44, -,

-m

To clear the program

■ in stop mode.

Press

To add tracks to the program

Before playing, repeat step 2. The track will be programmed after the last track.

To change the programmed tracks Clear the program and repeat all the steps again.

To play the programmed tracks repeatedly After programming the tracks, press REPEAT on the remc)te control, “=” lights up on the display.

e During programmed play, the following operations cannot be

performed:

- Random play.

- One-track repeat (= 1).

- Checking the remaining time.

o If programmed time is more than 99:59 minutes, or the disc

track number 31 and above is programmed, total playing time

is shown as --:-- in the display.

Use the remote control.

7 Press MODE twice in stop mode.

“PRGM” flashes on the display.

ENGLISH II O

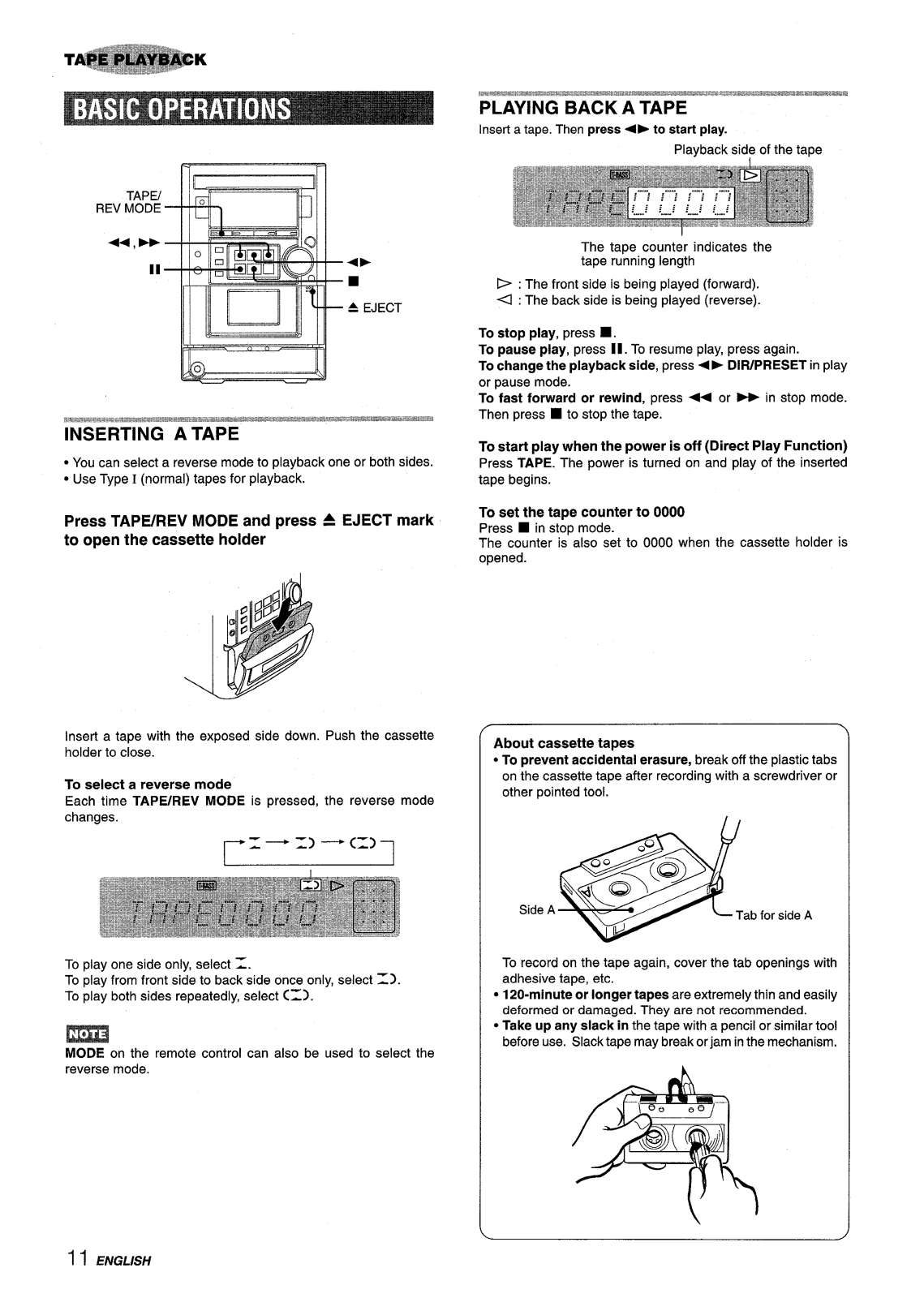

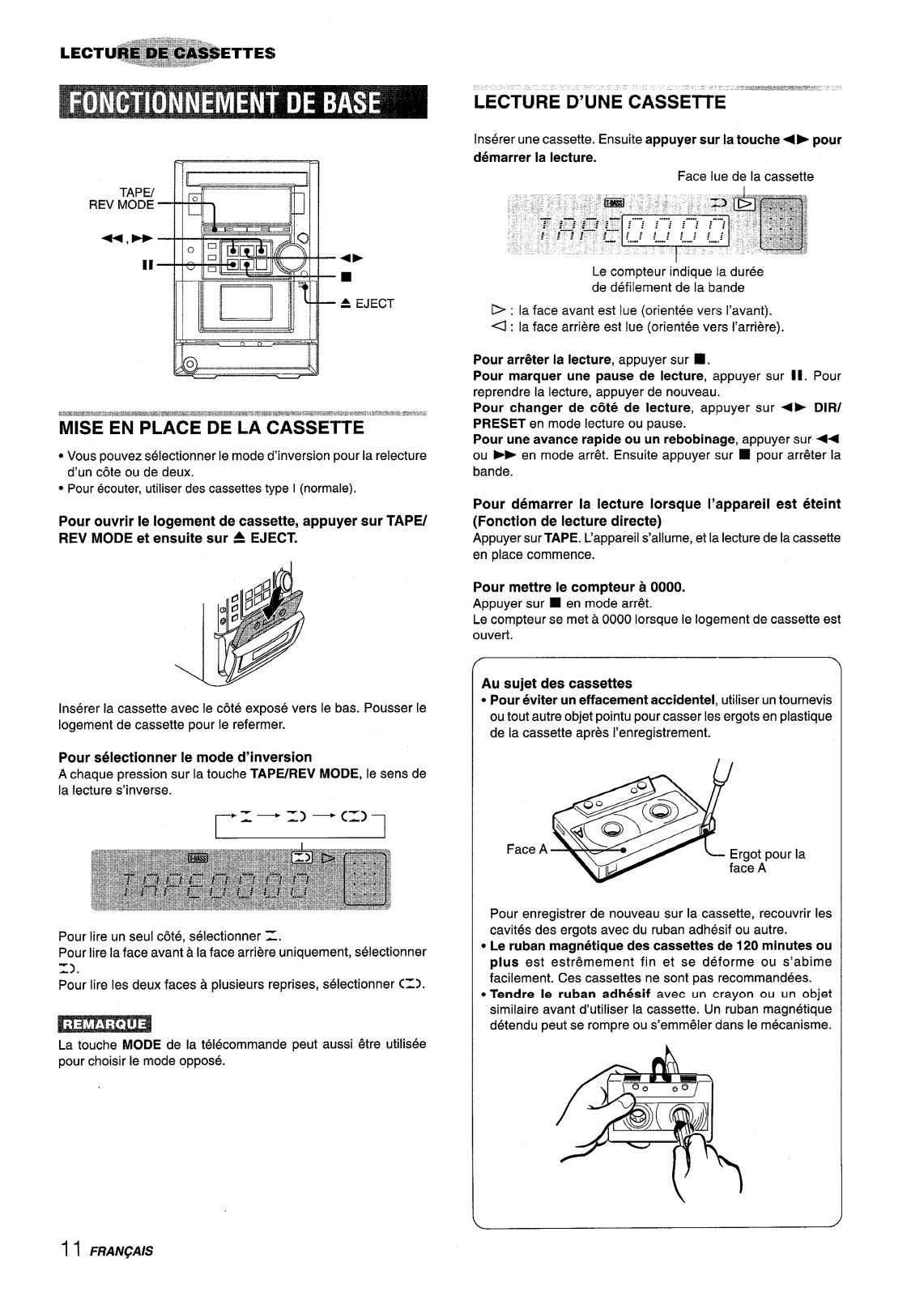

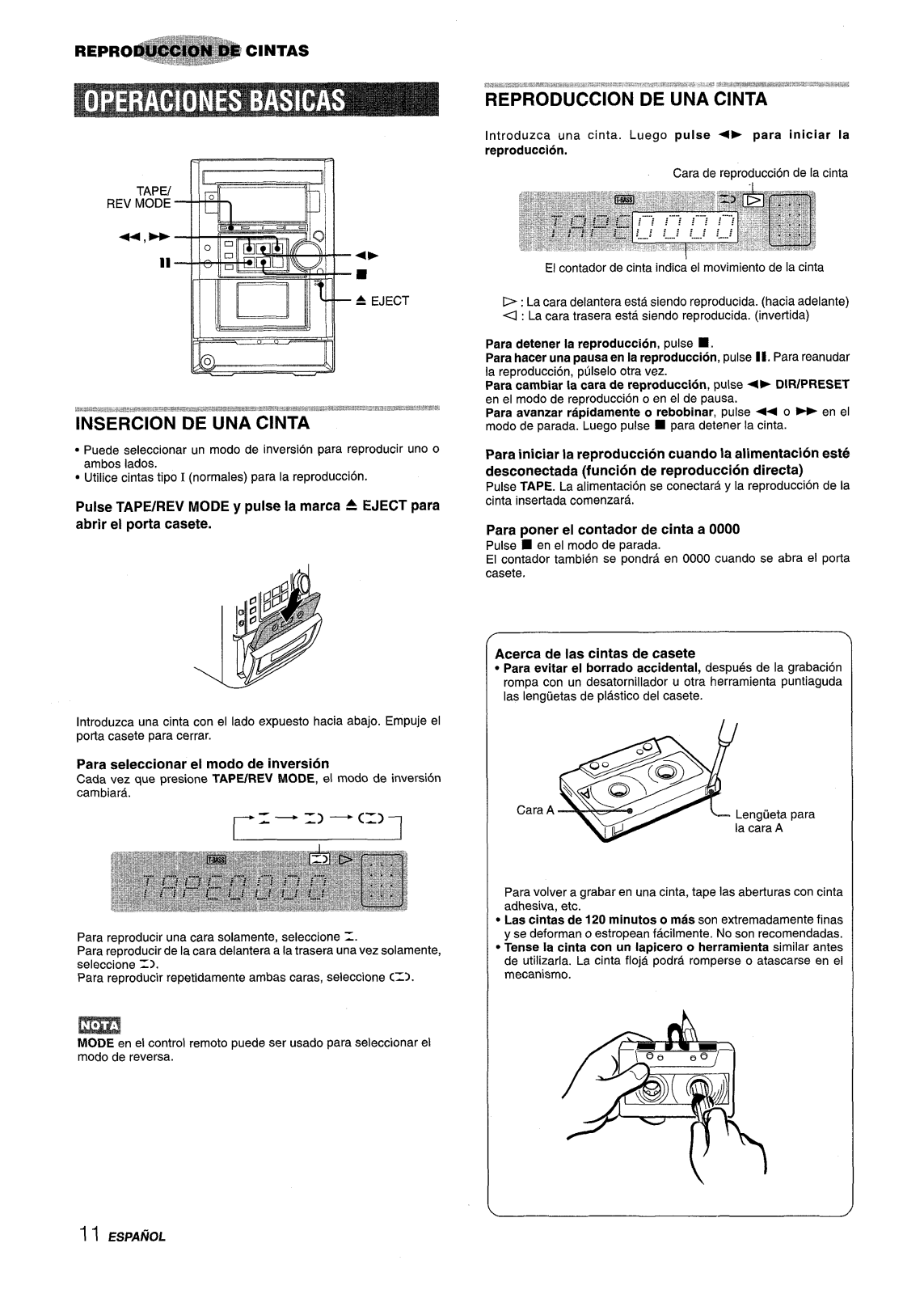

TAPEI

REV MODE

Insert a tape. Then press+- to start play.

Playback side of the tape

+,-

INSERTING A TAPE

● You can select a reverse mode to playback one or both sides.

● Use Type I (normal) tapes for playback.

EJECT mark

Press TAP13REV MODE and press

to open the cassette holder

The tape counter indicates the tape running length

D : The front side is being played (forward).

<: The back side is being played (reverse).

To stop play, press

■ .

To pause play, press II. To resume play, press again. To change the playback side, press+> DIR/PRESET in play or pause mode. To fast forward or rewind, press U or * in stop mode.

Then press W to stop the tape.

To start play when the power is off (Direct Play Function) Press TAPE. The power is turned on and play of the inserted tape begins.

To set the tape counter to 0000

■ in stop mode.

Press The counter is also set to 0000 when the cassette holder is opened.

Insert a tape with the exposed side down.

Push the cassette

holder to close.

To select a reverse mode

Each time TAPE/REV MODE is pressed,

the reverse mode

changes.

-—=) —(-)

To play one side only, select =. To play from front side to back side once only, select =). To play both sides repeatedly, select C=).

m MODE on the remote control can also be used to select the reverse mode.

About cassette tapes

● To prevent accidental erasure, break off the plastic tabs

on the cassette tape after recording with a screwdriver or other pointed tool.

, ~:Q<l@

Side A

IL-J

Tab for side A

To record on the tape again, cover the tab openings with adhesive tape, etc.

● 120-minute or longer tapes are extremely thin and easily

deformed or damaged. They are not recommended.

● Take up any slack in the tape with a pencil or similar tool

before use. Slack tape may break or jam inthe mechanism.

1 I ENGL/SH

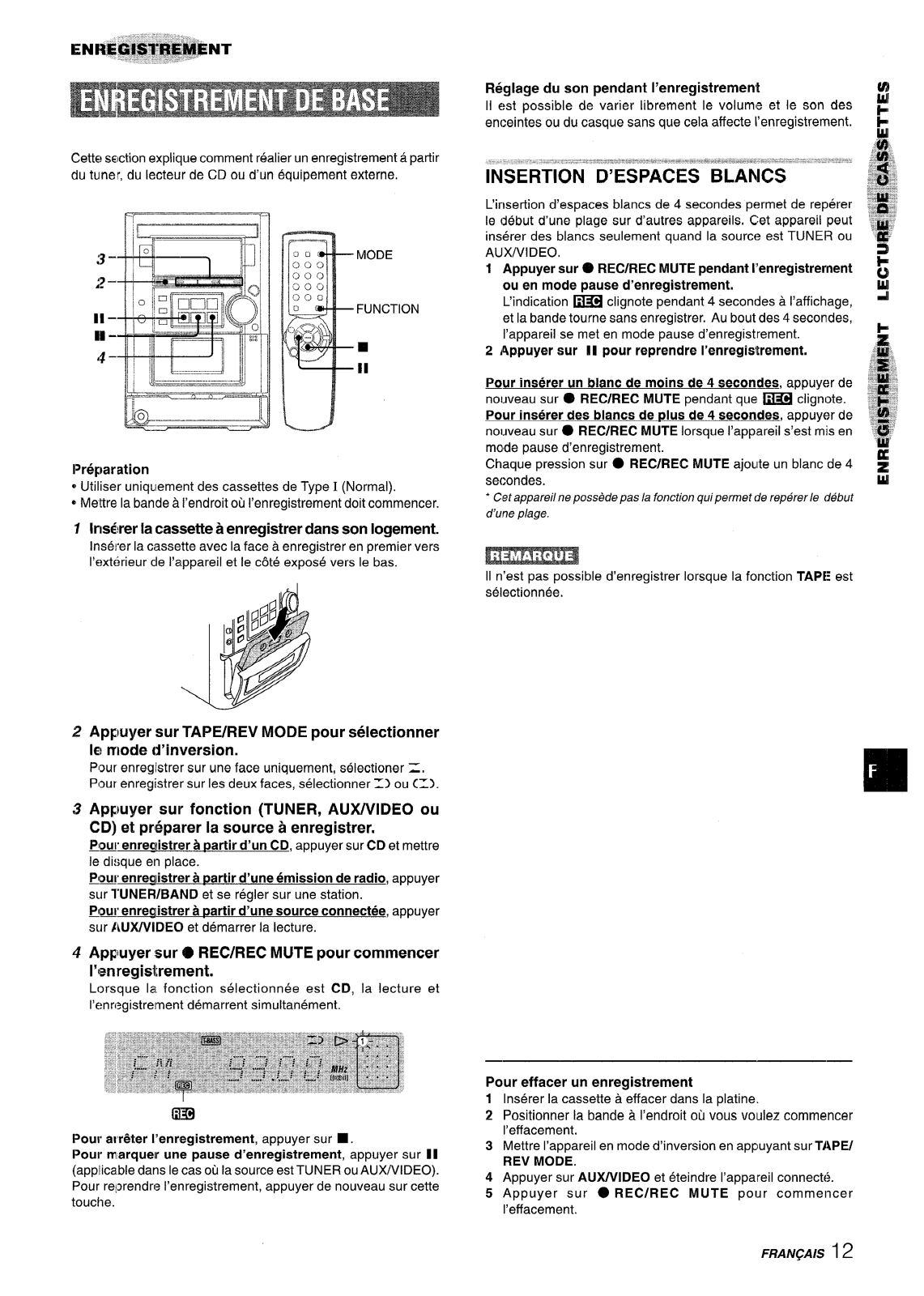

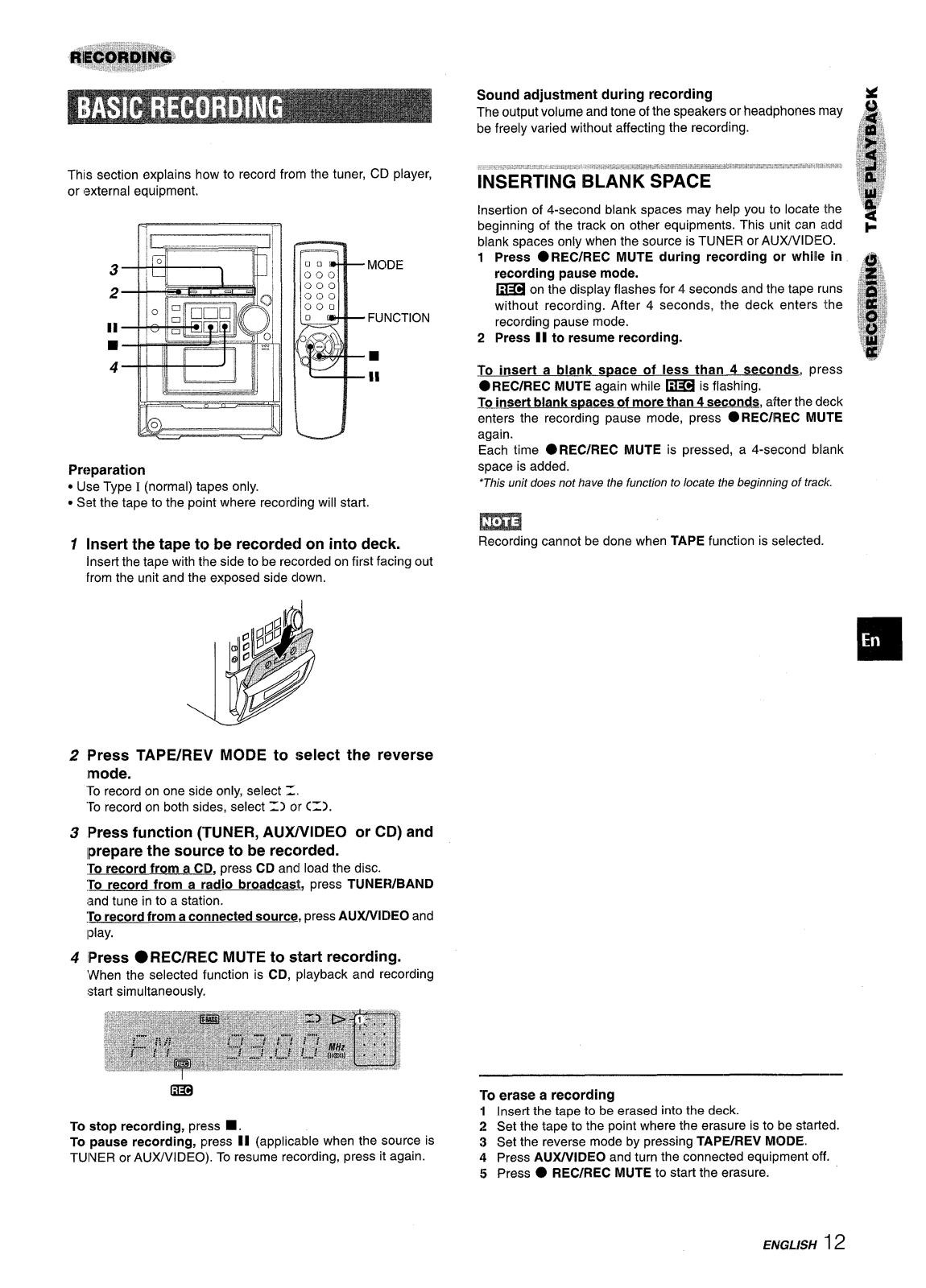

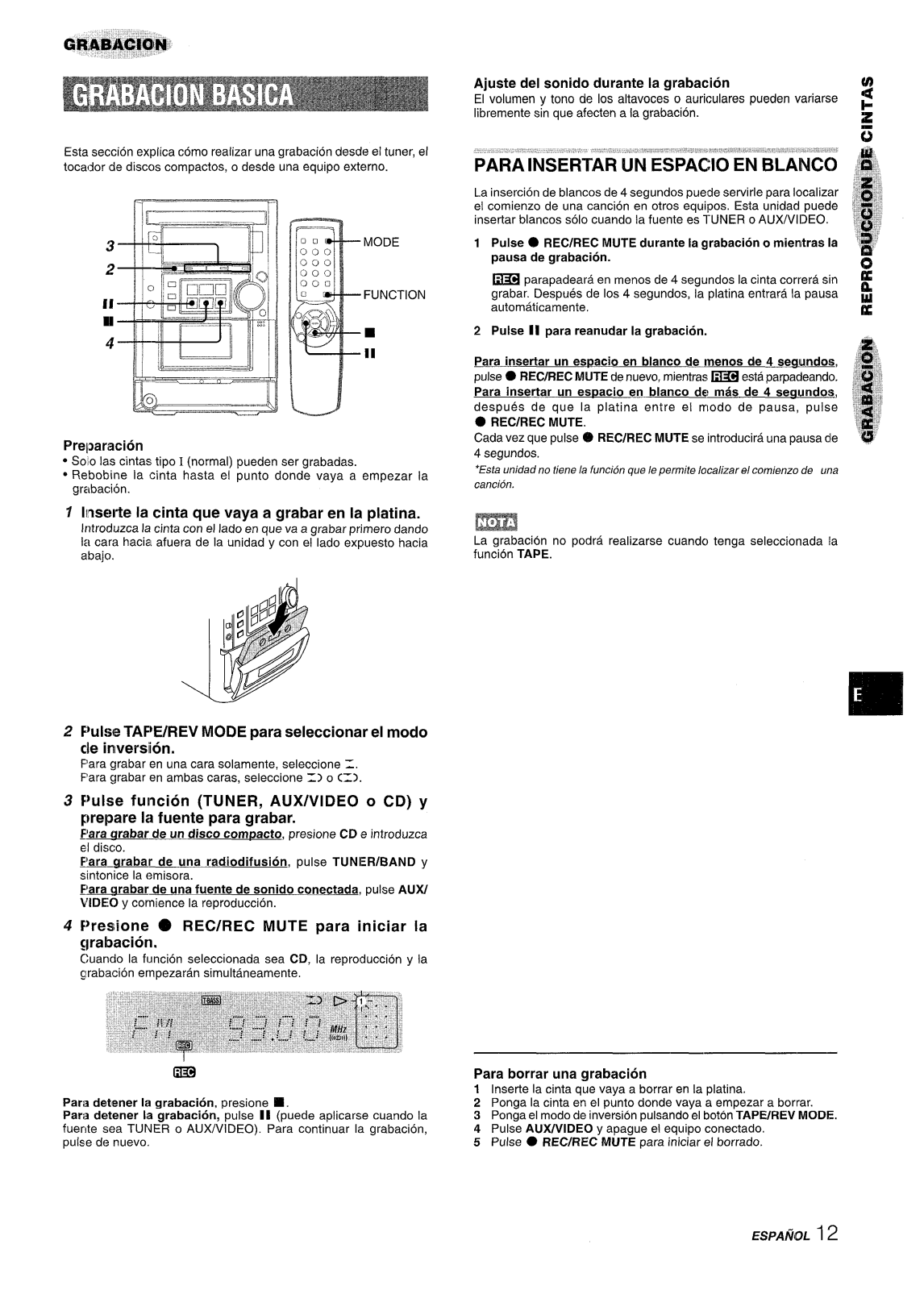

This section explains how to record from the tuner, CD player, or ,external equipment.

MODE

FUNCTION

■

Preparation

● Use Type I (normal) tapes only.

● Set the tape to the point where recording will start.

Insert the tape to be recorded on into deck.

Insert the tape with the side to be recorded on first facing out from the unit and the exposed side down.

Sound adjustment during recording

The output volume and tone of the speakers or headphones may be freely varied without affecting the recording.

Insertion of 4-second blank spaces may help you to locate Ithe beginning of the track on other equipments. This unit can add

blank spaces only when the source is TUNER or AUX/VIDEO.

1 Press ● REC/REC MUTE during recording or while in

recording pause mode.

~ on the display flashes for 4 seconds and the tape runs

without recording. After 4 seconds, the deck enters the recording pause mode,

2 Press II to resume recording.

To insert a blank soace of less than 4 seconds, press

● REC/REC MUTE again while ~ is flashing.

To insert blank s~aces of more than 4 seconds, alter the deck

enters the recording pause mode, press again. Each time OREC/REC MUTE is pressed, a 4-second blank space is added.

‘This unit does not have the function to locate the beginning of track.

● REC/iREC MUTE

Recording cannot be done when TAPE function is selected.

,;g’;

;g;$,

Press TAPE/RE’V MODE to select the reverse

mode.

‘Torecord on one side only, select Z ‘Torecord on both sides, select =] or C=).

Press function (TUNER, AUXAflDEO or CD) and

Iprepare the source to be recorded.

To record from a CID, press CD andl load the disc. To record from a radio broadcasl, press TUNEWBAND {andtune in to a station.

?o record from a connected source, press AUXAflDEO and Iplay.

Press

When the selected function is CD, playback and recording start simultaneously.

● REC/REC MUTE to start recording.

To stop recording, press ■ . To pause recording, press II (applicable when the source is

TUINER or ALDVVIDEO). To resume recording, press it again.

To erase a recording 1 Insert the tape to be erased into the deck. 2 Set the tape to the point where the erasure is to be started. 3 Set the reverse mode by pressing TAPE/REV MODE.

4 Press AUWVIDEO and turn the connected equipment off. 5 Press

● REC/REC MUTE to start the erasure.

ENGLISH 12

Tape length

Number of programmed tracks

Selected tracks for side A

MODE o-9

FUNCTION

■

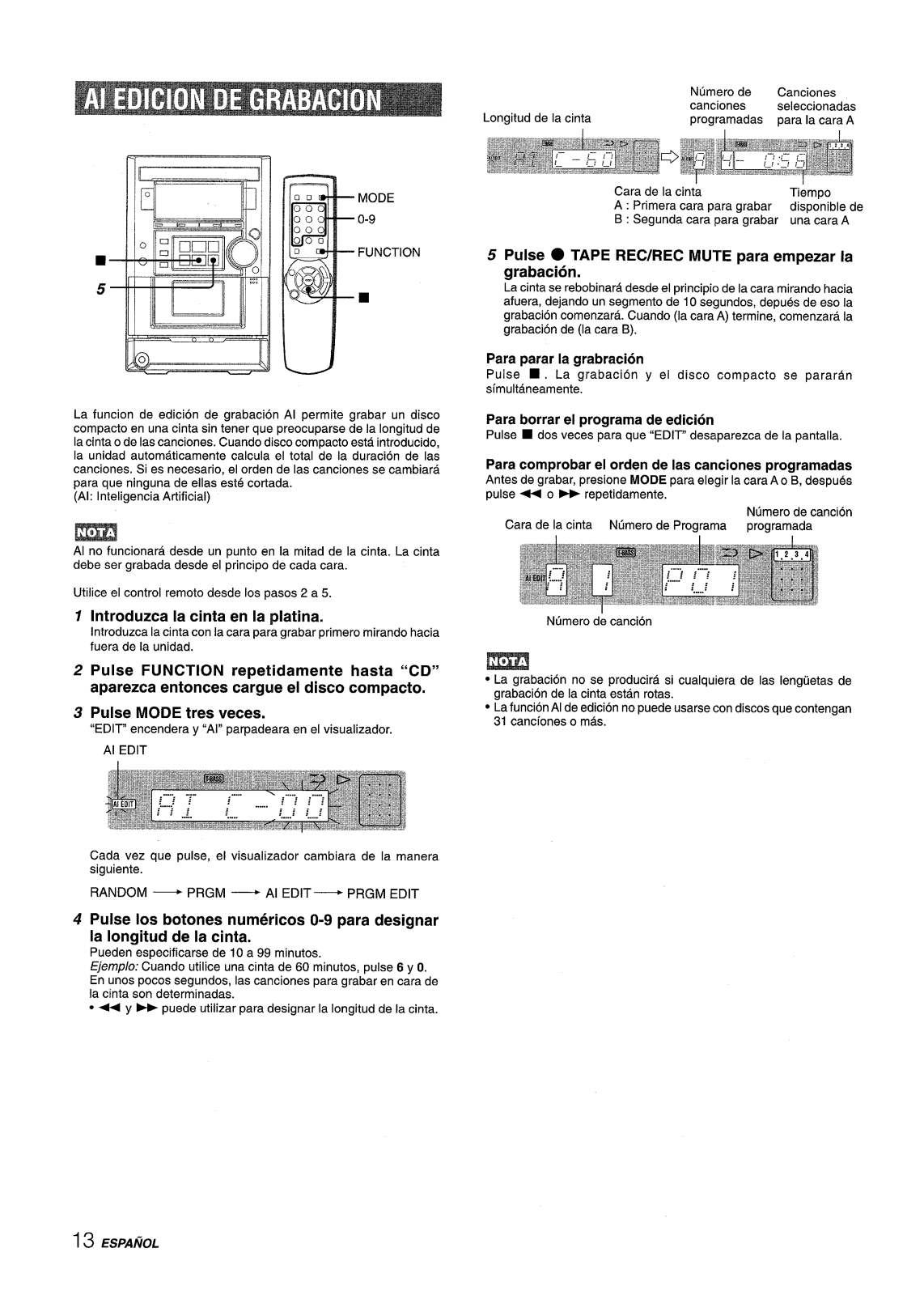

The Al edit recording function enables CD recording without worrying about tape length and track length. When a CD is

inserted, the unit automatically calculates the total track length. If necessary, the order of tracks is rearranged so that no track is cut short. (Al: Artificial Intelligence)

Al edit recording will not start from a point halfway into the tape. The tape must be recorded from the beginning of either side.

Use the remote control from steps 2 to 5.

Insert the tape into deck.

Insert the tape with the side to be recorded on first facing out from the unit.

Tape side A: First recording side

Remaining time of

B: Second recording side side A

5 Press ●TAPE REC/REC MUTE to start recording.

The tape is rewound to the beginning of the front side, the

lead segment is played through for 10 seconds, and recording starts. When recording on the front (side A) ends, recording on the back (side B) starts.

stop recording

To Press ■ . Recording and CD play stop simultaneously.

clear the edit program

Press ■ twice so that “EDIT” disappears on the display.

check the order of the programmed track numbers

Before recording, press MODE to select side A or B, and press < or > repeatedly.

Programmed

Tape side

Track number

Program number track number

Press FUNCTION repeatedly until “CD” is

displayed and load the disc. Press MODE thrice.

“EDIT” lights up and “Al” flashes on the display.

Al EDIT

Each time it is pressed, the display changes as follows.

RANDOM

Press numbered buttons O-9 to designate the tape

— PRGM

— Al EDIT— PRGM EDIT

length.

10 to 99 minutes can be specified.

Example: When using a 60-minute tape, press 6 and O.

In a few seconds, the tracks to be recorded on each side of

the tape are determined.

● - and > are also available to designate the tape length.

● Recording is inhibited if the erasure prevention tab on either

side of the tape is broken off.

● The Al edit function cannot be used with discs containing 31

tracks or more,

13 ENGL/SH

6 Repeat step 5 for the rest of the tracks for side A. ,.i&:

A track whose playing time is longer than the remaining time 1~~.

u 12

00 00’ 00 000

[

❑

‘~

MODE 0-9,+1(1

FUNC1-ION

■

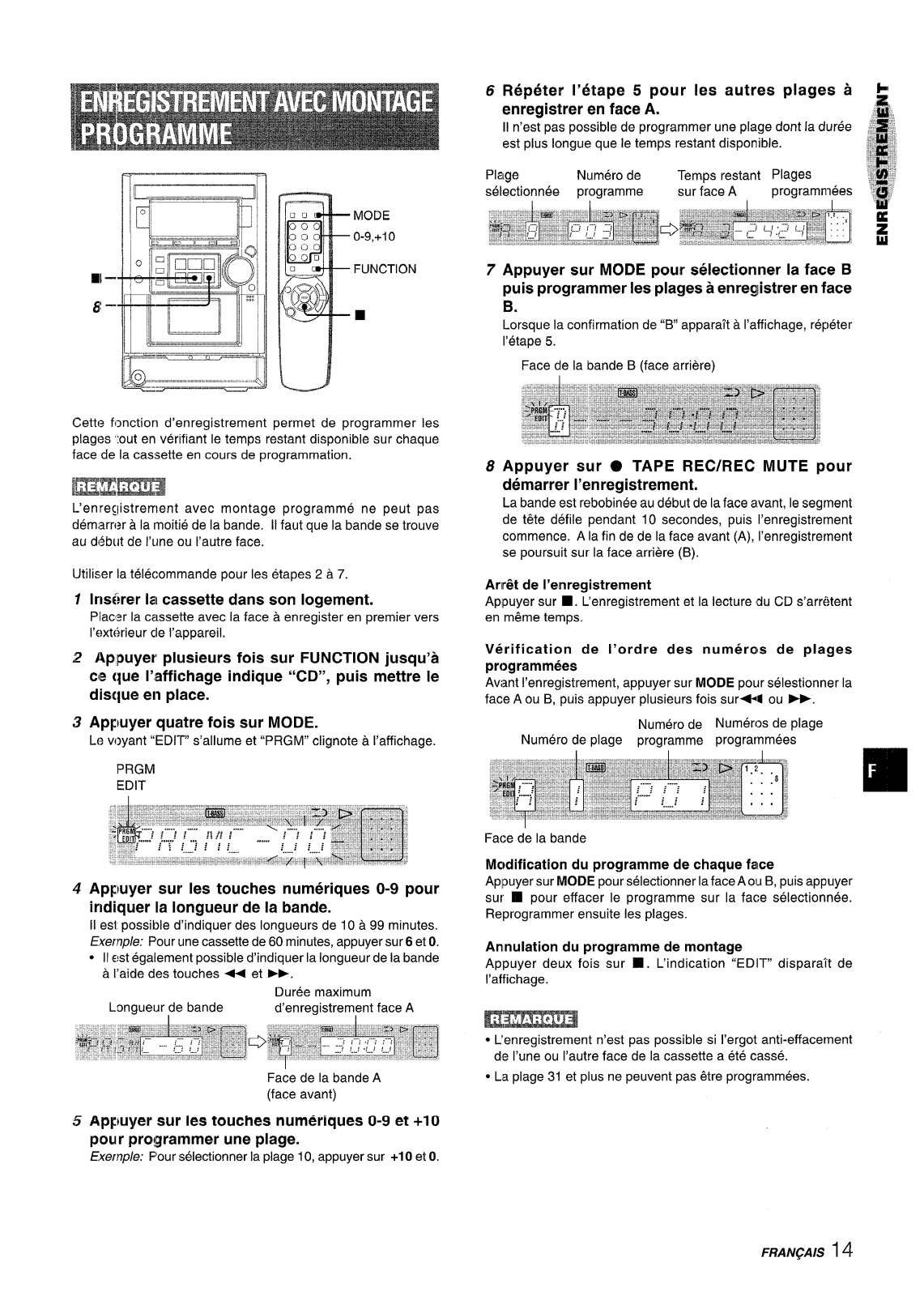

In the programmed edit recording function, the track can be programmed while checking the remaining time on each side of the tape as the tracks are programmed.

The programmed edit recording will not start from a point halfway

in the tape. The tape must be recorded on from the beginning of

either side.

Use the remote control from step 2 to 7.

Ilnsert the tape into deck.

~nsertthe tape with the side to be recorded on first facing out

from the unit.

lPress

(displayed and load the disc.

FUNCTION repeatedly until “CD” is

Press MODE to select side B and program the

tracks for side B.

After confirming “B on the display, repeat step 5.

Tape side B (reverse side)

Press ●TAPE REC/REC MUTE to start recording.

The tape is rewound to the beginning of the front side, the lead segment is played through for 10 seconds, and recording starts. When recording on the front (side A) ends, recording on the back (side B) starts.

“Tostop recording

■ . Recording and CD play stop simultaneously.

Press

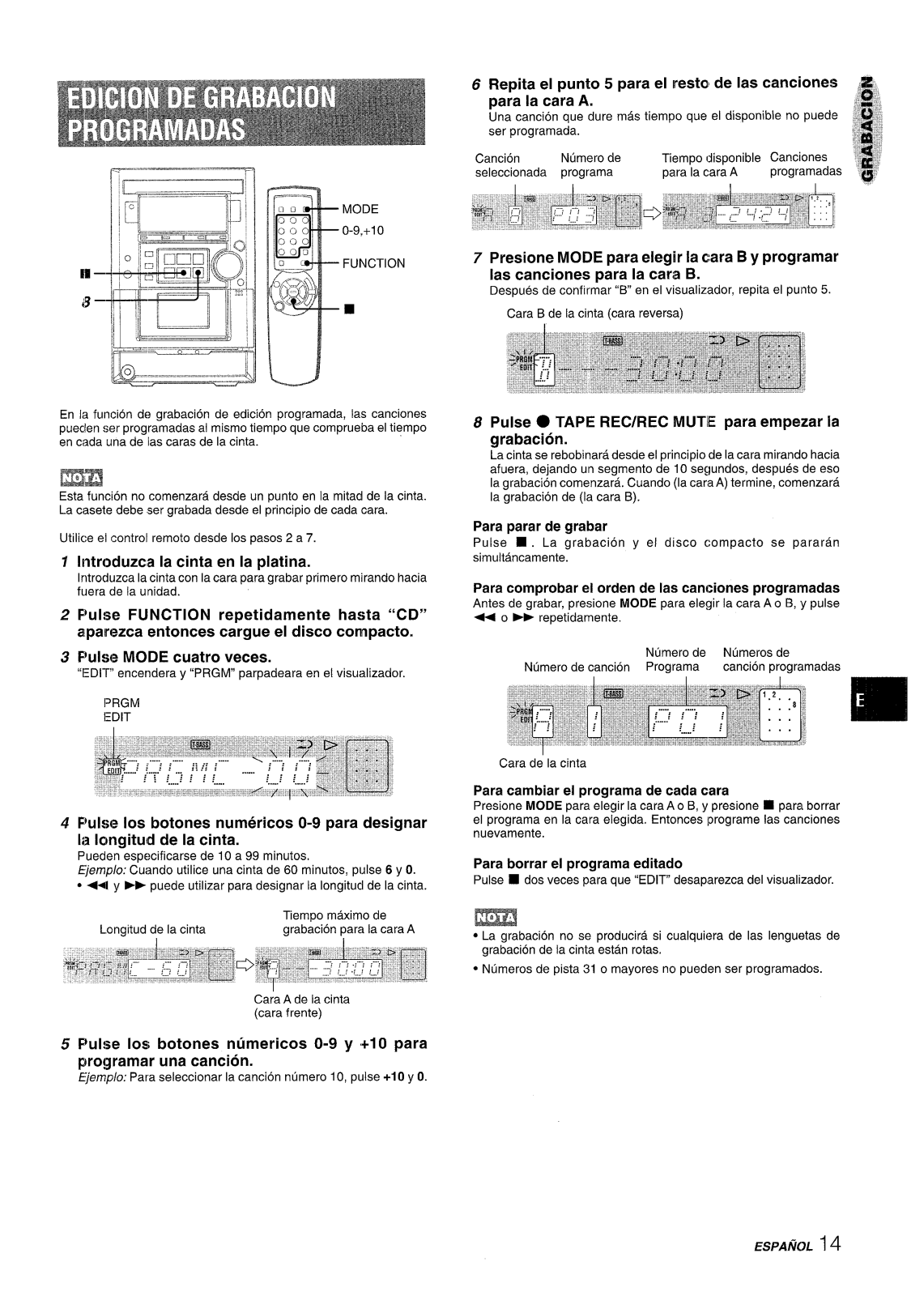

To check the order of the programmed track numbers Before recording, press MODE to select side A or B, and press

lPress

“EDIT” lights up and “PRGM” flashes on the display.

tape length.

~)The < and ~ are also available to designate the

5 lPress the numbered buttons O-9 and +10 to

MODE four times.

PRGM EDIT

lPress numbered buttons 0-9 to designate the

10 to 99 minutes can be specified. Example: When using a 60-minute tape, press 6 and O.

kIpe

length.

Maximum recording

Tape length time for side A

Tape ‘side A

(front side)

Iprogram a track.

Examp/e To select the 10th track, press +1Oand O.

Tape side

To change the program of each side

Press MODE to select side A or B, and press program on the selected side. Then program tracks again.

To clear the edit program

■ twice so that “EDIT” disappears on the display.

Press

❑ to clear the

~Recording is inhibited if the erasure prevention tab on either

side of the tape is broken off,

0Track number 31 and above cannot be programmed.

ENGLISH 14

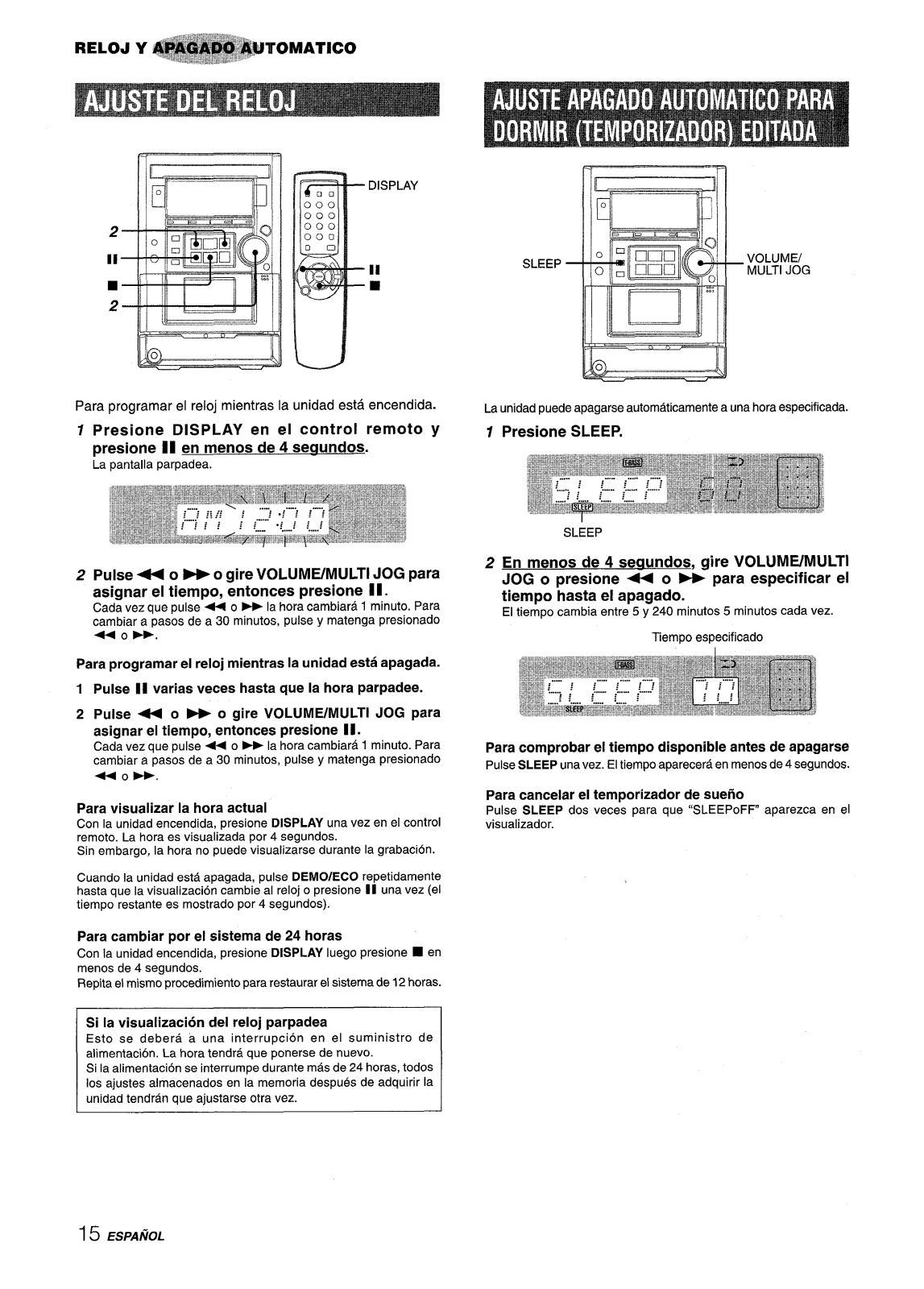

DISPLAY

n 1

Set the clock during power on.

Press DISPLAY on the remote control and press

11 within 4 seconds.

The display flashes.

Press * or - or turn VOLUME/MULTl JOG

to designate the time, then press Il.

Each time + or > is pressed the time changes by 1 minute. To change the time by 30 minutes, press and hold

down U or >.

To set the clock during power off

1 Press 1I repeatedly until the time flashes.

2 Press + or - or turn VOLUME/MULTl JOG to

designate the time, then press II.

Each time + or > is pressed the time changes by 1 minute. To change the time by 30 minutes, press and hold down U or -.

To display the current time With power on, press DISPLAY once on the remote control. The time is displayed for

However, the time cannot be displayed during recording.

When the power is off, press DEMO/ECO repeatedly until the

display changes to clock or press II once (the time is displayed

for 4 seconds).

4 seconds.

SLEEP

14QJ

.—,,.,—,,—..—.. ..... ..—

The unit can be turned off automatically at a specified time.

VOLUME/ MULTIJOG

press < or * to specify the time until the power is turned off.

The time changes between 5 and 240 minutes in 5-minute steps.

Specified time

To check the time remaining until the power is turned off

Press SLEEP once. The remaining time is displayed for 4 seconds.

To cancel the sleep timer

Press SLEEP twice so that “SLEEPoFF appears onthe display.

To switch to the 24-hour standard With power on, press DISPLAY then press

Repeat the same procedure to restore the 12-hour standard.

If the clock display flashes

This is caused by a power interruption. The current time needs to be reset.

If power is interrupted for more than approximately 24 hours,

all settings stored in memory after purchase need to be reset.

■ within 4 seconds.

15 ENGLISH

1,2,3,4

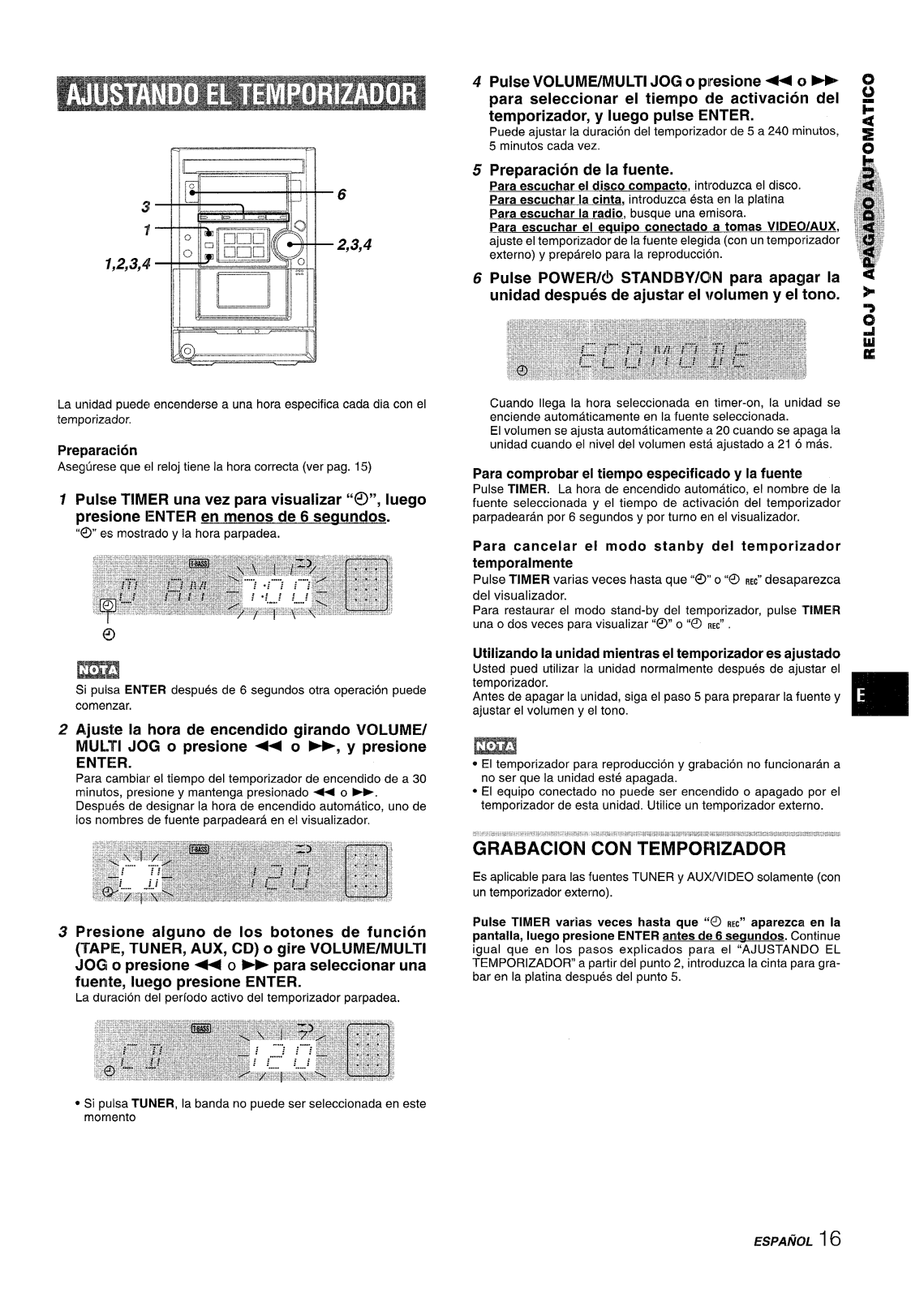

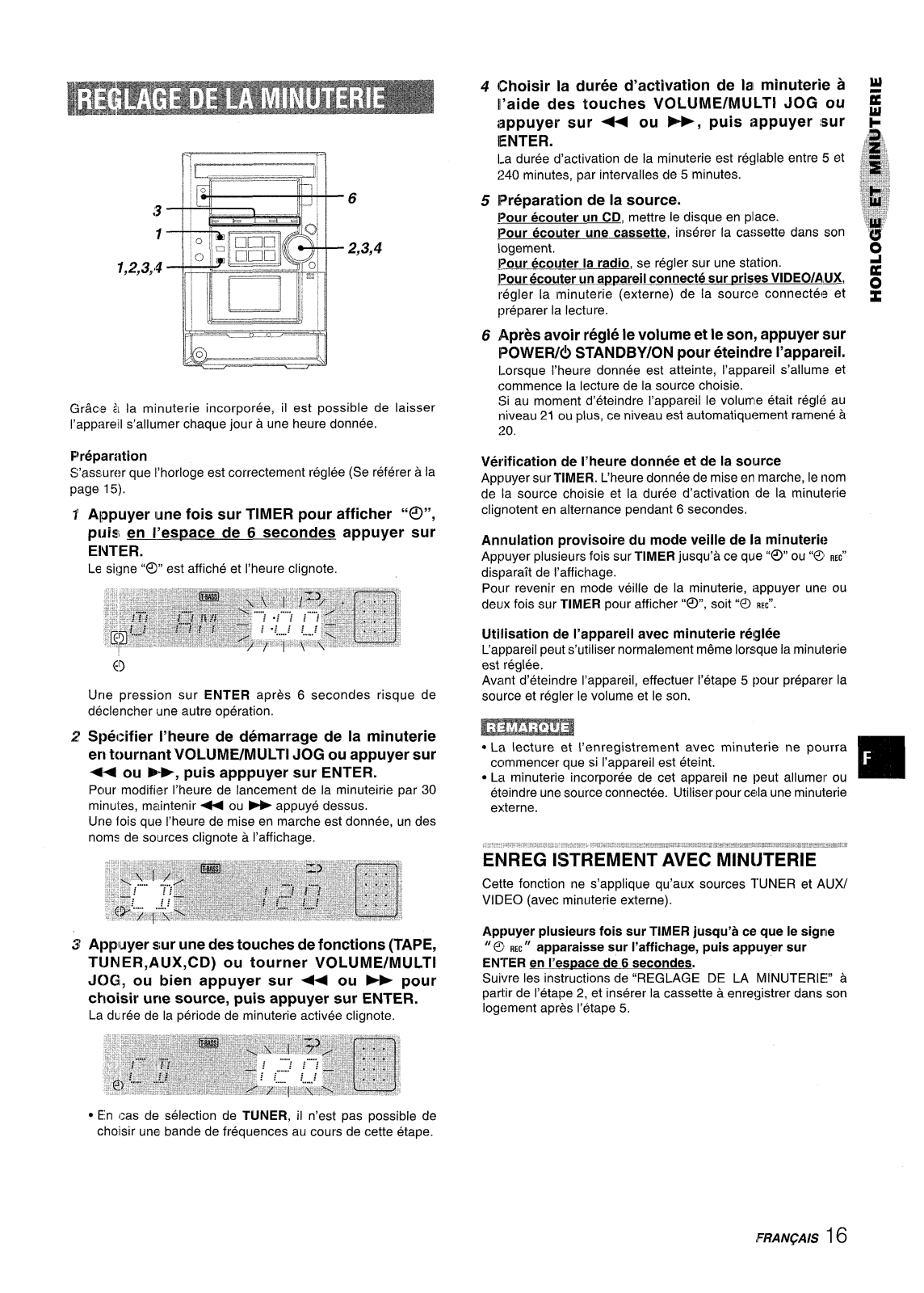

The unit can be turned on at a specified time every day with the built-in timer.

Preparation

Make sure the clock is set correctly. (See page 15).

Fkess TIMER once to display “0”, then press ENTER within 6 seconds. “’~”

is displayed and the time flashes.

Select the duration for the timer-activated period f with VOLUME/MULTl JOG or press + or Et- E, then press ENTER.

The duration for the timer-activated period can be set between !~~”~~

5 and 240 minutes in 5-minute steps.

Prepare the source.

To listen to a CD, load the disc.

To listen to a tape, insert the tape into deck.

To listen to the radio, tune in to a station.

To listen to the equipment connected to VIDEO/AUX iackg

set the timer of the connected source (with an external timer)

and prepare for the play.

Press POWERK!I STANDBY/ON to turn the unit

off after adjusting the volume and tone.

When the timer-on time is reached, the unit turns on and

begins play with the selected source.

The volume level is automatically set to 20 when the power is

turned off with the volume level set to 2“1or more.

To check the specified time and source

Press TIMER, The timer-on time, the selected source name and the duration for the timer-activated period flash alternately for 6 seconds.

cancel timer standby mode temporarily

Press TIMER repeatedly until “@”or ‘LOREC” disappears on the display. To restore the timer standby mode, press TIMER once or twice

to display “@”or “0

REC”.

$1%

,,, .,,

,,!8

~,:x:ii

.,.” ,:..:

?“,,,.

“, ,?

,“

~ o

1{you press ENTER after 6 seconds, another operation may start.

Designate the tinner-on time by turning VOLUME/ MULTI JOG or press 4+ or b-, then press

ENTER. 10 change the timer-on time by 30 minutes, press and hold down + or >. After you designate the timer-on time, one of the source names flashes on the display.

F%essany of the function buttons (TAPE, TUNER,

AUX, CD) or turn VOLUME/MIJLTl JOG or press

*H or - to

The duration for the timer activated period flashes.

select a source, then press ENTER.

Using the unit while the timer is set You can use the unit normally after setting the timer. Before turning off the power, carry out step 5 to prepare the

source, and adjust the volume and tone.

. Timer playback and timer recording will not begin unless the

power is turned off.

* Connected equipment cannot be turned on and off by the built-

in timer of this unit. Use an external timer.

... ,..,..,,

...”“..”““,,-.”,‘,,,!”,%.,,,J,,”b.,,,’”.’,.!,,.,...,,,,.. ....,,....., , ...!..%%

.“,””.,.,”“,.”.,””.”,.. ,,

i_IMER REiORDING

Timer recording is applicable for TUNER and AUX/VIDEO (with an external timer) sources only.

FWSS TIMER repeatedly Until “O REG” appearson tile display,

then press ENTER within 6 seconds. Carry out the steps of “SETTING THE TIMER from step 2 and insert the tape to be recorded on into deck after step 5.

❑

● If TUNER is pressed, the band cannot be selected in

step.

this

ENGLISH 16

‘J –

Refer to the operating instructions of the connected equipment for details.

● The connecting cords are not supplied. Obtain the necessary

connecting cords.

● Consult your local Aiwa dealer for optional equipment.

.,.w~~,.“-: !>..,-.,,:”,,,,!,. ,,,,>

....P ~a,a,w,,~m)g,,,,L,8,a,*.-,..,.“...:.~..y.~~:z----:,.-p.!

.“ “.,”.-. “..

........,.X”..,srw.,!,,W!!*,*’3%,

......

VIDEO/AUX JACKS

This unit can input analog sound signals through these jacks.

Use a cable with RCA phono plugs to connect audio equipment

(turntables, LD players, VCRs, etc.). Connect the red plug to the VIDEO/AUX R jack, and the white plug to the VIDEO/AUX L jack,

When connecting a turntable Use an Aiwa turntable equipped with a built-in equalizer amplifier.

To play equipment connected to the VIDEO/AUX jacks, proceed as follows

Press AUX/VIDEO.

“AUX appears on the display.

Play the connected equipment.

To change a source name in the display When AUX/VIDEO is pressed, “AUX is displayed initially.It can

be changed to “TV or “VIDEO”.

With the power on, press POWER/d STANDBY ON while

pressing AUX/VIDEO. Repeat the procedure to select one of the source names.

I7 ENGLISH

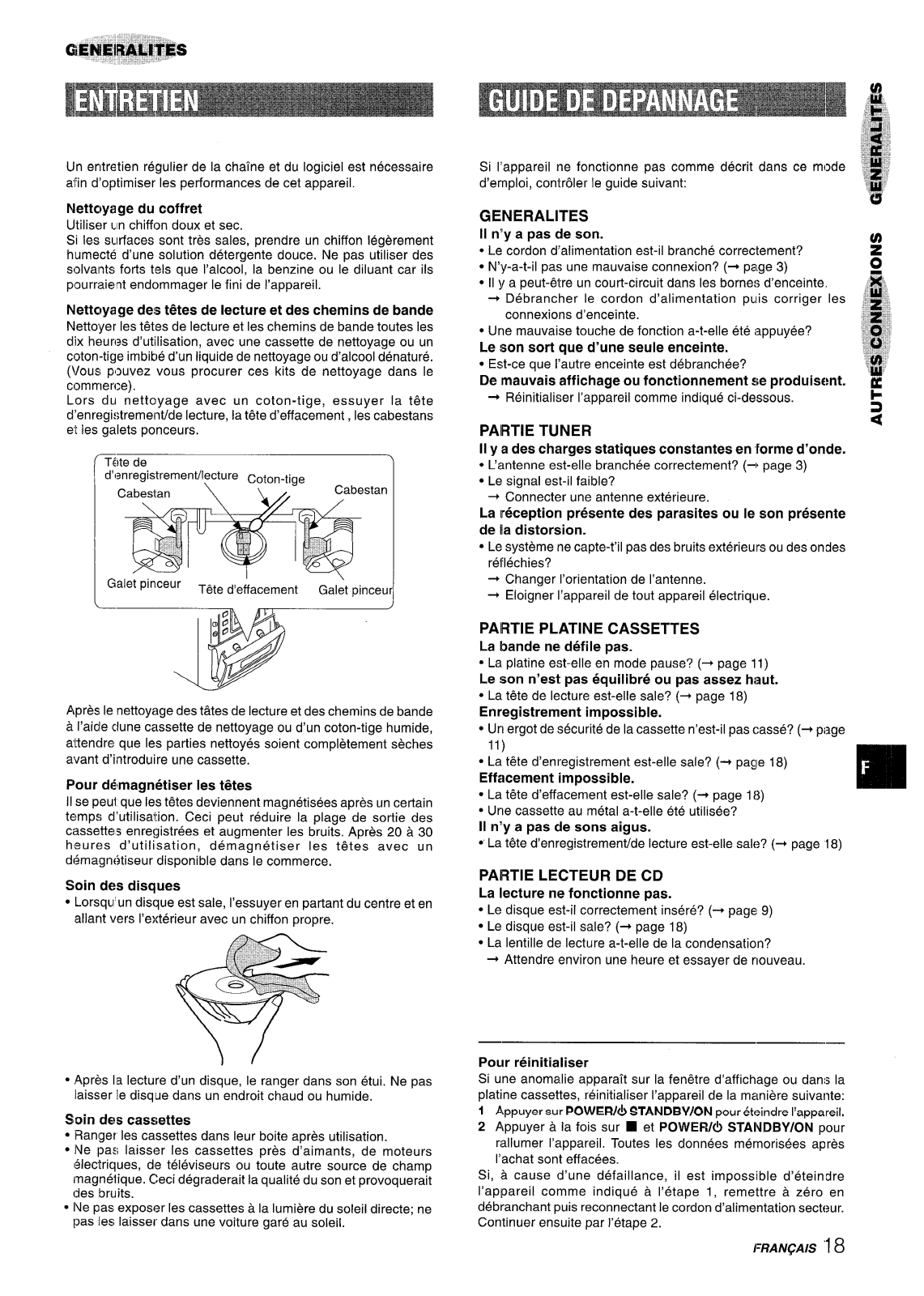

Occasional care and maintenance of the unit and the software are ineeded to optimize the performance of your unit.

If the unit fails to perform as described Instructions, check the following guide.

in these Operating

To clean the cabinet

Use a soft and dry cloth.

If the surfaces are extremely dirty, use a soft cloth lightly

moistened with mild detergent solution. Do not use strong solvents, such as alcohol, benzine or tlhinner as thes~ could damage the finish of the unit.

To clean the heads arid tape paths After every 10 hours of use, clean the heads and tape paths with a head cleaning cassette or cotton swab moistened with cleaning fluid or denatured alcohol, (These cleaning kits are commercially available,) When cleaning with a cotton swab, wipe I,herecording/playback

head, erasure head, capstans, and pinchrollers.

Recording/ Playback head Cotton swab

Pinchroller

Erasure head

Q.”.

Capstan

Pinchroller

After cleaning the heads and tape paths with a liquid head cleaning cassette or a moistened swab, wait until the cleaned parts are completely dry before inserting the tapes.

To clemagnetize the heads

The heads may become magnetized after long-term use. This may narrow the output range of recorded tapes and increase noise. After 20 to 30 hours use, demagnetize the heads with any commercially available demagnetizer.

Care of discs oWhen a disc becomes dirty, wipe the disc from the center out

with a cleaning cloth,

GENERAL There is no sound. a Is the AC cord connected properly?

● Is there a bad connection? (~ page 3)

● There may be a short circuit in the speaker terminals,

+ Disconnect the AC cord, then correct the speaker

connections.

● Was an incorrect function button pressed’?

Sound is emitted from one speaker only.

● Is the other speaker disconnected?

An erroneous display or a malfunction occurs.

+ Reset the unit as stated below.

TUNER SECTION There is constant, wave-like static.

● Is the antenna connected properly? (~ page 3)

QIs the signal weak?

-+ Connect an outdoor antenna. The reception contains noise interferences or the sound is distorted. * Isthe system picking up external noise or multipath distortion?

+ Change the orientation of the antenna.

-+ Move the unit away from other electrical appliances,

CASSETTE DECK SECTION The tape does not run.

● Is deck in pause mode? (+ page 11)

The sound is off-balance or not adequately high.

● Is the playback head dirty? (~ page 18)

Recording is not possible.

● Is the erasure prevention tab on the tape broken off? (+ page

11)

~ Is the recording head dirty? (+ page 18)

Erasure is not possible.

● Is the erasure head dirty? (+ page 18)

● Is a metal tape being used?

High frequency sound is not emitted.

● Is the recording/playback head dirty? (~ page 18)

CD PLAYER SECTION The CD player does not play.

● Is the disc correctly placed? (+ page 9)

* ISthe disc dirty? (-+ page 18)

● Is the lens affected by condensation?

+ Wait approximately one hour and try again.

● After playing a disc, store the disc in its case. Do not leave the

disc in places that are Ihotor humid.

Care of tapes * Store tapes in their cases after use.

● Do not leave tapes near magnets, motors, television sets, or

an’{ source of magnetism. This will downgrade the sound quality anj cause noise,

* Do not expose tapes to direct sunlight, or leave them in a car

pa:ked in direct sunlight.

To reset

If an unusual condition occurs in the display window or thle

cassette decks, reset the unit as follows.

1 Press POWER/(!) STANDBY/ON to turn off the power. 2 Press POWER/Cl STANDBY/ON to turn the power back cm

while pressing

❑ . Everything stored in memory after purchase

is canceled. Ifthe power cannot be turned off in step 1because of a malfunction, reset by disconnecting the AC cord, and connect it again. The!n

carry out step 2.

ENGLISH1(3

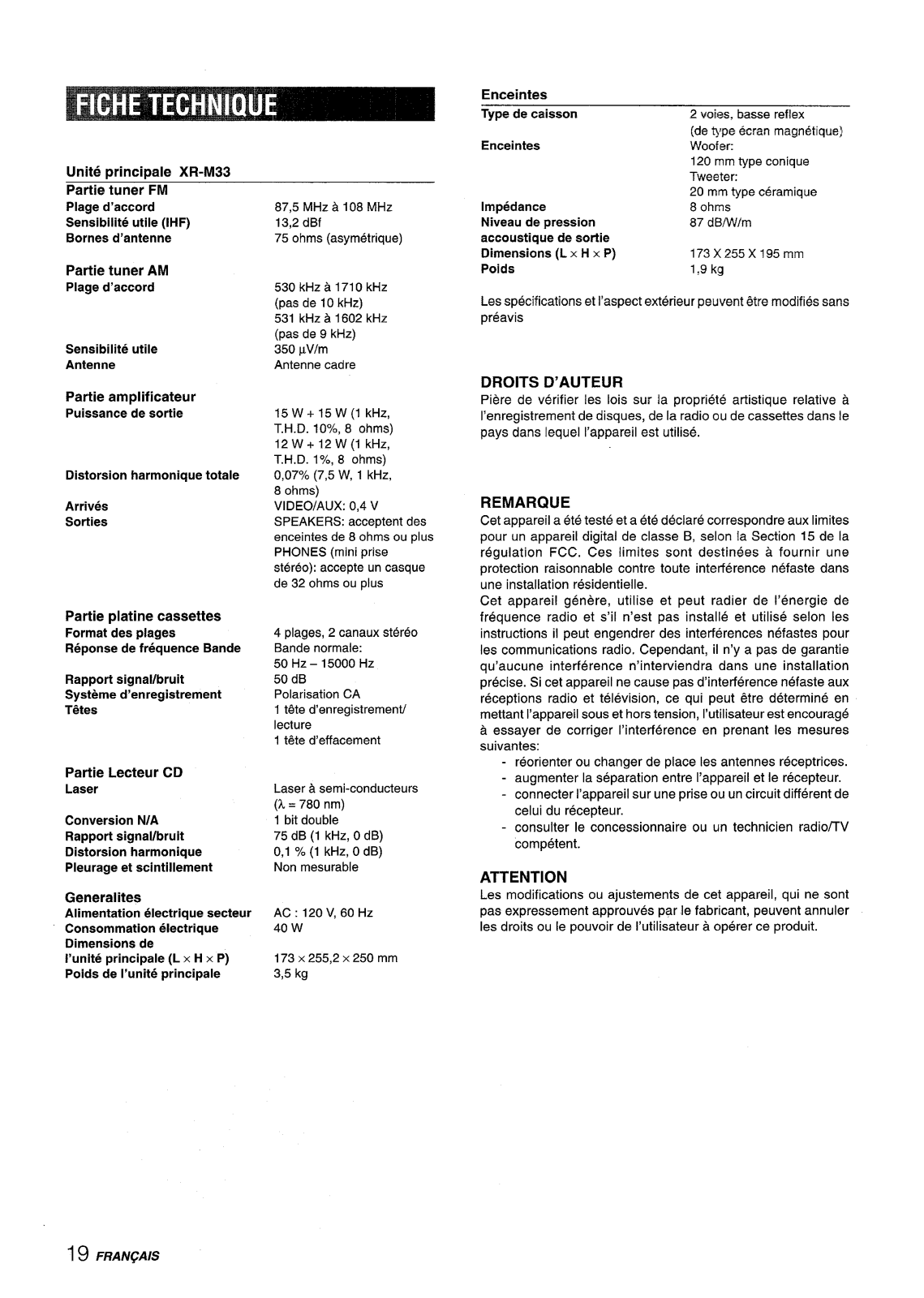

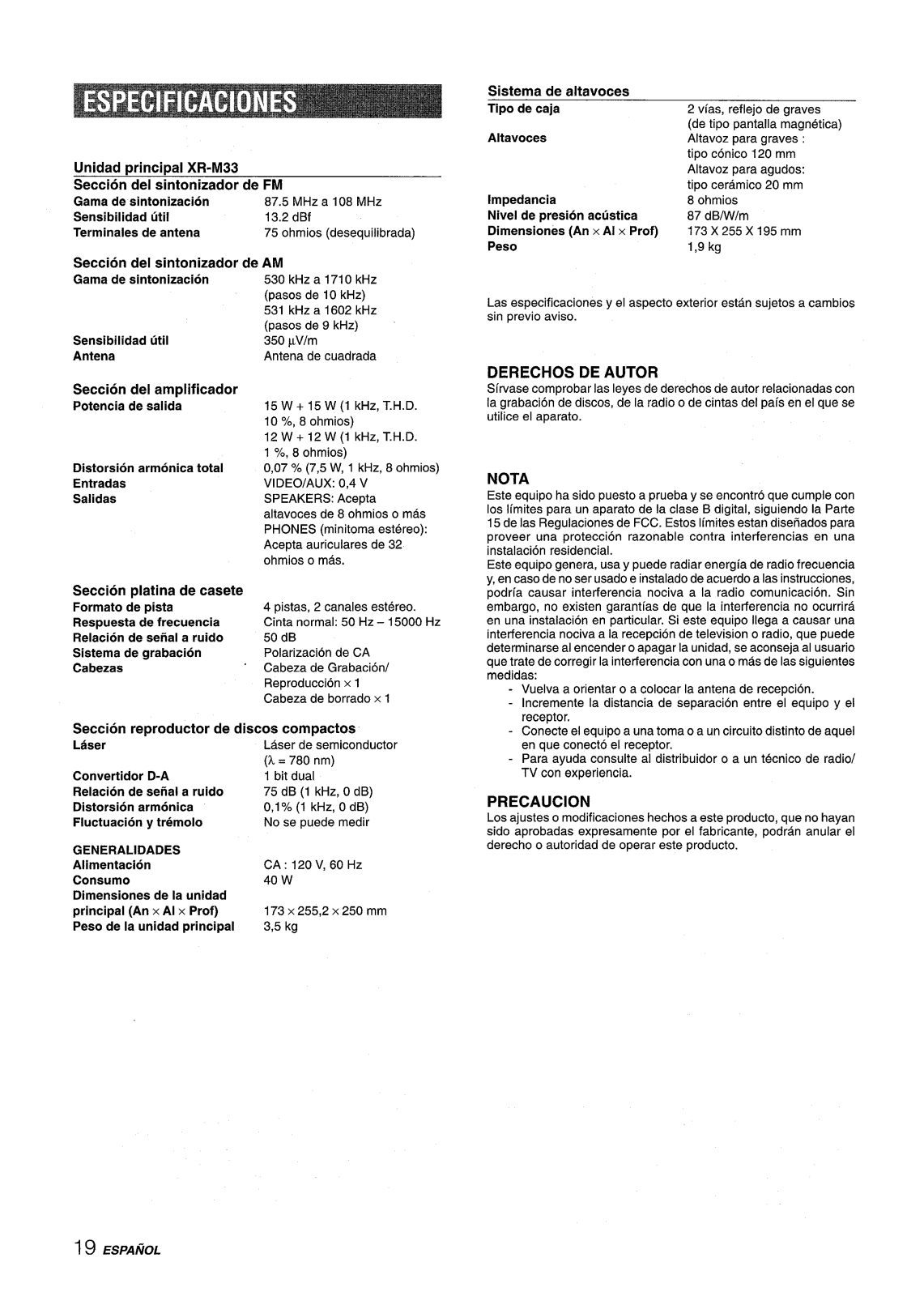

Main unit XR-M33

FM tuner section

Tuning range Usable sensitivity (IHF) Antenna terminals

AM tuner section

Tuning range

Usable sensitivity Antenna

Amplifier section Power output

Total harmonic distortion Inputs outputs

Cassette Track format Frequency response Signal-to-noise ratio Recording system Heads

Compact disc player section

Laser D-A converter

Signal-to-noise ratio

Harmonic distortion

Wow and flutter

General

Power requirements

Power consumption

Dimensions of main unit

(W XHXD)

Weight of main unit

deck section

87.5 MHz to 108 MHz

13.2 dBf

ohms (unbalanced)

530

kHz to 1710 kHz (10 kHz

step) 531

kHzto 1602 kHz (9 kHz step)

350 pV/m

Loop antenna

15 W+15W(1 kHz, T.H.D.10Yo,

ohms)

12W+ 12W(I kHz, T.H.D. 1 %, 8 ohms)

0.07

Y. (7.5 W,1kHz, 8 ohms)

VIDEO/AUX: 0.4 V SPEAKERS:

ohms or more

PHONES (stereo minijack): accepts headphones of 32 ohms or more

4 tracks, 2 channels stereo Normal tape: 50 Hz – 15000 Hz 50 dB AC bias Recording/playback head x 1

Erase head x 1

Semiconductorlaser(k= 780

accept speakers of

nm)

1 bit dual

75 dB (1 kHz, O

dB)

0.1% (1 kHz, OdB) Unmeasurable

AC:120V,60HZ

40 w

173 x 255.2 x 250 mm

(67/8 x 101/8x 97/8 in)

3.5 kg

(7 Ibs

11oz)

Speaker system

Cabinet type

Speakers

Impedance 8 ohms Output sound pressure level 87 dB/Wlm Dimensions (W x H x D)

Weight

Specifications and external appearance are subject to change without notice.

2 way, bass reflex (magnetic shield type) Woofer: 120 mm Tweeter: 20 mm

173 X255 X195mm

(67/8 x10x 73/4 in)

1.9 kg (4 Ibs 3

(43/4 in) cone type

(13/16 in) ceramic type

OZ)

Please check the laws on copyright relating to recordings from discs, radio or external tape for the country in which the machine is being used.

NOTE

This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can

be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on circuit different

from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician

for help.

CAUTION

Modifications or adjustments to this product, which are not expressly approved by the manufacturer, may void the user’s right or authority to operate this product.

—

19 ENGLISH

+ 44 hidden pages
