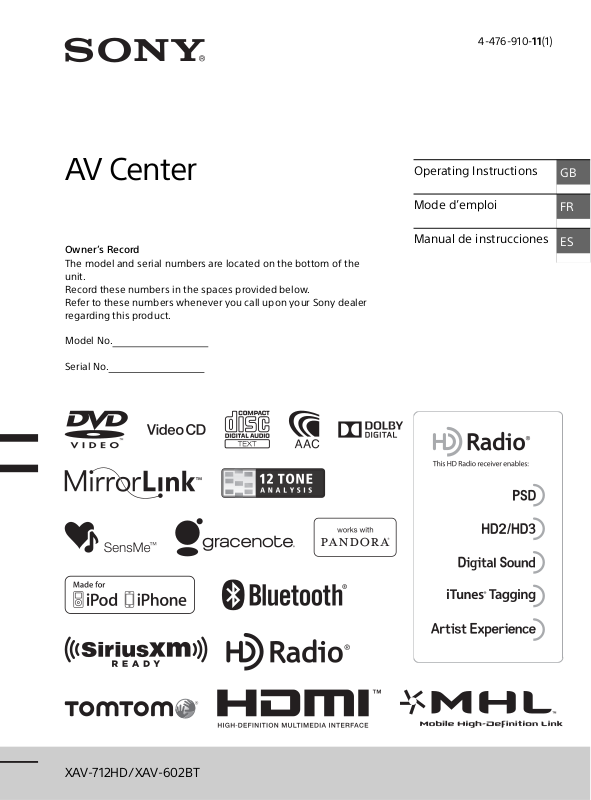

Sony XAV712 User Manual
4-476-910-11(1)
AV Center
Owner’s Record
The model and serial numbers are located on the bottom of the unit.
Record these numbers in the spaces provided below.
Refer to these numbers whenever you call upon your Sony dealer regarding this product.
Model No.
Serial No.
Operating Instructions |
GB |
|
|
|
|
Mode d’emploi |
FR |
|
|
|
|
Manual de instrucciones |
ES |
|
|
|
|
XAV-712HD/XAV-602BT
Be sure to install this unit in the dashboard of the car for safety.
For installation and connections, see the supplied installation/connections manual.
About this manual
This manual contains instructions for XAV712HD and XAV-602BT.
XAV-602BT is the model representatively used for illustration purposes.
Warning
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.
FOR UNITED STATES CUSTOMERS. NOT APPLICABLE IN CANADA, INCLUDING IN THE PROVINCE OF QUEBEC.
POUR LES CONSOMMATEURS AUX ÉTATSUNIS. NON APPLICABLE AU CANADA, Y COMPRIS LA PROVINCE DE QUÉBEC.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.
This device complies with Part 15 of the FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20 cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles).
CAUTION
The use of optical instruments with this product will increase eye hazard. As the laser beam used in this CD/DVD player is harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only.
For the State of California, USA only
Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate Perchlorate Material: Lithium battery contains perchlorate
Note on the lithium battery
Do not expose the battery to excessive heat such as direct sunlight, fire or the like.
Warning if your car’s ignition has no ACC position
Be sure to set the Auto OFF function (page 26). The unit will turn off automatically in the set time when no source is selected, which prevents battery drainage.
If you do not set the Auto OFF function, press and hold OFF until the display disappears each time you turn the ignition off.
2GB
To cancel the demonstration (Demo) display, see page 26.
Notes on BLUETOOTH function
Caution
IN NO EVENT SHALL SONY BE LIABLE FOR ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR OTHER DAMAGES INCLUDING, WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF DATA, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, DOWNTIME, AND PURCHASER’S TIME RELATED TO OR ARISING OUT OF THE USE OF THIS PRODUCT, ITS HARDWARE AND/OR ITS SOFTWARE.
IMPORTANT NOTICE!
Safe and efficient use
Changes or modifications to this unit not expressly approved by Sony may void the user’s authority to operate the equipment.
Please check for exceptions, due to national requirement or limitations, in usage of BLUETOOTH equipment before using this product.
Driving
Check the laws and regulations on the use of cellular phones and handsfree equipment in the areas where you drive.
Always give full attention to driving and pull off the road and park before making or answering a call if driving conditions so require.
Connecting to other devices
When connecting to any other device, please read its user guide for detailed safety instructions.
Radio frequency exposure
RF signals may affect improperly installed or inadequately shielded electronic systems in cars, such as electronic fuel injection systems, electronic antiskid (antilock) braking systems, electronic speed control systems or air bag systems. For installation or service of this device, please consult with the manufacturer or its representative of your car. Faulty installation or service may be dangerous and may invalidate any warranty that may apply to this device.
Consult with the manufacturer of your car to ensure that the use of your cellular phone in the car will not affect its electronic system.
Check regularly that all wireless device equipment in your car is mounted and operating properly.
Emergency calls
This BLUETOOTH car handsfree and the electronic device connected to the handsfree operate using radio signals, cellular, and landline networks as well
as user-programmed function, which cannot guarantee connection under all conditions. Therefore do not rely solely upon any electronic device for essential communications (such as medical emergencies).
Remember, in order to make or receive calls, the handsfree and the electronic device connected to the handsfree must be switched on in a service area with adequate cellular signal strength.
Emergency calls may not be possible on all cellular phone networks or when certain network services and/or phone features are in use.
Check with your local service provider.
3GB
Table of Contents
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Guide to Parts and Controls . . . . . . . . . . . . . . . . . . . 5
Getting Started
Resetting the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Performing Initial Settings . . . . . . . . . . . . . . . . . . . . 8 Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Preparing a BLUETOOTH Device. . . . . . . . . . . . . . . . 8 Detaching the front panel (XAV-602BT only) . . . . . 9
Listening to the Radio/SiriusXM
Listening to the Radio. . . . . . . . . . . . . . . . . . . . . . . 10 Storing and Receiving Stations . . . . . . . . . . . . . . . 11 Using Radio Data System (RDS)
(XAV-602BT only) . . . . . . . . . . . . . . . . . . . . . . . 12 Listening to the SiriusXM Vehicle Tuner . . . . . . . . 12 iTunes Tagging . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Playback
Playing a Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Playing an iPod/USB Device. . . . . . . . . . . . . . . . . . 15 Playing a BLUETOOTH Device. . . . . . . . . . . . . . . . . 15 Searching and Playing Tracks. . . . . . . . . . . . . . . . . 16 Enjoying Music According to Your Mood
(SensMe™). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Available Options . . . . . . . . . . . . . . . . . . . . . . . . . . 17 [DVD Audio Level] . . . . . . . . . . . . . . . . . . . . . . . 18 [CSO (Center Speaker Organizer)] . . . . . . . . . . 18
Listening to Pandora®
Preparing for Pandora®. . . . . . . . . . . . . . . . . . . . . . 19 Streaming Pandora® . . . . . . . . . . . . . . . . . . . . . . . . 19 Available Operations in Pandora® . . . . . . . . . . . . . 19
Handsfree Calling
Receiving a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Available Operations During a Call . . . . . . . . . . . . 21
Phonebook Management . . . . . . . . . . . . . . . . . . . 21
Call Data Management . . . . . . . . . . . . . . . . . . . . . . 21
Phone Option Menu . . . . . . . . . . . . . . . . . . . . . . . . 22
Useful Functions
App Remote with iPhone/Android Phone . . . . . . 22 Duplicating the Smartphone’s Display
(MirrorLink™) . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Enjoying Different Sources in Front and Rear
(Zone × Zone) . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Enjoying high quality image
(XAV-712HD only). . . . . . . . . . . . . . . . . . . . . . . . 23 Using Gesture Command . . . . . . . . . . . . . . . . . . . . 24
Settings
General Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Touch Panel Adjust. . . . . . . . . . . . . . . . . . . . . . 26 Bluetooth Reset . . . . . . . . . . . . . . . . . . . . . . . . 27 USB Battery Charge Mode . . . . . . . . . . . . . . . . 27 Sound Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 EQ7 / Subwoofer Level Adjust. . . . . . . . . . . . . 27 Balance / Fader Level Adjust. . . . . . . . . . . . . . 27 RBE (Rear Bass Enhancer) . . . . . . . . . . . . . . . . 27 4.1ch Speaker Level . . . . . . . . . . . . . . . . . . . . . 28 Visual Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Picture EQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Aspect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Source Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Auto Input Change(MHL)
(XAV-712HD only) . . . . . . . . . . . . . . . . . . . . . . . 30
Additional Information
Auxiliary Audio/Video Equipment . . . . . . . . . . . . 31
Rear View Camera . . . . . . . . . . . . . . . . . . . . . . . . . 31
Updating the Firmware . . . . . . . . . . . . . . . . . . . . . 31
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Language Code List . . . . . . . . . . . . . . . . . . . . . . . . 49
For details on smartphone connectivity and battery charge capability, see “Summary of Useful Functions for Smartphone” on the pages at the end of these operating instructions.
4GB
Guide to Parts and Controls
Main unit
XAV-712HD
There is a tactile dot to the right of the VOLUME + button.
XAV-602BT
5GB
Disc slot
(XAV-712HD: located behind the front panel)
VOLUME –/+
DSPL (display)
Change the display items.
-M.OFF (monitor off)
Press and hold to turn off the monitor and the button illumination. Touch anywhere on the display to turn back on.
Reset button
(XAV-602BT: located behind the front panel)
Display/touch panel
Receptor for the remote commander
HOME
Open the HOME menu.
-VOICE
Press and hold for more than 2 seconds to activate the voice command function. When the App Remote function is on, voice recognition (Android phone only) and voice dial is activated. When the App Remote function is off, only voice dial is available.
-ATT (attenuate) (XAV-712HD only)
Press and hold for more than 2 seconds to attenuate the sound. To assign the ATT function to the HOME button, select [ATT ON/OFF] in [HOME Key Function (hold 2sec push)] (page 25).
SOURCE
Turn on the power.
Change the source. Each press displays a selectable source in a popup on the current display.
-OFF
Press and hold for 1 second to exit the source. Press and hold for more than 2 seconds to turn off the unit. When the unit is turned off, remote commander operation is not available.
Volume control dial (XAV-602BT only)
Rotate to adjust the volume.
(disc eject)
-TILT (XAV-712HD only)
Press and hold to adjust the monitor angle.
USB port (XAV-602BT only)
Open the cover to connect a USB device.
Front panel release button (XAV-602BT only)
RM-X271 remote commander
The remote commander can be used to operate the audio controls. For menu operations, use the touch panel.
Remove the insulation film before use.
POSITION
Switch the listening position.
(return)
Return to the previous display/return to the menu on a Video CD (VCD).
EQ (equalizer)
Select an equalizer curve.
Number buttons (0 - 9)
CLEAR
Z×Z (Zone × Zone) (page 23)
(play/pause)
/ (previous/next)
DVD playback setting buttons
ZAP (zappin) (page 16)
/ / / (cursor)/ENTER
MODE
Select the radio band/auxiliary device.
6GB
Screen displays
Status bar:
Notification panel:
Tap on the status bar to open the notification panel.
Home screen:
Indications
Lights up when the sound is attenuated.
Lights up when the Zone × Zone function is on.
Lights up when tagged songs are stored in the unit.
Flashes during the data transmission.
Lights up when the App Remote function is on.
BLUETOOTH status indications
Lights up when the BLUETOOTH signal is on.
Lights up when a device is connected to the unit for audio streaming.
Flashes when the connection is in progress.
Lights up when a cellular phone is connected to the unit for handsfree calling.
Flashes when the connection is in progress.
Indicates the signal strength status of the connected cellular phone.
Indicates the remaining battery status of the connected cellular phone.
Lights up when a connected cellular phone has unread SMS message(s).
Application specific area
Display playback controls/indications or show the unit’s status. Displayed items differ depending on the source.
Common area
Accesses the EQ7/subwoofer settings menu directly (page 27).
Activates the voice command function.
Switch from the HOME screen to the playback screen.
(option)
Open the HOME option menu. Press HOME, then touch
.
[Icon Priority]
Changes the order of icons.
[Background Theme]
Changes the wallpaper.
[Icon View]
Switches between 2D and 3D icon display. You can also switch the icon view by touching and holding anywhere on the display.
[Touch Effect]
Displays a light trail where you have touched the display.
To return to the home screen, touch
.
Source select keys
Change the source.
7GB
Getting Started
Resetting the Unit
Before operating the unit for the first time, or after replacing the car battery or changing connections, you must reset the unit.
1Press the reset button on the unit.
Use a pointed object, such as a ballpoint pen.
Note
Pressing the reset button will erase the clock setting and some stored contents.
Performing Initial Settings
After resetting, the initial setting display appears.
1
2Touch [Language] to set the display language.
Move the scrollbar up and down, then select the desired language.
3Touch [Subwoofer] to set the subwoofer connection status.
Set to [ON] if a subwoofer is connected, or [OFF] if not.
4Touch [Listening Position] to set the listening position.
Set to [Front L] if your listening position is front
left, or [Front R] if front right.
To return to the initial setting display, touch
.
5Touch [OK].
The setting is complete.
This setting can then be further configured in the setting menu (page 25).
Setting the Clock
1 Press HOME, then touch [Settings].
2 Touch
, then touch [Date & Time].
3Touch [Select Time Zone].
The setting display appears.
To return to the [Date & Time] display, touch
.
4Touch [Set Date], then set the year, month and day.
5Touch [Set Time], then set the hour and minute.
6 Touch [AM] or [PM].
7Touch [OK].
The setting is complete.
To delete an entered number, touch [Clear].
For XAV-602BT
To activate/deactivate the CT function (page 12), touch [CT] in step 4.
Preparing a BLUETOOTH Device
You can enjoy music, or perform handsfree calling, by connecting a suitable BLUETOOTH device (cellular phone, audio device, etc.). For details on connecting a BLUETOOTH device, refer to the operating instructions supplied with the device. Before connecting, turn down the volume of this unit; otherwise, loud sound may result.
Pairing and connecting with a
BLUETOOTH device
When connecting a BLUETOOTH device for the first time, mutual registration (called “pairing”) is required. Pairing enables this unit and other devices to recognize each other.
1 Press HOME, then touch [Settings].
2Touch
, and move the scrollbar up and down.
3Touch [Bluetooth Connection], then set the signal to [ON].
The BLUETOOTH signal of this unit is activated and
appears on the status bar.
4Touch [Pairing >].
The unit enters pairing standby mode.
5Perform the pairing procedure on the BLUETOOTH device to detect this unit.
8GB
6Select [Sony Car Audio] shown in the display of the BLUETOOTH device.
7If passkey* input is required on the BLUETOOTH device, input [0000].
* Passkey may be called “passcode,” “PIN code,” “PIN number,” “password,” etc., depending on the BLUETOOTH device.
8Select this unit on the BLUETOOTH device to establish the BLUETOOTH connection.
or
lights up when the connection is made.
Note
While connecting to a BLUETOOTH device, this unit cannot be detected by another device. To enable detection, terminate the current connection.
Connecting with a paired BLUETOOTH device
This chapter explains how to connect manually to registered BLUETOOTH devices.
1Make sure that the BLUETOOTH signals both on this unit (page 27) and the BLUETOOTH device are activated.
on the status bar indicates that the
BLUETOOTH signal on this unit is on.
2Operate the BLUETOOTH device to
connect to this unit.
or
appears.
When the ignition is turned to on with the BLUETOOTH signal activated, this unit searches for the last-connected BLUETOOTH device, and connection is made automatically if possible.
Note
If this unit cannot detect the last-connected BLUETOOTH device, touch [Reconnect] to search for the last-paired device again.
If the problem is not solved, follow the pairing procedure.
To install the microphone
To capture your voice during handsfree calling, you need to install the microphone (supplied).
For details on how to connect the microphone, refer to the supplied “Installation/Connections” guide.
Detaching the front panel (XAV602BT only)
You can detach the front panel of this unit to prevent theft.
Caution alarm
If you turn the ignition switch to the off position without detaching the front panel, the caution alarm will sound for a few seconds. The alarm will only sound if the built-in amplifier is used.
To deactivate the caution alarm, set [Front Panel Caution Alarm] to [OFF] (page 26).
1Press and hold OFF for more than 2 seconds to turn off the unit.
2 Press
.
3Lift the left side of the front panel.Pull it off towards you.
Note
Do not drop or put excessive pressure on the front panel and display window.
Attaching the front panel
Engage part of the front panel with part of the unit, as illustrated, and push the left side into position until it clicks.
Note
Do not put anything on the inner surface of the front panel.
9GB
Listening to the Radio/SiriusXM
Listening to the Radio
To listen to the radio, press HOME then touch [Tuner].
For XAV-712HD
Program Service Data: Contributes to the superior user experience of HD Radio Technology. Presents song name, artist, station IDs, HD2/HD3 Channel Guide, and other relevant data streams.
Adjacent to traditional main stations are extra local FM channels. These HD2/HD3 Channels provide new, original music as well as deep cuts into traditional genre.
Digital, CD-quality sound. HD Radio Technology enables local radio stations to broadcast a clean digital signal. AM sounds like today’s FM and FM sounds like a CD.
iTunes Tagging provides you the opportunity to discover a wide range of content and the means to “tag” that content for later review and purchase from the iTunes Store.
Visual information related to content being played on your HD Radio receiver, such as Album Art, historical photographs, still art from live broadcasts, among other related content.
For more information, visit the following website: http://www.hdradio.com/
Reception controls/indications
Play operation display:
XAV-712HD
XAV-602BT
|
|
|
|
|
Play display (HD Radio reception only):
XAV-712HD |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Reception controls ( to )
Current band icon
Opens the band list.
10GB
(list)
Displays the list for selecting the main/ supplemental program (only when digital broadcast is being received) (page 12). This item cannot be selected during analog radio reception.
Registers the current band as a preset item.
Changes the pattern of the visualizer.
(playback display)
Displays the HD Radio playback display. This item cannot be selected during an analogue radio reception.
(option)
Deletes all the registered iTunes Tags (page 13).
/
Tunes in automatically.
For operations during HD Radio reception, see “About FM Multicasting (XAV-712HD only)” (page 12).
/
Tunes in manually.
Touch and hold to continuously skip frequencies.
[1] to [6]
Selects a preset station.
Touch and hold to store the currently displayed frequency in that preset.
[PTY] (Program Types) (FM only)
Opens the PTY list (page 12).
(back)
Displays the HD Radio play operation display.
[TAG]
Tags the currently played track (page 13).
Reception indications ( to )
Current source iconFrequency/statusStation logo
Station name/Program type
Song name, Artist name, Album name, GenreAlbum artwork
Storing and Receiving Stations
Caution
When tuning to stations while driving, use Best Tuning Memory (BTM) to prevent an accident.
Storing automatically (BTM)
1Select the desired band ([FM1], [FM2], [FM3], [AM1], or [AM2]).
2 Touch
.
3Touch [BTM].
The unit stores the first six available stations in presets ([1] to [6]).
To return to the playback screen, touch
.
Tuning
1Touch the current band.
The band list appears.
2Touch the desired band ([FM1], [FM2], [FM3], [AM1], or [AM2]).
3Perform tuning.
To tune automatically
Touch
/
.
Scanning stops when the unit receives a station. Repeat this procedure until the desired station is received.
For operations during HD Radio reception, see “About FM Multicasting (XAV-712HD only)” (page 12).
To tune manually
Touch
/
repeatedly until the desired frequency is received.
To skip frequencies continuously, touch and hold
/
.
Storing manually
1While receiving the station that you want to store, touch
, then touch the desired preset number ([1] to [6]).
To return to the playback screen, touch
.
Receiving stored stations
1 Select the band.
2Touch the desired preset number ([1] to [6]).
11GB
About FM Multicasting (XAV-712HD only)
Some FM HD Radio stations provide a main program and supplemental program(s) (up to 7) at the same frequency.
To select a program from the list
During main program reception, touch
then select the desired program.
To search a program automatically
During main program reception, touch
/
.
Using Radio Data System (RDS) (XAV-602BT only)
Display items
Band name, RDS*
Program service name, frequencyPreset number
* During RDS reception.
RDS services
This unit automatically provides RDS services as follows:
PTY (Program Types)
Displays the currently received program type. Also searches for a designated program type.
CT (Clock Time)
The CT data from the RDS transmission sets the clock.
Selecting program types (PTY)
1During FM reception, touch [PTY].
To scroll the list, move the scrollbar up and down.
2Touch the desired program type.
The unit searches for a station broadcasting the selected program type.
To close the PTY list, touch
.
Type of programs
News (News), Information (Information), Sports
(Sports), Talk (Talk), Rock (Rock), Classic Rock (Classic Rock), Adult Hits (Adult Hits), Soft Rock (Soft Rock), Top 40 (Top 40), Country (Country), Oldies (Oldies), Soft (Soft), Nostalgia (Nostalgia),
Jazz (Jazz), Classical (Classical), Rhythm and Blues
(Rhythm and Blues), Soft R & B (Soft Rhythm and Blues), Foreign Language (Foreign Language),
Religious Music (Religious Music), Religious Talk
(Religious Talk), Personality (Personality), Public (Public), College (College), Weather (Weather)
Note
You cannot use this function in countries/regions where no PTY data is available.
Listening to the SiriusXM Vehicle Tuner
By connecting an optional SiriusXM Vehicle Tuner, you can use the features and functions of the SiriusXM satellite radio (SiriusXM subscriptions sold separately).
For more details on services, visit the following web site:
http://www.siriusxm.com/
For SiriusXM activation, the Radio ID is required.
To display the SiriusXM Radio ID
1 Press HOME, then touch [SXM].
2 During playback, touch
.
3 Enter [000], then touch [OK].
To select channel list or category list
1Press
.
The Channel List appears on the display.
2Touch the desired channel. To scroll the list, touch / .
3Press
.
The Category List appears on the display.
4Touch the desired category. To scroll the list, touch / .
To store channels
1 Touch
to enter the Preset Edit mode.
12GB
2Select the number that you want to store.
To operate instant replay
Stores broadcast content in the memory of the SiriusXM Vehicle Tuner. Memory capacity differs depending on the SiriusXM Vehicle Tuner. You can perform operations on that stored content, such as playing back music.
Touch to skip to the next/previous content. Touch and hold to reverse/fast-forward the
contents.
Touch to pause/resume play after pause.
Touch to locate to the current content being broadcast. This button only appears during instant replay.
To use iTunes Tagging (page 13)
You can save the name of a song broadcast from a SiriusXM channel to this unit with a few easy steps.
To set parental control
Some SiriusXM channels contain content that is not suitable for children. You can enable a parental control passcode for these channels.
1In Source Settings (page 28), move the scrollbar up and down to select [SXM Parental Control].
2 Enter the passcode, then touch [OK].
The passcode display appears when a selected channel is blocked by the parental control function. If you want to listen to the channel, enter the passcode and touch [OK]. If not, touch [Clear].
To change the passcode
1Select [SXM Parental Control] in Source Settings, then enter your current passcode to unlock the parental control.
2Select [SXM Parental Control] in Source Settings again, then enter a new passcode.
iTunes Tagging
The iTunes Tag key on this unit, which appears when song information is broadcast on an HD Radio station (XAV-712HD only)/SiriusXM channel, allows you to tag songs and purchase them later.
For details on compatible iPod models, see “About iPod” (page 36).
For details on iTunes Tagging and the latest iTunes Tagging compatible models, check the iTunes website at - http://www.apple.com/itunes/
For details on purchasing a song using “Tagged” information, check the iTunes website at - http://www.apple.com/support/itunes/
1Touch [TAG] when you hear a song you want to save.
The name of the song is saved to the unit.
2Connect an iPod to the USB port to transfer the data.
If an iPod is already connected, the data will be transferred immediately.
The TAG indicator flashes during the transfer.
3Sync the iPod to your computer.
The songs will show up in a “Tagged” playlist in iTunes.
Notes
If [TAG] is touched immediately after the beginning of a song or just before the end of a song, the unit may retrieve the information of the previous or next song, in addition to the current song.
The maximum number of tagged songs that you can save to this unit is 50.
Once the tagged songs are transferred to the iPod, they are erased from the unit automatically.
To delete all tagged songs before transfer
Press HOME, then touch [Tuner]
[Delete].
13GB
Playback
For playable discs or file types, see page 33.
Playing a Disc
Depending on the disc, some operations may be different or restricted.
Refer to the operating instructions supplied with the disc.
XAV-712HD
1Press on the unit to open the front panel.
2Insert the disc (label side up), then playback starts.
XAV-602BT
1Insert the disc (label side up), then playback starts.
If a DVD menu appears
Touch the desired item in the DVD menu.
You can also use the menu control panel, which can be displayed by touching the screen anywhere except the DVD menu items. Touch / / / to move the cursor, then touch [ENTER] to confirm.
If the menu control panel does not appear by touching the display, use the remote commander.
Example of playback indications (DVD)
Current source icon, format, chapter/title number, audio format
Playback status, elapsed playback time
Touch the display if the indications are not displayed.
For audio discs, some indications are always displayed during playback.
To change the visualizer settings, touch
.
Using PBC (playback control) functions
The PBC menu interactively assists with operations while a PBC-compatible VCD is played.
1Start playing a PBC-compatible VCD.
The PBC menu appears.
2Press the number buttons on the remote commander to select the desired item, then press ENTER.
3Follow the instructions in the menu for
interactive operations.
To return to the previous display, press on the remote commander.
To deactivate PBC functions, set [Video CD PBC] to [OFF] (page 30).
Notes
During PBC playback, the track number, playback item, etc., do not appear on the playback display.
Resume playback is unavailable during playback with PBC.
Configuring audio settings
To change the audio language/format
The audio language can be changed if the disc is recorded with multilingual tracks. You can also change the audio format when playing a disc recorded in multiple audio formats (e.g., Dolby Digital).
During playback, touch the screen and then
. Touch
repeatedly until the desired audio language/format appears.
Audio language
Audio format/ channel numbers*
*The format name and channel numbers appear as follows:
Example: Dolby Digital 5.1 ch
Front channel × 2 + Center channel × 1Rear channel × 2
If the same language is displayed two or more times, the disc is recorded in multiple audio formats.
14GB
To change the audio channel
When playing a VCD, you can listen to both left and right channels, right channel only or left channel only, via both right and left speakers.
During playback, touch
repeatedly until the desired audio channel appears.
The options are indicated below.
[Stereo]: Standard stereo sound (default) [1/Left]: Left channel sound (monaural) [2/Right]: Right channel sound (monaural)
Playing an iPod/USB Device
In these Operating Instructions, “iPod” is used as a general reference for the iPod functions on the iPod and iPhone, unless otherwise specified by the text or illustrations.
For details on the compatibility of your iPod, see “About iPod” (page 36) or visit the support site on the back cover.
MSC (Mass Storage Class)-type USB devices (such as a USB flash drive, digital media player, Android phone) compliant with the USB standard can be used.
Depending on the digital media player or Android phone, setting the USB connection mode to MSC is required.
1Reduce the volume on this unit.
If the device is turned off, turn it on.
2Connect the iPod or the USB device to the USB port.
3Press HOME, then touch [USB Music], [USB Video], [USB Photo] or [iPod].
In the case of [USB Music], [USB Video] or [iPod], playback starts.
In the case of [USB Photo], touch [All pictures] or [Folders], then select the picture or folder to start photo file playback.
To stop playback
Press and hold OFF for 1 second.
To remove the device
Stop playback, then disconnect.
Do not disconnect during playback, as data in the device may be damaged.
Notes
If you connect an iPod or MSC device to a USB port while the same type of device is already connected to the other USB port, the unit will not recognize the latest device.
The signal of USB Video or USB Photo playback is not output from the video output terminal (rear).
The signal of iPod video playback is not output from the video output terminal (rear).
Caution for iPhone
When you connect an iPhone via USB, telephone volume is controlled by the iPhone itself. In order to avoid sudden loud sound after a call, do not increase the volume on the unit during a call.
About resuming mode
When the iPod currently playing is connected to the dock connector, the mode of this unit changes to resuming mode and playback starts in the mode set by the iPod.
In resuming mode, repeat/shuffle play are not available.
Listen and watch contents with direct operation of iPod (Passenger App Control)
1 During playback, touch
.
To deactivate Passenger App Control
During [Passenger App Control], touch screen and then [Cancel].
The play mode changes to resuming mode.
Notes
App image and video can only be displayed on this unit while the parking brake is applied.
Apps compatible with Passenger App Control are limited.
The volume can be adjusted only by this unit.
The repeat and shuffle settings will be off if the Passenger App Control mode is canceled.
Playing a BLUETOOTH Device
You can play contents on a connected device that supports BLUETOOTH A2DP (Advanced Audio Distribution Profile).
1Make BLUETOOTH connection with the audio device (page 9).
2 Reduce the volume on this unit.
3 Press HOME, then touch [BT Audio].
4Operate the audio device to start playback.
5 Adjust the volume on this unit.
15GB
Playback controls
If the BLUETOOTH device supports AVRCP (Audio Video Remote Control Profile), you can control playback via this unit in the same way as disc playback.
To match the volume level of the BLUETOOTH device to other sources
You can reduce the volume level differences between this unit and the BLUETOOTH device. During playback, touch
.
Select a level from –8 to +18.
Searching and Playing Tracks
Using repeat play and shuffle play
1During playback, touch
(repeat) or
(shuffle) repeatedly until the desired option appears.
Repeat or shuffle play starts.
Available play modes differ depending on the selected sound source.
Note
Shuffle play is not available for the following discs:
DVD-R/DVD-R DL/DVD-RW in VR mode.
version 2.0 VCD with PBC function.
Using direct search play
1During playback, press the number buttons on the remote commander to enter an item (track, chapter, etc.) number, then press ENTER.
Playback starts from the beginning of the selected point.
Note
During VCD playback, this function is available only when playing a VCD without PBC functions.
Searching for a track by the main chorus part (ZAPPIN™)
ZAPPIN helps you to find desired song by playing back only the main chorus part of that song in a playlist of the iPod/USB device. The playback time can be adjusted in the option menu (page 18). This function is convenient, for example, when searching for a track in shuffle or shuffle repeat mode.
Notes
The tracks in the USB device need to be analyzed by 12 TONE ANALYSIS.
The tracks in the iPod are played back from 1 minute into each song.
1During audio playback, touch [ZAP].
In the case of USB Music, ZAP mode starts from the currently playing track.
In the case of iPod, ZAP mode starts from a passage in the next track.
2Touch [ZAP] when a track you want to listen to is played.
In the case of USB Music, playback returns to normal from the current position until the end of the track.
In the case of iPod, the selected track plays from the beginning.
To search for a track via the ZAPPIN mode again, repeat steps 1 and 2.
Searching for a file from the list screen
1During playback, touch
.
The list screen from the currently played item appears.
Furthermore, touch
or
to list up by the file type (audio/video).
2Touch the desired item.
Playback starts.
In the case of the USB photo file, touch
to start the slideshow.
To change the display format for video/ photo files
While the list screen appears, touch
then select the desired option.
: Grid view
Displays the files as a grid.
: List view
Displays the files as a list.
: Cover art view
Displays the files as angled graphics.
: Date view (all pictures only)
Displays the photo files in order of date.
16GB
: Expanded view (folders only)
Displays the photo folders, below which are displayed subfolders, and any photo file images that are contained.
Selecting songs from the library
1While the list screen appears, touch
.
The menu list appears.
2Select the desired category.
The selected list appears.
3Touch the desired track.
Playback starts.
Selecting an album by cover art
1 While the list screen appears, touch
.
2Touch the cover art of the album you want to play.
Playback starts.
Enjoying Music According to Your Mood (SensMe™)
Sony’s unique “SensMe™ channels” feature automatically group tracks by channel or mood, and allow you to enjoy music intuitively.
Installing “Media Go” on your computer
Software (“Media Go”) is required to enable the SensMe™ function on this unit.
1Download “Media Go” software from the support site on the back cover.
2Follow the on-screen instructions to complete the installation.
Transferring tracks to a USB device using “Media Go”
To enable the SensMe™ function on this unit, tracks need to be analyzed and transferred to a registered USB device using “Media Go.”
1Connect the registered USB device to your computer.
For “WALKMAN,” connect via MTP mode. For USB devices other than “WALKMAN,” connect via MSC mode.
“Media Go” starts automatically.
If a message appears, follow the on-screen instructions to proceed.
2Drag and drop tracks from Windows Explorer or iTunes, etc., to “Media Go.”
The analysis and transfer of tracks starts.
For details on operations, refer to the help of “Media Go.”
Playing tracks in channels (SensMe™ channels)
“SensMe™ channels” automatically group tracks into channels by their tunes. You can select and play a channel that fits your mood, activity, etc.
1Connect a USB device set up for the SensMe™ function.
2 Press HOME, then touch [USB Music].
3 Touch
, then
.
4Flick the channel list left or right.
Playback of the first track in the current channel starts from the track’s most melodic or rhythmical section*.
* May not be detected correctly.
5Touch the desired channel.
Playback of tracks in the selected channel starts.
Channel list
Basic channels
Plays tracks according to the music type.
[Energetic], [Emotional], [Lounge], [Dance], [Extreme], [Upbeat], [Relax], [Mellow]
Recommended
[Morning], [Daytime], [Evening], [Night], [Midnight]
Shuffle All
Plays all analyzed tracks in random order.
Available Options
Various settings are available in each source by touching
. The available items differ depending on the situation.
17GB
iPod
Options |
|
Details |
|
|
|
[ZAPPIN |
- |
Selects the playback |
Time] |
|
time for the ZAPPIN |
|
|
function: [6 sec], [15 |
|
|
sec], [30 sec] |
|
|
|
USB Music
Options |
Details |
|||
|
|
|
|
|
|
|
|
[ZAPPIN Time] |
Selects the playback |
|
|
|
|
time for the ZAPPIN |
|
|
|
|
function: [6 sec], [15 |
|
|
|
|
sec], [30 sec] |
|
|
|
|
|
|
|
|
[Update |
Searches for music |
|
|
|
database] |
files and adds them |
|
|
|
|
to the database. |
|
|
|
|
|
|
|
|
[About Music |
Displays the |
|
|
|
player] |
application version. |
|
|
|
|
|
|
|
|
[List view], |
Changes the album |
|
|
|
||
|
|
|
[Grid view] |
display format while |
|
|
|
||
|
|
|
|
selecting [Albums] |
|
|
|
|
in library. |
|
|
|
|
|
|
|
|
[Sort by album], |
Changes the cover |
|
|
|
[Sort by artist] |
art sort order. |
|
|
|
|
|
|
|
|
[Gate], [Balloon], |
Changes the |
|
|
|
[Glow], [Animal], |
visualizer settings. |
|
|
|
[Albums], |
|
|
|
|
[Graffiti], [Ink], |
|
|
|
|
[Random] |
|
|
|
|
|
|
USB Video
Options |
Details |
|
|
|
|
|
[Zoom settings] |
Adjusts the video |
|
|
display: [Normal |
|
|
mode], [Full mode], |
|
|
[Off] |
|
|
|
|
[Update |
Searches for video |
|
database] |
files and adds them |
|
|
to the database. |
|
|
|
|
[About Video |
Displays the |
|
player] |
application version. |
|
|
|
|
– |
Displays the audio |
|
|
option menus. |
|
|
|
|
– |
Displays detailed |
|
|
information. |
|
|
|
|
– |
Deletes the file. |
|
|
|
|
[Oldest first], |
Changes the video |
|
[Newest first], |
list sort order. |
|
[A to Z], [Z to A] |
|
|
|
|
USB Photo |
|
|
|
|
|
Options |
|
Details |
|
|
|
|
[Slideshow |
Adjusts the time |
|
interval settings] |
interval: [0.5 sec.] – |
|
|
[20.0 sec.]. |
|
|
|
|
[Play |
Sets continuous |
|
continuously] |
playback |
|
|
(slideshow). |
|
|
|
|
[Update |
Searches for picture |
|
database] |
files and adds them |
|
|
to the database. |
|
|
|
|
[About Photo |
Displays the |
|
viewer] |
application version. |
|
|
|
|
– |
Plays a slideshow. |
|
|
|
|
– |
Sets a photo file as |
|
|
wallpaper. |
|
|
|
|
– |
Displays detailed |
|
|
information. |
|
|
|
|
– |
Deletes the file. |
|
|
|
|
[Oldest first], |
Changes the photo |
|
[Newest first], |
list order. |
|
[A to Z], [Z to A] |
|
|
|
|
Disc |
|
|
|
|
|
Options |
|
Details |
|
|
|
[DVD |
– |
Adjusts the audio |
Audio |
|
output level |
Level] |
|
between –10 and |
|
|
+10 for a DVD |
|
|
recorded in Dolby |
|
|
Digital format, to |
|
|
balance the volume |
|
|
level between discs. |
|
|
|
[CSO |
– |
Creates a virtual |
(Center |
|
center speaker even |
Speaker |
|
though a real center |
Organizer)] |
|
speaker is not |
|
|
connected. Select |
from [CSO1], [CSO2] or [CSO3]. This function is effective only when [Multi Channel Output] is set to [Multi] in Source Settings (page 29).
18GB
Listening to Pandora®
Pandora® is available to stream music through your iPhone, Android™ and BlackBerry® phones. You can control Pandora® on a USB-connected iPhone or BLUETOOTH connected Android/BlackBerry phone from this unit.
The Pandora® service is not available in some countries/regions.
Preparing for Pandora®
1Check the usable mobile device to visit the support site on the back cover.
2Download the latest version of the Pandora® application to visit: www.pandora.com
Streaming Pandora®
1 Reduce the volume on this unit.
2Connect this unit with the mobile device.
In the case of an iPhone, connect via USB. In the case of Android/BlackBerry phone,
connect via the BLUETOOTH function (page 8).
3 Press HOME, then touch [Pandora].
4Launch the Pandora® application on the mobile device.
5Touch
, then [USB connection for iPhone] or [Bluetooth connection for Android or Blackberry].
Playback starts.
If the device number appears
Make sure that the same numbers are displayed (e.g., 123456) in this unit and the mobile device, then touch [OK] on this unit and confirm on the mobile device.
Available Operations in
Pandora®
“Thumbs” feedback
“Thumbs Up” or “Thumbs Down” feedback allows you to personalize stations.
Thumbs Up
During playback, touch
.
Thumbs Down
During playback, touch
.
Using the station list
The station list allows you to easily select a desired station.
1During playback, touch
.
The station list appears.
2Touch the desired station name.
Playback starts.
To change the sorting order, touch
or
.
To scroll the list, move the scrollbar up and down.
Bookmarking
The track or artist currently being played can be bookmarked and stored in your Pandora® account.
1During playback, touch
, then
or
in [Bookmark].
Creating a station
A new station can be created based on the track or artist being played. It will be accessible from your Pandora® account immediately.
1During playback, touch
, then
or
in [Station].
Deleting a station
Stations can be deleted from the station list in order to make room for new stations.
1During playback, touch
.
The station list appears.
2In the station list, touch
.
The delete mode will be activated and checkboxes will be shown next to station names.
3Check the stations to be deleted and press [Delete].
A confirmation box will show [OK] to confirm deletion.
4 Touch [OK].
19GB
Handsfree Calling
Before handsfree calling, make sure that
and
are in the display. If the indications do not appear, perform the BLUETOOTH connection procedure (page 8).
Receiving a Call
1Touch
when a call is received.
The phone call starts.
Notes
You cannot receive a call when the unit enters the MirrorLink™ mode.
The ringtone and talker’s voice are output only from the front speakers.
To adjust the ringtone volume
The level of ringtone volume will be stored into memory, independently from the regular volume level.
XAV-712HD
Press VOLUME +/– while receiving a call.
XAV-602BT
Rotate the volume control dial while receiving a call.
To reject/end a call
Touch
.
Making a Call
1 Press HOME, then touch [Phone].
2Touch one of the icons on the BLUETOOTH phone display.
(call history)*1
Select a contact from the call history list. The unit stores the last 20 calls.
(redial)
Make a call automatically to the last contact you made.
(phonebook)*1
Select a contact from the name list/ number list in the phonebook. To search
the desired contact by alphabetical order in the name list, touch
.
For details on how to manage the phonebook data, see “Phonebook Management” (page 21).
(voice dial)*2*3
Say a voice tag stored on the cellular phone.
(phone number input)
Enter the phone number.
Preset number
Touch a preset number ([1] to [6]). The unit stores up to 6 contacts in the list.
For details on how to store, see “Presetting phone numbers” (page 21).
*1 The cellular phone needs to support PBAP (Phone Book Access Profile).
*2 Do not use the voice dial function on the cellular phone while it is connected to this unit.
*3 Voice dial may not work depending on the recognition specification of the cellular phone. For details, visit the support site on the back cover.
3Touch
.
The call is made and the calling display appears until the other party answers.
20GB
Available Operations During a
Call
To adjust the talker’s voice volume
The level of the talker’s voice volume will be stored into memory, independently from the regular volume level.
XAV-712HD
Press VOLUME +/– during a call.
XAV-602BT
Rotate the volume control dial during a call.
To send DTMF (Dual Tone Multiple Frequency) tones
Touch
, then the required number keys.
To transfer the current call to the cellular phone
Touch
.
To transfer back to handsfree calling, touch
again.
Available options
During a handsfree call, press
.
[Speech Quality] |
Reduces echo and noise during |
|
a call. For normal use, set to |
|
[Mode 1]. If the outgoing sound |
|
quality is unsatisfactory, set to |
|
[Mode 2]. |
|
|
[MIC Gain] |
Adjusts the microphone volume |
|
for the other party: [Low], |
|
[Middle], [High]. |
|
|
2 Touch
, then [Phonebook Select].
3 Touch the desired item.
To store phonebook data (When [Internal] has been selected from [Phonebook Select])
You can send phonebook data from the connected cellular phone to this unit.
Press HOME, then touch [Phone]
[Receive Phonebook]. The unit is ready to receive the phonebook data.
Send the phonebook data by operating the connected cellular phone.
If data is stored successfully, the BLUETOOTH device name appears on the display of the unit.
Deleting phonebook data
1Press HOME, then touch [Phone].
The BLUETOOTH phone display appears.
2Touch
.
The phonebook appears.
3Touch
.
The confirmation display appears.
4Touch [OK].
All phonebook data on this unit is deleted.
To delete an individual contact from the phonebook
Follow steps 1 to 2 above, then select the contact. To search the desired contact by alphabetical order, touch
then select alphabet.
Touch
[OK].
Phonebook Management
Note
Prior to disposal or changing ownership of your car with this unit still installed, be sure to erase all the phonebook data in this unit to prevent possible unauthorized access, by doing any of the following:
Delete the phonebook data by initializing (page 27).
Press the reset button.
Disconnect the power supply lead.
Selecting phonebook data
You can access the phonebook data of a cellular phone or this unit’s internal data to make a call.
1Press HOME, then touch [Phone].
The BLUETOOTH phone display appears.
Call Data Management
Deleting call history
1Press HOME, then touch [Phone].
The BLUETOOTH phone display appears.
2Touch
.
The call history list appears.
3Touch
.
The confirmation display appears.
4Touch [OK].
All items in the call history are deleted.
Presetting phone numbers
1 Press HOME, then touch [Phone].
21GB
The BLUETOOTH phone display appears.
2Touch
.
The phonebook appears.
3Select the contact to store in the preset dial.
In the name list, touch the name of the contact.
To search the desired contact by alphabetical order, touch
, then select alphabet.
In the number list, touch the phone number.
The contact confirmation display appears.
4Touch [Preset], then the desired preset number ([1] to [6]).
The contact is stored to the selected preset number.
To change the registration of the preset dial
Follow the procedure above and overwrite a registered preset dial.
Phone Option Menu
1 Press HOME, then touch [Phone].
2Touch
.
The phone option menu appears.
[Ringtone]
Uses the ringtone of this unit or the connected cellular phone: [Internal], [Cellular].
[Auto Answer]
Answers an incoming call automatically.
[OFF]: to not answer automatically.
[3 sec]: to answer automatically after 3 seconds.
[10 sec]: to answer automatically after 10 seconds.
[Phonebook Select]
Browses the phonebook data on this unit or cellular phone: [Internal], [Cellular].
[Receive Phonebook]
Receives phonebook data from the connected cellular phone.
When receiving is complete, BLUETOOTH device name appears.
[Background Visualizer]
Sets background visualizer: [ON], [OFF].
Useful Functions
For details on smartphone connectivity with the following operations and battery charge capability, see “Summary of Useful Functions for Smartphone” on the pages at the end of these operating instructions.
App Remote with iPhone/ Android Phone
Downloading the App Remote application is required from App StoreSM for an iPhone, or from Google Play for Android phone.
The App Remote function provides the following features:
Operate the unit to launch and control compatible applications on an iPhone/Android phone.
Operate iPhone/Android phone with simple finger gestures to control the source of the unit.
Read out incoming text messages/SMS/ reminders. (Android phone only)
Launch an application/audio source or search the keyword on the web by saying a word or phrase into the microphone. (Android phone only)
Adjust the sound settings (EQ7, Balance/Fader, Listening Position) of the unit via a mobile device.
Available operations differ depending on the application. For details on available applications, visit the support site on the back cover.
Notes
For your safety, follow your local traffic laws and regulations, and do not operate the application while driving.
The App Remote application on the smartphone needs to be Version 2 or higher.
The App Remote function via USB is only available for iPhones with iOS 5 installed.
The App Remote function via the BLUETOOTH function is only available for Android phones with Android 2.1, 2.2, 2.3 or 4.0 installed.
Automatic reading of the SMS function is only available for Android phones with TTS Engine installed.
The following functions disable the App Remote function.
BT Audio (Android phone only)
MirrorLink™
HDMI/MHL (XAV-712HD only)
Pandora on the unit
The App Remote function is not available when [Receiver Audio Playback during MirrorLink™] is set to [ON].
22GB
1Connect the iPhone to the USB port, or Android phone via the BLUETOOTH function.
2 Launch the App Remote application.
3Press HOME, then touch [App Remote].
Connection to the iPhone/Android phone starts. For details on operation of the iPhone/Android phone, see the help of the application.
If the device number appears
Make sure that the same numbers are displayed (e.g., 123456) in this unit and the mobile device, then press MENU on this unit and select Yes on the mobile device.
To terminate connection
Touch
in the upper right of the display.
Duplicating the Smartphone’s
Display (MirrorLink™)
MirrorLink™ compatibility depends on smartphones and its application.
For details on compatible models, refer to the compatibility list on the support site on the back cover.
Notes on using the MirrorLink™ function
Your smartphone needs to support the MirrorLink™ function.
Depending on the smartphone, you may need to download an application to use the MirrorLink™ function.
Available operations differ depending on the smartphone. Refer to the manual supplied with the smartphone, or consult the manufacturer of the smartphone for details.
1Connect your smartphone to the USB port.
2Press HOME, then touch [MirrorLink™].
The smartphone’s display appears on the display of the unit.
Touch and control the applications in the same way as you do on your smartphone.
Tip
Setting [Receiver Audio Playback during MirrorLink™] to [ON] allows the unit to playback an audio source under the MirrorLink™ function (page 25). This setting is useful when you use a navigation application on your smartphone via the MirrorLink™ function.
Note
For your safety, when the parking brake is not engaged, some smartphone screen content may not be displayed on the unit.
Enjoying Different Sources in
Front and Rear (Zone × Zone)
You can simultaneously enjoy different sources in the front and rear of the car.
Selectable sources for this unit (front) and the rear monitor (rear) are indicated below.
Front: Any source.
Rear: Disc inserted in this unit.
1 Press HOME, then touch [Settings].
2 Touch
, then touch [Zone × Zone].
3Touch [ON].
To operate the source in the front, use the touch panel and buttons on the unit.
To operate the source in the rear, use the remote commander.
To deactivate Zone × Zone
Press OFF on the unit/remote commander or select [OFF] in step 3 above.
Notes
The Zone × Zone function disables remote commander operation of the source in the front.
The following buttons on the remote commander become inactive under the Zone × Zone function: SRC, MODE, ATT, VOL +/–, CLEAR, number buttons.
The following settings become inactive under the Zone × Zone function:
EQ7 / Subwoofer Level Adjust (page 27)
Balance / Fader Level Adjust (page 27)
Listening Position (page 27)
CSO (page 18)
HPF, LPF (page 28)
Rear Bass Enhancer (page 27)
Enjoying high quality image (XAV-712HD only)
The unit automatically selects the HDMI in/MHL in as the source when the MHL device is connected to the unit, and [Auto Input Change(MHL)] is set to [ON] (page 30).
1Connect a device via the supplied HDMI or MHL connection cable.
Use the appropriate cable for your device.
Notes
Do not disconnect the device during playback.
The MHL connection cable can be used as a power source for recharging the connected device’s battery when the ignition switch is turned to the accessory position.
To connect an iPod via the HDMI connection cable, Apple Digital AV Adapter or Lightning Digital AV Adapter is required.
23GB
An iPod is charged when it is connected to the unit via the appropriate adaptor. In this case, USB connection is also required.
The supplied remote commander works for some of the operations on the unit and the connected MHL compatible device.
For HDMI connection, the supplied remote commander only works for this unit.
The image may show up differently on the unit’s display compared to the one on the display of the connected HDMI/MHL device.
This unit is compatible with 480p and VGA.
Using Gesture Command
You can perform frequently-used operations by drawing the following command strokes on the reception/playback display.
Do this |
To |
|
|
|
|
|
Radio reception: |
|
|
seek forward stations. |
|
Draw a horizontal |
(The same as .) |
|
line (left to right) |
|
|
DVD/VCD playback: |
||
|
||
|
skip forward a chapter/track. |
|
|
(The same as .) |
|
|
|
|
|
Xvid/MPEG-4/audio |
|
|
playback: |
|
|
skip forward a file/track. |
|
|
(The same as .) |
|
|
|
|
|
Pandora® playback: |
|
|
skip a track. |
|
|
(The same as .) |
|
|
|
|
|
Radio reception: |
|
|
seek backward stations. |
|
Draw a horizontal |
(The same as .) |
|
line (right to left) |
|
|
DVD/VCD playback: |
||
|
||
|
skip backward a chapter/track. |
|
|
(The same as .) |
|
|
|
|
|
Xvid/MPEG-4/audio |
|
|
playback: |
|
|
skip backward a file/track. |
|
|
(The same as .) |
|
|
|
|
|
Radio reception: |
|
|
receive stored stations (go |
|
|
forward). |
|
Draw a vertical |
|
|
DVD/VCD/Xvid/MPEG-4 |
||
line (upwards) |
||
playback: |
||
|
||
|
fast-forward the video. |
|
|
|
|
|
Audio playback: |
|
|
skip forward an album (folder). |
|
|
|
|
|
Pandora® playback: |
|
|
Thumbs up. |
|
|
(The same as .) |
|
|
|
Radio reception:
receive stored stations (go backward).
Draw a vertical
line (downwards) DVD/VCD/Xvid/MPEGplayback: -4 reverse the video.
Audio playback:
skip backward an album (folder).
Pandora® playback:
Thumbs down. (The same as
.)
Tips
In the case of USB Video, you can change the playing speed dynamically by dragging the screen of the video file left or right.
In the case of USB Photo, you can reverse/fastforward a photo file by flicking the photo list left or right.
24GB
Settings
Select [Settings] in the HOME menu when you need to change the settings of the unit.
“ ” in the table below indicates the default setting.
1 Press HOME, then touch [Settings].
2Touch one of the setup category icons.
: General Settings (page 25)
: Sound Settings (page 27)
: Visual Settings (page 28)
: Source Settings (page 28)
3Move the scrollbar up and down to select the desired item.
To return to the previous display, touch
.
To switch from the HOME screen to the playback screen, touch
.
General Settings
MirrorLink™ Full Screen
Unit status: Any status
Option Purpose
ON ( ), OFF To duplicate the smartphone’s display on the display of the unit, in full screen mode.
Receiver Audio Playback during MirrorLink™
Unit status: Any status
Option Purpose
ON, OFF ( ) To enable playback of an audio source under the MirrorLink™ function. In this mode, [MirrorLink™] can be selected by pressing the DSPL button.
The following sources are not selectable when the function is set to [ON].
-BT Audio -Pandora -App Remote
HOME Key Function (hold 2sec push) (XAV-712HD only)
Unit status: Any status
Option |
Purpose |
|
|
Voice |
To assign the voice command |
Command ( ), function or the ATT function to ATT ON/OFF the HOME button.
Zone × Zone
Unit status: Any status
Option Purpose
ON, OFF ( ) To activate the Zone × Zone function.
Date & Time
Unit status: Any status
Option Purpose
Select Time To set time zone, date and time.
Zone, Set Date, Set Time
Language
Unit status: Any status
Option Purpose
English ( ), To select the display language.
Français,
Español,
Português,
Русский,
Nederlands,
Deutsch,
Italiano,
,
,
,
Name Characters
Unit status: Any status
Option |
Purpose |
|
|
Latin |
To select character encoding. |
Characters ( ), Some characters may not be
Russian |
displayed correctly, depending |
Characters, |
on the encoding method. |
Simplified |
|
Chinese, |
|
Traditional |
|
Chinese, |
|
Korean |
|
Characters, Thai |
|
Characters |
|
|
|
25GB
Auto OFF
Shuts off automatically after a desired time when no source is selected.
Unit status: Any status
Option Purpose
OFF ( ), 30 sec, To select the desired time to shut 30 min, 60 min off the unit or deactivate the
Auto OFF function.
Demo
Unit status: Any status
Option Purpose
ON ( ), OFF To activate the demonstration.
Beep
Unit status: Any status
Option Purpose
ON ( ), OFF To activate the operation sound.
Front Panel Caution Alarm (XAV-602BT only)
Unit status: Any status
Option Purpose
ON ( ), OFF To activate the caution alarm.
Rotary Commander
Changes the operative direction of rotary commander controls.
Unit status: Any status
Option |
Purpose |
|
|
Default ( ) |
To use in the factory-set |
|
position. |
|
|
Reverse |
To use on the right side of the |
|
steering column. |
|
|
Key Illumination
Unit status: Any status
Option |
Purpose |
|
|
Rainbow ( ) |
To change the color of the |
(12 preset |
buttons on the unit to match the |
colors, |
car’s interior. |
customized |
|
color and 5 |
|
preset patterns) |
|
|
|
Touch Panel Adjust
Unit status: Any status
Option Purpose
–To adjust the touch panel calibration if the touching position does not correspond with the proper item.
Camera Input
Unit status: Any status
Option |
Purpose |
|
|
OFF |
To deactivate the input. |
|
|
Normal ( ) |
To display the picture from the |
|
rear view camera. |
|
|
Reverse |
To flip the picture from the rear |
|
view camera horizontally. |
|
|
Rear View Camera Setting
Displays setting items on the picture from the rear view camera to assist driving.
This setting is available only when:
[Camera Input] is set to [Normal] or [Reverse].
the parking brake is applied.
Unit status: Any status
Option Purpose
To display the marker lines. Touch again to hide the marker lines.
To adjust the length and/or position of the marker lines.
Output Color System
Unit status: No source selected
Option Purpose
NTSC ( ), PAL To change the color system according to the connected monitor. (SECAM is not supported.)
Bluetooth Connection
Unit status: Any status
Option Purpose
ON, OFF ( ) To activate the BLUETOOTH signal.
26GB
Bluetooth Reset
Unit status: Any status
Option Purpose
–To initialize all BLUETOOTHrelated settings such as pairing information, phonebook data, call history, preset dial, history of connected BLUETOOTH devices, etc.
USB Battery Charge Mode
Unit status: Any status
Option |
Purpose |
|
|
High ( ), |
To switch the current (mA) |
Standard |
capacity of the USB rear cable |
|
labeled “HIGH CHARGE”. |
|
Set to [Standard] if the |
|
connected device is not to be |
|
recharged. |
|
|
Firmware Version
Unit status: Any status
Option |
Purpose |
|
|
– |
To update the Firmware version. |
|
|
Open Source Licenses
Unit status: Any status
Option Purpose
–To display the software licenses.
Sound Settings
The following settings are not available during USB Video playback.
EQ7 / Subwoofer Level Adjust
Unit status: During reception/playback
Option Purpose
OFF ( ), R&B, To select the equalizer curve; Pop, Rock, Hip- customize the equalizer curve.
Hop, Dance, Country, Custom
Subwoofer: |
To adjust the volume level of the |
(–6 - +6) |
subwoofer. (Available only when |
: 0 |
[Subwoofer] is set to [ON].) |
|
|
Balance / Fader Level Adjust
Unit status: During reception/ playback
Option |
Purpose |
|
|
Balance : |
To adjust the sound balance |
(–15 - +15) |
between left and right speakers. |
: 0 |
|
|
|
Fader : |
To adjust the sound balance |
(–15 - +15) |
between front and rear speakers. |
: 0 |
|
|
|
Listening Position
Sets the listening position and subwoofer position.
( ): Front left ( ): Front right ( ): Center front
( ): In the center of your car
Unit status: Any status
Option |
Purpose |
|
|
Front L ( ) |
To set to front left. |
|
|
Front R |
To set to front right. |
|
|
Front |
To set to center front. |
|
|
All |
To set to the center of your car. |
|
|
OFF |
To not set the listening position. |
|
|
Subwoofer: |
To select the subwoofer position. |
Near, Normal |
(Available only when |
( ), Far |
[Subwoofer] is set to [ON], and |
|
the listening position is set to |
|
[Front L], [Front R], [Front], or |
|
[All].) |
|
|
Custom |
To precisely calibrate the |
|
listening position. Before |
|
starting, measure the distance |
|
between your listening position |
|
and each speaker. |
|
|
RBE (Rear Bass Enhancer)
Unit status: During reception/ playback
Option Purpose
OFF ( ), RBE1, To select the mode to use the RBE2, RBE3 rear speakers as subwoofers.
27GB
Crossover Filter
Unit status: During reception/ playback
Option Purpose
LPF: 50 Hz, 60 To select the cut-off frequency of Hz, 80 Hz, 100 the subwoofer. (Available only Hz ( ), 120 Hz when [Subwoofer] is set to [ON].)
HPF: OFF ( ), To select the cut-off frequency of 50 Hz, 60 Hz, the front/rear speakers.
80 Hz, 100 Hz,
120 Hz
Subwoofer To select the subwoofer phase. Phase: (Available only when
Normal ( ), [Subwoofer] is set to [ON].)
Reverse
Subwoofer
Unit status: No source selected
Option Purpose
ON ( ), OFF To set the subwoofer connection status.
4.1ch Speaker Level
Unit status: No source selected
Option Purpose
–To adjust the volume level of each connected speaker.
Visual Settings
Dimmer
Unit status: Any status
Option |
Purpose |
|
|
OFF |
To deactivate the dimmer. |
|
|
Auto ( ) |
To dim the display automatically |
|
when you turn lights on. |
|
(Available only when the |
|
illumination control lead is |
|
connected.) |
|
|
ON |
To dim the display. |
|
|
Dimmer Level
Unit status: Any status
Option |
Purpose |
|
|
(–5 - +5) |
To select the brightness level |
: 0 |
when the dimmer is activated. |
|
|
Picture EQ
Adjusts the picture to suit the interior brightness of the car. This setting is available only when the parking brake is set.
Unit status: During video playback except USB Video
Option Purpose
Dynamic ( ), To select the picture quality.
Standard, Theater, Sepia
Custom 1, To customize the picture quality.
Custom 2
Aspect
The screen aspect ratio of USB Video can only be changed by the option menu (page 18). This setting is available only when the parking brake is set.
Unit status: During video playback
Option |
Purpose |
Normal |
To display a picture with 4:3 |
|
aspect ratio (regular picture). |
Wide |
To display a picture with 4:3 |
|
aspect ratio enlarged to the left |
|
and right edges of the screen, |
|
with overflowing parts of the top |
|
and bottom cut off to fill the |
|
screen. |
Full ( ) |
To display a picture with 16:9 |
|
aspect ratio. |
Zoom |
To display a picture with 4:3 |
|
aspect ratio enlarged to the left |
|
and right edges of the screen. |
Source Settings
DVD Direct Search
Sets the search item for DVD direct search play.
Unit status: Any status
Option Purpose
Chapter ( ) To search for a chapter.
Title |
To search for a title. |
|
|
28GB
DVD Menu Language
Unit status: No source selected
Option Purpose
English ( ), To select the default language Chinese, for the disc's menu.
German, French, Italian, Spanish, Portuguese, Dutch, Danish, Swedish, Finnish, Norwegian, Russian, Other
DVD Audio Language
Unit status: No source selected
Option Purpose
English ( ), To select the default language Chinese, for the soundtrack.
German, French, Italian, Spanish, Portuguese, Dutch, Danish, Swedish, Finnish, Norwegian, Russian, Other
DVD Subtitle Language
Unit status: No source selected
Option Purpose
English ( ), To select the default subtitle Chinese, language for DVD.
German, French, Italian, Spanish, Portuguese, Dutch, Danish, Swedish, Finnish, Norwegian, Russian, Other
Audio DRC
Makes the sound clear when the volume is low. Only for a DVD* conforming to Audio DRC (Dynamic Range Control).
* Excluding DVD-R/DVD-R DL/DVD-RW in VR mode.
Unit status: No source selected
Option |
Purpose |
|
|
Standard ( ) |
To select the standard setting. |
|
|
Wide |
To obtain the feeling of being at |
|
a live performance. |
|
|
Multi Channel Output
Switches the method of outputting multi channel sources.
Unit status: Any status
Option |
Purpose |
|
|
Multi ( ) |
To output in 4.1 channels. |
|
|
Stereo |
To downmix to 2 channels. |
|
|
Monitor Type
Selects an aspect ratio suitable for the connected monitor.
(The screen aspect ratio of this unit also changes.) Depending on the disc, [4:3 Letter Box] may be selected automatically instead of [4:3 Pan Scan], and vice versa.
Unit status: No source selected
Option |
Purpose |
16:9 ( ) |
To display a wide picture. |
|
Suitable when connecting to a |
|
wide-screen monitor or a |
|
monitor with a wide mode |
|
function. |
4:3 Letter Box |
To display a wide picture with |
|
bands on the upper and lower |
|
positions of the screen. |
|
Suitable when connecting to a |
|
4:3 screen monitor. |
4:3 Pan Scan |
To display a wide picture on the |
|
entire screen and automatically |
|
cut off the portions that do not |
|
fit. |
29GB
DVD Playlist Play
(For DVD-R/DVD-R DL/DVD-RW in VR mode only)
Unit status: No source selected
Option Purpose
Original ( ) To play titles as they were originally recorded.
Playlist |
To play an edited playlist. |
|
|
Video CD PBC
Unit status: No source selected
Option Purpose
ON ( ), OFF To play a VCD with PBC functions.
Multi Disc Resume
Unit status: Any status
Option |
Purpose |
|
|
ON ( ) |
To store the resume settings in |
|
memory for up to 5 video* discs. |
|
* DVD VIDEO/VCD/Xvid/MPEG-4 |
|
only. |
|
|
OFF |
To not store the resume settings |
|
in memory. |
|
Resume playback is available |
|
only for the current disc in the |
|
unit. |
|
|
SXM Parental Control
Unit status: During SiriusXM tuner reception
Option |
Purpose |
|
|
Locked, |
To activate the parental lock. |
Unlocked ( ) |
|
|
|
SXM Reset
Unit status: Any status
Option Purpose
–To initialize the SiriusXM Connect Tuner settings (preset channels/ Parental Lock).
Source Skip
Unit status: Any status
Option Purpose
–To reduce the number of presses required to change sources (page 6). Check any unused sources in the Source skip screen.
Auto Input Change(MHL) (XAV-712HD only)
Unit status: Any Status
Option Purpose
ON, OFF ( ) To select HDMI in/MHL in as the source automatically when the MHL connection cable is connected to the unit. (Depending on the smartphone, this setting may not work.)
30GB
Loading...
