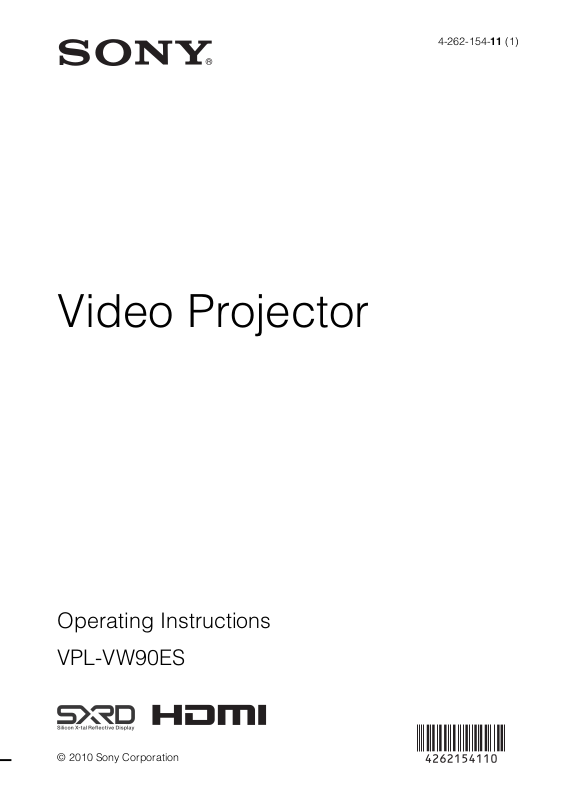

Sony VPL-VW90ES User Manual

Video Projector

4-262-154-11 (1)

Operating Instructions

VPL-VW90ES

WARNING

Wartungsarbeiten stets nur qualifiziertem Fachpersonal.

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

THIS APPARATUS MUST BE EARTHED.

AVERTISSEMENT

Afin de réduire les risques d’incendie ou d’électrocution, ne pas exposer cet appareil à la pluie ou à l’humidité.

Afin d’écarter tout risque d’électrocution, garder le coffret fermé. Ne confier l’entretien de l’appareil qu’à un personnel qualifié.

CET APPAREIL DOIT ÊTRE RELIÉ À LA TERRE.

WARNUNG

Um die Gefahr von Bränden oder elektrischen Schlägen zu verringern, darf dieses Gerät nicht Regen oder Feuchtigkeit ausgesetzt werden.

Um einen elektrischen Schlag zu vermeiden, darf das Gehäuse nicht geöffnet werden. Überlassen Sie

DIESES GERÄT MUSS GEERDET WERDEN.

For the customers in the U.S.A. and Canada

WARNING:

Using this unit at a voltage other than 120 V may require the use of a different line cord or attachment plug, or both. To reduce the risk of fire or electric shock, refer servicing to qualified service personnel.

For the customers in the U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

All interface cables used to connect peripherals must be shielded in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

If you have any questions about this product, you may call; Sony Customer Information Service Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY Model: VPL-VW90ES Responsible party: Sony Electronics Inc. Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number:858-942-2230

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

For the State of California, USA only

Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/ hazardouswaste/perchlorate Perchlorate Material : Lithium battery contains perchlorate.

Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.

Pour les clients en Europe

Le fabricant de ce produit est Sony Corporation, 1-7-1 Konan, Minato-ku, Tokyo, 108-0075 Japon. Le représentant autorisé pour EMC et la sécurité des produits est Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Allemagne. Pour toute question concernant le service ou la garantie, veuillez consulter les adresses indiquées dans les documents de service ou de garantie séparés.

Für Kunden in Europa

Der Hersteller dieses Produkts ist Sony Corporation, 1-7-1 Konan, Minato-ku, Tokyo, 108-0075 Japan. Der autorisierte Repräsentant für EMV und Produktsicherheit ist Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Deutschland. Bei jeglichen Angelegenheiten in Bezug auf Kundendienst oder Garantie wenden Sie sich bitte an die in den separaten Kundendienst- oder Garantiedokumenten aufgeführten Anschriften.

For kundene i Norge

Dette utstyret kan kobles til et ITstrømfordelingssystem.

For the customers in Canada

This Class B digital apparatus complies with Canadian ICES-003.

Pour les clients au Canada

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

For the customers in Europe

The manufacturer of this product is Sony Corporation, 1-7-1 Konan, Minato-ku, Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327

Für Kunden in Deutschland

Entsorgungshinweis: Bitte werfen Sie nur entladene Batterien in die Sammelboxen beim Handel oder den Kommunen. Entladen sind Batterien in der Regel dann, wenn das Gerät abschaltet und signalisiert „Batterie leer“ oder nach längerer Gebrauchsdauer der Batterien „nicht mehr einwandfrei funktioniert“. Um sicherzugehen, kleben Sie die Batteriepole z.B. mit einem Klebestreifen ab oder geben Sie die Batterien einzeln in einen Plastikbeutel.

For the customers in Taiwan only

Table of Contents

Precautions .........................................7

Location of Controls

Front/Right Side .................................8

Rear/Bottom .......................................9

Remote Control ................................10

3D Glasses ........................................11

Connections and Preparations

Unpacking ........................................12

Step 1: Installing the Projector .........13

Before Setting Up the

Projector .....................................13

Positioning the Projector and a

Screen .........................................15

Step 2: Adjusting the Picture

Position .............................................19

Step 3: Connecting the Projector .....24

Connecting to a VCR .................24

Connecting to a Computer ..........27

Connecting to an Optional TMR-

BR100 3D Sync Transmitter ......28

Step 4: Selecting the Menu

Language ..........................................29

Projecting

Projecting the Picture on the

Screen .............................................. 31

Turning Off the Power ............... 32

Operating the BRAVIA Sync Compatible Equipment with the

Remote Control of the Projector ...... 33

Selecting the Wide Screen Mode .... 35

Watching 3D Video Images ............ 38

Using the Simulated 3D

Function ..................................... 39

Using the 3D Glasses ................. 40

Selecting the Picture Viewing

Mode ............................................... 42

Adjusting the Picture Quality .......... 43

Selecting to Directly Adjust the

Desired Menu Item .................... 43

Selecting Desired Adjust Menu

Items in the Order ...................... 44

Adjusting the Picture Using Real Color

Processing ........................................ 45

Using the Supplied Software to Adjust the Picture Quality

(ImageDirector3) ............................. 46

Using the Menus

Operation through the Menus .......... 47

Picture Menu ................................... 51

Advanced Picture Menu .................. 56

Screen Menu .................................... 57

Setup Menu ...................................... 59

Function Menu ................................. 61

Installation Menu ............................. 64

Information Menu ............................ 67

About the Preset Memory No. ...67

Others

About the Control for HDMI ........... 68

About the x.v.Color ......................... 69

About the simulated 3D feature ....... 69

Troubleshooting ............................... 70

Warning Indicators .....................73

Message Lists .............................74

Replacing the Lamp and the Air Filter and Cleaning the Ventilation Holes

(intake) ............................................. 76

Cleaning the Air Filter .....................79

Cleaning and the Screen of the

Projector ........................................... 79

Replacing the Battery of the 3D

Glasses ............................................. 80

Removing/Attaching the Filter

Attachment for 3D Glasses .............. 82

Specifications ................................... 84

Preset Signals .............................86

Input Signals and Adjustable/

Setting Items ...............................89

Compatible 3D Signals ..............91

3D Signals and Adjustable/Setting

Items ......................................... 91

Ceiling Installation ........................... 93

Index ...............................................97

Trademark Information

“PS3” is a registered trademark of Sony Computer Entertainment Inc.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

“Blu-ray” and “Blu-ray Disk” are trademarks of Blu-ray Disc Association.

..........................................................................

Control for HDMI is an HDMI standard mutual control function which uses the HDMI CEC (Consumer Electronics Control) specification. This projector supports DeepColor, x.v.Color, LipSync, 3D signal and computer input signal of HDMI standards. It also supports HDCP.

Precautions

On safety

• Check that the operating voltage of your unit is identical with the voltage of your local power supply.

• Should any liquid or solid object fall into the cabinet, unplug the unit and have it checked by qualified personnel before operating it further.

• Unplug the unit from the wall outlet if it is not to be used for several days.

• To disconnect the cord, pull it out by the plug. Never pull the cord itself.

• The wall outlet should be near the unit and easily accessible.

• The unit is not disconnected to the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.

• Do not look into the lens while the lamp is on.

• Do not place your hand or objects near the ventilation holes. The air coming out is hot.

On preventing internal heat buildup

After you turn off the power with the ?/1 (ON/STANDBY) switch, do not disconnect the unit from the wall outlet while the cooling fan is still running.

Caution

The projector is equipped with ventilation holes (intake) and ventilation holes (exhaust). Do not block or place anything near these holes, or internal heat build-up may occur, causing picture degradation or damage to the projector.

On repacking

Save the original shipping carton and packing material; they will come in handy if you ever have to ship your unit. For maximum protection, repack your unit as it was originally packed at the factory.

Location of Controls

Front/Right Side

You can use the buttons on the control panel with the same names as those on the remote control to operate the projector.

Press the button and open the cover.

Control panel

LENS button (1 page 19)

M/m/</, (arrow)/

(enter) button (1 page 47)

MENU button (1 page 47)

INPUT button (1 page 31)

?/1 (ON/STANDBY) switch (1 page 20)

Ventilation

holes (exhaust) (1 page 14)

Lens protector

3D Sync Transmitter

Remote control detector

Ventilation holes (exhaust) (1 page 14)

- AC IN socket

HDMI 1 connector (1 page 24)

HDMI 2 connector (1 page 24)

INPUT A connector (1 page 27)

VIDEO INPUT connector (phono type) (1 page 26)

Y P

B/CB PR/CR connector (phono type) (1 page 24)

3D SYNC connector (1 page 28)

IR IN connector Inputs signals to control the projector

LAMP/COVER indicator (1 page 73)

Open button

Note

While the ON/STANDBY indicator lights in orange, the power saving mode is on. (1 page 60)

TRIGGER connector (1 page 36)

ON/STANDBY indicator (1 page 19)

REMOTE connector Connects to a computer, etc. for remote control. (1 page 46)

Rear/Bottom

Location of Controls

Remote control detector (1 page 19)

Ventilation holes (intake) (1 page 14)

Lamp cover (1 page 77)

Adjusters (1 page 23)

Filter holder (1 page 78)

Ventilation holes (intake) (1 page 14)

Projector suspension support attaching hole (1 page 93)

Remote Control

LIGHT button

Illuminates the buttons on

the remote control.

INPUT button

(1 page 31)

PICTURE MODE buttons

(1 page 42)

Buttons to operate

BRAVIA Sync compatible

equipment (1 page 33)

Infrared transmitter

?/1 (On/standby)

switch (1 page 20)

LENS button (1 page 19)

BLACK LEVEL button

(1 page 43)

GAMMA CORRECTION

button (1 page 43)

COLOR SPACE button

(1 page 43)

FILM PROJECTION

button (1 page 43)

WIDE MODE button

(1 page 35)

SHARPNESS +/– button

(1 page 53)

RESET button (1 page 47)

M/m/</, (arrow)/

(enter) buttons

(1 page 47)

MENU button (1 page 47)

ADVANCED IRIS button (1 page 43)

COLOR TEMP button (1 page 43)

MOTION ENHANCER button (1 page 43)

ADJ PIC (Adjust Picture) button (1 page 44)

RCP (Real Color Processing) button (1 page 45)

CONTRAST +/– button (1 page 52)

BRIGHTNESS +/– button (1 page 53)

3D Glasses

Location of Controls

1 Slide switch

Set the switch for a comfortable fit (1 page 40).

2 Battery cover

Detach the cover when replacing the battery (1 page 80).

Before use: Remove the battery’s insulating sheet before using the product for the first time.

3 LED indicator

Flashes one time every 3 seconds: Power on Flashes three times every 3 seconds: Low battery. Battery capacity is almost running out. Flashes three times: Power off

4 IR sensor

Receive signals from the 3D Sync Transmitter.

This part receives IR (infrared rays) from the 3D Sync Transmitter.

5 Filter attachment

Filters are attached to view the 3D video images.

Note

Do not remove the filters. You cannot view the 3D video images without them.

6 Power button

Power on: Press once Power off: Hold power button down for 2 seconds

* Auto power off: More than 5 minutes

without IR signal

7 Nose pad

Adjust the nose pad for a comfortable fit.

8 Temple frames

You can bend (adjust) the temple frames for a comfortable fit.

IR’s entry angle differs according to distance or usage environment.

Note

Please keep this face clean.

Connections and Preparations

This section describes how to install the projector and screen, how to connect the equipment from which you want to project the picture, etc.

Unpacking

Check the carton to make sure it contains the following items:

• Remote control (1) and Size AA (R6) manganese batteries (2)

Inserting the batteries into the remote control

Insert the batteries E side first as shown in the illustration. Inserting them forcibly or with the polarities reversed may cause a short circuit and may generate heat.

• AC power cord (1)

• ImageDirector3 CD-ROM (1)

• Operating Instructions (this manual) (1)

• 3D glasses (including the batteries) (2)

• Pouch for the 3D glasses (2)

• Filter attachments for the 3D glasses (For the customers in the U.S.A.)

Regular size (4 kits)

Small size (4 kits) (For the customers in other countries and regions)

Regular size (2 kits)

Small size (2 kits)

• Conversion cable (RJ45 y 3D SYNC) (1)

Push and slide to open.

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. When you dispose of the battery, you must obey the law in the relative area or country.

Installing batteries

Two size AA (R6) batteries are supplied for Remote Control. To avoid risk of explosion, use size AA (R6) manganese or alkaline batteries.

Caution about handling the remote control

• Handle the remote control with care. Do not drop or step on it, or spill liquid of any kind onto it.

• Do not place the remote control in a location near a heat source, a place subject to direct sunlight, or a damp room.

Step 1: Installing the Projector

The projector displays pictures output from a VCR or other device. The lens shift allows you to have broader options for placing the projector and viewing pictures easily.

Before Setting Up the Projector

Unsuitable installation

Do not place the projector in the following situations, which may cause malfunction or damage to the projector.

Poorly ventilated location

Leave space of more than 30 cm (11 7/8 inches) around the unit.

Hot and humid

Installing the projector in such a location may cause a malfunction of the unit due to moisture condensation or rise in temperature.

Near a heat or smoke sensor

Malfunction of the sensor may occur.

Very dusty and extremely smoky locations

Install in a location away from walls

To maintain the performance and reliability of the projector, allow at least 30 cm (11 7/8 inches) between the projector and walls.

Connections and Preparations

Locations subject to direct cool or warm air from an air-conditioner

30 cm

(11 7/8inches)

30 cm (11

/8inches)

(11

30 cm

(11 7/8inches)

30 cm

/8inches)

Improper use

Do not do any of the following while using the projector.

Blocking the ventilation holes (intake or exhaust)

Ventilation holes (intake)

Ventilation holes (exhaust)

Tip

For details on the location of the ventilation holes (intake or exhaust), see “Location of Controls” on page 8.

Tilting front/rear and left/right

15° or more

Avoid using the projector tilted at an angle of more than 15 degrees. Do not install the projector anywhere other than on a level surface or on the ceiling. Installing the projector in such a location may result in uneven color uniformity or reduce the reliability of the effects of the lamp.

When installing the unit at high altitudes

When using the projector at an altitude of 1,500 m or higher, set “Cooling Setting” on the Setup menu to “High” (1 page 59). Failing to set this mode when using the projector at high altitudes could have adverse effects, such as reducing the reliability of certain components.

15° or more

WARNING

When installing the unit, incorporate a readily accessible disconnect device in the fixed wiring, or connect the power plug to an easily accessible socket-outlet near the unit. If a fault should occur during operation of the unit, operate the disconnect device to switch the power supply off, or disconnect the power plug.

Positioning the Projector and a Screen

The installation distance between the projector and a screen varies depending on the size of the screen or whether or not you use the lens shift features.

1 Determine the installation position of the projector and screen.

You can obtain a good quality picture if you position the projector so that the center of the lens is within the area indicated in gray in the illustration. Use the values L, x and y in the table on page 16 or 17 as a guide.

Screen

* Installation position not using lens shift (x = 0, y = 0) ** Example of installation position using lens shift (x, y)

Connections and Preparations

L: Distance between the screen and the front end of the projector’s lens. x: Horizontal distance between the center of the screen and the center of the

projector’s lens.

y: Vertical distance between the center of the screen and the center of the projector’s

lens.

For installation of the projector on a ceiling, see “Ceiling Installation.” (1 page 93)

For details on the lens shift feature, see “Step 2: Adjusting the Picture Position” (1 page 19).

When using the 16:9 aspect ratio screen size

Screen Size SS (inches)

(mm) 1016 1524 2032 2540 3048 3810 5080 6350 7620

minimum 1201 1825 2448 3072 3695 4631 6189 7748 9307

maximum 1840 2782 3723 4664 5605 7017 9371 11724 14077

x 000000000

y 324 486 648 809 971 1214 1619 2024 2428

x 44 66 89 111 133 166 221 277 332

y 259 389 518 648 777 971 1295 1619 1943

x 89 133 177 221 266 332 443 553 664

y 194 291 389 486 583 728 971 1214 1457

x 133 199 266 332 398 498 664 830 996

y 130 194 259 324 389 486 648 809 971

x 177 266 354 443 531 664 886 1107 1328

y 65 97 130 162 194 243 324 405 486

x 221 332 443 553 664 830 1107 1384 1660

y 000000000

To calculate the installation positions L (minimum) = 31.1781 (1 L (maximum) = 47.0644 (1 y = –1.463 × x (mm or inch) + 8.0942 (

40 60 80 100 120 150 200 250 300

(47 3/8) (71 7/8) (96 1/2) (121) (145 1/2) (182 3/8) (243 3/4) (305 1/8) (366 1/2)

(72 1/2) (109 5/8) (146 5/8) (183 5/8) (220 3/4) (276 3/8) (369) (461 5/8) (554 1/4)

(0) (0) (0) (0) (0) (0) (0) (0) (0)

(12

/8) (19 1/4)(25 5/8) (31 7/8) (38 1/4) (47 7/8)(63 3/4) (79 3/4) (95 5/8)

/4) (2 5/8) (3 5/8) (4 3/8)(5 1/4) (6 5/8) (8 3/4) (11) (13 1/8)

(10

/4) (15 3/8)(20 1/2) (25 5/8) (30 5/8) (38 1/4) (51) (63 3/4) (76 1/2)

/8) (5 1/4) (7) (8 3/4) (10 1/2) (13 1/8)(17 1/2) (21 7/8) (26 1/4)

/4) (11 1/2)(15 3/8) (19 1/4) (23) (28 3/4)(38 1/4) (47 7/8) (57 3/8)

/4) (7 7/8)(10 1/2) (13 1/8) (15 3/4) (19 5/8)(26 1/4) (32 3/4) (39 1/4)

/8) (7 3/4)(10 1/4) (12 7/8) (15 3/8) (19 1/4)(25 5/8) (31 7/8) (38 1/4)

(7) (10

/8) (3 7/8) (5 1/8) (6 1/2)(7 3/4) (9 5/8)(12 7/8) (16) (19 1/4)

/4) (13 1/8)(17 1/2) (21 7/8) (26 1/4) (32 3/4)(43 5/8) (54 1/2) (65 3/8)

/2) (14) (17 1/2) (21) (26 1/4) (35) (43 5/8) (52 3/8)

(0) (0) (0) (0) (0) (0) (0) (0) (0)

Unit: mm (inches)

/32) × SS – 46.1543 (1 13/16)

/32) × SS – 42.3308 (1 21/32)

/16) × SS

When using the 4:3 aspect ratio screen size

Screen Size

SS (inches)

(mm) 1016 1524 2032 2540 3048 3810 5080 6350 7620

minimum 1480 2243 3006 3770 4533 5677 7585 9493 11401

maximum 2262 3414 4566 5718 6870 8598 11478 14357 17237

x 000000000

y 396 594 792 991 1189 1486 1981 2477 2972

x 54 81 108 135 163 203 271 339 406

y 317 475 634 792 951 1189 1585 1981 2377

x 108 163 217 271 325 406 542 677 813

y 238 357 475 594 713 892 1189 1486 1783

x 163 244 325 406 488 610 813 1016 1219

y 158 238 317 396 475 594 792 991 1189

x 217 325 433 542 650 813 1084 1355 1626

y 79 119 158 198 238 297 396 495 594

x 271 406 542 677 813 1016 1355 1693 2032

y 000000000

To calculate the installation positions L (minimum) = 38.1569 (1 L (maximum) = 57.5992 (2 y = –1.463 × x (mm or inch) + 9.9060 (

40 60 80 100 120 150 200 250 300

(58 3/8) (88 3/8) (118 3/8) (148 1/2) (178 1/2) (223 5/8) (298 5/8) (373 3/4) (448 7/8)

(89 1/8) (134 1/2) (179 7/8) (225 1/8) (270 1/2) (338 5/8) (452) (565 1/4) (678 5/8)

(0) (0) (0) (0) (0) (0) (0) (0) (0)

(15

/8) (23 1/2) (31 1/4)(39 1/8) (46 7/8) (58 5/8) (78) (97 5/8)

/4) (3 1/4)(4 3/8) (5 3/8) (6 1/2) (8) (10 3/4)(13 3/8) (16)

(12

/2) (18 3/4) (25) (31 1/4) (37 1/2) (46 7/8) (62 1/2) (78) (93 5/8)

/8) (6 1/2)(8 5/8)(10 3/4) (12 7/8) (16) (21 3/8)(26 3/4) (32 1/8)

/8) (14 1/8) (18 3/4)(23 1/2) (28 1/8) (35 1/8) (46 7/8)(58 5/8) (70 1/4)

/2) (9 5/8) (12 7/8) (16) (19 1/4) (24 1/8) (32 1/8) (40) (48)

/4) (9 3/8) (12 1/2)(15 5/8) (18 3/4) (23 1/2) (31 1/4)(39 1/8) (46 7/8)

/8) (12 7/8) (17 1/8)(21 3/8) (25 5/8) (32 1/8) (42 3/4)(53 3/8) (64 1/8)

/8) (4 3/4)(6 1/4) (7 7/8) (9 3/8) (11 3/4) (15 5/8)(19 1/2) (23 1/2)

(10

/4) (16) (21 3/8)(26 3/4) (32 1/8) (40) (53 3/8)(66 3/4) (80)

(0) (0) (0) (0) (0) (0) (0) (0) (0)

Unit: mm (inches)

/2) × SS – 46.1543 (1 13/16)

/32) × SS – 42.3308 (1 21/32)

/8) × SS

Connections and Preparations

(117 1/8)

2 Position the projector so that the lens is parallel to the screen.

Top view

Screen

3 Project an image on the screen and adjust the picture so that it fits the

screen (1 page 19).

Note

When using a screen with an uneven surface, stripes pattern may rarely appear on the screen depending on the distance between the screen and the projector or the zooming magnifications. This is not a malfunction of the projector.

Step 2: Adjusting the Picture Position

Project an image on the screen and then adjust the picture position.

ON/STANDBY indicator

Remote control detector

?/1 (On/

standby) switch

3, 4, 5

Lens button

Tip

?/1 (ON/STANDBY), INPUT, LENS, MENU, and M/m/</,/ (joystick) buttons on the

The side panel of the projector function the same as those on the remote control.

Connections and Preparations

Note

Depending on the installation location of the projector, you may not control it with the remote control. In this case, point the remote control to the screen instead of the projector.

1 After connecting the AC cord to

the projector plug the AC cord

Lights in red.

into a wall outlet.

The ON/STANDBY indicator lights in red and the projector goes into standby mode.

Flashes in green fo

a while (tens of seconds) and then lights in green.

2 Press the ?/1 (ON/STANDBY)

switch to turn on the projector.

The lens protector will open. The ON/STANDBY indicator flashes in green, and then lights in green. When the ON/STANDBY indicator flashes, “Starting...” appears on the screen.

3 Adjust the focus.

Press the LENS button repeatedly until the Lens Focus adjustment window (test pattern) appears. Then adjust the focus of the picture by pressing the M/m/</, buttons. Each time you press the LENS button, the LENS adjustment window appears in order.

Tip

• When “Lens Control” is set to “Off” on

the Installation menu, you cannot adjust the picture size and the focus (1 page 64). When “Test Pattern” is set to “Off” on the Function menu, the test pattern is not displayed (1 page 63).

• The test signal is displayed for 1 minute. Press the button to clear the test signal display before that.

Note

Be sure to adjust the picture size and the focus by using buttons on the remote control or the control panel of the projector. Never make adjustments by directly turning the lens with your hands, which may cause damage or malfunction to the projector.

4 Adjust the picture size.

Press the LENS button repeatedly until the Lens Zoom adjustment window (test pattern) appears. Then adjust the size of the picture by pressing the M/m/</, buttons. To make the picture larger, press To make the picture smaller, press

5 Adjust the picture position.

Press the LENS button repeatedly until the Lens Shift adjustment window (test pattern) appears. Then adjust the proper position by pressing the M/m/ </, buttons.

Connections and Preparations

M/,. m/<.

Tip

• When “Lens Control” is set to “Off” on the Installation

position (1 page 64). When “Test Pattern” is set to “Off” on the Function menu, the test pattern is not displayed (1 page 63).

• The test signal is displayed for 1 minute. Press the button to clear the test signal display before that.

menu, you cannot adjust the picture

To adjust the horizontal position

Press </,. The picture projected on the screen moves right or left by a maximum of 25% of the screen width from the center of the lens.

25% 1 screen width 25%

Top view

: Picture position when moving the picture to the left

at maximum

: Picture position when moving the picture to the

right at maximum

To adjust the vertical position

Press M/m. The picture projected on the screen moves up or down by a maximum of 65% of the screen height from the center of the lens.

Side view

65%

1 screen height

65%

Note

: Picture position when moving the picture upward at

maximum

: Picture position when moving the picture downward at

maximum

The range to move the picture projected on the screen can be adjusted only within the octagon area illustrated below. In this connection, see “Positioning the Projector and a Screen” (1 page 15) as well.

Range of movement of

the projected picture

Projected Picture

H: Width of the projected picture V: Height of the projected picture

To adjust the tilt of the installation surface

If the projector is installed on an uneven surface, use the adjusters to keep the projector level.

Turn to adjust.

Adjusters

Connections and Preparations

Notes

• Pointing the projector at too high or too low of a tilt will result in trapezoidal distortion in the projected image.

• Be careful not to catch your finger when turning the adjusters.

Step 3: Connecting the Projector

When making connections, be sure to do the following:

• Turn off all equipment before making any connections.

• Use the proper cables for each connection.

• Insert the cable plugs properly; poor connection at the plugs may cause a malfunction or poor picture quality. When pulling out a cable, be sure to pull it out from the plug, not the cable itself.

• Refer to the operating instructions of the connected equipment.

Connecting to a VCR

To connect to equipment with HDMI output connectors

You can enjoy better picture quality by connecting a DVD player/recorder, Blu-ray Disc player/recorder, or PS3 Moreover, if you have a Control for HDMI compatible equipment, you can operate the projector synchronizing with the Control for HDMI compatible equipment. For details, see the Function menu (1 page 61) and “About the Control for HDMI” (1 page 68).

equipped with HDMI output to the HDMI input of the projector.

Right side of the projector

: Video signal flow

AV amplifier

Equipment with HDMI output connectors

HDMI cable (not supplied)

When using an optional HDMI cable, be sure to use a Sony HDMI cable or other cable they has the HDMI logo.

Speakers

to HDMI output

Notes

• Use a high-speed HDMI cable. With a standard HDMI cable, images of 1080P, DeepColor, and 3D video images may not be displayed properly.

• When connecting an HDMI cable to the projector, make sure the HDMI input of the projector and the

v mark on the connector of the cable is set at the same

V mark on the upper part of the

position.

• If the picture from equipment connected to the projector with an HDMI cable is not clear, check the settings of the connected equipment.

To connect to equipment with component video output connectors

Connections and Preparations

Right side of the projector

Component video cable (not supplied)

: Video signal flow

AV amplifier

Equipment with component video output connectors

Speakers

To connect to a VCR equipped with the video connector

You can connect a DVD player/recorder, hard disk video recorder, VCR or laser disk player, which is not equipped with component video connectors.

Right side of the projector

: Video signal flow

Speakers

Video cable (not supplied)

AV amplifier

Video equipment

to Video output

Connecting to a Computer

Right side of the projector

Computer

to monitor output

HD-Dsub15 pin cable (not supplied) or HDMI cable (not supplied)

: Video signal flow

When using an optional HDMI cable, be sure to use a Sony HDMI cable or other cable they has the HDMI logo.

Tip

When connecting an HD-Dsub15 pin cable, set “Input-A Signal Sel.” on the Setup menu to “Auto” or “Computer.” If the input signal does not appear properly, set it to “Computer” (1 pages 60, 74).

Notes

• Use a high-speed HDMI cable. With a standard HDMI cable, images of 1080P, DeepColor, and 3D video images may not be displayed properly.

• When connecting an HDMI cable, make sure the the projector and the

v mark on the connector of the cable is set at the same position.

V mark on the upper part of the HDMI input of

• If you set your computer, such as a notebook type, to output the signal to both computer’s display and this equipment, the picture of the equipment may not appear properly. Set your computer to output the signal to only the external monitor. For details, refer to the computer’s operating instructions supplied with your computer. For settings of the computer, consult with the manufacturer of the computer.

• If the picture from equipment connected to the projector with an HDMI cable is not clear, check the settings of the connected equipment.

Connections and Preparations

Connecting to an Optional TMR-BR100 3D Sync Transmitter

The projector incorporates a 3D Sync Transmitter. Depending on the installation environment of the projector, the 3D glasses may not received 3D signals properly from the projector’s built-in 3D Sync Transmitter. In this case, connect an optional TMRBR100 3D Sync Transmitter and place it near your viewing position.

Right side of the projector

LAN cable (not supplied)

: 3D sync signal flow

Conversion cable (RJ45 y 3D SYNC)(supplied)

15 cm (6 inches)

TMR-BR100 3D Sync Transmitter (not supplied)

2 m (6.6 ft)

Tip

Place the optional 3D Sync Transmitter directly facing the 3D glasses. Also, in order to stabilize operation of the 3D glasses, it is recommended that you place the 3D Sync Transmitter near your viewing position.

CAUTION

Be sure to use straight-type LAN cable of up to 15 m labeled TYPE CM, and do not use an extension cord.

Notes

• The 3D SYNC connector is dedicated for the optional 3D Sync Transmitter. Do not connect computers or other network devices, to avoid malfunction.

• Be sure to use straight-type LAN cable (not supplied) labeled Cat-7 (Category 7). If you use other than the specified cable, the 3D Sync Transmitter may occasionally not work.

• Be sure to use cable of up to 15 m, and do not use an extension cord. Also, keep the LAN cable away from any AC power cords as much as possible.

• Up to one TMR-BR100 can be connected to a projector. Never connect multiple TMR-BR100 units, which may cause a malfunction.

• When connected to the TMR-BR100, the built-in 3D Sync Transmitter feature of the projector will automatically turn off. You cannot use both at the same time.

Step 4: Selecting the Menu Language

You can select one of 16 languages for displaying the menu and other on-screen displays. The factory default setting is English. To change the current menu language, set the desired language with the menu screen.

2,3,4

M/m/</, (arrow)/ (enter) buttons

MENU button

1 Press MENU.

The menu appears.

Connections and Preparations

2 Press M/m to select the Setup

menu, and press , or .

The setting items of the selected menu appears.

3 Press M/m to select “Language,”

and press , or .

4 Press M/m/</, to select a

language, and press .

The menu changes to the selected language.

To clear the menu

Press MENU.

+ 70 hidden pages
