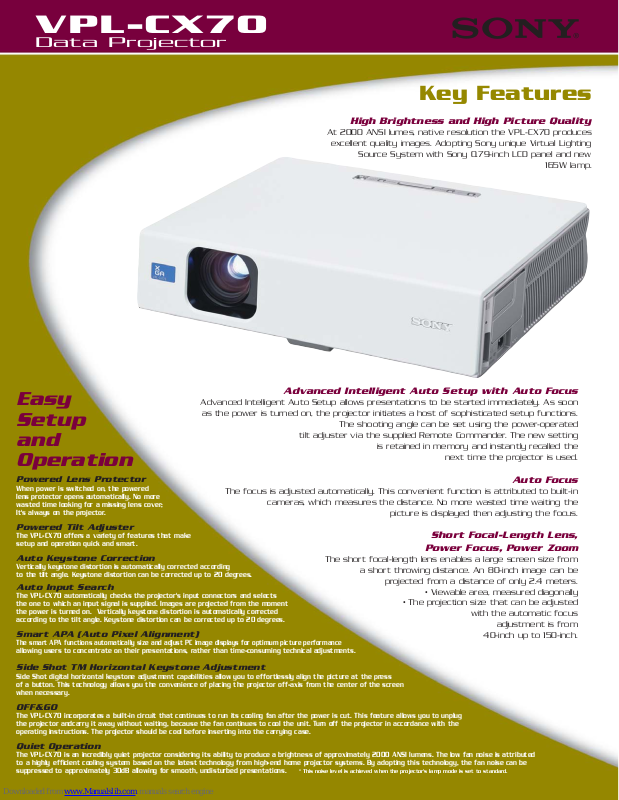

Sony VPL VPL-CX70 Specifications
VPL-CX70
Data Projector
Key Features
High Brightness and High Picture Quality
At 2000 ANSI lumes, native resolution the VPL-CX70 produces
excellent quality images. Adopting Sony unique Virtual Lighting
Source System with Sony 0.79-inch LCD panel and new
165W lamp.
Advanced Intelligent Auto Setup with Auto Focus
Easy
Setup
and
Operation
Powered Lens Protector
When power is switched on, the powered
lens protector opens automatically. No more
wasted time looking for a missing lens cover;
It's always on the projector.
Powered Tilt Adjuster
The VPL-CX70 offers a variety of features that make
setup and operation quick and smart.
Auto Keystone Correction
Vertically keystone distortion is automatically corrected according
to the tilt angle. Keystone distortion can be corrected up to 20 degrees.
Auto Input Search
The VPL-CX70 automatically checks the projector's input connectors and selects
the one to which an input signal is supplied. Images are projected from the moment
the power is turned on. Vertically keystone distortion is automatically corrected
according to the tilt angle. Keystone distortion can be corrected up to 20 degrees.
Smart APA (Auto Pixel Alignment)
The smart APA functions automatically size and adjust PC image displays for optimum picture performance
allowing users to concentrate on their presentations, rather than time-consuming technical adjustments.
Side Shot TM Horizontal Keystone Adjustment
Side Shot digital horizontal keystone adjustment capabilities allow you to effortlessly align the picture at the press
of a button. This technology allows you the convenience of placing the projector off-axis from the center of the screen
when necessary.
OFF&GO
The VPL-CX70 incorporates a built-in circuit that continues to run its cooling fan after the power is cut. This feature allows you to unplug
the projector andcarry it away without waiting, because the fan continues to cool the unit. Turn off the projector in accordance with the
operating instructions. The projector should be cool before inserting into the carrying case.
Quiet Operation
The VPL-CX70 is an incredibly quiet projector considering its ability to produce a brightness of approximately 2000 ANSI lumens. The low fan noise is attributed
to a highly efficient cooling system based on the latest technology from high-end home projector systems. By adopting this technology, the fan noise can be
suppressed to approximately 30dB allowing for smooth, undisturbed presentations.
Advanced Intelligent Auto Setup allows presentations to be started immediately. As soon
as the power is turned on, the projector initiates a host of sophisticated setup functions.
The shooting angle can be set using the power-operated
tilt adjuster via the supplied Remote Commander. The new setting
is retained in memory and instantly recalled the
next time the projector is used.
Auto Focus
The focus is adjusted automatically. This convenient function is attributed to built-in
cameras, which measures the distance. No more wasted time waiting the
picture is displayed then adjusting the focus.
Short Focal-Length Lens,
Power Focus, Power Zoom
The short focal-length lens enables a large screen size from
a short throwing distance. An 80-inch image can be
projected from a distance of only 2.4 meters.
• Viewable area, measured diagonally
• The projection size that can be adjusted
with the automatic focus
adjustment is from
40-inch up to 150-inch.
* This noise level is achieved when the projector's lamp mode is set to standard.
VPL-CX70
Data Projector
Effective
Presentation
Various Inputs (Multiscan Converter)
The VPL-CX70 comes equipped with a scan converter to accept a
wide variety of input signals – both computer images and video. For
computer images, the VPL-CX70 supports signals ranging from VGA
up to SXGA+ (1400x150, fH 60Hz). For video, it accepts
component and composite signals, in addition to S-Video and RGB
signals. Input signals with a variety of scanning lines, as well as
interlace and progressive modes, are supported.
Easy-to-Use Remote Commander Units
The VPL-CX70 is supplied handy Remote Commander unit, the
RM-PJM17. The RM-PJM17 is a full-function remote, to control and
set up the projector.
Security
Control Panel Key Lock
The control panels on both the top and the side of the projector
can be locked, preventing inadvertent or unauthorized adjustment
of the controls.
Password-Authentication System
Once a user sets a password, the projector cannot be used without
it. This function prevents unauthorized use of the projector.
Security Lock
It is possible to connect to an optional security cable such as
Kensington's.
General
Selectable Lamp Wattage
The lamp wattage is selectable between 165W and 135W in the menu
On Screen Multi-Language Setup Menu
The On-Screen Display for projector control is available in
15 languages: English, Dutch, French, Italian, German, Spanish,
Portuguese, Russian, Swedish, Norwegian, Japanese, Chinese
(Simplified), Chinese (Traditional), Korean, and Thai.
Eco-friendly
When set to "On" in OSD menu "Power Saving" the VPL-CX75/70
goes into power saving mode if there is no operation for 10 minutes
with no signal input.
Freeze Function
The VPL-CX70 can freeze a picture when a signal from a PC is input.
During the picture freeze, the presenter can operate the PC for
setting up the next presentation file or images.
Digital Zoom Function
Up to 4x digital zoom is available which can be controlled via the
supplied Remote Commander unit. One section of the projected
image can be zoomed in to show details of the image.
Picture and Audio Muting Function
The VPL-CX70 can mute the picture and audio temporarily. It is
useful for video presentation or class discussions.
Installation
Flexibility
Ceiling Mountable
The VPL-CX70 is designed for use in a variety of environments.
Even with its compact design, it functions equally well when
installed for ceiling or floor. The VPL-CX70 can be ceiling mounted.
Screw holes on the bottom plate are provided for
use with a suspension-type bracket.
Sony of Canada
115 Gorden Baker Rd.
Toronto, Ontario
M2H 3R6
www.sonybiz.ca
© 2004 Sony Canada. All rights reserved. Reproduction in whole or in part
without written permission is prohibited. Features and specifications are
subject to change without notice. Non-metric weights and measurements
are approximate. Sony, Memory Stick, Remote Commander and VISCA are
trademarks of Sony. All other trademarks are property of their respective
owners.
Model Name
Projection System
Panel
Lens
Lamp
Screen Size
Keystone Correction Range
Light Output
Throwing Distance*
Resolution
Acceptable Signals
Colour System
Speaker
Input
Output
HDTV/DTV
Dimension
Weight
Power Requirements
Power Consumption
Operating Temperature
Operating Humidity
Heat Dissipation
Image Flip
Remote Commander
Off & Go
Security Lock
D. Zoom
Freeze
Security
Picture Mode
Illumination Menu
High Altitude Menu
OSD (language)
Safety Regulations
Supplied Accessories
(WxHxD) mm
(by software) Pasword
Zoom
F
f
80-inch
100-inch
Video
RGB
Computer
Video
Mono
RGB/Component
S-Video
Composite
Audio
USB
Wireless LAN
Memory Stick
inch
kg
lb
Max
Standby
(Kensington)
Panel Key Lock
VPL-CX70
3 LCD panels, 1 lens projection system
0.79-inch XGA LCD panel, 786,432 (1024 x 768) x3
1.2 times
1.6 to 1.78
f23.5 to 28.2mm
165/135W UHP
40” to 300” (measured diagonally)
Max. +/- 30 degrees vertically, +/- 20 degrees horizontally
2000/1600 ANSI Im (lamp mode high)
2.4 to 2.7 m
3.0 to 3.1 m
750TV lines
1024x768
fH: 19-72kHz, fV: 48-92Hz (Up to SXGA= (60Hz)
15kHz RGB/Component 50/60Hz,
Progressive Component 50/60Hz
DTV (480/60i, 575/50i, 480/60p, 575/50p, 540/60p
720/60p, 720/50p, 1080/60i, 1080/50i)
Composite video, Y/C video
NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60
Mono 1W(max.)x1
Analog RGB (HD D-sub 15 pin x 1)
Y/C Mini DIN 4pin
Composite video (RCA pin jack)
stereo mini jack
Uptream (B type, x1)
-
-
NO
YES
298 X 69 X 243.5 mm
11 .7 x 2.7 x 9.6 inches
Approx. 2.9 kg
Approx. 6 lbs 4 oz
AC 100 to 240V, 50/60Hz
240W
4W
0 to 35 degrees Celsius (32 to 95 F)
35% to 85% (no condensation)
819 BTU
YES
RMP PJN17
YES
YES
YES 4 times
YES
-YES
-YES
YES
YES
YES
15-language ( English, French, German, Italian, Spanish, Portuguse,
Japanese, Chinese, Korean, Russian, Dutch, Norwegian, Swedish, Thai)
UL1950, oUL (CSA No.60950), FCC Class B, IC Class B, DEMKO
(EN60950), CE (LVD, EMC), C-Tick
Remote Commander (RM-PJM17), AA size batteries (2),
HD D-sub 15 pin cable,
Air filter,
Carrying Case
Operating instructions (CD-ROM),
Quick reference manual, Security label
(Warranty Booklet@local)
(AC Power Cord, 2 pole @local)
(
39 dB when the lamp mode is high.)**
