B Overview

Location and Function of Controls

Main Unit

9 0 qa

3 4

5 6

a Lens

b Remote control detector

c Front feet (adjustable) (page 15)

d Foot adjust button (page 15)

e Speaker

f Ventilation holes (exhaust)

g Lamp cover (page 53)

h Air filter cover/Ventilation holes

(intake) (page 55)

Caution

Do not place anything near the ventilation holes as this may cause internal heat buildup. Do not place your hand near the ventilation holes and the circumference as this may cause injury.

3 4

i LAMP/COVER indicator

(page 49)

j ON/STANDBY indicator

(page 49)

k Connector panel (page 5)

l Security bar

Connects to a commercially available security chain or wire.

m Security lock

Connects to an optional security cable manufactured by Kensington. For details, visit Kensington’s web site. http://www.kensington.com/

n Control panel keys (page 6)

o Focus ring (page 14)

Location and Function of Controls

Connector Panel

4 5 6

Input (pages 8, 10)

a INPUT A

Video: RGB/YPBPR input connector

(RGB/YP

Audio: Audio input connector (AUDIO)

b INPUT B

Video: RGB input connector (RGB) Audio: Audio input connector (AUDIO)

c INPUT C

Video: HDMI input connector (HDMI) Audio: HDMI input connector (HDMI)

d S VIDEO (S VIDEO IN)

Video: S video input connector

(S VIDEO IN)

Audio: Audio input connector

(L (MONO) AUDIO/R)

e VIDEO (VIDEO IN)

Video: Video input connector (VIDEO) Audio: Audio input connector

(L (MONO) AUDIO/R)

Note

The audio inputs of S VIDEO and VIDEO are shared.

BPR)

8q;3

Note

This connector outputs the projected image or audio only when INPUT A or INPUT B is used.

Others

g RS-232C connector (RS-232C)

RS-232C compatible control connector. Connects the computer’s RS-232C connector and the RS-232C cross cables.

h LAN connector (page 30)

i AC IN (∼) socket

Connects the supplied AC power cord.

j USB connector (Type A) ( )

(pages 12, 45)

k USB connector (Type B) ( )

(page 43)

l Microphone input ( )

Overview

Output (page 12)

f OUTPUT

Video: Monitor output connector

(MONITOR)

Audio: Audio output connector

(AUDIO)

Location and Function of Controls

Remote Commander and Control Panel Keys

Remote Commander

INPUT

APA ECO MODE

Control Panel Keys

a Turning on the power/Going to

standby mode

?/1 (On/Standby) key

b Selecting an input signal

(page 13)

INPUT key

c Operating a menu (page 18)

MENU key RESET key ENTER /V/v/B/b (arrow) keys RETURN key

RETURN

ASPECT

D ZOOM

KEYSTONE

VOLUME

ENTER

PATTERN

FREEZE

RESET

BLANK

MUTING

1 6

d Adjusting the image (page 14)

ASPECT key (page 20) KEYSTONE key (page 16) PATTERN key (page 16) APA (Auto Pixel Alignment) key

(page 16)

Note

Use this key when inputting a computer

signal via the RGB input connector (INPUT A or INPUT B).

e Using various functions during

projecting

D ZOOM (Digital Zoom) +/– key

Enlarges a portion of the image while projecting.

1 Press the D ZOOM + key to display

the digital zoom icon on the projected image.

2 Press the V/v/B/b keys to move the

digital zoom icon to the point on the image you want to enlarge.

3 Press the D ZOOM + key or the D

ZOOM – key repeatedly to change the enlargement ratio. The image can be

enlarged up to 4 times. Press the RESET key to restore the previous image.

BLANK key

Cuts off the projected image temporarily. Press again to restore the previous image. Picture muting helps reduce power consumption.

MUTING key

Mutes the audio output temporarily. Press again to restore the previous volume.

VOLUME +/– key

Adjusts the volume output.

FREEZE key

Pauses a projected image. Press again to restore the image.

Location and Function of Controls

Notes

*1: Use this key when inputting a

computer signal. But it may not be used depending on the resolution of the input signal.

*2: Use this key when inputting a

computer signal.You cannot use this key when

“Type A USB”, “Type B

USB” or “Network” is selected as the input.

f Setting the energy–saving mode

easily

ECO MODE key

Energy-saving mode can be set easily. Energy-saving mode consists of “Lamp Mode,” “With No Input,” “With Static Signal” and “Standby Mode.”

1 Press the ECO MODE key to display

the ECO Mode menu.

ECO Mode

ECO

User

RETURN

:Sel

:Back

2 Press the V/v key or ECO MODE key

to select “ECO” or “User” mode. ECO: Sets each mode to the optimum

energy-saving value. Lamp Mode: Low With No Input: Standby With Static Signal: Lamp Dimming Standby Mode: Low

User: Sets each item of the ECO

Mode menu as you desire (go to step 3).

3 Select “User” then press the b key.

The setting items appear.

5 Press the V/v key to select the setting

value.

6 Press the ENTER key.

The screen returns to the User screen. For details on ECO Mode settings, see “Lamp Mode,” “Constant Brightness,” “With No Input,” “With Static Signal” and “Standby Mode” on the Connection/ Power menu (page 26).

Others

g Infrared transmitter

About remote commander operation

• Direct the remote commander toward the remote control detector.

• The shorter the distance between the remote commander and the projector is, the wider the angle within which the remote commander can control the projector becomes.

• Make sure that nothing obstructs the infrared beam between the remote commander and the remote control detector on the projector.

Overview

User

Lamp Mode High

Constant Brightness Auto Power Saving

With No Input With Static Signal

Standby Mode

:S el

:S et

Off Lamp Dimming Standard

RETURN

:Back

4 Press the V/v key to select the item

then press the ENTER key.

Location and Function of Controls

B Preparation

Connecting the Projector

Notes

• Make sure all the equipment is powered off when connecting the projector.

• Use the proper cables for each connection.

• Insert the cable plugs firmly; Loose connections may reduce performance of picture signals or cause a malfunction. When pulling out a cable, be sure to grip it by the plug, not the cable itself.

• For more information, refer also to the instruction manuals of the equipment you are connecting.

• Use a no-resistance audio cable.

Connecting a Computer

Connection with a computer is explained for each input signal.

INPUT A/INPUT B

For connecting a computer with an RGB output connector.

Mini D-sub 15-pin cable (supplied)

RGB output

connector

Audio output

Computer

connector

Audio cable (Stereo mini plug) (not supplied)

Note

It is recommended that you set the resolution of your computer to 1280 × 800 pixels (VPL-SW235/SW225) or 1024 × 768 pixels (VPL-SX235/SX225) for the external monitor.

INPUT C

For connecting a computer with an HDMI output connector.

HDMI cable (not supplied)

HDMI output

connector

Computer

Connecting the Projector

Notes

• Use HDMI-compatible equipment which has the HDMI Logo.

• Use a high speed HDMI cable(s) on which the cable type logo is specified. (Sony products are recommended.)

• The HDMI connector of this projector is not compatible with DSD (Direct Stream Digital) Signal or CEC (Consumer Electronics Control) Signal.

USB connector (Type B) ( )

For connecting to a computer with a USB connector (“Playing Video and Audio using USB Connection” (page 43)).

USB connector

(Type A)

Computer

USB A-B cable (not supplied)

LAN connector

For connecting to a computer, tablet PC, or smartphone via a hub or router (“Presentation Function via Network” (page 39)).

LAN

connector

LAN cable (straight type)

Computer

Wired connection

(not supplied)

Preparation

Tablet PC/Smartphone

Computer

Wireless connection

Hub, Wireless router, etc.

Connecting the Projector

USB connector (Type A) ( )

For connecting a USB wireless LAN module IFU-WLM3 (not supplied) (“Presentation Function via Network” (page 39)).

Wireless router, access point

USB wireless LAN module

Tablet PC/Smartphone

Computer

Notes

IFU-WLM3 (not supplied)

• Undesignated USB wireless LAN modules do not work.

• When connecting/disconnecting the USB wireless LAN module, make sure that the projector is in Standby mode (Standby Mode: “Low”), or the AC power cord is unplugged from the wall outlet.

• When wirelessly connecting a tablet PC/smartphone to the projector via USB wireless LAN module IFU-WLM3 (not supplied), set “WLAN Network” to “Access Pt. (Manual)” in the projector’s “WLAN Settings” (page 26).

• For connecting to the access point, access to the Web browser, and input the settings for the access point to connect. For details, see “Setting the WLAN Network of the projector” (page 33).

Connecting a Video equipment

Connections with a VHS video deck, DVD player, or BD player are explained for each input signal.

S VIDEO IN

For connecting video equipment with an S-video output connector.

S video cable (not supplied)

S video output

connector

Audio output

Video equipment

Connecting the Projector

connector

Audio cable (Phono plug × 2) (not supplied)

VIDEO IN

For connecting video equipment with a video output connector.

Video cable (not supplied)

Video output

connector

Audio output

Video equipment

connector

Audio cable (Phono plug × 2) (not supplied)

INPUT A

For connecting video equipment with a YPBPR output connector.

Component – Mini D-sub 15-pin cable (not supplied)

BPR output

connector

Audio output

Video equipment

connector

Preparation

Audio cable (Phono plug × 2 – stereo mini plug) (not supplied)

INPUT C

For connecting video equipment with an HDMI output connector.

HDMI cable (not supplied)

HDMI output

connector

Video equipment

Notes

• Use HDMI-compatible equipment which has the HDMI Logo.

• Use a high speed HDMI cable(s) on which the cable type logo is specified. (Sony products are recommended.)

• The HDMI connector of this projector is not compatible with DSD (Direct Stream Digital) Signal or CEC (Consumer Electronics Control) Signal.

Connecting the Projector

Connecting a microphone

Microphone ( )

For connecting a microphone.

Microphone (not supplied)

Note

Only dynamic microphones are supported.

Connecting a USB memory device

USB connector (Type A) ( )

For connecting a USB memory device (“Using USB Media Viewer” (page 45)).

USB memory device (not supplied)

Connecting an External Monitor and Audio Equipment

OUTPUT

Projected images or input audio can be output to display equipment such as a monitor or audio equipment such as speakers with a built-in amplifier.

Audio equipment

Display equipment

Note

Audio input

connector

RGB input

connector

Audio cable (stereo mini plug) (not supplied)

Mini D-sub 15-pin cable (supplied)

Projected images and audio can be output.

Connecting the Projector

B Projecting/Adjusting an Image

Projecting an Image

The size of a projected image depends on the distance between the projector and screen. Install the projector so that the projected image fits the screen size. For details on projection distances and projected image sizes, see

“Projection Distance” (page 62).

Projector

1 Plug the AC power cord into the wall

outlet.

2 Connect all equipment to the projector

(page 8).

3 Press the ?/1 key to turn on the unit.

4 Turn on the connected equipment.

5 Select the input source.

Press the INPUT key on the projector to display the menu for switching input signal on the screen. Press the INPUT key repeatedly, or press the select an image to be projected.

V/v key to

Video equipment

Wall outlet

Computer

6 When projecting a computer image,

switch your computer’s output to external display.

The method to switch the output varies depending on the type of computer.

(Example)

To project image files stored in a USB memory device, see “USB Media Viewer” (page 45). To play video and audio using USB Connection, see “Playing Video and Audio using USB Connection” (page 43). To use Presentation Function via Network, see “Presentation Function via Network” (page 39).

Projecting/Adjusting an Image

Projecting an Image

7 Adjust the focus, size and position of

the projected image (page 14).

Adjusting the Projected image

Focus Position

Focus ring

Foot adjust button

Front feet (adjustable)

Projecting an Image

Adjusting the tilt of the projector with the front feet (adjustable)

By changing the tilt of the projector with the foot adjust buttons/front feet (adjustable), you can adjust the position of the projected image.

How to adjust the angle

1 Press and hold the foot adjust buttons.

2 Lift up the front of the projector to

adjust the angle.

3 Release the foot adjust buttons.

4 Turn the front feet (adjustable) to set

the angle of the projector precisely.

Notes

• Be careful not to let the projector down on your fingers.

• Do not push hard on the top of the projector with the front feet (adjustable) extended.

Changing the aspect ratio of the projected image

Press the ASPECT key on the remote commander to change the aspect ratio of the projected image. You can also change the setting in Aspect of the Screen menu (pages 20, 22).

Projecting/Adjusting an Image

Projecting an Image

Correcting trapezoidal distortion of the projected image (Keystone feature)

Normally the Keystone feature automatically adjusts the projected image. The Keystone feature may not work automatically if the screen is tilted. In this case, set Keystone manually.

1 Press the KEYSTONE key on the remote

commander or select V Keystone in the Installation menu.

2 Use the V/v/B/b keys to set the value. The

higher the value, narrower the top of the projected image. The lower the value, the narrower the bottom.

Note

Since the Keystone adjustment is an electronic correction, the image may be deteriorated.

Increase the number towards plus

Increase the number towards minus

Displaying a pattern

You can display a pattern for adjusting the projected image or a grid pattern with the PATTERN key on the remote commander. Press the PATTERN key again to restore the previous image. You can use a grid pattern as a guide to write text or to draw lines and shapes on the whiteboard or blackboard without using a computer.

Note

You cannot use this key when “Type A USB”, “Type B USB” or “Network” is selected as the input.

Automatically adjusts Phase, Pitch and Shift of projected image while a signal is input from a computer (APA (Auto Pixel Alignment))

Press the APA key on the remote commander. Press again to cancel adjusting during the setting. You can also set APA in the Screen Menu (page 21). If Smart APA in the Function menu is set to “On”, executes APA automatically when a signal is input (page 24).

Projecting an Image

Turning Off the Power

1 Press the ?/1 key on the unit or the remote commander.

The projector starts shutdown and turns off. If you press the ?/1 key within 10 seconds again, shutdown is cancelled.

Note

Do not turn off the projector soon after the lamp lights. It may cause a malfunction of the lamp (does not light ,etc.).

2 Unplug the AC power cord from the wall outlet.

To turn off without displaying confirmation message

Press and hold the ?/1 key on the unit for a few seconds (page 50).

ECO gauge

This gauge indicates the current effectiveness of the projector’s ECO function. (For details on the ECO function, see “ECO MODE key” (page 7) and “ECO” (page 26).) The leaf icons are displayed when the projector is shut down. The number of displayed icons varies according to how much energy is saved as a result of using the ECO function.

ECO gauge

Projecting/Adjusting an Image

Projecting an Image

B Adjustments and Settings Using a Menu

Using a MENU

Note

The menu displays used for the explanation below may be different depending on the model you are using.

1 Press the MENU key to display the

menu.

2 Select the setting menu.

Use the V/v key to select the setting menu then press the b key or ENTER

key.

Setting menu


Picture Mode Standard Reset Contrast Brightness Color Hue Color Temp. Sharpness Expert Setting

:Sel :Set :Back

Low

3 Select the setting item.

Use the V/v key to select the setting menu then press the b key or ENTER

key.

To return to the selection screen of the setting menu, press the B or RETURN key.

Setting items


Picture Mode Standard

Reset Contrast Brightness Color Hue Color Temp. Sharpness Expert Setting

80 50 50 50

Low

operations in step 3 and then press the ENTER key to register the setting. To return to the selection screen of the setting items, press the B or RETURN key. You can press the RESET key to reset an item to its factory setting value to aid setting.

Using a pop-up menu

Press the V/v/B/b key to select an item. A selected item takes effect immediately, except “Language”, which will take effect after you press the ENTER key.

Picture Mode

Dynamic

Sta ndard

Presentation Blackbo ard Game Cinema

:Back

RETURN

:Sel

Using the setting menu

Press the V/v key to select the item. Press the ENTER key to register the setting and return to the previous screen.

Using the adjustment menu

To increase the value, press the V/b key and to decrease the number, press the v/B key. Press the ENTER key to register the setting and return to the previous screen.

Contrast

:Sel :Set :Back

4 Make the setting or adjustment for the

selected item.

The setting method varies, depending on the setting item. If the next menu window is displayed, select the item according to the

Using a MENU

Adjust

Back

5 Press the MENU key to clear the

menu.

The menu disappears automatically if no operation is performed.

The Picture Menu

The Picture is used to adjust the picture for each input signal.

Items Item descriptions

Picture Mode Dynamic: Emphasizes the contrast to produce a dynamic and vivid picture.

Reset

Contrast The higher the value, the greater the contrast. The lower the value, the lower

Brightness The higher the value, the brighter the picture. The lower the value, the darker

*3 *4

Color

*3 *4 *5

Hue

Color Temp.

Sharpness

Expert Setting

Gamma

*1 *8

Mode

Standard: Provides an image which is natural and well balanced. Presentation

: Provides a bright image, suitable for presentations. Blackboard: Provides an image suitable for displaying on a blackboard. Game: Provides an image suitable for viewing games. Cinema: Provides an image suitable for viewing movies.

Resets the factory setting.

the contrast.

the picture.

The higher the value, the greater the intensity. The lower the value, the lower the intensity.

The higher the value, the more greenish the picture becomes. The lower the value, the more reddish the picture becomes.

High/Middle/Low: The higher the value, the more bluish the picture. The lower the value, the more reddish the picture.

The higher the value, the sharper the picture. The lower the value, the softer the picture.

Graphics1: Gamma correction to make halftones brighter. This setting is suitable when projecting highly colorful images, such as photos, in a bright place. Graphics2: Gamma correction to improve the reproduction of halftones. Highly colorful images, such as photos, can be reproduced in natural tones. Text: Improves black and white contrast. Suitable for images with lots of text content.

Adjustments and Settings Using a Menu

Notes

*1: When a computer signal is input, this option is available. *2: The settings in the Picture return to their factory defaults, except for Picture Mode. *3: When a video signal is input, this option is available. *4: When the signal without color burst signal is input after selecting “Video” or “S-Video”, this

option is unavailable. *5: When an analog TV signal is input, this option may not available, depending on the color system. *6: When “Picture Mode” is set to the item other than “Presentation” or “Blackboard,” this option

is available. *7: Not available if “Input” is set to “Type A USB.” *8: When “Picture Mode” is set to “Blackboard,” this option is unavailable.

The Picture Menu

The Screen Menu

The Screen menu is used to adjust the size, position and aspect ratio of the projected image for each input signal.

Items Item descriptions

Aspect

VPL-SW235/SW225: When the computer signal is input

VPL-SW235/SW225: When the video signal is input

VPL-SX235/SX225: When the computer signal is input

VPL-SX235/SX225: When the video signal is input

Changes the aspect ratio of the projected image (page 22).

4:3: Displays the image to fit the maximum projected image size with an aspect ratio fixed to 4:3. 16:9: Displays the image to fit the maximum projected image size with an aspect ratio fixed to 16:9. Full 1: Displays the image to fit the maximum projected image size without changing the aspect ratio of the input signal. Full 2: Displays the image to fit the maximum projected image size changing the aspect ratio of the input signal. Full 3: Displays the image to fit the maximum width or height, up to 1280 × 720 pixels, without changing the aspect ratio of the input signal. Normal: Displays the image on the center position of the projected screen without changing the resolution of the input signal or enlarging the image.

Zoom: Zooms the center area of a projected image.

4:3: Displays the image to fit the maximum projected image size

with an aspect ratio fixed to 4:3. 16:9: Displays the image to fit the maximum projected image size with an aspect ratio fixed to 16:9. Full 1: Displays the image to fit the maximum projected image size without changing the aspect ratio of the input signal. Normal: Displays the image on the center position of the projected screen without changing the resolution of the input signal or enlarging the image.

The Screen Menu

Items Item descriptions

Adjust Signal Adjusts the image of computer signal. Use this item if the edge of

the image is cut and reception is bad.

APA

*2 *3

Automatically adjusts the projected image to an optimum quality when you press the ENTER key (page 6).

Phase

Adjusts the dot phase of the display pixel and the input signal. Set to the value where looks clearest.

*2 *5

Pitch

The higher the value, the wider the horizontal image elements (pitch). The lower the value, the narrower the horizontal image elements (pitch).

Shift

H (Horizontal): The higher the value, the farther right the image is projected on the screen. The lower the value, the image farther left. V (Vertical): The higher the value, the farther up the image is projected on the screen. The lower the value, the image farther down.

Notes

*1: • Note that if the projector is used for profit or for public viewing, modifying the original picture

by switching to the aspect mode may constitute an infringement of the rights of authors or producers, which are legally protected.

• Depending on the input signal, setting items for aspect ratio or some other setting items cannot be set in some cases, or changing the aspect ratio setting may have no effect.

• A part of the image may be displayed in black, depending on the setting item.

*2: Available when a computer signal is input from the RGB input connector (INPUT A/INPUT B). *3: If the projected image includes large amount of black portion around it, the APA function will

not work properly and a part of the image may not be displayed on the screen and also optimum image cannot be obtained, depending on the type of input signal. In this case, adjust the “Phase,” “Pitch,” and “Shift” items manually.

*4: Available when a computer or a video signal is input from the RGB/YP

BPR input connector

(INPUT A).

*5: When “APA” (page 21) or “Smart APA” (page 24) is performed, the adjusted value for “Pitch”

will return to its factory default. If you want to continue using the adjusted value, set “Smart APA” to “Off.”

Adjustments and Settings Using a Menu

The Screen Menu

Aspect

VPL-SW235/SW225

Input signal Recommended

4:3 Full1

16:9 Full1

Computer signal

16:10 Full1

4:3 4:3

16:9 16:9

Video signal

setting value and

projected image

*1 *2 *3

*4 *5

*1: If you select “Normal,” the image is

projected in the same resolution as the input signal without changing the aspect ratio of the original image.

*2: If you select “Full2,” the image is projected

to fit the projected image size, regardless of the aspect ratio of the image.

*3: If you adjust the projected image position

using an image with 16:9 aspect ratio and then switch the input source to 4:3 image, the top and bottom edge of the image may be hidden. In this a case, select “Full3.”

*4: Depending on the input signal, the

projected image may be projected as illustrated below. In this a case, select “16:9.”

The Screen Menu

*5: Depending on the input signal, the image

may be projected as illustrated below. In this a case, select “Zoom.”

VPL-SX235/SX225

Input signal Recommended

4:3

16:9

setting value and

projected image

Full1

*1 *2

Full1

*1: If you select “Normal,” the image is

projected in the same resolution as the input signal without changing the aspect ratio of the original image.

*2: If you select “4:3,” the image is projected

to fit the projected image size, regardless of the aspect ratio of the image.

Computer signal

16:10 Full1

*1 *2

*3: Depending on the input signal, the

projected image may be projected as illustrated below. In this a case, select “16:9.”

Adjustments and Settings Using a Menu

4:3 4:3*3

*4: Depending on the input signal, the

projected image may be projected as illustrated below. In this a case, select “Zoom.”

16:9 16:9

Video signal

The Screen Menu

The Function Menu

The Function menu is used for setting various functions of the projector.

Items Item descriptions

Volume The higher the value, the louder an audio volume and the lower the

Mic Volume Adjust the volume of the microphone.

Speaker On/Off: When set to “On,” speaker outputs sound. To not output

Smart APA On/Off: When set to “On,” APA functions automatically when a

CC Display CC1/CC2/CC3/CC4/Text1/Text2/Text3/Text4: Select the closed

Lamp Timer Reset When replacing the lamp, resets the lamp timer (page 53).

Start Up Image On/Off: When set to “On,” the Start Up Image is displayed on the

Notes

*1: APA functions when a computer signal is input via the RGB input connector (INPUT A/INPUT

B).

*2: The maximum available mic volume is set by the value of “Volume.”

value, the lower the audio volume.

sound from the speaker, select “Off.”

signal is input.

caption service (captions or text). Off: Closed caption does not appear.

screen when the projector is powered on.

The Function Menu

The Operation Menu

The Operation menu is used for setting for the operations by using the menu or the remote commander.

Items Item descriptions

Language Selects the language used in the menu and messages.

Status On: All on-screen statuses are enabled.

Security Lock

Control Key Lock

Off: Turns off the on-screen displays, except for menus, warning messages and messages from the message list.

On/Off: This function enables restriction of the projector to authorized users by password. The setting procedures for security locking are as follows:

1 Select “On” and press the ENTER key to display the setting menu. 2 Input the password with the MENU, V/v/B/b and ENTER keys. (The

default setting password is “ENTER, ENTER, ENTER, ENTER.”)

3 Input a new password with the MENU, V/v/B/b and ENTER keys. 4 Enter the password again to confirm.

Enter the password when you turn on the projector after disconnecting and reconnecting the AC power cord. When it is set to “Off,” you can cancel the security lock. You are required to input the password again. If you fail to enter the correct password after three consecutive times, the projector cannot be used. In this case, press the ?/1 key to go Standby mode then turn on the power again.

On/Off: When set to “On,” locks all the control panel keys of the projector. However, you can operate the following when set to “On”:

• Press and hold the ?/1 key for approximately 10 seconds during Standby

mode. c The projector turns on.

• Press and hold the MENU key for approximately 10 seconds during power on. c “Control Key Lock” is set to “Off” and enables operation of all keys on

the projector.

Adjustments and Settings Using a Menu

Note

*1: You will not be able to use the projector if you forget your password. If you call qualified Sony

personnel because you have forgotten the password, you will be asked to verify the projector’s serial number and your identity. (This process may differ in other countries/regions.) Once your identity has been confirmed, we will provide you with the password.

The Operation Menu

The Connection/Power Menu

The Connection/Power menu is used for setting for the connections and power.

Items Item descriptions

LAN Settings

IP Address

Setup

WLAN Settings

*10

WLAN Connection

WLAN

*14

Network

Input-A Signal Sel.

ECO

Lamp Mode High/Standard/Low/Auto

Constant Brightness

Auto Power Saving

With No Input Lamp Cutoff: The lamp turns off automatically and power

With Static Signal

Standby Mode*

Auto (DHCP): The IP address is assigned automatically from the DHCP server such as a router.

Manual: To specify the IP Address manually.

On/Off: Set the wireless output of the USB wireless LAN module (not

supplied) to On/Off.

Access Pt. (Auto)/Access Pt. (Manual)/Client

*12

WLAN.

Auto/Computer/Video GBR/Component:

*11

: Changes modes for

When set to “Auto,” selects

the type of video signal input automatically when “Input-A” is selected.

*5 *7

: When set to “High,” the image

becomes brighter, and power consumption becomes higher. When set to “Low,” power consumption is minimized; however, the image will be darker. When set to “Auto,” brightness is adjusted automatically according to image content. Dark images are projected with brightness adjusted, leading to energy-saving. Bright images are projected brightly, without adjusting brightness.

On/Off: Available when the lamp mode is set to High. Outputs light at a certain brightness.

*13

consumption is reduced if no signal is input for more than 10 minutes. The lamp lights again when a signal is input or any key is pressed. In Lamp Cutoff, the ON/STANDBY indicator lights in orange. (page 49) Standby*

: If no signal is input to the unit for more than 10 minutes,

the power turns off automatically, and the unit enters standby mode.

Off: You can deactivate the With No Input.

Lamp Dimming

seconds, lamp output is gradually reduced (approximately 10% to

15%*

) from that set in the Lamp Mode. Automatically the lamp slowly

*4 *5 *7

: If an image does not change for about 10

darkens to approximately 30% of its lamp output according to the selected time (with no change to input signal) “5,” “10,” “15,” “ 20” minutes or “Demo.,” While dimming the lamp, the message “Lamp Dimming” appears. If you select “Demo.,” the image will start to darken about 40 seconds later. When any change in signal is detected, or an operation (remote control or control panel) is performed, normal brightness is restored. Off: You can deactivate the With Static Signal.

Standard/Low: When set to “Low,” lowers power consumption in Standby mode.

The Connection/Power Menu

Items Item descriptions

Direct Power On On/Off: When set to “On,” you can turn the power on without going to

Standby mode when the AC power cord is connected to a wall outlet. With the projector turned off, you can also unplug the AC power cord without going to Standby mode, regardless of the Direct Power On setting.

Notes

*1: This may not be optimum depending on the input signal. In this case set manually according

to the connected equipment.

*2: When “Standby Mode” is set to “Low,” the network and network control function cannot be

operated while the projector is in standby mode. *3: This varies depending on the “Lamp Mode” setting. *4: As the lamp is dimmed gradually, you may not notice any change in brightness. You might only

notice that the lamp has dimmed when its brightness is restored after there is a change in input

signal. *5: This mode does not work for about three minutes after the lamp lights. A change in signal may

not be detected depending on the input image. The lamp may become brighter at intervals

during lamp dimming. However, this is not a malfunction. If With No Input is set, it takes

priority. *6: Select “Off” to avoid entering standby mode when there is no input signal. *7: Does not function when “Type A USB”, “Type B USB” or “Network” is selected as the input.

In this case, it becomes equivalent to “Standard.” *8: Reflecting changes in WLAN settings may take a few moments. *9: To set the IP address manually, select “Manual”, press “Apply”, then enter the IP address. *10: When you send images or files from a tablet PC/smartphone and display them (page 41), set

“WLAN Network” to “Access Pt. (Auto)” or “Access Pt. (Manual),” to use USB wireless LAN

module IFU-WLM3 (not supplied) as a wireless access point. *11: The factory default settings for “Access Pt. (Manual)” are as follows.

SSID: VPL + MAC address for LAN

Security Method: WEP(64bit)

Password: sony1

To change the settings for “Access Pt. (Manual)”, use a Web browser.

For details, see “Setting the WLAN Network of the projector” (page 33).

If “Access Pt. (Manual)” is set, when you use Presentation Function via Network (page 39),

select “Manual Connect” to connect to the network. *12: For changing the settings for “Client,” use the Web browser for change. For details, see

“Setting the WLAN Network of the projector” (page 33). *13: Constant Brightness mode will be enabled for about 2,000 hours after it is activated at early

usage. After this period, it will be disabled automatically. Activated time and brightness may

vary depending on the usage conditions. *14: If the projector cannot connect wirelessly, click [Apply] once again to make sure the

connection is established. For details, see “Setting the WLAN Network of the projector”

(page 33).

Adjustments and Settings Using a Menu

The Connection/Power Menu

The Installation Menu

The Installation menu is used for installing the projector.

Items Item descriptions

Image Flip HV/H/V/Off: Flips the projected image horizontally or vertically

Installation Attitude Right Side Up/Upside Down/Link to Image Flip: Change the cooling

High Altitude

Mode

V Keystone

Notes

*1: When “High Altitude Mode” is set to “On,” the speed of the fan increases, and the fan noise

*2: Since the Keystone adjustment is an electronic correction, the image may be deteriorated.

becomes slightly louder.

according to the installation method.

setting to suit to the installation attitude. When set to “Link to Image Flip,” the cooling setting changes based on the setting of “Image Flip.” Continuing to use the wrong setting may affect component reliability.

On/Off: Set to “On” when using the projector at an altitude of 1,500 m or higher. Continuing to use the wrong setting may affect component reliability.

Auto/Man ual*2: The higher the value, the narrower the top of the projected image. The lower the value, the narrower the bottom.

The Installation Menu

The Information Menu

The Information menu is used to check projector status, such as total usage time of the lamp.

Items Item descriptions

Model Name Displays the model name.

Serial No. Displays the serial number.

fH/fV

Signal Type Displays the type of the current input signal.

Lamp Timer Indicates the total usage time of a lamp.

Note

*1: These items may not be displayed depending on the input signal.

Displays the horizontal/vertical frequency of the current input signal.

Adjustments and Settings Using a Menu

The Information Menu

B Network

Using Network Features

Connection to the network allows you to operate the following features:

• Checking the current status of the projector via a Web browser.

• Remotely controlling the projector via a Web browser.

• Receiving the e-mail report via the projector.

• Making the network settings for the projector.

• Displaying messages on the projected image using an application.

• Supports network monitoring, control protocol (Advertisement, PJ Talk, PJ Link, AMX DDDP [Dynamic Device Discovery Protocol], Crestron RoomView).

Notes

• The menu displays used for the explanation below may be different depending on the model you are using.

• Supported Web browsers are Internet Explorer 8/9/10.

• The menu displays only in English.

• If the browser of your computer is set to [Use a proxy server] when you access to the projector from your computer, click the check mark to set accessing without using a proxy server.

• To display messages, specific application Projector Station for Network Control (Version 1.1 or later) is necessary. For download or detailed method of using Projector Station for Network Control, please access the following URL. http://pro.sony.com/bbsc/ssr/cat-projectors/resource.downloads Contact your local Sony dealer for detailed information of Projector Station for Network Control.

Displaying the Control Window of the Projector with a Web Browser

1 Connect the LAN cable (page 9).

2 Set the network settings for the

projector using “LAN Settings” on the Connection/Power menu (page 26).

3 Start a web browser on the computer,

enter the following in the address field, then press the Enter key on your computer.

http://xxx.xxx.xxx.xxx (xxx.xxx.xxx.xxx: IP address for the projector) You can confirm the IP address of the projector in the “LAN Settings” on the Connection/Power menu (page 26).

Using Network Features

The following window appears in the Web b r owser :

Once you make the network settings, you can open the Control window only by performing step 3 of this procedure.

How to operate the Control window

Switching the page

Click one of the Page Switching buttons to display the desired setting page.

Page Switching buttons

Setting the access limitation

You can limit a user for accessing any particular page.

Administrator: Allowed access to all

pages

User: Allowed access to all pages except

the Setup page Set the access limitation from [Password] of the Setup page. When you access the Setup page for the first time, enter “root” in the Name box and enter “Projector” in the Password box of User. The Name box of the Administrator is preset to “root.”

Confirming the Information regarding the Projector

You can confirm the current settings for the projector on the Information page.

Information area

Operating the Projector from a Computer

You can control the projector from the computer on the Control page.

Network

Entry area for [Administrator]

Entry area for [User]

When you change the password, input a new password after deleting the password (*****) that was set.

Notes

• Changing your password is highly

recommended for security reasons.

• If you forget your password, consult with

qualified Sony personnel.

Operation area

The functions of the buttons shown in the operation area are the same as the keys on the remote commander.

Using Network Features

Using the e-mail report Function

Set the e-mail report function on the Setup page. Entered values will not be applied unless you click on [Apply].

Mail Report button

1 Click on [Owner information] to enter

the owner information recorded in the

e-mail report.

Owner information button

2 Set the timing of the e-mail report.

Click on [Mail Report] to open the Mail Report page. Lamp Reminder (Lamp1): Set the

timing of the email report for lamp replacement. To reset Lamp Reminder, execute “Lamp Timer Reset” on the projector (page 24).

Maintenance Reminder: Set the timing

of the email report for maintenance. To reset Maintenance Reminder, check the RESET check box and then click on [Apply].

6 5

3 Enter the outgoing e-mail address in

the Email Address box then check the Report Timing check box of the e-mail report to be sent.

4 Set the mail account for sending e-

mail reports.

Mail Address: Enter the e-mail address. Outgoing Mail Server (SMTP): Enter

the address of outgoing mail server (SMTP).

Required Authentication: Check this

check box if authentication is required for sending e-mail.

Requires the use of POP

Authentication before sending email (POP before SMTP): Check this

check box to arrange for POP authentication to be performed before sending e-mail.

Incoming Mail Server (POP3): Enter

the address of the incoming-mail server (POP3) to be used for POP authentication.

Account Name: Enter the mail account

name.

Password: Enter the password.

Using Network Features

SMTP Authentication: Check this

check box to arrange for SMTP authentication to be performed before sending e-mail.

Account Name: Enter the mail account

name.

Password: Enter the password.

5 Confirm the contents of the e-mail

report.

When you click on [View], the contents of the e-mail report are displayed.

6 Send the test mail.

Check on the Send test mail check box then click on [Apply] to send your test mail to the e-mail address you set.

Notes

• The email report function will not work if the network uses Outbound Port25 blocking, which prevents access to the SMTP server.

• You cannot use the following characters to enter the characters in the text box: “ ' ”, “ “ ”, “

\ ”, “ & ”, “ < ”, “ > ”

Setting the LAN Network of the projector

Set the LAN network function on the Setup page. Entered values will not be applied unless you click on [Apply].

1 Click on [Network] to open the

Network page.

2 Set the items for internet protocol.

Obtain an IP address automatically:

Automatically provides the network settings by a DHCP server function, such as the router. The IP Address, Subnet Mask, Default Gateway, Primary DNS, and Secondary DNS display the values provided by a DHCP server.

Specify an IP address: Set the network

manually.

-IP Address: Input the IP address of the

projector.

-Subnet Mask: Input the subnet mask of

the projector.

-Default Gateway: Input the default

gateway of the projector.

-Primary DNS: Input the primary DNS

server of the projector.

-Secondary DNS: Input the secondary

DNS server of the projector.

3 Set the items for Ethenet.

MAC Address: Displays the MAC

address of the projector.

Speed: Select the network speed of the

projector.

Setting the WLAN Network of the projector

Set the WLAN network function on the Setup page. Entered values will not be applied unless you click on [Apply].

1 Click the [WLAN Setting] to open the

WLAN Setting page.

Network

Network button

LAN Network setting area

Using Network Features

WLAN Setting button

3-(a)

2 Enable or disable the radio wave

output of USB wireless LAN module.

Wireless ON: Enables radio wave

output of USB wireless LAN module.

Wireless OFF: Disables radio wave

output of USB wireless LAN module.

WLAN Network: Set the modes for

USB wireless LAN module.

Items Descriptions

Access Pt. (Auto)

Access Pt. (Manual)

Client Activates USB wireless

Activates USB wireless LAN module as an access point, and items for WLAN are automatically set.

Activates USB wireless LAN module as an access point. Set the items for WLAN manually.

LAN module as a client.

3 (a) Input the settings for Access Pt.

Mode.

When the USB wireless LAN module is activated as an access point, set the items for the access point. Probe Response ON: Responds to the

probe request from the client.

Probe Response OFF: Does not

respond to the probe request from the client.

Network Name (SSID): Displays the

SSID of the access point if “WLAN Network” is set to “Access Pt. (Auto).”

Input the SSID of the access point if “Access Pt. (Manual)” is selected.

Channel Setting: Displays the channel

of the access point if “WLAN Network” is set to “Access Pt. (Auto).” Select the channel of the access point if “Access Pt. (Manual)” is selected.

Encryption Type: Displays the security

method of the access point if “WLAN Network” is set to “Access Pt. (Auto).” Select the security method of the access point from the following list if “Access Pt. (Manual)” is selected.

Encyption

Typ e

Open Sets the security method

WEP 64bit Sets the security method

WEP 128bit Sets the security method

MIX (WPAPSK/WPA2PSK (TKIP/ AES))

WPA2PSK(AES)

Descriptions

of the access point to open system authentication.

of the access point to WEP (64bit).

of the access point to WEP (128bit).

Sets the security method of the access point to MIX. (corresponding to both WPA-PSK (TKIP/ AES) and WPA2-PSK (AES) security methods).

Sets the security method of the access point to WPA2-PSK (AES).

Key: Input the password for security

method of the access point according to the selected encryption type as below;

Encyption

Type

Open The password cannot be

WEP 64bit Input 5 ASCII characters

WEP 128bit Input 13 ASCII characters

MIX (WPAPSK/WPA2PSK (TKIP/ AES)) or WPA2-PSK (AES)

Password

input.

for a password.

Input 8-63 ASCII characters for a password.

Using Network Features

(b) Input the settings for Client Mode.

When the USB wireless LAN module is activated as a client, set the items for the client (set the items for the access point the projector tries to connect to).

3-(b)

Connection Status: Displays the

connecting status between the access point and projector.

ESSID: Input the ESSID of access point

the projector tries to connect to.

Encryption Type: Select the security

method of access point the projector tries to connect to from the following list.

Encyption

Type

Open Sets the security method

WEP 64bit Sets the security method

WEP 128bit Sets the security method

MIX (WPAPSK/WPA2PSK (TKIP/ AES))

Descriptions

of the access point to open system authentication.

of the access point to WEP (64bit).

of the access point to WEP (128bit).

Sets the security method of the access point to MIX. (corresponding to both WPA-PSK (TKIP/ AES) and WPA2-PSK (AES) security methods).

Encyption

Typ e

WPA2-PSK (AES)

Descriptions

Sets the security method of the access point to WPA2-PSK (AES).

Key: Input the password for security

method of the access point according to the selected encryption type as below;

Encyption

Typ e

Open The password cannot be

WEP 64bit Input 5 ASCII characters

WEP 128bit Input 13 ASCII characters

MIX (WPAPSK/WPA2PSK (TKIP/ AES)) or WPA2-PSK (AES)

Descriptions

input.

for a password.

Input 8-63 ASCII characters for a password.

Obtain an IP address automatically:

Specify an IP address: Set the network

manually.

-IP Address: Input the IP address of the

projector.

-Subnet Mask: Input the subnet mask of

the projector.

-Default Gateway: Input the default

gateway of the projector.

-Primary DNS: Input the primary DNS

server of the projector.

-Secondary DNS: Input the secondary

DNS server of the projector.

MAC Address: Displays the MAC

address for USB wireless LAN module.

Network

Using Network Features

Setting the Control Protocol of the Projector

Change the settings for the control protocol on the Setup page. Entered values will not be applied unless you click on [Apply].

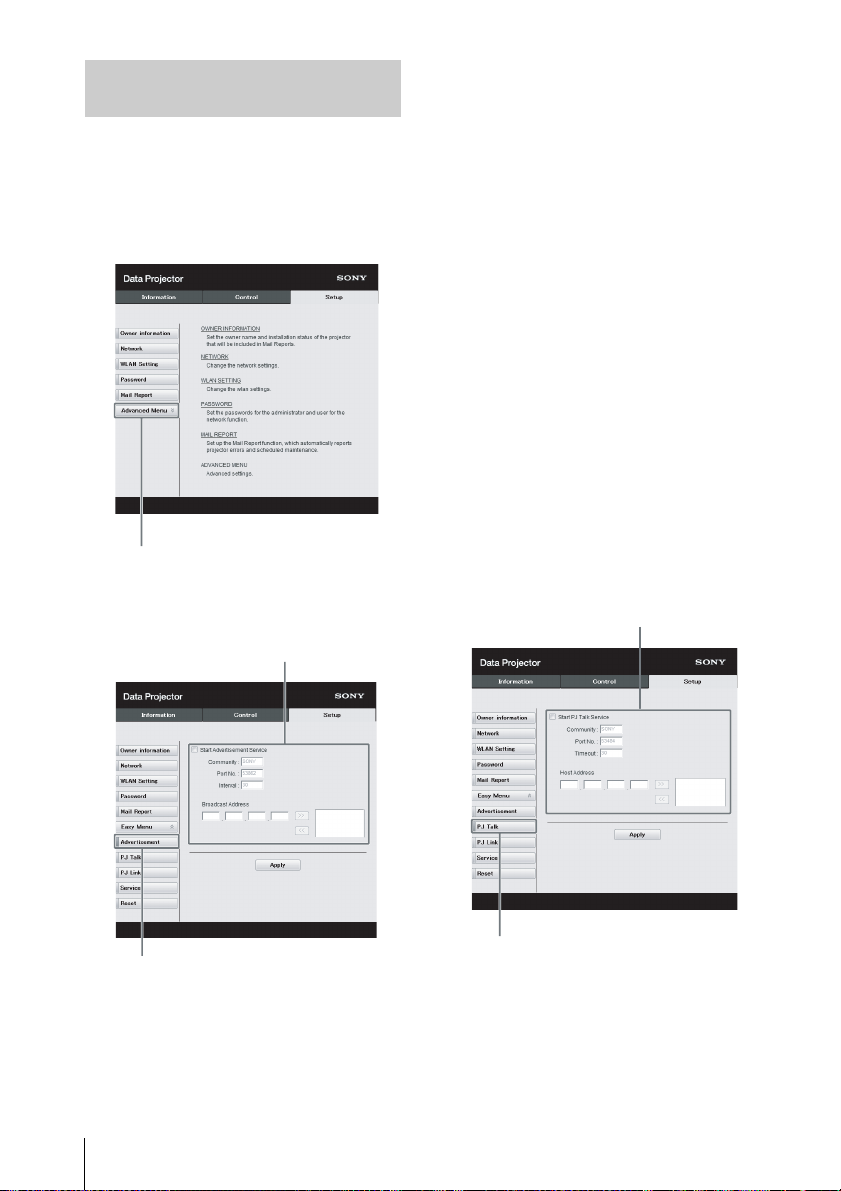

1 Click on [Advanced Menu] to display

the buttons for more settings.

Advanced Menu button

2 (a)Set Advertisement.

Advertisement Service setting area

-Community:

Input the community name for Advertisement and PJ Talk. If the community name for Advertisement is changed, the one for PJ Talk will also be changed. Only four alphanumeric characters can be input. The factory default setting is “SONY.” It is recommended that the community name be changed from the factory setting to avoid unnecessary access to the projector from other computers.

-Port No.:

Input the transmit port of Advertisement. The factory default setting is “53862.”

-Interval:

Input the transmission interval (minutes) of Advertisement. The factory default setting is “30.”

-Broadcast Address:

Input the destination of data via Advertisement. If nothing is input, the data will be broadcast in the same subnetwork.

(b)Set PJ Talk.

PJ Talk Service setting area

Advertisement button

Start Advertisement Service:

Set Advertisement to enabled or disabled. Items for Advertisement are enabled only when this function is enabled. The function is disabled at the factory default.

Using Network Features

PJ Talk button

Start PJ Talk Service:

Set PJ Talk to enabled or disabled. Items for PJ Talk are enabled only when this function is enabled. The function is disabled at the factory default.

-Community:

Input the community name of Advertisement and PJ Talk. If the community name for PJ Talk is changed, the one for Advertisement will also be changed. Only four alphanumeric characters can be input. The factory default setting is “SONY.” It is recommended that the community name be changed from the factory setting to avoid unnecessary access to the projector from other computers.

-Port No.:

Input the server port of PJ Talk. The factory default setting is “53484.”

-Timeout:

Input the time (minutes) until PJ Talk communication is terminated in the case that it is disconnected. The factory default setting is “30.”

-Host Address:

Input the IP address that the PJ Talk server is allowed to receive. If no IP address is input, receiving commands will be allowed from any IP address. From the moment the IP address is input, access will be allowed only from that input IP address. For security reasons, it is recommended to input an IP address to restrict access.

(c)Set PJ Link.

PJ Link Service setting area

PJ Link button

Start PJ Link Service:

Set PJ Link to enabled or disabled. Items for PJ Link are enabled only when this function is enabled. This function is disabled at the factory setting.

-Requires Authentication:

Set the authentication for PJ Link to enabled or disabled.

-Password:

Input the authentication password for PJ Link. For the factory default password, refer to the PJ Link specifications.

(d)Set the system service.

System service setting area

Network

Service button

Start DDDP Service:

Set DDDP to enabled or disabled. For details, refer to the DDDP specifications in the reference from AMX Corporation. The function is disabled at the factory default.

Crestron Control:

For details, refer to the specifications in product catalogues, etc., from Crestron Corporation.

-IP Address:

Input the Crestron system server.

-IP ID:

Input the IP ID for the CIP protocol.

-Port No.:

Input the port number for the CIP protocol server.

Using Network Features

(e)Reset the network settings.

Reset button Reset

Reset:

Reset all Web browser settings to their factory defaults.

Using Network Features

B Presentation Function via Network

Using Presentation Function via Network

The Presentation Function via Network enables you to do the following:

• Connect a maximum of eight computers to the projector.

• Project images from a maximum of four computers simultaneously.

• Connecting a USB wireless LAN module (not supplied) to the projector as an access point, allows the projector to connect to up to seven computers simultaneously.

Presentation Function via Network requires installation of Projector Station for Network Presentation (supplied CD-ROM). For information on updates of Projector Station for Network Presentation, visit Sony’s web site: https://www.servicesplus.sel.sony.com/ System requirements for using the application are as follows.

Windows XP: Home/Professional (recommended) Windows Vista: Home Premium/Business/Ultimate/Enterprise Windows 7: Home Premium/Professional (Recommended)/Ultimate/Enterprise Windows 8 Mac OS X: 10.6.x/10.7.x/10.8.x

CPU

Pentium4 2.8GHz or faster

Notes

• To install the application, administrative rights are required.

• If you do not have administrative rights, the application may not run properly.

• If firewall or security software is installed, the application may not run properly.

• Depending on the type of network adapter, the application may not run properly.

• Movie player (Media Player, etc.) images may not be projected properly.

Installing Projector Station for Network Presentation

1 Close all running applications. 2 Insert the supplied CD-ROM into the

CD-ROM drive of the computer.

3 Open the CD-ROM.

For Windows:

Double-click the .exe file. When the message “User Account Control” is displayed, click “Allow” or “Yes.”

For Mac:

Double-click the .pkg file.

4 Follow the on-screen instructions to

install the software.

Starting Projector Station for Network Presentation

1 Connect the projector to a network.

For a wired connection, connect the projector by a LAN cable, then make the network settings. For details, see “LAN Settings” (page 26) or “Setting the LAN Network of the projector” (page 33). For a wireless connection, see “LAN connector” (page 9) or “USB connector (Type A) ( )” (page 10). Also check “WLAN Settings” (page 26).

2 Turn on the projector.

Select “Network” as the input source (page 13).

Using Presentation Function via Network

Presentation Function via Network

3 Start Projector Station for Network

Presentation.

For Windows:

Select [Start]-[All Programs]-[Projector Station for Network Presentation] on the computer.

For Mac:

Double-click [Projector Station for Network Presentation] in Applications folder.

Projecting an Image

After starting Projector Station for Network Presentation, the connection setting window appears.

1 Find projectors connected to the

network.

Click “Search” in the connection setting window to search for projectors.

For Windows:

• When a projector is connected to a network via a wireless connection, if the “SSID” is changed from the factory default, it may not be found.

• When a projector is connected to a network via a wired connection, depending on the network environment, it may not be found.

• When connecting a projector with its “SSID”, “Security Method” and “Wireless Password” in the “Wireless LAN Setting” changed, select “Manual Connect” and connect manually.

2 Select a projector to project an image.

Check the checkbox.

3 Click “Connect”.

If other users are projecting an image, the controller appears on the screen. Click the to start projecting an image (page 41). If no users are projecting an image, the controller appears on the screen and starts projecting an image.

Note

Display related settings (such as your computer’s resolution) change when the application is started.

For Mac:

Notes

• The appearance of the application on the screen is subject to change without notice.

Using Presentation Function via Network

Connection Settings

Item Item descriptions

Wireless LAN Adapter (for Windows only)

Connection History

Search Results Show the search result.

Profile Name Display the registered names

Connection Display the connection

To select a wireless LAN adapter used for Projector Station for Network Presentation (appears only when wireless connection is used).

List profiles that have been connected before.

of the projectors found in the network.

method (Network connection/Wireless direct connection).

Item Item descriptions

Displays the strength of the wireless signal (appears only when wireless connection is used).

SSID Display SSID (appears only

IP Address Display IP address (appears

Search Start searching for projectors

Delete Delete selected profile.

Property Display the properties of the

Connect Connect to the selected

Manual Connect

when wireless connection is used).

only when wired connection is used).

in the network.

selected profile.

projector and start projecting an image.

Enter the SSID or IP address manually to connect with the projector, and start projecting an image.

Using the Controller

For Windows:

Network Presentation

Items Functions

Stop projecting an image (screen turns black).

Change the application settings.

Disconnect from the projector.

Select a projection method then start projecting an image.

Projection method

Not projecting an image.

Project in full screen.

Project in the left half of the screen.

Project in the right half of the screen.

Project in the upper left quadrant of the screen.

Project in the upper right quadrant of the screen.

Project in the lower left quadrant of the screen.

Project in the lower right quadrant of the screen.

Display the strength of the wireless signal.

Display the number of users connected to the projector.

Display the users’ status.

User 000001

For Mac:

User64

Items Functions

Start projecting an image.

Pause projecting an image.

Displaying Images or Files Sent from a Tablet PC/ Smartphone

You can project JPEG images, PDF files, etc. stored in a tablet PC/smartphone wirelessly by using a specific application. For downloading*2 or detailed method of using the application, access the following URL. http://PWPresenter.pixelworks.com

Using Presentation Function via Network

Presentation Function via Network

*1: To use the application, one of the following

conditions is required.

• Connected to network where wireless connection can be established (page 9).

• Connected to a wireless network via USB wireless LAN module IFU-WLM3 (not supplied) that is connected to the projector (page 10).

*2: Depending on your Internet connection, a

data communication fee may apply.

Using Presentation Function via Network

B Playing Video and Audio using USB Connection

Playing Video and Audio using USB Connection

You can also play video and audio simply by connecting the projector and computer with a USB A-B cable (not supplied). Playing video and audio using USB connection requires to start USB Display. System requirements for using the application are as follows.

CPU

Pentium4 2.8GHz or faster

Starting USB Display

1 Connecting the projector and your computer with a USB A-B cable (not supplied)

(page 9).

2 Turn on the projector.

Select “Type B USB” as the input source (page 13). After a short time, the projector is recognized as a CD-ROM drive in the computer.

3 Open “USB Display” in the CD-ROM drive.

Notes

• The resolution of your computer changes when the application is started.

• Depending of the computer’s setting, the application may start automatically.

• When you are finished using the projector, you can simply disconnect the USB cable without using the Safely Remove Hardware option.

• Movie player (Media Player, etc.) images may not be projected properly.

• If your OS is Windows Vista, Windows 7 or Windows 8, turning off the Windows Aero is recommended.

Playing Video and Audio using USB Connection

Playing Video and Audio Using the Controller

After starting USB Display, the controller appears on the screen, and projection playback starts automatically.

Playing Video and Audio using USB Connection

For Windows:

USB Display

For Mac:

Items Functions

Start audio/video playback.

Pause audio/video playback.

Stop audio/video playback (the screen turns black).

Display information about USB Display.

Playing Video and Audio using USB Connection

B USB Media Viewer

Using USB Media Viewer

You can browse image files stored in a USB memory device inserted in the USB connector of the projector, without using a computer. Supported storage media and file format:

• Supported storage media: USB flash memory

• Supported format of storage media: FAT format

• Supported file format: JPEG (.jpg/.jpeg), Bitmap (.bmp), PNG (.png), GIF (.gif), TIFF (.tif/.tiff)

Notes

• exFAT, NTFS are not supported.

• TIFF files containing EXIF information are not supported.

• Image files in a USB memory device connected to the projector via a USB hub may not be displayed.

• Security protected USB memory may not function correctly.

• A USB memory card reader that is recognized as more than one drive may not function correctly.

• Display of image files that are larger than 4092 × 3072 pixels is not guaranteed. It may take a long time to display, or may not be displayed.

• A folder with a deep folder structure or with a very long folder name may not be displayed.

• An image may not be displayed, depending on its file type.

• Files or folders with names including non-alphanumeric characters may not be displayed.

• When displaying an image file, do not disconnect the USB memory device. It may cause a malfunction of the USB memory device or the projector. Disconnect the USB memory device when the USB Memory device selection screen is displayed.

1 Connect a USB Memory device to the projector (page 12).

2 Select “Type A USB” as the input source (page 13).

3 Select the USB Memory device.

USB Media Viewer

Press the ENTER key to display in the thumbnail mode. USB Media Viewer has three display modes: “thumbnail mode,” “display mode” and “slideshow mode.”

Using USB Media Viewer

Thumbnail Mode

The image files in the folder are displayed as a thumbnail list.

Option menu

Press the V/v/B/b key on the remote commander to select an image, then press the ENTER key. The option menu appears in the lower part of the screen.

Option Menu

You can select the display order of thumbnails and display method of image files.

Items Item descriptions

Hide the option menu.

Switch to the display mode, and display the selected image in full screen view. (page 47)

Switch to the slideshow mode, and start the slideshow from the selected image. (page 47)

a z

Sort image files

Sort image files.

a z

Sort by name in alphabetical order.

z a

Sort by name in reverse alphabetical order.

1 2

Sort by date in chronological order.

2 1

Sort by date in reverse chronological order.

Notes

• Files without thumbnail data (including those created by an application) appear as blank icons.

• Cannot display more than 200 image files and folders in one folder.

Using USB Media Viewer

Display Mode

In display mode, you can view a selected image in full screen view.

Option menu

Press the ENTER key on the remote commander. The option menu appears in the lower part of the screen.

Option Menu

Items Item descriptions

Hide the option menu.

Return to the thumbnail mode (page 46).

Rotate the image 90 degrees counter-clockwise.

Rotate the image 90 degrees clockwise.

Switch to the slideshow mode, and start the slideshow from the selected image. (page 47)

Display the previous image.

Display the next image.

USB Media Viewer

Slideshow Mode

In slideshow mode, you can view images as a slideshow.

Option menu

Press ENTER key on the remote commander. The slideshow pauses and the option menu appears in the lower part of the screen.

Using USB Media Viewer

Option Menu

Items Item descriptions

Hide the option menu.

Return to the thumbnail mode (page 46).

Display the previous image.

Display the next image.

Slideshow time interval

Slideshow effect

Repeat Setting

Press the V/v key to change the slideshow time interval.

After 3 seconds, display the next image.

After 5 seconds, display the next image.

After 10 seconds, display the next image.

Press the V/v key to change the slideshow effect.

The next image appears with tile transition effect.

The next image appears from the left side of the screen.

The next image appears from the right side of the screen.

The next image appears from the top of the screen.

The next image appears from the bottom of the screen.

Press the V/v key to change the slideshow repeat setting.

After displaying the last image, the slideshow starts from the first image again.

Off

After displaying the last image, the slideshow ends and returns to the thumbnail mode.

Using USB Media Viewer

B Others

Indicators

The indicators allow checking the status and notify you of abnormal operation of the projector. If the projector exhibits abnormal status, address the problem in accordance with the table below.

ON/STANDBY indicator

Status Meaning/Remedies

Lights in red The projector is in Standby mode.

Flashes in green • The projector is ready to operate after having been turned on.

Lights in green The projector’s power is on.

Lights in orange The projector is in With No Input (Lamp Cutoff). (page 26)

Flashes in red The projector is in abnormal status. Symptoms are indicated by

Flashes twice The internal temperature is unusually high. Check the items below.

Flashes six times Unplug the AC power cord from a wall outlet. After checking that the

Other number of flashes

• The lamp cools after the projector is turned off.

number of flashes. Address the problem in accordance with the following. If the symptom is shown again, consult with qualified Sony personnel.

• Check if nothing is blocking the ventilation holes. (pages 4, 4)

• Check if the air filter is not clogged. (page 55)

• Check if the Installation Attitude in the Installation menu is set correctly. (page 28)

ON/STANDBY indicator goes out, plug the power cord to a wall outlet again then turn on the projector.

Consult with qualified Sony personnel.

Others

LAMP/COVER indicator

Status Meaning/Remedies

Flashes in red Symptoms are indicated by number of flashes. Address the problem in

accordance with the following.

Flashes twice The lamp cover is not attached securely. (page 53)

Flashes three times The temperature of lamp is unusually high. Turn off the power and

wait for lamp to cool then turn on the power again. If the symptom is shown again, the lamp may be burnt out. In this case, replace the lamp with a new one (page 53).

Indicators

Messages List

When any of the messages listed below appears on the projected image, address the problem in accordance with the table below.

Messages Meaning/Remedy Page

High temp.! Lamp off in 1 min.

Frequency is out of range!

Please check Input-A Signal Sel.

Please clean the filter. Clean the air filter. 55

Please replace the Lamp and clean the Filter.

Projector temperature is high. High Altitude Mode should be “On” if Projector is being used at high altitude.

Not applicable! Invalid key was pressed. –

The control keys are locked!

Projector will shutdown soon Press ?/1 Key to Restart

Lamp Dimming Reduces lamp output when “With Static Signal” is set. When

Check the items below.

• Check if nothing is blocking the ventilation holes.

• Check if the air filter is not clogged.

• Check if the Installation Attitude in the Installation menu is set correctly.

Change the output setting of the connected equipment to one for signals supported by the projector.

Set “Input-A Signal Sel.” to “Auto” or select the input signal type to suit to the input signal.

Replace the lamp with a new one and clean the air filter. The message appears whenever you turn on the power until you replace the lamp and reset the lamp timer.

When not using the projector at an altitude of 1,500 m or higher, check the items below.

• Check if nothing is blocking the ventilation holes.

• Check if the air filter is not clogged.

• Check if Installation Attitude in the Installation menu is set correctly.

“Control Key Lock” is set to “On.” 25

The ?/1 key was pressed and the projector will be shut down soon. To cancel shutdown, press the ?/1 key again (the projector will remain on). To turn off the projector directly, press and hold the ?/1 key.

any change in signal is detected, or an operation (remote control or control panel) is performed, normal brightness is restored.

4, 4, 28, 55

53, 55

4, 4,

28, 55

Messages List

Troubleshooting

Before asking to have the projector repaired, try to diagnose the problem, following the instructions below.

Symptoms Remedy Page

The power is not turned on.

No image. Check if the connecting cable is connected to external

The application “USB Display” or “Projector Station for Network Presentation” does not start.

The computer cannot connect to the projector.

On-screen display does not appear.

The aspect ratio of the display is not right/the image is displayed smaller /a portion of image does not appear.

The image is a trapezoid.

Check if the AC power cord is firmly connected. –

When the “Control Key Lock” is set to “On,” you cannot turn on the projector using the ?/1 key on the projector.

If the lamp or lamp cover is not attached securely, the projector cannot be turned on.

equipment firmly.

Check the computer signal is set for output to an external monitor only. If you set your computer to output to both the computer’s display and an external monitor, the external monitor image may not be displayed properly. Set your computer to output to only an external monitor.

Check if the application “USB Display” or “Projector Station for Network Presentation” is running.

Check if the USB memory device connected to the projector is compatible with the projector.

Check if the input source is correctly selected. 13

Check if the picture is muted by pressing the BLANK key. 6

Check if the computer connected to the projector meets the system requirement for the applications.

• Check “LAN Settings” of the projector.

• Check the condition of the wireless connection.

The on-screen display does not appear when “Status” in the Operation menu is set to “Off.”

The image may not display correctly because the input signal cannot be judged correctly. In this case, set “Aspect” manually.

The images become trapezoidal because of the projection angle. In this case, you can correct the trapezoidal distortion, using a Keystone feature.

When the “V Keystone” is set to “Manual,” the keystone feature does not work automatically. Set “V Keystone” to “Auto” or “Manual” to set manually.

When the projector is installed on an uneven surface, the feature may not work properly. In this case, select “Manual” to set “V Keystone” manually.

39, 43

6, 20, 22

6, 16, 28

Others

Troubleshooting

Symptoms Remedy Page

The image is dark/too bright.

The settings for “Brightness,” “Contrast,” and “Lamp Mode” affect brightness of the image. Check if the value is appropriate.

The image will be dark when the lamp is burnt out. Check “Lamp Timer,” and replace the lamp with a new one if necessary.

“With Static Signal” is set to “On.” 26

19, 26

29, 53

During picture muting, the lamp is dimmed to reduce power consumption.

When video signal is not input, the lamp is dimmed to reduce power consumption.

The image becomes darker or brighter.

The image is not clear. Check if the projector is in focus. 14

The image is noisy. Check if the connecting cable is connected to the external

No sound. Check that the connecting cables between the projector and

The remote commander does not work.

The fan is noisy. The sound from the fan is often greater than normal to cool the

When the lamp is dimmed for a long time, brightness may increase temporarily, but this is not malfunction.

When the “Lamp Mode” is set to “Auto,” the luminance of the lamp changes according to the input image.

The picture will not be clear if condensation has accumulated on the lens. In this case, let the projector sit for about two hours with the power on.

equipment properly.

external video or audio equipment are securely connected.

Check if the external audio equipment is set properly. –

Audio is not output if “Speaker” is set to “Off.” 24

Audio is not output if audio muting is activated. 6

Check if the volume is not set to minimum. 6, 24

Check if the batteries are installed correctly. –

Check if the batteries are not exhausted. –

lamp, etc. in the following cases.

• “Lamp Mode” is set to “High.”

• The unit is used at a high altitude. “High Altitude Mode” is set to “On.”

• The unit is used in the location where the temperature is high.

If the ventilation holes are blocked, the internal temperature of the projector rises and the fan noise becomes larger.

26, 28

4, 4

–

Troubleshooting

Replacing the Lamp

Replace the lamp with a new one if a message displayed on the projected image (page 50). Use an LMP-E212 projector lamp (not supplied) for replacement.

Caution

• The lamp remains hot after the projector is

turned off. If you touch the lamp, you may

burn your finger. When you replace the lamp, wait for at least an hour after turning off the projector for the lamp to cool sufficiently.

• Do not allow any metallic or inflammable objects into the lamp replacement slot after removing the lamp, otherwise it may cause electrical shock or fire. Do not put your hands into the slot.

Notes

• If the lamp breaks, contact qualified Sony personnel. Do not replace the lamp yourself.

• When removing the lamp, be sure to pull it out straight, by holding the designated location. If you touch a part of the lamp other than the designated location, you may be burned or injured. If you pull out the lamp while the projector is tilted, the pieces may scatter if the lamp breaks any may cause injury.

1 Turn off the projector, and disconnect

the AC power cord from a wall outlet.

2 When the lamp has cooled

sufficiently, open the lamp cover by loosening 1 screw.

Others

3 Loosen the 2 screws on the lamp (1)

then pull out the lamp by its grab (2).

Grab

Replacing the Lamp

4 Insert the new lamp all the way in until

it is securely in place (1). Tighten the 2 screws (2).

5 Close the lamp cover and tighten the

1 screw.

6 Connect the AC power cord to a wall

outlet and turn on the projector.

7 Reset the lamp timer for notification of

the next replacement time. Select “Lamp Timer Reset” on the

Function menu then press the ENTER key. When a message appears, select “Yes” to reset the lamp timer (page 24).

Caution

Disposal of the used lamp

For the customers in the USA

Lamp in this product contains mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Telecommunications Industry Association (www.eiae.org).

The power will not turn on if the lamp is not secured properly.

Replacing the Lamp

Note

Cleaning the Air Filter

When a message appears on the projected image indicating time for a filter cleaning, clean the air filter (pages 49, 50). If the dust cannot be removed from the air filter even after cleaning, replace the air filter with a new one. For details on a new air filter, consult with qualified Sony personnel.

Caution

If you neglect to clean the air filter, dust may accumulate, clogging it. As a result, the temperature may rise inside the unit, leading to a possible malfunction or fire.

1 Turn off the projector, and disconnect

the AC power cord from the AC outlet.

2 Slide out and remove the air filter

cover from the unit.

Air filter cover

3 Clean the air filter with a vacuum

cleaner.

Pull out and remove the air filter cover, and clean it with a vacuum cleaner.

Others

Claws

4 Reattach the air filter cover to the unit.

Note

Be sure to attach the air filter firmly, otherwise it may cause a malfunction.

Cleaning the Air Filter

Specifications

Items Descriptions

Model VPL-SW235/SW225/VPL-SX235/SX225

Projection system 3 LCD system

Display device Effective display

Projection lens Focus Manual

Light source High-pressure mercury lamp, 210 W type

Projected image size

Luminous flux (Brightness)

Speaker 16 W × 1 (monaural)

Applicable scanning frequency

Resolution

Color system NTSC

size

Effective picture elements

When a compu ter signal is input

When a video signal is input

VPL-SW235/SW225: 0.59 inch (15.0 mm), 3 plate panels, Aspect ratio 16:10 VPL-SX235/SX225: 0.63 inch (16.0 mm), 3 plate panels, Aspect ratio 4:3

VPL-SW235/SW225: 3,072,000 pixels (1280 × 800 pixels, 3 plate panels) VPL-SX235/SX225: 2,359,296 pixels (1024 × 768 pixels, 3 plate panels)

VPL-SW235/SW225: 57 inches to 103 inches (1.45 m to

2.62 m) VPL-SX235/SX225 : 60 inches to 110 inches (1.52 m to

2.79 m)

VPL-SW235:3000 lm VPL-SW225:2600 lm VPL-SX235:3200 lm VPL-SX225:2700 lm (when “Lamp Mode” is set to “High”)

Horizontal: 15 kHz to 92 kHz, Vertical: 48 Hz to 92 Hz

Maximum display resolution: 1600 × 1200 pixels (resize) Panel display resolution: VPL-SW235/SW225: 1280 × 800 pixels VPL-SX235/SX225: 1024 × 768 pixels

NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p

3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N

Specifications

Items Descriptions

Model VPL-SW235/SW225/VPL-SX235/SX225

INPUT OUTPUT (Computer/video)

INPUT A RGB/YPBPR input connector: Mini D-sub 15-pin

female, G with sync/Y: 1 Vp-p ± 2 dB, sync negative, 75 ohms terminated, RGB/P

BPR: 0.7 Vp-p ± 2 dB,

75 ohms terminated, Sync signal: TTL level high impedance, positive/negative Audio input connector: Stereo mini jack, rated input 500 mVrms, input impedance more than 47 kohms

INPUT B RGB input connector: Mini D-sub 15-pin female,

RGB: 0.7 Vp-p ± 2 dB, 75 ohms terminated, Sync signal: TTL level high impedance, positive/negative Audio input connector: Stereo mini jack, rated input 500 mVrms, input impedance more than 47 kohms

INPUT C HDMI input connector: HDMI 19-pin, HDCP, HDMI

audio support

S VIDEO (SVIDEO IN)

S video input connector: Mini DIN 4-pin, Y: 1 Vp-p ± 2dB, sync negative, 75 ohms terminated, C: (burst signal) 0.286 (NTSC)/0.3 (PAL/SECAM) Vp-p ± 2 dB, 75 ohms terminated Audio input connector: Phono jack × 2, rated input 500 mVrms, input impedance more than 47 kohms

VIDEO (VIDEO IN)

Video input connector: Pin jack, 1 Vp-p ± 2 dB, sync negative, 75 ohms terminated Audio input connector: Shared with S VIDEO

OUTPUT MONITOR output connector: Mini D-sub 15-pin

female, G with sync/Y: 1 Vp-p ± 2 dB, sync negative, 75 ohms terminated, RGB/P

BPR: 0.7 Vp-p ± 2 dB,

75 ohms terminated, Sync signal: HD, VD 4 V (open), 1 Vp-p (75 ohms), positive/negative Audio output connector: Stereo mini jack, 1 Vrms (maximum volume, when inputting 500 mVrms), output impedance 5 kohms

Other connectors RS-232C connector: D-Sub 9-pin male

LAN connector: RJ45, 10BASE-T/100BASE-TX

USB connector: Type A

USB connector: Type B

Microphone input: Mini jack

Operating temperature/

0 °C to 40 °C (32 °F to 104 °F)/20% to 80% (no

condensation) Operating humidity

Storage temperature/

–10 °C to +60 °C (14 °F to 140 °F)/20% to 80% (no

condensation) Storage humidity

Power

100 V to 240 V AC, 3.2 A to 1.3 A, 50/60 Hz requirements

Others

Specifications

Items Descriptions

Model VPL-SW235/SW225/VPL-SX235/SX225

Power consumption

VPL-SW235:

100 V to 120 V AC: 315 W 220 V to 240 V AC: 302 W

VPL-SW225:

100 V to 120 V AC: 291 W 220 V to 240 V AC: 281 W

VPL-SX235:

100 V to 120 V AC: 308 W 220 V to 240 V AC: 297 W

VPL-SX225:

100 V to 120 V AC: 305 W 220 V to 240 V AC: 294 W

Standby power 5.1 W (when “Standby mode” is set to “Standard”)/

0.5 W (when “Standby mode” is set to “Low”)

Heat dissipation VPL-SW235:

100 V AC: 1,075 BTU/h 240 V AC: 1,031 BTU/h

VPL-SW225:

100 V AC: 993 BTU/h 240 V AC: 959 BTU/h

VPL-SX235:

100 V AC: 1,051 BTU/h 240 V AC: 1,014 BTU/h

VPL-SX225:

100 V AC: 1,041 BTU/h 240 V AC: 1,004 BTU/h

Standard dimensions (W/H/D)

Approx. 365 × 147.8 × 310 mm (14

/32 inches)

12 Approx. 365 × 138.7 × 310 mm (14

/32 inches) (without projecting parts)

/8 × 5 13/16 ×

/8 × 5 15/32 ×

Mass Approx. 4.4 kg (9 lb 10 oz)

Supplied accessories

Optional accessories

*2 *3

See “Checking the Supplied Accessories” in the supplied Quick Reference Manual.

Projector Lamp LMP-E212 (for replacement) USB wireless LAN module IFU-WLM3

Notes

*1: For details, refer to “Acceptable Input Signals” on page 61. *2: Information on accessories in this manual is current as of January 2014. *3: Not all optional accessories are available in all countries and area. Please check with your local

Sony Authorized Dealer.

Design and specifications of the unit, including the optional accessories, are subject to change without notice.

Specifications

Pin assignment

HDMI connector (HDMI, female) RGB input connector (Mini D-sub

15-pin, female)

1 T.M.D.S.

Data2+

2 T.M.D.S.

Data2 Shield

3 T.M.D.S.

Data2 –

4 T.M.D.S.

Data1+

5 T.M.D.S.

Data1 Shield

6 T.M.D.S.

Data1 –

7 T.M.D.S.

Data0+

8 T.M.D.S.

Data0 Shield

9 T.M.D.S.

Data0 –

10 T.M.D.S.

Clock+

11 T.M.D.S.

Clock Shield

12 T.M.D.S.

Clock –

13 N.C.

14 RESERVED

(N.C.)

15 SCL

16 SDA

17 DDC GND

18 +5V Power

19 Hot Plug

Detect

1 Video input

(red) R

2 Video input

9 Power supply

input for DDC

10 GND

(green) G

3 Video input

11 GND

(blue) B

4 GND 12 DDC/SDA

5 RESERVE 13 Horizontal sync

signal

6 GND (R) 14 Vertical sync

signal

7 GND (G) 15 DDC/SCL

8 GND (B)

RS-232C connector (D-Sub 9-pin, male)

Others

1NC 6NC

2RXDA 7RTS

3TXDA 8CTS

4DTR 9NC

5 GND

Specifications

USB connector (Type A, female)

2 Data–

3 Data+

4Ground

(4.4 - 5.25 V)

BUS

USB connector (Type B, female)

1VCC (+5 V)

2 Data–

3 Data+

4Ground

Specifications

Acceptable Input Signals

Computer signal

Resolution

fH[kHz]/

fV[Hz]

640 × 350 31.5/70

37.9/85

640 × 400 31.5/70

37.9/85

640 × 480 31.5/60

35.0/67

37.9/73

37.5/75

43.3/85

800 × 600 35.2/56

37.9/60

48.1/72

46.9/75

53.7/85

832 × 624 49.7/75

1024 × 768 48.4/60

56.5/70

60.0/75

68.7/85

1152 × 864 64.0/70

67.5/75

77.5/85

1152 × 900 61.8/66

1280 × 960 60.0/60

1280 × 1024 64.0/60

80.0/75

91.1/85

1400 × 1050 65.3/60

1600 × 1200 75.0/60

Input connector

RGB/

BPR

zzz

1280 × 768 47.8/60

1280 × 720 45.0/60

1920 × 1080 67.5/60

1366 × 768 47.7/60

1440 × 900 55.9/60

zzz

HDMI RGB

Resolution

fH[kHz]/

fV[Hz]

1280 × 800 49.7/60

Digital TV signal

Input connector

RGB/

HDMI RGB

BPR

zzz

Input connector

Signal fV[Hz]

480i 60

576i 50

480p 60

576p 50

1080i 60

1080i 50

720p 60

720p 50

1080p 60

1080p 50

RGB/

HDMI

BPR

Analog TV signal

Signal fV[Hz]

NTSC 60

PA L/ S EC A M 5 0

Notes

Input connector

VIDEO/S VIDEO

*1: • When a signal other than the signals listed

in table is input, the picture may not be displayed properly.

• An input signal meant for screen resolution different from that of the panel will not be displayed in its original resolution. Text and lines may be uneven.

*2: This is identified as a movie delivery signal

of 720/60p.

*3: This is identified as a movie delivery signal

of 1080/60p.

*4: Only G with sync/Y is supported.

Others

Specifications

Projection Distance

The projection distance is the distance between the front of the lens and the surface of the projected image. The following describes the projection distance and height from the center of the lens to edge of screen by each projected screen size. Height H is the height from the bottom of the projected image (top for ceiling mount) to A (determined by drawing a perpendicular line from the center of the lens to projected image surface).

Floor Installation

Projection distance L

Height H from center of lens to edge of screen

Projected image

Center of lens

* The number will be minus when the bottom of the projected image is lower than A.

Projection Distance

Projection distance table (VPL-SW235/SW225)

Unit: m (inches)

Projected image size

Diagonal D Width × Height

60inch (1.52m) 1.29 × 0.81

(51 × 32)

70inch (1.78m) 1.51 × 0.94

(59 × 37)

80inch (2.03m) 1.72 × 1.08

(68 × 42)

90inch (2.29m) 1.94 × 1.21

(76 × 48)

100inch (2.54m) 2.15 × 1.35

(85 × 53)

Projection

Distance L

0.59 (23) 0.08 (3) 0.08 (3)

0.69 (27) 0.09 (4) 0.09 (4)

0.79 (31) 0.11 (4) 0.11 (4)

0.89 (35) 0.12 (5) 0.12 (5)

1.00 (39) 0.13 (5) 0.13 (5)

Height H from center of lens to edge of

Minimum Projection

Distance L

screen

Maximum Projection

Distance L

Projection distance formula

D: Projected image size (Diagonal) H: Height H from center of lens to edge of screen

Expression#1 (Projection distance L) Unit: m (inches)

Minimum Projection Distance L Maximum Projection Distance L

L=0.010230 × D-0.0270

(L=0.402756 × D-1.0630)

L=0.010230 × D-0.0270

(L=0.402756 × D-1.0630)

Others

Expression#2 (Height H from center of lens to edge of screen)

Height H from center of lens to edge of screen

Minimum Projection Distance L Maximum Projection Distance L

H=0.00135 × D+0.00000

(H=0.05300 × D+0.00000)

H=0.00135 × D+0.00000

(H=0.05300 × D+0.00000)

Projection Distance

Projection distance table (VPL-SX235/SX225)

Unit: m (inches)

Projected image size

Diagonal D Width × Height

60inch (1.52m) 1.22 × 0.91

(48 × 36)

70inch (1.78m) 1.42 × 1.07

(56 × 42)

80inch (2.03m) 1.63 × 1.22

(64 × 48)

90inch (2.29m) 1.83 × 1.37

(72 × 54)

110inch (2.79m) 2.24 × 1.68

(88 × 66)

Projection Distance L

0.55 (22) 0.00 (0) 0.00 (0)

0.65 (26) 0.00 (0) 0.00 (0)

0.74 (29) 0.00 (0) 0.00 (0)

0.84 (33) 0.00 (0) 0.00 (0)

1.03 (41) 0.00 (0) 0.00 (0)

Height H from center of lens to edge of

Minimum Projection

Distance L

screen

Maximum Projection

Distance L

Projection distance formula

D: Projected image size (Diagonal) H: Height H from center of lens to edge of screen

Expression#1 (Projection distance L) Unit: m (inches)

Minimum Projection Distance L Maximum Projection Distance L

L=0.009668 × D-0.0285

(L=0.380613 × D-1.1236)

L=0.009668 × D-0.0285

(L=0.380613 × D-1.1236)

Expression#2 (Height H from center of lens to edge of screen)

Height H from center of lens to edge of screen

Minimum Projection Distance L Maximum Projection Distance L

H=0.00000 × D+0.00000

(H=0.00000 × D+0.00000)

Projection Distance

H=0.00000 × D+0.00000

(H=0.00000 × D+0.00000)

Ceiling Installation

Height H from center of lens to edge of screen

Projected image

Center of lens

Top s i d e

Projection distance L

* The number will be minus when the top of the projected image is higher than A.

Others

Projection Distance

Projection distance table (VPL-SW235/SW225)

Unit: m (inches)

Projected image size

Diagonal D Width × Height

60inch (1.52m) 1.29 × 0.81

(51 × 32)

70inch (1.78m) 1.51 × 0.94

(59 × 37)

80inch (2.03m) 1.72 × 1.08

(68 × 42)

90inch (2.29m) 1.94 × 1.21

(76 × 48)

100inch (2.54m) 2.15 × 1.35

(85 × 53)

Projection Distance L

0.59 (23) 0.08 (3) 0.08 (3)

0.69 (27) 0.09 (4) 0.09 (4)

0.79 (31) 0.11 (4) 0.11 (4)

0.89 (35) 0.12 (5) 0.12 (5)

1.00 (39) 0.13 (5) 0.13 (5)

Height H from center of lens to edge of

Minimum Projection

Distance L

screen

Maximum Projection

Distance L

Projection distance formula

D: Projected image size (Diagonal) H: Height H from center of lens to edge of screen

Expression#1 (Projection distance L) Unit: m (inches)

Minimum Projection Distance L Maximum Projection Distance L

L=0.010230 × D-0.0270

(L=0.402756 × D-1.0630)

L=0.010230 × D-0.0270

(L=0.402756 × D-1.0630)

Expression#2 (Height H from center of lens to edge of screen)

Height H from center of lens to edge of screen

Minimum Projection Distance L Maximum Projection Distance L

H=0.00135 × D+0.00000

(H=0.05300 × D+0.00000)

Note

For ceiling installation, consult with a ceiling mount manufacturer, and use a ceiling mount specified for use with this projector by the manufacturer.

Projection Distance

H=0.00135 × D+0.00000

(H=0.05300 × D+0.00000)

Projection distance table (VPL-SX235/SX225)

Unit: m (inches)

Projected image size

Diagonal D Width × Height

60inch (1.52m) 1.22 × 0.91

(48 × 36)

70inch (1.78m) 1.42 × 1.07

(56 × 42)

80inch (2.03m) 1.63 × 1.22

(64 × 48)

90inch (2.29m) 1.83 × 1.37

(72 × 54)

110inch (2.79m) 2.24 × 1.68

(88 × 66)

Projection Distance L

0.55 (22) 0.00 (0) 0.00 (0)

0.65 (26) 0.00 (0) 0.00 (0)

0.74 (29) 0.00 (0) 0.00 (0)

0.84 (33) 0.00 (0) 0.00 (0)

1.03 (41) 0.00 (0) 0.00 (0)

Height H from center of lens to edge of

Minimum Projection

Distance L

screen

Maximum Projection

Distance L

Projection distance formula

D: Projected image size (Diagonal) H: Height H from center of lens to edge of screen

Expression#1 (Projection distance L) Unit: m (inches)

Minimum Projection Distance L Maximum Projection Distance L

L=0.009668 × D-0.0285

(L=0.380613 × D-1.1236)

L=0.009668 × D-0.0285

(L=0.380613 × D-1.1236)

Others

Expression#2 (Height H from center of lens to edge of screen)

Height H from center of lens to edge of screen

Minimum Projection Distance L Maximum Projection Distance L

H=0.00000 × D+0.00000

(H=0.00000 × D+0.00000)

Note

For ceiling installation, consult with a ceiling mount manufacturer, and use a ceiling mount specified for use with this projector by the manufacturer.

H=0.00000 × D+0.00000

(H=0.00000 × D+0.00000)

Projection Distance

Dimensions

To p

85(

/16)

13.94 (

/32)

310 (12

/32)

365 (14 3/8)

Center of Lens

Unit: mm (inches)

Front

Dimensions

Center of Lens

)

85.2 (3

138.7 (5

147.8 (5

Unit: mm (inches)

Bottom

/32)

104.3 (4

233.5 (9 3/16)

220.8 (8 11/16)

0.8 (

/32)

/16)

/8)

38.5

/32)

Center of Lens

/16)

14 (

/8)

14 (

/16)

85.5 (3

/32)

160.5 (6

/16)

/4 )

265 (10

286 (11

Others

13.5 (

31.8

/4)

97.5 (3

45.3

/4)

(1 25/32)

/32)

57.4

/4)

Unit: mm (inches)

Dimensions

END USER LICENSE AGREEMENT

IMPORTANT:

BEFORE USING THE SOFTWARE, PLEASE READ THIS END USER LICENSE AGREEMENT (“EULA”) CAREFULLY. BY USING THE SOFTWARE YOU ARE ACCEPTING THE TERMS OF THIS EULA. IF YOU DO NOT ACCEPT THE TERMS OF THIS EULA, YOU MAY NOT USE THE SOFTWARE.

This EULA is a legal agreement between you and Sony Corporation (“SONY”). This EULA governs your rights and obligations regarding the software of SONY and/or its third party licensors (including SONY’s affiliates) and their respective affiliates (collectively, the “THIRD-PARTY SUPPLIERS”), together with any updates/ upgrades provided by SONY, any printed, on-line or other electronic documentation for such software, and any data files created by operation of such software (collectively, the “SOFTWARE”).

Notwithstanding the foregoing, any software in the SOFTWARE having a separate end user license agreement (including, but not limited to, GNU General Public license and Lesser/Library General Public License) shall be covered by such applicable separate end user license agreement in lieu of the terms of this EULA to the extent required by such separate end user license agreement (“EXCLUDED SOFTWARE”).

SOFTWARE LICENSE

The SOFTWARE is licensed, not sold. The SOFTWARE is protected by copyright and other intellectual property laws and international treaties.

All right and title in and to the SOFTWARE (including, but not limited to, any images, photographs, animation, video, audio, music, text and “applets” incorporated into the SOFTWARE) is owned by SONY or one

or more of the THIRD-PARTY SUPPLIERS.

GRANT OF LICENSE

SONY grants you a limited license to use the SOFTWARE solely in connection with your compatible device (“DEVICE”) and only for your individual, non-commercial use. SONY and the THIRD-PARTY SUPPLIERS expressly reserve all rights, title and interest (including, but not limited to, all intellectual property rights) in and to the SOFTWARE that this EULA does not specifically grant to you.

REQUIREMENTS AND LIMITATIONS You may not copy, publish, adapt, redistribute, attempt to derive source code, modify, reverse engineer, decompile, or disassemble any of the SOFTWARE, whether in whole or in part, or create any derivative works from or of the SOFTWARE unless such derivative works are intentionally facilitated by the SOFTWARE. You may not modify or tamper with any digital rights management functionality of the SOFTWARE. You may not bypass, modify, defeat or circumvent any of the functions or protections of the SOFTWARE or any mechanisms operatively linked to the SOFTWARE. You may not separate any individual component of the SOFTWARE for use on more than one DEVICE unless expressly authorized to do so by SONY. You may not remove, alter, cover or deface any trademarks or notices on the SOFTWARE. You may not share, distribute, rent, lease, sublicense, assign, transfer or sell the SOFTWARE. The software, network services or other products other than SOFTWARE upon which the SOFTWARE’S performance depends might be interrupted or discontinued at the discretion of the suppliers (software suppliers, service suppliers, or SONY). SONY and such suppliers do not warrant that the SOFTWARE, network services, contents or other products will continue to be available, or will operate without interruption or modification.

END USER LICENSE AGREEMENT

EXCLUDED SOFTWARE AND OPEN SOURCE COMPONENTS

Notwithstanding the foregoing limited license grant, you acknowledge that the SOFTWARE may include EXCLUDED SOFTWARE. Certain EXCLUDED SOFTWARE may be covered by open source software licenses (“Open Source Components”), which means any software licenses approved as open source licenses by the Open Source Initiative or any substantially similar licenses, including but not limited to any license that, as a condition of distribution of the software licensed under such license, requires that the distributor make the software available in source code format. If and to the extent disclosure is required, please visit www.sony.net/ Products/Linux or other SONY-designated web site for a list of applicable OPEN SOURCE COMPONENTS included in the SOFTWARE from time to time, and the applicable terms and conditions governing its use. Such terms and conditions may be changed by the applicable third party at any time without liability to you. To the extent required by the licenses covering EXCLUDED SOFTWARE, the terms of such licenses will apply in lieu of the terms of this EULA. To the extent the terms of the licenses applicable to EXCLUDED SOFTWARE prohibit any of the restrictions in this EULA with respect to such EXCLUDED SOFTWARE, such restrictions will not apply to such EXCLUDED SOFTWARE. To the extent the terms of the licenses applicable to Open Source Components require SONY to make an offer to provide source code in connection with the SOFTWARE, such offer is hereby made.

USE OF SOFTWARE WITH COPYRIGHTED MATERIALS

The SOFTWARE may be capable of being used by you to view, store, process and/or use content created by you and/or third parties. Such content may be protected by copyright, other intellectual property laws, and/or agreements. You agree to use the SOFTWARE only in compliance with all such laws and agreements that apply to such content. You acknowledge and agree that

SONY may take appropriate measures to protect the copyright of content stored, processed or used by the SOFTWARE. Such measures include, but are not limited to, counting the frequency of your backup and restoration through certain SOFTWARE features, refusal to accept your request to enable restoration of data, and termination of this EULA in the event of your illegitimate use of the SOFTWARE.

CONTENT SERVICE

PLEASE ALSO NOTE THAT THE SOFTWARE MAY BE DESIGNED TO BE USED WITH CONTENT AVAILABLE THROUGH ONE OR MORE CONTENT SERVICES (“CONTENT SERVICE”). USE OF THE SERVICE AND THAT CONTENT IS SUBJECT TO THE TERMS OF SERVICE OF THAT CONTENT SERVICE. IF YOU DECLINE TO ACCEPT THOSE TERMS, YOUR USE OF THE SOFTWARE WILL BE LIMITED. You acknowledge and agree that certain content and services available through the SOFTWARE may be provided by third parties over which SONY has no control. USE OF THE CONTENT SERVICE REQUIRES AN INTERNET CONNECTION. THE CONTENT SERVICE MAY BE DISCONTINUED AT ANY TIME.

INTERNET CONNECTIVITY AND THIRD PARTY SERVICES

You acknowledge and agree that access to certain SOFTWARE features may require an Internet connection for which you are solely responsible. Further, you are solely responsible for payment of any third party fees associated with your Internet connection, including but not limited to Internet service provider or airtime charges. Operation of the SOFTWARE may be limited or restricted depending on the capabilities, bandwidth or technical limitations of your Internet connection and service. The provision, quality and security of such Internet connectivity are the sole responsibility of the third party providing such service.

Others

END USER LICENSE AGREEMENT

EXPORT AND OTHER REGULATIONS

You agree to comply with all applicable export and re-export restrictions and regulations of the area or country in which you reside, and not to transfer, or authorize the transfer, of the SOFTWARE to a prohibited country or otherwise in violation of any such restrictions or regulations.

HIGH RISK ACTIVITIES

The SOFTWARE is not fault-tolerant and is not designed, manufactured or intended for use or resale as on-line control equipment in hazardous environments requiring fail-safe performance, such as in the operation of nuclear facilities, aircraft navigation or communication systems, air traffic control, direct life support machines, or weapons systems, in which the failure of the SOFTWARE could lead to death, personal injury, or severe physical or environmental damage (“HIGH RISK ACTIVITIES”). SONY, each of the THIRD-PARTY SUPPLIERS, and each of their respective affiliates specifically disclaim any express or implied warranty, duty or condition of fitness for HIGH RISK ACTIVITIES.

EXCLUSION OF WARRANTY ON SOFTWARE

You acknowledge and agree that use of the SOFTWARE is at your sole risk and that you are responsible for use of the SOFTWARE. The SOFTWARE is provided “AS IS,” without warranty, duty or condition of any kind.

SONY AND EACH OF THE THIRDPARTY SUPPLIERS (for purposes of this Section, SONY and each of the THIRDPARTY SUPPLIERS shall be collectively referred to as “SONY”) EXPRESSLY DISCLAIM ALL WARRANTIES, DUTIES OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY, NONINFRINGEMENT AND FITNESS FOR A PARTICULAR PURPOSE. SONY DOES NOT WARRANT OR MAKE ANY CONDITIONS OR REPRESENTATIONS (A) THAT THE FUNCTIONS

CONTAINED IN ANY OF THE SOFTWARE WILL MEET YOUR REQUIREMENTS OR THAT THEY WILL BE UPDATED, (B) THAT THE OPERATION OF ANY OF THE SOFTWARE WILL BE CORRECT OR ERROR-FREE OR THAT ANY DEFECTS WILL BE CORRECTED, (C) THAT THE SOFTWARE WILL NOT DAMAGE ANY OTHER SOFTWARE, HARDWARE OR DATA, (D) THAT ANY SOFTWARE, NETWORK SERVICES (INCLUDING THE INTERNET) OR PRODUCTS (OTHER THAN THE SOFTWARE) UPON WHICH THE SOFTWARE’S PERFORMANCE DEPENDS WILL CONTINUE TO BE AVAILABLE, UNINTERRUPTED OR UNMODIFIED, AND (E) REGARDING THE USE OR THE RESULTS OF THE USE OF THE SOFTWARE IN TERMS OF ITS CORRECTNESS, ACCURACY, RELIABILITY, OR OTHERWISE.

NO ORAL OR WRITTEN INFORMATION OR ADVICE GIVEN BY SONY OR AN AUTHORIZED REPRESENTATIVE OF SONY SHALL CREATE A WARRANTY, DUTY OR CONDITION OR IN ANY WAY INCREASE THE SCOPE OF THIS WARRANTY. SHOULD THE SOFTWARE PROVE DEFECTIVE YOU ASSUME THE ENTIRE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES, SO THESE EXCLUSIONS MAY NOT APPLY TO YOU.

LIMITATION OF LIABILITY

SONY AND EACH OF THE THIRDPARTY SUPPLIERS (for purposes of this Section, SONY and each of the THIRDPARTY SUPPLIERS shall be collectively referred to as “SONY”) SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, STRICT LIABILITY OR UNDER ANY OTHER

END USER LICENSE AGREEMENT

LEGAL THEORY RELATED TO THE SOFTWARE, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES ARISING OUT OF LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF DATA, LOSS OF USE OF THE SOFTWARE OR ANY ASSOCIATED HARDWARE, DOWN TIME AND USER’S TIME, EVEN IF ANY OF THEM HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN ANY CASE, EACH AND ALL OF THEIR AGGREGATE LIABILITY UNDER ANY PROVISION OF THIS EULA SHALL BE LIMITED TO THE AMOUNT ACTUALLY PAID FOR THE PRODUCT. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU.

CONSENT TO USE OF NONPERSONAL INFORMATION, LOCATION DATA, DATA SECURITY

You acknowledge and agree that SONY and its affiliates, partners and agents may read, collect, transfer, process and store certain information collected from the SOFTWARE, including but not limited to information about (i) the SOFTWARE and (ii) the software applications, contents and peripheral devices that interact with your DEVICE and the SOFTWARE (“Information”). Information includes, but is not limited to: (1) unique identifiers relating to your DEVICE and its components; (2) performance of the DEVICE, the SOFTWARE and their components; (3) configurations of your DEVICE, the SOFTWARE and the software applications, contents and peripheral devices that interact with the DEVICE and the SOFTWARE; (4) use and frequency of use of the functions of (x) the SOFTWARE, and (y) the software applications, con tents and peripheral devices that interact with the SOFTWARE; and (5) location data, as indicated below. SONY and its affiliates, partners and agents may use and disclose Information subject to applicable laws in order to improve its products and services or to provide products or services to you. Such uses include, but are

not limited to: (a) administering the functionalities of the SOFTWARE; (b) to improve, service, update or upgrade the SOFTWARE; (c) improving, developing and enhancing the current and future products and services of SONY and other parties; (d) to provide you with information about the products and services offered by SONY and other parties; (e) complying with applicable laws or regulations; and (f) to the extent offered, providing you with location-based services of SONY and other parties, as indicated below. In addition, SONY retains the right to use Information to protect itself and third parties from illegal, criminal or harmful conduct.

Certain services available through the SOFTWARE may rely upon location information, including, but not limited to, the geographic location of the DEVICE. You acknowledge that for the purpose of providing such services, SONY, the THIRDPARTY SUPPLIERS or their partners may collect, archive, process and use such location data, and that such services are governed by the privacy policies of SONY or such third party. By using any such services, you agree that you have reviewed the privacy policies applicable to such services and consent to such activities.

SONY, its affiliates, partners and agents will not intentionally use Information to personally identify the owner or user of the SOFTWARE without your knowledge or consent. Any use of Information will be in accordance with the privacy policies of SONY or such third party. Please contact applicable contact address of each area or country for SONY’s current privacy policy.

Please contact applicable third parties for privacy policies relating to personally identifiable and other information you provide when you use or access third party software or services.

Information may be processed, stored or transferred to SONY, its affiliates or agents which are located in countries outside of your country of residence. Data protection and information privacy laws in certain

Others

END USER LICENSE AGREEMENT

countries may not offer the same level of protection as your country of residence and you may have fewer legal rights in relation to Information processed and stored in, or transferred to, such countries. SONY will use reasonable efforts to take appropriate technical and organizational steps to prevent unauthorized access to or disclosure of Information, but does not warrant it will eliminate all risk of misuse of such Information.

AUTOMATIC UPDATE FEATURE

From time to time, SONY or the THIRDPARTY SUPPLIERS may automatically update or otherwise modify the SOFTWARE, including, but not limited to, for purposes of enhancement of security functions, error correction and improvement of functions, at such time as you interact with SONY’s or third parties’ servers, or otherwise. Such updates or modifications may delete or change the nature of features or other aspects of the SOFTWARE, including, but not limited to, functions you may rely upon. You acknowledge and agree that such activities may occur at SONY’s sole discretion and that SONY may condition continued use of the SOFTWARE upon your complete installation or acceptance of such update or modifications. Any updates/modifications shall be deemed to be, and shall constitute part of, the SOFTWARE for purposes of this EULA. By acceptance of this EULA, you consent to such update/modification.

ENTIRE AGREEMENT, WAIVER, SEVERABILITY

This EULA and SONY’s privacy policy, each as amended and modified from time to time, together constitute the entire agreement between you and SONY with respect to the SOFTWARE. The failure of SONY to exercise or enforce any right or provision of this EULA shall not constitute a waiver of such right or provision. If any part of this EULA is held invalid, illegal, or unenforceable, that provision shall be enforced to the maximum extent permissible so as to maintain the intent of this EULA, and the other parts will remain in full force and effect.

GOVERNING LAW AND JURISDICTION

The United Nations Convention on Contracts for the International Sale of Goods shall not apply to this EULA. This EULA shall be governed by the laws of Japan, without regards to conflict of laws provisions. Any dispute arising out of this EULA shall be subject to the exclusive venue of the Tokyo District Court in Japan, and the parties hereby consent to the venue and jurisdiction of such courts.

EQUITABLE REMEDIES

Notwithstanding anything contained in this EULA to the contrary, you acknowledge and agree that any violation of or noncompliance with this EULA by you will cause irreparable harm to SONY, for which monetary damages would be inadequate, and you consent to SONY obtaining any injunctive or equitable relief that SONY deems necessary or appropriate in such circumstances. SONY may also take any legal and technical remedies to prevent violation of and/or to enforce this EULA, including, but not limited to, immediate termination of your use of the SOFTWARE, if SONY believes in its sole discretion that you are violating or intend to violate this EULA. These remedies are in addition to any other remedies SONY may have at law, in equity or under contract.

TERMINATION

Without prejudice to any of its other rights, SONY may terminate this EULA if you fail to comply with any of its terms. In case of such termination, you must: (i) cease all use, and destroy any copies, of the SOFTWARE; (ii) comply with the requirements in the section below entitled “Your Account Responsibilities”.

AMENDMENT

SONY RESERVES THE RIGHT TO AMEND ANY OF THE TERMS OF THIS EULA AT ITS SOLE DISCRETION BY POSTING NOTICE ON A SONY DESIGNATED WEB SITE, BY EMAIL NOTIFICATION TO AN EMAIL ADDRESS PROVIDED BY YOU, BY PROVIDING NOTICE AS PART OF THE

END USER LICENSE AGREEMENT

PROCESS IN WHICH YOU OBTAIN UPGRADES/UPDATES OR BY ANY OTHER LEGALLY RECOGNIZABLE FORM OF NOTICE. If you do not agree to the amendment, you should promptly contact SONY for instructions. Your continued use of the SOFTWARE after the effective date of any such notice shall be deemed your agreement to be bound by such amendment.

THIRD-PARTY BENEFICIARIES

Each THIRD-PARTY SUPPLIER is an express intended third-party beneficiary of, and shall have the right to enforce, each provision of this EULA with respect to the SOFTWARE of such party.

YOUR ACCOUNT RESPONSIBILITIES

Should you return your DEVICE to its place of purchase, sell or otherwise transfer your DEVICE, or if this EULA is terminated, you are responsible for and must uninstall the SOFTWARE from the DEVICE and delete any and all accounts you may have established on DEVICE or are accessible through the SOFTWARE. You are solely responsible for maintaining the confidentiality of any accounts you have with SONY OR third parties and any usernames and passwords associated with YOUR USE OF the DEVICE.

Others

Should you have any questions concerning this EULA, you may contact SONY by writing to SONY at applicable contact address of each area or country.

END USER LICENSE AGREEMENT

Index

Gamma Mode ..........................................19

AC IN ........................................................5

Acceptable input signal ...........................61

Adjust Signal ........................................... 21

Air filter ...................................................55

Air filter cover/Ventilation holes

(intake) ...............................................4

APA ...........................................................6

Aspect ...........................................6, 20, 22

BLANK .....................................................6

Brightness ...............................................19

CC Display ..............................................24

Color .......................................................19

Color Temp. ............................................ 19

Connecting a computer ............................. 8

Connecting a Video equipment ...............10

Connecting an external monitor and audio

equipment ........................................12

Connector panel .................................... 4, 5

Constant Brightness ................................ 26

Contrast ...................................................19

Control Key Lock ....................................25

Control Panel Keys ................................... 6

Correcting trapezoidal distortion of the

projected image

(Keystone feature) .......................6, 16

H (Horizontal) .........................................21

High Altitude Mode .................................28

Hue ..........................................................19

Image Flip ................................................28

Information menu ....................................29

Input ...........................................................5

Installation Attitude .................................28

Installation menu .....................................28

Keystone ....................................................6

Lamp cover ................................................4

Lamp Timer .............................................29

Lamp Timer Reset ...................................24

LAMP/COVER indicator ....................4, 49

LAN connector ..........................................5

Language .................................................25

Location and function of controls ..............4

Main unit ...................................................4

Messages list ............................................50

Model Name ............................................29

MUTING ...................................................6

Digital Zoom ............................................. 6

ECO MODE (Energy-saving mode) ......... 7

fH ............................................................29

Focus .......................................................14

Focus ring ..................................................4

Freeze ........................................................ 6

Front feet (adjustable) .............................15

fV ............................................................29

Index

Network Features .....................................30

Operation menu .......................................25

Optional accessories ................................58

Output ........................................................5

Phase, Pitch, Shift ....................................21

Picture menu ............................................19

Picture mode ............................................19

Pin assignment .........................................59

Projecting an image .................................13

Projector Station for Network

Presentation .....................................39

Remote commander ...................................6

Remote control detector ............................4

Replacing the lamp ..................................53

Reset ........................................................19

RS-232C ....................................................5

Security bar ...............................................4

Security Lock ......................................4, 25

Selecting an input signal ...........................6

Serial No. .................................................29

Sharpness .................................................19

Signal Type ..............................................29

Smart APA ...............................................24

Speaker ....................................................24

Specifications ..........................................56

Start Up Image ........................................24

Status .......................................................25

The Connection/Power Menu ..................26

The Function menu ..................................24

The Screen menu .....................................20

Troubleshooting .......................................51

Turn off ................................................6, 17

Turn on ................................................6, 13

About Trademarks

• Adobe and Adobe Acrobat are trademarks or registered trademarks of Adobe Systems Incorporated in the United States and/or other countries.

• Kensington is a registered trademark of Kensington Technology Group.

• The terms HDMI and HDMI HighDefinition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

• Internet Explore is registered trademarks of Microsoft Corporation in the United States and/or other countries.

• PJLink is a registered trademark of Japan Business Machine and Information System Industries Association.

• AMX is a trademark of AMX Corporation.

• Crestron RoomView is a trademark of Crestron Corporation.

• All other trademarks and registered trademarks are trademarks or registered trademarks of their respective holders. In this manual, specified.

• Mac and Mac OS are registered trademarks of Apple Inc. in the U.S. and other countries.

™

and ® marks are not

Others

USB Display ............................................43

USB Media Viewer .................................45

Using a menu ...........................................18

Using the e-mail report Function ............32

V Keystone ....................................6, 16, 28

Ventilation holes ........................................4

Volume ......................................................6

With No Input ..........................................26

With Static Signal ....................................26

Index

Sony Corporation

Sony VPL-SX235, VPL-SX225, VPL-SW225 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

B Overview

Location and Function of Controls

Main Unit

Connector Panel

Remote Commander and Control Panel Keys

B Preparation

Connecting the Projector

Connecting a Computer

Connecting a Video equipment

Connecting a microphone

Connecting a USB memory device

Connecting an External Monitor and Audio Equipment

Projecting an Image

Projecting/Adjusting an Image

Adjusting the Projected image

Turning Off the Power

B Adjustments and Settings Using a Menu

Using a MENU

The Picture Menu

The Screen Menu

The Function Menu

The Operation Menu

The Connection/Power Menu

The Installation Menu

The Information Menu

B Network

Using Network Features

Displaying the Control Window of the Projector with a Web Browser

Confirming the Information regarding the Projector

Operating the Projector from a Computer

Using the e-mail report Function

Setting the LAN Network of the projector

Setting the WLAN Network of the projector

Setting the Control Protocol of the Projector

Using Presentation Function via Network

Installing Projector Station for Network Presentation

Starting Projector Station for Network Presentation

Presentation Function via Network

Projecting an Image

Connection Settings

Using the Controller

Displaying Images or Files Sent from a Tablet PC/ Smartphone

Playing Video and Audio using USB Connection

Starting USB Display

Playing Video and Audio using USB Connection

Playing Video and Audio Using the Controller

Using USB Media Viewer

USB Media Viewer

Thumbnail Mode

Option menu

Display Mode

Option menu

Slideshow Mode

Option Menu

Indicators

Others

Messages List

Troubleshooting

Replacing the Lamp

Cleaning the Air Filter

Specifications

Projection Distance

Dimensions

END USER LICENSE AGREEMENT

Index
