Overview
Precautions
On safety
• Operate the unit on 200 – 240 V AC, 50/60 Hz (SRXS110), or 100 – 240 V AC, 50/60 Hz (SRX-S105).
• Should any liquid or solid object fall into the cabinet,
unplug the unit and have it checked by your Sony dealer
before operating it further.
• Unplug the unit from the wall outlet or set the power
switch to the lower position if it is not to be used for
several days.
• To disconnect the cord, pull it out by the plug. Never pull
the cord itself.
• The wall outlet should be near the unit and easily
accessible.
• The unit is not disconnected from the AC power source
(mains) as long as it is connected to the wall outlet and
the power switch is set to the upper position.
• Do not look into the lens while the lamp is on.
• Do not place your hand or objects near the ventilation
holes. The air coming out is hot.
• Have at least four people carry and handle the projector,
to avoid accidents or injury.
• Avoid using an extension cord with a low voltage limit,
as it may cause short-circuiting and physical injury.
• To carry the projector, be sure to use the carrying
handles. Do not hold other parts of the projector,
especially the lens, nor catch your finger between the
handle, floor, and the projector.
• Do not catch your finger between the unit and surface of
the floor when moving the projector installed on the
floor.
• Be careful not to catch your finger in the cooling fan.
On installation
• Allow adequate air circulation to prevent internal heat
build-up. Do not place the unit on surfaces (rugs,
blankets, etc.) or near materials (curtains, draperies) that
may block the ventilation holes. Leave space of more
than 100 cm (39
3
/8 inches) between the wall and the
Chapter
projector. Be aware that room heat rises to the ceiling;
check that the temperature near the installation location
is not excessive.
• Install the projector on the floor or hang it from the
ceiling. Any other installation causes a malfunction such
as color irregularity or a shorten lamp life.
• Do not install the unit in a location near heat sources
such as radiators or air ducts, or in a place subject to
direct sunlight, excessive dust or humidity, mechanical
vibration or shock.
• To avoid moisture condensation, do not install the unit in
a location where the temperature may rise rapidly.
On illumination
• To obtain the best picture, the front of the screen should
not be exposed to direct lighting or sunlight.
• Ceiling-mounted spot lighting is recommended. Use a
cover over fluorescent lamps to avoid lowering the
contrast ratio.
• Cover any windows that face the screen with opaque
draperies.
• It is desirable to install the projector in a room where
floor and walls are not of light-reflecting material. If the
floor and walls are of reflecting material, it is
recommended that the carpet and wall paper be changed
to a dark color.
On preventing internal heat build-up
After turning off the power, the cooling fan runs for about
10 minutes while the STATUS LAMP indicator flashes in
green.
Caution
The projector is equipped with ventilation holes (intake) at
the front, upper side and right side, and ventilation holes
(exhaust) at the rear and upper side.
Do not block or place anything near these holes, or internal
heat build-up may occur, causing picture degradation or
damage to the projector.
1
Chapter 1 Overview
Precautions
5
On cleaning
• To keep the cabinet looking new, periodically clean it
with a soft cloth. Stubborn stains may be removed with
a cloth lightly dampened with a mild detergent solution.
Never use strong solvents, such as thinner, benzene, or
Chapter 1 Overview
abrasive cleansers, since these will damage the cabinet.
• Avoid touching the lens. To remove dust on the lens, use
a soft dry cloth. Do not use a damp cloth, detergent
solution, or thinner.
On repacking
Save the original shipping carton and packing material;
they will come in handy if you ever have to ship your unit.
For maximum protection, repack your unit as it was
originally packed at the factory.
Features
High Brightness, High Picture Quality
High brightness
The SRX-S110 uses two 2kW Xenon lamps as a light
source, and the SRX-S105 uses two 1kW Xenon lamps.
These compact-size Xenon lamps provide high brightness
of 10,000 ANSI lumens for the SRX-S110 and 5,000
ANSI lumens for the SRX-S105, assuring excellent
uniformity on the entire screen.
High resolution
Sony’s new, unique three SXRD™ (Silicon X-tal
Reflective Display) panels with about 8,850,000 pixels
realizes a high-resolution of 4096 × 2160 dots. The
resolution corresponds to four times that of an HDTV
image.
Multi-screen mode
The high resolution of the projector enables single-, dualand quad-mode projection in which full HD images can be
displayed even in each of two or four divided screens.
Images from different input sources can be displayed in
these divided screens simultaneously.
High contrast ratio
The combination of the SXRD imaging devices and 3PBS
optical devices offers a high contrast ratio of more than
1800:1.
Gamma correction circuit
Three types of gamma correction circuit, 1.8, 2.2 and 2.6,
are selectable according to the signal input, allowing
projection of an image with optimum brightness.
Color space feature
The projector supports three standards of color tonal
reproduction range, 709, DCDM and CIEXYZ, allowing
you to obtain an image with precise color reproduction
according to the input sources.
Registration adjustment feature
A red and blue picture element can be moved for
registration up to two picture elements vertically and
horizontally.
Flexible and Reliable System
Dual lamp system
The projector adopts a dual lamp system for versatility of
use. You can select dual-lamp or single-lamp mode, and
can reduce each lamp’s power output. These modes allow
you to save power and increase lamp life.
Also, if one bulb burns out, the other keeps projecting
images.
6
Features
Versatile Setup
54
67 8
Equipped with DVI-D input
The projector is equipped with DVI-D input connectors,
enabling reception of progressive DVI signals. This allows
you to project a picture for a simulation system or a largescale presentation only by inputting the DVI-D signals
from a computer, etc. equipped with a DVI-D output.
Various signal input
The projector is equipped with an RS232C connector and
ETHERNET connector for communication. For signal
inputs, the projector has three slots to which the optional
analog input boards, HD-SDI input boards and DVI-D
interface boards can be attached according to your
requirement.
Optional lens
Optional zoom lenses are available depending on the
projection distance you are setting up. The lens shift
function of this projector enables easy setup.
When the optional LKRL-Z122 zoom lens equipped with
zoom/focus memory function is installed, you can register
the zoom and focus settings adjusted to fit the desired
screen size. Registration of the settings adjusted for screen
sizes of aspect ratio of 4:3 and 16:9 allows you to switch
between them easily with the buttons in the window of the
SRX Controller.
Location and Function of Controls
Chapter 1 Overview
Front/Top
12 3
a Remote control detector (front)
b Upper side ventilation holes (intake)
c Upper side ventilation holes (exhaust)
d Adjusters
Use to keep the projector level if it is installed on an
uneven surface.
e Lens cover
f Lens mount part
When attaching the optional lens, consult your Sony
dealer.
g Carrying handle
Use to carry the projector. There is another handle on the
rear side.
h Front/right side ventilation holes (intake)
Location and Function of Controls
7
Left Side/Rear
1
Chapter 1 Overview
2
Menu window or by pressing the 1 button on the Remote
Commander.
h INTER LOCK jack (minijack)
Connects to the external emergency switch.
When you use the interlock function, insert the mini-plug
into this jack to open the + and – terminals. The projector’s
lamps will be turned off immediately. When not in use, do
not insert the mini-plug.
i ETHERNET connector (10BASE-T/100BASE-TX)
Connect to the ethernet connector on a computer in which
the supplied SRX Controller is installed. You can control
the projector from the computer.
j RS232C connector (D-sub 9-pin, female)
Connect to the RS-232C connector on a computer in which
the supplied SRX Controller is installed. You can control
the projector from the computer.
3
4
5 6 9 qa
a Cooling unit
A cooling fan and the two lamp houses are installed here.
For replacement of the projection lamp or lamp house,
consult your Sony dealer.
b Upper/rear side ventilation holes (exhaust)
c Remote control detector (rear)
d Power switch
Set the switch to the upper position to turn on the main
power of the projector. To turn it off, set the switch to the
lower position.
e AC IN terminal board
Connect the AC power cord with three wires (not
supplied).
For connection of the AC power cord, contact your Sony
dealer.
7 80 qs
k Input board attachment parts
Depending on the input sources, attach the optional input
board to each slot. They are arranged in order of INPUT B,
INPUT C and INPUT D from the top.
For attachment, contact your Sony dealer.
l INPUT A (DVI interface board attached at the
factory)
DVI-D connector (24-pin DVI connector, male): Inputs
progressive DVI signals.
AUX connector (24-pin DVI connector, male): Used for
input extension. For details on connecting devices
compatible with the connector, please consult your
Sony dealer.
Control Function Menu Window
When you install the supplied SRX Controller in your
computer, you can operate all of the features of the projector
in your computer window. This section explains the
functions of the parts for projecting an image on the screen.
For the windows used for the settings and adjustments, see
“Adjustments and Settings Using the SRX Controller” on
page 25.
f STATUS MESSAGE window
Displays an error message. If the message is displayed,
contact your Sony dealer.
g STATUS LAMP indicator
Lights red when the projector is in standby mode. When
the power is turned on, it lights green. The indicator flashes
for about 10 minutes after the power is turned off by
clicking “POWER STANDBY 1” in the Control Function
8
Location and Function of Controls
1
6
2 3 4 5
76
1
234 5
a Menu bar
File menu
Selecting “Quit” from the File menu exits the SRX
Controller.
Back menu
Click to return to the Browser Screen window of the SRX
Controller.
Password menu
Use to reset the authentication passwords required for
displaying the SETTING window and the SERVICE
window. The Password menu can be displayed only when
an authorized administrator starts the SRX Controller on
the computer for controlling the projector.
For details on the SETTING window and the SERVICE
window, refer to the Installation Manual for Dealers.
Help menu
Shows the version information of the SRX Controller and
the serial number of the projector.
b SCREEN CONTROL window
For details, see “SCREEN CONTROL window” on page
10.
c Information window
Chapter 1 Overview
Location: Shows the location where the projector is
installed, as set in the SETTING window at the time
of installation.
Name: Shows the name of the projector that was set in the
SETTING window at the time of installation.
Operation Timer: Shows the operation hours of the
projector.
Lamp A/Lamp B: Shows an approximate percentage to
indicate the time used before the recommended time
for replacement of each projection lamp (i.e. 100%
indicates the time for replacement). The indicator on
the left lights when the corresponding lamp turns on.
It does not light when the corresponding lamp turns
off.
Warning Info: Displays an error message if there is any
warning information on the projector. The same
message is displayed in the STATUS MESSAGE
window on the left side of the projector.
d POWER ON/STANDBY (?/1) buttons and
POWER indicator
Click ON to turn on the lamp. The indicator lights green.
Clicking STANDBY opens the confirmation dialog.
Clicking “OK” makes the projector enter standby mode.
The indicator flashes green. Even in standby mode, the
fans continue to run to reduce internal heat. When the fans
stop running, the indicator lights red.
e FUNCTION 1 to 7 radio buttons
Register the data set or adjusted in the Control Function
Menu windows to these buttons, and recall it later to
project an image with that setting.
The setting items that can be registered are as follows:
• Screen mode and input signal settings in the SCREEN
CONTROL window
• “Input Source” and “Signal Adjust” settings in the
PICTURE CONTROL window
• “Color” settings in the COLOR/FRAME window
• “ELECTRIC V SHIFT FUNCTION,” “PROGRESSIVE
DISPLAY MODE,” “LAMP POWER” and “LAMP
SELECT” settings, and “LENS CONTROL” settings
when the optional LKRL-Z122 lens equipped with
zoom/focus memory function is installed, in the
INSTALLATION window
For details, see “To register the settings that have been
adjusted” on page 25.
Location and Function of Controls
9
f Window select buttons
1 2 43 5
Open the window with the items you want to set or adjust.
g Adjustment/setting window
Clicking the window select button switches the window
for the adjustment and setting.
Chapter 1 Overview
The “PICTURE CONTROL,” “COLOR/FRAME” and
“INSTALLATION” windows can be displayed.
For details on each window, see “Adjustments and
Settings Using the SRX Controller” on page 25.
SCREEN CONTROL window
12 43 5
d MUTING ON/OFF buttons
Clicking the ON button cuts off the whole picture on the
screen momentarily. Click the OFF button to restore the
picture. Activating the muting function blocks off lamp
light completely by use of a shutter, and displays the black
signal on the whole screen.
e OSD ON/OFF buttons
Click the OFF button to eliminate the on-screen display.
Click the ON button to display it on the screen.
The setting using the buttons also functions when you
operate the projector with the Remote Commander.
Remote Commander
a Screen mode buttons
Select single-, dual- or quad-screen mode for multiple
display mode. Click
for single, for dual and
for quad mode.
b CUT OFF “ON/OFF” buttons
Click the ON button to cut off the picture momentarily.
Click the OFF button to restore the picture.
The SCREEN CONTROL window changes depending on
the screen mode selected with the screen mode button (1).
When dual- or quad-screen mode is selected, the buttons
function independently on each divided screen.
c Input signal select drop-down list box
Selects the input signal you want to project on the screen.
The SCREEN CONTROL window changes depending on
the screen mode selected with the screen mode button (1).
When dual- or quad-screen mode is selected, you can
select the input independently on each divided screen.
INPUT A: Selects the signal input from the DVI-D
connectors on INPUT A.
INPUT B: Selects the signal input from the connectors on
the optional input board installed in the INPUT B
section.
INPUT C: Selects the signal input from the connectors on
the optional input board installed in the INPUT C
section.
INPUT D: Selects the signal input from the connectors on
the optional input board installed in the INPUT D
section.
1
2
3
4
5
6
7
8
SCREEN
MODE
1 2 4
FUNCTION
123
INPUT SEL
A
BCD
PICTURE CONT
+–+–+
BRIGHTCONTR
SCREEN SEL
1
34
LENS CONT
+–+–+
SR Projector
RM-PJ4K
1
MUTING
SHARP
–
2
ZOOMFOCUS SHIFT
–
IR
I
a ?/1 (power on/standby) buttons
?: Press to turn on the projector.
1: Press to make the projector enter standby mode.
b SCREEN MODE button
Selects single-, dual- or quad-screen. Each press of the
button changes the mode, 1 (single), 2 (dual) and 4 (quad),
in this order.
c MUTING button
Press to cut off the whole picture on the screen. Press it
again to restore the picture. Activating the muting function
10
Location and Function of Controls
shuts off from lamp light completely using a shutter, and
displays the black signal on the whole screen.
d FUNCTION 1/2/3 buttons
Use these buttons in synchronization with the FUNCTION
1, 2 and 3 buttons in the Control Function Menu window
of the SRX Controller. You can recall the data set or
adjusted with the SRX Controller. You cannot recall
settings registered in FUNCTION buttons 4 to 7.
e INPUT SEL A/B/C/D buttons
Select the input source you want to project or operate.
A: Selects the signal input from the DVI-D connectors on
INPUT A.
B: Selects the signal input from the connectors on the
optional input board installed in the INPUT B section.
C: Selects the signal input from the connectors on the
optional input board installed in the INPUT C section.
D: Selects the signal input from the connectors on the
optional input board installed in the INPUT D section.
Example: When you want to project the signal input from
the INPUT B board on Screen 3 (lower left screen),
press the INPUT SEL B button, then press the
SCREEN SEL 3 button.
h LENS CONT buttons
FOCUS +/–: Adjust the focus. Pressing the + button
focuses on a picture further back. Pressing the –
button focuses on a forward picture.
ZOOM +/–: Adjust the picture size. Pressing the + button
enlarges the picture size. Pressing the – button
reduces the picture size.
SHIFT +/–: Adjust the vertical picture position. Pressing
the + button moves the picture upward. Pressing the –
button moves the picture downward.
To install batteries
1
Remove the lid, then install the two size AA (R6)
batteries (supplied) with the correct polarity.
Chapter 1 Overview
Use these buttons together with the PICTURE CONT
buttons (6) or SCREEN SEL buttons (7).
Example: When you want to increase the contrast of the
signal input from INPUT A, press INPUT SEL A
button, then press the CONTR + button.
f PICTURE CONT (Picture control) buttons
Adjust the projected picture quality.
CONTR+/–: Adjust the contrast. Pressing the + button
increases the contrast. Pressing the – button decreases
the contrast.
BRIGHT +/–: Adjust the picture brightness. Pressing the
+ button makes the picture brighter. Pressing the –
button makes the picture darker.
SHARP +/–: Adjust the picture sharpness. Pressing the +
button makes the picture sharper. Pressing the –
button makes the picture softer.
In multiple screen mode, adjustment can be made for the
input signal from INPUT A or each input board.
Select the input signal with the INPUT SEL A/B/C/D
buttons (5), then adjust the picture with these buttons. In
single-screen mode, you need not press the INPUT SEL
button.
Example: When you want to increase the contrast for the
signal input from INPUT A, press the INPUT SEL A
button, then press the CONTR + button.
Push the knob to open
the lid.
2
Replace the lid.
Notes
Be sure to install the battery
from the – side.
• Be sure that there is nothing to obstruct the infrared
beam between the Remote Commander and the
projector. Direct the Remote Commander toward one of
the remote control detectors at the front and rear of the
projector when operating.
• The operation range is limited. The shorter the distance
between the Remote Commander and the projector, the
wider the angle within which the Commander can
control the projector.
g SCREEN SEL buttons
In multiple screen mode, select one of the divided screens
where you want to project the selected signal from each
input.
Select the input signal with one of the INPUT SEL A/B/C/
D buttons (5), then select the screen with one of these
buttons.
Location and Function of Controls
11
Preparations
Chapter 2 Preparations
Precautions on Installation
Unsuitable Installation
Do not install the projector in the following situations.
Such installations may cause a malfunction or damage to
the projector.
Poorly ventilated
Chapter
activating the protection circuit. Be sure not to block the
ventilation holes for exhaust. Leave a space of more than
1
m (39 3/8 inches) around the unit.
Extremely hot and humid
Location subject to sudden change of
temperature
2
The projector is equipped with ventilation holes for intake
and exhaust to prevent internal heat build-up. Do not place
the projector in a place where the ventilation holes may be
blocked.
Situation that may block the ventilation
holes for exhaust
If you put something beside the ventilation holes for
exhaust on the side or rear of the projector, the exhaust
may be inhaled into the projector through the ventilation
holes for intake, causing internal heat build-up and thereby
A sudden change of temperature may produce moisture
condensation, causing damage to the projector. Take care
with heaters or air-conditioners.
Very dusty
12
Precautions on Installation
Unsuitable Conditions
Do not use the projector under the following conditions.
Installation
Laying the unit on its side or upside down
Tilting the unit to the right or left
±10°
Avoid tilting the projector more than ± 10 degrees, and
avoid installing it in place other than a floor. Doing so may
cause color shading or shorten the lamp life excessively.
Blocking the ventilation holes
Using the Carrying Handles
Use the front and rear carrying handles to carry the
projector.
Caution
To avoid injury, have at least four people carry the
projector using the front and rear handles.
Using the Adjusters
When the projector installation location is not horizontal,
rotate the adjusters using a spanner so that the projector is
placed horizontally. There are an adjuster on the right and
one on the left.
Chapter 2 Preparations
Avoid using a thick-piled carpet or anything that covers
the ventilation holes (exhaust/intake). Otherwise, internal
heat may build up.
For the locations of the ventilation holes (exhaust/intake),
see
“Location and Function of Controls” on page 7.
Spanner
Installation
13
Caution
Do not turn the spanner forcibly when the screw has fully
rotated. Otherwise, the spanner may slip and injure your
hand.
Installing the SRX
Controller in a Computer
for Controlling the
Installing the Projector
This section describes briefly how to install the projector
Chapter 2 Preparations
on the floor. The distance between the center of the lens
and the screen varies depending on the optional lens
attached, the horizontal screen size or the input signal.
For details on installation examples with projection
distances, see “Installation Manual for Dealers.”
Screen
310 mm (12 1/4 inches)
Projection distance
Vertical positioning (side view)
Install the projector so that the center of the lens is between
the bottom edge and the top edge of the screen. You can
move the picture position vertically by half of the screen
vertical size using the lens shift adjustment.
Projector
If you install the supplied SRX Controller in a computer,
you can control the projector from the computer.
System Requirements
The following are required to operate the supplied SRX
Controller.
• Computer: Intel Celeron CPU, 1 GHz or more
– Installed memory: 256 MB or more
– Communication: 10BASE-T/100BASE-TX
– VGA: XGA (1024 × 768) or higher
– HDD: Connected to a computer via the IDE port,
Usable memory with 8 MB or more
– CD-ROM drive: × 8 or faster
• Operating System: Microsoft Windows XP Professional
SP2 (English or Japanese version)
Installing the SRX Controller
Adjustable range with lens
Screen
Horizontal positioning (top view)
Screen
Center of lens
Center of lens
shift feature
1
Insert the supplied installation disc into the CD-ROM
drive of a computer.
The setup.exe in the root folder of the installation disc
starts, and the window for preparing the installation
appears.
14
Installing the SRX Controller in a Computer for Controlling the Projector
After a while, the Welcome page of the SRX
Controller appears.
2
Click “Next.”
The License Agreement window appears.
When you want to install it in the currently displayed
folder, click “Next.”
If you want to install it in a different folder, click
“Change…,” specify the folder, click “OK,” then
click “Next.”
The installation start window appears.
4
Click “Install.”
The program installation starts.
After a while, the following window appears.
Chapter 2 Preparations
3
Read the license agreement, click “I accept…” if you
agree to be bound by the terms, and click “Next.”
The select window of the destination folder in which
to install the SRX Controller appears.
5
Click “Finish.”
Installation of the SRX Controller is completed.
To restart the SRX Controller immediately after
installation has been completed, click to check
“Launch SRX Controller,” then click “Finish.”
The icon is displayed in the desktop window.
Installing the SRX Controller in a Computer for Controlling the Projector
15
Connecting a Computer for Controlling the Projector
Connect a computer for controlling the projector to the
projector via the ETHERNET connector or the RS232C
Chapter 2 Preparations
connector.

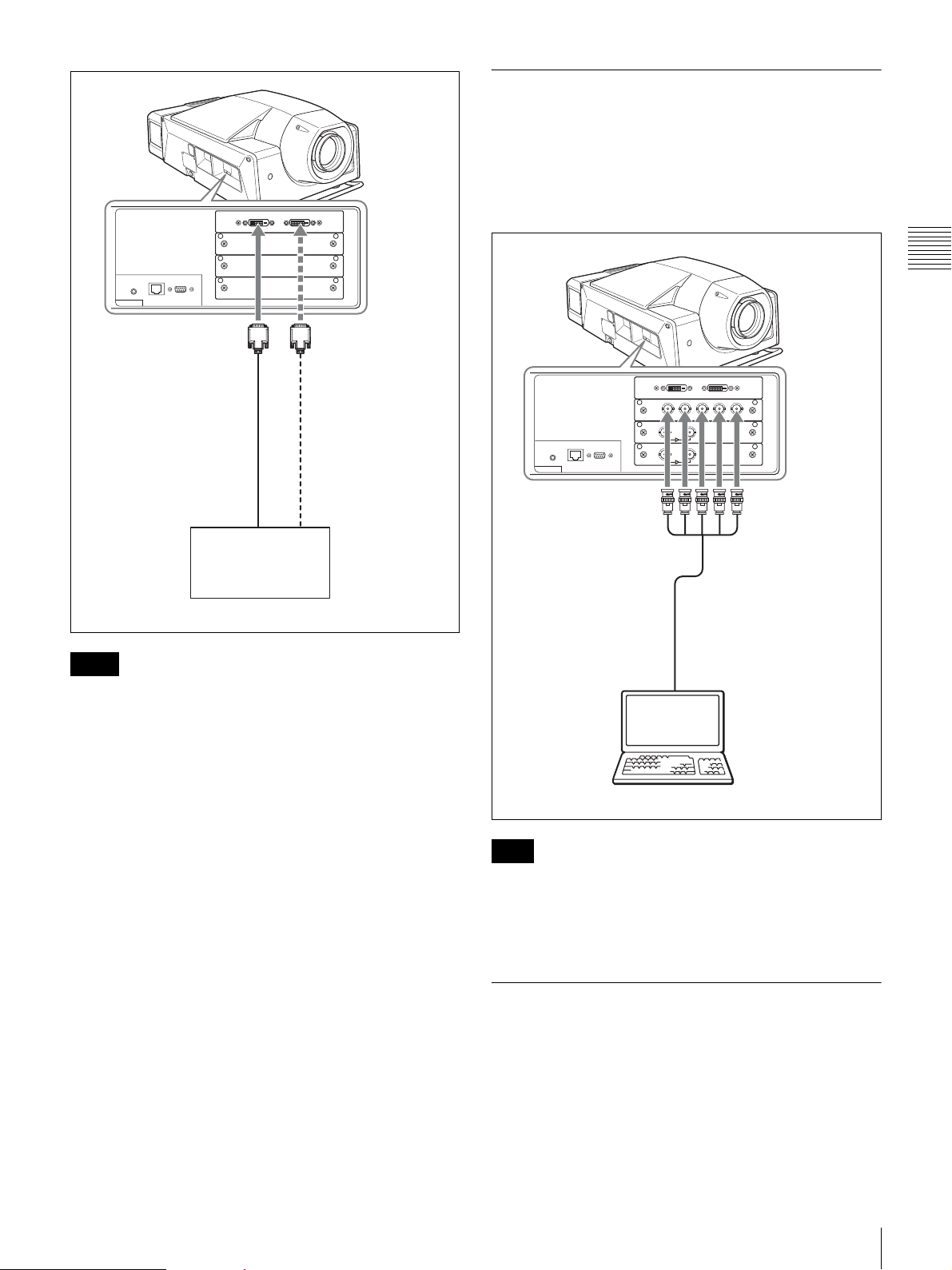

Connecting the Computer via the Ethernet
CAUTION
For safety, do not connect the connector for peripheral
device wiring that might have excessive voltage to this
port.
Follow the instructions for this port.
Note
If the power of the projector remains on for a long period
of time without the Ethernet cable connected, the message
“Sony SR Projector Initializing…” may appear in the
STATUS MESSAGE window while you are setting up for
networking after connecting the Ethernet cable. This is not
a malfunction of the projector.
Connect the computer to the projector using the supplied
ethernet cable (cross cable).
Note
Set the TCP/IP protocol of the connected computer to
DHCP.
AUXDVI-D
R(Pr/Cr)B(Pb/Cb)HD VDG(Y/Y)
IN
OUT
INTER LOCK
ETHERNET RS232C
ETHERNET connector
IN OUT
Connecting the Computer via the RS-232C
AUXDVI-D
R(Pr/Cr)B(Pb/Cb)HD VDG(Y/Y)
IN
OUT
INTER LOCK
ETHERNET RS232C
Connecting cable (not supplied)
IN OUT
RS232C connector
Ethernet cable (cross cable)
(supplied)
Ethernet connector
16
Connecting a Computer for Controlling the Projector
Computer
Computer
RS-232C connector
Starting the SRX
1 3 4 5213452
Controller
Starting the SRX Controller
Double-click the icon for the SRX Controller in the
desktop window of the computer.
The SRX Controller starts and the Browser Screen is
displayed.
Note when starting the SRX Controller
When the Operating System of the computer is Windows
XP SP2 or later, or any commercially available firewall
software is installed in your computer, the following may
occur. In these cases, unblock the Windows firewall
following the procedures below.

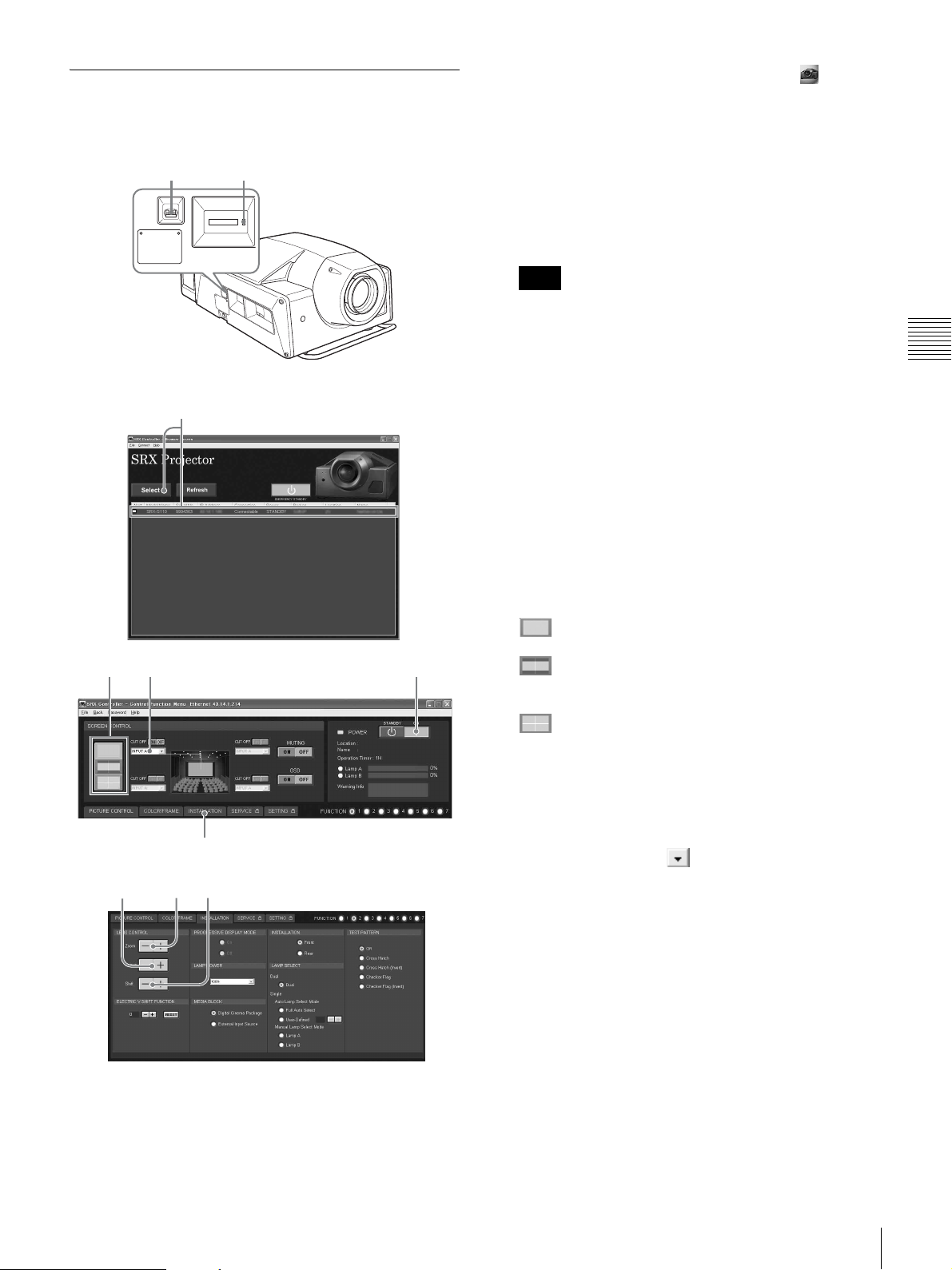

About the Browser Screen
Chapter 2 Preparations
a Menu bar
For Windows XP SP2 or later
If the dialog shown below appears when the SRX
Controller is started, select “Unblock.” When the dialog
does not appear but the computer does not access the
projector, start “Windows Firewall” from “Control Panel,”
and then add “SRX Controller” to the list in the
“Exceptions” tab.
For commercially available firewall software
Add “SRX Controller” to the Exceptions list, referring to
the operating instructions supplied with the software.
File
Select “Quit” from the File menu to exit the SRX
Controller.
Connect
Selects the connection mode between the projector and the
computer for controlling the projector.
For details, see “Changing the Connection Mode” on
page 18.
Help
Select “Version” from the Help menu to display the
version information of the SRX Controller.
b Select button
Selecting the projector displayed in the projector detect
window and then clicking this button opens the Control
Function Menu window of the selected projector.
c Refresh button
Updates all of information on the projectors displayed in
the projector detect window.
d EMERGENCY STANDBY 1 button
Clicking the button makes the projectors indicated by
“Connectable” under “Connection” in the projector detect
window enter standby mode. The fans continue to run.
e Projector detect window
Information on all of the projectors connected to a network
is displayed.
The following information is shown:
Alert: Shows whether there is any warning information on
the projector or not. (x: Yes, s: No)
Model Name: Model name of the projector
Serial No.: Serial number of the projector
Starting the SRX Controller
17
IP Address: IP address of the projector
Connection: Network connection status of the projector
The projectors that can be selected with the Select
button are indicated by “Connectable” under
“Connection.”
Power: Power on/off status of the projector
Region: Region where the projector is installed
Location: Installation location of the projector
Name: Free name
Chapter 2 Preparations
To exit the SRX Controller
Click “Quit” from the File menu on the menu bar.
Connecting the Projector
When you connect the projector, make sure to:
• Turn off all equipment before making any connections.
• Use the proper cables for each connection.
• Insert the cable plugs firmly; loose connections may
increase noise and reduce performance of picture
signals. When pulling out a cable, be sure to pull it out
from the plug, not the cable itself.
• When installing the optional input board, consult your
Sony dealer.
Changing the Connection Mode
When the projector you want to operate is connected to the
computer via a network, you can also select it by
specifying the IP address of the projector. Connection via
the RS-232C is also available.
When connecting the computer via a network by
specifying the IP address of the projector
Select “Ethernet” from the Connect menu on the menu bar
to open the dialog. Enter the IP address of the projector,
then click “OK.”
To change the port number, select “PC Port Setting” from
the Connect menu on the menu bar to display the dialog.
Enter the new port number in the dialog and click “OK.”
When connecting the computer via RS-232C
Select “RS232C” from the Connect menu on the menu bar
to open the dialog. Enter the port number of the COM port
(RS-232C) for the computer, then click “OK.”
Refer also to the instruction manuals of the equipment to
be connected.
Connecting a Computer Equipped With a DVI Connector
Connect a computer equipped with a DVI connector to the
DVI-D connectors on INPUT A of the projector, or those
on the optional LKRI-004 interface board attached to the
input board attachment part. A progressive DVI signal can
be input.
The illustration below shows an example in which the
connection is made using INPUT A on the projector.
18
Connecting the Projector
Connecting with a Computer Equipped With an Analog RGB Output
Left side
AUXDVI-D
INTER LOCK
ETHERNET RS232C
DVI-D connector AUX connector
DVI cable
(not supplied)
to DVI output
Computer
Attach the optional LKRI-001 analog input board to the
input board attachment part on the projector, and connect
with a computer.
Left side
AUXDVI-D
R(Pr/Cr)B(Pb/Cb)HD VDG(Y/Y)
IN
OUT
INTER LOCK
ETHERNET RS232C
IN OUT
R/G/B/HD/VD
connectors
Monitor cable (not supplied)
Chapter 2 Preparations
Notes
• According to the input signal type, set “Signal Mode” on
“Input Source” in the PICTURE CONTROL window of
the SRX Controller.
(page 26)
• When an extension cable is used, the signal may not be
input correctly due to signal reduction.
• If you input 10-bit signals from a DVI-D connector only
(10-bit single mode), a DVI cable compatible with the
Dual-link is required.
to monitor output
Computer
Note
Select “RGB” in “Signal Mode” of “Input Source” in the
PICTURE CONTROL window.
For details, see page 26.
Connecting with HD-SDI Equipment
Attach the optional LKRI-002 HD-SDI (4:2:2) or LKRI003 HD-SDI (4:4:4) input board to the input board
attachment part, and connect the HDCAM recorder/player.
The illustration below shows an example with the LKRI002 attached on INPUT B.
Connecting the Projector
19
Chapter 2 Preparations
Left side
INTER LOCK
ETHERNET RS232C
IN OUT
Left side
AUXDVI-D
R(Pr/Cr)B(Pb/Cb)HD VDG(Y/Y)
IN
INTER LOCK
ETHERNET RS232C
IN OUT
AUXDVI-D
OUT
IN connector
HD-SDI connecting cable
(not supplyed)
to HD-SDI output
SRW-5000
HD DIGITAL VIDEO CASSETTE RECORDER
HDCAM recorder/player, etc.
Note
When the LKRI-003 is attached to the projector, select the
type of signal with “Signal Mode” of “Input Source” in the
PICTURE CONTROL window. For Single-link input,
select “YPbPr” or “YPbPr FULL.” For Dual-link input,
select “RGB” or “RGB FULL.”
For details, see page 26.
R/Pr / G/Y / B/Pb
connectors
Component cable, etc
(not supplied)
to component output/
video GBR
Betacam, DVD recorder/player, etc.
Note
When connecting to the output of HD component
equipment, set “Signal Mode” of “Input Source” in the
PICTURE CONTROL window to “YPbPr,” and when
connecting to the output of HD video GBR equipment, set
to “RGB.”
For details, see page 26.
Connecting with Component/Video GBR Equipment
Attach the optional LKRI-001 analog input board to the
input board attachment part on the projector, and connect
with a DVD recorder/player or analog video equipment
equipped with the component output, or an high-definition
equipment equipped with a video GBR connector.
20
Connecting the Projector
Projecting
Chapter
3
Projecting the Picture
Use the supplied Remote Commander or a computer in
which the supplied SRX Controller is installed to project
the picture on the screen.
Using the Remote Commander
1
STATUS LAMP indicator
SCREEN
MODE
1 2 4
123
A
PICTURE CONT
+–+–+
1
34
I
1
MUTING
FUNCTION
INPUT SEL
BCD
SHARP
BRIGHTCONTR
–
SCREEN SEL
2
1
2
3
MUTING
5
Chapter 3 Projecting
LENS CONT
+–+–+
ZOOMFOCUS SHIFT
SR Projector
IR
RM-PJ4K
7
9
–
6, 8
Projecting the Picture
21
1
Set the main power switch on the left side of the
projector to the upper position.
quad-screen mode. If you project still pictures only,
you may project them on any screen.
Chapter 3 Projecting
The STATUS LAMP indicator lights red and the
projector goes into standby mode.
2
Press the ? button to turn on the projector.
The STATUS LAMP indicator lights green.
3
Select the screen mode.
Each time you press the SCREEN MODE button, the
screen mode switches as follows:
1 (single-screen mode): Projects an image in full
screen.
2 (dual-screen mode): Projects images in two divided
screens. You can also project a different input
source in each of the two screens.
4 (quad-screen mode): Projects images in four
divided screens. You can also project a different
input source in each of the four screens.
4
Turn on the equipment connected to the projector.
5
Press the INPUT SEL button to select the input source.
A: to select the input source from the equipment
connected to INPUT A.
B: to select the input source from the equipment
connected to the optional input board attached to
the INPUT B section.
C: to select the input source from the equipment
connected to the optional input board attached to
the INPUT C section.
D: to select the input source from the equipment
connected to the optional input board attached to
the INPUT D section.
When you select “dual-screen mode” or
“quad-screen mode” in step 3
Press one of the INPUT SEL A to D buttons to select
the input source you want to project, then select one of
the divided screens where you want to project the
picture with the SCREEN SEL button.
6
Adjust the focus with the FOCUS +/– buttons.
During adjustment, “FOCUS” appears on the screen.
7
Adjust the picture size with the ZOOM +/– buttons.
During adjustment, “ZOOM” appears on the screen.
8
Adjust the focus again with the FOCUS +/– buttons.
9
Adjust the vertical position of the picture with the
SHIFT +/– buttons.
During adjustment, “SHIFT” appears on the screen.
Note
The FOCUS, ZOOM and SHIFT indications do not appear
when you select “OSD OFF” in the Control Function
Menu window of the computer.
To cut off the picture
Press the MUTING button.
To restore the picture, press the MUTING button again.
To turn off the power
1
Press the 1 button.
The STATUS LAMP indicator flashes green and the
fan continues to run for 10 minutes to reduce the
internal heat. When the fan stops running, the
STATUS LAMP indicator lights red.
2
Set the main power switch to the lower position.
Note
Do not set the main power switch to the lower position
while the fan is running. Doing so stops the fan before
the inside of the projector has been cooled down
sufficiently and may damage the unit.
22
Note
When projecting moving pictures in multiple screens,
all the input signals should be genlocked to
synchronize with each other. A picture on the left
screen for dual-screen mode or that on the upper left
screen for quad-screen mode is regarded as a reference
picture. The projected moving picture not
synchronized with the reference picture appears
incompatible with the moving pictures projected on
other screens. If you project still pictures and moving
pictures together, select the left screen for the moving
picture in dual-screen mode or the upper left screen in
Projecting the Picture
Using the Computer for Controlling the Projector
1
STATUS LAMP indicator
3
2
Start your computer and double-click the icon of
the SRX Controller in the desktop window.
The Browser Screen of the SRX Controller opens.
3
Select the projector you want to operate by doubleclicking the projector or by pointing at it and clicking
the Select button.
The Control Function Menu window opens.
Note
When you connect the projectors to the computer via a
network, you can also select the projector you want to
operate by specifying the IP address of the projector. If
connection is made via the RS232C connector on the
projector, specify the RS-232C port number of the
computer.
For details, see “Changing the Connection Mode” on
page 18.
4
Click the POWER ON ? button to turn on the projector.
The POWER and STATUS LAMP indicators light
green.
Chapter 3 Projecting
57
8
9,11 10 12
1
Set the main power switch on the left side of the
projector to the upper position.
4
5
Click one of the following buttons to select the screen
mode.
(single screen mode): Projects images in full
screen.
(dual screen mode): Projects images in two
divided screens. You can also project a different input
source in each of the two screens.
(quad screen mode): Projects images in four
divided screens. You can also project a different input
source in each of the four screens.
6
Turn on the equipment connected to the projector.
7
Select the input source from the drop-down list box
displayed by clicking
INPUT A: to select the input source from the
equipment connected to INPUT A.
INPUT B: to select the input source from the
equipment connected to the optional input board
attached to the INPUT B section.
INPUT C: to select the input source from the
equipment connected to the optional input board
attached to the INPUT C section.
INPUT D: to select the input source from the
equipment connected to the optional input board
attached to the INPUT D section.
.
The POWER and STATUS LAMP indicators light red
and the projector goes into standby mode.
Projecting the Picture
23
Note
When you select the input from the connectors on
INPUT A on the projector, or on the LKRI-001, LKRI003 or LKRI-004 input board, select the appropriate
input signal from “Signal Mode” of “Input Source” in
the PICTURE CONTROL window. Improper setting
may cause deterioration of the picture.
For details, see page 26.
To cut off the picture
Click “ON” of the CUT OFF buttons.
When you select the dual-screen mode or quad-screen
mode, you can cut off the picture of each screen
independently. Click “ON” of the CUT OFF buttons of
each screen.
To restore the picture, click “OFF” of the CUT OFF
buttons.
Chapter 3 Projecting
When you select “dual-screen mode” or
“quad-screen mode” in step 5
Select the input source for each screen from the
corresponding drop-down list box.
Notes
• When projecting moving pictures in multiple
screens, all the input signals should be genlocked to
synchronize with each other. A picture on the left
screen for dual-screen mode or that on the upper left
screen for quad-screen mode is regarded as a
reference picture. The projected moving picture not
synchronized with the reference picture appears
incompatible with the moving pictures projected on
other screens. If you project still pictures and
moving pictures together, select the left screen for
the moving picture in dual-screen mode or the upper
left screen in quad-screen mode. If you project still
pictures only, you may project them on any screen.
• When projecting signals with vertical frequency of
more than 1080 pixel such as UXGA and WUXGA
in quad-screen mode, a part of the displayed image
may be invisible.
To cut off the whole screen
Click the MUTING ON button. The whole screen appears
in black. To restore the picture, click the MUTING OFF
button.
To turn off the power
1
Click the POWER STANDBY 1 button, then the OK
button in the displayed confirmation dialog.
The POWER and STATUS LAMP indicators flash
green and the fan continues to run for 10 minutes to
reduce the internal heat. When the fan stops running,
the POWER and STATUS LAMP indicators light red.
2
Set the main power switch to the lower position.
Note
Do not switch the main power switch to the lower (off)
position while the fan is running. Doing so stops the
fan before the inside of the projector has been cooled
down sufficiently and may damage the unit.
8
Click the “INSTALLATION” button to open the
INSTALLATION window.
9
Adjust the focus with the Focus +/– buttons.
During adjustment, “FOCUS” appears on the screen.
10
Adjust the picture size with the Zoom +/– buttons.
During adjustment, “ZOOM” appears on the screen.
11
Adjust the focus again with the Focus +/– buttons.
12
Adjust the vertical position of the picture with the Shift
+/– buttons.
During adjustment, “SHIFT” appears on the screen.
Note
The FOCUS, ZOOM and SHIFT indications do not appear
when you select “OSD OFF” in the SCREEN CONTROL
window.
24
Projecting the Picture
Adjustments and Settings
Using the SRX Controller
3
Displaying the Control Function Menu Window
When you install the supplied SRX Controller in a
computer, you can operate the picture adjustments, input
signal settings, installation settings, etc. from the
computer.
Some of the picture adjustments are available using the
supplied Remote Commander.
For details, see “Remote Commander” on page 10.
1
Double-click the icon of the SRX Controller in the
desktop window of the computer.
The Browser Screen appears.
2
Select the projector you want to operate by doubleclicking the projector or click the Select button.
The Control Function Menu window opens.
To go back to the Browser Screen
Select “Back” on the menu bar.
To clear the Control Function Menu
window
Select “Quit” from the File menu on the menu bar, or click
the
To reset the settings that have been
adjusted
Clicking the RESET button in the PICTURE CONTROL
window resets all the settings of the items for “Signal
Adjust” to their factory preset values. To reset the settings
of the items for “Frame Adjust” in the COLOR/FRAME
window, click the RESET button in the COLOR/FRAME
window.
Chapter
Click any of the PICTURE CONTROL, COLOR/
FRAME and INSTALLATION buttons to display the
desired control window.
For details on each setting window, see the relevant
window pages.
(close) button.
4
Chapter 4 Adjustments and Settings Using the SRX Controller
To register the settings that have been
adjusted
You can register the settings that have been adjusted in the
control windows to FUNCTION 1 to 7. As the default
setting, the settings are registered to FUNCTION 1. To
register the settings to FUNCTION 2 to 7, click one of the
FUNCTION 2 to 7 radio buttons, then adjust the items in
each window.
You can recall it later to project the picture with the desired
setting by clicking one of the FUNCTION radio buttons.
You can also recall the settings registered to the
FUNCTION 1, 2 or 3 button with the FUNCTION 1, 2 or
3 button on the Remote Commander.
Displaying the Control Function Menu Window
25
Note
When you click the FUNCTION button to switch to
another FUNCTION setting, the picture will be cut off for
up to about 10 seconds. The picture with the selected
FUNCTION setting will then appear on the screen.
About the items that cannot be adjusted
Items that cannot be adjusted depending on the input signal
are not displayed in the window.
For details, see “Input Signals And Adjustable/Setting
Items” on page 31.
Chapter 4 Adjustments and Settings Using the SRX Controller
PICTURE CONTROL Window
The PICTURE CONTROL window is used to select the
input source or to adjust the picture quality.
When the screen mode is set to “dual screen” or “quad
screen,” the items can be independently adjusted for each
input channel displayed on the screen.
Board
Shows the input board installed in the relative input board
slot of the projector. If you select INPUT A, “LKRI-004”
is always displayed.
Input Source
Signal Mode: Click to open the drop-down list to
select the type of signal input from equipment
connected to INPUT A of the projector or to the
optional input board.
When a signal is input from INPUT A or when
the LKRI-004 is installed
Select the input signal type of progressive DVI
signals.
When used in normal, select “8bit Single Full,” which
is compatible with DVI1.0 standard and the signal
level is Full Range compliance.
When the DTV signal is input, select “8bit Single
Limited,” which is compatible with DVI1.0 standard
and the signal level is Limited Range compliance.
26
PICTURE CONTROL Window
When the 10-bit signal based on Sony’s unique
specification is input, select “10bit Twin Full” or
“10bit Single Full” for a signal of Full Range
compliance, or “10bit Twin Limited” or “10bit Single
Limited” for a signal of Limited Range compliance.
When the LKRI-001 is installed
Select “YPbPr” to input a high-definition signal from
component equipment, and “RGB” to input a highdefinition signal from video GBR equipment.
When the LKRI-003 is installed
For Dual-link input, select “RGB” or “RGB FULL.”
For Single-link input, select “YPbPr” or “YPbPr
FULL.”
When “RGB” or “YPbPr” is selected, in the case that
a 10-bit HD-SDI signal is input and “Contrast” is set
to 90 in “Signal Adjust” of the PICTURE CONTROL
window, mapping is done so that HD-SDI signal data
values* of 64 to 940 are converted to the video levels
of 0 to 100% to display an image on the projector.
When “RGB FULL” or “YPbPr FULL” is selected, in
the case that a 10-bit HD-SDI signal is input and
“Contrast” is set to 90 in “Signal Adjust” of the
PICTURE CONTROL window, mapping is done so
that HD-SDI signal data values* of 0 to 1023 are
converted to the video levels of 0 to 100% to display
an image on the projector. In this case, inhibition
codes included in a 10-bit HD-SDI signal (data area 0
to 3, and 1020 to 1023) are blocked out.
* Data value 64 of a 10-bit HD-SDI signal input is
equivalent to the video level of 0% (white), and data value
940 equivalent to 100% (black).
I/P Mode: Selects the I/P conversion mode. Depending on
the input signal source, set the mode to “Interlace” or
“PsF.”
Signal Adjust
Adjusts the picture quality of the input signal.
Clicking increases the setting value, and
decreases it.
Clicking the RESET button resets all the settings to the
factory preset values.
Contrast: Adjusts the picture contrast. The higher the
setting, the greater the contrast.
Brightness: Adjusts the picture brightness. The higher the
setting, the brighter the picture.
Color: Adjusts the color intensity. The higher the setting,
the greater the intensity.
Sharpness: Adjusts the picture sharpness. The higher the
setting, the sharper the picture. The lower the setting,
the softer the picture.
Chapter 4 Adjustments and Settings Using the SRX Controller
Notes
• This item is available with the interlace or PsF
signal input.
• When the signal is input from INPUT A or the
LKRI-004 is installed, this item is not available.
Signal Info (Information)
Shows the horizontal and vertical frequencies of the input
signal automatically. The values are approximate.
The type of the input signal is also displayed.
fH: Displays the horizontal frequency.
fV: Displays the vertical frequency.
PICTURE CONTROL Window
27
COLOR/FRAME Window
The COLOR/FRAME window is used to adjust the input
signal.
When the screen mode is set to “dual-screen” or “quadscreen,” the items can be independently adjusted for each
input channel displayed on the screen.
Chapter 4 Adjustments and Settings Using the SRX Controller
Board
Shows the input board installed in the relative input board
slot of the projector. If you select INPUT A, “LKRI-004”
is always displayed.
“CUSTOM4.” “DCI W/P” is preset in CUSTOM1 to
4 settings in the factory.
“6500” is recommended for a normal high-definition
signal or RGB signal. Set this item to “DCI W/P” to
project a movie source.
Gamma: Selects a gamma correction curve from among
“2.6,” “2.2” and “1.8.”
The smaller the value, the brighter the image. Select
the setting depending on the signal source. “2.2” is
recommended to project a normal high-definition
signal or RGB signal.
When a signal is input from the connector
on INPUT A or the LKRI-004 interface
board
When you set each item in “Color,” the setting will be
written to the color space description area of the EDID
ROM.
The values to be written to the EDID ROM are shown
below.
Color Space settings
“709”: Red (0.6400, 0.3300), Green (0.3000,
0.6000), Blue (0.1500, 0.0600)
“DCDM”: Red (0.6800, 0.3200), Green (0.2650,
0.6900), Blue (0.1500, 0.0600)
Color Temp settings
“6500”: White (0.3127, 0.3290)
“DCI W/P”: White (0.3140, 0.3510)
“CUSTOM1” to “CUSTOM4”: White (0.3140,
0.3510) (default values)
Gamma settings
“2.6”: 2.6
“2.2”: 2.2
“1.8”: 1.8
Color
Adjusts the items so that you can obtain precise color
reproduction.
If the color of an image is not correct, check the setting of
“Color Space” first.
Select the setting from the drop-down list displayed by
clicking
Color Space: Selects the color gamut.
709: Select when projecting a normal high-definition
signal or RGB signal.
DCDM: Select when projecting a signal source using
the Minimum D-Cinema Color Gamut defined by the
DCI Specifications Book/Version 1.0.
CIEXYZ: Select when projecting a special signal
source with wider color gamut than that of “DCDM,”
such as a 12-bit XYZ signal.
Color Temp (temperature): Selects the color
temperature from among “DCI W/P,” “6500,”
“CUSTOM1,” “CUSTOM2,” “CUSTOM3” and
28
COLOR/FRAME Window
.
Frame Adjust
Adjusts the horizontal size and the position of the picture.
Clicking increases the setting value, and
decreases it.
Clicking the RESET button resets all the settings of
“Frame Adjust” to the factory-preset values.
Dot Phase: Adjusts the phase of the SXRD panels and the
input signal. Adjusts the value to obtain the clearest
picture.
H Size: Adjusts the horizontal size of the picture according
to the input signal. As the setting value increases, the
horizontal size of the picture becomes larger.
H Shift: Adjusts the horizontal position of the picture. As
the setting value increases, the picture moves to the
right. As the value decreases, the picture moves to the
left.
V Shift: Adjusts the vertical position of the picture. As the
setting value increases, the picture moves up. As the
value decreases, the picture moves down.
INSTALLATION Window
Notes
• Adjustment of “Dot Phase” and “H Size” is available
only for analog RGB signals input from a computer.
• If the position of the picture is not adjusted correctly,
noise may appear in the blank portion of the screen. This
is not a malfunction of the projector. Adjust the picture
position correctly with “Frame Adjust.”
The INSTALLATION window is used to adjust the
projected picture, change the lamp output, etc.
LENS CONTROL
Adjusts the projected picture on the screen.
Zoom +/–: Adjusts the size of the picture. Clicking
enlarges the picture size, and reduces the picture
size.
Focus +/–: Adjusts the picture focus. Clicking focuses
on a picture further back. Clicking focuses on a
forward picture.
Shift +/–: Adjusts the vertical position of the picture.
Clicking
moves it downward.
moves the picture upward. Clicking
Chapter 4 Adjustments and Settings Using the SRX Controller
ELECTRIC V SHIFT FUNCTION
Adjusts the vertical position of the projected pictures
electrically. As the setting value increases, the picture
moves upward. As the setting value decreases, the picture
moves downward.
Clicking the RESET button resets the setting to the
factory-preset values.
Notes
• This function is effective in the following cases:
- When single-screen mode is selected
- When quad-screen mode is selected, in which a signal
from INPUT A is projected on the upper left window,
that from INPUT B on the upper right window, that
from INPUT C on the lower left window and that from
INPUT D on the lower right window, when the input
signal frequencies are 24/23.98 Hz and when
“PROGRESSIVE DISPLAY MODE” is set to “On”.
• When this function is used for quad-screen mode, all the
projected signals should be genlocked to synchronize
with each other. If they are not synchronized, the picture
is not displayed correctly.
INSTALLATION Window
29
PROGRESSIVE DISPLAY MODE
Normally, click the Off radio button.
Click the On radio button when four images with 2048
(1920) × 1080 pixels are input from INPUT A and three
LKRI-004 interface boards and are combined into a 4096
(3840) × 2160-pixel image on the screen in quad-screen
mode.
Manual Lamp Select Mode
You can specify the lamp to be used by clicking the
Lamp A or Lamp B radio button.
Note
If you switch “LAMP SELECT” from “Single” to “Dual”
or when either Lamp A or Lamp B switches to turn on, the
projected image will be cut off momentarily.
LAMP POWER
Adjust the lamp power output.
Select it from the drop-down list displayed by clicking
.
You can reduce the lamp power to 93%, 86%, 79%, 72%,
65%, 58% or 51%. The brightness of the projected image
will be darker, but power consumption can be reduced and
this increases the lamp life. Selecting 100% allows you to
Chapter 4 Adjustments and Settings Using the SRX Controller
obtain the brightest projection image.
Note
Switching the lamp output frequently may reduce the lamp
life. Use of the defined lamp output is recommended.
INSTALLATION
Selects how to install the projector.
Front: Selects front projection.
Rear: Selects rear projection.
Note
TEST PATTERN
Displays a built-in test pattern on the screen for adjusting
the picture with no signal input from external equipment.
Click the radio button of the desired test pattern from
among “Cross Hatch,” “Cross Hatch (Invert),” “Checker
Flag” and “Checker Flag (Invert).” When you do not
display a built-in test pattern, click the “Off” radio button.
Note
While a built-in test pattern is displayed on the screen, you
cannot change the screen mode and input select mode, and
cannot adjust the “PICTURE CONTROL” and “COLOR/
FRAME.”
When you click the radio button to switch to the other
setting, the picture will be cut off for up to about 10
seconds, and the picture will then appear on the screen.
LAMP SELECT
Selects whether to use one of two lamps or both lamps.
Dual: Select if you want to use two lamps.
Single: Select if you want to use only one of two lamps. In
this setting, you can further select the lamp to be used
automatically or manually.
Auto Lamp Select Mode
When you click the Full Auto Select radio button, the
lamp with fewer used hours is automatically turned
on. When you use the projector for a long period of
time, click the User-Defined radio button. If you
specify the hour between 4 and 24 hours by clicking
30
the
alternately at the interval of the specified hours.
INSTALLATION Window
/ buttons, the two lamps turn on
Input Signals And Adjustable/Setting Items
Some items of “Signal Adjust” in the PICTURE CONTROL window and “Frame Adjust” in the COLOR/FRAME
window are not adjusted or set depending on the input signals. Items that cannot be adjusted depending on the input signal
are not displayed in the window.
Signal Adjust
Item
Contrast z z z z z z
Brightness z z z z z z
Color z – – z – –
Sharpness z z z z – –
z: Adjustable/can be set
Component Video GBR Computer HD-SDI DVI-D 4K
Input signal
–: Not adjustable/cannot be set
Frame Adjust
Item
Dot Phase – – z – – –
H Size – – z – – –
H Shift z z z z z –
V Shift z z z z z –
z: Adjustable/can be set
Component Video GBR Computer HD-SDI DVI-D 4K
Input signal
–: Not adjustable/cannot be set
Chapter 4 Adjustments and Settings Using the SRX Controller
Input Signals And Adjustable/Setting Items
31
Others
Lamp Life
Recommended time for replacement of the projection
lamp is as follows:
SRX-S110: Approx. 800 hours
SRX-S105: Approx. 1,000 hours
The “Lamp A” and “Lamp B” bar indicators in the Control
Function Menu window become red when the time for
replacement is coming near. The percentage indicates the
Chapter 5 Others
time used before the recommended time for replacement.
Use them as a guide.
Be sure to ask your Sony dealer to replace a projection
lamp and lamp house.
Chapter
5
32
Lamp Life
Troubleshooting
If the projector appears to be operating erratically, try to diagnose and correct the problem using the following guide. If
the problem still persists, consult your Sony dealer.
Power
Symptom Cause Remedy
Power is not turned on. The main power is turned off. Set the power switch on the projector to the upper position (pages
22 and 23).
The projector and a computer for
controlling the projector are disconnected.
The cooling unit is detached. Consult your Sony dealer.
Symptom Cause Remedy
No picture. Cables are disconnected. Check that the proper connection has been made (page 18).
Input selection is not correct. Select the input source correctly in the SCREEN CONTROL
The picture is cut off. Click the MUTING OFF or CUT OFF ON button in the SCREEN
Ambient temperature is high. Reduce the room temperature so that it becomes within the
Color balance is incorrect. Incorrect input source mode is selected. Set “Signal Mode” of “Input Source” in the PICTURE CONTROL
The picture is too dark. Contrast and brightness has not been
On-screen display does
not appear.
adjusted properly.
Lamp mode is not properly selected. Set “LAMP POWER” or “LAMP SELECT” in the
OSD OFF button has been clicked. Click the OSD ON button in the SCREEN CONTROL window
Connect the projector and a computer properly (page 16).
window (page 23).
CONTROL window
the Remote Commander (page 22).
operating temperature (5–35°C).
window correctly
Adjust the contrast or brightness in the PICTURE CONTROL
window
button on the Remote Commander (page 11).
INSTALLATION window correctly.
(page 10).
(page 27), or adjust them using the CONTR or BRIGHT
(page 24), or press the MUTING button on
(page 26).
(page 29)
Chapter 5 Others
Remote Commander/SRX Controller
Symptom Cause Remedy
The SRX Controller does
not start.
The Remote Commander
does not work.
The projector and a computer for
controlling the projector are not properly
connected.
The remote control detector has been
removed.
The batteries are dead. Replace with new batteries.
Check that the proper connection between the projector and a
computer has been made (page 16).
Consult your Sony dealer.
Troubleshooting
33
Error Messages
The error messages are displayed in the STATUS MESSAGE window on the projector and the Error display window of
the SRX Controller. If there are two or more messages, a displayed message changes each 5 seconds. Use the list below
to check the meaning of the error, and consult your Sony dealer. Be sure to inform them of the displayed messages and
their numbers.
No. Error messages Meaning
1 INPUT-A POWER ALERT Trouble with power of INPUT A board
2 INPUT-B POWER ALERT Trouble with power of INPUT B board
3 INPUT-C POWER ALERT Trouble with power of INPUT C board
4 INPUT-D POWER ALERT Trouble with power of INPUT D board
5 PR-284_1 POWER ALERT Trouble with power of PR-284 board at the top
6 PR-284_2 POWER ALERT Trouble with power of PR-284 board on the second row
7 PR-284_3 POWER ALERT Trouble with power of PR-284 board on the third row
8 PR-284_4 POWER ALERT Trouble with power of PR-284 board on the fourth row
9 24V POWER SUPPLY ALERT The projector has failed to supply 24V power.
10 16V POWER SUPPLY ALERT The projector has failed to supply 16V power.
11 PR-284_1 DETACHED The PR-284 board is not attached correctly on the top row.
Chapter 5 Others
12 SXRD PANEL TEMPERATURE
ALERT
13 LAMP_A FAN ALERT Trouble with the fan for Lamp A, or the harness is disconnected or down.
14 LAMP_B FAN ALERT Trouble with the fan for Lamp B, or the harness is disconnected or down.
15 LAMP_A POWER SUPPLY UNIT
FAN ALERT
16 LAMP_B POWER SUPPLY UNIT
FAN ALERT
17 PR-284 FAN FAILURE Trouble with the fan for PR-284 board, or the harness is disconnected or down.
18 OPTICAL UNIT TEMPERATURE
ALERT
19 LAMP_A TEMPTEMPERATURE
ALERT
20 LAMP_B TEMPTEMPERATURE
ALERT
21 LAMP_A HOUSE DETACHED The projection lamp house of Lamp A is not installed correctly, or the harness is
22 LAMP_B HOUSE DETACHED The projection lamp house of Lamp B is not installed correctly, or the harness is
23 REAR COVER DETACHED The rear cover is open, or the harness is disconnected or down.
24 LAMP_A POWER SUPPLY UNIT
ALERT
25 LAMP_B POWER SUPPLY UNIT
ALERT
26 LAMP_A IGNITION FAILURE Lamp A does not turn on.
27 LAMP_B IGNITION FAILURE Lamp B does not turn on.
28 CPU ALERT Trouble with the main CPU (IC301) on the SY-321. Serious trouble
29 MUTING OFF FAILURE
DOUSER OPEN FAILURE
30 INPUT BOARD FAN FAILURE Trouble with the HIF fan next to the INPUT A/B/C/D boards, or the harness is
The temperature of the panels is too high.
Trouble with the ballast fan for Lamp A power, or the harness is disconnected or down.
Trouble with the ballast fan for Lamp B power, or the harness is disconnected or down.
The temperature of the optical unit is too high, or the harness is disconnected or down.
The temperature of Lamp A is too high, or the harness is disconnected or down.
The temperature of Lamp B is too high, or the harness is disconnected or down.
disconnected or down.
disconnected or down.
Temporary high temperature or some trouble with the power (ballast) of Lamp A
Temporary high temperature or some trouble with the power (ballast) of Lamp B
Trouble with opening/shutting of the shutter, or the harness is disconnected or down.
disconnected or down.
34
Error Messages
No. Error messages Meaning
31 REAR FAN ALERT Trouble with the huge fan at the rear, or the harness is disconnected or down.
32 LOW REAL TIME CLOCK
BATTERY
33 FPGA CONFIG FAILURE An internal line does not function properly.
34 IIC FAILURE An internal line does not function properly.
35 LAMP A ALERT The recommended time for replacement of Lamp A has elapsed.
36 LAMP B ALERT The recommended time for replacement of Lamp B has elapsed.
37 LAMP A WARNING 80% of the recommended time for replacement of Lamp A has elapsed.
38 LAMP B WARNING 80% of the recommended time for replacement of Lamp B has elapsed.
39 DATA LOAD FAILURE LENS
POSITION SENSOR
40 PS FAN FAILURE Trouble with the fan for PS converter, or the harness is disconnected or down.
41 DVI SIGNAL FAILURE An inappropriate menu setting for the input signal has been found, or the cable has
The RTC battery (BT201) for the SY-321 board should be replaced.
Failure of the lens position adjustment to the registered setting.
become disconnected or is down.
Chapter 5 Others
Error Messages
35
Specifications
Optical characteristics
Projection system
SXRD (Silicon X-tal Reflective Display)
3 panel prism color integration system
SXRD 8,847,360 pixels (4098 × 2160 × 3)
Lens Optional
Light output SRX-S110: 10,000 ANSI
(factory preset value)
SRX-S105: 5,000 ANSI
(factory preset value)
Lamp SRX-S110: 2 kW Xenon lamp × 2
SRX-S105: 1 kW Xenon lamp × 2
1)ANSI lumen is a measuring method of American National Standard IT
7.228.
Electrical characteristics
Acceptable signal
DVI-D, XGA, QVGA, SXGA, UXGA,
Chapter 5 Others
HD, 2048 × 1080 (INPUT A or when
the LKRI-004 DVI interface board is
installed)
Component, XGA, SXGA, WXGA, HD
(when the LKRI-001 analog input
board is installed)
HD-SDI (SMPTE Serial Digital Interface
standard) (when the LKRI-002 HD-
SDI (4:2:2) input board is installed)
HD-SDI (SMPTE Serial Digital Interface
standard) (when the LKRI-003 HD-
SDI (4:4:4) input board is installed)
1)
lm ± 10%
1)
lm ± 10%
R/R-Y: 0.7 Vp-p ±2 dB positive, 75
ohms terminated
G/G SYNC: 0.7 Vp-p ±2 dB positive,
75 ohms terminated
G with sync/Y: 1 Vp-p ±2 dB sync
negative, 75 ohms terminated
B/B-Y: 0.7 Vp-p ±2 dB positive, 75
ohms terminated
SYNC/HD: Composite sync: 0.6 – 8
Vp-p, high impedance, sync positive/
negative
Horizontal sync: 0.6 – 8 Vp-p, high
impedance, sync positive/negative
VD: Vertical sync: 0.6 – 8 Vp-p, high
impedance, sync positive/negative
HDTV (YP
bPr): BNC type
Y: 1 Vp-p ± 2 dB positive, 75 ohms
terminated
Tri-level sync: ± 0.3 Vp-p
Bi-level sync: 0.3 Vp-p
P
b/Pr: 0.35 Vp-p ± 2 dB positive, 75
ohms terminated
HDTV (GBR): BNC type
G with sync: 1 Vp-p ± 2 dB, 75 ohms
terminated
Tri-level sync: ± 0.3 Vp-p
Bi-level sync: 0.3 Vp-p
B/R (GBR): 0.7 Vp-p ± 2 dB positive,
75 ohms terminated
When the LKRI-002 is installed
SMPTE format HD
When the LKRI-003 is installed
SMPTE Format HD-SDI/DC-SDI/Dual-
link HD-SDI/Dual-link DC-SDI
When the LKRI-004 is installed
DVI-D, XGA, QVGA, SXGA, UXGA,
HD, 2048 × 1080
Input/Output
DVI-D DVI connector, 24-pin (male) (For
details, see “Pin assignment” on page
37.)
AUX DVI connector, 24-pin (male) (For
details, see “Pin assignment” on page
37.)
INTER LOCK Minijack
Normal operation at short circuit
Lamp power off at open circuit
RS232C D-sub 9-pin (female) (For details, see
“Pin assignment” on page 37.)
ETHERNET 10BASE-T/100BASE-TX
Input signal
INPUT A DVI-D, XGA, QVGA, SXGA, UXGA,
HD, 2048 × 1080
When the LKRI-001 is installed
Analog RGB/component: BNC type
36
Specifications
General
Dimensions
740 × 500 × 1320 mm (29
52 inches) (w/h/d)
Mass Approx. 110 kg (242 lb 8 oz) (excluding
the optional lens)
Power requirements
SRX-S110: 200 to 240 V AC, 50/60 Hz
SRX-S105: 100 to 240 V AC, 50/60 Hz
Power consumption
SRX-S110: Max. approx. 5.4 kW
(Standby mode: 40 W)
SRX-S105: Max. approx. 3.0 kW
(Standby mode: 40 W)
Current consumption
SRX-S110: 30 to 22 A
SRX-S105: 30 to 12.5 A
Operating temperature
1
/4 × 19 3/4 ×
5°C to 35°C (41°F to 95°F) (About 20
minutes of aging is recommended to
provide better quality picture.)
Performance guarantee temperature
10°C to 30°C (50°F to 86°F)
Operating humidity
35% to 85% (no condensation)
Storage temperature
–20°C to + 60°C (–4°F to +140°F)
Storage humidity
10% to 90%
Supplied accessories
Remote Commander RM-PJ4K (1)
Size AA (R6) batteries (2)
SRX Controller (CD-ROM) (1)
Ethernet cable (cross cable manufactured
by Sony: 1-830-803-11) (1)
Operating Instructions (1)
Installation Manual for Dealers (1)
Operating Instructions (CD-ROM) (1)
Quick Reference Guide (1)
Design and specifications are subject to change without
notice.
Optional accessories
Projection lamp house
LKRX-B110 (for SRX-S110)
LKRX-B105 (for SRX-S105)
Projection lamp
LKRX-110 (for SRX-S110)
LKRX-105 (for SRX-S105)
Analog input board
LKRI-001 (analog RGB/component/HD
input with 5 BNC type)
HD-SDI (4:2:2) input board
LKRI-002 (HD-SDI input/output with 2
BNC type)
HD-SDI (4:4:4) input board
LKRI-003 (HD-SDI input/output with 4
BNC type)
DVI interface board
LKRI-004 (2DVI-D input connectors)
Projection lens
LKRL-Z115 (1.5 to 1.9-times zoom lens)
LKRL-Z120 (1.9 to 2.3-times zoom lens)
LKRL-Z125 (2.3 to 4.0-times zoom lens)
LKRL-Z140 (4.0 to 7.0-times zoom lens)
LKRL-Z122 (2.23 to 3.92-times zoom
lens with zoom/focus memory
function)
LKRL-90 (0.9-times fixed focus lens)
Pin assignment
RS232C connector (D-sub 9-pin, female)
12345
6789
Pin number Signal name Meaning
1 NC
2 RD Received Data
3 TD Transmit Data
4
5 GND Ground
6
7
8
9 NC
* Circuit between pins 4 and 6 is short-circuited in the projector.
** Circuit between pins 7 and 8 is short-circuited in the projector.
DTR
DSR
RTS
CTS
*
*
**
**
Data Terminal Ready
Data Set Ready
Request to Send
Clear to send
DVI-D connector, AUX connector (24-pin,
male)
1
2
3
4
5
6
7
9
10
11
12
17
Pin number Signal name
1 DATA2–
2 DATA2+
3 GND
4 DATA4–
5 DATA4+
6 DDC_SCL
7 DDC_SDA
8 NC
9 DATA1–
10 DATA1+
11 GND
12 DATA3–
13 DATA3+
14 +5V
15 DDC_GND
16 HOTPLUG_DET
17 DATA0–
13
18
19
20
21
8
14
15
16
22
23
24
Chapter 5 Others
Specifications
37
Pin number Signal name
18 DATA0+
19 GND
20 DATA5–
21 DATA5+
22 GND
23 CLK+
24 CLK–
Preset Signals
Preset signal fH (kHz) fV (Hz) Aspect ratio
VIDEO60 15.73 59.94 4:3
VIDEO50 15.63 50.00 4:3
HDTV 33.75 60.00 16:9
1024 × 768_VESA60 48.36 60.00 4:3
1024 × 768_VESA70 56.48 70.07 4:3
1024 × 768_VESA75 60.02 75.03 4:3
1024 × 768_VESA85 68.68 85.00 4:3
1280 × 960_VESA60 60.00 60.00 4:3
Chapter 5 Others
1280 × 1024_VESA60 63.97 60.01 5:4
1280 × 1024_VESA75 79.98 75.03 5:4
1280 × 1024_VESA85 91.15 85.02 5:4
1600 × 1200_VESA605 75.00 60.00 4:3
720/60P 45.00 60.00 16:9
720/50P 37.50 50.00 16:9
1080/48I (24PsF) 27.00 48.00 16:9
1080/50I 28.13 50.00 16:9
1080_24P 27.00 24.00 16:9
DC2048 × 1080_48I 27.00 48.00
DC2048 × 1080_24P 27.00 24.00
38
Specifications
Displayed image size in multiple screen mode
Unit: pixel
Screen
mode
Typ e
of signal
VIDEO60 2880 2156 2003 1499 1440 1078
VIDEO50 2880 2146 2003 1504 1440 1073
XGA 2849 2137 2048 1536 1432 1074
SXGA1 2560 2048 2048 1638 1280 1024
SXGA2 2560 1920 2048 1536 1280 960
UXGA* 2864 2148 1600 1200 – –
WUXGA* 3437 2148 1920 1200 – –
720p 3810 2143 2048 1152 1280 720
HD 3840 2160 1920 1080 1920 1080
4K 4096 2160 – – – –
Horizontal
size
* When projecting signals with vertical frequency of more than 1080 pixel such as UXGA and WUXGA in quad-screen
mode, a part of the displayed image may be invisible.
Full screen Dual screen Quad screen
Vertical size Horizontal
size
Vertical size Horizontal
size
Vertical size
Chapter 5 Others
Specifications
39
UCIX
fm
Index
A
Adjusters 13
Adjusting
focus 29
lens shift 29
picture 11, 27
zoom 29
B
Battery
installation 11
notes 11
Board 26, 28
C
Carrying handles 13
Color 28
Color Space 28
Chapter 5 Others
Color Temp 28
COLOR/FRAME window 28
Connection mode 18
Connections
component/video GBR
equipment 20
computer equipped with an analog
RGB output 19
computer equipped with the DVI
connector 18
computer for controlling the
projector 16
HD-SDI equipment 19
Control Function Menu window
Displaying 25
Location and function of
controls 8
Cut off the picture 22, 24
G
Gamma 28
H
H Shift 28
H Size 28
I
I/P Mode 27
Input Source 26
INSTALLATION 30
INSTALLATION window 29
Installing the projector 14
L
Lamp Life 32
LAMP POWER 30
LAMP SELECT 30
LENS CONTROL 29
Location and Function of Controls
Control Function Menu window 8
Front/Top 7
Left Side/Rear 8
Remote Commander 10
O
Optional accessories 37
P
PICTURE CONTROL window 26
Precautions 5
Precautions on installation 12
PROGRESSIVE DISPLAY
MODE 30
Projecting
Using the computer for controlling
the projector 23
Using the Remote Commander 21
Signal Adjust 27
Signal Info 27
Specifications 36
SRX Controller
Browser Screen 17
installing 14
starting 17
STATUS MESSAGE window 34
Supplied accessories 37
T
TEST PATTERN 30
Troubleshooting 33
V
V Shift 29
Z
Zoom 22, 29
D
Dot Phase 28
E
ELECTRIC V SHIFT FUNCTION 29
Error messages 34
ETHERNET connector 16
F
Focus 22, 29
Frame Adjust 28
FUNCTION 1-7 25
40
Index
R
Registering the settings 25
Remote Commander
Battery installation 11
Location and Function of
Controls 10
Resetting the settings 25
RS-232C 16
S
SCREEN CONTROL window 10
Screen mode 22, 23
Shift 22, 29
Sony Corporation
Loading...
