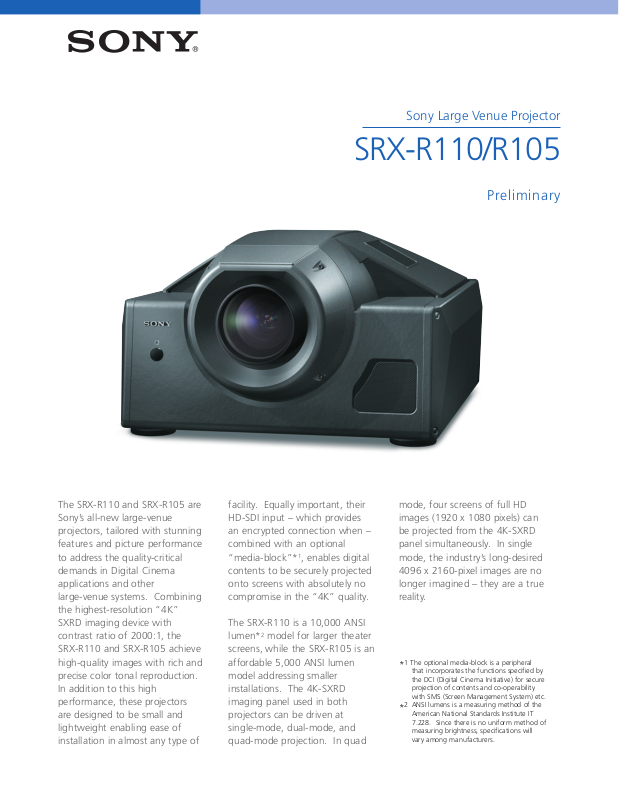

Sony Large Venue Projector

SRX-R110/R105

Preliminary

The SRX-R110 and SRX-R105 are Sony’s all-new large-venue projectors, tailored with stunning features and picture performance to address the quality-critical demands in Digital Cinema applications and other large-venue systems. Combining the highest-resolution “4K” SXRD imaging device with contrast ratio of 2000:1, the SRX-R110 and SRX-R105 achieve high-quality images with rich and precise color tonal reproduction. In addition to this high performance, these projectors are designed to be small and lightweight enabling ease of installation in almost any type of

facility. Equally important, their HD-SDI input – which provides an encrypted connection when – combined with an optional “media-block”*1, enables digital contents to be securely projected onto screens with absolutely no compromise in the “4K” quality.

The SRX-R110 is a 10,000 ANSI lumen*2model for larger theater screens, while the SRX-R105 is an affordable 5,000 ANSI lumen model addressing smaller installations. The 4K-SXRD imaging panel used in both projectors can be driven at single-mode, dual-mode, and quad-mode projection. In quad

mode, four screens of full HD images (1920 x 1080 pixels) can be projected from the 4K-SXRD panel simultaneously. In single mode, the industry’s long-desired 4096 x 2160-pixel images are no longer imagined – they are a true reality.

1 The optional media-block is a peripheral

that incorporates the functions specified by the DCI (Digital Cinema Initiative) for secure projection of contents and co-operability with SMS (Screen Management System) etc.

2 ANSI lumens is a measuring method of the

American National Standards Institute IT

7.228. Since there is no uniform method of measuring brightness, specifications will vary among manufacturers.

SPECIFICATIONS

SRX-R110/R105

Optical

Projection system Imaging device

Lamp

Screen coverage

Light output

General

Colorimetry

White reference

Contrast Resolution

Signal specifications

Power requirements

Power consumption

Operating temperature Storage temperature Operating humidity Storage humidity Dimensions ( W x H x D ) Weight

Input/Output

Input A Input B Input C Input D Remote interface

Input boards

LKRI-001 Analog input board

3-SXRD panel, prism color integrated system SXRD, 1.55-inch (diagonal), 4096 x 2160-pixels on each chip 2 kW Xenon lamp x 2 (SRX-R110) 1 kW Xenon lamp x 2 (SRX-R105) 200-inch to 700-inch (viewable area, measured diagnally) 10,000 ANSI lumen

* (SRX-R110)

5,000 ANSI lumen (SRX-R105)

Xenon Color Primaries

Encoding Primaries x y R 0.6800 0.3200 G 0.2650 0.6900 B 0.1400 0.0700

Xenon White Reference

White reference 0.3140 0.3510 2000:1 4096 x 2160 pixels (RGB) 2048 x 1080 pixels (DC-SDI input, enhanced SMPTE-292M) 1920 x 1080 pixels (HD-SDI input, SMPTE-292M) 600 TV lines (SDI input/SMPTE-259M) VIDEO Component (YCb,Cr), HD (G,B,R/ Y,Pb,Pr) VGA ~ UXGA AC 200 to 240V, 50/60Hz (SRX-R110) AC 100 to 240V, 50/60Hz (SRX-R105) Approx. 1.5 kW to 4.5 kW (SRX-R110)

1.0 kW to 2.5 kW (SRX-R105) 50 °F to 90 °F (10 °C to 35 °C) 12 °F to 90 °F (-20 °C to 35 °C) 35 % to 85 % (Without condensation) 10 % to 90 % 26 1/16 x 15 1/8 x 31 11/16 inches (740 x 430 x 900 mm) Approx. 187.23 lb. (85 kg)

Open for optional signal interface boards Open for optional signal interface boards Open for optional signal interface boards Open for optional signal interface boards D-sub 9-pin (female) x 1, Ethernet terminal x 1

BNC x 5, HD/SD analog input, RGB/Y · Pb · Pr/Y · R-Y · B-Y selectable

Standard Definition [RGB]

R 0.7 Vp-p ±2 dB positive, 75 Ω G 0.7 Vp-p ±2 dB positive, 75 Ω B 0.7 Vp-p ±2 dB positive, 75 Ω G with sync 1.0 Vp-p ±2 dB sync negative, 75 Ω

LKRI-002 HDSDI input board Safety regulations

Supplied accessories

Optional accessories

Standard Definition [Y · R-Y · B-Y]

Y 1.0 Vp-p ±2 dB sync negative, 75 Ω R-Y 0.7 Vp-p ±2 dB positive, 75 Ω B-Y 0.7 Vp-p ±2 dB positive, 75 Ω

High Definition [RGB]

R 0.7 Vp-p ±2 dB positive, 75 Ω G with sync 1.0 Vp-p ±2 dB, 75 Ω

Tri-level sync: ±0.3 Vp-p / Bi-level sync: 0.3 Vp-p

B 0.7 Vp-p ±2 dB positive, 75 Ω

High Definition [Y · Pb · Pr]

Y 1.0 Vp-p ±2 dB positive, 75Ω

Tri-level sync: ±0.3 Vp-p / Bi-level

sync: 0.3 Vp-p Pb ±0.35 Vp-p ±2 dB positive, 75 Ω Pr ±0.35 Vp-p ±2 dB positive, 75 Ω

Sync

Composite sync 0.6 to 8.0 Vp-p, high impedance,

sync positive/negative

HD Horizontal sync 0.6 to 8.0 Vp-p, high impedance,

sync positive/negative

HD Vertical sync 0.6 to 8.0 Vp-p, high impedance,

sync positive/negative

BNC x 4, HD-SDI/Dual-link HD-SDI selectable SMPTE-292M/BTA-S004/ITU-R BT.709/SMPTE 372M UL60950 listed, cUL60950, FCC Class A, IC Class A, VCCI Class A, EN60950, CE Class A, C-tick, GB4943, GB9254, K60950, CISPR22, CISPR24 Remote controller x 1 CD-ROM x 1 (Remote control software application for Windows

PC) Dry cell (AA size) x 2 AC power cord x 1 Operation instructions x 1 Installation manual x 1 LKRL-Z115: 1.5x zoom lens LKRL-Z120: 2.0x zoom lens LKRL-Z125: 2.5x zoom lens LKRL-Z140: 4.0x zoom lens LKRI-001: Analog input board LKRI-002: HD-SDI input board LKRI-003: 4K base-band interface board (tentative) LKRX-105: 1 kW Xenon lamp bulb for replacement LKRX-B105: 1 kW Xenon lamp house unit for

replacement LKRX-110: 2 kW Xenon lamp bulb for replacement LKRX-B110: 2 kW Xenon lamp house unit for

replacement RCC-5G/10G/30G: 9-pin remote cable for RS-422A

ANSI lumens is a measuring method of the American National Standards Institute IT 7.228.Since there is no uniform method of measuring brightness, specifications will vary among manufacturers.
