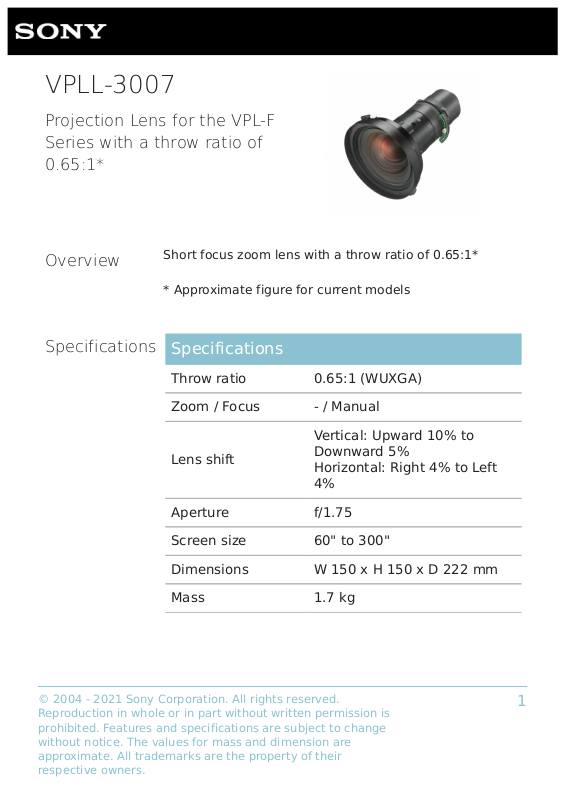

Sony VPLL-3007 User Manual
VPLL-3007
Projection Lens for the VPL-F Series with a throw ratio of 0.65:1*
Overview
Short focus zoom lens with a throw ratio of 0.65:1*
* Approximate figure for current models
Specifications Specifications
Throw ratio |
0.65:1 (WUXGA) |
|
Zoom / Focus |
- / Manual |
|
|
|
|
|
Vertical: Upward 10% to |
|
Lens shift |
Downward 5% |
|
Horizontal: Right 4% to Left |
||
|
||
|
4% |
|
|
|
|
Aperture |
f/1.75 |
|
|
|
|
Screen size |
60" to 300" |
|
|
|
|
Dimensions |
W 150 x H 150 x D 222 mm |
|
|
|
|
Mass |
1.7 kg |
|
|
|
© 2004 - 2021 Sony Corporation. All rights reserved. |
1 |
Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice. The values for mass and dimension are approximate. All trademarks are the property of their respective owners.
Gallery
© 2004 - 2021 Sony Corporation. All rights reserved. |
2 |
Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice. The values for mass and dimension are approximate. All trademarks are the property of their respective owners.
