Sony VPL-HS1 User Manual

Sony Electronics Inc. 1 Sony Drive Park Ridge, NY 07656

THE ENTIRE

HOME ENTERTAINMENT

REVOLUTION COMES DOWN TO THIS

Projection system: 3 LCD panels, 1 lens, projection system LCD panels: 0.7-inch p-Si TFT SVGA (800 x 600) LCD panels; 1,440,000 pixels

(480,000 pixels per panel x 3 panels)

Projection lens: 1.2x zoom lens; F 1.8 - 2.1mm, f22.5 - 28.3mm Lamp: 120W UHP type Screen coverage: 3

⁄3 to 121⁄2 feet (viewable area, measured diagonally in 4:3 aspect ratio)

Color system: NTSC

3.58

, PAL, SECAM, NTSC

4.43

, PAL-M, PAL-N (automatic/manual selection)

Resolution: Video: 600 TV lines; RGB: 800 x 600 pixels Acceptable Video Signals: DTV (480i, 480p, 1080i, 720p) Progressive component;

15 K RGB/Component 50/60 Hz system; Y/C Video, Composite video

Acceptable Computer Signals: RGB: Horizontal 19 - 72 kHz, Vertical 48 - 92 Hz

Speaker: 2W x 2 (max.) Power requirements: AC 100 to 240V, 50/60Hz Power consumption: 190W (max); 5W (standby) Dimensions (whd): 13 1/2 x 6 1/8“ x11 7/8“ (W) x (H) x (D) (340 x 154 x 300mm) Weight: 8 lb. 10 oz. (3.9 kg) Operating temperature: 14 to 104° F (0 to 35° C) Operating humidity: 35 to 85%

VIDEO Composite: Phono type

S Video: Mini DIN 4-pin Y: 1Vp-p ± 2dB, sync negative, 75Ω automatic termination C: Burst 0.286 ± 2dB (NTSC), 75Ω automatic termination;

0.3Vp-p ± 2dB (PAL), 75Ω automatic termination

PJ MULTI 32 pin Multi connector

Component/ - Progressive Component /YPBPR/ Analog RGB Audio L/R G: 0.7Vp-p± 2dB positive, 75Ω G with Sync /Y:1Vp-p ± 2dB sync negative, 75Ω B/CB/PB: 0.7Vp-p ± 2dB positive, 75Ω R/CR/PR: 0.7Vp-p ± 2dB positive, 75Ω

AUDIO Phono type (L/R)

MEMORY STICK JPEG files (DCF file only)

OPTICAL

GENERAL

INPUTS

Supplied Accessories • RM-PJHS1 Remote Commander Control Unit with Backlit Controls

• SIC-HS10 Signal Interface Cable Multi-V/L/R

• AA size Battery (x2)

• Air Filter

• Operating Manual

• Lens cap

Optional Accessories • IFU-HS1 Signal Interface Unit for easy hook-up of all

components with a single cable to the HS1 projector

• SU-HS1 Projector Stand

• SIC-HS10 Signal Interface Cable Multi-V/L/R

• SIC-HS20 Signal Interface Cables Multi-Y/Pb/Pr/S/L/R

• SIC-HS30 Signal Interface Cable Multi-HD15/LR

• SIC-HS40 Signal Interface Cable Multi-Y/Pb/Pr/S/V

• LMP-H120 Projector lamp for replacement

• PK-HS1FL Projector Air Filter

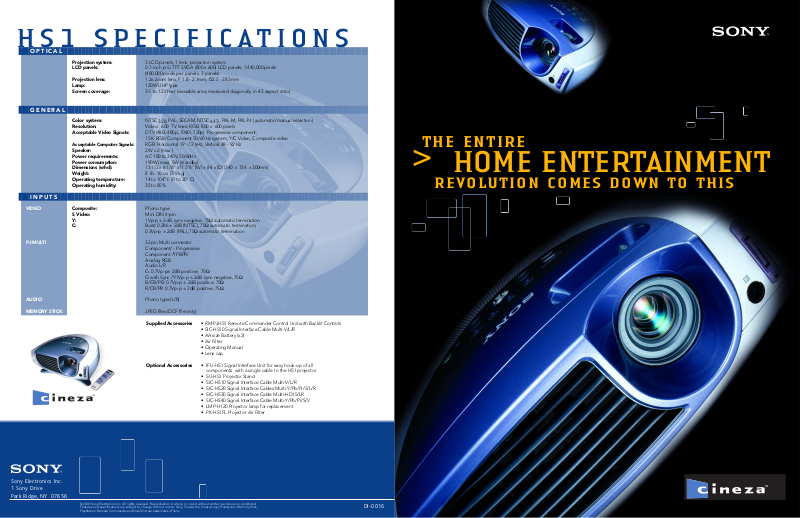

HS1 SPECIFICATIONS

© 2001 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice. Sony, Cineza, the Cineza Logo, Handycam, Memory Stick, PlayStation, Remote Commander and Side Shot are trademarks of Sony.

DI-0016

ovies with widescreen cinematic impact. Sports

that put you on the playing field. Games so real,

you’ll feel like you’re in the action. But they’re all in your

home, in any room, on any wall. That’s the power of the

Sony Cineza™: the VPL-HS1 Digital Home Entertainment

LCD Projector. Powerful, affordable, and styled with a

sleek cabinet, it’s smaller than most projectors - but it

creates brilliant giant-screen images. There’s no huge

cabinet, no installation hassle, no complex hookups.

You don’t even have to dedicate a “media room”

because your Cineza Projector is portable.

150” VPL-HS1 Projected Image

36” Standard TV

50” Projection TV

SEE ALL THE EXCITEMENT YOU'VE BEEN MISSING.

Digital satellite broadcasts, DVD movies, and next-

generation video games are today’s most exciting

entertainment experiences - but unless you experience

them with the Sony Cineza Projector, you’re missing half

the entertainment. Your Cineza Projector allows you to

create giant-screen high-resolution images ranging from

⁄3 to 121⁄2 feet (viewable area, measured diagonally). You’ll

see brilliant images with spectacular color that looks

natural and lifelike. Image quality is uniform from corner

to corner, thanks to 3D Gamma Correction circuitry.

And razor-sharp picture details result from a

3D Comb Filter that minimizes cross-color

or “dot noise” distortion.

PICTURE YOURSELF IN THE

WIDESCREEN FUTURE.

DVD today…HDTV tomorrow?

Whatever happens, you’ll be taking

a giant step in the right direction -

because your giant-screen Sony

Cineza Projector is capable

of projecting both 16:9

widescreen and 4:3 standard

ratio pictures. Widescreen

viewing gives you DVD and

letter boxed VCR movies

the way they were meant to be seen. And with Sony’s

DTV-ready projection technology, you’ll have input

capability for multiple signals - including today’s

composite and S-video TV signals, future DTV and

HDTV signals, ultra high-resolution XGA computer

signals, even progressive scan signals from advanced

digital components.

A NEW ANGLE ON VISUAL ENTERTAINMENT.

The Cineza Projector is designed to give everyone

the best seat in the house. In fact, it’s the first video

projector with the Side Shot

™

feature - digital

keystoning which means you’ll have horizontal as

well as vertical adjustment capability. You can place

your projector at an angle to your screen, rather than

in the middle of the room, then use your Remote

Commander

control to correct for “keystone” effect.

Your picture is magnificent -- and your audience sits

front and center. You can also use an optional Sony

projector stand that lets you angle your projector,

then lock in vertical and horizontal adjustments.

PLUG, PLAY, AND WATCH.

What do you want to do tonight? Your Cineza

Projector makes it easy. You can connect directly to

your TV, VCR, DVD player, even component TV tuner

or PlayStation

video game console. So you can

carry it to a child’s room for video games, a bed-

room for late-night movies, or even over to a

friend’s house to watch the big game with a big

audience. Or, you can use Sony’s optional IFU-HS1

Signal Interface Unit to link all your components in a

single, simple system, with single-cable hookup to

your Cineza Projector.

EXPERIENCE THE FULL POTENTIAL OF DVD DIGITAL SATELLITE TV

DIGITAL PHOTOS AND THE NEXT GENERATION OF VIDEO GAMES.

DIGITAL PHOTOS AS BIG AS LIFE.

Want to give home videos the big-screen impact

of Hollywood productions? Plug in your Sony

Handycam

camcorder, and let a Cineza Projector

bring out your star quality. And you’ll have direct

input for Memory Stick

™

media - so if you take digital still photos you

can share giant-screen still images in JPEG format with family and

friends. Your Cineza Projector experience can keep on growing as

you move into the digital future.

ULTRA-QUIET FAN.

With your Cineza Projector, a whisper-quiet cooling fan won’t distract you from the cinematic experience of your giant-screen picture.

VIDEO MEMORY.

You can store picture control settings in memory for multiple home entertainment components, including VHS tape, DVD disk, TV programs, or computer input - then switch quickly by remote control to the ideal setting for whatever you’re watching.

PRESET SIGNAL INPUT DATA.

Once you input your video signals, you can instantly select the best image reproduction mode.

FULL-FUNCTION BACKLIT REMOTE.

With the supplied infrared RM-PJHS1 Remote Commander unit, controlling your projector is simple - and a backlit panel helps you see the controls when room lights are low.

USER-FRIENDLY ON-SCREEN DISPLAY.

On-screen menus guide you through projector setup and input selection.

MULTI-LANGUAGE MENUS.

You can choose from nine languages for menu display: English, French, German, Spanish, Italian, Portuguese, Japanese, Chinese, or Korean.

STEREO SPEAKERS.

You’ll have a pair of 2W(max.) stereo speakers for sound from components you hook up directly, like a camcorder or video game.

EASY LAMP & FILTER EXCHANGE.

You can easily exchange both the projection lamp and filter. On-screen messages prompt you when it’s time to make a change.

MORE SONY CINEZA PROJECTOR FEATURES

1-8OO-472-SONY ext. HS1

www.sony.com/cineza

Viewable area, measured diagonally.

CINEZA HS1
