Operating Instructions

Before operating the unit, please read this manual and supplied Quick Reference Manual
thoroughly and retain it for future reference.

VPL-FH35/FH30
VPL-FX35/FX30

Not all models are available in all countries and area. Please check
with your local Sony Authorized Dealer.

© 2010 Sony Corporation

Table of Contents

Overview

Location and Function of Controls .... 3

Main Unit .....................................3

Connector Panel ...........................4

Remote Commander and Control

Panel ..........................................5

Preparation

Connecting the Projector ................... 8

Connecting a Computer ................8

Connecting a Video Equipment ... 9

Connecting an External Monitor and

Audio Equipment .................... 11

Projecting/Adjusting an

Projecting an Image ......................... 12

Adjusting the Focus, Size, and

Position of the Projected

image ....................................... 13

Turning Off the Power ................ 14

Adjustments and Settings
Using a Menu

Using a MENU ................................ 15

The Picture Menu .............................16

The Screen Menu ............................. 18

The Function Menu .......................... 22

The Operation Menu ........................ 23

The Connection/Power Menu .......... 24

The Installation Menu ...................... 25

The Information Menu .....................26

Network

Using Network Features ...................27

Displaying the Control Window of

the Projector with a Web

Browser ...................................27

Confirming the Information

regarding the Projector ............28

Operating the Projector from a

Computer .................................28

Using the e-mail report

Function ...................................28

Others

Indicators ..........................................30

Messages List ...................................31

Troubleshooting ................................32

Replacing the Lamp ..........................34

Cleaning the Air Filter ......................36

Removing/Attaching the Projection

Lens ...............................................37

Removing ....................................37

Attaching .....................................37

Attaching the Projection Lens

Adapter to the Projection

Lens .........................................37

Specifications ...................................39

Projection Distance and Lens Shift

Range ............................................47

Dimensions .......................................51

Index .................................................54

2

Table of Contents

B Overview

3q

q

2

Location and Function of Controls

Main Unit

8

qa qd9q;4 1 4 5

s

a Lens (page 37)

b Focus ring (page 13)

c Zoom lever (page 13)

d Lens shift dial (page 13)

e Front panel (page 37)

f Rear panel (pages 34, 36)

g Ventilation holes (intake)

h Ventilation holes (exhaust)

Caution

Do not place anything near the ventilation
holes as this may cause internal heat
buildup. Do not place your hand near the
ventilation holes and the circumference as
this may cause injury.

f

7

qgqh

l Connector panel (page 4)

m Remote control detector

The remote control detectors are located
at the front and rear of the projector.

n Adjusters (page 13)

o Antitheft lock

Connects to an optional antitheft cable
manufactured by Kensington.
For details, visit Kensington’s web site.
http://www.kensington.com/

p Antitheft bar

Connects to a commercially available
antitheft chain or wire.

Overview

6

qd

i ON/STANDBY indicator

(page 30)

j LAMP/COVER indicator

(page 30)

k Control panel (page 5)

Location and Function of Controls

3

Connector Panel

56 23

qa 9

8q; 32 4

56 1 7 1 7

Input (page 8)

a INPUT A

Video: RGB/YPBPR input connector

(RGB HD VD/YP

Audio: Audio input connector (AUDIO)

BPR)

b INPUT B

Video: RGB input connector (RGB)
Audio: Audio input connector (AUDIO)

c INPUT C

Video: DVI-D input connector (DVI-D)
Audio: Audio input connector (AUDIO)

d INPUT D (VPL-FH35/FH30 only)

Video: HDMI input connector (HDMI)
Audio: HDMI input connector (HDMI)

e S VIDEO (S VIDEO IN)

Video: S video input connector
Audio: Audio input connector (AUDIO

L [MONO]/R)

f VIDEO (VIDEO IN)

Video: Video input connector
Audio: Audio input connector (AUDIO

L [MONO]/R)

Notes

• The audio input connectors of the projector
are for output to external equipment.

Connect external audio equipment to
output an audio

• The audio inputs of INPUT B and INPUT C
are shared. The audio inputs of S VIDEO
and VIDEO also are shared.

(page 11).

Output (page 11)

g OUTPUT

Video: Monitor output connector

(MONITOR)

Audio: Audio output connector

(AUDIO)

Note

This connector outputs the projected image or
audio. The image is output as a computer signal
input from the RGB input connector (INPUT
A, INPUT B) or a video signal input from the
YP

BPR input connector (INPUT A).

Others

h RS-232C connector

RS-232C compatible control connector

i LAN connector (page 27)

j CONTROL S input connector

(DC power supply) (CONTROL S
IN PLUG IN POWER)

Connects to the CONTROL S output
connector on the supplied Remote
Commander with a connecting cable
(stereo mini plug (not supplied)) when
using it as a wired Remote Commander.
You do not need to install batteries in the
Remote Commander, as the power is
supplied from this connector.

k AC IN (∼) socket

Connects the supplied AC power cord.

4

Location and Function of Controls

Remote Commander and Control Panel

9

Remote Commander

7

ONSTANDBY

INPUT

ABC

DEF

S

VIDEO

VIDEO

ENTER

KEY-

STONE

MUTING

PIC

AUDIO

TWIN FREEZEAPA

ID MODE

1 2 3

ECO

MODE

RESETRETURN

SHIFTZOOMFOCUS

+

–

MENU

ASPECT PATTERN

D ZOOM VOLUME

+

–

1

2

6

3

4

5

8

Control Panel

3126

ECO

ENTER

MODE

MENU INPUT

a Turning on the power/Going to

standby

? (On) key
1 (Standby) key

b Selecting an input signal

(page 12)

INPUT key (main unit)
Direct input select keys (Remote
Commander)

VPL-FH35/FH30: The E and F keys are
not used with this projector.
VPL-FX35/FX30: The D, E, and F keys
are not used with this projector.

c Operating a menu (page 15)

ENTER /V/v/B/b (arrow) keys
MENU key
RETURN key
RESET key

d Adjusting the image (page 13)

FOCUS key

This function is not provided in this
projector.

ZOOM key

This function is not provided in this
projector.

SHIFT key

This function is not provided in this
projector.

ASPECT key (pages 18, 20)

Changes the aspect ratio of the projected
image.

KEYSTONE key

Adjusts the vertical trapezoidal
distortion of the image manually. When
you press this key, the Keystone menu is
displayed. Use the arrow keys (V/v/B/
b) for adjustment.

PATTERN key (page 13)
APA (Auto Pixel Alignment) key

Automatically adjusts a picture to its
clearest while a signal is input from a
computer. You can cancel the adjustment
by pressing the APA key again while
adjusting.

Note

Use this key when inputing a computer

*

signal via the RGB input connector
(INPUT A, INPUT B).

Overview

*

Location and Function of Controls

5

e Using various functions during

projecting

D ZOOM (Digital Zoom) +/– key

*1

Enlarges a portion of the image while
projecting.

1 Press the D ZOOM + key to display

the digital zoom icon on the projected
image.

2 Press the V/v/B/b keys to move the

digital zoom icon to the point on the
image you wish to enlarge.

3 Press the D ZOOM + key or the D

ZOOM – key repeatedly to change the
enlargement ratio. The image can be

enlarged up to 4 times.
Press the RESET key to restore the
previous image.

TWIN (Twin Picture) key
(VPL-FH35/FH30 only)

You can project the images from two
input signals on the screen as a main
picture and subpicture at the same time.
To switch between one and two pictures,
press the TWIN key on the Remote
Commander.

One picture display

TWIN key

Two pictures display

(A) Main picture (B) Subpicture

You can select the image to project to the
main picture.
The subpicture is preset to display the
image from INPUT B.
For details on combinations of input
signals, see “Combinations of Input
Signals” on page 46.

Notes

• When displaying a two pictures, the ?
(On) key, 1 (standby) key, INPUT key,
and MUTING (PIC) key are available.

• When “Screen Aspect” (page 25) is set
to “4:3,” the two picture function is not
available.

• When displaying a two pictures, the
input signal icon does not appear in
the input select window (page 12).

• Picture settings set for one pictures may
not be reflected as two pictures.

MUTING key

PIC: Cuts off the image. Press again to

restore the image.

AUDIO: Mutes the audio output. Press

again to restore the previous volume.

VOLUME +/– key

For adjusting the volume output from
the audio output connector of the
projector.

FREEZE key

*2

Pauses a projected image. Press again to
restore the image.

Notes

*1: Use this key when inputting a

computer signal. But it may not be
enabled, depending on the resolution
of the input signal and when
displaying a two pictures (VPL-FH35/
FH30 only).

*2: Use this key when inputting a

computer signal.

f Setting the energy–saving mode

easily

ECO MODE key

“Lamp Mode,” “Power Saving Mode,”
and “Standby Mode” for energy-saving
can be set easily.

1 Press the ECO MODE key to display

the ECO Mode menu.

ECO Mode Menu

ECO Mode

ECO

User

Sel Back

6

Location and Function of Controls

2 Press the V/v key or ECO MODE key

to select ECO or User mode.
ECO: Sets each mode to the optimum

energy-saving value.
Lamp Mode: Standard
Power Saving Mode: Standby
Standby Mode: Low
(go to step 6)

User: Sets each item of the energy-

saving mode menu as you desire
(go to step 3).

3 Select “User” then press the b key.

The setting items appear.

User

Lamp Mode Standard

Power Saving Mode Off

Standby Mode Standard

Set

Sel Back

4 Press the V/v key to select the ECO

Mode item then press the b key or the
ENTER key.

5 Press the V/v key to select the setting

value.

6 Press the RETURN key to restore the

previous image.
For details on ECO Mode settings, see
“Lamp Mode” (page 22) on the Function
menu and “Standby Mode” (page 24)
and “Power Saving Mode” (page 24) on
the Connection/Power menu.

You do not need to install batteries in the
Remote Commander, as the power is
supplied from the projector.

About Remote Commander operation

• Direct the Remote Commander toward the
remote control detector.

• The shorter the distance between the
Remote Commander and the projector is,
the wider the angle within which the
Remote Commander can control the
projector becomes.

• If there is any obstruction between the
Remote Commander and the remote
control detector on the projector, the
projector may not be able to receive
signals from the Remote Commander.

Overview

Others

g Infrared transmitter

h ID MODE 1/2/3 switch (page 23)

Sets an ID mode of the Remote
Commander. If you assign a different ID
number to each projector when multiple
projectors are used, you can control only
the projector with the same ID mode as
that of the Remote Commander.

i CONTROL S output connector

Connects to the CONTROL S input
connector on the projector with a
connecting cable (stereo mini plug (not
supplied)) when using the Remote
Commander as a wired one.

Location and Function of Controls

7

B Preparation

Connecting the Projector

Notes

• Turn off all equipment before making any connections.

• Use the proper cables for each connection.

• Insert the cable plugs firmly; Loose connections may reduce performance of picture signals or
cause a malfunction. When pulling out a cable, be sure to grip it by the plug, not the cable itself.

• For more information, refer also to the instruction manuals of the equipment you are connecting.

• Use a no-resistance audio cable.

Connecting a Computer

Connection with a computer is explained for each input signal.

INPUT A

For connection when there is some distance between a computer and the projector.

Mini D-sub 15-pin
– BNC cable
(not supplied)

RGB output

connector

Computer

Audio output

connector

Audio cable
(Stereo mini plug)
(not supplied)

INPUT B

For connecting a computer with an RGB output connector.

RGB output

connector

Audio output

connector

Computer

Note

Mini D-sub 15-pin
cable
(not supplied)

Audio cable
(Stereo mini plug)
(not supplied)

It is recommended that you set the resolution of your computer to 1920 × 1200 pixels (VPL-FH35/
FH30) or 1024 × 768 pixels (VPL-FX35/FX30) for the external monitor.

8

Connecting the Projector

INPUT C

For connecting a computer with a DVI-D output connector.

DVI-D output

connector

Audio output

connector

Computer

DVI-D cable
(not supplied)

Audio cable
(Stereo mini plug)
(not supplied)

INPUT D (VPL-FH35/FH30 only)

For connecting a computer with a HDMI output connector.

HDMI output

connector

HDMI cable
(not supplied)

Computer

Notes

INPUT D HDMI

• The HDMI connector of this projector is not compatible with DSD (Direct Stream Digital) Signal
or CEC (Consumer Electronics Control) Signal.

• Be sure to use the HDMI cable with an HDMI logo.

Preparation

Connecting a Video Equipment

Connections with a VHS video deck, DVD player, or BD player are explained for each input
signal.

S VIDEO IN

For connecting video equipment with an S-video output connector.

S video cable
(not supplied)

S video output

connector

Video equipment

Audio output

connector

Audio cable (Phono plug × 2) (not supplied)

Connecting the Projector

9

VIDEO IN

For connecting video equipment with a video output connector.

Video equipment

Video output

connector

Audio output

connector

Audio cable (Phono plug × 2) (not supplied)

Video cable
(not supplied)

INPUT A

For connection when there is some long distance between the video equipment and projector.

Component – BNC
cable (not supplied)

BPR output

YP

connector

Audio output

Video equipment

connector

Audio cable (Phono plug
× 2 – stereo mini plug)
(not supplied)

INPUT D (VPL-FH35/FH30 only)

For connecting video equipment with a HDMI output connector.

HDMI output

connector

HDMI cable
(not supplied)

Video equipment

INPUT D HDMI

Notes

• The HDMI connector of this projector is not compatible with DSD (Direct Stream Digital) Signal
or CEC (Consumer Electronics Control) Signal.

• Be sure to use the HDMI cable with an HDMI logo.

10

Connecting the Projector

To attach the HDMI cable

Fix the cable to the cable tie holder at the bottom of the projector, using a commercially
available cable tie, as in the illustration.
Use a cable tie of less than 1.9 mm × 3.8 mm in thickness.

Cable tie holder

Bottom of the projector

Cable tie
(commercially
available)

Connecting an External Monitor and Audio Equipment

OUTPUT

Projected images and input audio can be output to display equipment such as a monitor and
audio equipment such as speakers with a built-in amplifier.

Display equipment

Audio equipment

RGB input

connector

Audio input

connector

Mini D-sub 15­pin cable
(not supplied)

Audio cable
(stereo mini plug)
(not supplied)

Preparation

Note

This connector outputs the projected image or audio. The image is output as a computer signal input
from the RGB input connector (INPUT A, INPUT B) or a video signal input from the YP

BPR input

connector (INPUT A).

Connecting the Projector

11

B Projecting/Adjusting an Image

Projecting an Image

The size of a projected image depends on the distance between the projector and screen. Install
the projector so that the projected image fits the screen size. For details on projection distances
and projected image sizes, see

4

Computer

“Projection Distance and Lens Shift Range” (page 47).

Input select window

5

Input

Video

S-Videoo
Input-A
Input-B
Input-C
Input-D

Sel Skip

6

2

Video equipment

1 Plug the AC power cord into a wall

outlet.

2 Connect all equipment to the projector

(page 8).

3 Turn on the projector.

Press the ?/1 key on the main unit or the
? key on the Remote Commander.

4 Turn on the connected equipment.

5 Select the input source.

Press the INPUT key on the projector to
display the input select window. Press
the INPUT key repeatedly or the V/v
key to select an image to be projected.
The signal icon appears on the right
side in the input select window when a
signal is input.

3

INPUT

5

Projector

You can select the input source using
Direct input select keys on the Remote
Commander

1

(page 5).

Wall outlet

6 Switch your computer to output to

external display by changing your
computer’s setting.

How to switch the computer to output to
the projector varies, depending on the
type of computer.

(Example)

+

7 Adjust the focus, size, and position of

the projected image (page 13).

12

Projecting an Image

Adjusting the Focus, Size, and Position of the Projected image

Focus Size (Zoom) Position (Lens shift)

Projecting/Adjusting an Image

Adjusting the tilt of the projector with the adjusters

When the projector is installed on an uneven
surface and the projected position is low, you
can adjust using the adjusters. To correct any
trapezoidal distortion of the projected
image, use the Keystone correction feature
(pages 5,

Notes

• Be careful not to let the projector down on your fingers.

• Do not push hard on the top of the projector with the adjuster extended.

• Since the Keystone adjustment is an electronic correction, the image may be deteriorated.

25).

Displaying a pattern for adjusting an image

You can display a pattern for adjusting the projected image with the PATTERN key on the
Remote Commander. Press the PATTERN key again to restore the previous image.

Projecting an Image

13

Turning Off the Power

1 Press the ?/1 key on the main unit or

the 1 key on the Remote Commander.

The message appears if you press the ?/

1

key on the main unit. Press it again
according to the message.
The fan continues to run for a while to
reduce internal heat.

2 Unplug the AC power cord from the

wall outlet.

You may unplug the AC power cord
before the fan stops.

Note

To move the projector just after turning it
off, be sure to wait until the fan stops
before unplugging the AC power cord.
Unplugging the AC power cord before the
fan stops may cause a malfunction.

To erase the confirmation message

The message disappears if you press any key
other than the
key on the Remote Commander, or if you do
not press any key for a while.

?/1 key on the main unit or 1

To turn off the power with the key
on the main unit without a
confirmation message being
displayed

Hold the ?/1 key on the main unit pressed
for a few seconds.

14

Projecting an Image

B Adjustments and Settings Using a Menu

Using a MENU

Note

The menu displays used for the explanation below may be different depending on the model you are
using.

1 Press the MENU key to display the

menu.

2 Select the setting menu.

Use the V or v key to select the setting
menu then press b or ENTER

Setting menu


Picture Mode Standard
Reset
Contrast 80
Brightness 50
Color 50
Hue 50
Color Temp. Middle
Sharpness 50
Expert Setting

Sel Set Back

key.

3 Select the setting item.

Use the V or v key to select the setting
menu then press b or ENTER key.
To return to the selection screen of the
setting menu, press the B key or the
RETURN key.

Setting items


Picture Mode Standard

Reset
Contrast 80
Brightness 50
Color 50
Hue 50
Color Temp. Middle
Sharpness 50
Expert Setting

Sel Set Back

4 Make the setting or adjustment for the

selected item.

Menu operation differs depending on the
setting item. If the next menu window is
displayed, select the item according to
the operations in step 3 and then press
the ENTER key to register the setting.

To return to the selection screen of the
setting items, press the B key or the

RETURN key. Also, to reset the setting
value of an item to its factory preset
value, press the RESET key during
setting or adjusting.

Using a pop-up menu

Press the V/v/B/b key to select an item.
Press the ENTER key to register the
setting. The previous screen is restored.

Selecting items

Function

Audio Output Volume

Smart APA Standard

CC Display
Lamp Mode Standard
Lamp Timer Reset
Background Blue
Start Up Image On

Sel Set Back

On

Off

Using the setting menu

Press the V or v key to select the item.
Press the ENTER key to register the
setting. The previous screen is restored.

Picture Mode

Dynamic

Standard

Presentation

Sel Back

Using the adjustment menu

To increase the number, press the V or b
key and to decrease the number, press
the v or B key. Press the ENTER key to
register the setting. The previous screen
is restored.

Contrast

Min

80

Adjust Back

Max

5 Press the MENU key to clear the

menu.

The menu disappears automatically if no
key is pressed for a while.

Adjustments and Settings Using a Menu

Using a MENU

15

The Picture Menu

For adjusting the picture for each input signal.

Setting items Description

Picture Mode Dynamic: Emphasizes the contrast to produce a “dynamic” picture.

Reset The picture settings are initialized to their factory preset values.

Contrast The higher the setting, the greater the contrast. The lower the setting, the lower

Brightness The higher the setting, the brighter the picture. The lower the setting, the darker

*2 *4

Color

*2 *4 *5

Hue

Color Temp.

Sharpness

Expert Setting

Film
Mode

Black Level
Adj.
(Adjust)

Gamma
Mode

Standard: Makes the picture be natural and well balanced.
Presentation

*1

: Makes the picture bright to suit for a presentation.

However, “Picture Mode” and “Custom1,” “Custom2,” and “Custom3” of
“Color Temp.” do not return to the factory preset values.

the contrast.

the picture.

The higher the setting, the greater the intensity. The lower the setting, the lower
the intensity.

The higher the setting, the more greenish the picture becomes. The lower the
setting, the more reddish the picture becomes.

*3

High/Middle/Low: The higher the temperature, the more bluish the picture.
The lower the temperature, the more reddish the picture.
Custom1/ Custom2/ Custom3: An adjusted color temperature setting can be
stored for each item.
The factory settings are Custom1: High, Custom2: Middle, Custom3: Low.

*6

The higher the setting, the sharper the picture. The lower the setting, the softer
the picture.

Auto: Precisely reproduces the image from a film source to suit the original

*2 *7

film source. Normally, select this option.
Off: Select this option if the images are rough around the edges when “Auto” is
selected.

High/Low/Off: Emphasizes dark portions of the projected image to suit your
taste.

*2

Graphics1: Improves the correction of halftones to give a brighter image. This

*1

can be useful when projecting colored images, such as photos, in a bright
location.
Graphics2: Improves the reproduction of halftones. This reproduces colored
images, such as photos, in more natural tones.

Text: Contrasts black and white. Suitable for images that contain lots of text.
DICOM GSDF Sim.

*8

: Gamma setting is in accordance with the Grayscale

Standard Display Function (GSDF) of the Digital Imaging and
Communications in Medicine (DICOM) standards.

Notes

*1: When a computer signal is input, this option is available.
*2: When a video signal is input, this option is available.
*3: When “Picture Mode” is set to the item other than “Presentation,” this option is available.
*4: When a B & W signal is input, this option is not available.

16

The Picture Menu

*5: When an analog TV signal is input, this option may not available, depending on the color system.
*6: When a video signal is input, this option is available (VPL-FX35/FX30).
*7: When a progressive signal is input, this option is not available.
*8: Available when a computer signal is input from the DVI-D input connector (INPUT C) and

HDMI input connector (INPUT D). This projector is not to be used as a device for medical
diagnosis (VPL-FH35/FH30).

Adjustments and Settings Using a Menu

The Picture Menu

17

The Screen Menu

For adjusting the size, position, and aspect ratio of the projected image for each input signal.

Setting items Description

*1

Aspect

When the
computer
signal is
input

When the
video signal
is input

V Center

*2 *3

Vertical Size

Over Scan

*3

Adjust Signal

APA

Phase

Pitch

Shift

*4 *5

*4

*6

Changes the aspect ratio of the projected image. (page 20).

Full1: Displays the image to fit the maximum projected image size without
changing the aspect ratio of the input signal.

Full2: Displays the image to fit the maximum projected image size.

Normal: Displays the image on the center point of the projected image

without changing the resolution of the input signal or enlarging the image.

4:3: Displays the image to fit the maximum projected image size with an
aspect ratio fixed to 4:3.
16:9: Displays the image to fit the maximum projected image size with an
aspect ratio fixed to 16:9.

*2

Full

: Displays the image to fit the maximum projected image size.

Zoom: Display the center point of the projected image to zoom.

Adjust the whole projected image by moving up and down on the screen.
As the selected number increases, the screen moves up, and as the selected
number decreases, the projected image moves down.

*2 *3

Reduces or enlarges the image vertically.
The projected image is enlarged as the setting increases and reduced as the
setting decreases. If the subtitle of a movie, etc. cannot be seen, use this
together with “V Center.”

On/Off: Hides the outline of the image when set to “On.” Select “On” if
noise appears along the edge of the image.

*6

Adjusts the image of a computer signal. Use this item if the edge of the
image is cut and reception is bad.

Automatically adjusts the projected image to an optimum quality when you
press the ENTER key.

*4

Adjusts the dot phase of the display pixel and the input signal. Set to the
value where looks clearest.

The higher the setting, the wider the horizontal image elements (pitch). The
lower the setting, the narrower the horizontal image elements (pitch).

H: The higher the setting, the farther right the image is projected on the
screen. The lower the setting, the image farther left.
V: The higher the setting, the farther up the image is projected on the screen.
The lower the setting, the image farther down.

Notes

*1: • Note that if the projector is used for profit or for public viewing, modifying the original picture

by switching to the aspect mode may constitute an infringement of the rights of authors or
producers, which are legally protected.

• Depending on the input signal, setting items for aspect ratio or some other setting items cannot

be set in some cases, or changing the aspect ratio setting may have no effect.

• A part of the image may be displayed in black, depending on the setting item.

*2: Available for VPL-FH35/FH30 only.

18

The Screen Menu

*3: Available when a video signal is input from the YPBPR input connector (INPUT A), DVI-D input

connector, and HDMI input connector.

*4: Available when a computer signal is input from the RGB input connector (INPUT A, INPUT B).
*5: If the projected image includes large amount of black portion around it, the APA function will

not work properly and a part of the image may not be displayed on the screen and also optimum
image cannot be obtained, depending on the type of input signal. In this case, adjust the “Phase,”
“Pitch,” and “Shift” items manually.

*6: Available when a computer signal is input from the RGB input connector (INPUT A, INPUT

B) or a video signal is input from the YP
only when “Aspect” is set to “Zoom.”

BPR input connector (INPUT A). This option is available

Adjustments and Settings Using a Menu

The Screen Menu

19

Aspect

VPL-FH35/FH30

Input signal Recommended

(4:3) (Full1)

setting value and

projected image

*1 *2

*1: If you select “Normal,” the image is

projected in the same resolution as the
input signal without changing the aspect
ratio of the original image.

*2: If you select “Full2,” the image is projected

(16:9) (Full1)

*1 *2

to fit the projected image size, regardless
of the aspect ratio of the image.

Computer signal

(16:10) (Full1)

*1

*3: Depending on the input signal, the

projected image may be projected as
illustrated below. In this a case, select
“16:9.”

(4:3) (4:3)

*3 *5

*4: Depending on the input signal, the image

may be projected as illustrated below. In
this a case, select “Zoom.”

(16:9) (16:9)

*4 *5

Video signal

*5: If you select “Full,” the image is projected

to fit the projected image size, regardless
of the aspect ratio of the image.

20

The Screen Menu

VPL-FX35/FX30

Input signal Recommended

(4:3) (Full1)

setting value and

projected image

*1

*1: If you select “Normal,” the image is

projected in the same resolution as the
input signal without changing the aspect
ratio of the original image.

*2: If you select “Full2,” the image is projected

(16:9) (Full1)

*1 *2

to fit the projected image size, regardless
of the aspect ratio of the image.

Computer signal

(16:10) (Full1)

*1 *2

*3: Depending on the input signal, the

projected image may be projected as
illustrated below. In this a case, select
“16:9.”

Adjustments and Settings Using a Menu

(4:3) (4:3)*3

*4: Depending on the input signal, the image

may be projected as illustrated below. In
this a case, select “Zoom.”

(16:9) (16:9)

*4

Video signal

The Screen Menu

21

The Function Menu

The Function menu is used for setting various functions of the projector.

Setting items Description

Audio Output Vol. The higher the setting, the higher an audio level output from the audio

Smart APA On/Off; When set to “On,” executes APA automatically when a signal is

CC Display CC1/CC2/CC3/CC4/Text1/Text2/Text3/Text4: Select the closed

Lamp Mode High/Standard: When set to “High,” the image becomes brighter, and

Lamp Timer Reset When replacing the lamps, resets the lamp timer (page 35).

Background Blue/Black: Selects the background color of the projected image when no

Start Up Image On/Off: When set to “On,” the Start Up Image is displayed on the screen

Note

*1: Executes APA when a computer signal is input via the RGB input connector (INPUT A, INPUT

B).

output connector. The lower the setting, the lower the audio level.

*1

input.

caption service (Captions or Text).
Off: Closed caption does not appear.

power consumption becomes higher.

signal is input.

upon startup of the projector.

22

The Function Menu

The Operation Menu

The Operation Menu is used for setting for the operations by using the menu or the Remote
Commander.

Setting items Description

Language Selects the language used in the menu and on-screen displays.

Menu Position

Status On: All on-screen statuses are enabled.

IR Receiver Front & Rear/Front/Rear: Selects the remote control detectors (IR Receiver)

ID Mode All/1/2/3: Assigns an ID number to the projector. When set to “All,” you can

Security Lock

Panel Key Lock On/Off: When set to “On,” locks all the control panel keys of the projector.

*1

Bottom Left/Center: For selecting the position of the menu displayed on the
projected image.

Off: Turn off the on-screen displays except for the menus, message when
turning off the power, and warning messages.

on the front and rear of the projector.

control the projector with the Remote Commander independently of the
assigned ID Mode. Refer also to “ID MODE 1/2/3 switch” of the Remote
Commander on page 7.

*2

On/Off: This function enables restriction of the projector to autherized users
by password. The setting procedures for security locking are as follows:

1 Select “On” then press the ENTER key to display the setting menu.
2 Input the password with the MENU, V/v/B/b, and ENTER keys. (The

default password setting is “ENTER, ENTER, ENTER, ENTER.”)

3 Input a new password with the MENU, V/v/B/b, and ENTER keys.
4 Enter the password again to confirm.

Enter the password when you turn on the projector after disconnecting and
reconnecting the AC power cord.
When it is set to “Off,” you can cancel the security lock. You are required to
input the password again.
If you fail to enter the correct password after three consecutive times, the
projector cannot be used. In this case, press the ?/1 key to go Standby mode
then turn on the power again.

However, you can enable operation by performing the following even when
“Panel Key Lock” is set to “On.”

• Press and hold the ?/1 key for approximately 10 seconds during Standby

mode.
c The projector turns on.

• Press and hold the MENU key for approximately 10 seconds during power
on.
c “Panel Key Lock” is set to “Off” and enables operation of all control panel

keys on the projector.

Adjustments and Settings Using a Menu

Notes

*1: Available for VPL-FH35/FH30 only
*2: You will not be able to use the projector if you forget your password. If you call qualified Sony

personnel because you have forgotten the password, you will be asked to verify the projector’s
serial number and your identity. (This process may differ in other countries/regions.) Once your
identity has been confirmed, we will provide you with the password.

The Operation Menu

23

The Connection/Power Menu

The Connection/Power menu is used for setting for the connections and power.

Setting items Description

Network Setting

IP Address Setup Aut o (D HC P): The IP address is assigned automatically from the

IP Address/ Subnet
Mask/ Default
Gateway/Primary
DNS/Secondary
DNS

Input-A Signal Sel. Auto/Computer/Video GBR/Component: When set to “Auto,”

Color System Auto/ NTSC3.58/PAL/SECAM/NTSC4.43/PAL-M/PAL-N: When set

Standby Mode

Power Saving Mode Lamp Cutoff: The lamp turns off automatically and power

Direct Power On On/Off: When set to “On,” you can turn the power on without going

*2

DHCP server such as a router.
Manual: To specify the IP Address manually.

When “Manual” is selected for “IP Address Setup,” select the item
with the B or b key and input the value with V or v key. When all
items are entered, select “Apply” then press the ENTER key. The
entered settings will be registered.

selects the type of video signal input automatically when “Input-A” is
selected with the INPUT key.

to “Auto,” selects the color system automatically when “S Video” or
“Video” is selected with the INPUT key.

Standard/Low: When set to “Low,” lowers power consumption in
Standby mode.

consumption is reduced if no signal is input for 10 minutes. The lamp
lights again when a signal is input or any key is pressed. In Lamp
Cutoff, the ON/STANDBY indicator lights in orange (page 30).
Standby: The power will be turned off automatically and the projector
goes to Standby mode if no signal is input for 10 minutes.
Off: The Power Saving Mode is released.

to Standby mode when the AC power cord is connected to a wall
outlet. You can also unplug the AC power cord without going to
Standby mode when you turn off the projector.
You may unplug the AC power cord without going to Standby mode.

*1

*1

Notes

*1: The image may not be adjusted properly depending on the type of input signal. In such a case,

adjust it manually to suit to the connected equipment.

*2: When “Standby Mode” is set to “Low,” the network and network control function cannot be

operated while the projector is in standby mode.

24

The Connection/Power Menu

The Installation Menu

The Installation menu is used for installing the projector.

Setting items Description

Image Flip HV/H/V/Off: Flips the projected image horizontally and/or vertically

Installation Attitude Right Side Up/Upside Down: Change the cooling setting to suit to the

High Altitude

*1

Mode

Screen Aspect

V Keystone

Panel Alignment

Color Matching

*3 *4

according to the installation method.

installation attitude. Continuing to use the wrong setting may affect
component reliability.

On/Off: Set to “On” when using the projector at an altitude of 1,500 m or
higher. Continuing to use the wrong setting may affect component
reliability.

*2

16:10/16:9/4:3: For switching the display area to suit to the screen.

The higher the setting, narrower the top of the projected image. The lower
the setting, the narrower the bottom.

*2 *5

This feature allows you to adjust the gaps in the color of characters or the
picture.
When set to “On,” “Adjust Color” and “Pattern Color” can be assigned and
adjusted.

Adjust Item: Selects how to make adjustments from below.

Shift: Shifts the whole picture and makes adjustments.
Zone: Selects the desired range and makes adjustments.

Adjust Color: Assigns the desired color to adjust the gaps in color. Select

“R” (Red) or “B” (Blue) to make adjustments based on “G” (Green).
Pattern Color: Select “R/G” (Red and Green) or “R/G/B” (White, all
colors) when “Adjust Color” is “R” (Red). Select “B/G” (Blue and Green)
or “R/G/B” (White, all colors) when the “Adjust Color” is “B” (Blue).
Adjust: The shift adjustment and zone adjustment of the color selected in
“Adjust Color” can be made with V/v/B/b buttons.
Reset: The panel alignment settings are initialized to their factory preset
values.

*2 *6

Adjust/Reset: For correcting the brightness and color of the whole
projected image manually from the signal level in six steps.

Adjustments and Settings Using a Menu

Notes

*1: Do not use the projector at an altitude of 2,700 m or higher.
*2: Available for VPL-FH35/FH30 only
*3: Depending on the position adjusted with the lens shift feature, the aspect ratio of the image may

change from the original or projected image may be distorted with Keystone adjustment.
*4: Since the Keystone adjustment is an electronic correction, the image may be deteriorated.
*5: Depending on the adjustment value of “Panel Alignment,” the color and aspect ratio may be

changed.
*6: The brightness and color of the projected image may not match completely, even after you adjust

“Brightness” and “Color.”

The Installation Menu

25

The Information Menu

The Information menu enables you to confirm various information on the projector, such as the
total usage hours of a lamp.

Items Description

Model Name Displays the model name.

Serial No. Displays the serial number.

fH / fV (horizontal
frequency/vertical
frequency)

Lamp Timer Indicates the total usage time of a lamp.

Note

*1: These items may not be displayed depending on the input signal.

*1

Displays the horizontal frequency/vertical frequency/signal type of the
current input signal.

26

The Information Menu

B Network

Using Network Features

Connection to the network allows you to operate the following features:

• Checking the current status of the projector via a Web browser.

• Remotely controlling the projector via a Web browser.

• Receiving the e-mail report for the projector.

• Making the network settings for the projector.

• Supports network monitoring and control protocol (Advertisement, PJ Talk, PJ Link, SNMP,

AMX DDDP [Dynamic Device Discovery Protocol]).

Notes

• The menu displays used for the explanation below may be different depending on the model you

are using.

• Supported Web browsers are Internet Explorer 6/7/8.

• The menu displays only English.

• If the browser of your computer is set to [Use a proxy server] when you have access to the projector

from your computer, click the check mark to set accessing without using a proxy server.

Displaying the Control Window of the Projector with a Web Browser

1 Connect the LAN cable.

LAN cable
(straight type)
(not supplied)

Hub, router, etc

LAN Connector

2 Set the network settings for the

projector using “Network Setting” on

the Connection/Power menu

(page 24).

3 Start a web browser on the computer,

enter the following in the address field,

then press the Enter key on your

computer.

http://xxx.xxx.xxx.xxx

(xxx.xxx.xxx.xxx: IP address for the

projector)

You can confirm the IP address of the
projector under “Network Setting” on
the Connection/Power menu.

The following window appears in the
Web browser:

Once you make the network settings, you
can open the Control window only by
performing step 3 of this procedure.

Network

Using Network Features

27

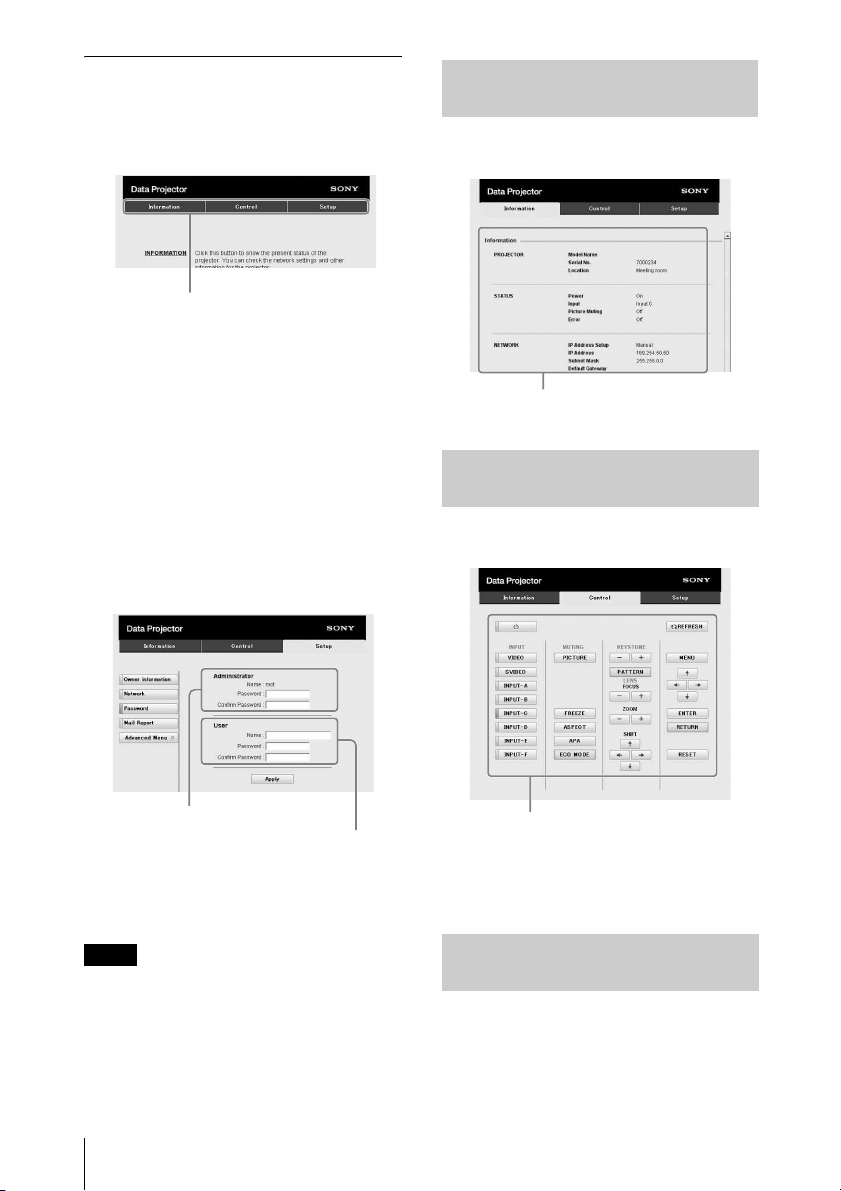

How to operate the Control window

Switching the page

Click one of the Page Switching buttons to
display the desired setting page.

Page Switching buttons

Setting the access limitation

You can limit a user for accessing any
particular page.

Administrator: Allowed access to all

pages

User: Allowed access to all pages except

the Setup page
Set under [Password] of the Setup page.
When you access the Setup page for the first
time, enter “root” for user name and enter
nothing for password.
The name of the administrator is preset to
“root.”

Confirming the Information regarding the Projector

You can confirm the current settings for the
projector on the Information page.

Information area

Operating the Projector from a Computer

You can control the projector from the
computer on the Control page.

Entry area for [Administrator]

Entry area for [User]

When you change the password, input a new
password after deleting the password
(*****) that was set.

Note

If you forget your password, consult with
qualified Sony personnel.

28

Using Network Features

Operation area

The functions of the keys shown in the
operation area are the same as those of the
keys on the supplied Remote Commander.

Using the e-mail report Function

Set the e-mail report function on the Setup
page.
Entered values will not be applied unless
you click on [Apply].

1 Click on [Owner information] to enter

the owner information recorded in the

mail report.

Owner information button

1

2 Set the timing of the e-mail report.

Click on [Mail Report] to open the Mail
Report page.
Lamp Reminder (Lamp1): Set the

timing for lamp replacement. To reset

Lamp Reminder, execute “Lamp

Timer Reset” on the projector

(page 22).

Maintenance Reminder: Set the timing

for maintenance. To reset

Maintenance Reminder, check the

RESET check box and then click on

[Apply].

Mail Report button

3 Enter the outgoing e-mail address in

e-

the Email Address box then check the
Report Timing check box of the e-mail
report to be sent.

4 Set the mail account for sending e-

mail reports.

Mail Address: Enter the e-mail address.
Outgoing Mail Server (SMTP): Enter

the address of outgoing mail server
(SMTP).

Required Authentication: Check this

check box if authentication is required
for sending e-mail.

Requires the use of POP

Authentication before send email
(POP before SMTP): Check this

check box to arrange for POP
authentication to be performed before
sending e-mail.

Incoming Mail Server (POP3): Enter

the address of the incoming-mail
server (POP3) to be used for POP
authentication.

Account Name: Enter the mail account.
Password: Enter the password.
SMTP Authentication: Check this

check box to arrange for SMTP
authentication to be performed before
sending e-mail.

Account Name: Enter the mail account.
Password: Enter the password.

Network

2

3

4

6
5

report.

When you click on [View] is pressed, the
contents of the e-mail report are
displayed.

6 Send the test mail.

Check on the Send test mail check box
then click on [Apply] to send your test
mail to the e-mail address you set.

Notes

• The e-mail report function is not available
because the network which Outbound Port25
Blocking is used cannot be connected to the
SMTP server.

• You cannot use the following characters to
enter the characters in the text box: “ ' ”, “ “
”, “ \ ”, “ & ”, “ < ”, “ > ”

Using Network Features

29

5 Confirm the contents of the e-mail

B Others

Indicators

The indicators allow checking the status and notify you of abnormal operation of the projector.
If the projector exhibits abnormal status, address the problem in accordance with the table
below.

ON/STANDBY indicator

Status Meaning/Remedies

Lights in red The projector is in Standby mode.

Flashes in green • The projector is ready to operate after having been turned on.

Lights in green The projector’s power is on.

Lights in orange The projector is in Power Saving Mode (lamp cut off).

Flashes in red The projector is in abnormal status. Symptoms are indicated by

Flashes twice The internal temperature is unusually high. Check the items below.

Flashes six times Unplug the AC power cord from a wall outlet. After checking that the

Other number of
flashes

• The lamp cools after the projector is turned off.

number of flashes. Address the problem in accordance with the
following. If the symptom is shown again, consult with qualified Sony
personnel.

• Check to see if nothing is blocking the ventilation holes.

• Check to see if the air filter is not clogged.

• Check if “Installation Attitude” on the Installation menu is correctly
selected.

ON/STANDBY indicator goes out, plug the power cord to a wall
outlet again then turn on the projector.

Consult with qualified Sony personnel.

LAMP/COVER indicator

Status Meaning/Remedies

Flashes in red Symptoms are indicated by number of flashes. Address the problem in

Flashes twice The rear panel or air filter unit are not attached securely.

Flashes three times The temperature of lamp is unusually high. Turn off the power and

30

Indicators

accordance with the following.

wait for lamp to cool then turn on the power again. If the symptom is
shown again, the lamp may be burnt out. In such a case, replace the
lamp with a new one (page 34).

Messages List

When any of the messages listed below appears on the projected image, address the problem in
accordance with the table below.

Message Meaning/Remedy Page

High temp.! Lamp off in
1 min.

Frequency is out of
range!

Please check Input-A
Signal Sel.

Please replace the Lamp
and clean the Filter.

Projector temperature is
high. High Altitude
Mode should be “On” if
the projector is being
used at high altitude.

Not applicable! Invalid key pressed. 5

The panel keys are
locked!

Check the items below.

• Check to see if nothing is blocking the ventilation holes.

• Check to see if the air filter is not clogged.

• Check if “Installation Attitude” on the Installation menu is
correctly selected.

Change the output setting of the connected equipment to one
for signals supported by the projector.

Set “Input-A Signal Sel.” to “Auto” or select the input signal
type to suit to the input signal.

Replace the lamp with a new one and clean the air filter. The
message appears whenever you turn on the power until you
replace the lamp and reset the lamp timer.

At an altitude of 1,500 m or higher, if you are not using the
projector, check the items below.

• Check that nothing is blocking the ventilation holes.

• Check that the air filter is not clogged.

• Check if “Installation Attitude” on the Installation menu is
correctly selected.

“Panel Key Lock” is set to “On.” 23

3, 25,
36

44

24

34, 36

3, 25,
36

Messages List

Others

31

Troubleshooting

Before asking to have the projector repaired, try to diagnose the problem, following the
instructions below.

Symptom Remedy Page

The power is not turned
on.

No image. Check if the connecting cable is connected to external

On-screen display does
not appear.

The aspect ratio of the
display is not right/the
image is displayed
smaller /a portion of
image does not appear.

The image is a
trapezoid.

The image is dark/too
bright.

The image is not clear. Check if the projector is in focus. 13

The image is noisy. Check if the connecting cable is connected to external

Check if the AC power cord is firmly connected. –

When the “Panel Key Lock” is set to “On,” you cannot turn on
the projector using the ?/1 key on the projector.

If the lamp, rear panel, or air filter unit is not attached securely,
the projector cannot be turned on.

equipment properly.

Check if the computer signal is set for output to an external
monitor. If you set your computer, such as a notebook
computer, to output the signal to both your computer’s display
and an external monitor, the picture of the external monitor
may not appear properly. Set your computer to output the
signal to only an external monitor.

Check if the input source is correctly selected. 12

Check if the picture is muted. 6

The on-screen display does not appear when “Status” in the
Operation menu is set to “Off.”

The image may not be displayed correctly with an input signal
the projector cannot interpret correctly. In such a case, set
“Aspect” manually.

Check if “Screen Aspect” is correctly selected. 25

The images become trapezoidal because of the projection
angle. In such a case, you can correct the trapezoidal
distortion, using a Keystone feature.

The settings for “Brightness,” “Contrast,” and “Lamp Mode”
affect brightness of the image. Check if the value is
appropriate.

The image will be dark when the lamp is burnt out. Check
“Lamp Timer,” and replace the lamp with a new one if
necessary.

The picture will not be clear if condensation has accumulated
on the lens. In such a case, let the projector sit for about two
hours with the power on.

equipment properly.

34, 36

18, 20

5, 25

16, 22

23

8

12

23

26

–

8

32

Troubleshooting

Symptom Remedy Page

No sound. Check that the connecting cables between the projector and

The Remote
Commander does not
work.

The fan is noisy. The sound from the fan is often greater than normal to cool the

external video or audio equipment are securely connected.

Check if the output setting of connected external audio
equipment is set for output the audio signal from the projector.

Audio is not output if audio muting is activated. 6

Check if the “Audio Output Vol.” is set to minimum. 6

Check that the batteries are installed correctly. –

Check that the batteries are not exhausted. –

Check if the “ID Mode” of the projector corresponds to that of
the Remote Commander.

Check the setting for “IR Receiver.” 23

lamp in the following cases.

• When “Lamp Mode” is set to “High.”

• The projector is in at high altitude (“High Altitude Mode” is
set to “On”)

• Temperature is very high

If the ventilation holes are blocked, the internal temperature of
the projector rises and the fan noise becomes larger.

8

–

7, 23

22, 25

3

Troubleshooting

Others

33

Replacing the Lamp

Replace the lamp with a new one if a message displayed on the projected image or the LAMP/
COVER indicator notifies you to replace the lamp (pages 30, 31).
Use an LMP-F230 projector lamp (for VPL-FX30)(not supplied), LMP-F272 projector lamp
(for VPL-FH30/VPL-FX35)(not supplied), LMP-F331 projector lamp (for VPL-FH35)(not
supplied) for replacement.

Caution

• The lamp remains hot after the projector is

turned off. If you touch the lamp, you may

burn your finger. When you replace the
lamp, wait for at least an hour after
turning off the projector for the lamp to
cool sufficiently.

• Do not allow any metallic or inflammable
objects into the lamp replacement slot after
removing the lamp, otherwise it may cause
electrical shock or fire. Do not put your
hands into the slot.

• If the lamp breaks, contact qualified

Sony personnel. Do not replace the lamp
yourself.

• When removing the lamp, be sure to pull it
out straight, by holding it by the specified
part. If you touch a part of the lamp other
than the specified part, you may be burned or
injured. If you pull out the lamp while the
projector is tilted, the pieces may scatter if
the lamp breaks any may cause injury.

1 Turn off the projector, and disconnect

the AC power cord from a wall outlet.

2 When the lamp has cooled

sufficiently, open the rear panel by
loosening the three screws.

Rear

Screws

3 Loosen the three screws on the lamp

then pull out the lamp by its grab.

Burn-out

34

Replacing the Lamp

Grab

Screws

4 Insert the new lamp all the way in until

it is securely in place. Tighten the
three screws.

New lamp

grab

Screws

5 Close the rear panel and tighten the

three screws.

Note

Be sure to install the lamp and rear panel
securely as it was. If not, the projector
cannot be turned on.

6 Connect the AC power cord to a wall

outlet and turn on the projector.

7 Reset the lamp timer for notification of

the next replacement time.
Select “Lamp Timer Reset” on the

Function menu then press the ENTER
key. When a message appears, select
“Yes” to reset the lamp timer.

Disposal of the used lamp

For the customers in the USA

Lamp in this product contains mercury.
Disposal of these materials may be
regulated due to environmental
considerations. For disposal or
recycling information, please contact
your local authorities or the
Telecommunications Industry
Association (www.eiae.org).

Replacing the Lamp

Others

35

Cleaning the Air Filter

When a message appears on the projected image indicating time for a filter cleaning, clean the
air filter (pages 30, 31).
If the dust cannot be removed from the air filter even after cleaning, replace the air filter with
a new one.
For details on a new air filter, consult with qualified Sony personnel.

Caution

If you neglect to clean the air filter, dust may accumulate, clogging it. As a result, the
temperature may rise inside the unit, leading to a possible malfunction or fire.

1 Turn off the projector, and disconnect

the AC power cord from the AC outlet.

2 Open the rear panel by loosening the

three screws on the rear panel.

Screws

3 Pull out the air filter unit.

Air filter unit

4 Clean the air filter with a vacuum

cleaner.

Remove the cover as illustrated below
then clean the four air filters.
The two air filters on the bottom of the
air filter unit cannot be removed from
the air filter unit.

Cover

Air filter

5 Return the air filter to the air filter unit

then return it to the projector.

36

Cleaning the Air Filter

6 Close the rear panel and tighten the three

screws.

Note

Be sure to attach the air filter unit and rear
panel firmly; the power cannot be turned on if
it is not closed securely.

Removing/Attaching the Projection Lens

Notes

• Turn off the projector and disconnect the AC power cord from a wall outlet before you remove/
attach the projection lens.

• Be careful not to drop the projection lens.

• Avoid removing/attaching the lens with the projector installed suspended from a ceiling.

• Avoid touching the lens surface.

• For usable projection lenses and a lens adapter, see “Optional accessories” (page 42).

Removing

1 Loosen the two screws that secure the

front panel to remove the front panel

in the direction of the front.

Front panel

Screws

2 Loosen the four screws that secure the

projection lens then pull it out straight.

Screws

Note

If the lens was shifted with lens shift
adjustment, it may take some effort to
loosen the screws. In such a case, adjust to
shift the lens to the lower position and to
the horizontal center position.

Attaching

Center mark

Screws

2 Replace the front panel and fasten it

with the two screws.

Attaching the Projection Lens Adapter to the Projection Lens

Before starting

Since you may not recognize the center
position of the projection lens after the
flange section of the lens (step
place a mark on the projection lens with a
marking pen, etc.

1) is removed,

1 Place the projection lens with the

motor section upward and place a
mark around the top screw hole on the
lens.

Top screw

Motor section

Others

1 Insert the projection lens with a mark

upward all the way in until it is
securely in place then tighten the four
screws.

Flange
section

Removing/Attaching the Projection Lens

Mark

37

2 Remove the six screws that secure the

flange section then slide it straight to
remove.

Screws (6)

Spacer

4 Attach Part A and Part B for the lens

adapter to the projection lens.

1 Remove the lens cap.
2 First, fit Part A to the zoom gear

section on the projection lens.

3 Fit the holes on Part B to the hooks

on Part A then hold the projection
lens between Part A and Part B for
the lens adapter.

3

2

Notes

• The screws that secure the flange section
are strongly tightened. When removing
the screws, be careful not to damage the
screw heads.

• When the flange section is removed, the
spacer section is also loosened. Be
careful that the spacer section is not
removed.

3 Insert Part C for the lens adapter all the

way until it is securely in place, align the
mark with the mark placed in step 1,
then tighten the six D screws supplied
with the lens adapter.

D screws (6)

Mark placed in step 1

Mark

Par t A fo r the

Zoom gear section

lens adapter

Part B for the
lens adapter

5 Secure Part A and Part B for the lens

adapter attached to the projection lens
with the two E screws supplied with
the lens adapter.

E screws

(2)

Part C for the lens
adapter

38

Removing/Attaching the Projection Lens

Specifications

Item Description

Model name VPL-FH35/FH30/VPL-FX35/FX30

Display system 3 LCD system

Display device Size of effective

Projection lens Zoom Manual (approx.1.6 ×)

Light source VPL-FH35: High-pressure mercury lamp, 330 W type

Screen size 40" to 600" (1.02 m to 15.24 m)

Light output VPL-FH35: 5200 lm (when “Lamp Mode” is set to

Displayable
scanning
frequency

Display resolution Computer signal

Colour system NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL -N ,

*1

display area

Number of pixels VPL-FH35/FH30: 6,912,000 (1920 × 1200 × 3) pixels

Focus Manual

input

Video signal
input

VPL-FH35/FH30: 0.76" (19.3 mm) × 3, Aspect ratio
16:10
VPL-FX35/FX30: 0.79" (20.1 mm) × 3, Aspect ratio 4:3

VPL-FX35/FX30: 2,359,296 (1024 × 768 × 3) pixels

VPL-FH30/VPL-FX35: High-pressure mercury lamp,
275 W type
VPL-FX30: High-pressure mercury lamp, 230 W type

“High”)
VPL-FH30: 4300 lm (when “Lamp Mode” is set to
“High”)
VPL-FX35: 5000 lm (when “Lamp Mode” is set to
“High”)
VPL-FX30: 4200 lm

(when “Lamp Mode” is set to

“High”)

Horizontal: 14 kHz to 93 kHz, Vertical: 47 Hz to 93 Hz

Maximum display resolution: 1920 × 1200 dots
Panel display resolution:
VPL-FH35/FH30: 1920 × 1200 dots
VPL-FX35/FX30: 1024 × 768 dots

NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/
50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p,
1080/50p, 1080/24p

PA L6 0

*2

Others

Specifications

39

Item Description

Model name VPL-FH35/FH30/VPL-FX35/FX30

Computer and
video signal input/
output

INPUT A RGB/YP

sync/Y: 1 Vp-p ± 2 dB, sync negative, 75 ohms
terminated, RGB/P

BPR input connector: 5BNC female, G with

BPR: 0.7 Vp-p ± 2 dB, 75 ohms

terminated, Sync signal: TTL level high impedance,
positive/negative
Audio input connector: Stereo mini jack, rated input
500 mVrms, input impedance more than 47 kilohms

INPUT B RGB input connector: Mini D-sub 15-pin female,

RGB: 0.7 Vp-p ± 2 dB, 75 ohms terminated, Sync signal:
TTL level high impedance, positive/negative
Audio input connector: Stereo mini jack, rated input
500 mVrms, input impedance more than 47 kilohms

Computer and
video signal input/
output

INPUT C DVI-D input connector: DVI-D 24-pin (Single link),

DVI 1.0 compliant, HDCP support
Audio Input connector: Shared with INPUT B

INPUT D

*2

HDMI input connector: Digital RGB/YPBPR, Digital
audio: PCM (32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96
kHz)

S VIDEO IN S video input connector: Mini DIN 4-pin, Y: 1 Vp-p ± 2

dB, sync negative, 75 ohmes terminated, C: (burst signal)

0.286 (NTSC)/0.3 (PAL/SECAM) Vp-p ± 2 dB, 75 ohms
terminated
Audio input connector: Phono jack × 2, rated input 500
mVrms, Input impedance more than 47 kilohms

VIDEO IN Video input connector: Phono jack, 1 Vp-p ± 2 dB,

sync negative, 75 ohmes terminated
Audio input connector: Shared with S VIDEO IN

OUTPUT MONITOR output connector: Mini D-sub 15-pin

female, G with sync/Y: 1 Vp-p ± 2 dB, sync negative, 75
ohms terminated, RGB/P

BPR: 0.7 Vp-p ± 2 dB, 75 ohms

terminated, Sync signal: HD, VD 4 V (open), 1 Vp-p (75
ohms), positive/negative
Audio output connector: Stereo mini jack, stereo, 1
Vrms (maximum volume, when inputting 500 mVrms),
output impedance 5 kilohms

Control signal
input/output

RS-232C connector: D-Sub 9 pin female

LAN connector: RJ45, 10BASE-T/100BASE-TX

CONTROL S input connector (DC power supply):

Stereo mini jack, 5 Vp-p, Plug in power DC 5 V

Operating
temperature/

0 °C to 40 °C (32 °F to 104 °F)/35% to 85% (no

condensation)
Operating
humidity

Storage

–20 °C to +60 °C (–4 °F to +140 °F)/ 10% to 90%
temperature/
Storage humidity

40

Specifications

Item Description

Model name VPL-FH35/FH30/VPL-FX35/FX30

Power
requirements

VPL-FH35: 100 V to 240 V AC, 4.6 A to 1.9 A, 50/60

Hz

VPL-FH30: 100 V to 240 V AC, 4 A to 1.6 A, 50/60 Hz

VPL-FX35: 100 V to 240 V AC, 3.8 A to 1.6 A, 50/60

Hz

VPL-FX30: 100 V to 240 V AC, 3.3 A to 1.3 A, 50/60

Hz

Power
consumption

AC 100 V to
120 V

VPL-FH35: 460 W

VPL-FH30: 400 W

VPL-FX35: 380 W

VPL-FX30: 330 W

AC 220 V to
240 V

VPL-FH35: 440 W

VPL-FH30: 380 W

VPL-FX35: 360 W

VPL-FX30: 310 W

Standby power
requirements

AC 100 V to
120 V

VPL-FH35/FH30:

9W

(when “Standby Mode” is set to “Standard”) /

0.15 W (when “Standby Mode” is set to “Low”)

VPL-FX35/FX30:

11 W

(when “Standby Mode” is set to “Standard”) /

0.15 W (when “Standby Mode” is set to “Low”)

AC 220 V to
240 V

VPL-FH35/FH30:

10 W

(when “Standby Mode” is set to “Standard”) /

0.3 W (when “Standby Mode” is set to “Low”)

VPL-FX35/FX30:

12 W (when “

Standby Mode” is set to “Standard”) / 0.3

W (when “Standby Mode” is set to “Low”)

Heat dissipation AC 100 V to

120 V

VPL-FH35: 1570 BTU

VPL-FH30: 1365 BTU

VPL-FX35: 1297 BTU

VPL-FX30: 1126 BTU

AC 220 V to
240 V

VPL-FH35: 1501 BTU

VPL-FH30: 1297 BTU

VPL-FX35: 1228 BTU

VPL-FX30: 1058 BTU

Outside
dimensions

390 × 148 × 477 mm (15

25

/32") (W/H/D) (including the lens cap for

18

packaging)

390 × 134 × 463 mm (15

7

/32") (W/H/D) (without protrusions)

18

11

/32" × 513/16" ×

11

/32" × 59/32" ×

Mass VPL-FH35: 8.2 kg (18 lb 1 oz)

VPL-FH30: 8.1 kg (17 lb 14 oz)

VPL-FX35: 8.0 kg (17 lb 10 oz)

VPL-FX30: 7.9 kg (17 lb 7 oz)

Supplied
accessories

See “Checking the Supplied Accessories” in the supplied

Quick Reference Manual.

Others

Specifications

41

Item Description

Model name VPL-FH35/FH30/VPL-FX35/FX30

Optional
accessories

*3 *4

VPL-FH35: Projector Lamp LMP-F331 (for

replacement)

VPL-FH30/VPL-FX35: Projection Lam LMP-F272

(for replacement)

VPL-FX30: Projector Lamp LMP-F230 (for

replacement)

Projector Suspension Support PSS-610

Projection Lens VPLL-Z1024

*5

: Manual focus/zoom

(when attaching to this projector), Projected image size:

40" to 600" (1.02 m to 15.24 m), Maximum external

dimensions (W × H × D): 97 × 87 × 180 mm (3

7

3

/16" × 73/32"), Mass: 1.1 kg (2 lb 7 oz)

*5

Projection Lens VPLL-Z1032

: Manual focus/zoom

13

/16" ×

(when attaching to this projector), Projected image size:

40" to 600" (1.02 m to 15.24 m), Maximum external

dimensions (W × H × D): 97 × 87 × 177 mm (3

7

3

/16" × 631/32"), Mass: 1.1 kg (2 lb 7 oz)

13

/16" ×

Projection Lens Adapter PK-F30LA1

Notes

The values for mass and dimensions are approximate.
*1: For details, refer to “Acceptable Input Signals” on page 44.
*2: Available for VPL-FH35/FH30 only
*3: Not all optional accessories are available in all countries and area. Please check with your local

Sony Authorized Dealer.
*4: Information on accessories in this manual is current as of Dec. 2011.
*5: To attach the projection lens to the projector, the PK-F30LA1 projection lens adapter is required.

Design and specifications of the unit, including the optional accessories, are subject to change
without notice.

Always verify that the unit is operating properly before use. SONY WILL NOT BE LIABLE
FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO,
COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT
OR PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT, EITHER DURING
THE WARRANTY PERIOD OR AFTER EXPIRATION OF THE WARRANTY, OR FOR
ANY OTHER REASON WHATSOEVER.

42

Specifications

Pin assignment

DVI-D connector (DVI-D, female) RGB input connector (Mini D-sub 15-

pin, female)

1

9

17

8

16

24

1 T.M.D.S.

14 +5 V Power

Data2–

2 T.M.D.S.

Data2+

3 T.M.D.S.

Data2 Shield

15 Ground (return

for +5 V)

16 Hot Plug

Detect

4 NC 17 T.M.D.S

Data0–

5 NC 18 T.M.D.S

Data0+

6 DDC Clock 19 T.M.D.S

Data0 Shield

7 DDC Data 20 NC

8NC 21NC

9 T.M.D.S.

Data1–

10 T.M.D.S.

Data1+

11 T.M.D.S.

Data1 Shield

22 T.M.D.S

Clock Shield

23 T.M.D.S

Clock+

24 T.M.D.S

Clock–

12 NC

13 NC

1 Video input

(red) R

2 Video input

9 Power supply

input for DDC

10 GND

(green) G

3 Video input

11 GND

(blue) B

4 GND 12 DDC/SDA

5 RESERVE 13 Horizontal sync

signal

6 GND (R) 14 Vertical sync

signal

7 GND (G) 15 DDC/SCL

8 GND (B)

RS-232C connector (D-Sub 9-pin,
female)

51

9

6

1NC 6NC

2RXDA 7RTS

3TXDA 8CTS

4DTR 9NC

5 GND

Others

Specifications

43

HDMI connector (HDMI, fermale)

1 T.M.D.S.

Data2+

2 T.M.D.S.

Data2 Shield

3 T.M.D.S.

11 T.M.D.S.

Clock Shield

12 T.M.D.S.

Clock–

13 NC

Data2–

4 T.M.D.S.

Data1+

5 T.M.D.S.

14 RECERVED

(N.C.)

15 SCL

Data1 Shield

6 T.M.D.S.

16 SDA

Data1–

7 T.M.D.S.

17 GND

Data0+

8 T.M.D.S.

18 +5V Power

Data0 Shield

9 T.M.D.S.

Data0–

19 Hot Plug

Detect

10 T.M.D.S.

Clock+

Acceptable Input Signals

Computer signal

Input connector

DVI-D*2/

*1

RGB

HDMI

*3 *6

Resolution

fH [kHz]/

fV [Hz]

640 × 350 31.5/70 z –

37.9/85

640 × 400 31.5/70

37.9/85

640 × 480 31.5/60

z –

z –

z –

zz

35.0/67 z –

37.9/73

37.5/75

43.3/85

800 × 600 35.2/56

37.9/60

z –

z –

z –

z –

zz

48.1/72 z –

46.9/75

53.7/85

832 × 624 49.7/75

1024 × 768 48.4/60

z –

z –

z –

zz

56.5/70 z –

60.0/75

68.7/85

1152 × 864 64.0/70

67.5/75

77.5/85

1152 × 900 61.8/66

1280 × 960 60.0/60

z –

z –

z –

z –

z –

z –

zz

75.0/75 z –

1280 × 1024 64.0/60

zz

80.0/75 z –

91.1/85

1400 × 1050 65.3/60

z –

zz

1600 × 1200 75.0/60 zz

1280 × 768 47.8/60 zz

1280 × 720 45.0/60 zz

*7

44

Specifications

Resolution

fH [kHz]/

fV [Hz]

1920 × 1080 67.5/60 –

Input connector

DVI-D*2/

*1

RGB

HDMI

*7

z

*3 *6

1366 × 768 47.7/60 zz

1440 × 900 55.9/60 zz

1680 × 1050 65.3/60 zz

1280 × 800 49.7/60 zz

1920 × 1200 74.0/60 z

1600 × 900 60.0/60 z

*5

*5* 6z*5 *6

*5

z

Digital TV signal

Input connector

Signal fV [Hz]

RGB/

YP

BPR

*4

DVI-D*2/

HDMI

*3 *6

480i 60 zz

576i 50 zz

480p 60 zz

576p 50 zz

1080i 60 zz

1080i 50 zz

720p 60 zz

*7

720p 50 zz

1080p 60 – z

*7

1080p 50 – z

1080p 24 – z

*6

*6: Available for VPL-FH35/FH30 only
*7: INPUT C is determined as a computer

signal; INPUT D is determined as a digital
TV signal.

• When a signal other than the signals listed in
table is input, the picture may not be
displayed properly.

• An input signal meant for screen resolution
different from that of the panel will not be
displayed in its original resolution. Text and
lines may be uneven.

• Some actual value may differ slightly from
the design values given in the table.

Others

Analog TV signal

Input

Signal fV [Hz]

connector

VIDEO/

SVIDEO

NTSC 60

PA L/ SE CA M 5 0

Notes

z

z

*1: INPUT A, INPUT B
*2: INPUT C
*3: INPUT D
*4: INPUT A
*5: Available for VESA Reduced Blanking

signals only.

Specifications

45

Combinations of Input Signals (VPL-FH35/FH30 only)

Sub


Main

INPUT A
(RGB/
YP

BPR)

INPUT B
(RGB)

INPUT C
(DVI-D)

INPUT D
(HDMI)

S VIDEO

VIDEO

INPUT A
(RGB/
YP

BPR)

INPUT B
(RGB)

INPUT C
(DVI-D)

z –

INPUT D
(HDMI)

–

S VIDEO VIDEO

––

–––––

– z –––

– z –––

–

–

z –– –

z –––

46

Specifications

Projection Distance and Lens Shift Range

5

5

5

5

The projection distance refers to the distance between the front of the lens and the projected
surface.

Projection distance L

Projected image

Front of the lens

The lens shift range represents the distance in percent (%) by which the lens can be shifted from
the center of the projected image. The lens shift range is regarded as 0% when the point (A) in
the illustration (point where a line drawn from the center of the lens and the projected image
cross at right angles) is aligned with the center of the projected image and full width or full
height of the projected image is regarded as 100%.

Projected image

Center of the

0%

0%

Projected image

0%

0%

projected

A

Center of the
projected

A

Lens shift range

Center of the lens

Side of the projector

Lens shift range

Center of the lens

VS

+

HS

– HS +

VS –

Shaded region: Lens shift range

Center of the lens

Projected image

Others

Top of the projector

+: Vertical lens shift range (up) [%]

VS

–: Vertical lens shift range (down) [%]

VS

+: Horizontal lens shift range (right) [%]

HS
HS –: Horizontal lens shift range (left) [%]

Projection Distance and Lens Shift Range

47

Projection distance (VPL-FH35/FH30)

Unit: m (inches)

Projection image size Projection distance L

Diagonal Width × Height Standard lens VPLL-Z1024 VPLL-Z1032

80" (2.03 m)

100" (2.54 m)

120" (3.05 m)

150" (3.81 m)

200" (5.08 m)

1.72 × 1.08
(68 × 42)

2.15 × 1.35
(85 × 53)

2.58 × 1.62

(102 × 64)

3.23 × 2.02

(127 × 79)

4.31 × 2.69

(170 × 106)

2.39 – 3.83
(95 – 150)

3.00 – 4.80

(119 – 189)

3.61 – 5.77

(143 – 227)

4.53 – 7.22

(179 – 284)

6.05 – 9.64

(238 – 379)

4.00 – 5.48
(158 – 215)

5.03 – 6.87
(198 – 270)

6.05 – 8.27
(238 – 325)

7.59 – 10.36
(299 – 408)

10.15 – 13.85
(400 – 545)

5.45 – 8.32

(215 – 327)

6.84 – 10.43
(270 – 410)

8.24 – 12.55
(325 – 494)

10.33 – 15.72
(407 – 619)

13.82 – 21.00
(544 – 827)

Projection distance formula (VPL-FH35/FH30)

D: Projected image size (Diagonal) Unit: m (inches)

Lens Projection distance L (minimal length) Projection distance L (maximal length)

Standard lens

VPLL-Z1024

VPLL-Z1032

L=0.030453 × D – 0.0465

(L=1.198941 × D – 1.8307)

L=0.051187 × D – 0.0973

(L=2.015234 × D – 3.8296)

L=0.069792 × D – 0.1414

(L=2.747720 × D – 5.5654)

L=0.048463 × D – 0.0443

(L=1.907978 × D – 1.7435)

L=0.069717 × D – 0.0930

(L=2.744761 × D – 3.6617)

L=0.105707 × D – 0.1323

(L=4.161687 × D – 5.2083)

Lens shift range (VPL-FH35/FH30)

60%

32%32%

48

Projection Distance and Lens Shift Range

VS

+= 60 – 1.875 × HS (HS + or HS –) [%]
–= 0 [%]

VS

+=HS –=32 – 0.533 × VS + [%]

HS

Projection distance (VPL-FX35/FX30)

Unit: m (inches)

Projection image size Projection distance L

Diagonal Width × Height Standard lens VPLL-Z1024 VPLL-Z1032

80" (2.03 m)

100" (2.54 m)

120" (3.05 m)

150" (3.81 m)

200" (5.08 m)

1.63 × 1.22
(64 × 48)

2.03 × 1.52
(80 × 60)

2.44 × 1.83
(96 × 72)

3.05 × 2.29

(120 × 90)

4.06 × 3.05

(160 × 120)

2.31 – 3.69
(91 – 145)

2.89 – 4.62

(114 – 182)

3.48 – 5.56

(137 – 218)

4.36 – 6.96

(172 – 274)

5.83 – 9.29

(230 – 366)

3.85 – 5.28
(152 – 207)

4.84 – 6.62
(191 – 260)

5.83 – 7.97
(230 – 313)

7.31 – 9.98
(288 – 393)

9.77 – 13.34
(385 – 525)

5.24 – 8.01

(207 – 315)

6.59 – 10.05
(260 – 395)

7.94 – 12.09
(313 – 476)

9.95 – 15.14
(392 – 596)

13.32 – 20.24
(525 – 797)

Projection distance formula (VPL-FX35/FX30)

D: Projected image size (Diagonal) Unit: m (inches)

Lens Projection distance L (minimal length) Projection distance L (maximal length)

Standard lens

VPLL-Z1024

VPLL-Z1032

L=0.0294 × D – 0.0465

(L=1.1555 × D – 1.8307)

L=0.0493 × D – 0.0973

(L=1.9423 × D – 3.8296)

L=0.0673 × D – 0.1414

(L=2.6483 × D – 5.5654)

L=0.0467 × D – 0.0443

(L=1.8389 × D – 1.7435)

L=0.0672 × D – 0.0930

(L=2.6454 × D – 3.6617)

L=0.1019 × D – 0.1323

(L=4.0111 × D – 5.2083)

Lens shift range (VPL-FX35/FX30)

51%

33%33%

VS

+= 51 – 1.545 × HS (HS + or HS –) [%]
–= 0 [%]

VS

+=HS –=33 – 0.647 × VS + [%]

HS

Projection Distance and Lens Shift Range

Others

49

About lens position

The projection distance and lens shift range are measured with the lens position adjusted to the
center. To adjust the lens position to the center, follow the procedures below:

1 Rotate the left lens shift dial left or right

then align the screws with the v V marks
in four places, as illustrated, for adjusting
the lens horizontally.

2 Rotate the right lens shift dial clockwise

until the lens is fixed, to adjust the lens
vertically.

Note

Before adjusting the lens position to the center
and checking whether the lens position is
centered, turn off the power to prevent
projected light from entering the eyes.

1

For adjusting
lens
horizontally

Screws

v V
marks

2

For adjusting
lens
vertically

50

Projection Distance and Lens Shift Range

Dimensions

Front Unit: mm (inches)

11

390 (15

/32)

/16)

9

13

134 (5

148 (5

/32)

/32)

15

63 (2

/16)

3

81 (3

Center of the lens

195 (7 11/16)

Bottom Unit: mm (inches)

463 (18

7

/32)

15 (

19

/32)

50

31

50

31

Center
of the
lens

23

ø18 (

/32)

/16)

11

/32)

9

195 (7

134 (5

/32)

9

134 (5

ø18 (23/32)

7

7

)

32

/

) 81.5 (3

32

/

81.5 (3

122 (4

86 (3 3/8)

13

/16)

272.6 (10

361 (14 7/32)

23

/32)

)

32

/

(1

Others

)

32

/

(1

Dimensions

51

When using the PSS-610 projector suspension support

Caution

Never mount the projector on the ceiling or move it by yourself. Be sure to consult
with qualified Sony personnel (charged).

150 (529/32)
175 (6
200 (7
250 (9
275 (10
300 (11

Center of
the lens

231 (9
256 (10
281 (11
331 (13
356 (14
381 (15)

3

/32)

3

/32)

1

/16)

1

/32)

1

/32)

Unit: mm (inches)

7

/8)

7

/8)

27

/32)

13

/16)

13

/16)

52

Center of
the lens

Center of
the pole

Dimensions

31

3

/32)

202.5 (7

/8)

187.5 (7

223.1 (825/32)

/16)

5

8.0

(

151.1 (515/16)

216.6 (817/32)

239.9 (9

7

/16)

95.3 (3

/32)

29

125 (4

/32)

29

125 (4

3

/4)

The distance L’ between the front of
the lens (center) and the front of the
cabinet

Unit: mm (inches)

Lens L’ Type

Standard lens 12.2 (

VPLL-Z1024 1.6 (

VPLL-Z1032 0.3 (

12

15

/32) 1

1

/16) 2

1

/32) 1

Front of the cabinet

Front of the lens

About Trademarks

• Adobe Acrobat is a trademark of Adobe
Systems Incorporated.

• Kensington is a registered trademark of
Kensington Technology Group.

• Internet Explore is registered trademarks
of Microsoft Corporation in the United
States and/or other countries.

• PJLink is a registered trademark of Japan
Business Machine and Information
System Industries Association.

• AMX is a trademark of AMX Corporation.

• HDMI, HDMI logo, and High-Definition
Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing
LLC in the United States and other
countries.

• All other trademarks and registered
trademarks are trademarks or registered
trademarks of their respective holders. In
this manual,

™

and ® marks are not

specified.

Dimensions

Others

53

Index

A

AC IN socket ............................................. 4

Acceptable input signal ........................... 44

Adjust Signal ...........................................18

Adjuster ............................................... 3, 13

Antitheft bar ..............................................3

Antitheft Lock ...........................................3

APA ..................................................... 5, 18

Aspect ........................................... 5, 18, 20

Audio muting ............................................ 6

Audio Output Volume .............................22

B

Background ............................................. 22

Black Level Adj. ..................................... 16

Brightness ............................................... 16

C

CC Display ..............................................22

Cleaning the air filter ..............................36

Color ....................................................... 16

Color Matching ....................................... 25

Color system ..................................... 24, 39

Color Temp. ............................................16

Combinations of input signals

(VPL-FH35/FH30 only) .................. 46

Connecting a computer .............................8

Connecting a video equipment .................. 9

Connecting an external monitor and audio

equipment ........................................11

Connection/Power menu ......................... 24

Connector panel .................................... 3, 4

Contrast ................................................... 16

Control panel .............................................5

CONTROL S input connector ...................4

CONTROL S output connector .................7

D

Default Gateway ...................................... 24

Digital Zoom ............................................. 6

Dimensions ............................................. 51

Direct Power On ...................................... 24

E

ECO MODE (Energy-saving mode) ......... 6

F

fH .............................................................26

Film Mode ...............................................16

Focus ....................................................5, 13

Focus ring ..................................................3

Freeze ........................................................6

Front panel .................................................3

Function menu .........................................22

fV .............................................................26

G

Gamma Mode ..........................................16

H

High Altitude Mode .................................25

Hue ..........................................................16

I

ID Mode ...................................................23

ID MODE 1/2/3 switch .............................7

Image Flip ................................................25

Information menu ....................................26

Input ...........................................................4

Input-A Signal Sel. ..................................24

Installation menu .....................................25

IP Address ...............................................24

IP Address Setup .....................................24

IR Receiver ..............................................23

L

Lamp Mode .............................................22

Lamp Timer .............................................26

Lamp Timer Reset ...................................22

LAMP/COVER indicator ....................3, 30

LAN connector ....................................4, 27

Language .................................................23

Lens shift dial ............................................3

Lens shift range .................................48, 49

Location and function of controls ..............3

M

Main unit ...................................................3

Menu Position ..........................................23

Messages list ............................................31

Model Name ............................................26

O

ON/STANDBY indicator ....................3, 30

Operation menu .......................................23

54

Index

Output ....................................................... 4

Over Scan ................................................ 18

P

Panel Alignment ...................................... 25

Panel Key Lock ....................................... 23

Pattern ................................................. 5, 13

Phase ....................................................... 18

Picture menu ...........................................16

Picture mode ...........................................16

Picture muting ........................................... 6

Pin assignment ........................................ 43

Pitch ........................................................ 18

Power Saving Mode ................................24

Primary DNS ...........................................24

Projecting an image .................................12

Projection distance ............................48, 49

Projection distance and lens shift

range ................................................ 47

Projection distance formula .............. 48, 49

R

Rear panel ................................................. 3

Remote commander .................................. 5

Remote control detector ............................3

Removing/attaching the projection

lens ................................................... 37

Replacing the lamp ................................. 34

Reset ........................................................ 16

RS-232C connector ...................................4

Twin picture ...............................................6

U

Using a menu ...........................................15

V

V Center ...................................................18

V Keystone ..........................................5, 25

Ventilation holes ........................................3

Vertical Size .............................................18

Volume .......................................................6

Z

Zoom ....................................................5, 13

Zoom lever .................................................3

S

Screen Aspect .......................................... 25

Screen menu ............................................18

Secondary DNS .......................................24

Security Lock ..........................................23

Selecting an input signal ........................... 5

Serial No. ................................................26

Sharpness ................................................ 16

Shift ............................................... 5, 13, 18

Smart APA ..............................................22

Specifications .......................................... 39

Standby Mode ......................................... 24

Start Up Image ........................................22

Status .......................................................23

Subnet Mask ............................................24

T

Troubleshooting ......................................32

Turn off ............................................... 5, 14

Turn on ................................................5, 12

Index

Others

55

Sony Corporation
