VPL-FH30
Solid Installation Projector
Page 2
High Picture Quality in WUXGA Projection
Delivering an Outstanding Brightness of 4,300 Lumens
Packing the most advanced projector technologies into
a low-profile design, the VPL-FH30 is an excellent choice,
delivering an outstanding brightness of 4,300 lumens* and
ultra high-quality images with WUXGA resolution.
It also delivers amazing installation flexibility and hassle-free
maintenance in a stylish design that blends into any decor.
This projector is equipped with an excellent lens shift function
and a standard 1.6x zoom lens, making image adjustment
easy. It is also compatible with the optional lenses designed
for Sony’s VPL-F40 Series, extending the range of installation
choices. The maintenance cycles of the lamp and cleaning
filters are synchronized and exceptionally long, which cuts
maintenance time and cost.
Overall, the VPL-FH30 delivers a low total cost of ownership, and additionally includes eco-friendly features such
as a long-lasting lamp and low power consumption.
*ISO 21118
Ultra-high WUXGA Resolution
with Full-HD Compatibility
The VPL-FH30 delivers an amazing resolution of WUXGA (1920
x 1200), which exceeds Full-HD resolution (1920 x 1080).
The VPL-FH30 allows projection in a wider display range.
More information can be displayed on the screen, so the user
can see the whole page without scrolling.
WXGA 1280 x 800 WUXGA 1920 x 1200
100% 100%
Need to scroll
during discussion
Extremely clear and detailed high-quality images are
projected, even on a large screen, and native Full-HD images
can be projected full screen. The VPL-FH30 is the ultimate tool
for projecting images in a range of applications requiring
exceptional detail.
simulated images
WXGA picture quality
WUXGA picture quality
simulated images
Licensed by Tokyo Tower
High Picture Quality
Brilliant Color Performance
By combining an optical system that uses Sony’s BrightEra with
Long Lasting Optics™ technology* and a 3LCD projection
system, the VPL-FH30 offers a high brightness of 4,300 lumens.
* BrightEra with Long Lasting Optics is the Sony brand name for this optical
system, which uses a more advanced version of Sony's original BrightEra
technology. In addition to adopting LCD panels that have pixels with large
aperture ratios and inorganic alignment layers, BrightEra with Long Lasting
Optics technology also uses an inorganic layer for polarization plates to
greatly enhance reliability.
3LCD Projection Offers Brilliant Color Performance
The VPL-FH30 adopts a 3LCD projection system incorporating
three LCD panels. This
system enables the projector
to present bright and natural
images.
simulated images
™
2
Page 3
Installation Advantages
Lens Shift Function
The VPL-FH30 has a Lens Shift function which is controlled
from the projector control panel or the supplied Remote
Commander® unit. Using this function, the position of the
projected image can be moved vertically by up to 60% and
horizontally from -32% through to +32%. Images can be easily
adjusted to the desired settings during installation.
Convenient, Simple Projector Replacement
The standard 1.6x zoom lens enables installation flexibility
when replacing an existing projector with the VPL-FH30 –
there’s no need to change ceiling mount positions. For
applications where more than a standard lens is needed,
the VPL-FH30 is compatible with the optional VPLL-Z1024 and
VPLL-Z1032 accessory lenses designed for Sony’s current
VPL-F40 Series.
"Blend-in" Design
The VPL-FH30 showcases a newly designed low-profile chassis,
so the projector appears to blend into the ceiling or wall on
which it is mounted. The connector panel is located on the
front of the unit so its cables cannot be seen by the audience.
Good TCO and ECO-friendly Design
Long-lasting Lamp
By incorporating a newly developed high-performance lamp
and advanced lamp-control technology, the VPL-FH30 offers a
recommended lamp replacement time of approximately 4000
1
hours.*
Conventional 1
Shorter throw ratio
VPL-FH30
Conventional 2
Longer throw ratio
Broad throw ratio simplifies projector replacement
Centered Lens Design
The centered lens provides symmetry for a balanced
installation, and makes setup very simple.
VPL-FH30
4000 hours
VPL-FW41
2500 hours
Conventional
model
Recommended lamp replacement time*
*1 in standard mode. Expected maintenance time, not guaranteed. Lamp
performance will vary based on operating environment and use.
*2 The values are approximate
2
Low Power Consumption
The VPL-FH30 offers remarkably low power consumption,
allowing users to make significant savings on their electricity
expenses.
ECO MODE Key
With a single push of the ECO MODE key on either the
projector or the supplied Remote Commander
®
unit, users
can select an energy-saving setting from the ECO Mode
Balanced and symmetrical installation
ECO MODE key
3
Page 4
Lamp and Filter Synchronized Maintenance
When the air filter must be cleaned, a timely message is
displayed on screen. The lamp and the filter are accessible
from the same side, so their maintenance can be performed
without uninstalling the projector. With typical usage, the
filters have an approximate
15000-hour cleaning
cycle. This is achieved by
a Quad Filter system which
means the filters only need
to be cleaned when the
lamp is changed, even in
harsh conditions, saving
maintenance time and
cost.
Air ow direction
Normal mesh lters
Fine mesh lters
Hybrid element
Quad Filter System
Other Features
Picture-by-Picture
With this feature, users
can project two different
images at the same
time, greatly expanding
creative possibilities and
enabling exciting new
applications.
DICOM GSDF Simulation*
The VPL-FH30 is equipped with a new gamma mode, called
DICOM GSDF Simulation. This is ideal for viewing digital
medical imagery for non-diagnostic applications.
* Follows GSDF (Grayscale
Standard Display
Function) medical
standards for DICOM
(Digital Imaging and
Communications in
Medicine).
* This function is for training
and reference only, and
cannot be used for
medical diagnosis.
100
90
80
70
60
50
40
30
20
10
Output luminance [%]
0
Standard 2.2
DICOM GSDF sim.
0 200 400 600 800 1000
Gamma curve*
simulated images
Input level
*Based on internal testing.
Screen Aspect
When screen and image aspect ratios do not match*, this
function fits the projected image to the screen. So, even when
images are switched between different aspect signals, the
projected image can always fit the screen.
* Using the same aspect ratio between screen and projector is ideal.
Quiet Noise Operation
Low noise fans designed to produce lower frequency sounds
to be less obtrusive
Closed Captioning
Official teletext broadcasting, developed by the NCI, USA
Security Pack
Security lock (password and mechanical), security bar, panel
key lock, and security label
Test Pattern Key
For easy screen adjustment
ID Mode
For individual control of multiple projectors
Freeze Function
Freezes the projected image
Smart APA
Auto pixel alignment
Direct Power On/Off
Direct power control using the circuit breaker on the switch
board
High Altitude Mode
For projector operation at high altitude
Network and Control
Controls and monitors projector status
Compatible with various control systems
Standard 2.2 DICOM GSDF simulation
simulated images
4
Page 5
OPTIONAL ACCESSORIES
LMP-F272
Projector Lamp (for replacement)
VPLL-Z1024
Projector Lens
PAM-600
Projector Suspension Support
VPLL-Z1032
Projector Lens
PK-F30LA1
Projector Lens Adapter
OPTIONAL LENSES
Projection lens
Throw ratio 2.34 to 3.19 3.18 to 4.84
Zoom / Focus Manual / Manual Manual / Manual
Lens shift
Aperture f/2.00 to 2.30 f/2.00 to 2.40
Screen size* 40” to 600” 40” to 600”
Dimensions W 3 13/16 x H 3 7/16 x D 7 3/32 in (W 97 x H 87 x D 180 mm) W 3 13/16 x H 3 7/16 x D 6 31/32 in (W 97 x H 87 x D 177 mm)
Weight 2 lb 7 oz / 1.1 kg 2 lb 7 oz / 1.1 kg
Required projection lens adapter PK-F30LA1 PK-F30LA1
* Viewable area, measured diagonally.
Vertical: Upward 60% to Downward 0%
Horizontal: Right 32% to Left 32%
VPLL-Z1024 VPLL-Z1032
Vertical: Upward 60% to Downward 0%
Horizontal: Right 32% to Left 32%
5
Page 6

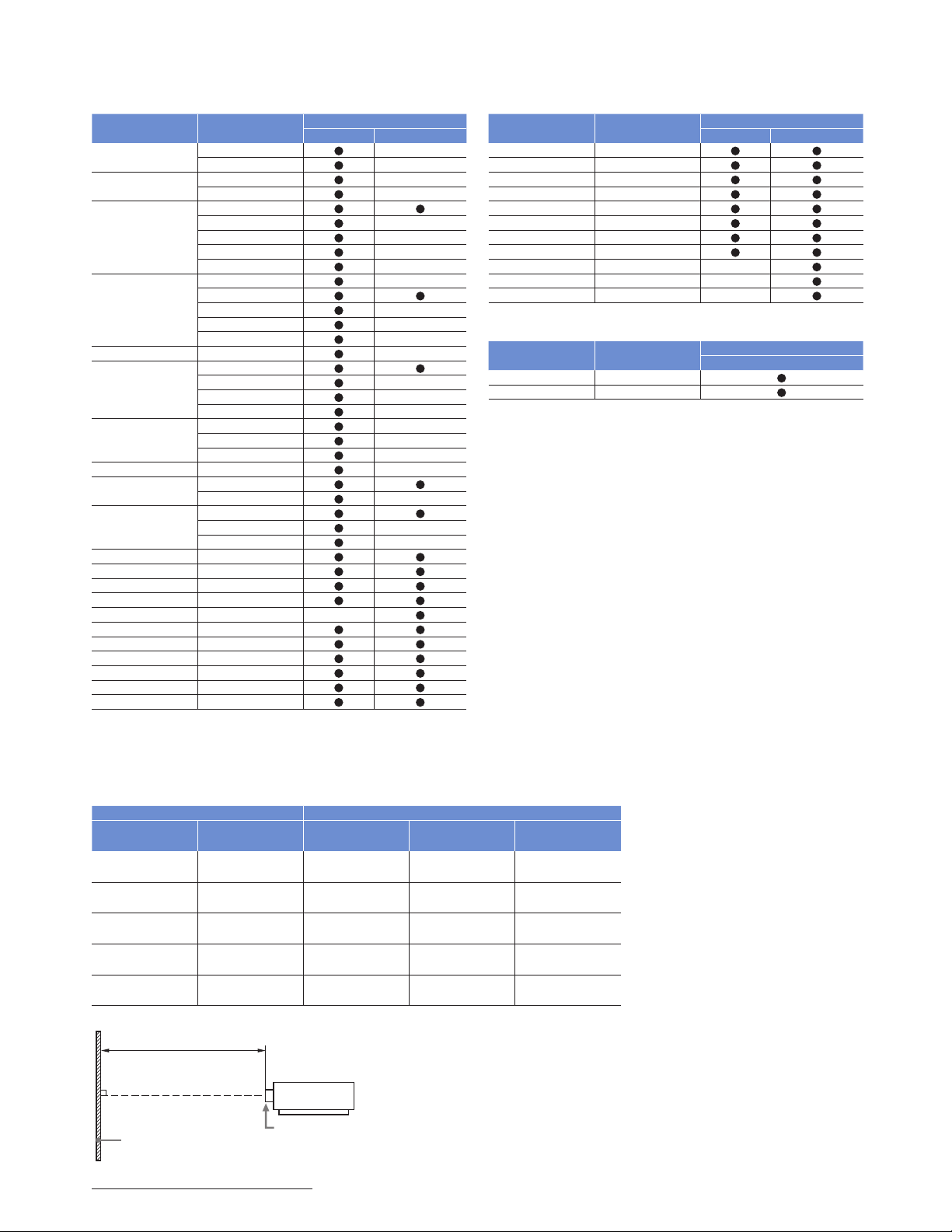

PRESET SIGNAL CHART
Computer Signal
Resolution
640 x 350
640 x 400
fH [kHz]/
fV [Hz]
31.5/70
37.9/85
31.5/70
37.9/85
31.5/60
35.0/67 —
640 x 480
37.9/73
37.5/75
43.3/85
35.2/56
37.9/60
800 x 600
48.1/72 —
46.9/75
53.7/85
832 x 624 49.7/75
48.4/60
1024 x 768
56.5/70 —
60.0/75
68.7/85
64.0/70
1152 × 864
67.5/75
77.5/85
1152 x 900 61.8/66
1280 x 960
60.0/60
75.0/75 —
64.0/60
1280 x 1024
80.0/75 —
91.1/85
1400 x 1050 65.3/60
1600 x 1200 75.0/60
1280 x 768 47.8/60
1280 x 720 45.0/60 *
1920 x 1080 67.5/60 — *
1360 x 768 47.7/60
1440 x 900 55.9/60
1680 x 1050 65.3/60
1280 x 800 49.7/60
1920 x 1200 74.0/60 *
1600 x 900 60.0/60 *
Input connector
*1
RGB
5
5
DVI-D*2/HDMI
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
6
6
5
*
5
*
Digital TV Signal
*3
Signal fV [Hz]
480i 60
576i 50
480p 60
576p 50
1080i 60
1080i 50
720p 60 *
720p 50
1080p 60 — *
1080p 50 —
1080p 24 —
RGB/YP
Input connector
*4
BPR
Analog TV Signal
Signal fV [Hz]
NTSC 60
PAL/SECAM 50
*1: INPUT A, INPUT B
*2: INPUT C
*3: INPUT D
*4: INPUT A
*5: Available for VESA Reduced Blanking signals only.
*6: INPUT C is determined as a computer signal;
INPUT D is determined as a digital TV signal.
• When a signal other than the signals listed in the table is input, the picture
may not be displayed properly.
• An input signal meant for a screen resolution different to that of the panel
will not be displayed in its original resolution. Text and lines may be uneven.
• Some actual values may differ slightly from the design values given in the
table.
Input connector
VIDEO/S VIDEO
DVI-D*2/HDMI
6
6
*3
INSTALLATION DIAGRAM
Projection Distance Unit: inches (m)
Projection image size Projection distance L
Diagonal Width x Height Standard lens VPLL-Z1024 VPLL-Z1032
80-inch
(2.03 m)
100-inch
(2.54 m)
120-inch
(3.05 m)
150-inch
(3.81 m)
200-inch
(5.08 m)
Projection distance L
Projected image
6
1.72 x 1.08
(68 x 42)
2.15 x 1.35
(85 x 53)
2.58 x 1.62
(102 x 64)
3.23 x 2.02
(127 x 79)
4.31 × 2.69
(170 × 106)
2.39 – 3.83
(95 – 150)
3.00 – 4.80
(119 – 189)
3.61 – 5.77
(143 – 227)
4.53 – 7.22
(179 – 284)
6.05 – 9.64
(238 – 379)
Front of the lens
4.00 – 5.48
(158 – 215)
5.03 – 6.87
(198 – 270)
6.05 – 8.27
(238 – 325)
7.59 – 10.36
(299 – 408)
10.15 – 13.85
(400 – 545)
5.45 – 8.32
(215 – 327)
6.84 – 10.43
(270 – 410)
8.24 – 12.55
(325 – 494)
10.33 – 15.72
(407 – 619)
13.82 – 21.00
(544 – 827)
Page 7
SPECIFICATIONS DIMENSIONS
Display system 3 LCD system
VPL-FH30
Display device Size of effective display area 0.76” (19.3 mm) x 3, BrightEra, Aspect ratio: 16:10
Number of pixels 6,912,000 (1920 x 1200 x 3) pixels
Projection lens Zoom Manual (Approx. 1.6 x)
Focus Manual
Lens shift Manual, Vertical: Upward 60% to Downward 0%
Horizontal: Right 32% to Left 32%
Light source High-pressure mercury lamp, 275 W type
Recommended lamp replacement time*
Filter cleaning cycle Max. 15000 H*
Screen size 40” to 600” (1.02 m to 15.24 m)*
1
3000 H (Lamp mode: High)
4000 H (Lamp mode: Standard)
1
Same time as the lamp replacement is recommended
2
Light output 4300 lm (Lamp mode: High)
3400 lm (Lamp mode: Standard)
Color light output 4300 lm (Lamp mode: High)
Contrast ratio (full white / full black)*
Displayable
scanning frequency
Horizontal 14 kHz to 93 kHz
Vertical 47 Hz to 93 Hz
2
Display resolution Computer signal input Maximum display resolution: 1920 x 1200 dots*
3400 lm (Lamp mode: Standard)
2000:1
3
Panel display resolution: 1920 x 1200 dots
Video signal input NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p,
720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, 1080/24p
Color system NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60
Keystone correction Vertical: Max. +/- 5 degrees
OSD language 20-languages (English, Dutch, French, Italian, German, Spanish,
Portuguese, Turkish, Polish, Russian, Swedish, Norwegian,
Japanese, Simplified Chinese, Traditional Chinese, Korean, Thai,
Vietnamese, Arabic, Persian)
Computer and
video signal
input/output
INPUT A RGB / Y P
INPUT B RGB input connector: Mini D-sub 15-pin (female)
B PR input connector: 5BNC (female)
Audio input connector: Stereo mini jack
Audio input connector: Stereo mini jack (shared with INPUT C)
INPUT C DVI-D input connector: DVI-D 24-pin (Single link), supported HDCP
Audio input connector: Stereo mini jack (shared with INPUT B)
INPUT D HDMI input connector: Digital RGB/Y P
B PR
Digital Audio: PCN (32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz)
S VIDEO IN S video input connector: Mini DIN 4-pin
Audio input connector: Pin jack (x2) (shared with VIDEO IN)
VIDEO IN Video input connector: Pin jack
OUTPUT Monitor output connector*
Audio input connector: Pin jack (x2) (shared with S VIDEO IN)
Audio output connector*
4
: Mini D-sub 15-pin (female)
5
: Stereo mini jack (variable out)
Control signal input/output RS-232C connector: D-sub 9-pin (female)
LAN connector: RJ45, 10BASE-T/100BASE-TX
Control S input connector: Stereo mini jack, Plug in power DC 5 V
Operating temperature (Operating humidity) 32°F to 104°F / 0°C to 40°C (35% to 85%; no condensation)
Storage temperature (Storage humidity) -4°F to +140°F / -20°C to +60°C (10% to 90%)
Power requirements AC 100 V to 240 V, 4 A to 1.6 A, 50/60 Hz
Power
consumption
Standby mode
power consumption
AC 100 V to 120 V 400 W
AC 220 V to 240 V 380 W
AC 100 V to 120 V 9 W (Standby mode: Standard) / 0.15 W (Standby mode: Low)
AC 220 V to 240 V 10 W (Standby mode: Standard) / 0.3 W (Standby mode: Low)
Heat dissipation AC 100 V to 120 V 1365 BTU
AC 220 V to 240 V 1297 BTU
Outside dimensions W 15 11/32 x H 5 13/16 x D 18 25/32 in
(W 390 x H 148 x D 477 mm)
W 15 11/32 x H 5 9/32 x D 18 7/32 in
(W 390 x H 134 x D 463 mm) (without protrusions)
Weight 17 lb 14 oz / 8.1 kg
Supplied accessories RM-PJ19 Remote Commander (1), Size AA (R6) batteries (2),
AC Power Cord (1), Cable ties (2), Quick Reference Manual (1),
Security Label (1), Operating Instructions (1)
*1 The figures are expected maintenance time and not guaranteed. They will depend on
the environment or how the projector is used.
*2 This value is average.
*3 Available for the VESA Reduced Blanking signal.
*4 From INPUT A and INPUT B.
*5 Works as an audio switcher function. Output from a selected channel; not available in
standby.
Front
/32 (134)
/16 (148)
9
13
5
5
Center of the lens
Bottom
9
5
/32 (134)
Ø23/32 (18) Ø23/32 (18)
/8 (86)
3
3
/32 (272.6)
/32 (361)
7
23
14
10
The distance L’ is between the front of the lens
(center) and the front of the cabinet
Lens L’ Type
Standard lens 15/32 (12.2)
VPLL-Z1024 1/16 (1.6)
VPLL-Z1032 1/32 (0.3)
1 2
15 11/32 (390)
7 11/16 (195)
Center of the lens
9
/32 (134)
5
11
/16 (195)
7
7
/32 (81.5)3 7/32 (81.5)
3
/32 (15)
19
31
1
/32 (50)1 31/32 (50)
Unit: inches (mm)
Front of the cabinet
Front of the lens
Unit: inches (mm)
/16 (81)
3
3
/16 (122)
13
4
/32 (463)
7
18
1
2
1
7
Page 8
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
sony.com/professional
DI-0225 (MK10802V1)
Reproduction in whole or in part without written permission is prohibited.
©2011 Sony Corporation. All rights reserved.
Features and specifications are subject to change without notice.
The values for mass and dimension are approximate.
Sony, the Sony logo, the Sony Make.Believe logo, BrightEra, “BrightEra with long lasting Optics”
and its logo and Remote Commander are Trademarks of Sony Corporation.
Trademark PJLink is a trademark applied for trademark rights in Japan, the United States of
America and other countries and areas.
HDMI is a trademark of HDMI Licensing LLC.
All other trademarks are the property of their respective owners.
Printed in USA (3/11)
Loading...
