Network Video Monitoring

■ Network Video Cameras p 04

■ Network Video Recorders and Servers p 08

■ Network Video Software and Peripherals p 11

www.sonybiz.net/networkvideo

CCTV Solutions

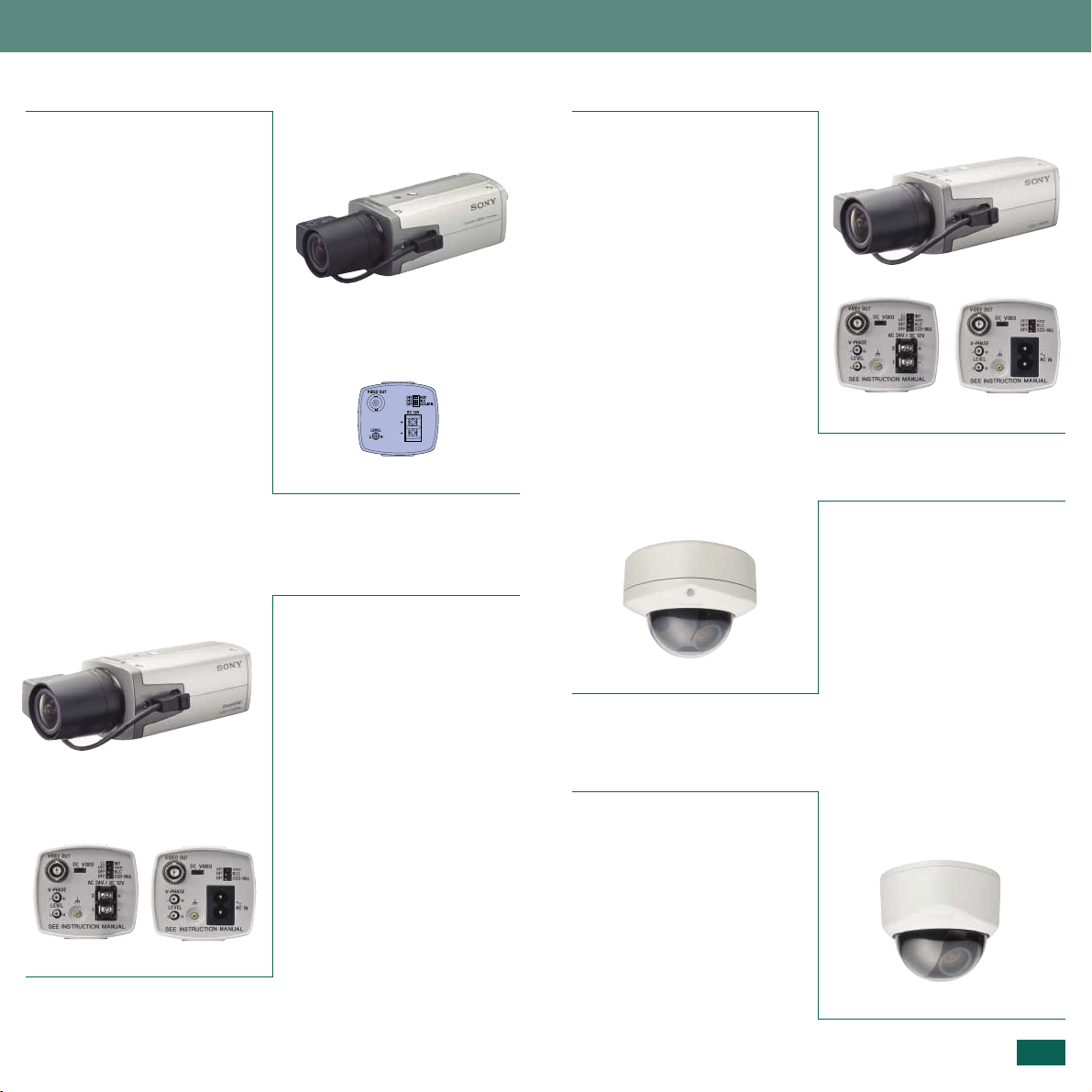

■ Video Cameras p 12

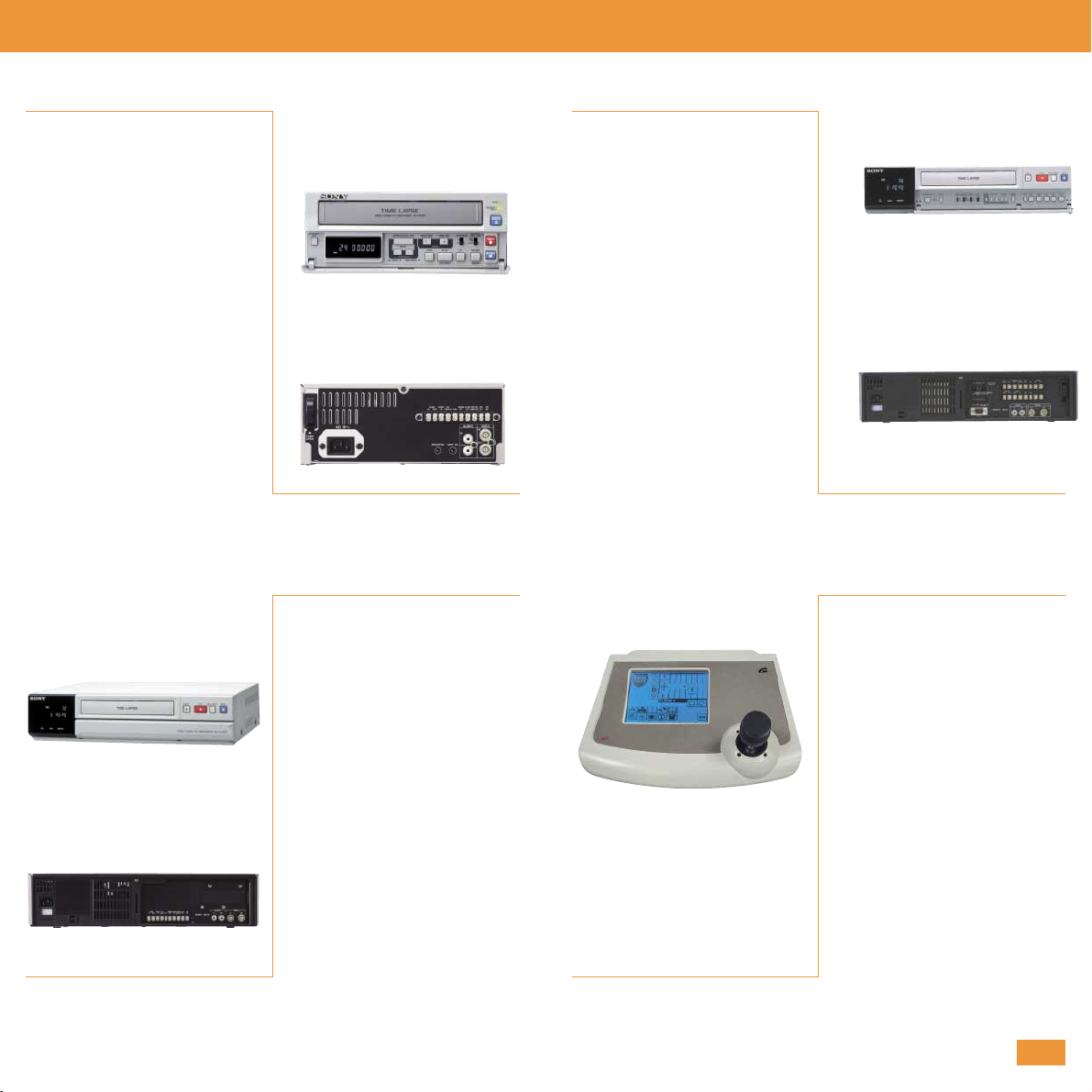

■ Video Recorders and Control Devices p 19

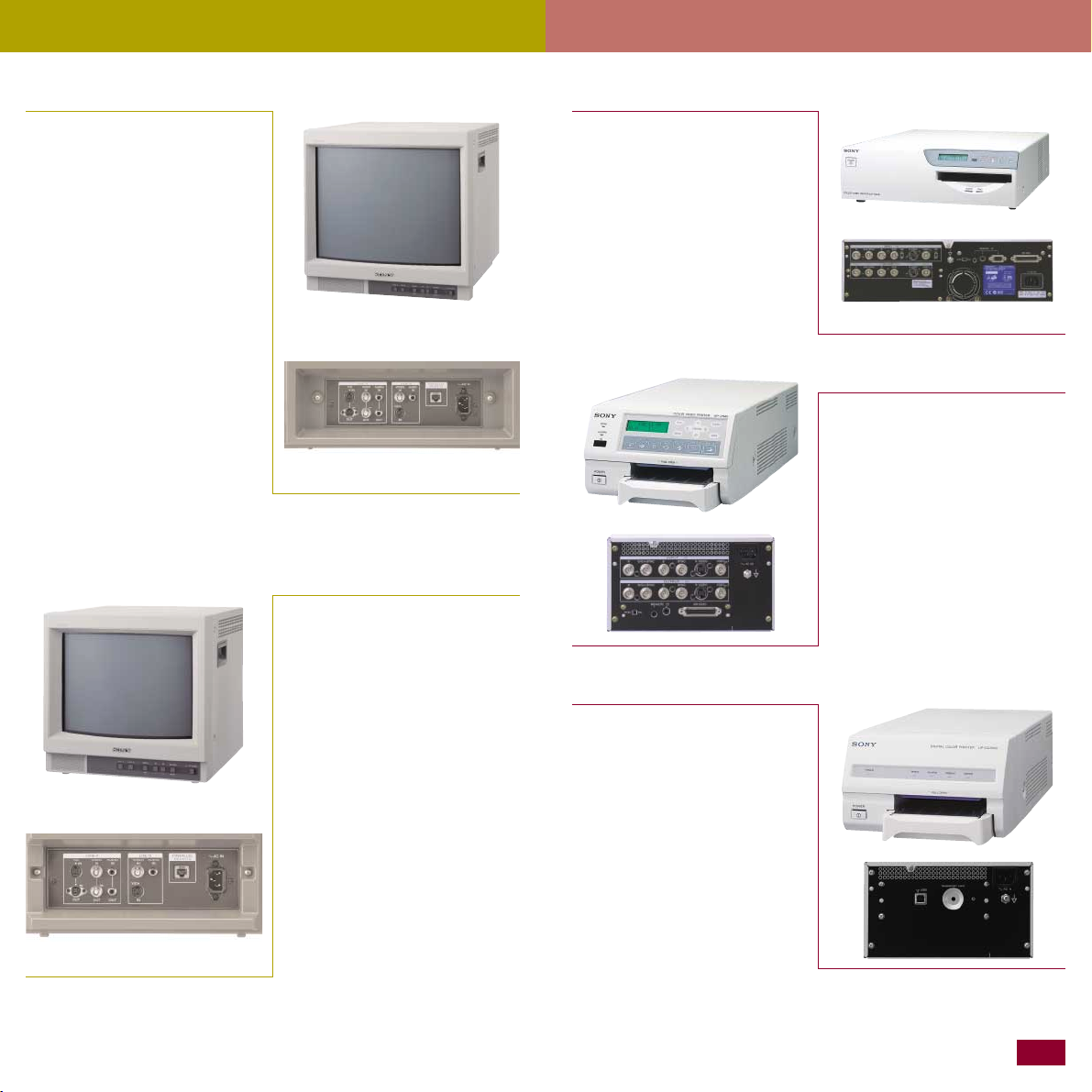

■ Video Monitors p 22

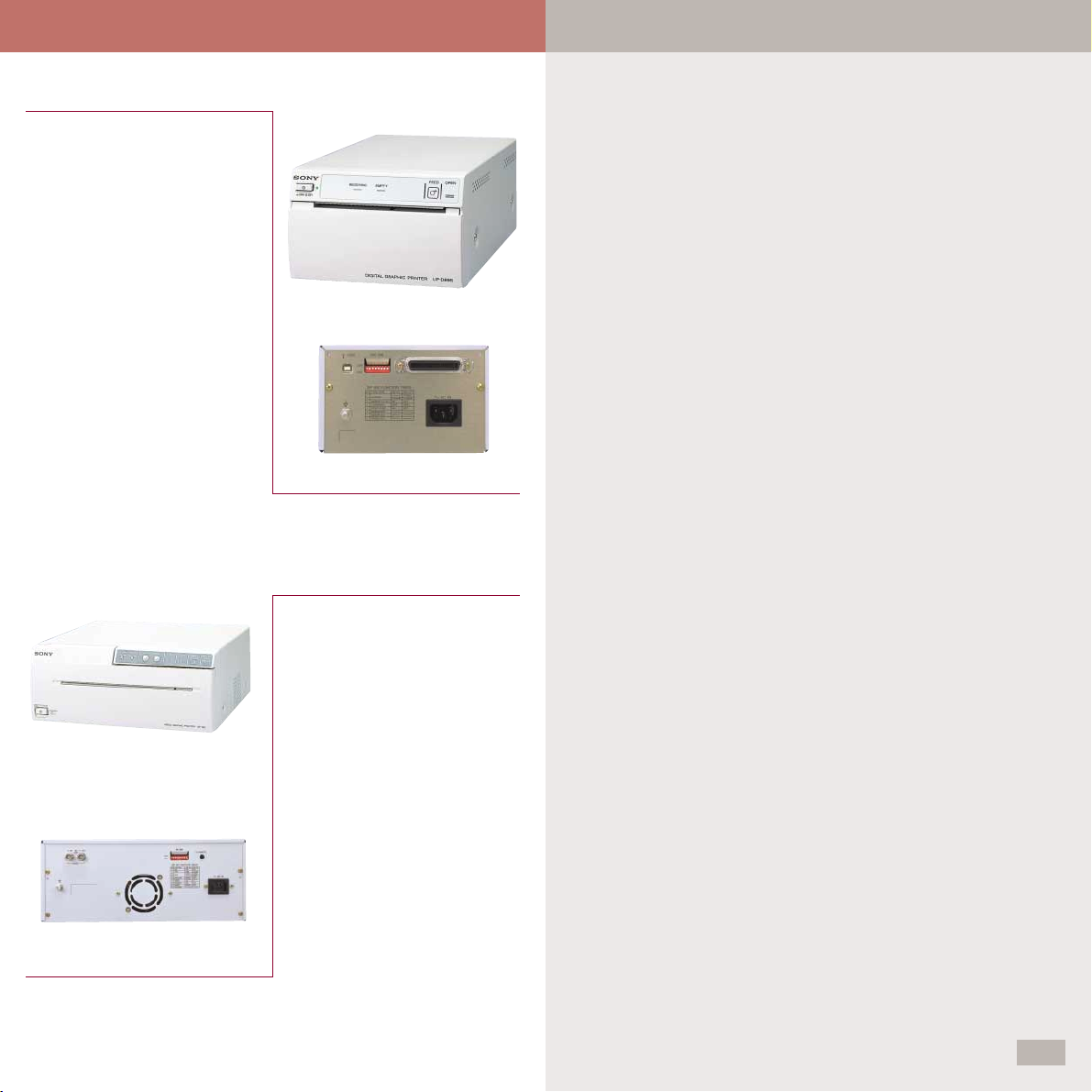

■ Printers p 23

www.sonybiz.net/cctv

■ Specifications p 25

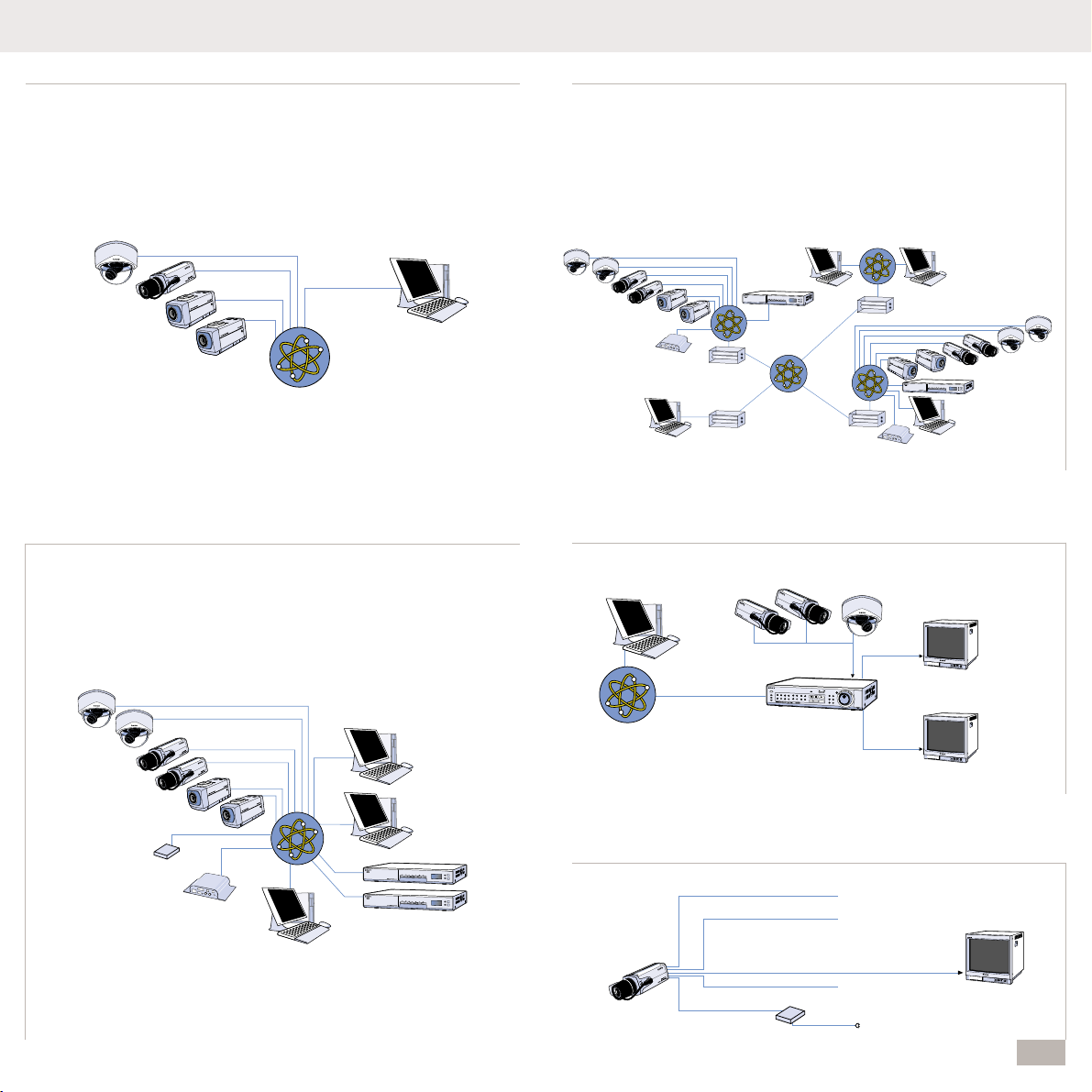

■ System Examples p 46

Create a safer, more secure environment

Today more than ever, Closed Circuit Television (CCTV) is
playing a vital role in the safeguarding of people, property
and other assets.

With increasing public awareness of the threats of terrorism,
assault, vandalism and theft, the security of every citizen
is a higher priority than ever for public authorities as well
as commercial organisations. From banks, offices, hospitals
and schools to shopping malls, airports, stations and other
public areas, a discreet monitoring presence offers the
valuable round-the-clock reassurance of a safer, more
secure environment.

As a leader in CCTV and network video monitoring, Sony
offers a complete range of products that make it easier than
ever to create exactly the right solution to meet your current
and future needs.

From latest-generation network video cameras, file servers
and RealShot camera management software to digital video
recorders, monitors, printers and accessories, you’ll find that
every Sony CCTV product has been designed with
performance, reliability and ease of integration in mind.

Whether you’re looking to expand your existing CCTV
installation or create an all-new network-based monitoring
solution with powerful image distribution and control
capabilities, Sony products can enhance the value of your
current investments while delivering flexible new monitoring
possibilities. Best of all, every CCTV product comes with the
back-up and peace of mind that you’d expect from Sony.

Visit us at www.sonybiz.net for more information on our
complete range of CCTV and video surveillance products as
well as case studies, white papers, special offers and more.
Alternatively, talk to your local Sony office or security
systems specialist. They’ll be delighted to tell you more
about the capabilities of Sony CCTV products and help you
create a video monitoring solution that’s flexible, reliable and
remarkably cost-effective.

Contents

Network Video Cameras

■ IP network colour video camera with
auto iris vari-focal lens (focal length:

3.5 to 8.0 mm)

■ 1/3 type CCD sensor with
ExwaveHAD™ technology offers
extremely high sensitivity of 0.5 lux
at F1.0

■ Full motion video - up to 25 fps at
VGA resolution (640 x 480) thanks
to M-JPEG picture compression

■ Embedded IP server and web page
for simple set-up and control

■ Embedded activity detection and
alarm trigger functions

■ PAL composite video output for local
analogue viewing or recording

SNC-CS3P

Network Video Camera

■ Precise, high-speed pan/tilt/zoom
mechanism with integral 18x auto­focus zoom lens

■ High quality and high sensitivity
(0.7 lux, F1.4) with ExwaveHAD

™

technology

■ Day/Night function

■ Added functionality provided through

Compact Flash slot and Memory
Stick slot for image storage or
Wireless LAN (IEEE802.11b) through
optional Sony wireless LAN card
(SNCA-CFW1) for greater installation
flexibility

■ Half duplex audio through built-in
or external microphone input and
audio line out

■ Unattended operation thanks
to built-in motion detection

SNC-RZ25P

JPEG/MPEG-4 Network Video
Pan-Tilt-Zoom Camera

4-5

■ IP network colour video camera with
integrated Direct Drive pan/tilt/zoom
mechanism and autofocus lens with
25x optical zoom

■ High quality full motion colour video ­up to 25 fps at VGA resolution
(640 x 480) thanks to M-JPEG picture
compression

■ PC card slot for onboard event
storage or optional Wireless LAN

■ Embedded web server and web page
for simple set-up and control

■ Day/night function switches to black
& white mode in low light conditions
for greater sensitivity

■ Activity detection and automatic
picture store/send for unattended
operation

Network Video Cameras

SNC-RZ30P

Network Video Pan-Tilt-Zoom
Camera

■ IP network colour video camera with
integrated 18x optical zoom lens for
excellent resolution of fine detail

■ 1/4 type CCD sensor with
ExwaveHAD™ technology offers
extremely high sensitivity: 0.7 lux in
colour mode, 0.01 lx (F1.4, 50 IRE,
Slow Shutter OFF) in B/W mode

■ Power-over-Ethernet allows power
to be supplied via the Ethernet CAT5
cable

■ Added functionality via on-board
PC card slot for onboard event
storage or optional Wireless LAN for
greater installation flexibility

■ Day/night function switches to black
& white mode in low light conditions
for greater sensitivity

■ PAL composite video output for local
analogue viewing or recording

SNC-Z20P

Network Video Camera

Network Video Cameras

■ All-in-one JPEG/MPEG-4 network
colour video camera with integrated
Pan-Tilt control capability (Pan: -70 to
+70 degrees / Tilt: -70 to 0 degrees
and 3x optical zoom)

■ Wireless transmission through
optional Sony wireless LAN card
(SNCA-CFW1)

■ High quality image transmission even
over limited bandwidth network
connection (e.g. only 500 kbps
needed for 25 images per second)

■ 1/4 type, 330K pixels progressive
scan CCD for superb picture detail

■ Two-way audio communication
enhances appeal for remote
monitoring applications

■ Smart motion detection permits
unattended operation

■ External sensor input, alarm output
and E-mail alarm notification function

Product available beginning March 2005.

SNC-P5

Network MPEG-4 Video
Pan-Tilt Camera

■ All-in-one JPEG/MPEG-4 network
colour video camera with embedded
IP server and web page for simple
set-up and control

■ High quality image transmission
even over limited bandwidth network
connection (e.g. only 500 kbps
needed for 25 images per second)

■ 1/4 type, 330K pixels progressive
scan CCD for superb picture detail

■ Two-way audio communication
enhances appeal for remote
monitoring applications

■ Smart motion detection enables
unattended operation

■ External sensor input, alarm output
and E-mail alarm notification function

SNC-P1

MPEG-4 Network Video Camera

6-7

■ JPEG/MPEG-4 network colour video
camera integrated in IP66 compliant
rugged aluminium cast housing and
polycarbonate cover for protection
against rain and vandalism

■ Power-over-Ethernet allows power
to be supplied via an Ethernet CAT5
cable

■ Removable infrared filter delivers
clear Black & White pictures at night
or under IR illumination

■ Multicasting capability supported
and Adaptive Rate Control for stable
image transmission

■ Half duplex audio through built-in
or external microphone input and
audio line out

■ Built-in motion vector activity
detection permits unattended
operation

■ Analogue composite video output

Network Video Cameras

SNC-DF70P

Day/Night Network Mini-Fixed
Dome Camera

■ JPEG/MPEG-4 network colour video
camera with integral dome enclosure

■ Built-in CS Mount auto iris vari-focal
lens (f=3 to 8 mm from F1.0) for
optimised coverage of any viewing
area

■ Multicasting capability supported
and Adaptive Rate Control for stable
image transmission

■ Half duplex audio through built-in or
external microphone input and audio
line out

■ Built-in motion vector activity
detection permits unattended
operation

■ PAL composite video output for local
analogue viewing or recording

SNC-DF40P

Network Mini-Fixed Dome Camera

Network Video Recorders and Servers

■ Converts four analogue video signals
to M-JPEG digital format for IP
transmission (single channel for
SNT-V501)

■ Simple integration of analogue video
cameras into IP networks

■ Onboard picture storage reduces
network bandwidth overheads

■ Supports wireless transmission
(optional) for areas where cabled
network coverage is difficult or
non-existent

■ Built-in activity detection enables
unattended operation

■ Can be used as a standalone event
recorder

■ High refresh rates provide full motion
video (25 fps) at VGA resolution

SNT-V501/V504

Video Network Station

■ Scalable application server with
500 GB storage capacity- ideal
for networked video recording

■ Dual Ethernet ports
(100/1000 Mbit/s)

■ Allows onward distribution of video
recordings using built-in DVD burner
(DVD-ROM/-R/-RW/RAM
CD-ROM/-R/-RW)

■ Compact size, ultra-slim 1U rack
mount

■ Intel Pentium 4 Processor, 2.4 GHz
CPU with 512 MB RAM

■ WindowsXP

™

Professional operating

system pre-installed

FSV-IPM1

Network Video Recorder

9-98-9

■ All-in-one JPEG/MPEG-4 network
colour video camera with embedded
IP server and web page for simple
set-up and control

■ Wireless LAN connection for easy
installation (SNC-M1W only)

■ Incorporates 1/4 type, 310k pixels
(VGA) CMOS sensor

■ Two-way audio transmission (built-in
microphone, external microphone
input and audio line output for active
speakers)

■ Sends email to specified address on
alarm trigger

■ Simple to install

Network Video Cameras

SNC-M1/M1W

MPEG-4 Video Network Camera

■ All-in-one JPEG/MPEG-4 network
colour video camera with integrated
Pan-Tilt control capability (Pan: -60 to
+60 degrees / Tilt: +10 to –60
degrees)

■ Wireless LAN connection for easy
installation (SNC-M3W only)

■ Incorporates 1/4 type, 310k pixels
(VGA) CMOS sensor

■ Two-way audio transmission (built-in
microphone, external microphone
input and audio line output for active
speakers)

■ Sends email to specified address on
alarm trigger

■ Simple to install

SNC-M3/M3W

MPEG-4 Video Network
Pan-Tilt Camera

SNT-V501

SNT-V504

Network Video Softwares and Peripherals

■ Networked intercom system

■ Ideal for monitoring building

entrances or doorways by providing
combined intercom and alarm
functionality

■ Integrates seamlessly with Realshot

™

Manager for audio recording and
monitoring

■ 2 Inputs for control of other building
functions (e.g. ‘Talk’ and ’Door’
buttons)

■ Audio input via on-board microphone
or Line input

■ Audio out through Headphone/Line
Out

RSM-AIC

Stand-Alone Audio Network System

■ Management software to control,
monitor and manage networked
video installations on single or
multiple sites

■ Tailor made on-screen layouts offer
intuitive, interactive representation of
entire surveillance/monitoring system

■ Full Server/Client support - optional
Client software allows monitoring of
unlimited number of sites and
cameras while RSM web client
allows monitoring from any PC on
the network

■ Extremely flexible video recording
functionality, recording up to 350 fps

■ Advanced search GUI makes it quick
and easy to retrieve recordings

■ I/O functionality to manage alarms,
doors and other switch operated
devices

■ One year PrimeSupport telephone
helpline

IMZ-RS Series

RealShot Manager Monitoring
and Control Software

10-11

■ Scalable, ‘all-in-one’ network video
recording server with RealShot

™

Manager pre-installed which
manages/records up to 9
(FSV-RSM9) or 16 (FSV-RSM16)
networked video sources

■ Ideal for server-client architecture,
allowing remote access to live and
recorded pictures via network

■ Unattended recording over long
periods thanks to 500 GB storage
capacity: e.g. 10 days recording
for 9 cameras at 6 fps, 24hrs/day
at CIF resolution

■ Dual Ethernet ports

(100/1000 Mbit/s)

■ Compact size, ultra-slim 1U rack
mount

■ Allows onward distribution of video
recordings using built-in DVD burner
(DVD-ROM/+R/-RW /RAM CD-ROM/
+R/-RW)

Network Video Recorders and Servers

FSV-RSM9/FSV-RSM16

9-channel/16-channel Network

Video Recorder

■ Ideal application server for hard
drive space demanding applications
such as video surveillance systems

■ Ultra-slim 1U rack mount

■ 1000 GB (4 x 250 GB) Hot-

swappable hard drives

■ Hardware RAID, user area RAID 0,
1 and 5, OS area RAID 0+1

■ Intel Pentium 4 Processor, 2.4 GHz
CPU with 512 MB RAM

■ 24x CD-ROM drive

■ Dual 10 BaseT/100 BaseTX/1000

BaseT Ethernet ports for
uninterrupted performance in the
event of one port failing

■ Embedded SCSI interface for
backup devices

FSVM51000W

Network Application Server

Video Cameras

■ 1/3 type IT CCD offering 480 lines of
horizontal resolution

■ Wide dynamic range with DynaView
technology - ideal for obtaining clear
colour images under severe lighting
conditions

■ Day/Night mode - increases camera
sensitivity allowing images to be
viewed even in low light conditions

■ White balance: ATW PRO/ATW/
3200K/5600K/MANUAL/DUAL WB
switchable - Dual white balance
mode gives high quality colour
reproduction of indoor and outdoor
scenes under different colour
temperatures

■ Built-in activity detection and alarm
trigger functions

■ On-screen set up menu supports
Privacy Zone Masking function and
two preset memories for camera
setting

SSC-DC593P/SSC-DC598P

Day/Night Video Camera

■ Extremely wide dynamic range with
DynaView

TM

technology for clear

images even with strong backlight

■ 1/3 type CCD offering 480 TV lines
and high sensitivity of 0.8 lux

■ CCD IRIS function removes need
for expensive automatic lens

■ Auto Tracing White (ATW) function
ensures consistent colour balance

■ Turbo AGC function - boost gain to
24dB for better resolution of subject

■ In-built activity detection/alarm

■ Privacy zone masking

■ Gamma correction for precise image

setting

SSC-DC573P/
SSC-DC578P

Dynaview Colour Video Camera

12-13

■ 1/2 type IT CCD with ExwaveHAD
technology offers extremely high
sensitivity (0.8 lux at F1.2, 50 IRE)
and low smear level (-120 dB)

■ 470 lines of horizontal resolution

■ Smart Control for fast backlight

compensation

■ ATW PRO/ATW/AWB/preset colour
temperature settings - ATW PRO
mode ensures reliable white balance
control based on the absolute colour
temperature of the object (The
effective operational colour range is
2500 K to 6000 K)

■ SSC-DC50AP supports single cable
operation (video/sync/power triple
multiplex transmission) for easy
installation with the optional
YS-W170P/W270P camera adaptor

Video Cameras

SSC-DC50AP/SSC-DC54AP/SSC-DC58AP

CCD Colour Video Camera

■ Used with SSC-DC50AP

■ Transmits DC power and video/sync

signal between the adaptor and
camera over a single coaxial cable

■ Up to four cameras can be
connected (one camera for
YS-W170P)

■ Internal or external synchronisation
with MPX-VS or MPX-VD

■ Maximum cable length: 600 m with
RG-11A/U (7C-2V) coaxial cable

YS-W170P/YS-W270P

Camera Adaptor

SSC-DC58AP

SSC-DC598PSSC-DC593P

SSC-DC573P

SSC-DC578P

SSC-DC54APSSC-DC50AP

YS-W170P

YS-W270P

Video Cameras

■ 1/3 type IT CCD with SuperHAD
technology offering 480 lines of
horizontal resolution

■ High sensitivity - 0.8 lux at F1.2
(50 IRE)

■ Backlight compensation
(ON/OFF switchable)

■ Wide range CCD IRIS (ON/OFF
switchable, 1/50 to 1/100,000)

■ CCD IRIS function allows for the use
of low cost manual iris lenses

■ Auto Tracing White Balance (ATW)
and Turbo AGC (ON/OFF
switchable)

SSC-DC372P/SSC-DC378P

High Resolution Colour Camera

■ 1/3 type IT SuperHAD CCD offering
330 lines of horizontal resolution

■ High sensitivity - 0.6 lux at F1.2
(50 IRE)

■ Backlight compensation and ATW
supported

■ BLC and Turbo AGC (ON/OFF
switchable)

■ Wide range CCD IRIS (ON/OFF
switchable, 1/50 to 1/100,000s)

■ AC 220-240 V power operation

SSC-DC198P

Standard Resolution Colour
Camera

14-15

■ Day/Night camera providing
optimised sensitivity in both day and
night shooting scenarios with
near-infrared sensitivity in night-mode

■ State-of-the-Art SuperExwave

™

CCD technology achieving extremely
high sensitivity levels - minimum
illumination of 0.55 lux at F1.2 in
colour mode and 0.05 lux at F1.2 in
B/W mode.

■ Newly-developed innovative DSP
technology generating a horizontal
resolution of 540 TV lines

■ New slim and stylish design

■ External Day/Night control input and

Day/Night control output terminal

■ Wide Auto Tracing White Range –
ATW Pro & ATW





Video Cameras

SSC-E473P/SSC-E478P

High Resolution Day/Night Camera

■ State-of-the-Art SuperExwave™ CCD
technology achieving extremely high
sensitivity levels providing a minimum
illumination of 0.55 lux at F1.2

■ Newly-developed innovative DSP
technology generating a horizontal
resolution of 540 TV lines

■ New slim and stylish design

■ Wide Auto Tracing White Range –

ATW Pro & ATW

■ Backlight compensation and Turbo
AGC: ON/OFF switchable

■ Wide range CCD IRIS (ON/OFF
switchable, 1/50 to 1/100,000s)

SSC-E453P/
SSC-E458P

High Resolution Colour Camera

SSC-E473P

SSC-E478P

SSC-DC372P

SSC-DC378P

SSC-E453P

SSC-E458P
