User Guide
Personal Computer
VGX-TP series
N
Page 2
Contents
Before Use .........................................................................................................................................................................5
Notice ...........................................................................................................................................................................5
Documentation .............................................................................................................................................................6
Getting Started .................................................................................................................................................................10
Locating Controls and Ports.......................................................................................................................................11
About the Indicator Lights ..........................................................................................................................................16
Setting Up Your Computer.........................................................................................................................................17
Shutting Down Your Computer Safely .......................................................................................................................28
Using Your VAIO Computer .............................................................................................................................................29

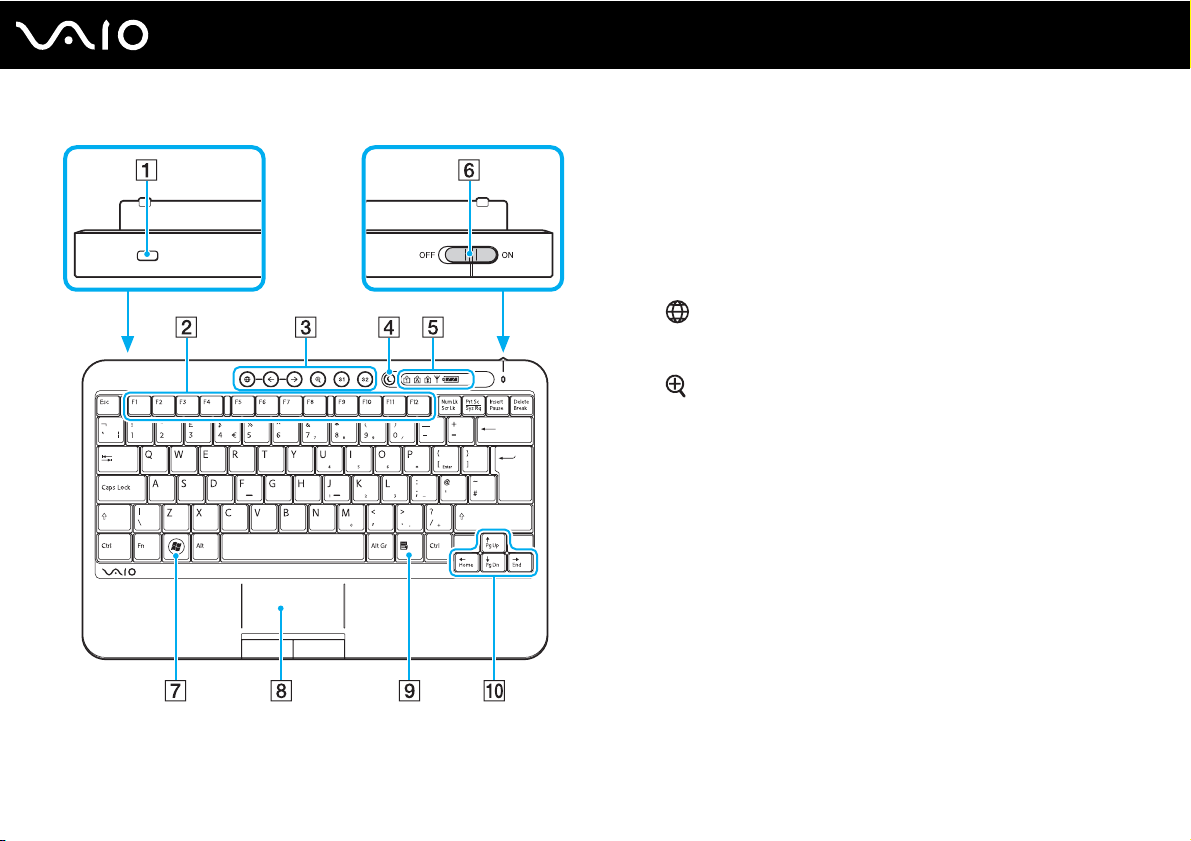

Using the Keyboard ...................................................................................................................................................30

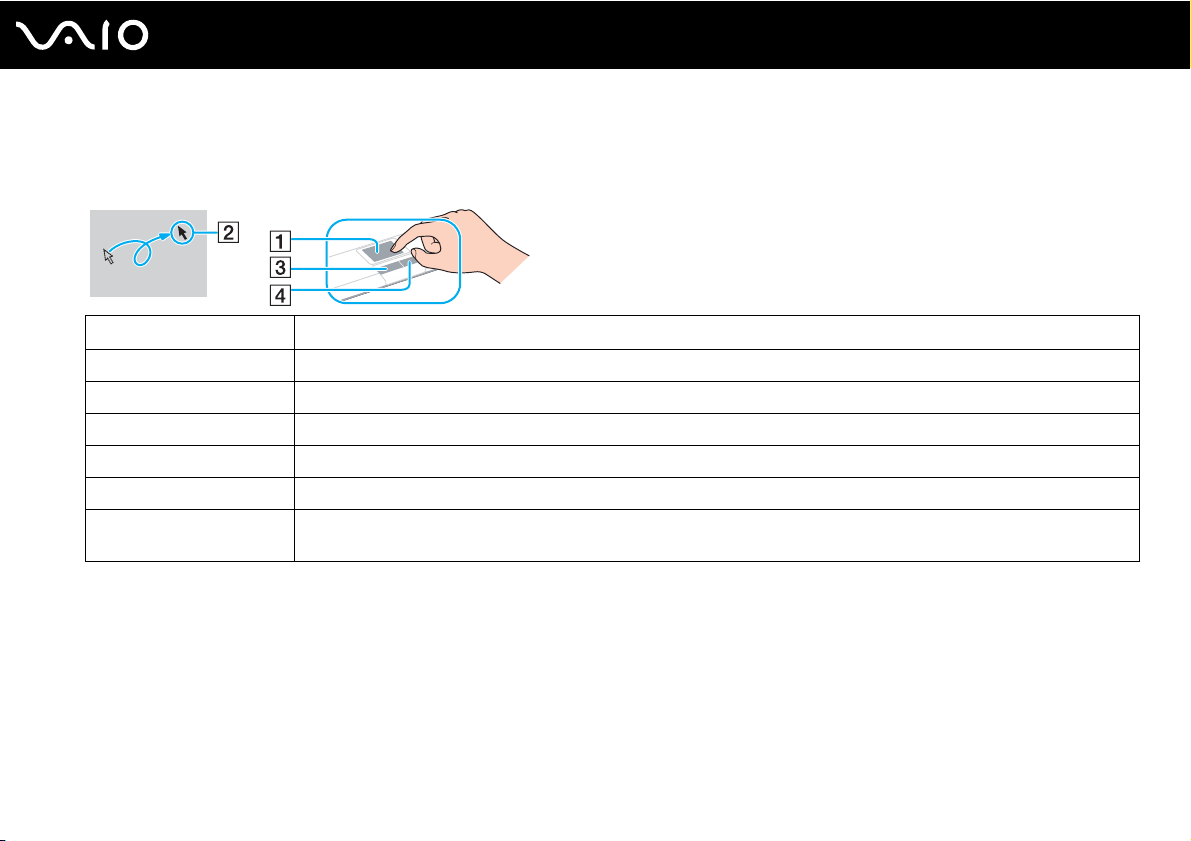

Using the Touch Pad .................................................................................................................................................34
Using the Optical Disc Drive ......................................................................................................................................35
Using the TV Function ...............................................................................................................................................44
Using the Memory Stick Media ..................................................................................................................................53
Using Other Memory Cards .......................................................................................................................................59
Using the Internet.......................................................................................................................................................63

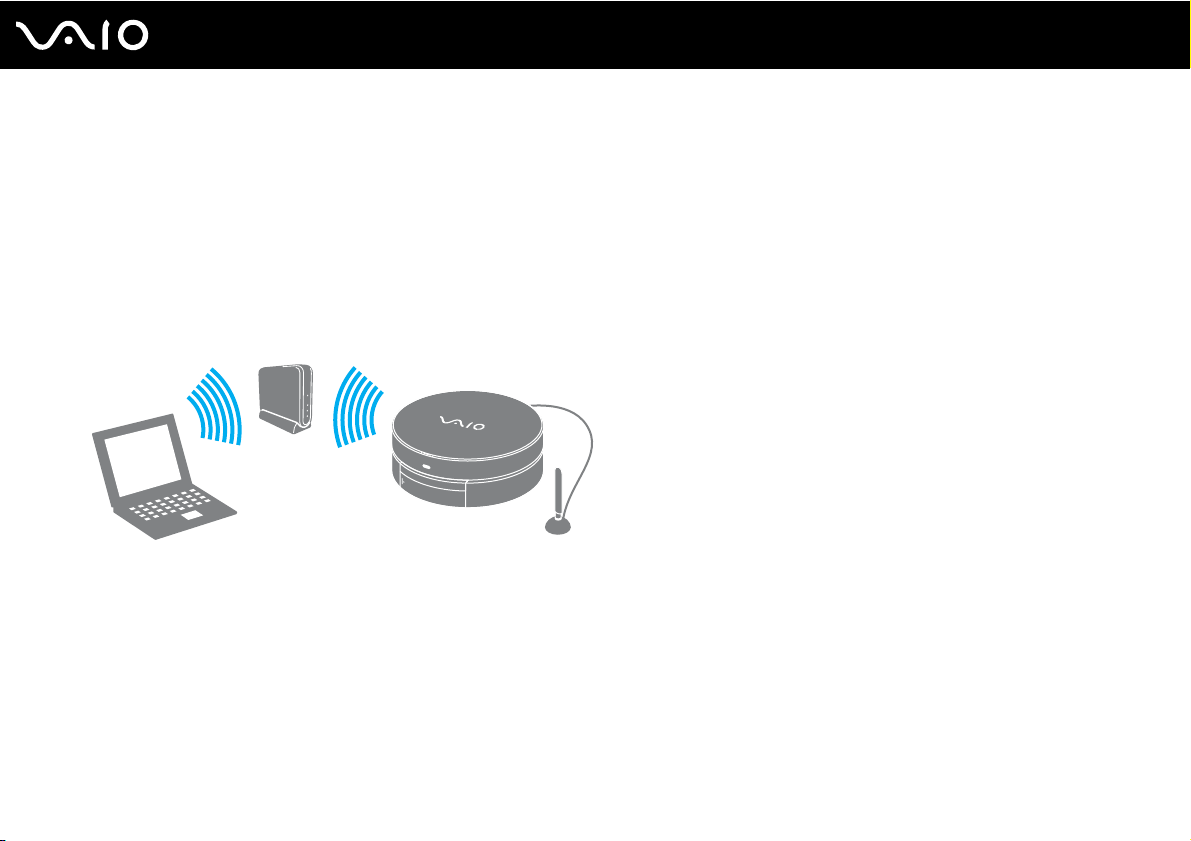

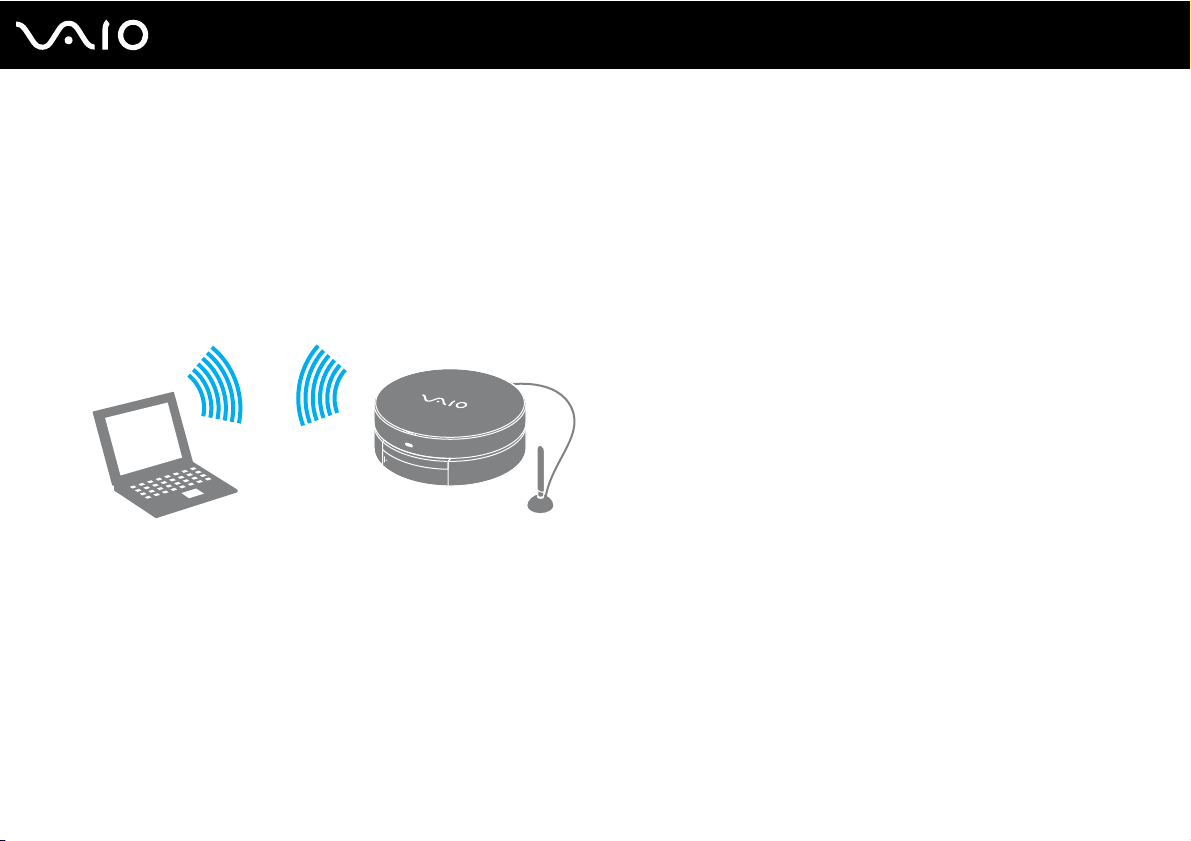

Using Wireless LAN (WLAN) .....................................................................................................................................64
2
nN
Page 3
3
nN
Using Peripheral Devices .................................................................................................................................................73
Selecting Display Modes............................................................................................................................................74

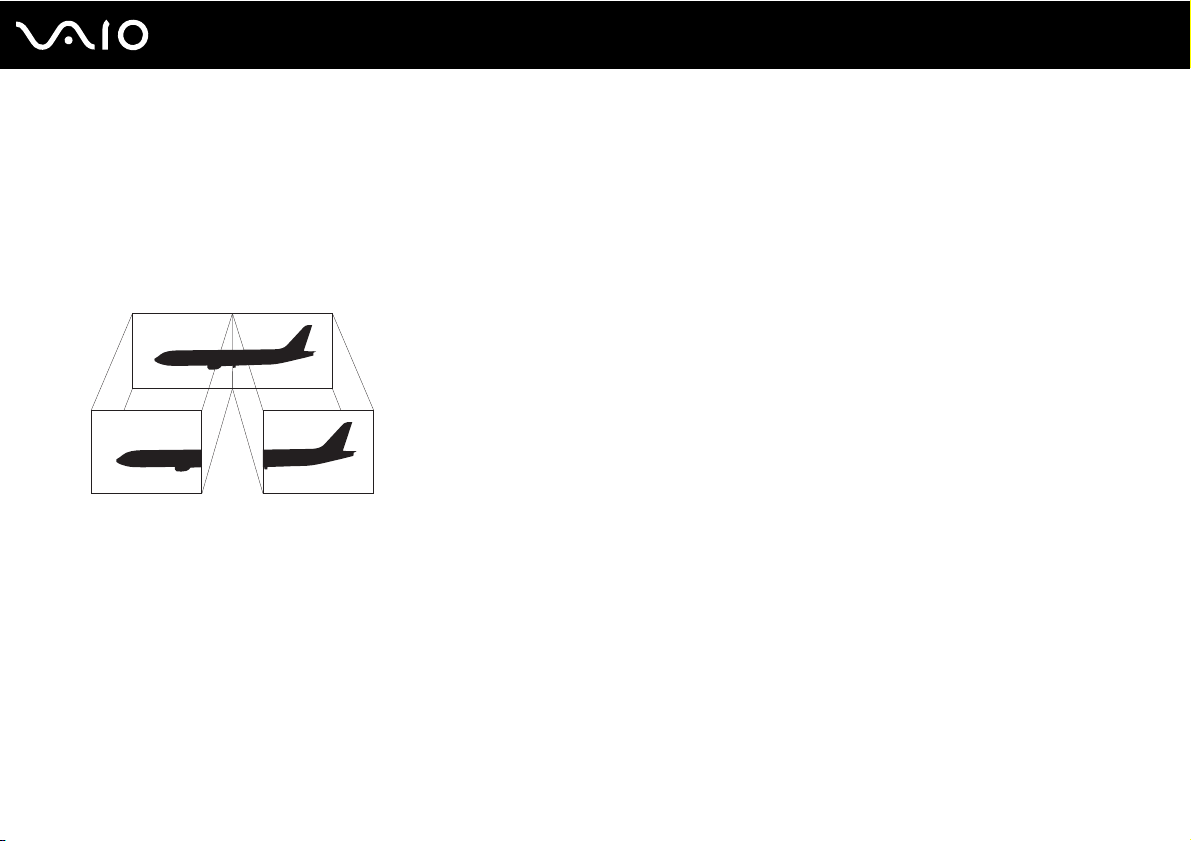

Using the Multiple Monitors Function .........................................................................................................................75
Connecting a Universal Serial Bus (USB) Device......................................................................................................77

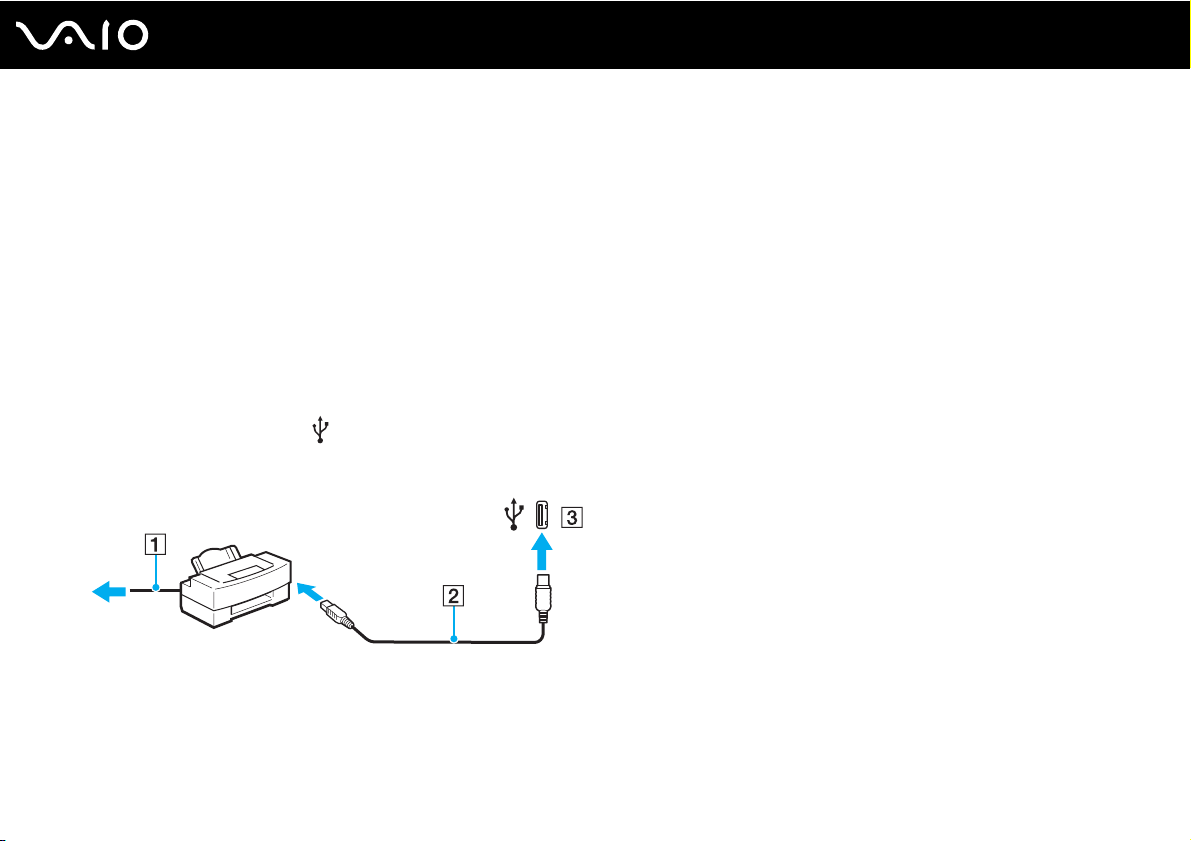

Connecting a Printer ..................................................................................................................................................80

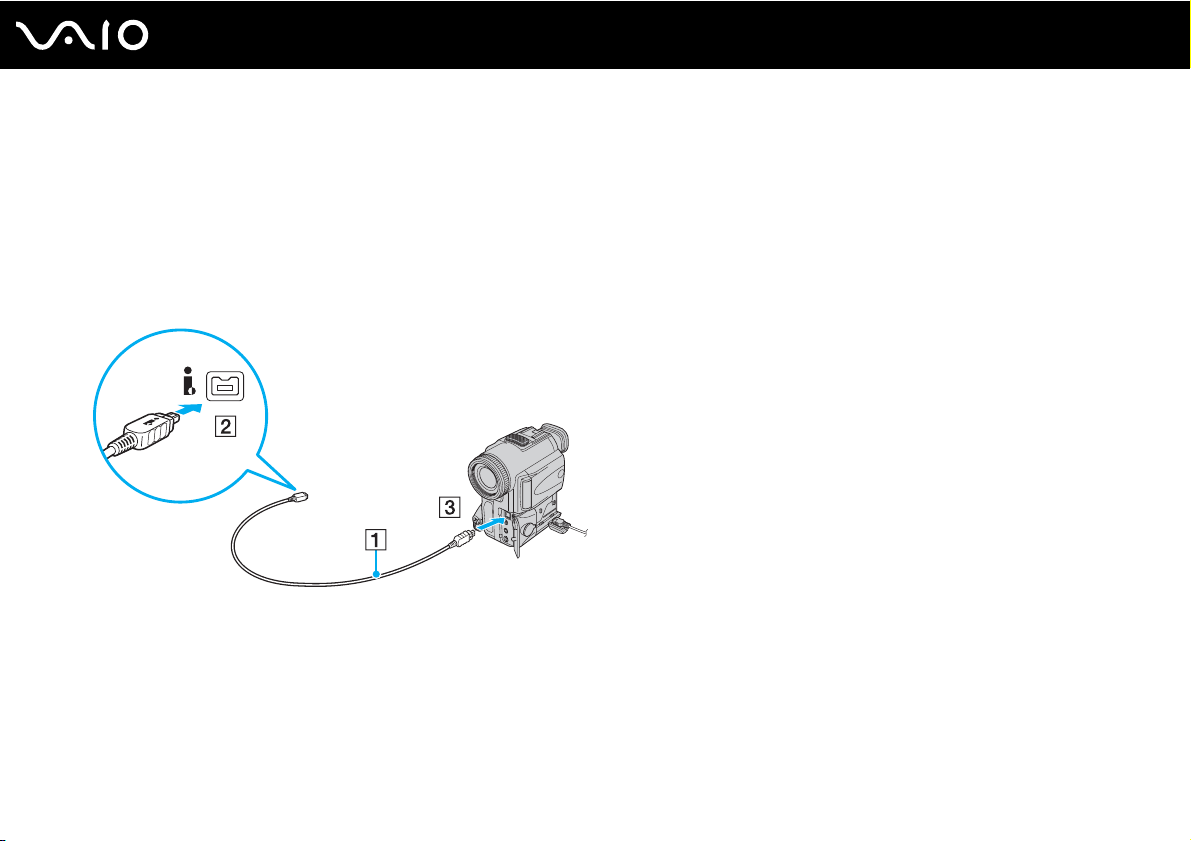

Connecting an i.LINK Device .....................................................................................................................................81
Connecting to a Network (LAN) .................................................................................................................................83
Customizing Your VAIO Computer ..................................................................................................................................85
Setting the Password .................................................................................................................................................86
Setting Up Your Computer with VAIO Control Center................................................................................................89
Using the Power Saving Mode...................................................................................................................................90
Upgrading Your VAIO Computer......................................................................................................................................93

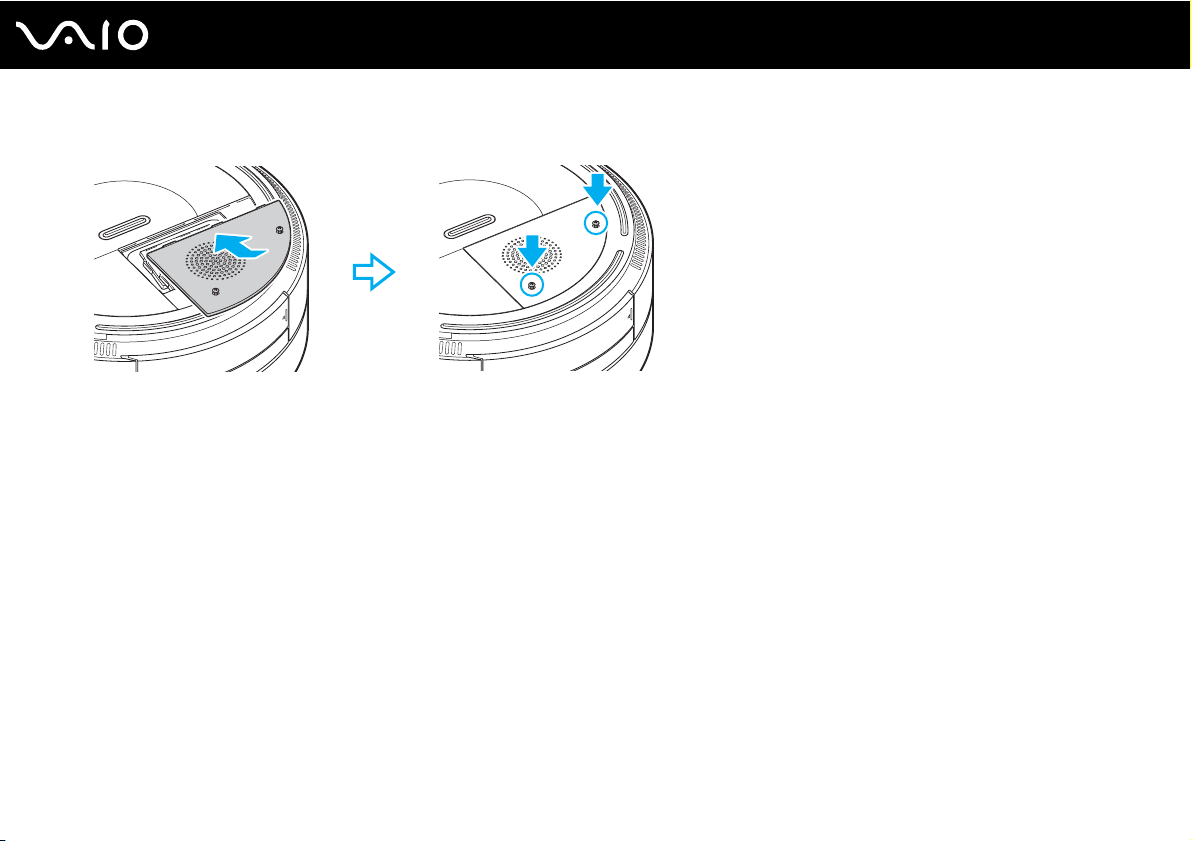

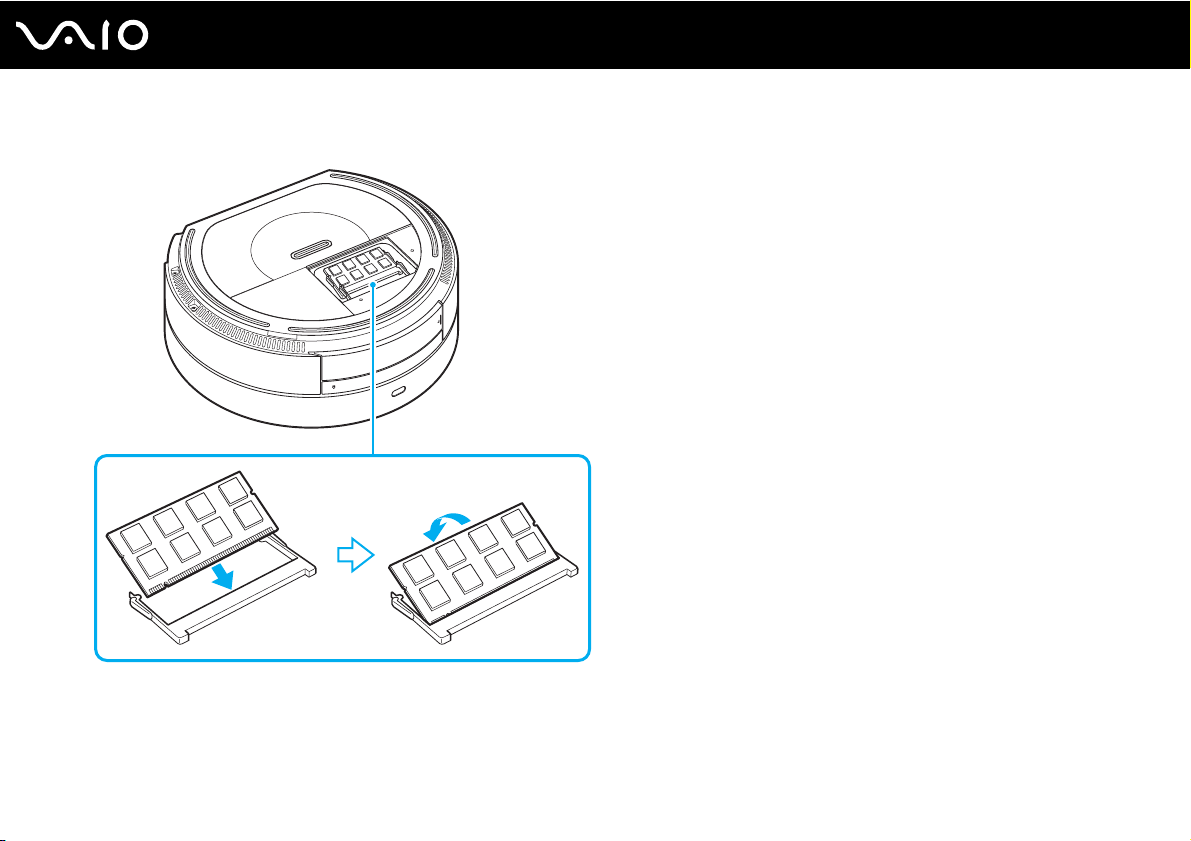

Adding and Removing Memory..................................................................................................................................94
Precautions ....................................................................................................................................................................101
On Using the Power Source ....................................................................................................................................102
On Handling Your Computer....................................................................................................................................103
On Handling Floppy Disks .......................................................................................................................................106
On Handling Discs ...................................................................................................................................................107
On Using Headphones.............................................................................................................................................108
On Handling Memory Stick Media............................................................................................................................109
On Handling the Hard Disk ......................................................................................................................................110
On Updating Your Computer ...................................................................................................................................111
Page 4
4
nN
Troubleshooting .............................................................................................................................................................112
Computer .................................................................................................................................................................113
System Security .......................................................................................................................................................119
Networking ...............................................................................................................................................................120
Optical Discs ............................................................................................................................................................123
Display .....................................................................................................................................................................127
Printing .....................................................................................................................................................................130
Microphone ..............................................................................................................................................................131
Speakers ..................................................................................................................................................................132
Keyboard..................................................................................................................................................................133
Touch Pad................................................................................................................................................................134
Floppy Disks ............................................................................................................................................................135
Audio/Video..............................................................................................................................................................136
Memory Stick Media ................................................................................................................................................138
Peripherals ...............................................................................................................................................................139
Support Options .............................................................................................................................................................140
Sony Support Information ........................................................................................................................................140
e-Support .................................................................................................................................................................141
Trademarks ..............................................................................................................................................................143
Page 5
5
nN
Before Use
Before Use
Congratulations on your purchase of this Sony VAIO® computer, and welcome to the on-screen User Guide. Sony has
combined leading-edge technology in audio, video, computing, and communications to provide state-of-the-art personal
computing.
!
External views illustrated in this manual may look slightly different from those of your computer.
Notice
© 2007 Sony Corporation. All rights reserved.
This manual and the software described herein, in whole or in part, may not be reproduced, translated, or reduced to any
machine-readable form without prior written approval.
Sony Corporation provides no warranty with regard to this manual, the software, or other information contained herein and
hereby expressly disclaims any implied warranties or merchantability or fitness for any particular purpose with regard to this
manual, the software, or such other information. In no event shall Sony Corporation be liable for any incidental, consequential,
or special damages, whether based on tort, contract, or otherwise, arising out of or in connection with this manual, the
software, or other information contained herein or the use thereof.
In the manual, the ™ or ® marks are not specified.
Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time
without notice. The software described herein is governed by the terms of a separate user license agreement.
Page 6
nN
Before Use
Documentation
Your documentation includes printed information and user guides to read on your VAIO computer.
Printed Documentation
❑ Quick Start Guide — Describes the process from unpacking to starting up your VAIO.
❑ Troubleshooting and Recovery Guide — Contains solutions to common problems and computer malfunctions, an
explanation of how to make a backup copy of your data and recover your computer system, and sources of support
information.
❑ Regulations, Warranty, EULA and Service Support — Contains Sony GUARANTEE conditions,
Safety / Regulations, Modem Regulations, Wireless LAN Regulations, Wireless WAN Regulations,
Bluetooth Regulations, End User Software License Agreement, and Sony Support services information.
6
Page 7
7
nN
Before Use
Non-printed Documentation
❑ User Guide (this manual) — Explains features of your computer. It also includes information about the software programs
included with your computer, as well as information on solving common problems. User Guide is provided in the PDF
format, which you can easily browse through and print out.
To view this on-screen guide:
1 Double-click the VAIO User Guide icon on the desktop.
2 Open the folder for your language.
3 Select the guide you want to read.
✍
You can manually browse to the user guides by going to Computer > VAIO (C:) (your C drive) > Documentation > Documentation and opening the
folder for your language.
To go to Web sites described in this manual by clicking their respective URLs beginning with http://, your computer must be connected to the Internet.
❑ Specifications — The online Specifications describe the hardware and software configurations of your VAIO computer.
To view the online Specifications:
1 Connect to the Internet.
2 Go to the Sony online support Web site at http://support.vaio.sony.eu
.
✍
You may have a separate disc for the documentation of bundled accessories.
Page 8
nN
Before Use
My Club VAIO
In My Club VAIO you can find:
❑ Accessories
Want to expand the capabilities of your computer? Click this icon and have a look at your compatible accessories.
❑ Software
Feeling creative? Click this icon for an overview of your software and check out our upgrade options.
❑ Wallpapers
Click this icon and check out our most popular Sony and Club VAIO wallpapers.
❑ Links
Click this icon and check out our most popular Sony and Club VAIO Web sites.
Windows Help and Support
Windows Help and Support is a comprehensive resource for practical advice, tutorials, and demonstrations to help you
learn to use your computer.
Use the Search feature, Index, or table of contents to view all Windows Help resources, including those that are on the
Internet.
8
To access Windows Help and Support, click Start and Help and Support. Or go to Windows Help and Support by
pressing and holding the Microsoft Windows key and pressing the F1 key.
Page 9
Further Sources
❑ Consult the help files on the software you are using for detailed information on features and troubleshooting.
❑ Go to http://www.club-vaio.com
to find online tutorials about your favorite VAIO software.
9
nN
Before Use
Page 10
Getting Started
This section describes how to get started using your VAIO computer.
❑ Locating Controls and Ports (page 11)
❑ About the Indicator Lights (page 16)
❑ Setting Up Your Computer (page 17)
❑ Shutting Down Your Computer Safely (page 28)
10
nN
Getting Started
Page 11
Getting Started
Locating Controls and Ports
Take a moment to identify the controls and ports shown on the following pages.
!
The appearance of your computer may be different from those illustrated in this manual due to variations in specifications. It may also vary in some
countries or areas.
11
nN
Page 12
Top
Getting Started
A Hard disk drive/Optical disc drive indicator (page 16)
B Power button/Power indicator (page 16)
C WLAN (Wireless LAN) indicator (page 16)
12
nN
Page 13
Front
Getting Started

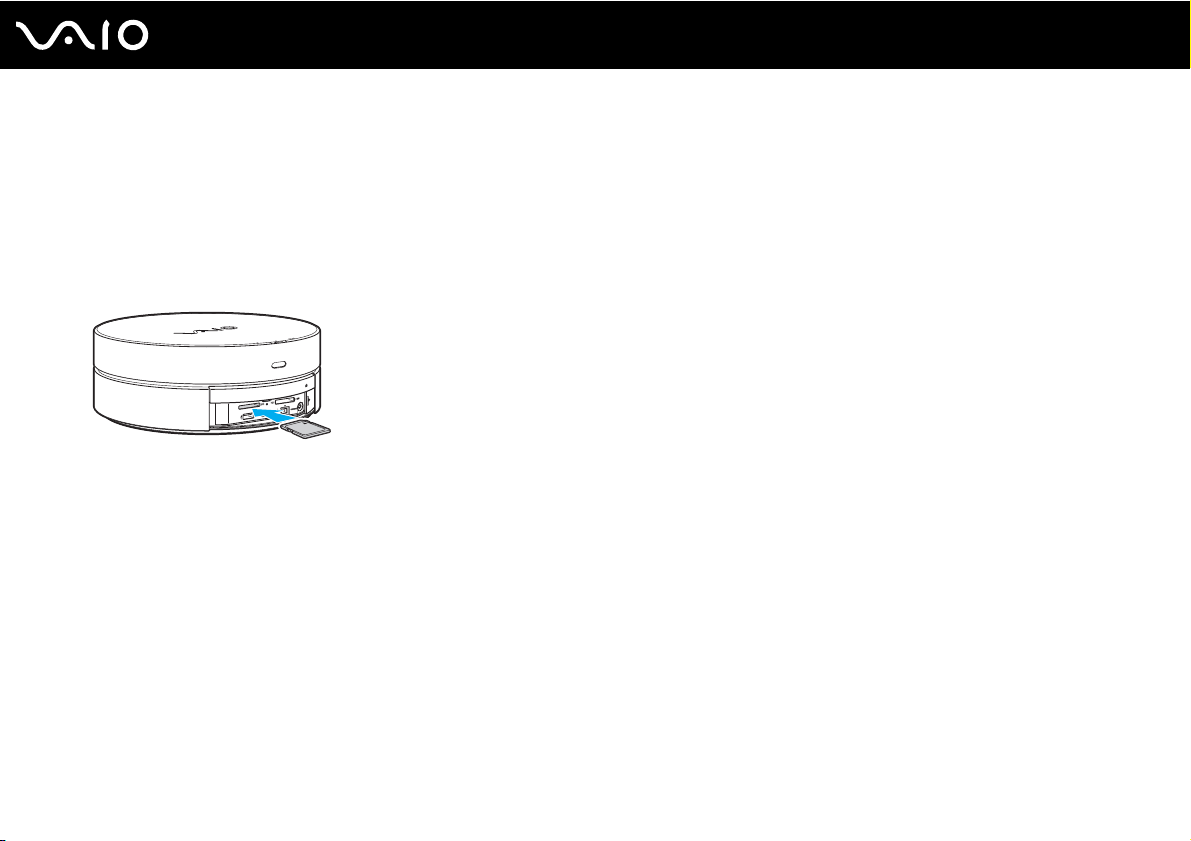

A SD memory card slot (page 59)
B WLAN (Wireless LAN) switch (page 64)
C Remote sensor/Remote sensor indicator (page 16)
Point the supplied remote commander to this sensor for
operations.

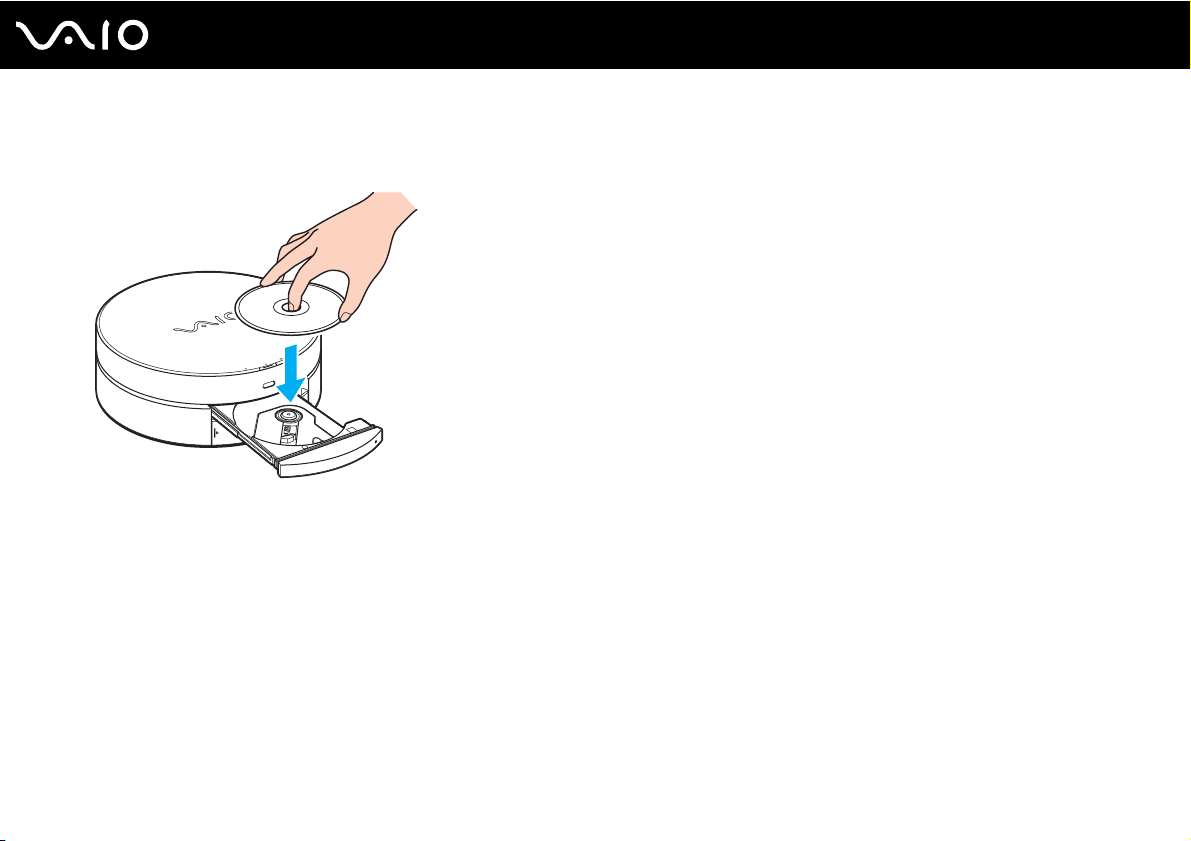

D Optical disc drive (page 35)

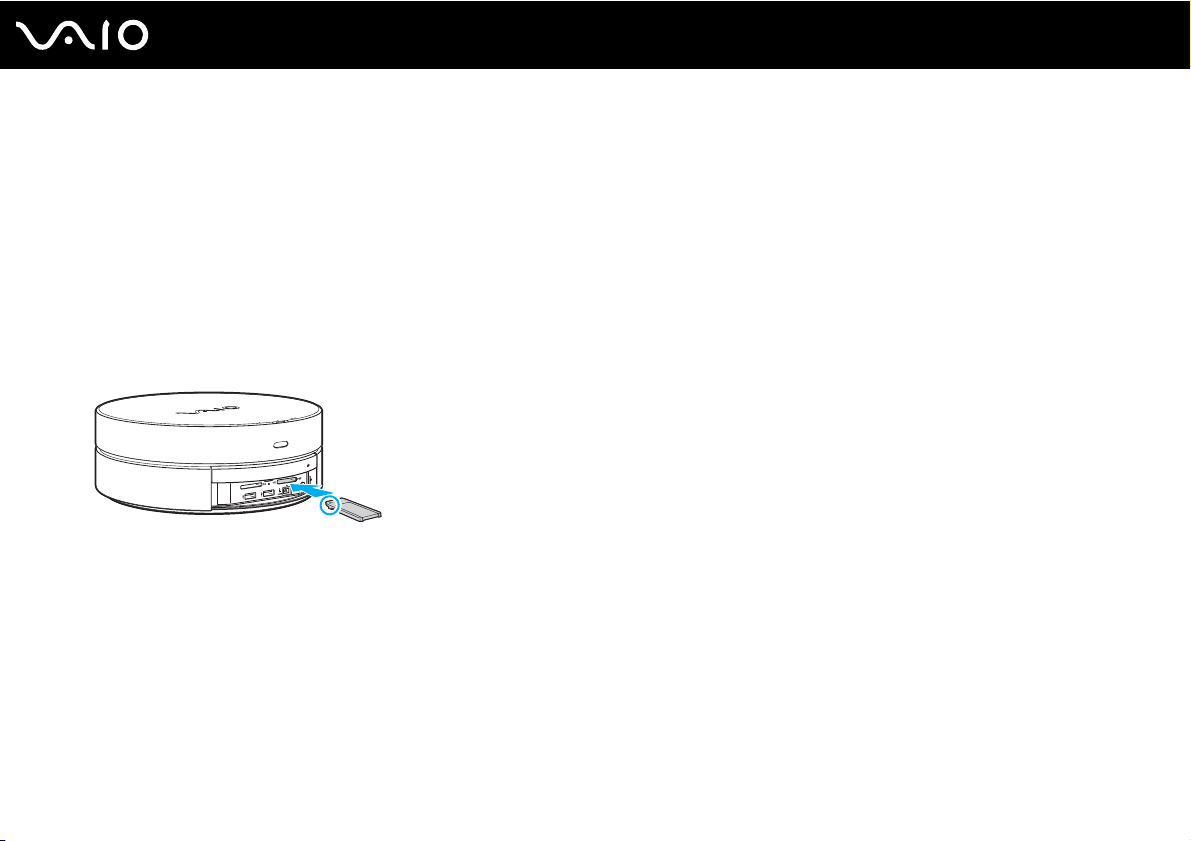

E Memory Stick slot
*1
(page 53)
F Air vent
G Media Access indicator (page 16)
H Hi-Speed USB (USB 2.0) ports
*2
(page 77)
I i.LINK (IEEE 1394) S400 port (page 81)
J CONNECT button (page 25)

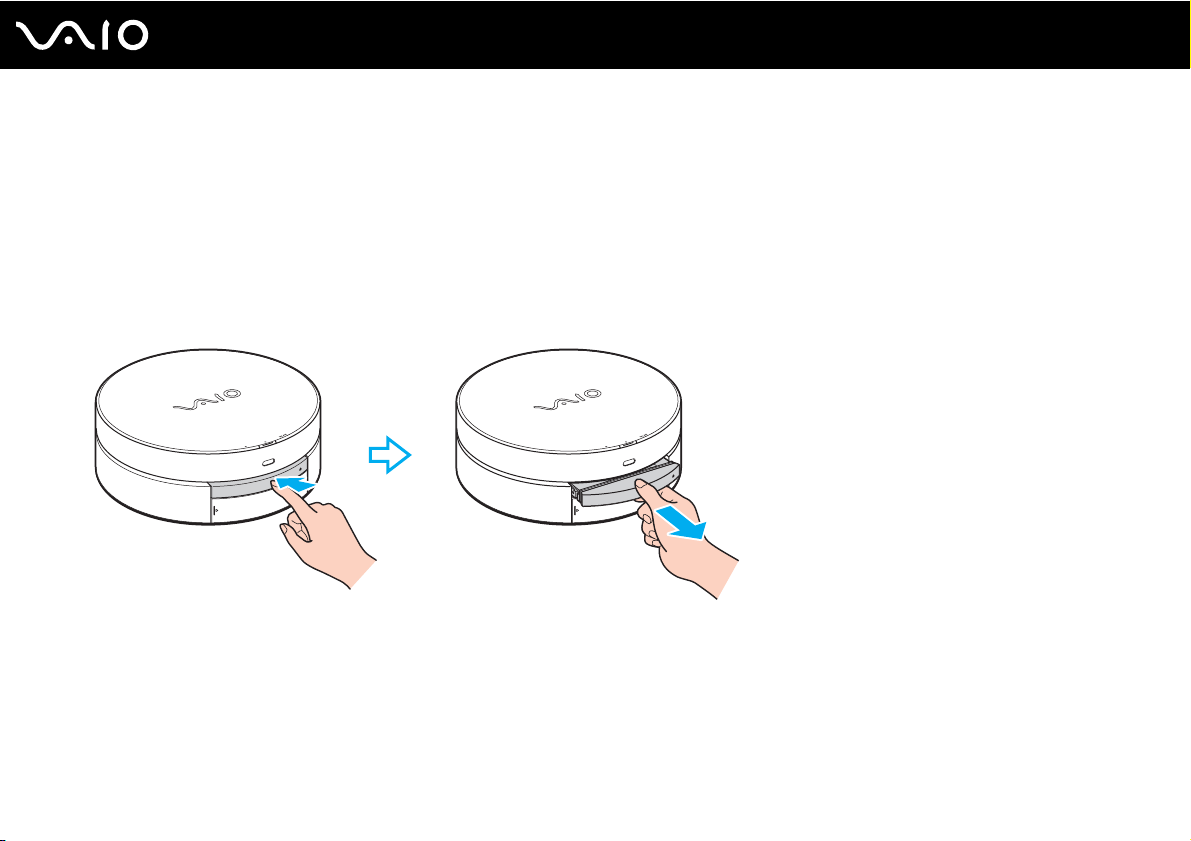

K Front panel door
To open the front panel door, put your fingertip on the left end
of the door and slide it half way to the right. The door will
automatically be retracted under the panel. To close the door,
slide it half way to the left. The door will keep sliding on its own
and shut.
*1
Your computer supports both standard- and Duo-size Memory Stick media.
*2
Support high-/full-/low- speeds.
13
nN
Page 14
Back
!
The area around the air vent (1) becomes hot while your computer is on. Be sure to
wait until the computer cools down before you touch it.
Getting Started
A Air vent
B VHF/UHF input port (page 44)
C WIRELESS LAN ANTENNA port (page 66)
D Hi-Speed USB (USB 2.0) ports
*
(page 77)
E Headphones jack
Connect external headphones.
F Microphone jack
Connect an external microphone.
G OPTICAL OUT port
(Output Sampling Rate: 44.1 KHz/48.0 KHz/96.0 KHz)
Connect an S/PDIF device such as digital headphones or an AV
amplifier.

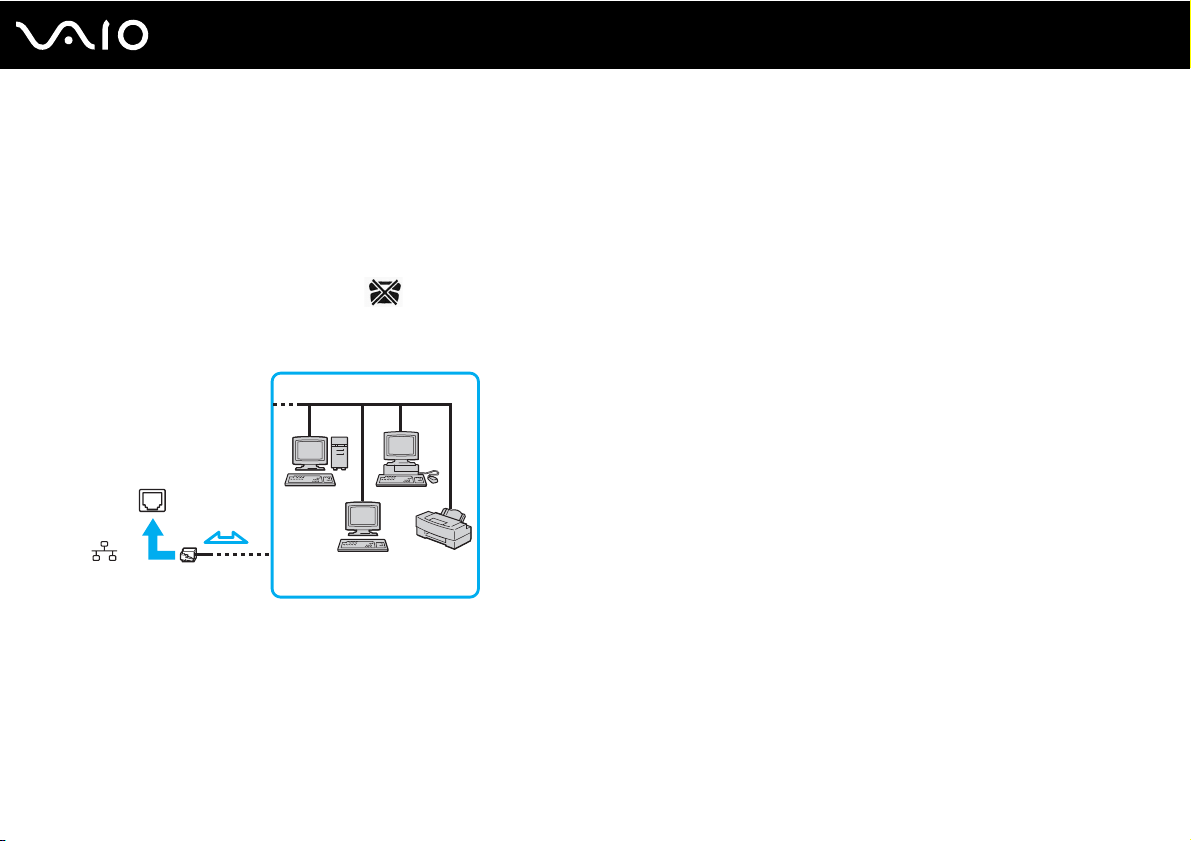

H Network (Ethernet) port (page 83)
I AUDIO/VIDEO INPUT port
Connect an external device such as a VCR.
J HDMI OUT port (page 18)
K Monitor (VGA) port (page 20)
L DC IN port (page 21)
* Support high-/full-/low- speeds.
14
nN
Page 15

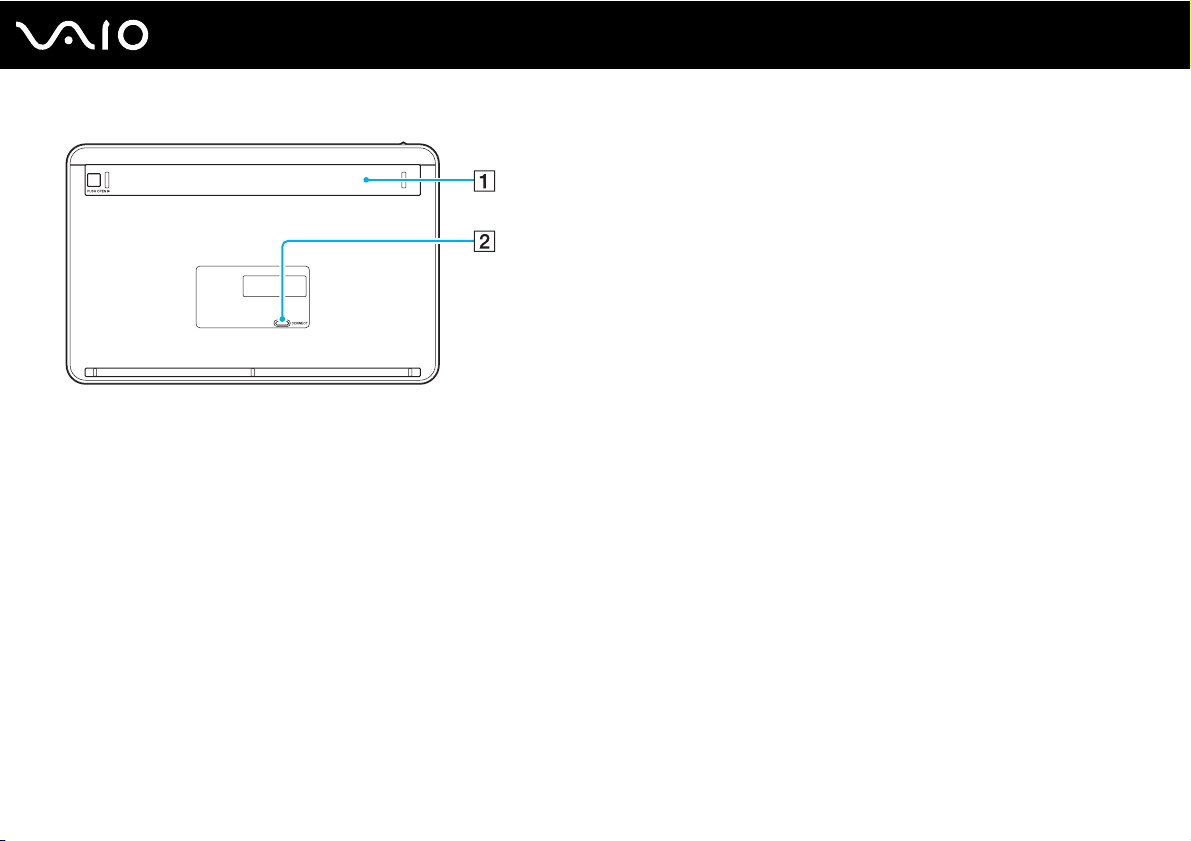

Bottom
A Air vents
B Security slot
15
nN
Getting Started
Page 16
About the Indicator Lights
Your computer is equipped with the following indicator lights.
Indicator Functions
Power 1 The indication behavior varies depending on the state of your computer:
Green lit: the computer is on.
Orange lit: the computer is in Sleep mode.
Off: the computer is off.
Media Access Illuminates when data is read from or written to a memory card. (Do not enter Sleep mode or turn off the
Hard disk drive/Optical disc drive
Wireless LAN Illuminates when the wireless LAN functionality is enabled.
Remote sensor Illuminates upon reception of infrared signals from the remote commander.
computer when this indicator is on.) When the indicator is off, the memory card is not being used.
Illuminates when data is read from or written to the hard disk drive or the optical disc media. Do not enter Sleep
mode or turn off the computer when this indicator is on.
16
nN
Getting Started
Page 17
17
nN
Getting Started
Setting Up Your Computer
Connecting a Display
Connect a display (not supplied) to your computer. When connecting it, see the manual that came with your display as well.
Page 18
Getting Started
To connect a display (HDMI-compatible TV)
✍
If your TV is equipped with a DVI-D port, you can use the HDMI cable and the HDMI to DVI-D adapter (both supplied) for connection. To use them for
connection, however, you also need an audio cable (not supplied) since no audio signals are carried through the DVI-D port.
1 Plug one end of the HDMI cable (supplied) (1) to the HDMI OUT port (2) on the computer.
2 Plug the other end to the display (TV) (3).
18
nN
Page 19
19
nN
Getting Started
!
If your TV is equipped with an HDMI port and a DVI-D port, we recommend that you use the HDMI port.
The HDMI cable carries both video and audio signals.
If a device driver other than the one provided by Sony is used, the image will not be displayed and the audio will not be heard. Always use the device
driver provided by Sony for updates.
Your computer is compliant with the HDCP standard and capable of encrypting the transmission channel of digital video signals for the purpose of
copyright protection, which enables you to play and view a wide variety of copyright protected, high-quality contents. Note that you need to connect an
HDCP-compliant external display to your computer to view the copyright protected contents. If your computer has a non-compliant display connected,
you will not be able to play or view any copyright protected contents, including Blu-ray movie contents.
To change the sound output device
If you do not hear sound from the device connected to the HDMI OUT port, you need to change the device for sound output.
1 Close all open programs.
2 Click Start and Control Panel.
3 Click Hardware and Sound.
4 Click Manage audio devices under Sound.
5 On the Playback tab, select the desired device for sound output and click Set Default.
Page 20
20
nN
Getting Started
To connect a display (monitor)
1 If you want to connect a VGA monitor, connect the display cable (1) (not supplied) into the monitor (VGA) port (2) on the
back of the computer.
2 If necessary, plug the display cable into the display.
Page 21
21
nN
Getting Started
Connecting a Power Source
You need an AC adapter to connect to an AC power source and it must be plugged into the power source before you can
establish communication with your wireless keyboard.
✍
Use your computer only with the supplied AC adapter.
To connect the AC adapter
1 Plug one end of the power cord (1) into the AC adapter (3).
2 Plug the other end of the power cord and the power cord from your display (TV) into AC outlets (2).
3 Route the cable from the AC adapter (3) through the hooks (4) on the back of your computer and plug it into the DC IN
port (5).
Page 22
22
nN
Getting Started
Page 23
✍
To disconnect your computer completely from AC power, unplug the power cord.
Make sure that the AC outlets are easily accessible.
!
If you unplug the AC adapter from your computer while the computer is on or in Sleep mode, you may lose all unsaved data.
23
nN
Getting Started
Page 24
24
nN
Getting Started
Attaching the Rear Cover
An exclusively designed rear cover is supplied with your computer for port protection and tidy cabling. Once you have set up
your computer, attach the rear cover. Be sure to hold the cover with your both hands when attaching it.
!
You may not be able to attach the rear cover depending on the shape or size of connected cable plugs. In such a case, leave the rear of your computer
uncovered and keep the rear cover at hand.
To remove the rear cover, grasp the cover as illustrated below and pull it away from the computer.
!
Do not leave the removed rear cover on the floor. Stepping on it may hurt your foot.
Page 25
25
nN
Getting Started
Connecting the Wireless Keyboard
A wireless keyboard and four AA alkaline batteries for use in the keyboard are supplied with your computer. Before attempting
to use the wireless keyboard, you must install the batteries and establish communication between the computer and the
keyboard.
To connect the wireless keyboard
!
To connect your wireless keyboard, it must be located within a range of 30 cm to 1 m from the computer.
1 Turn over the wireless keyboard.
2 Press the button (1) on the battery compartment cover and slide and lift the cover in the direction of the arrow to remove
the cover.
Page 26

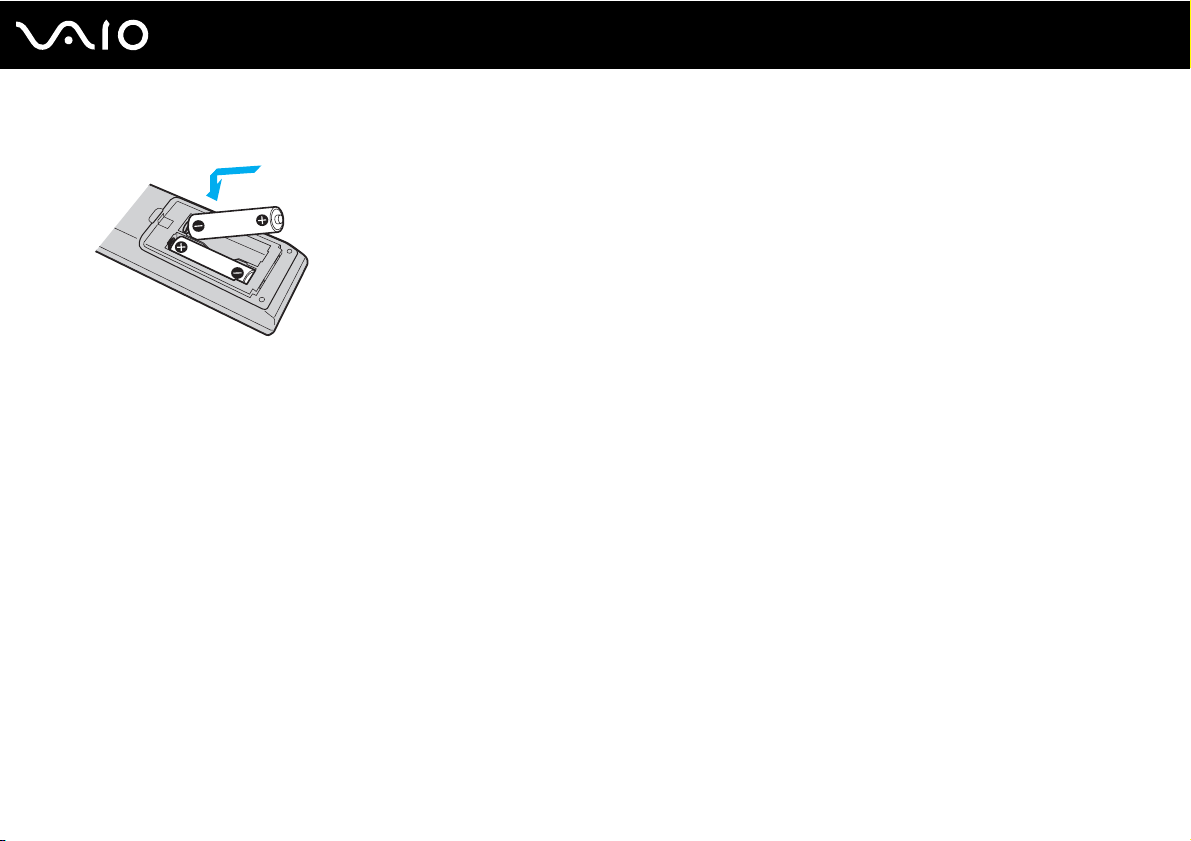

3 Insert the supplied four AA batteries into the battery compartment as illustrated below:
4 Turn on the computer.
5 Slide the power switch (2) on the keyboard to the ON position.
6 Press the CONNECT button (3) on the front of the computer.
7 Press the CONNECT button (4) on the bottom of the keyboard.
The connect indicator turns on in the LCD window on the keyboard when connection is established between the
computer and the keyboard. If not, repeat the procedure.
!
Steps 6 and 7 must be completed within 10 seconds of each other.
26
nN
Getting Started
If the wireless keyboard is left unused for 20 minutes or longer, the connect indicator will turn off. This could indicate that the connection between
your computer and the keyboard is lost. Press the Fn key to check that the connect indicator turns on before using the keyboard.
Page 27
27
nN
Getting Started
✍
You can check the battery indicator ( or ) in the LCD window on the wireless keyboard for its battery power level.
If the wireless keyboard does not operate properly, the batteries may need to be replaced. If the wireless keyboard is not being used for an extended
period of time, remove the batteries to avoid possible damage from battery leakage.
Page 28
28
nN
Getting Started
Shutting Down Your Computer Safely
To avoid losing unsaved data, be sure to shut down your computer properly, as described below.
To shut down your computer
1 Turn off any peripherals connected to the computer.
2 Click Start, the arrow next to the Lock button, and Shut Down.
3 Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off
automatically.
The power indicator light turns off.
Page 29
Using Your VAIO Computer
This section describes how to get the most out of using your VAIO computer.
❑ Using the Keyboard (page 30)
❑ Using the Touch Pad (page 34)
❑ Using the Optical Disc Drive (page 35)
❑ Using the TV Function (page 44)
❑ Using the Memory Stick Media (page 53)
❑ Using Other Memory Cards (page 59)
❑ Using the Internet (page 63)
❑ Using Wireless LAN (WLAN) (page 64)
29
nN
Using Your VAIO Computer
Page 30
Using Your VAIO Computer
Using the Keyboard
A wireless keyboard is supplied with your computer.
The wireless keyboard uses a standard key arrangement with additional keys that perform specific functions.
The VAIO-Link Web site (http://www.vaio-link.com
Using the Wireless Keyboard
!
To maintain good communication, operate the wireless keyboard within the distance limitations of keyboard: 10 m from your computer.
Confirm that the supplied AA batteries are properly installed.
Press the CONNECT button located on the front of your computer first, and then press the CONNECT button on the bottom of the wireless keyboard.
Avoid using any wireless devices that exchange radio signals on the 2.4 GHz frequency band near the wireless keyboard. These devices may cause
interference, causing the keyboard to stop working properly.
Do not place metal furniture near your computer or wireless keyboard, as this may create interference, causing the keyboard to stop working properly.
Do not mix old (used) and new batteries when replacing batteries in the wireless keyboard. Always use the same type and manufacture of battery.
) also contains glossary information to help you use the keyboard.
30
nN
Do not mix alkaline with manganese batteries. Using incompatible batteries or mixing used, new or different types of batteries can damage the wireless
keyboard.
Page 31
31
nN
Using Your VAIO Computer
A Security slot
B Function keys
Perform certain tasks. The task associated with each function
key varies among software applications.
C Shortcut buttons
Perform the pre-assigned tasks. The default tasks are as
follows:
: Launches VAIO Living Browser.
P , p: Displays the previous or next page while VAIO Living
Browser is running.
: Magnifies the screen view while VAIO Living Browser is
running. One press magnifies the contents by 25%. When
magnification reaches 175%, it goes back to 100%.
S1: Opens the Media Center Start menu.
S2: Launches Resolution Setting Utility.
✍
The default S button assignments may be different from the above. In such a
case, you can change the assignments with VAIO Control Center. See Setting Up
Your Computer with VAIO Control Center (page 89) and find out more in its help
file.
D Sleep button
Provides for the lower level of power consumption.
For details on power management, see Using the Power
Saving Mode (page 90).
✍
Illustrated above is the English keyboard as an example.
Page 32
32
nN
Using Your VAIO Computer
Indicators
E
(Num lock): Turns on while in the Num Lock state.
(Caps lock): Turns on while in the Caps Lock state.
(Scroll lock): Turns on while in the Scroll Lock state.
(Connect): Turns on while connection between the computer and
the wireless keyboard is in place to indicate that the keyboard is
ready for use (page 25).
(Battery): turns on while the AA batteries for the
wireless keyboard are sufficient and switches to when the
batteries wear out.
F Power switch
Slide the power switch to turn on and off the wireless keyboard.
G Windows key
Displays the Start menu.
H Touch pad
See Using the Touch Pad (page 34) for more information.
I Applications key
Displays a shortcut menu in certain software applications.
J Directional arrow keys
Move the pointer on the screen.
Page 33
33
nN
Using Your VAIO Computer
A Battery compartment
Storage compartment for the AA batteries.
B CONNECT button (page 25)
Press to enable the wireless keyboard to communicate with the
computer.
Page 34
Using Your VAIO Computer
Using the Touch Pad
You can point to, select, drag, and scroll objects on the screen using the touch pad.
Action Description
Point Slide your finger on the touch pad (1) to place the pointer (2) on an item or object.
Click Press the left button (3) once.
Double-click Press the left button twice.
Right-click Press the right button (4) once. In many applications, this action displays a shortcut menu.
Drag Slide your finger on the touch pad while pressing the left button.
Scroll Slide your finger along the right edge of the touch pad to scroll vertically. Slide your finger along the bottom edge to scroll
horizontally (the scroll function is available only with applications that support a touch pad scroll feature).
✍
To keep moving the pointer or scrolling, slide and hold your finger at the edge of the touch pad.
34
nN
!
If pointer movement or scrolling continues against your intention, your fingertip may have reached an edge of the touch pad. In such a case, take your
finger off the touch pad. It is recommended that you put your finger on the touch pad around its center to start an operation.
Page 35
Using the Optical Disc Drive
Your computer is equipped with an optical disc drive.
To insert a disc
1 Turn on the computer.
2 Push in the optical disc drive tray with your fingertip to eject it.
3 Grasp the tray and gently pull it out.
35
nN
Using Your VAIO Computer
Page 36
36
nN
Using Your VAIO Computer
4 Place a disc in the middle of the tray with the label side facing upward; and gently push it until the disc clicks into place
while holding the bottom of the tray with the other hand.
!
When the optical disc drive tray is out, be sure not to exert pressure on the tray as it may damage the tray or the disc drive.
5 Close the tray by pushing it in gently.
!
Do not remove the optical disc when your computer is in Sleep mode. Doing so may cause the computer to malfunction.
Before removing the optical disc, make sure that the optical disc drive indicator light is off.
Page 37
37
nN
Using Your VAIO Computer
Reading and Writing Optical Discs
Your computer plays and records CDs, DVDs, and Blu-ray Discs™, depending on the model you purchased. Check your
specifications for the type of optical disc drive installed on your model. Use the table below to see which types of media your
optical disc drive supports.
Page 38
38
nN
Using Your VAIO Computer
PR: playable and recordable
P: playable but not recordable
–: not playable or recordable
BD-R
*10
RE
–
*7 *11
PR
*9
DVD± RW/
±R DL/RAM
CD-RW/
CDROM
PPPPPRPP–
PPPPPRPP–PPPP––
Video CDMusic CDCD
Extra
CD-R/RWDVD-
ROM
DVDVideo
BDROM
DVD-R/RWDVD+R/RWDVD+R DLDVD-R DLDVD-
RAM
PR
*1 *2
PR
PR
*5
PR
*6
PR
*3 *4
DVD- ROM
DVD-ROMPPPPPPP–PPPP––
Blu-ray Disc P P P P
Blu-ray Disc
PPPP
Combo
*1
Supports writing data to DVD-R discs compliant with DVD-R for General Version 2.0/2.1.
*2
Supports writing data to DVD-RW discs compliant with DVD-RW Version 1.1/1.2.
*3
The DVD±RW/RAM disc drive on your computer does not support the DVD-RAM cartridge. Use non-cartridge discs or discs with removable cartridge.
*4
Writing data to single-sided DVD-RAM discs (2.6 GB) compliant with DVD-RAM Version 1.0 is not supported.
PR
PR
*8
PPP
*8
PPP
PR
PR
*1 *2
*1 *2
PR
PR
PR
PR
*5
*5
PR
PR
*6
*6
*3 *4
PR
*3 *4P*11
PR
DVD-RAM Version 2.2/12X-SPEED DVD-RAM Revision 5.0 disc is not supported.
*5
Writing data to DVD+R DL (Double Layer) discs is available only on discs supporting DVD+R DL (Double Layer) recording.
*6
Writing data to DVD-R DL (Dual Layer) discs is available only on discs supporting DVD-R DL (Dual Layer) recording.
*7
Supports writing data to BD-R Version 1.1 discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB) and BD-RE Version 2.1
discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB).
*8
Writing data to Ultra Speed CD-RW discs is not supported on models with the Blu-ray Disc drive.
*9
BD-R stands for Blu-ray Disc-Recordable in Version 1.1 format.
*10
BD-RE stands for Blu-ray Disc-Rewritable in Version 2.1 format.
*11
The Blu-ray Disc drive on your computer does not support BD-RE version 1.0 discs and Blu-ray cartridge discs.
/
Page 39
39
nN
Using Your VAIO Computer
!
This product is designed to playback discs that conform to the Compact Disc Digital Audio standard specifications (CD Standard). A DualDisc is a two
sided disc product which mates DVD recorded material on one side with digital audio material on the other side. Be aware that the audio side (non-DVD
side) of a DualDisc may not play on this product because it does not conform to the CD Standard.
Due to the multiple formats of discs now available, when buying pre-recorded or blank discs for use with a VAIO computer, be sure to read the notices
on the disc packaging carefully to check both playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee
the compatibility of VAIO CD drives with discs that are not compliant with the official "CD" format standard (or "DVD" standard in relation to DVD drives,
or "Blu-ray Disc" standard in relation to Blu-ray Disc drives). USING NON-COMPLIANT DISCS CAN CAUSE FATAL DAMAGE TO YOUR VAIO PC OR
CREATE SOFTWARE CONFLICTS AND CAUSE SYSTEM HANGING.
For inquiries about disc formats, contact the individual publisher of the pre-recorded disc or the manufacturer of the recordable disc.
✍
8cm disc writing is not supported.
!
To play copyright protected Blu-ray Discs continuously, you need to update the AACS key. Note that the AACS key update requires Internet access.
As with other optical media devices, circumstances may limit compatibility or prevent Blu-ray Disc playback. VAIO computers may not support movie
playback on packaged media recorded in AVC or VC1 formats at high bit rates.
Region settings are required for movies and BD-ROM contents. If the region setting on the optical disc drive does not match the region coding on the
disc, playback is not possible.
Unless your external display is compliant with the High-bandwidth Digital Content Protection (HDCP) standard, you cannot play or view the contents
of copyright protected Blu-ray Discs.
Some contents may restrict video output to be standard definition or prohibit analog video output at all. It is strongly recommended that digital HDCPcompliant environment be implemented for optimum compatibility and viewing quality.
Page 40
40
nN
Using Your VAIO Computer
Notes on writing data to a disc
❑ Use only Sony recommended software, which is preinstalled on your computer, to write data to a disc.
Other software programs may not be fully compatible and errors may result.
❑ To make data on a disc readable on the optical disc drive, you need to close the session before you eject it. To complete
this process, follow the instructions included with your software.
❑ Only use circular discs. Do not use discs in any other shape (star, heart, card, etc.), as this may damage the optical disc
drive.
❑ Do not strike or shake your computer while writing data to a disc.
❑ Deactivate the screen saver and exit anti-virus software before writing data to a disc.
❑ Do not use memory-resident utility software while writing data to a disc. This may cause your computer to malfunction.
❑ Before using your software application to burn discs, make sure you exit and close all other applications.
❑ Do not place your computer into the power saving mode while using the preinstalled software or any disc burning software.
❑ Make sure you use the same disc burning software to add data to a used disc. Use of different disc burning software for
additional data burning may cause a failure. For example, if you have a disc with data that you burned with the Roxio
Easy Media Creator software, use the Roxio Easy Media Creator software to add more data to the same disc.
Page 41
41
nN
Using Your VAIO Computer
Notes on playing discs
To achieve optimum performance when playing discs, you should follow these recommendations.
❑ Some CD players and computers' optical disc drives may not be able to play audio CDs created with the CD-R or CD-RW
disc media.
❑ Some DVD players and computers' optical disc drives may not be able to play DVDs created with the DVD+R DL, DVD-
R DL, DVD+R, DVD+RW, DVD-R, DVD-RW, or DVD-RAM disc media.
❑ Do not use memory-resident utility software to speed up disc access when playing a disc. This may cause your computer
to malfunction.
❑ Do not place your computer into the power saving mode while your computer is playing a disc.
❑ Region code indicators are labeled on the DVDs to indicate in which region and on what type of player you can play the
disc. Unless a "2" (Europe belongs to region "2") or "all" (this means that you can play this DVD in most regions of the
world) is labeled on your DVD disc or on the packaging, you cannot play the disc on your computer.
!
If you change the DVD region code while the WinDVD or WinDVD BD software is running, restart the software or eject the disc and re-insert it to make
the new setting effective.
❑ Do not try to change the region code settings of the DVD drive. Any difficulties caused by changing the region code
settings of the DVD drive are out of warranty.
Page 42
Using Your VAIO Computer
Playing CDs
To play an audio CD
1 Insert a disc into the optical disc drive.
2 If nothing appears on the desktop, then click Start, All Programs, and the desired CD software to play the CD.
If the Audio CD window appears, click to select an option.
Copying Files to CDs
To copy files to a disc
!
Do not strike or shake your computer while writing data to a disc.
1 Insert a disc into the optical disc drive.
If the AutoPlay window appears, click Burn files to disc and follow the on-screen instructions until the empty disc folder
appears.
2 Open the folder that contains the file(s) you want to copy and drag them to the empty disc folder.
3 Close the disc folder.
42
nN
Page 43
43
nN
Using Your VAIO Computer
Playing DVDs
To play a DVD
1 Close all running software applications.
2 Insert a DVD into the optical disc drive.
3 If nothing appears on the desktop, then click Start, All Programs, and the desired DVD software to play the DVD.
For instructions on how to use the software, see the help file on your DVD software.
Copying Files to DVDs
To copy files to a disc
1 Insert a disc into the optical disc drive.
2 If nothing appears on the desktop, then click Start, All Programs, and the desired DVD software to copy files to the disc.
For instructions on how to use the software, see the help file on your DVD software.
Page 44
nN
Using Your VAIO Computer
Using the TV Function
Your computer may have a hybrid TV tuner board installed along with the Microsoft Windows Vista Home Premium
operating system which includes Windows Media Center that enables TV program viewing, recording, and playback.
The hybrid TV-tuner supports the following broadcasts:
❑ Analog cable and terrestrial TV:
Systems: B/G/I/D/K/L/L'
Color systems: PAL and SECAM
Frequency band: 48.25 MHz - 855.25 MHz
❑ Digital terrestrial TV (DVB-T) and Digital TV:
System: DVB-T
Video system: MPEG2
Frequency band: 48.25 MHz - 855.25 MHz
!
Any functions related to digital terrestrial television (DVB-T) will only work in countries or areas where DVB-T MPEG2 digital terrestrial TV signals are
broadcasted. Make sure you can receive a DVB-T MPEG2 signal where you live.
44
Page 45
Using Your VAIO Computer

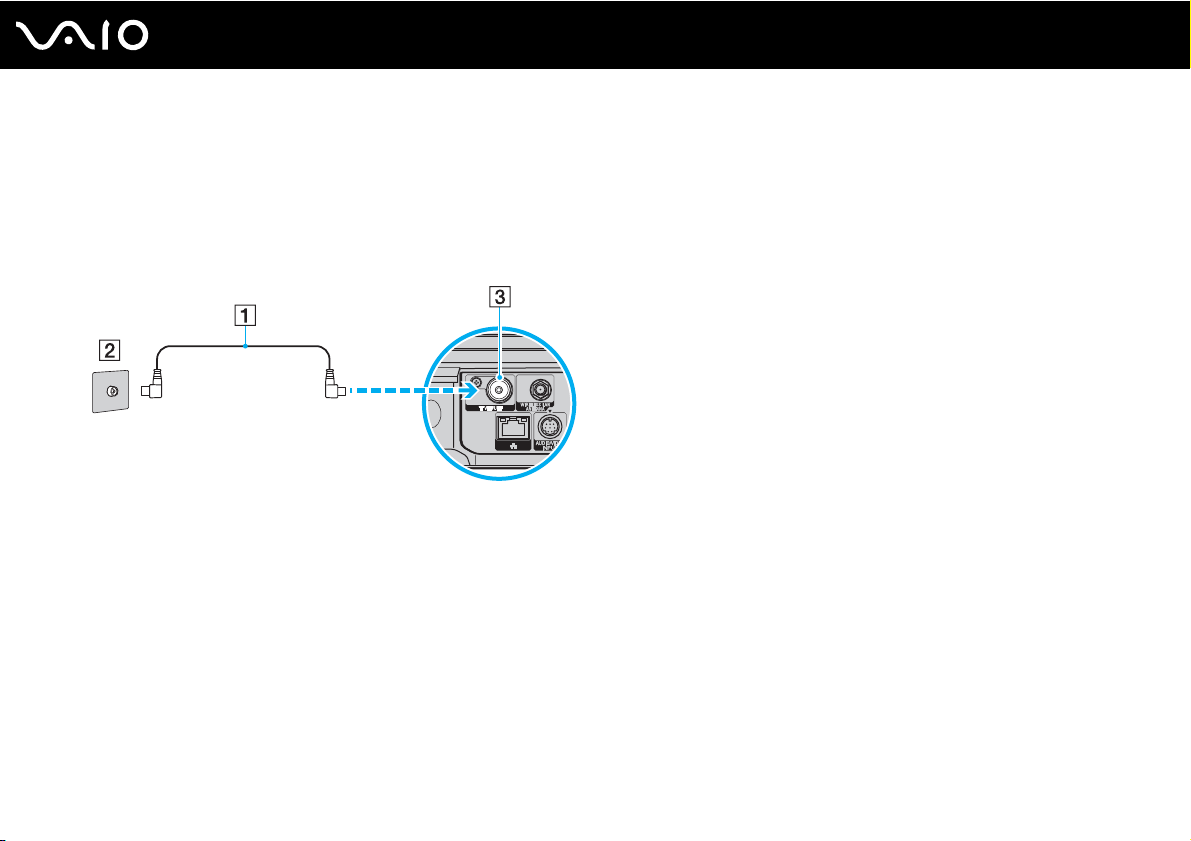

To connect your computer to terrestrial or cable TV services
!
The appearance of the antenna/cable-TV cable and the VHF/UHF input port may vary in some countries or areas.
1 Connect one end of an antenna/cable-TV cable (supplied) (1) to the VHF/UHF input port (3) on the computer.
2 Connect the other end of the cable to your TV wall outlet/cable service access (2).
45
nN
Page 46
nN
Using Your VAIO Computer

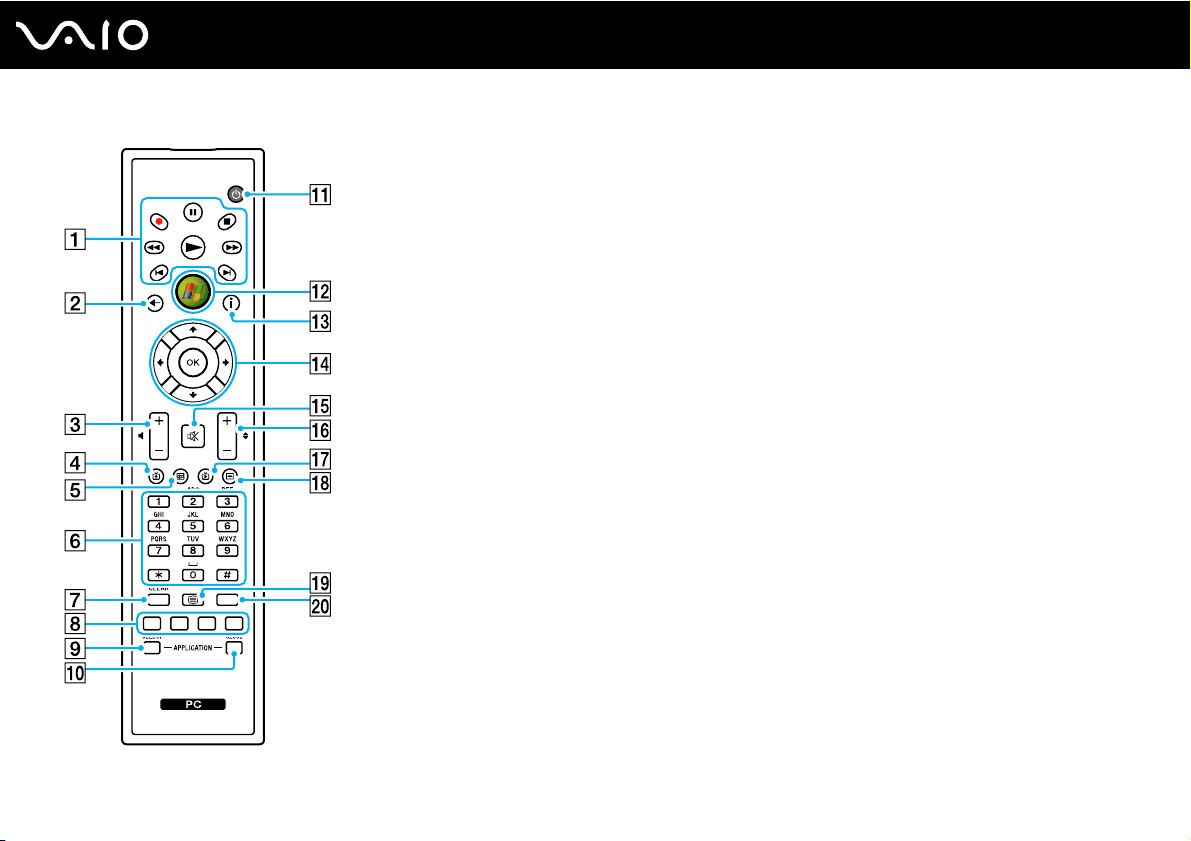

Using the Remote Commander
A remote commander is supplied with your computer for using Media Center features, including TV channel selection.
46
Page 47
Using Your VAIO Computer
Pause X button
A
Press to pause media playback. Press again to resume
playback.
Stop x button
Press to stop media playback or TV recording session.
Forward M button
Press to fast-forward media at three speeds.
Skip B? button
Press to move media forward, for example, one audio track, one
DVD chapter, and 30 seconds of recorded TV or video.
Replay ?b button
Press to move media backward, for example, one audio track,
one DVD chapter, and 7 seconds of TV or video.
Rewind m button
Press to move media backward at three speeds.
Record z button
Press to begin recording.
Play N button
Press to begin media playback.
B Back button
Press to return to the previous window.
C Volume buttons
Press to increase (+) or decrease (-) the volume.
D Recorded TV button
Press to view previously recorded TV programs (In My TV
window).
47
nN
Page 48
48
nN
Using Your VAIO Computer
Guide button
E
Press to view the TV program guide for your area.
F Alphanumeric buttons
Press to select specific channels or enter text. (Press ENTER or
OK to activate the channel selection.)
G CLEAR button
Press to backspace and delete entered text.
H Teletext TV program mode buttons
Red button
Press to jump to the red shortcut link in teletext TV program mode.
Green button
Press to jump to the green shortcut link in teletext TV program
mode.
Yellow button
Press to jump to the yellow shortcut link in teletext TV program
mode.
Blue button
Press to jump to the blue shortcut link in teletext TV program
mode.
I APPLICATION SELECT button
Press to switch among open applications. This button works the
same as the Alt+Tab keys.
J APPLICATION CLOSE button
Press to close the active application window.
K Sleep button
Press to place the computer into Sleep mode to reduce power
consumption.
L Start button
Press to open the Media Center Start menu.
M More button
Press to view additional options that are available for Media
Center features.
N Directional arrow buttons
Press the M, m, <, and , buttons to move the pointer on the
screen.
OK button
Press to select the desired action or window option. When
watching full-screen TV, press to return to the previous channel.
Press again to switch between channels.
O Muting button
Press to turn off the sound. Press again to restore the sound.
P Channel/Page buttons
Press to change or page up/down channels (no number input
required).
Q Live TV button
Press to view TV programs.
R DVD menu button
Press to open the main menu on a DVD.
S Teletext TV program mode selection button
Press to activate/deactivate teletext TV program mode.
T ENTER button
Press to activate feature or action, such as channel selection or
return to previous channel. (This button's actions are similar to
using the OK button.)
Page 49
49
nN
Using Your VAIO Computer
Controlling your TV volume with the supplied remote commander
You can change the volume on your TV with the supplied remote commander by changing the remote commander's signal
setting to match with the one used by your TV manufacturer.
Press and hold the OK button and press alphanumeric buttons to enter your TV manufacturer code. For example, press and
hold the OK button and press the 0 and 2 buttons consecutively to enter the manufacturer code for Sony: Sony (02).
Manufacturer Code
VAIO c o mputer
(default setting)
Sony 02
Philips 04, 08, 09, 10, 11
Samsung 03, 05, 07, 08, 11
Sharp 06
LG 03, 05, 07
!
If your TV manufacturer has more than one manufacturer code, you may not be able to control the TV volume with the remote commander even though
you have specified one of them for matching the signal setting. In such a case, try another code.
01
Changes to this signal setting for the TV volume control may not work on some TVs. Sony assumes no liability for the controllability.
Page 50
nN
Using Your VAIO Computer
Before you use the remote commander
Before using the remote commander, you need to insert the supplied AA manganese batteries to enable communication
between the computer and the remote commander.
To insert batteries
1 Turn the remote commander over.

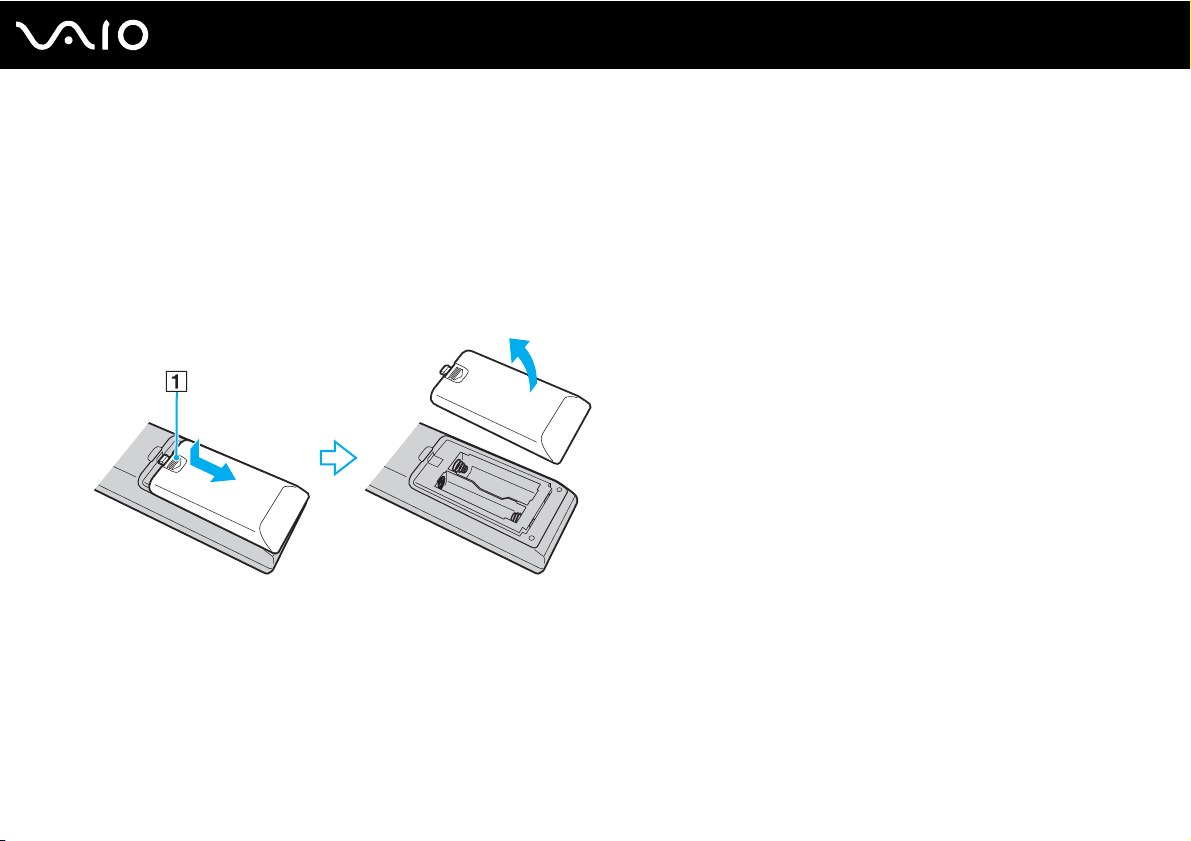

2 Slightly push down the dented area (1), slide the battery cover in the direction of the arrow, and remove the cover.
50
Page 51
51
nN
Using Your VAIO Computer
3 Insert the supplied two AA batteries into the remote commander.
4 Put the battery cover back on the remote commander and slide it in the reverse direction of the arrow illustrated above
until the cover clicks into place.
✍
If the remote commander does not operate properly, you may need to replace the batteries. When the remote commander is not going to be used for
an extended period of time, remove the batteries to avoid possible damage from battery leakage.
Page 52
52
nN
Using Your VAIO Computer
Setting up Windows Media Center
The first time you launch Windows Media Center, the setup wizard will pop up. To configure the TV tuner, click Custom
setup and follow the on-screen instructions. In the Optional Setup window, click Configure tuners, TV signal, and Guide,
and follow the on-screen instructions.
In case the TV tuner was not configured during the first run of Windows Media Center, you can do this by selecting set up
TV in the TV + Movies section.
When you want to change TV input signal (TV Signal or TV Signal Type) or change location, click settings in the Tasks
section and then click TV.
Note that in this case a new channel scan needs to be done and that the previous channel list and Guide information is lost
and that scheduled timer recordings are cancelled.
Page 53
53
nN
Using Your VAIO Computer
Using the Memory Stick Media
Memory Stick media is a compact, portable, and versatile IC recording media especially designed for exchanging and sharing
digital data with compatible products, such as digital cameras, mobile phones and other devices. Because it is removable, it
can be used for external data storage.
✍
The Memory Stick slot is located behind the front panel door. You need to open this door before accessing the slot.
Page 54
54
nN
Using Your VAIO Computer
Before You Use the Memory Stick Media
The Memory Stick slot on your computer can accommodate both standard- and Duo-size media and support Memory Stick
PRO and Memory Stick PRO-HG Duo media with high speed and high capacity capabilities.
✍
You can insert a Duo-size Memory Stick media directly into the Memory Stick slot without using a Memory Stick Duo Adaptor.
!
Before using a Memory Stick Micro (M2) media, be sure to insert it into an M2 Standard-size or M2 Duo-size Adaptor. If you insert the media directly
into the Memory Stick slot without the Adaptor, you may not be able to remove it from the slot.
For the latest information about the Memory Stick media, visit the Memory Stick Web site at http://www.memorystick.com/en/.
!
Your computer has been tested and found compatible with the Sony branded Memory Stick media with capacity of up to 8 GB that are available as of
May 2007. However, not all Memory Stick media that meet the same conditions as the compatible media are guaranteed of compatibility.
Inserting a Memory Stick media with multiple conversion adapters is not guaranteed of compatibility.
MagicGate is the general name of the copyright protection technology developed by Sony. Use a Memory Stick media with the MagicGate logo to use
this feature.
Besides for your personal enjoyment, it is against the copyright law to use any audio and/or image data you recorded without prior consent from the
respective copyright holders. Accordingly, Memory Stick media with such copyrighted data can be used only within the law.
The Memory Stick slot on your computer does not support 8-bit parallel data transfer (high speed data transfer).
The Memory Stick Micro media in an M2 Duo-size Adaptor may not operate properly if it is additionally inserted into a Memory Stick Duo Adaptor.
Page 55
Using Your VAIO Computer
Inserting a Memory Stick Media
To insert a Memory Stick media
1 Slide open the front panel door with your fingertip.
2 Locate the Memory Stick slot (page 13).
3 Hold the Memory Stick media with the arrow facing upward and pointing toward the Memory Stick slot.
4 Carefully slide the Memory Stick media into the slot until it clicks into place.
The Memory Stick media is automatically detected by your system and the content of the Memory Stick media is
displayed. If nothing appears on the desktop, click Start, Computer, and double-click the Memory Stick media icon.
!
Be sure to hold the Memory Stick media with the arrow pointing in the correct direction as you insert it into the slot. To avoid damaging your computer
or the Memory Stick media, do not force the Memory Stick media into the slot if you cannot insert it smoothly.
55
nN
Do not insert more than one Memory Stick media into the slot. Improper insertion of the media may damage both your computer and the media.
While the Memory Stick media is in the slot, you cannot close the front panel door. A forceful attempt to close the door may damage both your computer
and the media.
Page 56
Using Your VAIO Computer
To view the contents of the Memory Stick media
1 Click Start and Computer to open the Computer window.
2 Double-click the Memory Stick media icon to view the list of data files saved in the Memory Stick media.
To format a Memory Stick media
The Memory Stick media has been formatted in the factory default setting and is ready for use.
If you want to reformat the media with your computer, follow these steps.
!
Be sure to use the device that is designed to format the media and supports the Memory Stick media when formatting the media.
Formatting the Memory Stick media erases the entire data on the media. Before formatting the media, make sure that it does not contain your valuable
data.
Do not remove the Memory Stick media from the slot while formatting the media. This could cause a malfunction.
1 Carefully slide the Memory Stick media into the slot until it clicks into place.
2 Click Start and Computer to open the Computer window.
3 Right-click the Memory Stick media icon and select Format.
4 Click Restore device defaults.
56
nN
!
The size of the allocation unit and file system may change.
Do not select NTFS from the File system drop-down list as it may cause a malfunction.
✍
The formatting process will be completed more quickly if you select Quick Format in Format options.
Page 57
5 Click Start.
6 At the confirmation prompt, click OK.
The formatting process starts.
!
It may take time to format the Memory Stick media depending on the media.
7 Once completed, click OK.
8 Click Close.
57
nN
Using Your VAIO Computer
Page 58
Using Your VAIO Computer
Removing a Memory Stick Media
To remove a Memory Stick media
1 Check that the Media Access indicator light is off.
2 Firmly grasp the extended part of the Memory Stick media.
3 Carefully pull it out of the slot.
!
Always remove the Memory Stick media gently, or it may pop out unexpectedly.
Do not remove the Memory Stick media while the Media Access indicator light is on. If you do, you may lose data. Large volumes of data may take time
to load, so be sure the indicator is off before removing the Memory Stick media.
58
nN
Page 59
59
nN
Using Your VAIO Computer
Using Other Memory Cards
In addition to the Memory Stick slot, your computer is equipped with an SD memory card slot. You can use this slot to transfer
data among digital cameras, camcorders, music players, and other audio/video devices.
✍
The SD memory card slot is located behind the front panel door. You need to open this door before accessing the slot.
Page 60
60
nN
Using Your VAIO Computer
Before You Use Memory Cards
The SD memory card slot on your computer supports the following memory cards:
❑ SD memory card
❑ SDHC memory card
❑ MultiMediaCard (MMC)
For the latest information on compatible memory cards, see Sony Support Information (page 140) to visit the appropriate
support Web site.
!
Your computer has been tested and found compatible only with major memory card media available as of May 2007. However, not all memory card
media that meet the same conditions as the compatible media are guaranteed of compatibility.
Always insert the correct memory card into the SD memory card slot.
SD memory cards with capacity of up to 2 GB and SDHC memory cards with capacity of up to 8 GB have been tested and found compatible with your
computer.
The SD memory card slot on your computer does not support the copyright protection and high-speed data transfer features of the SD memory card
and SDHC memory card.
Do not attempt to insert a memory card or memory card adapter of a different type into the SD memory card slot. An incompatible memory card or
memory card adapter may cause difficulty in removing from the slot and can cause damage to your computer.
Use care when inserting or removing a memory card from the SD memory card slot. Do not force the memory card in or out of the slot.
Page 61
Using Your VAIO Computer
Inserting a Memory Card
To insert a memory card
1 Slide open the front panel door with your fingertip.
2 Locate the SD memory card slot (page 13).
3 Hold the memory card with the arrow facing upward and pointing toward the memory card slot.
4 Carefully slide the memory card into the slot until it clicks into place.
Do not force the card into the slot.
✍
If the memory card does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.
!
While a memory card is in the slot, you cannot close the front panel door. A forceful attempt to close the door may damage both your computer and
the media.
61
nN
Page 62
Removing a Memory Card
!
Do not remove a memory card while the Media Access indicator light is on. If you do, the card or its data may become damaged.
To remove a memory card
1 Check that the Media Access indicator light is off.
2 Firmly grasp the extended part of the memory card.
3 Carefully pull it out of the slot.
62
nN
Using Your VAIO Computer
Page 63
63
nN
Using Your VAIO Computer
Using the Internet
To use the Internet, you need to connect an external modem device, for example a USB telephone modem, an xDSL modem,
or a cable modem, to your computer. For the detailed instructions on connection setups and modem configuration, see the
manual that came with your modem.
Page 64
64
nN
Using Your VAIO Computer
Using Wireless LAN (WLAN)
Using the Sony Wireless LAN (WLAN), all your digital devices with built-in WLAN functionality communicate freely with each
other through a network. A WLAN is a network in which a user can connect to a Local Area Network (LAN) through a wireless
(radio) connection. So there is no need anymore to pull cables or wires through walls and ceilings.
You can communicate without an access point, which means that you can communicate with a limited number of computers
(ad-hoc). Or you can communicate through an access point, which allows you to create a full infrastructure network.
✍
In some countries, using WLAN products may be restricted by the local regulations (e.g. limited number of channels). Therefore, before activating the
WLAN functionality, read the Regulations Guide carefully.
*
WLAN uses the IEEE 802.11a
the encryption methods: Wired Equivalent Privacy (WEP), which is a security protocol, Wi-Fi Protected Access 2 (WPA2), and Wi-Fi Protected Access
(WPA). Proposed jointly by the IEEE and Wi-Fi Alliance, both WPA2 and WPA are specifications of standards based, interoperable security
enhancements that increase the level of data protection and access control for existing Wi-Fi networks. WPA has been designed to be forward
compatible with the IEEE 802.11i specification. It utilizes the enhanced data encryption TKIP (Temporal Key Integrity Protocol) in addition to user
authentication using 802.1X and EAP (Extensible Authentication Protocol). Data encryption protects the vulnerable wireless link between clients and
access points. Besides that, there are other typical LAN security mechanisms to ensure privacy, such as: password protection, end-to-end encryption,
virtual private networks, and authentication. WPA2, the second generation of WPA, provides stronger data protection and network access control and
is also designed to secure all versions of 802.11 devices, including 802.11b, 802.11a, 802.11g, and 802.11n, multi-band and multi-mode. In addition,
based on the ratified IEEE 802.11i standard, WPA2 provides government grade security by implementing the National Institute of Standards and
Technology (NIST) FIPS 140-2 compliant AES encryption algorithm and 802.1X-based authentication. WPA2 is backward compatible with WPA.
* See the online Specifications to see whether your model supports the IEEE 802.11a standard and/or the draft form of the IEEE 802.11n standard.
/b/g standard or the draft form of the IEEE 802.11n* standard, which specifies the used technology. The standard includes
Page 65
65
nN
Using Your VAIO Computer
IEEE 802.11b/g is a wireless LAN standard, using the 2.4 GHz bandwidth. The IEEE 802.11g standard provides high-speed communications, faster than
the IEEE 802.11b standard.
IEEE 802.11a is a wireless LAN standard, using the 5 GHz bandwidth, and provides high-speed communications of up to 54 Mbps.
IEEE 802.11n is a wireless LAN standard, using the 2.4 or 5 GHz bandwidth, and provides high-speed communications of up to 300 Mbps
*
.
* Actual communication speed varies depending on your access point settings and so on.
Your computer may employ the Intel
®
Next-Gen Wireless-N technology* compliant with the IEEE 802.11a/b/g standard and the draft form of the
IEEE 802.11n standard.
* Employed only on models that support the draft form of the IEEE 802.11n standard.
Wireless LAN devices using the 2.4 GHz bandwidth and the ones using the 5 GHz bandwidth cannot communicate with each other because the
frequencies are different.
The 2.4 GHz bandwidth used by wireless LAN compatible devices is also used by other various devices. Although technologies to minimize interference
from other devices that use the same bandwidth are employed on wireless LAN compatible devices, such interference may cause lower communication
speed, narrower communication range, or broken wireless connections.
The communication speed varies depending on the distance between communication devices, existence of obstacles between such devices, the device
configuration, the radio conditions, and the software in use. In addition, communications may be cut off depending on the radio conditions.
The communication range varies depending on the actual distance between communication devices, existence of obstacles between such devices, the
radio conditions, the ambient environment that includes existence of walls and materials of such walls, and the software in use.
Deploying IEEE 802.11b and IEEE 802.11g products on the same wireless network may reduce the communication speed due to radio interference.
Taking this into consideration, the IEEE 802.11g products are designed to reduce the communication speed to ensure communications with
IEEE 802.11b products. When the communication speed is not as fast as expected, changing the wireless channel on the access point may increase
the communication speed.
Page 66
66
nN
Using Your VAIO Computer
Connecting the Wireless LAN Antenna
To use the wireless LAN functionality on your computer, you must connect the supplied wireless LAN antenna to your
computer.

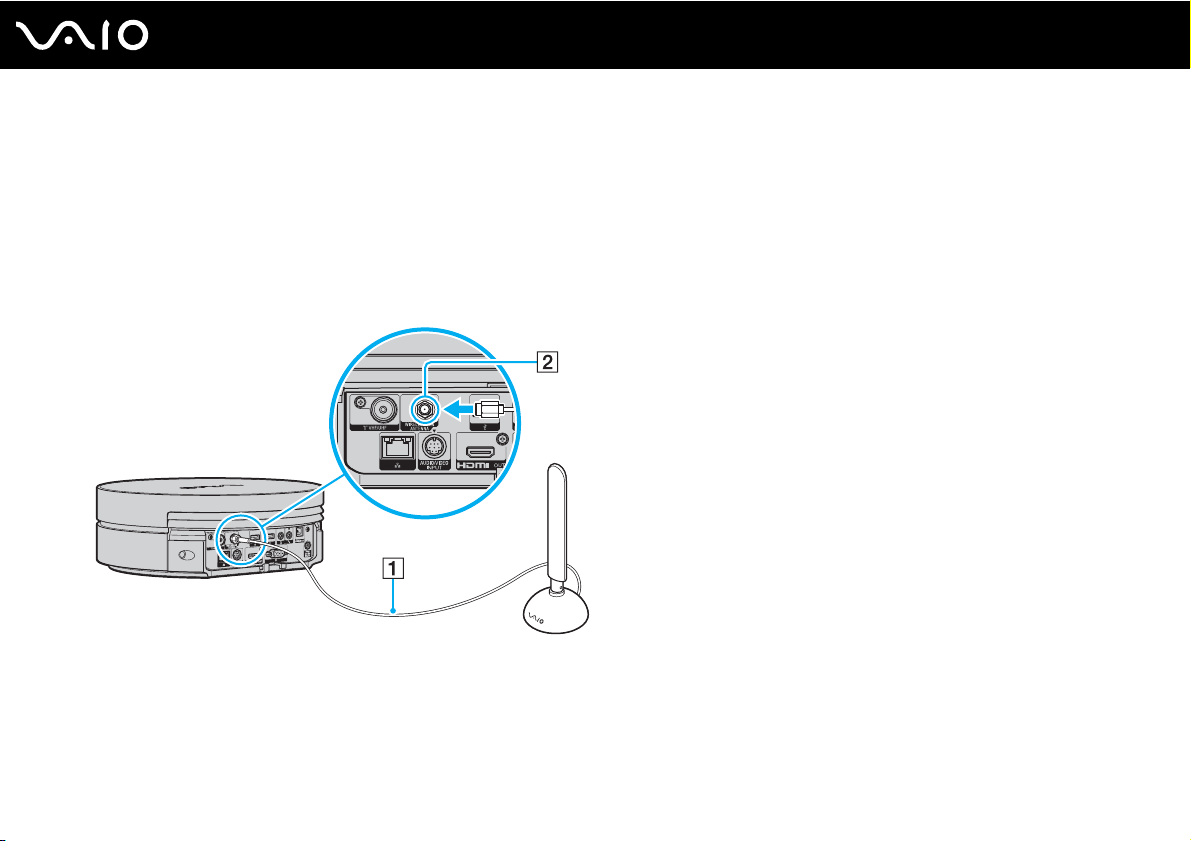

To connect the wireless LAN antenna
Screw the wireless LAN antenna cable (1) counterclockwise into the WIRELESS LAN ANTENNA port (2) on the back of your
computer.
!
Be sure to keep the wireless LAN antenna at least 30 cm away from your computer.
Page 67
✍

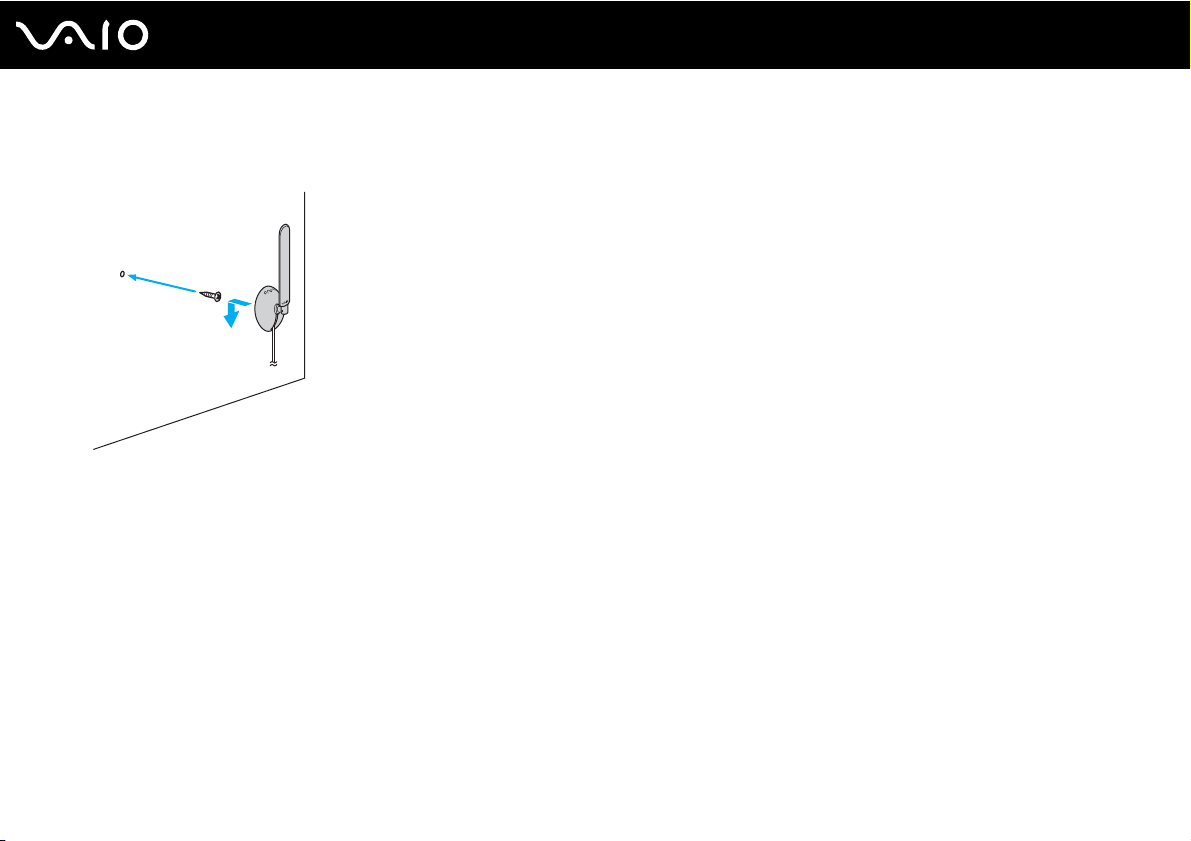

For better reception, if needed, you may mount the wireless LAN antenna to a wall using the supplied screw.
67
nN
Using Your VAIO Computer
Page 68
68
nN
Using Your VAIO Computer
Communicating without an Access Point (Ad-hoc)
An ad-hoc network is a network in which a LAN is created only by the wireless devices themselves, with no other central
controller or access point. Each device communicates directly with other devices in the network. You can set up an ad-hoc
network easily at home.
❑ If the wireless connection is initiated by the VAIO computer, channel 11 will be selected.
❑ If the wireless connection is initiated by peer wireless LAN equipment, the wireless LAN communication will make use of
the channel selected by the peer wireless LAN equipment.
Page 69
To communicate without an access point (ad-hoc)
!
The IEEE 802.11n standard, using the 2.4 or 5 GHz bandwidth, is not available on ad-hoc networks.
1 Turn on the WLAN switch.
The Wireless LAN indicator lights up.
2 Click Start and Control Panel.
3 Click View network status and tasks under Network and Internet.
4 Click Set up a connection or network on the left pane.
The Set up a connection or network window appears.
5 Select an option to specify the ad-hoc network settings and click Next.
6 Follow the on-screen instructions.
69
nN
Using Your VAIO Computer
Page 70
70
nN
Using Your VAIO Computer
Communicating with an Access Point (Infrastructure)
An infrastructure network is a network that extends an existing wired local network to wireless devices by providing an access
point (not supplied), for example the Sony Access Point. The access point bridges the wireless and wired LAN and acts as a
central controller for the wireless LAN. The access point coordinates transmission and reception from multiple wireless
devices within a specific range.
The access point will select which channel to use on an infrastructure network.
!
For details on how to select the channel that will be used by the access point, see the manual that came with your access point.
Page 71
To connect to a wireless network
1 Make sure an access point is set up.
See the manual that came with your access point for more information.
2 Turn on the WLAN switch.
The Wireless LAN indicator lights up.
3 Click Start and Control Panel.
4 Click View network status and tasks under Network and Internet.
5 Click Manage wireless networks.
6 Click Add.
7 Follow the on-screen instructions.
71
nN
Using Your VAIO Computer
Page 72
Using Your VAIO Computer
Stopping Wireless LAN Communication
To stop wireless LAN communication
Turn off the WLAN switch.
!
Turning off the wireless LAN functionality while accessing remote documents, files, or resources may result in data loss.
✍
For WPA-PSK or WPA2-PSK authentication, you must enter a passphrase. The passphrase is case sensitive and must be between 8 and 63
alphanumeric characters long or up to 64 characters long using numbers from 0 to 9 and letters from A to F.
72
nN
Page 73
Using Peripheral Devices
You can add functionality to your VAIO computer by using the various ports on the computer.
❑ Selecting Display Modes (page 74)
❑ Using the Multiple Monitors Function (page 75)
❑ Connecting a Universal Serial Bus (USB) Device (page 77)
❑ Connecting a Printer (page 80)
❑ Connecting an i.LINK Device (page 81)
❑ Connecting to a Network (LAN) (page 83)
73
nN
Using Peripheral Devices
Page 74
74
nN
Using Peripheral Devices
Selecting Display Modes
You can select which display to be used as the primary monitor when two displays (TV, desktop monitor, etc.) are connected
to your computer.
If you want to work on both displays at the same time, see Using the Multiple Monitors Function (page 75) for more
information.
To select a display
1 Right-click on the desktop and select Personalize.
2 Click Display Settings.
The Display Settings window appears.
3 Follow the on-screen instructions to change the settings.
✍
You may not be able to display the same contents on both displays (including a combination of one display and one projector) at the same time,
depending on the type of your display or projector.
Before turning on your computer, turn on the peripheral devices.
Page 75
75
nN
Using Peripheral Devices
Using the Multiple Monitors Function
The Multiple Monitors function allows you to distribute portions of your desktop across separate displays. For example, if you
have a display connected to the HDMI OUT port and another connected to the monitor (VGA) port, two displays can function
as a single desktop.
You can move the cursor from one display to the other. This allows you to drag objects, such as an open application window
or a toolbar, from one display to the other.
✍
Your external display may not support the Multiple Monitors function.
Certain software applications may not be compatible with Multiple Monitors settings.
Make sure that your computer does not enter Sleep mode while you are using Multiple Monitors mode; otherwise the computer may not return to
Normal mode.
If you set different colors on each display, do not expand a single window across two displays; otherwise your software may not work properly.
Set fewer colors or a lower resolution for each display.
Page 76
To select the Multiple Monitors mode
1 Right-click on the desktop and select Personalize.
2 Click Display Settings.
The Display Settings window appears.
3 Follow the on-screen instructions to change the settings.
✍
Additionally, you can set the display colors and resolution for each display and customize the Multiple Monitors mode.
76
nN
Using Peripheral Devices
Page 77
Connecting a Universal Serial Bus (USB) Device
✍
You need to slide open the front panel door to access the USB ports on the front.
Connecting a USB Mouse

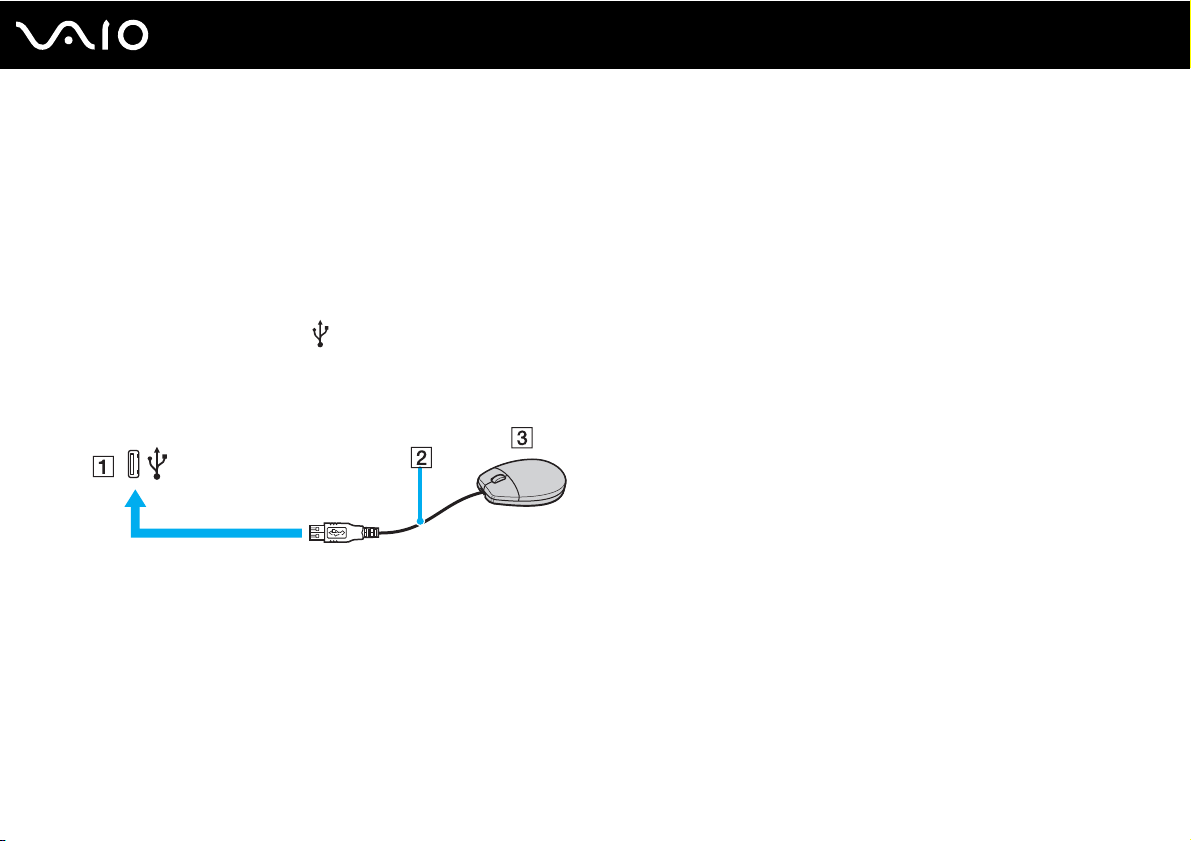

To connect a USB mouse
1 Choose the USB port (1) you prefer to use.
2 Plug the USB mouse cable (2) into the USB port.
You can now use your USB mouse (not supplied) (3).
77
nN
Using Peripheral Devices
Page 78
Connecting a USB Floppy Disk Drive
You can purchase a USB floppy disk drive and connect it to your computer.
To connect a USB floppy disk drive
1 Choose the USB port (1) you prefer to use.
2 Plug the USB floppy disk drive cable (2) into the USB port.
Your USB floppy disk drive (3) is now ready for use.
!
When using a USB floppy disk drive, do not apply force on the USB port. This may cause a malfunction.
78
nN
Using Peripheral Devices
Page 79
79
nN
Using Peripheral Devices
Disconnecting a USB floppy disk drive
You can disconnect a USB floppy disk drive when your computer is on or off. Disconnecting the drive when the computer is
in Sleep mode may cause the computer to malfunction.
To disconnect a USB floppy disk drive
✍
To disconnect a USB floppy disk drive when your computer is off, skip steps 1 to 8.
1 Close all programs accessing the floppy disk drive.
2 Double-click the Safely Remove Hardware icon on the taskbar.
The Safely Remove Hardware window appears.
3 Select the floppy disk drive you want to unplug.
4 Click Stop.
The Stop a Hardware device window appears.
5 Confirm that the floppy disk drive can be safely removed from the system.
6 Click OK.
A message appears stating it is now safe to remove the hardware device.
7 Click OK.
8 Click Close to close the Safely Remove Hardware window.
9 Disconnect the floppy disk drive from the computer.
Page 80
Using Peripheral Devices
Connecting a Printer
You can connect a Windows-compatible printer to your computer to print documents.
Connecting a Printer Using the USB Port
You can connect a USB printer compatible with your version of Windows to the computer.
✍
You need to slide open the front panel door to access the USB ports on the front.
To connect a printer using the USB port
1 Plug the power cord (1) of your printer into an AC outlet.
2 Choose the USB port (3) you prefer to use.
3 Plug one end of a USB printer cable (2) (not supplied) into the USB port and the other end to your printer.
80
nN
Page 81
81
nN
Using Peripheral Devices
Connecting an i.LINK Device
Notes on connecting i.LINK devices
❑ Your computer is equipped with an i.LINK port, which you can use to connect to an i.LINK device such as a digital video
camcorder.
❑ The i.LINK port on your computer does not supply power to external devices generally powered by i.LINK ports.
❑ The i.LINK port supports transfer rates up to 400 Mbps; however, the actual transfer rate depends on the transfer rate of
the external device.
❑ The optional i.LINK cables may not be available in some countries or areas.
❑ An i.LINK connection with other compatible devices is not fully guaranteed.
❑ The i.LINK connection varies depending on the software applications, operating system, and i.LINK-compatible devices
you use. See the manual that came with your software for more information.
❑ Check the working conditions and operating system compatibility of i.LINK-compatible PC peripherals (for example, an
HDD or a CD-RW drive) before you connect them to your computer.
Page 82
82
nN
Using Peripheral Devices
Connecting a Digital Video Camcorder
✍
The i.LINK port is located behind the front panel door. You need to open this door before accessing the port.
To connect a digital video camcorder
Plug one end of an i.LINK cable (1) (not supplied) into the i.LINK port (2) on the computer and the other end into the DV In/
Out port (3) on the digital video camcorder.
✍
On Sony digital video cameras, ports labeled DV Out, DV In/Out, or i.LINK are i.LINK-compatible.
The Sony digital video camcorder shown here is an example; your digital video camcorder may need to be connected differently.
You cannot access the pictures stored on a Memory Stick media when using an i.LINK connection.
Page 83
83
nN
Using Peripheral Devices
Connecting to a Network (LAN)
You can connect your computer to 100BASE-TX/10BASE-T-type networks with an Ethernet network cable. Connect one end
of a network cable (not supplied) to the network (Ethernet) port on the back of the computer and the other end to your network.
For detailed settings and devices needed to connect to the network, ask your network administrator.
!
Your computer has a protective sticker covering the network (Ethernet) port located on its back. Connect a 10BASE-T or 100BASE-TX cable to
the network (Ethernet) port. Using an incorrect cable, such as a phone cable, may result in an electric current overload that can cause a malfunction,
excessive heat, or fire in the network (Ethernet) port. For help on connecting to a network, ask your network administrator.
✍
Your computer can be connected to the network with the default settings.
Page 84
Using Peripheral Devices
!
Telephone lines cannot be connected to the network (LAN) connector on your computer.
If the network (LAN) connector is connected to the telephone lines mentioned below, high electric current to the connector may cause damage,
overheating, or fire.
- Home (intercom speakerphone) or business-use telephone lines (multi-line business telephone)
- Public telephone subscriber line
- PBX (private branch exchange)
Do not plug a telephone cable into the network port.
84
nN
Page 85
85
nN
Customizing Your VAIO Computer
Customizing Your VAIO Computer
This section briefly describes how to change the main settings of your VAIO computer. Among other things, you will learn
how to use and customize the look of your Sony software and utilities, etc.
❑ Setting the Password (page 86)
❑ Setting Up Your Computer with VAIO Control Center (page 89)
❑ Using the Power Saving Mode (page 90)
Page 86
nN
Customizing Your VAIO Computer
Setting the Password
Use one of the BIOS functions to set the password.
Once you have set the password, you will be prompted to enter the password after the VAIO logo appears to start your
computer. The power-on password allows you to protect your computer from unauthorized access.
86
Page 87
87
nN
Customizing Your VAIO Computer
Adding the Power-on Password
The power-on password is provided to protect your computer from unauthorized access.
!
Once you have set the power-on password, you cannot start your computer without entering the password. Make sure not to forget the password. Write
down your password and keep it safe and private from other people.
If you forget the power-on password and need assistance to reset it, a password reset fee will be charged, and your computer may need to be sent in
for depot service for password reset.
To add the power-on password
1 Turn on the computer.
2 Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
3 Press the < or , key to select Security to display the Security tab, select Set Machine Password, and then press the
Enter key.
4 On the password entry screen, enter the password twice and press the Enter key.
The password can be up to 32 alphanumeric characters (including spaces) long.
5 At the confirmation prompt, press the Enter key.
✍
The following is to configure your computer to prompt password entry when you turn it on or display the BIOS setup screen.
6 Select Password when Power On under Security.
Press the space bar to change the setting from Disabled to Enabled.
7 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
At the confirmation prompt, press the Enter key.
Page 88
88
nN
Customizing Your VAIO Computer
Changing/Removing the Power-on Password
To change or remove the power-on password
1 Turn on the computer.
2 Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
3 Enter the current password and press the Enter key.
4 Press the < or , key to select Security to display the Security tab, select Set Machine Password, and then press the
Enter key.
5 On the password entry screen, enter the current password once and a new password twice, and then press the Enter key.
To remove the password, leave the Enter New Password and Confirm New Password fields blank and press the Enter
key.
When confirmation to save the changes is prompted, press the Enter key.
6 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
At the confirmation prompt, press the Enter key.
Page 89
nN
Customizing Your VAIO Computer
Setting Up Your Computer with VAIO Control Center
The VAIO Control Center utility allows you to access system information and to specify preferences for system behavior.
To use VAIO Control Center
1 Click Start, All Programs, and VAIO Control Center.
The VAIO Control Center window appears.
2 Select the desired control item and change the settings.
3 Once finished, click OK.
The setting of the desired item has been changed.
✍
For more information about each option, see the help file on VAIO Control Center.
Some of the control items will not be visible if you open VAIO Control Center as a standard user.
89
Page 90
90
nN
Customizing Your VAIO Computer
Using the Power Saving Mode
In addition to the normal operating mode, which allows you to turn off specific devices, your computer has a distinct power
saving mode called Sleep mode.
Using Normal Mode
This is the normal state of the computer when it is in use. To save power while not working, you can turn off a specific device
such as the connected display or the hard disk drive.
Page 91
91
nN
Customizing Your VAIO Computer
Using Sleep Mode
Sleep mode temporarily suspends the entire system operations for lower power consumption. The orange power light is on
during this mode.
!
Turn off your computer if you do not intend to use it for a long period of time.
To activate Sleep mode
Click Start, the arrow next to the Lock button, and Sleep.
✍
When your computer is in Sleep mode, you cannot insert a disc.
Alternatively, you can slide the power switch on the wireless keyboard to OFF position, or press the sleep button on the keyboard or the remote
commander to place your computer into Sleep mode.
To return to Normal mode
❑ Press the power button on your computer.
❑ Slide the power switch on the wireless keyboard to the ON position; or press the sleep button or the space bar on the
wireless keyboard.
❑ Press the sleep button on the wireless keyboard or the remote commander.
!
If you press and hold the power button for more than four seconds, your computer will turn off automatically. You will lose all unsaved data.
Page 92
92
nN
Customizing Your VAIO Computer
If the computer is not used for a certain period of time, it will enter Sleep mode. To modify this, you can change the Sleep
mode settings.
To change the Sleep mode settings
1 Right-click the power status icon on the taskbar and select Power Options.
2 Click Change plan settings under the current power plan.
3 Change the time to put the computer to sleep and click Save Changes.
Page 93
93
nN
Upgrading Your VAIO Computer
Upgrading Your VAIO Computer
Your VAIO computer and memory modules use high precision components and electronic connectors technology. To avoid
invalidation of the warranty during your product warranty period, we recommend that:
❑ You should contact your dealer to install a new component.
❑ You should not install it yourself, if you are not familiar with upgrading a computer.
❑ You should not touch the connectors on any component.
For the type of components available for upgrading and the amount of memory installed on your model, see the online
Specifications.
Contact VAIO-Link if you need assistance.
Page 94
94
nN
Upgrading Your VAIO Computer
Adding and Removing Memory
If you want to expand the functionality of your computer, you can increase the memory by installing optional memory modules.
Before you upgrade your computer's memory, read the notes and procedures in this section.
Notes on adding/removing memory modules
❑ Be careful when changing memory. Improper installation of memory modules may cause damage to your system. This
damage may void your manufacturer's warranty.
❑ Only use memory modules that are compatible with your computer. If a memory module is not detected by the computer
or the Windows operating system becomes unstable, contact your sales dealer or the manufacturer of your memory
module.
❑ Electrostatic discharge (ESD) can damage electronic components. Before touching a memory module, ensure the
following:
❑ The procedures described in this document assume user familiarity with the general terminology associated with
personal computers and with the safety practice and regulatory compliance requirements for using and modifying
electronic equipment.
❑ Turn off your computer and disconnect it from its power source (that is, AC adapter) and from any telecommunication
links, networks, or modems before you remove any cover or panel from the computer. Failure to do so may result in
personal injury or equipment damage.
❑ ESD can damage memory modules and other components. Install the memory module only at an ESD workstation.
If such a station is not available, do not work in a carpeted area, and do not handle materials that produce or hold
static electricity (cellophane wrappers, for example). Ground yourself by maintaining contact with an unpainted metal
portion of the chassis while performing the procedure.
❑ Do not open the memory module package before you are ready to change the module. The package protects the
module from ESD.
Page 95
95
nN
Upgrading Your VAIO Computer
❑ Use the special bag delivered with the memory module or wrap the module in aluminum foil to protect it from ESD.
❑ Introducing any liquids, foreign substances, or objects into the memory module slots or other internal components of your
computer will result in damage to the computer and any repair costs will not be covered by the warranty.
❑ Do not place the memory module in a location subject to:
❑ Heat sources such as radiators or air ducts
❑ Direct sunlight
❑ Excessive dust
❑ Mechanical vibration or shock
❑ Strong magnets or speakers that are not magnetically shielded
❑ Ambient temperature of more than 35°C or less than 5°C
❑ High humidity
❑ Handle the memory module with care. To avoid injuries to your hands and fingers, do not touch the edges of the
components and circuit boards inside your computer.
Page 96
nN
Upgrading Your VAIO Computer
Removing and Installing a Memory Module
To change or add a memory module
1 Shut down the computer and disconnect all peripheral devices.
2 Unplug the computer and wait until the computer cools down.

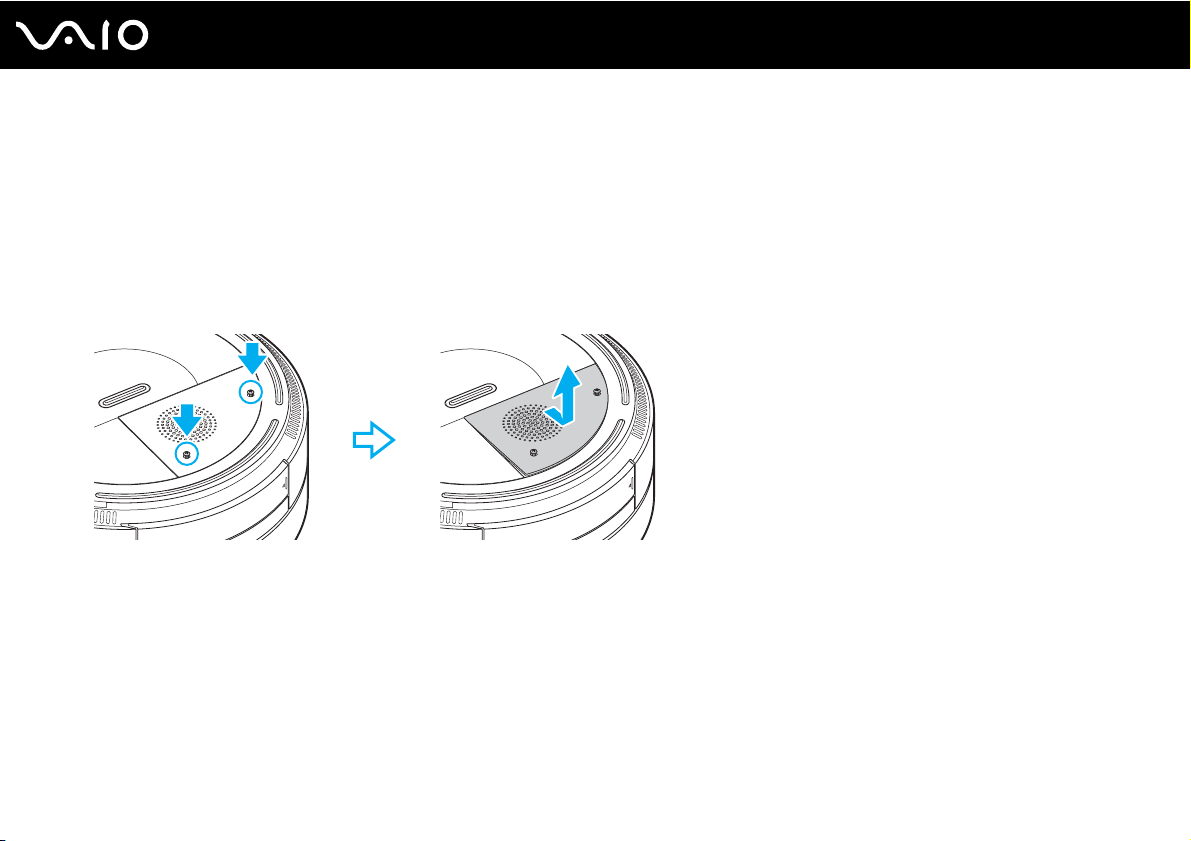

3 Unscrew the screws (indicated by the arrows below) on the bottom of the computer and remove the memory module
compartment cover.
!
When placing your computer upside down, be sure to put the computer on a soft cloth to protect it from scratches.
4 Touch a metal object to discharge static electricity.
96
Page 97
5 Remove the currently installed memory module as follows:
❑ Pull the latches in the direction of the arrows (1).
The memory module is released.
❑ Make sure that the memory module tilts up and then pull it out in the direction of the arrow (2).
6 Remove the new memory module from its packaging.
97
nN
Upgrading Your VAIO Computer
Page 98
7 Slide the memory module into the memory module slot and push it in until it clicks into place.
98
nN
Upgrading Your VAIO Computer
!
Do not touch any other components on the motherboard.
Be sure to insert the connector edge of the memory module into the slot while aligning the notch on the module with the small projection in the open
slot.
Page 99
Upgrading Your VAIO Computer
8 Replace the memory module compartment cover and tighten the screws on the bottom of the computer.
9 Connect a power source and turn on the computer.
99
nN
Page 100
Upgrading Your VAIO Computer
Viewing the Amount of Memory
To view the amount of memory
1 Turn on the computer.
2 Click Start, All Programs, and VAIO Control Center.
3 Double-click the System Information folder in the VAIO Control Center window.
4 Double-click the System Information icon in the System Information folder.
You can view the amount of system memory. If the additional memory does not appear, repeat the whole installation
procedure and restart the computer.
100
nN
Loading...
