Introduction

About This Manual

This manual covers the following UP-50 series color video printers.

• UP-50

• UP-51MD

• UP-51MDU

• UP-51MDP

Wherever the operation or any other item differs between models, this manual clearly describes those differences.

Organization of this manual

This manual is divided into four chapters. This section explains the organization of this manual.

Introduction

Describes the features and system configuration of the color video printer.

Operation

Describes actual printing once all connections and adjustments have been made, as explained in the next chapter. You will be able to make various types of printouts after reading through this chapter.

Installation and adjustment

Describes how to make connections and make adjustments using the menus displayed on the video monitor and printer window display. Once all connections and adjustments have been made, there should be no need to perform these operations again during normal printing operations. These operations must, however, be performed after reinstalling, or if the picture quality degrades, or if adjustment becomes necessary because the peripheral equipment is changed. Also covered is the use of the printer’s remote control unit (not supplied).

Others

Notes the precautions to be observed when using the printer, lists errors, warnings and their handling, and explains troubleshooting. Also provided is information on the locations and functions of parts and controls, and the on-screen messages and menus used to operate the printer. Should you encounter any unfamiliar terms or items while reading this manual, consult the index at the end of the manual.

Introduction

About This Manual (Continued)

Conventions used

Cross references

Throughout this manual you will find references to other sections of the manual that contain related information.

Important note

Be sure to read the sections of the manual marked Note . They explain points that you should be aware of to operate the printer correctly and prevent malfunctions.

Index

Use the index, in addition to the table of contents, to find information you need when using the printer.

Monitor and printer window displays

Some monitor displays and window displays illustrated in this manual may differ slightly from the actual display. The operation of the printer, however, remains as described in this manual.

Note

Introduction

System Overview

The UP-50 series color video printer is designed for capturing images from video equipment such as a VTR, and for printing out high resolution images in full color (with 256 shades per color, a total of more than 16,700,000 colors in all) in high resolution print mode (approximately 300 dpi). You can make various types of printouts. You can also add a caption to the printout. You can carry out ordinary printer operation by using the buttons and setup the printer interactively by picking from displayed menus.

Printouts that can be made with the printer

Printout of a full-size image (page 17)

Printout of two reduced images (page 35)

Printout of four reduced images (page 35)

Printout of 16 reduced images (page 35)

Printout of identical images (page 50)

Printout with an insert (page 52)

Printout of 8 reduced images (page 35)

Printout with a caption (page 55)

SAMPLE 123

In addition to the above printouts of multiple reduced images, printout of multiple reduced images with white borders can be made. Also, you can make a printout of mirror image(s) where the image is rotated about its vertical axis.

Introduction

System Overview (Continued)

System Configuration

The following shows an example of a printer system configuration.

Video source Provides the video input for printing. Connect a video source such as a video recorder, a video disk player or the like.

Video monitor Displays the images received from the video source (source image) and the image to be printed (memory image). Also displays the printer menus and messages. When the printer power switch is set to off, you can view the image from the video source.

Introduction

POWER

Foot switch (not supplied) allows you to operate the printer remotely.

Color video printer

SOURCE/

MEMORY

CAPTURE

MEMORY

PAGE

PRINTALARM

Remote control unit (not supplied) allows you to operate the printer remotely.

Operation

Before Printing

This section describes the following operations that must be made prior to starting printing after mounting the paper tray and paper cover on the printer (see “Assembly” on page 72) and making the necessary connections (see “Connections” on page 74).

• Loading an ink ribbon cartridge (See below.)

• Loading paper (See page 12.)

• Selecting the input signal (See page 14.)

Once the above operations have been completed, there should be no need to repeat them during routine printing. Perform them only when absolutely necessary.

Notes

• You can replace the ink ribbon cartridge or load paper regardless of whether the power is on or off. However, turning off the power will cause the image stored in the memory to be lost.

• Use the ink ribbon and paper contained in the same package as a pair. Before attempting to load an ink ribbon cartridge or paper, make sure that the combination of the ink ribbon and paper is compatible.

• Use only ink ribbon and paper designed for use with this printer. Failing to do so is likely to result in malfunctions. (See “Ink Ribbon and Paper” on page 124.)

Loading an Ink Ribbon Cartridge

To make printouts, an ink ribbon cartridge (an ink ribbon holder which has been loaded with an ink ribbon) and paper must be loaded. Load an ink ribbon into the supplied ink ribbon holder, then load the ink ribbon cartridge into the printer’s ribbon compartment.

Notes

• When you use the printer for the first time, the thermal head may be out of position. Before attempting to use the ink ribbon cartridge, turn on the power so that the thermal head is placed at the correct position.

• When transporting the printer, remove the ink ribbon cartridge.

• Do not throw away the supplied ink ribbon holder even if the ink ribbon is used

up. The ink ribbon holder is reusable even though the ink ribbon is not reusable.

• When you use the UPC-510 Color Printing Pack, 200 sheets of printouts can be printed for one ink ribbon roll. Even if you finish one pack of paper containing 100 sheets, do not throw away the ink ribbon. You can use the ink ribbon for another pack of papers.

• Once an ink ribbon has been completely used up, replace it. An ink ribbon is not reusable.

• Do not rewind the ink ribbon for reuse.

• Do not touch the ink ribbon or place it in a dusty location. Finger prints or dust

on the ink ribbon will result in imperfect printing or malfunction of the head.

• Use the ink ribbon and paper supplied only for the initial operation check of the printer.

Operation

Before Printing (Continued)

1 Open the front panel by pulling the front panel top toward you.

2 Remove the ink ribbon cartridge by pressing the EJECT button.

The ink ribbon cartridge pops out. When you use the printer for the first time, this operation is not required.

Note

Never put your hand into the ink ribbon compartment. The thermal head becomes very hot. You may burn yourself if you touch it.

When the ink ribbon cartridge cannot be ejected

Turn the power off, then back on again. Then, after a while, press the EJECT button.

Note

Turning off the power will cause the image stored in the memory to be lost. In this case, capture the image again before printing.

3 Detach the spent ink ribbon from the ink ribbon holder.

Operation

1 Remove the spool

holding the ink ribbon.

2 Remove the other spool.

4 Load the new ink ribbon into the ink ribbon holder.

Spool holding the ink ribbon

Start position mark

Ink ribbon holder

1 Load the spool holding

the ink ribbon into the left-hand part of the holder.

2 Fit the other spool into

the right-hand part of the holder.

3 Wind the spools of the ink

ribbon as illustrated until a start position marker appears.

5 Remove any slack from the ink ribbon.

If the ribbon is left slack, it may be damaged when inserted.

Start position marker

Wind the spools alternately until the start position marker faces upward.

6 Insert the ink ribbon cartridge firmly until it clicks.

Confirm that the ink ribbon cartridge is surely inserted. If the ink ribbon cartridge stops midway, stop inserting it. You may use the wrong ink ribbon holder. Be sure to use the ink ribbon holder that is designed for this printer.

When the ink ribbon cartridge cannot be inserted

Turn the power off, then back on gain. Then, insert the ink ribbon cartridge again.

7 Close the front panel.

Operation

Before Printing (Continued)

Notes

When storing ink ribbon cartridge:

• Avoid placing the ink ribbon in a location subject to: — high temperatures — high humidity — excessive dust — direct sunlight

• Store a partially used ink ribbon cartridge in its original packaging.

If your ink ribbon should tear

Repair the tear with transparent tape. There should be no problem with using the remaining portion of the ribbon.

Transparent tape

Turn the spools in the direction of the arrow to remove any slack until the transparent tape cannot be seen.

Loading Paper

To load paper, follow the procedure below. Be careful not to touch the printing surface.

Notes

• You can load paper regardless of whether the power is on or off. However, turning off the power will cause the image stored in the memory to be lost.

• Use the only paper that we recommend. Failing to do so is likely to result in malfunctions such as paper jam. Also, do not use the paper as specified for the UP-5000/5100 and UP-5500 series color video printer. (See “Ink Ribbon and Paper” on page 124.)

1 Open the front panel by pulling the front panel top towards you. 2 Push the paper tray.

The paper tray pops out.

SOURCE/

MEMORY

PAGE

CAPTURE

Operation

3 Place the paper in the paper tray so that the printing surface faces down with

the protection sheet.

Notes

• The paper tray holds up to about 100 sheets of paper. When adding paper to a partly full tray, be careful that the total number of sheets does not exceed the limit. If you exceed this limit, paper jams may occur.

• Load the paper so that it lays flat in the paper tray. If the paper is curled, it will overflow from the paper tray and the paper may not be fed properly. Be sure to riffle the paper with the protection sheets before attempting to place the paper in the paper tray. If the printing position shifts, load fewer sheets in the paper tray.

• Do not place different types of paper in the tray.

Place the paper in the paper tray with the printing surface facing down.

Protection sheet

Printing surface

Set the paper securely under the tab.

Front

Riffle the paper with the protection sheet.

4 Slide the paper tray back into the printer until it clicks into place.

SOURCE/

MEMORY

CAPTURE

MEMORY

PAGE

5 Close the front panel.

Notes

When handling the paper

Do not touch the printing surface. Dust or finger prints are likely to cause unsatisfactory printing or malfunction of the head. Hold the paper by the printing surface protection sheet.

When storing the paper

• Avoid storing the paper in a location subject to: — high temperatures — high humidity — excessive dust — direct sunlight

• Use the original package for storing unused paper.

Operation

Before Printing (Continued)

Selecting the Input Signal

Before printing, select the input signal (the input connector to which the signal to be printed is being input) —VIDEO, S-VIDEO, or RGB. Once you have selected the input signal, this setting remains effective until you select another source.

The following two methods are available to select the input signal:

• Using the INPUT SELECT button

• Using the menu

Selecting the input signal by using the INPUT SELECT button

POWER

2,3

SOURCE/

MEMORY

CAPTURE

MEMORY

PAGE

PRINTALARM

1 Turn on the video monitor and the printer.

The following appears once the printer is ready to operate.

Video monitor screen

Printer window display

Q1 A 1 S

2 Press the INPUT SELECT button.

The currently selected input signal appears. The selected signal is lit in green on the video monitor screen and spelled out in the printer window display. If you do not perform any operation after you press the INPUT SELECT button, the currently set item appears for about 3 seconds, after which it disappears.

Operation

INPUT SEL

: VIDEO/SV/R

The currently selected input signal is lit in green and is spelled out.

NPUT SE L :

VIDEO/sv/r

The currently selected input signal is spelled out.

3 Select the desired input signal.

Press the INPUT SELECT button repeatedly until the color of the desired input signal turns green on the monitor or until the desired input signal is spelled out on the printer window display. Each time you press the INPUT SELECT button, the input signal changes in

the order of VIDEO c S-VIDEO c RGB c VIDEO....

The selected signal will disappear within about three seconds.

Source signal of the image to be printed

Signal from video equipment connected to the VIDEO INPUT connector

Signal from video equipment connected to the S-VIDEO INPUT connector

Signal from video equipment connected to the RGB/SYNC INPUT connectors

Video monitor and printer window display (the selected input signal is spelled out)

V c VIDEO

SV c S VIDEO

R c RGB

To confirm the currently selected input signal

Press the INPUT SELECT button. The currently selected input signal appears in green on the video monitor and is spelled out in the printer window display for about 3 seconds.

Note

If you press the INPUT SELECT button when the memory image (the image stored in memory) is displayed, the memory image will be replaced with the source image (the image sent from the source equipment).

Operation

Before Printing (Continued)

Selecting the input signal on the menu

POWER

SOURCE/

MEMORY

CAPTURE

MEMORY

PAGE

PRINTALARM

2,5

1 Turn on the video monitor and the printer. 2 Press the INPUT SETUP button.

The INPUT SETUP menu appears.

INPUT SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / INPUT SEL : VIDEO / SV / R HUE : 0 COLOR : 0 GAIN : 0 OFFSET : 0 AGC : OFF / ON

Q1 A 1

NPUT SE TUP

/c/ l/p/IN/o/

3 Select INPUT SEL by pressing the F or f button.

INPUT SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / INPUT SEL HUE : 0 COLOR : 0 GAIN : 0 OFFSET : 0 AGC : OFF / ON

Q1 A 1

Position the cursor at INPUT SEL by pressing the F or f button.

: VIDEO / SV / R

NPUT SE L :

VIDEO/sv/r

Press the F or f button until INPUT SEL appears.

4 Select the desired input signal by pressing the G or g button.

INPUT SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / INPUT SEL : VIDEO / SV / R HUE : 0 COLOR : 0 GAIN : 0 OFFSET : 0 AGC : OFF / ON

Q1 A 1

Switch the desired input signal to green by pressing the G or g button. The selected input signal turns green and is spelled out.

NPUT SE L :

VIDEO/sv/r

Display the spelled-out input signal by pressing the G or g button.

Operation

5 Press the INPUT SETUP button.

The regular screen appears.

Making Full-Size Image Printouts

This section explains how to make a full-size image printout. The operations described here constitute the basic procedure for making a printout.

Before making a full-size image printout

• All connections should have already been made. (See page 74.)

• Ensure that the appropriate ink ribbon/paper set is being used and that they are

correctly loaded. (See pages 9, 12 and 124.)

• Select the input signal to be used to make a printout. (See page 14.)

• Set the printer to capture one full-size image into memory. (See page 36.)

• Select the appropriate memory page. (See page 38.)

• Confirm the printout color quality (using, for example, the LOAD COLOR

number) (See page 86.)

POWER

RIBBON REMAIN button

MEMORY FRM/FLD button

DISPLAY button

SOURCE/MEMORY button

MEMORY

PAGE

PRINTALARM

SOURCE/ MEMORY

CAPTURE

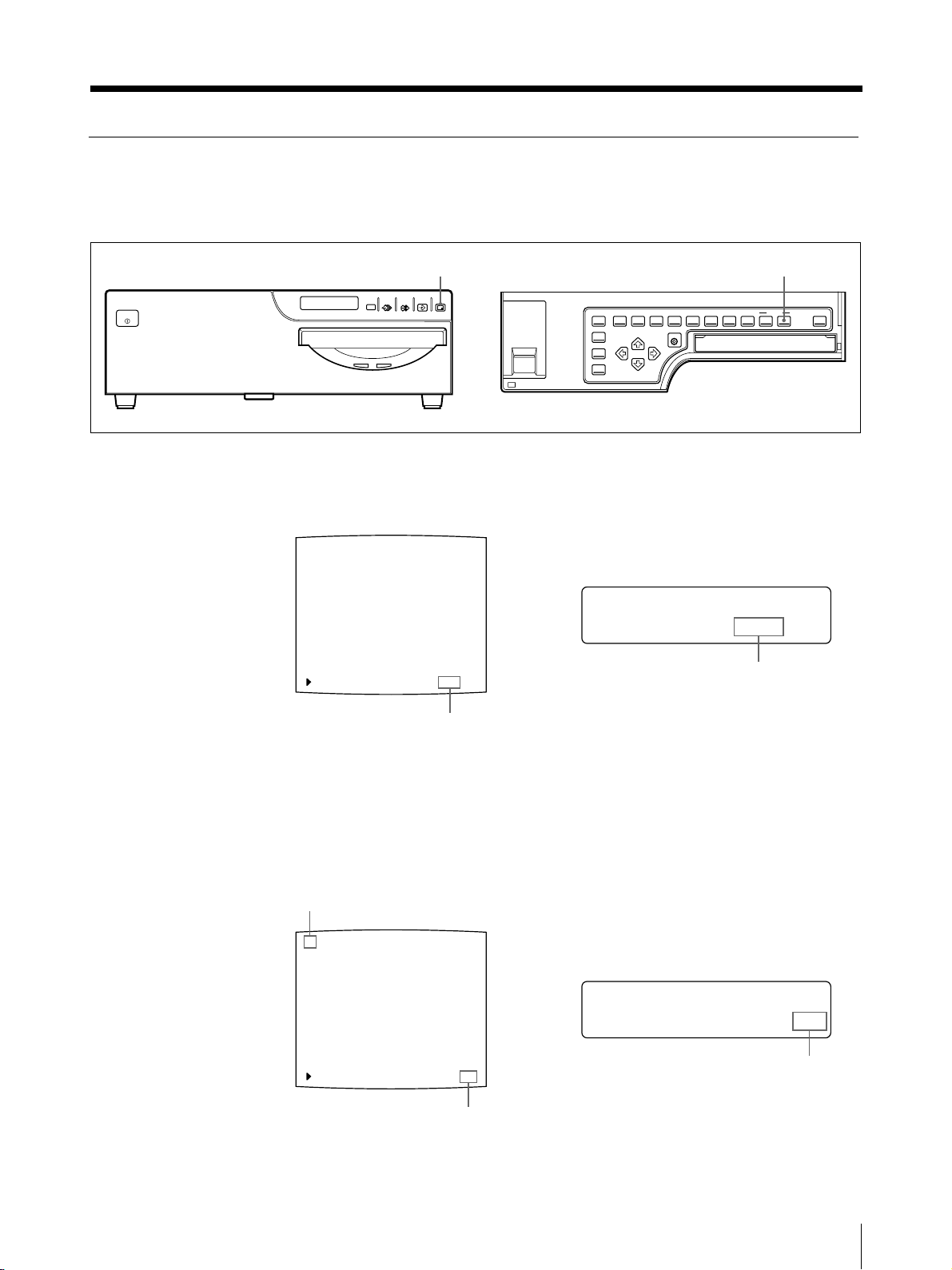

1 Turn on the video monitor and the printer. 2 Start the video source to display the source image on the video monitor.

This operation is done using the controls of the video equipment acting as the source.

Video monitor screen

Printer window display

Q1 A S

Q1 A 1 S

Shows that the image from the source equipment is displayed on the screen.

Continue to the next page c

Operation

Making Full-Size Image Printouts (Continued)

3 Press the CAPTURE button at the instant when the image you want to print

appears on the screen. The image is captured into memory. The memory image is displayed on the screen. Which image appears after this, the source image or the memory image, depends on the setting made with the FUNCTION SETUP function of the printer. (See page 42.)

Q1 A M

Q1 A 1 M

Shows that the image captured in memory is displayed on the monitor.

If the captured image is blurred

A quickly moving image may be blurred when captured. Should this occur, change the memory mode setting to FIELD, then print it again. Although the blur should be eliminated, the ultimate print quality will be slightly degraded. Select the FIELD mode by pressing the MEMORY FRM/FLD button. (See “Selecting the memory mode” on page 33.)

Notes

• Usually, it is recommended that you make printouts in FRAME mode. To confirm the memory mode setting, press the MEMORY FRM/FLD button. The currently selected memory mode appears lit in green on the video monitor and spelled out in the printer window display for about three seconds, then disappears.

• You can change the memory mode only when selecting 1 (full-size image), 2 (two-reduced images) or 4 (four-reduced images).

• The number of usable memory pages depends on the selected memory mode. (See page 38.)

To change the image captured in memory

1 To display the source image when the memory image is displayed on the

screen, press the SOURCE/MEMORY button .

2 Press the CAPTURE button at the instant the image you want to print

appears. The previous image is replaced with the new one.

Note

If you turn off the power, the image stored in memory will be lost. Should this happen, capture the image into memory again after turning on the power. If no image is stored in memory, the printer will not print even if you press the PRINT button.

Operation

4 Press the PRINT button.

The printout pops out on the paper cover. The printing time depends on the type of paper and printer settings.

Q1 A M

Blinks while printing

Q1 A 1 M

Changes as follows during printing: Start printing t yellow t magenta t cyan t printing ends The color which is currently being printed is displayed. This indication changes as printing progress.

Notes

• Do not turn off the power during printing. If you do so, paper may not be ejected and may jam in the printer.

• Do not pull the paper from the paper cover until printing has been completed.

• Do not leave more than 10 sheets of printouts on the paper cover. Doing so may

cause a paper jam.

• You can not change the printer application mode or settings on the WINDOW SETUP menu during printing.

To stop printing

When you make one printout, you can not stop printing midway. Wait until a printout pops out on the paper cover. When you make multiple copies, reset the printout quantity to 1 while the first copy is being printed. (See “Making Multiple Copies of Identical Printouts” on page 23.)

If the printer does not print

The printer will fail to print in the following cases:

• While an error message is displayed on the video monitor screen and printer window display.

— Proceed as described in “Error/Warning Messages” on page 129.

• When an image has not been stored in memory. — Image data stored in memory is lost if you turn off the power. Capture the

image into memory again, then press the PRINT button.

To make a printout at high speed

Set PRN SPEED to HIGH in the PRINTER SETUP menu. (See page 30.)

Operation

Making Full-Size Image Printouts (Continued)

When you want to see an image that is hidden below a screen message

You can erase the screen message (such as Q1, A and so on) from the video monitor screen by pressing the DISPLAY button. The screen message disappears. To display a screen message, press the DISPLAY button again. (See “Erasing the Screen Display on the Video Monitor” on page 68.) You can also erase the information about ink ribbon and paper by pressing the RIBBON REMAIN button. (See “Displaying the Type and Remaining Amount of the Ink Ribbon” on page 69.)

If a black line appears on the printout

Sometimes, a black line appears on the printout, although it does not appear on the video monitor. This black line can be eliminated from the printout. (See “Changing the Printout Size/Printout Area” page 94.)

If the color quality of printouts is not satisfactory

You can obtain the satisfactory color quality of printout by compensating for the input signal and/or adjust the color quality of the printouts. (See “Compensating for the Input Signals” on page 78, and “Adjusting the Printout Color”on page 86.)

Notes

When storing your printouts:

• Avoid storing the printout in a location subject to high temperatures, high humidity, excessive dust or direct sunlight.

• Do not stick tape on a printout. Also, avoid leaving a plastic eraser on a printout or placing a printout in contact with materials which contain plasticizer (under a desk mat, for example).

• Do not allow alcohol or other volatile organic solvents to come into contact with the printouts.

Operation

Making Printouts with the Desired User Set Number

You can register all the printer settings as a user settings. The printer allows you to register three sets of settings as User Set 1, 2 and 3. (See “Registering a User Set” on page 116.) By selecting a desired user set number, the printer functions according to the corresponding settings. You can change a part of the selected user settings and make printouts.

Note

If you change the currently selected user set to another one, the image stored in memory pages will be cleared.

POWER

SOURCE/

MEMORY

CAPTURE

MEMORY

PAGE

PRINTALARM

3,4

1 Turn on the video monitor and printer. 2 Start the video source to display the source image on the video monitor.

This operation is done using the controls of the video equipment acting as the source.

3 Press the LOAD USER button.

The currently selected user setting appears.

LOAD USER 1 / 2 / 3 [EXEC

The currently selected user set number is lit in green.

]

OAD USER

1/–/–[EXEC

The currently selected user set number is displayed.

Continue to the next page c

Operation

]

Making Full-Size Image Printouts (Continued)

4 Select the user set number.

Press the LOAD USER button repeatedly until the desired user set turns green on the video monitor or until the desired user set is displayed on the printer window display. Each time you press the LOAD USER button, the user set number changes in

the order of 1 c 2 c 3 c 1....

The selected user set number will disappear within about three seconds.

OAD USER :

– / – /3[EXEC

]

LOAD USER : 1 / 2 / 3 [ EXEC ]

Switch the desired user set number to green.

Display the desired user set number.

5 Press the EXEC button.

The user set selected in step 4 is executed. While the selected user set is being executed, the following message appears.

When the user name is registered, the user name appears.

USER PRESET - 3 LOADING

USER 3

PLEASE WAIT

RESE T - 3 LOADING

USER 3

6 Press the CAPTURE button at the instant the image you want to print appears

on the screen. The image is captured into memory.

7 Press the PRINT button.

The printer makes printouts according to the user set selected in step 4.

Operation

Making Multiple Copies of Identical Printouts

You can make up to 9 copies of identical printouts.

Setting the printout quantity

The following two methods are available to set the number of printouts.

• Using the PRINT QTY button. However, you cannot use the button to decrease the number of printouts.

• Using the menu

You can change the designated number of copies before printing or any time during printing.

To set the printout quantity by using the PRINT QTY button

1,2

1 Press the PRINT QTY button.

The following screen appears. If you do not perform any operation after you press the PRINT QTY button, the currently set number of copies appears for about 3 seconds, after which it disappears.

RINT QTY :

1[1-9

PRINT QTY. : 1 [ 1 ~ 9 ]

Currently selected number of copies

Continue to the next page c

]

Operation

Making Full-Size Image Printouts (Continued)

2 Press the PRINT QTY button until the desired number appears.

Repeatedly pressing the PRINT QTY button increases the number up to a maximum of 9. Or repeatedly pressing the g button also increases the number up to a maximum of 9.

PRINT QTY. : 3 [ 1 ~ 9 ]

Press the PRINT QTY button or g button until the desired number appears.

To decrease the number of copies

While the screen which appears in step 1 is being displayed, press the G button. Each time you press the G button, the number decreases and stops at 1.

RINT QTY :

3[1-9

]

Setting the printout quantity using the menu

1 Press the MENU button.

The menu previously opened appears.

2 Select PRN by pressing the G or g button.

The PRINTER SETUP menu appears.

PRINTER SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / PRINT QTY. : 1 [ 1 ~ 9 ] INTERVAL : OFF / ON GAMMA : S / NORMAL / H PRN SPEED : / HIGH MOTION CHK : OFF / ON LOAD USER : 1 / 2 / 3 [ EXEC ] SYSTEM : PRESS [ > ] FUNCTION : PRESS [ > ] C - BALANCE : PRESS [ > ]

Q1 A 1

1,5

2,4

RINTER SETUP

/c/l/PRN/i/o/

Display PRN in capital letters by pressing the G or g button.

Switch PRN to green by pressing the G or g button.

Operation

3 Select PRINT QTY by pressing the F or f button.

PRINTER SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / PRINT QTY. INTERVAL : OFF / ON GAMMA : S / NORMAL / H PRN SPEED : / HIGH MOTION CHK LOAD USER : 1 / 2 / 3 [ EXEC ] SYSTEM : PRESS [ > ] FUNCTION : PRESS [ > ] C - BALANCE : PRESS [ > ]

Q1 A 1

Position the cursor at PRINT QTY by pressing the F or fbutton.

: 1 [ 1 ~ 9 ]

: OFF / ON

4 Select the desired number of copies by pressing the G or g button.

When you want to Button

Increase the quantity. g Decrease the quantity. G

5 Press the MENU button.

The regular screen appears.

If the paper runs out during printing

RINT QTY :

Press the F or f button until PRINT QTY appears.

1[1-9

]

Load the paper into the paper tray and press the PRINT button. However, the printout quantity is reset to the original quantity requested when printing is stopped. For example, if the printout quantity is set to 5, and the paper runs out when three copies are printed, the printout quantity is reset to 5. If you want to print only the remaining copies, set the printout quantity to 2 after loading the paper. (See “Loading Paper” on page 12.)

Operation

Making Full-Size Image Printouts (Continued)

Capturing Another Image While Printing

While the printer is printing, you can cue printing by capturing another image into another memory page to be printed once the printer becomes free. The usable memory pages depend on the type of printouts and settings. (See page 38.)

POWER

1 Select the desired memory page by pressing the MEMORY PAGE button.

Pressing the MEMORY PAGE button switches the memory page.

123

SOURCE/

MEMORY

CAPTURE

MEMORY

PAGE

PRINTALARM

Q1 B 1 S

The available memory pages appear in white.

The currently selected memory page.

2 Press the CAPTURE button at the instant the image you want to print appears

on the screen.

3 Press the PRINT button.

The image captured in step 2 is queued. The image is printed as soon as all previous printing jobs have been completed.

Q1 B 1 S

Memory page whose image has been queued for printing (blinks white on the video monitor) The memory page display returns to white on the video monitor once printing has been completed.

Operation

Note

Another image cannot be stored in a memory page in which an image has already been queued for printing. In such a case, the “PLEASE WAIT PRINTING MEMORY” appears.

4 To queue another memory page, repeat steps 1, 2 and 3.

Operation

Making Variations of Printouts

You can store various kinds of images in memory and make variations of printouts using the images captured in memory.

Variations of printouts that the printer can produce

The following variations of printout of the images stored in memory can be made.

Printout of a full-size image

Printout of two reduced images

Printout of four reduced images

A B C1 2 3

A B C

4 5 6 X

Printout of identical images

A B CA B C

Printout of eight reduced images

123 ABC

Printout with an insert

EFG 456

789 HIJ

XYZ KLM

ABC

Printout of 16 reduced images

123

1 2 3

a) You can make printouts of two-, four-, eight or 16 identical reduced images.

You can make a printouts of multiple reduced images with white borders. Also, you can make printouts of mirror images where images stored in the memory are rotated about the vertical axis.

CA B C

Operation

Selecting the Printer Application Mode

The unit allows you to make printouts of a full-size image, two reduced images, four reduced images, eight reduced images and 16 reduced images. Also by setting the printer application mode to either STANDARD or DUPLICATE, you can make a printout of different multiple images or identical multiple images. When you use the printer for the first time, the STANDARD application mode for full-size image printouts is selected. Select the application mode according to what kind of printouts you want to make.

Note

Changing the application mode results in clearing images stored in all of the memory pages.

3,5,7,9

1,11

2,4,8

1 Press the MENU button.

The menu previously opened appears.

2 Select PRN by pressing the G or g button.

The PRINTER SETUP menu appears.

PRINTER SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / PRINT QTY. : 1 [ 1 ~ 9 ] INTERVAL : OFF / ON GAMMA : S / NORMAL / H

MOTION CHK LOAD USER : 1 / 2 / 3 [ EXEC ] SYSTEM : PRESS [ > ] FUNCTION : PRESS [ > ] C - BALANCE : PRESS [ > ]

Q1 A 1

Switch PRN to green by pressing the G or g button.

: / HIGHPRN SPEED : OFF / ON

6,10

RINTER SETUP

/c/l/PRN/i/o/

Display PRN in capital letters by pressing the G or g button.

Continue to the next page c

Operation

Making Variations of Printouts (Continued)

3 Select PRN SPEED by pressing the F or f button.

PRINTER SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / PRINT QTY. : 1 [ 1 ~ 9 ] INTERVAL : OFF / ON GAMMA : S / NORMAL / H PRN SPEED : / HIGH MOTION CHK LOAD USER : 1 / 2 / 3 [ EXEC ] SYSTEM : PRESS [ > ] FUNCTION : PRESS [ > ] C - BALANCE : PRESS [ > ]

Q1 A 1

Position the cursor at PRN SPEED by pressing the F or f button.

: OFF / ON

When you use the UPC-540 Self Laminating Printing Pack, you can select the finish of the printouts. (See “Selecting the Lamination Pattern” on page 114.)

4 Select the desired PRN SPEED by pressing the G or g button.

PRINTER SETUP COLOR : 200

Q1 A 1

: OFF / ON

RN SPEED :

/HIGH

Press the F or f button until PRN SPEED appears.

RN SPEED :

/HIGH

Display the desired PRN SPEED by pressing the G or g button.

Switch the desired PRN SPEED to green by pressing the G or g button.

When you want to PRN SPEED

Make a printout at normal speed. NORMAL Make a printout at high speed. HIGH

5 Select SYSTEM by pressing the F or f button.

PRINTER SETUP COLOR : 200

Q1 A 1

Position the cursor at SYSTEM by pressing the F or f button.

: OFF / ON

YSTEM :

Press the F or f button until SYSTEM appears.

PRESS[>

]

Operation

6 Press the g button.

The SYSTEM SETUP menu appears.

SYSTEM SETUP

PRN SETUP : PRESS [ > ] LCD - CONTR : 7 BAUDRATE : / 24 / 4800 / 96 BEEP : OFF / ON APPLI. : STANDARD / IRE : 100 / 11 / 12 / 13 SAVE USER : 1 / 2 / 3 [ EXEC ] USER NAME : PRESS [ > ]

Q1 A 1

COLOR : 200

YSTEM

PRN

SETUP

SE TUP

7 Select APPLI. by pressing the F or f button.

SYSTEM SETUP

PRN SETUP : PRESS [ > ] LCD - CONTR : 7 BAUDRATE : / 24 / 4800 / 96 BEEP : OFF / ON APPLI. : STANDARD / IRE : 100 / 11 / 12 / 13 SAVE USER : 1 / 2 / 3 [ EXEC ] USER NAME : PRESS [ > ]

Q1 A 1

Position the cursor at APPLI. by pressing the F or f button.

COLOR : 200

PP LI .

SRD/

TANDA

Press the F or f button until APPLI. appears.

8 Select the desired application mode by pressing the G or g button.

SYSTEM SETUP

PRN SETUP : PRESS [ > ] LCD - CONTR : 7 BAUDRATE : / 24 / 4800 / 96 BEEP : OFF / ON APPLI. : STANDARD / IRE : 100 / 11 / 12 / 13 SAVE USER : 1 / 2 / 3 [ EXEC ] USER NAME : PRESS [ > ]

COLOR : 200

PP LI .

SRD/

TANDA

[>]

Q1 A 1

Switch the desired mode to green by pressing the G or g button.

Application mode

STANDARD

Printout

Printout with a full-size image, two different reduced images, four

Display the desired mode in capital letters by pressing the G or g button.

different reduced images, eight different reduced images and 16 different reduced images

DUPLICATE

Printouts of a full-size image, two identical reduced images, four identical reduced images, eight identical reduced images and 16 identical reduced images

9 Select PRN SETUP by pressing the F or f button. 10 Press the g button.

The PRINTER SETUP menu appears.

11 Press the MENU button.

The regular screen appears.

Operation

Making Variations of Printouts (Continued)

About the Memory

To make printouts, it is first necessary to capture the image in memory. When capturing the image, there are two ways to use the memory, one is frame mode and the other is field mode.

Frame mode: A image is captured in a memory area. Field mode: A memory area is divided into two, and images can be captured in

each. A quickly moving subject can be printed with less blurring. A memory area in which an image is captured is called a memory page in this manual. The number of usable memory pages depends on the type of the reduced images selected and on the memory mode. For detailed information, see “Selecting the memory page” on page 38.

Note

You can select the filed mode only when you select the full-image type of printout, two-reduced image printout or four-reduced image printout.

In frame mode

Video monitor

Q1 A 1 S

The image displayed in the video monitor is captured in memory page A.

In field mode

Video monitor

Q1 A1 1 S

The image displayed in the video monitor is captured in memory page A1.

Printout

A still subject can be printed with high resolution.

Printout

A quickly moving subject can be printed with less blurring.

Operation

Selecting the memory mode

Note

You can select memory mode only when you select the full-image type of printout, two-reduced image printout or four-reduced image printout.

The following two methods are available to select the memory mode:

• Using the MEMORY FRM/FLD button

• Using the menu

To select the memory mode using the MEMORY FRM/FLD button

1 Press the MEMORY FRM/FLD button.

The following screen appears. If you do not perform any operation after you press the MEMORY FRM/FLD button, the currently selected memory mode appears for about 3 seconds, after which it disappears.

1,2

EMOR Y :

FRAME / f i e l d

MEMORY

The currently selected memory mode is lit in green

: FRAME/FIELD

The currently selected memory mode is displayed in capital letters.

2 Select the desired memory mode by pressing the MEMORY FRM/FLD button.

Press the MEMORY FRM/FLD button repeatedly until the color of the desired memory turns lit green on the video monitor, or until the desired memory mode is displayed in the capital letters on the printer window display. Each time you press the FRM/FLD button, the memory mode changes.

FRAME: We recommend that, whenever possible, you print in this mode. FIELD: Select this mode to reduce blurring when you print a quickly moving

image.

Operation

Making Variations of Printouts (Continued)

To select the memory mode using the menu

1,5

1 Press the MENU button.

The previously selected menu appears.

2 Select LAY by pressing the G or g button.

The LAYOUT SETUP menu appears.

2,4

LAYOUT SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / MEMORY : FRAME / FIELD MULTI PIX : 1 / 2 / 4 / 8 / 16 SEPARATE : OFF / ON MIRROR : OFF / MIRROR LAMINATION : GLOSSY / WINDOW : PRESS [ > ] CAPTION : PRESS [ > ]

Q1 A 1

Switch LAY to green by pressing the G or g button.

AYOU T SETUP

3 Select MEMORY by pressing the F or f button.

LAYOUT SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / MEMORY : FRAME / FIELD MULTI PIX : 1 / 2 / 4 / 8 / 16 SEPARATE : OFF / ON MIRROR : OFF / MIRROR LAMINATION : GLOSSY / WINDOW : PRESS [ > ] CAPTION : PRESS [ > ]

Q1 A 1

Position the cursor at MEMORY by pressing the F or f button.

EMOR Y :

Press the F or f button until MEMORY appears.

/c/LAY/p/i/o/

Display LAY in capital letters by pressing the G or g button.

FRAME / f i e l d

Operation

4 Select the desired memory mode by pressing the G or g button.

LAYOUT SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / MEMORY : FRAME / FIELD MULTI PIX : 1 / 2 / 4 / 8 / 16 SEPARATE : OFF / ON MIRROR : OFF / MIRROR LAMINATION : GLOSSY / WINDOW : PRESS [ > ] CAPTION : PRESS [ > ]

EMOR Y :

frame/FIELD

Q1 A 1

Switch the desired memory mode to green by pressing the G or g button.

Display the desired memory mode in capital letters by pressing the G or g button.

5 Press the MENU button.

The regular screen appears.

Making a Printout of Multiple Different Reduced Images

You can capture multiple images in a memory page and make a printout with those reduced images. This section explains how to make a printout with multiple reduced images. A printout having multiple reduced images is made using the following the procedure below.

• Setting the printer application mode to STANDARD (See page 31.)

• Determining the number of reduced images. (See the following page.)

• Selecting the memory page (See page 38.)

• Selecting the method to be used to capture the images in memory (See page 40.)

Operation

Making Variations of Printouts (Continued)

Selecting the number of reduced images to be captured in memory

The following two methods are available to select the memory mode:

• Using the MULTI PICTURE button

• Using the menu

To select the desired type of reduced images to be captured in memory using the MULTI PICTURE button

1,2

1 Press the MULTI PICTURE button.

The following screen appears. If you do not perform any operation after you press the MULTI PICTURE button, the current setting appears for about 3 seconds, after which it disappears.

ULT I P I X :

1/–/–/–/––

MULTI PIX : 1 / 2 / 4 / 8 / 16

The currently selected type of reduced images to be captured in memory is lit in green.

The currently selected type of reduced images to be captured in memory is displayed.

2 Select the type of reduced images to be captured in memory by pressing the

MULTI PICTURE button. Press the MULTI PICTURE button repeatedly until the color of the type of reduced images to be captured in memory turns green on the video monitor, or until the type of reduced images to be captured in the memory is displayed on the printer window display. Each time you press the MULTI PICTURE button, the type of reduced-image

printout changes in order 1, 2, 4, 8, 16, 1....

Type Number of reduced images

1 1 (Full-size image) 2 2 (Two reduced images) 4 4 (Four reduced images) 8 8 (Eight reduced images) 16 16 (16 reduced images)

The screen is reset to the regular screen after a few seconds.

Operation

To select the type of reduced images to be captured in the memory using the menu

1,5

2,4

1 Press the MENU button.

The previously selected menu appears.

2 Select LAY by pressing the G or g button.

The LAYOUT SETUP menu appears.

LAYOUT SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / MEMORY : FRAME / FIELD MULTI PIX : 1 / 2 / 4 / 8 / 16 SEPARATE : OFF / ON MIRROR : OFF / MIRROR LAMINATION : GLOSSY / WINDOW : PRESS [ > ] CAPTION : PRESS [ > ]

AYOU T SETUP

/c/LAY/p/i/o/

Q1 A 1

Switch LAY to green by pressing the G or g button.

Display LAY in capital letters by pressing the G or g button.

3 Select MULTI PIX by pressing the F or f button.

LAYOUT SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / MEMORY : FRAME / FIELD MULTI PIX SEPARATE : OFF / ON MIRROR : OFF / MIRROR LAMINATION : GLOSSY / WINDOW : PRESS [ > ] CAPTION : PRESS [ > ]

Q1 A 1

Position the cursor at MULTI PIX by pressing the F or f button.

: 1 / 2 / 4 / 8 / 16

ULT I P I X :

Press the F or f button until MULTI PIX appears.

Continue to the next page c

1/– / – / – / ––

Operation

Making Variations of Printouts (Continued)

4 Select the type of reduced images to be captured in memory by pressing the G

or g button.

LAYOUT SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / MEMORY : FRAME / FIELD MULTI PIX SEPARATE : OFF / ON MIRROR : OFF / MIRROR LAMINATION : GLOSSY / WINDOW : PRESS [ > ] CAPTION : PRESS [ > ]

Q1 A 1

Switch the type of reduced images to be captured in memory to green by pressing the G or g button.

: 1 / 2 / 4 / 8 / 16

5 Press the MENU button.

The regular screen appears.

Selecting the memory page

ULT I P I X :

– /4/– / – / ––

Display the type of reduced images to be captured in memory by pressing the G or g button

The memory page used depends on the type of reduced images to be captured in memory and on the memory mode.

UP-50/51MD/51MDP

Priter application mode Type of reduced images to

be captured in memory

STANDARD Full image

Two reduced images

Four reduced images Eight reduced images 16 reduced images

DUPLICATE All types (1, 2, 4, 8 and 16)

UP-51MDU

Priter application mode Type of reduced images to

be captured in memory

STANDARD Full image

Two reduced images Four reduced images Eight reduced images 16 reduced images

DUPLICATE All types (1, 2, 4, 8 and 16)

Usable memory page FRAME

A, B, C, D, E, F, G, H

A, B, C, D

A, B A, B, C, D A, B A, B, C, D, E, F, G, H

Usable memory page FRAME

A, B, C, D

A, B A A, B A A, B, C, D

FIELD

A1, A2, B1, B2, C1, C2, D1, D2, E1, E2, F1, F2, G1, G2, H1, H2

A1, A2, B1, B2, C1, C2, D1, D2

A1, A2, B1, B2

— —

A1, A2, B1, B2, C1, C2, D1, D2, E1, E2, F1, F2, G1, G2, H1, H2

FIELD

A1, A2, B1, B2, C1, C2, D1, D2

A1, A2, B1, B2 A1, A2

— —

A1, A2, B1, B2, C1, C2, D1, D2

Operation

To select the memory page

POWER

Press the MEMORY PAGE button.

Q1 A 1 S

MEMORY PAGE button

SOURCE/

MEMORY

CAPTURE

MEMORY

PAGE

PRINTALARM

Q1 A S

Press the MEMORY PAGE button repeatedly until the desired memory page appears.

Operation

Making Variations of Printouts (Continued)

Selecting the method to be used to capture the images

You can select the method to be used to capture the images by using the PRINTER SETUP menu and FUNCTION SETUP menu.

• Capturing only the image currently displayed on the video monitor screen or capturing images sequentially to all reduced-image positions of a memory page at regular intervals.

• Deciding which image displays on the video monitor screen after capturing an image, a memory image or a source image.

3,5,7

1,9

2,4,8

1 Press the MENU button.

The previously selected menu appears.

2 Select PRN by pressing the G or g button.

The PRINTER SETUP menu appears.

PRINTER SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / PRINT QTY. : 1 [ 1 ~ 9 ] INTERVAL : OFF / ON GAMMA : S / NORMAL / H

MOTION CHK LOAD USER : 1 / 2 / 3 [ EXEC ] SYSTEM : PRESS [ > ] FUNCTION : PRESS [ > ] C - BALANCE : PRESS [ > ]

Q1 A 1

Switch PRN to green by pressing the G or g button.

: / HIGHPRN SPEED : OFF / ON

When you select the type of reduced images to be captured, go to step 3. When you select the type of full image to be captured, go to step 5

RINTER SETUP

/c/l/PRN/i/o/

Display PRN in capital letters by pressing the G or g button.

Operation

3 Select INTERVAL by pressing the F or f button.

PRINTER SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / PRINT QTY. : 1 [ 1 ~ 9 ] INTERVAL GAMMA : S / NORMAL / H PRN SPEED : / HIGH MOTION CHK LOAD USER : 1 / 2 / 3 [ EXEC ] SYSTEM : PRESS [ > ] FUNCTION : PRESS [ > ] C - BALANCE : PRESS [ > ]

Q1 A 1

: OFF / ON

NTERVAL :

Press the F or f button until INTERVAL appears.

OF F / o n

Position the cursor at INTERVAL by pressing the F or f button.

4 Select the desired method for capturing images by pressing the G or g button.

PRINTER SETUP COLOR : 200

Q1 A 1

Switch the desired setting to green by pressing the G or g button.

: OFF / ON

NTERVAL :

off/ON

Display the setting in capital letters by pressing the G or g button

When you want to

Capture only the image currently displayed on the video monitor screen by pressing the CAPTURE button.

Capture images sequentially to all positions of a memory page at regular intervals by pressing the CAPTURE button.

5 Select FUNCTION by pressing the F or f button.

PRINTER SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / PRINT QTY. : 1 [ 1 ~ 9 ] INTERVAL GAMMA : S / NORMAL / H PRN SPEED : / HIGH MOTION CHK LOAD USER : 1 / 2 / 3 [ EXEC ] SYSTEM : PRESS [ > ] FUNCTION C - BALANCE : PRESS [ > ]

Q1 A 1

: OFF / ON

: PRESS [ > ]

UNCT I ON :

Press the F or f button until FUNCTION appears.

Position the cursor at FUNCTION by pressing the F or f button.

6 Press the g button.

The FUNCTION SETUP menu appears.

FUNCTION SETUP COLOR : 200

PRN SETUP AUTO LIVE : OFF / ON IMMED. CAP. RM2 FUNC : / C&PRINT / RM3A FUNC : / PRINT&PAGE RM3B FUNC : / BACK - SP / RM3C FUNC : / CAP/SRC / RM3E FUNC : / GRAB / CLEAR

Q1 A 1

: PRESS [ > ]

: OFF / ON

: ALL /

UNCT I ON SETU P

Continue to the next page c

PRN

Setting

OFF

PRESS[>

SETUP[>

]

Operation

Making Variations of Printouts (Continued)

7 Select AUTO LIVE by pressing the F or f button.

FUNCTION SETUP COLOR : 200

PRN SETUP AUTO LIVE : OFF / ON IMMED. CAP. RM2 FUNC : / C&PRINT / RM3A FUNC : / PRINT&PAGE RM3B FUNC : / BACK - SP / RM3C FUNC : / CAP/SRC / RM3E FUNC : / GRAB / CLEAR

Q1 A 1

Position the cursor at AUTO LIVE by pressing the F or f button.

: PRESS [ > ]

: OFF / ON

: ALL /

UTO L I VE :

Press the F or f button until AUTO LIVE appears.

OF F / o n

8 Select which image appears on the video monitor after the image is captured,

by pressing the G or g button.

FUNCTION SETUP COLOR : 200

PRN SETUP AUTO LIVE : OFF / ON IMMED. CAP. RM2 FUNC : / C&PRINT / RM3A FUNC : / PRINT&PAGE RM3B FUNC : / BACK - SP / RM3C FUNC : / CAP/SRC / RM3E FUNC : / GRAB / CLEAR

Q1 A 1

Switch the desired setting to green by pressing the G or g button.

: PRESS [ > ]

: OFF / ON

: ALL /

UTO L I VE :

off/ON

Display the setting in capital letters by pressing the G or g button

When

The image captured in memory appears just after the

Setting

OFF printer captures the image, and the memory image remains on the video monitor screen.

The image captured in memory appears just after the printer

ON captures the image, then after a few seconds, the source memory appears, whenever you press the CAPTURE button.

9 Press the MENU button.

The regular screen appears.

To return to the PRINTER SETUP menu

In step 9, position the cursor at PRN SETUP and press the g button. The PRINTER SETUP menu appears again.

Operation

Making a Printout with multiple reduced images

This subsection explains how to make printouts of multiple reduced images taking, as an example, the making of a printout of four reduced images.

Before making the printout of four reduced images

• Confirm the printout color quality (using, for example, the LOAD COLOR number). (See page 86.)

• Select the type of four-reduced image to be captured in memory. (See page 36.)

• Select the appropriate memory page. (See page 38.)

• Set the method to be used to capture images in the memory page and select

which image will appear after the image has been captured into memory, the memory image or the source image. (See page 40.)

• Select whether the white borders are to be added. (See page 49.) You can select whether the white borders are added before or after capturing the four reduced images in the memory.

POWER

MEMORY FRM/FLD button

MOTION CHECK button

F, f, G and g buttons

MEMORY

PRINTALARM

SOURCE/

CAPTURE

MEMORY

PAGE

1 Start the video source.

This operation is done using the controls of the video equipment acting as the source.

Blinks green to indicate that an image will be captured here.

* *

The memory page in which the four reduced images are to be captured.

Indicate that an image will be captured here.

Q1 A 4 F : 1 S

Q1 A 4F : 1 S

Type of multiple reduced images to be captured F: Indicates that white borders are to be attached

around the images. When white borders are attached, 4F is displayed. When white borders are not attached, 4 is displayed.

1: Indicate that an image will be captured here.

Indicates that the images from a piece of video equipment are displayed on the screen.

Continue to the next page c

Operation

Making Variations of Printouts (Continued)

2 Press the CAPTURE button at the instant the image you want to print appears

on the screen. The image has been captured in the location indicated by the green blinking star on the video monitor screen or the position number displayed on the printer window display in step 1. The green blinking star (referred to as the cursor) on the monitor video moves to the next position and the number on the printer window display advances by 1.

* *

Q1 A 4F : 2 S

The blinking cursor moves to the next position.

At this time, the image captured in memory is displayed on the video monitor screen. However, the image to be displayed after a few seconds depends on the setting of AUTO LIVE in the FUNCTION SETUP menu. (See page 42.) When INTERVAL in the PRINTER SETUP menu is set to ON, the image is automatically captured sequentially to four positions at regular intervals. In this case, go to step 5. When the source image is displayed at the position where the next image is to be captured, go to step 4.

Q1 A 4 F : 2 S

The number advances by 1.

3 Press the SOURCE/MEMORY button.

The source image appears on the video monitor screen.

4 Repeat steps 2 and 3 until you have captured four images when the memory

image remains on the video monitor screen. Repeat step 2 until you have captured four images when the source image appears on the video monitor screen at the next position where the image is to be captured.

To replace a captured image

When INTERVAL is set to OFF in the PRINTER SETUP menu, you can replace a captured image. Example: When you want to change the image stored in the third position.

Operation

1 Select the third position where the image which you want to replace is

located by pressing the F, f, G or g button. Pressing the F, f, G or g button moves the cursor one position by one position vertically or horizontally.

* *

Q1 A 4F : 3 S

Press the F, f, G or g button until the third cursor blinks green.

Q1 A 4 F : 3 S

Press the F, f, G or g button until a 3 appears.

2 Display the source image on the video monitor.

3 Press the CAPTURE button at the instant the image you want to print

appears. The previously stored image is replaced with the newly stored image.

To skip a previously captured image

When an image has already been captured, the previously captured image can be replaced by pressing the CAPTURE button. Skip images that you want to keep by pressing the F, f, G or g button.

5 Press the PRINT button.

The four reduced images are printed on one sheet of paper. Whether white borders are attached depends on the setting of SEPARATE in the LAYOUT SETUP menu. (See page 49.)

Operation

Making Variations of Printouts (Continued)

If the printout is blurred

When you make a printout of a full image, or two or four reduced images captured in memory in FRAME mode, the images on a printout may be blurred. Should this occur, change the memory mode setting to FIELD, then print it again. Although the blur should be eliminated, the ultimate print quality will be slightly degraded. Select the FIELD mode by pressing the MEMORY FRM/FLD button. (See “Selecting the memory mode” on page 33.)

* *

EMOR Y :

frame/F ELD

MEMORY FRAME/FIELD

Notes

Switch FIELD to green.

Display FIELD in capital letters.

• This function is available only when one of either full image, or two or four reduced images is selected to be captured in memory.

To confirm whether the captured images are blurred on the video monitor

You can check whether the full image, or the two or four reduced images captured in memory are blurred on the video monitor. When you select full image: You can check whether the captured image is blurred by displaying the memory image on the video monitor. When you select two or four reduced images to be captured: Press the MOTION CHECK button to set the MOTION CHECK function to ON. You can check whether the reduced images captured in memory are blurred on the video monitor. In this case, the image on the video monitor will be slightly degraded.

Note

The MOTION CHECK function is available only for the images displayed on the video monitor. To eliminate blur from the printout, change the memory mode setting to FIELD. (See “If the printout is blurred” on this page.)

Operation

To set the MOTION CHECK function using the MOTION CHECK button

1,2

1 Press the MOTION CHECK button.

The following screen appears. If you do not perform any operation after you press the MOTION CHECK button,the currently selected setting appears for about 3 seconds, after whichit disappears.

OT I ON CHK :

OF / on

MOTION CHK OFF/ON

The currently selected setting is lit in green

The currently selected setting is displayed in capital letters.

2 Select the desired setting by pressing the MOTION CHECK button.

Press the MOTION CHECK button repeatedly until the color of the desired setting turns green on the video monitor, or until the desired setting is displayed in capital letters on the printer window display. Each time you press the MOTION CHECK button, the setting changes.

When you want to

See the letters or fine images on the video monitor. Confirm whether the two or four reduced images

captured in the memory are blurred

The screen is reset to the regular screen after a few seconds.

Note

Even if you change the setting of the MOTION CHECK function, the printout quality will not be affected.

Setting

OFF ON

Operation

Making Variations of Printouts (Continued)

To select the setting using the menu

1,5

2,4

1 Press the MENU button.

The previously selected menu appears.

2 Select PRN by pressing the G or g button.

The PRINTER SETUP menu appears.

PRINTER SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / PRINT QTY. : 1 [ 1 ~ 9 ] INTERVAL : OFF / ON GAMMA : S / NORMAL / H

MOTION CHK LOAD USER : 1 / 2 / 3 [ EXEC ] SYSTEM : PRESS [ > ] FUNCTION : PRESS [ > ] C - BALANCE : PRESS [ > ]

Q1 A 1

Switch PRN to green by pressing the G or g button.

: / HIGHPRN SPEED : OFF / ON

RINTER SETUP

/c/l/PRN/i/o/

Display PRN in capital letters by pressing the G or g button.

3 Select MOTION CHK by pressing the F or f button.

PRINTER SETUP COLOR : 200

Q1 A 1

Position the cursor at MOTION CHK by pressing the F or f button.

: OFF / ON

OT I ON CHK:

Press the F or f button until MOTION CHK appears.

4 Select the desired setting by pressing the G or g button.

PRINTER SETUP COLOR : 200

Q1 A 1

: OFF / ON

OT I ON CHK:

Display the setting in capital letters by pressing the G or g button.

OF F / o n

off/ON

Operation

Switch the desired setting to green by pressing the G or g button.

5 Press the MENU button.

The regular screen appears.

Making a printout with white borders

The unit allows you to decide whether or not the images are printed with white borders.

1 Press the MENU button.

The previously selected menu appears.

2 Select LAY by pressing the G or g button.

The LAYOUT SETUP menu appears.

1,5

2,4

LAYOUT SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / MEMORY : FRAME / FIELD MULTI PIX : 1 / 2 / 4 / 8 / 16 SEPARATE : OFF / ON MIRROR : OFF / MIRROR LAMINATION : GLOSSY / WINDOW : PRESS [ > ] CAPTION : PRESS [ > ]

Q1 A 1

Switch LAY to green by pressing the G or g button.

AYOU T SETUP

Display LAY in capital letters by pressing the G or g button.

3 Select SEPARATE by pressing the F or f button.

LAYOUT SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / MEMORY : FRAME / FIELD MULTI PIX : 1 / 2 / 4 / 8 / 16 SEPARATE : OFF / ON MIRROR : OFF / MIRROR LAMINATION : GLOSSY / WINDOW : PRESS [ > ] CAPTION : PRESS [ > ]

Q1 A 1

Position the cursor at SEPARATE by pressing the F or f button.

EPARATE :

Press the F or f button until SEPARATE appears.

Continue to the next page c

/c/LAY/p/i/o/

OF F / o n

Operation

Making Variations of Printouts (Continued)

4 Select whether the images are printed with or without white borders by

pressing the G or g button.

LAYOUT SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / MEMORY : FRAME / FIELD MULTI PIX : 1 / 2 / 4 / 8 / 16 SEPARATE : OFF / ON MIRROR : OFF / MIRROR LAMINATION : GLOSSY / WINDOW : PRESS [ > ] CAPTION : PRESS [ > ]

Q1 A 1

Switch the desired setting to green by pressing the G or g button.

When you want to Setting

Print the images without white borders. OFF Print the images with white borders. ON

5 Press the MENU button.

The regular screen appears.

EPARATE :

off/ON

Display the setting in capital letters by pressing the G or g button.

Making a Printout of Identical Reduced Images

You can make a printout of identical reduced images.

Before making the printout of identical reduced images

• Set the printer application mode to DUPLICATE. (See page 31.)

• Select the desired type of the identical reduced images to be captured in memory.

(See page 36.)

• Select the appropriate memory page. (See page 38.)

• Select whether the white borders are to be added. (See page 49.)

You can select whether white borders are added before or after capturing the four reduced images in memory.

SOURCE/

MEMORY

CAPTURE

MEMORY

POWER

PAGE

PRINTALARM

Operation

1 Start the video source.

This operation is done using the controls of the video equipment acting as the source.

Q1 A DUP 4 S

Indicates that the printer is set to the DUPLICATE application mode where four identical reduced images are printed on one sheet of paper.

2 Press the CAPTURE button at the instant the image you want to print appears

on the screen. The image captured in the memory appears on the whole screen. (The image is displayed in full size.)

To change the image in memory

1 Start the video source. 2 Press the CAPTURE button at the instant the image you want to print

appears. The previously captured image is replaced with the newly captured image.

3 Press the PRINT button.

The identical reduced images are printed on one sheet of paper.

Operation

Making Variations of Printouts (Continued)

Making a Printout with an Insert

You can make printouts with an insert which is a reduced image. Either eight or 16 reduced images to be captured are used for deciding the image to be inserted onto the full image. However, the position and the size of the reduced image to be inserted are those for the four reduced images.

POWER

MEMORY

PRINTALARM

SOURCE/

CAPTURE

MEMORY

PAGE

2,4

1 Display the full-size image stored in memory by pressing the SOURCE/

MEMORY button. Or capture the full-size image in memory. (Follow steps 1 to 3 of “Making Full-Size Image Printouts” on page 17.)

2 Press the MULTI PICTURE button repeatedly until either the 8 or 16 reduced-

image type (without white borders and in STANDARD printer application mode) is selected. (See “Selecting the number of reduced images to be captured in memory” on page 36.)

3 Capture the image to be inserted.

1 Select the position where the reduced image is to be inserted by pressing

the G, g, F or f button. Example: To insert the image in the lower-left position

Operation

When you select 8 in step 2

A B C

Q1 A 8:3 Q1 A 8:4 Q1 A 16:05 Q1 A 16:06

Position the cursor (blinking) to this position by pressing the G, g, F or f button.

A B C

X Y Z

Image which appears after the CAPTURE button is pressed in step 2.

When you select 16 in step 2

A B C

Position the cursor (blinking) at this position by pressing the G, g, F or f button.

A B C

X Y Z

The image which appears after the CAPTURE button is pressed in step 2.

2 Press the CAPTURE button at the instant the image you want to insert

appears. The image to be inserted is captured at the position selected in step 1.

4 Press the MULTI PICTURE button to reset the printer to the type of full-size

image to be captured. The full-size image with an insert appears on the video monitor.

5 Press the PRINT button.

The image with an insert is printed.

Making a Printout of Mirror Images

You can set the printer so that images captured in the memory are rotated about the vertical axis (mirror images) and make a printout of these mirror images.

1,5

2,4

1 Press the MENU button.

The previously selected menu appears.

2 Select LAY by pressing the G or g button.

The LAYOUT SETUP menu appears.

LAYOUT SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / MEMORY : FRAME / FIELD MULTI PIX : 1 / 2 / 4 / 8 / 16 SEPARATE : OFF / ON MIRROR : OFF / MIRROR LAMINATION : GLOSSY / WINDOW : PRESS [ > ] CAPTION : PRESS [ > ]

Q1 A 1

Switch LAY to green by pressing the G or g button.

AYOU T SETUP

/c/LAY/p/i/o/

Display LAY in capital letters by pressing the G or g button.

Continue to the next page c

Operation

Making Variations of Printouts (Continued)

3 Select MIRROR by pressing the F or f button.

LAYOUT SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / MEMORY : FRAME / FIELD MULTI PIX : 1 / 2 / 4 / 8 / 16 SEPARATE : OFF / ON MIRROR LAMINATION : GLOSSY / WINDOW : PRESS [ > ] CAPTION : PRESS [ > ]

Q1 A 1

Position the cursor at MIRROR by pressing the F or f button.

: OFF / MIRROR

4 Select whether the captured images are to be rotated or not.

LAYOUT SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / MEMORY : FRAME / FIELD MULTI PIX : 1 / 2 / 4 / 8 / 16 SEPARATE : OFF / ON MIRROR LAMINATION : GLOSSY / WINDOW : PRESS [ > ] CAPTION : PRESS [ > ]

Q1 A 1

: OFF / MIRROR

IRROR :

OFF/mirror

Press the F or f button until MIRROR appears.

IRROR :

off/MIRROR

Display the setting in capital letters by pressing the G or g button.

Switch the desired setting to green by pressing the G or g button.

When you want to Setting

Print the images in the normal direction. OFF Rotate the images about the vertical axis. MIRROR

5 Press the MENU button.

The regular screen appears.

Note

Even if you set MIRROR to MIRROR, a caption entered in the CAPTION window will be printed in the normal direction.

Operation

Making Printouts With a Caption

A caption, such as data or comments, can be added to a printout below the image. You can input up to 80 characters. When using a computer via the RS-232C interface, you can input up to 160 characters on two lines from the computer.

About the CAPTION menu

A caption is entered from the CAPTION menu. You can input a caption in any printer application mode and make a printout with that caption. A brief explanation of each item of the CAPTION menu is given below.

Character display area The cursor lit in green indicates the position where a character can be entered. The entered characters are displayed here.

ON: displayed when printing with a caption. OFF: displayed when printing without a caption (OFF is displayed as the factory-setting).

CAPTION OFF 1

____________________ ____________________ ____________________ ____________________

A B C D E F G H I J K L M

P Q R S T U V W X Y Z

O 0 1 2 3 4 5 6 7 8 9 ’ ” , . ; : ( ) [ ] { } !?&

/*#$¥£@

Q1 A 1

Character entry area The character or symbol where the cursor is located is highlighted in green and this highlighted character is to be entered.

INS DEL SP

+ -

OFF ON

SHIFT

‘

EXIT

Indicates the position where the character is to be input in the character display area.

Symbols and words can be used to enter a caption.

.OFF <A> 1

Indicates the character selected in the character entry area.

Indicates the position where the character is to be input in the character display area.

Symbols and words can be used to enter a caption

Display in the CAPTION menu

INS DEL SP

OFF ON EXIT SHIFT

Function

Inserts one character without erasing the highlighted character. Deletes a highlighted character and characters shift back by one. Puts one space at the position of the highlighted character by erasing

that character. One space is left. Selects printing without a caption. Selects printing with a caption. Returns from the CAPTION menu to the LAYOUT SETUP menu. Selects either capital letters or small letters.

Operation

Making Printouts With a Caption (Continued)

Displaying the CAPTION Menu

The following two methods are available to display the CAPTION menu:

• Using the CAPTION INPUT button

• Using the menu

Press the CAPTION INPUT button. The CAPTION menu appears.

CAPTION INPUT button

CAPTION OFF 1

____________________ ____________________ ____________________ ____________________

A B C D E F G H I J K L M

P Q R S T U V W X Y Z

O 0 1 2 3 4 5 6 7 8 9 ’ ” , . ; : ( ) [ ] { }

/*#$¥£@

!?&

Q1 A 1

INS DEL SP

+ -

OFF ON

SHIFT

‘

> ^ EXIT

.OFF <A> 1

To display the CAPTION menu by using the LAYOUT SETUP menu

Position the cursor at CAPTION on the LAYOUT SETUP menu by pressing the F or f button, the press the g button. The CAPTION menu appears.

Operation

Entering a Caption

Enter a caption as follows. The setting remains effective until you enter a new setting - even if you turn the power off.

Notes

• If you turn off the power of the printer without returning to the LAYOUT SETUP menu or the regular screen after entering the characters in the CAPTION menu, the entered characters are cleared.

• During printing, you cannot enter or edit the caption in the CAPTION menu.

1,6

2,3

1 Press the CAPTION INPUT button.

The CAPTION menu appears.

2 Position the cursor (the line lit in green) at the point where you want to enter

the character in the character display area.

To move the cursor

1 Select the arrow corresponding to the direction in which you want to move

the green cursor in the character display area, by pressing the F, f, G or g button.

2 Press the EXEC button.

Each time you press the EXEC button, the cursor moves one position in the designated direction.

Operation

Making Printouts With a Caption (Continued)

Example: Move the cursor to the left by two.

The cursor is currently positioned here (lit in green).

CAPTION OFF

____________________ ____________________ ____________________ ____________________

A B C D E F G H I J K L M

P Q R S T U V W X Y Z

O 0 1 2 3 4 5 6 7 8 9 ’ ” , . ; : ( ) [ ] { }

/*#$¥£@

!?&

Q1 A 1

INS DEL SP

+ -

OFF ON

SHIFT

‘

> ^ EXIT

1 Highlight the G button in green.

The blinking cursor moves to this position.

CAPTION OFF 1

____________________ ____________________ ____________________ ____________________

A B C D E F G H I J K L M

P Q R S T U V W X Y Z

O 0 1 2 3 4 5 6 7 8 9 ’ ” , . ; : ( ) [ ] { } !?&

/*#$¥£@

Q1 A 1

INS DEL SP

+ -

OFF ON

SHIFT

‘

> ^ EXIT

.OFF <LEFT> 3

1 Display LEFT.

The cursor is currently positioned here (blinking).

2 Press the EXEC button twice.

.OFF <LEFT> 1

The cursor moves to this position.

Note

When OFF is displayed, the CAPTION input mode is set to off. Thus, you cannot add a caption to the printouts. (See “Making printouts with a caption” on page 63.)

3 Select the character you want to enter by pressing the F, f, G or g button.

Example: Enter S.

CAPTION OFF 1

____________________ ____________________ ____________________ ____________________

A B C D E F G H I J K L M

P Q R S T U V W X Y Z

O 0 1 2 3 4 5 6 7 8 9 ’ ” , . ; : ( ) [ ] { } !?&

/*#$¥£@

Q1 A 1

INS DEL SP

+ -

OFF ON

SHIFT

‘

^ EXIT

Highlight S in green by pressing the F, f, G or g button. S blinks in green.

Display S by pressing the F, f, G or g button.

.OFF <S> 1

Operation

To select either capital letters or small letters

You can change the characters in the character entry area from the capital letters to small letters or vice versa. 1 Highlight SHIFT in green by pressing the F, f, G or g button on the video

monitor. When characters are displayed in capital letters in the character entry area, SHIFT is displayed in the printer window display. When displayed in lower-case letters, shift is displayed.

2 Press the EXEC button.

Capital letters are changed to small letters, or small letters are changed to capital letters in the character entry area.

Note

Characters already entered (displayed in the character display area) are not changed even if letters are changed in the character entry area.

4 Press the EXEC button.

The character selected in step 3 appears at the point where the green cursor is positioned in the character display area, after which the cursor moves to the next position.

The cursor moves to this position.

CAPTION OFF 2

___________________

S ____________________ ____________________ ____________________

A B C D E F G H I J K L M

P Q R S T U V W X Y Z

O 0 1 2 3 4 5 6 7 8 9 ’ ” , . ; : ( ) [ ] { } !?&

/*#$¥£@

Q1 A 1

INS DEL SP

+ -

OFF ON

SHIFT

‘

^ EXIT

.OFF <S> 2

C S

The cursor moves to this position.

When you enter the wrong character in the above example

1 Select G by pressing the F, f, G or g button, then press the EXEC button.

The cursor moves back by one and the character entered in step 3 is highlighted in green.

2 Select DEL by pressing the F, f, G or g button.

Lit in green

CAPTION OFF 1

___________________

S ____________________ ____________________ ____________________

A B C D E F G H I J K L M

P Q R S T U V W X Y Z

O 0 1 2 3 4 5 6 7 8 9 ’ ” , . ; : ( ) [ ] { } !?&

/*#$¥£@

Q1 A 1

INS DEL SP

+ -

OFF ON

SHIFT

‘

^ EXIT

C S

The cursor moves to the top.

Display DEL by pressing the F, f, G or g button.

.OFF <DEL> 1

Highlight DEL in green by pressing the F, f, G or g button. DEL blinks in green.

Continue to the next page c

Operation

Making Printouts With a Caption (Continued)

3 Press the EXEC button.

The character selected in 1 is deleted. When the character to be deleted is placed among entered characters, the characters after the deleted one shift back by one.

Note

After the EXEC button is pressed, the monitor screen may become dark for a moment.

5 Repeat steps 2, 3 and 4 to enter the remaining characters of the caption.

To enter a space

1 Position the green cursor at the point where you want to enter a space.

2 Select SP by pressing the F, f, G or g button.

3 Press the EXEC button.

A single space is entered and the green cursor moves to the next position. If there is a character at the position where the space is entered, that character is deleted and a single space is left.

To replace a previously entered character without changing the number of characters

You can replace a previously entered character with a new one. 1 Position the green cursor at the character to be replaced by performing the

operations explained in step 2.

2 Overwrite the invalid character with the correct character by performing the

operations explained in steps 3 and 4. The previously entered character is replaced with the new one.

To add characters midway

1 Position the cursor at the position where a character is to be added by

performing the operations explained in step 2.

2 Select INS by pressing the F, f, G or g button. Then press the EXEC

button. A single space is inserted between characters and the cursor is positioned at the space.

Operation

Example: Add a character between A and B.

1 Move the cursor at B. (B is

highlighted in green).

CAPTION OFF 2

_________________

ABC ____________________ ____________________ ____________________

A B C D E F G H I J K L M

P Q R S T U V W X Y Z

O 0 1 2 3 4 5 6 7 8 9 ’ ” , . ; : ( ) [ ] { }

/*#$¥£@

!?&

Q1 A 1

INS DEL SP

+ -

OFF ON

SHIFT

‘

^ EXIT

ACBC

1 Move the cursor at B.

2 Display INS. Then, press the

EXEC button.

.OFF <INS> 2

B blinks when the cursor comes to B.

2 Highlight INS. (INS blinks in green.)

Then, press the EXEC button.

A single space is inserted between A and B and the green cursor is positioned at the space.

Cursor (lit green)

SHIFT

‘

^ EXIT

.OFF <INS> 2

ACBC

Cursor (blinking)

CAPTION OFF

_ ________________

ABC ____________________ ____________________ ____________________

A B C D E F G H I J K L M

P Q R S T U V W X Y Z

O 0 1 2 3 4 5 6 7 8 9 ’ ” , . ; : ( ) [ ] { }

/*#$¥£@

!?&

Q1 A 1

INS DEL SP

+ -

OFF ON

Note

After the EXEC button is pressed, the monitor screen may become dark for a moment.

3 Enter the character to be added.

6 Press the CAPTION INPUT button.

The entered characters are stored in memory. The regular screen appears.

Or, you can return to the regular screen using the following method:

6 Highlight EXIT by pressing the F, f, G or g button, then press the EXEC

button. The entered characters are stored in memory. The LAYOUT SETUP menu appears.

7 Press the MENU button.

Note

If you turn off the printer before performing the operation in step 6, characters entered in steps 2, 3, 4 and 5 are cleared without being stored in memory.

Operation

Making Printouts With a Caption (Continued)

To make printouts with a caption

The CAPTION menu allows you to set whether a caption is attached or not to a printout. Perform the following in step 6 before pressing the CAPTION INPUT button:

1 Select ON by pressing the F, f, G or g button.

CAPTION OFF 5

________________

ABEC ____________________ ____________________ ____________________

A B C D E F G H I J K L M

P Q R S T U V W X Y Z

O 0 1 2 3 4 5 6 7 8 9 ’ ” , . ; : ( ) [ ] { } !?&

/*#$¥£@

Q1 A 1

INS DEL SP

Highlight ON by pressing the the F, f, G or g button. ON blinks in green.

Select OFF to make printouts without a caption.

+ -

OFF ON

SHIFT

‘

> ^ EXIT

.OFF <ON> 5

ACEBC

Display ON by pressing the F, f, G or g button.

2 Press the EXEC button.

CAPTION ON 5

________________

ABEC ____________________ ____________________ ____________________

A B C D E F G H I J K L M

P Q R S T U V W X Y Z

O 0 1 2 3 4 5 6 7 8 9 ’ ” , . ; : ( ) [ ] { } !?&

/*#$¥£@

Q1 A 1

INS DEL SP

+ -

OFF ON

SHIFT

‘

EXIT

.ON <ON> 5

ACEBC

After this, all printouts are made with a caption. You can also decide whether to make printouts with a caption by using the CAPTION ON/OFF button, before attempting to print.

Operation

Making printouts with a caption

Store a caption that you want to attach to the printout beforehand. (See “Entering a Caption” on page 57.)

POWER

1 Press the CAPTION ON/OFF button.

The current setting appears. The video monitor screen is reset to the regular screen after a few seconds.

MEMORY

PRINTALARM

1,23

SOURCE/

CAPTURE

MEMORY

PAGE

ATPION :

OF / on

CAPTION OFF/ON:

The currently selected setting is lit in green

The currently selected setting is displayed in capital letters.

2 Select ON.

Press the CAPTION ON/OFF button repeatedly until the color of ON turns green on the video monitor, or until ON is displayed in capital letters on the printer window display. Each time you press the CAPTION ON/OFF button, the setting changes in the

order ON c OFF c ON....

When the CAPTION ON/OFF button is set to ON, C appears.

ATPION :

CAPTION OFF/ON:

Switch ON to green.

To make a printout without a caption

Select OFF.

of /ON

Display ON in capital letters.

3 Press the PRINT button.

The printout with a caption is made.

Operation

Deleting the Images Stored in Memory

You can delete images captured to memory pages, from either all of the memory pages or a single memory page, by using the CLEAR button. Whether the images of all memory pages or only a single memory page are deleted depends on the setting of CLEAR in the FUNCTION SETUP menu.

Setting the Function of the CLEAR Button

3,5,7

2,6

Press the MENU button. The previously selected menu appears.

2 Select PRN by pressing the G or g button.

The PRINTER SETUP menu appears.

PRINTER SETUP COLOR : 200

Q1 A 1

Switch PRN to green by pressing the G or g button.

: OFF / ON

RINTER SETUP

3 Select FUNCTION by pressing the F or f button.

PRINTER SETUP COLOR : 200

Q1 A 1

: OFF / ON

: PRESS [ > ]

UNCT I ON :

Press the F or f button until FUNCTION appears.

/c/l/PRN/i/o/

Display PRN in capital letters by pressing the G or g button.

PRESS[>

]

Position the cursor at FUNCTION by pressing the F or f button.

Operation

4 Press the g button.

The FUNCTION SETUP menu appears.

FUNCTION SETUP COLOR : 200

PRN SETUP AUTO LIVE : OFF / ON IMMED. CAP. RM2 FUNC : / C&PRINT / RM3A FUNC : / PRINT&PAGE RM3B FUNC : / BACK - SP / RM3C FUNC : / CAP/SRC / RM3E FUNC : / GRAB / CLEAR

Q1 A 1

: PRESS [ > ]

: OFF / ON

: ALL /

UNCT I ON SETU P

PRN

SETUP[>

5 Select CLEAR by pressing the F or f button.

FUNCTION SETUP COLOR : 200

PRN SETUP AUTO LIVE : OFF / ON IMMED. CAP. RM2 FUNC : / C&PRINT / RM3A FUNC : / PRINT&PAGE RM3B FUNC : / BACK - SP / RM3C FUNC : / CAP/SRC / RM3E FUNC : / GRAB / CLEAR

Q1 A 1

Position the cursor at CLEAR by pressing the F or f button.

: PRESS [ > ]

: OFF / ON

: ALL /

LEAR :

ALL/page/of f

Press the F or f button until CLEAR appears.

6 Select the function of the CLEAR button by pressing the G or g button.

]

When you want to Settings

Delete images of all memory pages. ALL Delete images of a single memory page. PAGE Deactivate the CLEAR button. OFF

FUNCTION SETUP COLOR : 200

PRN SETUP AUTO LIVE : OFF / ON IMMED. CAP. RM2 FUNC : / C&PRINT / RM3A FUNC : / PRINT&PAGE RM3B FUNC : / BACK - SP / RM3C FUNC : / CAP/SRC / RM3E FUNC : / GRAB / CLEAR

Q1 A 1

Switch the desired function to green by pressing the G or g button.

: PRESS [ > ]

: OFF / ON

: ALL /

LEAR :

ALL/page/of f

Display the desired function in capital letters by pressing the G or g button.

7 Select PRN SETUP by pressing the F or f button. Then, press the g button.

The PRINTER SETUP menu appears. Once you set the function of the CLEAR button, the CLEAR button functions according to the setting until the function setting is changed.

To return to the regular screen

Press the MENU button.

Operation

Deleting the Images Stored in Memory (Continued)

Deleting Images Stored in Memory

Note

You cannot restore images once they have been deleted.

Deleting images in all memory pages simultaneously

Before deleting images in all memory pages

Set CLEAR to ALL in the FUNCTION SETUP menu.

CLEAR button

Press the CLEAR button. All images stored in the printer are cleared.

Note

Even if you press the CLEAR button when the source image is displayed on the video monitor, the memory image appears without deleting images in the memory pages. In this case, press the CLEAR button again. All images stored in the printer are cleared.

Operation

Deleting images in a certain memory page

Before deleting images

Set CLEAR to PAGE in the FUNCTION SETUP menu.

SOURCE/

MEMORY

CAPTURE

MEMORY

POWER

PAGE

PRINTALARM

1 Press the SOURCE/MEMORY button when the source image is displayed on

the video monitor screen. The image stored in memory is displayed on the screen.

2 Select the memory page from which images are to be deleted by pressing the

MEMORY PAGE button.

3 Press the CLEAR button.

The image in the memory page selected in step 2 is deleted.

Operation

About the Screen Display

You can erase or display characters displayed on the video monitor (Q1, A and so on) and information about the ink ribbon.

Erasing the Screen Display on the Video Monitor

You can erase characters displayed on the video monitor when, for example, it is hard to see the image that is hidden behind the screen display. The printer operation is the same, regardless of whether those images are displayed on the video monitor. Since the same message are displayed in the printer window display, perform operations watching these messages in the printer window display.

1,2

1 Press the DISPLAY button.

The current setting appears. The video monitor screen is reset to the regular screen after a few seconds.

ISPLAY :

DISPLAY OFF/ON:

The currently selected setting is lit in green

of /ON

The currently selected setting is displayed in capital letters.

2 Select OFF.

Press the DISPLAY button repeatedly until the color of OFF turns green on the video monitor, or until OFF is displayed in capital letters in the printer window display. Each time you press the DISPLAY button, the setting changes in the order ON

c OFF c ON....

Operation

DISPLAY OFF/ON:

Switch OFF to green.

ISPLAY :

OF / on

Display OFF in capital letters.

To display characters on the video monitor

Select ON.

To perform the setting for the monitor display on the menu

You can also set whether characters are displayed on the video monitor by changing DISPLAY to ON or OFF in the OUTPUT SETUP menu. The setting of the DISPLAY button also changes according to the setting of DISPLAY in the OUTPUT SETUP menu, and vice versa.

When you want to see an image that is hedden below a menu

You can erase the menu temporarily while holding the DISPLAY button down.

Note

The error messages are always displayed regardless of the setting of the monitor display.

Displaying the Type and Remaining Amount of the Ink Ribbon

You can always display the type of the ink ribbon and its remaining amount on the video monitor.

1,2

1 Press the RIBBON REMAIN button.

The current setting appears. The video monitor screen is reset to the regular screen after a few seconds.

BN REMA I N :

OF / on

RBN REMAIN OFF/ON:

The currently selected setting is lit in green.

The currently selected setting is displayed in capital letters.

Continue to the next page c

Operation

About the Screen Display (Continued)

2 Select ON.

Press the RIBBON REMAIN button repeatedly until the color of ON turns green on the video monitor, or until ON is displayed in capital letters on the printer window display. Each time you press the RIBBON REMAIN button, the setting changes in the

order ON c OFF c ON....

BN REMA I N :

OF / on

RBN REMAIN OFF/ON:

Switch ON to green.

Display ON in capital letters.

To erase the information about the ink ribbon

Select OFF.

Note

Use the ribbon remain display as a criterion. The correct amount remaining of the ink ribbon may not be displayed.

Type of ink ribbon When the ink ribbon runs out or is not loaded, the message “INSERT RIBBON” appears.

Video monitor

COLOR : 200

Printer window display

CO LOR : 200

Q1 A 1 S

Operation

Q1 A 1

200: Number of printouts that can be made with the ribbon (remaining amount of the ink ribbon)

To perform the setting for the display of ink ribbon information using the menu

You can also set whether the type of ink ribbon and its remaining amount are displayed on the video monitor by changing RBN REMAIN to ON or OFF in the OUTPUT SETUP menu. The setting of the RIBBON REMAIN button also changes according to the setting of RBN REMAIN in the OUTPUT SETUP menu, and vice versa.

Installation and Adjustment

Supplied Accessories

The printer is packed together with the following accessories. Check that nothing is missing from your package.

Ink ribbon holder (1)

AC power cord (1)

Fan cover with a filter (1)

Fan cover Filter

Paper tray (1)

Paper cover (1)

Color printing pack Thermal head cleaning kit (1) Warranty card (1) (for US and Canadian model only) Instructions For Use (1)

(1)

a) Use the ink ribbon cartridge and paper for an operation check.

Notes

• Retain the original carton and packing materials in case you have to transport the unit in the future.

• Remove the ink ribbon cartridge and paper tray when transporting the printer.

• When transporting the printer, secure the thermal head. (For detailed information

on how to secure, see page 121.)

Installation and Adjustment

Supplied Accessories (Continued)

Assembly

To attach the paper cover, paper tray and ink ribbon cartridge

For details of how to assemble them, see the pages given in parentheses.

SOURCE/

MEMORY

CAPTURE

MEMORY

PAGE

Ink ribbon holder (page 9)

Paper tray (page 12)

Attach the ink ribbon cartridge after loading the ink ribbon into the ink ribbon holder.

SOURCE/

MEMORY

CAPTURE

MEMORY

PAGE

Paper cover

To attach the fan cover and the filter

Attach the filter to the fan cover, then mount them on the left side of the printer.

Installation and Adjustment

Ventilation holes

Fan cover

Filter

Preparing the Remote Control Unit

The following remote control units (not supplied) allow you to control the printer remotely.

• RM-5500 Remote Control Unit: Used to connect to the REMOTE 1 connector

• RM-91 Remote Control Unit and FS-36 Foot switch: Used to connect to the

REMOTE 2 connector.

• FS-30 Foot switch: Used to connect to the REMOTE 3 connector.

Using the RM-5500 remote control unit

The RM-5500 Remote Control Unit can be used either as a wireless or wired type. The buttons on the remote control unit duplicate those on the front panel of the printer. (See “Main Panel” on page 135 and “Sub Panel” on page 136.) You can use the remote control unit’s buttons which have the same names as those on the printer.

To use the RM-5500 remote control unit (not supplied) as a wireless unit

When using the remote control unit as a wireless unit, aim the head of the remote control unit at the remote sensor on the printer. With fresh batteries, the range of the remote control unit is about 3 meters.

Using the RM-91/FS-30/FS-36

The operations to be remotely controlled by the RM-91 remote control unit or the FS-30 foot switch depend on the remote operation settings made with the FUNCTION SETUP menu. (“Selecting the Operating Mode for Automatic Printing Capabilities” on page 104.) FS-36 (not supplied) has three switches that have different functions. For detailed information on how to use those switches, refer to the manual supplied with the FS-36.

Installation and Adjustment

Connections

To enable printing, video equipment to act as an input signal source, and a video monitor to display images or menus must be connected. The following diagrams illustrate how to make the input, output and remote control connections. Use this as a guide when connecting the required signals to and from the equipment to be used for printing.

Notes

• Turn off the power of each device before attempting to make any connections.

• Connect the AC power cord last.

Making Connections for Capturing Video Images

Connect the video equipment providing the video images to be printed. Connect the video equipment which will be used in actual printing, using the following diagram as a guide. Before connecting the video equipment, see “Important safeguards/notices for use in the medical environments” for UP-51MD/51MDU/51MDP on page 2.

75-ohm coaxial cable with the BNC connectors

to RGB/SYNC INPUT

Video equipment

to RGB output connectors

Connecting cable (with DIN 4-pin connectors) YC-15EV to SVIDEO INPUT

to VIDEO INPUT

to composite video output connector

to S-VIDEO output connector

75-ohm coaxial cable with the BNC connectors

Installation and Adjustment

75-ohm termination

switch

OFF

NTSC/PAL selector

NTSC PAL

AC power cord (supplied)

to AC IN

to wall outlet

a) This selector is supplied with models other than UP-51MDU. Set the NTSC/PAL selector to your

TV system. To switch the TV system, turn the power off once, then change the setting. If you change the setting with the power on, this mode will not be switched.

b) Two kinds of 75-ohm termination switches are provided; one is for the RGB input and the other is

for the composite video signal. Normally set this switch to ON. Set it to OFF if the level of the input signal drops because the signal is divided to additional video equipment other than the printer.

Making Connections for Viewing Images to be Printed

Connect a video monitor to view stored images and to check those to be printed. Connect the required video monitor which will be used in actual printing, using the following diagram as a guide. Before connecting the video equipment, see “Important safeguards/notices for use in the medical environments” for UP-51MD/51MDU/51MDP on page 2.

to RGB/SYNC OUTPUT

75-ohm coaxial cable with BNC connectors

to S-VIDEO OUTPUT

Connecting cable (with DIN 4-pin connectors) YC-15EV

to S-VIDEO input connector

NTSC/PAL selector

NTSC PAL

to VIDEO OUTPUT

75-ohm coaxial cable with BNC connectors

to composite video input connector

to AC IN

to wall outlet

AC power cord (supplied)

to RGB input connectors

Video monitor

a) This selector is supplied with models other than UP-51MDU. Set the NTSC/PAL selector to your

TV system. To switch the TV system, turn the power off once, then change the setting. If you change the setting with the power on, this mode will not be switched.

b) See “When connecting the video monitor to the RGB SYNC OUTPUT connectors” on the next

page.

Installation and Adjustment

Connections (Continued)

When connecting the video monitor to the RGB SYNC OUTPUT connectors

Normally, set SYNC ON G in the OUTPUT SETUP menu to ON. Set SYNC ON G to OFF in the following case: If the images displayed on the video monitor become greenish, compared with the printout, adjust the video monitor color (set the adjusted value of the video monitor color to the default). (See “Matching the Video Monitor Color to the Printer Color” on page 83.) If the images on the video monitor are still greenish, set SYNC ON G to OFF.

Making Connections to Enable Remote Control

The printer can be controlled remotely by connecting an RM-5500 Remote Control Unit (not supplied), RM-91 Remote Control Unit (not supplied), an FS-30/FS-36 Foot Switch (not supplied) or a personal computer.

Computer

to REMOTE 1

RS-232C cable

to RS-232C

t REMOTE 3

to AC IN

to wall outlet

Installation and Adjustment

RM-5500 (not supplied)

to REMOTE 2

RM-91 (not supplied)

FS-30 (not supplied)

AC power cord (supplied)

a) When connecting a personal computer, select the appropriate baud rate from the SYSTEM

SETUP menu. (See “Setting the Baud Rate for Computer Communication” on page 113.) b) You can also connect an FS-36 foot switch. c) You can also control the printer remotely by sending the signal to pin No.5 of the REMOTE 3

connector.

Setting Up the Printer

You can set up the printer specifications. Once you have adjusted and stored the settings, the printer operates according to those settings until their values are modified. You can set up the printer according to its intended purpose, connected equipment or your individual preferences. There are 11 menus. Functions that can be set on those menus are as follows:

COLOR ADJUST

LAYOUT SETUP

WINDOW SETUP

CAPTION PRINTER SETUP

COLOR BALANCE SYSTEM SETUP

USER NAME FUNCTION SETUP

INPUT SETUP

OUTPUT SETUP

Functions to be set

Adjusting the printout color (color intensity and contrast) and sharpness.

• Selecting the memory mode

• Selecting the type of printouts

• Selecting whether white borders are added to multiple reduced

images.

• Making a printout of mirror images

• Selecting the lamination pattern

• Changing the printout size

• Changing the printout area Entering a caption

• Setting the print quantity

• Selecting whether multiple reduced images are automatically stored

at regular intervals .

• Adjusting the tone of the printout

• Selecting the print mode

• Confirming whether the memory image is blurred Adjusting the color balance

• Adjusting the brightness of the printer window display.

• Setting the baud rate for computer communication.

• Selecting whether the operation and error tones sound.

• Selecting the application mode (printer operation mode)

• Compensating for the level of the input signal

• Registering user settings Editing the user name

• Selecting the image which appears after storing the image into

memory, source image or memory image.

• Selecting the timing of the pulse signal input to the REMOTE 2

connector

• Selecting operation mode for automatic printing capabilities of

remote control units connected to REMOTE 2/REMOTE 3

connectors.

• Setting the function of the CLEAR button

• Selecting the input signal

• Compensating for the input signals.

• Erasing the screen display.

• Matching the video monitor color to the printout color.

• Selecting the output signal from the printer

• Selecting whether the printer synchronizes with the internal sync

signal included in channel G of the RGB signals.

• Selecting whether information on the ink ribbon is displayed

Reference page

34 37 49

53 114 96 96 57 23 41

92 30 48 98 110 113 112 31 81 116 116 42

106

104

64 16 78 68 83 84 76

Installation and Adjustment

Setting Up the Printer (Continued)

This section explains the following settings and adjustments.

• Compensating for the input signals (on this page)

• Matching the video monitor color to the printout color (page 83)

• Adjusting the printout color

– Adjusting the color intensity, contrast and sharpness (page 86) – Adjusting the tone of the printout (page 92)

• Changing the printout size/printout area (page 94)

• Adjusting the color balance (page 98)

• Selecting the operating mode for automatic printing capability (page 104)

• Adjusting the printer window display brightness (page 110)

• Selecting whether to enable the operation and error tones (page 112)

• Setting the baud rate for computer communication (page 113)

• Selecting the lamination pattern (page 114)

• Registering the printer settings and adjusted values as a user set (page 116)

Compensating for the Input Signals

A video image recorded under poor conditions may be of poor color quality. If the signal is an NTSC or PAL composite video signal or separate luminance (Y) and chrominance (C) signals, you can correct the color and level of the input signal to a certain extent on the INPUT SETUP menu.

POWER

Note

You cannot adjust an image once it has been captured in memory. If you make adjustments, capture that image again, after the adjustment.

SOURCE/

MEMORY

CAPTURE

MEMORY

PAGE

PRINTALARM

1 When the memory image is displayed on the screen, press the SOURCE/

MEMORY button. The image from the video source appears.

Installation and Adjustment

2 Press the INPUT SETUP button in the sub panel.

The INPUT SETUP menu appears. Or press the MENU button and display the INPUT SETUP menu by using the G or g button.

INPUT SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / INPUT SEL : VIDEO / SV / R HUE : 0 COLOR : 0 GAIN : 0 OFFSET : 0 AGC : OFF / ON

NPUT SE TUP

/c/ l/p/IN/o/

Q1 A 1

Switch IN to green by pressing the G or g button.

Display IN in capital letters by pressing the G or g button.

3 Perform the adjustments as follows.

1 Select the adjustment item by pressing the F or f button. 2 Perform the adjustment by pressing the G or g button.

To adjust the color intensity, hue, contrast and brightness

Adjustment

Menu adjustment item

Hue

Color intensity

Contrast Brightness

HUE

COLOR

GAIN OFFSET

a) In PAL mode, no HUE adjustment is provided on the INPUT SETUP menu. b) Adjust the color such that skin tones appear natural. For the COLOR and HUE adjustment,

you can correct the color intensity and hue of an NTSC composite video signal or a separated luminance (Y) and chrominance (C) signal.

c) On a setting of step –14, OFF appears and the image, displayed on the monitor screen,

becomes black and white.

d) To perform adjustment of GAIN, set the AGC (explained below) to OFF.

Button to be pressed and operation result

G button

The hue becomes purplish.

g button

The hue becomes greenish.

The color intensity weakens.

The color intensity

strengthens. The contrast weakens. Becomes darker.

The contrast strengthens.

Becomes brighter.

When the printout or monitor image appears blackish or whitish

Adjust the input signal to the optimum level for printing.

Menu adjustment item

AGC (Automatic Gain Control)

Selection

OFF

When

The printout or monitor image appears blackish or whitish.

The proper signal is input. (Normal)

a) Adjust GAIN under the condition where AGC is set to ON.

Continue to the next page c

Installation and Adjustment

Setting Up the Printer (Continued)

INPUT SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / INPUT SEL : VIDEO / SV / R HUE : 0 COLOR : 0 GAIN : 0 OFFSET : 0 AGC : OFF / ON

Q1 A 1

1 Press the F or f button until the

desired item appears.

UE : 0

OLOR : 0

AIN : 0

FFSET : 0

1 Position the

cursor at the desired item by pressing the F or f button.

2 Make adjustment

by pressing the G or g button.

GC :

off/ON

2 Make adjustment by pressing

the G or g button

To reset items to defaults (0)

Place the cursor at the adjustment item to be reset, then press the G and g buttons simultaneously.

4 Press the MENU button.

The regular screen appears.

Installation and Adjustment

Compensating for the level of the input signal

The images displayed on the video monitor (in EE mode, see page 84) or printouts still may be whitish due to poor contrast adjustment, even if AGC for the input signal is compensated. In such a case, you can adjust the contrast by adjusting GAIN in the INPUT SETUP menu. However, if you do not want to change the contrast of the video monitor screen, compensate for the level of the input signal in the SYSTEM SETUP menu.

Note

You cannot adjust an image once it has been captured in memory. Capture an image after compensating for the level of the signal input.

1,5

2,3

1 Press the MENU button, then select PRN by pressing the G or g button.

The PRINTER SETUP menu appears.

PRINTER SETUP COLOR : 200

Q1 A 1

Switch PRN to green by pressing the G or g button.

: OFF / ON

RINTER SETUP

/c/l/PRN/i/o/

Display PRN in capital letters by pressing the G or g button.

2 Select SYSTEM by using the F or f button, then press the g button.

The SYSTEM SETUP menu appears.

SYSTEM SETUP

PRN SETUP : PRESS [ > ] LCD - CONTR : 7 BAUDRATE : / 24 / 4800 / 96 BEEP : OFF / ON APPLI. : STANDARD / IRE : 100 / 11 / 12 / 13 SAVE USER : 1 / 2 / 3 [ EXEC ] USER NAME : PRESS [ > ]

COLOR : 200

YSTEM

PRN

SETUP

SE TUP

[>]

Q1 A 1

Continue to the next page c

Installation and Adjustment

Setting Up the Printer (Continued)

3 Select IRE by pressing the F or f button.

SYSTEM SETUP

PRN SETUP : PRESS [ > ] LCD - CONTR : 7 BAUDRATE : / 24 / 4800 / 96 BEEP : OFF / ON APPLI. : STANDARD / IRE : 100 / 11 / 12 / 13 SAVE USER : 1 / 2 / 3 [ EXEC ] USER NAME : PRESS [ > ]

Q1 A 1

Position the cursor at IRE by pressing the F or f button.

COLOR : 200

RE :

100/11/12/13

Press the F or f button until IRE appears.

4 Select the desired IRE value by pressing the G or g button.

The selected IRE is displayed in three digits.

When IRE value

Resetting to the standard adjustment 10 t 100 The printout is a little whitish. 11 t 110 The printout is whitish. 12 t 120 The printout is very whitish. 13 t 130

SYSTEM SETUP

PRN SETUP : PRESS [ > ] LCD - CONTR : 7 BAUDRATE : / 24 / 4800 / 96 BEEP : OFF / ON APPLI. : STANDARD / IRE : 100 / 11 / 12 / 13 SAVE USER : 1 / 2 / 3 [ EXEC ] USER NAME : PRESS [ > ]

Q1 A 1

COLOR : 200

RE :

100/11/12/13

Display the desired IRE value by pressing the G or g button.

Installation and Adjustment

Switch the desired IRE value to green by pressing the G or g button.

Note

Do not compensate for the input signal too much. Doing so results in the whole of the printout becoming dark.

5 Press the MENU button.

The regular screen appears.

Matching the Video Monitor Color to the Printer Color

To match the color of the monitor image to that of the printout, adjust the monitor and printer colors such that the monitor color is the same as that of the printout. The printer outputs either of two kinds of video signals according to the printer settings.

• EE (E to E): Signals are output to the monitor after being processed by the printer’s circuitry.

• THRU (THROUGH): Signals are output to the monitor as is.

Adjustment on the video monitor

The monitor color may not be adjusted correctly even if the printer color is correctly adjusted. Check the color of the video monitor before adjusting the printout color. In such a case, use the THRU signal by setting SOURCE to THRU in the OUTPUT SETUP menu or turning off the power of the printer to send out the through signal from the video equipment to the video monitor After adjusting the color of the video monitor using video monitor controls, adjust the color of the printer’s output signal.

Adjustment on the printer

Note

This adjustment is performed to adjust the color of the printer output signal when the monitor color is unsatisfactory. This adjustment does not affect the printout itself. To adjust the color of the printout, see “Adjusting the Printout Color” on page 86.

1,4,6,8

2,7

1,3,6,7

1 Press the MENU button, then select OUT by pressing the G or g button.

The OUTPUT SETUP menu appears.

OUTPUT SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / DISPLAY : OFF / ON RBN REMAIN: OFF / ON SOURCE : THRU / EE SYNC ON G : OFF / ON MONI C –R MONI M–G MONI Y –B

Q1 A 1

Switch OUT to green by pressing the G or g button.

: 0 : 0 : 0

UTPUT SETUP

/c/l/p/i/out/

Display OUT in capital letters by pressing the G or g button.

Continue to the next page c

Installation and Adjustment

Setting Up the Printer (Continued)

2 Select SOURCE by pressing the F or f button.

OUTPUT SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / DISPLAY : OFF / ON RBN REMAIN: OFF / ON SOURCE : THRU / EE SYNC ON G : OFF / ON MONI C –R MONI M–G MONI Y –B

: 0 : 0 : 0

OURCE :

THRU/ e e

Q1 A 1

Position the cursor at SOURCE by pressing the F or f button.

Press the F or f button until SOURCE appears.

3 Select EE by pressing the G or g button.

OUTPUT SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / DISPLAY : OFF / ON RBN REMAIN: OFF / ON SOURCE : THRU / EE SYNC ON G : OFF / ON MONI C –R MONI M–G MONI Y –B

Q1 A 1

Switch EE to green by pressing the G or g button.

: 0 : 0 : 0

OURCE :

thru/EE

Display EE in capital letters by pressing the G or g button.

4 Press the MENU button.

The regular screen appears.

5 Capture a new image in memory and make a printout.

Adjust the settings on the printer side by comparing the printout with the image on the monitor, as follows.

Installation and Adjustment

6 Press the MENU button, then select OUT by pressing the G or g button.

The OUTPUT SETUP menu appears.

7 Adjust the monitor while comparing the printout with the image on the

monitor.

1 Select the adjustment item by pressing the F or f button. 2 Perform adjustment by pressing the G or g button.

Menu adjustment item

MONI C-R

When you want to

Make the screen more reddish.

Make the screen become cyan (blue).

MONI M-G

Make the screen more greenish.

Make the screen become magenta (pink)

MONI Y-B

Make the screen more bluish.

Make the screen more yellowish.

OUTPUT SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / DISPLAY : OFF / ON RBN REMAIN: OFF / ON SOURCE : THRU / EE SYNC ON G : OFF / ON MONI C –R MONI M–G MONI Y –B

: 0 : 0 : 0

Button to be pressed

g button

G button

g button

G button

g button

G button

1 Display the desired adjustment item

by pressing the F or f button.

ON I C - R : 0

ON I M - G : 0

Adjustment direction on the menu

Toward R (red)

Toward C (cyan)

Toward G (green)

Toward M (magenta)

Toward B (blue)

Toward Y (yellow)

ON I Y - B : 0

Q1 A 1

1 Position the cursor

at the desired adjustment item by pressing the F or f button.

2 Make adjustment

by pressing the G or g button.

2 Make adjustment by pressing

the G or g button.

To reset items to defaults (0)

Place the cursor at the adjustment item to be reset, then press the G and g buttons simultaneously.

8 Press the MENU button.

The regular screen appears.

Installation and Adjustment

Setting Up the Printer (Continued)

Adjusting the Printout Color

You can adjust the printout quality by adjusting the color intensity, printout sharpness and tone (GAMMA) of the printout.

Adjusting the color intensity, contrast and sharpness

You can adjust the color intensity (RED/GREEN/BLUE), contrast (DARK/ LIGHT) and printout sharpness (SHARPNESS/INTERPOL.). You can store up to three settings. These settings are managed according to the LOAD COLOR number. The color intensity, picture contrast and sharpness of a printout are determined by recalling one of the three settings according to their LOAD COLOR numbers. This is useful when you are using more than one item of video equipment, each having different characteristics, when you want to print images having different color qualities and picture contrast, and when multiple users access a single printer. Also, you can make a printout using temporarily set values, without erasing the stored adjustment values. Perform the adjustments while viewing the images stored in memory. All values of the color intensity and contrast are factory-set to 0 and the SHARPNESS is set to 8 for LOAD COLOR numbers 1, 2 and 3.

LOAD COLOR button

2,4,5

3,4,6

1 Press the R/G/B/D/L button on the sub panel.

The COLOR ADJUST menu appears.

COLOR ADJUST COLOR : 200

/ COL / LAY / PRN / IN / OUT / LOAD COLOR : 1 / 2 / 3 TEMP CYN – RED : 0 MAG – GRN : 0 YEL – BLU : 0 DARK LIGHT SHARPNESS INTERPOL. SAVE COLOR

Q1 A 1

: 0 : 0 : 8 : OFF / ON : 1 / 2 / 3 [EXEC]

OLOR AD JUST

/COL/l/p/i/o/

Installation and Adjustment

Or press the MENU button and display the COLOR ADJUST menu by

pressing the G or g button.

2 Select LOAD COLOR by pressing the F or f button.

COLOR ADJUST COLOR : 200

/ COL / LAY / PRN / IN / OUT / LOAD COLOR : 1 / 2 / 3 TEMP CYN – RED : 0 MAG – GRN : 0 YEL – BLU : 0 DARK LIGHT SHARPNESS INTERPOL. SAVE COLOR

Q1 A 1

: 0 : 0 : 8 : OFF / ON : 1 / 2 / 3 [EXEC]

OAD COL OR :

1/– / –

Display LOAD COLOR by pressing the F or f button.

Position the cursor at LOAD COLOR by pressing the F or f button.

3 Select the LOAD COLOR number of the values to be adjusted or to be

modified by pressing the G or g button.

COLOR ADJUST COLOR : 200

/ COL / LAY / PRN / IN / OUT / LOAD COLOR : 1 / 2 / 3 TEMP CYN – RED : 0 MAG – GRN : 0 YEL – BLU : 0 DARK LIGHT SHARPNESS INTERPOL. SAVE COLOR

Q1 A 1

: 0 : 0 : 8 : OFF / ON : 1 / 2 / 3 [EXEC]

OAD COL OR :

– /2/–

Display the desired LOAD COLOR number by pressing the G or g button.

Switch the desired LOAD COLOR number to green by pressing the G or g button.

When modifying, you can preserve the original settings. (See “To retain the originally set value” on page 91.)

Continue to the next page c

Installation and Adjustment

Setting Up the Printer (Continued)

4 Adjust the printout color.

1 Select the item to be adjusted by pressing the F or f button. 2 Perform the adjustment by pressing the G or g button.

The RED, GREEN and BLUE color component and contrast settings are divided into 15 steps, from –7 to +7, indicated by a value and graph. The center of the graph (0) corresponds to the standard color. SHARPNESS is divided into 15 steps from 1 to 15, indicated by a value and graph. A setting of step 8 corresponds to the standard sharpness. For INTERPOL. (interpolation), select either ON or OFF depending on the type of image

When adjusting the RED/GREEN/BLUE (color intensity)

Menu Adjustment item

CYN-RED

When you want to

Make the image reddish. Make the image cyan.

MAG-GRN

Make the image magenta (pink).

Make the image greenish.

YEL-BLU

Make the image yellowish. Make the image bluish.

COLOR ADJUST COLOR : 200

/ COL / LAY / PRN / IN / OUT / LOAD COLOR : 1 / 2 / 3 TEMP CYN – RED : 0 MAG – GRN : 0 YEL – BLU : 0 DARK LIGHT SHARPNESS INTERPOL. SAVE COLOR

Q1 A 1

: 0 : 0 : 8 : OFF / ON : 1 / 2 / 3 [EXEC]

Button to be pressed

g button G button g button

Adjustment direction on the menu

Toward RED Toward CYN (cyan) Toward MAG

(magenta)

G button g button G button

YN –RED : 0

AG –GR N : 0

EL BLU : 0

Toward GRN (green) Toward YEL (yellow) Toward BLU (blue)

Installation and Adjustment

Adjust the color intensity for each adjustment item.

When adjusting DARK/LIGHT (contrast)

Adjustment item When you want to

DARK Adjust the dark area of an image. LIGHT Adjust the light area of an image.

COLOR ADJUST COLOR : 200

/ COL / LAY / PRN / IN / OUT / LOAD COLOR : 1 / 2 / 3 TEMP CYN – RED : 0 MAG – GRN : 0 YEL – BLU : 0 DARK LIGHT SHARPNESS INTERPOL. SAVE COLOR

Q1 A 1

: 0 : 0 : 8 : OFF / ON : 1 / 2 / 3 [EXEC]

The contrast in the dark area or light area is increased in the + direction by pressing the g button. The contrast in the dark area or light area is weakened in the – direction by pressing the G button.

ARK : 0

IGHT : 0

When adjusting the sharpness

SHARPNESS

You can set the sharpness to any of 15 steps from 1 to 15. A setting of step 8 corresponds to the standard sharpness (default setting).

When you want to Content of settings

Make a soft outline. To the left (toward step 1) Make a normal outline. Centered (step 8) Make a sharp outline. To the right (toward step 15)

COLOR ADJUST COLOR : 200

/ COL / LAY / PRN / IN / OUT / LOAD COLOR : 1 / 2 / 3 TEMP CYN – RED : 0 MAG – GRN : 0 YEL – BLU : 0 DARK LIGHT SHARPNESS INTERPOL. SAVE COLOR

Q1 A 1

: 0 : 0 : 8 : OFF / ON : 1 / 2 / 3 [EXEC]

HARPNESS : 8

The number and the corresponding sharpness increase every time you press the g button. The number and the corresponding sharpness decrease every time you press the G button.

Continue to the next page c

Installation and Adjustment

Setting Up the Printer (Continued)

INTERPOL. (Interpolation)

When you want to Setting

Print out image data such as a figure image or a glandscape. ON Print out image data of computer graphics or with small letters OFF

COLOR ADJUST COLOR : 200

/ COL / LAY / PRN / IN / OUT / LOAD COLOR : 1 / 2 / 3 TEMP CYN – RED : 0 MAG – GRN : 0 YEL – BLU : 0 DARK LIGHT SHARPNESS INTERPOL. SAVE COLOR

Q1 A 1

Switch the desired setting to green by pressing the G or g button.

Note

Effectiveness of SHARPNESS may differ between ON and OFF settings of INTERPOL.

: 0 : 0 : 8 : OFF / ON : 1 / 2 / 3 [EXEC]

NTERPOL :

OF F / o n

Display desired setting in capital letters by pressing the G or g button.

To reset items to defaults (0)

Place the cursor at the adjustment item to be reset, then press the G and g buttons simultaneously.

Once you have changed the value

Once you have changed the value, TEMP (temporary) appears on the menu screen. TEMP indicates that the settings are temporary and have not yet been stored. If you turn off the power of the printer while TEMP is displayed, the adjusted values are not stored.

5 Select SAVE COLOR by pressing the F or f button.

COLOR ADJUST COLOR : 200

/ COL / LAY / PRN / IN / OUT / LOAD COLOR : 1 / 2 / 3 TEMP CYN – RED : 0 MAG – GRN : 0 YEL – BLU : 0 DARK LIGHT SHARPNESS INTERPOL. SAVE COLOR

Q1 A 1

Position the cursor at SAVE COLOR by pressing the F or f button.

: 0 : 0 : 8 : OFF / ON : 1 / 2 / 3 [EXEC]

AVE CO LOR :

1/– / –

Display SAVE COLOR by pressing the F or f button.

[

XEEC

]

Installation and Adjustment

6 Select the SAVE COLOR number to which new settings are to be stored by

pressing the G or g button.

COLOR ADJUST COLOR : 200

/ COL / LAY / PRN / IN / OUT / LOAD COLOR : 1 / 2 / 3 TEMP CYN – RED : 0 MAG – GRN : 0 YEL – BLU : 0 DARK LIGHT SHARPNESS INTERPOL. SAVE COLOR

Q1 A 1

Switch the desired SAVE COLOR number to green by pressing the G or g button.

: 0 : 0 : 8 : OFF / ON : 1 / 2 / 3 [EXEC]

AVE CO LOR :

– /2/–

Display the desired SAVE COLOR number by pressing the G or g button.

[

XEEC

]

To retain the originally set value

Select a SAVE COLOR number which is different from the LOAD COLOR number selected in step 3.

7 Press the EXEC button.

The settings are registered in the SAVE COLOR number selected in step 6. TEMP disappears from the menu.

8 To continue settings for another LOAD COLOR number, repeat steps 3 to 7.

To finish the setting, press the MENU button. The regular screen appears.

To copy the settings made for one LOAD COLOR number to another LOAD COLOR number

1 Select the source LOAD COLOR number for which the settings to be copied

are stored in the COLOR ADJUST menu.

2 Select the target SAVE COLOR number to which data is to be copied. 3 Press the EXEC button.

Settings stored to the LOAD COLOR number selected in step 1 are copied to the SAVE COLOR number selected in step 2.

To recall the LOAD COLOR number in which printout color settings (color intensity, contrast and sharpness) are stored

Switch the desired LOAD COLOR number to green in the COLOR ADJUST menu. Or press the LOAD COLOR button on the sub panel. Each time you press the button, the currently selected LOAD COLOR number is displayed for about three seconds. To select the desired LOAD COLOR number, release the button while the desired number is displayed. The printout is made according to the setting of the selected LOAD COLOR number as long as you do not modify those settings.

Installation and Adjustment

Setting Up the Printer (Continued)

Adjusting the tone of the printout

You can adjust the tone so that the details in the white or black part are clearly printed.

1,4

1 Press the MENU button, then select PRN by pressing the G or g button.

The PRINTER SETUP menu appears.

PRINTER SETUP COLOR : 200

Q1 A 1

Switch PRN to green by pressing the G or g button.

: OFF / ON

RINTER SETUP

/c/l/PRN/i/o/

Display PRN in capital letters by pressing the G or g button.

2 Select GAMMA by pressing the F or f button.

PRINTER SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / PRINT QTY. : 1 [ 1 ~ 9 ] INTERVAL : OFF / ON GAMMA PRN SPEED : / HIGH MOTION CHK LOAD USER : 1 / 2 / 3 [ EXEC ] SYSTEM : PRESS [ > ] FUNCTION : PRESS [ > ] C - BALANCE : PRESS [ > ]

Q1 A 1

: S / NORMAL / H

: OFF / ON

AMMA :

s/NORMAL/h

Display GAMMA by pressing the F or f button.

Installation and Adjustment

Position the cursor at GAMMA by pressing the F or f button.

3 Select the desired tone by pressing the G or g button.

The selected tone is spelled out.

When you want to

Make a printout of an image where there are a lot of white or light-colored areas.

Make a printout of a normal image. Make a printout of an image where there are

a lot of black or dark-colored areas.

PRINTER SETUP COLOR : 200

Q1 A 1

Switch the desired tone to green by pressing the G or g button.

: S / NORMAL / H

: OFF / ON

4 Press the MENU button.

The regular screen appears.

Setting

S t SOFT

N t NORMAL H t HARD

AMMA :

s/NORMAL/h

Display the desired tone by pressing the G or g button.

Installation and Adjustment

Setting Up the Printer (Continued)

Changing the Printout Size/Printout Area

When you print an image that is narrower or wider than the standard screen size, a black frame may be printed or the image may be partially cut. In such a case, you can change the screen size. Or, a black line may be produced on the printout even though it does not appear on the video monitor. Any portion for which there is no video signal is printed in black. This may occur when you make printouts after connecting a different video source or play back using different video software. In such a case, you can adjust the printout area by moving the screen either horizontally or vertically. When a black frame appears around the printout, even after the printout area has been shifted, narrow the printout size because the image has been overscanned beyond the range of the regular screen.

Note

This adjustment affects only the input signal. This adjustment does not affect the image captured in the memory.

2,4,5,6

1,7

3,6

1,4

1 Press the MENU button, then select LAY by pressing the G or g button.

The LAYOUT SETUP menu appears.

LAYOUT SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / MEMORY : FRAME / FIELD MULTI PIX : 1 / 2 / 4 / 8 / 16 SEPARATE : OFF / ON MIRROR : OFF / MIRROR LAMINATION : GLOSSY / WINDOW : PRESS [ > ] CAPTION : PRESS [ > ]

Q1 A 1

AYOU T SETUP

/c/LAY/p/i/o/

Display LAY in capital letters by pressing the G or g button.

Installation and Adjustment

Switch LAY to green by pressing the G or g button.

2 Select WINDOW by pressing the F or f button.

LAYOUT SETUP COLOR : 200

/ COL / LAY / PRN / IN / OUT / MEMORY : FRAME / FIELD MULTI PIX : 1 / 2 / 4 / 8 / 16 SEPARATE : OFF / ON MIRROR : OFF / MIRROR LAMINATION : GLOSSY / WINDOW : PRESS [ > ] CAPTION : PRESS [ > ]

Q1 A 1

Position the cursor at WINDOW by pressing the F or f button.

INDOW :

LAY PRESS[>

Press the F or f button until WINDOW appears.

Note

If you go to the next step after you select WINDOW in step 2, the images stored in the memory will be cleared.

3 Press the g button.

The WINDOW SETUP menu appears.

]

WINDOW SETUP COLOR : 200

LAY SETUP H START : 0 DOT (S) V START : 0 DOT (S) H WIDTH : 896 DOTS V WIDTH : 464 DOTS SAVE : PRESS [ EXEC ] CANCEL : PRESS [ EXEC ]

Q1 A 1

: PRESS [ > ]

INDOW SETUP

LAY SETUP[>

4 Adjust the printer according to the printout obtained.

1 Select the item to be adjusted by pressing the F or f button. 2 Perform the adjustment by pressing the G or g button.

Continue to the next page c

]

Installation and Adjustment

Setting Up the Printer (Continued)

When a black frame is printed or the image is partially cut

Adjust the printout size by using the H WIDTH and V WIDTH items from the menu.

When you want to

Change the screen size horizontally and adjust the position

of the right edge. The left edge remains fixed.

Change the screen size vertically and adjust the position of the bottom edge. The top edge remains fixed.

WINDOW SETUP COLOR : 200

LAY SETUP H START : 0 DOT (S) V START : 0 DOT (S) H WIDTH : 896 DOTS V WIDTH : 464 DOTS SAVE : PRESS [ EXEC ] CANCEL : PRESS [ EXEC ]

Q1 A 1

: PRESS [ > ]

Menu adjustment item (defaults)

H-WIDTH (NTSC: 896, PAL: 896)

V-WIDTH (NTSC: 464, PAL: 560)

Button to be used

g button

G button

g button G button

Adjusting the printout size horizontally.

WIDTH :

Adjustment result

Widened at the right edge (toward the right direction of the screen).

Narrowed with the left edge remaining fixed.

Enlarged downwards. Vertical size reduced with

the top edge remaining fixed.

896DOTS

464DOTS

Installation and Adjustment

Adjusting the printout size vertically.

When a black line appears on the printout

Adjust the printout area according to the position of the line on the printout, by using the H START and V START items on the menu.

Position where the black line appears

On the right

On the left

At the top

At the bottom

Menu adjustment item (defaults)

H START (NTSC/PAL: 0)

V START (NTSC/PAL: 0)

Button to be used

g button

G button

g button

G button

Adjustment result

The image position shifts to the right with the size remaining as is.

The image position shifts to the left with the size remaining as is.

The image position shifts up with the size remaining as is.

The image position shifts down with the size remaining as is.

When the black line is at the right or left edge

WINDOW SETUP COLOR : 200

LAY SETUP H START : 0 DOT (S) V START : 0 DOT (S) H WIDTH : 896 DOTS V WIDTH : 464 DOTS SAVE : PRESS [ EXEC ] CANCEL : PRESS [ EXEC ]

: PRESS [ > ]

START :

0DOT ( S )

Q1 A 1

Note

When the black line is at the top or bottom

When a black line still appears, even after adjusting H START or V START, change the printout size.

5 Select SAVE by pressing the F or f button, then press the EXEC button.

The adjusted values are stored. The LAYOUT SETUP menu appears.

6 Press the MENU button.

The regular screen appears.

To clear the adjusted value

Select CANCEL in step 5, then press the EXEC button on the sub panel. The values adjusted in step 4 are cleared and the values are reset to the original ones.

To reset the adjusted value to defaults

Press the G and g buttons simultaneously. The adjusted values are reset to the defaults.

To check the adjustment result

Capture a new image and print it to check that no black frame appears on the printout, that the image is not partially cut, and that no black line appears.

Installation and Adjustment

Setting Up the Printer (Continued)

Adjusting the Color Balance

You should use the ink ribbon and paper that are contained in the same package as a pair. The color balance may differ depending on each pair. It is recommended that you adjust the color balance each time you load a new ink ribbon and paper.

Before adjusting the color balance

Reset all items in the COLOR ADJUST menu to defaults. (See “Adjusting the Printout Color” on page 86.)

POWER

2,11

3,5,7,10

MEMORY

PRINTALARM

SOURCE/

CAPTURE

MEMORY

PAGE

5,7,10

1 Display the source image on the video monitor by using the SOURCE/

MEMORY button.

2 Press the MENU button, then select PRN by pressing the G or g button.

The PRINTER SETUP menu appears on the source image.

PRINTER SETUP COLOR : 200

Q1 A 1

: OFF / ON

RINTER SETUP

/c/l/PRN/i/o/

Display PRN in capital letters by pressing the G or g button.

Installation and Adjustment

Switch PRN to green by pressing the G or g button.

3 Select C-BALANCE by pressing the F or f button.

PRINTER SETUP COLOR : 200

Q1 A 1

Position the cursor at C-BALANCE by pressing the F or f button.

: OFF / ON

: PRESS [ > ]

-BALANCE :

Press the F or f button until C-BALANCE appears.

4 Press the g button.

The COLOR BALANCE menu appears. The highlighted area will be printed for adjusting the color balance. You can move this area at any place on the video monitor.

PRESS [ > ]

COLOR : 200

The area that will be captured in memory (This area is highlighted and is two thirds the size of the whole screen.)

COLOR BALANCE

PRN SETUP : PRESS [ > ]

BAL X : 50 [1 – 50 – 99] BAL Y : 50 [1 – 50 – 99] BAL STEP : 05 [1 – 20]

Y Z

TEST PRINT : PRESS [EXEC]

Q1 A 1

When you adjust the color balance for the first time after you purchase the printer, the values of BAL X, BAL Y and BAL STEP are set to 50, 50 and 05 at the factory. The BAL STEP is the adjustable range for each color balance. When you have adjusted color balance already, the values adjusted previously are displayed on the COLOR BALANCE menu.

COLOR BALANCE

PRN SETUP : PRESS [ > ]

BAL X : 50 [1 – 50 – 99] BAL Y : 50 [1 – 50 – 99] BAL STEP : 05 [1 – 20]

Y Z

TEST PRINT : PRESS [EXEC]

COLOR : 200

AL X :

50[1-50-99

Q1 A 1

The currently adjusted values of BAL X, BAL Y and BAL STEP On this COLOR BALANCE menu, the default values (factory settings) are displayed.

The currently adjusted value of BAL X In this printer window display, the default value of BAL X is displayed.

]

To reset the values to defaults (50/50/05)

Select each item by pressing the F or f button, then press the G and g buttons at the same time. The currently selected item is reset to the default.

Continue to the next page c

Installation and Adjustment

Setting Up the Printer (Continued)

5 Decide the position of the source image to be used for adjusting the color

balance. To decide the position of the source image, move the highlighted area by pressing the F, f, G or g button while holding down the DISPLAY button on the sub panel.

Move the highlighted part to the desired image position by pressing the F, f, G or g button while holding down the DISPLAY button. (The COLOR BALANCE menu disappears temporarily.)

A B C

X Y Z

Q1 A 1 S

6 Press the CAPTURE button.

The image captured in memory appears.

COLOR BALANCE

PRN SETUP : PRESS [ > ] BAL X : 50 [1 – 50 – 99]

A B C

BAL Y : 50 [1 – 50 – 99] BAL STEP : 05 [1 – 20]

X Y Z

TEST PRINT : PRESS [EXEC]

Q1 A 1

COLOR : 200

7 Select TEST PRINT by pressing the F or f button.

100

Installation and Adjustment

COLOR BALANCE

PRN SETUP : PRESS [ > ] BAL X : 50 [1 – 50 – 99]

A B C

BAL Y : 50 [1 – 50 – 99] BAL STEP : 05 [1 – 20]

X Y Z

TEST PRINT : PRESS [EXEC]

Q1 A 1

Position the cursor at TEST PRINT by pressing the F or f button.

COLOR : 200

EST PRINT :

PRES S X E[EC

Press the F or f button until TEST PRINT appears.

]

Sony UP-50, UP-51MDP, UP-51MDU User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Introduction

About This Manual

System Overview

System Configuration

Operation

Before Printing

Loading an Ink Ribbon Cartridge

Loading Paper

Selecting the Input Signal

Making Full-Size Image Printouts

Making Printouts with the Desired User Set Number

Making Multiple Copies of Identical Printouts

Capturing Another Image While Printing

Making Variations of Printouts

Selecting the Printer Application Mode

About the Memory

Making a Printout of Multiple Different Reduced Images

Making a Printout of Identical Reduced Images

Making a Printout with an Insert

Making a Printout of Mirror Images

Making Printouts With a Caption

Displaying the CAPTION Menu

Entering a Caption

Deleting the Images Stored in Memory

Setting the Function of the CLEAR Button

Deleting Images Stored in Memory

About the Screen Display

Erasing the Screen Display on the Video Monitor

Displaying the Type and Remaining Amount of the Ink Ribbon

Installation and Adjustment

Supplied Accessories

Assembly

Preparing the Remote Control Unit

Connections

Making Connections for Capturing Video Images

Making Connections for Viewing Images to be Printed

Making Connections to Enable Remote Control

Setting Up the Printer

Compensating for the Input Signals

Matching the Video Monitor Color to the Printer Color

Adjusting the Printout Color

Changing the Printout Size/Printout Area

Adjusting the Color Balance
