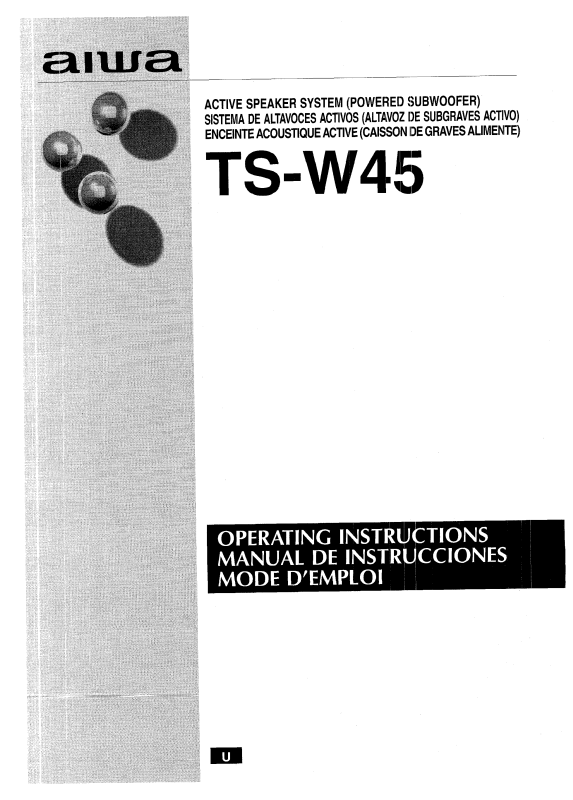

ACTIVE SPEAKER SYSTEM (POWEREII SU13WOOFER)

SISTEMADE ALTAVOCESACTIVOS(ALTAVOZ[)E SUBGRAVESACTIVO)

ENCEINTEACOUSTIQUE ACTIVE (CAISSON IDEGRAVES ALIMENTE)

TS=W45

OWNER’S RECORD

For your convenience, record the model number and serial number
(you will find them on the rear ofyour set) in the space provided below.
Please refer to them when you contact your AIWA dealer in case of
difficulty,

Model No.

Serial No.

1A

TS-W45 U

RISK OF ELECTRIC SHOCK

DO NOT OPEN

~

,

●

●

Al

TABLE OF CONTENTS

FEATURES ......................................................................... 2

PRECAUTIONS ..................................................................

POSITIONING ..................................................................... 6

Connections .................................................................. 6

OPERATION ....................................................................... 8

SPECIFICATIONS ............................................................ 10

4

“CAUTION:TO REDUCE THE RISK OF

ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.”

Explanation of Graphical Symbols:

The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to alert

A

●

A

WARNING:

the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.

TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR
MOISTURE.

FEATURES

● VOLUME control

● PHASE switch (NORMAfJREVERSE)

You can use the PHASE switch to change the quality or volume
of sound reproduced by the powered subwoofer.

● AUTO POWER function

You can set the powered subwoofer to be powered on
automatically when it receives signal from the stereo system.

● Two-way connection to the amplifier

The TS-W45 can be connected to equipment either with an RCA
phono jack for a super woofer, or typical L and R speaker
terminals,

● SINGLE VENTED BAN DPASS system

TS-W45 adopts a SINGLE VENTED BAN DPASS system in
which port (1), duct (1), and air cavity (2) compose an acoustic
bandpass filter in front of air cavity(1). By virtue of this structure,
the bass reproduction limit is extended and sounds higher than
middle range frequencies are reduced in the SINGLE VENTED
BANDPASS system. This makes it possible for the TS-W45 to
reproduce powerful bass sound,

Speaker unit Air cavity(l)

;...!?...-“-.-,,.i

.....,,,....

r

.3

II

-[T]

i

A2ii+

Port(1)

Acoustic bandpass filter

2

Duct(l) Air cavity(2)

I

~

.“

lN[)ICE TABLE DES MATIERES

CARACTERISTICAS ....m..................................................... 3

PRECAUCIONES ............................................................... 5

UBICACION ........................................................................ 7

CONEXIONES .................................................................... 7

OPEIRACiONES .................................................................. 9

ESPECIFICACIONES

.......................................................

11

CARACTERISTICAS

“ Control VOLUME

“ Selector PHASE (NORMAUREVERSE)

Usted podra utilizar el selector PHASE para cambiar la calidad
o el volumen del sonido reproducido por el altavoz de subgraves
act ivo.

* Funcion AUTO POWER

Poclra hater que el altavoz de subgraves activo se encienda
automaticarnente cuando reciba seiiales del sistema estereo.

* Dos formas de conexion al amplificador

El lS-W45 podra conectarse a equipos que posean toma fono
RCA para altavoz de supergraves o terminals para altavoces

tipicos L y R.

o Sistema PASABANDA DE UNA SALIDA

El l“S-W45 adopta un sistema PASABANDA DE UNA SALIDA

en el que el orificio (1), el conducto (1) y la cavidad de aire (2)
forrnan un filtro pasabanda actistico en frente de la cavidad de
aire (1). Debido a esta estructura, el Iimite de reproduction de

Ios graves se amplia y Ios sonidos mas altos que Ias frecuencias
de la gama media son reducidos en el sistema PASABANDA
DE UNA SALIDA. Esto hate posible que el TS-W45 pueda
reproducer un potente sonido grave.

Unidad del altavoz Cav [d de sire(l)

CARACTERISTIQUES ...................................................... 3

PRECAUTIONS ........... .............i... m.................................... 5

POSITIONNEMENT ............................................................. ‘7

CONNEXIONS
UTILISATION

SPECIFICATIONS ...............................................................ll

. . . . . . . . . . . . . . . . . . . . . . . .. ..m . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

. . . . ..m..r . . . ..u . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

CARACTERISTIIQllJES

● Commande VOLUME

● Selecteur PHASE (NORMAUREVERSE)

On peut utiliser Ie selecleur PHASE pour changer la qualite CIU
Ie volume du son restitue par Ie caisson de graves alimente,

● Fonction mise sous tensicm automatique

On peut regler Ie caisson de graves pour qu’il soit alimente
automatiquernent quand il regoit un signal de la cha~ne stereo.

● Deux faqons de raccorder a I’amplificateur

On peut raccorder Ie TS-W45 a un appareil equipe soit d’une
prise phono RCA pour ca,isson de graves, soit de bornes
d’enceintes classiques Let R,

● SYSTEME PASS E-13ANDE A EVENT SIMPLE

Le TS-W45 est muni d’un systeme PASSE-BANDE A EVENT
SIMPLE clans Iequel I’orifice (l), Ie conduit (1) et la cavit6 d’air
(2) constituent un filtre passe-bande acoustique devant la cavit6
d’air (1), Grace a cette structure, la Iimite de reproduction des
graves est etendue et Ies sons plus eleves que Ies frequencies
de la gamme moyenne sort r&duits clans Ie systeme PASS[=­BANDE A EVENT SIMP[_E. Ceci permet au TS-W45 cle
reproduire des graves puissants,

Haut-mrleur Cavite d’air(l )

‘1 I

Orificio(l ) Conducto(l ) Cavidad de sire(2)

I

Filtro pasabanda actistico

~fice(l ) CcmdLlit(l ) Cavit@d’air(2)

Filtre pa:=;de acoustique

3

PRECAUTIONS

Follow the advice below for safe and correct operation.

ON AC voltage

Before connecting AC cord, check that the rated voltage shown
on the rear panel matches your local voltage,
AC 120 V, 60

Positioning

● Do not use the unit in places which are extremely hot, cold, dusty

or humid.

● The unit should be situated with adequate space around it so

that proper heat ventilation is assured. Allow 10 cm clearance
from the rear and the top of the unit, and 5 cm from the each
side.

- Do not place the unit on a bed, rug, or similar surface that may
block the ventilation openings.

- Do not install the unit in a bookcase, cabinet, or airtight rack
where ventilation may be impeded.

Using the unit near a TV set
Although the unit is magnetically shielded, there maybe cases in
which the picture on some TV sets may become magnetically
distorted.

● If the TV picture is distorted, turn off the power of the TV set

once, and after 15 to 30 minutes turn it on again.

● If there seems to be no improvement, move the unit further away

from the TV set.

c Furthermore, be sure not to place magnets or objects using

magnets, such as audio racks, toys etc. near the TV set. These
may cause magnetic distortion to the picture due to their
interaction with the unit.

tiz

Howling or buzzing sound

A howling or buzzing sound maybe heard if a turntable or a stereo
system is placed near the unit. Move the unit away from the
equipment or decrease the volume.

Safety

● When connecting and disconnecting the AC cord, always grasp

the plug. Do not pull the cord by itself since pulling the cord may
damage it and thus be hazardous.

● When you are not going to use the unit for a long period of time,

disconnect the AC cord. If the cord is plugged in, a small amount
of current keeps on flowing to the unit even if the power button is

not ON,

Cleaning

To clean the cabinet, use a soft cloth slightly moistened with a

mild detergent solution. Do not use strong solvents, such as

alcohol, benzine or thinner.

Keep away magnetic items

Keep cassette tapes, personal credit card etc. using magnetic

cordina awav from the unit as the recorded information mav be
erase~or so-me noise may be added on cassette tapes

Should any problem occur, disconnect the AC cord and refer
servicing to qualified personnel only,
