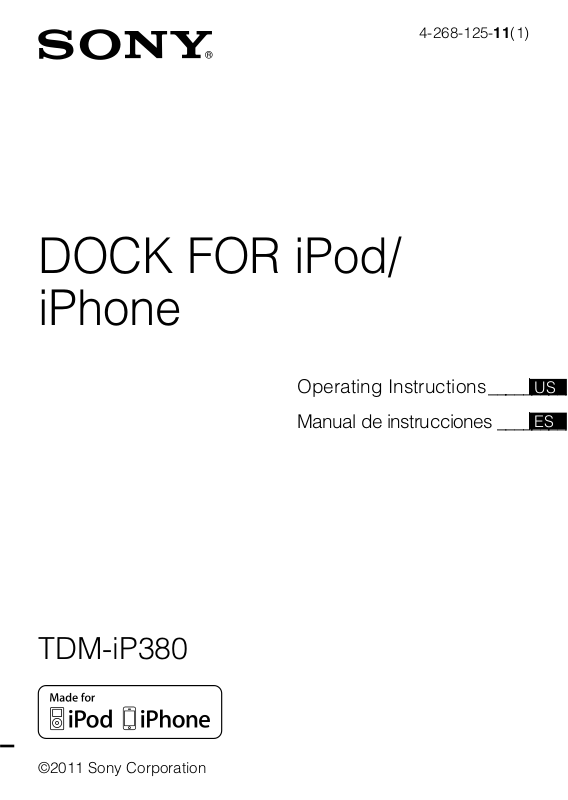

Sony TDM-iP380 Operating Instructions

DOCK FOR iPod/

iPhone

4-268-125-11(1)

TDM-iP380

Operating Instructions_________

Manual de instrucciones________

On Copyrights

iPhone®, iPod®, iPod classic®, iPod nano®, and iPod touch® are trademarks of Apple Inc., registered in the U.S. and other countries.

All other trademarks and registered trademarks are of their respective holders. In this manual, ™ and ® marks are not specified.

“Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards.

Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

Compatible iPod/iPhone models

The compatible iPod/iPhone models are as follows. Update your iPod/ iPhone with the latest software before using it.

iPod touch

4th generation

iPod nano

6th generation

iPod nano

2nd generation

(aluminum)

iPod

4th generation

iPhone 4 iPhone 3GS iPhone 3G iPhone

iPod tou ch

3rd generation

iPod nano 5th generation (video camera)

iPod nano 1st generation

iPod classic iPod mini

iPod touch

2nd generation

iPod nano

4th generation

(video)

iPod

5th generation

(video)

1st generation

3rd generation

4th generation (color display)

iPod touch

iPod nano

(video)

iPod

continued

Notes

• This unit is designed for iPod/iPhone only. You cannot connect any other portable audio players.

• Sony cannot accept responsibility in the event that data recorded to iPod/ iPhone is lost or damaged when using an iPod/iPhone connected to this unit.

• This product has been designed specifically to work with iPod/iPhone and has been certified to meet Apple performance standards.

• Use a Dock Adapter supplied with your iPod/iPhone. Otherwise, a compatible Dock Adapter will need to be purchased separately from Apple Inc.

Table of Contents

Getting Started

1: Checking supplied

items .................................. 5

2: List of parts locations ....... 5

3: Installing the

TDM-iP380 ....................... 6

Operating the Unit

Selecting the operating

mode.................................. 9

Using iPod/iPhone Display

mode.................................. 9

Using the On-Screen

Display mode .................. 11

Additional Information

Troubleshooting.................. 15

Precautions ......................... 17

Specifications ..................... 18

Getting Started

1: Checking supplied items

Unit (1) Composite video cable (1) Operating Instructions (1)

2: List of parts locations

1 DOCK FOR iPod/iPhone cable (page 6) 2 iPod/iPhone connector (page 7) 3 OPR MODE button (page 9) 4 LED indicator (page 9)

iPod/iPhone Display mode (page 9): Lights up in amber. On-Screen Display mode (page 11): Lights up in green.

5 VIDEO OUT jack (page 6)

3: Installing the TDM-iP380

You can enjoy music/video/photo contents from the iPod/iPhone by connecting this unit to the AV system (HT-SS380 only).

AV system (HT-SS380 only)

TDM-iP380

Composite video cable (supplied)

Notes

• You can operate your iPod/iPhone by its control buttons and the remote control supplied with the AV system (page 9).

• While browsing information on the iPod/iPhone screen or on your TV screen in On-Screen Display mode, you can operate your iPod/iPhone (pages 9, 11).

• You can also use this unit as a battery charger (page 8).

• This unit turns on/off automatically whenever the connected AV system turns on/ off.

DOCK FOR iPod/ iPhone cable

To connect/disconnect the unit

DC5V

To DMPORT jack on

1 A MAX

STR-KS380

DMPORT

Connect the cable so that both arrow marks are aligned.

To remove the DOCK FOR iPod/ iPhone cable from the DMPORT jack, press and hold both sides of the connector and then pull out the connector.

Connecting

1 Connect the DOCK FOR iPod/

iPhone cable of this unit to the DMPORT jack of an AV system. Make sure the AV system is turned off before connecting.

2 Turn on the AV system with a

DMPORT jack connected to this unit, and select the DMPORT function on the AV system.

Disconnecting

Before disconnecting, turn off the AV system.

To place the iPod/iPhone into the unit

1 Choose the iPod/iPhone Dock

Adapter (not supplied) that fits your iPod/iPhone. For details on the Dock Adapters, refer to the operating instructions supplied with the Dock Adapters.

2 Insert the iPod/iPhone Dock

Adapter into the iPod/iPhone connector on the unit.

3 Place the iPod/iPhone into the

unit.

continued

Notes

• If your iPod/iPhone has a protect case, we recommend you to remove the protect case before you place the iPod/iPhone onto the unit.

• When placing or removing the iPod/ iPhone – handle the iPod/iPhone in the same

angle as that of the iPod/iPhone connector on this unit and do not twist or sway the iPod/iPhone to prevent connector damage.

– brace the unit with one hand and

take care not to press the controls of the iPod/iPhone by mistake.

• Before carrying the unit, be sure to disconnect the iPod/iPhone.

• Do not carry the unit by holding the iPod/iPhone connector panel only. Doing so may break the unit.

To use the unit as a battery charger

You can use the unit as a battery charger for the iPod/iPhone when the LED indicator lights up (page 5). The charging status appears on the iPod/iPhone display. For details, refer to the operating instructions of your iPod/iPhone.

To remove the iPod/ iPhone Dock Adapter

To remove the iPod/iPhone Dock Adapter, pull it up with your fingernail or a flat object using the slot inside the adapter.

Operating the Unit

Selecting the operating mode

You can operate your iPod/iPhone by the AV system (HT-SS380 only).

Switch the operating mode by pressing OPR MODE on the unit.

x iPod/iPhone Display mode

You can operate the unit by the connected iPod/iPhone’s buttons or the connected AV system’s remote control.

x On-Screen Display mode

You can operate the unit by the connected AV system’s remote control while displaying the iPod/ iPhone information menu screen on the TV.

Note

The operating mode cannot be switched, except for the DMPORT function.

Using iPod/iPhone Display mode

Press OPR MODE on the unit to switch the mode to iPod/ iPhone Display mode.

While the unit is in this mode, the unit’s LED indicator lights up in amber.

Notes

• To use an iPod/iPhone, refer to the operating instructions of your iPod/ iPhone.

• Before disconnecting the iPod/ iPhone, pause playback.

Basic Operations

Press Operation

N Starts/pauses playback.

X, x Pauses playback.

V/v Selects a menu item or

b, ,

ENTER

B, MENU/ HOME, DISPLAY, RETURN/ EXIT O

m/M Fast reverses or

./> Press to skip to the next

track for playback.

Enters the selected menu item.

Works much like the Menu button on the iPod/iPhone.

forwards.

(previous) song/video or chapter of audiobook/podcast. Hold down to fast forward (fast-rewind).

continued

Press Operation

MASTER VOL +/–

Notes

Adjusts the volume level.

• Point the remote control at the AV system.

• Depending on the connected AV system, the operation may differ. Refer to the operating instructions supplied with the AV system.

• Depending on the connected iPod/ iPhone, operations may differ.

• Before enjoying video, adjust the video settings on the iPod/iPhone to the appropriate settings according to your situation.

• It may take time to start playback depending on the contents.

• The volume (except for the iPhone ring volume) cannot be adjusted using the volume control on the iPod when it is connected to the AV system.

• Hold down ./> to fast-fo rward (fast-rewind) while playing video if m/M does not function.

• When the iPhone is connected to the AV system and you receive a call during playback, playback will pause and you can take an incoming call.

• The iPhone rings according to the ring volume set on the iPhone, even when it is connected to the AV system. Adjust the ring volume on the iPhone.

• Some iPod/iPhone operations may not be performed using buttons on the connected AV system’s remote control.

Using the On-Screen Display mode

Press OPR MODE on the unit to switch the mode to On-Screen Display mode.

While the unit is in this mode, the unit’s LED indicator lights up in green.

Music Videos Settings

Main Menu

> > >

DIGITAL MEDIA

P O R T

1 Selected menu title 2 Current settings ( , Repeat, Shuffle) 3 [Main Menu] list ([Music], [Videos], [Settings]) 4 Selected menu

continued
