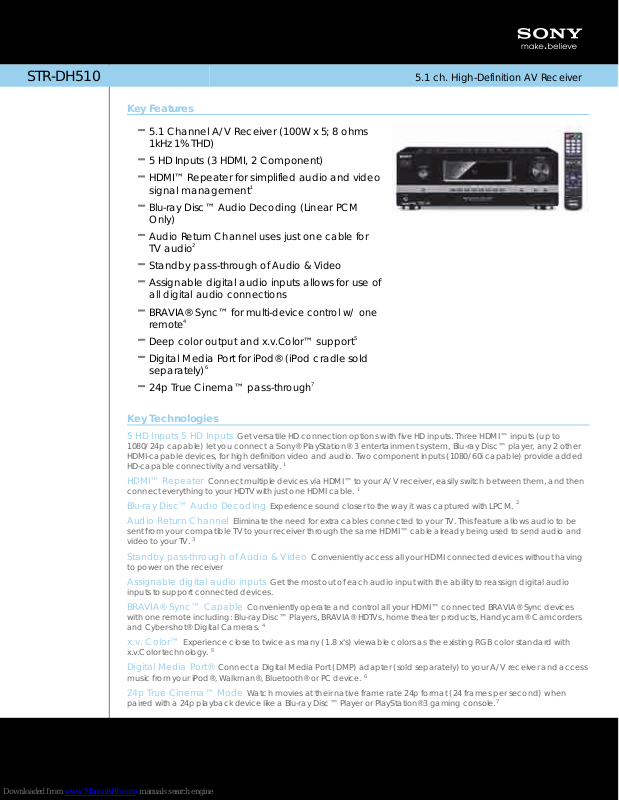

Page 1
STR-DH510
5.1 ch. High-
Definition AV Receiver
Key Features
5.1 Channel A/V Receiver (100W x 5; 8 ohms
1kHz 1% THD)
5 HD Inputs (3 HDMI, 2 Component)
HDMI™ Repeater for simplified audio and video
signal management
1
Blu
-ray Disc™
Audio Decoding (Linear PCM
Only)
Audio Return Channel uses just one cable for
TV audio
2
Standby pass-
through of Audio & Video
Assignable digital audio inputs allows for use of
all digital audio connections
BRAVIA®
Sync
™
for multi-device control w/ one
remote
4
Deep color output and x.v.Color
™ support
5
Digital Media Port for iPod® (iPod cradle sold
separately)
6
24p True Cinema™ pass-
through
7
Key Technologies
5 HD Inputs 5 HD Inputs Get versatile HD connection options with five HD inputs. Three HDMI™ inputs (up to
1080/24p capable) let you connect a Sony® PlayStation® 3 entertainment system, Blu-ray Disc™ player, any 2 other
HDMI-capable devices, for high definition video and audio. Two component inputs (1080/60i capable) provide added
HD-capable connectivity and versatility.
1
HDMI™ Repeater Connect multiple devices via HDMI™ to your A/V receiver, easily switch between them, and then
connect everything to your HDTV with just one HDMI cable.
1
Blu-ray Disc™ Audio Decoding Experience sound closer to the way it was captured with LPCM.
2
Audio Return Channel Eliminate the need for extra cables connected to your TV. This feature allows audio to be
sent from your compatible TV to your receiver through the same HDMI™
cable already being used to send audio and
video to your TV.
3
Standby pass-through of Audio & Video Conveniently access all your HDMI connected devices without having
to power on the receiver
Assignable digital audio inputs Get the most out of each audio input with the ability to reassign digital audio
inputs to support connected devices.
BRAVIA® Sync™
Capable
Conveniently operate and control all your HDMI™ connected BRAVIA
®
Sync devices
with one remote including: Blu-ray Disc™ Players, BRAVIA® HDTVs, home theater products, Handycam® Camcorders
and Cyber-shot® Digital Cameras.
4
x.v. Color™ Experience close to twice as many (1.8 x's) viewable colors as the existing RGB color standard with
x.v.Color technology.
5
Digital Media Port
®
Connect a Digital Media Port (DMP) adapter (sold separately) to your A/V receiver and access
music from your iPod®,
Walkman®,
Bluetooth® or PC device.
6
24p True Cinema™ Mode Watch movies at their native frame rate 24p format (24 frames per second) when
paired with a 24p playback device like a Blu-ray Disc™ Player or PlayStation®3 gaming console.
7
Page 2
Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com
Last Updated: 02/15/2010
STR-DH510
5.1 ch. High-
Definition AV Receiver
Please visit the Dealer Network for current
information at www.sony.com/dn
Features
Audio
dts® Decoding: Yes
Dolby® Digital Decoding: Yes
Dolby® Pro Logic® Decoding: Yes
Dolby® Pro Logic® II Decoding: Yes
Dolby® Digital Dual Mono: Yes
Digital Cinema Sound™
Technology:
Yes
96k/24Bit PCM: Yes
Cinema Studio EX. A/B/C mode: Yes
LPCM:
Yes
Specifications
Audio
Impedance: 8 Ohms
Channel Power Rating: 5.1 Channel Power
Rating: 100W x 5 Amp Power (8 ohms,
THD 1.0%)
Sound Fields: Cinema - 5; Music - 7; Auto
Format Decoding - 2; 2 Channel - 2;
Headphone - 2
Tuner Type: Auto Tuning, Direct Tuning,
Station Name
A/V Sync:
Yes (fixed)-60ms/48kHz
Equalizer:
BASS and Treble control
Sub Woofer Crossover: 17 points (40-200Hz)
Bravia® Sync™:
Yes
Convenience
Preset Memory: 60 (30 FM, 30 AM)
AM/FM Memory Presets: 30 AM, 30 FM
Auto Tuning: Yes
Direct Tuning: Yes (Remote)
Sleep Timer: Yes
Station Name Display: Yes
Inputs and Outputs
Digital Media Port: 1 (Rear)
HDMI™ Connection Output(s): 1 (Rear)
HDMI™ Connection Input(s): 3 (Rear)
Optical Audio Input(s): 2 (Rear)
Coaxial Audio Digital Input(s): 1 (Rear)
HD Component Video Input(s): 2 (Rear -
Y/Pb/Pr)
HD Component Video Output(s): 1 (Rear -
Y/Pb/Pr)
Composite Video Input(s): 2 (1 Front/1
Rear)
Composite Video Output(s): 1 (Rear)
RCA Audio Input(s): 4 (2 Dedicated
Audio/2 Audio/Video)
Subwoofer Output(s): 1 (Rear)
Antenna Terminal (AM Loop): 1 (Rear)
Antenna Terminal (FM 75 Ohm): 1 (Rear)
Headphone Output(s): Yes (Gold)
Digital Audio Input(s): Assignable
(Optical, Coax)
Power
Power Requirements: 120V 60Hz
Power Consumption (in Operation): 230W
Power Consumption (in Standby): 0.3W
Hardware
Remote Control: Pre-programmed Remote
Speaker
Speaker Terminal Type: Front
(Screw)/Others(Push)
Weights and Measurements
Weight (Approx.): 16.41 lbs (7.4Kg)
Dimensions (Approx.): 17 x 6.25 x
12.75" (430 x 157.5 x 322mm)
Color:
Black
UPC Code:
027242780002
1. HDMI cable required and sold separately.
2. Requires HDMI
™
cable and source device with HDMI output and
LPCM capabilities (both sold separately).
3. Requires compatible HDTV connected by HDMI cable (both sold
separately). Sound quality will vary depending on source.
4. Works with other BRAVIA® Sync or Theatre Sync™
labeled home
audio/video products when connected via HDMI
™
interface.
5. Deep Color and x.v. Color
™
technology are supported only when
source product, HDMI
™
cable, media and HDTV all support those
features.
6. iPod® support is limited to the following players with the optional dock:
iPod® touch, iPod® classic, iPod® Nano 1st, 2nd & 3rd generation,
iPod
® 4th& 5th generation &iPod®
Mini. The optional TDM-IP50 dock
will support iPhones as well.
7. 24p playback capable device required, sold separately.
